Abstract
Category:
Sports, Trauma, Achilles Tendon
Introduction/Purpose:
Two out of three patients Achilles tendon ruptures have limited plantarflexor function 1-year following Achilles tendon rupture. While tendon elongation has been reported as a possible mechanism of functional deficits, the effects of rupture on plantarflexor muscle structure has not been as rigorously investigated. A recent study found that gastrocnemius fascicle length was decreased 6-months following Achilles tendon rupture compared to the uninjured limb. However, the changes in muscle structure following the first month of injury – when the healing tendon is most susceptible to elongation – has not yet been established. The purpose of this study was to quantify the structural changes to the medial gastrocnemius in patients who suffered acute Achilles tendon ruptures and were treated non-operatively.
Methods:
To test our hypothesis that plantarflexor structure would undergo rapid remodeling following Achilles tendon rupture, we quantified muscle structure in ten patients (9 male, Age: 44 ± 12; BMI: 28.6 ± 6.5) who provide informed written consent in this IRB approved study. We acquired B-mode ultrasound images of the medial gastrocnemius muscle at the initial presentation (week 0), two weeks, and four weeks following the injury. The same investigator acquired all the ultrasound images and measured fascicle length, pennation angle, muscle thickness, and echo intensity. These measurements had a coefficient of variation less than 10%. We compared these structural measurements of the injured muscle at each time point with the contralateral muscle scans at the initial presentation using paired t-tests.
Results:

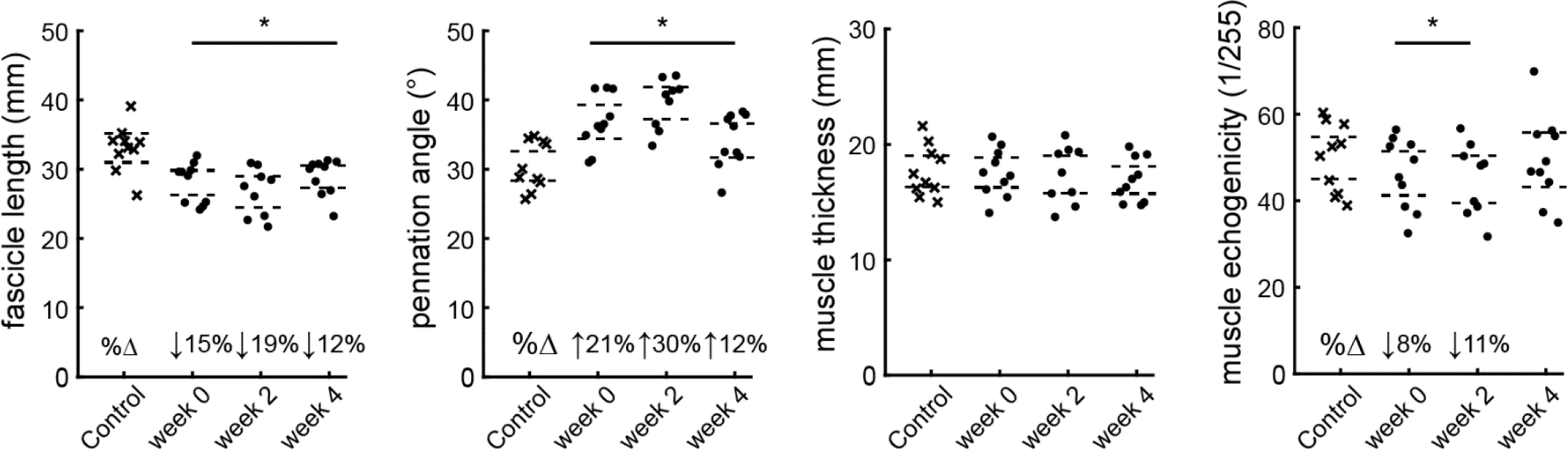

Gastrocnemius muscle structure following an acute Achilles tendon rupture differed with the healthy-contralateral muscle throughout the first four weeks following injury (Figure). Fascicle length was 15% shorter (P < 0.001) and pennation angle was 21% greater (P < 0.001) at the presentation of injury (week 0). These differences in fascicle length (P < 0.001) and pennation angle persisted throughout the 4 weeks after the injury (P < 0.008). Muscle thickness changes were not detected at any of the post-injury visits. Muscle quality, measured as mean echo intensity, was 8% lower in the injured limb immediately (P= 0.008) and 11% lower 2 weeks following injury (P < 0.001). At week 4 muscle quality had returned to within 1% of the contralateral limb (P = 0.393).
Conclusion:
Our findings support our hypothesis that the gastrocnemius muscle fascicles of the affected side would demonstrate shorter length and greater pennation angle than the contralateral control muscle. These findings are a preliminary set of data from a larger clinical cohort of patients that were enrolled in an ongoing 1-year long prospective study. Achilles tendon ruptures elicit rapid changes in the configuration and quality of the medial gastrocnemius, which may explain long-term functional deficits.
