The QGIS Polygon Divider: Polygon partition into an irregular equal area grid

Abstract

The QGIS ‘Polygon Divider’ plugin solves the problem of partitioning an arbitrarily complex polygon into an irregular grid of equal area rectangles, which has a range of applications for city science and GIS more broadly. This is achieved by the iterative partition of the polygon using cutlines that are located using Brent’s method, which is an efficient optimisation algorithm. At the time of release, this was the only tool with such functionality in a major GIS platform, though the functionality has since been replicated.

Introduction

Polygon partitioning (i.e. subdivision based on some geometric criteria) is a popular topic in computational geometry, with common examples including triangulation (partitioning into triangles) and monotonic decomposition (partitioning into a set of monotonic polygons) (De Berg et al., 2008). This research presents an algorithm to partition an arbitrarily complex polygon into an irregular grid of equal area rectangles (i.e. ‘equipartition’ into an irregular rectangular grid). The user can specify either the desired cell area, or the desired number of cells, which simply comprises partitioning into cells of size $\raisebox{1ex}{$A$}\!\left/ \!\raisebox{-1ex}{$n$}\right.$ , where $A$ is the area of the polygon. In the context of city science, this is particularly useful where the desired size of the divisions is smaller than available small area geographies, where the phenomena being studied does not relate to population demographics (e.g. urban heat island effect), or in settings where administrative divisions are not available (e.g. informal settlements).

Equipartition is an active area of research, though is rarely discussed in the context of city science or GIS applications. Existing applications in the literature are limited to the partition of convex polygons (e.g. Armaselu and Daescu, 2015; Guàrdia and Hurtado, 2005); or require that the partitions are connected to the polygon boundary (as in slicing a pizza; e.g. Abrahamsen and Rasmussen, 2025; Blagojević and Ziegler, 2014). Neither of these limitations are acceptable for GIS or city science applications. An alternative approach for equipartition into an irregular grid uses a point placement algorithm called ‘Lloyd’s Relaxation’ (Deussen, 2009). This method constructs Voronoi polygons around a set of random points within the polygon, and then iteratively optimises the point locations to equalise the polygon areas (Campillo et al., 2024). However, the reliance on Voronoi polygons means that the polygon boundary is not preserved, as can be seen in Wood (2022), which again is unacceptable for most GIS applications.

At the time that the plugin was created, this functionality was not available in any major GIS software or library. A similar solution for polygon partition subdivision based on cutline optimisation using Brent’s method had previously been implemented for ArcView 3.x by William Huber, but this also required that partitions are connected to the polygon boundary (as in slicing a loaf of bread). This tool is no longer available, though a description of the approach in an online forum provided the basis for the approach taken here (Huber, 2011). Since the release of the QGIS plugin, a similar tool has been added to ArcGIS Pro, but the documentation gives no explanation of the algorithm (ESRI, 2024).

Algorithm description

The plugin can be installed from the official QGIS plugin repository using the QGIS Plugin Manager. To operate the plugin, the user simply uses the dialogue to set the input and output files, desired target area or number of divisions, cut direction (left to right, top to bottom, right to left, and bottom to top), tolerance (how close each polygon can be to the desired area), rotation (of the grid axes relative to the polygon), and whether ‘offcuts’ should be divided and absorbed into the partitions or left as a separate polygon. For example, if a user required to divide a polygon of 104 m² into subdivisions of 25 m², then the result could be either 4 polygons of 26 m² (where the ‘Absorb Offcuts’ checkbox is checked), or 4 polygons of 25 m² plus one ‘offcut’ of 4 m² (where it is un-checked). The user dialogue is shown in Figure 1.

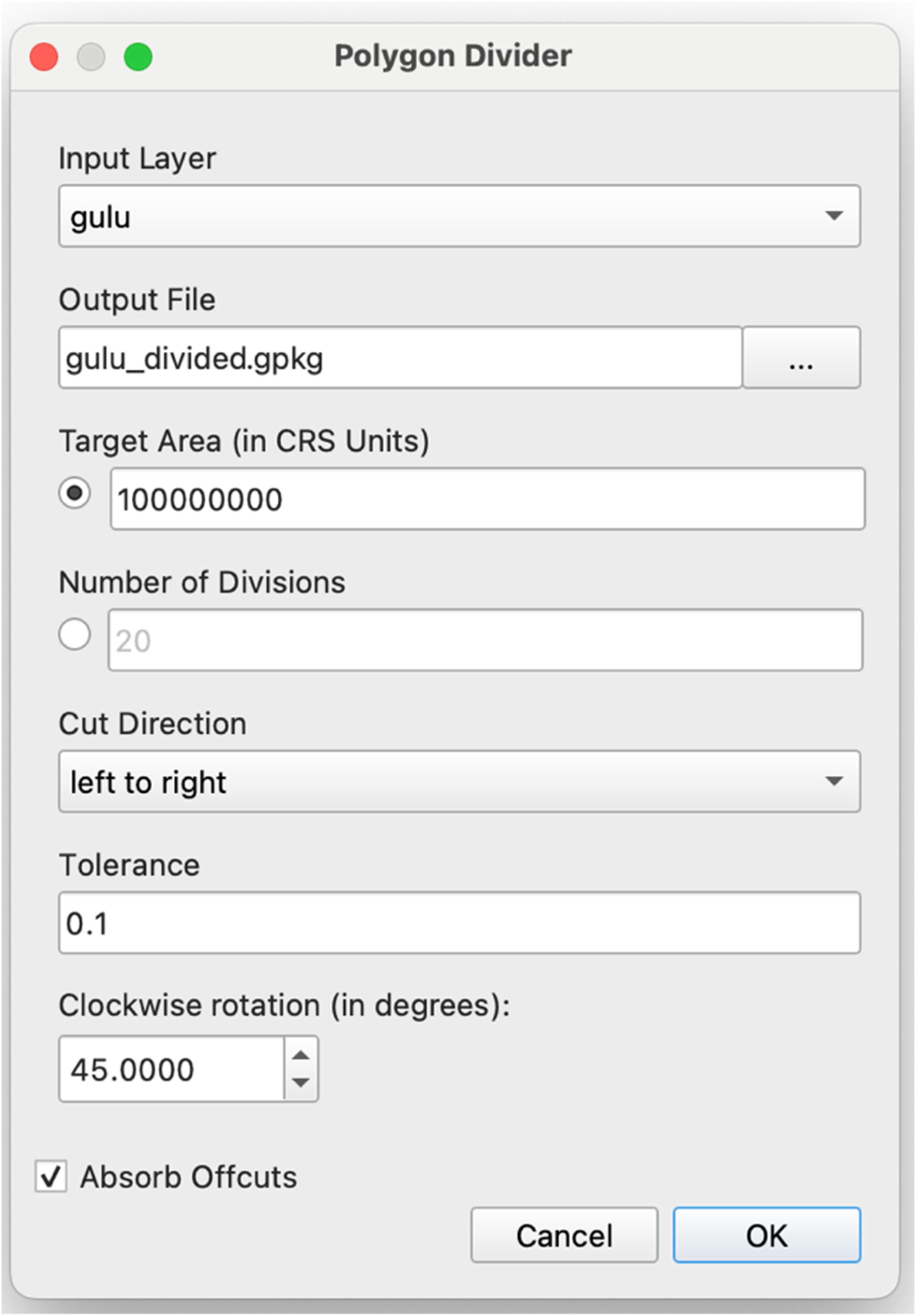

Figure 1.

The dialogue window for the QGIS Polygon Divider Plugin.

The proposed method requires that the input polygon(s) must be projected using a two-dimensional Cartesian ( $x,y$ ) coordinate reference system. The plugin attempts to detect geographical coordinate systems in the input layer and raises an error if one is found. Prior to the operation, all polygons in the input layer are placed into a queue, with any multi-polygons first separated and added to the queue individually. The polygons are then drawn from the queue in turn for partition, the first step of which is to take a ‘slice’ along one axis, the area of which is a multiplier of the target area ( $n·\alpha$ , where $\alpha$ is the desired area and $n$ is the multiplier). In the second step, that ‘slice’ is then divided into $n$ polygons of area $\alpha$ , which are appended to the output dataset. This method is operationalised using the algorithm illustrated in Figure 2.

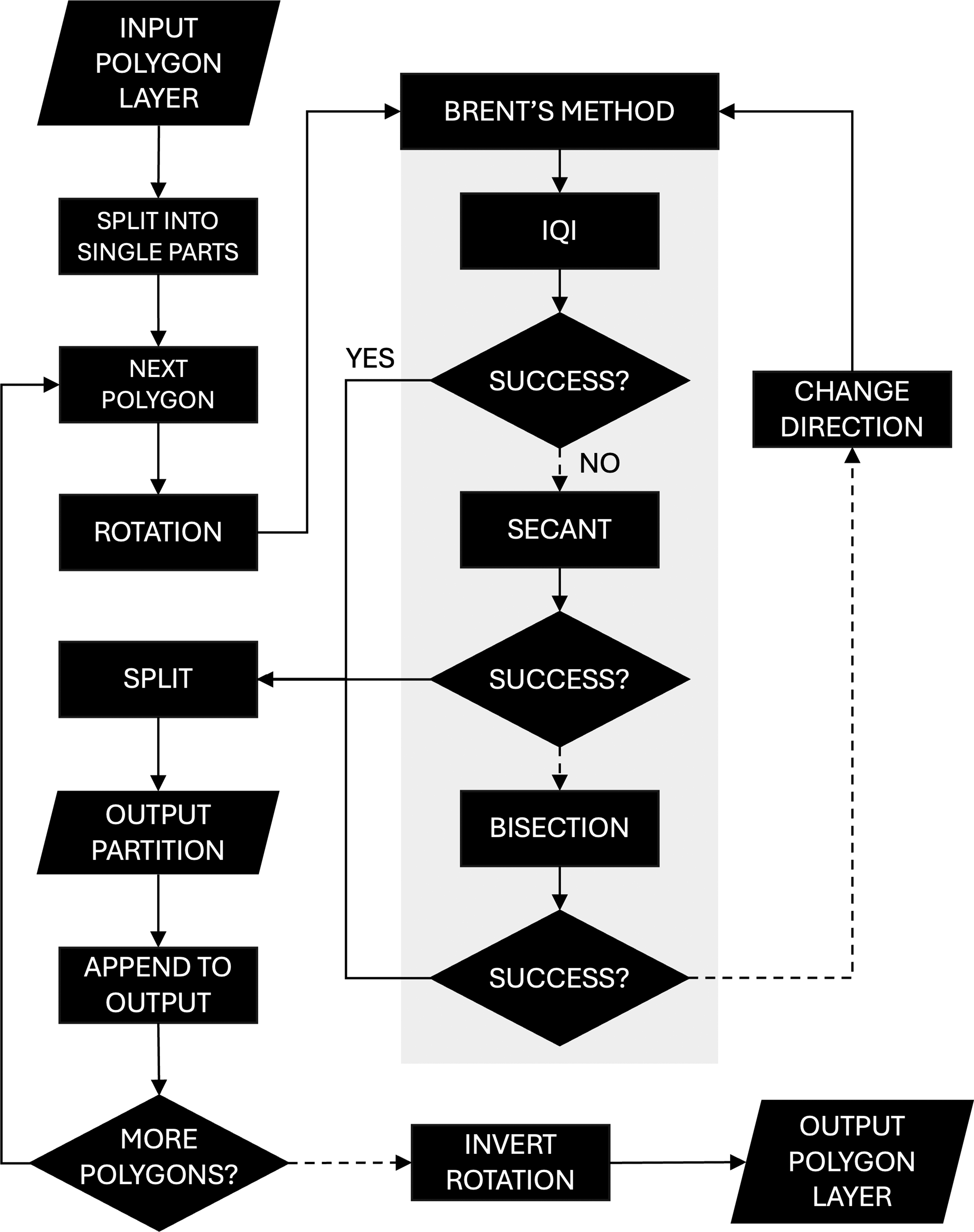

Figure 2.

Diagram illustrating the algorithm.

To achieve the above, the first task is to determine the target area of the initial ‘slice’. The side length of a square of area $\alpha$ is calculated ( $\sqrt{\alpha }$ ) and the area of a slice of this width cut from the specified side of the input polygon (as per the ‘Cut Direction’ option) is calculated. This value is then divided by $\alpha$ and rounded to the nearest whole number, which is the number of divisions ( $n$ ) that should be included in the slice. A slice of area $n·\alpha$ can then be split from the input polygon for further subdivision. The algorithm then proceeds along the slice perpendicular to the specified ‘Cut Direction’, cutting it $n-1$ times into polygons of area $\alpha$ , each of which is appended to the output dataset. This process is illustrated in Figure 3.

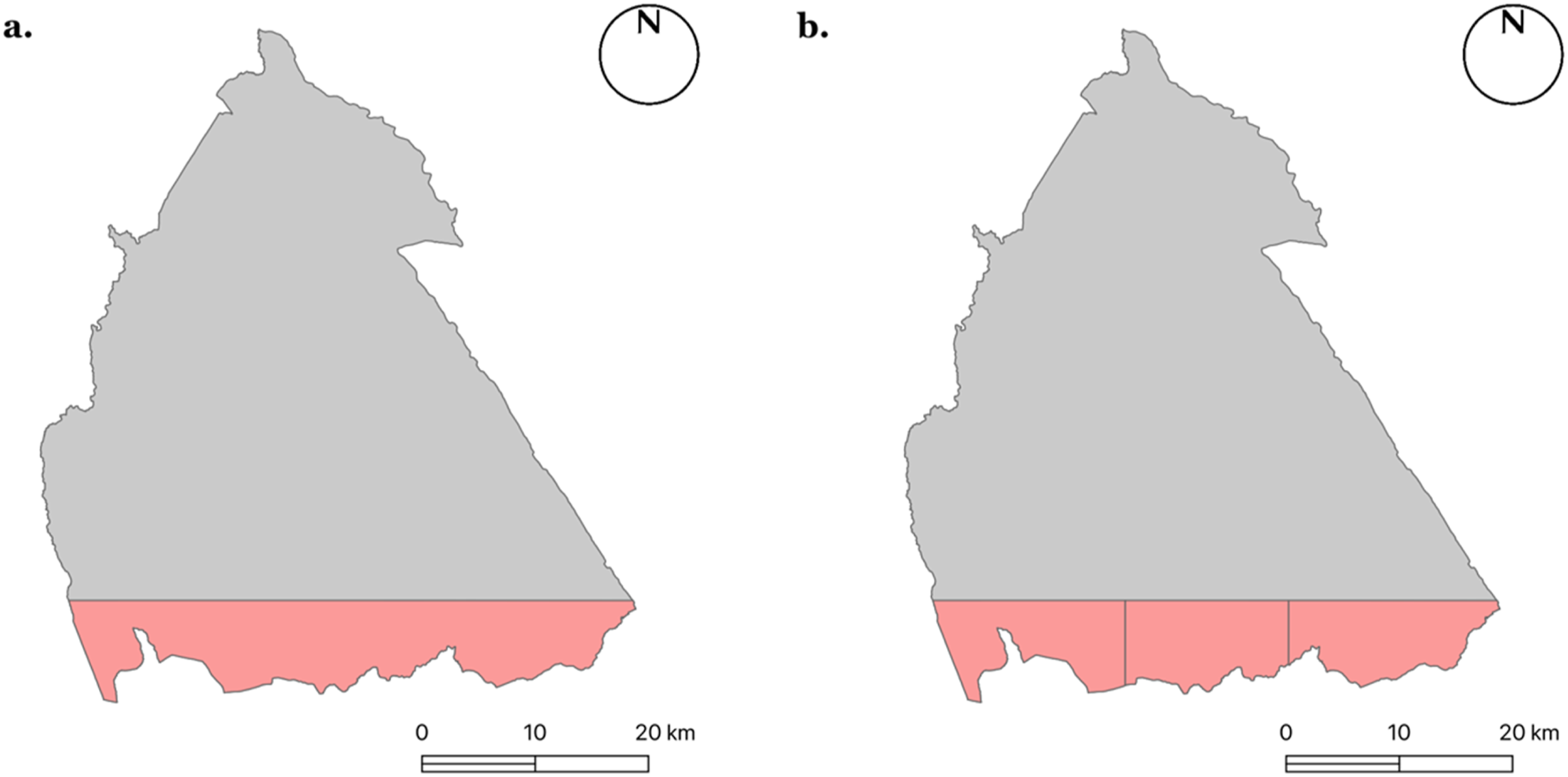

Figure 3.

An illustration of the approach to equipartition into an irregular rectangular grid, whereby (a) a large ‘slice’ is first extracted, and then (b) is further divided into polygons of the desired area (with the cut direction perpendicular to that in a).

Equipartition is achieved by optimising the location of a cutline that is used to split the polygon. The optimisation technique is Brent’s method (1971), which is a function rooting algorithm: for a given function $f\left(c\right)$ , this method will approximate the value of $c$ such that $-\delta <f\left(c\right)<\delta$ (the function root), where $\delta$ is a threshold value (set by the user as tolerance in the dialogue). Brent’s method is an improvement on an earlier method presented by Dekker (1969) and comprises three iterative approaches to function rooting, each of which provides a less efficient but more reliable fallback to the others if they fail. The first and most efficient approach in Brent’s method is to use inverse quadratic interpolation (IQI) to find the function root by selecting three points on the function and calculating a ‘sideways’ Lagrange polynomial that passes through them. The polynomial is calculated ‘sideways’ (i.e. swapping x and y values in the Lagrange equations) so that it will intersect the x-axis at only one location. The x-intercept ( $c$ ) is then located and the process is repeated to iteratively calculate new polynomials until the root is discovered.

However, the IQI method will fail if it encounters two equal values within its three points (e.g. $f\left(c_1\right)=f\left(c_2\right)$ ). In this case, the algorithm will fall back to the secant method, in which we construct a secant line between a pair of points on the function curve, one of which is on either side of 0 on the x-axis. $f\left(c\right)$ is then calculated, where $c$ is the location at which the secant line intersects the x-axis, and the point of the same sign is replaced with this new point. The process is then repeated until the root is discovered. However, the approach will fail if a secant line does not intersect the x-axis. In this case, the algorithm falls back to the bisection method, which is guaranteed to find the root, but is comparatively inefficient. This approach simply comprises selecting two points on the x-axis that enclose the root, bisecting the line between them at point $c$ and testing which pair of the resulting three points now enclose the root. This pair is then bisected in turn, and the process is repeated until the root is discovered. The algorithm returns to IQI and repeats the fallback process at each iteration, and the first iteration will always fall back to the secant or bisection only two points are initially defined. A more detailed explanation of this method, including further optimisations such as skipping the secant method when it is expected to fail, is beyond the scope of this manuscript, but the full details complete with a reference implementation is given in Brent (1971).

To apply Brent’s method to polygon subdivision, the function parameter ( $c$ ) is a coordinate on the axis along which we are cutting (i.e. $x$ if cutting left-right and $y$ if cutting bottom-top). This coordinate is used to determine the position of a cutline that stretches across the bounding box of the input polygon perpendicular to the direction of cutting and is used to split the polygon using a standard geometric operator. The function is then defined as per equation (1).

$f\left(c\right)=\alpha -{\alpha }_t$

(1)

where $\alpha$ is the area of the polygon that was cut from the input polygon using the line defined by $c$ , and $a_t$ is the target area (such that $f\left(c\right)=0$ where $\alpha ={\alpha }_t$ ). The creation of the cutline (cutting bottom to top) is illustrated in Figure 4(a). By applying the above process to each polygon in the input dataset, a polygon of arbitrary complexity can be equipartitioned into an irregular rectangular grid, as per Figure 4(b). The same operation with a 45° rotation applied is illustrated in Figure 4(c).

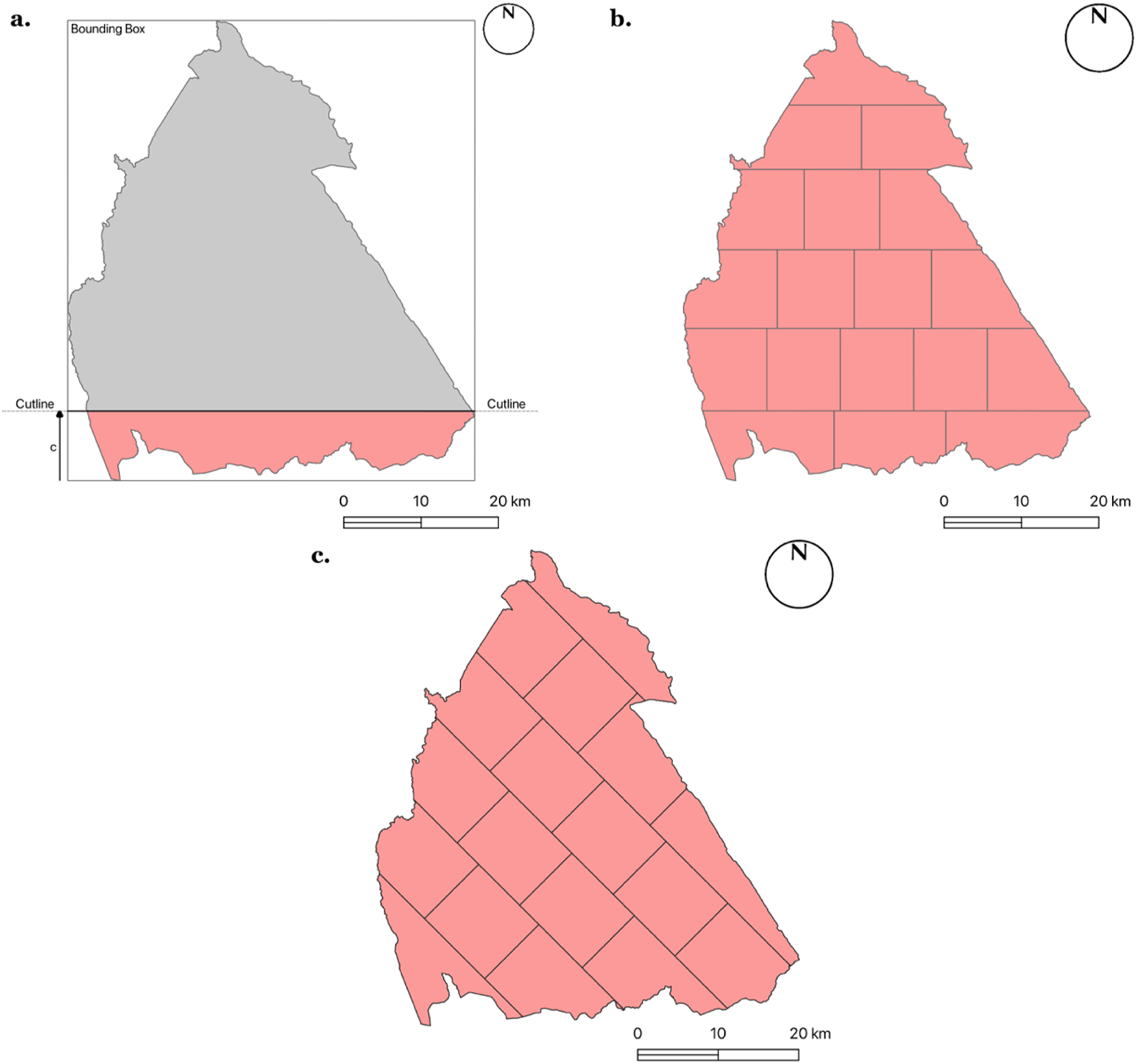

Figure 4.

(a) An illustration of the construction of a cutline moving from the bottom of the polygon. (b) The results of the QGIS Polygon Divider Plugin, equipartitioning the boundary of Gulu District (Uganda) into an irregular rectangular grid of 100,000 km² cells. (c) The results of the same division with a 45° rotation.

Brent’s method is guaranteed to converge for functions that are computable within the interval of the two initial points (Brent, 2013). However, this condition is not necessarily met in the case of an arbitrarily complex polygon, as the relationship between the cutline coordinate and area can behave in a non-continuous manner in some geometries. One example of this can be illustrated by a horizontal cutline progressing downward from the top-left end of a ‘W’ shaped polygon (Figure 5). As the cutline passes the point in Figure 5(a), the area of the subdivision instantaneously increases (Figure 5(b)), resulting in a non-continuity in the function meaning that it does not intersect the x-axis, and hence has no root. This situation is resolved by simply changing the cut direction and resuming the partition operation, which allows the method to complete successfully.

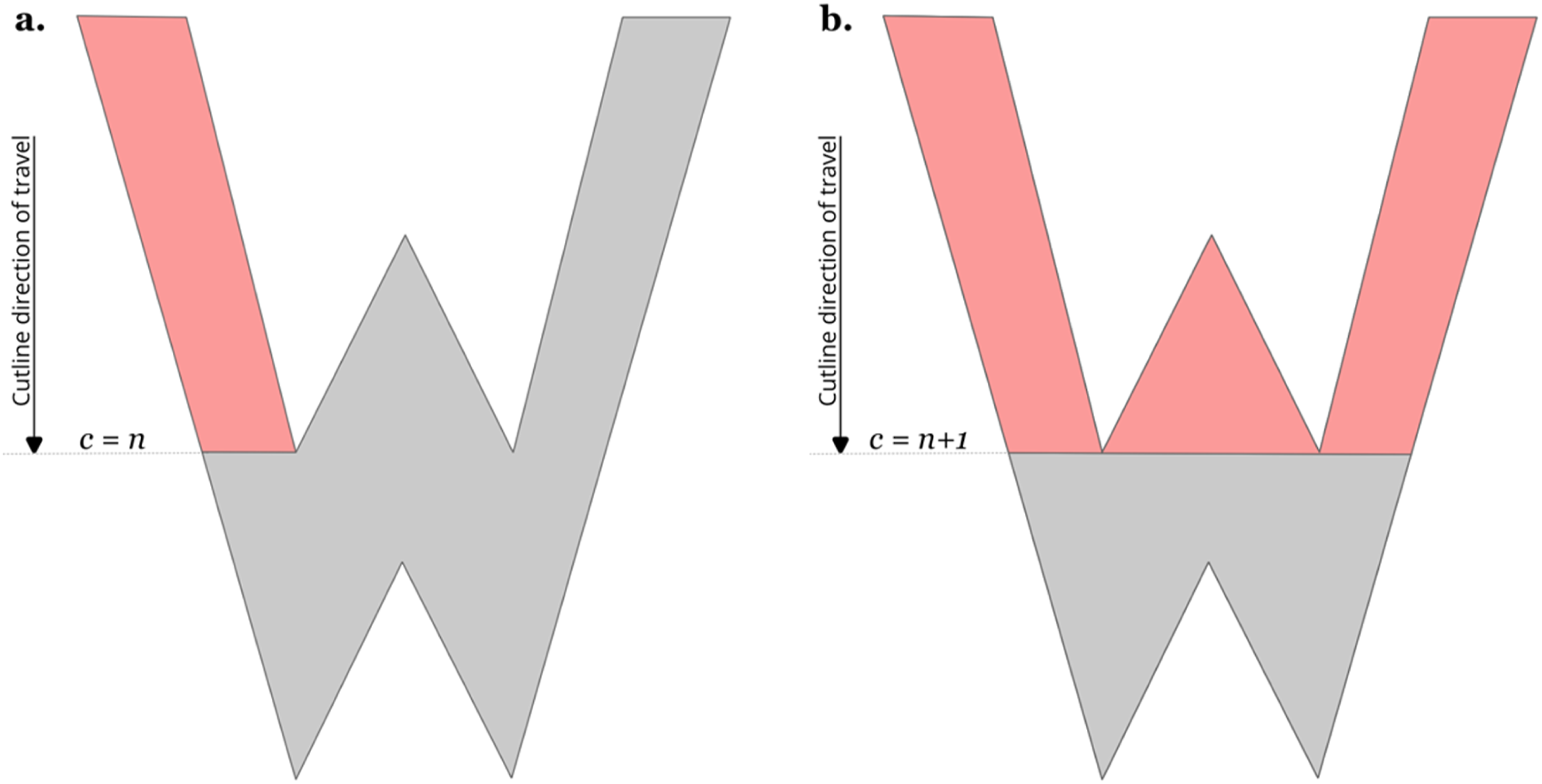

Figure 5.

As the cutline moves from location $c=n$ (a) to location $c=n+1$ (b), a discontinuity is created in the function $f$ . The problem is resolved by simply changing the cut direction and resuming the operation.

The efficiency of this method is a composite of the cost of the function evaluation, which is $O\left(n\right)$ ; and the iteration complexity of Brent’s method. In the worst case (i.e. where only bisection is used), this is $O\left(\hspace{0.17em}\mathit{log}\frac{1}{\epsilon }\hspace{0.17em}\right)$ , where $\epsilon$ is the specified tolerance. In practice, convergence is superlinear, with rate closer to $O\left(\log \hspace{0.17em}\log \frac{1}{\epsilon }\hspace{0.17em}\right)$ , although the asymptotic worst-case complexity remains $O\left(\mathrm{n}\hspace{0.17em}·\hspace{0.17em}\log \frac{1}{\epsilon }\hspace{0.17em}\right)$ . The convergence behaviour depends on the area function $f\left(c\right)$ , which governs the relative use of IQI (order ≈1.84), secant (order ≈1.62), and bisection (order = 1.0).

Conclusion

The algorithm was originally developed in support of a national methodology for litter monitoring in urban areas in Scotland (Zero Waste Scotland, 2018b), which is a legal requirement for UK duty bodies (e.g. local authorities) and statutory undertakers (e.g. railway operators) (UK Government, 1990; Zero Waste Scotland, 2018a). The software is used to partition all eligible land into 1000 m² zones, which are then classified and a subset selected for ongoing monitoring using a grading system (Zero Waste Scotland, 2018b). Other research applications of the algorithm in the urban planning literature includes analysis of transport accessibility (Wang et al., 2019), greenspace exposure (Labib et al., 2021), and urban habitat restoration (Boncourt et al., 2024). Given that the problem of polygon equipartition into an irregular grid is relatively fundamental to GIS, it has also found research applications beyond city science, including habitat diversity (Fernández-García et al., 2021), ecology (Huylenbroeck et al., 2021), and sustainable forestry planning (Picchio et al., 2020). Future developments will explore the potential to improve the efficiency of the algorithm, for example, through the use of alternative approaches to Brent’s method (e.g. replacing IQI with using hyperbolic extrapolation, Bus and Dekker, 1975), or alternative approaches to function rooting (e.g. Ridders, 1979).
