Synthesis and characterization of synthetic oil based nanolubricants infused with modified samarium oxide: Influence of desiccation time and concentration

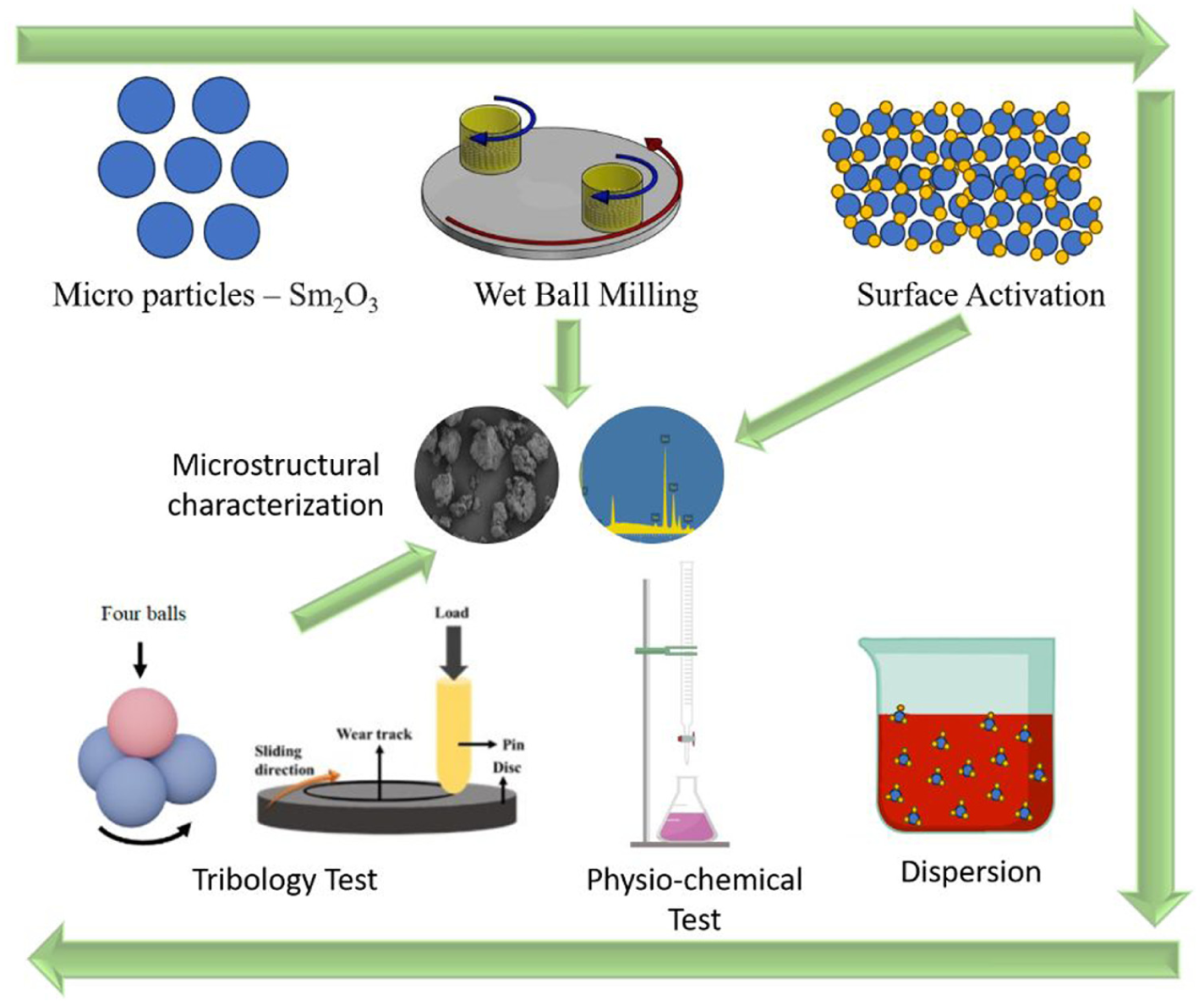

This study involved synthesizing nanolubricants by incorporating Sm2O3 into SAE20W40 base lubricant. The effects of different desiccation times after surface modification with stearic acid were analyzed. Five different weight percent concentrations of SAN12, SAN24, and SAN36 particles were added to the base lubricant. The physicochemical properties of the synthesized nanolubricants, including calorific value, flash point, fire point, and viscosity, were investigated. Dispersion stability, bond analysis, acid value, and thermal stability were also evaluated for these nanolubricants. Subsequent research involved evaluating the tribological characteristics of these nanolubricants using a pin-on-disc tribometer and four-ball tester. The pin-on-disc test exhibited a decreasing trend, with a maximum reduction of 40% in coefficient of friction and a 69.9% decrease in wear rate. Subsequently, as the concentration increased, values began to rise. In four-ball testing, a 34.2% decrease in coefficient of friction was observed.
DuSSunJWuP.Preparation, characterization and lubrication performances of graphene oxide–TiO2 nanofluid in rolling strips. Carbon2018; 140: 338–351.
2.
AhmerSMHJanLSSiddigMA, et al. Experimental results of the tribology of aluminum measured with a pin-on-disk tribometer: testing configuration and additive effects. Friction2016; 4(2): 124–134.
3.
FoxMF. Chemistry and technology lubricants, Vol.107115. Dordrecht: Springer, 2010.
4.
StachowiakGWBatchelorAW.Lubricants and their composition. In: Engineering tribology, 2006, pp.51–101.
5.
RamprakaashSMuralidharanKVaira VigneshRet al. Tribological characterization of SAE20W40 lubricant added with surface activated nanoparticles (Al2O3 and SiO2). Proc Inst Mech Eng N J Nanomater Nanoeng Nanosyst2024, pp.1–18.
6.
HwangYLeeCChoiY, et al. Effect of the size and morphology of particles dispersed in nano-oil on friction performance between rotating discs. J Mech Sci Technol2011; 25(11): 2853–2857.
7.
MortierRMFoxMFOrszulikST.Chemistry and technology of lubricants. 3rd ed.Springer, 2010, pp.1–560.
8.
LiuGLiXQinB, et al. Investigation of the mending effect and mechanism of copper nano-particles on a tribologically stressed surface. Tribol Lett2004; 17(4): 961–966.
9.
TaoXJiazhengZKangX.The ball-bearing effect of diamond nanoparticles as an oil additive. J Phys D Appl Phys1996; 29(11): 2932.
10.
KotiaARajkhowaPRaoGS, et al. Thermophysical and tribological properties of nanolubricants: a review. Heat Mass Transf2018; 54(11): 3493–3508.
11.
KarimiASadatluMAASaberiB, et al. Experimental investigation on thermal conductivity of water based nickel ferrite nanofluids. Adv Powder Technol2015; 26(6): 1529–1536.
12.
LuoTWeiXZhaoH, et al. Tribology properties of Al2O3/TiO2 nanocomposites as lubricant additives. Ceram Int2014; 40(7): 10103–10109.
13.
RamakrishnanBElumalaiSMayakrishnanJ, et al. Investigation on tribological performance of nanoZnO and mixed oxide of Cu–Zn as additives in engine oil. SAE Tech Pap, 2020.
14.
KotiaABorkakotiSGhoshSK.Wear and performance analysis of a 4-stroke diesel engine employing nanolubricants. Particuology2018; 37: 54–63.
15.
TóthÁSzabóÁLeskóM, et al. Tribological properties of the nanoscale spherical Y2O3 particles as lubricant additives in automotive application. Lubricants2022; 10(2): 28.
16.
UflyandIEZhinzhiloVABurlakovaVE.Metal-containing nanomaterials as lubricant additives: state-of-the-art and future development. Friction2019; 7(2): 93–116.
17.
KujurMSManakariVParandeG, et al. Effect of samarium oxide nanoparticles on degradation and invitro biocompatibility of magnesium. Mater Today Commun2021; 26: 102171.
18.
EtriHELSinglaAKÖzdemirMT, et al. Wear performance of Ti–6Al–4V titanium alloy through nano-doped lubricants. Arch Civ Mech Eng2023; 23(3): 147.
19.
Taha-TijerinaJCastilloFLealJ, et al. Nanoparticles of Zn and ZnO as extreme pressure (EP) additives for lubricants. J Appl Res Technol2018; 16(5): 394–403.
20.
KannanKTRameshbabuS.Tribological properties of modified jojoba oil as probable base stoke of engine lubricant. J Mech Sci Technol2018; 32(4): 1739–1747.
21.
Vinoth kumarARubanRMohitH, et al. Study and investigation of tribological functions of nano additive with SAE40/W20 oil on EN 19. In: International Conference on Advances in Mechanical Engineering and Material Science, 2022, pp.171–180.
22.
RainaAAnandA.Tribological investigation of diamond nanoparticles for steel/steel contacts in boundary lubrication regime. Appl Nanosci2017; 7(7): 371–388.
23.
KarthikeyanKMBVijayanandJArunK, et al. Thermophysical and wear properties of eco-friendly nano lubricants. Mater Today Proc2021; 39: 285–291.
24.
GrewalHSSinghSSinghH, et al. Effect of some additives on tribological properties of SAE20W40 lubricant. In: Advances in Manufacturing Engineering: Selected Articles from ICMMPE, 2019, pp.131–108.
25.
DesaiNNagarajAMSabnisN.Analysis of thermo-physical properties of SAE20W40 engine oil by the addition of SiO2 nanoparticles. Mater Today Proc2021; 47: 5646–5651.
26.
CharooMSWaniMFHaniefM, et al. Tribological properties of MoS2 particles as lubricant additive on EN31 alloy steel and AISI 52100 steel ball. Mater Today Proc2017; 4(9): 9967–9971.
27.
ShankarSManikandanMKarupannasamyDK, et al. Investigations on the tribological behaviour, toxicity, and biodegradability of kapok oil bio-lubricant blended with (SAE20W40) mineral oil. Biomass Convers Biorefin2023; 13(5): 3669–3681.
28.
Ajay VardhamanBSAmarnathMRamkumarJ, et al. Experimental investigations to enhance the tribological performance of engine oil by using nano-boric acid and functionalized multiwalled carbon nanotubes: a comparative study to assess wear in bronze alloy. J Mater Eng Perform2018; 27(6): 2782–2795.
29.
DineshRPrasadMJGKumarRR, et al. Investigation of tribological and thermophysical properties of engine oil containing nano additives. Mater Today Proc2016; 3(1): 45–53.
30.
AliMKAXianjunHMaiL, et al. Improving the tribological characteristics of piston ring assembly in automotive engines using Al2O3 and TiO2 nanomaterials as nano-lubricant additives. Tribol Int2016; 103: 540–554.
31.
Thirumalai KannanKRameshBabuS. Tribological behavior of modified jojoba oil with graphene nanoparticle as additive in SAE20W40 oil using pin on disc tribometer. Energy Sources A2017; 39(17): 1842–1848.
32.
NavadaMKRaiRGaneshaA, et al. Synthesis and characterization of size controlled nano copper oxide structures for antioxidant study and as eco-friendly lubricant additive for bio-oils. Ceram Int2023; 49(7): 10402–10410.
33.
RajkumarRMKiruthigaKIndujaS, et al. Studies on tribological behaviour of ZnO nanorods suspended in SAE20W40 engine oil. Solid State Commun2021; 328: 114235.
34.
AravindAJoyMLNairKP. Lubricant properties of biodegradable rubber tree seed (Hevea brasiliensis Muell. Arg) oil. Ind Crops Prod2015; 74: 14–19.
35.
SajeebARajendrakumarPK.Tribological assessment of vegetable oil based CeO2/CuO hybrid nano-lubricant. Proc Inst Mech Eng J J Eng Tribol2020; 234(12): 1940–1956.
36.
SinghYGargRKumarS.Retracted article. Effect of sliding speed and temperature on the tribological behavior of pongamia oil-based blended lubricant. Energy Sources A2019; 41(4): 468–480.
37.
PownrajCArasuAV.A comprehensive investigation on wear and thermo-physical properties of bio-char/SAE20W40 nanolubricant. Biomass Convers Biorefin2022; 15: 29875–29891.
38.
SrinivasVThakurRNJainAK.Antiwear, antifriction, and extreme pressure properties of motor bike engine oil dispersed with molybdenum disulfide nanoparticles. Tribol Trans2017; 60(1): 12–19.
39.
WuYYTsuiWCLiuTC.Experimental analysis of tribological properties of lubricating oils with nanoparticle additives. Wear2007; 262(7–8): 819–825.
40.
LiuLFangZGuA, et al. Lubrication effect of the paraffin oil filled with functionalized multiwalled carbon nanotubes for bismaleimide resin. Tribol Lett2011; 42(1): 59–65.
41.
Guzman BordaFLRibeirodeOliveiraSJSeabraMonteiroLazaroLM, et al. Experimental investigation of the tribological behavior of lubricants with additive containing copper nanoparticles. Tribol Int2018; 117: 52–58.
42.
ReddyMKMuralidharanKSharath ChandraR, et al. Influence of nanophase particles on the physical, chemical and tribological characteristics of SAE15W40. J Bio Tribo-Corros2023; 9(1): 20.
43.
TantraRJingSPichaimuthuSK, et al. Dispersion stability of nanoparticles in ecotoxicological investigations: the need for adequate measurement tools. J Nanoparticle Res2011; 13(9): 3765–3780.
44.
KalamMAMasjukiHHChoHM, et al. Influences of thermal stability, and lubrication performance of biodegradable oil as an engine oil for improving the efficiency of heavy duty diesel engine. Fuel2017; 196: 36–46.
45.
XieQZhuHXuP, et al. Transesterification of methyl oleate for sustainable production of biolubricant: process optimization and kinetic study. Ind Crops Prod2022; 182: 114879.
46.
Afsal AbdurahimanKT. Characteristical study of coconut oil based nano lubricant. SSRN Electron J2019.
47.
OwunaFJDabaiMUSokotoMA, et al. Chemical modification of vegetable oils for the production of biolubricants using trimethylolpropane: a review. Egypt J Petrol2020; 29(1): 75–82.
48.
PownrajCValan ArasuA.Effect of dispersing single and hybrid nanoparticles on tribological, thermo-physical, and stability characteristics of lubricants: a review. J Therm Anal Calorim2021; 143(2): 1773–1809.
49.
MaJShahsavarAAl-RashedAAAAKarimipourA, et al. Viscosity, cloud point, freezing point and flash point of zinc oxide/SAE50 nanolubricant. J Mol Liq2020; 298: 112045.
50.
SajithVMohiddeenMSajanishMB, et al. An investigation of the effect of addition of nanoparticles on the properties of lubricating oil. In: ASME/JSME 2007 thermal engineering heat transfer summer conference collocated with the ASME 2007 InterPACK conference, 2007, vol. 2, pp.329–335.
51.
Mohan KumarKAfzalARamisM K P A College. Investigation of physicochemical and tribological properties of TiO2 nano-lubricant oil of different concentrations. Tribol Finn J Tribol2024; 35(3): 6–15.
52.
SrivyasPDCharooMS.A review on tribological characterization of lubricants with nano additives for automotive applications. Tribol Ind2018; 40(4): 594–623.
53.
RameshDGiri PrasadMJAbhishek RaajAS, et al. Investigation of tribological and thermophysical properties of base oil containing nanoparticles as additives. Adv Mater Proc2018; 3(2): 108–111.
54.
Chandhan KumarVRajesh KannanKSrivathsanG, et al. Tribological characterization of functionally gradient composite (Cu–Fe–CeO2–Al2O3–Cg) for wind turbine brake pad. Tribol Mater Surf Interfaces2023; 17(1): 3–21.
55.
Rajesh KannanKVaira VigneshRPavan KalyanK, et al. Development and tribological characterization of fly ash reinforced iron based functionally gradient friction materials. Eng Rev2024; 41(3): e30765.
56.
VigneshRVPranayVSKotaPK, et al. Tribological performance of the continuous steel fiber-reinforced Cu based friction material for heavy-duty braking applications. Tribol Finn J Tribol2022; 39(1−2): 30−38.
57.
RajeshKKVairaVRGovindarajuM, et al. Influence of rare Earth oxide and graphite on the mechanical and tribological properties of Fe/Cu based sintered friction materials. Sci Sinter2023; 56(1): 34.
