Unusual Case of Diffuse Neonatal Hemangiomatosis Case Report and Literature Review

Abstract

Diffuse neonatal hemangiomatosis (DNH) is an infrequent condition characterized by the simultaneous occurrence of multiple cutaneous hemangiomas and the involvement of 3 or more organs. DNH is suspected when multiple hemangiomas are identified on the skin of the infant. Although it is benign in nature, DNH can lead to critical and life-threatening complications. Diagnosis primarily relies on clinical evaluation with a significant emphasis on imaging techniques. In this case report, we present an unusual pediatric case of diffuse infantile hemangioendothelioma, for which the investigative approach included ultrasound and CT scans. These imaging methods were instrumental in revealing the presence of lesions in the liver, thyroid, and brain, ultimately playing a pivotal role in making the diagnosis of DNH. A positive clinical and biological improvement was observed with corticosteroid treatment during a 3-month follow-up.

Introduction

Diffuse neonatal hemangiomatosis (DNH) is a rare condition characterized by onset in the neonatal period. It is non-malignant and distinguished by the presence of multiple cutaneous hemangiomas and the simultaneous involvement of 3 or more organs beyond the skin. The appearance of cutaneous hemangiomas may raise suspicion, leading to an investigation into potential visceral involvement.^1,2 Lower gestational age and birthweight are associated with a higher risk of infantile hemangioma. Despite being a benign vascular tumor, DNH can lead to life-threatening complications, including conditions such as congestive heart failure, abdominal compartment syndrome, consumptive thrombocytopenia, and consumptive hypothyroidism. ³

Case Report

Our case is a boy born by spontaneous vaginal delivery with no signs of distress, weighing 3200 g. Following birth, numerous cutaneous lesions were recognized and diagnosed as multiple hemangiomas, no farther exploration was requested. Three months later he was admitted to our pediatric hospital due to recent abdominal distention and the appearance of jaundice associated with moderate tachypnea. His examination revealed large hepatomegaly, the liver was palpable 4 cm under the right costal margin with an enlargement of both right and left hepatic lobes, conjunction of cutaneous strawberry-like hemangiomas over the skin (Figure 1). Neurological examination revealed a hypotonic child without focal neurological deficits.

Figure 1.

Multiple cutaneous hemangiomas of the patient (black arrows).

The blood tests revealed several hematologic abnormalities, including moderate anemia and thrombocytopenia. Further biological tests uncovered elevated TSH levels (13 mU/L) along with low values of T3 (0.4 ng/ml), confirming the biological diagnosis of hypothyroidism. Liver function tests, including bilirubin (35 U/L), GGT (15 U/L), AST (78 U/L), ALT (91 U/L), and ALP (682 U/L), indicated increased levels of liver enzymes. Additionally, the biological investigation identified elevated levels of AFP (230 ng/ml), an uncommon finding but reported in some literature. There was no evidence of ABO or Rh incompatibility. Screenings for sepsis, TORCH, and metabolic disorders were mostly negative.

Abdominal ultrasound showed multifocal uniformly hypo-echoic mass ravishing most of the hepatic lobes (Figure 2). A quick US probe sweep of the thyroid revealed a clear homogenous hypotrophy of the gland (Figure 3) and a transfontanel US showed hydrocephalus with signs of meningeal bleed confirmed in CT scan (Figure 4). Given the unavailability of MRI, we completed the imaging exam with a contrast-enhanced abdominal CT revealing multiple hepatic lesions exhibiting peripheral ring enhancement on the portal phase (Figure 5).

Figure 2.

Abdominal US showing multifocal hypo-echoic mass ravishing most of the hepatic lobes (red arrows).

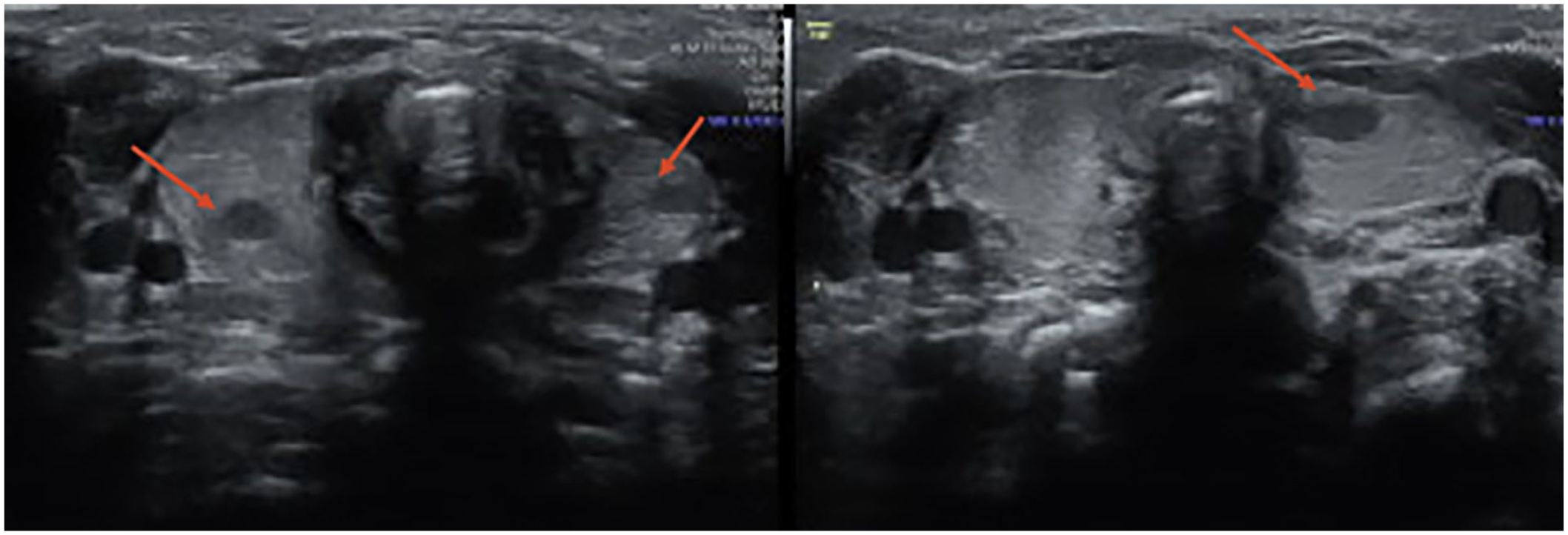

Figure 3.

Cervical US showing thyroid hypo-echoic nodules withing the gland (red arrows).

Figure 4.

Axial (a) and coronal reconstruction (b) CT, showing hydrocephalus (red arrows) and meningeal bleed (black arrow).

Figure 5.

Axial (a) and coronal reconstruction (b) contrast-enhanced CT, showing countless hepatic enhanced lesions (red arrows).

Discussion

DNH is a rare but potentially fatal condition in neonates. Typically, the presence of multiplied hemangiomas on the skin has long been recognized as a marker of hepatic hemangiomas and should be systematically investigated by liver ultrasound.^1,4 Historically, vascular lesions affecting multiple areas in infants have been classified under terms like “diffuse neonatal hemangiomatosis” and “benign neonatal hemangiomatosis.” In 1970, Holden and Alexander introduced 3 essential diagnostic criteria for identifying DNH; onset during the neonatal period, absence of malignancy indicators, and the involvement of 3 or more distinct organ systems. ⁵ Among these, the liver is frequently impacted, followed by the brain; which appear to be the case here, since the infant has shown a hemorrhagic meningeal bleed. Additional organs as the bowel, spleen, mesentery, heart, lung, and genitourinary system, may be affected but less frequently.

Despite the benign nature of the histology, the mortality rate associated with DNH ranges from 50% to 90%. ¹ This high mortality is attributed to diverse complications, including congestive heart failure due to extensive arteriovenous shunting, liver failure, consumptive coagulopathy, and hemorrhaging. Characteristically, skin lesions manifest as red papules or nodules, measuring between 0.5 and 1.5 cm in size, with quantities varying from 10 to 100.^1,2

Clinical and biological signs of DNH may include anemia, leukocytosis, thrombocytopenia, consumption coagulopathy, mildly abnormal liver function tests, and less frequently elevated serum AFP. ⁶ Hypothyroidism have also been reported due to increased activity of type 3 iodothyronine deiodinase within the tumor or a humoral thyrotropin-like factor secreted by the tumor. ³

The classic ultrasound appearance of hepatic hemangiomatosis is that of uniformly multifocal hypo-echoic masses. However, the findings may vary widely, with smaller hemangiomas appearing more homogeneous and larger hemangiomas exhibiting a more complex ultrasound appearance. ⁷ In our case the liver is invaded by multiple hypoechoic lesions resembling to the pattern seen in countless metastasis when they infects the lungs.

Cervical ultrasound should be conducted when there’s a disruption in the thyroid assessment, aiming to identify potential thyroid-related concerns. Additionally, transfontanel ultrasonography could offer valuable assistance in identifying cerebral localization, intracranial hemorrhage and hydrocephalus particularly if the infant exhibits neurological symptoms. In our case, cervical ultrasonography revealed several thyroid nodules, leading to the diagnosis of thyroid hemangiomas.

A contrast-enhanced CT scan demonstrates typical peripheral, nodular distribution of contrast enhancement on the early phases followed by gradual centripetal filling-in of the contrast. MRI helps to discriminate between other vascular tumors or malformations and to correctly classify lesions in the brain or in other vital organs. ⁷ In few cases, prenatal ultrasound with color Doppler may facilitate the early diagnosis of DNH and help through the early referral to specialized centers for appropriate treatment. ⁸

The spectrum of severity associated with diffuse hepatocutaneous hemangiomatosis varies widely, ranging from asymptomatic cases to fatalities. Identifying patients at a higher risk of developing such lesions and determining the specific risk factors that contribute to a more aggressive manifestation in some cases is of paramount importance. ⁹

Treatment with high-dose corticosteroids and interferon alfa-2b has been shown to cause various degree of hemangiomas regression. Nevertheless, these therapies may be associated with severe adverse reactions. ⁷ In resistant cases, hepatic artery embolization is a possible treatment. Recently, propranolol has been introduced as an effective treatment for cutaneous infantile hemangiomatosis as a primary treatment and in patients with poor response to steroids. Several recent cases involving an excellent response of DHN to propranol. ¹⁰ In our case, the infant showed a positive clinical response to steroid treatment, with a gradual reduction in dyspnea and jaundice, and a restoration of normal liver function tests.

Conclusion

Patients with multiple cutaneous hemangiomas are not always DNH, but they should be systematically investigated to look for more involvement organs beyond the skin. Our case is unusual in its presentation with thyroid localization, an elevation of alpha fetoprotein level, and a good evolution under corticosteroids. As by today there is no formal guidelines for the treat6ment of these conditions, and the therapeutic strategies implemented vary widely from simple observation to medical, radiological, and surgical interventions in the prism of multidisciplinary teams.
