Abstract
True wireless stereo (TWS) earbuds have become popular and widespread in recent years, and numerous automated pure-tone audiometer applications have been developed for portable devices. However, most of these applications require specifically designed earphones to which the public may not have access. Therefore, the present study investigates the accuracy of automated pure-tone audiometry based on TWS earbuds (Honor FlyPods). The procedure for developing an automated pure-tone audiometer is reported. Calibration of the TWS earbuds was accomplished by electroacoustic measurements and establishing corrected reference equivalent threshold sound pressure levels. The developed audiometer was then compared with a clinical audiometer using 20 hearing-impaired participants. The average signed and absolute deviations between hearing thresholds measured using the two audiometers were 3.1 dB and 6.7 dB, respectively. The overall accuracy rate in determining the presence/absence of hearing loss was 81%. The results show that the proposed procedure for an automated air-conduction audiometer based on TWS earbuds is feasible, and the system gives accurate hearing level estimation using the reported calibration framework.
Introduction
The prevalence of hearing loss has increased in the past decade, and this is now a serious burden on the global healthcare system (Wilson et al., 2017). A serious problem is that people with mild-to-moderate hearing loss often ignore it, although hearing loss is associated not only with decreased speech communication but also with cognitive decline (Manheim et al., 2018; Wayne & Johnsrude, 2015). To examine hearing function and provide suitable remedies, several hearing tests are widely used in clinical practice (Kanji et al., 2018), for example, pure-tone audiometry (PTA), otoacoustic emissions, tympanometry, and auditory brainstem responses. Of these, PTA is regarded as the gold standard for hearing screening for people older than four years (Bright & Pallawela, 2016).
PTA is usually performed by an audiologist using a manual audiometer connected to calibrated air- or bone-conduction transducers in a soundproof booth. Although air-conduction PTA usually takes only about 10 min, both the equipment and audiologists for PTA screening may be in short supply (Margolis & Morgan, 2008). In some underdeveloped and developing areas in particular, the extreme scarcity of hearing healthcare services means that the gap between supply and demand is large (Swanepoel et al., 2010). Unfortunately, the COVID-19 pandemic may exacerbate this gap due to the infection risk posed by physical contact (Centers for Disease Prevention & Control, 2020).
Automated PTA was developed to reduce audiologists’ workload (Margolis & Morgan, 2008), and both its validity and effectiveness have been evaluated comprehensively (Mahomed et al., 2013). With the rapid development of consumer electronics, many applications have been developed to provide self-administered hearing screening via mobile phones (Paglialonga et al., 2015), tablets (Thompson et al., 2015), and personal computers (Choi et al., 2007). The automated PTA applications are implemented either locally on devices or remotely through the Internet (Honeth et al., 2010). With low-cost and accessible features, these applications pave the way for measuring hearing levels (HLs) of people with potential hearing loss (Louw et al., 2017). Some of the applications had impressive reliability (Margolis et al., 2018) and consistency with manual audiometry (Margolis et al., 2016; Thompson et al., 2015), especially when researchers have imposed strict controls over the conditions (e.g., earphones, calibration, and test environment). Besides, with the increasing interest in self-fitting hearing aids (Keidser & Convery, 2016) in recent years, the requirement for accurate audiograms measured without supervision has increased.
Most automated pure-tone audiometers require specifically designed hardware and standard transducers, which the general public cannot afford, thereby limiting their use. The practicality of these automated PTA applications is restricted if only standard earphones are used, although audiometer applications with some commercially available earphones can yield results consistent with those from clinical PTA (Chu et al., 2019; Foulad et al., 2013; Swanepoel et al., 2014).
In recent years, true wireless stereo (TWS) earbuds, especially those fitting in the cavum conchae (e.g., Apple AirPods, Huawei FreeBuds, Honor FlyPods), have become extremely popular globally. It would make sense to use TWS earbuds for automated hearing screening, given their popularity and portability. Moreover, since the digital audio signal is transmitted through Bluetooth (Bluetooth SIG, 2015) and since the analog audio output processing circuits are packaged in the bodies of the earphones (Floros et al., 2002), wireless earphones can give consistent output sound levels across platforms (e.g., different mobile phones, tablets, or computers). In contrast, different platforms equipped with different audio interfaces (e.g., sound cards) may achieve inconsistent output sound levels with wired earphones (Foulad et al., 2013). The consistent output across platforms means that once a pair of wireless earphones is calibrated, consistent PTA test accuracy across multiple platforms can be obtained, if used with a well-designed PTA application. In summary, the popularity and calibration advantages of TWS earbuds make them a good option for automated PTA applications, which may help numerous people via self-administered hearing screening at home and prescreening in clinics.
The purpose of the present study was to develop an automated PTA procedure using a pair of calibrated TWS earbuds (first-generation Honor FlyPods) and to assess whether it gives HLs consistent with those for a standard manual air-conduction audiometer and earphones.
Automated PTA Procedure and Calibration
Various factors influence the accuracy of PTA, including the measurement procedure, device calibration (Schmidt et al., 2014; Van Tasell & Folkeard, 2013), cooperativeness of participants, environmental noise (Na et al., 2014), and earphone position (Paquier et al., 2016). In the following, we focus mainly on the first three issues. To avoid disturbance by environmental noise, all experiments with participants were conducted in a soundproof booth in the First Affiliated Hospital of Sun Yat-sen University (FAH-SYU; background noise was ∼21 dBA). The earphone position was checked before testing to ensure that the earbuds were tightly in the cavum conchae of the participant. All human tests were approved in advance by the research ethics review committee of FAH-SYU.
Calibration of TWS Earbuds
A critical issue in obtaining accurate HLs lies in calibrating the electroacoustic system, especially for nonstandard earphones (Corry et al., 2017). A standard calibration procedure is (i) to use a standard ear simulator or acoustic coupler combined with a sound level meter to calibrate the output sound level of a specific earphone in units of dB SPL and then (ii) to convert the sound level (in units of dB SPL) to hearing level (in units of dB HL) using:
The choice of calibrator and earphone can affect the values of RETSPL (Wilber et al., 1988). Moreover, the enclosure of the earbuds used in the present study differs from that of any standard earphones used for audiological applications, so the existing RETSPLs of those standard earphones cannot be adopted directly. Besides, there is no standard ear simulator for earbuds. As an alternative approach, Ho et al. (2017) and Kam et al. (2012) used a KEMAR manikin (Burkhard & Sachs, 1975) to calibrate the output SPL.
After the electroacoustic calibration, the average hearing threshold of a group of otologically normal people needs to be measured. However, it has been shown that audiometric zero levels differ across regions (Borchgrevink et al., 2005; Wang et al., 2018). The actual average HLs of otologically normal young people were often below 0 dB HL when measured using standard earphones and audiometers in these large-sample surveys. Thus, the values of the RETSPLs could vary with demographics. To obtain HLs consistent with those achieved with a clinical audiometer using standard earphones, one workable strategy is to compensate the RETSPL of earbuds with average HLs measured using standard earphones, as follows (Ho et al., 2017; Wilber et al., 1988):
In this study, the aforementioned calibration procedure was implemented with a pair of FlyPods TWS earbuds. (i) First, the output level of the earbuds was calibrated using a head and torso simulator (HATS) (Brüel & Kjær type 5128), which had anatomical pinnae, ear canals, and ear simulators (Brüel & Kjær type 4620). Then the SPL of a pure tone (in dB) was mapped to digital audio magnitude (in root-mean-square) (Elberling & Crone Esmann, 2017). The conversion factor from digital magnitude to SPL at each frequency was:
Average and Standard Deviation (SD) of Hearing Thresholds of 16 Normal-Hearing Participants Measured With TDH 39 Headphones.
Procedure for Measuring the Hearing Threshold
Two main kinds of methods have been used for PTA: (i) the modified Hughson–Westlake method (Carhart & Jerger, 1959) and (ii) the Békésy method (von Békésy, 1947). The former is often used for manual audiometry in clinical practice. The sound levels of pure tone stimuli are changed according to the participants’ responses, and positive responses in ascending sequences determine the hearing thresholds. The Békésy method, which can be used for mass screening (Jerger, 1962), requires the participant to hold down or release a response button when a sound is heard or not, respectively. When collecting responses from participants in automated PTA with adaptive methods, either a yes-no task (Swanepoel et al., 2014) or a two-alternative forced-choice (2AFC) task (Schmidt et al., 2014) can be used.
In this study, a specifically designed automated PTA procedure (illustrated later in Figure 1) was developed and the yes-no task was used. To simplify the task and reduce the testing time, only a ‘heard’ button was available to the subjects (Derin et al., 2016) rather than both ‘heard’ and ‘not heard’ (Louw et al., 2017; Margolis et al., 2010). The system deemed that a participant had not perceived the pure-tone stimulus (i.e., negative response) unless a response was given within a certain time (i.e., positive response). Since participants were required to respond within a limited time, the latency of the wireless earphones and the automatic procedure were taken into account. Different people may have different reaction speeds, and the variability could be increased by the latency of the audio transmission associated with wireless earphones. In a pilot test (see Appendix), different people with different earphones showed vastly disparate reaction speeds. Therefore, a pre-test phase was used to estimate the participants’ “average reaction time” (denoted by

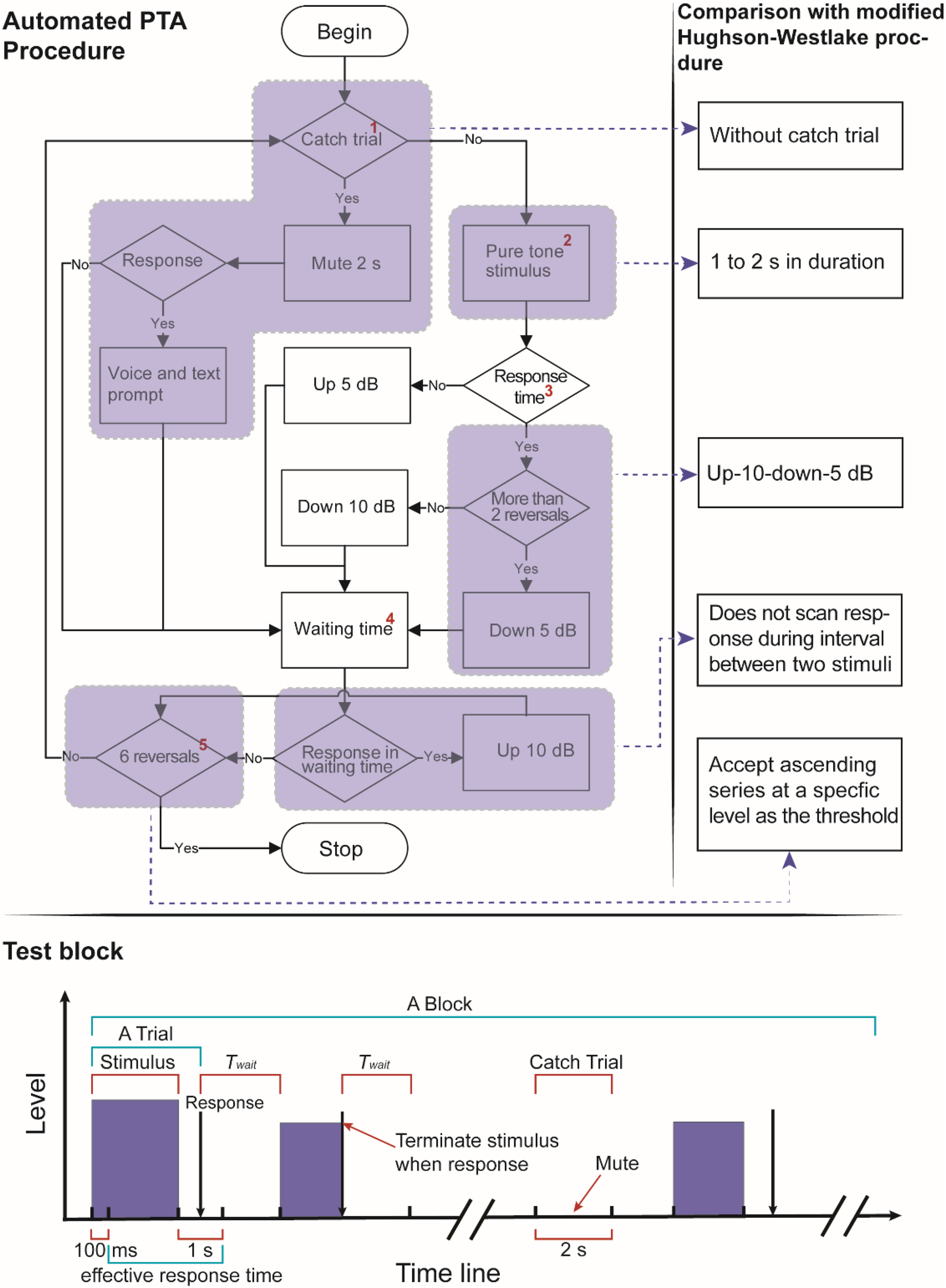

Flow diagram of the automated audiometry procedure. The dashed lines highlight disparities between the automated procedure and the standard modified Hughson–Westlake procedure.1 A catch trial appeared after every 10 normal trials.2 The initial sound level was 45 dB SPL for the first frequency and the previously tested threshold plus 20 dB for the subsequent frequencies. The duration of the stimuli was uniformly and randomly distributed between 0.7 and 1.3 times the pretested average reaction time
In the main test, each ear was tested at eight frequencies: 0.125, 0.25, 0.5, 1, 2, 3, 4, and 8 kHz. The test frequency ascended from 1 to 8 kHz and then descended from 1 to 0.125 kHz. Note that 1 kHz was tested twice. The first run at 1 kHz was used for training, and only the threshold measured at the second time was taken as the formal result.
The flow diagram of measurement for each frequency (denoted a “block”) is shown in Figure 1. In each block, pure-tone stimuli were presented in sequence. The participant was required to respond using the button displayed on the screen. A stimulus and a corresponding response (either positive or negative) are called as a “trial”. The stimulus duration fluctuated randomly around the estimated reaction time of the participant (uniformly distributed between 0.7
The sound level was changed according to the subject's response on preceding trials. If the participant failed to respond in time (between 100 ms after stimulus onset and 1000 ms after stimulus end), then the sound level of the next stimulus was increased by 5 dB; otherwise, the sound level was decreased by 10 or 5 dB (10 dB until 2 reversals had occurred). A ‘reversal’ is a change from a positive response to a negative response, and vice versa. Using a larger step in the early trials tends to accelerate convergence.
When the stimulus was playing, it was terminated immediately when the participant responded. The next trial began after a silence with a random duration
The procedure ran until six consecutive reversals occurred within a 10 dB range. If the number of trials reached 30, the test block was also terminated. The arithmetic mean of the sound levels at the last four reversals was taken as the HL for that frequency.
There are several differences between our method and the modified Hughson–Westlake method (Figure 1). (i) A catch trial (Schlittenlacher et al., 2018) was inserted after every 10 normal trials. If the participant responded during the 2 s catch trial, a voice prompt (combined with a text prompt) instructing the participant to focus was presented. (ii) If the participant responded during the waiting time, the sound level was increased by 10 dB. The purpose of these two schemes was to decrease the false alarm rates, since a high false alarm rate could lead to an incorrect low threshold (McNicol, 2005). (iii) The estimated reaction time was measured in the pre-test phase and the durations of stimulus, maximum response time restriction, and inter-trial silence were adjusted accordingly.
Experimental Verification of Automated PTA
An experiment was conducted to evaluate the accuracy of the automated PTA with a pair of TWS earbuds compared to conventional PTA with a set of TDH 39 headphones. The clinical audiometer and earphones were the same as those used for calibration.
Participants
Twenty participants (aged from 10 to 81 years, mean = 40.6 years) with mild-to-moderate hearing loss were recruited from FAH-SYU. Each participant took ∼20 min to complete the entire experiment including both types of PTA. One participant failed to finish the tests because of severe hearing loss in one ear, and so was excluded from the statistical analysis.
Experimental Procedure
PTA was conducted first using the conventional ascending method and then using automated PTA. PTA was performed for the left ear first. The earbuds were connected to a Surface Pro 6 laptop running a MATLAB program for the automated PTA. Most of the participants were able to finish the hearing screening without additional guidance. An assistant monitored the whole experimental procedure and offered support if participants encountered any difficulties.
Results of Verification Experiment
The audiograms of all the participants (denoted N1 to N19) are shown in Figure 2. In most cases, there was a high degree of consistency between HLs measured via the two methods (53% of the threshold differences were below 5 dB). Nevertheless, there were large differences in some cases. For instance, large differences were observed for the right ear at 2 and 3 kHz for N1 and N13, whereas HLs for the other frequencies were highly consistent.
The HLs of the 19 participants. The brown and blue lines illustrate the thresholds obtained via the automated audiometer with FlyPods (auto) and the clinical manual audiometer with TDH 39 headphones (clinic). ‘F’ and ‘M’ denote female and male, respectively. Participant are sorted by the degree of hearing loss. The number after ‘F’ and ‘M’ indicates age.
The distribution of the HLs is shown in Figure 3. Note that the orthogonal regression line is slightly above the symmetric line, which indicates that the participants tended to have higher HLs (i.e., a higher degree of hearing loss) with the automated PTA than with the standard PTA.
HLs for the automated PTA with flyPods versus those for manual PTA with TDH 39 headphones. Each sample point indicates thresholds measured using the two methods at one frequency from one ear. The solid line and the shaded region are the orthogonal regression line of the samples and its 95% confidence interval. The dashed symmetric line represents an ideal outcome that thresholds measured with the two methods are the same.
A repeated-measures analysis of variance (ANOVA) was performed on the HLs with three within-subject factors: PTA method, frequency, and ear. No significant effect of PTA method was observed (F[1, 17] = 0.63, p = 0.44), whereas ear and frequency had significant effects (F[1, 17] = 10.76, p = 0.004 for ear and F[1, 17] = 7.92, p = 0.01 for frequency). There was a frequency × ear interaction (F[1, 17 ] = 7.28, p = 0.015). There was no significant three-way interaction (F[1, 17] = 0.21, p = 0.651). Paired-sample t-tests were conducted to further compare HLs measured for individual frequencies and individual ears with the two methods. The average HLs measured with each method, absolute threshold deviation between the two method, standard deviation, and effect size are given in Table 2. The automated PTA HLs were significantly higher than the clinical manual PTA HLs at 125 Hz (t[18] = 2.21, p = 0.04), 250 Hz (t[18] = 2.43, p = 0.025), 500 Hz (t[18] = 2.39, p = 0.028), 1 kHz (t[18] = 2.52, p = 0.021), and 2 kHz (t[18] = 2.27, p = 0.036) for the right ear, and at 125 Hz (t[18] = 2.32, p = 0.032) and 250 Hz (t[18] = 2.21, p = 0.042) for the left ear.

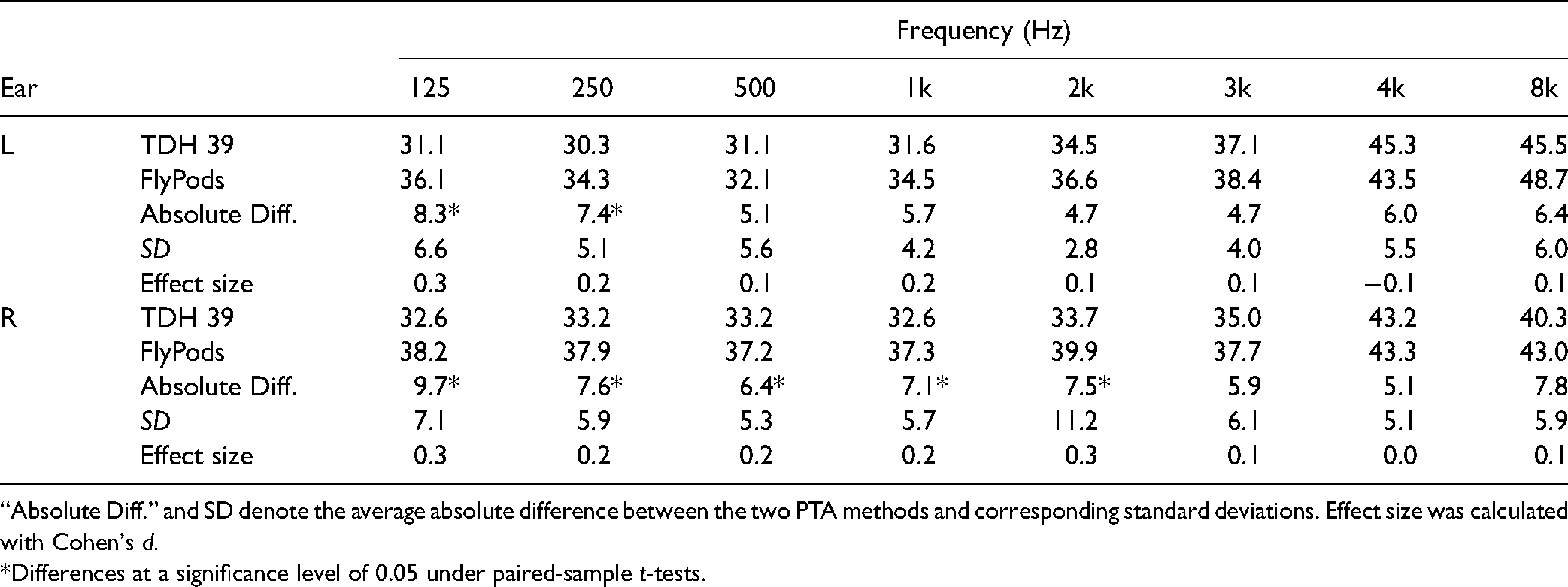

Average HLs Across Participants Measured With the Two Methods for the Eight Frequencies and for Each Ear.
“Absolute Diff.” and SD denote the average absolute difference between the two PTA methods and corresponding standard deviations. Effect size was calculated with Cohen's d.
*Differences at a significance level of 0.05 under paired-sample t-tests.
To give a more intuitive view of how the results differ, the distributions of the automated–manual deviations are presented in Figure 4. The average deviation (Masalski et al., 2018) across frequencies and ears was 3.1 dB with a standard deviation (SD) of 8.4 dB, whereas the average absolute threshold deviation was 6.7 dB with an SD of 6.0 dB (see Table 2). The proportion of absolute deviations below 5 and 10 dB for all thresholds was 53% and 78%, respectively. There was a relatively large difference between the two methods at 125 and 250 Hz, the proportions of deviations below 5 dB at these two frequencies being 37% and 34%, respectively. For the pure-tone average, which is typically used as an evaluation metric for hearing (the average of thresholds at 0.5 and 1, 2, and 4 kHz, Ho et al., 2009), 63% and 92% of the absolute deviations were below 5 and 10 dB, respectively.

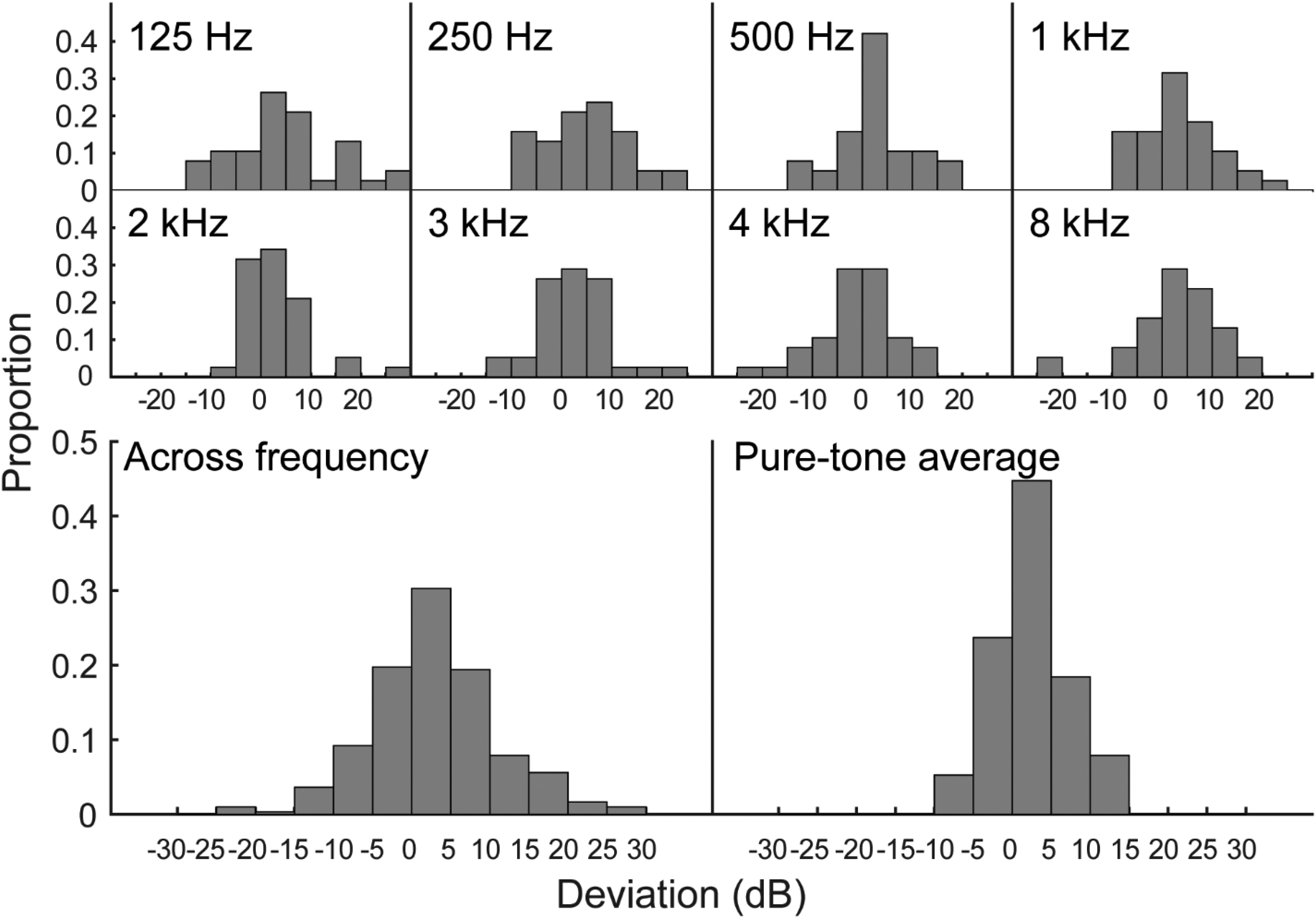

Distribution of the deviations between HLs for two methods. Deviations are the HLs for FlyPods minus those for TDH 39. The eight top subfigures present the deviations for each frequency. The two bottom subfigures present deviations for all HLs across frequencies and deviations of the pure-tone average HL for the frequencies 0.5, 1, 2, and 4 kHz.
In present study, having a HL above 25 dB HL was considered as impaired hearing (World Health Organization, 1991). With this criterion, sensitivity, specificity, and accuracy were calculated (see Table 3) with reference to HLs obtained with manual PTA. Sensitivity is defined as the proportion of correct classification as impaired hearing, and specificity is defined as the proportion of correct classification as normal hearing. Accuracy is the overall proportion of correct classification both as impaired hearing and as normal hearing. The overall accuracy across frequencies was 81% and the results were similar to those from the HL difference analysis, that is, accuracy was higher at high frequencies.
Accuracy, Sensitivity, and Specificity of the Automated Audiometry With FlyPods.
For the 304 thresholds measured with standard PTA, there were 131 normal hearing
Time Cost of Automated PTA
The time cost for automated PTA mainly depends on the response time for each trial and the number of trials in each test block. The response time depends on the estimated average reaction time obtained in the pre-test phase. The average response time across all participants and trials was 1.86 s (SD = 0.60). Figure 5 shows the distribution of the number of trials across all frequencies. The participants required 11.2 trials per block on average (median = 11, SD = 4.4). Overall, 91% of the blocks needed no more than 15 trials. Only 2% of the blocks reached the predefined ceiling of 30 trials. Responses were made on 13% of catch trials.
Box-and-whisker plots and violin plots of the number of trials for each frequency. The upper, median, and lower horizontal lines of each box indicate the 75 percentile, the median, and the 25 percentile, respectively. The whiskers attached to the boxes represent the most extreme data that are below 1.5 times the interquartile range (IQR). The widths of the violin plots depict distribution density of the trial number. Symbols indicate extreme cases far from the data centers. The first box on the left is for the training block, which was not taken into account in the threshold evaluation.
The number of trials was not normally distributed according to the Anderson–Darling test. Therefore, a Friedman test was performed to examine whether the number of trials depended on the frequency. There was no significant difference in the number of trials across frequencies when excluding the training block. There was a significant difference between the training block and the 125 Hz block (p = 0.046). The medians for these two blocks were 12 and 9, respectively.
Discussion
In this study, automated PTA was developed using commercially available TWS earbuds (Honor FlyPods). Wireless earphones of this type have achieved considerable popularity in recent years, but few studies have evaluated their feasibility for PTA.
In the procedure for estimating HLs, a user-dependent maximum effective response time, which is evaluated in a pre-test phase, is used to allow for different audio latencies and reaction speeds of the participants. A short maximum effective response time could make the test difficult for the participants, leading to an overestimated proportion of negative responses. Participants can hardly keep focused for a long time, and thus a long (Barbour et al., 2019) or even no time restriction (Margolis et al., 2010) may be unacceptable to them. Moreover, due to the additional latency of wireless earphones, the automated program may misjudge if participants do not respond in time. Thus, it is reasonable to adjust the maximum effective response time for each person and each set of earphones before testing.
Automated PTA is often conducted without supervision from audiologists, and so the cooperativeness of the participants can influence the results, especially for children and older people (Yeung et al., 2013). However, a widely accepted supervision scheme is yet to be established for self-screening automated PTA. The proposed procedure included catch trials (Margolis et al., 2010) and responses were detected during a waiting period. In the verification experiment, responses were made on 13% (22 of 175) of the catch trials. This indicates that the participants may respond even when no tone is presented.
To calibrate the FlyPods earbuds, a Brüel & Kjær type 5128 HATS was used and the corresponding provisional RETSPLs were determined from 25 participants with normal hearing. It has been reported that there are differences in the average normal HLs of different populations (Borchgrevink et al., 2005; Wang et al., 2018), and thus an audiometric zero level bias could exist between our participants and those using standard earphones. Of the otologically normal young participants, 16 out of 25 them underwent PTA using an Otometrics Madsen Astera 2 audiometer with TDH 39 headphones. Their average HL was used to compensate for the bias. It could be argued that it is unnecessary to perform an electroacoustic calibration because the RETSPLs were corrected to the levels of a standard earphone. A simpler calibration method would be to adjust the output level of non-standard earbuds (in units of dB SPL) to the output level of standard earphones driven by clinical audiometers (in units of dB HL) via calibrators directly rather than by obtaining a set of corrected RETSPLs (Kam et al., 2013). The purpose of the preliminary electroacoustic calibration is that other earbuds with similar enclosures could be calibrated through electroacoustic measurement and RETSPLs easily, without requiring additional behavioral tests.
In the present study, the average absolute deviation between HLs measured using automated and standard PTA was 6.6 dB across all frequencies and both ears. The proportions of absolute deviations below 5 and 10 dB were 53% and 78%, respectively. The threshold deviations between the automated PTA with FlyPods and manual PTA with the standard device increased at 125 and 250 Hz. Masalski et al. (2018) reported a similar phenomenon. Moreover, the values of RETSPL at low frequencies vary dramatically for different devices (Vencovsky et al., 2018). Given that the output level was adjusted to match the level for a conventional audiometer, the lower accuracy at 125 and 250 Hz was unexpected. The error at low frequencies may be due to the earphone leakage (Welti, 2015), since the state of contact between earbuds and ears varies dramatically between participants compared with TDH 39 headphone, which have soft cushions. In addition, automated PTA tended to give slightly higher HLs (see Figure 3). Compared with participants in the calibration procedure, a lower average capacity of attention of participants in the verification experiment may have caused this bias, since these participants’ responses during the waiting intervals led to increments of the sound level.
In tests with participants, there are often differences between two repeated tests even with the same device and under the same conditions. Margolis et al. (2010) reported that the average absolute deviation between test and retest for clinical PTA was 4.1 dB. A. T. Ho et al. (2009) reported that test–retest absolute deviations below 5 and 10 dB for clinical PTA occurred 74% and 93% of the time, respectively. Swanepoel et al. (2010) found that absolute deviations below 5 and 10 dB occurred 45% and 88% of the time, respectively. In summary, the HLs obtained using automated PTA with FlyPods were slightly higher than those obtained using clinical PTA with TDH 39 headphone at low frequencies, but the errors were comparable to those for conventional manual PTA.
The sensitivity and specificity across frequencies for the automated PTA with FlyPods were 95% and 63%, respectively. The same two metrics were 82% and 83% in Louw et al. (2017) using hearScreenTM with Sennheiser HD 202 II, and 25% and 97% in Derin et al. (2016) using the EarTrump application with a Philips SHP 1900 headset. In Thompson et al. (2015), the sensitivity and specificity varied with frequency over the ranges 87%–100% and 90%–95%, respectively. They used TDH 39 headphones for both the clinical audiometer and the automatic audiometer application. In another comparative study, Yeung et al. (2013) also used TDH 39 headphones with automated PTA, and obtained 93% sensitivity and 95% specificity. Moreover, in a test using ER-3 earphones for both automated and clinical PTA, 89% of HL differences were below 5 dB (Mosley et al., 2019). It seems that standard earphones are more likely to give HLs consistent with those for clinical audiometry. Compared with these studies, especially those using standard earphones, the sensitivity of the automated PTA proposed here is high, but the specificity is lower.
A median of 11 trials was needed to complete a test block, and participants took an average of 1.86 s to respond to each stimulus. The first training block required more trials because the initial sound level was usually far from the threshold. The closer the initial level was to the HL of the participants, the fewer trials were required, so setting the initial level according to the preceding measured threshold could help to accelerate the measurements (Carhart & Jerger, 1959). Thus, adopting methods based on statistical estimation or machine learning (Barbour et al., 2019; Schlittenlacher et al., 2018; Schmidt et al., 2014; Song et al., 2015) could further reduce the time cost.
The present study describes a method for using FlyPods TWS earbuds in automated PTA. The procedure could guide the development of an audiometer application and calibration. The results show that the system can provide accurate HL estimation without relying on an audiologist with appropriate design and calibration. Although the proposed system cannot replace conventional PTA entirely, people whose hearing is potentially impaired could take such a self-screening test regularly. Moreover, large clinical centers could benefit from automated audiometers by using them as a prescreening tool, which may release the audiologist from checking normal-hearing individuals. In particular, this form of contactless remote PTA could continue to provide hearing evaluations during the COVID-19 pandemic. Moreover, self-screened audiograms could be utilized in tuning self-fitting hearing aids.
Limitations and Outlook
The proposed automated PTA proposed here did not use a noise detector (Swanepoel et al., 2014), but in actual applications, a reliable noise detector is essential for ensuring that the automated PTA is performed in a suitable environment. Also, the automated PTA did not use contralateral masking when there was a large
The present study assessed the accuracy of automated PTA with FlyPods TWS earbuds through a subjective experiment. Nonetheless, complete electroacoustic output measurements (Van der Aerschot et al., 2016) of the FlyPods were not made, nor was the consistency across multiple pairs of the same type of earbuds evaluated. Variability of the output level could lead to additional errors in HL measurements. However, compared with the deviations between test and retest of PTA, modern earphones often have acceptably low output variability. Foulad et al. (2013) reported that the output-level differences among pairs of earphones were within 4 dB.
A HATS was used for the electroacoustic calibration since no suitable ear simulator or acoustic coupler was available for the earbuds used in this study. However, a HATS with anatomical pinnae is less robust and reliable than ear simulators, because the coupling is less reliable.
During the verification experiment, all participants were tested using manual PTA first and automated PTA later. This unbalanced test order may have led to biased results. Another limitation is that the number of participants, 20, was relatively small.
Given the aforementioned limitations, future work should consider (i) monitoring the noise environment, (ii) contralateral masking for large left–right disparities, (iii) comprehensive electroacoustic measurements and checking consistency across multiple devices, (iv) balancing the order of manual and automated testing, and (v) recruiting more participants.
Conclusions
This study utilized FlyPods TWS earbuds in automated PTA and verified the feasibility and validity of the method through an experiment. The verification experiment showed that with reasonable calibration and PTA procedure design, the proposed self-screening PTA gave results consistent with those from clinical PTA. The average signed and absolute deviations between the two types of PTA were 3.1 dB and 6.7 dB, respectively, but there were large differences at 125 and 250 Hz. For hearing loss detection, the overall accuracy was 81%, but was lower at low frequencies. Although a further performance evaluation may be needed for low frequencies, the present experiment shows that it is feasible to conduct automated air-conduction PTA with affordable TWS earbuds.
