Abstract

Background:

Previous systematic reviews have reported the incidence of anterior knee pain (AKP) and extension deficit (ED) after anterior cruciate ligament reconstruction (ACLR); however, both outcomes are estimated separately and thus are assumed to be uncorrelated.

Purpose:

To estimate whether there is a clinically relevant association between the population effects of ED and AKP after ACLR.

Study Design:

Systematic review; Level of evidence, 2.

Methods:

Under PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines, a systematic review was conducted by searching PubMed, EMBASE, and the Cochrane Library electronic databases for published articles reporting incidence of both AKP and ED after ACLR with either bone–patellar tendon–bone (BPTB) or hamstring (HS) graft that returned 298 studies after the initial search. A Bayesian hierarchical measurement error model estimated the population effect of ED and AKP.

Results:

Twelve publications involving 976 patients (mean follow-up, 77.9 months; range, 24-180 months) were included in the systematic review. There was a clear, moderate correlation between population ED and population AKP for the BPTB (r = 0.40; 95% CI, 0.39-0.42) and the HS grafts (r = 0.35; 95% CI, 0.33-0.36). Model expected estimates for the population effects of AKP and ED were 24.1% (95% CI, 17.4%-31.9%) and 17.5% (95% CI, 10.6%-25.0%), respectively, for the BPTB graft and 16.1% (95% CI, 9.2%-23.9%) and 13.1% ED (95% CI, 6.0%-20.8%) for the HS graft, respectively. The posterior mean difference in AKP between BPTB and HS grafts was clear and substantial (8.3% [95% CI, 0.3% to 16.1%]); there was no substantial difference in the posterior mean difference of ED between BPTB and HS grafts (4.3% [95% CI, –3.8% to 13.0%).

Conclusion:

Our systematic review demonstrated a moderate but clear correlation between ED and AKP irrespective of graft type. From a clinical perspective, this association emphasizes the need for intraoperative achievement of full extension and avoidance of situations that may cause ED. The higher incidence of AKP in patients with BPTB graft may also be attributed to factors related to the graft harvest site. Future metaregression analyses could investigate whether additional factors such as follow-up duration or rehabilitation protocols can moderate the association between AKP and ED after ACLR with either BPTB or HS graft.

Keywords

ACL knee patellar tendon autograft Bayesian modeling

Graft selection in patients undergoing anterior cruciate ligament (ACL) reconstruction (ACLR) is a very important decision and is part of a long-lasting debate in the scientific community because it is a factor that influences a successful outcome of the ACLR in terms of donor-site morbidity,^6,12 rerupture,^24,27,37,52 infection rate,^35,39 functional deficits,^2,7,8 and patient-reported outcome measures.^19,38,47 The most common grafts are the patellar tendon either as the central third or as the medial third, the hamstring (HS) tendon graft as a 4-strand graft or as a quadrupled semitendinosus graft, and in recent years the quadriceps tendon graft.³ Each one of these grafts has its advantages and disadvantages in incorporation and function as a graft, but these grafts also are associated with anatomic and functional defects that influence the final outcome and the patient's quality of life and activities.³⁵

The most successful scenario would be that the defect heals with similar tissue and that the recovery is completed without any functional alterations caused by the harvested graft. The healing of the patellar tendon or HS tendon defect has been investigated with magnetic resonance imaging and ultrasonography studies,^13,36,46 and the potential functional deficits have been investigated using electrophysiology or dynamometry or other biomechanical methods together with clinical examination tests such as anterior knee pain (AKP), kneeling pain, knee walking, or numbness in the incision site.^{4,14,22,30,31,43}

AKP after ACLR is often cited as a major reason for avoiding the use of a bone–patellar tendon–bone (BPTB) graft, despite its many well-documented advantages.^14,19,51 However, previous research indicated that AKP is primarily caused by extension deficit (ED) after ACLR.^44,45 Therefore, Shelbourne and Trumper⁴⁵ proposed regaining full extension intraoperatively as well as postoperatively, introducing an accelerated rehabilitation protocol to regain and retain full movement of the knee joint, especially full extension or hyperextension compared with the contralateral healthy side.⁴⁵ The multifactorial nature of AKP, rather than that related specifically to BPTB graft selection, is further demonstrated by its prevalence, albeit at a lesser degree, in ACLR using HS tendon graft.^19,51

Previous systematic reviews have compared BPTB versus HS grafts in terms of AKP and ED as well as other objective clinical and patient-reported outcomes.^{7,8,19,35,47,49,51} However, in all these studies, both outcomes are reported independently and no previous study has estimated whether there is a clinically relevant association between the population effects of ED and AKP.¹⁸ Thus, the aim of the present study was to estimate the association between ED and AKP after ACLR with either BPTB or HS graft.

Methods

Literature Search

The present systematic review was conducted according to the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines using a checklist. We conducted an extensive search of studies published between 1990 and August 2022 in PubMed, EMBASE, and the Cochrane Library electronic databases. We utilized the search strategy proposed by Cochrane, and our search key terms included “ACL,”“anterior cruciate ligament,”“reconstructive surgical procedures,”“patellar tendon,”“hamstring,”“gracilis,”“semitendinosus,”“autologous, ”and “long term” in various combinations. The full text was reviewed if the abstract indicated that the article might be a prospective cohort study (PCS) of ACLR with BPTB versus HS tendon autografts. A manual search was also conducted by reviewing the references of the articles derived by the electronic search to identify potential additional studies.

Study Selection

Inclusion criteria for study selection were as follows: (1) a randomized controlled trial (RCT) or a PCS (level of evidence 1 or 2); (2) patients having undergone primary ACLR for a unilateral ACL rupture; (3) BPTB autografts compared with HS tendon autografts for ACLR; (4) follow-up of ≥2 years; and (5) reporting assessment of both AKP and ED. Exclusion criteria were as follows: case-control study, retrospective cohort study, or case series; follow-up of <2 years; graft other than BPTB and HS; follow-up studies with the same patients from the same center performing the same technique; non-English language articles; and in vitro, animal, or cadaveric studies.

Data Extraction

Data were extracted independently from each eligible study by 2 review authors (J.D.G. and K.P.) using a standard Excel spreadsheet (Microsoft). Any discrepancies between the extracted data were resolved by consensus. Where required, the corresponding authors were contacted for additional data. The primary outcomes extracted were percentages of AKP and ED along with their standard errors per graft type and study. In addition, the following data were extracted from all eligible studies: first author and year of publication, study design, number of patients, duration of follow-up, loss at follow-up, type of graft fixation.

Methodological Quality

The methodological quality of each eligible study was independently assessed by 2 review authors (J.D.G. and K.P.) using the Jadad scale for RCTs and the Newcastle-Ottawa Scale (NOS) for PCSs.⁴⁹ A quality score of ≥3 from the Jadad scale was considered to indicate a high-quality RCT and a score of ≥7 on the 9-point NOS indicated high-quality PCS.⁴⁹

Statistical Analysis

We employed a Bayesian hierarchical measurement error model.⁵ Within the Bayesian framework, the true outcomes of the different studies follow their own distribution.²¹ This distribution of true effects has a mean (the “population” true effect that is being estimated) and a variance, representing the between-study variability.¹⁸ Bayesian methods allow direct modeling of the uncertainty in the estimate of the between-study variability, can be superior in estimating pooled effects (especially when the number of included studies is small), and produce full posterior distributions of any model effect.²¹ Our analyses were carried out in the R programming language using the wrapper package brms interfaced with Stan to perform sampling.⁵ Our model included outcome, graft type, their interaction to estimate the population effects of AKP and ED for BPTB and HS grafts, and a random intercept for study identification to estimate the between-study variability. Weakly informative priors were used in order to exert minimal effect on the data.^5,21 The model also permitted an estimation of the correlation coefficient between the population effects of AKP and ED.⁵ The magnitude of the correlation was evaluated as trivial (>0.1), small (>0.2), moderate (0.3-0.5), large (>0.5), very large (>0.7).⁹ We sampled the posterior distribution using Hamiltonian Monte Carlo with 4 chains and 2500 post–warm up samples per chain. The model passed all diagnostic statistics (all Rhat values <1.01, all effective sample sizes >400, 0 divergent iterations).²¹ We evaluated the robustness of our model by conducting a sensitivity analysis via excluding 1 study in each round and evaluating the influence of any single study on the estimates of model effects.¹⁸ We also considered 2 additional models: 1 with the addition of study design (RCT vs PCS) as a categorical predictor and 1 with the addition of follow-up (≤5 years vs ≥6 years) as a categorical predictor. Each of these models was compared with the initial model via leave-one-out cross-validation.⁵ Neither of these additional models outperformed the initial simpler model; thus, the initial model was retained.

Results

Study Inclusion

An initial literature search of PubMed, EMBASE, and the Cochrane Library yielded a total of 789 articles. All duplicate publications were excluded for a total of 298 unique articles. According to our exclusion criteria, 267 articles were removed, and the remaining 31 abstracts were further screened by reviewing the full-text article. Nineteen articles were further excluded: 4 case-cohort studies (level of evidence, 3), 5 having no direct comparison of BPTB versus HS ACLR outcomes, and 10 not reporting data on both AKP and ED. Thus, there were 12 publications that fulfilled all criteria and were subsequently included in this systematic review (Figure 1).^‖

Figure 1.

PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) flowchart. BPTB, bone–patellar tendon–bone; HS, hamstring.

Methodological Quality

Sample size ranged from 50 to 126 patients (mean, 81 patients). Clinical follow-up was reported in all 12 studies, with follow-up rates ranging from 72% to 100%. All 4 PCSs^1,20,26,40 were of high quality as judged by the NOS scale, whereas 1 out of 8 RCTs¹⁵ was deemed of high quality according to the Jadad scale (Table 1). All studies had a minimum of 2 years of follow-up data. Follow-up ranged from 24 to 180 months (mean, 77.9 months).

Table 1

Characteristics of the Included Trials^a

Author/Year	Design	Number of Patients	Lost to Follow-up, n	BPTB Graft Fixation		HS Graft Fixation		Quality Rating
Author/Year	Design	Number of Patients	Lost to Follow-up, n	Femoral	Tibial	Femoral	Tibial	Quality Rating
Ibrahim et al, 2005²⁰	PCS	110	25	EB	ISc	EB	Sc+W/Pl+Sc+St	9^b
Laxdal et al, 2005²⁵	RCT	79	9	ISc	ISc	ISc	ISc	2
Liden et al, 2007²⁸	RCT	71	3	ISc	ISc	ISc	ISc	2
Matsumoto et al, 2006³³	RCT	80	8	ISc	ISc	ISc	ISc	1
Zaffagnini et al, 2006⁵⁰	RCT	50	0	ISc	ISc	EB	Sc	2
Webster et al, 2016⁴⁸	RCT	65	18	EB	ISc	EB	P+W	2
Sajovic et al, 2011⁴¹	RCT	64	2	ISc	Sc	ISc	Sc	1
Aglietti et al, 1994¹	PCS	63	3	Sc+W	ISc+Sc+W	Sc+W	Sc+W	8^b
Laxdal et al, 2007²⁶	PCS	126	3	ISc	ISc	ISc	ISc	9^b
Sadoghi et al, 2011⁴⁰	PCS	92	0	CP	ISc	EB	ISc	8^b
Gifstad et al, 2013¹⁵	RCT	114	12	ISc	ISc	Sc+WL	Sc+WL	3^c
Konrads al, 2016²³	RCT	62	15	ISc	ISc	EB	Su	2

BPTB, bone–patellar tendon–bone; CP, cross-pin; EB, Endobutton; HS, hamstring; ISc, interference screw; P, post; PCS, prospective cohort study; Pl, plate; RCT, randomized controlled trial; Sc, screw; St, staple; Su, suture; W, washer; WL, washerlock.

High-quality PCS based on the Newcastle-Ottawa Scale rating.

High-quality RCT based on the Jadad Scale rating.

Characteristics of Included Studies and Review Findings

Table 1 presents the fixation techniques used for each graft for the tibial and femoral tunnels. For BPTB grafts, nearly all studies used interference screw fixation for the tibial bone plugs while the femoral bone plugs were a little more variable (8 studies used interference screw fixation, 2 used Endobutton (Smith+Nephew), 1 used screw plus washer, and 1 used cross-pins). Femoral tunnels on HS fixation relied on interference screws or Endobutton in a total of 10 studies. On the contrary, tibial HS fixation was quite variable and included interference screws in 5 studies, and screw, washer/plate, screws plus staple, screws plus washerlock and sutures in the rest of the studies. AKP and ED ranged from 5% to 51% and 0% to 38%, respectively, for BPTB grafts; and 3% to 30% and 0% to 28%, respectively, for HS grafts (Table 2).

Table 2

Reported Incident of Anterior Knee Pain and Extension Deficit per Graft Type^a

Author/Year	Follow-up, mo (range)	BPTB		HS
Author/Year	Follow-up, mo (range)	AKP	ED	AKP	ED
Ibrahim et al, 2005²⁰	81 (60-96)	25	35	6.7	17.8
Laxdal et al, 2005²⁵	26 (20-36)	29	5	34	16
Liden et al, 2007²⁸	86 (68-114)	39	26	23	21
Matsumoto et al, 2006³³	80 (56-111)	5.4	2.9	10.8	5.7
Zaffagnini et al, 2006⁵⁰	60 (not reported)	36	20	12	25
Webster et al, 2016⁴⁸	184 (168-204)	38	0	27	0
Sajovic et al, 2011⁴¹	132 (not reported)	48	0	29.6	0
Aglietti al, 1994¹	28 (22-39)	13.3	0	10	0
Laxdal al, 2007²⁶	25 (24-35)	22.2	37.8	24.4	28.2
Sadoghi al, 2011⁴⁰	26 (24-32)	51.2	9.8	25.5	9.8
Gifstad al, 2013¹⁵	84 (63-94)	9.8	14.6	2.8	25
Konrads al, 2016²³	120 (not reported)	20.8	4.2	4.3	0

Values are presented as percentages unless otherwise noted. AKP, anterior knee pain; BPTB, bone–patellar tendon–bone; ED, extension deficit; HS, hamstring.

According to our model, the population effect of AKP was 24.1% on average (with a 95% CI of 17.4%-31.9%) and the population effect of ED was 17.5% on average (with a 95% CI of 10.6%-25.0%) for BPTB grafts; the population effect of AKP was 16.1% on average (with a 95% CI of 9.2%-23.9%) and the population effect of ED was 13.1% on average (with a 95% CI of 6.0%-20.8%) for the HS grafts (Figure 2).There was a clear and substantial difference in the population effect of AKP between BPTB and HS grafts. The posterior mean difference was 8.3% (95% CI, 0.3% to 16.1%) and there was 98% probability that this difference was >0 (Figure 3A). There was no substantial difference in the population effect of ED between BPTB and HS grafts. The posterior mean difference was 4.3% (95% CI, –3.8% to 13.0%), and there was only an 86% probability that this difference was >0 (Figure 3A). There was a clear, moderate correlation between the population effects of AKP and ED for either the BPTB (r = 0.40; 95% CI, 0.39-0.42) (Figure 4A) or the HS (r = 0.35; 95% CI, 0.33-0.36) graft (Figure 4B). The results of our series of sensitivity analyses showed that there was not any particularly influential study among all selected studies.

Figure 2.

Model expected population effects of anterior knee pain and extension deficit by graft type.

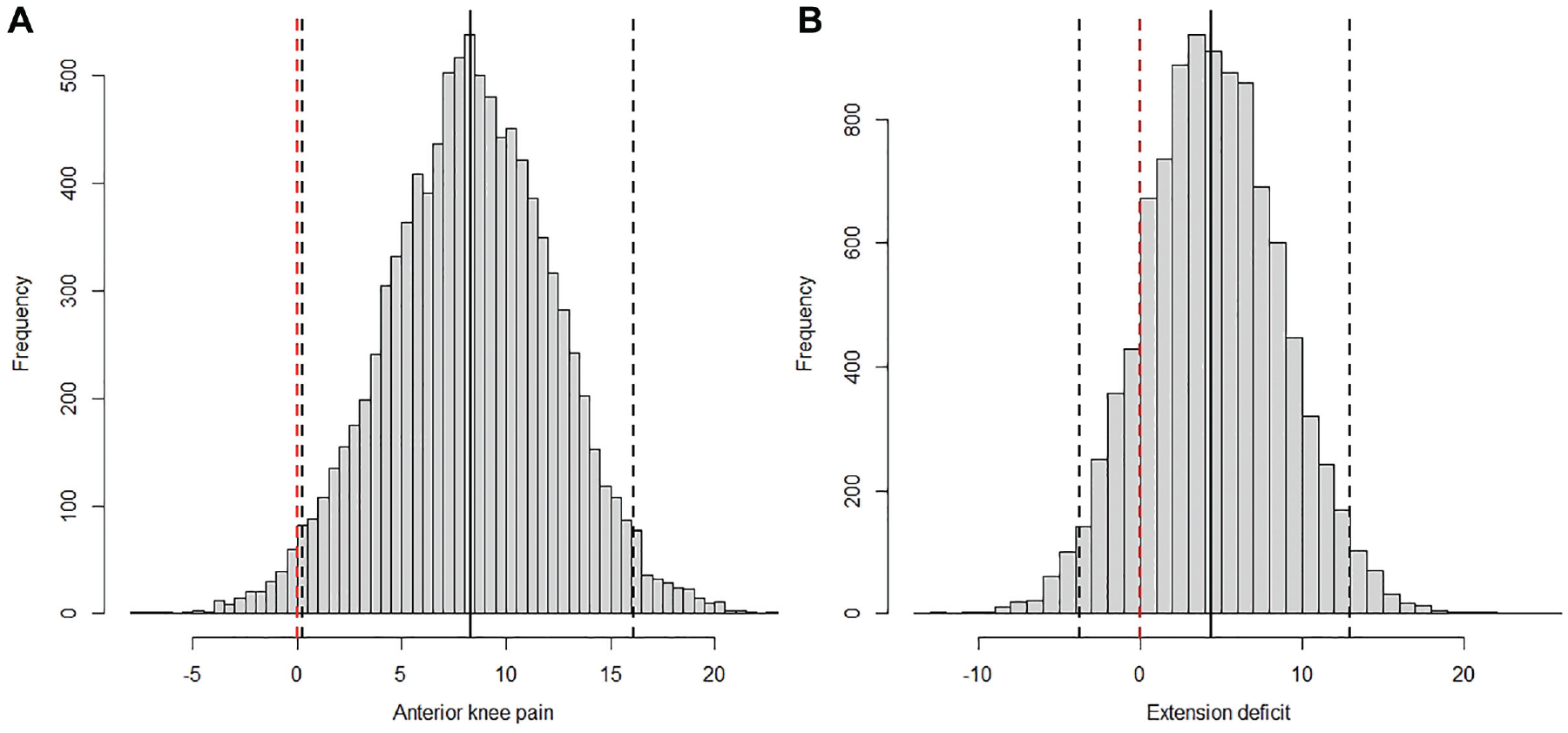

Figure 3.

Differences in the posterior distributions of model expected population effects of (A) anterior knee pain and (B) extension deficit between graft types. The vertical solid black lines denote 95% CI of the distribution of differences and the dashed red line denotes zero.

Figure 4.

Posterior distribution of the population effects of anterior knee pain (AKP) and extension deficit (ED) for (A) bone–patellar tendon–bone (BPTB) and (B) hamstring (HS).

Discussion

The primary findings of the present study were that there was a moderate but clear association between the population effects of ED and AKP for both grafts (BPTB: r = 0.40 [95% CI, 0.39-0.42]; HS: r = 0.35 [95% CI, 0.33-0.36]) and, as expected, the population effect of AKP was higher in BPTB compared with HS (24.1% [95% CI, 17.4%-31.9%] vs 16.1% [95% CI, 9.2%-23.9%], respectively); on the contrary, evidence for a higher ED population effect in BPTB compared with HS grafts were less strong (17.5% [95% CI, 10.6%-25.0%] and 13.1% [95% CI, 6.0%-20.8%], respectively).

The higher AKP in BPTB compared with HS is in accordance with recent meta-analyses (Figure 3A).^19,49,51 It should be noted, however, that even though there are significant between-graft differences as per the incidence of AKP,^19,48,49,51 it evolves favorably and dissolves within 2 years of follow-up in 83% of patients who follow optimal rehabilitation.³⁹ Evidence for higher ED in BPTB compared with HS was not as strong (Figure 3B), and this is also in line with the mixed findings from previous analyses.^19,49,51 For example, differences in favor of the HS graft have been reported⁵¹ but others have found nonsignificant trends⁴⁹ or even no short- or long-term differences between the 2 graft types for deficits of ≥5°.¹⁹

In addition, the present review demonstrated a moderate correlation between the population effects of ED and AKP; in the above previous analyses, ED and AKP population effects are estimated separately and are thus assumed to be uncorrelated.¹⁸ In fact, it has been argued that ED may contribute to AKP due to improper placement of either tunnel or an inadequate notchplasty, which will result in impingement and prevention of full extension and AKP during the healing phase of the graft.⁴⁴ Over the past several years, a large body of knowledge has accumulated to improve the anatomic placement of the graft intra-articularly, which does not cause impingement and ED, thus subsequently reducing AKP.^10,13,16,29

AKP has been reported as a complication related to donor-site morbidity after ACLR using BPTB graft and as the main factor to avoid this graft,^19,51 despite its other advantages such as stability, lower rates of rerupture, and lesser rates of infection.^{10,24,35,37-39,52} The origin of AKP after ACLR has been under investigation.^42,44 It is mainly attributed to the harvesting of the BPTB graft, although it is not rare in patients who have had an HS graft ACLR.⁴² In fact, it has been recommended to avoid full hyperextension in the postoperative period after HS graft ACLR, presumably because the stress may stretch the graft.⁴⁴ However, regaining full hyperextension later in the postoperative period may not be feasible and the resulting ED of the flexion contracture may cause AKP.⁴⁴

Furthermore, it has previously been demonstrated that ED was an important predisposing factor for AKP in the early postoperative period (at 3 months).³⁴ More importantly, the vast majority of patients with AKP at 2 years of follow-up also had AKP at the 3-month follow-up, potentially highlighting the need for early recovery of extension range of motion.³⁴ To this notion, Shelbourn and Trumper⁴⁵ already underlined this phenomenon and found it very important to achieve full extension intraoperatively, or hyperextension if there is any in the contralateral knee, which has to be maintained with an accelerated postoperative mobilization and physiotherapy.⁴⁵ The appearance of AKP in patients treated with HS graft, despite not having a scar on the anterior surface of the knee, further supports this view.^32,42,44 The lower incidence of AKP using HS graft can be attributed to a faster postoperative restoration of quadriceps muscle function compared to BPTB graft.³¹

In a recent study, the existence of ED was 5.3 times more likely associated with AKP while a BPTB graft was associated with a 3.4 incidence ratio.³² This complication has been connected to BPTB graft because patients operated on using BPTB graft showed 2.3 times more probability of developing an ED compared with patients with HS graft. The authors advocated an optimal position of the graft between the lateral femoral condyle and the posterior cruciate ligament, which allows full extension immediately postoperative.³² This correct placement of the graft anatomically seems to be very important and very much influences the generation of ED and also potentially explains the difference of AKP and ED from the literature.^11,32 de Abreu-e-Silva et al¹¹ showed with a 3-dimensional computed tomography comparative study where an ED was observed more often using the transtibial technique.¹¹ In our review, 10 out of 12 studies used the transtibial technique; thus, we cannot infer whether more modern surgical procedures can moderate the association between ED and incidence of AKP.

Previous researchers advocated an accelerated mobilization and physical therapy after using a BPTB graft to gain full range of motion.^44,45 In a study of 602 patients and 122 control patients, a protocol focused on full extension early postoperatively was successful in preventing AKP, provided the graft was positioned in a place that allowed immediate full extension.⁴⁵ However, even if the incidence of AKP was more often seen in patients treated using BPTB compared with HS graft, the complaints disappeared over time, and 15 years later there was no difference between the 2 groups.⁴⁸ This is further supported by the findings of Rousseau et al³⁹ who reported diminishing AKP within 2 years after ACLR.³⁹ A previous study reported that a contemporary surgical technique with more medial incision, bone grafting, and closing of the peritendon was associated with lower AKP compared with that in the majority of the studies included in the present review.¹⁷ If more advanced techniques can lower AKP related to the BPTB graft site, the clinical value of the association between ED and AKP will be strengthened. Moreover, Sanchis-Alfonso et al⁴² reviewed the association between quadriceps strength deficit and AKP and advocated an improved rehabilitation protocol to avoid AKP.

When interpreting a systematic review, the sample size of the included studies, as well as their level of evidence, must be taken into account. A total of 976 patients were available to assess the association of AKP and ED in BPTB and HS grafts, which is lower compared with previous studies.^19,49,51 Modeling ED and AKP via measurement error model allows taking into account the uncertainty in the reported estimates, which is influenced by the sample size of each individual study, and also estimating an index of their association.¹⁸ All included studies were either RCTs (level 1) or PCSs (level 2). All included PCSs were rated as high quality, but on the other hand, nearly all RCTs were rated as medium quality. The effect of study design was initially tested but the model did not perform better; therefore, our analysis viewed study design as a trivial predictor of either ED or AKP. Similarly, using follow-up (≤5 years vs ≥6 years) as a predictor did not improve model fit. Thus, these subgroup analyses and the sensitivity analyses to detect heterogeneity provided support for the robustness of our results.

Limitations

The final clinical results may have been affected by the inconsistency in the fixation methods selected, differences in the rates of follow-up loss, and the rehabilitative protocols selected during the postoperative period. Our analysis cannot distinguish whether the association between the population effects of AKP and ED is due to specifically harvesting autograft tissue. In this regard, future meta-analyses should also estimate rates of AKP and ED in allografts versus BPTB and HS grafts. There was also some discrepancy between studies as per the reporting of AKP. In addition, most studies consider AKP postoperatively without any consideration of the degree and incidence of preoperative AKP. All articles included were published in English, thus potentially introducing some degree of publication bias. Finally, the effects of patient characteristics (ie, age, sex, activity level) cannot be considered because of data unavailability.

Conclusion

There is a moderate but clear correlation between ED and AKP irrespective of graft type. From a clinical perspective, this association emphasizes the need for intraoperative achievement of full extension and avoidance of situations that may cause ED. The higher incidence of AKP in patients with BPTB graft may also be attributed to factors related to the graft harvest site. Future metaregression analyses could investigate whether additional factors such as follow-up duration or rehabilitation protocols can moderate the association between AKP and ED after ACLR with either BPTB or HS graft.

Footnotes

Final revision submitted January 21, 2024; accepted February 26, 2024.

The authors declared that they have no conflicts of interest in the authorship and publication of this contribution. AOSSM checks author disclosures against the Open Payments Database (OPD). AOSSM has not conducted an independent investigation on the OPD and disclaims any liability or responsibility relating thereto.

Ethical approval was not sought for the present study.
