Outcomes of Open Versus Arthroscopic Broström Surgery for Chronic Lateral Ankle Instability: A Systematic Review and Meta-analysis of Comparative Studies

Abstract

Background:

Nearly 20% of acute ankle sprains progress to chronic lateral ankle instability that requires surgical intervention. In recent years, there has been a growing interest in arthroscopic Broström techniques as an alternative to open surgery.

Purpose:

To review the most up-to-date evidence comparing the outcomes of open and arthroscopic Broström procedures for chronic lateral ankle instability.

Study Design:

Systematic review; Level of evidence, 3.

Methods:

This review was performed following the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines. Relevant comparative studies in English up to May 2020 were identified. The primary outcomes were (1) functional scores (Karlsson Ankle Function Score and American Orthopaedic Foot & Ankle Society [AOFAS] score) and (2) the 10-point visual analog scale (VAS) score for pain. The secondary outcomes were differences in (1) postoperative anterior drawer and talar tilt, (2) surgical time and complication rate, and (3) time to return to sports and weightbearing.

Results:

A total of 408 patients in 8 studies met the inclusion criteria. Of these, 193 (47.3%) patients underwent open surgery, while 215 (52.7%) patients underwent arthroscopic surgery. There were significant differences between the open and arthroscopic repair groups in mean 6-month AOFAS scores (82.4 vs 92.25, respectively; mean difference [MD], 11.36; 95% CI, 0.14-2.56; I ² = 90%; P = .03), 1-year AOFAS scores (80.05 vs 88.6; MD, –11.96; 95% CI, –21.26 to –2.76; I ² = 82%; P = .01), 6-month VAS scores (1.7 vs 1.4; MD, –0.38; 95% CI, –0.54 to –0.21; I ² = 78%; P < .001), and 1-year VAS scores (2.05 vs 1.45; MD, 0.31; 95% CI, 0.09-0.54; I ² = 0%; P < .001). The mean time to weightbearing was 14.25 and 9.0 weeks in the open and arthroscopic repair groups, respectively (MD, 1.89; 95% CI, 1.24-2.54; I ² = 99%; P < .001). There were no statistically significant differences in the remaining outcomes evaluated.

Conclusion:

While technically more demanding, arthroscopic Broström was superior to open Broström-Gould surgery in postoperative AOFAS scores, VAS pain scores, and time to return to weightbearing. The operative time, complication rate, talar tilt, and anterior drawer tests were excellent and statistically comparable. Long-term clinical trials are required before recommending arthroscopic Broström as the new gold standard.

Keywords

lateral ankle instability open arthroscopic Broström-Gould repair

Ankle sprains are the most common ankle injury, accounting for up to 85% of all ankle injuries, with lateral inversion sprains constituting the majority of those sprains.²⁸ The injury mainly compromises the anterior talofibular ligament (ATFL), ranging from stretching to complete tears.²⁵ Most cases require a brief period of immobilization and functional rehabilitation and have excellent outcomes. Nevertheless, up to 20% of acute ankle sprains progress to mechanical or functional chronic lateral ankle instability (LAI) and may require surgical intervention.^7,30 Patients are typically evaluated with persistent tenderness over the lateral gutter accompanied by episodes of instability. Clinically, they have abnormal findings on the talar tilt test, anterior drawer tests, and stress radiographs.²⁹

In 1966, Broström published his technique: anatomical reconstruction of the ATFL and calcaneofibular ligament (CFL) by imbricating the remnants of these ligaments along with the lateral capsule.⁴ Gould et al¹⁰ later modified the technique in 1980 by adding augmentation of the repair with fibers from the inferior extensor retinaculum. While many techniques have been described over the following decades, the Broström-Gould open surgery has remained the gold standard treatment for primary chronic LAI even more than 50 years after the technique was first described.¹¹ In cases without sufficient remnant tissue or failed Broström-Gould procedure, reconstruction of the ATFL can be performed using autologous or synthetic grafts.²⁷

In recent years, there has been a growing interest in arthroscopic Broström techniques as an alternative to open Broström-Gould surgery. Using suture anchors to the fibula, surgeons can arthroscopically repair the ATFL and augment it with the inferior extensor retinaculum. The Gould modifications can be performed through an accessory anterolateral portal/incision^25,34 or endoscopically (all-inside).^12,36 This technique offers an additional diagnostic and therapeutic opportunity for concomitant intra-articular pathologies in the same setting.^5,11,14 Recent case series and cohort studies show reliable improvement in clinical and radiographic outcomes of LAI after arthroscopic surgery.^16,31 Few studies have compared the clinical outcomes of arthroscopic versus open Broström-Gould procedures. In the past 2 years alone, 4 comparative studies have been published,^8,32,33,37 which highlights the importance of reaching a bottom line as to whether to recommend the arthroscopic Broström procedure as a worthy alternative to the gold standard Broström-Gould.

The current study aimed to provide the foot and ankle surgery community with the most updated evidence comparing outcomes of open with arthroscopic Broström procedures for chronic LAI.

Methods

Literature Search

This meta-analysis was performed following the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines.²⁴ An electronic-based search of the MEDLINE (PubMed), EMBASE, Google Scholar, and Cochrane databases was conducted using the following keywords with their synonyms: (“open Broström-Gould” AND “arthroscopic Broström “AND “lateral ankle instability” AND “ATFL reconstruction”). Relevant comparative studies in the English literature were identified between inception of databases and May 2020. In addition, the reference lists from previous review articles were searched manually for eligible studies.

Two investigators (A.K.A., K.M.) independently reviewed all titles, abstracts, and the full text of articles that were potentially eligible based on the abstract review. The eligible studies were selected according to the inclusion and exclusion criteria. Any disagreement was resolved by discussion, and all decisions were unanimous. If further conflict remained, it was resolved by the senior author (P.D.).

Study Eligibility Criteria

The research team systematically reviewed published studies according to the following inclusion criteria: comparative studies on open versus arthroscopic Broström procedures for chronic ankle instability reporting at least 1 of the following desirable outcomes: American Orthopaedic Foot & Ankle Society (AOFAS) score, Karlsson Ankle Function Score (KAFS), 10-point visual analog scale (VAS) for pain, talar tilt, anterior drawer, complications, and time to return to activities/sport. Studies not reporting any of the outcomes of interest or not having the full text available in English were excluded. Noncomparative studies, as well as studies reporting on acute ankle instability, were excluded.

The search strategy according to the PICO framework² was as follows:

Population: chronic LAI

Intervention: arthroscopic Broström procedure

Control: open Broström procedure

Outcomes: primary: functional scores (KAFS, AOFAS), VAS pain score; secondary: differences in anterior drawer and talar tilt, complication rate, time to return to sport, and weightbearing

Risk-of-Bias Assessment

Using the Newcastle-Ottawa Scale, 2 independent investigators (A.K.A. and T.T.) rated each study for quality and bias assessment.³² The Newcastle-Ottawa Scale evaluates the quality of a study from 3 categories: selection of study groups, comparability of groups, and ascertainment of outcomes/exposure. The level of evidence was assigned according to the Cochrane Book Review Group.¹⁴ Additionally, Review Manager (RevMan, Version 5.4; The Cochrane Collaboration, 2020) was used for the risk-of-bias assessment. To assess the risk of publication bias, a funnel plot of the most reported outcome measure (preoperative AOFAS score) was charted.

Data Collection

The data retrieved included study characteristics (name, year, level of evidence), patient characteristics (sample size, age, sex, associated ankle pathology), management characteristics, and outcome measures.

Data Analysis

Statistical analysis was carried out by an independent statistician. The data analysis was performed by comprehensive meta-analysis software using a random-effects model and SPSS Version 22 (IBM Corp). For continuous variables, the standardized mean difference (MD) and 95% CI were calculated. Heterogeneity was evaluated using the Higgins I ² methods. According to the Cochrane Handbook for Systematic Reviews of Interventions, the interpretation of I ² was as follows: heterogeneity not important, 0% to 40%; moderate, 30% to 60%; substantial, 50% to 90%; and considerable, 75% to 100%.¹³

Results

After removal of duplicates, a total of 823 studies were identified. After screening those records, 31 studies remained for full-text assessment. Eight studies qualified for the meta-analysis (Figure 1). A total of 408 patients in 8 studies met the inclusion criteria and were subjected to analysis. Out of those patients, 193 (47.3%) underwent open repair, while arthroscopic repair was performed in 215 (52.7%). Out of enrolled patients in different studies, 234 (57.4%) patients were male (117 patients in each group). There were 6 retrospective comparative studies, 1 prospective cohort study, and 1 randomized controlled trial (Table 1).

Figure 1.

PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) flowchart.

Table 1

Characteristics of Included Studies ^a

Lead Author (Year)	Country	Study Design	Sample Size	Intervention	n	Age, y ^b	M/F, n	F/U, y ^b
Xu (2020)³⁴	China	RCC	67	Open	35	35.8 ± 8.5	25/10	3.3 ± 0.8
Xu (2020)³⁴	China	RCC	67	Arthroscopic	32	33.7 ± 7.0	24/8	3.0 ± 1.1
Woo (2020)³³	Singapore	RCC	52	Open	26	31.5 ± 10.3	16/10	1
Woo (2020)³³	Singapore	RCC	52	Arthroscopic	26	33.4 ± 10.6	16/10	1
Zeng (2020)³⁷	China	RCC	27	Open	10	27.7 ± 9.7	7/3	3
Zeng (2020)³⁷	China	RCC	27	Arthroscopic	17	30.9 ± 6.0	15/2	3
DeVries (2019)⁸	USA	RCC	55	Open	12	39.5 ± 16.0	6/6	1.8 ± 0.6
DeVries (2019)⁸	USA	RCC	55	Arthroscopic	43	44.7 ± 13.2	16/27	2.0 ± 0.6
Li (2017)¹⁸	China	PCS	60	Open	37	28.7 ± 8.7	29/8	3.0 ± 0.8
Li (2017)¹⁸	China	PCS	60	Arthroscopic	23	30.3 ± 10.1	18/5	3.3 ± 0.9
Rigby (2019)²⁸	USA	RCC	62	Open	32	37.73 (9-72)	14/18	3.7 (1.3-5.3)
Rigby (2019)²⁸	USA	RCC	62	Arthroscopic	30	47.89 (14-83)	9/21	1.3 (0.7 -1.7)
Yeo (2016)³⁶	Korea	RCT	48	Open	23	34.4 (17-52)	12/11	1
Yeo (2016)³⁶	Korea	RCT	48	Arthroscopic	25	35.2 (19-54)	7/18	1
Matsui (2016)²³	Japan	RCC	37	Open	18	24 (13-56)	8/10	1
Matsui (2016)²³	Japan	RCC	37	Arthroscopic	19	28 (8-59)	12/7	1

^a F/U, follow-up; LOE, level of evidence; M/F, male/female; PCS, prospective cohort study; RCC, retrospective case-control study; RCT, randomized controlled trial.

^b Data are reported as means. SD and ranges in parentheses are presented if reported in the included studies.

Risk-of-Bias Assessment

The results of the quality assessment according to the Newcastle-Ottawa Scale are shown in Table 2, and the results of the risk-of-bias assessment are shown in Figure 2. The funnel plot confirmed a low risk of publication bias of the studies reviewed.

Table 2

Quality Assessment of Included Studies per Newcastle-Ottawa Scale ^a

Lead Author (Year)	LOE	Selection	Comparability	Outcome/Exposure
Xu (2020)³⁴	3	****	*	**
Woo (2020)³³	3	***	**	***
Zeng (2020)³⁷	3	****	*	**
DeVries (2019)⁸	3	****	*	**
Li (2017)¹⁸	3	***	*	***
Rigby (2019)²⁸	3	****	*	***
Yeo (2016)³⁶	1	****	**	**
Matsui (2016)²³	3	****	*	***

^a Each asterisk represents 1 point scored. The possible total points are 4 for selection, 2 for comparability, and 3 for outcomes. LOE, level of evidence.

Figure 2.

(A) Funnel plot of the most reported outcome measure (preoperative [Pre-op] American Orthopaedic Foot & Ankle Society [AOFAS] score), where each circle represents a study. All of the values are narrow to the no-effect line (vertical dashed line), and none of the studies were outside the range of acceptability (diagonal dashed lines). (B and C) Risk-of-bias assessment summary in the included studies using RevMan software. MD, mean difference.

Patient and Study Characteristics

Patient Age

Mean age was reported in 5 studies, with 120 patients treated with open repair and 141 patients treated with arthroscopic repair. The mean ages were 32.5 and 34.8 years for open and arthroscopic repairs, respectively, with no statistically significant difference (MD, –0.54; 95% CI, –2.93 to 1.85; I ² = 0%; P = .66).

Follow-up Duration

The duration of follow-up was reported in 3 studies, with 84 patients treated with open repair and 98 treated with arthroscopic repair. The mean follow-up was 2.7 years in the case of open repair and 2.8 years in the arthroscopic group, with no statistically significant difference (MD, 0; 95% CI, –0.29 to 0.30; I ² = 62%; P = .98).

AOFAS Score

Preoperative AOFAS Score

The mean preoperative AOFAS score was reported in 5 studies, with 131 patients treated with open repair and 123 treated with arthroscopic repair. The average scores were 67.12 and 65.94 in the open and arthroscopic repairs, respectively, which was a statistically significant difference (MD, 2.24; 95% CI, 1.14-3.35; I ² = 0%; P < .001) (Figure 3).

Perioperative AOFAS Score

The mean perioperative AOFAS score was reported in 3 studies, with 82 patients treated with open repair and 72 treated with arthroscopic repair. The average postoperative AOFAS score was 91.2 in both groups of repair. There was no statistically significant difference between the repair types (MD, –1; 95% CI, –3.43 to 1.42; I ² = 0%; P = .42) (Figure 3).

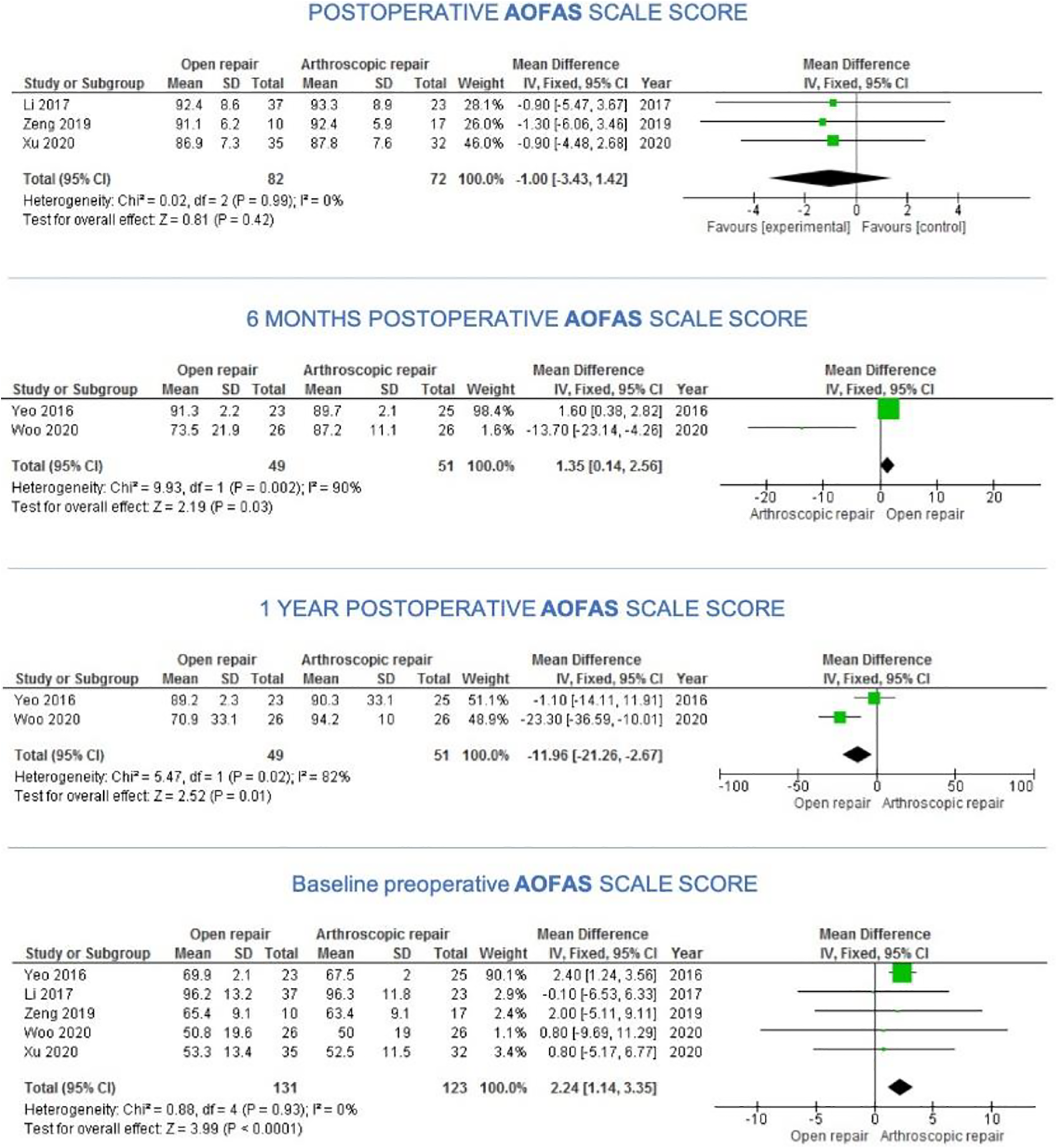

Figure 3.

Forest plots comparing American Orthopaedic Foot & Ankle Society (AOFAS) scale score in arthroscopic versus open surgery. IV, inverse variance.

Postoperative AOFAS Score

The mean 6-month AOFAS was reported in 2 studies, with 49 patients treated with open repair and 51 treated with arthroscopic repair. The average postoperative AOFAS scores were 82.4 and 92.25 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, 11.36; 95% CI, 0.14-2.56; I ² = 90%; P = .03) (Figure 3).

The 1-year-AOFAS score was reported in 2 studies, with 49 patients treated with open repair and 51 treated with arthroscopic repair. The average postoperative AOFAS scores were 80.05 and 88.6 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, –11.96; 95% CI, –21.26 to –2.76; I ² = 82%; P = .01) (Figure 3).

VAS Pain Score

Baseline VAS Score

The preoperative VAS score was reported in 3 studies, with 84 patients treated with open repair and 83 treated with arthroscopic repair. The average preoperative VAS scores were 5.77 and 5.40 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, –0.75; 95% CI, –0.91 to –0.58; I ² = 86%; P < .001) (Figure 4).

Figure 4.

Forest plots comparing visual analog scale (VAS) score in arthroscopic versus open surgery. IV, inverse variance.

Postoperative VAS Score

The 6-month VAS score was reported in 2 studies, with 49 patients treated with open repair and 51 treated with arthroscopic repair. The average 6-month VAS scores were 1.7 and 1.4 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, –0.38; 95% CI, –0.54 to –0.21; I ² = 78%; P < .001) (Figure 4).

The 1-year VAS score was reported in 2 studies, with 49 patients treated with open repair and 51 treated with arthroscopic repair. The average 1-year VAS scores were 2.05 and 1.45 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, 0.31; 95% CI, 0.09-0.54; I ² = 0%; P < .001) (Figure 4).

Karlsson Ankle Function Score

Preoperative KAFS

The preoperative KAFS was reported in 4 studies, with 105 patients treated with open repair and 97 treated with arthroscopic repair. The average preoperative KAFSs were 57 and 55.7 in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, 3.34; 95% CI, 2.08-4.60; I ² = 0%; P < .001) (Figure 5).

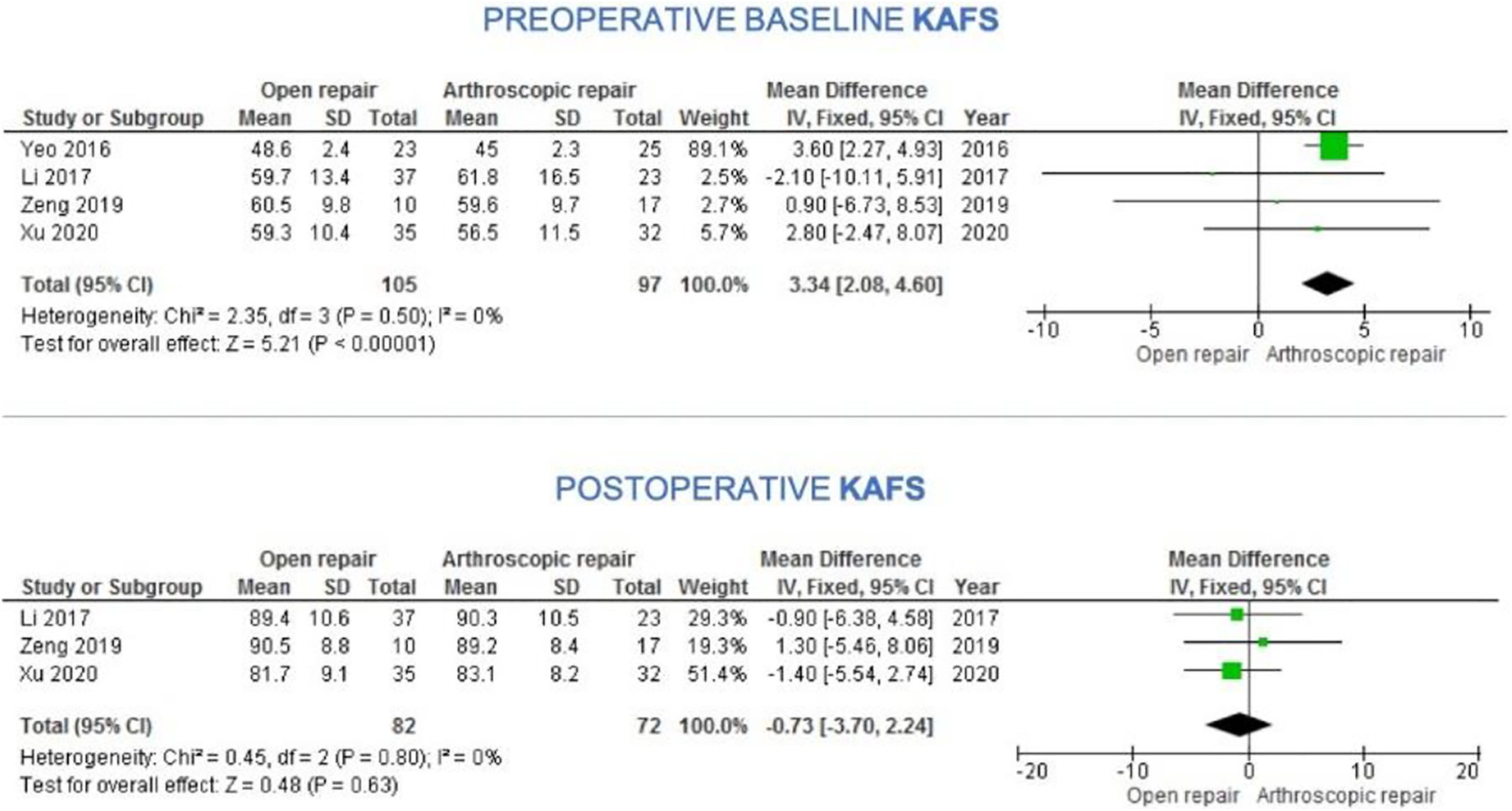

Figure 5.

Forest plots comparing Karlsson Ankle Function Score (KAFS) in arthroscopic versus open surgery. IV, inverse variance.

Postoperative KAFS

The postoperative KAFS was reported in 3 studies, with 82 patients treated with open repair and 72 treated with arthroscopic repair. The average postoperative KAFS results were 82.7 and 87.5 in the open and arthroscopic repairs, respectively. There was no statistically significant difference (MD, –0.73; 95% CI, –3.70 to 2.24; I ² = 0%; P = .63) (Figure 5).

Time to Weightbearing and Return to Sport

Time to return to weightbearing was reported in 2 studies, with 44 patients treated with open repair and 73 treated with arthroscopic repair. The average times to weightbearing were 14.25 weeks and 9.0 weeks in the open and arthroscopic repairs, respectively. This was a statistically significant difference (MD, 1.89; 95% CI, 1.24-2.54; I ² = 99%; P < .001) (Figure 6).

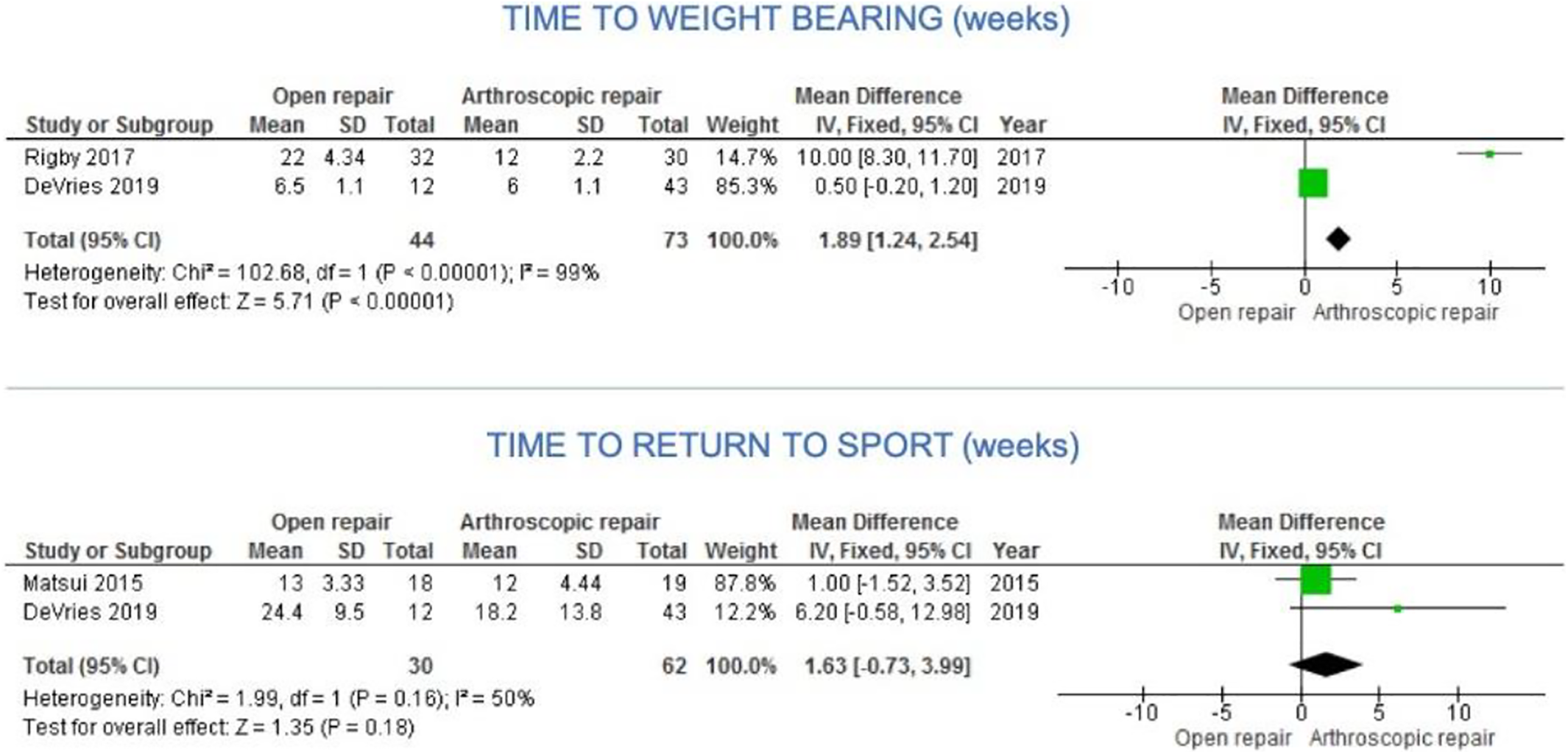

Figure 6.

Forest plots comparing time to weightbearing and time to return to sport in arthroscopic versus open surgery. IV, inverse variance.

Time to return to sports was reported in 2 studies, with 30 patients treated with open repair and 62 treated with arthroscopic repair. The average times to return to sport were 18.7 weeks and 15.1 weeks in the open and arthroscopic repairs, respectively. There was no statistically significant difference (MD, –1.63; 95% CI, –0.73 to 3.99; I ² = 50%; P = .18) (Figure 6).

Postoperative Anterior Drawer and Talar Tilt

The postoperative anterior drawer was reported in 2 studies, with 33 patients treated with open repair and 42 treated with arthroscopic repair. The average postoperative anterior drawer values were 8.55 and 8.4 mm in the open and arthroscopic repairs, respectively. There was no statistically significant difference (MD, 0.11; 95% CI, –0.83 to 1.05; I ² = 0%; P = .82) (Figure 7).

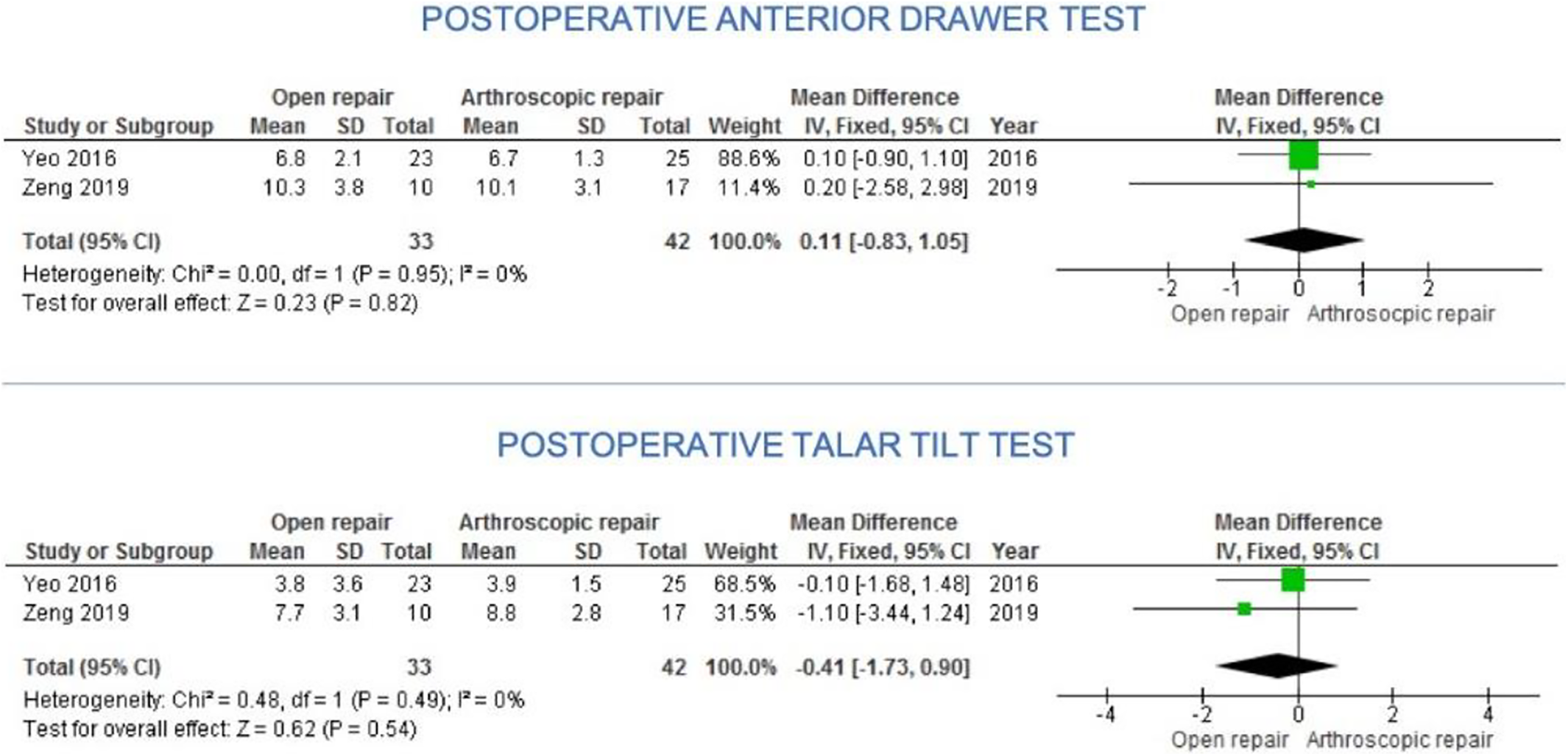

Figure 7.

Forest plots comparing anterior drawer test and talar tilt in arthroscopic versus open surgery. IV, inverse variance.

Postoperative talar tilt was reported in 2 studies, with 33 patients treated with open repair and 42 treated with arthroscopic repair. The average postoperative talar tilts were 5.75° and 6.35° in the open and arthroscopic repairs, respectively. There was no statistically significant difference (MD, –0.41; 95% CI, –1.73 to 0.91; I ² = 0%; P = .54) (Figure 7).

Operative Time and Complications

Operative time was reported in 2 studies, with 28 patients treated with open repair and 36 treated with arthroscopic repair. The average operative times were 37.95 and 46.1 minutes in the open and arthroscopic repairs, respectively. There was no statistically significant difference (MD, –4.62; 95% CI, –9.57 to 0.33; I ² = 96%; P = .07) (Figure 8).

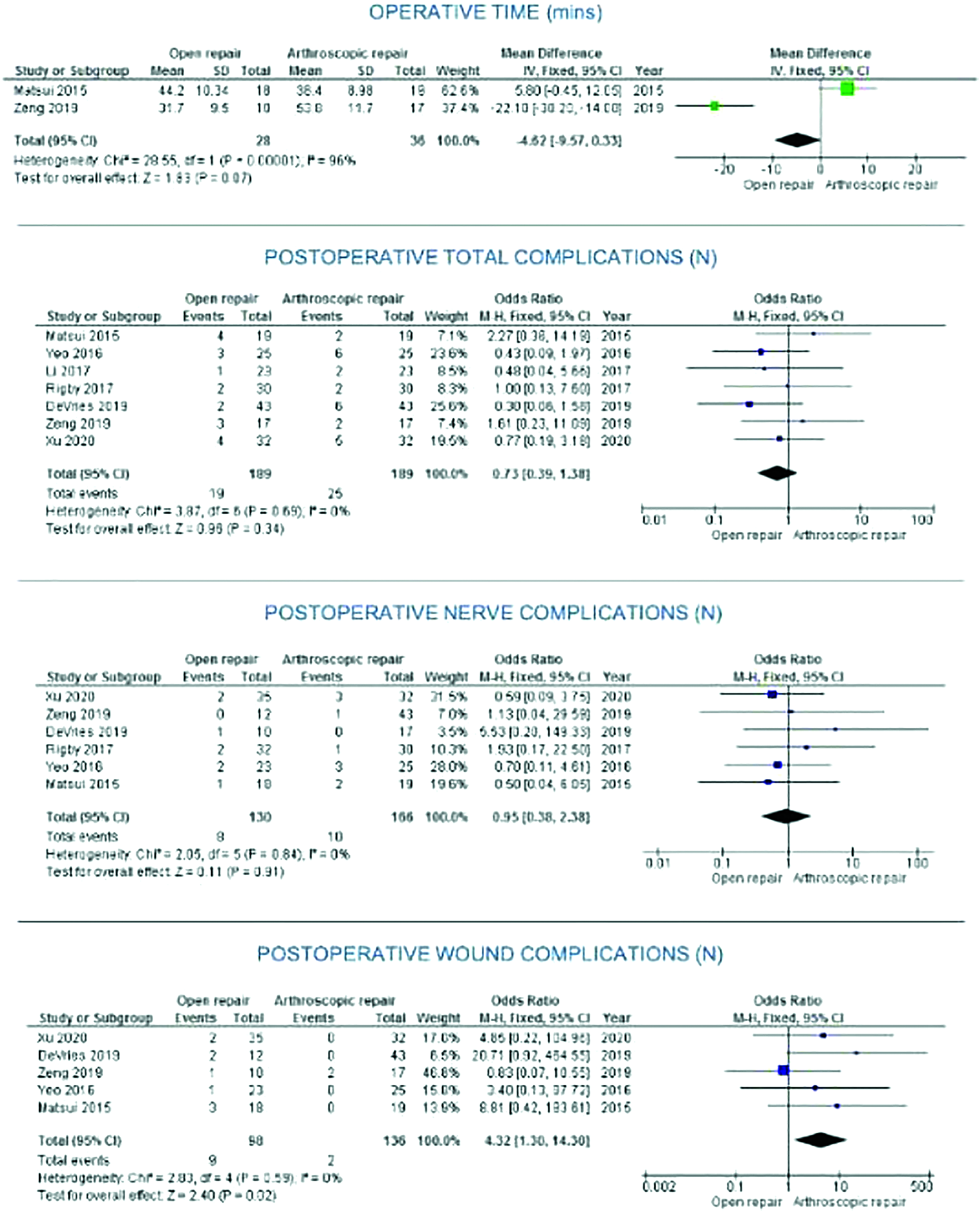

Figure 8.

Forest plots comparing operative time and complications in arthroscopic versus open surgery. IV, inverse variance; M-H, Mantel-Haenszel.

The total complication rate was reported in 7 studies, with 189 patients in each group. The open repair complication rate was 21.3%, while that for arthroscopic repair was 10%. There was no statistically significant difference (odds ratio [OR], 0.73; 95% CI, 0.39-1.38; I ² = 0%; P = .34) (Figure 8).

The nerve complication rate was reported in 6 studies, with 130 patients treated with open repair and 166 patients treated with arthroscopic repair. The open repair complication rate was 6.2%, while the arthroscopic repair rate was 6%. There was no statistically significant difference (OR, 0.95; 95% CI, 0.38-2.38; I ² = 0%; P = .91) (Figure 8).

Wound infection was reported in 5 studies, with 98 patients treated with open repair and 136 patients treated with arthroscopic repair. The open repair group had a wound complication rate of 9.2%, while the arthroscopic repair group had a wound complication rate of 1.5%. There was a statistically significant difference in favor of arthroscopic repair (OR, 4.32; 95% CI, 1.30-14.30; I ² = 0%; P = .02) (Figure 8).

Discussion

A relatively recent and well-conducted meta-analysis comparing open and arthroscopic Broström-Gould procedures has been published⁵; however, it included a small number of patients because of the limited number of published comparative studies at that time. The current meta-analysis included twice the number of studies and 408 patients versus 207 in the previous one. Moreover, we analyzed variables not previously addressed, such as pain, operative time, time to return to sport, and weightbearing.

The Broström-Gould open surgery has been the gold standard for decades as a safe, reproducible, and successful procedure to address chronic LAI. However, with the introduction of orthopaedic endoscopy, both surgeons and patients sought a minimally invasive option.⁵ Traditional open surgery requires a long, curved incision and soft tissue trauma. Apart from the cosmetic benefits of the arthroscopic procedure that patients rightfully seek, it provides the added benefit of the diagnosis and treatment of extremely common associated intra-articular pathologies that are better addressed arthroscopically.^5,11,14 For instance, talar chondral lesions of varying degrees were reported in up to 46% to 75% of cases of chronic LAI,^14,19,20,36 and anterior impingement and synovitis were reported in up to 63% and 100% of LAI at the time of reconstruction and repair, respectively.^20,26 As a result, many authors have recommended ankle arthroscopy for all patients before addressing the lateral ankle instability, whether open or arthroscopically.³⁵ After arthroscopy, portals needed for the arthroscopic Broström are established, and soft tissues have been cleared, providing superior visualization of the lateral ankle structures compared with open surgery.¹² However, ankle arthroscopy can be carried out before open Broström to combine the benefits of both procedures.

One of the issues that has put the arthroscopic Broström surgery in a bad light is nerve injury or entrapment, which has been reported in earlier literature.¹ While there is a trend for a higher rate of superficial peroneal nerve complications in arthroscopic surgery and a higher rate of wound complications in open surgery, our results showed similar overall complication rates and nerve complication rates in comparative studies. However, wound healing complications were significantly reduced with arthroscopic surgery (1.5%) compared with open surgery (9.2%). Our findings are in agreement with those of previous reviews.⁵ Moreover, this complication could be avoided by identifying the safe zone 1.5 cm from the tip of the fibula.¹

The present study confirms the findings of previous studies that the arthroscopic Broström procedure provides superior functional outcomes in the short term.⁵ In terms of AOFAS hindfoot scale scores, the present study demonstrated an MD of more than 11 points in favor of arthroscopic Broström repair. Such a difference has clinical significance when the specifics of the scale are considered. The score difference between severe limitation of daily activities with a walking aid possibly needed and no limitation is only 10 points. The difference between no difficulty on uneven surfaces and severe difficulty is only 8 points.¹⁷

While this study has shown that the VAS pain scores after arthroscopic Broström were consistently lower than those after open Broström-Gould repair, with statistical significance, the MDs are marginal and do not qualify for clinical relevance. Multiple studies have described the minimum clinically important difference (MCID) of the VAS. The MDs in our study were 0.38 at 6 months and 0.31 at 1 year postoperatively, which fall well below the lowest reported MCID of 0.9.¹⁵ The possible confounding effect of pain on the AOFAS score has been highlighted by Guelfi et al¹¹ and Brown et al⁵ as 40 points of the AOFAS score corresponding to pain. However, based on our results, those differences in pain do not necessarily explain the differences in the AOFAS functional score previously mentioned, pointing toward a high probability of actual superior functional outcomes of the arthroscopic Broström procedure rather than a reflection of pain difference.

The results of the present study show that arthroscopic Broström surgery is capable of achieving equivalent results in restoring the stability of the lateral ankle structure, as represented by the talar tilt and anterior drawer test. These results support the findings of the cadaveric study by Giza et al,⁹ which showed equivalent biomechanical results of suture anchors versus open repair of LAI. While arthroscopic Broström does not permit CFL repair without an additional open approach, the literature indicates that repairing the CFL is not necessary for stability. Lee et al²² performed a cadaveric biomechanical study comparing the stability of the modified Broström procedure with combined ATFL and CFL repair versus ATFL alone. They found no significant difference in talar tilt or anterior displacement. Clinically, Lee et al²¹ reported long-term outcomes for the modified Broström procedure with ATFL-only repair. They concluded that the modified Broström procedure without CFL repair had good to excellent subjective, functional, and radiographic outcomes at 10-year follow-up.

Despite the advantages of the arthroscopic Broström procedure, the added cost of arthroscopic implants and equipment remains a drawback. Although a recent study showed the safety and reproducibility of the surgery by young surgeons trained in arthroscopy,²⁵ most studies have highlighted the steep learning curve and less familiarity with the relatively new arthroscopic procedure in comparison with the open procedure, which has been the gold standard for generations.^1,18,23,35 This, in part, may explain the discrepancy in operative time in the included studies.^23,37

Limitations

This study is not without limitations. The limitations of this study are similar to those of all other meta-analyses, including the heterogeneity of the included studies, the unknown bias in the primary studies, and the inclusion of articles published only in English. Furthermore, the number of included studies was limited to only 8 studies. Another fundamental limitation is the indication. Broström procedures are not recommended in the case of a highly attenuated ATFL, which cannot be ruled out before the surgery. A hook can be used to test the ATFL for degeneration and switch to open or arthroscopic reconstruction if necessary.⁹

Second, the length of the follow-up of the arthroscopic procedure in the literature remains limited to 10 years,²⁵ whereas the open procedure has reported excellent long-term outcomes for up to 26 years.³ In comparative studies, the mean follow-up was less than 3 years. As a result, we were unable to provide an answer regarding which procedure has better long-term functional outcomes because of the limited literature on the relatively new arthroscopic technique.

Moreover, in the present meta-analysis we are unable to explain why the arthroscopic procedure had markedly better AOFAS scores that were not reflected in the KAFS. One explanation, presented by Brown et al,⁵ is that AOFAS has a large pain component, and hence less pain after arthroscopic surgery is a confounder for the AOFAS score. However, our results do not support this explanation, as previously discussed. Our explanation for this discrepancy is that the arthroscopic group had a lower KAFS than the open group preoperatively (MD, 3.34; P < .001). Similar postoperative scores mean that the arthroscopic group had more improvement than the open group. Another possibility is that sample size did not allow for detection of a statistical significance of the higher postoperative KAFS results in the arthroscopic group. The preoperative KAFS was reported in more patients than the postoperative KAFS (202 vs 154, respectively). If either of those explanations is true, this can be interpreted in favor of arthroscopic surgery. However, it is noteworthy that the sensitivity of the AOFAS scale in detecting ankle instability has been questioned.^6,11

Finally, return-to-play and level of athletic participation data in comparative studies were limited. Although our results show a similar time needed to return to sport, these results are based on only 2 studies with mixed populations. While both procedures provide excellent outcomes, further high-quality comparative studies with a separate analysis for the athletic population are necessary to reach a conclusion.

Conclusion

While technically more demanding, arthroscopic Broström was superior to open Broström-Gould surgery in postoperative AOFAS functional scores, time to return to weightbearing, and minimally in VAS pain scores. Operative time, complication rate, talar tilt, and anterior drawer tests were excellent and statistically comparable. However, long-term outcome data are lacking for arthroscopic Broström repair, and clinical trials with longer follow-up are required before recommending arthroscopic Broström as the new gold standard.

Footnotes

Final revision submitted December 11, 2020; accepted February 3, 2021.

One or more of the authors has declared the following potential conflict of interest or source of funding: T.T. has received hospitality payments from Stryker, NuVasive, Smith & Nephew, Medtronics, and Zimmer Biomet. K.M. has received educational support from Arthrex. K.J.H. has received education payments from Wright Medical Technology, Pacific Medical, and Zimmer Biomet; consulting fees from Paragon 28; nonconsulting fees from Arthrex; and honoraria from Cartiva and has a patent pending and stock options with Panther Orthopaedics. S.A.L. has received grant support from Arthrosurface and Zimmer Biologics; education payments from United Orthopedics and Arthrex; consulting fees from Heron Therapeutics, Stryker, and Arthrosurface; personal fees from Stryker; and hospitality payments from Exactech and has stock options with Medshape. AOSSM checks author disclosures against the Open Payments Database (OPD). AOSSM has not conducted an independent investigation on the OPD and disclaims any liability or responsibility relating thereto.

References

Acevedo

Mangone

. Arthroscopic Brostrom technique. Foot Ankle Int. 2015;36(4):465–473.

Armstrong

. The well-built clinical question: the key to finding the best evidence efficiently. WMJ. 1999;98(2):25–28.

Bell

Mologne

Sitler

Cox

. Twenty-six-year results after Broström procedure for chronic lateral ankle instability. Am J Sports Med. 2006;34(6):975–978.

Broström

. Sprained ankles. VI. Surgical treatment of “chronic” ligament ruptures. Acta Chir Scand. 1966;132:551–565.

Brown

Shimozono

Hurley

Kennedy

. Arthroscopic versus open repair of lateral ankle ligament for chronic lateral ankle instability: a meta-analysis. Knee Surg Sports Traumatol Arthrosc. 2020;28(5):1611–1618.

Buerer

Winkler

Burn

Chopra

Crevoisier

. Evaluation of a modified Broström-Gould procedure for treatment of chronic lateral ankle instability: a retrospective study with critical analysis of outcome scoring. Foot Ankle Surg. 2013;19:36–41.

Chan

Ding

Mroczek

. Acute and chronic lateral ankle instability in the athlete. Bull NYU Hosp Jt Dis. 2011;69(1):17–26.

DeVries

Scharer

Romdenne

. Ankle stabilization with arthroscopic versus open with suture tape augmentation techniques. J Foot Ankle Surg. 2019;58(1):57–61.

Giza

Shin

Wong

, et al. Arthroscopic suture anchor repair of the lateral ligament ankle complex: a cadaveric study. Am J Sports Med. 2013,41:2567–2572.

10.

Gould

Seligson

Gassman

. Early and late repair of lateral ligament of the ankle. Foot Ankle. 1980;1:84–89.

11.

Guelfi

Zamperetti

Pantalone

Usuelli

Salini

Oliva

. Open and arthroscopic lateral ligament repair for treatment of chronic ankle instability: a systematic review. Foot Ankle Surg. 2018;24(1):11–18.

12.

Guillo

Odagiri

. All-inside endoscopic Broström-Gould technique. Arthrosc Tech. 2019;9(1):e79–e84.

13.

Higgins

JPT

Green

, eds. Cochrane Handbook for Systematic Reviews of Interventions. Version 5.1.0. Updated March 2011. Accessed May 20, 2020. https://training.cochrane.org/handbook

14.

Hintermann

Boss

Schafer

. Arthroscopic findings in patients with chronic ankle instability. Am J Sports Med. 2002;30(3):402–409.

15.

Kelly

. Does the clinically significant difference in VAS pain score differ with age, gender or cause of pain? Acad Emerg Med. 1998;5:1086–1090.

16.

Kim

Lee

Park

Lee

. Arthroscopic anterior talofibular ligament repair for chronic ankle instability with a suture anchor technique. Orthopedics. 2011;34(4). doi:10.3928/01477447-20110228-03

17.

Kitaoka

Alexander

Adelaar

Nunley

Myerson

Sanders

. Clinical rating systems for the ankle-hindfoot, mid-foot, hallux and lesser toes. Foot Ankle Int. 1994;15:349–353.

18.

Hua

Chen

. Activity level and function 2 years after anterior talofibular ligament repair: a comparison between arthroscopic repair and open repair procedures. Am J Sports Med. 2017;45(9):2044–2051.

19.

Liszka

Depukat

Gądek

. Intra-articular pathologies associated with chronic ankle instability. Folia Med Cracov. 2016;56(2):95 -100.

20.

Lee

Hamilton

Ford

. Associated intra-articular ankle pathologies in patients with chronic lateral ankle instability: arthroscopic findings at the time of lateral ankle reconstruction. Foot Ankle Spec. 2011;4(5):284–289.

21.

Lee

Park

Kim

Kang

. Long-term results after modified Brostrom procedure without calcaneofibular ligament reconstruction. Foot Ankle Int. 2011;32:153–157.

22.

Lee

Sung

, et al. Biomechanical evaluation against calcaneofibular ligament repair in the Brostrom procedure: a cadaveric study. Knee Surg Sports Traumatol Arthrosc. 2008;16(8):781–786.

23.

Matsui

Takao

Miyamoto

Matsushita

. Early recovery after arthroscopic repair compared to open repair of the anterior talofibular ligament for lateral instability of the ankle. Arch Orthop Trauma Surg. 2016;136(1):93–100.

24.

Moher

Liberati

Tetzlaff

Altman

; The PRISMA Group. Preferred Reporting Items for Systematic Reviews and Meta-Analyses: the PRISMA statement. Int J Surg. 2010;8(5):336–341.

25.

Nery

Raduan

Del Buono

Asaumi

Cohen

Maffulli

. Arthroscopic-assisted Broström-Gould for chronic ankle instability: a long-term follow-up. Am J Sports Med. 2011;39(11):2381–2388.

26.

Odak

Ahluwalia

Shivarathre

, et al. Arthroscopic evaluation of impingement and osteochondral lesions in chronic lateral ankle instability. Foot Ankle Int. 2015:36(9):1045–1049.

27.

Porter

Shadbolt

Stuart

. Primary ankle ligament augmentation versus modified Brostrom-Gould procedure: a 2-year randomized controlled trial. ANZ J Surg. 2015;85:44–48.

28.

Rigby

Cottom

. A comparison of the “all-inside” arthroscopic Broström procedure with the traditional open modified Broström-Gould technique: a review of 62 patients. Foot Ankle Surg. 2019;25(1):31–36.

29.

Usuelli

Mason

Grassi

Maccario

Ballal

Molloy

. Lateral ankle and hindfoot instability: a new clinical based classification. Foot Ankle Surg. 2014;20(4):231–236.

30.

van Rijn

van Os

Bernsen

Luijsterburg

Koes

Bierma-Zeinstra

. What is the clinical course of acute ankle sprains? A systematic literature review. Am J Med. 2008;121(4):324–331.

31.

Wang

Hua

Chen

, et al. Arthroscopic repair of lateral ankle ligament complex by suture anchor. Arthroscopy. 2014;30(6):766–773.

32.

Wells

Shea

O’Connell

, et al. The Newcastle-Ottawa Scale (NOS) for assessing the quality of nonrandomized studies in meta-analyses. Department of Epidemiology and Community Medicine, University of Ottawa, Canada. Published 2014. Accessed May 27, 2021. http://www.ohri.ca/programs/clinical_epidemiology/oxford.htm

33.

Woo

Lai

Koo

. Arthroscopic versus open Broström-Gould repair for chronic ankle instability. Foot Ankle Int. 2020;41(6):647–653. doi:10.1177/1071100720914860

34.

Wang

Liu

. A comparison between arthroscopic and open surgery for treatment outcomes of chronic lateral ankle instability accompanied by osteochondral lesions of the talus. J Orthop Surg Res. 2020;15(1):113. doi:10.1186/s13018-020-01628-3

35.

Yasui

Murawski

Wollstein

Kennedy

. Reoperation rates following ankle ligament procedures performed with and without concomitant arthroscopic procedures. Knee Surg Sports Traumatol Arthrosc. 2017;25:1908–1915. http://dx.doi.org/10.1007/s00167-016-4207-x

36.

Yeo

Lee

Sung

Lee

. Comparison of all-inside arthroscopic and open techniques for the modified Broström procedure for ankle instability. Foot Ankle Int. 2016;37(10):1037–1045. doi:10.1177/1071100716666508

37.

Zeng

Liu

, et al. Open Broström-Gould repair vs arthroscopic anatomical repair of the anterior talofibular ligament for chronic lateral ankle instability. Foot Ankle Int. 2020;41(1):44–49. doi:10.1177/1071100719875964.
