Abstract
Background:
Given the proximity of the medial patellofemoral ligament (MPFL) femoral insertion to the distal femoral physis in skeletally immature patients, multiple techniques for femoral graft fixation have been described.
Purpose:
To systematically review the literature and evaluate outcomes and complications following MPFL reconstruction in skeletally immature patients.
Study Design:
Systematic review; Level of evidence, 4.
Methods:
A comprehensive literature search was performed according to the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines through use of the PubMed, Embase, and Cochrane Central databases. All original, English-language studies reporting outcomes or complications following MPFL reconstruction in skeletally immature patients were included. Skeletally mature patients were excluded. Data regarding demographics, surgical technique, graft type, outcomes, and complications were recorded. Study quality was assessed by use of the modified Coleman methodology score. Statistical analysis was performed through use of chi-square and weighted mean pooled cohort statistics, where appropriate, with significance set at P < .05.
Results:
7 studies that entailed 132 MPFL reconstructions (126 patients) met the inclusion criteria. Females comprised 57.9% of the cohort (73 females), and the mean age was 13.2 years (range, 6-17 years). Mean postoperative follow-up was 4.8 years (range, 1.4-10 years). All of the grafts used were autograft, with gracilis tendon (n = 80; 60.6%) being the most common. Methods of femoral fixation included interference screw (n = 52; 39.4%), suture anchor (n = 51; 38.6%), and soft tissue pulley around the medial collateral ligament or adductor tendon (n = 29; 21.9%). Pooled Kujala scores improved from 59.1 to 84.6 after MPFL reconstruction. The total reported complication rate was 25.0% (n = 33) and included 5 redislocations (3.8%) and 15 subluxation events (11.4%). No cases of premature physeal closure were noted, and there were 3 reports of donor site pain (2.3%). Neither autograft choice (P > .804) nor method of femoral fixation (P > .416) influenced recurrent instability or overall complication rates.
Conclusion:
These findings suggest that MPFL reconstruction in skeletally immature patients is a viable treatment option, with significant improvement in patient-reported outcomes and redislocation event rates of less than 5% at nearly 5-year follow-up. Further high-quality research is needed to determine optimal graft options and surgical technique while considering recurrent instability, donor site morbidity, and potential injury to the adjacent physis.
Lateral patellar dislocation is the most frequently recognized acute knee injury in children. 9 Traditionally, first-time patellar dislocations without loose osteochondral fragments have been treated nonoperatively with activity modification, patellar bracing, and physical therapy focused on quadriceps and hip abductor strengthening. 18 However, recurrent patellar instability is often considered an indication for surgical intervention, particularly in the young patient. The risk of subsequent dislocation increases significantly with each instability event, with further concern that recurrent dislocation may lead to the development of osteoarthritis 8 and diminished knee function. 2,15
A variety of anatomic factors have been shown to contribute to recurrent patellar instability. 9,18,25 Similarly, a plethora of surgical procedures have been described to improve biomechanics and correct or bypass typical anatomic abnormalities. In skeletally immature patients, many osseous procedures are not routinely performed because of the risk of physeal injury. Because the medial patellofemoral ligament (MPFL) is often injured after lateral patellar dislocation 28 and is considered the primary static restraint to lateral translation, MPFL reconstruction has been used to reduce the rate of recurrent dislocation. 4,22,25 To avoid distal femoral physeal injury in the skeletally immature population, anatomic MPFL reconstruction has been conducted via multiple fixation techniques in the patella and femur.
Although multiple surgical techniques for MPFL reconstruction have been described, no consensus is available regarding the optimal graft type or surgical technique in the skeletally immature patient. The purpose of this systematic review was to evaluate the efficacy of MPFL reconstruction in skeletally immature patients and determine whether graft choice and fixation technique influence complications and recurrent instability.
Methods
A comprehensive literature search was performed according to the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines using PubMed, Embase, and Cochrane Central databases. 17 All original English-language studies that reported outcomes or complications following isolated MPFL reconstruction in skeletally immature patients with a minimum follow-up period of 12 months were included. Furthermore, inclusion required reporting of clinical outcomes with granular data to allow stratification by graft type and fixation technique. Exclusion criteria were non–English language studies, technique guides, basic science studies, case series with fewer than 3 participants, studies reporting MPFL repair and/or MPFL reconstruction with specifically detailed concomitant procedures, data that were not stratified by graft type or fixation, and studies in which skeletal immaturity was not explicitly stated or categorized. Studies were not excluded based on graft choice.
Search terms and strategies were created to optimize the individual function of each database. After removal of duplicates, potential articles were reviewed independently by 2 authors (A.G.S. and M.A.D.), and any inconsistencies were reviewed and rectified by the senior author (R.W.W.). Data independently extracted by the 2 authors included demographic data; surgical technique, including method of femoral and patellar fixation; graft type; recurrence of patellar instability; and surgical outcome data. Within the included articles, the most consistently reported outcome measure was recurrent instability, defined as recurrent dislocation or subluxation events reported by the patient, and the most commonly used patient-reported measure was the Kujala score. 10 The recurrent dislocation or subluxation rate was chosen as the primary outcome measure, with the Kujala questionnaire results and the combined rate of instability- and non–instability related postoperative complications serving as secondary outcomes. The quality of included studies was assessed by 2 reviewers (A.G.S., M.A.D.) according to the modified Coleman methodology score (MCMS). 5
Data Analysis
To account for differences in follow-up length, the redislocation rate per 100 person-years was calculated by use of the mean follow-up and was transformed via the Freeman-Tukey double-arcsine method. Inverse-variance weighted random-effects models were used to evaluate the difference in pooled complication rates between graft types and femoral fixation techniques. A forest plot was generated to display the rate of recurrent instability and 95% confidence interval for each study as well as the overall, random-effects pooled estimate for each group and its confidence interval. Analyses were completed with R version 3.1.1 (Metafor Meta-Analysis Package for R; R Foundation for Statistical Computing), with significance defined as P < .05.
Results
Literature Search
The literature search identified 1388 studies meeting the criteria for initial review. After application of the inclusion and exclusion criteria, 7 original studies 1,6,11 –13,20,21 were included for analysis (Figure 1). These studies included 132 MPFL reconstructions in 126 skeletally immature patients, with a mean follow-up of 4.8 years (range, 1.4-10 years) (Table 1). Of the 126 patients, 73 (57.9%) were female, with a mean age of 13.2 years (range, 6-17 years).

Flow diagram detailing literature search results.
Demographic Information, Graft Type, and Kujala Scores for the Included Studies a
a Gra, gracilis; NR, not recorded; Quad, quadriceps; SemiT, semitendinosus.
Graft Choice
All grafts were autografts, including gracilis tendon (n = 80; 60.6%), 12,13,20 quadriceps tendon (n = 41; 31.1%), 1,21 and semitendinosus tendon (n = 11; 8.3%). 11
Femoral Fixation
Modes of femoral fixation included soft tissue pulley around the medial collateral ligament (MCL) (n = 11) or the adductor magnus (n = 24) tendon (n = 35; 26.5%), 6,11,12 suture anchors (n = 51; 38.6%), 1,13 and interference screw fixation (n = 46; 34.8%). 20,21 The mean ages of the soft tissue pulley and interference screw groups were similar, 12.1 years and 12.5 years, respectively, whereas the suture anchor fixation group was older, with a mean age of 14.5 years. All femoral tunnels for interference screws were placed distal to the physis.
Patellar Fixation
Methods of patellar fixation included a blind bone tunnel with an interference screw (n = 5; 3.8%), 11 a single bone tunnel in which the graft was looped (n = 45; 34.1%), 12,20 suture anchor fixation (n = 41; 31.1%), 6,13 and no osseous fixation, with the quadriceps tendon reflected from its intact insertion on the patella (n = 41; 31.1%). 1,21
Outcomes and Complications
Pooled Kujala scores improved from 59.1 to 84.6 following MPFL reconstruction. The overall complication rate was 25.0% (n = 33). The total rate of recurrent instability following MPFL reconstruction was 15.2%, including 5 redislocations (3.8%) and 15 subluxation events (11.4%) (Table 2).
Recurrent Instability and Non–Stability Related Complications a
a Gra, gracilis; Pulley, soft tissue pulley; Quad, quadriceps; Screw, interference screw; SemiT, semitendinosus; Suture, suture anchor.
The most common postoperative, non–instability related complication was residual knee pain (n = 5; 3.8%). No cases of premature physeal closure or growth disturbance were reported, whereas 3 cases of donor site pain were described (2.3%). Neither autograft choice (P > .804) nor method of femoral fixation (P > .416) influenced recurrent instability or overall complication rates (Figures 2 and 3).

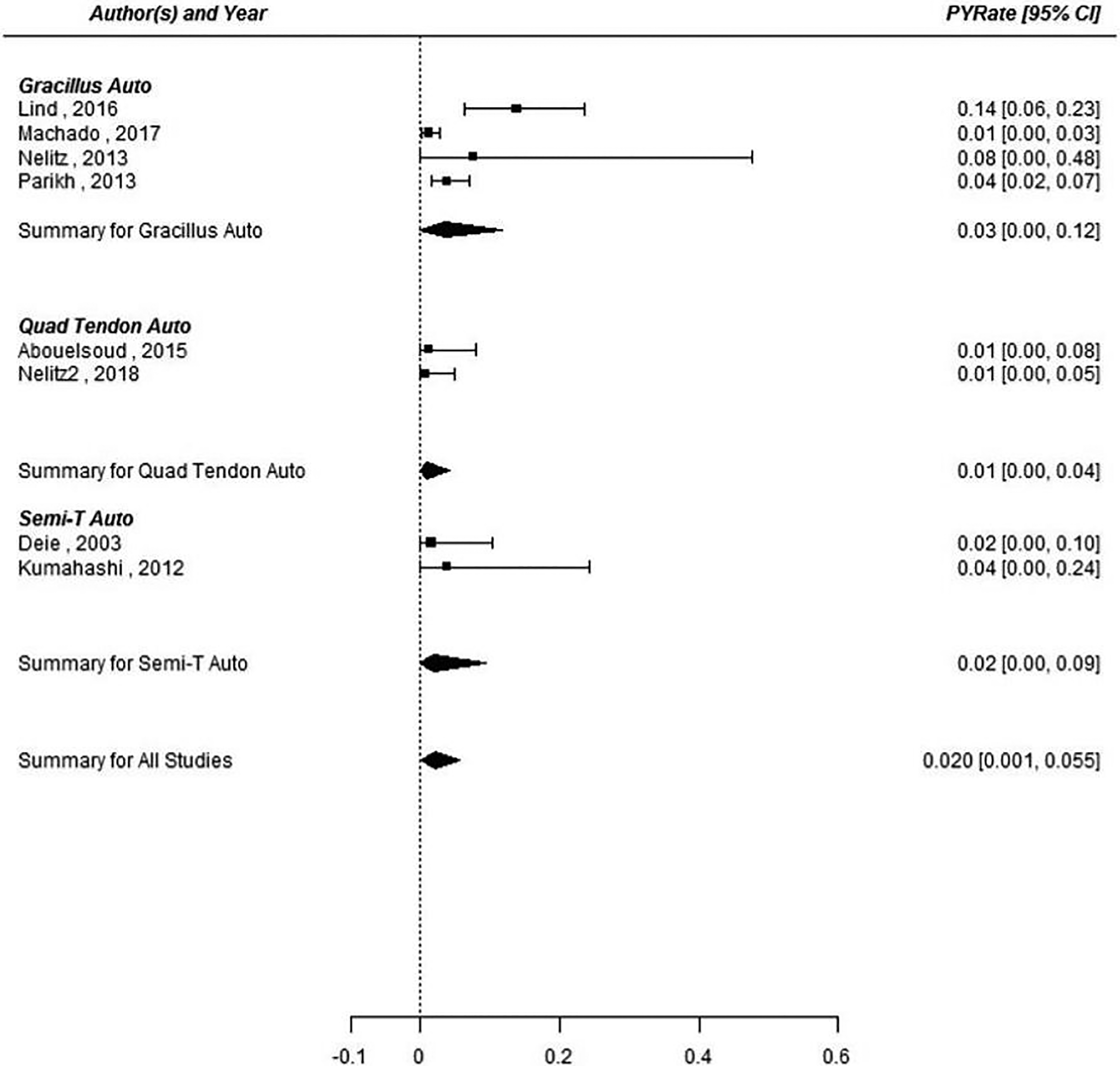

Forest plot for recurrent instability among graft type (gracilis, quadriceps, and semitendinosus) groups. Auto, autograft; PYRate, person-year rate; Quad, quadriceps; Semi-T, semitendinosus.

Forest plot for recurrent instability among femur fixation (soft tissue pulley, interference screw, and suture anchor) groups. Pulley, soft tissue pulley; PYRate, person-year rate; Screw, interference screw; Suture, suture anchor.
Quality Assessment
The mean (±SD) MCMS was 62.4 ± 5.9 (range, 54-71). The majority of studies were retrospective reviews (n = 5; 71.4%) of a small number of cases (range, 6-35). All studies were level 3 (n = 1, 14.3%) or level 4 (n = 6, 85.7%) evidence. 16
Discussion
In this systematic review evaluating outcomes of MPFL reconstruction in skeletally immature patients, we found that all graft types and fixation methods resulted in low recurrent instability rates with few complications and good clinical outcomes, and no statistical differences were found between groups. However, few high-quality studies were identified, and substantial heterogeneity was observed between studies. In contrast, literature examining MPFL reconstruction in adults is more expansive, including multiple randomized controlled trials. 3,14,19 Overall, the quality of studies in the present literature evaluating outcomes after MPFL reconstruction in skeletally immature patients is limited and of generally low quality despite the relatively high rate of patellar dislocation in this age group. 26 Based on this review, further investigation of the skeletally immature population is warranted given the high incidence of patellar instability in these patients and the high rate of persistent postoperative instability (15%).
Anatomic MPFL femoral fixation in skeletally immature patients may place the physis at risk, and technical modifications to avoid the physis have raised concerns about subsequent postoperative instability. The primary outcome measure seen in this review was recurrent instability, defined as recurrent dislocation or subluxation events. We noted 5 reported dislocations and 15 subluxation events following MPFL reconstruction, for a pooled recurrent instability rate of 15.2%. No cases of premature physeal growth arrest were reported.
The reported recurrent instability rate in this study is slightly higher than the rate in the adult MPFL reconstruction literature, where recurrent instability is consistently reported to be lower than 10%. 7 Rates of reported recurrent instability following MPFL reconstruction in the pediatric literature range from 0% to 37.5%. 1,11,12 Shah et al 30 described various risk factors for postoperative redislocation, including limb malalignment, lateral tibial tuberosity, trochlear dysplasia, patella alta, and poor surgical technique. Lind et al 12 reported 4 cases of patellar redislocation at 1-year follow-up, which were universally revised with semitendinosus tendon autograft via an adult reconstruction technique. Machado et al 13 described 1 recurrent dislocation in their series of 35 pediatric MPFL reconstructions, although it is unclear whether a revision surgical procedure was performed. In a series of 179 MPFL reconstructions of both pediatric and adult patients, Parikh et al 27 reported 8 redislocations (4.5%). Only 6 of these patients with recurrent instability were treated surgically (5 revision MPFL reconstructions and 1 lateral retinacular release), whereas 2 were managed conservatively with physical therapy and bracing. Of note, the authors found malpositioning of the femoral tunnel in 7 of these cases, which may have contributed to graft failure.
In the current series, patients with recurrent subluxation events without frank dislocation and those with positive clinical apprehension tests were exclusively managed nonoperatively. Additionally, no reports of premature physeal closure were found in the included studies. In a case report, Seitlinger et al 29 described an MPFL reconstruction in a 14 year-old girl with gracilis tendon autograft and interference screw fixation that was complicated by physeal breach with a bone tunnel, ultimately leading to partial posterior physeal growth arrest and flexion deformity. Of note, serial long-leg radiographs assessing angular deformity were not obtained in any of the included studies, and this is an area that warrants further study. Pooled mean Kujala scores in our study improved from 59.1 to 84.6 following MPFL reconstruction, with only 1 study not reporting preoperative scores. Kujala scores consistently improved after MPFL reconstruction, supporting the efficacy of this procedure in skeletally immature patients.
A variety of autografts and allografts are described in the literature for use in MPFL reconstruction, including semitendinosus, gracilis, quadriceps, adductor magnus, and tibialis anterior tendon. Furthermore, artificial grafts have been used for MPFL reconstruction in a few small series. 23,24 The most commonly used grafts in our study were gracilis autograft followed by quadriceps tendon, contributing to 60.6% and 31.1% of autografts, respectively. We found no relationship between choice of autograft and recurrent instability when comparing gracilis versus quadriceps (P = .887), gracilis versus semitendinosus (P = .916), and quadriceps versus semitendinosus (P = .804) groups. This finding is consistent with reports in the literature, as considerable debate persists regarding the most effective autograft for both skeletally immature and skeletally mature patients. Of note, no studies using allograft were included, although allograft is described and used for this extra-articular reconstruction.
The MPFL graft can be fixed to the patella with suture anchors, with interference screws, or through bone tunnels. Of the included studies, the most common mode of fixation was a single patellar bone tunnel in which the MPFL graft was looped. All cases that entailed quadriceps tendon autograft left the tendon insertion on the patella intact and reflected the graft 90° to the femoral insertion. Currently, no mode of patellar fixation has demonstrated superior outcomes in the published literature. 7 Theoretically, the method of patellar fixation during MPFL reconstruction should not be chosen based on skeletal immaturity because no physes are placed in jeopardy. However, the size of the patella may influence fixation techniques in some scenarios.
Similar to patellar fixation, femoral graft fixation entails a variety of techniques. Interference screws or suture anchors provide secure fixation into the anatomic footprint of the MPFL and have been shown to be effective. 1,13,20,21,27 Alternatively, the MPFL graft can be looped around anatomic structures such as the MCL or adductor magnus tendon. 6,11,12 Although the soft tissue pulley technique does not place open physes at risk, it does not allow for anatomic reconstruction of the MPFL. The most common modes of femoral fixation in our study were interference screw (39.4%) followed by suture anchor (38.6%). We found no relationship between choice of femoral fixation and recurrent instability when comparing soft tissue pulley versus interference screw (P = .416), soft tissue pulley versus suture anchor (P = .435), and interference screw versus suture anchor (P = .746) groups. Similar to the choice of autograft, the most effective method of femoral fixation for patients with open physes was not revealed in our study.
The pooled non-stability-related complication rate was 9.8% in our study. This finding is consistent with previous literature, which reported an overall complication rate of 16.2% in patients younger than 21 years undergoing MPFL reconstruction. 27 The most common complication was knee pain postoperatively (3.8%) followed by donor site pain (2.3%), knee swelling (2.3%), and stiffness (0.8%). Overtightening of the graft is a known complication of MPFL reconstruction, leading to knee stiffness and pain postoperatively. For a successful reconstruction, it is critical to obtain physiologic tension on the graft during knee range of motion. Stephen et al 31 stated that 2 N of pressure on the graft is all that is required to obtain normal patellar tracking. Fixation of the graft at various knee flexion angles has been described, and the most effective tensioning position has yet to be determined. Although not seen in our cohort, patellar fracture is a described complication of MPFL reconstruction and has been attributed to the use of large femoral bone tunnels or patellar bone tunnels used for patellar fixation. 7,19,26 Parikh et al 27 reported 6 patellar fractures in which patellar fixation was achieved through the use of 2 connecting perpendicular bone tunnels. Although this is a rare complication, the results may influence surgeons to use surgical techniques that do not require bone tunnels. Finally, the 3 reported cases of autograft donor site pain were described by Machado et al 13 in their series of 35 skeletally immature patients treated by use of gracilis autograft for MPFL reconstruction.
The limitations of the current study include those inherent to all systematic reviews. A risk of publication bias is present because only published studies were queried. Furthermore, we were reliant on the authors of the selected articles to accurately collect and report their results. None of the included studies used full-length lower extremity radiographs to assess leg lengths and coronal angular alignment and instead relied on clinical examination or patient reports to determine growth arrest that would result in limb-length discrepancy or angular deformity. Although the relatively short follow-up period may be sufficient to assess stability, longer follow-up may be needed to reveal cases of physeal arrest or patellofemoral arthritis secondary to graft overtightening. Our review is also limited by the lack of high-quality studies included for analysis, the majority of which were retrospective case series of a small number of patients. Non–English language articles were excluded, which may have removed eligible studies from our literature search. Finally, given the low numbers of cases available in the literature, the statistical analysis is likely underpowered to detect between-group differences according to graft fixation type, and results may be subject to type II error.
Conclusion
The results of this systematic review suggest that MPFL reconstruction in skeletally immature patients is a viable treatment option, with significant improvement in patient-reported outcomes and a redislocation rate of less than 5% at nearly 5-year follow-up. Further high-quality research is needed to determine optimal graft options and surgical technique while considering stability, donor site morbidity, and potential injury to the neighboring physis.
