Human-induced pluripotent stem cell-derived cardiomyocytes have limited I Ks for repolarization reserve as revealed by specific KCNQ1/KCNE1 blocker

Abstract

Objective

We investigated if there is I_Ks, and if there is repolarization reserve by I_Ks in human-induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CMs).

Design

We used a specific KCNQ1/KCNE1 channel blocker, L-000768673, with an IC₅₀ of 9 nM, and four hERG-specific blockers, astemizole, cisapride, dofetilide, and E-4031 to investigate the issue.

Results

L-000768673 concentration-dependently prolonged feature point duration (FPD)―a surrogate signal of action potential duration―from 1 to 30 nM without pacing or paced at 1.2 Hz, resulting from I_Ks blockade in hiPSC-CMs. At higher concentrations, the effect of L-000768673 on I_Ks was mitigated by its effect on I_Ca-L, resulting in shortened FPD, reduced impedance amplitude, and increased beating rate at 1 µM and above, recapitulating the self-limiting properties of L-000768673 on action potentials. All four hERG-specific blockers prolonged FPD as expected. Co-application of L-000768673 at sub-threshold (0.1 and 0.3 nM) and threshold (1 nM) concentrations failed to synergistically enhance the effects of hERG blockers on FPD prolongation, rather it showed additive effects, inconsistent with the repolarization reserve role of I_Ks in mature human myocytes that enhanced I_Kr response, implying a difference between hiPSC-CMs used in this study and mature human cardiomyocytes.

Conclusion

There was I_Ks current in hiPSC-CMs, and blockade of I_Ks current caused prolongation of action potential of hiPSC-CMs. However, we could not demonstrate any synergistic effects on action potential duration prolongation of hiPSC-CMs by blocking hERG current and I_Ks current simultaneously, implying little or no repolarization reserve by I_Ks current in hiPSC-CMs used in this study.

Introduction

In recent years, human-induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CMs) have been shown to have unique predictability in terms of cardiac safety of pharmaceutical reference agents and candidates.^1–5 One key application is to detect and predict QT prolongation and, more importantly and relevantly, Torsades de Pointes (TdP) liability of drug candidates, which could result from enhanced depolarizing Na⁺ or Ca²⁺ currents, or reduced repolarizing K⁺ currents (mainly I_Kr and I_Ks currents). Effects of many hERG channel (or I_Kr current) blockers on QT prolongation of hiPSC-CMs have been widely reported.^6–8

I_Ks current, conducted by KCNQ1 channel subunits associated with KCNE1 or min-K subunits, is deemed a “repolarization reserve” ⁹ K⁺ current during repolarization of cardiac action potential (see Jost et al. ¹⁰ for review). In theory, a KCNQ1/KCNE1 blocker should cause QT prolongation, and, sequentially, TdP in vivo. However, JNJ303 has been the only KCNQ1 blocker, reported to cause TdP in a dog model. ¹¹ Although KCQN1 and KCNE1 proteins are expressed in hiPSC-CMs, ¹² the effect of I_Ks blockade on iCell hiPSC-CMs has not been thoroughly studied and reported, to our best knowledge, due to a lack of selective KCNQ1/KCNE1 blockers. JNJ303 caused small prolongation of action potential ¹³ or showed little effects (unpublished observation, and communications). Therefore, we selected to use a specific in-house developed KCNQ1/KCNE1 blocker―L-000768673 (L-673)―to investigate if there is I_Ks, and if there is repolarization reserve by I_Ks in iCell hiPSC-CMs.

Experimental procedures

Test compound preparation

L-673 was synthesized in house. Astemizole, E-4031, cisapride and dofetilide were from Sigma-Aldrich (St. Louis, MO, USA). Test agent stock solutions were prepared in 100% DMSO, and the final dilution was 1:1000 with culture media.

hiPSC-CM assay

The hiPSC-CMs (iCells®) were purchased from Cellular Dynamics International (CDI, Madison, WI, USA). They were placed onto 48-well Cardio ECR E-Plates® (ACEA Biosciences Inc., San Diego, CA, USA) and cultured for 14 days before use as described previously. ¹⁴ Briefly, E-plates were pre-coated with 10 µg/mL fibronectin (Sigma Aldrich, Catalog # F1141), and then cells were seeded at a density of 30,000 cells per well, and maintained at 37°C with 5% CO₂ and 95% O₂, and fresh culture media every two to three days per manufacturer’s recommendations. Fresh culture media exchange was performed ∼3 h prior to data acquisition using an xCELLigence® RTCA CardioECR instrument (ACEA Biosciences Inc., San Diego, CA, USA) with the following setting: Sweeps 1; Interval 1; Unit minute; Block duration 0 s; Cardio Speed 12 mS; Cardio point/blk 1; ECR speed 1 mS; ECR point/blk 1. Pre-reads of 1-min were recorded sequentially as baseline with no pacing, and then with pacing at 1.2 Hz using built-in square pulses of 500 mV voltage and 1 mS duration. ¹⁵ The empirical voltage and duration were optimized to minimize any potential damage to cells, and to avoid baseline shift. The test agent stock solutions (prepared in 100% DMSO) were diluted into media and quickly added to the plate at 1:1000 ratio, so the final DMSO concentration in each well was 0.1%. After 1-h incubation in the instrument that was hosted in a cell culture incubator at 37°C with 5% CO₂ and 95% O₂, plates were read again using identical procedure as pre-reads. All data were analyzed with built-in analysis software and normalized using Microsoft EXCEL®. The experimental system, CardioECR, used in this study simultaneously acquires electrical activities (via field potential measurement), and motion activities (via impedance change) of hiPSC-CM syncytia. Field potential signal and impedance signal are not two aspects of one signal, but two separate signals for electrical and motion activities respectively, coupled temporally. Therefore, the feature point duration (FPD, the time duration from the start of a beat to its inflectionpoint in the impedance signal, as detailed in our previous study ¹⁵ ) matches exactly the field potential duration (i.e. the time interval from Na⁺ spike to “T” wave in field potential signal), as shown in Figure 1 of our recent publication. ¹⁵ We found that external stimulation suppressed field potential signals but had little impact on impedance signal. Therefore, we used FPD from impedance signal measurement throughout this study.

Figure 1.

Effect of L-673 on KCNQ1/KCNE1 channels overexpressed in HEK293 cells. Example traces of whole-cell I_KS currents (a), elicited with a voltage step, are superimposed during control condition and after addition of 10 nM L-673. The voltage-clamp protocol is shown above the current traces. The concentration dependence of KCNQ1/KCNE1 inhibition by L-673 (b) is quantified as the peak tail current amplitude measured at steady state for each concentration of L-673, normalized to the control tail current amplitude for each cell, expressed as % inhibition, and fitted with a Hill equation (solid line) to the data (n = 6–9).

Ion channel assay

Whole-cell currents were measured from cells expressing cardiac ion channels using the QPatch HTX automated patch clamp system (Sophion Bioscience, DM) at room temperature. Resistances of the planar patch plate chambers (holes) were 1–3 MΩ.

CHO-hERG cells ¹⁶ or HEK-KCNQ1/KCNE1 cells ¹⁷ were washed with PBS once, treated with 0.05% Trypsin/EDTA for 6 min at 37°C, re-suspended in PBS, spun down 1300 r/min for 1.15 min, and then re-suspended in 450 µL external solution before putting them into QPatch.

hERG external solution contained (in mM): 132 NaCl, 4 KCl, 3 CaCl₂, 0.5 MgCl₂, 10 HEPES, 11.1 glucose, pH = 7.35 ± 0.1, adjusted with NaOH. hERG internal solution contained (in mM): 70 KF, 60 KCl, 15 NaCl, 5 HEPES, 5 EGTA, pH 7.25 ± 0.1, adjusted with NaOH.

KCNQ1/KCNE1 external solution contained (in mM): 137 NaCl, 1 KCl, 2 CaCl₂, 1 MgCl₂, 10 HEPES, 11 Dextrose, pH = 7.25 ± 0.1, adjusted with NaOH. KCNQ1/KCNE1 internal solution contained (in mM): 90 KCl, 50 KF, 1.6 MgCl₂, 2.5 K₂ATP, 10 HEPES, 10 EGTA, pH 7.3 ± 0.1, adjusted with KOH.

hERG current was elicited with the following voltage – Step protocol: from a holding potential (V_h) of −70 mV, first a brief 20-mS depolarizing pre-pulse to −40 mV was applied to obtain a baseline current measurement with a return to V_h for 80 mS, followed by a 4-S depolarizing step to a test potential (V_t) of 30 mV and finally a 1-S repolarizing step (V_tail) to −40 mV. The inter-pulse interval is 20-S. The hERG current amplitude was measured as the peak deactivating tail current amplitude during V_tail relative to the baseline current at −40 mV.

KCNQ1/KCNE1 current was elicited with a voltage – Step protocol from V_h of −50 mV with 3-S depolarizing steps to V_t of 50 mV followed by repolarization to −50 mV. The inter-pulse interval is 20-S. The KCNQ1/KCNE1 current amplitude was measured as the peak tail current amplitude.

After forming whole cell configuration and 8-min waiting time, external solution (containing 0.3% DMSO as vehicle control) was applied, and currents were monitored for stability during vehicle control for 5 min before addition of test compounds. To achieve steady state, test compound was applied three times at 0-S, 90-S, and 180-S time point during the 5-min assay time at each test concentration. Test compound response of each cell was averaged from the last three data points at each concentration, and then normalized to its vehicle control for % inhibition. IC₅₀ values were fit with a Hill equation:

$$\%\text{inhibition}=100/(1+({\text{IC}}_{50}/[\text{test}\text{compound}\text{concentration}])\text{h})$$

where h = Hill coefficient.

CaV1.2 influx assay

HEK-293 cells stably expressing human Cav 1.2 L-type Ca²⁺ channel (HEK-CaV1.2 E74 cell line) ¹⁸ were plated to a 96-well Greiner Plate at 60,000 cells/well on the day before the experiment. PPB solution contains (in mM): 127 NaCl, 25 KCl, 0.005 CaCl₂, 1.7 MgCl₂, and 10 HEPES (pH = 7.2, adjusted with NaOH). CTB solution contains (in mM): 119 NaCl, 25 KCl, 4 CaCl₂, 1.7 MgCl₂, and 10 HEPES (pH = 7.2, adjusted with NaOH). The Ca²⁺-sensitive fluorescence ACTOne® dye (Codex BioSolutions, Gaithersburg, MD, USA) was used as previously described. ⁵ On experiment day, cells were washed with 100 µL of PPB per well twice, then incubated with 50 µl of PPB + 45 µL of dye solution at 37°C for 1 h (test plate); 5 µL of test compound stock was then added to each well for another 30-min incubation (the final DMSO concentration was 0.1%). FDSS/μCell (Hamamatsu Ltd, Hamamatsu, Japan) was used to acquire Ca²⁺ transient signals at a sampling rate of 16 Hz with 485 nm excitation and 530 nm emission. After 20-S baseline recording (i.e. to acquire baseline signal of each well), 100 µL of CTB solution, containing test compounds at the same corresponding concentrations, was added to each well using the built-in solution addition machinery to trigger Ca²⁺ influx without interrupting signal acquisition; 100 nM of isradipine and 0.1% DMSO were used as maximal (or 100% inhibition, n = 12) and minimal (or 0% inhibition n = 12) responses, respectively. Normalized test compound response (or % inhibition n = 4) was calculated as follows:

$$\begin{array}{l}{\text{Inhibition}}_{\text{MIN}}\\ =\text{Average}\text{of}(\text{signals}\text{of}0.\text{1}\%\text{DMSO}\\ –\text{signals}\text{of}\text{the}\text{corresponding}\text{baselines})\end{array}$$

$$\begin{array}{l}{\text{Inhibition}}_{\text{MAX}}\\ =\text{Average}\text{of}(\text{signals}\text{of}\text{1}00\text{nM}\text{isradipine}\\ –\text{signals}\text{of}\text{the}\text{corresponding}\text{baselines})\end{array}$$

$$\begin{array}{l}{\text{Inhibition}}_{\text{test}}\\ =\text{signals}\text{of}\text{test}\text{compound}\\ –\text{signals}\text{of}\text{their}\text{corresponding}\text{baselines}\end{array}$$

$$\begin{array}{l}\%\text{inhibition}\\ =\left({\text{Inhibition}}_{\text{MIN}}–{\text{Inhibition}}_{\text{test}}\right)\\ /\left({\text{Inhibition}}_{\text{MIN}}–{\text{Inhibition}}_{\text{MAX}}\right)*\text{1}00\%\end{array}$$

Statistical analysis

All data were normalized to appropriate controls as described above and expressed as: Mean ± SEM (n = 4–9, as indicated specifically in individual legend and table). Since all the statistical analyses were with vs. without type, one-time comparison of means between two groups with similar variances (as indicated in figure legends), Student’s t-test was used for statistical comparison on normalized data, and P < 0.05 was deemed statistically significant.

Results

L-673 is an in-house developed, specific KCNQ1/KCNE1 blocker.^19,20 The batch of L-673 used in this study had an IC₅₀ of 9 nM on KCNQ1/KCNE1 channels overexpressed in HEK293 cells, measured with the QPatch platform (Figure 1). Its effects on overexpressed hERG and Cav1.2 channels are listed in Table 1. Due to the relative advantage in simultaneous measurement of impedance signal (a surrogate of contraction), and field potential signal (local ensemble of hiPSC-CM membrane potential), we used the ACEA CardioECR platform to measure the response of hiPSC-CM to L-673 without external stimulation or paced at 1.2 Hz (or 72 beats/min [a close mimic of normal human heart rate]). Representative impedance traces before and after L-673 addition are shown in Figure 2. As shown in Figure 3(a), L-673 had no effects on beating rate from 0.3 to 300 nM, but concentration-dependently increased beating rate starting at 1000 nM. Similarly, it only started to concentration-dependently reduce impedance amplitude at 1000 nM. On the other hand, L-673 concentration-dependently increased FPD with Frederica correction (FPDcF) from 1 nM to 30 nM. This effect was then reduced with increasing concentrations of L-673, and it was converted to a concentration-dependent decrease starting at 1000 nM (Figure 3(a)). When paced at 1.2 Hz (Figure 3(b)), the effect of L-673 on beating rate was masked until 3000 nM (at which concentration, cells had a faster spontaneous beating rate than 1.2 Hz), but effects on impedance amplitude and FPD (no correction, as rate was a constant under pacing condition, Figure 3(b) were similar to those without external stimulation.

Table 1.

Effect on cardiac ion channels.

Test compound	IC50 or % inhibition (nM) [N]
	KCNQ1/KCNE1	hERG	CaV1.2
L-673	9 [6–9]	27 ± 3%@30,000 [4]	1500 [4]
Astemizole	25,000 [6]	3 [7]	n.d.
Cisapride	18 ± 5%@30,000 [7]	18 [5]	n.d.
Dofetilide	3 ± 6%@30,000 [6]	23 [8–9]	n.d.
E-4031	9 ± 3%@30,000 [6]	40 [6]	n.d.

Note: % Inhibition = percentile inhibition (Mean ± SEM) between 0 and100% at the highest test concentration of 30,000 nM. IC₅₀ value was not determined when the inhibition at the highest test concentration was less than 50%.

[N] = individual n-number; n.d. = not determined.

Figure 2.

Representative impedance traces before and after L-673 addition. Panel (a) shows the pre-reads without external stimulation. Panel (b) is the pre-reads when paced at 1.2 Hz. Panel (c) shows the impedance traces 1 h after L-673 addition (from top to bottom: 0.1% DMSO, 1, 3, 10, 30, 100, 300, and 1000 nM L-673) without pacing. Panel (d) is the immediately following recordings but with external 1.2 Hz stimulation. Five second traces are shown in all panels.

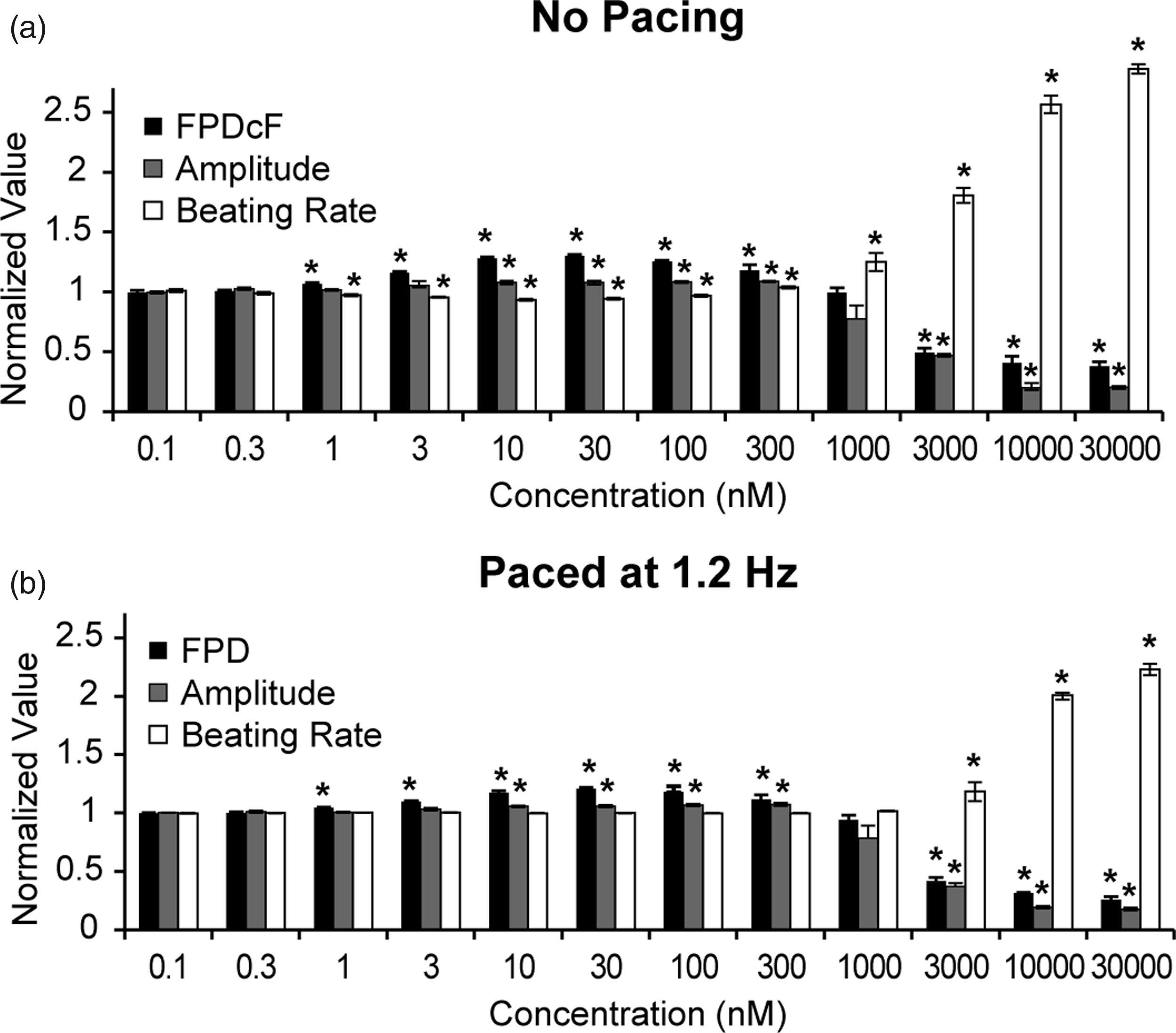

Figure 3.

Effects of L-673 alone on hiPSC-CMs. Normalized changes on impedance amplitude, beating rate, and FPDcF or FPD of hiPSC-CMs at the presence of L-673 at different concentrations from 0.1 to 30000 nM as labeled in figure without pacing (a) or paced at 1.2 Hz (B). All data (n = 6) were normalized to 0.1% DMSO control at pre-read. *P<0.05, compared to time-matched 0.1% DMSO control (detailed in Experimental procedures).

Because L-673 had shown effects on FPDcF beginning at 1 nM concentration, we co-applied L-673 (0.1, 0.3 and 1 nM) with the specific hERG blocker cisapride at 3, 10 and 30 nM concentrations that do not cause early afterdepolarizations (EADs) alone in hiPSC-CMs to avoid measurement interference. As shown in Figure 4, cisapride at 3, 10 and 30 nM had little effect on beating rate and impedance amplitude, and co-application of L-673 up to 1 nM had no impact on the effect of cisapride on beating rate and impedance amplitude. However, addition of L-673 did slightly enhance the effect on FPDcF (without pacing) and FPD (paced at 1.2 Hz) prolongations by cisapride, and the enhancement effects were statistically significant only in some combinations (Figure 4(e) and (f)).

Figure 4.

Impact of L-673 on the effects of cisapride. L-673 at 0.1, 0.3, or 1 nM was co-applied with cisapride at different concentrations (3, 10, or 30 nM) to hiPSC-CM for effects on impedance amplitude (a, no pacing; b, paced at 1.2 Hz), beating rate (c, no pacing; d, paced at 1.2 Hz), and FPDcF (e, no pacing) or FPD (f, paced at 1.2 Hz). All data (n = 6) were normalized to 0.1% DMSO control at pre-read. *P<0.05, compared to time-matched 0.1% DMSO control; ^#P<0.05, compared to time-matched, same concentration without L-673 (detailed in Experimental procedures).

Next, we repeated the study with different, yet specific hERG blockers, astemizole, dofetilide, and E-4031 (Table 1). The highest test concentrations of each reference hERG blocker were set to half-log lower than their respective EAD-caused concentration in this study (data not shown). Just like cisapride, all three agents at tested concentrations had little effect on beating rate and impedance amplitude, and co-application of L-673 up to 1 nM did not change these effects (data not shown). Similarly, all three agents increased FPDcF (without pacing) and FPD (paced at 1.2 Hz), and the effects were enhanced by co-application of L-673 in an additive manner (statistically significant only in some combinations), as shown in Figure 5.

Figure 5.

Impact of L-673 on the FPD prolongation effects of hERG blockers. L-673 at 0.1, 0.3, or 1 nM was co-applied with astemizole (a, no pacing; b, paced at 1.2 Hz), E-4031 (c, no pacing; d, paced at 1.2 Hz), and dofetilide (e, no pacing; f, paced at 1.2 Hz) for its impact on the FPD prolongation effects of these hERG blockers at different concentration as labeled. All data (n = 6) were normalized to 0.1% DMSO control at pre-read. *P<0.05, compared to time-matched 0.1% DMSO control; ^#P<0.05, compared to time-matched, corresponding test compound without L-673 (detailed in Experimental procedures).

Discussion

To the best of our knowledge, impact of I_Ks blockade on behavior of iCell hiPSC-CMs was not thoroughly investigated, except that JNJ303 was used in CiPA phase one study, intended as a positive KCNQ1/KCNE1 blocker, but it showed minor or no effects on hiPSC-CMs ¹³ (and unpublished observation and communication). Therefore, we used a specific KCNQ1/KCNE1 blocker to investigate this issue. We confirmed I_Ks current in hiPSC-CMs, demonstrated the self-limiting property of L-673, but could not prove any synergistic effects on FPD by blocking hERG and I_Ks currents simultaneously.

Since it was initially published in year 1997 by Selnick et al., ¹⁹ L-673 has been widely accepted as a specific KCNQ1/KCNE1 blocker and used in many in vitro and in vivo studies. The L-673 used by Qu and Vargas ²¹ was purchased from Albany Molecular Research Inc. with an IC₅₀ of 27 nM on I_Ks, and it failed to prolong field potential duration up to 300 nM in their study. We observed that L-673 could break down and the batch of L-673 used in our study was synthesized in house and verified for potency immediately prior to use in this study. This may explain the discrepancy between these two studies. We have tested JNJ303 in house and cannot get definitive results. In addition, as described by Towart et al., ¹¹ L-673 was 10 fold more potent than the other two well-known KCNQ1/KCNE1 blockers, JNJ303 or HMR-1556, on I_Ks current inhibition, and all three were highly selective over I_Na, I_Ca, I_Kr, I_to, and I_K1 currents involved in cardiac repolarization. Therefore, we conducted this thorough study using L-673 as a reliable, specific KCNQ1/KCNE1 blocker.

Based on cardiac ion channel profile (Table 1), L-673 at low nM concentration range seemed a selective KCNQ1/KCNE1 blocker. It concentration-dependently prolonged FPDcF and FPD (paced at 1.2 Hz) from 1 to 30 nM, implying an effect resulting from enhanced depolarized currents (e.g. I_Na or I_Ca-L) or reduced repolarized I_K currents (I_Ks or I_Kr). As the effective concentration range only matched its IC₅₀ value on KCNQ1/KCNE1 channel, but was much lower than that of hERG channel, and it did not show any enhancement effect on NaV1.5 or CaV1.2 channels (data not shown), rather blocked CaV1.2 channel with an IC₅₀ of 1500 nM, we believed the effect of FPDcF prolongation was mediated via I_Ks blockade in hiPSC-CMs. This conclusion is consistent with in vivo dog studies by Lynch et al. ²² and Stump et al., ²⁰ and the available selectivity data by Towart et al. ¹¹

At concentrations starting from 100 nM, the effect on FPDcF and FPD (paced at 1.2 Hz) prolongation was progressively reduced by increased concentrations of L-673, and it was even converted to FPDcF and FPD (paced at 1.2 Hz) shortening, associated with increased beating rate and reduced impedance amplitude, a signature of CaV1.2 channel blockade,^3,4,6,7,23 starting from 1000 nM, demonstrating gradually mixed ion channel effects from both KCNQ1/KCNE1 and CaV1.2 channel blockade and dominated effect from CaV1.2 blockade at high concentrations. This observation indeed matched L-673’s IC₅₀S of 9 nM on KCNQ1/KCNE1 channel and of 1500 nM on CaV1.2 channel (Table 1), and explains the self-limiting property of L-673 in causing only limited FPD prolongation without any arrhythmic effect, consistent with ex vivo study using guinea pig myocytes. ¹⁹ These data also implied relatively smaller I_Ks current density than I_Ca-L current density in hiPSC-CMs, otherwise, the effect at 1 µM and higher should not be dominated by effect from CaV1.2 channel blockade.

FPD measured in this study is a surrogate of action potential duration of hiPSC-CMs. ¹⁵ All four hERG-specific blockers caused FPD prolongation as expected (Figures 4 and 5). IC₅₀ value from individual ion channel measurement may not match the potency in hiPSC-CMs. L-673 statistically significantly prolonged FPD by 7% at 1 nM, although its IC₅₀ on KCNQ1/KCNE1 was 9 nM. We also observed that 3 nM dofetilide caused EADs, while its IC₅₀ value on hERG channel was 29 nM (unpublished observation); 3–100 nM L-673 prolonged FPD by 20–30%, which was near the threshold for EAD generation (Figure 3(a)). The effect of hERG channel blockers above 20–30% FPD prolongation usually caused EADs (unpublished observations in this study), which prevented further data analysis. Therefore, we limited L-673 test concentration at 1 nM in this study to investigate the issue of synergism. Co-application of L-673 at sub-threshold (0.1 and 0.3 nM) and threshold (1 nM) concentrations failed to synergistically enhance the effects of hERG blockers on FPD or FPDcF prolongation, but rather showed additive effects. These results (i.e. lack of synergistic responses) failed to demonstrate any “repolarization reserve function (i.e., reduced I_Ks enhances the effect of I_Kr blockade on action potential prolongation)” of I_Ks current in hiPSC-CMs. That is, the quantity of I_Ks current in hiPSC-CMs did not seem to be large enough to mitigate proarrhythmic effects when hERG channels were blocked, otherwise EADs would be observed. The finding was inconsistent with the repolarization reserve role of I_Ks in mature human myocytes.^24,25 This discrepancy also implied a difference between hiPSC-CMs used in this study and matured human cardiomyocytes, and could help to explain the higher sensitivity of hiPSC-CMs to hERG blockers. However, as cardiac repolarization is a net effect of several cardiac currents, such as I_Kr, I_Ks, I_Ca-L, I_Na, and I_NCX, that all exist in the hiPSC-CMs we used,^3,15 our findings could not exclude the repolarization reserve capacity of the hiPSC-CMs contributed by other cardiac currents.

In conclusion, as revealed by this study with our specific KCNQ1/KCNE1 blocker L-673, there was I_Ks current in iCell hiPSC-CMs, and blockade of I_Ks current caused prolongation of action potential of hiPSC-CMs. L-673 also exemplifies the concept that QT prolongation does not equal TdP. However, we could not demonstrate any synergistic effects on action potential duration prolongation of hiPSC-CM by blocking hERG current and I_Ks current simultaneously, implying limited contribution of I_Ks current in hiPSC-CMs used in this study, under the two experimental conditions (spontaneous beating and 1.2 Hz pacing) used.
