Renal ischemia/reperfusion-induced cardiac hypertrophy in mice: Cardiac morphological and morphometric characterization

Abstract

Background

Tissue remodeling is usually dependent on the deposition of extracellular matrix that may result in tissue stiffness and impaired myocardium contraction.

Objectives

We had previously demonstrated that renal ischemia/reperfusion (I/R) is able to induce development of cardiac hypertrophy in mice. Therefore, we aimed to characterize renal I/R-induced cardiac hypertrophy.

Design

C57BL/6 J mice were subjected to 60 minutes’ unilateral renal pedicle occlusion, followed by reperfusion (I/R) for 5, 8, 12 or 15 days. Gene expression, protein abundance and morphometric analyses were performed in all time points.

Results

Left ventricle wall thickening was increased after eight days of reperfusion (p < 0.05). An increase in the number of heart ventricle capillaries and diameter after 12 days of reperfusion (p < 0.05) was observed; an increase in the density of capillaries starting at 5 days of reperfusion (p < 0.05) was also observed. Analyses of MMP2 protein levels showed an increase at 15 days compared to sham (p < 0.05). Moreover, TGF-β gene expression was downregulated at 12 days as well TIMP 1 and 2 (p < 0.05). The Fourier-transform infrared spectroscopy analysis showed that collagen content was altered only in the internal section of the heart (p < 0.05); such data were supported by collagen mRNA levels.

Conclusions

Renal I/R leads to impactful changes in heart morphology, accompanied by an increase in microvasculature. Although it is clear that I/R is able to induce cardiac remodeling, such morphological changes is present in only a section of the heart tissue.

Keywords

Cardiac hypertrophy extracellular matrix renal ischemia–reperfusion Fourier-transform infrared spectroscopy Cavalieri’s principle

Introduction

Cardiac hypertrophy (CH) is usually accompanied by fibroblast proliferation and synthesis of extracellular matrix (ECM), which forms the structural backbone of the heart. ECM is composed of a macromolecule complex that includes collagens, proteoglycans and elastic fibers.^1,2 Besides its structural functions, ECM also provides a molecular microenvironment for cell differentiation, growth and angiogenesis.³ Most extracellular protein matrixes are minimally expressed in normal adult hearts but they are intensely upregulated after tissue injury.⁴

Regulation of ECM is based on a dynamic balance between the synthesis of collagen, degradation by matrix metalloproteinases (MMPs, matrixins), ADAMTS proteinases (a distegrin-like and metalloproteinase domain with thrombosposin type 1 repeat) and tissue inhibitors of MMPs (TIMPs).⁵

On the other hand, development of CH is a much more complex phenomenon than its definition suggests. Increase of cardiac mass may be mediated by fibroblasts proliferation and hypertrophy of individual cardiomyocytes, which occurs in response to pathological conditions.^6,7 For instance, postnatal hypertrophy induced by circulatory hormones may lead to increased contractile units deposition in cardiomyocytes and remodeling of ECM to a new functional scenario.

Patients with renal insufficiency have a higher risk of developing cardiovascular diseases (CVD), representing 45% of the causes of death in patients undergoing hemodialysis treatment.⁸ Additionally, our group had previously demonstrated that unilateral renal ischemia/reperfusion (I/R) is able to generate renal lesion, followed by systemic sterile inflammation, resulting in the development of CH in mice.⁹

Considering that (1) renal I/R leads to CH and (2) collagen deposition plays a major role in cardiac remodeling, the aim of the present study was to characterize the CH induced by renal I/R regarding changes in cardiac ECM and morphometric parameters.

Methods

Animal procedures

All surgical procedures and protocols were performed in accordance with the Ethical Principles in Animal Research set forth by the Brazilian College of Animal Experimentation and were approved by the Biomedical Sciences Institute/USP Ethics Committee for Animal Research (Book 20, Protocol 36, p. 68). Male C57bl/6 J mice, five to eight weeks old (22–28 g) were obtained from the University of São Paulo, Institute of Biomedical Sciences, in São Paulo, Brazil. Mice were given free access to standard mice chow and water until the time of the experiment and were housed in a temperature and light-controlled environment (24℃; 12/12-h light/dark cycle).

Renal I/R

Renal I/R protocol was performed as previously described by our group and Feitoza et al.^9,10 Mice were anesthetized using ketamine/xylaxine. An abdominal incision was made and left renal pedicle was exposed and then was occluded by a steel clamp (DL Micof, São Paulo); after 60 minutes of occlusion, the steel clamp was removed, followed by reperfusion for 5, 8, 12 and 15 days. Sham operated was subject to abdominal incision but not to pedicle occlusion procedure.

Morphometric parameters and morphology analysis of heart

The weight of the heart was assessed by an analytic scale (Denver Instrument®) and measures of three axes were made – length, weight and thickness – using images acquired by Motic camera and analyzed by Motic Images Plus 2.0. Right and left atria were removed along with great vessels, and hearts were weighted once again. After dividing hearts into three to four transversal slices of 3 mm (Figure S1(a)), following Cavalieri’s method,¹¹ new images were acquired. These images were utilized to assess the thickness of the left ventricle wall, right ventricle wall, and interventricular septum (Figure S1(b)). Left ventricle volume was estimated by weight/density = volume ( $\frac{m}{d} = V$ ) formula, considering heart tissue density as 1.06 g/cm³, as previously described by Bruel et al.¹²

Histological examination was performed as previously described (p. 51)⁹ where four sections of each slide were randomly chosen and utilized to count and measure the diameter of the capillaries. The density of the capillaries was calculated as a ratio of capillaries by cardiomyocytes number. Pictures were acquired in Nikon® E-2000 microscope. Data acquisition was performed using an independent software based on MATLAB R2011a and toolbox image processing, developed by Oliveira and Nascimento from the Universidade Federal do ABC.

Gene expression

RNA from heart ventricles was extracted using Trizol® technique, following manufacturer’s instructions, RNA was quantified using NanoDrop™ Lite (Thermo Scientific) and 2 µg of total RNA was subjected to a reverse transcriptase reaction, and as a final product, we obtained the cDNA that was used to perform real-time PCR (Stratagene® Mx3005P). The levels of mRNA of Collagen I, Collagen III, FGF-2, MMP2, TGF-β, TIMP1, TIMP2 and cyclophilin A were analyzed. Primer sequences utilized can be found in Table 1.

Table 1.

List of primers.

Gene	5′–3′	3′–5′
Collagen I	GCCAAGAAGACATCCCTGAA	GGTTGGGACAGTCCAGTTCT
Collagen III	GCACAGCAGTCCAACGTAGA	GGCAGTCTAGTGGCTCCTCA
Cyclofilin-a	AGCATACAGGTCCTGGCATC	AGCTGTCCACAGTCGGAAAT
FGF-2	GCCGTCCATCTTCCTTCATA	CCACACGTCAAACTACAACTCC
MMP2	GTCGCCCCTAAAACAGACAA	GGTCTCGATGGTGTTCTGGT
TGF-β	ACGTCAGACATTCGGGAAGC	ACCAAGGTAACGCCAGGAAT
TIMP1	CTTGGGACCTCAAAGAGCAG	CAAGCCAGGAGGAGACAGAC
TIMP2	CTTGGGACCTCAAAGAGCAG	CAAGCCAGGAGGAGACAGAC

Protein expression

Total protein from heart was obtained using radioimmunoprecipitation assay (RIPA) lysis buffer. Protein concentrations were determined by using the BCA kit (Thermo Scientific). Forty micrograms of total protein were resolved by electrophoresis on 5% stacking/15% polyacrylamide–sodium dodecyl sulfate gels, and the resolved proteins were transferred to nitrocellulose membrane (Bio-Rad). The membrane was stained with Ponceau solution, to demonstrate that the protein concentration was similar in the different lanes. The membrane was then washed with TBST (Tris 50 mM, NaCl 150 mM, pH 7.5 and Tween-20 2%) for 10 min at room temperature. Primary antibodies were incubated overnight at 4℃ [anti-MMP2 (1:500) and GAPDH (1:1000)]. After washing the membranes, the secondary antibody conjugated with peroxidase (Jackson) at a 1:10,000 dilution in TBST was added for 1 h at room temperature. The membranes were washed again with TBST and incubated with ECL detection reagents (Amersham Biosciences), which produced a chemiluminescent signal that was detected by exposure to X-ray film. The protein bands were quantified by densitometry using Image J®.

Cardiac ECM deposition analysis by Fourier-transform infrared spectroscopy

Left ventricle samples of each group were cut into three different slices: intern (1), medial (2), and external (3) sections (Figure 5(a)) and placed in a platinum sample holder. Fourier-transform infrared (FT-IR) absorption spectra for each slice were acquired in a Varian FT-IR 610 micro-spectrometer (Ge-ATR mode). The measurements were performed on four different points (200 scans per sample; 400 scans for background) spectral resolution of 4 cm⁻¹. Each spectrum was manually baseline corrected with Fityk software.¹³

Statistics

Data are expressed as mean ± SEM. Groups were compared using one-way analysis of variance (ANOVA) followed by Bonferroni test. A p < 0.05 was considered significant. To perform the FTIR spectroscopy analysis, the regions 1137–1189 cm⁻¹ and 1600–1680 cm⁻¹ were analyzed once collagen types I and III could be differentiated through these regions.¹⁴ The spectra were normalized by their integrated area under the spectral curves in the range 900–1800 cm⁻¹ and 2530–3600 cm⁻¹, and the regions ranging between 1137–1189 cm⁻¹ and 1600–1680 cm⁻¹ were analyzed by their integrated areas to verify the amounts of collagens I and III present in the sample. Integrated areas were compared by ANOVA and Tukey post ANOVA test when the data were normally distributed, or Kruskal–Wallis and Mann–Whitney tests when data were not following a normal distribution.

Results

Effects of renal I/R in cardiac morphology

To characterize CH generated by renal I/R, the external morphology was analyzed. After perfusion of heart tissue, measurements of height, length and circular diameter were taken (Figure 1(a) to (d)). Although our group had previously found that renal I/R is able to induce CH,⁹ external morphology analysis showed no significant changes among groups. On the other hand, renal I/R was able to induce changes in the left ventricle wall, since thickening was observed after eight days of reperfusion, sustained until 15 days (Figure 2(a)). The right ventricle wall thickness of I/R mice showed no significant differences when compared to sham, although there is a clear tendency to increase (Figure 2(b)). Additionally, a thickening of the interventricular septum at the first and last time point studied (5 and 15 days, respectively – Figure 2(c)) was also observed. Left ventricle volume analysis, assessed by Bruel and Nieengard method, showed a significant increase in the 15-day group (Figure 2(d)).

Figure 1.

External heart’s morphology characterization. (a) representative images from hearts were obtained for each group. (b) Heart height. (c) Heart length and (d) heart circular diameter obtained. Measurements show no significant difference among the groups. Data are expressed as mean ± SEM, * vs. sham, p < 0.05.

Figure 2.

Data obtained via Cavalieri’s methods. (a) Left ventricle wall thickness showing increase after 8 days of reperfusion. (b) Right ventricle wall thickness shows no significant changes. When analyzed (c) interventricular septum thickness, a significant increase in groups 5 and 15 days was observed (d) Left ventricle volume assessed by Bruel and Nieengard method’s show increase only in the 15-day group. Data are expressed as mean ± SEM, n = number of samples. * vs. sham, p < 0.05.

Renal I/R effects in angiogenesis

I/R was able to augment abundance of capillaries after 12 days of reperfusion (Figure 3(a)); additionally, the diameter of the capillaries was increased when compared to sham (Figure 3(b)), starting at 5 days and being sustained until 15 days. Such changes were also observed in the density of the capillaries (Figure 3(c)), and increased in all time points from 5 to 15 days.

Figure 3.

Angiogenesis parameters were analyzed using (a) number of capillaries, which show increase in 12-day group (b) capillaries diameter, increasing after 5 days of reperfusion and being sustained until 15 days, that was not reflect in (c) capillaries density, which showed an increase in all groups of reperfusion. Data expressed as mean ± SEM, n = number of samples. * vs. sham, p < 0.05.

Cardiac ECM in renal I/R model

Considering that renal I/R model was able to induce an increase in cardiac mass, we evaluated the effects of I/R on ECM remodeling. First, we analyzed MMP2 gene expression and protein levels in heart tissue after kidney injury. Although mRNA levels were decreased at 8 and 12 days, protein levels of MMP2 showed an increase after 15 days of reperfusion when compared to sham animals (Figure 4(a) and (b), p < 0.05). Moreover, the specific inhibitor of MMP2, TIMP1, appeared diminished in the 12-day group (Figure 4(c)). In addition, another MMP inhibitor, TIMP2 is also diminished after 12 days of reperfusion (Figure 4(d), p < 0.05). ECM deposition is not only regulated by MMPs and TIMPs, but it is also a target for growth factors; therefore, we evaluated gene expression of TGF-β and FGF-2.

Figure 4.

To assess cardiac remodeling, mRNA and protein levels of key molecules in extracellular matrix deposition were measured in the cardiac tissue. (a) mRNA levels of MMP2 analysis showed a decrease between 8 and 12 days of reperfusion. (b) Protein levels showed an increase in 15-day group. Regulators of MMPs, (c) TIMP1 mRNA levels showed a decreased in almost all groups, except for group 15 days, while (d) TIMP2 mRNA levels were decreased only in 12-day group. The mRNA levels of (e) collagen I and (f) collagen III were also analyzed, since they are essential to extracellular matrix deposition; however, no significant changes were observed. Additionally, the levels of mRNAs of (g) TGF-β were analyzed in heart tissue, showing significant decrease between 12 and 15 days. (h) FGF-2 levels were also analyzed.

TGF-β mRNA levels were decreased after 12 days of reperfusion (Figure 4(g), p < 0.05), whereas the analysis of FGF-2 mRNA levels did not show any significant changes, despite a clear trend to downregulation in all I/R groups. Furthermore, collagens I and III mRNA levels were unaltered (Figure 4(e) and (f)).

The levels of collagen types I and III in heart tissue samples were also evaluated through FTIR. Figure 5(b) shows the average spectra for sham, 12-day and 15-day groups. The fingerprint region (800–1800 cm⁻¹) presented the well-known vibrational modes of DNA, RNA, amino acids and sugars. It is important to claim attention to the behavior of 1170 cm⁻¹ band and 1600–1720 cm⁻¹ spectral region (inset of Figure 5(b)). The former relates to the C–O stretching vibration of collagen I while the latter is a spectral window where Amide I sub-bands related to peptidic bond vibrations. These sub-bands have pieces of information concerning the conformational state of the proteins, especially collagen. At first glance, the average spectral intensities indicate that the collagen I content gradually increased from sham to the 15-day group. In the range of frequencies 1137–1189 cm⁻¹, data did not follow a normal distribution and the Kruskal–Wallis test showed no differences of the integrated areas under the different samples. The same results were obtained for collagen III (1600–1680 cm⁻¹). A semi-quantitative analysis was performed by the analysis of the ratio of the integrated areas of 1600–1680 cm⁻¹ and 1137–1189 cm⁻¹ spectral region. The data indicated that the 15-day group presented a higher collagen III content compared to other groups.

In relation to external section, the analysis of the integrated areas showed differences for collagen III, 1600–1680 cm⁻¹ (Figure 5(a)), demonstrating a decrease in the samples for the 15–day group compared to sham and 12-day group which implies higher collagen III content for this specific group. The regions of collagen I (1137–1189 cm⁻¹) and the values of the ratio (1600–1680/1137–1189 cm⁻¹) showed no differences among the groups.

Regarding the internal section, the integrated area in the spectral range 1137–1189 cm⁻¹ (collagen I) for the 12-day and the 15-day groups presented statistically significant difference compared to the sham group (Figure 5(c)). This implies that collagen I content continuously increased as within time of reperfusion. Otherwise, the spectral region between 1600 and 1680 cm⁻¹ (collagen III) did not show significant variation. Thus, in this section tissue, the collagen III content was almost constant. The ratio of the integrated areas presented non-normal distribution. The differences pointed out by Kruskal–Wallis/Mann–Whitney test (p = 0.013) could be observed in Figure 5(c) and reflects the collagen I content variations. In relation to medial section, there is no statistical evidence (ANOVA test) for spectral differences. Taken together, we are able to infer that the total collagen content did not alter in whole heart.

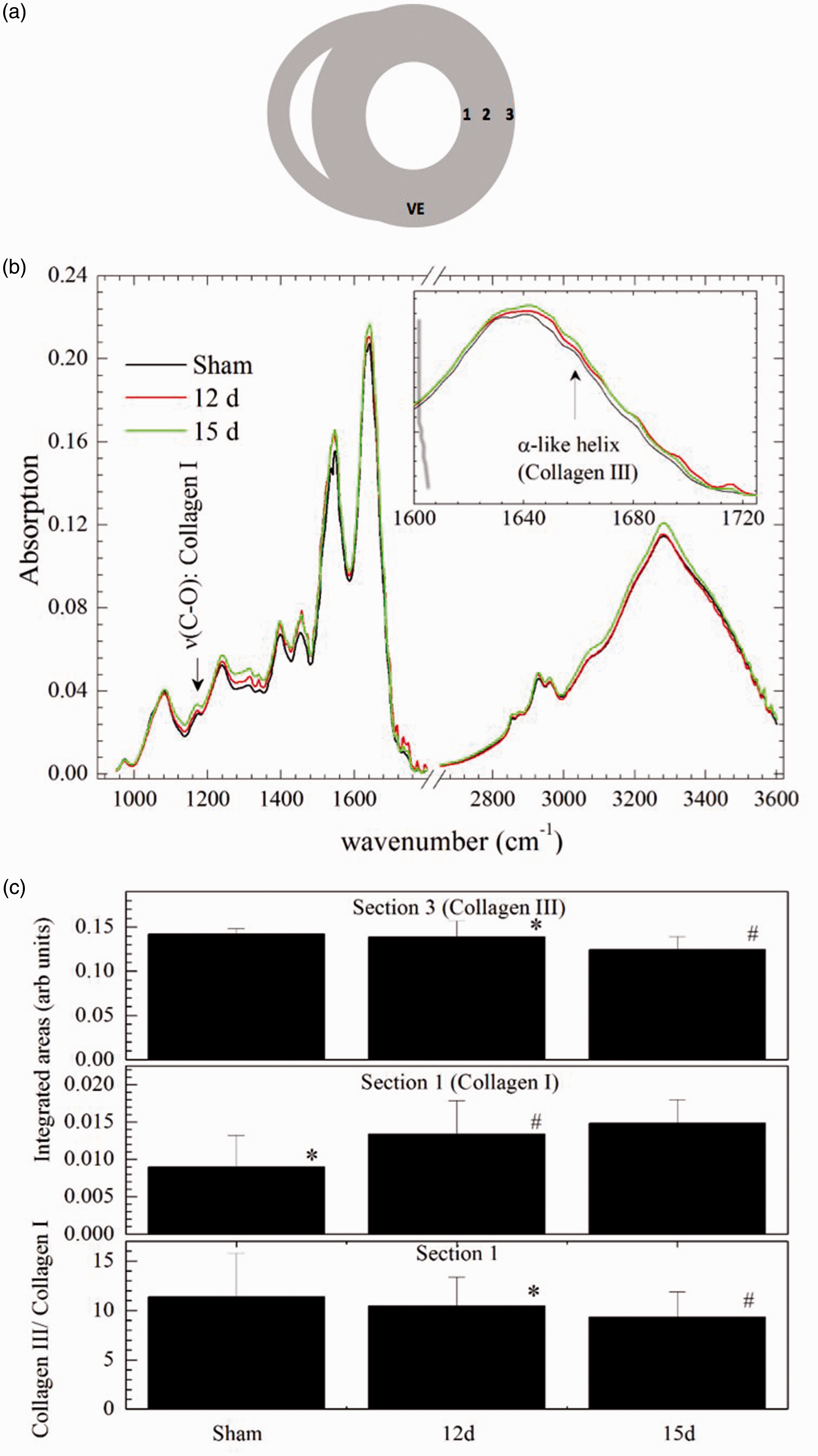

Figure 5.

FTIR analysis of the integrated areas. (a) Representative image of areas utilized to perform FTIR measurements. (b) Representative image of absorption spectra, showing different peaks. (C(i)) Collagen III content at external section, (C(ii)) collagen I content at internal section and (C(iii)) collagen III/collagen I content at internal section. Data expressed in mean ± SD. *p < 0.0303; #p < 0.0467.

Discussion

In the present study, we hypothesized that renal I/R would be able to change deposition of ECM components. Herein, we have shown that CH induced by renal I/R is not accompanied by total collagen content alterations.

Heart and kidney diseases were considered as separated ailments for a long time; however, a trend to integrative science has been observed in the latest years, and a consequence of such event was the discovery of cardiorenal syndrome, characterized by a complex and multifactorial interaction between both organs.¹⁵ Renal failure is followed by cardiovascular alterations and is framed in a subtype of cardiorenal syndrome. The coexistence of CVDs and kidney failure has several implications, such as decreased survival rates.^16,17

Regarding the cardiac tissue, since heart external morphometric parameters were not altered, and left ventricle wall thickness was increased after eight days of reperfusion (p < 0.05), it was possible to infer that a concentric type of CH is installed after 12 days of reperfusion. This result corroborates others in the literature, as well as previous results from our lab, showing that inflammatory cytokines were able to induce an increase in cardiac mass after renal I/R.^9,18

Nonetheless, we had previously shown that CH induced by renal I/R is accompanied by increased transverse cardiomyocyte diameter,⁹ without alterations on blood pressure and heart frequency (data not published), characterizing a nonstandard model of CH. In this model, inflammation seems to be a key participant in cardiac mass increase, since lack of TLR2 or TLR4 is sufficient to prevent development of CH (p. 51).⁹

CH is usually followed by increase in heart tissue vascularity, since myocardial expansion is accompanied by a greater demand in oxygen and nutrients; therefore, an increase in the number of capillaries is necessary to supply the raising demand.¹⁹ In our model, the number of capillaries, diameter and density were increased (p < 0.05), corroborating previous studies on pathological cardiac remodeling.²⁰

The cardiac tissue structure depends on the number and size of fibroblasts and cardiomyocytes. Once the number of fibroblast increases, it directly reflects on the alterations of ECM components, mainly collagens I, III and matrix metalloproteinases.⁴ Therefore, we have evaluated the effect of I/R protocol in MMP2 and collagen levels in all the time points studied. Although the results showed a significant decrease in MMP2 gene expression between 8 and 12 days (p < 0.05), protein levels were only increased after 15 days (p < 0.05). In parallel, we observed a decrease in gene expression of TIMP1 in the 12-day group when compared with control animals (p < 0.05), suggesting an augmented activity towards ECM degradation.

Although cardiovascular inflammation induced by renal I/R is not completely understood, the role of inflammation on ECM modulation, after myocardial infarction (MI), is well characterized.²¹ After about 1 h of ischemia, cardiomyocytes undergo necrosis accompanied by activation of toll-like receptors, reactive oxygen species synthesis and increase in cytokine levels. Neutrophils are the first immunity cells to be recruited and after about three days, macrophages remove necrotic cardiomyocytes and apoptotic neutrophils.²² Macrophages activate fibroblasts through TGF-β dependent manner,²³ which may suppress the inflammatory response stimulating fibroblasts’ conversion into myofibroblasts.²⁴ After one week of MI, collagens I and III are deposited in cardiac tissue promoting fibrosis.²⁵ When the reperfusion is re-opened, infiltration of the inflammatory cells is accelerated and amplified, impairing left ventricle function.²⁶ Surprisingly, the mRNA levels of TGF-β were downregulated after 12 days of reperfusion (p < 0.05). Along with results from MMP analysis and collagen gene expression, it was not possible to infer whether I/R induced fibrosis in the heart tissue.

Several studies have been correlating the structural alterations of collagen to pathologies development.^27,30–31 Here, we used FTIR spectroscopy to assess the collagen content alterations in different sections of the heart tissue. Even though there are other methods for collagen analysis, there are limitations in all of them, such as sensibility, precision and capacity to evaluate molecular structure.²⁸ We observed a bland alteration of collagen content in all the three sections studied; still the global analysis showed that renal I/R protocol was not able to change collagen I and III levels at the same time. On the other hand, we could detect an increase in collagen I content in section I (p < 0.05), the internal section, which is directly in contact with the circulating cytokines.

The ECM turnover occurs during cardiac remodeling; even so, the mechanisms involved in controlling the balance between production and degradation are not fully understood.²⁹ Even though we have observed changes in expression of molecules involved in ECM deposition, it remains unclear whether they have a substantial participation in cardiac remodeling induced by renal I/R. A further investigation is necessary to elucidate the mechanisms controlling the suppression of inflammatory signals and the triggering of fibroblasts proliferation in our model. Likewise, we have performed studies involving an animal model, and clinical investigations are essential for a better understanding of I/R effects in cardiac remodeling.

Nevertheless, our data suggest that systemic inflammation is able to modulate cardiac tissue structure, differently regulating collagen content in distinct sections of the heart tissue in mice subject to renal I/R.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by FAPESP agency (grants N. 2008/1015-4 and 2015/19107-5) and Brazilian National Research Council (CNPq, grant 481034/2012-9).

Ethical approval

None.

Guarantor

Marcela S Carneiro Ramos.

Contributorship

Rogério Cirino-Silva and Fernanda V Kmit have equal contribution to the work.

Supplemental Material

Supplementary material for this paper can be found at .

References

Berk

Fujiwara

Lehoux

. ECM remodeling in hypertensive heart disease. J Clin Investigat 2007; 117: 568–575.

Creemers

Pinto

. Molecular mechanisms that control interstitial fibrosis in the pressure-overloaded heart. Cardiovasc Res 2011; 89: 265–272.

Weber

Sun

Tyagi

. Collagen network of the myocardium: function, structural remodeling and regulatory mechanisms. J Mol Cell Cardiol 1994; 26: 279–292.

Frangogiannis

. Matricellular proteins in cardiac adaptation and disease. Physiol Rev 2012; 92: 635–688.

Pedersen

Vuong

Ronning

. Matrix metalloproteinases in fish biology and matrix turnover. Matrix Biol 2015; 44–46: 86–93.

Heineke

Molkentin

. Regulation of cardiac hypertrophy by intracellular signalling pathways. Nat Rev Mol Cell Biol 2006; 7: 589–600.

Maillet

van Berlo

Molkentin

. Molecular basis of physiological heart growth: fundamental concepts and new players. Nat Rev Mol Cell Biol 2013; 14: 38–48.

Harmankaya

Akalin

Akay

. Comparison of risk factors for cardiovascular disease in hemodialysis and peritoneal dialysis patients. Clinics 2015; 70: 601–605.

Trentin-Sonoda

da Silva

Kmit

. Knockout of toll-like receptors 2 and 4 prevents renal ischemia-reperfusion-induced cardiac hypertrophy in mice. PLoS One 2015; 10: e0139350–e0139350.

10.

Feitoza

Goncalves

Semedo

. Inhibition of COX 1 and 2 prior to renal ischemia/reperfusion injury decreases the development of fibrosis. Mol Med 2008; 14: 724–730.

11.

Gundersen

Bendtsen

Korbo

. Some new, simple and efficient stereological methods and their use in pathological research and diagnosis. APMIS 1988; 96: 379–394.

12.

Bruel

Oxlund

Nyengaard

. The total length of myocytes and capillaries, and total number of myocyte nuclei in the rat heart are time-dependently increased by growth hormone. Growth Hormone IGF Res 2005; 15: 256–264.

13.

Wojdyr

. Fityk: a general-purpose peak fitting program. J Appl Crystallogr 2010; 43: 1126–1128.

14.

Belbachir AN, Hofstatter M, Litzenberger M, et al. Performance evaluation of the ultra high-speed synchronous arbitration for transient pixels’ events. In: 2009 IEEE international conference on industrial technology, vols 1–3, 2009, pp.6–9. New York: IEEE.

15.

Bongartz

Braam

Gaillard

. Target organ cross talk in cardiorenal syndrome: animal models. Am J Physiol Renal Physiol 2012; 303: F1253–F1263.

16.

Anavekar

McMurray

Velazquez

. Relation between renal dysfunction and cardiovascular outcomes after myocardial infarction. N Engl J Med 2004; 351: 1285–1295.

17.

Damman

Navis

Voors

. Worsening renal function and prognosis in heart failure: systematic review and meta-analysis. J Card Fail 2007; 13: 599–608.

18.

Mir

Chatterjee

Mitra

. Inhibition of signal transducer and activator of transcription 3 (STAT3) attenuates interleukin-6 (IL-6)-induced collagen synthesis and resultant hypertrophy in rat heart. J Biol Chem 2012; 287: 2666–2677.

19.

Riley

Smart

. Vascularizing the heart. Cardiovasc Res 2011; 91: 260–268.

20.

Anversa

Capasso

. Loss of intermediate-sized coronary arteries and capillary proliferation after left ventricular failure in rats. Am J Physiol 1991; 260: H1552–H1560.

21.

Frangogiannis

Smith

Entman

. The inflammatory response in myocardial infarction. Cardiovasc Res 2002; 53: 31–47.

22.

Lamberti

Perez Vidakovics

van der Pol

. Cholesterol-rich domains are involved in Bordetella pertussis phagocytosis and intracellular survival in neutrophils. Microb Pathog 2008; 44: 501–511.

23.

Sun

Zhang

. Cardiac remodeling by fibrous tissue after infarction in rats. J Lab Clin Med 2000; 135: 316–323.

24.

Wynn

. Cellular and molecular mechanisms of fibrosis. J Pathol 2008; 214: 199–210.

25.

Jougasaki

Tachibana

Luchner

. Augmented cardiac cardiotrophin-1 in experimental congestive heart failure. Circulation 2000; 101: 14–17.

26.

Jourdan-Lesaux

Zhang

Lindsey

. Extracellular matrix roles during cardiac repair. Life Sci 2010; 87: 391–400.

27.

Prox

Arnold

Becker-Pauly

. Meprin alpha and meprin beta: procollagen proteinases in health and disease. Matrix Biol 2015; 44–46: 7–13.

28.

Fritschy

. Is my antibody-staining specific? How to deal with pitfalls of immunohistochemistry. Eur J Neurosci 2008; 28: 2365–2370.

29.

Ghosh

Vaughan

. PAI-1 in tissue fibrosis. J Cell Physiol 2012; 227: 493–507.

30.

Cheheltani

Rosano

Wang

. Fourier transform infrared spectroscopic imaging of cardiac tissue to detect collagen deposition after myocardial infarction. J Biomed Opt 2012; 17: 056014–056014.

31.

Belbachir

Noreen

Gouspillou

. Collagen types analysis and differentiation by FTIR spectroscopy. Analy Bioanaly Chem 2009; 395: 829–837.
