Towards a better understanding of QT interval variability

Abstract

The International Conference on Harmonization of Technical Requirements for Registration of Pharmaceuticals for Human Use (ICH) Guideline E14 recommends ‘Thorough QT Study’ as a standard assessment of drug-induced QT interval prolongation. At the same time, the value of drug-induced QTc prolongation as a surrogate marker for risk of life-threatening polymorphic ventricular tachycardia known as torsades des pointes remains controversial. Beat-to-beat variability of QT interval was recently proposed as an alternative metric. The following review addresses mechanisms of beat-to-beat QT variability, methods of QT interval variability measurements, and its prognostic value in clinical studies.

Introduction

Prolonged corrected QT interval (QTc) is a well recognized sign of long QT syndromes, manifest by life-threatening polymorphic ventricular tachycardia known as torsades des pointes (TdP) [Moss et al. 1991]. In the 1990s, TdP cases were described in patients taking QT-prolonging drugs [DuBuske, 1999; Kamisako et al. 1995; MacConnell and Stanners, 1991; Monahan et al. 1990], resulting in important changes in regulations of new drugs approval by the United States Federal Drug Administration (FDA). Recommended by the International Conference on Harmonization of Technical Requirements for Registration of Pharmaceuticals for Human Use (ICH) Guideline E14, the ‘Thorough QT Study’ (TQT) became a standard of assessment of QT interval prolongation due to a study drug [Rock et al. 2009]. In addition, prolonged QTc has been shown to be associated with increased risk of sudden cardiac arrest (SCA) in the general population [Straus et al. 2006; Algra et al. 1991] and in patients who have had a myocardial infarction [Schwartz and Wolf, 1978].

At the same time, the value of drug-induced QTc prolongation as a surrogate marker for risk of TdP remains controversial [Carlsson, 2008; Thomsen et al. 2006; Shah and Hondeghem, 2005; Roden, 2004]. Beat-to-beat variability of QT interval was recently proposed as an alternative metric [Hinterseer et al. 2008; Thomsen et al. 2004; Hondeghem et al. 2001]. This review addresses mechanisms of beat-to-beat QT variability, methods of QT interval variability measurements, and its prognostic value in clinical studies.

Measurement of beat-to-beat QT interval variability

Early works [Speranza et al. 1993; Nollo et al. 1992] assessed variability of repolarization by measuring standard deviation of QT, R peak to T end, and R peak to T peak intervals, and QT and RT spectra in healthy volunteers. In 1989–1993, Merri and colleagues utilized the first portion of the QT interval (ending at the T peak) to quantify repolarization, and described the relation between RR and R peak to T peak intervals (RTpeak/RR slope) in healthy volunteers and patients with long QT syndrome [Merri et al. 1993, 1992, 1989]. In 1997, Berger and colleagues proposed the beat-to-beat QT variability index (QTVI), which quantifies the magnitude of QT interval variation, normalized by both the mean QT duration and the magnitude of heart rate variation [Berger et al. 1997]. QTVI is calculated as follows:

$${\text{log}}_{10}[({\text{QTv}/\text{QTm}}^2)/({\text{RRv}/\text{RRm}}^{\text{2}})]$$

QTv is the QT interval variance, QTm is the mean QT interval, RRv is the RR interval variance, and RRm is the mean RR interval.

Such normalization of beat-to-beat temporal lability of repolarization proved to be very useful. Importantly, the QT variability method by Berger is insensitive to possible inaccuracies in QT interval measurements because it directly measures temporal beat-to-beat lability of repolarization by stretching or compressing the JT segment of every beat in studied epoch to match template. The recommended duration of recording to determine QT variability is 256 s.

Following Berger’s approach, multiple studies over more than a decade showed the predictive value of beat-to-beat QT variability for risk stratification of SCA [Piccirillo et al. 2007; Jensen et al. 2005; Haigney et al. 2004; Atiga et al. 1998; Berger et al. 1997]. Vos and colleagues proposed to quantify a short-term variability of repolarization (STV_QT), calculated on Poincaré plots of 30 consecutive QT intervals [Hinterseer et al. 2008; Oosterhoff et al. 2007; Thomsen et al. 2004] as follows (D is the QT interval):

$${\text{STV}}_{\text{QT}}={\displaystyle {\sum }_{1\dots 30}|{\text{D}}_{\text{n}}-{\text{D}}_{\text{n}-1}|/(30*\surd 2)}$$

This formula represents the average distance to the line of identity for 30 points in a Poincaré plot. The predictive value of STV_QT and the value of the method for drug safety assessment has been shown in animal models [Baumert et al. 2011, 2008; Carlsson, 2008; Bilchick et al. 2004; Berger et al. 1997] and clinical studies [Cheng et al. 2009; Diaz et al. 2004; DuBuske, 1999].

Prognostic value of beat-to-beat QT interval variability

Several prospective observational studies convincingly showed the predictive value of QTVI for risk stratification of SCA. Elevated beat-to-beat QT variability predicted SCA and ventricular arrhythmia in patients with ischemic and nonischemic cardiomyopathy [Piccirillo et al. 2007; Haigney et al. 2004; Atiga et al. 1998], hypertrophic cardiomyopathy [Atiga et al. 2000], myocardial ischemia [Murabayashi et al. 2002], and long QT syndrome [Bilchick et al. 2004]. Specifically, marked elevation of QT variance, rather than a drop in heart rate variance, was responsible for increased QTVI in these conditions.

QTVI was explored in a wide range of diseases and conditions. In children with Kawasaki disease, QTVI was correlated with an inflammatory reaction (body temperature and C-reactive protein) [Kuriki et al. 2011]. Elevated QTVI was found in otherwise healthy men with spinal cord injury [La Fountaine et al. 2011], in healthy individuals with non-dipping blood pressure pattern [Myredal et al. 2010], in patients with type 1 myotonic dystrophy [Magri et al. 2010], and in patients with familial dysautonomia [Nussinovitch et al. 2010], in patients after coronary artery bypass grafting [Myredal et al. 2008], in asymptomatic patients with beta-thalassemia major [Magri et al. 2007] and end-stage renal disease [Gao et al. 2005]. Obesity was characterized with increased QTVI, whereas bariatric surgery and progressive weight loss was shown associated with improvement of QTVI [Alam et al. 2009]. QT variability was shown to correlate with the severity of obstructive sleep apnea and blood oxygenation during sleep [Baumert et al. 2008]. Increased QT variability was demonstrated in patients with schizophrenia during acute psychosis [Bar et al. 2007b], in patients with panic disorder [Yeragani et al. 2002], depression [Yeragani et al. 2000], and in acute alcohol withdrawal [Bar et al. 2007a]. Predominantly decreased heart-rate variance and out-of-proportion unchanged or mildly increased QT variance was usually observed in such cases, while a true dramatic increase in QT variance was rather infrequent.

Mechanisms of beat-to-beat QT interval variability

Increased QT variability observed in patients with heart failure has been considered a sign of an increased sympathetic tone in the ventricles of the heart. However, only recently, direct evidence of augmented sympathetic tone was obtained in an experiment in dogs implanted with a data transmitter that monitored simultaneously integrated left stellate-ganglion nervous activity, integrated vagus nerve activity, and ECG [Piccirillo et al. 2009]. In healthy dogs, QTVI correlated inversely with integrated vagus nerve activity, whereas, during heart failure QTVI correlated directly with integrated left stellate-ganglion nervous activity.

Another direct proof of correlation between sympathetic activation and QT variability was shown in the study of resting norepinephrine spillover into the coronary sinus [Baumert et al. 2011]. In patients with hypertension, QT variability and cardiac norepinephrine spillover into the coronary sinus were increased (compared with normotensive controls) and significantly correlated.

Electrical restitution, which reflects adaptation of the action potential duration to changes in cycle length, is another important mechanism of QT variability [Franz et al. 1988]. Our recent finding of increased intracardiac QT variability in patients with structural heart disease and implanted cardioverters–defibrillators confirmed that repolarization lability may be present throughout the ventricles [Tereshchenko et al. 2009b].

Modeling studies help us to understand mechanisms of QT variability on a cellular level [Pueyo et al. 2010; Romero et al. 2009]. A combination of instabilities in action potential duration restitution [Pastore et al. 1999; Nolasco and Dahlen, 1968] and intracellular calcium dynamics [Diaz et al. 2004], along with anatomical and dynamically generated instabilities as a response of a nonlinear medium to periodic excitation [Garfinkel, 2007; Echebarria and Karma, 2002], may produce both alternating [Rosenbaum et al. 1994] and nonalternating [Shusterman et al. 2006] repolarization lability. Stochastic prolongation of action potential duration may be an important mechanism of ventricular tachyarrhythmia as well [Tanskanen et al. 2005a].

Notably, mechanistic studies, elucidating mechanisms of increased QT variability, showed differences between heart failure and structural heart disease, in comparison to the healthy state. Apparently, QT variability is influenced by multiple factors that play different roles depending on the substrate, and the presence and degree of structural and electrical remodeling (Figure 1). The correlation between sympathetic tone and QT variability is very strong in the state of high sympathetic activation, but might be much weaker in other conditions when autonomic balance is unaffected. Accordingly, changes in ion-channel functions, whether inherited, or drug induced, could be the major driver of elevated QT variability in some, but not other, cases.

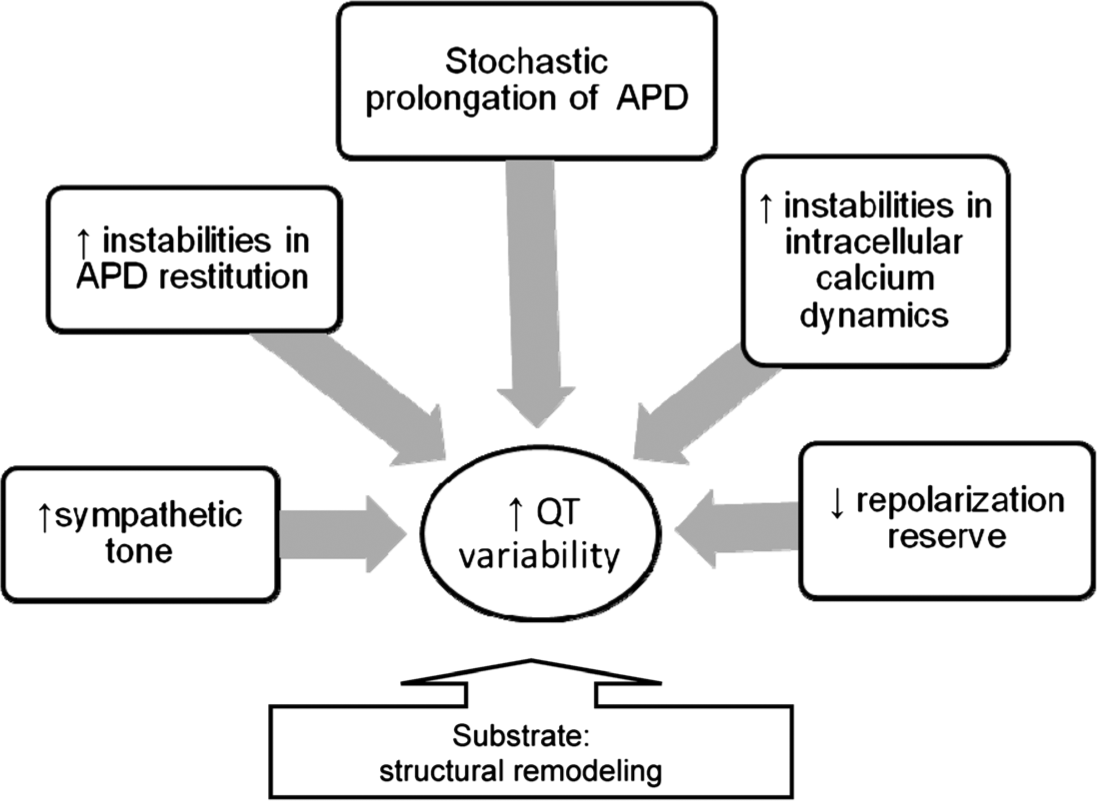

Figure 1.

Factors influencing QT interval variability. APD, action potential duration.

Mechanisms by which elevated QT variability translates into ventricular tachyarrhythmia are less understood. It is known that early afterdepolarizations might lead to triggered activity, as well as to re-entry polymorphic ventricular tachycardia, including TdP, and ventricular fibrillation. Cardiac myocyte modeling studies [Tanskanen et al. 2005b] have shown an increased rate of early afterdepolarizations in conditions of a stochastic mechanism of L-type Ca-channel gating. We speculate that beat-to-beat changes in Ca-channel gating properties might manifest by elevated repolarization lability and result in more frequent afterdepolarizations: an important mechanism of arrhythmogenesis.

Beat-to-beat QT interval variability and drugs

Prognostic value of QT variability in patients on drugs affecting QT variability

Clinical data on the effect of drugs on QT variability are mainly limited to the effect of class III antiarrhytymic drugs (AADs). The mechanisms of action of class III AADs are complex. Amiodarone blocks rapidly and slowly activating delayed rectifier K⁺ currents (I_Kr and I_Ks), Na⁺ currents (I_Na), L-type Ca²⁺ currents (I_CaL), and adrenergic receptors [Kodama et al. 1999, 1997]. Sotalol is both a β-blocker and I_kr channel blocker. Ibutilide blocks I_kr channels, but activates slow inward sodium currents [Murray, 1998].

The substrate is extremely important when considering the effect of drugs on repolarization and QT variability. Structural heart disease decreases [Maltsev et al. 2007; Maltsev and Undrovinas, 2006] the repolarization reserve [Roden, 2008a, 2008b] of the myocardium. Amiodarone-induced TdP is more common in patients with structural heart diseases [Schrickel et al. 2006a, 2006b]. Risk stratification in such patients is difficult, and usually these patients are excluded from QT variability studies [Tereshchenko et al. 2009b]. In our study, the predictive value of QTVI in multivariate analysis was shown with extended follow up [Tereshchenko et al. 2009a]. QT variability was highly predictive in patients with paroxysmal atrial fibrillation on class III AADs. Consistently, another class III AAD, ibutilide, demonstrated increased QT variability only with enriched fluctuations in heart rate [Cheng et al. 2009]. Importantly, the response to class III AADs, as well as the response to other medications, varies among individuals [Fenichel et al. 2004], which underscores the importance of efforts towards future individualized medicine.

Drug overdose is another potentially life-threatening clinical scenario, for which predictive value of QT variability might be of interest, but has not been explored. A QT-heart rate nomogram has recently been proposed to identify patients who have had a drug overdose at risk of TdP, and showed an advantage over the QTc metric [Waring et al. 2010].

QT variability as a future tool for drug safety assessment

In experiments, increased beat-to-beat variability of action potential duration was increased during exposure of hearts to cisapride, ziprasidone, quinidine and monofloxacin, but not ranolazine or Phenobarbital [Wu et al. 2004]. While previous experiments and clinical studies showed the usefulness of QT variability for quantification of risk in patients with cardiac problems, it is important to emphasize that standardized assessment of drug-induced changes in temporal QT variability was not performed. Further studies are needed before considering regulatory use of beat-to-beat QT variability because assessment of drug-induced changes in beat-to-beat QT variability currently remains a research tool only.
