Abstract
The visual search paradigm has had an enormous impact in many fields. A theme running through this literature has been the distinction between preattentive and attentive processing, which I refer to as the
Introduction
The well-known visual search paradigm has had an enormous impact on many aspects of science. The paradigm was designed to assess the function of visual attention (Neisser, 1963; Treisman & Gelade, 1980; Wolfe, 1998) and the operation of early visual cortical areas (Julesz, 1981; Nakayama & Martini, 2011). But its’ subsequent reach has been far wider than this, and key assumptions about attention derived from an outdated understanding of the paradigm are used as blueprints for inference in many disciplines.
In the vast majority of visual search studies, performance is assessed with response times. Typically, the task is to determine whether a target is present or absent. Search slopes that measure how response times change as more distractors are added to the display are presumed to assess the speed of the search and whether attention is involved. If the slopes are around zero, the common assumption is that the target can be detected
A common finding is that when a target differs from distractors on a single feature search slopes are around 0, reflecting that search is unaffected by the number of distractors in a display.
While this logic is in many ways attractive, note importantly that it is a
The Problem
The standard two-stage assumption of visual search is often used to infer facts about visual attention but many researchers overlook that it is exactly that—an assumption. Slopes of response times versus set-size are used to
A few random examples from diverse fields of how the two-stage assumption is used as fact rather than conjecture are mentioned here (almost literally picked out of a hat from among many possible ones). All highlight the contaminating influence of the two-stage assumption. In visual masking, Argyropoulos, Gellatly, Pilling, and Carter (2013; see Filmer, Mattingley, & Dux, 2014 for similar assumptions) concluded that object substitution masking was not obliterated by attention as originally claimed by Enns and DiLollo (1997), since they found that such masking was not affected by set-size manipulations. There was little discussion of the reasoning behind the assumption that set-size effects are indicative of attentional effects. This was simply taken as given. Another example involves research into the relation of working memory and attention. Woodman, Vogel, and Luck (2001) investigated interactions of working memory and attention, finding that added working memory load did not influence set-size effects in visual search. This led them to conclude that visual search requires minimal working memory resources, inconsistent with ideas of overlap in function of attention and working memory (e.g. Awh & Jonides, 2001; Bundesen, 1990). Notably, they found a large intercept effect but stated that: “this change in intercept implies that the memory task led to a slowing of a process that either preceded or followed the actual search” (p. 221), again a conclusion based on the two-stage assumption. Oh and Kim (2004) subsequently argued that there was dual-task interference in a task involving spatial visual memory and visual search. Again set-size effects were the key to reaching this conclusion. Horowitz and Wolfe (1998) investigated the role of spatial memory in visual search finding that randomly relocating search items every 110 ms during search did not modulate set-size effects. They concluded that attention did not keep track of already searched locations. They did, however, find intercept effects from the reshuffling. Kristjánsson (2000) questioned their conclusion by modifying their paradigm, but again the reasoning depended on the slopes, although Kristjánsson noted that intercept differences could have relevance for attention under other models than those involving the two-stage assumption. Greenberg et al. (2015) investigated object-based attention arguing that the attentional priority surrounding a selected object is modulated by search mode as measured with slopes.
The two-stage assumption is applied to research outside the field of visual cognition. In clinical psychology, Hahn, Carlson, Singer, and Gronlund (2006) used slopes of response time and set-size to assess attentional bias to threatening faces. In neuropsychology, Ashwin, Wheelwright, and Baron-Cohen (2006) investigated the anger superiority effect in face perception, using slopes to measure attention to facial expression in Asperger syndrome. In a study of neglect patients, the current author is again guilty. Kristjánsson and Vuilleumier (2010) used search slopes to argue for a difference in spatial memory between visual hemi fields, but to their credit they noted caveats regarding assumptions about attentional involvement from slopes. In the controversial field of action video-game training (see Boot, Blakely, & Simons, 2011; Kristjánsson, 2013 for critical overviews), Hubert-Wallender, Green, Sugarman, and Bavelier (2011) stated that search slopes could be used as a diagnostic tool for measuring influences on attentional processing from video-game training or experience (see also Castel, Pratt, & Drummond, 2005; Wu & Spence, 2013). In Neurophysiology, the operative characteristics of neurons in various vision and attention-related brain regions have been assessed under the two-stage assumption (Cohen, Heitz, Woodman, & Schall. 2009; Jerde, Ikkai, & Curtis, 2011; see also Chelazzi, 1999). Similar assumptions have been made in neuroimaging research on humans (Donner et al., 2002; Nobre, Coull, Walsh, & Frith, 2003) . All these studies take the two-stage model as given. Finally, the two-stage assumption is found in the Wikipedia entry on visual search, not stated as conjecture, but fact (http://en.wikipedia.org/wiki/Visual_search#Reaction_time_slope, retrieved May 1st, 2015). In sum, the original theoretical claims that were based on a particular interpretation of visual search data have been used at face-value as facts about attention, not testable hypotheses.
Findings question the two-stage assumption
It would of course be fine to accept and apply the two-stage assumption had it stood the test of time. It did, however, not take long for results to appear that did not fit with the two-stage formulation. Examples are efficient conjunction search (e.g. McLeod, Driver, & Crisp, 1988; Nakayama & Silverman, 1986; Theeuwes & Kooi, 1994; Wolfe et al., 1989) and set-size effects where response times
Wang, Kristjánsson, and Nakayama (2005) investigated a “multiconjunction” search task where the target could neither be distinguished from distractor based on single features nor on the basis of top–down feature biases. In a typical example, the target was randomly either a black disk or a white donut, while the distractors were black donuts and white disks. The two target types share a feature with both distractor types minimising target saliency. According to the two-stage assumption, the visual system would treat target and distractors alike and need to search through the display items one by one, while the only useful top–down guidance signal is that the target is always the odd-one-out. Many visual search theories (Duncan & Humphreys, 1989; Treisman & Sato, 1990; Wolfe et al., 1989) clearly predict inefficient search on such tasks since the primary determinants of visual search performance are, by these accounts, feature contrasts (preattentive) and top–down biases toward certain features (attentive). Yet set-size effects were small, or nonexistent in many examples, indicating that the search was “efficient” (Wolfe, 1998a).
Go/No-go measures
There are other ways of assessing visual search performance than response times on a present or absent (PA) task. Another finding in the aforementioned paper of Wang et al. (2005, Experiment 4) is less well known. When they changed their multiconjunction search task, so that observers did not have to respond whether the target was present or absent, but only if the target was present (and do nothing if no target was absent; a “Go/No-go” task, GNG), search slopes in multiconjunction search actually became negative—search times
The important point to take from this is that search performance can be very different for the
Additionally, Chun & Wolfe (1996) suggested that participants tend to be less certain when they do not see a target and thus examine more of the display before making a decision. Wang et al. did indeed observe that error rates did
Current experiments
Here the GNG visual search paradigm used by Wang et al. (2005) is revisited (along with the more traditional PA task) to assess whether the two-stage assumption leads to similar conclusions about attention from GNG and PA results. To get a relatively wide range of estimates of PA versus GNG performance, three different tasks were tested (see Figure 1):
Search based on a single feature with four possible targets (black disk, black donut, white disk, or white donut). Both distractor sets always shared a feature that the target did not have, so the target was distinguished from distractors on a single feature. For example, for a black disk target, the two distractor sets were either white disks and white donuts or white and black donuts. “Easy” multiconjunction search with four possible targets (black disk, black donut, white disk, or white donut). Either distractor set shared one feature with the target, but importantly, never the same one so that no single feature ever distinguished target from distractors. So if the target was a black disk, the distractors would be white disks and black donuts. “Hard” multiconjunction search with four possible targets (red vertical or horizontal bar, or green vertical or horizontal bar). Again, either distractor set shared one feature with the target, so that no single feature ever distinguished target and distractors. If the target was, say, a red vertical bar, the distractors would be red horizontal and green vertical bars. The three visual search tasks that were tested, both with traditional Present/Absent (PA) responses or Go/No-Go/(GNG) responses (all shown with set-size = 10). Feature search on the left, where a single feature (brightness) distinguishes target and distractors; “easy” multiconjunction search at center where the target shares one feature with each distractor set and “hard” multiconjunction search on the right. A target is present in all the examples. The target was randomly one of the four possible search items in each search on a given trial.

Methods
There were three different response conditions run in counterbalanced order (two 100 trial blocks for each condition). In a GNG-presence session, observers responded with a keypress only if the target was present (on 50% of trials) but were told to “sit and wait” if the target was absent, in which case the trial ended after 2000–3500 ms (randomly determined). In a GNG-absence session, observers responded only if the target was absent. In the PA task, observers determined whether the target was present or absent by pressing corresponding keys.
Results and Discussion

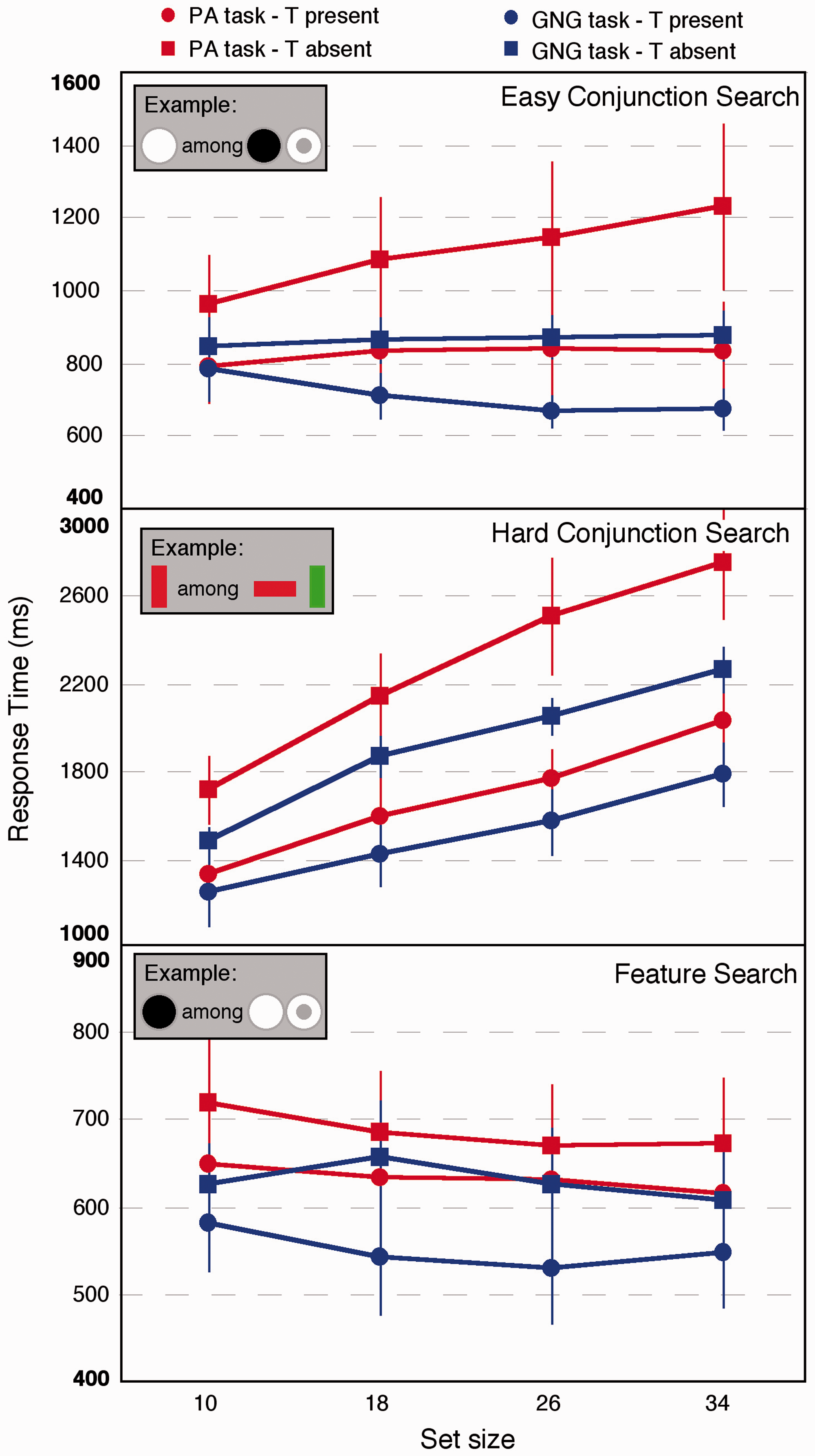

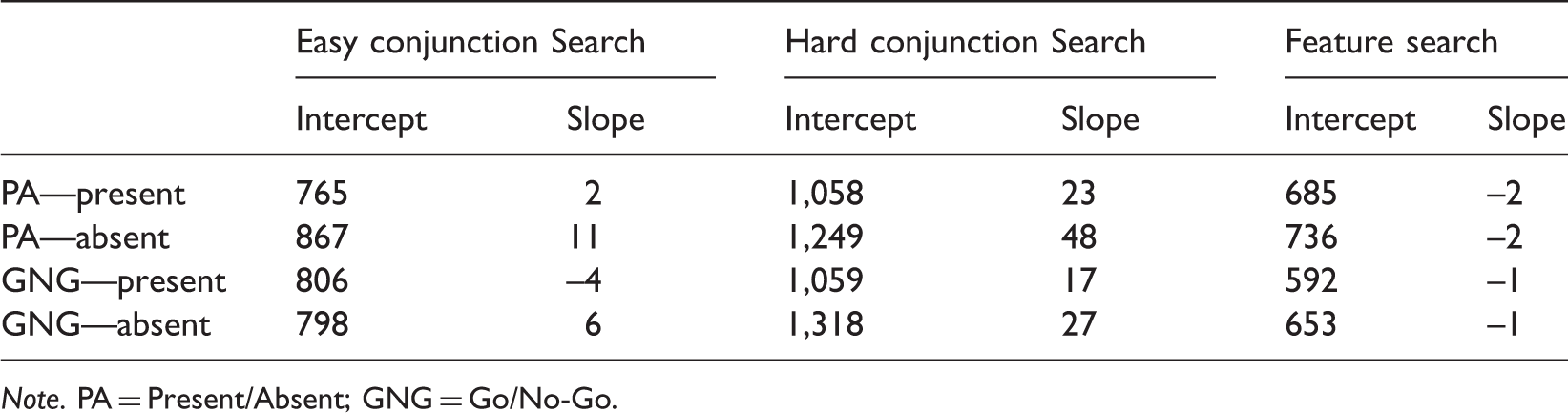

The response times for the present/absent versus Go/No-go tasks for the three different searches. Note the difference in scales, which reflect the differences in overall means for the different conditions. Error bars show the standard errors of the mean. Slopes and Intercepts for the Different Search Types and Response Conditions (in ms).
What this means is that under the two-stage assumption, we are forced to very different conclusions about the attentional requirements of the task. According to standard theory, this is a conjunction search where the target does not pop-out nor can top-down feature guidance be applied since the target is not known. The fact that the slopes are very small in the PA multiconjunction search is troubling for the two-stage assumption on its own since the results suggest that the search is “preattentive.” But the results from the GNG task are even harder to account for under the two-stage assumption. Attention seems to be doing something quite different from what the two-stage assumption dictates. Attention is clearly not moving from item to item trying to locate the target. Instead, observers are making a decision that becomes Error rates for the present/absent versus Go/No-go tasks for the three different searches.
(2)
General Discussion
The results clearly show how slopes are ambiguous measures of visual attention. Three very different patterns of results are seen for the three different search tasks, but importantly, the slopes differ as a function of response method. The idea that slopes measure attention derives from the assumption of a preattentive stage followed by an attentive stage where the search is carried out. This
It may surprise some readers to see this argument made in 2015. Some may feel that a straw man has been erected. Others may wonder: “who cares?” Findings that the two-stage assumption cannot account for have been around in the literature since the 1980s (see examples in Introduction section). But keep in mind that the implicit influence of the two-stage assumption is still strong as examples described in the introduction show. Interpretation of research findings is in many cases based on the two-stage assumption meaning that scientist may draw incorrect conclusions from their results. Arguments made in many disciplines in recently published papers depend on the assumption that if you do not modulate slopes of set-size and RT you do not measure attention. What is important regarding the current results, above other counterexamples to the two-stage assumption is that the differing conclusions are obtained on tasks requiring
What’s going on during visual search
Multiconjunction search, results from foraging tasks, analyses of RT distributions or the distribution of search slopes, along with the findings described in the introduction, argue against the two-stage assumption. This highlights that the field still has not figured out how visual search works. Slopes are clearly not a straightforward measure of attention as has been the dominant view for 35 years.
What are we left with? Rauschenberger (2010, p. 110) questioned the bottom–up or top–down distinction that is central to the two-stage view, stating: “It is entirely conceivable that there is no temporally or spatially localisable final output that represents the final word in how the brain interprets a given visual input” and later: “In this scheme, “top–down” and “bottom–up” make little sense because there is no isolated feed-forward volley.” I agree with Rauschenberger; it may be time to stop thinking linearly about vision and attention. Rauschenberger points toward the importance of reentrant processing (Ahissar & Hochstein, 2004; Lamme & Roelfsema, 2000); and feedback connections. These proposals strongly blur any distinction between “bottom–up” versus “top–down” processing.
Nakayama & Martini (2011) suggested that visual search might be considered a pattern recognition task. Eckstein (1998) suggested that differences between feature and conjunction search reflected noisy interactions among different features. Such accounts might, for example, explain negative slopes, since with more search items there may be more evidence to base a decision on. Related to this, Wang et al. (2005) argued that perceptual organisation could play a large role in search; organisation that might be
Visual search may very well be so multifaceted that no single idea will explain all the data. Nakayama & Martini (2011) discuss many similar points to those that I make, stating that a new conception of visual search is still “[…] in embryonic form, but discernible is a core which de-emphasizes canonical detectors, ignores the ‘binding’ problems and allows for very high level processing to occur very early in time” (p. 109). In some ways this is akin to the proposals of Julesz (1981) and his
Conclusions
Most researchers have abandoned strong versions of the two-stage model of visual search and attention. Nevertheless, it still exerts a strong influence upon many fields in Psychology and Cognitive Neuroscience. My data argue against this model, and so do many other findings. Clearly, it should only be used with great caution.
Footnotes
Acknowledgements
Ómar I. Jóhannesson receives thanks for help with data analyses.
Declaration of Conflicting Interests
The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Funding
The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The author Árni Kristjánsson was supported by grants from the European Research Council (ERC), The Icelandic Research Office (Rannís), and the Research Fund of the University of Iceland.
