Misassigned Polyoxygenated Sterols and Reassignments of Their Structures

Abstract

This review will summarize the authors’ studies on the reassignments of structures of 9 natural polyoxygenated sterols (24S)-24-ethylcholest-8-ene-3β,5α,6β,7α-tetrol (1), (24S)-24-ethylcholest-8(14)-ene-3β,5α,6β,7α-tetrol (2), (22E)-24-methylcholesta-8(14),22-diene-3β,5α,6β,7α-tetrol (3), 5β,6β-epoxy-(22E)-ergosta-8,22-diene-3β,7β-diol (4), (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14α-pentol (5), 3β,5α,6β,8β,14α-pentahydroxy-(22E)-ergost-22-en-7-one (6), 5β,6β-epoxy-24-methylenecholesta-8,24(28)-diene-3β,7α,11α-triol (7), 6β-acetoxy-(22E)-10α-ergosta-7,22-diene-3β,5α-diol (8), and 8α,9α-epoxy-(22E)-ergosta-6,22-diene-3β,5α,14α-triol (9). The structures of 1 to 9 have been reassigned as (24S)-5α,6α-epoxy-24-ethylcholest-8-ene-3β,7α-diol (16), (24S)-5α,6α-epoxy-24-ethylcholest-8(14)-ene-3β,7α-diol (17), 5α,6α-epoxy-(22E)-ergosta-8(14),22-diene-3β,7α-diol (13), 5α,6α-epoxy-(22E)-ergosta-8,22-diene-3β,7α-diol (12), (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14β-pentol (25), 5α,6α;8α,14α-diepoxy-3β-hydroxy-(22E)-ergost-22-en-7-one (18), 5α,6α-epoxyergosta-8,24(28)-diene-3β,7α,11α-triol (21), 6β-acetoxy-(22E)-ergosta-7,22-diene-3β,5α-diol (26), and 8α,14α-epoxy-(22E)-ergosta-6,22-diene-3β,5α,9α-triol (28), respectively, from the results of careful reexamination of the published ¹H and ¹³C NMR spectral data.

Keywords

polyoxygenated sterol misassigned structure structural reassignment NMR

Sterols are among the most studied groups of natural products with interest commencing in the 19th century and continuing through to the present.^1
-3 Sterols occur in all major groups of organisms, from fungi to humans, as secondary metabolites.⁴ In a continuation of our studies on the chemical constituents from Japanese mushrooms, 28 new polyoxygenated sterols have been obtained and characterized.⁵ On the other hand, structural misassignments of natural products are prevalent in the literature.^6
-8 Determination of structure is a fundamental pillar of the discipline of chemistry.⁹ However, misinterpretations of spectroscopic and/or physical data have often been known to result in structural misassignments.¹⁰ Recently, we have reported the reassignments of structures of 5 natural polyoxygenated sterols: (24S)-24-ethylcholest-8-ene-3β,5α,6β,7α-tetrol (1),¹¹ (24S)-24-ethylcholest-8(14)-ene-3β,5α,6β,7α-tetrol (2),¹¹ (22E)-24-methylcholesta-8(14),22-diene-3β,5α,6β,7α-tetrol (3),¹² 5β,6β-epoxy-(22E)-ergosta-8,22-diene-3β,7β-diol (4),¹³ and (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14α-pentol (5)¹⁴ (Figure 1). Thereafter, continued literature survey on the polyoxygenated sterols from natural sources was conducted, and it was revealed that the structures of 4 sterols, 3β,5α,6β,8β,14α-pentahydroxy-(22E)-ergost-22-en-7-one (6),¹⁵ 5β,6β-epoxyergosta-8,24(28)-diene-3β,7α,11α-triol (7),¹⁶ 6β-acetoxy-(22E)-10α-ergosta-7,22-diene-3β,5α-diol (8),¹⁷ and 8α,9α-epoxy-(22E)-ergosta-6,22-diene-3β,5α,14α-triol (9),¹⁸ would need to be reassigned (Figure 1). In this review, we summarize our studies on the reassignments of structures of 1 to 9.

Figure 1

Structures of compounds 1 to 9.

Reassignments of Structures of (24S)-24-Ethylcholest-8-Ene-3β,5α,6β,7α-Tetrol, (24S)-24-Ethylcholest-8(14)-Ene-3β,5α,6β,7α-Tetrol, (22E)-24-Methylcholestra-8(14),22-Diene-3β,5α,6β,7α-Tetrol, and 3β,5α,6β,8β,14α-Pentahydroxy-(22E)-Ergost-22-En-7-One

First of all, we describe the structural reassignment of 4 sterols having 3β,5α,6β,7α-tetrahydroxylated and 3β,5α,6β,8β,14α-pentahydroxylated structures: (24S)-24-ethylcholest-8-ene-3β,5α,6β,7α-tetrol (1), (24S)-24-ethylcholest-8(14)-ene-3β,5α,6β,7α-tetrol (2), (22E)-24-methylcholesta-8(14),22-diene-3β,5α,6β,7α-tetrol (3), and 3β,5α,6β,8β,14α-pentahydroxy-(22E)-ergost-22-en-7-one (6).

In 1995, Costantino et al¹⁹ reported 2 new polyoxygenated sterols 1 and 2 from the marine sponge Neofibularia nolitangere (Figure 2). In 2006, Sun et al²⁰ reported a new one 3 from the marine-derived fungus Penicillium sp. (Figure 2). Although there is no report on the biological activities of 1 and 2, it is reported that 3 has potent cytotoxicity against human liver cancer cell (Hep G) with IC₅₀ value of 10.4 µg/mL.²⁰ The 3β,5α,6β,7α-tetrahydroxylated structures of 1 to 3 were proposed on the basis of 1-dimensional (1D) and 2-dimensional (2D) nuclear magnetic resonance (NMR) data.^19,20 During our studies on the sterol constituents from Japanese mushrooms,⁵ we reported 2 polyoxygenated sterols having the same A/B ring system as those of 1 to 3, (22E)-ergosta-8,22-diene-3β,5α,6β,7α-tetrol (10) and (22E)-ergosta-8(14),22-diene-3β,5α,6β,7α-tetrol (11), from the edible mushroom Grifola frondosa (Figure 2).²¹ Comparison of the NMR data of 1 and 2 for the A/B ring system with those of 10 and 11, respectively, indicated that the reported data do not fit with the proposed structures 1 and 2. Similarly, comparison of the NMR data of 3 for the A/B ring system with that of 11 indicated that the reported data also do not fit with the proposed structure 3. Consequently the structures for 1 to 3 are doubtful and reexamination of structures of 1 to 3 was necessary.

Figure 2

Structures of compounds 1 to 3 and 10 to 17.

Although compounds 1 and 2, and 10 and 11 differ in the structures of the side chain at C-17, we have already confirmed that the differences in the side chain at C-17 have little effect on the chemical shift values in the NMR spectrum derived from the A/B ring system of polyoxygenated sterols.⁵ In the ¹H and ¹³C NMR data of 1 to 3, and 10 and 11 (supplemental Tables S1 and S2 for 10 and 11), there were large differences in the chemical shift values for skeletal positions C-3, C-5, C-6, C-7, and C-19. In particular, the ¹³C NMR chemical shift values δ _C 65.6 (C-5) and 62.6 (C-6) in 1, δ _C 67.8 (C-5) and 61.3 (C-6) in 2, and δ _C 67.8 (C-5) and 61.3 (C-6) in 3 were attributed to those of an epoxide ring,^22

-27 suggesting that C-5 and C-6 of 1 to 3 were not connected to hydroxy groups. The ¹³C NMR chemical shift values for skeletal positions C-5 and C-6 of 1 to 3 were calculated using Kobayashi’s parameters for polyhydroxy steroids.²⁸ Calculated values of C-5 and C-6 of 1 were δ _C 73.8 and 76.9, respectively. Those of 2 and 3 were δ _C 77.3 (C-5) and 80.4 (C-6). Kobayashi²⁸ concluded that deviations of 2.5 ppm between the predicted and calculated δ _C values would be sufficient for adoption, or rejection, of a particular structure. Deviations of C-5 and C-6 of 1 were 8.2 and 14.3 ppm, respectively, and those of 2 and 3 were 9.5 and 19.1 ppm. The calculated values confirmed that C-5 and C-6 of 1 to 3 were not connected to hydroxy groups. On the other hand, we reported 2 polyoxygenated sterols having an epoxide ring at C-5 and C-6, 5α,6α-epoxy-(22E)-ergosta-8,22-diene-3β,7α-diol (12) and 5α,6α-epoxy-(22E)-ergosta-8(14),22-diene-3β,7α-diol (13), from G. frondosa (Figure 2).²¹ The functionality of the A/B ring system such as 12 and 13 was confirmed by the synthesis of 5α,6α-epoxycholest-8-ene-3β,7α-diol (14) from 5α,8α-epidioxy sterol utilizing microwave irradiation-induced isomerization as the key step²⁹ and an x-ray diffraction experiment performed on 5α,6α-epoxycholest-8(14)-ene-3β,7α-diol-3,7-diacetate (15)²⁴ (Figure 2). The ¹H and ¹³C NMR data of 12 and 13 for skeletal positions C-3, C-5, C-6, C-7, and C-19 were identical with those of 1 and 2, respectively. Also, the NMR data of 3 for skeletal positions C-3, C-5, C-6, C-7, and C-19 were identical with that of 13. In 2002, Santafé et al³⁰ reported 2 new sterols having the same A/B ring system as those of 12 and 13, (24S)-5α,6α-epoxy-24-ethylcholest-8-ene-3β,7α-diol (16) and (24S)-5α,6α-epoxy-24-ethylcholest-8(14)-ene-3β,7α-diol (17), from the marine sponge Polymastia tenax (Figure 2). The published ¹H (Table 1) and ¹³C NMR (Table 2) data for 16 and 17 were in agreement with those of 1 and 2, respectively. Furthermore, the ¹H (Table 3) and ¹³C NMR (Table 4) data of 13 were in agreement with those of 3. Thus, the structures of 1, 2, and 3 have been reassigned as 16, 17, and 13, respectively (Figure 3).^11,12

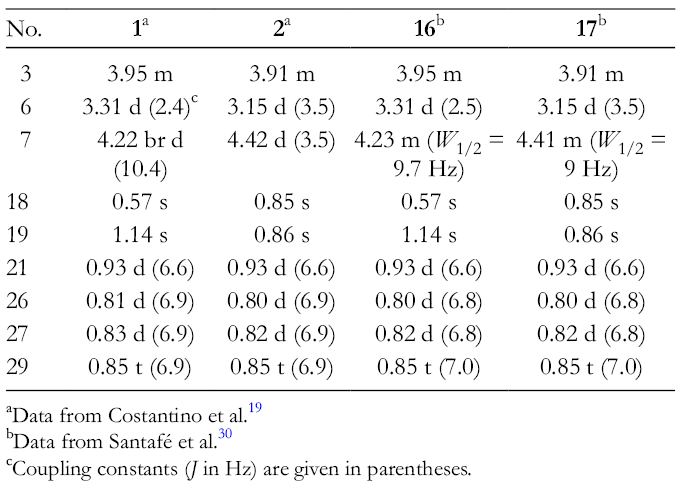

Table 1

¹H NMR Chemical Shifts of Compounds 1, 2, 16, and 17 in CDCl₃.

No.	1^a	2^a	16^b	17^b
3	3.95 m	3.91 m	3.95 m	3.91 m
6	3.31 d (2.4)^c	3.15 d (3.5)	3.31 d (2.5)	3.15 d (3.5)
7	4.22 br d (10.4)	4.42 d (3.5)	4.23 m (W _1/2 = 9.7 Hz)	4.41 m (W _1/2 = 9 Hz)
18	0.57 s	0.85 s	0.57 s	0.85 s
19	1.14 s	0.86 s	1.14 s	0.86 s
21	0.93 d (6.6)	0.93 d (6.6)	0.93 d (6.6)	0.93 d (6.6)
26	0.81 d (6.9)	0.80 d (6.9)	0.80 d (6.8)	0.80 d (6.8)
27	0.83 d (6.9)	0.82 d (6.9)	0.82 d (6.8)	0.82 d (6.8)
29	0.85 t (6.9)	0.85 t (6.9)	0.85 t (7.0)	0.85 t (7.0)

^aData from Costantino et al.¹⁹

^bData from Santafé et al.³⁰

^cCoupling constants (J in Hz) are given in parentheses.

Table 2

¹³C NMR Chemical Shifts of Compounds 1, 2, 16, and 17 in CDCl₃.

No.	1^a	2^a	16^b	17^b
1	30.2	32.2	30.1	32.1
2	30.9	31.1	30.8	31.1
3	68.6	68.7	68.5	68.6
4	39.2	72.6^c	39.1	39.5
5	65.6	67.8	65.6	67.7
6	62.6	61.3	62.5	61.3
7	67.1	65.1	67.1	65.1
8	126.9	125.1	126.8	125.0
9	134.8	38.7	134.5	38.6
10	38.0	35.8	37.9	35.8
11	23.4	19.1	23.3	18.9
12	35.8	36.7	35.7	36.6
13	42.2	43.1	42.1	43.1
14	49.5	152.7	49.5	152.6
15	23.9	25.0	23.8	24.9
16	28.8	26.6	28.7	26.6
17	53.7	56.7	53.6	56.6
18	11.1	17.9	11.0	17.9
19	22.8	16.6	22.8	16.5
20	36.6	35.0	36.6	34.9
21	18.8	19.0	18.7	18.9
22	33.8	33.6	33.7	33.6
23	26.4	26.2	26.4	26.2
24	46.0	46.1	46.0	46.0
25	28.9	28.9	28.9	28.9
26	19.0	19.0	18.9	19.0
27	19.6	19.6	19.5	19.5
28	23.0	-^d	22.9	22.9
29	12.3	12.3	12.2	12.3

^aData from Costantino et al.¹⁹

^bData from Santafé et al.³⁰

^cThis chemical shift value was most likely a typographical error.

^dNo data was reported in the literature.

Table 3

¹H NMR Chemical Shifts of Compounds 3 and 13 in CDCl₃.

No.	3^a	13^b
3	3.92 m	3.91 m
6	3.15 d (2.5)^c	3.14 d (3.6)
7	4.42 d (2.5)	4.42 dd (9.6,^d 3.6)
18	0.86 s	0.86 s
19	0.86 s	0.86 s
21	1.01 d (6.6)	1.02 d (6.6)
22	5.18 dd (15.2, 7.5)	5.17 dd (15.3, 7.3)
23	5.22 dd (15.2, 7.5)	5.23 dd (15.3, 6.4)
26	0.83 d (6.8)	0.82 d (6.8)
27	0.84 d (6.8)	0.84 d (6.8)
28	0.91 d (6.8)	0.92 d (6.9)

^aData from Sun et al.²⁰

^bData from Ishizuka et al.²¹

^cCoupling constants (J in Hz) are given in parentheses.

^dThis coupling constant was derived from vicinal ¹H-¹H coupling between H-7 and OH-7.

Table 4

¹³C NMR Chemical Shifts of Compounds 3 and 13 in CDCl₃.

No.	3^a	13^b
1	32.2	32.2
2	31.1	31.1
3	68.7	68.7
4	39.6	39.6
5	67.8	67.8
6	61.3	61.3
7	65.1	65.1
8	125.2	125.2
9	38.7	38.7
10	35.8	35.8
11	19.0	19.0
12	36.6	36.6
13	43.0	43.0
14	152.6	152.6
15	25.0	25.0
16	27.2	27.2
17	56.8	56.8
18	18.1	18.1
19	16.5	16.5
20	39.3	39.3
21	21.2	21.2
22	135.2	135.3
23	132.2	132.3
24	42.8	42.8
25	33.1	33.1
26	19.7	19.7
27	20.0	20.0
28	17.6	17.6

^aData from Sun et al.²⁰

^bData from Ishizuka et al.²¹

Figure 3

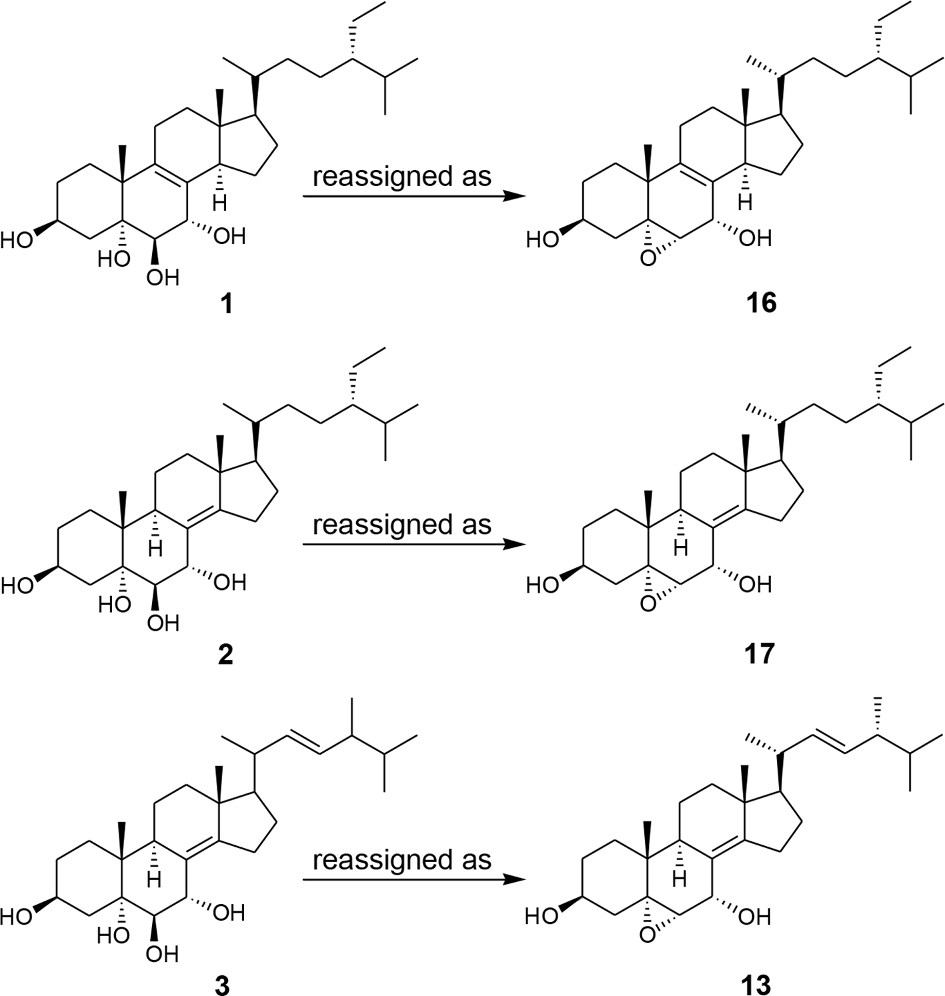

Reassignment of compounds 1 to 3.

The molecular formula of 13, 16, and 17 differs from that of 1 to 3 by the loss of 1 molecule of H₂O. Mass spectrometry (MS) experiments frequently provide ion peaks following the loss of H₂O, especially in electron impact (EI) mass spectrum. Misreading these ion peaks has the potential to cause structure misassignment when the molecules have more than 2 hydroxy groups.¹⁰ Sterols having a 3β,5α,6β,7α-tetrahydroxylated structure such as 10 and 11 did not show a molecular ion in the EI mass spectrum and showed the dehydration ion due to the loss of 1 molecule of H₂O (supplemental material for 10 and 11). However, the dehydration ion of sterols having an above structure correspond to the molecular ion for the sterols having a 3β,7α-dihydroxy-5α,6α-epoxy structure such as 12 and 13 ²¹ (supplemental material for 12 and 13). The above-mentioned misreading of the MS data was observed in structure determination of 1 to 3.^19,20 Careful interpretation of the MS data is an important point to be noticed in structure determination of polyoxygenated sterols in order to avoid deriving a wrong structure.^11,12

Furthermore, as a result of searching for literature related to the above polyoxygenated sterols, we found that the structure of 3β,5α,6β,8β,14α-pentahydroxy-(22E)-ergost-22-en-7-one (6) from the liquid culture of the basidiomycete Ganoderma applanatum would need to be reassigned (Figure 4).¹⁵

Figure 4

Structures of compounds 6 and 18.

The molecular formula of 6 was determined to be C₂₈H₄₆O₆ by high-resolution (HR) fast atom bombardment mass spectrum (m/z 443.3149, calcd 443.3161 for [(M+H)-2H₂O]⁺) and NMR data. Regarding compound 6, Lee et al¹⁵ concluded that “The presence of five hydroxyls in the molecule was estimated from the ion peaks appearing at m/z 442 [M - 2H₂O]⁺, 399 [(M - 2H₂O) - C₃H₇]⁺, 317 [(M - 2H₂O) - side chain (C₉H₁₇)]⁺, 299 [(M - 2H₂O) - (side chain + H₂O)]⁺, 281 [(M - 2H₂O) - (side chain + 2H₂O)]⁺ and 263 [(M - 2H₂O) - (side chain + 3H₂O)]⁺ in the EI mass spectrum.” However, as mentioned above, it is difficult to determine the number of hydroxy groups from the fragment ion peaks of the molecule such as polyhydroxy sterols in case no molecular ion was observed. On the other hand, Gao et al²⁷ reported a new sterol, 5α,6α;8α,14α-diepoxy-3β-hydroxy-(22E)-ergost-22-en-7-one (18), from the mangrove fungus Aspergillus awamori (Figure 4). The published ¹H (Table 5) and ¹³C NMR (Table 6) data for 18 were in agreement with those of 6. Compound 6 did not show the molecular ion in the EI mass spectrum and showed the dehydration ion due to the loss of 2 molecules of H₂O at m/z 442.¹⁵ However, the dehydration ion at m/z 442 in the EI mass spectrum of 6 corresponds to the molecular ion for 18.²⁵ Therefore, the proposed structure of 6 has been reassigned as 18 (Figure 5).

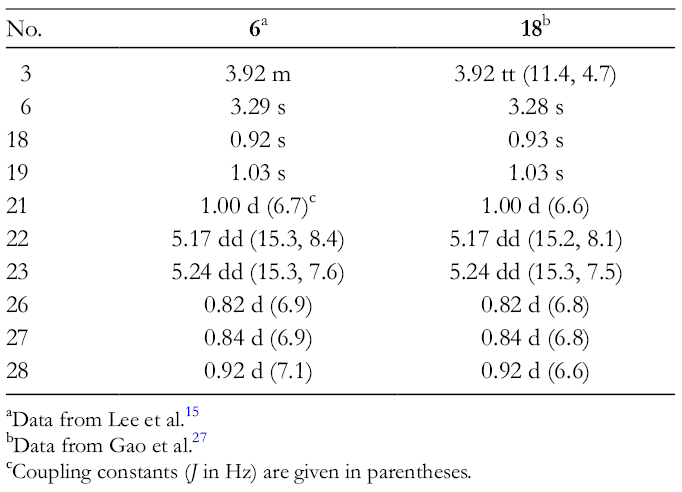

Table 5

¹H NMR Chemical Shifts of Compounds 6 and 18 in CDCl₃.

No.	6^a	18^b
3	3.92 m	3.92 tt (11.4, 4.7)
6	3.29 s	3.28 s
18	0.92 s	0.93 s
19	1.03 s	1.03 s
21	1.00 d (6.7)^c	1.00 d (6.6)
22	5.17 dd (15.3, 8.4)	5.17 dd (15.2, 8.1)
23	5.24 dd (15.3, 7.6)	5.24 dd (15.3, 7.5)
26	0.82 d (6.9)	0.82 d (6.8)
27	0.84 d (6.9)	0.84 d (6.8)
28	0.92 d (7.1)	0.92 d (6.6)

^aData from Lee et al.¹⁵

^bData from Gao et al.²⁷

^cCoupling constants (J in Hz) are given in parentheses.

Table 6

¹³C NMR Chemical Shifts of Compounds 6 and 18 in CDCl₃.

No.	6^a	18^b
1	32.9	32.7
2	30.8	30.6
3	69.0	68.8
4	39.1	38.9
5	69.2	69.0
6	63.3	63.1
7	203.1	202.8
8	64.6	64.3
9	42.2	42.0
10	36.0	35.8
11	16.0	15.8
12	38.7	38.5
13	42.6	42.4
14	77.4	76.9
15	26.6	26.4
16	27.1	26.8
17	55.9	55.7
18	16.7	16.5
19	17.4	17.1
20	39.3	39.1
21	21.4	21.1
22	134.8	134.6
23	133.2	133.0
24	43.1	42.9
25	33.3	33.1
26	19.9	19.7
27	20.2	20.0
28	17.8	17.6

^aData from Lee et al.¹⁵

^bData from Gao et al.²⁷

Figure 5

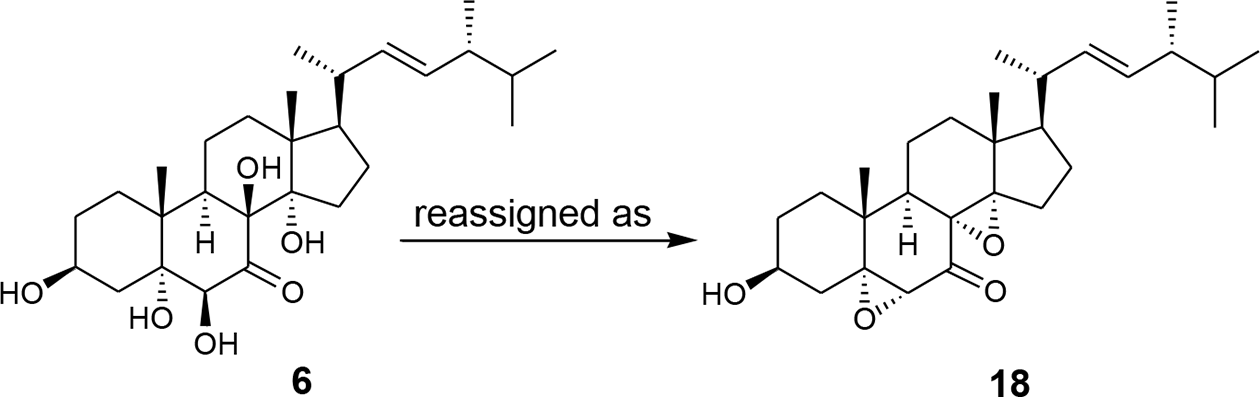

Reassignment of compound 6.

Reassignments of Structures of 5β,6β-Epoxy-(22E)-Ergosta-8,22-Diene-3β,7β-Diol and 5β,6β-Epoxyergosta-8,24(28)-Diene-3β,7α,11α-Triol

In this section, we describe the structural reassignment of 2 polyoxygenated sterols having 3β,7β-dihydroxy-5β,6β-epoxy and 3β,7α,11α-trihydroxy-5β,6β-epoxy structures, 5β,6β-epoxy-(22E)-ergosta-8,22-diene-3β,7β-diol (4) and 5β,6β-epoxyergosta-8,24(28)-diene-3β,7α,11α-triol (7).

In 2016, Su et al³¹ reported a new sterol 4 from the gorgonian Pinnigorgia sp. (Figure 6). Compound 4 was shown to significantly inhibit the accumulation of the proinflammatory inducible nitric oxide synthase and cyclooxygenase protein in lipopolysaccharide (LPS)-stimulated RAW264.7 macrophage cells.³¹ The 3β,7β-dihydroxy-5β,6β-epoxy structure of 4 was proposed on the basis of 1D and 2D NMR data. As mentioned earlier, we already described the structure of 12 (Figure 6).²¹ The structural similarity between 4 and 12 is striking; however, the 5α,6α-epoxy-7α-hydroxy structure of 12 was substituted with a 5β,6β-epoxy-7β-hydroxy structure in 4. In contrast, a close investigation of the spectroscopic data for 4 revealed a level of equivalency with 12 that was inconsistent with this structural divergence. Reassignment of the structure of 4 was therefore pursued.

Figure 6

Structures of compounds 4 and 12.

Regarding compound 4, Su et al³¹ concluded that “comparison of these data with spectral data for a known sterol 12 revealed that these two compounds are isomers except the configurations of 5,6-epoxy-7-hydroxy groups.” “Key nuclear Overhauser effect spectroscopy (NOESY) correlations for 4 showed interactions between H-4β/H₃-19 and H-4α/H-6. Also, H-7 showed a correlation with H-6. Thus, H-6 and H-7 should be located on the α-face and the oxygen of the 5,6-epoxide must be positioned on the β-face (Figure 7).” Although Su et al³¹ recorded nuclear Overhauser effect (NOE) correlation between H₃-18 and H₃-19, it is impossible for the structure 10 (Figure 7). Furthermore, the NOESY correlations showed in 4 were also found to be the case for 12 (Figure 7). The B ring of 12 adopts a boat-type conformation, as a result of the incorporation of 5α,6α-epoxide ring and double bond between C-8 and C-9 (Figure 7).²² When H-6 and H-7 were in pseudo-equatorial position and pseudo-axial position, respectively, of the boat-type conformation, the distances between H-4α and H-6, and H-6 and H-7 were close enough to produce the NOE correlation (Figure 7). The NOE was also observed between H₃-19 and H-7. Further, the ¹H (Table 7) and ¹³C NMR (Table 8) data of 4 were in agreement with those of 12. From the above data, the structure of 4 has been reassigned as 12 (Figure 8).¹³

Figure 7

Conformations and NOEs (full-line arrows) for compounds 4 and 12.

Table 7

¹H NMR Chemical Shifts of Compounds 4 and 12 in CDCl₃.

No.	4^a	12^b
3	3.96 m	3.95 m
6	3.31 d (2.4)^c	3.31 d (2.6)
7	4.22 br d (10.8)	4.22 br d (10.4)
18	0.59 s	0.59 s
19	1.14 s	1.14 s
21	1.02 d (6.4)	1.02 d (6.6)
22	5.13 dd (15.2, 5.2)	5.14 dd (15.3, 5.8)
23	5.22 dd (15.2, 8.0)	5.21 dd (15.3, 6.9)
26	0.82 d (6.8)	0.82 d (6.8)
27	0.84 d (6.4)	0.84 d (6.6)
28	0.91 d (6.8)	0.91 d (6.8)
OH-7	1.76 d (10.8)	1.77 d (10.4)

^aData from Su et al.³¹

^bData from Ishizuka et al.²¹

^cCoupling constants (J in Hz) are given in parentheses.

Table 8

¹³C NMR Chemical Shifts of Compounds 4 and 12 in CDCl₃.

No.	4^a	12^b
1	30.2	30.2
2	30.9	30.9
3	68.6	68.6
4	39.2	39.2
5	65.6	65.6
6	62.5	62.6
7	67.1	67.1
8	126.9	126.9
9	134.5	134.5
10	38.0	38.0
11	23.4 ^c	23.4
12	35.7	35.7
13	42.1	42.1
14	49.6	49.6
15	23.8	23.8
16	29.0	29.0
17	53.7	53.7
18	11.3	11.3
19	22.8	22.8
20	40.4	40.4
21	20.9	21.0
22	135.5	135.6
23	132.0	132.0
24	42.8	42.8
25	33.1	33.1
26	19.6	19.6
27	19.9	20.0
28	17.6	17.6

^aData from Su et al.³¹

^bData from Ishizuka et al.²¹

^cSignals reassigned by the authors are indicated by underlining.

Figure 8

Reassignment of compound 4.

Furthermore, as a result of searching for literature related to the above compound, we found that the structure of 5β,6β-epoxyergosta-8,24(28)-diene-3β,7α,11α-triol (7) from the marine sponge Dysidea herbacea would need to be reassigned (Figure 9).¹⁶

Figure 9

Structures of compounds 7 and 19.

Compound 7 was purified as the triacetate derivative 19 (Figure 9).¹⁶ Compound 19 was used to investigate its structure. In the difference NOE experiment, irradiation of the signal of H₃-19 caused NOE enhancement in the signals of H-4β, H-7, H-11, and H₃-18 (Figure 10). Furthermore, irradiation of the signal of H-6 caused NOE enhancement in the signals of H-4α and H-7 (Figure 10). Among these, the NOEs observed between H₃-19 and H-7, H₃-19 and H-11, and H₃-19 and H₃-18 are impossible for the structure 19. However, when the 5β,6β-epoxide ring of 19 was changed to the 5α,6α-epoxide ring (20), the distances between H₃-19 and H-7, H₃-19 and H-11, and H₃-19 and H₃-18 were close enough to produce the NOEs (Figure 10). Especially, as mentioned earlier, the NOE observed between H₃-19 and H-7 implies that the B ring of 19 adopts a boat-type conformation, as a result of the incorporation of 5α,6α-epoxide ring and double bond between C-8 and C-9.²² Accordingly, compound 19 was revised to 20, and therefore, the structure of 7 has been reassigned as the new structure 5α,6α-epoxyergosta-8,24(28)-diene-3β,7α,11α-triol (21) (Figure 11). The 3β,7α,11α-trihydroxy-5α,6α-epoxy moiety is unprecedented in the natural sterols previously known.

Figure 10

Conformations and NOEs (full-line arrows) for compounds 19 and 20.

Figure 11

Reassignment of compound 7.

Reassignments of Structures of (22E)-Ergosta-7,22-Diene-3β,5α,6β,9α,14α-Pentol and 6β-Acetoxy-(22E)-10α-Ergosta-7,22-Diene-3β,5α-Diol

In this section, we describe the stereochemical reassignment of the hydroxy group at C-14 of (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14α-pentol (5) and the methyl group at C-10 of 6β-acetoxy-(22E)-10α-ergosta-7,22-diene-3β,5α-diol (8).

In 2008, Zhang et al³² reported a new sterol 5 from the spores of the medicinal mushroom Ganoderma lucidum (Figure 12). The 3β,5α,6β,9α,14α-pentahydroxylated structure of 5 was proposed on the basis of NOESY spectrum.³² However, the stereochemistry of the hydroxy group at C-14 was tentatively assigned as α configuration based on the fact that the C/D ring system of ergostane-type sterols are generally trans-fused.³² During our studies on the sterol constituents from Japanese mushrooms,⁵ we reported a sterol having the same C/D ring system as that of 5, 3β,5α,9α,14α-tetrahydroxy-(22E)-ergosta-7,22-dien-6-one (22), from the edible mushroom Pleurotus ostreatus (Figure 12).³³ Comparison of the ¹H and ¹³C NMR data of 5 for the C/D ring system with those of 22 indicated that the reported NMR data do not fit well with the proposed structure 5. Although compounds 5 and 22 differ in the substituents at C-6, we have already confirmed that the differences in the substituent at C-6 have little effect on the chemical shift values in the NMR spectrum derived from the C/D ring system of polyoxygenated sterols.⁵ Therefore, we undertook a reexamination of the structure of 5.

Figure 12

Structures of compounds 5 and 22 to 24.

In the ¹³C NMR data of 5 and 22 (supplemental Table S3 for 22), there were large differences in the chemical shift values for skeletal positions C-12, C-15, and C-17 (Table 9). In particular, the ¹³C NMR chemical shift values at C-12 and C-17 in 22 were attributed to the γ-gauche effect of the 14α-hydroxy group, as compared with 3β,5α,9α-trihydroxy-(22E)-ergosta-7,22-dien-6-one (23)³³ (supplemental Table S3 for 23), suggesting that the difference in the C/D ring system between 5 and 22 was traced to differences in the stereochemistry of the hydroxy group at C-14. On the other hand, we reported a sterol, 3β,5α,9α,14β-tetrahydroxy-(22E)-ergosta-7,22-dien-6-one (24), the epimer of 22 at C-14, from the edible mushroom Tricholoma matsutake (Figure 12).³⁴ The ¹³C NMR data of 24 (supplemental Table S3 for 24) for skeletal positions C-11 to C-18 were coincident with that of 5 (Table 9). Therefore, the orientation of the C-14 hydroxy group of 5 should be revised as β. As additional proof, in comparison with the reported ¹H NMR data of the H₃-18 of 5 recorded in CD₃OD with that of C₅D₅N,³² a pyridine-induced deshielding effect^35
-37 was observed, as was the case with 24,³⁴ supporting that the C-14 hydroxy group of 5 has a β configuration (Figure 13). Furthermore, in the ¹H NMR data of 5,³⁰ the chemical shifts of H-1α, H-3, H-4β, and the H₃-19 in C₅D₅N were shifted downfield by the pyridine-induced deshielding effect,^35
-37 confirming the presence of a 3β,5α,6β,9α-tetrahydroxy grouping in the A/B ring system of 5 (Figure 13). Accordingly, the structure of 5 has been reassigned as the new structure (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14β-pentol (25) (Figure 14).¹⁴ The 3β,5α,6β,9α,14β-pentahydroxy moiety is unprecedented in the natural sterols previously known.

Table 9

¹³C NMR Chemical Shifts of Skeletal Positions C-11 to C-18 Within Compounds 5, 22, and 24 in C₅D₅N.

No.	5^a	22^b	24^c
11	28.3	31.0	28.0
12	38.1	28.5	38.1
13	48.6	47.3	48.9
14	84.7	86.2	84.6
15	42.2	27.4	41.9
16	28.3	28.0	28.6
17	56.5	50.5	56.1
18	17.6	16.6	17.5

^aData from Zhang et al.³²

^bData from Yaoita et al.³³

^cData from Yaoita et al.³⁴

Figure 13

Pyridine-induced deshieldings (full-line arrows) in revised structure 25.

Figure 14

Reassignment of compound 5.

Next, in 2017, Qiao et al¹⁷ reported a new sterol 8 from the cultures of Eurotium rubrum, an endophytic fungus isolated from the marine green alga Codium fragile (Figure 15). The unusual 10α-ergostane skeleton of 8 was proposed on the basis of 2D NMR data.¹⁵ Regarding the stereochemistry of 8, Qiao et al¹⁷ concluded that “In the NOESY spectrum (Figure 16), the observed correlations between H₃-18/H-3, H-6 and between H₃-18/H-20 indicated H-3, H-6, C-18 and C-20 to be located on the same face of the molecule.” “However, H₃-19 was axial and opposite to H-3 and H-6, while H-9 was oriented the same as H₃-19 and H₃-21 by the NOESY correlations between H-9/H₃-19 and between H₃-19/H₃-21.” It is well known that the NOE can be very useful in stereochemical studies because it provides information about the spatial proximity of nuclei of hydrogen. However, some of the above NOEs cannot be explained for the stereochemistry of 8. Especially, although Qiao et al¹⁷ recorded NOE correlations between H₃-18 and H-3, and H₃-18 and H-6, it is impossible for the structure 8, because the distances between these hydrogens are far and not enough to produce the NOE correlation (Figure 16). On the other hand, Zhang et al³⁸ reported a sterol, 6β-acetoxy-(22E)-ergosta-7,22-diene-3β,5α-diol (26), the epimer of 8 at C-10, from Colletotrichum sp., an endophytic fungus isolated from Ilex canariensis, an evergreen shrub from the island of Gomera (Figure 15). The published ¹H (Table 10) and ¹³C NMR (Table 11) data for 26 were in agreement with those of 8. Therefore, the proposed structure of 8 has been reassigned as 26 (Figure 17).

Figure 15

Structures of compounds 8 and 26.

Figure 16

NOEs (full-line arrows) for compound 8.

Figure 17

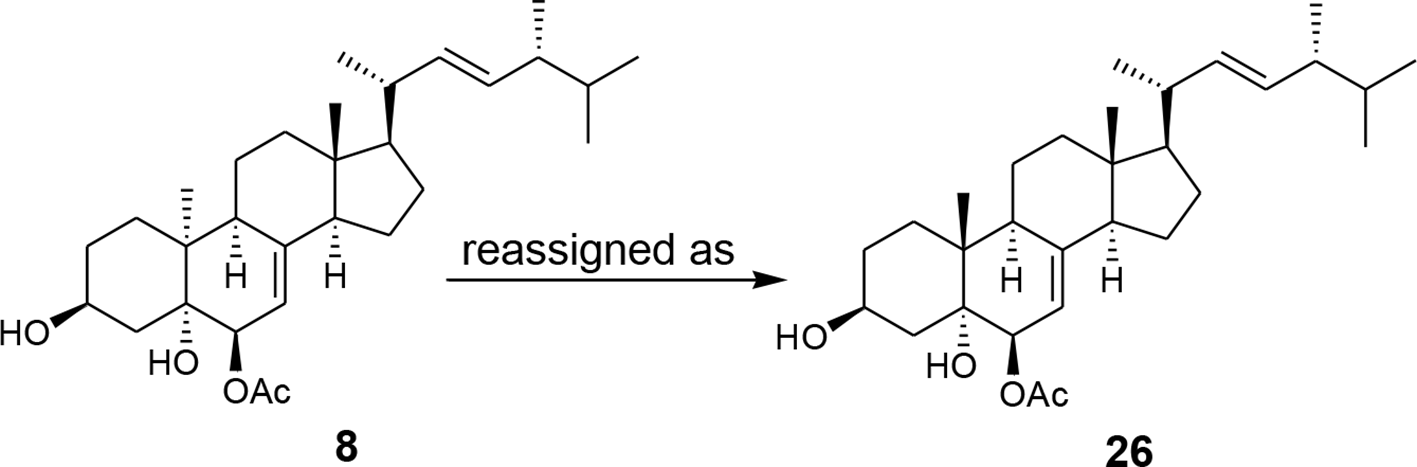

Reassignment of compound 8.

Table 10

¹H NMR Chemical Shifts of Compounds 8 and 26 in CDCl₃.

No.	8^a	26^b
3	4.08 m	4.06 m
6	4.84 d (5.2)^c	4.84 d (5.0)
7	5.26 d (5.3)	5.25 d (5.0)
18	0.59 s ^d	0.59 s
19	1.06 s	1.05 s
21	1.02 d (6.6)	1.02 d (6.5)
22	5.14 dd (15.6, 8.1)	5.16 dd (15.5, 8.0)
23	5.20 dd (15.6, 7.5)	5.23 dd (15.5, 7.0)
26	0.82 d (7.2)	0.83 d (6.5)
27	0.83 d (7.2)	0.85 d (6.5)
28	0.91 d (6.8)	0.93 d (7.0)
Ac0-6	2.05 s	−^e

^aData from Qiao et al.¹⁷

^bData from Zhang et al.³⁸

^cCoupling constants (J in Hz) are given in parentheses.

^dSignals reassigned by the authors are indicated by underlining.

^eNo data was reported in literature.

Table 11

¹³C NMR Chemical Shifts of Compounds 8 and 26 in CDCl₃.

No.	8^a	26^b
1	32.4	32.4
2	29.7	30.6
3	67.4	67.3
4	39.2	39.2
5	75.3 ^c	75.3
6	73.4	73.4
7	114.1	114.1
8	145.7	145.7
9	43.8	43.4
10	37.3	37.2
11	22.0	22.0
12	39.2	39.2
13	43.8	43.8
14	54.9	54.9
15	22.7	22.8
16	27.8	27.8
17	55.9	56.0
18	12.3	12.3
19	18.2	18.2
20	40.4	40.3
21	21.1	21.1
22	135.4	135.4
23	132.2	132.2
24	42.8	42.8
25	33.1	33.1
26	19.6	19.6
27	19.9	19.9
28	17.6	17.5
CH₃CO-6	21.3	21.2
CH₃ CO-6	170.4	170.5

^aData from Qiao et al.¹⁷

^bData from Zhang et al.³⁸

^cSignals reassigned by the authors are indicated by underlining.

Reassignment of Structure of 8α,9α-Epoxy-(22E)-Ergosta-6,22-Diene-3β,5α,14α-Triol

In this final section, we describe the structural reassignment of 8α,9α-epoxy-(22E)-ergosta-6,22-diene-3β,5α,14α-triol (9) to its regioisomer.

In 2015, Li et al¹⁸ reported a new polyoxygenated sterol 9 from the fruiting bodies of edible mushroom Hericium erinaceum (Figure 18). Compound 9 exhibited inhibitory activity against tumor necrosis factor α secretion in LPS-stimulated murine RAW264.7 macrophage cells.¹⁶ The 8α,9α-epoxy-3β,5α,14α-trihydroxylated structure of 9 was proposed on the basis of 1D and 2D NMR data.¹⁶ Regarding compound 9, Li et al¹⁸ concluded that “Both ¹H and ¹³C NMR spectroscopic data of 9 had some similarity to compound 27 (Figure 18), except for substituent groups at C-8, 9 and 14.” “A double bond between C-8 (δ_C 123.9) and C-14 (δ_C 149.0) was not observed, however, as it was oxidized to form the 8,9-epoxy (δ_C 67.5 and 75.5) and 14-OH (δ_C 84.2) moiety.” On the other hand, Kikuchi et al³⁹ reported 8α,14α-epoxy-(22E)-ergosta-6,22-diene-3β,5α,9α-triol (28), the regioisomer of 9, from the fruiting bodies of edible mushroom Pleurotus eryngii (Figure 18). The published ¹H (Table 12) and ¹³C NMR (Table 13) data for 28 were in agreement with those of 9. Furthermore, Kikuchi et al³⁹ also reported that an x-ray diffraction analysis of 28 was conducted to confirm the position of the hydroxy and epoxy groups, and it established the relative stereostructure of 28. From the above, the structure of 9 has been reassigned as 28 (Figure 19).

Figure 18

Structures of compounds 9, 27, and 28.

Table 12

¹H NMR Chemical Shifts of Compounds 9 and 28 in CDCl₃.

No.	9^a	28^b
3	4.26 m	4.28 tt (11.1, 5.6)
6	5.95 d (10.0)^c	5.96 d (10.0)
7	5.17 d (10.0)	5.18 d (10.0)
18	0.92 s	0.93 s
19	1.10 s	1.12 s
21	1.02 d (6.5)	1.02 d (6.7)
22	5.19 dd (15.3, 7.7)	5.19 dd (15.2, 7.5)
23	5.24 dd (15.3, 7.0)	5.26 dd (15.2, 7.6)
26	0.80 d (7.0)	0.82 d (6.7)
27	0.83 d (7.0)	0.84 d (6.7)
28	0.89 d (6.6)	0.92 d (6.7)

^aData from Li et al.¹⁸

^bData from Kikuchi et al.³⁹

^cCoupling constants (J in Hz) are given in parentheses.

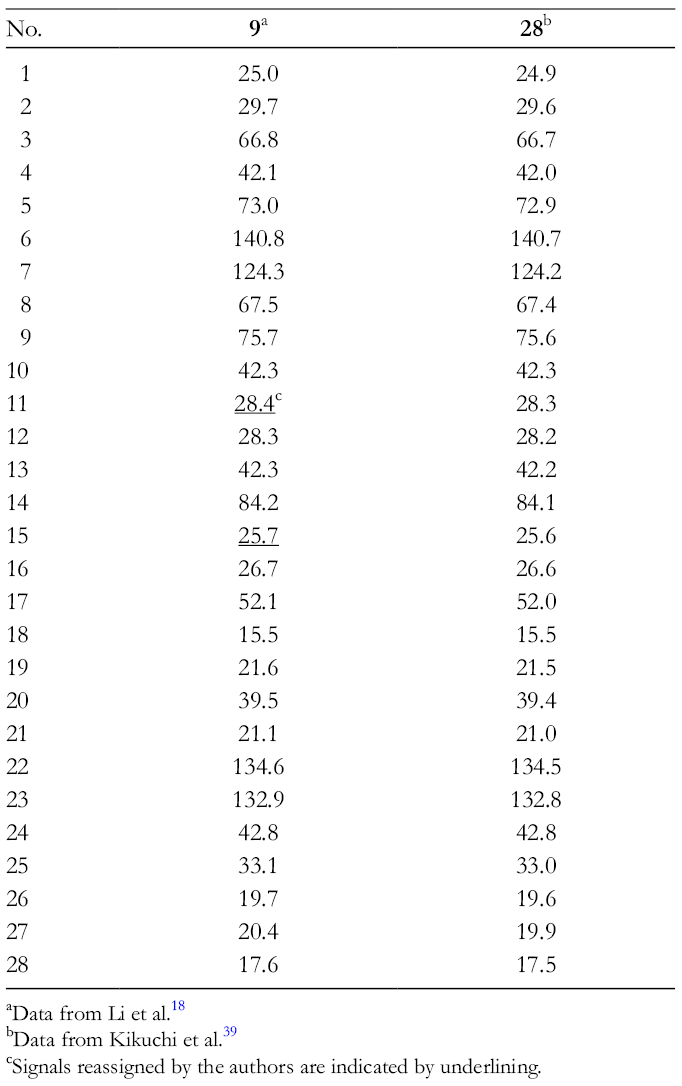

Table 13

¹³C NMR Chemical Shifts of Compounds 9 and 28 in CDCl₃.

No.	9^a	28^b
1	25.0	24.9
2	29.7	29.6
3	66.8	66.7
4	42.1	42.0
5	73.0	72.9
6	140.8	140.7
7	124.3	124.2
8	67.5	67.4
9	75.7	75.6
10	42.3	42.3
11	28.4 ^c	28.3
12	28.3	28.2
13	42.3	42.2
14	84.2	84.1
15	25.7	25.6
16	26.7	26.6
17	52.1	52.0
18	15.5	15.5
19	21.6	21.5
20	39.5	39.4
21	21.1	21.0
22	134.6	134.5
23	132.9	132.8
24	42.8	42.8
25	33.1	33.0
26	19.7	19.6
27	20.4	19.9
28	17.6	17.5

^aData from Li et al.¹⁸

^bData from Kikuchi et al.³⁹

^cSignals reassigned by the authors are indicated by underlining.

Figure 19

Reassignment of compound 9.

Conclusion

In this review, we summarized our studies on the reassignments of structures of 9 misassigned polyoxygenated sterols 1 to 9. The structural assignment of natural products supports research in multitude of disciplines that may lead to new therapeutic agents or new understanding of disease biology.⁴⁰ However, structural misassignments of natural products are prevalent in the literature.^6
-8 Total synthesis can eventually and strongly support the real chemical structure of natural products.⁴¹ Only NMR assignment sometimes causes misassignment of the structures. Therefore, we want to point out the importance of careful interpretation of spectroscopic and/or physical data and eliminating preconceptions in interpretation of the data, especially when determining the structure of new compounds isolated from natural sources.

Supplemental Material

Supplementary material - Supplemental material for Misassigned Polyoxygenated Sterols and Reassignments of Their Structures

Supplemental material, Supplementary material, for Misassigned Polyoxygenated Sterols and Reassignments of Their Structures by Yasunori Yaoita and Koichi Machida in Natural Product Communications

Footnotes

Author’s Note

This paper is dedicated to Professor Chiaki Kuroda on the occasion of his 65th birthday.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Yasunori Yaoita

References

Fieser

LF.

Fieser

. Steroids. New York: Reinhold; 1959:1-945.

Goad

JL.

Akihisa

. Analysis of Sterols. London: Blackie Academic & Professional; 1997:1-437.

Lednicer

. Steroid Chemistry at a Glance. West Sussex: Wiley; 2011:1-144.

Dewick

. Medicinal Natural Products. West Sussex: Wiley; 2002:232-285.

Yaoita

Kikuchi

Machida

. Terpenoids and sterols from some Japanese mushrooms. Nat Prod Commun. 2014;9(3):419-426.doi:10.1177/1934578X1400900332

Kutateladze

AG.

Kuznetsov

DM.

Beloglazkina

AA.

Holt

. Addressing the challenges of structure elucidation in natural products possessing the oxirane moiety. J Org Chem. 2018;83(15):8341-8352.doi:10.1021/acs.joc.8b01027

Kutateladze

AG.

Holt

Reddy

. Natural products containing the oxetane and related moieties present additional challenges for structure elucidation: A DU8+ computational case study. J Org Chem. 2019;84(12):7575-7586.doi:10.1021/acs.joc.9b01005

Kutateladze

AG.

Krenske

EH.

Williams

. Reassignments and corroboration of oxo-bridged natural products directed by OSE and DU8+ NMR computation. Angew. Chem. Int. Ed.. 2019;58(21):7107-7112.doi:10.1002/anie.201902777

Jensen

WP.

Palenik

GJ.

Suh

. The history of molecular structure determination viewed through the Nobel Prizes. J Chem Educ. 2003;80(7):753-761.

10.

Amagata

. Misassigned structures: Case examples from the past decade. In: Mander

Liu

H-W.

, eds. Comprehensive Natural Products II. Volume 2. London, United Kingdom: Elsevier; 2010:581-621.

11.

Yaoita

Kikuchi

Machida

. Structure revision of two polyoxygenated sterols from the marine sponge Neofibularia nolitangere . Nat Prod Commun. 2015;10(6):881-883.doi:10.1177/1934578X1501000622

12.

Yaoita

Machida

. Structure Revision of (22E)-24-methylcholesta-8(14),22-diene-3β,5α,6β,7α-tetraol from the marine-derived fungus Penicillium sp. Nat Prod Commun. 2016;11(7):947-948.

13.

Yaoita

Machida

. Structure revision of 5β,6β-epoxy-(22E)-ergosta-8,22-diene-3β,7β-diol from the gorgonian Pinnigorgia sp. Nat Prod Commun. 2017;12(8):1197-1198.

14.

Yaoita

Machida

. Structure revision of (22E)-ergosta-7,22-diene-3β,5α,6β,9α,14α-pentol from the spores of the medicinal mushroom Ganoderma lucidum . Nat Prod Commn. 2016;11(2):183-184.

15.

Lee

SY.

Kim

JS.

Lee

Kang

. Polyoxygenated ergostane-type sterols from the liquid culture of Ganoderma applanatum . Nat Prod Res. 2011;25(14):1304-1311.doi:10.1080/14786419.2010.503190

16.

Isaacs

Berman

Kashman

Gebreyesus

Yosief

. New polyhydroxy sterols, dysidamides, and a dideoxyhexose from the sponge Dysidea herbacea . J Nat Prod. 1991;54(1):83-91.doi:10.1021/np50073a004

17.

Qiao

M-F.

Y-W.

Deng

. Steroids from an endophytic Eurotium rubrum strain. Chem Nat Compd. 2017;53(4):678-681.doi:10.1007/s10600-017-2089-x

18.

Zhou

Cha

et al. Sterols from Hericium erinaceum and their inhibition of TNF-α and NO production in lipopolysaccharide-induced RAW 264.7 cells. Phytochemistry. 2015;115:231-238.doi:10.1016/j.phytochem.2015.02.021

19.

Costantino

Fattorusso

Mangoni

Pansini

. Sterols from the Caribbean sponge Neofibularia nolitangere. Isolation of two novel polyhydroxysteroids. Steroids. 1995;60(11):768-772.doi:10.1016/0039-128X(95)00117-9

20.

Sun

Tian

Huang

Pei

Y-H

. Cytotoxic sterols from marine-derived fungus Pennicillium sp. Nat Prod Res. 2006;20(4):381-384.doi:10.1080/14786410600661229

21.

Ishizuka

Yaoita

Kikuchi

. Sterol constituents from the fruit bodies of Grifola frondosa (Fr.) S. f. gray. Chem Pharm Bull. 1997;45(11):1756-1760.doi:10.1248/cpb.45.1756

22.

Kobayashi

Kanda

. Marine sterols. 18. Isolation and structure of four novel oxygenated sterols from a gorgonian coral Melithaea ocracea . J Chem Soc Perkin Trans 1. 1991;1991(5):1177-1179.

23.

Greca

MD.

Fiorentino

Molinaro

Monaco

Previtera

. Steroidal 5,6-epoxides from Arum Italicum . Nat Prod Lett. 1993;2(1):27-32.doi:10.1080/10575639308043450

24.

Migliuolo

Piccialli

Sica

Giordano

. New Δ⁸- and Δ⁸⁽¹⁴⁾-5α,6α-epoxysterols from the marine sponge Spongia officinalis . Steroids. 1993;58(3):134-140.doi:10.1016/0039-128X(93)90050-W

25.

Luo

Shinde

et al. 26,27-cyclosterols and other polyoxygenated sterols from a marine sponge Topsentia sp. J Nat Prod. 2006;69(12):1760-1768.doi:10.1021/np0604026

26.

Carvalho

JFS.

Cruz Silva

MM.

Moreira

JN.

Simões

Sá E Melo

. Efficient chemoenzymatic synthesis, cytotoxic evaluation, and SAR of epoxysterols. J Med Chem. 2009;52(13):4007-4019.doi:10.1021/jm9003973

27.

Gao

Hong

Chen

G-D

et al. New oxidized sterols from Aspergillus awamori and the endo-boat conformation adopted by the cyclohexene oxide system. Magn Reson Chem. 2010;48(1):38-43.doi:10.1002/mrc.2536

28.

Kobayashi

. Additivity relationships in the carbon-13 nuclear magnetic resonance spectra of polyhydroxy steroids. J Chem Soc Perkin 1 . 1995;1995(1):33-40.doi:10.1039/p19950000033

29.

Ramesh

Niranjan Reddy

VL.

Srinivasa Reddy

Venkateswarlu

. Synthesis of melithasterol A, a 5α,6α-epoxy-7α-hydroxy Δ⁸-steroid. J Nat Prod. 2000;63(10):1420-1421.

30.

Santafé

Paz

Rodríguez

Jiménez

. Novel cytotoxic oxygenated C29 sterols from the Colombian marine sponge Polymastia tenax . J Nat Prod. 2002;65(8):1161-1164.doi:10.1021/np0200459

31.

Y-D.

Cheng

C-H.

Wen

Z-H.

Y-C.

Sung

P-J

. New anti-inflammatory sterols from a gorgonian Pinnigorgia sp. Bioorg Med Chem Lett. 2016;26(13):3060-3063.doi:10.1016/j.bmcl.2016.05.015

32.

Zhang

C-R.

Yang

S-P.

Yue

J-M

. Sterols and triterpenoids from the spores of Ganoderma lucidum . Nat Prod Res. 2008;22(13):1137-1142.doi:10.1080/14786410601129721

33.

Yaoita

Amemiya

Ohnuma

et al. Sterol constituents from five edible mushrooms. Chem Pharm Bull. 1998;46(6):944-950.

34.

Yaoita

Matsuki

Iijima

et al. New sterols and triterpenoids from four edible mushrooms. Chem Pharm Bull. 2001;49(5):589-594.doi:10.1248/cpb.49.589

35.

Demarco

PV.

Farkas

Doddrell

Mylari

BL.

Wenkert

. Pyridine-induced solvent shifts in the nuclear magnetic resonance spectra of hydroxylic compounds. J Am Chem Soc. 1968;90(20):5480-5486.doi:10.1021/ja01022a027

36.

Fujimoto

Yamada

Ikekawa

. Pyridine-idnduced dishielding of 4-methylene protons for the determination of C-6 stereochemistry of sterols having a 5α,6-diol moiety. Revision of the C-6 stereochemistry of marine sterol isolated from a sponge, Dysidea sp. Chem Pharm Bull. 1985;33(8):3129-3133.doi:10.1248/cpb.33.3129

37.

Kobayashi

Krishna

MM.

Haribabu

Anjaneyulu

. Marine sterols. XXV. Isolation of 23-demethylgorgost-7-ene-3β,5α,6β-triol and (24S)-ergostane-3β,5α,6β,7β,15β-pentol from soft corals of the Andaman and Nicobar coasts. Chem Pharm Bull. 1993;41(1):87-89.

38.

Zhang

Draeger

Schulz

Krohn

. Ring B aromatic steroids from an endophytic fungus, Colletorichum sp. Nat Prod Commn. 2009;4(11):1449-1454.

39.

Kikuchi

Maekawa

Tomio

et al. Six new ergostane-type steroids from king trumpet mushroom (Pleurotus eryngii) and their inhibitory effects on nitric oxide production. Steroids. 2016;115:9-17.doi:10.1016/j.steroids.2016.07.005

40.

Suyama

TL.

Gerwick

WH.

McPhail

. Survey of marine natural product structure revisions: a synergy of spectroscopy and chemical synthesis. Bioorg Med Chem. 2011;19(22):6675-6701.doi:10.1016/j.bmc.2011.06.011

41.

Nicolaou

KC.

Snyder

. Chasing molecules that were never there: Misassigned natural products and the role of chemical synthesis in modern structure elucidation. Angew Chem Int Ed Engl. 2005;44(7):1012-1044 .doi:10.1002/anie.200460864

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.03 MB

0.00 MB
