Abstract
Background:
Closed-loop artificial pancreas device (APD) systems are externally worn medical devices that are being developed to enable people with type 1 diabetes to regulate their blood glucose levels in a more automated way. The innovative concept of this emerging technology is that hands-free, continuous, glycemic control can be achieved by using digital communication technology and advanced computer algorithms.
Methods:
A horizon scanning review of this field was conducted using online sources of intelligence to identify systems in development. The systems were classified into subtypes according to their level of automation, the hormonal and glycemic control approaches used, and their research setting.
Results:
Eighteen closed-loop APD systems were identified. All were being tested in clinical trials prior to potential commercialization. Six were being studied in the home setting, 5 in outpatient settings, and 7 in inpatient settings. It is estimated that 2 systems may become commercially available in the EU by the end of 2016, 1 during 2017, and 2 more in 2018.
Conclusions:
There are around 18 closed-loop APD systems progressing through early stages of clinical development. Only a few of these are currently in phase 3 trials and in settings that replicate real life.
Wearable medical devices that can be used for the continuous management of type 1 diabetes are already available, namely continuous glucose monitors (CGMs) and insulin pumps to deliver continuous subcutaneous insulin infusion (CSII) therapy. In addition, 2 types of non-closed-loop artificial pancreas device (APD) systems (ie, not fully automated) systems are available: low glucose suspend and predictive low glucose suspend devices (known as “first-generation” APD systems). Research to date suggests that APD systems may be better than CSII therapy alone in terms of increased time within target blood glucose range, reduced frequency of hypoglycemia and better overnight control.1-3 APDs may therefore offer a new largely automated way of managing type 1 diabetes more easily and effectively in the near future.
The focus of this article is a group of more complex APD systems that are defined as being “closed-loop,” meaning that they are fully automated. Closed-loop APDs are externally worn medical device systems that combine 3 functions: (1) the monitoring function carried out by a CGM, which is connected wirelessly to (2) the hormone therapy delivery function carried out by a pump, and (3) a digital controller (the “brain” or control centre of this 3-part system). The CGM sends data to the digital controller, which analyzes it and makes decisions about any hormone therapy adjustments needed, and instructs the pump accordingly. Integrating these 3 functions together creates an automated closed-loop system. It is the addition of the digital control function that is the key innovative feature of this new technology.
There are several ways in which APD systems may be classified to order to make sense of the range of development going on in this complex field. We present our findings classified according to the level of automation that each system is capable of, the hormonal approach used, the type of control algorithm used, and the glycemic control strategy used.
The Juvenile Diabetes Research Foundation (now known as JDRF) has defined 6 categories of closed-loop APD technology, based on the level of automation (Figure 1). First generation systems (non-closed-loop; which comprise stages 1-3) have already been mentioned above. Second generation systems, comprising stage 4 and stage 5 systems, are automated insulin-alone delivery (AID) systems. Stage 4 systems are hybrid closed-loop devices, which are closed-loop at all times with mealtime manual assist bolus. Stage 5 systems are fully automated AIDs. Third generation systems (also known as stage 6) are fully automated multihormonal (MH) delivery devices, in which a secondary glucoregulatory hormone such as glucagon or amylin is used in addition to insulin. 4

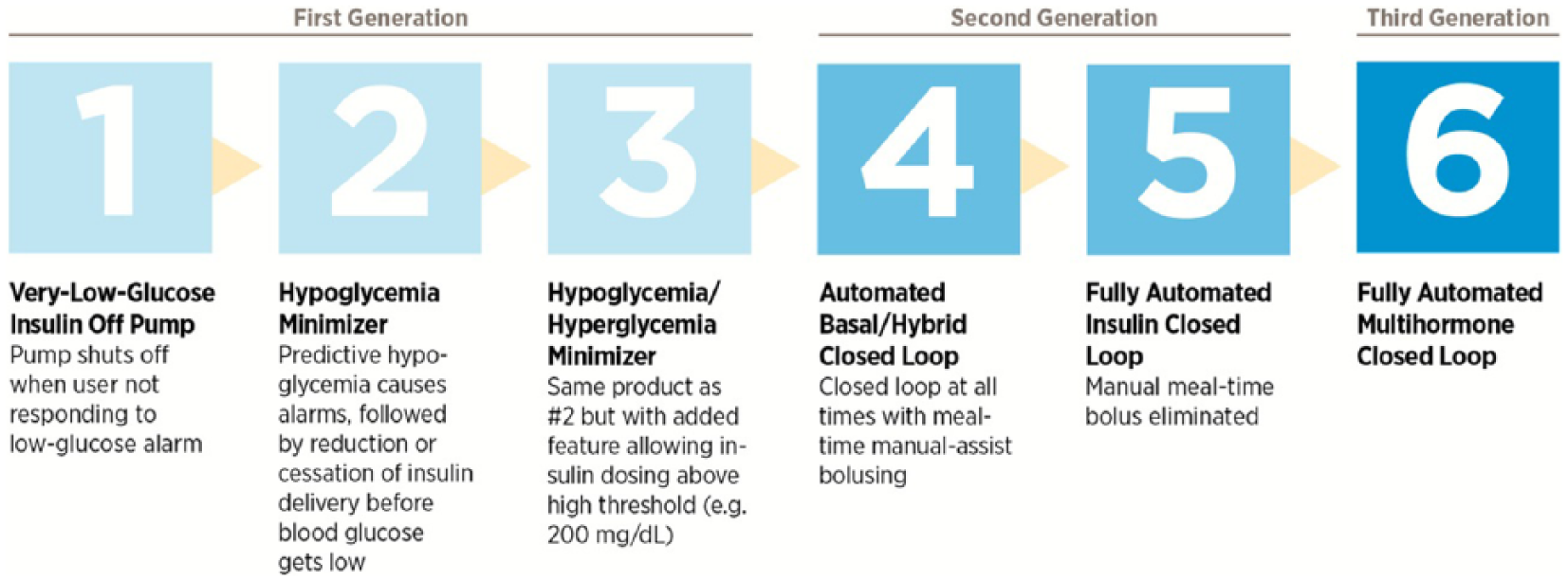

The 6 developmental stages of artificial pancreas device systems (copyright JDRF). 5
Although the JDRF schema represents stages 1-6 as a linear sequence, it is important to note that all types of closed-loop APDs (stages 4-6) are in fact being developed in parallel. The development of each type does not depend on the previous stage having been completed. 4
There is much discussion as to the pros and cons of the 2 main hormonal approaches being pursued: AID (also known as insulin-alone/only or single-hormone) and MH (also known as bihormonal or dual-hormone). The inclusion of glucagon in MH systems more closely mimics the way in which blood glucose levels are controlled naturally, as the actions of these 2 hormones are complementary. Although MH control may offer a way of achieving tighter glycemic control and avoiding hypoglycemia, glucagon is unstable in solution and needs to be replaced every 8 hours or so. The other practical issue is that commercial dual infusion pumps need to be developed.
Another way that APD systems can be classified is according to the type of computer algorithm that the digital controller uses. There are 4 main types of control algorithms being used in closed-loop APD systems. Model predictive control (MPC) algorithms predict glucose levels at a specific time point in the near future (some MPC-based systems can “learn” and adapt to the user’s routine and make use of clinician’s input). Proportional integral derivative (PID) algorithms respond to measured glucose levels. Fuzzy logic (FL) algorithms calculate insulin doses based on how a clinical expert would make real-time adjustments based on CGM data. Bio-inspired algorithms are based on a mathematical model of how pancreatic beta cells produce insulin in response to changes in blood glucose levels. In addition to using CGM data, some APD systems measure other biometric/physiological fluctuations (eg, galvanic skin response), and these are known as multivariable or adaptive systems.
The third way of classifying APD systems is according to the strategy that they use for achieving glycemic control, which can be either treat to range (TTR) or treat to target (TTT). TTR means that they aim to keep blood glucose levels within a personalized range, and TTT means they aim to keep them as close as possible to a specific value. These 2 types of glycemic control strategy are also known as control to range (CTR) and control to target (CTT), respectively.
Clinical trials are being conducted in 3 different types of research setting: inpatient settings in which participants are studied using APD systems in a clinic or hospital, outpatient settings in which participants are studied using the systems while they stay for a short time in a specialist diabetes camp or hotel, and in the home setting (with some degree of direct or remote supervision from the research team). In most cases, APD use is being studied over relatively short periods of time (eg, hours, days or weeks), although some studies are looking at longer periods of use (eg, 2-3 months of home use under free-living conditions).6,7
Methods
We defined our inclusion criteria for the horizon scanning review as second and third generation (AID stages 4 and 5; MH stage 6) APD systems in clinical development for the closed-loop control of type 1 diabetes. The review did not include preclinical developments, first generation (stages 1-3) APD systems, or biological types of artificial pancreas technologies, such as implantable bioengineered systems.
To identify relevant technologies, we conducted a predefined, online search of publicly available, restricted access and confidential sources of information about medical devices. These included international horizon scanning technology databases and our own NIHR Horizon Scanning Research & Intelligence Centre’s database, clinical trial registries, bibliographic databases such as MedLine, conference reports and abstracts, review articles and commentaries in specialist journals, and the websites and publications of relevant organizations and developers.
This was supplemented by searching more general sources of information such as Google, health media reports and industry news sites. The search terms used were as follows. Clinical condition: diabetes mellitus type 1, type 1 diabetes. Technology type: artificial pancreas (not bioartificial), bionic pancreas, medical device, medical technology, electromechanical device, closed(closed (-)loop) loop and (diabet* or insulin or glucose), infusion system, insulin and closed-loop system. Clinical role: therapy and control. Phase of research: clinical, human. This research was undertaken between July and September 2014. We then approached the commercial and noncommercial developers identified during the search process to obtain further information about the APD systems we identified. The information was then collated and classified.
Results
A total of 18 closed-loop APD systems were identified as being in clinical phase development (Table 1). Further information about these systems may be found in the appendix. Six systems were being developed by commercial companies (technologies 1, 3, 5, 10, 11 and 14). Five developers provided approximate timeframes to product launch. It was estimated that 2 systems may become commercially available in the EU in 2016, 1 in 2017, and 2 more in 2018. Timeframe information on the other 11 systems was not available.

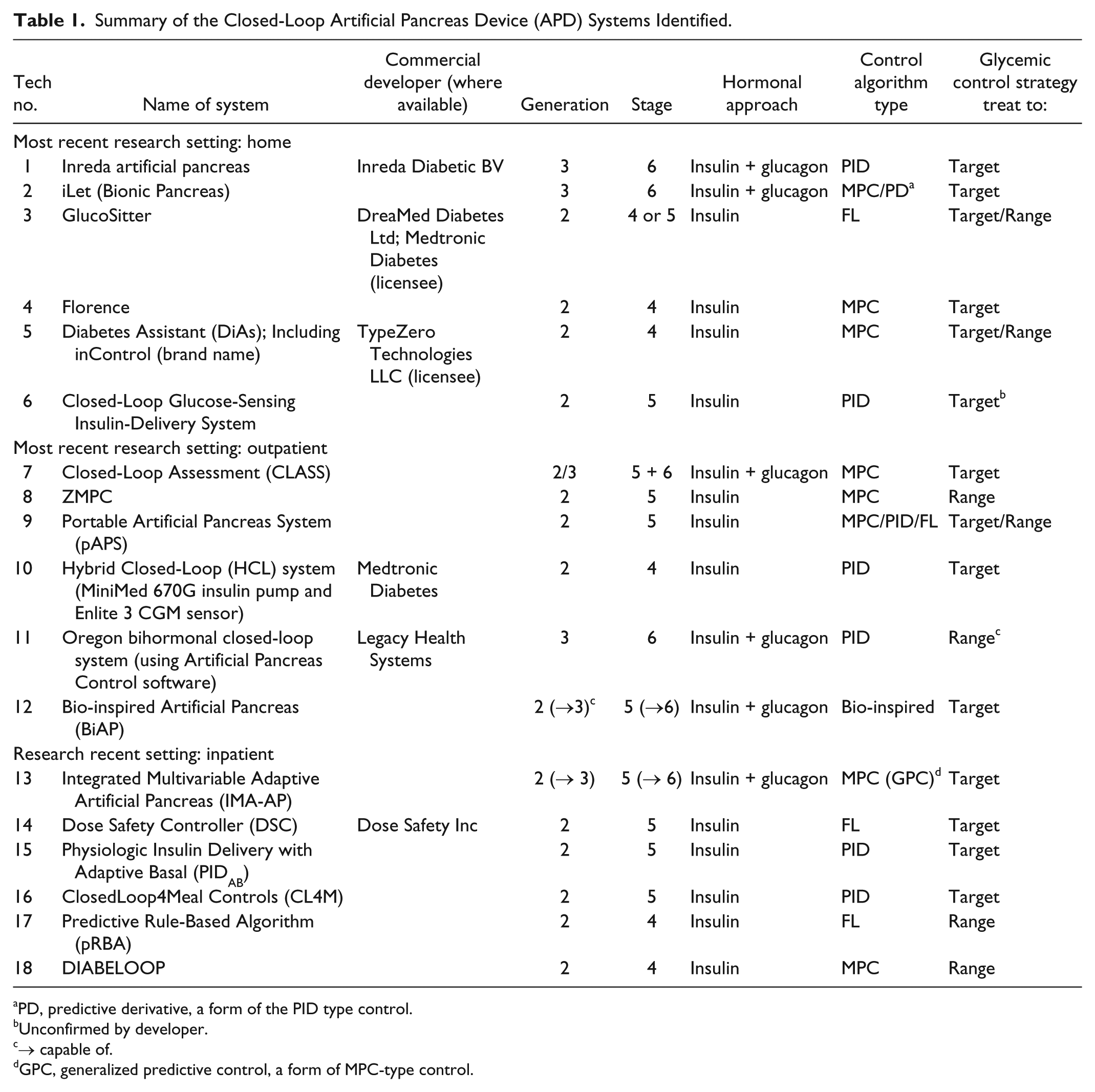

Summary of the Closed-Loop Artificial Pancreas Device (APD) Systems Identified.
PD, predictive derivative, a form of the PID type control.
Unconfirmed by developer.
→ capable of.
GPC, generalized predictive control, a form of MPC-type control.
Twelve systems were classified as second generation (technologies 3-6, 8-10 and 14-18). Of these, 5 were at stage 4 (technologies 4, 5, 10, 17 and 18), 1 was at stage 4/5 (technology 3), and 6 were at stage 5 (technologies 6, 8, 9 and 14-16). Three systems were classified as second/third generation, being at stage 5/6 (technologies 7, 12 and 13). Three systems were classified as third generation, being at stage 6 (technologies 1, 2 and 11). In terms of hormonal approach, 12 systems used the AID (insulin-alone) approach (technologies 3-6, 8-10 and 14-18) and 6 used the MH (insulin and glucagon) approach (technologies 1, 2, 7 and 11-13).
Six systems were based on a PID-type control algorithm (technologies 1, 6, 10, 11, 15 and 16) and one was based on a similar generalized predictive control (GPC) algorithm (technology 13). One system was based on both MPC and predictive derivative (PD) algorithms (technology 2). Five systems were based on an MPC control algorithm (technologies 4, 5, 7, 8 and 18). Three systems were based on a FL control algorithm (technologies 3, 14 and 17). One system was based on PID, MPC and FL control algorithms (technology 9), and 1 system was based on a bio-inspired control algorithm (technology 12). Eleven systems (61%) used a TTT strategy for glycemic control (technologies 1, 2, 4, 6 [not confirmed by the developer], 7, 10 and 12-16), 4 (22%) used a TTR strategy (technologies 8, 11 [not confirmed by the developer], 17 and 18) and 3 (17%) used both (technologies 3, 5 and 9).
Six systems were being tested by users in the home environment (technologies 1-6) and 5 in outpatient settings (technologies 7-11). The remaining 7 APD systems were being tested in inpatient settings (technologies 12-18). Published results from research conducted in the home setting were available for 4 of the APD systems: technology 1, 8 technology 3,9,10 technology 4,6,11-16 and technology 5. 7
Discussion
We identified 18 APD systems that are in development for the closed-loop control of type 1 diabetes. All of them were being tested in clinical trials, albeit in different settings, some more closely representing a “real-life” situation than others. None of the APD systems are currently available for routine use or are likely to be so before 2016. The first fully automated APD systems are expected to appear on the market in the EU from late 2016 onwards, with around 5 systems expected to be available by the end of 2018. However, their adoption will require appropriate evidence to show that they are safe, and cost and clinically effective, and that they are acceptable to users.
Research to date has shown that APD systems work safely in research settings when used for short periods of time. 17 During 2014, the first results were published on the use of such systems in outpatient settings including the home. 17 The research effort is now intensifying to assess effectiveness, with a focus on testing how well these systems work in real-life settings over longer periods of time, and what benefits they may offer. 18 At present, there is very little detail publically available about the precise functionality of APD systems and the user experience that they may offer, as most systems are still in the developmental phase.
In terms of the technological characteristics of APD systems we found that around two-thirds were following the AID (insulin-alone) hormonal approach and one-third the MH approach (insulin and glucagon). Research using other secondary hormones is also underway funded by the USA National Institutes of Health through Type 1 Diabetes Targeted Research Awards. 19
MH systems involve added complexities regarding the number of devices that need to be worn and the stability of glucagon. There are different types (and subtype variations) of digital controllers being developed, with some systems incorporating more than 1 type. PID-type control algorithms, which respond to measured glucose levels, are being used in half of the systems. MPC algorithms, which predict glucose levels at a specific time point in the future, are being used in just over one-third. FL algorithms, which model clinical decision-making, are being used in around a fifth of systems. A bio-inspired control algorithm which models how pancreatic beta cells work is being used in 1 system.
APD systems are using different strategies for achieving glycemic control, with 61% using the TTT strategy, 22% using the TTR strategy, and 17% using both.
How an APD system looks and feels from the users’ perspective will be vitally important. 20 There are various ways in which the 3 key functions of an APD (to monitor, control and treat) might be configured in commercial products. First, the control function could be integrated into the pump or CGM device, with a smartphone or smartwatch app providing the user interface with the controller. In this configuration, no separate device would need to be carried to make the transition from CGM/pump-use to APD if the user routinely carried a smartphone or smartwatch.
Second, the control function could be performed by a separate mobile controller device connected wirelessly to the CGM and pump. The controller would be carried by the user whilst the CGM and pump are attached to the body. The controller device would look similar to a modified smartphone, but would only function for this purpose. In this configuration, an additional device would need to be carried to make the transition from CGM/pump-use to APD system. If 2 pumps or a second backup CGM are needed then other devices would be needed.
Third, the control function could be in the form of an app installed on a regular smartphone or smartwatch. The APD control app would run alongside all the other functions performed by such technologies. In this configuration, no separate device would need to be carried to make the transition from CGM/pump-use to APD system if the user usually carried a smartphone or smartwatch.
Conclusions
We found that 18 closed-loop APD systems are being developed through clinical stages of research, and these employ different combinations of hormonal approaches, control algorithms and glycemic control strategies. However, there is currently little information publically available on precisely what form they might take as commercial products. APD systems have so far been tested in small-scale clinical trials over relatively short periods of time. Further phase 3 clinical research will be needed to demonstrate that they are safe, and clinically and cost-effective for long-term 24/7 use. For this new form of technology to be adopted successfully, developers would also need to ensure that their products meet user expectations in terms of design, functionality and impact on quality of life.
Footnotes
Appendix

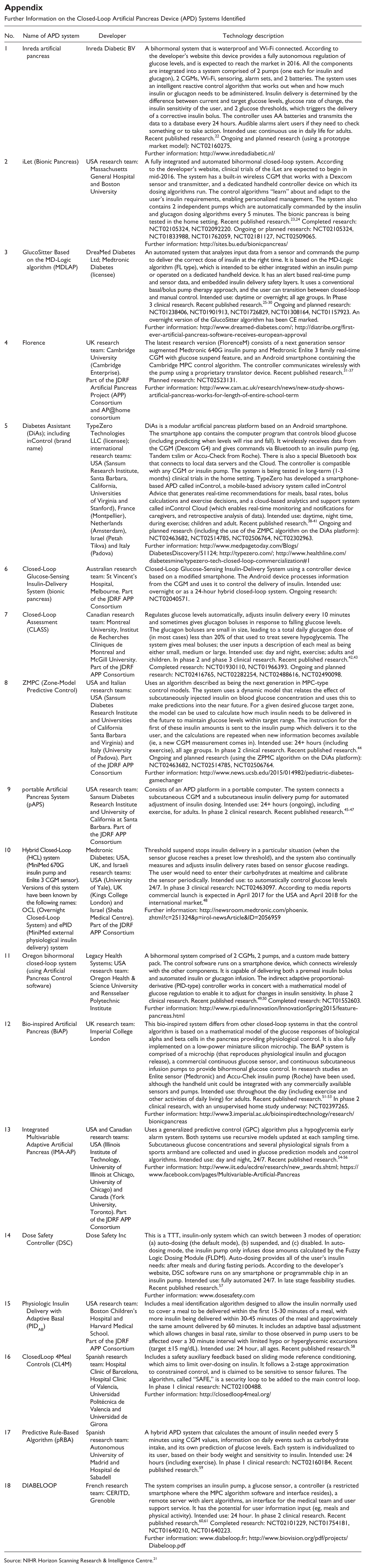

Further Information on the Closed-Loop Artificial Pancreas Device (APD) Systems Identified
