Effects of CHO-expressed recombinant lactoferrins on mouse dendritic cell presentation and function

Abstract

Lactoferrin (LF), a natural iron-binding protein, has previously demonstrated effectiveness in enhancing the Bacillus Calmette–Guérin (BCG) tuberculosis vaccine. This report investigates immune modulatory effects of Chinese hamster ovary (CHO) cell-expressed recombinant mouse and human LFs on mouse bone marrow-derived dendritic cells (BMDCs), comparing homologous and heterologous functions. BCG-infected BMDCs were cultured with LF, and examined for class II presentation molecule expression. Culturing of BCG-infected BMDCs with either LF decreased the class II molecule-expressing population. Mouse LF significantly increased the production of IL-12p40, IL-1β and IL-10, while human LF-treated BMDCs increased only IL-1β and IL-10. Overlaying naïve CD4 T-cells onto BCG-infected BMDCs cultured with mouse LF increased IFN-γ, whereas the human LF-exposed group increased IFN-γ and IL-17 from CD4 T cells. Overlay of naïve CD8 T cells onto BCG-infected BMDCs treated with mouse LF increased the production of IFN-γ and IL-17, while similar experiments using human LF only increased IL-17. This report is the first to examine mouse and human recombinant LFs in parallel experiments to assess murine DC function. These results detail the efficacy of the human LF counterpart used in a heterologous system to understand LF-mediated events that confer BCG efficacy against Mycobacterium tuberculosis challenge.

Introduction

The current vaccine for tuberculosis (TB), a disease caused by Mycobacterium tuberculosis (MTB), is Bacillus Calmette–Guérin (BCG) Mycobacterium bovis, which has been in use since 1921.^1,2 The protective response of BCG is most effective against childhood TB disease, ³ but ineffective against adult-onset, or secondary, TB disease. ⁴ Improving the BCG vaccine is an intensive research area where a variety of modalities have been tested, including creating boosters with viral-contained TB Agic peptides, novel attenuated vaccine strains of virulent MTB, novel BCG strains carrying virulent MTB peptides, heterologous prime/boost protocols for vaccination, and novel adjuvants to target directly and enhance specific host immune responses.^5–8

Improving the BCG vaccine may ultimately require novel adjuvants to activate APCs, macrophages and dendritic cells (DCs). DCs are critical for developing the adaptive Ag-specific CD4⁺ and CD8⁺ T-cell responses and associated production of IFN-γ and IL-12, which are necessary for protection against MTB infection.^9,10 An adjuvant targeting DCs to promote their ability to stimulate T-cell responses can also be an effective promoter of Ag-specific adaptive immunity for future protection against infection. ¹¹

Lactoferrin (LF), a natural iron-binding protein found in mucosal secretions and secondary granules of neutrophils, possesses a variety of immune modulating properties, including the ability to enhance the delayed-type hypersensitivity T-cell mediated response.^12–14

LFs are glycoproteins in which carbohydrates are appreciated as key moieties involved in biological activities; yet, LFs from different species have known divergence in glycan patterns.^15–17 In human LF, there are three putative N-linked glycosylation sites at positions Asn138, Asn479 and Asn624. Studies on recombinant human LF expressed in human kidney cells showed that Asn138 and Asn624 are preferentially glycosylated. ¹⁸ In bovine LF there are four N-linked glycosylation sites; carbohydrates attached to the protein are high mannose-type glycans.^16,19 A differential utilization of plausible glycosylation sites in LF in each species results in divergent glycoforms, which are further diversified by the rate of terminal sialylation. Interestingly, the mouse LF has only one potential N-glycosylation site, which is characterized by high mannose glycan. ²⁰ Many observed activities of LF are dependent upon specific glycosylation patterns. For example, the immunoregulatory activity of LF in humans is dependent on the interaction of this glycoprotein with a receptor specific for sialic acid, and direct lymphocyte activation by LF requires sialylation.^21,22

It has been well documented that LF enhances BCG efficacy.^23–25 Several studies defined multiple mechanisms by which LF conferred these adjuvant functions; these included DC and macrophage modulation of cytokine production and surface expression of presentation and co-stimulatory molecules to allow Ag-specific T cells to increase the production of IFN-γ.^26,27 It has also been demonstrated that bovine LF combined with BCG culminated in increased pulmonary integrity post-infectious challenge with MTB in mice. In a similar manner, a novel recombinant human LF also augmented the BCG vaccine to protect alveolar integrity upon infection. ²⁸

Investigations into LF immune properties primarily focus on the bovine milk-derived molecule, which is abundant and readily available. However, the approximate 30–40% difference in sequence homology among LFs from human, bovine and mouse species calls into question the applicability of using heterologous LF in the mouse model systems. ²⁹ In addition, the bovine LF glycosylation pattern is considerably different than that of human LF; thus, the bovine LF, with its diverse sugar composition is a more potent immune modulator than its human counterpart. ¹³ The presence of mannose-type glycans in bovine LF has been further described to be responsible for its capacity to induce mannose receptor-dependent delayed-type hypersensitivity response to ovalbumin in mice.^13,30 The validity of using human LF in a mouse model has yet to be established.

Recently, a protocol for production of recombinant human LF that bears the mammalian glycosylation pattern was developed in the Chinese hamster ovary (CHO) cell line. Biological potency of the recombinant human LF was confirmed in protection of methicillin-resistant Staphylococcus aureus infected mice. ³¹ Furthermore, a novel recombinant mouse LF, fully homologous with the native mouse LF, was also recently developed and used to verify the role of homologous LF in myelopoiesis. ³² Overall, LF derived from bovine and human species both demonstrated marked similarities of effect within mouse models. The experiments reported here extend these findings in a direct comparison of human LF to mouse LF. The ability to utilize homologous molecules in mice in vivo will open the door to examination of species specific events. As a first investigation, these studies examine effects of recombinant LFs to modulate mouse-derived DCs immune activities, thus illustrating similarities and differences between homologous and heterologous LF protein.

Materials and methods

LFs and BCG

Recombinant mouse and human LFs produced in CHO stable cell lines were provided by Pharma Review Corporation (Houston, TX, USA), manufactured under endotoxin-free, serum-free conditions (Genscript, Piscataway, NJ, USA).^31,32 The purity of the CHO-derived LFs was determined by HPLC and SDS PAGE, showing near homogeneity in protein (>98% purity). The methods for purification of the recombinant human LF have been published. ³¹ The level of endotoxin was <10 EU/mg protein. BCG M. bovis, Pasteur strain (TMC 1011; ATCC, Manassas, VA, USA) was grown in Dubos base (without addition of glycerol) with 10% supplement (5% BSA, 7.5% dextrose) on an orbital shaker at 37℃ for 2 wk before use. BCG was diluted with 1 × PBS to 3 × 10⁸ bacteria/ml, estimated using McFarland standards (Sigma-Aldrich, St. Louis, MO, USA) and confirmed by plating dilutions onto 7H11 agar plates (Remel, Lenesa, KS, USA). Plates were incubated at 37℃ for 3–4 wk, and colonies were enumerated.

Bone marrow-derived DCs

Bone marrow cells were isolated from the femur and tibia of C57BL/6 mice. Collected cells were treated with ACK buffer (Cambrex Bio Sciences, East Rutherford, NJ, usA) to lyse the red blood cells. Resulting cells were differentiated for 7 d at 1 × 10⁶ cells/ml in McCoy’s medium, supplemented with sodium bicarbonate (2.2 g/l), 10% FBS, antibiotics (100 µg/ml penicillin G and 50 µg/ml gentamycin), mouse recombinant GM-CSF (10 ng/ml) and IL-4 (10 ng/ml) (Cell Sciences, Canton, MA, USA). ³³ At d 7, non-adherent cells were collected and positively selected for CD11c⁺cells using CD11c Micro Beads (Miltenyi Biotec, San Diego, CA, USA), resulting in >98% CD11c⁺ population. Bone marrow-derived DCs (BMDCs) were cultured in DMEM complete medium supplemented with 10% FBS (Sigma-Aldrich) at 37℃ with 5% CO₂. Experiments to obtain mouse-derived cells were approved by the University of Texas-Houston Health Science Center animal welfare committee (HSC-AWC-10-087 and HSC-AWC-11-158).

DC cytokine and cell marker assays

Following differentiation as described above, BMDCs were cultured in DMEM complete medium supplemented with 10% FBS as described above. BMDCs remained non-infected or infected with BCG (MOI 10:1) with and without LF (100 µg/ml). At 72 h post-infection, supernatants were collected for cytokine determination by ELISA, and BMDCs were isolated for analysis of surface marker expression by FACS.

BMDC stimulation of T cells

Differentiated BMDCs remained non-infected or infected with BCG with and without LF (100 µg/ml). At 72 h post-infection, BMDCs were co-cultured with purified CD3⁺CD4⁺ or CD3⁺CD8⁺splenocytes isolated from naïve mice. Cells were isolated and treated with ACK buffer to lyse red blood cells, as previously described.^34,35 CD4⁺ and CD8⁺ T cells were isolated using CD4 or CD8 T-cell isolation kit II (Miltenyi Biotec). Purified T-cell populations were re-suspended at 1 × 10⁶ cells/ml in DMEM complete medium supplemented with 10% FBS, 0.005% (v/v) 2-mercaptoethanol (Gibco, Invitrogen, Grand Island, NY, USA) and antibiotics (100 µg/ml penicillin G and 50 µg/ml gentamycin sulfate; Sigma-Aldrich). CD4 and CD8 T cells were overlaid at a ratio of 1:1 with BMDCs. Supernatants were collected at 72 h and stored at –20℃ for ELISA analysis.

ELISA

Supernatants were assayed for cytokine production using the Duo Set ELISA kits (R&D Systems, Minneapolis, MN, USA), according to manufacturer’s instructions, as we have previously published.^36,37 Supernatants were assayed for production of T-cell cytokines (IFN-γ and IL-17) and pro-inflammatory mediators (TNF-α and IL-6, IL-1β, IL-12p40, IL-23 and IL-10). Lower limits of detection are between 15 and 32 pg/ml for all cytokines tested.

Flow cytometry analysis

Antibodies (Abs) to surface antigens were diluted to a working concentration of 1 µg/10⁶ cells in staining buffer (1% BSA in 1 × PBS). Unspecific staining sites were blocked with Fc Block (CD16/32; BD Biosciences Pharmingen, San Diego, CA, USA) on ice for 5 min. DCs were stained (50 µl diluted Ab/10⁶ cells/marker), in the dark, with anti-mouse CD11c-PE-Cy7, I-A^b-PE, H-2 k^b-FITC, CD80-APC, CD86-PE-Cy5 (BD Biosciences Pharmingen, San Diego, CA, USA) on ice for 30 min. Stained cells were washed with staining buffer, then fixed with 4% paraformaldehyde on ice for 15 min. Fixed cells were washed with staining buffer and stored at 10⁶/500 µl in staining buffer at 4℃. Analysis was performed using Coulter FlowCentre (EPICS XL-MCL; Beckman Coulter, Brea, CA, USA). Graphs were generated with Cyflogic.

Statistics

The data represent five experimental repeats, with duplicate or triplicate assessment per experimental sample. Changes in surface expression of CD11c, I-A^b, H-2k^b, CD80, CD86 and CD40 were compared across repeated experiments representing paired data analyzed using a one-way ANOVA, with a post-test Tukey’s honest significant difference for pairwise comparisons. ELISA analysis was averaged from triplicate wells per sample, in repeated studies, using the Student’s t-test (unpaired). Statistical differences were considered significant at P < 0.05.

Results

Effects of LF on DC immune activity

BMDCs were assessed for their expression of Ag presentation molecules, MHC I and II, and the co-stimulatory molecules CD86 and CD80. BMDCs were infected with BCG (MOI 10:1) or non-infected and cultured with or without 100 µg/ml recombinant human or recombinant mouse LF.

Figure 1A depicts representative forward and side scatter plots of the BMDC population used in the study. These non-infected BMDCs had two distinct populations (Figure 1A), the selected population for examination had > 99% expression of CD11c (data not shown). Culturing naïve BMDCs with recombinant human LF or mouse LF demonstrated significant changes. Compared with the no LF control, both human LF- and mouse LF-cultured BMDCs showed a significant decrease in CD11c population expressing MHC II (Figure 1B). Compared with the no LF control, exposure to human LF decreased CD86⁺ cells while increasing CD80⁺ cells (Figure 1C, D). In contrast, BDMCs cultured in the presence of mouse LF maintained a slight, but significant, increase in CD86⁺ cells compared with human LF, while maintaining levels of CD80⁺ cells compared with the no LF control (Figure 1C, D). No differences were observed in expression of MHC I (data not shown).

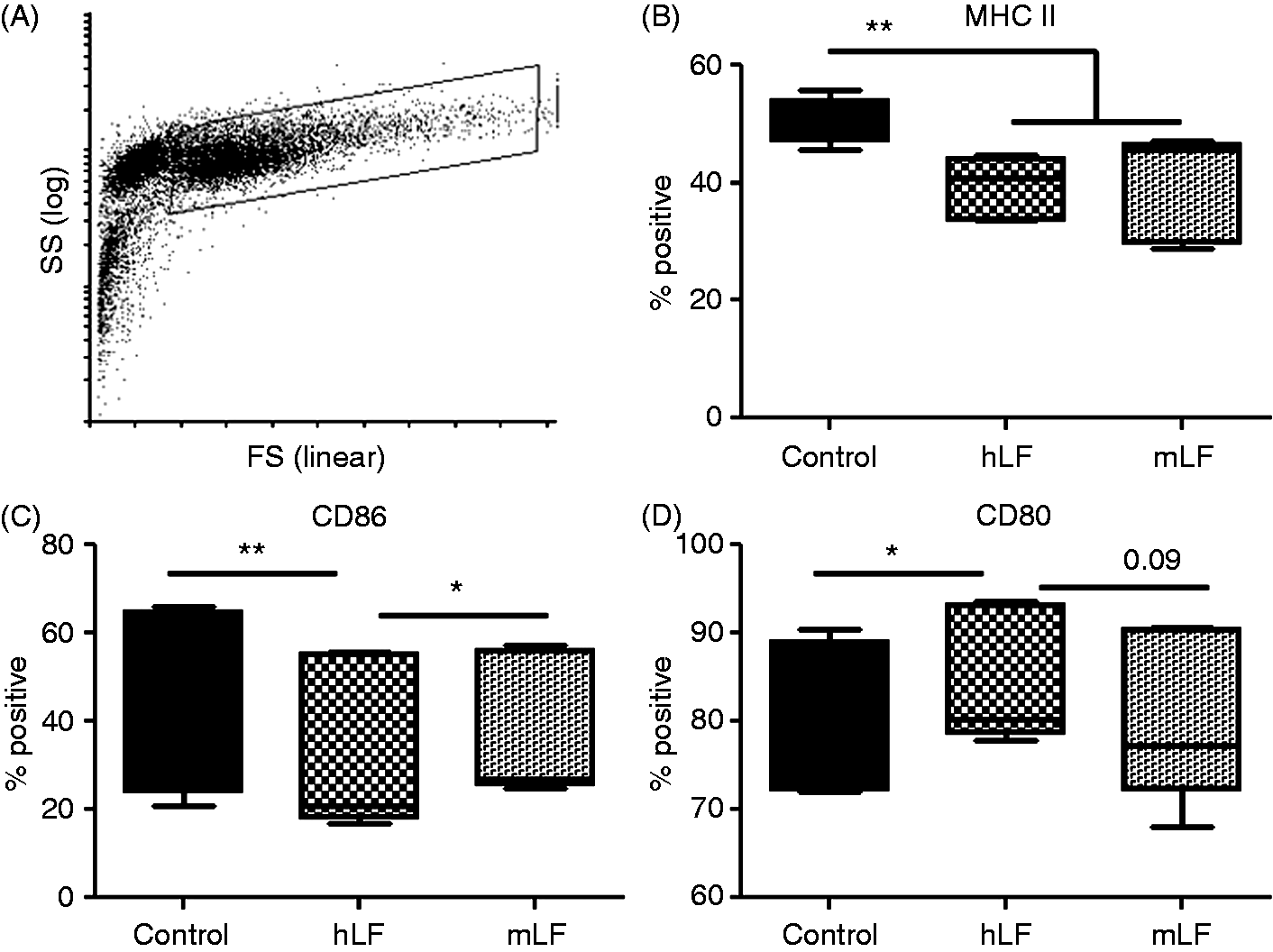

Figure 1.

Effect of recombinant human (hLF) or mouse lactoferrin (mLF) on non-infected BMDCs. BMDCs cultured with 100 µg/ml of recombinant human or mouse LF for 72 h were stained for surface expression of MHC II, CD86 and CD80. (A) Example of forward scatter (FS) and side scatter (SS) dot plot and gating strategy. Gated cells for analysis were >98% CD11c⁺. (B–D) Percent positive population reported using box and whiskers: median, 25% and 75% quartiles, and minimum and maximum. *P < 0.05; **P < 0.01.

Owing to infectious challenge, BCG-infected BMDCs demonstrated slightly different forward and side scatter properties than the non-infected cells (Figure 2A compared with Figure 1A); gating for analysis included infected cells that were > 98%CD11c⁺ (data not shown). Presence of human or mouse LF in BCG-infected BMDC cultures only showed changes in expression of MHC II. The human LF significantly decreased MHC II⁺ cells compared with the no LF control. While there was a trend of altered expression of MHC II⁺ cells in the mouse LF cultured BMDCs, this difference was not significant compared with human LF (Figure 2B).

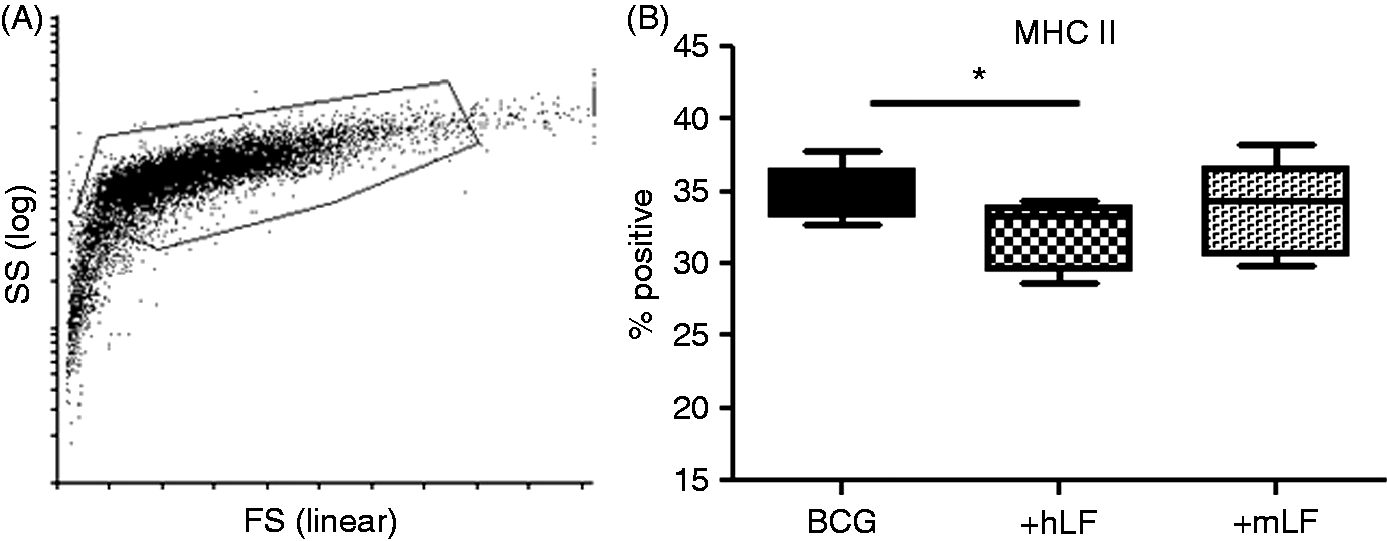

Figure 2.

LF effects on BCG-infected BMDCs’ MHC II presentation molecule. BCG-infected BMDCs were cultured with 100 µg/ml of recombinant human (hLF) or mouse LF (mLF) for 72 h, then examined for surface expression of MHC II. (A) Example of forward scatter (FS) and side scatter (SS) dot plot and gating strategy; smaller cells without CD11c marker were not included in analysis. (B) Percent positive population reported using box and whiskers: median, 25% and 75% quartiles, and minimum and maximum. *P < 0.05.

BMDCs were also examined for production of cytokines important for regulating MTB infection in the host (TNF-α, IL-6, IL-1β, IL-12 and IL-10). Both human and mouse LF-treated BCG-infected BMDCs significantly increased production of IL-1β and IL-10 compared with the no LF BCG control. However, only BCG-infected BMDCs cultured with mouse LF increased production of IL-12p40 (Table 1). No significant IL-23 was detected above background levels (data not shown). Non-infected BMDCs did not produce any measureable cytokines (data not shown).

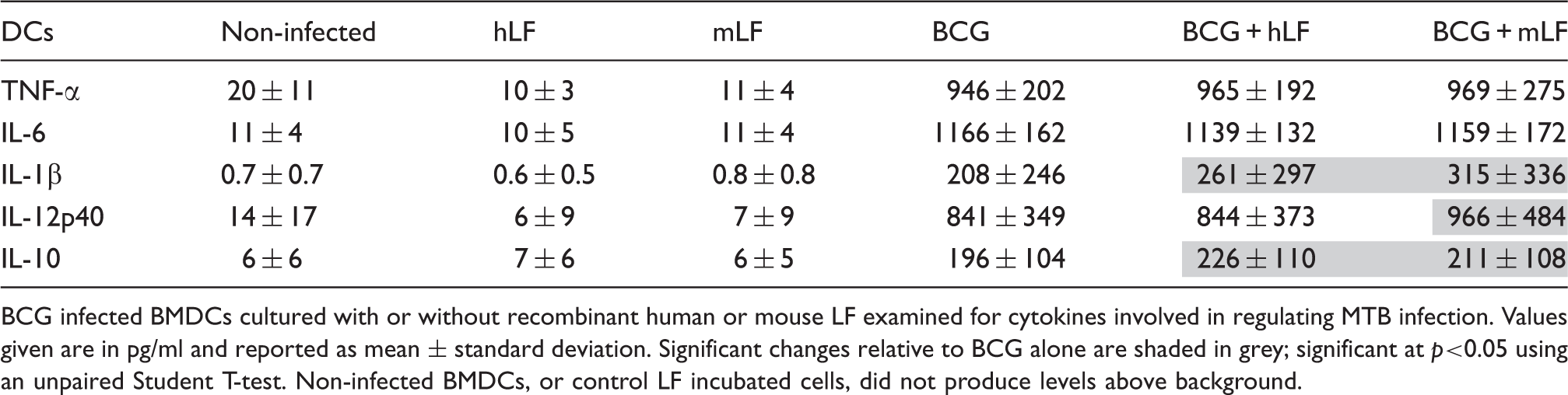

Table 1.

BCG-infected BMDCs cultured with or without recombinant human (hLF) or mouse LF (mLF) examined for cytokines involved in regulating MTB infection.

DCs	Non-infected	hLF	mLF	BCG	BCG + hLF	BCG + mLF
TNF-α	20 ± 11	10 ± 3	11 ± 4	946 ± 202	965 ± 192	969 ± 275
IL-6	11 ± 4	10 ± 5	11 ± 4	1166 ± 162	1139 ± 132	1159 ± 172
IL-1β	0.7 ± 0.7	0.6 ± 0.5	0.8 ± 0.8	208 ± 246	261 ± 297	315 ± 336
IL-12p40	14 ± 17	6 ± 9	7 ± 9	841 ± 349	844 ± 373	966 ± 484
IL-10	6 ± 6	7 ± 6	6 ± 5	196 ± 104	226 ± 110	211 ± 108

BCG infected BMDCs cultured with or without recombinant human or mouse LF examined for cytokines involved in regulating MTB infection. Values given are in pg/ml and reported as mean ± standard deviation. Significant changes relative to BCG alone are shaded in grey; significant at p<0.05 using an unpaired Student T-test. Non-infected BMDCs, or control LF incubated cells, did not produce levels above background.

Incubation of BCG/LF-treated DCs with naïve T cells affects cytokine production

The cytokine environment is a critical stimulatory signal for incoming T-cell activation, especially in hosts without prior encounter to Ag. The potential of LF to function as an adjuvant to enhance T-cell activity was therefore tested. Co-culturing experiments were conducted to determine cytokine production by naïve T cells stimulated by BGC/LF-treated BMDCs. BCG/LF-treated BMDCs for 72 h were co-cultured with naïve CD4⁺ or CD8⁺ T cells. Supernatants were assayed for production of the T-cell cytokines IL-2, IFN-γ and IL-17 at 72 h.

CD4⁺ T cells stimulated with BCG-infected BMDCs treated with human LF increased production of IFN-γ and IL-17 compared with cells incubated with the BCG BMDC control. CD4⁺ T cells co-cultured with BCG BMDCs treated with mouse LF also showed an increase in IFN-γ production; however, the increase in IL-17 was not significant (Figure 3).

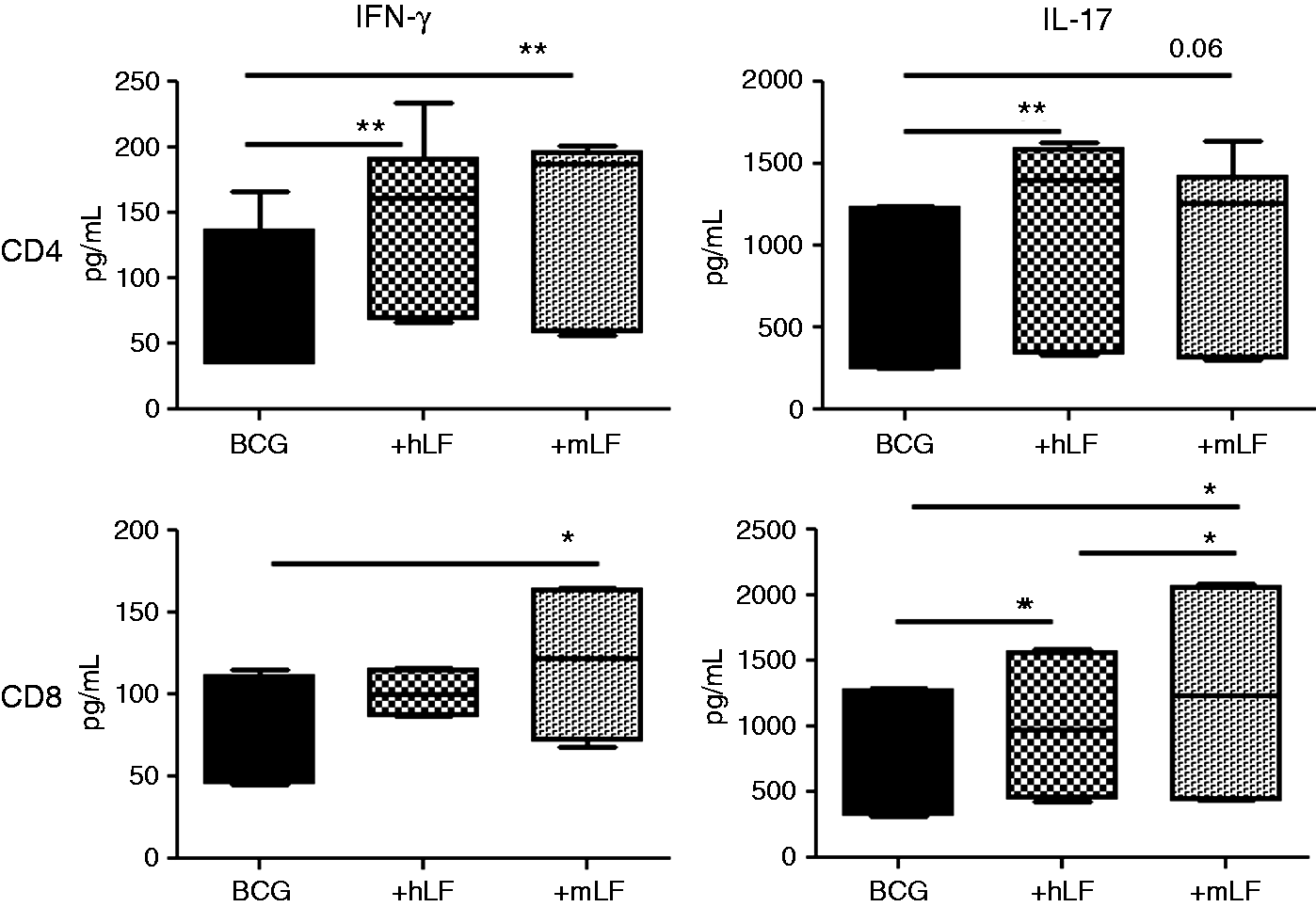

Figure 3.

Stimulation of naïve CD4 and CD8 T cells by BCG/LF-treated BMDCs. BCG-infected BMDCs were cultured with 100 µg/ml of recombinant human (hLF) or mouse LF (mLF) for 72 h then subsequently co-cultured with naïve CD4 and CD8 T cells (splenic-derived). Supernatants were collected 72 h after co-culture and analyzed by ELISA. Production of IFN-γ and IL-17 are plotted using box and whiskers: median, 25% and 75% quartiles, and minimum and maximum. *P < 0.05; **P < 0.01.

CD8⁺ T cells overlaid onto BCG/human LF BMDCs showed a slight increase in IL-17. However, CD8⁺ T cells incubated with BCG/mouse LF-treated BMDCs demonstrated a significant increase in IFN-γ and IL-17 production compared with both the human LF and the no LF control (Figure 3). Finally, IL-2 production was not observed in either CD4⁺ or CD8⁺ T cells in any groups (data not shown).

Discussion

This report represents the first comparison of recombinant mouse and human LF on in vitro assessment of innate effects on BCG-infected DCs. Of particular importance in this study was the targeted use of a novel recombinant mouse LF with both amino acid sequence and glycosylation fully compatible with a murine host that would not be expected to render heterologous immunogenicity. ³² The ultimate goal of these studies was to validate the utility of homologous versus heterologous LFs in the mouse model, and thus extrapolate its potential utility in human clinical settings.

The activities of the recombinant mouse LF demonstrated properties that were primarily similar to the human counterpart, with relatively few differences in effectiveness upon the mouse-derived cell population. While mouse LF generally demonstrated a trend towards increasing DC Ag presentation and T-cell stimulatory activity, the human LF in the same system suggested inhibitory activity. This was observed as a decreased expression of MHC II in BCG-infected BMDCs and lack of increased IL-12. The IL-12p40 protein plays a major role to function as the interface between innate and adaptive immunity, ³⁸ up-regulated by DAMP or PAMP molecules in a T cell-independent manner during trauma or infectious assault. Events that trigger pathways leading to IL-12p40 secretion include those that physically present with high influx of neutrophils to affected tissues, followed by release of granule components accompanied by high levels of lactoferrin. Therefore, it is not surprising that in our experiment LF was able to induce, albeit modestly, increased IL-12p40 in the absence of IL-23 and IL-12p70. Indeed, relative to tuberculosis, IL-12p40 (homodimer) is critical for DC migration events, independent of Ag-specific T-cell responses.^39–41

The cytokine environment is considered to be the third stimulatory signal for T-cell activation, with T-cell receptor and CD28 engagement known as signal one and signal two, respectively. ⁴² However, the overlay experiments with naïve T cells showed that both mouse and human LF generally increased CD4⁺ and CD8⁺ T-cell production of IFN-γ and IL-17. These properties may offer important clues to predict the efficacy of human LF to improve vaccines in the human system.

Promoting effective MTB protective immune responses has been fairly consistent, with published data mostly agreeing with a necessity for increased IFN-γ and IL-12, and up-regulated CD4⁺ T cells.^43,44 Both mouse and human LF showed comparable ability to increase IFN-γ and IL-17 production from CD4⁺ T cells, with mouse LF also increasing production of IL-12 from BMDCs. However, research using different formulated vaccines that specifically promote these factors has proven their inadequacy to promote complete protection against TB. Therefore, we expanded investigation into other immune responses. There was no change in IL-6 production from BCG-infected DCs in the presence of the LFs. All infected groups produced significant IL-6 relative to non-infected controls. However, at this time, it remains unknown how this affects the development of IL-17 induction, or if it is directly related. Likewise, the relative contribution of IL-1β, or lack of contribution, has proven to be complex. It would not seem to be directly linked to IL-17 production because the DCs are washed prior to incubation with the naïve T cells. Previous work did not detail significant IL-1β production by LF-treated DCs. ⁴⁵ Therefore, at this time, there does not appear to be a direct link between LF and inflammasome activation.

While CD4⁺ T cells are needed to promote macrophage intracellular killing mechanisms to control MTB growth, the role of CD8⁺ T cells to target and eliminate infected cells is believed to be essential for bacterial clearance. ⁴⁶ Regarding development of T cell phenotypes, BCG by itself is a poor inducer of CD8⁺ T cells; ⁴⁷ many groups are looking to promote BCG to increase CD8⁺ T-cell activity. ⁴⁸ Mouse LF promoted CD8⁺ T-cell activation, as measured by IFN-γ and IL-17 production, that is higher than BCG alone. Mouse LF-stimulated production of IFN-γ and IL-17 was comparable to human LF, suggesting that the homologous effect of LF on CD8⁺ T cells may be greater than using heterologous LF. However, future studies to examine CD8 cytotoxic activity will be needed to correlate increased IFN-γ and IL-17 to increased protective activity of CD8⁺ T-cells to eliminate MTB-infected cells.

Significant studies have been performed proving the utility of the bovine LF form to function as an adjuvant combined with BCG to elicit pathological protection upon infectious challenge with MTB.^{23–25,49,50} However, the sequence homology between bovine and human LF is 69%, and homology between bovine and mouse is 64%. In addition, bovine milk-derived LF has a different glycosylation pattern than these novel recombinant mouse and human molecules that are fucosylated, as the neutrophil-derived forms are. Thus, they are more compatible for systemic immune modulatory function during inflammation.^21,51–54 Different processes for the production of recombinant LFs results in varied glycosylation patterns, dependent upon the expression system utilized.^55–59 While the CHO-expressed LFs used in this study demonstrate a uniform, mammalian type of glycosylation pattern, there is still intrinsic difference between mouse and human LF glycans.

Specific investigations into LF activity demonstrated effects on DCs. We previously demonstrated that bovine LF was able to overcome presentation diminution in DCs due to mycobacterial infection. ²⁶ The results shown here seem to imply that either there is a species difference in this capability or the glycosylation patterns play a significant role in activation parameters in this particular class of events. Surely LF modulates DC maturation, especially in the presence of bacterial motifs.^60,61 Even so, differences were identified between those seen with recombinant human LF and those reported for bovine LF. ⁶² However, any vaccine for human utility would require that a LF adjuvant utilized in combination with the BCG vaccine must exhibit human compatibility. With the lack of good human models to test a developing adjuvant in a vaccine/challenge experiment, the use of homologous mouse LF may serve as the best possible alternative to investigate mechanisms underlying the effectiveness of LF to augment the BCG vaccine in mice.

Differences in sequence and glycosylation patterns between bovine and mouse LF may not allow adequate prediction of mouse models to human activity. The findings reported here address this concern by examining immune activity of recombinant mouse and human LFs produced similarly in CHO cells in a mouse model. This has the potential to eliminate the need for bovine LF as the pre-clinical test prototype. The results demonstrate that the two recombinant molecules exhibited overlapping activities on BMDCs, although unique properties were identified between the mouse and human recombinant LFs. These results indicate that the recombinant mouse LF is indeed a worthwhile candidate to investigate mechanisms underlying the LF adjuvant activity in mouse models for BCG vaccine and subsequent MTB challenge experiments. Use of the homologous mouse LF will prove useful to delineate its mechanisms as a modifier of DC activity in a species-specific environment. It will also allow more accurate comparative analysis of the human counterpart when used in the heterologous system. More studies are necessary to determine the full role of recombinant LF in Ag presentation, especially related to events that confer BCG efficacy to protect against MTB challenge. Indeed, it is critical that comparative studies between human LF and mouse LF be accomplished in parallel experiments with human cell lines so as to validate the testing potential for evaluation of human LF in mouse model systems. Overall, these studies provide groundwork for further investigations into use of the recombinant LFs as a unique modifier to effect DC activity.
