Abstract

2,4-Dichlorophenylacetic acid is synthesized in high yield via the carbonylation of 2,4-dichlorobenzyl chloride, and various experimental conditions are evaluated. Xylene, bistriphenylphosphine palladium dichloride, tetraethylammonium chloride and sodium hydroxide in solution are added to the reaction system and held at 80 °C under a CO atmosphere. 2,4-Dichlorophenylacetic acid is obtained in a maximum yield of 95%, and a mechanism for 2,4-dichlorobenzyl chloride carbonylation is proposed. The reaction system provides a mild, effective and novel means by which to prepare phenylacetic acid derivatives from their corresponding benzyl chloride derivatives.

Keywords

benzyl chloride derivatives carbonylation palladium catalyst phase-transfer catalysis phenylacetic acid derivatives

Introduction

Phenylacetic acid and its derivatives comprise an important class of organic carboxylic acids. They are fundamental building blocks of many pharmaceutical intermediates such as ibuprofen, carbenicillin, diclofenac and spirodiclofen.^1,2 Carbonylation and carboxylation are the most widely investigated reactions for the synthesis of phenylacetic acid derivatives. Benzyl halides and their derivatives are used as raw materials, and either sodium cyanide (NaCN) or CO₂ is utilized as a C1 source.^3–9 However, NaCN is a nitrile and is highly toxic to humans, while the experimental process involving CO₂ places a relatively high demand on the electrochemical reactor. The synthesis of phenylacetic acid via direct, metal-catalysed hydrocarboxylation of styrene derivatives has recently been reported.^10–12 The disadvantage of using highly reactive metal compounds like Grignard reagents is the need for an anhydrous environment. Currently, the most promising carbonylation method for industrial applications combines the use of a transition metal and phase-transfer catalysis (TM-PTC) chemistry.¹³ Herein, a new carbonylation process for the synthesis of phenylacetic acid derivatives from their corresponding benzyl chloride derivatives is reported. A water-soluble palladium catalyst was employed in the presence of a base. The method was facile, mild, and provided carbonylated products in good yields (Scheme 1). Carbonylation with a small amount of CO and a tetraalkylammonium (TAA) salt produced a higher yield of 2,4-dichlorophenylacetic acid (2,4-DCPA) than previously reported methods.

Scheme 1.

Synthesis of phenylacetic acid derivatives.

Results and discussion

Effect of the solvents

Various solvents were evaluated as the reaction medium for the synthesis of 2,4-DCPA via carbonylation of 2,4-dichlorobenzyl chloride (2,4-DCBC) using the bistriphenylphosphine palladium dichloride (Pd(PPh₃)₂Cl₂) and tetraethylammonium chloride (TEAC) catalytic system. The results are summarized in Table 1. Polar N,N-dimethylformamide (DMF) was not an effective solvent for carbonylation, as 2,4-DCPA was obtained in a yield of only 35% (Table 1, entry 5). However, the reaction produced 2,4-DCPA in maximum yields of up to 95% in a non-polar xylene (DMB) solvent system (Table 1, entry 1).¹⁴ As the results in Table 1 show, less polar solvents lead to better conversions and yields of the carbonylation product (Table 1, entries 1–5).

Table 1.

Effect of the solvents.^a


Entry	Solvents	ε (C²/(N*M²))	Conversion (%)	Yield (%)
1	DMB	2.27	99	95
2	Diphenyl ether	2.68	94	62
3	Butyraldehyde	13.4	71	49
4	Isoamyl alcohol	14.7	66	43
5	DMF	36.7	46	35

DMF: N,N-dimethylformamide.

Reaction conditions: 2,4-DCBC (0.01 mol), solvent (10 mL), NaOH (4 M, 8 mL), Pd(PPh₃)₂Cl₂ (0.13 mmol), TEAC (0.18 mmol), CO (1.5 MPa), 80°C, 20 h.

Effect of temperature

The reaction yield depended greatly on temperature. As the reaction temperature increased, the extent of conversion clearly increased. However, the catalyst and TAA salt decomposed rapidly at high temperatures, which was detrimental to carbonylation. Therefore, it was necessary to investigate the effect of temperature on the reaction.

The results are shown in Table 2. At 60 °C, 2,4-DCPA was obtained in a moderate yield of 79% (Table 2, entry 1). When the temperature was increased from 60 °C to 80 °C, both the conversion of 2,4-DCBC and the yield of 2,4-DCPA increased (Table 2, entries 1–3). This was due to the higher probability of collision between the reactant molecules. As the reaction temperature increased from 80 °C to 120 °C, the yield decreased from 95% to 36%. This was attributed to the decomposition of Pd(PPh₃)₂Cl₂ and denaturation of TEAC (Table 2, entries 4–7). Thus, the optimal reaction temperature was 80 °C.

Table 2.

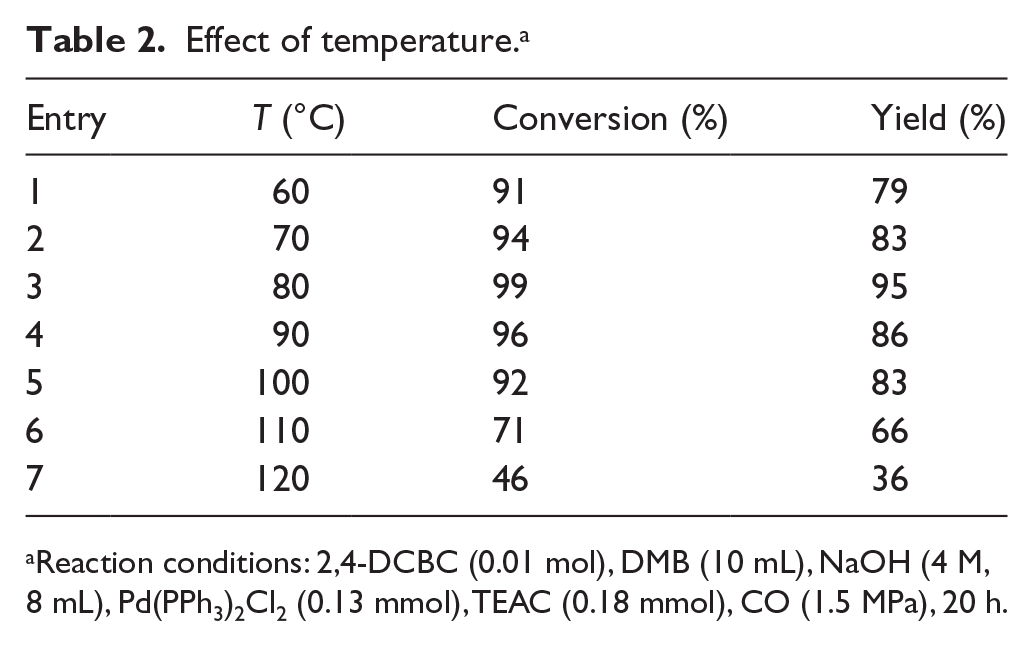

Effect of temperature.^a

Entry	T (°C)	Conversion (%)	Yield (%)
1	60	91	79
2	70	94	83
3	80	99	95
4	90	96	86
5	100	92	83
6	110	71	66
7	120	46	36

Reaction conditions: 2,4-DCBC (0.01 mol), DMB (10 mL), NaOH (4 M, 8 mL), Pd(PPh₃)₂Cl₂ (0.13 mmol), TEAC (0.18 mmol), CO (1.5 MPa), 20 h.

Effect of the catalysts

The Pd(PPh₃)₂Cl₂ and TEAC catalytic system exhibited the highest activity for 2,4-DCBC carbonylation. The palladium complex contained phosphine ligands, and its catalytic activity in the carbonylation reaction was moderate to high (Table 3, entries 1–5). Under the CO atmosphere, Pd(II) was readily reduced to Pd(0). Thus, only a moderate yield of 2,4-DCPA was obtained from the reaction performed with ligand-free palladium chloride (Table 3, entries 6 and 7).

Table 3.

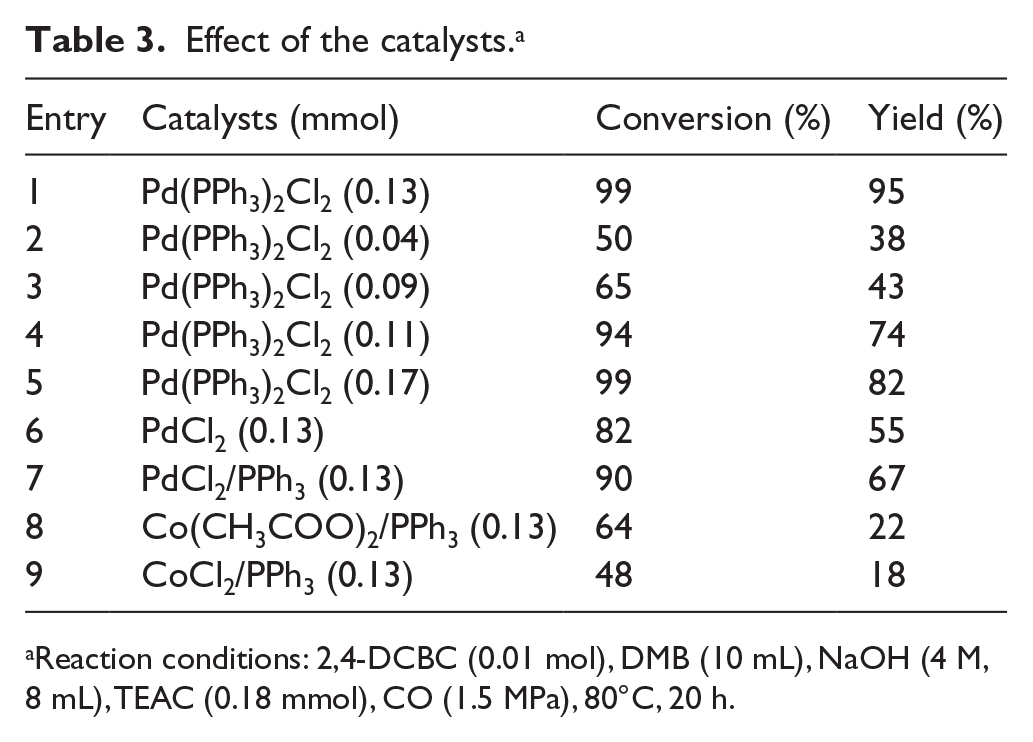

Effect of the catalysts.^a

Entry	Catalysts (mmol)	Conversion (%)	Yield (%)
1	Pd(PPh₃)₂Cl₂ (0.13)	99	95
2	Pd(PPh₃)₂Cl₂ (0.04)	50	38
3	Pd(PPh₃)₂Cl₂ (0.09)	65	43
4	Pd(PPh₃)₂Cl₂ (0.11)	94	74
5	Pd(PPh₃)₂Cl₂ (0.17)	99	82
6	PdCl₂ (0.13)	82	55
7	PdCl₂/PPh₃ (0.13)	90	67
8	Co(CH₃COO)₂/PPh₃ (0.13)	64	22
9	CoCl₂/PPh₃ (0.13)	48	18

Reaction conditions: 2,4-DCBC (0.01 mol), DMB (10 mL), NaOH (4 M, 8 mL), TEAC (0.18 mmol), CO (1.5 MPa), 80°C, 20 h.

As reported previously, nanoscale Pd colloids can be stabilized by quaternary ammonium salts, which prevent undesired agglomeration and promotes carbonylation.^15–22 In this work, Pd ions played the role of a Pd colloid. The activities of Co(CH₃COO)₂/PPh₃ (0.13 mmol) and CoCl₂/PPh₃ (0.13 mmol) were evaluated for comparison. 2,4-DCPA yields of only 22% and 18% were obtained with Co(CH₃COO)₂/PPh₃ and CoCl₂/PPh₃, respectively (Table 3, entries 8 and 9). The results indicated that the catalytic effect of Pd catalysts was superior to that of Co catalysts in the carbonylation reaction, and Pd(PPh₃)₂Cl₂ had the highest catalytic activity.

Effect of the TAA salts

TAA salts played an important role in the organic reaction,²³ and the effect of the salt (R₄N⁺X⁻) on carbonylation was investigated. The results are shown in Table 4. The short-chain TAA salts had higher catalytic efficiencies than the long-chain TAA salts. For example, 2,4-DCPA was obtained in a 95% yield with TEAC, a short-chain TAA salt (Table 4, entry 1). In the presence of hexadecyltrimethylammonium chloride (HTMAC), a long-chain TAA salt, 2,4-DCPA was obtained in a yield of only 58% (Table 4, entry 7). This was because the long-chain TAA salts could be carbonylated by the Pd catalyst. Carbonylation of the long-chain TAA salts competed with 2,4-DCBC carbonylation and reduced the yield of 2,4-DCPA.²⁴ In addition, the catalytic activity of chloride salts in the carbonylation reaction was higher than that of the bromide salts (Table 4, entries 1 and 2). Most importantly, these results demonstrated that 2,4-DCPA could be produced in excellent yield via carbonylation in the presence of TEAC.

Table 4.

Effect of the TAA salts.^a

Entry	TAA salts	R	X	Conversion (%)	Yield (%)
1	TEAC	Et₄	Cl	99	95
2	TMAB	Me₄	Br	99	87
3	TPAB	(CH₃CH₂CH₂)₄	Br	99	81
4	DMBAC	PhCh₂(Me)₃	Cl	99	81
5	TEBAC	PhCh₂(Et)₃	Cl	96	82
6	DTAC	C₁₂H₂₅(Me)₃	Cl	82	65
7	HTMAC	C₁₆H₃₃(Me)₃	Cl	88	58

TEAC: tetraethylammonium chloride; TMAB: tetramethylammonium bromide; TPAB: tetrapropylammonium bromide; DMBAC: benzyltrimethylammonium chloride; TEBAC: benzyltriethylammonium chloride; DTAC: dodecyltrimethylammonium chloride; HTMAC: hexadecyltrimethylammonium chloride.

Reaction conditions: 2,4-DCBC (0.01 mol), DMB (10 mL), NaOH (4 M, 8 mL), Pd(PPh₃)₂Cl₂ (0.13 mmol), TAA salts (0.18 mmol), CO (1.5 MPa), 80°C, 20 h.

Effect of the base

As shown in Table 5, the yield of 2,4-DCPA was 27% at a NaOH concentration of 3 M. When the NaOH concentration was increased to 4 M, the yield of 2,4-DCPA increased sharply to 95% (Table 5, entries 1 and 2). Increasing the NaOH concentration further to 6 M decreased the yield of 2,4-DCPA (Table 5, entries 3 and 4). Potassium hydroxide was also effective, as indicated by a 67% yield of 2,4-DCPA. However, sodium carbonate and potassium carbonate were not efficient bases for carbonylation. Thus, 2,4-DCPA was obtained in low yields of 19% and 30% with Na₂CO₃ and K₂CO₃, respectively (Table 5, entries 6 and 7). An excess of base was needed for the carbonylation reaction. When the molar ratio of 2,4-DCBC and NaOH was greater than 1:2, 1:3.2 in particular, a portion of the OH⁻ provided by NaOH was consumed in the synthesis of the products. The remaining OH⁻ reacted with the TAA salt and produced intermediates for the carbonylation reaction.²⁵

Table 5.

Effect of the base.^a

Entry	Base	Concentration (mol L⁻¹)	n_(material):n_(base)	Conversion (%)	Yield (%)
1	NaOH	3	1:2.4	84	27
2	NaOH	4	1:3.2	99	95
3	NaOH	5	1:4.0	95	84
4	NaOH	6	1:4.8	99	78
5	KOH	4	1:3.2	83	67
6	Na₂CO₃	4	1:3.2	20	19
7	K₂CO₃	4	1:3.2	31	30

Reaction conditions: 2,4-DCBC (0.01 mol), DMB (10 mL), base (8 mL), Pd(PPh₃)₂Cl₂ (0.13 mmol), TEAC (0.18 mmol), CO (1.5 MPa), 80°C, 20 h.

Evaluation of scope

Under the optimized conditions, the generality of the catalytic system was determined by carbonylating several different benzyl chlorides. The various benzyl chloride derivatives were converted to their corresponding phenylacetic acid derivatives in good yields (Table 6, entries 1–13, Supplemental material). It was noted that only the benzylic position was carbonylated, while the aryl chlorines remained in their original positions. The results indicated the carbonylation reaction was highly regioselective. This arose from the reactivity of the benzylic chlorine atom, which was higher than that of chlorine substituents on the benzene ring.

Table 6.

Evaluation of scope.^a

Entry	Benzyl chlorides	Phenylacetic acids	Yield (%)
1			85
2			85
3			86
4			93
5			88
6			83
7			86
8			81
9			85
10			83
11			86
12			82
13			84

Reaction conditions: material (0.01 mol), DMB (10 mL), NaOH (4 M, 8 mL), Pd(PPh₃)₂Cl₂ (0.13 mmol), TEAC (0.18 mmol), CO (1.5 MPa), 80°C, 20 h.

Reaction mechanism

The mechanism of palladium-catalysed carbonylation of benzyl chlorides is shown in Scheme 2. RX was first transformed into R–Pd–X (A) via the insertion of the Pd complex. R–CO–Pd–X (B) was readily produced from A through oxidative addition in the CO atmosphere. Under basic conditions, ion exchange between X⁻ in ${R^{'}}_{4} N^{+} X^{-}$ and OH⁻ yielded complex C. This was a reversible process and required a large excess of OH⁻ ions. Under the optimal reaction conditions at 80 °C, the OH⁻ ion carried by complex C attacked B to form a new complex, $R - COO - N R_{4}^{' +}$ (D). This was accompanied by the regeneration of the Pd catalyst. Complex D was subsequently resolved to an ionic liquid comprising ${R^{'}}_{4} N^{+} X^{-}$ and R–COO⁻ in the presence of sodium hydroxide. Finally, the phenylacetic acid derivative R–COOH was obtained upon addition of a strong acid (HCl).²⁶

Scheme 2.

Mechanism of palladium-catalysed carbonylation.

Conclusion

A mild, effective and novel method for the synthesis of 2,4-DCPA was developed using 2,4-DCBC as the starting material, CO as the carbon source and Pd(PPh₃)₂Cl₂ as the catalyst. Results obtained under various experimental conditions showed that carbonylation at 80 °C using xylene (DMB) as the solvent and sodium hydroxide as the base with a Pd(PPh₃)₂Cl₂ dosage of 0.13 mmol produced the highest yield of 2,4-DCPA, which reached 95%. The mechanism demonstrated that R–CO–Pd–X played an important role in the carbonylation process. In summary, this carbonylation system enables the carbonylation of substituted benzyl chlorides and provides a new alternative for preparing the corresponding substituted phenylacetic acids.

Experimental

Materials and instruments

All reagents were used without further purification. Toluene, DMF, isoamyl alcohol, butyraldehyde, diphenyl ether and DMB were obtained from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). All reagents were of analytical reagent (AR)-grade. Catalysts (Reagent Grade [RG]) and PPh₃ (RG) in Table 3 were purchased from Xi’an Kaili Catalyst and New Materials Co., Ltd (Xi’an, China). TAA salts (98%) listed in Table 4 were purchased from Shanghai Aladdin Bio-Chem Technology Co., Ltd (Shanghai, China). CO (99.99%) was purchased from a local manufacturer. AR-grade bases (Table 5) and benzyl chlorides (Table 6) were obtained from Sinopharm Chemical Reagent Co., Ltd.

The reaction mixtures were analysed qualitatively via gas chromatography (GC) and compared with standard samples. The analyses were performed on a 7890A GC (Agilent) equipped with a flame ionization detector (FID) and an Agilent DB-1ms capillary column (30 m × 0.25 mm × 0.25 μm). Nitrogen was used as the carrier gas at a flow rate of 0.9 mL min⁻¹. High performance liquid chromatography (HPLC) was used to quantitatively analyse the reaction mixtures. Analysis was carried out with a Prominence LC-20A HPLC (Shimadzu) equipped with a Shimadzu Shim-pack VP-ODS C₁₈ column (250 mm × 4.6 mm, 5 μm) and ultraviolet detector (UVD) using o-dichlorobenzene as an internal standard. Fourier transform infrared (FTIR) measurements were conducted with a Nicolet IS10 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) using the KBr pellet technique. The spectra were recorded with a resolution of 16 cm⁻¹. Nuclear magnetic resonance (NMR) spectroscopy was conducted with an AV400 NMR spectrometer (Bruker, Billerica, MA, USA). The samples were dissolved in dimethyl sulfoxide-d₆ (DMSO-d₆), and tetramethylsilane (TMS) was used as the internal standard.

Catalytic experiments

The carbonylation reaction was performed in a 150 mL polytetrafluoroethylene (PTFE)-lined autoclave equipped with a magnetic stir bar. In a typical experiment, the substituted benzyl chloride (0.01 mol), Pd(PPh₃)₂Cl₂ (0.13 mmol), TEAC (0.18 mmol), NaOH (4 M, 8 mL) and DMB (10 mL) were placed in the autoclave. The autoclave was purged three times with N₂ and three times with CO, and then heated to 80 °C. During the reaction, the CO pressure was maintained at 1.5 MPa. When the reaction was complete, the autoclave was cooled to room temperature in ice water, and the CO was discharged to atmospheric pressure. The mixture was then adjusted to pH 2 with HCl (12 M), and the solid was collected via filtration and air-dried. The crude product was recrystallised in MeOH/H₂O (1:1, v/v) to obtain 2,4-DCPA. The remaining commercially available catalysts were evaluated under the same conditions. The percent conversion and yield were quantified by the method reported by Lei et al.²⁷

2,4-Dichlorophenylacetic acid (1b). a white solid; m.p. 128–130 °C (lit.²⁸ 132–133 °C); IR (KBr) 770, 822, 870, 906, 1040, 1100, 1230, 1290, 1330, 1400, 1470, 1560, 1590, 1730, 3090 cm⁻¹; ¹H NMR (400 MHz; DMSO-d₆) δ 12.54 (s, 1H), 7.61 (d, J = 2.1 Hz, 1H), 7.49–7.33 (m, 2H), 3.72 (s, 2H) ppm; ¹³C NMR (100 MHz; DMSO-d₆) δ 171.66, 135.17, 133.89, 133.05, 132.81, 128.92, 127.71, 38.52 ppm.
