Restricted accessResearch articleFirst published online 2025-8
Synthesis,characterization and electrochemical evaluation of high-performance Sr(Ce 0.6 Zr 0.4 ) 0.85 Y 0.15 O 3−δ /Sm 0.2 Ce 0.8 O 1.9 co-ionic conducting composite electrolytes for solid oxide fuel cells

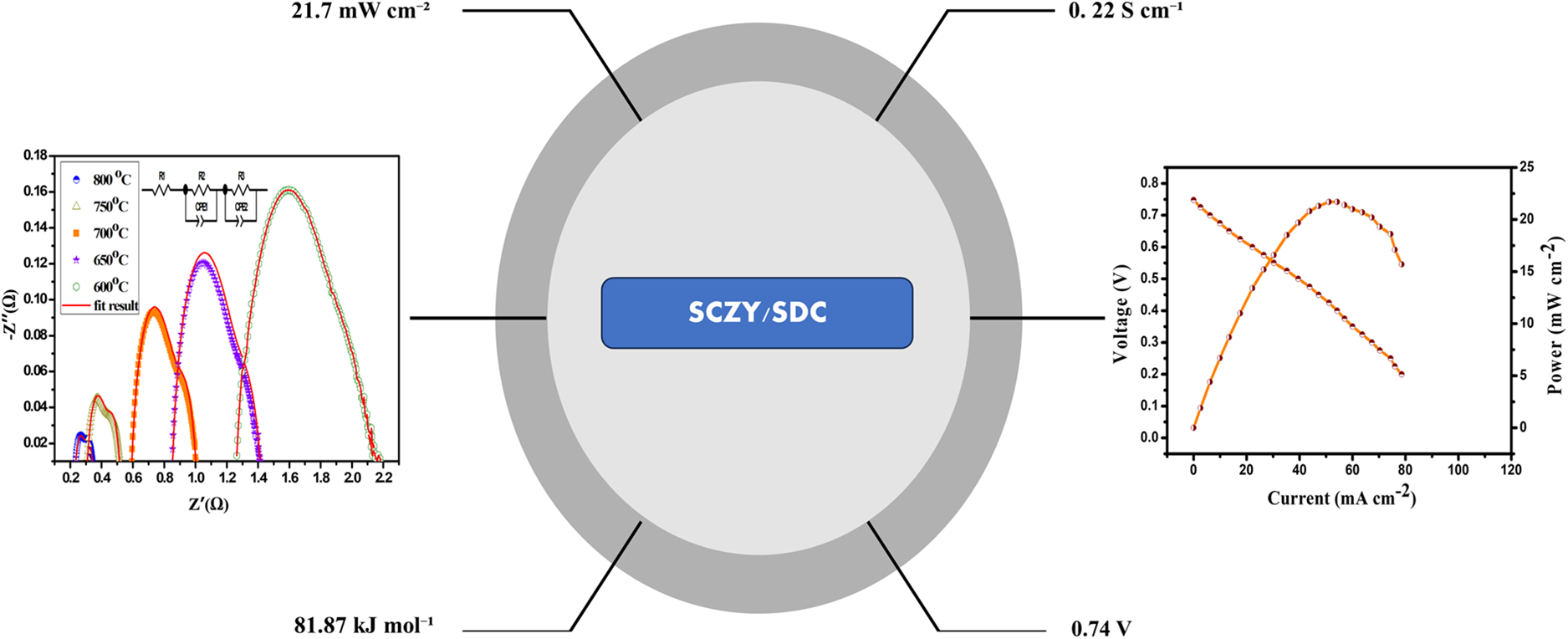

The Sr(Ce0.6Zr0.4)0.85Y0.15O3−δ/Sm0.2Ce0.8O1.9 (Strontium Cerium Zirconium Yttrium oxide [SCZY] and Samarium-doped Ceria [SDC]) co-ionic conducting composite electrolyte was successfully prepared by separately synthesising SCZY and SDC via the citrate-EDTA complexing method, followed by mechanical mixing through ball milling. After sintering at 1450 °C for 5 h, the composite exhibited a dense structure with retained integrity. Electrochemical and structural analyses were conducted under varied atmospheres and temperatures. The Pt/SCZY-SDC/Pt cell's total electrical conductivity and activation energy were determined using electrochemical impedance spectroscopy, yielding values of 0.039 S cm−1 and 61.56 kJ mol−1, respectively, in H2/Air at 600–800 °C. Conductivity measurements indicated H+ and O2− ion conductivities of 0.228 and 0.00349 S cm−1, respectively, at 800 °C. Notably, the electrolyte-supported Pt/SCZY-SDC/Pt cell demonstrated a power output of 21.7 mW cm−2 and an open-circuit voltage of 0.74 V at 800 °C, featuring a 1.19-mm electrolyte thickness and 2.54 cm2 cathode area.
RednykAMusalekMRTesařT, et al.Liquid plasma spraying of NiO-YSZ anode layers applicable for SOFC. Mat Today Commun2023; 23: 107855.
2.
MohantyDHungIM. Perovskites for fuel cell applications. In: MoharanaSSatpathySKKumarRBadapandaTMahalingRM (eds) Perovskites for fuel cell applications. New York: Elsevier, 2023, pp.395–418.
3.
ShawutiS. Wide band gap conducting oxides electrolyte materials for intermediate temperature SOFCs. Mater Today Commun2022; 30: 10300–10304.
4.
SakaiTKatoTTanakaY,et al.Preparation of an yttria-stabilized zirconia electrolyte on a porous Ni-based cermet substrate by laser chemical vapor deposition. Mat Today Commun2022; 33: 104169–104174.
5.
HungIMMohantyDLinYR, et al.Synthesis and electrochemical performance of PrBa0.5Sr0.5Co1.5Fe0.5O5+δ double perovskite cathode material for solid oxide fuel cell. Int J Hydrogen Energy2025; 145: 371–379.
6.
MohantyDChaoKYLinTN, et al.Microstructure of hydrogen electrode catalyst layer materials for solid oxide electrolysis cells. Int J Hydrogen Energy2025; 137: 830–839.
7.
DongYNoorAAlomarM, et al.Demonstration of high performance and enhanced electrochemical investigations of MnFe2O4-ZnO fuel cell device for fast ionic transport. Mat Today Commun2023; 23: 107720.
8.
HuoWYangYLinB. Fly ash to improve density and ionic conductivity of solid oxide cell electrolytes. Mat Today Commun2022; 31: 103546–103554..
9.
SamantaraySMohantyDSatpathyS,et al.Exploring recent developments in graphene-based cathode materials for fuel cell applications: a comprehensive overview. Molecules2024; 29: 2937.
10.
SeoDCJeonIJeongES,et al.Mechanical properties and chemical durability of nafion/sulfonated graphene oxide/cerium oxide composite membranes for fuel-cell applications. Polymers (Basel)2020; 12: 1375–1385.
11.
HarthojAHoltTMollerP. ‘Oxidation behaviour and electrical properties of cobalt/cerium oxide composite coatings for solid oxide fuel cell interconnects’. J Power Sources2015; 281: 227–237.
HuangJMaoZLiuZ,et al.Development of novel low-temperature SOFCs with co-ionic conducting SDC-carbonate composite electrolytes. Electrochem Commun2007; 9: 2601–2605.
14.
BodénADiJLagergrenC, et al.Conductivity of SDC and (Li/Na)2CO3 composite electrolytes in reducing and oxidizing atmospheres’. J Power Sources2007; 172: 520–529.
15.
DiJChenMWangC, et al.Samarium doped ceria-(Li/Na)2CO3 composite electrolyte and its electrochemical properties in low temperature solid oxide fuel cell’. J Power Sources2010; 195: 4695–4699.
16.
ZhangCLiSLiuX, et al.Low temperature synthesis of Yb doped SrCeO3 powders by gel combustion process. Int J Hydrogen Energy2013; 38: 12921–12926.
17.
MatskevichNIWolfTVyazovkinIV,et al.Preparation and stability of a new compound SrCe0.9Lu0.1O2.95. J Alloys Compd2015; 628: 126–129.
18.
YajimaTIwaharaH. Studies on proton behavior in doped perovskite-type oxides: (II) dependence of equilibrium hydrogen concentration and mobility on dopant content in Yb-doped SrCeO3. Solid State Ion1992; 53: 983–988.
19.
LiJCaiQHorriBA. Highly conductive and stable electrolytes for solid oxide electrolysis and fuel cells: fabrication, characterisation, recent progress and challenges. Mater Adv2025; 6: 39–83.
20.
IwaharaHEsakaTUchidaH,et al.Proton conduction in sintered oxides and its application to steam electrolysis for hydrogen production. Solid State Ion1981; 3: 359–363.
21.
AnjaneyaKCNayakaGPManjannaJ, et al.Investigation on the Sr-doped ceria Ce1-xSrxO2-δ (x = 0.05–0.2) as an electrolyte for intermediate temperature SOFC. J Alloys Compd2014; 598: 33–40.
22.
KnightKSBonanosN. The crystal structures of some doped and undoped alkaline earth cerate perovskites. Mater Res Bull1995; 30: 347–356.
23.
BonanosNKnightKSEllisB. Perovskite solid electrolytes: structure, transport properties and fuel cell applications. Solid State Ion1995; 79: 161–170.
24.
LiCZengYWangZ, et al.An investigation of protonic and oxide ionic conductivities at the interfacial layers in SDC-LNC composite electrolytes. Electrochim Acta2016; 212: 583–593.
25.
CaoJSuCJiY, et al.Recent advances and perspectives of fluorite and perovskite-based dual-ion conducting solid oxide fuel cells. J Energy Chem2021; 57: 406–427.
26.
ZhangJWenZHanJ, et al.Synthesis and characterization of proton conducting Sr(Ce1−xZrx)0.95Yb0.05O3−δ by the citrate method. J Alloys Compd2007; 440: 270–275.
ShimuraTEgusaGIwaharaH, et al.Electrochemical properties of junction between protonic conductor and oxide ion conductor. Solid State Ion1997; 97: 477–482.
29.
ZhouWRanRShaoZP, et al.Significant impact of nitric acid treatment on the cathode performance of Ba0.5Sr0.5Co0.8Fe0.2O3−δ perovskite oxide via combined EDTA-citric complexing process. J Power Sources2007; 174: 237–245.
30.
HungIMChiangYJJasonSCJ, et al.The proton conduction and hydrogen permeation characteristic of Sr(Ce0.6Zr0.4)0.85Y0.15O3−δ ceramic separation membrane. J Eur Ceram2015; 35: 163−170.
31.
ChengCSZhangLZhangYJ,et al.Synthesis of LaCoO3 nano−powders by aqueous gel-casting for intermediate temperature solid oxide fuel cells. Solid State Ion2008; 179: 282–289.
32.
ZhaoRRHungIMLiYT, et al.Synthesis and properties of Co-doped LiFePO4 as cathode material via a hydrothermal route for lithium-ion batteries. J Alloys Compd2012; 513: 282–288.
33.
SnijkersFMMBuekenhoudtACooymansJ,et al.Proton conductivity and phase composition in BaZr0.9Y0.1O3−δ. Scr Mater2004; 50: 655–659.
34.
ZhengMBoZ. Proton conductivity in Yb-doped strontium cerates. Solid State Ion1995; 80: 59–65.
35.
WuWCHuangJTChibaA. Synthesis and properties of samaria-doped ceria electrolyte for IT-SOFCs by EDTA-citrate complexing method. J Power Sources2010; 195: 5868–5874.
36.
FanLYangTLuanJH,et al.Control of discontinuous and continuous precipitation of γʹ-strengthened high-entropy alloys through nanoscale Nb segregation and partitioning. J Alloys Compd2020; 832: 154903.
37.
MohantyDHungJYChenYW, et al.Optimization and characterization of porous Ni/YSZ anode microstructure for solid oxide fuel cell. Ceram Int2025; 51: 22841–22848.
38.
GuJSunXJiangL, et al.Surface protonic conduction in porous alkaline earth zirconate perovskites CaZrO3, SrZrO3, and BaZrO3. J Mater Chem A2024; 12: 26555–26567.
39.
KhanMMMatussinSN. Sm2O3 and Sm2O3-based nanostructures for photocatalysis, sensors, CO conversion, and biological applications. Catal Sci Technol2022; 13: 2274–2290.
40.
XuJBianYTianW, et al.The structures and compositions design of the hollow micro-nano-structured metal oxides for environmental catalysis. Nanomaterials2024; 14: 1190.
41.
YangHHanifMBZhangSL, et al.Sintering behavior and electrochemical performance of A-site deficient SrxTi0.3Fe0·7O3−δ oxygen electrodes for solid oxide electrochemical cells. Ceram Int2021; 47: 25051–25058.
