Abstract

The object of this article is to design an observer-based adaptive neural network sliding mode controller for active suspension systems. A general nonlinear suspension model is established, and the electrohydraulic actuator dynamics are considered. The proposed controller is decomposed into two loops. Since the dynamics of the actuator is assumed highly nonlinear with uncertainties, the adaptive neural network is presented in the inner loop to ensure the control system robustness against uncertainties, and the self-tuning weighting vector is adjusted online according to the updated law obtained by Lyapunov stability theory. In the outer loop, a model reference sliding mode controller is developed to track the desired states of the hybrid reference model that combines skyhook and groundhook control methods. Besides, to obtain the unmeasured states of the system, an unscented Kalman filter is utilized to provide necessary information for the controller. Simulation results show that the exerted force can be tracked precisely even in the existence of uncertainties. Moreover, the proposed controller can improve the suspension’s performance effectively.

Keywords

Sliding mode control RBF neural network active suspension electrohydraulic actuator force tracking

Introduction

A general suspension system of vehicles consists of coil spring, shock absorber, guide agencies, and a series of mechanical linkages, which suspend vehicle body, transmit forces between vehicle body and wheels, and reduce vehicle body vibration.¹ The characteristics of vehicle suspension system are evaluated through riding comfort and handling stability. As the evaluation indicators of suspension system are contradictory with each other, passive suspension system with constant stiffness and damping parameters can hardly provide satisfactory performance under different driving conditions, including changing road conditions, vehicle speeds, and spring loads.² Active suspension systems have been thus introduced to improve suspension’s performance and achieve better control of the vehicle. The main components of active suspension systems are the implementing agencies, such as the hydraulic actuators and control strategies. Active suspension with hydraulic actuators can exert desired forces between sprung and unsprung masses.³

Many active control strategies have been proposed for vehicle systems during the past several decades, for example, linear quadratic regulation, H-infinity control, and adaptive control. Vu et al. designed an active controller through solving a linear optimal control problem based on linear quadratic regulator to improve the roll stability of heavy vehicles.⁴ An H-infinity and H-2 optimal controller was adopted by Shukla et al. to eliminate the vehicle vibration with various road inputs,⁵ and an adaptive estimation and control method was presented by Na et al.⁶ to guarantee transient and steady-state of suspension response. As real mechanical systems are highly nonlinear with parameter uncertainties,^7,8 accurate vehicle models are difficult to obtain, many different control techniques have been proposed. In Huang et al.,⁹ adaptive neural controller with adaptive law is used for the active front steering to reduce the response time and attenuate oscillatory steering in the corning condition under fast variant vehicle speed. A nonlinear backstepping scheme was developed by Lin and Huang¹⁰ to improve the inherent trade-off between ride quality and suspension travel. Fuzzy systems can deal with uncertain and nonlinear dynamics effectively and have been utilized for active suspensions.¹¹ Sliding mode control is also widely used in vehicle dynamics systems for its simple structure and powerful control effort.¹² As the traditional sliding mode controller (SMC) can hardly be applied to complicated systems with unknown parameters, many research studies focused on the combination of control algorithms for uncertain systems, for example, fuzzy sliding mode control,¹³ model-free sliding mode control,¹⁴ and fuzzy neural network control.¹⁵

For active suspension systems, the dynamics of the electrohydraulic actuator cannot be ignored. Hydraulic actuators can be considered as ideal force generators capable to track the target force accurately. However, due to inherent nonlinearities and measurement errors, the estimate of precise parameters of practical suspension system is difficult.¹⁶ Also, the modeling of hydraulic actuator is more complicated for the hydrodynamic parameters and is seriously influenced by many factors, such as oil viscosity, fluid flow speed, and temperature. Therefore, compared with traditional robust control, adaptive control theory with self-tuning ability is more suitable for active suspension systems. In this study, an adaptive neural network SMC is proposed for active suspension system with electrohydraulic actuator dynamics, and the closed-loop control system is decomposed into two loops. Due to the inherent nonlinearities and uncertainties of the hydraulic actuator model, a novel adaptive radial basis function neural network sliding mode controller (RBFNN-SMC) is utilized in the inner loop to keep the actuator force tracking the desired force trajectory. In comparison with the traditional multilayer feed-forward network, RBFNN avoids unnecessary and lengthy calculations and enhances the online control effect.^17

–20 Weighting update laws are derived by using the Lyapunov method, and the asymptotic convergence performance and stability of the controller can be guaranteed. For the outer loop, a hybrid reference model that combines the skyhook and groundhook control strategy is introduced and a reference SMC controller is developed. Considering the nonlinearities in the quarter-car suspension model, an unscented Kalman filter (UKF) is employed to provide the outer loop controller with necessary state variables information. Compared with the recent active suspension controller, the main contributions of this study are:

An adaptive RBFNN-SMC is utilized to track the desired actuator force.

UKF is used to estimate the state of active suspension system with nonlinearities, uncertainties, and external disturbances.

The effectiveness of the proposed controller is verified through simulations under random road excitation.

The rest of the article is organized as follows. Quarter vehicle model and electrohydraulic actuator model are presented in the second section. UKF is used to estimate the suspension state and the estimation process is described in the third section. The closed-loop controller of active suspension system is presented in the fourth section. Simulation results are discussed in the fifth section. Finally, in the sixth section concluding remarks and future works are outlined.

Problem description

Suspension model

A quarter vehicle model with active actuator is developed, as shown in Figure 1. m_b and m_t represent the sprung and unsprung mass, respectively, and k_t is the tire stiffness. The passive component of the suspension system consists of a linear damper c_s and a nonlinear spring F_s . The road profile x_r serves as a random input disturbance. x_b and x_t are the vertical displacement of sprung and unsprung masses, respectively. An electrohydraulic actuator is utilized to exert an active force F_a .

Figure 1.

Quarter vehicle model with active suspension.

The quarter active suspension can be modeled as

m_{b} {\ddot{x}}_{b} = - k_{s} (x_{b} - x_{t}) - δ k_{s} {(x_{b} - x_{t})}^{3} - c_{s} ({\dot{x}}_{b} - {\dot{x}}_{t}) + F_{a} m_{t} {\dot{x}}_{t} = k_{s} (x_{b} - x_{t}) + δ k_{s} {(x_{b} - x_{t})}^{3} + c_{s} ({\dot{x}}_{b} - {\dot{x}}_{t}) + F_{a} - k_{t} (x_{t} - x_{r})

where δ denotes the nonlinear part of the spring force.

Modeling: Electrohydraulic actuator

The electrohydraulic actuator system shown in Figure 2 consists of three subsystems, that is, controller, servo-valve, and hydraulic cylinder. Dynamics for the actuator is given as²¹

{\dot{F}}_{a} = - β F_{a} - α A^{2} ({\dot{x}}_{b} - {\dot{x}}_{t}) + γ A \sqrt{P_{s} - \frac{F_{a} sgn (x_{v})}{A} \cdot} x_{v}

where $β = α C_{t p}$ , $α = 4 β_{e} / V_{t}$ , $γ = α C_{d} ω \sqrt{1 / ρ}$ , A is piston rod area, V_t is volume of the actuator, $β_{e}$ denotes the effective bulk modulus, C_d is the piston leakage coefficient, ω is spool valve area gradient, ρ represents hydraulic fluid density, and P_s is hydraulic supply pressure. The differential pressure acts on the piston to provide the system with active force F_a .

Figure 2.

Diagram of the hydraulic actuator.

The servo-valve model is as

{\dot{x}}_{v} = \frac{1}{τ} (- x_{v} + K_{c} u)

where u is the control signal. The conversion gain K_c converts control voltage into the displacement of the sliding spool x_v . As the time constant τ is typically small, equation (3) can be translated into $- x_{v} + K_{c} u = 0$ . Therefore, equation (3) can be rewritten in a simplified form²²

{\dot{F}}_{a} = - β F_{a} - α A^{2} ({\dot{x}}_{b} - {\dot{x}}_{t}) + γ A K_{c} \sqrt{P_{s} - \frac{F_{a} sgn (x_{v})}{A}} \cdot u

Due to the inherent nonlinearity of the hydraulic system, estimation of accurate values of the system is difficult; moreover, some parameters are slowly time-varying. For better control performance, all uncertainties in equation (4) are lumped into unknown functions. Therefore, the dynamics for the hydraulic actuator can be simplified as

{\dot{F}}_{a} = f (x, t) + g (x_{v}, t) u

where $x = [{\dot{x}}_{b}, {\dot{x}}_{t}, x_{v}]$ , $f (x, t) = - β F_{a} - α A^{2} ({\dot{x}}_{b} - {\dot{x}}_{t})$ , and $g (x_{v}, t) = γ A K_{c} \sqrt{P_{s} - F_{a} sgn (x_{v}) / A}$ .

Assumption 1

The variation bound for $f (F_{a}, x, t)$ is unavailable.

Assumption 2

The variation bound for $g (x, t)$ is assumed to be limited ( $g_{min} \leq g (x, t) \leq g_{max}$ with some known values $g_{min}$ and $g_{max}$ for all t ≥ 0). The unknown bounded function $g (x, t)$ can be rewritten as $g (x, t) = g_{m} Δ g$ , where $Δ g$ is uncertainty ratio and g_m is a nominal value

0 < β_{min} = \frac{g_{min}}{g_{m}} \leq Δ g \leq \frac{g_{max}}{g_{m}} = β_{max}

UKF observer design

Most research studies focused on desired force control algorithms under the assumption that all suspension system states are measurable. Actually, because of the high cost or limitations of technology, some states are difficult to measure. Therefore, a state observer is necessary to identify the state information of the suspension system.²³ Since the extended Kalman filter is based on Taylor series expansion and linearizes the nonlinear system by keeping the first-order item, in case of severe system nonlinearities the estimation precision of the parameters is low. Based on unscented transform (UT) and statistical linearization technique, the UKF can improve estimate accuracy.

UT transformation

UT undergoes a nonlinear transformation by calculating the statistics of a random variable.²⁴ Assume state vector x has mean $\bar{x}$ and covariance P : choose sigma points $x^{(i)}$ (with corresponding weights $ω^{(i)}$ ) as follows

\{\begin{cases} x^{(0)} = \bar{x}, i = 0 \\ x^{(i)} = \bar{x} + {(\sqrt{(n + λ) P})}_{i}, i = 1, 2, ..., n \\ x^{(i)} = \bar{x} - {(\sqrt{(n + λ) P})}_{i}, i = n + 1, ..., 2 n \end{cases}

\{\begin{cases} ω_{m}^{(0)} = \frac{λ}{n + λ} \\ ω_{n}^{(0)} = \frac{λ}{n + λ} + (1 - α^{2} + β) \\ ω_{m}^{(i)} = ω_{n}^{(i)} = \frac{1}{2 (n + λ)}, i = 1, 2, ..., 2 n \end{cases}

where n represents the dimension of the state vector x , $λ = a^{2} (n + κ) - n$ is a scaling parameter. a determines the spread of the sigma points around the mean value $\bar{x}$ . κ is a scaling parameter that can guarantee $(n + λ) P$ positive definite. $β = 2$ is utilized to incorporate prior knowledge of the distribution of x

\hat{X} (k + 1| k) = \sum_{i = 0}^{2 n} ω_{n}^{(i)} X^{(i)} (k + 1| k)

Suspension state observation

The state vector x is defined as $x = {[x_{b} - x_{t}, x_{t} - x_{r}, {\dot{x}}_{b}, {\dot{x}}_{r}]}^{T}$ and the measurement vector y is chosen as $y = [{\ddot{x}}_{b}]$ . Therefore, the state-space model of the system can be written as

\begin{array}{l} \dot{x} = f (x) + B F_{a} + G w \\ y = h (x) + D F_{a} + v \end{array}

where $f (x)$ is the suspension force including spring and damping forces, $G = {[0, - 1, 0, 0]}^{T}$ . The derivation of the road profile $w = {\dot{x}}_{r}$ represents the process noise, which can be regarded as white noise with covariance Q . v is measurement noise with zero mean and covariance R .

The continuous-time suspension model of equation (9) can be rewritten in the discrete-time form

\begin{array}{l} x (k + 1) = (f (x) + B F_{a} + G w) Δ T + x (k) \\ y (k + 1) = (h (x) + D F_{a} + v) Δ T + y (k) \end{array}

where $Δ T$ is the sampling time.

The detailed computation algorithm of the UKF observer is presented in Table 1.

Table 1.

Computation algorithm of the UKF state observer.

(a) Calculate the prior state estimate

\hat{x} (k | k)

represents the state estimate at time k. The sigma points

x^{(i)} (k | k)

are chosen by UT method as follows

x^{(i)} (k | k) = [\begin{matrix} \hat{x} (k | k) & \hat{x} (k | k) + \sqrt{(n + λ) P (k | k)} & \hat{x} (k | k) - \sqrt{(n + λ) P (k | k)} \end{matrix}]

Sigma points are propagated through the nonlinear system

f (\cdot)

x^{(i)} (k + 1 | k) = f (x^{(i)} (k), u (k + 1), w (k + 1))

where

u (k + 1)

and

w (k + 1)

are the system control input and the process noise, respectively. Each vector

x^{(i)} (k + 1 | k)

is weighted by

ω_{m}^{(i)}

, a priori state estimate

\hat{x} (k + 1 | k)

and error covariance

P (k + 1 | k)

is obtained

\hat{x} (k + 1 | k) = \sum_{i = 1}^{2 n + 1} ω_{m}^{(i)} x^{(i)} (k + 1 | k)

P (k + 1 | k) = \sum_{i = 1}^{2 n + 1} ω_{c}^{(i)} [x^{(i)} (k + 1 | k) - \hat{x} (k + 1 | k)] {[x^{(i)} (k + 1 | k) - \hat{x} (k + 1 | k)]}^{T} + Q

where Q is process-noise covariance,

ω_{m}^{(i)}

and

ω_{c}^{(i)}

are the weights as calculated in equation (9).

(b) Calculate the a priori measurement

The sigma points

x^{(i)} (k + 1 | k)

are chosen by the UT method as follows

x^{(i)} (k + 1 | k) = [\begin{matrix} \hat{x} (k + 1 | k) & \hat{x} (k + 1 | k) + \sqrt{(n + λ) P (k + 1 | k)} & \hat{x} (k + 1 | k) - \sqrt{(n + λ) P (k + 1 | k)} \end{matrix}]

The sigma points

x^{(i)} (k + 1 | k)

are propagated through the nonlinear measurement equations

h (\cdot)

y^{(i)} (k + 1 | k) = h [x^{(i)} (k + 1 | k)]

The vector

y^{(i)} (k + 1 | k)

is weighted by

ω_{m}^{(i)}

\hat{y} (k + 1 | k) = \sum_{i = 1}^{2 n + 1} ω_{m}^{(i)} y^{(i)} (k + 1 | k)

K (k + 1)

P_{z_{k} z_{k}} = \sum_{i = 1}^{2 n + 1} ω_{c}^{(i)} [y^{(i)} (k + 1 | k) - \hat{y} (k + 1 | k)] {[y^{(i)} (k + 1 | k) - \hat{y} (k + 1 | k)]}^{T} + R

P_{x_{k} z_{k}} = \sum_{i = 1}^{2 n + 1} ω_{c}^{(i)} [x^{(i)} (k + 1 | k) - \hat{x} (k + 1 | k)] {[y^{(i)} (k + 1 | k) - \hat{y} (k + 1 | k)]}^{T}

K (k + 1) = P_{x_{k} z_{k}} P_{z_{k} z_{k}}^{- 1}

where R is measurement-noise covariance.

(d) Update the state estimate

\hat{x} (k + 1 |k + 1)

\hat{x} (k + 1 |k + 1) = \hat{x} (k + 1 | k) + K (k + 1) [y (k + 1) - \hat{y} (k + 1 | k)]

(e) Update the covariance

P (k + 1 |k + 1)

P (k + 1 |k + 1) = P (k + 1 | k) + K (k + 1) P_{z_{k} z_{k}} K^{T} (k + 1)

Controller design

Due to the influence of model nonlinearity, parameter uncertainty, and external disturbance, active suspension system with traditional controller can hardly obtain desired performance. To deal with this, an adaptive neural network SMC is proposed in this section. For the convenience of control, the control system can be divided into two loops: the outer loop that represents the desired force generator, and the inner loop indicates the subsystem that includes the hydraulic actuator. To guarantee the stability of the closed-loop controller and achieve satisfactory characteristic, a model reference sliding mode controller (MRSMC) is designed for control of the outer loop, and an adaptive neural network is employed in the inner loop to track the desired actuator force in the presence of disturbances and modeling errors. The diagram block of the designed adaptive controller is shown in Figure 3.

Figure 3.

The diagram of control algorithm.

Designing outer loop

As shown in Figure 4, the hybrid reference model that combines the skyhook and groundhook control strategy is selected as a reference for the MRSMC. The skyhook controller²⁵ is a comfort-oriented control strategy using a damper installed between the sprung mass and the skyhook to suppress sprung mass vibration. The groundhook control strategy, proposed by Valášek et al.,²⁶ is one of the typical road-holding-oriented control strategies. The hybrid reference model^27
–29 is preferred because trade-offs among riding comfort, handling stability, and packaging can be considered.

Figure 4.

Reference model.

The sprung mass motion in equation (1) can be rewritten as

\dot{x} = A x + B F_{a} + Γ z

where $x = [\begin{matrix} x_{b} \\ {\dot{x}}_{b} \end{matrix}]$ , $u = F_{a}$ , $z = [\begin{matrix} x_{t} \\ {\dot{x}}_{t} \end{matrix}]$ , $A = [\begin{matrix} 0 & 1 \\ - \frac{k_{s}}{m_{b}} & - \frac{c_{s}}{m_{b}} \end{matrix}]$ , $B = [\begin{matrix} 0 \\ - \frac{1}{m_{b}} \end{matrix}]$ , and $Γ = [\begin{matrix} 0 & 0 \\ \frac{k_{s}}{m_{b}} & \frac{c_{s}}{m_{b}} \end{matrix}]$ .

The controllable force of the hybrid reference model can be expressed by

F_{hydrid} = μ c_{hybrid} \cdot {\dot{x}}_{b r} + (1 - μ) c_{hybrid} \cdot {\dot{x}}_{t}

where $c_{sky} = μ c_{hybrid}$ and $c_{ground} = (1 - μ) c_{hybrid}$ . When μ is set to 1 or 0, the control strategy reduces to the pure skyhook or groundhook control methods, respectively.

The dynamics of the virtual reference model can be described by

{\dot{x}}_{S M C} = A_{S M C} x_{S M C} + Γ_{S M C} z_{r} + F_{hybrid}

where $x_{S M C} = [\begin{matrix} x_{b r} \\ {\dot{x}}_{b r} \end{matrix}]$ , $F_{n} = \frac{δ k_{s}}{m_{b}} {(x_{b} - x_{t})}^{3}$ , $z_{r} = [\begin{matrix} x_{t} \\ {\dot{x}}_{t} \end{matrix}]$ . $A_{S M C} = [\begin{matrix} 0 & 1 \\ - \frac{k_{s}}{m_{b}} & - \frac{c_{s} + μ c_{hybrid}}{m_{b}} \end{matrix}]$ , $Γ_{S M C} = [\begin{matrix} 0 & 0 \\ \frac{k_{s}}{m_{b}} & \frac{c_{s} + (1 - μ) c_{hybrid}}{m_{b}} \end{matrix}]$ .

The SMC, a high-robustness system control technique, forces the state-trajectory toward a designed sliding surface by applying a discontinuous control signal. According to the motion equations of the suspension model and reference model, the tracking error can be defined as

e = {[x_{b} - x_{b r}, {\dot{x}}_{b} - {\dot{x}}_{b r}]}^{T}

Choosing the sliding surface as

s = λ e

where $λ = [λ_{1}, 1]$ must satisfy Hurwitz condition, $λ_{1} > 0$ . The derivate of the sliding surface s along with equation (11) is

\dot{s} = λ \dot{e} = λ_{1} e_{1} - F_{s} - Δ F_{s} - M \cdot F_{a} - Δ M \cdot F_{a} - {\ddot{x}}_{b r}

where $F_{s} = [k_{s} (x_{b} - x_{t}) + δ k_{s} {(x_{b} - x_{t})}^{3} + c_{s} ({\dot{x}}_{b} - {\dot{x}}_{t})] / m_{b}$ , $M = 1 / m_{b}$ , $Δ M \cdot M^{- 1} < 1$ . $Δ F_{s}$ and $Δ M$ represent the system and vehicle mass perturbations, respectively. Let $\dot{s} = 0$ and the equivalent control law is designed as

u_{e q} = M^{- 1} (λ_{1} e_{1} - F_{s} - {\ddot{x}}_{b r})

To guarantee that the system state asymptotically switches to the sliding surface,³⁰ the SMC controller includes the equivalent control and the switching control law

F_{d} = u_{e q} + M^{- 1} ϕ sgn (s)

where $ϕ sgn (s)$ represents constant rate reaching law. ϕ is positive constant and $sgn (\cdot)$ is sign function. Design the following Lyapunov function as $V = s^{2} / 2$ . To guarantee the stability of the RMSMC, the condition $\dot{V} < 0$ should be satisfied. So ϕ for robust stability is as

ϕ \geq \frac{{|Δ F_{s}|}_{max} + {|Δ M M^{- 1} F_{a}|}_{max}}{1 - {|Δ M M^{- 1}|}_{max}}

Designing inner loop

As shown in Figure 5, the RBFNN approximates the uncertainties in the simplified dynamic model of the hydraulic actuator and the SMC gives asymptotic convergence characteristic of the tracking error. Control voltage u is calculated by the control algorithm.

Figure 5.

The diagram of force tracking controller.

Lemma 1

Let $f (x)$ be an unknown function representing the system’s uncertainty required to approximate.³¹ Based on linearly parameterized approximation theory, the online approximation of $f (x)$ can be written as

f (x) = W^{T} h (x) + ε (x)

where $W = {[w_{1}, w_{2}, ..., w_{n}]}^{T}$ is an unknown weight vector and $ε (x)$ represents network reconstruction error. N is the total number of neurons. $h (x) = {[h_{1} (x), h_{2} (x), ..., h_{n} (x)]}^{T}$ is RBFs vector, and ith basis function unit, denoted by $h_{i} (x)$ , is a Gaussian function given by

h_{i} (x) = exp [- \frac{{‖x (t) - μ_{i}‖}^{2}}{2 σ_{i}^{2}}], i = 1, 2, ..., m

where x is an m-dimensional input vector. $μ_{i}$ and $σ_{i}$ represent the center and variance of the Gaussian function.

Based on RBFNN described above, a novel adaptive RBFNN-SMC for the electrohydraulic actuator system is developed in the inner loop. Consider the desired force as the tracking target, define the sliding surface as

s = F_{d} - F_{a}

The derivation of the sliding surface can be calculated as

\dot{s} = {\dot{F}}_{d} - {\dot{F}}_{a}

Substituting equation (5) into equation (22)

\begin{matrix} \dot{s} = {\dot{F}}_{d} - f (F_{a}, x, t) - g (x, t) u \\ = {\dot{F}}_{d} - f (F_{a}, x, t) - g_{m} u - g_{m} (Δ g - 1) u \end{matrix}

By selecting exponential reaching law, the control voltage u can be obtained

u = \frac{1}{g_{m}} [- \hat{f} (x) + {\dot{F}}_{d} + η_{1} s + η_{2} sgn (s)]

Substituting equation (29) into equation (28) gives

\begin{array}{l} \dot{s} = - (f (F_{a}, x, t) - \hat{f} (F_{a}, x, t)) - η_{1} s - η_{2} sgn (s) - g_{m} (Δ g - 1) u \\ = - \tilde{f} (F_{a}, x, t) - η_{1} s - η_{2} sgn (s) - g_{m} (Δ g - 1) u \end{array}

where $\tilde{f} (F_{a}, x, t) = f (F_{a}, x, t) - \hat{f} (F_{a}, x, t)$ . $\tilde{f} (F_{a}, x, t)$ is assumed to be an unknown bounded function and satisfies Dirichlet conditions. Therefore, the RBFNN can represent $\tilde{f} (F_{a}, x, t)$ as

\tilde{f} (F_{a}, x, t) = {\tilde{W}}_{f} h_{f} + ε_{f}

where ${\tilde{W}}_{f} = W_{f}^{*} - {\hat{W}}_{f}$ . According to these representations, equation (31) can be written as

\dot{s} = - {\tilde{W}}_{f} h_{f} - η_{1} s - η_{2} sgn (s) - g_{m} (Δ g - 1) u + ε_{f}

To prove the stability of this control system and to find the update laws for ${\dot{\hat{W}}}_{f}$ , Lyapunov functions candidate can be chosen as

V = \frac{1}{2} s^{2} + \frac{1}{2 γ_{f}} {\tilde{W}}_{f}^{T} ​_{​} {\tilde{W}}_{f}

where $γ_{f}$ is a positive constant. The time derivative of equation (29) is as

\begin{array}{l} \dot{V} = s \dot{s} + \frac{1}{γ_{f}} {\tilde{W}}_{f}^{T} {\dot{\hat{W}}}_{f} \\ = {\tilde{W}}_{f} (s h_{f} + \frac{1}{γ_{f}} {\dot{\hat{W}}}_{f}) - η_{1} s^{2} - η_{2} |s| - s (- g_{m} (Δ g - 1) u + ε_{f}) \end{array}

Therefore, the updated law can be given as

{\dot{\hat{W}}}_{f} = - γ_{f} s h_{f}

Hence, $\tilde{f} (F_{a}, x, t)$ can be approximated by

\hat{f} (F_{a}, x, t) = {\hat{W}}_{f} h_{f}

Then, it may be concluded that

\dot{V} = - η_{1} s^{2} - η_{2} |s| - s (- g_{m} (Δ g - 1) u + ε_{f})

To satisfy $\dot{V} \leq 0$ , it must be $- η_{2} |s| - s (- g_{m} (Δ g - 1) u + ε_{f}) \geq 0$ . Hence, $η_{2}$ can be chosen with condition $η_{2} \geq |ε_{f}| + g_{m} (β_{max} - 1) u_{max}$ , $u_{max}$ represents maximum output force of the hydraulic actuator, and $β_{max}$ is upper limit of $Δ g$ . Then, it can be concluded that

\dot{V} \leq - η_{1} s^{2} \leq 0

therefore, $s, {\tilde{W}}_{f} \in L_{\infty}$ and $\int_{0}^{\infty} s^{2} d t \leq - η_{1} \int_{0}^{\infty} \dot{V} d t < \infty$ implies $s \in L_{2}$ . Also, equation (28) implies that $\dot{s} \in L_{\infty}$ . Hence, by Barbalat lemma, asymptotic convergence of s can be concluded. This further implies that the force’s tracking error eventually converges to zero.

Remark

In practical engineering systems, a large value of ϕ leads to fast switching of SMC, which causes severe chattering. To suppress chattering during the switch control of SMC, an improved discontinue control law is proposed³²

sat (s) = \{\begin{matrix} 1, & s > σ \\ k \cdot s, & |s| \leq σ \\ - 1 & s < - σ \end{matrix}

where $k = 1 / σ$ and σ is positive constant, namely “boundary layer.” The replacement of $sgn (\cdot)$ with $sat (\cdot)$ does not affect the stability of the inner and outer loop controllers.

UKF is a kind of feedback observer. According to the separation principle,³³ it will not change the controllability and observability of the system. So, the controller and observer can be designed independently. In addition, since the convergence speed of the observer is much higher than that of the controller, the closed-loop control system is stable when the UKF converges.

Simulations

The control goal of active suspension system is to improve riding comfort while maintaining constant contact between tires and road surface. Riding comfort and road holding are measured by sprung mass acceleration and tire deflection, respectively. To evaluate the effectiveness of the designed controller, two typical road profiles are considered: random road excitation and bump road excitation. Performance analysis of skyhook (μ = 1) and hybrid (μ = 0.58) control strategies on active suspension systems are carried out. Suspension model parameters and actuator parameters are listed in Table 2, and the controller parameters are given in Table 3.

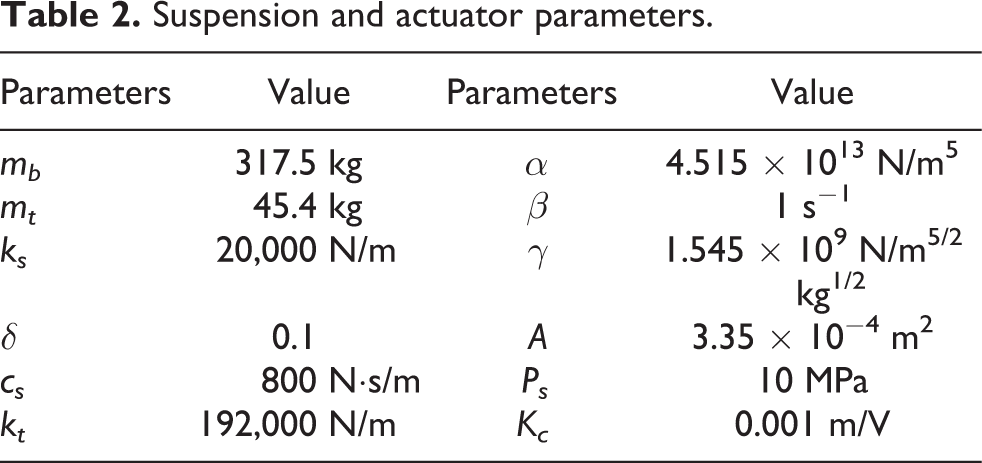

Table 2.

Suspension and actuator parameters.

Parameters	Value	Parameters	Value
m_b	317.5 kg	α	4.515 × 10¹³ N/m⁵
m_t	45.4 kg	β	1 s⁻¹
k_s	20,000 N/m	γ	1.545 × 10⁹ N/m^5/2kg^1/2
δ	0.1	A	3.35 × 10⁻⁴ m²
c_s	800 N·s/m	P_s	10 MPa
k_t	192,000 N/m	K_c	0.001 m/V

Table 3.

Controller parameters.

Parameters	Value	Parameters	Value
μ	1/0.58	$η_{1}$	3000
$c_{hybrid}$	1500 N(m/s)	$η_{2}$	200
$λ_{1}$	50	$σ_{i}$	30
$γ_{f}$	10⁷	$μ_{i}$	$100 * [- 1 - 0.5 0 0.5 1]$

Random road excitation

The model of the road roughness in the time domain can be deduced by integrated Gaussian white noise as³⁴

\dot{q} (t) = 2 π n_{0} \sqrt{G_{q} (n_{0}) u (t)} w (t) - 2 π n_{00} u (t) q (t)

among which w(t) is Gauss white noise; n ₀₀ = 0.011 is cutoff space frequency; n ₀ = 0.1 m⁻¹ represents the reference spatial frequency; G_q (n₀ ) is the road roughness level, which is chosen as 512e−6; u = 20 m/s is vehicle velocity. The profile of single wheel excitation is plotted in Figure 6.

Figure 6.

Time history of single wheel disturbance input.

The curves of estimated sprung mass velocity and unsprung mass velocity are shown in Figure 7(a) and (b). From the figures, it can be concluded that the UKF state observer can estimate the system states effectively under random road excitation.

Figure 7.

The estimation results of state parameters under random road excitation. The estimate of (a) sprung mass velocity and (b) unsprung mass velocity.

To further evaluate the observation effect of UKF, quantitative analysis of signal processing results is carried out using the following tracking performance evaluation criteria³⁵

accuracy = [1 - \frac{\sqrt{\sum_{k = 1}^{N} {(x (k) - \hat{x} (k))}^{2}}}{\sqrt{\sum_{k = 1}^{N} {(x (k))}^{2}}}] \times 100 %

where x is the true value, $\hat{x}$ is the corresponding observed value, and N denotes the total number of elements in the sample. The observation accuracy of sprung and unsprung mass velocities is 87.36% and 85.96%, respectively.

The dynamic responses of sprung mass acceleration, suspension deflection, and tire deflection with random road excitation are plotted in Figure 8(a) to (c).

Figure 8.

Time history of single wheel random disturbance input. (a) Sprung mass vertical acceleration, (b) suspension deflection, and (c) tire deflection under random road excitation.

From Figure 8(a), it can be seen that the impact from random road disturbance on sprung mass’s vertical acceleration is smaller using skyhook and hybrid controller compared with passive suspension, and the root mean square (RMS) value of vertical acceleration is about 40% and 25% smaller than the passive system. In Figure 8(b), the RMS values of suspension deflection with skyhook and hybrid controller are 0.0015 and 0.0016, respectively, which are all smaller than the passive case in which RMS value is of 0.0023. The RMS value of tire deflection with hybrid controller is 0.000853, which is smaller than the passive model with 0.00089 and skyhook controller with 0.001.

Figure 9(a) to (c) compares the PSD of sprung mass motion, suspension stroke, and tire deflection under random road excitation.

Figure 9.

Suspension performance comparisons under random road excitation. The power spectral density (PSD) comparison of (a) sprung mass acceleration, (b) tire deflection, and (c) suspension deflection.

From the time domain and frequency domain results of the controller, it can be indicated that both skyhook and hybrid controller can achieve better riding comfort of the vehicle. However, the pure skyhook only focusing on ride comfort, the handling performance is seriously deteriorated. The hybrid control strategy achieves satisfactory control effects in improving the riding comfort and handling stability.

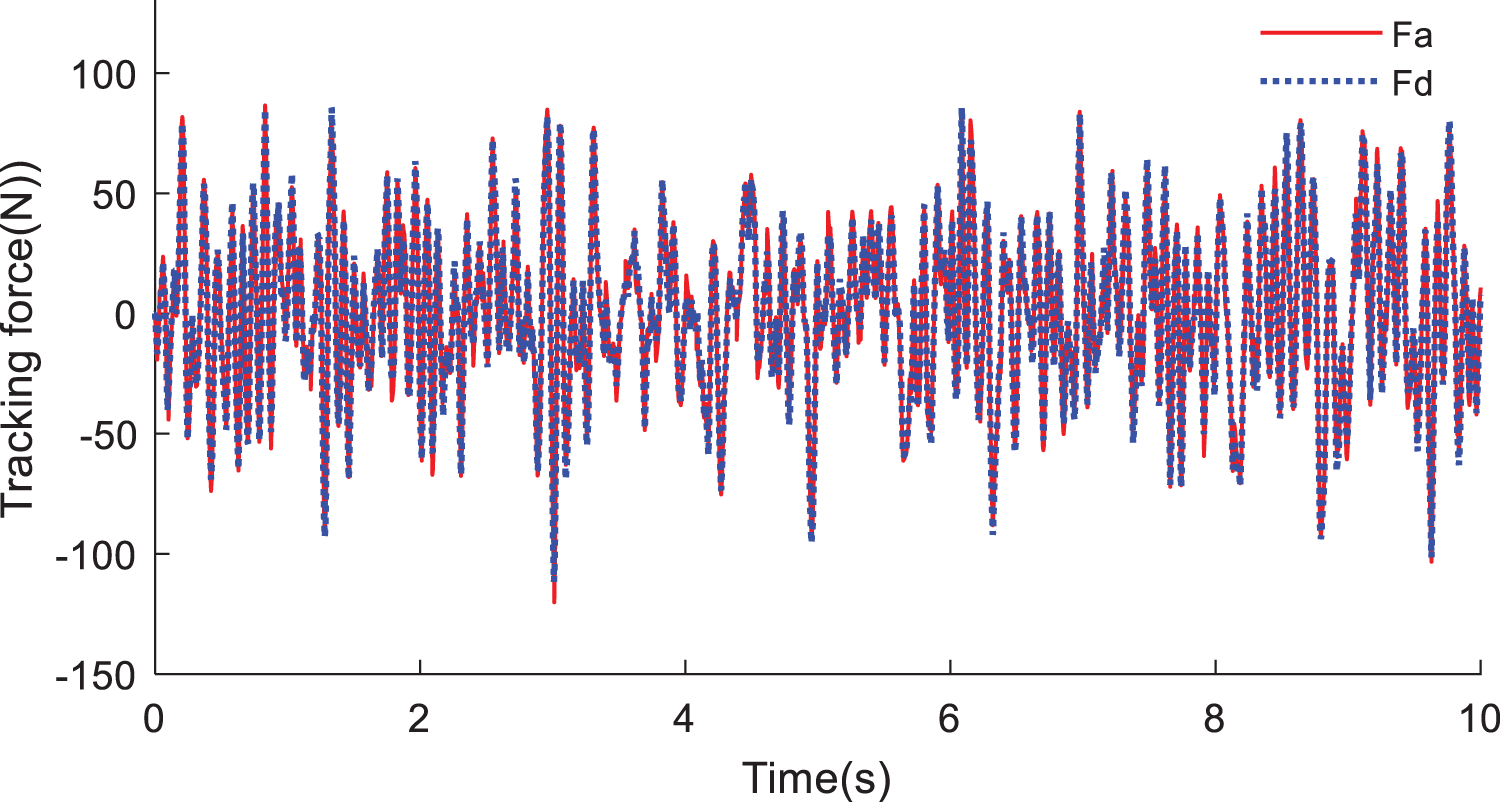

Figure 10 shows that the control force generated by the hydraulic actuator can follow the hybrid control force ideally despite the existence of uncertainties. Figure 11 plots the approximation characteristic of the unknown function $f (x, t)$ . Although the estimated result of $f (x, t)$ does not converge to the real value, it still bounded and does not affect the force tracking performance.

Figure 10.

Force tracking performance.

Figure 11.

Approximation of the unknown function $f (x, t)$ .

Bump road excitation

A single bump excitation is considered in this section, and the model of the road excitation can be written as

x_{bump} (t) = \{\begin{cases} 0.5 h [1 + sin (\frac{2 π v}{l} t)] & t_{1} \leq t \leq t_{h} \\ 0 & otherwise \end{cases}

where h = 0.005 m and l = 2.5 m are the height and length of the bump, respectively, and v = 20 km/h is the vehicle speed. The time history of the bump profile is plotted in Figure 12.

Figure 12.

Time history of bump road profile.

The control results of sprung mass vertical acceleration, suspension deflection, and tire deflection over a bumpy terrain are plotted in Figure 13(a) to (c). Compared with passive suspension, sprung mass acceleration and suspension deflection shown in Figure 13(a) and (b) can attenuate faster with both skyhook and hybrid controllers. The peak value of sprung mass acceleration with skyhook controller is significantly lower than that of hybrid controller and passive model. RMS value of the sprung mass acceleration is of 0.3788, 0.5448, and 0.823 for skyhook, hybrid, and passive system, respectively. The maximum tire deflection value of hybrid controller shown in Figure 13(c) is smaller than that of skyhook and passive suspension, and the RMS values of skyhook, hybrid, and passive system are 0.00049, 0.0012, and 0.0014, respectively.

Figure 13.

Time history of single wheel bump disturbance input. (a) Sprung mass vertical acceleration, (b) suspension deflection, and (c) tire deflection under bump road excitation.

From the above simulation result, the proposed hybrid controller can achieve better performance in reducing the sum of acceleration, providing adequate rattle space while keeping the wheel in constant contact with the road surface. In addition, since the changes in road profile are often sudden, after a short reaction time, active suspensions with the proposed controller can achieve better ride comfort and handling stability as evidenced by Figure 13.

Conclusions and future work

In this article, to improve the vehicle vertical performance, an adaptive neural network SMC is proposed to provide the optimal control force for the active suspension system. A hybrid reference model that combines skyhook and groundhook control strategies is designed for the outer loop of the controller. By using an adaptive RBFNN-SMC, the inner loop focuses on solving the problem of force tracking of the electrohydraulic actuator system with time-varying uncertainties. Meanwhile, considering that not all state information can be measured by sensors directly, a UKF observer is designed. The simulation results demonstrate that, by using the adaptive RBFNN-SMC, electrohydraulic actuator force can follow the hybrid control force ideally despite the existence of uncertainties. Moreover, a good balance between the riding and handling performance is achieved by using the proposed hybrid control strategy.

In the future works, the influence of in-wheel motor on vehicle vertical vibration will be considered, and critical test conditions will be applied. Besides, the longitude and lateral influence will also be taken into account.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Jinwei Sun

References

Rajamani

. Vehicle dynamics and control. New York: Springer, 2006.

Sharp

Crolla

. Road vehicle suspension system design—a review. Veh Syst Dyn 1987; 16: 167–192.

Brezas

Smith

. Linear quadratic optimal and risk-sensitive control for vehicle active suspensions. IEEE Trans Control Syst Technol 2014; 22(2): 543–556.

Sename

Dugard

, et al. Enhancing roll stability of heavy vehicle by LQR active anti-roll bar control using electronic servo-valve hydraulic actuators. Veh Syst Dyn 2017; 55(9): 1405–1429.

Shukla

Ghodki

Manjarekar

, et al. A study of H infinity and H2 synthesis for active vibration control. IFAC-PapersOnLine 2016; 49(1): 623–628.

Huang

, et al. Active adaptive estimation and control for vehicle suspensions with prescribed performance. IEEE Trans Control Syst Technol 2017; 26(6): 2063–2077.

Meda-Campaña

. On the estimation and control of nonlinear systems with parametric uncertainties and noisy outputs. IEEE Access 2018; 6: 31968–31973.

Aquino

Rubio

JDJ

Pacheco

, et al. Novel nonlinear hypothesis for the delta parallel robot modeling. IEEE Access 2020; 8: 46324–46334.

Huang

Wong

, et al. Adaptive neural control of vehicle yaw stability with active front steering using an improved random projection neural network. Veh Syst Dyn 2019: 1–19.

10.

Lin

Huang

. Nonlinear backstepping active suspension design applied to a half-car model. Veh Syst Dyn 2004; 42(6): 373–393.

11.

Zhang

. Fuzzy control for nonlinear uncertain electrohydraulic active suspensions with input constraint. IEEE Trans Fuzzy Syst 2008; 17(2): 343–356.

12.

Liang

Zhao

Dong

, et al. Torque vectoring and rear-wheel-steering control for vehicle’s uncertain slips on soft and slope terrain using sliding mode algorithm. IEEE Trans Veh Technol 2020; 69(4): 3805–3815.

13.

Wong

P K

Zhao

, et al. Cornering stability control for vehicles with active front steering system using TS fuzzy based sliding mode control strategy. Mech Syst Signal Process 2019; 125: 347–364.

14.

Lian

. Enhanced adaptive self-organizing fuzzy sliding-mode controller for active suspension systems. IEEE Trans Ind Electron 2012; 60(3): 958–968.

15.

Lin

Lian

. Intelligent control of active suspension systems. IEEE Trans Ind Electron 2010; 58(2): 618–628.

16.

Chen

Huang

. Adaptive sliding control of active suspension systems with uncertain hydraulic actuator dynamics. Veh Syst Dyn 2006; 44(5): 357–368.

17.

de Jesús Rubio

. SOFMLS: online self-organizing fuzzy modified least-squares network. IEEE Trans Fuzzy Syst 2009; 17(6): 1296–1309.

18.

Chiang

Chen

Huang

. Wavelet-based EEG processing for epilepsy detection using fuzzy entropy and associative Petri net. IEEE Access 2019; 7: 103255–103262.

19.

Elias

Rubio

Cruz

, et al. Hessian with mini-batches for electrical demand prediction. Appl Sci 2020; 10(6): 2036.

20.

Ashfahani

Pratama

Lughofer

, et al. DEVDAN: deep evolving denoising autoencoder. Neurocomputing 2019; 390: 297–314.

21.

Yao

Jiao

. Extended-state-observer-based output feedback nonlinear robust control of hydraulic systems with backstepping. IEEE Trans Ind Electron 2014; 61(11): 6285–6293.

22.

Chantranuwathana

Peng

. Adaptive robust force control for vehicle active suspensions. Int J Adapt Control Signal Process 2004; 18(2): 83–102.

23.

Wang

Dong

Qin

, et al. Suspension system state estimation using adaptive Kalman filtering based on road classification. Veh Syst Dyn 2017; 55(3): 371–398.

24.

Wang

Liu

. Unscented Kalman filter-trained neural networks for slip model prediction. PloS One 2016; 11(7): e0158492.

25.

Karnopp

Crosby

Harwood

. Vibration control using semi-active force generators. J Eng Ind 1974; 96(2): 619–626.

26.

Valášek

Novak

Šika

, et al. Extended ground-hook—new concept of semi-active control of truck’s suspension. Veh Syst Dyn 1997; 27(5–6): 289–303.

27.

Assadsangabi

Eghtesad

Daneshmand

, et al. Hybrid sliding mode control of semi-active suspension systems. Smart Mater Struct 2009; 18(12): 125027.

28.

Qin

Zhao

Wang

, et al. Comprehensive analysis for influence of controllable damper time delay on semi-active suspension control strategies. J Vib Acoust 2017; 139(3): 12.

29.

Qin

Dong

Langari

, et al. Adaptive hybrid control of vehicle semiactive suspension based on road profile estimation. Shock Vib 2015; 2015: 1–13. DOI: 10.1155/2015/636 739.

30.

Zhang

Wang

Zhang

, et al. Semi-active sliding mode control of vehicle suspension with magneto-rheological damper. Chin J Mech Eng 2015; 28(1): 63–75.

31.

Cho

Wang

. Radial basis function based adaptive fuzzy systems and their applications to system identification and prediction. Fuzzy Sets Syst 1996; 83(3): 325–339.

32.

Lee

Utkin

. Chattering suppression methods in sliding mode control systems. Annu Rev Control 2007; 31(2): 179–188.

33.

Atassi

Khalil

. A separation principle for the stabilization of a class of nonlinear systems. IEEE Trans Autom Control 1999; 44(9): 1672–1687.

34.

Qin

Langari

Wang

, et al. Road excitation classification for semi-active suspension system with deep neural networks. J Intell Fuzzy Syst 2017; 33(3): 1907–1918.

35.

Chang

Lin

. Input forces estimation of beam structures by an inverse method. J Sound Vib 2003; 259(2): 387–407.

Adaptive neural network sliding mode control for active suspension systems with electrohydraulic actuator dynamics

Abstract

Keywords

Introduction

Problem description

Suspension model

Modeling: Electrohydraulic actuator

Assumption 1

Assumption 2

UKF observer design

UT transformation

Suspension state observation

Controller design

Designing outer loop

Designing inner loop

Lemma 1

Remark

Simulations

Random road excitation

Bump road excitation

Conclusions and future work

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
