Abstract

A fixed time robust control method is presented for trajectory tracking control of quadrotor systems with motor dynamics in the presence of unmodeled disturbances and external disturbances. The recommended control method avoids the negative effect to the quadrotor system caused by motor dynamic which is considered as first-order dynamic with dynamic disturbance. And fixed time extended state observer is adopted to estimate the composite disturbances and obtain the first and second derivative of desired trajectory and virtual control. Together with fixed time convergence control method, the stability and convergence characteristics of quadrotor system can be guaranteed. Finally, several simulations prove the effectiveness of the novel method with different time constants of motor dynamics.

Keywords

Quadrotor UAV fixed time convergence control motor dynamics composite disturbances fixed time extended state observer

Introduction

In recent years, due to the significant characteristics of quadrotor in maneuverability, hovering, low-cost manufacturability, and vertical taking off and landing, the quadrotor has attracted a lot of attention. It is widely applied in military and civilian areas, such as monitoring, security, surveillance, and film production. In severe environment, quadrotors are difficult to be controlled by flight control manipulator. Thus, it needs to design a trajectory tracking controller to provide the automation of task operation.

Some robust control methods have been proposed for high-order complicate systems.^1

–4 However, for quadrotor, the position and attitude are controlled by the four motors which lead to the under-actuation, strongly coupled, and nonlinear of quadrotor. As a result, the control of quadrotor is more difficult and complicated than other flight. At first, the significant challenge is to ensure the stability and convergence characteristic of quadrotor. In recent years, advanced control methods have been applied in the field of quadrotor, such as sliding mode control,^5
–7 backstepping control,^8,9 and dynamic inversion.^10,11 Due to the excellent stability of sliding mode control method, it is widely used in the quadrotor control. Fuyang Chen et al.¹² propose a robust nonlinear controller with sliding mode control method and backstepping control technique. Zhenyue Jia et al.¹³ designe a nonlinear control method with integral back stepping with the sliding mode control to stabilize the quadrotor attitude and to track the desired trajectory. Yang and Yan¹⁴ proposed an adaptive fuzzy gain-scheduling sliding mode control approach for attitude regulation of quadrotor. Otherwise, to improve the convergence rate of quadrotor, finite time convergence method is used in the control of quadrotor. Wenwu Zhu et al.¹⁵ proposed a finite time controller for the quadrotor aircraft to achieve hovering control in a finite time. S Harshavarthini et al.¹⁶ proposed a finite time reliable control method for nonlinear quadrotor attitude dynamic model. Furthermore, on the basis of finite time convergence theory, Ai and Yu¹⁷ proposed a flatness-based finite time sliding mode control method which the finite time do not depend on the system state to address the trajectory tracking problem.

The quadrotor is influenced by unmodeled disturbance such as aerodynamic effects and inertial torques during flight. Besides, the external disturbance should be considered in the design procedures of quadrotor. The robustness of quadrotor control has attracted a lot of attention. To guarantee the robustness of systems, some methods have been developed, such as disturbance observer^18,19 and extended state observer (ESO).²⁰ In the above method, ESO is able to estimate the disturbance that has adverse effects on the output by merely using model information.²¹ And it is also widely used in quadrotor control to compensate the adverse impact to the system caused by disturbance.^22

–26 Xingling Shao et al.²⁷ present an ESO-based robust dynamic surface trajectory tracking controller for a quadrotor subject to parametric uncertainties and external disturbances. ESO is constructed to estimate online the unmeasurable velocity states and lumped disturbances. An attitude control problem is addressed for a quadrotor with modeling uncertainties and unknown disturbances,²⁸ and ESO is constructed to provide the estimation of the composite disturbances. Di Shi et al.²⁹ address the problem of high-precision attitude control for quadrotor, in which the enhanced ESO is constructed based on the super-twisting algorithm to estimate and attenuate the impact of wind gust and actuator faults in finite time. From recent lecture of the quadrotor control with ESO, ESO is always conducted to estimate the disturbance of quadrotor system and first derivative of state. However, the convergence characteristics of ESO is rarely considered in this research.

Besides including the existing robust trajectory tracking problem of quadrotor system, most of them are designed based on the assumption that the four motors have zero time delay, but in fact, it is not established. In real applications, the parameters of motor are designed to satisfy the requirement of control system. Once motor dynamic cannot meet the requirement, the control system should be redesigned which increases the design cycle and improves the difficulty of quadrotor control design.

In this article, taking the motor dynamics into consideration, a robust fixed time controller with motor dynamic (MDRFTC) is proposed for tracking trajectory problem. Compared with most of the existing sliding mode control methods employed to control quadrotor, the main contribution of this article is summarized as follows:

A novel method to obtain the multiple differential of system state is presented which not only avoid the problem of “explosion of complexity” but also guarantees the fixed time convergence characteristic. And the method is used to obtain the first derivative and second derivative of the desired trajectory and the virtual control command.

Based on fixed time convergence control method and fixed time ESO, a novel robust fixed time trajectory tracking controller with motor dynamics is presented in this article. The proposed controller can avoid the adverse impact on the quadrotor system caused by the mismatch between the quadrotor controller and motor dynamics. Therefore, the proposed controller is significantly different from the existing control approaches, whose motor dynamics are not considered in the design procedure of quadrotor control.

The remainder of this article is organized as follows. The dynamic model of the quadrotor is presented in the second section. The third section describes the development of the robust fixed time controller with motor dynamics based on fixed time ESO and the stability analysis in detail. The simulation examples to demonstrate the validity of the proposed controller are carried out in the fourth section. Finally, conclusions are drawn at the end of this article in the fifth section.

Dynamic model of quadrotor

The typical quadrotor consists of four motors and the structure of quadrotor is shown in Figure 1. The mathematical of the quadrotor has been already addressed in the literature.³⁰ In this section, a brief description of the quadrotor is presented.

Figure 1.

Structure of the quadrotor with body coordinate and the inertia frames.

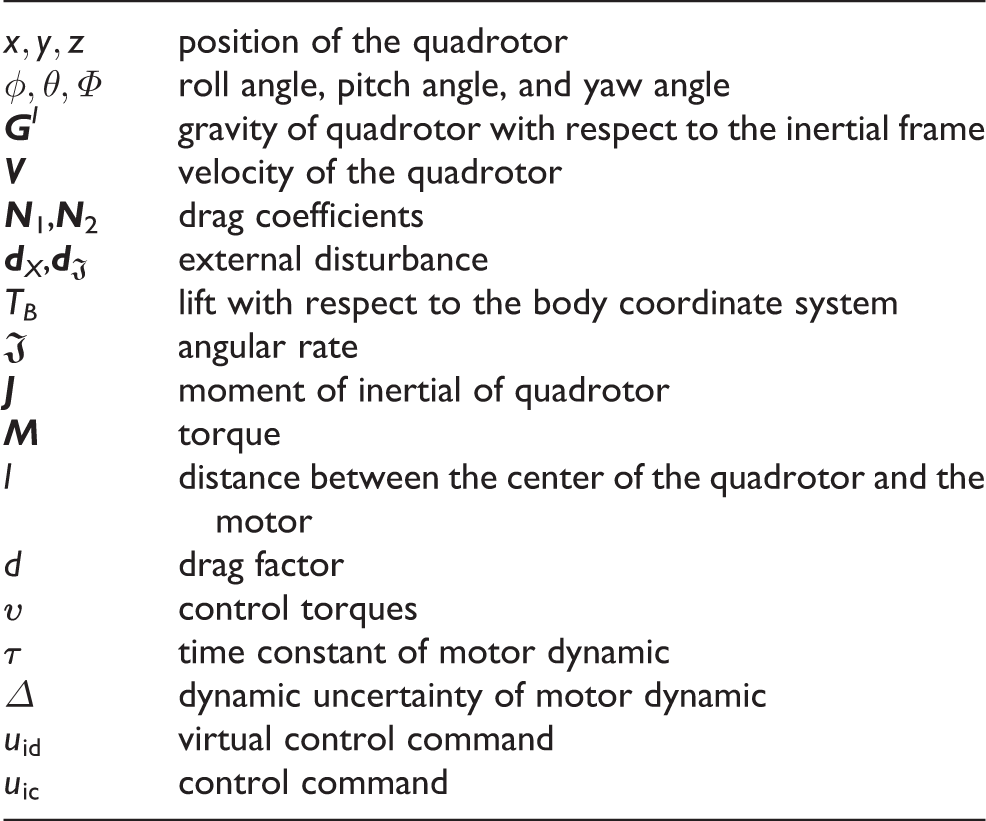

To describe the space motion state of the quadrotor, the inertial frame $O_{I} [O_{i} x_{i} y_{i} z_{i}]$ and a set of body coordinate system $O_{B} [O_{b} x_{b} y_{b} z_{b}]$ are defined. Then, let $X = [x, y, z]$ denote the position of the quadrotor and the $κ = [ϕ, θ, Φ]$ denote the roll angle, pitch angle, and yaw angle. So, the quadrotor model can be split into translational dynamic subsystem and rotational dynamic subsystem.

The translational dynamic subsystem can be expressed by the following equation

\dot{V} = \frac{R_{B}^{I} T_{B}}{m} + \frac{G^{I}}{m} - \frac{N_{1} V}{m} + d_{X}

where m is the quadrotor mass. $G^{I} = {[0, 0, - m g]}^{T}$ denotes the gravity of quadrotor with respect to the inertial frame. $V = {[\dot{x}, \dot{y}, \dot{z}]}^{T}$ denotes the velocity of the quadrotor. $N_{1} = {[k_{1}, k_{2}, k_{3}]}^{T}$ is the drag coefficients. $d_{X} = {[d_{x}, d_{y}, d_{z}]}^{T}$ is the external disturbance. $T_{B} = {[0, 0, u_{1}]}^{T}$ is the lift with respect to the body coordinate system, in which $u_{1} = \sum_{i = 1}^{4} f_{i}^{2}$ , $f_{i}, i = 1, 2, 3, 4$ means the force produced by the motor. $R_{B}^{I}$ means the rotation matrix from the body coordinate system to the inertial frame with

R_{B}^{I} = [\begin{matrix} cos Φ cos θ & cos Φ sin θ sin ϕ - sin Φ cos ϕ & cos Φ sin θ cos ϕ + sin Φ sin ϕ \\ sin Φ cos θ & sin Φ sin θ sin ϕ + cos Φ cos ϕ & sin Φ sin θ cos ϕ - cos Φ sin ϕ \\ - sin θ & cos θ sin ϕ & cos θ cos ϕ \end{matrix}]

The rotational dynamic subsystem can be expressed by the following equation

\dot{J} = \frac{- J \times J J}{J} + \frac{M}{J} - \frac{N_{2} J}{J} + d_{J}

where $J = [\dot{ϕ}, \dot{θ}, \dot{Φ}]$ means the angular rate. $J \times J J = {[\dot{θ} \dot{Φ} (I_{y} - I_{z}), \dot{ϕ} \dot{Φ} (I_{z} - I_{x}), \dot{ϕ} \dot{θ} (I_{x} - I_{y})]}^{T}$ . $J = diag (I_{x}, I_{y}, I_{z})$ represents the moment of inertial of quadrotor. $Μ = {[l u_{2}, l u_{3}, u_{4}]}^{T}$ denotes the torque in which $u_{2} = f_{1} - f_{2}$ , $u_{3} = f_{3} - f_{4}$ , and $u_{4} = d (- f_{1} + f_{2} - f_{3} + f_{4})$ , where l denotes the distance between the center of the quadrotor and the motor and d means drag factor. $N_{2} = {[l k_{4}, l k_{5}, k_{6}]}^{T}$ , where $k_{4}, k_{5}, k_{6}$ are drag coefficients. $d_{J} = {[d_{ϕ}, d_{θ}, d_{Φ}]}^{T}$ means the external disturbance.

Motor of quadrotor has complex dynamic characteristics. For simplicity, the dynamics of motors can be described as a first order with dynamic uncertainty. Thus, the control torques $υ = {[u_{1 d}, u_{2 d}, u_{3 d}, u_{4 d}]}^{T}$ can be written as follows

{\dot{u}}_{i d} = - τ u_{i d} + u_{i c} + Δ

where τ is the time constant. Δ means dynamic uncertainty which is a smooth bounded disturbance. $u_{i d}$ is the virtual control command, and $u_{i c}$ is the control command.

For these expressions, the dynamics of the quadrotor can be written as follows

\{\begin{array}{l} \ddot{x} = \frac{u_{1}}{m} (cos Φ sin θ cos ϕ + sin Φ sin ϕ) - \frac{k_{1}}{m} \dot{x} + d_{x} \\ \ddot{y} = \frac{u_{1}}{m} (sin Φ sin θ cos ϕ - cos Φ sin ϕ) - \frac{k_{2}}{m} \dot{y} + d_{y} \\ \ddot{z} = \frac{u_{1}}{m} cos θ cos ϕ - g - \frac{k_{3}}{m} \dot{z} + d_{z} \\ \ddot{ϕ} = \frac{1}{I_{x}} \dot{θ} \dot{Φ} (I_{y} - I_{z}) + \frac{l}{I_{x}} u_{2} - \frac{l k_{4}}{I_{x}} \dot{ϕ} + d_{ϕ} \\ \ddot{θ} = \frac{1}{I_{y}} \dot{ϕ} \dot{Φ} (I_{z} - I_{x}) + \frac{l}{I_{y}} u_{3} - \frac{l k_{5}}{I_{y}} \dot{θ} + d_{θ} \\ \ddot{Φ} = \frac{1}{I_{z}} \dot{ϕ} \dot{θ} (I_{x} - I_{y}) + \frac{1}{I_{z}} u_{4} - \frac{k_{6}}{I_{z}} \dot{Φ} + d_{Φ} \\ \dot{υ} = - τ υ + υ_{c} + Δ \end{array}

where $υ_{c}$ is the control command shown as $υ_{c} = {[u_{1 c}, u_{2 c}, u_{3 c}]}^{T}$ .

Assumption

The disturbance of quadrotor is continuous and differentiable.

Remark 1

The drag of quadrotor is related to the velocity and angular rate, also influenced by the air density and wind speed. Thus, it is difficult to obtain the accurate data of drag coefficient. In the designing process of quadrotor controller, the drag along with the external disturbance is regarded as system disturbance.

Remark 2

The dynamic of motor should meet with the requirement of quadrotor controller. However, failing to meet the controller requirement will improve the designing complexity of quadrotor controller. Considering the dynamic of motor can be obtained in advance, for increasing the efficiency of controller designing, the motor dynamic is regarded as the third subsystem in the quadrotor model after translational dynamic subsystem and rotational dynamic subsystem. Otherwise, to simplify the control system design and be in line with the actual situation, the motor is regarded as the first-order dynamic with dynamic uncertainty.

Robust fixed time controller with motor dynamics and stability analysis of quadrotor system

Preliminaries

To facilitate the quadrotor controller design, several definitions, preliminaries, and theorems are introduced in advance.

Definition 1

Considering the system of differential equations³¹

$\dot{x} = f (x, t), x (0) = x_{0}$
4
where x is the vector of system states, $f (x, t)$ is a nonlinear function. The fixed time stability of the system (4) is that if the system is globally finite time stable and the settling time function $T (x_{0})$ is bounded. That is, there exist $T_{max} > 0$ such that $T (x_{0}) < T_{max}$ and $T_{max}$ is regardless of the system states.

Lemma 1³²

Consider a scalar dynamic system³²

$\dot{y} = - a_{1} {sign}^{p} y - a_{2} {sign}^{q} y, y (0) = y_{0}$
5
where ${sign}^{p} y : = {|y|}^{p} sign y$ , $a_{1} > 0$ , $a_{2} > 0$ , $0 < p < 1$ , and $q > 1$ . Then the equilibrium of equation (5) is fixed time stable and the settling time T is bounded by

$T < T_{max} = \frac{1}{a_{1} (1 - p)} + \frac{1}{a_{2} (q - 1)}$

$T_{max}$ does not rely on the system state but only rely on the controller parameters.

Lemma 2

For the nonlinear system^33,34

$\{\begin{array}{l} x^{(n)} (t) = f (t, x (t), \dot{x} (t), \dots, x^{(n - 1)} (t), u (t)) + w (t) \\ y (t) = x (t) \end{array}$
6
where y is the system output, f is the system function, and $w (t)$ is the uncertain external disturbance. The fixed time ESO will be designed as follows

$\{\begin{array}{l} {\dot{\hat{x}}}_{1} (t) = {\dot{\hat{x}}}_{2} (t) + e^{η + b} ε {sig}^{α_{1}} (y (t) - {\hat{x}}_{1} (t)) + e^{η + b} (1 - ε) {sig}^{β_{1}} (y (t) - {\hat{x}}_{1} (t)) \\ {\dot{\hat{x}}}_{2} (t) = {\dot{\hat{x}}}_{3} (t) + e^{2 η + b} ε {sig}^{α_{2}} (y (t) - {\hat{x}}_{1} (t)) + e^{2 η + b} (1 - ε) {sig}^{β_{2}} (y (t) - {\hat{x}}_{1} (t)) \\ ⋮ \\ {\dot{\hat{x}}}_{n} (t) = {\dot{\hat{x}}}_{n + 1} (t) + e^{n η + b} ε {sig}^{α_{n}} (y (t) - {\hat{x}}_{1} (t)) + e^{n η + b} (1 - ε) {sig}^{β_{n}} (y (t) - {\hat{x}}_{1} (t)) + u (t) \\ {\dot{\hat{x}}}_{n + 1} (t) = e^{(n + 1) η + b} ε {sig}^{α_{n + 1}} (y (t) - {\hat{x}}_{1} (t)) + e^{(n + 1) η + b} (1 - ε) {sig}^{β_{n + 1}} (y (t) - {\hat{x}}_{1} (t)) \end{array}$
7
where e is a natural number, η and b are constant number. The exponents $α_{i} \in (0, 1)$ satisfy $α_{i} = i α - (i - 1), i = 2, ..., n$ , $α_{1} = α$ , and $α_{1} \in (1 - λ, 1)$ , where λ is a small constant. Correspondingly, $β_{i} > 1$ satisfy $β_{i} = i β - (i - 1), i = 2, ..., n$ , $β_{1} = β$ , and $α_{1} \in (1, 1 + λ_{1})$ for a sufficiently small $λ_{1} > 0$ . The estimation error of fixed time ESO (7) will convergence to zero within a fixed time.

Theorem 1

For a function $g (t)$ , where $t \in ℜ$ is the independent variable. The fixed time ESO is adopted to obtain the derivatives of the $x (t)$ which avoid the exponential explosion caused by direct derivation method, the derivatives of $x (t)$ is shown as follows

$\{\begin{array}{l} {\dot{\hat{z}}}_{1} (t) = {\dot{\hat{z}}}_{2} (t) + e^{η + b} ε {sig}^{α_{1}} (g (t) - {\hat{z}}_{1} (t)) + e^{η + b} (1 - ε) {sig}^{β_{1}} (g (t) - {\hat{z}}_{1} (t)) \\ \begin{array}{l} {\dot{\hat{z}}}_{2} (t) = {\dot{\hat{z}}}_{3} (t) + e^{2 η + b} ε {sig}^{α_{2}} (g (t) - {\hat{z}}_{1} (t)) + e^{2 η + b} (1 - ε) {sig}^{β_{2}} (g (t) - {\hat{z}}_{1} (t)) \\ ⋮ \end{array} \\ {\dot{\hat{z}}}_{n + 1} (t) = e^{(n + 1) η + b} ε {sig}^{α_{n + 1}} (g (t) - {\hat{z}}_{1} (t)) + e^{(n + 1) η + b} (1 - ε) {sig}^{β_{n + 1}} (g (t) - {\hat{z}}_{1} (t)) \end{array}$
8
The fixed time ESO guarantees ${\hat{z}}_{2} (t)$ convergence to $\dot{x} (t)$ , ${\hat{z}}_{3} (t)$ convergence to $\ddot{x} (t)$ , and ${\hat{z}}_{n + 1} (t)$ convergence to $x^{(n)} (t)$ in fixed time.

Proof

First of all, the system is established as follows

${\dot{x}}_{1} = x_{2}, {\dot{x}}_{2} = x_{3}, ..., {\dot{x}}_{n} = x_{n + 1}$
9
where $x_{1} = g (t)$ , $x_{2} = \dot{g} (t)$ , and $x_{n} = g^{(n)} (t)$ . $x_{n + 1}$ is regarded as the disturbance of the system (9). To estimate the disturbance $x_{n + 1}$ , the fixed time ESO is shown as equation (8). Set the resulting estimation error of ESO $ζ_{1} = x_{1} - ^{1} {\hat{z}}_{1}$ , $ζ_{2} = x_{2} - ^{2} {\hat{z}}_{2},$ and $ζ_{n + 1} = x_{n + 1} - ^{n + 1 n + 1} {\hat{z}}_{n + 1}$ . As proved in the study of Zhang et al.,³⁴ the estimation error converges to zero in a bound time which only relies on the parameters of fixed time ESO.

Structure of the quadrotor control

In this section, the goal of the proposed control is to track the desired trajectory $x_{d}, y_{d}, z_{d}, Φ_{d}$ generated by trajectory generator with high accuracy and rapidity in finite time by designing the control of quadrotor which the setting time does not rely on the system state.

The quadrotor system is divided into two parts: position subsystem and attitude subsystem. The position subsystem contains altitude controller and position controller. And the attitude subsystem which highly coupled with the position subsystem consists of the yaw controller and the attitude controller. The position subsystem with slow dynamics is to track the reference trajectories via adjusting the force and moment of attitude subsystem and track the desired attitude generated by the position subsystem. Meanwhile, the motor dynamics of quadrotor are considered in each controller, and the dynamic disturbance of motor is compensated by fixed time control method with robustness in itself. The fixed-time ESO is adopted to estimate the unmodeled error and external disturbance online in the two subsystems. Then, eliminating the problem of explosion of complexity and estimating the unmeasurable velocity and acceleration velocity of state, an estimation method is constructed based on fixed time ESO. The control structure of the robust fixed time convergence trajectory tracking control is illustrated in Figure 2.

Figure 2.
Block diagram of the control structure.

Controller design for quadrotor and stability analysis

In this section, the main procedures of the robust fixed time controller with actuator dynamics are presented for addressing the trajectory tracking control problem of the quadrotor in the presence of composite disturbances and motor dynamics.

Virtual control of position

The position control stabilizes the altitude of quadrotor and generates the desired pitch and roll angle for the attitude loop.
Step 1. Design of altitude controller with motor dynamic

To perform the altitude control, the sliding mode manifold is given as follows

$s_{1} = ξ_{1} + c_{1} {\dot{ξ}}_{1}$
10
where $ξ_{1} = z - z_{d}$ , c ₁ is a positive constant. The derivative of s ₁ with respect to time is

${\dot{s}}_{1} = {\dot{ξ}}_{1} + c_{1} {\ddot{ξ}}_{1} = (\dot{z} - {\dot{z}}_{d}) + c_{1} (\ddot{z} - {\ddot{z}}_{d})$
11
where ${\dot{z}}_{d}$ and ${\ddot{z}}_{d}$ are the first derivative and the second derivative of the desired altitude command, respectively. Then the virtual control law of fixed time convergence for altitude is designed as follows

$u_{1 d} = \frac{1 / c_{1} (- k_{1} {|s_{1}|}^{\frac{m_{1}}{n_{1}}} sgn s_{1} - k_{1} {|s_{1}|}^{\frac{p_{1}}{q_{1}}} sgn s_{1} - η_{1} sgn s_{1} - (\dot{z} - {\dot{z}}_{d})) + g + {\ddot{\hat{z}}}_{d} - {\hat{d}}_{zc}}{1 / m cos ϕ cos θ}$
12
where k ₁ and $η_{1}$ are positive to be determined. $p_{1}, q_{1}, m_{1}, n_{1}$ are positive constants and satisfy $p_{1} > q_{1}$ and $m_{1} < n_{1}$ . ${\ddot{\hat{z}}}_{d}$ is the estimation of ${\ddot{z}}_{d}$ obtained by the fixed time ESO as Theorem 1. ${\hat{d}}_{zc}$ estimate the composite disturbance $- \frac{k_{3}}{m} \dot{z} + d_{z}$ by fixed time ESO.

Theorem 2

Let the control (12) be applied to the altitude system, and the parameters of control (12) satisfy $η_{1}$ larger than the estimation error of fixed time ESO, $p_{1} > q_{1}$ , $m_{1} < n_{1}$ , and $0 < c_{1} < 1$ . Then, the altitude of system can track the desired altitude in a fixed time with high accuracy.

Proof

To prove the stability of the system, define $V_{1} = \frac{1}{2} s_{1}^{2}$ . The time derivative of V ₁ is

$\begin{array}{l} {\dot{V}}_{1} = s_{1} {\dot{s}}_{1} = s_{1} ({\dot{ξ}}_{1} + c_{1} {\ddot{ξ}}_{1}) \\ = s_{1} ((\dot{z} - {\dot{z}}_{d}) + c_{1} (\ddot{z} - {\ddot{z}}_{d})) \\ = s_{1} ((\dot{z} - {\dot{z}}_{d}) + c_{1} (\frac{u_{1}}{m} cos θ cos ϕ - g - \frac{k_{3}}{m} \dot{z} + d_{z} - {\ddot{z}}_{d})) \end{array}$
13
At this moment, substitute the virtual control $u_{1 d}$ into equation (13)

$\begin{array}{l} {\dot{V}}_{1} = s_{1} ((\dot{z} - {\dot{z}}_{d}) + c_{1} (\frac{1}{c_{1}} (- k_{1} {|s_{1}|}^{\frac{m_{1}}{n_{1}}} sgn s_{1} - k_{1} {|s_{1}|}^{\frac{p_{1}}{q_{1}}} sgn s_{1} - η_{1} sgn s_{1} - (\dot{z} - {\dot{z}}_{d})) \\ + (d_{z} - \frac{k_{3}}{m} \dot{z} - {\hat{d}}_{z c}) + ({\ddot{\hat{z}}}_{d} - {\ddot{z}}_{d}))) \\ \leq s_{1} ((\dot{z} - {\dot{z}}_{d}) + c_{1} (\frac{1}{c_{1}} (- k_{1} {|s_{1}|}^{\frac{m_{1}}{n_{1}}} sgn s_{1} - k_{1} {|s_{1}|}^{\frac{p_{1}}{q_{1}}} sgn s_{1} - η_{1} sgn s_{1} - (\dot{z} - {\dot{z}}_{d})) \\ + abs
(\tilde{e}))) \\ = s_{1} (- k_{1} {|s_{1}|}^{\frac{m_{1}}{n_{1}}} sgn s_{1} - k_{1} {|s_{1}|}^{\frac{p_{1}}{q_{1}}} sgn s_{1} - η_{1} sgn s_{1} + c_{1} abs (\tilde{e})) \leq - k_{1} {|s_{1}|}^{\frac{m_{1}}{n_{1}} + 1} - k_{1} {|s_{1}|}^{\frac{p_{1}}{q_{1}} + 1} - η_{1} |s_{1}| + c_{1} abs (\tilde{e}) |s_{1}| \\ = - {\hat{k}}_{1} {|V_{1}|}^{\frac{m_{1} + n_{1}}{2 n_{1}}} - {\hat{k}}_{1} {|V_{1}|}^{\frac{p_{1} + q_{1}}{2 q_{1}}} - η_{1} |s_{1}| + c_{1} abs (\tilde{e}) |s_{1}| \end{array}$
14
where $\tilde{e}$ is the estimation error of the composite disturbance, ${\hat{k}}_{1} = 2^{\frac{m_{1} + n_{1}}{2 n_{1}}} k_{1}$ and ${\hat{k}}_{2} = 2^{\frac{p_{1} + q_{1}}{2 q_{1}}} k_{2}$ , ${\hat{k}}_{1} > 0$ , ${\hat{k}}_{2} > 0$ . And $η_{1}$ stratifies $η_{1} > abs (\tilde{e})$ . If only $0 < c_{1} \leq 1$ , equation (14) can be rewritten as follows

${\dot{V}}_{1} \leq - min ({\hat{k}}_{1}, {\hat{k}}_{2}) {|V_{1}|}^{\frac{m_{1} + n_{1}}{2 n_{1}}} - min ({\hat{k}}_{1}, {\hat{k}}_{2}) {|V_{1}|}^{\frac{p_{1} + q_{1}}{2 q_{1}}}$

Then, refer to Lemma 2, the stability of altitude is guaranteed and the tracking error is able to converge to zero in fixed time and the settling time is shown as follows

$T_{1} \leq T_{max 1} = \frac{2 n_{1}}{min (k_{1}, k_{2}) (n_{1} - m_{1})} + \frac{2 q_{1}}{min (k_{1}, k_{2}) (p_{1} - q_{1})}$

which is independent of the initial state of system.
Step 2. Design of position controller

First, define

$u_{x} = \frac{u_{1}}{m} (cos Φ sin θ cos ϕ + sin Φ sin ϕ)$
15
$u_{y} = \frac{u_{1}}{m} (sin Φ sin θ cos ϕ - cos Φ sin ϕ)$
16
Then similar design procedures are conducted to design control law for the attitude loop to generate the desired pitch and roll angle, two sliding manifolds are defined as $s_{2} = ξ_{2} + c_{2} {\dot{ξ}}_{2}, s_{3} = ξ_{3} + c_{3} {\dot{ξ}}_{3}$ , in which $ξ_{2} = x - x_{d}$ , $ξ_{3} = y - y_{d},$ and c ₁ is a positive constant. The corresponding control laws are designed as follows

$\begin{matrix} u_{x} = \frac{1}{c_{2}} - k_{2} {| s_{2} |}^{\frac{m_{2}}{n_{2}}} sgn s_{2} - k_{2} {| s_{2} |}^{\frac{p_{2}}{q_{2}}} sgn s_{2} - η_{2} sgn s_{2} - (\dot{x} - {\dot{x}}_{d}) + {\ddot{\hat{x}}}_{d} - {\hat{d}}_{x c} \\ u_{y} = \frac{1}{c_{3}} - k_{3} {| s_{3} |}^{\frac{m_{3}}{n_{3}}} sgn s_{3} - k_{3} {| s_{3} |}^{\frac{p_{3}}{q_{3}}} sgn s_{3} - η_{3} sgn s_{3} - (\dot{y} - {\dot{y}}_{d}) + {\ddot{\hat{y}}}_{d} - {\hat{d}}_{y c} \end{matrix}$
17
where k ₂ and k ₃ are positive constants. $η_{2}$ and $η_{3}$ are larger than the estimation error of fixed time ESO. c ₂ and c ₃ satisfy $0 < c_{2} < 1$ and $0 < c_{3} < 1$ , respectively.

Theorem 3

With the control (17) and the parameters of the controller satisfy $0 < c_{2} < 1$ , $0 < c_{3} < 1$ and $p_{2} = p_{3} > q_{2} = q_{3}$ , $m_{2} = m_{3} < n_{2} = n_{3}$ , $k_{2} = k_{3}$ , the tracking errors of position system are able to converge to zero in fixed time.

Proof

Define $V_{2} = \frac{1}{2} s_{2}^{2} + \frac{1}{2} s_{3}^{2}$ and the time derivative of V ₂ is

$\begin{array}{l} {\dot{V}}_{2} = s_{2} {\dot{s}}_{2} + s_{3} {\dot{s}}_{3} = s_{2} ({\dot{ξ}}_{2} + c_{2} {\ddot{ξ}}_{2}) + s_{3} ({\dot{ξ}}_{3} + c_{3} {\ddot{ξ}}_{3}) \\ = s_{2} (\dot{x} - {\dot{x}}_{d} + c_{2} (u_{x} - \frac{k_{1}}{m} \dot{x} + d_{x} - {\ddot{x}}_{d})) \\ + s_{3} (\dot{y} - {\dot{y}}_{d} + c_{3} (u_{y} - \frac{k_{2}}{m} \dot{y} + d_{y} - {\ddot{y}}_{d})) \end{array}$

With the control (17), we can obtain

$\begin{array}{l} {\dot{V}}_{2} = s_{2} (c_{2} (\frac{1}{c_{2}} (- k_{2} {|s_{2}|}^{\frac{m_{2}}{n_{2}}} sgn s_{2} - k_{2} {|s_{2}|}^{\frac{p_{2}}{q_{2}}} sgn s_{2} - η_{2} sgn s_{2}) \\ + (d_{x} - {\hat{d}}_{x c} - \frac{k_{1}}{m} \dot{x}) + ({\ddot{\hat{x}}}_{d} - {\ddot{x}}_{d}))) + s_{3} (c_{3} (\frac{1}{c_{3}} (- k_{3} {|s_{3}|}^{\frac{m_{3}}{n_{3}}} sgn s_{3} \\ - k_{3} {|s_{3}|}^{\frac{p_{3}}{q_{3}}} sgn s_{3} - η_{3} sgn s_{3}) + (d_{y} - {\hat{d}}_{y c} - \frac{k_{2}}{m} \dot{y}) + ({\ddot{\hat{y}}}_{d} - {\ddot{y}}_{d}))) \\ \leq s_{2} (c_{2} (\frac{1}{c_{2}} (- k_{2} {|s_{2}|}^{\frac{m_{2}}{n_{2}}} sgn s_{2} - k_{2} {|s_{2}|}^{\frac{p_{2}}{q_{2}}} sgn s_{2} - η_{2} sgn s_{2}) + abs ({\tilde{e}}_{2}))) \\ + s_{3} (c_{3} (\frac{1}{c_{3}} (- k_{3} {|s_{3}|}^{\frac{m_{3}}{n_{3}}} sgn s_{3} - k_{3} {|s_{3}|}^{\frac{p_{3}}{q_{3}}} sgn s_{3} - η_{3} sgn s_{3}) + abs ({\tilde{e}}_{3}))) \\ \leq - k_{2} {|s_{2}|}^{\frac{m_{2}}{n_{2}} + 1} - k_{2} {|s_{2}|}^{\frac{p_{2}}{q_{2}} + 1} - η_{2} |s_{2}| + c_{2} abs ({\tilde{e}}_{2}) |s_{2}| \\ - k_{3} {|s_{3}|}^{\frac{m_{3}}{n_{3}} + 1} - k_{3} {|s_{3}|}^{\frac{p_{3}}{q_{3}} + 1} - η_{3} |s_{3}| + c_{3} abs ({\tilde{e}}_{3}) |s_{3}| \end{array}$
18
where ${\tilde{e}}_{2}$ and ${\tilde{e}}_{3}$ are the estimation error of fixed time ESO. As $η_{2}$ and $η_{3}$ are larger than the estimation errors of fixed time ESO and $0 < c_{2} < 1$ , $0 < c_{3} < 1$ , equation (18) can be rewritten as

${\dot{V}}_{2} \leq - k_{p}^{} {|s_{2}^{2} + s_{3}^{2}|}^{p_{}^{}} - k_{p}^{} {|s_{2}^{2} + s_{3}^{2}|}^{m_{}^{}}$

where $k_{p}^{} = k_{2} = k_{3}$ and $m^{} = \frac{m_{2} + n_{2}}{2 n_{2}} = \frac{m_{3} + n_{3}}{2 n_{3}}$ , $p^{} = \frac{p_{2} + q_{2}}{2 q_{2}} = \frac{p_{3} + q_{3}}{2 q_{3}}$ . Then, as Lemma 2, the state of position system can track the desired position in fixed time with high precision and the settling time is

$T_{2} \leq T_{max 2} = \frac{1}{k_{p}^{} (1 - p^{})} + \frac{1}{k_{p}^{} (m^{} - 1)}$

From equations (12) and (15) to (17), the reference roll angle and pitch angle are obtained as

$\begin{array}{l} ϕ_{d} = arcsin \frac{m (u_{x} cos Φ_{d} + u_{y} cos Φ_{d})}{u_{1 d}} \\ θ_{d} = arcsin \frac{m (u_{x} cos Φ_{d} + u_{y} sin Φ_{d})}{u_{1 d} cos ϕ_{d}} \end{array}$

Attitude control

To develop the controller for the attitude subsystem to track the desired yaw angle and the roll, pitch angle generated by position loop, the design procedures of yaw controller and attitude controller are introduced.

The attitude subsystem contains yaw controller and attitude controller. Define the tracking error between the actual and the desired attitudes as follows

$\begin{array}{l} s_{4} = ξ_{4} + c_{4} {\dot{ξ}}_{4} \\ s_{5} = ξ_{5} + c_{5} {\dot{ξ}}_{5} \\ s_{6} = ξ_{6} + c_{6} {\dot{ξ}}_{6} \end{array}$
20
where $ξ_{4} = ϕ - ϕ_{d}$ , $ξ_{4} = θ - θ_{d},$ and $ξ_{4} = Φ - Φ_{d}$ . Then differentiating the error surface with respect to time results in

$\begin{array}{l} {\dot{s}}_{4} = {\dot{ξ}}_{4} + c_{4} {\ddot{ξ}}_{4} = (\dot{ϕ} - {\dot{ϕ}}_{d}) + c_{4} (\ddot{ϕ} - {\ddot{ϕ}}_{d}) \\ {\dot{s}}_{5} = {\dot{ξ}}_{5} + c_{5} {\ddot{ξ}}_{5} = (\dot{θ} - {\dot{θ}}_{d}) + c_{5} (\ddot{θ} - {\ddot{θ}}_{d}) \\ {\dot{s}}_{6} = {\dot{ξ}}_{6} + c_{6} {\ddot{ξ}}_{6} = (\dot{Φ} - {\dot{Φ}}_{d}) + c_{6} (\ddot{Φ} - {\ddot{Φ}}_{d}) \end{array}$
21
where $ϕ_{d}$ and $θ_{d}$ are generated by the position subsystem, $Φ_{d}$ is generated by trajectory generator. For avoiding the exponential explosion, the first and second derivatives of desired attitude angle are estimated by fixed time ESO as shown in Theorem 1. Then the robust fixed time controller of the attitude subsystem is obtained as follows

$\begin{array}{l} \{\begin{matrix} u_{2 d} = \frac{I_{x}}{l} [\frac{1}{c_{4}} (- k_{4} {|s_{4}|}^{\frac{m_{4}}{n_{4}}} sgn s_{4} - k_{4} {|s_{4}|}^{\frac{p_{4}}{q_{4}}} sgn s_{4} - η_{4} sgn s_{4} - (\dot{ϕ} - {\dot{ϕ}}_{d})) - \dot{Φ} \dot{θ} \frac{I_{y} - I_{z}}{I_{x}} + {\ddot{\hat{ϕ}}}_{d} - {\hat{d}}_{ϕ c}] \\ u_{3 d} = \frac{I_{y}}{l} [\frac{1}{c_{5}} (- k_{5} {|s_{5}|}^{\frac{m_{5}}{n_{5}}} sgn s_{5} - k_{5} {|s_{5}|}^{\frac{p_{5}}{q_{5}}} sgn s_{5} - η_{5} sgn s_{5} - (\dot{θ} - {\dot{θ}}_{d})) - \dot{Φ} \dot{ϕ} \frac{I_{z} - I_{x}}{I_{y}} + {\ddot{\hat{θ}}}_{d} - {\hat{d}}_{θ c}] \end{matrix} \\ u_{4 d} = \frac{I_{z}}{l} [\frac{1}{c_{6}} (- k_{6} {|s_{6}|}^{\frac{m_{6}}{n_{6}}} sgn s_{6} - k_{6} {|s_{6}|}^{\frac{p_{6}}{q_{6}}} sgn s_{6} - η_{6} sgn s_{6} - (\dot{Φ} - {\dot{Φ}}_{d})) - \dot{ϕ} \dot{θ} \frac{I_{x} - I_{y}}{I_{z}} + {\ddot{\hat{Φ}}}_{d} - {\hat{d}}_{Φ c}] \end{array}$
22
where $u_{2 d}$ and $u_{3 d}$ are the control command of attitude controller, $u_{4 d}$ is the control command of yaw controller. All the parameters of attitude subsystem robust fixed time controller are positive constant. ${\hat{d}}_{ϕ c}$ , ${\hat{d}}_{θ c},$ and ${\hat{d}}_{Φ c}$ are the estimation of the composite disturbance estimated by fixed time ESO.

Theorem 4

Consider the attitude subsystem, for the given desired attitude angle, the control laws of yaw controller and attitude controller shown in equation (22) can guarantee the robustness of the subsystem and make the tracking errors converge to zero in fixed time, with $0 < c_{4} < 1$ , $0 < c_{5} < 1$ , $0 < c_{6} < 1$ , $η_{4}$ , $η_{5}$ , and $η_{6}$ are greater than the estimation error of fixed time ESO respectively, $k_{4} = k_{5}$ and k ₆ are positive constants.

Proof

To prove the stability of yaw controller and attitude controller, define the Lyapunov function as $V_{3} = \frac{1}{2} s_{4}^{2} + \frac{1}{2} s_{5}^{2}$ and $V_{4} = \frac{1}{2} s_{6}^{2}$ . The time derivative of V ₃ and V ₄ can be yield as

$\begin{array}{l} {\dot{V}}_{3} = s_{4} {\dot{s}}_{4} + s_{5} {\dot{s}}_{5} = s_{4} ({\dot{ξ}}_{4} + c_{4} {\ddot{ξ}}_{4}) + s_{5} ({\dot{ξ}}_{5} + c_{5} {\ddot{ξ}}_{5}) \\ = s_{4} ((\dot{ϕ} - {\dot{ϕ}}_{d}) + c_{4} (\ddot{ϕ} - {\ddot{ϕ}}_{d})) + s_{5} ((\dot{θ} - {\dot{θ}}_{d}) + c_{5} (\ddot{θ} - {\ddot{θ}}_{d})) \\ = s_{4} ((\dot{ϕ} - {\dot{ϕ}}_{d}) + c_{4} (\frac{1}{I_{x}} \dot{θ} \dot{Φ} (I_{y} - I_{z}) + \frac{l}{I_{x}} u_{2} - \frac{l k_{4}}{I_{x}} \dot{ϕ} + d_{ϕ} - {\ddot{ϕ}}_{d})) \\ + s_{5} ((\dot{θ} - {\dot{θ}}_{d}) + c_{5} (\frac{1}{I_{y}} \dot{ϕ} \dot{Φ} (I_{z} - I_{x}) + \frac{l}{I_{y}} u_{3} - \frac{l k_{5}}{I_{y}} \dot{θ} + d_{θ} - {\ddot{θ}}_{d})) \end{array}$

$\begin{array}{l} {\dot{V}}_{4} = s_{6} {\dot{s}}_{6} = s_{6} ({\dot{ξ}}_{6} + c_{6} {\ddot{ξ}}_{6}) = s_{6} ((\dot{Φ} - {\dot{Φ}}_{d}) + c_{6} (\frac{1}{I_{z}} \dot{ϕ} \dot{θ} (I_{x} - I_{y}) + \frac{1}{I_{z}} u_{4} - \frac{k_{6}}{I_{z}} \dot{Φ} + d_{Φ} - {\ddot{Φ}}_{d})) \end{array}$

With the control law (21)

$\begin{array}{l} {\dot{V}}_{3} = s_{4} (c_{4} (- k_{4} {|s_{4}|}^{\frac{m_{4}}{n_{4}}} sgn s_{4} - k_{4} {|s_{4}|}^{\frac{p_{4}}{q_{4}}} sgn s_{4} - η_{4} sgn s_{4}) + c_{4} (d_{ϕ} - {\hat{d}}_{ϕ c} - \frac{l k_{4}}{I_{x}} \dot{ϕ} + {\ddot{\hat{ϕ}}}_{d} - {\ddot{ϕ}}_{d})) \\ + s_{5} (c_{5} (- k_{5} {|s_{5}|}^{\frac{m_{5}}{n_{5}}} sgn s_{5} - k_{5} {|s_{5}|}^{\frac{p_{5}}{q_{5}}} sgn s_{5} - η_{5} sgn s_{5}) + c_{5} (d_{θ} - {\hat{d}}_{θ c} - \frac{l k_{5}}{I_{y}} \dot{θ} + {\ddot{\hat{θ}}}_{d} - {\ddot{θ}}_{d})) \\ \leq s_{4} (c_{4} (\frac{1}{c_{4}} (- k_{4} {|s_{4}|}^{\frac{m_{4}}{n_{4}}} sgn s_{4} - k_{4} {|s_{4}|}^{\frac{p_{4}}{q_{4}}} sgn s_{4} - η_{4} sgn s_{4}) + abs ({\tilde{e}}_{4}))) \\ + s_{5} (c_{5} (\frac{1}{c_{5}} (- k_{5} {|s_{5}|}^{\frac{m_{5}}{n_{5}}} sgn s_{5} - k_{5} {|s_{5}|}^{\frac{p_{5}}{q_{5}}} sgn s_{5} - η_{5} sgn s_{5}) + abs ({\tilde{e}}_{5}))) \\ \leq - k_{4} {|s_{4}|}^{\frac{m_{4}}{n_{4}} + 1} - k_{4} {|s_{4}|}^{\frac{p_{4}}{q_{4}} + 1} - η_{4} |s_{4}| + c_{4} abs ({\tilde{e}}_{4}) |s_{4}| \\ - k_{5} {|s_{5}|}^{\frac{m_{5}}{n_{5}} + 1} - k_{5} {|s_{5}|}^{\frac{p_{5}}{q_{5}} + 1} - η_{5} |s_{5}| + c_{5} abs ({\tilde{e}}_{5}) |s_{5}| \end{array}$
23
$\begin{array}{l} {\dot{V}}_{4} = s_{6} (c_{6} (1 / c_{6} (- k_{6} {|s_{6}|}^{\frac{m_{6}}{n_{6}}} sgn s_{6} - k_{6} {|s_{6}|}^{\frac{p_{6}}{q_{6}}} sgn s_{6} - η_{6} sgn s_{6}) \\ + d_{Φ} - {\hat{d}}_{Φ c} - \frac{k_{6}}{I_{z}} \dot{Φ} + {\ddot{\hat{Φ}}}_{d} - {\ddot{Φ}}_{d})) \\ \leq s_{6} (c_{6} (1 / c_{6} (- k_{6} {|s_{6}|}^{\frac{m_{6}}{n_{6}}} sgn s_{6} - k_{6} {|s_{6}|}^{\frac{p_{6}}{q_{6}}} sgn s_{6} - η_{6} sgn s_{6}) + abs ({\tilde{e}}_{6}))) \\ \leq - k_{6} {|s_{6}|}^{\frac{m_{6}}{n_{6}} + 1} - k_{6} {|s_{6}|}^{\frac{p_{6}}{q_{6}} + 1} - η_{6} |s_{6}| + c_{6} abs ({\tilde{e}}_{6}) |s_{6}| \end{array}$
24
If there exist $η_{4}$ , $η_{5}$ , and $η_{6}$ greater than the estimation errors of fixed time ESO respectively and $0 < c_{4} < 1$ , $0 < c_{5} < 1$ , $0 < c_{6} < 1$ , $k_{a}^{} = k_{4} = k_{5}$ , and $m_{4} = m_{5}$ , $n_{4} = n_{5}$ , $p_{4} = p_{5}$ , $q_{4} = q_{5}$ , equations (23) and (24) can be rewritten as

$\begin{array}{l} {\dot{V}}_{3} \leq - k_{a}^{} {|s_{4}^{2} + s_{5}^{2}|}^{p_{}^{}} - k_{a}^{} {|s_{4}^{2} + s_{5}^{2}|}^{m_{}^{}} \\ {\dot{V}}_{4} \leq - k_{6} {|s_{6}^{2}|}^{\frac{m_{6} + n_{6}}{2 n_{6}}} - k_{6} {|s_{6}^{2}|}^{\frac{p_{6} + q_{6}}{2 q_{6}}} \end{array}$

Then refer to Lemma 2, the attitude of system can track the desired attitude and yaw angle in fixed time with robust and precision. The settling time is shown as follows

$\begin{array}{l} T_{3} \leq T_{max 3} = \frac{1}{2^{p^{}} k_{a}^{} (1 - p^{})} + \frac{1}{2^{m^{}} k_{a}^{} (m^{} - 1)} \\ T_{4} \leq T_{max 4} = \frac{2 n_{6}}{2^{\frac{m_{6} + n_{6}}{2 n_{6}}} k_{6} (n_{6} - m_{6})} + \frac{2 q_{6}}{2^{\frac{p_{6} + q_{6}}{2 q_{6}}} k_{6} (p_{6} - q_{6})} \end{array}$

Quadrotor control with motor dynamics

To eliminate influence to the system (4) caused by motor dynamics, a new sliding mode manifold is given as

$s_{u} = u - u_{d}$

where $u_{d} = {[u_{1 d}, u_{2 d}, u_{3 d}, u_{4 d}]}^{T}$ is the virtual control command generated by the position subsystem and attitude subsystem. Then differentiating the sliding mode manifold with respect to time as

${\dot{s}}_{u} = \dot{u} - {\dot{u}}_{d} = - τ υ + υ_{c} + Δ - {\dot{u}}_{d}$

where ${\dot{u}}_{d}$ is the first derivative of the virtual control command which is estimated by fixed time ESO (refer to Theorem 1). Then the actual control command is given as

$υ_{c} = - k_{u} {|{\dot{s}}_{u}|}_{}^{p_{u}} sgn s_{u} - k_{u} {|{\dot{s}}_{u}|}_{}^{q_{u}} sgn s_{u} - η_{u} sgn s_{u}^{} + τ υ + {\dot{u}}_{d}$
25
where k_u and $η_{u}$ are positive constants, $0 < p_{u} < 1$ , $q_{u} > 1$ .

Theorem 5

Considering the actual control command (25) and quadrotor system (1), the actual control command is able to track the virtual control command with robust and high rapidity.

Proof

To prove the stability of the motor dynamic system, the Lyapunov function is defined as $V_{u} = \frac{1}{2} s_{u}^{2}$ and differentiated with respect to time

$V_{u} = s_{u}^{} {\dot{s}}_{u}^{} = s_{u}^{} (\dot{u} - {\dot{u}}_{d})$

with the control law (25) and $η_{u} \geq |Δ|$ , we can obtain

$V_{u} \leq - k_{u} {|{\dot{s}}_{u}|}_{}^{p_{u} + 1} - k_{u} {|{\dot{s}}_{u}|}_{}^{q_{u} + 1} - η_{u} |{\dot{s}}_{u}| + Δ |{\dot{s}}_{u}| \leq - k_{u} {|{\dot{s}}_{u}|}_{}^{p_{u} + 1} - k_{u} {|{\dot{s}}_{u}|}_{}^{q_{u} + 1}$

Then refer to Lemma 2, the stability, robust, and convergence characteristics of the motor dynamic system can be proved and the settling time is shown as

$T_{5} \leq T_{max 5} = \frac{2}{2^{\frac{p_{u} + 1}{2}} k_{u} (1 - p_{u})} + \frac{2}{2^{\frac{q_{u} + 1}{2}} k_{u} (q_{u} - 1)}$

From the above equation, the settling time only relies on the controller parameters.

Remark 1

In this article, the complex motor dynamic is expressed as first-order dynamic with dynamic disturbance. Therefore, to a great extent, the dynamic disturbance does not satisfy the assumption of fixed time ESO. Considering the boundedness of the disturbance, sign function is adopted to the robustness of guarantee quadrotor system.

Remark 2

In engineering applications, the parameters of motor are designed by the physical environment which determine the dynamics of motor. And the control method of the system is devised at the same time. Then, the ultima control system is confirmed by the joint simulation of the control method and the motor. However, the motor dynamics always are not considered in the designing process of control method, which may enhance the difficulty and lead to repeatedly of control method designing. In this article, to avoid the influence to the quadrotor caused by the motor, the dynamic is considered in the design procedures of control system. That can guarantee the stability, robust, and convergence characteristic of the quadrotor system. Meanwhile, the control method is reduced to decrease the controller design difficulty and can give much instructional value to the project.

Simulation

To validate the efficiency and superiority of the proposed controller of quadrotor in high tracking precision and high stability, several simulations were introduced in this section. And in the second simulation, the proposed method is compared with the fixed time tracking controller without considering the actuator dynamics which have different time constants. The parameter value of the quadrotor in this study is listed in Table 1.

Table 1.
Parameter values of the quadrotor.

Parameter Value Description Unit

m 0.75 Mass of the quadrotor kg

l 0.23 Distance to the center of the quadrotor m

g 9.8 Gravitational acceleration m/s²

I_x 0.00726 Quadrotor moment of inertia around the x-axis N·s²/rad

I_y 0.00726 Quadrotor moment of inertia around the y-axis N·s²/rad

I_z 0.0128 Quadrotor moment of inertia around the z-axis N·s²/rad

$k_{1} = k_{2} = k_{3}$ 0.01 Drag coefficients N·s²/rad

$k_{4} = k_{5} = k_{6}$ 0.005 Aerodynamic friction coefficients N·s²/rad

Tracking desired trajectory with motor dynamics

In this section, a desired trajectory problem is illustrated to test the performance of the proposed method control. The desired trajectory is defined as follows

${\begin{matrix} x_{d} = sin (0.5 t) m & y_{d} = 0.5 sin t m \\ z_{d} = 0.5 cos (2 t) m & Φ_{d} = 0.5 rad \end{matrix}$

Both the unmodeled dynamics and the external disturbances considered in this work is included to show the robustness and convergence properties of the proposed control strategies. The coefficient of unmodeled dynamics and the external disturbances are defined as follows

$\{\begin{array}{l} k_{1} = k_{2} = k_{3} = 0.01 Ns / rad k_{4} = k_{5} = k_{6} = 0.005 Ns / rad \\ d_{x} = 0.2 sin (5 t) d_{y} = 0.3 sin (2 t) d_{z} = 0.3 sin (5 t) \\ d_{ϕ} = 0.4 sin (2 t) d_{θ} = 0.1 sin (2 t) d_{Φ} = 0.8 sin t \end{array}$

Furthermore, the dynamic of motor is introduced to demonstrate the effectiveness of the control method proposed in this work, and the model of motor is considered as first-order dynamic with dynamic disturbance. The dynamic disturbance is shown as $Δ = 0.3 sin (5 t + 2)$ .

The initial conditions of the quadrotor are set to be

${\begin{matrix} x_{0} = - 0.2 m & y_{0} = 0.1 m & z_{0} = 0.6 m \\ {\dot{x}}_{0} = 0 m / s & {\dot{y}}_{0} = 0 m / s & {\dot{z}}_{0} = 0 m / s \\ ϕ_{0} = 0 rad & θ_{0} = 0 rad & Φ_{0} = - 0.1 rad \\ {\dot{ϕ}}_{0} = 0 rad / s & {\dot{θ}}_{0} = 0 rad / s & {\dot{Φ}}_{0} = 0 rad / s \end{matrix}$

The simulation results are shown through Figures 3 to 9. Figure 3 shows the quadrotor tracking the desired trajectory in the way of the proposed control method. As shown in Figure 3, considering motor dynamics, MDRFTC are able to drive the quadrotor to follow the reference position and yaw under unmodeled disturbances and periodical time-varying external disturbances with rapidly and accurately by the control commands as shown in Figure 7. The robustness of MDRFTC is due to the fixed time ESO which is proposed to estimate the unmodeled disturbances and external disturbances. And it is obvious that the disturbances estimation of translational dynamic subsystem and rotational dynamic subsystem can approximate the real disturbances as shown in Figures 8 and 9. The roll angle and pitch angle are shown in Figure 4. Figures 5 and 6 represent the curves of velocity and angular rate, respectively.

Figure 3.
Tracking curve of desired trajectory.

Figure 4.
Tracking curve of roll and pitch angle.

Figure 5.
Curve of velocity.

Figure 6.
Curve of angular rate.

Figure 7.
Control command.

Figure 8.
Disturbance estimation of position subsystem.

Figure 9.
Disturbance estimation of attitude subsystem.

Tracking trajectory with and without considering motor dynamics

In this section, the comparison of MDRFTC with the control command (12) and (22) names robust fixed time controll without considering motor dynamics is conducted to verify the efficiency of the proposed control method. Two scenarios are conducted with different motor time constants of system (3) which are set to be 10 and 20 ms, respectively. The unmodeled disturbances, external disturbances, and initial conditions of the quadrotor are set as “Tracking desired trajectory with motor dynamics” section.

The simulation results for 10 ms time constant of motor dynamic are shown through Figures 10 to 14, and for 20 ms time constant of motor dynamic are shown through Figures 15 and 16. Figure 10 shows that the two control methods are able to drive the quadrotor to follow the reference under motor dynamics with 10 ms time constant. However, the control method considering motor dynamic has high precision in tracking desired trajectory. Conversely, without considering motor dynamics, the tracking errors are not sufficiently smooth because of the delay and oscillation of control command caused by the dynamics of the motor. From the curve of the angle shown in Figure 11, the velocity shown in Figure 12, the angular rate shown in Figure 13, and the control command shown in Figure 14, the control method without motor dynamics has higher steady-state errors than MDRFTC.

Figure 10.
Tracking curve of desired trajectory with 10 ms time constant of motor dynamic.

Figure 11.
Tracking curve of roll and pitch angle with 10 ms time constant of motor dynamic.

Figure 12.
Curve of velocity with 10 ms time constant of motor dynamic.

Figure 13.
Curve of angular rate with 10 ms time constant of motor dynamic.

Figure 14.
Control command with 10 ms time constant of motor dynamic.

Figure 15.
Tracking curve of desired trajectory with 20 ms time constant of motor dynamic.

Figure 16.
Control command with 20 ms time constant of motor dynamic.

As in the 10 ms time constant of dynamic, the control method can drive the quadrotor to track the trajectory. The system entirely lost its stability with 20 ms time constant in 4.2 s as clearly shown in Figure 15. However, MDRFTC achieves a faster convergence rate and higher tracking precision in the different time constant of motor dynamics which reduce the degree of difficulty of motor designing and controller designing.

Conclusion

The robust fixed time convergence trajectory tracking problem for the quadrotor with unmodeled disturbance and external disturbance as well as considering the motor dynamics was investigated in this study. For the engineering practice and simplify, the motor dynamics are set to be first-order dynamic with dynamic disturbance. And the fixed time ESO was utilized to estimate the first and second derivatives of system statement and virtual control command which eliminate the problem of explosion of complexity. Also the fixed time ESO was proposed to estimate the composite disturbances to guarantee the robustness and precision of control method. The stability of the system is verified in accordance with Lyapunov stability theory. At last, several simulation results showed that the proposed control method is able to track the desired trajectory quickly and accurately under the composite disturbances and the different time constant of motor dynamics.

Nomenclature

$x, y, z$ position of the quadrotor

$ϕ, θ, Φ$ roll angle, pitch angle, and yaw angle

G ^I gravity of quadrotor with respect to the inertial frame

V velocity of the quadrotor

N ₁, N ₂ drag coefficients

d _X , $d_{J}$ external disturbance

T_B lift with respect to the body coordinate system

$J$ angular rate

J moment of inertial of quadrotor

$Μ$ torque

l distance between the center of the quadrotor and the motor

d drag factor

$υ$ control torques

$τ$ time constant of motor dynamic

Δ dynamic uncertainty of motor dynamic

$u_{id}$ virtual control command

$u_{ic}$ control command

Parameter	Value	Description	Unit
m	0.75	Mass of the quadrotor	kg
l	0.23	Distance to the center of the quadrotor	m
g	9.8	Gravitational acceleration	m/s²
I_x	0.00726	Quadrotor moment of inertia around the x-axis	N·s²/rad
I_y	0.00726	Quadrotor moment of inertia around the y-axis	N·s²/rad
I_z	0.0128	Quadrotor moment of inertia around the z-axis	N·s²/rad
$k_{1} = k_{2} = k_{3}$	0.01	Drag coefficients	N·s²/rad
$k_{4} = k_{5} = k_{6}$	0.005	Aerodynamic friction coefficients	N·s²/rad

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the Hubei Provincial Natural Science Foundation [grant no. 2018CFB276] and the Research Project of Hubei Provincial Department of Education [grant no. Q20181403].

ORCID iD

Xiao Li

References

Qian

Fang

. Adaptive robust tracking control for an offshore ship-mounted crane subject to unmatched sea wave disturbances. Mech Syst Signal Process 2019; 114: 556–570.

Chen

Wang

Alkim

, et al. A robust longitudinal control strategy of platoons under model uncertainties and time delays. J Adv Transp 2018; 2018: 13.

Huang

Fukuda

, et al. Robust model-based online fault detection for mating process of electric connectors in robotic wiring harness assembly systems. IEEE Trans Control Syst Technol 2009; 18(5): 1207–1215.

Huang

Mohammed

, et al. Posture estimation and human support using wearable sensors and walking-aid robot. Robot Auton Syst 2015; 73: 24–43.

Ríos

Falcón

González

, et al. Continuous sliding-mode control strategies for quadrotor robust tracking: real-time application. IEEE Trans Ind Electron 2018; 66: 1264–1272.

Shi

Cheng

Yin

, et al. Design of fractional-order backstepping sliding mode control for quadrotor UAV. Asian J Control 2019; 21: 156–171.

Xiong

Zhang

. Global fast dynamic terminal sliding mode control for a quadrotor UAV. ISA Trans 2017; 66: 233–240.

Chen

Lei

Zhang

, et al. A novel nonlinear resilient control for a quadrotor UAV via backstepping control and nonlinear disturbance observer. Nonlinear Dyn 2016; 85: 1281–1295.

Basri

MAM

Husain

Danapalasingam

. Enhanced backstepping controller design with application to autonomous quadrotor unmanned aerial vehicle. J Intell Robot Syst 2015; 79: 295–321.

10.

Ansari

Bajodah

. Robust generalized dynamic inversion quadrotor control. IFAC-PapersOnLine 2017; 50: 8181–8188.

11.

Ansari

Bajodah

Hamayun

. Quadrotor control via robust generalized dynamic inversion and adaptive non-singular terminal sliding mode. Asian J Control 2019; 21(3): 1237–1249.

12.

Chen

Jiang

Zhang

, et al. Robust backstepping sliding-mode control and observer-based fault estimation for a quadrotor UAV. IEEE Tran Ind Electron 2016; 63: 5044–5056.

13.

Jia

Mei

, et al. Integral backstepping sliding mode control for quadrotor helicopter under external uncertain disturbances. Aerosp Sci Technol 2017; 68: 299–307.

14.

Yang

Yan

. Attitude regulation for unmanned quadrotors using adaptive fuzzy gain-scheduling sliding mode control. Aerosp Sci Technol 2016; 54: 208–217.

15.

Zhu

Cheng

, et al. Hovering control for quadrotor aircraft based on finite-time control algorithm. Nonlinear Dyn 2017; 88: 2359–2369.

16.

Harshavarthini

Sakthivel

Ahn

. Finite-time reliable attitude tracking control design for nonlinear quadrotor model with actuator faults. Nonlinear Dyn 2019; 96: 2681–2692.

17.

. Fixed-time trajectory tracking for a quadrotor with external disturbances: a flatness-based sliding mode control approach. Aerosp Sci Technol 2019; 89: 58–76.

18.

Huang

Zhang

, et al. High-order disturbance observer based sliding mode control for mobile wheeled inverted pendulum systems. IEEE Trans Ind Electron 2020; 67: 2030–2041.

19.

Huang

Fukuda

, et al. A disturbance observer based sliding mode control for a class of underactuated robotic system with mismatched uncertainties. IEEE Trans Autom Control 2018; 64(6): 2480–2487.

20.

Ding

Huang

Wang

, et al. Sliding mode control with an extended disturbance observer for a class of underactuated system in cascaded form. Nonlinear Dyn 2017; 90(4): 2571–2582.

21.

Gao

. Scaling and bandwidth-parameterization based controller tuning. Proceedings of the 2003 American Control Conference, Vol. 6, Denver, CO, USA, USA, 4–6 June 2003, pp. 4989–4996.

22.

Zhao

Yang

. Model-free control of quad-rotor vehicle via finite-time convergent extended state observer. Int J Control Autom Syst 2016; 14: 242–254.

23.

Shi

Chou

. Generalized extended state observer based high precision attitude control of quadrotor vehicles subject to wind disturbance. IEEE Access 2018; 6: 32349–32359.

24.

Shao

Liu

, et al. Model-assisted extended state observer and dynamic surface control-based trajectory tracking for quadrotors via output-feedback mechanism. Int J Robust Nonlinear Control 2018; 28: 2404–2423.

25.

Mokhtari

Braham

Cherki

. Extended state observer based control for coaxial-rotor UAV. ISA Trans 2016; 61: 1–14.

26.

Shao

Liu

Wang

. Robust back-stepping output feedback trajectory tracking for quadrotors via extended state observer and sigmoid tracking differentiator. Mech Syst Signal Process 2018; 104: 631–647.

27.

Shao

Liu

Cao

, et al. Robust dynamic surface trajectory tracking control for a quadrotor UAV via extended state observer. Int J Robust Nonlinear Control 2018; 28: 2700–2719.

28.

Hua

Wang

Chen

, et al. Tracking differentiator and extended state observer-based nonsingular fast terminal sliding mode attitude control for a quadrotor. Nonlinear Dyn 2018; 94: 343–354.

29.

Shi

Chou

. Super-twisting extended state observer and sliding mode controller for quadrotor UAV attitude system in presence of wind gust and actuator faults. Electronics 2018; 7: 128.

30.

Alexis

Nikolakopoulos

Tzes

. Model predictive quadrotor control: attitude, altitude and position experimental studies. IET Control Theory Appl 2012; 6: 1812–1827.

31.

Zuo

. Non-singular fixed-time terminal sliding mode control of non-linear systems. IET Control Theory Appl 2014; 9: 545–552.

32.

Cai

. On SFTSM control with fixed-time convergence. IET Control Theory Appl 2017; 11: 766–773.

33.

Basin

Shtessel

. Finite- and fixed-time differentiators utilising HOSM techniques. IET Control Theory Appl 2016; 11: 1144–1152.

34.

Zhang

Wei

, et al. Fixed-time extended state observer based non-singular fast terminal sliding mode control for a VTVL reusable launch vehicle. Aerosp Sci Technol 2018; 82: 70–79.

$x, y, z$	position of the quadrotor
$ϕ, θ, Φ$	roll angle, pitch angle, and yaw angle
G ^I	gravity of quadrotor with respect to the inertial frame
V	velocity of the quadrotor
N ₁, N ₂	drag coefficients
d _X , $d_{J}$	external disturbance
T_B	lift with respect to the body coordinate system
$J$	angular rate
J	moment of inertial of quadrotor
$Μ$	torque
l	distance between the center of the quadrotor and the motor
d	drag factor
$υ$	control torques
$τ$	time constant of motor dynamic
Δ	dynamic uncertainty of motor dynamic
$u_{id}$	virtual control command
$u_{ic}$	control command

Robust fixed time controller with motor dynamics and composite disturbances for a quadrotor unmanned aerial vehicle

Abstract

Keywords

Introduction

Dynamic model of quadrotor

Assumption

Remark 1

Remark 2

Robust fixed time controller with motor dynamics and stability analysis of quadrotor system

Preliminaries

Definition 1

Lemma 1 32

Lemma 2

Theorem 1

Proof

Structure of the quadrotor control

Controller design for quadrotor and stability analysis

Virtual control of position

Theorem 2

Proof

Theorem 3

Proof

Attitude control

Theorem 4

Proof

Quadrotor control with motor dynamics

Theorem 5

Proof

Remark 1

Remark 2

Simulation

Tracking desired trajectory with motor dynamics

Tracking trajectory with and without considering motor dynamics

Conclusion

Nomenclature

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References

Lemma 1³²
