Adaptive region tracking control for underwater vehicles with large initial deviation and general uncertainty

Abstract

A region tracking control system is developed for underwater vehicles with large initial deviation and general uncertainty. The developed system is a nonlinear cascaded system, consisting of two subsystems in series. The fixed-gain controller of the first subsystem is designed to compensate for the region tracking error caused by the large initial deviation. In the second subsystem, the radial basis function neural network is adopted to approximate the general uncertainty along with the external disturbance and modelling uncertainty. According to the Lyapunov theory, the control law of the two subsystems and adaptive law of the second subsystem are derived to ensure the region tracking errors asymptotically converge to zero. The validity of the control system is verified by a series of comparisons on simulation results.

Keywords

Underwater vehicle region tracking control neural network initial deviation general uncertainty

Introduction

In the complex marine environment, underwater vehicles are widely used to accomplish the specified missions^1
–3 To make the underwater vehicle, a highly refined machine, many scholars have done a lot of research on precise attitude and trajectory control.^4

–7 However, the underwater vehicle usually only needs to be within the range of the desired area, and there is no need to pursue excessive tracking control accuracy. To improve operation efficiency and reduce energy consumption, some scholars have proposed the concept of area tracking control.⁸

Underwater vehicles operate in complex marine environments. Their six-degree-of-freedom (DOF) dynamics models, which are nonlinear and strongly coupled, are often affected by ocean current disturbance.⁹ Therefore, how to obtain a good control effect in the presence of current disturbance and modelling uncertainty has become a very challenging subject in the field of underwater vehicle control.

A variety of region tracking control methods have been proposed to deal with the adverse effects due to the external disturbance and modelling uncertainty for underwater vehicles in recent years.¹ Ismail and Dunnigan¹⁰ proposed an adaptive region tracking control method based on sliding mode for modelling uncertainty of underwater vehicles. Aiming at the problem that it is difficult to accurately obtain the hydrodynamic parameters in the dynamics model of underwater vehicle, Zhang and Chu¹¹ propose an adaptive area tracking control method combining radial basis function (RBF) neural network and boundary potential energy function. This method uses the RBF neural network to approximate the unknown term of dynamics model online and makes the tracking error reach the desired region through the boundary potential energy function. Chu and Zhu¹² utilized the RBF neural network to identify the uncertainty in the underwater vehicle system but only studied the three-DOF motion of the underwater vehicle, without considering the influence of the coupling of the six-DOF motion on the control effect. Ismail et al.¹³ have designed a region control scheme with robustness to external disturbance. Ismail et al.⁴ propose a region tracking control method based on the combination of boundary potential energy function and weighted pseudo-inverse and verify the control effect without current disturbance.

The above methods do not involve the control of the six-DOF motion of the underwater vehicle with the external disturbance and modelling uncertainty. In this article, the region tracking control experiment under the environment of severe current disturbance and modelling uncertainty is carried out, and it is found that the conventional region tracking control method⁴ cannot make the underwater vehicle reach the desired area.

All the above methods do not consider the problem of large initial deviation. In practice, the tracking control of underwater vehicles is usually long-time and long-range, so the deviation between the actual initial position of the underwater vehicles and the initial point of the desired area is inevitable. In this article, it is found that when the initial deviation is large, the conventional region tracking controllers^4,12 have the obviously worse control effects or even maybe completely invalid. In the end, the underwater vehicle will not be able to perform subsea detection operations or return safely.

Different from the previous region tracking control methods, this study focuses on solving the control error caused by large initial deviation while considering modelling uncertainty and external disturbance. The first subsystem of nonlinear cascaded system in this article is designed to compensate for tracking errors caused by large initial deviation through a fixed-gain controller. The second subsystem approximates current interference and modelling uncertainty online through the RBF neural network.

This article is organized as follows. The second section describes the six-DOF underwater vehicle kinematics and dynamics models under the environment of external disturbance and modelling uncertainty and the purpose of the region tracking control. In the third section, the design process of the proposed region tracking control system in detail and the stability analysis of the proposed control system based on the Lyapunov theory are performed. In the fourth section, the performance of the control system is verified through simulation studies, and the results are given. Furthermore, in the fifth section, a brief conclusion of this study is made.

Problem formulation

Underwater vehicle modeling

Establish the kinematics and dynamics models of an underwater vehicle by taking a common standard method. The kinematic motion equations in the earth-fixed frame are defined as follows¹⁴

[\begin{matrix} {\dot{η}}_{1} \\ {\dot{η}}_{2} \end{matrix}] = [\begin{matrix} J_{1} (η_{2}) & 0_{3 \times 3} \\ 0_{3 \times 3} & J_{2} (η_{2}) \end{matrix}] [\begin{matrix} v_{1} \\ v_{2} \end{matrix}]

J_{1} (η_{2}) = [\begin{matrix} cos θ cos ψ & sin φ sin θ cos ψ - cos φ sin ψ & cos φ sin θ cos ψ + sin φ sin ψ \\ sin θ cos ψ & sin φ sin θ sin ψ + cos φ sin ψ & cos φ sin θ sin ψ - sin φ cos ψ \\ - sin θ & sin φ cos θ & cos φ cos θ \end{matrix}]

J_{2} (η_{2}) = [\begin{matrix} 1 & sin φ tan θ & cos φ tan θ \\ 0 & cos φ & - sin φ \\ 0 & sin φ cos θ & cos φ sec θ \end{matrix}]

where η₁ = [x y z] ^T denotes the position vector and η₂ = [φ θ ψ] ^T denotes the orientation vector in the earth-fixed frame; v₁ = [u v w] ^T and v₂ = [p q r] ^T are the velocity vectors in the body-fixed frame; and J₁ (η₂ ) and J₂ (η₂ ) are the transformation matrix between the earth-fixed frame and the body-fixed frame.

The dynamic motion equations in the earth-fixed frame are defined as follows^15
–17

M \dot{v} + C (v) v + D (v) v + g (η) = τ - τ_{d}

where M represents the inertial matrix; C(v) represents rigid-body Coriolis and Centripetal matrix; D(v) represents the drag coefficient matrix; g(η) represents the vector of combined gravitational and buoyancy forces and moments; τ is the control forces and moments acting on the underwater vehicle center of mass; and τ_d represents the external force.

Problem formulation

To make the underwater vehicle reach the desired region, it is very important to design a suitable control law to make the maximum absolute error of the underwater vehicle less than the tracking error. Lyapunov function is constructed to prove the stability of the tracking errors under the environment of external disturbance and modelling uncertainty.

In the region tracking control for underwater vehicles, the desired trajectory $η_{d}$ is the central trajectory of the desired region directly. The desired region $y (\tilde{η})$ is defined as follows

y (\tilde{η}) = {[y_{1} ({\tilde{η}}_{1}), \dots, y_{6} ({\tilde{η}}_{6})]}^{T} \leq 0

where $\tilde{η} = η - η_{d}$ is the trajectory tracking error; η is the real trajectory; $y_{i} ({\tilde{η}}_{i}) = 1 / 2 ({\tilde{η}}_{i}^{2} - e_{i}^{2})$ i = 1,…,6; and e(t) = [e₁ (t),…, e₆ (t)] ^T represents the desired tracking error.

The desired function is defined as follows

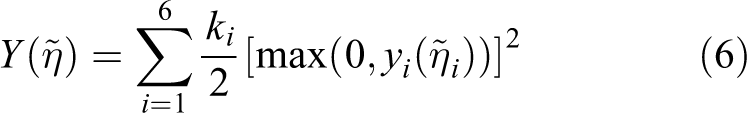

Y (\tilde{η}) = \sum_{i = 1}^{6} \frac{k_{i}}{2} {[max (0, y_{i} ({\tilde{η}}_{i}))]}^{2}

where k_i is a positive constant and ${\tilde{η}}_{i}$ is the trajectory tracking error on each DOF.

When the underwater vehicle is outside the desired region, the desired function $Y (\tilde{η}) > 0$ . To make the desired function converge to zero, we calculate the desired velocity by the gradient descent method. The desired velocity is expressed as follows

v_{d} = J^{- 1} (η) ({\dot{η}}_{d} - {\sum_{i = 1}^{6} k_{i}}_{​}^{​} \frac{\partial Y (\tilde{η})}{\partial {\tilde{η}}_{i}})

Region tracking control system design

Based on the conventional RBF fault-tolerant control system, this article focuses on the failure of conventional control systems with the general uncertainty and large initial deviation and designs a nonlinear cascade system. The first subsystem of the control system uses a fixed-gain controller to compensate for the tracking error caused by the large initial deviation. And its second subsystem uses the RBF neural network to estimate the general uncertainty for underwater vehicles.

Design idea

Intelligent fault-tolerant control mainly performs reliable and precise control of complex nonlinear systems in real time.¹⁸ Artificial neural networks have achieved good results in intelligent fault-tolerant control applications. It is found that the fault-tolerant control effect of the conventional RBF fault-tolerant control systems^19
–21 is better when the initial point of the center trajectory of the desired region coincides with the actual initial point or the deviation is small. However, the controller parameters will be over adjusted, and the degree of change of the controller output will be very intense, when the initial deviation is large. And when the output of the controller exceeds the saturation constraint of the thruster change rate, the tracking error will continue to increase, which will lead to the final failure of the control.

In practice, the initial point of tracking target cannot be set artificially, and the complex ocean environment will cause the position fluctuation of the underwater vehicle. Therefore, the problem of large initial point deviation cannot be ignored. To address this problem, a cascade system for region tracking control of underwater vehicles is designed as follows.

In Figure 1, underwater vehicle model in the first subsystem is unaffected by the external disturbance and modelling uncertainty. The fixed-gain controller in the first subsystem compensates the tracking error caused by the large deviation between the virtual track $η_{r}$ and the desired track $η_{d}$ , which can avoid the tracking error ${\tilde{η}}_{r d}$ caused by the controller with over-adjusted parameters. In the second subsystem, the tracking error ${\tilde{η}}_{r}$ between the virtual track $η_{r}$ and the actual track η is compensated by RBF neural network.

Figure 1.

Region tracking control system.

Region tracking control system design

At first, the control law of the controller with fixed gain of the first subsystem of the cascade system is designed, and the Lyapunov function is constructed to theoretically prove the tracking error asymptotically converge to zero, which compensates the region tracking errors caused by the initial deviation between the virtual track and the desired track. Then, the second subsystem of the cascade system is designed. The RBF neural network is adopted to online estimate the general uncertainty. And the Lyapunov function is made to theoretically prove the region tracking errors between the virtual trajectory and the actual trajectory. To sum up, the region control tracking errors of the control system can converge to zero when underwater vehicle has the general uncertainty and the large initial deviation.

First subsystem design and stability analysis

According to Figure 1, the region tracking error of the first subsystem as follows

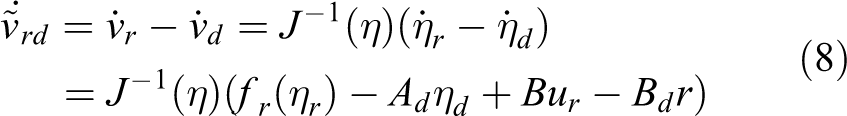

{\dot{\tilde{v}}}_{r d} = {\dot{v}}_{r} - {\dot{v}}_{d} = J^{- 1} (η) ({\dot{η}}_{r} - {\dot{η}}_{d}) = J^{- 1} (η) (f_{r} (η_{r}) - A_{d} η_{d} + B u_{r} - B_{d} r)

where ${\tilde{v}}_{r d} = v_{r} - v_{d}$ is the error between the virtual velocity and the desired velocity in the body-fixed frame; $η_{d}$ is defined by ${\dot{η}}_{d} = A_{d} η_{d} + B_{d} r$ ; r is the desired trajectory; $B_{d} = [\begin{matrix} 0_{6 \times 6} \\ ω_{n}^{2} I_{6 \times 6} \end{matrix}]$ ; $A_{d} = [\begin{matrix} 0_{6 \times 6} & I_{6 \times 6} \\ - ω_{n}^{2} I_{6 \times 6} & - 2 ω_{n} ξ I_{6 \times 6} \end{matrix}]$ ; and $ω_{n}$ and ξ are the positive constants.

According to equations (7), (8), and the design method of state feedback controller,¹⁷ the control law of the first subsystem is as follows

u_{r} = B^{+} (A_{d} η_{d} - f_{r} (η_{r}) + B_{d} r) - B^{+} J (η) (B_{d} K + B W) {\tilde{v}}_{r d} - B^{+} J (η) P^{+} J^{T} (η) K_{p} {\sum_{i = 1}^{6} k_{i}}_{​}^{​} \frac{\partial Y ({\tilde{η}}_{r d})}{\partial {\tilde{η}}_{r d i}}

A_{d}^{T} P + P A_{d} - P B_{d} Λ_{k} B_{d}^{T} P \leq 0

where $B^{+}$ is the pseudo-inverse matrix ofB; $P^{+}$ is the pseudo-inverse matrix of Pwhich is a positive definite matrix; $K_{p} = diag ([K_{p 1} \dots, K_{p 6}])$ ; $K = Λ_{k} B_{d}^{T} P$ ; $W = Λ_{w} B^{T} P$ ; and $Λ_{w}$ and $Λ_{k}$ are positive constants.

Take the appropriate transformation to describe equation (10)

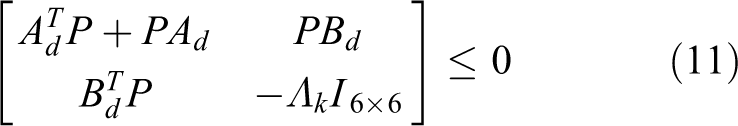

[\begin{matrix} A_{d}^{T} P + P A_{d} & P B_{d} \\ B_{d}^{T} P & - Λ_{k} I_{6 \times 6} \end{matrix}] \leq 0

where $Λ_{k}$ and P can be obtained by linear matrix inequality Toolbox.²²

To compensate the region tracking errors, ${\tilde{v}}_{r d}$ caused by the initial deviation between the virtual track and the desired track, define a Lyapunov function as follows

V_{1} = \frac{1}{2} {\tilde{v}}_{r d}^{T} P {\tilde{v}}_{r d} + \sum_{i = 1}^{6} \frac{K_{p i} k_{i}}{2} {[max (0, y_{i} ({\tilde{η}}_{r d_{i}}))]}^{2}

According to equations (8) and (9), the derivative of equation (12) is

\begin{array}{l} {\dot{V}}_{1} = {\tilde{v}}_{r d}^{T} P J^{- 1} (η) (f_{r} (η_{r}) - A_{d} η_{d} + B u_{r} - B_{d} r) \\ + \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}} {\dot{\tilde{η}}}_{r d_{i}} \\ = {\tilde{v}}_{r d}^{T} (A_{d}^{T} P + P A_{d} + P B_{d} Λ_{k} B_{d}^{T} P) {\tilde{v}}_{r d} - {\tilde{v}}_{r d}^{T} P B Λ_{w} B^{T} P {\tilde{v}}_{r d} \\ - {\tilde{v}}_{r d} J^{T} (η) K_{p} \sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}} \\ + \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}} {\dot{\tilde{η}}}_{r d_{i}} \end{array}

According to the following equation, we can simplify equation (13)

\begin{array}{l} {\tilde{v}}_{r d} J^{T} (η) K_{p} \sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}} \\ = \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}} {\dot{\tilde{η}}}_{r d_{i}} \\ + (\sum_{i = 1}^{6} k_{i} max (0, f_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}})^{T} K_{p} (\sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}}))) {\tilde{η}}_{r d_{i}}) \end{array}

So, equation (13) can be expressed as follows

\begin{array}{l} {\dot{V}}_{1} = {\tilde{v}}_{r d}^{T} (A_{d}^{T} P + P A_{d} + P B_{d} Λ_{k} B_{d}^{T} P) {\tilde{v}}_{r d} - {\tilde{v}}_{r d}^{T} P B Λ_{w} B^{T} P {\tilde{v}}_{r d} \\ - (\sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}})) {\tilde{η}}_{r d_{i}})^{T} K_{p} (\sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r d_{i}}))) {\tilde{η}}_{r d_{i}}) \end{array}

When the parameters in equation (14) satisfy equation (11), we can get as follows

{\dot{V}}_{1} \leq - {\tilde{v}}^{T} \times 0 \times \tilde{v} - \sum_{i = 1}^{6} K_{p i} k_{i}^{2} {[max (0, y_{i} ({\tilde{η}}_{r d_{i}}))]}^{2} {\tilde{η}}_{r d_{i}}^{2} \leq - ρ_{1} V_{1}

where $ρ_{1} = min (0, k_{i} {\tilde{η}}_{r d_{i}}^{2})$ .

According to the range of values of k_i , ρ₁ is equal to 0, equation (16) can be calculated as follows

{\dot{V}}_{1} \leq 0

Therefore, according to equation (16) and the Lyapunov theory, it has that the control error is consistent and ultimately bounded.

Second subsystem design and stability analysis

According to Figure 1, the region tracking error of the second subsystem is expressed as follows

{\dot{\tilde{v}}}_{r} = \dot{v} - {\dot{v}}_{r} = J^{- 1} (η) (f (η) - f_{r} (η_{r}) + B (u - u_{d}))

where ${\tilde{v}}_{r} = v - v_{r}$ is the error between the real velocity and the virtual velocity in the body-fixed frame.

Estimate $f_{r} (η_{r}) - f (η)$ by the RBF neural network

f_{r} (η_{r}) - f (η) = W φ (v, c, b) + ε ε \leq ε_{0}

where W represents the hidden-to-output layer interconnection weighted matrix; $φ (v, c, b)$ represents the output of the hidden layer; c is the center parameter; b is the wide parameter; ε is the neural network estimation error; and $ε_{0}$ is a positive constant.

Here, we adopt RBF neural network with three layers to online approximate the general uncertainty F

F = \hat{W} φ (v, c, b)

where $\hat{W}$ is the estimation value of W.

Design the control law and adaptive adjustment law $\hat{W}$ of are as follows

u - u_{d} = B^{+} [\hat{W} φ (v, c, b) - k_{s} sgn ({\tilde{v}}_{r})] - B^{+} J (η) J^{T} (η) K_{p} \sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r i})) {\tilde{η}}_{r i}

\hat{W} = - \frac{λ}{1 + r} ({\tilde{v}}_{r} φ (v, c, b)^{T} + m \hat{W})

where K_d and K_p are positive definite diagonal matrixes; $k_{s} \geq ε_{0}$ ; λ is the adjust step of W; m is a positive constant; and $γ = {[γ_{1}, \dots, γ_{6}]}^{T} γ_{i} = \{\begin{matrix} |τ_{i}| - τ_{M i} & |τ_{i}| > τ_{M i} \\ 0 & |τ_{i}| \leq τ_{M i} \end{matrix}$ .

When the control law is saturated, the tracking error always exists, resulting in the real trajectory of the underwater vehicle cannot converge to the target region in a limited time. To solve the problem, in this article, the saturation factor $1 / (1 + γ)$ is used. When the control law is saturated, the adaptive adjustment law decreases as the control law increases. So, even if the control law is saturated, the system is stable.

To compensate the region tracking errors between the real track and the virtual track, define a Lyapunov function as follows

V_{2} = \frac{1}{2} {\tilde{v}}_{r}^{T} {\tilde{v}}_{r} + \frac{1}{2} tr [{\tilde{W}}^{T} λ^{- 1} \tilde{W}] + \sum_{i = 1}^{6} \frac{K_{p i} k_{i}}{2} {[max (0, y_{i} ({\tilde{η}}_{r_{i}}))]}^{2}

The derivative of equation (22) is as follows

{\dot{V}}_{2} = {\tilde{v}}_{r}^{T} {\dot{\tilde{v}}}_{r} + tr [{\tilde{W}}^{T} λ^{- 1} \dot{\tilde{W}}] + \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{i})) {\tilde{η}}_{r i} {\dot{\tilde{η}}}_{r i}

Substituting equation (17) into equation (23)

\begin{array}{l} {\dot{V}}_{2} = {\tilde{v}}_{r}^{T} J^{- 1} (η) [f (η) - f_{r} (η_{r}) + B (u - u_{d})] + tr [{\tilde{W}}^{T} λ^{- 1} \dot{\tilde{W}}] \\ + \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{i})) {\tilde{η}}_{r i} {\dot{\tilde{η}}}_{r i} \end{array}

Substituting equation (18) and equation (20) into equation (24)

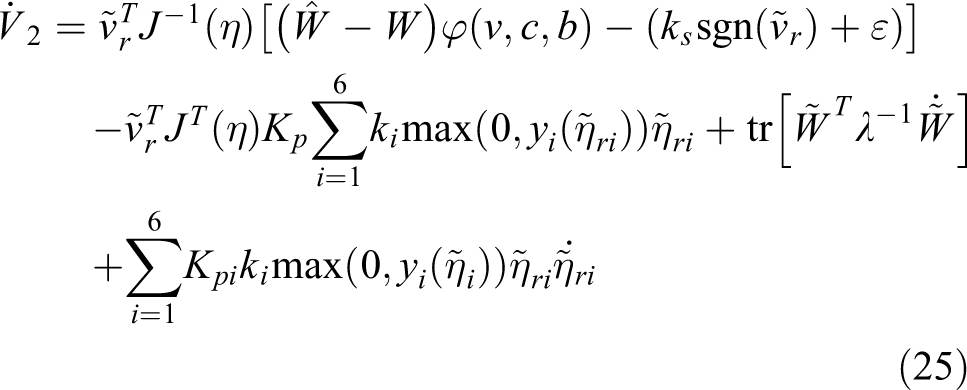

\begin{array}{l} {\dot{V}}_{2} = {\tilde{v}}_{r}^{T} J^{- 1} (η) [(\hat{W} - W) φ (v, c, b) - (k_{s} sgn ({\tilde{v}}_{r}) + ε)] \\ - {\tilde{v}}_{r}^{T} J^{T} (η) K_{p} \sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r i})) {\tilde{η}}_{r i} + tr [{\tilde{W}}^{T} λ^{- 1} \dot{\tilde{W}}] \\ + \sum_{i = 1}^{6} K_{p i} k_{i} max (0, y_{i} ({\tilde{η}}_{i})) {\tilde{η}}_{r i} {\dot{\tilde{η}}}_{r i} \end{array}

where $\tilde{W} = \hat{W} - W$ is the error of W.

According to the following equation and range of values of k_s , we can simplify equation (25)

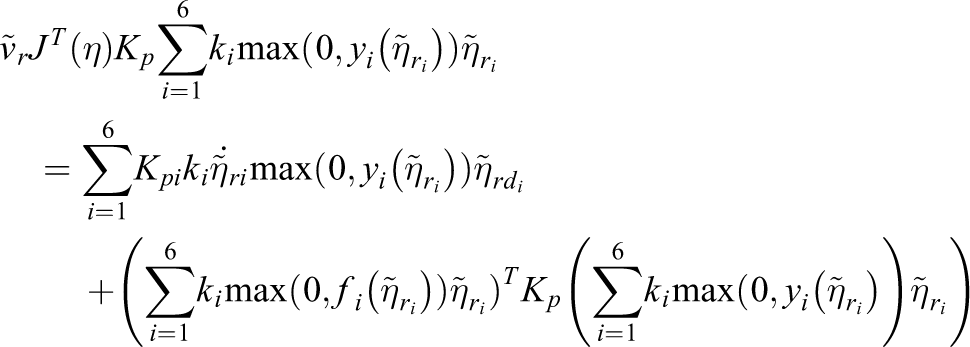

\begin{array}{l} {\tilde{v}}_{r} J^{T} (η) K_{p} \sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r_{i}})) {\tilde{η}}_{r_{i}} \\ = \sum_{i = 1}^{6} K_{p i} k_{i} {\dot{\tilde{η}}}_{r i} max (0, y_{i} ({\tilde{η}}_{r_{i}})) {\tilde{η}}_{r d_{i}} \\ + (\sum_{i = 1}^{6} k_{i} max (0, f_{i} ({\tilde{η}}_{r_{i}})) {\tilde{η}}_{r_{i}})^{T} K_{p} (\sum_{i = 1}^{6} k_{i} max (0, y_{i} ({\tilde{η}}_{r_{i}})) {\tilde{η}}_{r_{i}}) \end{array}

Therefore, we can get equation (26)

{\dot{V}}_{2} \leq tr [{\tilde{W}}^{T} \frac{γ}{1 + γ} {\tilde{v}}_{r} φ (v, c, b)] - tr [{\tilde{W}}^{T} \frac{m}{1 + γ} \hat{W}] - \sum_{i = 1}^{6} K_{p i} k_{i}^{2} {[max (0, y_{i} ({\tilde{η}}_{r i}))]}^{2} {\tilde{η}}_{r i}^{2}

According to following equations, we can simplify equation (26)

tr [{\tilde{W}}^{T} \frac{γ}{1 + γ} {\tilde{v}}_{r} φ {(v, c, b)}^{T}] \leq tr [{\tilde{W}}^{T} {\tilde{v}}_{r} φ {(v, c, b)}^{T}] \leq ‖ {\tilde{W}}^{T} ‖ ‖ {\tilde{v}}_{r} ‖ ‖ φ (v, c, b) ‖

- tr [{\tilde{W}}^{T} \frac{m}{1 + γ} \hat{W}] \leq - m tr [{\tilde{W}}^{T} (\tilde{W} + W)] \leq - \frac{m}{2} {‖ \tilde{W} ‖}^{2} + \frac{m}{2} {‖ W ‖}^{2}

- \frac{m}{4} {‖ \tilde{W} ‖}^{2} + ‖ {\tilde{W}}^{T} ‖ ‖ {\tilde{v}}_{r} ‖ ‖ φ (v, b, c) ‖ \leq - \frac{1}{4 m} {‖ {\tilde{v}}_{r} ‖}^{2} {‖ φ (v, c, b) ‖}^{2}

Equation (26) can be transformed as the following form

{\dot{V}}_{2} \leq - {\tilde{v}}_{r}^{T} (\frac{1}{4} ‖ φ (v, c, b) ‖) {\tilde{v}}_{r} - \frac{m}{4} {‖ \tilde{W} ‖}^{2} - \sum_{i = 1}^{6} K_{p i} k_{i}^{2} {[max (0, y_{i} ({\tilde{η}}_{r i}))]}^{2} {\tilde{η}}_{r i}^{2} + \frac{m}{2} {‖ W ‖}^{2} \leq - ρ_{2} V_{2} + δ

We can get ρ₂ and δ according to equation (30)

ρ_{2} = min (\frac{1}{2} {‖ φ (v, c, b) ‖}^{2}, \frac{m ‖ λ ‖}{2}, k_{i} {\tilde{η}}_{r i}^{2})

δ = \frac{m}{2} {‖ W ‖}^{2}

It can be proved by equation (30) that the real trajectory of the underwater vehicle can reach the desired area. According to equation (32), the degree of convergence between the real trajectory of the underwater vehicle and the desired region can be determined by m.

Experimental results

To prove that the control system in this article has a good control effect on the six-DOF motion of underwater vehicle under general uncertainty, compared with the conventional controller⁴ based on the boundary potential energy function, the conventional controller¹² based on RBF, and the control system in this article, carries on the simulation experiment under the system uncertainty.

To verify that the control system has good control effect under general uncertainty and large initial deviation, this article compares the conventional controller^4,12 and the control system in this article, there is a system under the general uncertainty and large initial deviation, simulation experiments are performed.

The control effect of the underwater vehicle is judged by whether the region tracking error is stable within the desired area and whether the maximum absolute tracking error can reach the desired area.

Experimental conditions

The experimental carrier is “underwater vehicle intelligent control-I (UVIC-I)” autonomous underwater vehicle (AUV). The length, width, height, and weight of the AUV are 2.250 m, 0.603 m, 0.487 m, and 204 kg, respectively. With the reference to the work of Guo,^23,24 the values of the parameters of the AUV dynamics model are obtained. This article studies the motion of six-DOF underwater vehicle. And tracking the desired regions the center trajectories of which are the straight line and ellipse.^14,25

The desired trajectories are expressed as follows

Straight line : y (\tilde{η}) = {[0.02 t, 0.02 t, 0.001 t, 0, 0, 0]}^{T}

Ellipse : y (\tilde{η}) = {[2 (1 - cos \frac{π}{60} t), sin \frac{π}{60} t, - 0.4 (1 - cos \frac{π}{60} t), 0, 0, 0]}^{T}

The desired tracking error is as follows

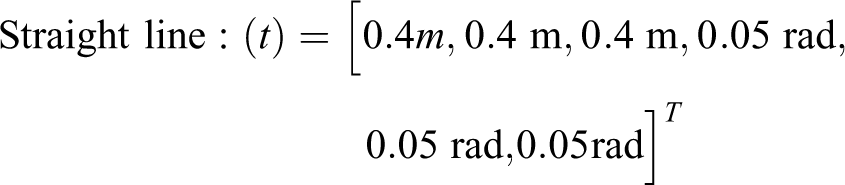

Straight line: (t) = {[0.4 m, 0.4 m,0.4 m,0.05 rad,0.05 rad, 0.05 rad]}^{T}

Ellipse: (t) = {[0.4 m, 0.4 m,0.4 m,0.2 rad,0.2 rad,0.2 rad]}^{T}

The thruster thrust amplitude limit is $\pm 100 N$ .

With the reference,²⁶ the initial position of the AUV is appropriately set to $η (0) = {[- 0.5, - 0.5, - 0.5, 0, 0, 0]}^{T}$ . And the initial position of the center trajectory of the desired region is set to $η_{d} (0) = {[0, 0, 0, 0, 0, 0]}^{T}$ .

The first-order Gauss–Markov process is used to simulate the ocean current^14,15

{\dot{V}}_{c} + μ V_{c} = ω

where V_c represents the magnitude of ocean current; ω represents Gaussian white noise with mean 1 and variance 1; and μ=3. In addition, we assume that the direction of ocean current is constant. Therefore, the sideslip angle is equal to π/4 and angle of attack is equal to π/6.

In this article, the uncertainty of current disturbance $τ_{f}$ is as follows

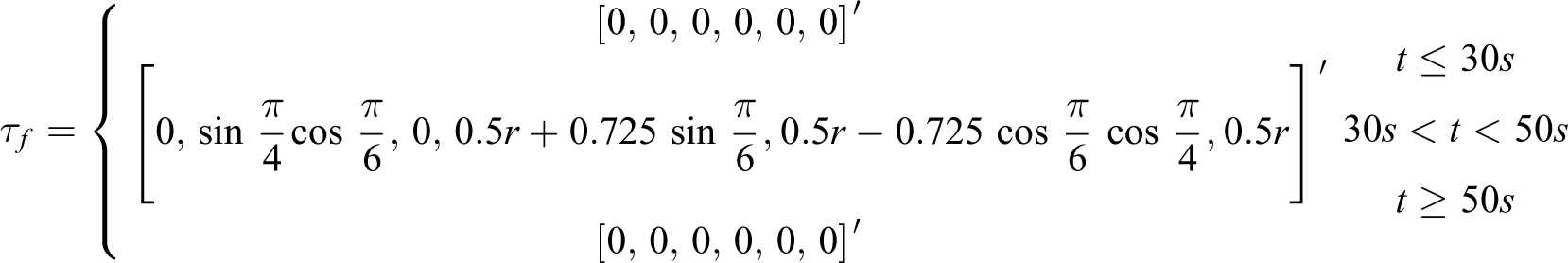

τ_{f} = \{\begin{matrix} {[0, 0, 0, 0, 0, 0]}^{′} \\ {[0, sin \frac{π}{4} cos \frac{π}{6}, 0, 0.5 r + 0.725 sin \frac{π}{6}, 0.5 r - 0.725 cos \frac{π}{6} cos \frac{π}{4}, 0.5 r]}^{′} \\ {[0, 0, 0, 0, 0, 0]}^{′} \end{matrix} \begin{matrix} t \leq 30 s \\ 30 s < t < 50 s \\ t \geq 50 s \end{matrix}

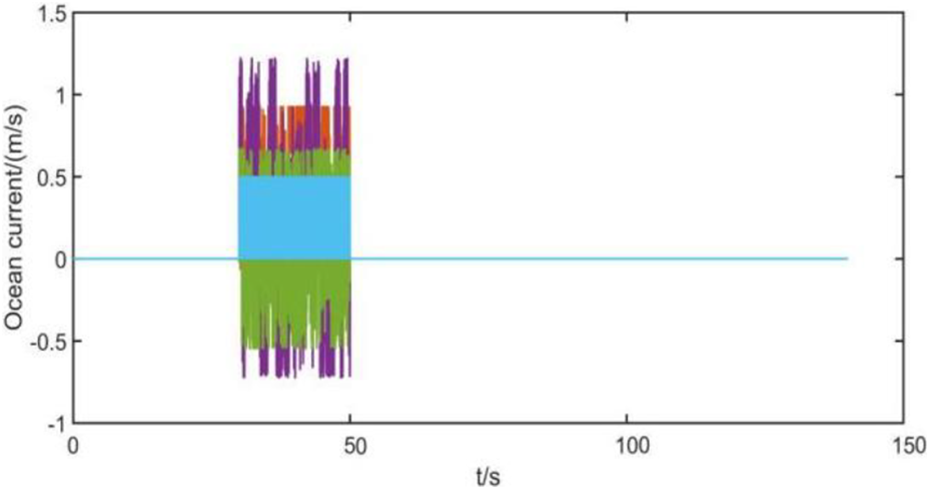

Ocean current is shown in Figure 2.

Figure 2.

Ocean current.

To embody the modelling uncertainty, 10% modelling error is assumed in the simulation.²⁷

Experiment with general uncertainty

In this section, when general uncertainty exists, tracking the desired region the center trajectory of which is the straight-line. The experimental results are shown in Figure 3.

Figure 3.

(a to c) Experimental results with general uncertainty in straight-line tracking.

The desired and real trajectories are shown in Figure 3(a). Figure 3(b) and (c) shows the tracking trajectory and error of six-DOF motion, respectively.

The lateral and pitch tracking errors of the conventional controller based on boundary potential energy obviously exceed the respective desired error, which can be seen from Figure 3(c). In Figure 3(a), the growth trend of lateral error of conventional controller³ is obvious. The real position and angle errors of the RBF controller and the control system in this article are less than the desired tracking error, respectively. And the convergence time is 20 s, which can be seen from Figure 3(c).

For a clear description, the maximum absolute errors are presented in Table 1.

Table 1.

Maximum absolute errors with general uncertainty in straight-line tracking.

Maximum absolute error	X (m)	Y (m)	Z (m)	Φ (rad)	θ (rad)	ψ (rad)
Desired	0.4	0.4	0.4	0.05	0.05	0.05
Boundary potential energy	0.4732	0.2222	0.0964	0.0226	0.0288	0.1689
RBF	0.1933	0.3511	0.1062	0.0100	0.0089	0.0081
Control system	0.1668	0.3438	0.0009	0.0085	0.0023	0.0078

RBF: radial basis function.

In Table 1, the maximum absolute tracking errors of the conventional controller based on boundary potential energy are [0.4732 m, 0.2222 m, 0.0964 m, 0.0226 rad, 0.0288 rad, and 0.1689 rad]. And its lateral and pitch tracking errors obviously exceed the respective desired error. That is to say, the controller based on boundary potential energy cannot reach the desired straight-line region with general uncertainty.

However, the maximum absolute tracking errors of the RBF controller and the control system in this article are [0.1933 m, 0.3511 m, 0.1062 m, 0.0100 rad, 0.0089 rad, and 0.0081 rad] and [0.1668 m, 0.3438 m, 0.0009 m, 0.0085 rad, 0.0023 rad, and 0.0078 rad], respectively. The real position errors of the RBF controller and the control system in this article are less than 0.4 m, and the angle errors of the RBF controller and the control system in this article are less than 0.05 rad. That is to say, the RBF controller and the control system in this article can reach the desired straight-line region with general uncertainty. And in Figure 3(c), they can be stable maintained within the desired region. Because the maximum absolute errors of the control system are less than that of the RBF controller, the accuracy of the control system is higher.

Tracking the desired region the center trajectory of which is the ellipse. The experimental results are shown in Figure 4.

Figure 4.

(a to c) Experimental results with general uncertainty in ellipse tracking.

The desired and real trajectories are shown in Figure 4(a). Figure 4(b) and (c) shows the tracking trajectory and error of six-DOF motion, respectively.

The six-DOF tracking errors of the conventional controller based on boundary potential energy obviously exceed the respective desired error, which can be seen from Figure 4(c). The real position and angle errors of the RBF controller and the control system in this article are less than the desired tracking error, respectively.⁶ And the convergence time is very short, which can be seen from Figure 4(c).

For a clear description, in Table 2, the maximum absolute errors are presented.

Table 2.

Maximum absolute errors with general uncertainty in ellipse tracking.

Maximum absolute error	X (m)	Y (m)	Z (m)	Φ (rad)	θ (rad)	ψ (rad)
Desired	0.4	0.4	0.4	0.2	0.2	0.2
Boundary potential energy	21.45	103.2	49.50	57.80	0.9246	20.54
RBF	0.0089	0.1051	0.0056	0.0051	0.0039	0.0084
Control system	0.0052	0.1045	0.0022	1.9361 × 10⁻¹⁸	2.0941 × 10⁻¹⁸	3.3509 × 10⁻¹¹

RBF: radial basis function.

In Table 2, the maximum absolute tracking errors of the conventional controller based on boundary potential energy are [21.45 m, 103.2 m, 49.50 m, 57.80 rad, 0.9246 rad, and 20.54 rad]. And its six-DOF tracking errors obviously exceed the respective desired error. That is to say, the controller based on boundary potential energy cannot reach the desired ellipse region with general uncertainty.

However, the maximum absolute tracking errors of the RBF controller and the control system in this article are [0.0089 m, 0.1051 m, 0.0056 m, 0.0051 rad, 0.0039 rad, and 0.0084 rad] and [0.0052 m, 0.1045 m, 0.0022 m, 1.9361 × 10⁻¹⁸ rad, 2.0941 × 10⁻¹⁸ rad, and 3.3509 × 10⁻¹¹ rad], respectively. The real position errors of the RBF controller and the control system in this article are less than 0.4 m, and the angle errors of the RBF controller and the control system in this article are less than 0.2 rad. That is to say, the RBF controller and the control system in this article can reach the desired ellipse region with general uncertainty. And in Figure 4(c), they can be stable maintained within the desired region. Because the maximum absolute errors of the control system are less than that of the RBF controller, the accuracy of the control system is higher.

To sum up, the experimental results show that when the external disturbance and modelling uncertainty exist, the controller based on boundary potential energy cannot make the underwater vehicle into the desired region, while the RBF controller and the control system in this article can make the underwater vehicle into the desired region and maintain the stability in the desired region. And the accuracy of the control system in this article is improved.

Experiment with large initial deviation and general uncertainty

When the large initial deviation and general uncertainty exist, tracking the desired region the center trajectory of which is the straight-line. The experimental results are shown in Figure 5.

Figure 5.

(a to c) Experimental results with large initial deviation and general uncertainty in straight-line tracking.

The desired and real trajectories are shown in Figure 5(a). Figure 5(b) and (c) shows the tracking trajectory and error of six-DOF motion, respectively.

In Figure 5(c), the six-DOF tracking errors of the conventional controller based on boundary potential energy obviously exceed the respective desired error. And the lateral and longitudinal tracking errors of the RBF controller exceed the respective desired error. The real position and angle errors of the control system in this article are less than the desired tracking error. And the convergence time is about 23 s, which can be seen from Figure 5(c).

For a clear description, in Table 3, the maximum absolute errors are shown.

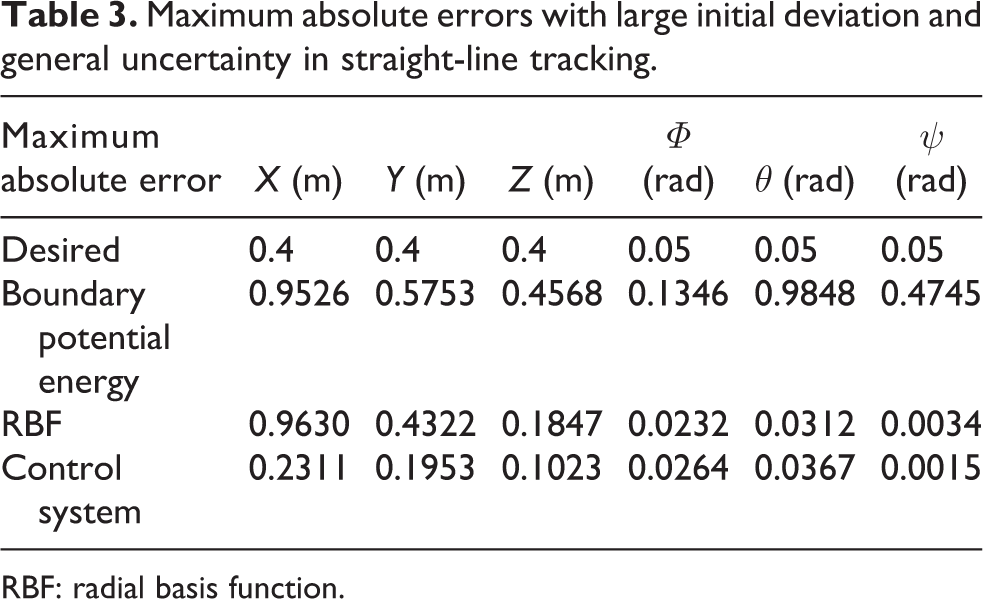

Table 3.

Maximum absolute errors with large initial deviation and general uncertainty in straight-line tracking.

Maximum absolute error	X (m)	Y (m)	Z (m)	Φ (rad)	θ (rad)	ψ (rad)
Desired	0.4	0.4	0.4	0.05	0.05	0.05
Boundary potential energy	0.9526	0.5753	0.4568	0.1346	0.9848	0.4745
RBF	0.9630	0.4322	0.1847	0.0232	0.0312	0.0034
Control system	0.2311	0.1953	0.1023	0.0264	0.0367	0.0015

RBF: radial basis function.

In Table 3, the maximum absolute tracking errors of the conventional controller based on boundary potential energy are [0.9526 m, 0.5753 m, 0.4568 m, 0.1346 rad, 0.9848 rad, and 0.4745 rad]. And its six-DOF tracking errors obviously exceed the respective desired error. That is to say, the controller based on boundary potential energy cannot reach the desired straight-line region with large initial deviation and general uncertainty.

The maximum absolute tracking errors of the RBF controller are [0.9630 m, 0.4322 m, 0.1847 m, 0.0232 rad, 0.0312 rad, and 0.0034 rad]. Its lateral and longitudinal tracking errors obviously exceed the desired error which is 0.4 m. That is to say, the RBF controller cannot reach the desired straight-line region with large initial deviation and general uncertainty.

However, the maximum absolute tracking errors of the proposed control system are [0.2311 m, 0.1953 m, 0.1023 m, 0.0264 rad, 0.0367 rad, and 0.0015 rad]. The real position errors of the control system in this article are less than 0.4 m, and the angle errors of the proposed control system are less than 0.05 rad. That is to say, the control system in this article can reach the desired straight-line region with large initial deviation and general uncertainty. And in Figure 5(c), it can be seen that they can be stable maintained within the desired region.

Tracking the desired region the center trajectory of which is the ellipse. The experimental results are shown in Figure 6.

Figure 6.

(a to c) Experimental results with large initial deviation and general uncertainty in ellipse tracking.

The desired and real trajectories are shown in Figure 6(a). Figure 6(b) and (c) shows the tracking trajectory and error of six-DOF motion, respectively.

The six-DOF tracking errors of the conventional controller based on boundary potential energy obviously exceed the respective desired error, which can be seen from Figure 6(c). And the lateral, vertical, yaw, and pitch tracking errors of the RBF controller exceed the respective desired error. The real position and angle errors of the control system in this article are less than the desired tracking error. And the convergence time is very short, which can be seen from Figure 6(c).

For a clear description, in Table 4, the maximum absolute errors are shown.

Table 4.

Maximum absolute errors with large initial deviation and general uncertainty in ellipse tracking.

Maximum absolute error	X (m)	Y (m)	Z (m)	Φ (rad)	θ (rad)	ψ (rad)
Desired	0.4	0.4	0.4	0.2	0.2	0.2
Boundary potential energy	212.3	386.4	457.9	1753	1.225	46.35
RBF	0.5739	0.3826	0.4397	0.0367	1.742	46.84
Control system	0.0528	0.0254	0.0423	0.0137	0.0203	0.1339

RBF: radial basis function.

In Table 4, the maximum absolute tracking errors of the conventional controller based on boundary potential energy are [212.3 m, 386.4 m, 457.9 m, 1753 rad, 1.225 rad, and 46.35 rad]. And its six-DOF tracking errors obviously exceed the respective desired error. That is to say, the controller based on boundary potential energy cannot reach the desired ellipse region with large initial deviation and general uncertainty.

The maximum absolute tracking errors of the RBF controller are [0.5739 m, 0.3826 m, 0.4397 m, 0.0367 rad, 1.742 rad, and 46.84 rad]. Its lateral, vertical, yaw, and pitch tracking errors obviously exceed the desired error which is 0.4 m. That is to say, the RBF controller cannot reach the desired ellipse region with large initial deviation and general uncertainty.

However, the maximum absolute tracking errors of the proposed control system are [0.0528 m, 0.0254 m, 0.0423 m, 0.0137 rad, 0.0203 rad, and 0.1339 rad]. The real position errors of the proposed control system are less than 0.4 m, and the angle errors of the control system in this article are less than 0.2 rad. That is to say, the control system in this article can reach the desired ellipse region with large initial deviation and general uncertainty. And in Figure 6(c), they can be stable maintained within the desired region.

To sum up, the experimental results show that when the large initial deviation and general uncertainty exist, neither the controller based on boundary potential energy nor the RBF controller can make underwater vehicles into the desired region, while the control system in this article can make underwater vehicles into the desired region and maintain the stability in the desired region.

Conclusions

In this study, the region tracking control system of underwater vehicles is designed in the presence of large initial deviation and general uncertainty. The design of the region tracking control system combines the design method of state feedback controller with the RBF neural network well. Some problems such as controller parameter overadjustment, general uncertainty, and large initial deviation are effectively avoided.²⁸ And the tracking accuracy of the control system is slightly improved compared with that of the conventional RBF controller. Therefore, the control system has increased the practical feasibility and stability of region tracking control. The stability of the region tracking control system is proved through Lyapunov function. Finally, it is fully compared with the controllers based on boundary potential energy and RBF to further prove the superiority of the control system with large initial deviation and general uncertainty.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China (51779060) and National Natural Science Foundation of China (51839004).

ORCID iD

Wei Gong

References

Huang

Zhang

Qing

, et al. Autonomous underwater vehicle precise motion control for target following with model uncertainty. Int J Adv Robot Syst 2017. DOI: 10.1177/1729881417719808.

Carreno

Wilson

Ridao

, et al. A survey on terrain based navigation for AUVS. In: IEEE oceans, Seattle, USA, 20–23 September 2010, pp. 1–7.

Liang

Wang

, et al. Swarm control with collision avoidance for multiple underactuated surface vehicles. Ocean Eng 2019; 191(106,516): 1–10.

Ismail

Mokhar

MBM

Putranti

VWE

, et al. A robust dynamic region-based control scheme for an autonomous underwater vehicle. Ocean Eng 2016; 111: 155–165.

Liang

Wang

, et al. Three-dimensional trajectory tracking of an underactuated AUV based on fuzzy dynamic surface control. IET Intell Transp Syst 2020; 14(5): 364–370.

Liang

Wan

. Three-dimensional path following of an underactuated AUV based on fuzzy backstepping sliding mode control. Int J Fuzzy Syst 2018; 20(2): 640–649.

Xiang

Zhang

. Robust fuzzy 3D path following for autonomous underwater vehicle subject to uncertainties. ComputOper Res 2016; 84(8), http://dx.doi.org/10.1016/j.cor.2016.09.017 (accessed 1 September 2017).

Hou

Cheah

. Adaptive region tracking control for autonomous underwater vehicle. In: 11th international conference on control, automation, robotics and vision, Singapore, 7–10 December 2010, pp. 2129–2134.

Chu

Meng

Zhu

, et al. Fault reconstruction using a terminal sliding mode observer for a class of second-order MIMO uncertain nonlinear systems. ISA Trans 2020; 97: 67–75.

10.

Ismail

Dunnigan

. A region boundary-based control scheme for an autonomous underwater vehicle. Ocean Eng 2011; 38(17): 2270–2280.

11.

Zhang

Chu

. Adaptive region tracking control for autonomous underwater vehicle. J Mech Eng 2014; 50(19): 50–57.

12.

Chu

Zhu

. Fault-tolerant control of autonomous underwater vehicle based on adaptive region tracking. J Shandong Univ(Eng Sci) 2017; 47(05): 57–63.

13.

Ismail

Faudzi

Dunnigan

. Fault-tolerant region-based control of an underwater vehicle with kinematically redundant thrusters. Math Probl Eng 2014; 2014(4): 1–12.

14.

Wang

Zhang

Wilson

, et al. Adaptive neural network-based backstepping fault tolerant control for underwater vehicles with thruster fault. Ocean Eng 2015; 110: 15–24.

15.

Fossen

. Guidance and control of ocean vehicles. Chichester: John Wiley & Sons, 1994.

16.

Antonelli

. Underwater robots. Switzerland: Springer, 2014.

17.

Fossen

. Handbook of marine craft hydrodynamics and motion control. Chichester: John Wiley & Sons, 2011.

18.

Liang

Wang

, et al. A novel distributed and self-organized swarm control framework for underactuated unmanned marine vehicles. IEEE Access 2019; 7: 112,703–112,712.

19.

Yang

Guo

Zhang

. Adaptive terminal sliding mode control method based on RBF neural network for operational AUV and its experimental research. Robot 2018; 40(03): 336–345.

20.

Wang

Song

, et al. Research on fault-tolerant control of underwater robot. In: 14th symposium on China ocean (shore) engineering, Inner Mongolia, China, 5 August 2009, pp. 269–272.

21.

Wang

Zang

Zhou

. Fault-tolerant control of nonlinear dynamic systems. Comput Technol Autom 2004; 23(04): 7–10

22.

Tan

Man

. Terminal sliding mode observers for a class of nonlinear systems. Automatica 2010; 46(8): 1401–1404.

23.

Guo

. Research on motion control method for underwater vehicles based on RBF network and adaptive sliding mode. Master Dissertation, Harbin Engineering University, 2017.

24.

Gong

. Research on control method of deep-sea AUV for deep diving motion. Master Dissertation, Harbin Engineering University, 2017.

25.

Bin

Dezhi

Peng

, et al. Adaptive neural observer-based backstepping fault tolerant control for near space vehicle under control effector damage. Control Theory Appl 2014; 8(9): 658–666.

26.

Wang

. Research on starting position of AUV terrain reference navigation. Doctoral Dissertation, Harbin Engineering University, 2019.

27.

Dearden

Ernits

. Automated fault diagnosis for an autonomous underwater vehicle. IEEE J Ocean Eng 2013; 38(3): 484–499.

28.

Jia

Wang

, et al. Adaptive control of nonlinear system using online error minimum neural networks. ISA Trans 2016; 65: 125–132.
