A rapidly exploring random tree optimization algorithm for space robotic manipulators guided by obstacle avoidance independent potential field

Abstract

The crucial problem of obstacle avoidance path planning is to realize both reducing the operational cost and improving its efficiency. A rapidly exploring random tree optimization algorithm for space robotic manipulators guided by obstacle avoidance independent potential field is proposed in this article. Firstly, some responding layer factors related to operational cost are used as optimization objective to improve the operational reliability. On this basis, a potential field whose gradient is calculated off-line is established to guide expansion of rapidly exploring random tree. The potential field mainly considers indexes about manipulator itself, such as the minimum singular value of Jacobian matrix, manipulability, condition number, and joint limits of manipulator. Thus, it can stay the same for different obstacle avoidance path planning tasks. In addition, a K-nearest neighbor–based collision detection strategy is integrated for accelerating the algorithm. The strategy use the distance between manipulator and obstacles instead of the collision state of manipulator to estimate the distance between new sample configuration and obstacle. Finally, the proposed algorithm is verified by an 8-degree of freedom manipulator. The comparison between the proposed algorithm and a heuristic exploring–based rapidly exploring random tree indicates that the algorithm can improve the efficiency of path planning and shows better kinematic performance in the task of obstacle avoidance.

Keywords

Space manipulator obstacle avoidance path planning RRT operation cost obstacle avoidance independent potential field KNN

Introduction

Robotic system plays an irreplaceable role in building and operating space station among various aerospace mechanisms. Path planning research is a key technology for applying robot in space service, which is a significant branch of robotic research and is the most important task in robot navigation.^1

–4 The calculated amount of path planning algorithm depends on the complexity of tasks, the environment, and the quality requirement of target path. Thus, an expected path planning algorithm should realize both its efficiency and the quality requirement of path planning. Meanwhile, due to the specialty of space operational environment, the crucial problem of obstacle avoidance is to figure out the method of reducing the operational cost of manipulators and improving its operational reliability.

According to the mastery degree of the knowledge about space environment that robots have obtained, the path planning of obstacle avoidance can be divided into global path planning, based on the complete prior information, and local path planning, based on the information obtained by sensors.⁵ Generally, the real-time information provided by sensors helps to know the location of the robot itself and the obstacles nearby, which are used for real-time path planning.⁶ The gradient projection method is a hot topic discussed in recent years to solve obstacle avoidance path planning for redundant manipulators. Using Jacoby matrix null space of redundant manipulators, this method, through the self-motion of the manipulator joint, can complete subassignments of obstacle avoidance without interfering with main task. Xiang et al. prove that null space projection seriously restricts the performance of subtasks, and they propose a generalized weighted minimum norm method to solve the obstacle avoidance problem.⁷ However, the gradient projection method needs to plan the end trajectory in advance, and the algorithm itself has no ability to plan the end trajectory. Due to the limited local information obtained, local path planning algorithms are easy to be trapped in local minima.^8
–10 Global path planning algorithms can be divided into two categories. The first category is based on the explicit map of environment, which is generally obtained by trapezoidal decomposition, visibility graph method, grid method, or Voronoi diagram method. Once the map has been created, the particle swarm optimization algorithm, genetic algorithm, and ant colony algorithm can be used to search for an obstacle-free path. For example, Wang et al.¹¹ use particle swarm optimization method to do path planning for mobile robots, which can achieve different optimization effect by different fitness function and it performs with high efficiency. Jabbarpour et al.¹² propose Green ant–based method for mobile robots to make obstacle avoidance path planning. Comparing with ant colony optimization method, genetic algorithm, and particle swarm optimization method, the simulation shows that the algorithm has better performance on travel time, travel length, and computational time. The above method needs to build the environment map in advance, which is often used to solve the path planning problem for the mobile robots. However, it is extremely time-consuming and difficult to build the environment map and the artificial potential field in high dimensional space. The second category of path planning is based on random sampling, which can take samples in configuration space of manipulators to avoid establishing explicit map.¹³ This category mainly includes two kinds of algorithm, Probabilistic Road Maps (PRM) and rapidly exploring random trees (RRTs). PRM is suitable for multiple-query planning problem. Yet, the constant changing environment of path planning in space may result in difference between two queries. Thus, the algorithm in this article is based on RRT algorithm as it is suitable for single-query planning.

RRT algorithm is proposed by Kuffner and LaValle,¹⁴ which uses random sampling method and tree structure extending for iteration searching with specific step. According to the characteristics of RRT algorithm, the modeling of high dimensional space is avoided by collision detection on sampling configuration, which improves the efficiency of the planning process. What’s more, some path planning problem with complex constraints can also be solved by RRT. Weghe et al. use RRT in Cartesian space with a 7-degree of freedom (DOF) manipulator.¹⁵ The transpose of Jacobian is used in this method to avoid calculating pseudo-inverse of the Jacobian matrix. Qureshi et al. establish a potential field about obstacles in Cartesian space. The descent direction of potential gradient is used as the direction of extension.¹⁶ However, both these methods do not have the capacity to optimize the path. Another modified RRT is proposed by Bertram et al.,¹⁷ which uses a heuristic exploring strategy. The original RRT chooses the closest node to the new sample to explore. On this basis, the modified RRT also considers the total distance between manipulator and obstacles as another index, so that the path obtained by this method always has an adequate safety allowance. This algorithm has a fast convergent rate but narrow searching scope, which makes the path to have a lower optimization degree. The global path planning algorithm can hardly plan a new path at once toward changing conditions. Thus, global path planning methods are expected to combine with local methods to complete a task. How to modify global path planning methods to make them effectively combined with local methods has not been considered in most research. In addition, in order to improve the operational reliability, the global obstacle avoidance path planning algorithm should be modified. Jaillet et al.¹⁸ provide a variation of RRT called transition-based RRT (T-RRT), which builds a cost map of manipulator by Monte–Carlo method off-line. RRT algorithm is used in this map to search feasible path. Yet, the establishment of its configuration space is time-consuming for a redundant manipulator. Moreover, the position of obstacles could be different between two planning processes, so that the cost map cannot be utilized repeatedly. Berenson et al.¹⁹ use gradient descent method based on T-RRT, which has a better optimization effect. However, the shortcoming of T-RRT still exists where it calculates the gradient of every configuration nodes before exploring, which results in low efficiency.

Based on these considerations, an obstacle avoidance independent RRT optimization algorithm led by potential field considering operational reliability is proposed in this article. Firstly, based on the analysis of mapping relationship among the influence factors of operational reliability, some responding layer factors, such as energy consumption, velocity of end-effector, and frictional wear of manipulator are used as optimization objective to improve the operational reliability. On this basis, a potential field to optimize the operational cost is established. Furthermore, a potential field of gradient is calculated off-line, which transforms calculating gradient of potential field into querying. The potential field of gradient is used to guide the expansion of RRT. Comparing with other methods, our potential field mainly considers the minimum singular value of Jacobian matrix, manipulability, condition number, and joint limits of manipulator, which are only related to the information about manipulator itself. Thus, the potential field can remain constant for different obstacle avoidance path planning task. In addition, the K-nearest neighbors (KNN) algorithm based on collision detection strategy is integrated into our path planning method. This strategy uses the distance between manipulator and obstacles instead of the collision state of manipulator to estimate the distance between the new sample configuration and the obstacle. The structure of this article is shown as follows: In the second section, the optimization object of the obstacle avoidance path planning algorithm is determined. The potential field for optimizing operational reliability is established in the third section. In the fourth section, the RRT algorithm guided by potential field is introduced. And the modified KNN–based collision strategy is also introduced in this section. In the fifth section, an 8-DOF manipulator is used to verify the effectiveness of the proposed algorithm. The last section is the conclusion.

The optimization objective of obstacle avoidance path planning algorithm for improving operational reliability

The on-orbit service tasks for aerospace mechanisms are complex, and numerous factors may influence the completion of tasks and the cost of a single task; therefore, these factors play a crucial role in the achievability and the service life of aerospace mechanisms. The analysis of the mapping relationship in the study by Gao et al.²⁰ shows that the influence factors and the control variables have no direct mapping relation. However, the control variables are directly related to the responding layer factors, and the influence factors can also directly affect the responding layer factors. Thus, the mapping relationship of the influence factors of operational reliability and the control variables can be raveled out through building the mapping relationship between the influence factors of reliability and responding layer factors and building the mapping relationship between responding layer factors and the control variables.

Control variables mean the variables that can be controlled directly. Specifically, control variables include joint angle, angular velocity, and joint torque in the operational process. The influence factors of operational reliability mean factors that influence the operational reliability during producing, assembling, and operating. It includes reduction in tooth thickness, bearing clearance, error of gear position, error of bearing motion, and so on. Responding layer factors are the connection between influence factors and control variables, which mainly include the velocity of end-effector, the abrasion, and the energy consumption.

Based on the above analysis, the operational reliability can be improved indirectly by optimizing the responding layer factors by adjusting control variables. On the premise that the path planning of obstacle avoidance is perfectly achieved, the operational cost should be reduced. In this process, the influence factors of operational reliability can be represented by bearing clearance, error of gear position, error of bearing motion, and so on. Meanwhile, the degradation of those factors can be represented indirectly by the factors at responding layer. Therefore, energy consumption of the manipulator, the velocity of end-effector, and the abrasion are selected as optimization objects.

The relationship between energy consumption and angular velocity is represented by the following equation

f = \sum_{i = 1}^{n} \int_{t_{0}}^{t_{f}} {[{\dot{q}}_{i} (t) τ_{i} (t)]}^{2} d t

where ${\dot{q}}_{i} (t)$ represents the angular velocity of the ith joint; $τ_{i} (t)$ represents the joint driving torque of the ith joint; t ₀ is the task start-time; and t_f is the task finish-time.

The minimum singular value of Jacobian can be used as an index to measure the upper bound of angular velocity

‖ \dot{q} ‖ < (\frac{1}{σ_{r}}) \cdot ‖ \dot{x} ‖

where σ_r is the minimum singular value of the Jacobian. $\dot{x}$ is the velocity of end-effector. $\dot{q}$ is the angular velocity of manipulator joint angle. The inequality above has shown on the premise that the end-velocity required for the task remains constant. The smaller the σ_r , the larger the $‖ \dot{q} ‖$ . Therefore, from the perspective of energy consumption, the minimum singular value should be as large as possible. On the other hand, in order to be adaptive with other local method, large σ_r keeps the Jacobian matrix far away from ill-conditioned, which leads to a high accuracy in calculating angular velocity via pseudo-inverse methods. On the contrary, the angular velocity calculated by pseudo-inverse methods will approach to infinity when the manipulator is in a singular configuration, which makes the manipulator fail the task.

The manipulability of manipulator is defined as the equation below.

w = \sqrt{det [J (q) \cdot J^{T} (q)]}

where $J (q)$ represents the Jacobian at configuration q. In case of a certain velocity of end-effector, the manipulator expects a relative low angular velocity if the manipulability is large. Unlike the minimum singular value, the manipulability focuses on the capacity of generating velocity in every direction.

In addition, the abrasion of joints will become severe, when the joint operates around the joint limit for long periods of time. Therefore, the joint angle should be kept far away from their limits during operations.

In conclusion, the minimum singular value of Jacobian, manipulability, and the distance to joint limits are used as the optimization objectives. The optimization is achieved by selecting specific configurations as the nodes of random tree in the planning process, which cannot only improve the operational reliability but also enhance combination with local obstacle avoidance algorithm.

The establishment of potential field for improving operational reliability

The establishment of potential field with the minimum singular value of Jacobian matrix

Decomposing the Jacobian matrix $J {(q)}_{m \times n}$ in singular value decomposition, the following equation is obtained

J (q) = U Σ V^{T} = {[\begin{matrix} u_{1} & u_{2} & \dots & u_{m} \end{matrix}]}_{m \times m} {[\begin{matrix} σ_{1} & 0 & \dots & 0 & | & 0 \\ 0 & σ_{2} & ⋮ & | & 0 \\ ⋮ & ⋱ & 0 & | & 0 \\ 0 & \dots & 0 & σ_{m} & | & 0 \end{matrix}]}_{m \times n} {[\begin{matrix} v_{1}^{T} \\ v_{2}^{T} \\ ⋮ \\ v_{n}^{T} \end{matrix}]}_{n \times n}

where $Σ = U^{T} J (q) V = diag (σ_{1} (q), σ_{2} (q), …, σ_{r} (q))$ , and the minimum singular value is $σ_{r} (q)$ . The equation above can be transformed as

J (q) = u_{1} σ_{1} v_{1}^{T} + u_{2} σ_{2} v_{2}^{T} + \cdot \cdot \cdot + u_{m} σ_{m} v_{m}^{T}

Then, the $J (q)$ is post-multiplied by ${\dot{q}}_{n \times 1}$ , we can obtain

{\dot{x}}_{m \times 1} = J {(q)}_{m \times n} {\dot{q}}_{n \times 1} = u_{1} σ_{1} v_{1}^{T} \dot{q} + u_{2} σ_{2} v_{2}^{T} \dot{q} + \cdot \cdot \cdot + u_{m} σ_{m} v_{m}^{T} \dot{q}

In the equation above, the term $v_{i}^{T} \dot{q}$ can be considered as a projection from angular velocity $\dot{q}$ to a base $v_{1}, v_{2}, v_{3}, …, v_{n}$ in $R^{n \times 1}$ . Thus, the equation (6) can be regarded as a linear combination of vectors $u_{1}, u_{2}, u_{3}, …, u_{m}$ in $R^{m \times 1}$ . If there is a singular value $σ_{i} = 0$ , ${\dot{x}}_{m \times 1}$ , the velocity of end-effector, will not exist in the direction of u _i no matter how the angular velocity $\dot{q}$ changes. Similarly, if a singular value σ_i is close to 0, $‖ \dot{q} ‖ \to \infty$ is required to produce a velocity in the direction of u _i .

To ensure manipulators have enough capacity to complete missions, the end-effector is expected to have adequate velocity in every direction during execution. However, it cannot satisfy the condition only restraining the minimum singular value σ_r . The angular velocity limit in $v_{1}, v_{2}, v_{3}, …, v_{n}$ direction should be considered as well. Figure 1 shows the angular velocity limits of a 2-DOF manipulator.

Figure 1.

The angular velocity limits of a 2-DOF manipulator. DOF: degree of freedom.

A 2-DOF manipulator is used to simplify the process of explanation. In Figure 1, $\dot{q}$ represents an angular velocity within limits. $v_{1}$ and $v_{2}$ , two eigenvectors of $J^{T} J$ , can be regarded as a set of standard orthogonal basis in $R^{2}$ and its corresponding eigenvalues are σ ₁ and σ ₂. As for $σ_{1} > σ_{2}$ and $v_{1}^{T} \dot{q} < v_{2}^{T} \dot{q}$ , the relative magnitude between $σ_{1} v_{1}^{T} \dot{q}$ and $σ_{2} v_{2}^{T} \dot{q}$ can neither be determined nor be compared between $u_{1} \dot{x}$ and $u_{2} \dot{x}$ , that is, the angular velocity in other direction can still exceed the limits only constraining the ${\dot{q}}_{r}$ . ${\dot{q}}_{r}$ is joint angular velocity whose corresponding direction of end-velocity is the direction of its minimum singular value

For a general manipulator, its angular velocity limits are almost the same, which means ${\dot{q}}_{1 max} \approx {\dot{q}}_{2 max} \approx … \approx {\dot{q}}_{n max}$ . Thus, a limit case is considered firstly that a singular value is much less than others, that is, $σ_{r} < < σ_{i} i = 1, 2, 3…, r - 1$ . And the angular velocity corresponding to the minimum singular value has the maximum limits, that is, $M v_{r} = {[\begin{matrix} {\dot{q}}_{1 max} & {\dot{q}}_{2 max} & … & {\dot{q}}_{n max} \end{matrix}]}^{T}$ , while the angular velocity corresponding to the next minimum singular value has the minimum limits. Due to ${\dot{q}}_{1 max} \approx {\dot{q}}_{2 max} \approx … \approx {\dot{q}}_{n max}$ , the minimum limits can be expressed as $N v_{r - 1} = {[\begin{matrix} {\dot{q}}_{1 max} & 0 & 0 & \begin{matrix} … & 0 \end{matrix} \end{matrix}]}^{T}$ , where M and N are both arbitrary constants. The projection of $M v_{r}$ on v _r is $M = \sqrt{{\dot{q}}_{1 max}^{2} + {\dot{q}}_{2 max}^{2} + … + {\dot{q}}_{n max}^{2}} \approx \sqrt{n} {\dot{q}}_{1 max}$ , while the projection of $N v_{r - 1}$ on $v_{r - 1}$ is $N = {\dot{q}}_{1 max}$ , where n is the number of DOF. Therefore, if $σ_{r - 1} N > K$ can be deduced according to $σ_{r} M > K$ , we just need $σ_{r - 1} N > σ_{r} M$ or $σ_{r - 1} > \sqrt{n} σ_{r}$ where K is an arbitrary constant, which represents the magnitude of velocity of end-effector. As for an 8-DOF manipulator, if $σ_{r} < 2.8 σ_{r - 1}$ is satisfied, following equation is expected to ensure the velocity of end-effector reach K

σ_{r} > \frac{K}{v_{r^{'}}^{T} v_{r}}

where σ_r is the minimum singular value of Jacobian; v _r is the eigenvalue corresponding to σ_r ; $v_{r^{'}}$ is a vector in the direction of v _r , each component of $v_{r^{'}}$ is less than or equal to the limits, and one of the components is exactly the angular velocity limits; and K is an arbitrary constant, representing the magnitude of velocity of end-effector.

In the case that the angular velocity limit of each joint is approximately equal and some singular values are much less than others, $σ_{j} < < σ_{i}$ , it will have same effect as equation (7) to make sure the smallest value of $σ_{j m} v_{j m^{'}}^{T} v_{j m}$ is larger than K.

Then, the expression of the potential field built with the minimum singular value is obtained.

E_{1} = \frac{1}{1 + α_{1} e^{(σ_{r} {\dot{q}}_{max} - K)}} e^{β_{1} (K - K^{'})}

where α ₁ and β ₁ are arbitrary positive numbers and E ₁ is always greater than 0, which means the potential field only provides repulsive force. When $σ_{r} {\dot{q}}_{max}$ is much greater than K, the manipulator has enough capacity to produce adequate velocity in this configuration, the repulsive force is close to 0. Only when $σ_{r} {\dot{q}}_{max}$ is close to or less than K, the term, $e^{β_{1} (K - K^{'})}$ , is considered. $K^{'}$ represents the minimum of $σ_{j} v_{j^{'}}^{T} v_{j}$ . The repulsive force is increasing with the difference between K and $K^{'}$ becoming larger, which pushes the manipulator far away from this configuration.

The establishment of potential field with considering manipulability

The concept of Directional Manipulability Constrained by the Condition Number (DMCCN) was proposed by Xie and Zhao, which used an optimization object on a path planning problem with a 3-DOF planar manipulator.²¹ The directional manipulability have main influence in this index, if the condition number is relatively small. Meanwhile, the influence of directional manipulability decreased gradually with the increasing of condition number, and then the condition number will become dominant. The definition of DMCCN is shown as follows

γ_{DMCCN} = (1 - α^{(κ - κ_{max})}) α^{γ_{DM}}

where $κ = \frac{σ_{max}}{σ_{min}}$ is the condition number defined by the ratio between the maximum singular value and the minimum singular value of Jacobian $J (q)$ . $κ_{max}$ is the task requiring maximum condition number. u is an unit vector in the direction of end-effector velocity. $γ_{D M} = \frac{1}{u {(J J^{T})}^{- 1} u}$ is defined as the directional manipulability of the manipulator; α is an arbitrary positive constant adjusting the sensitivity of condition number and directional manipulability.

There are two cases that make $κ = \frac{σ_{max}}{σ_{min}}$ relatively large, that is, $σ_{min}$ is small or $σ_{max}$ is relatively large. The first case is already considered in the “The establishment of potential field with the minimum singular value of Jacobian matrix” section, while the second case doesn’t have negative effect on the operation of end-effector. In this potential field, the manipulator is pulled toward configurations with large manipulability and small condition number by the attractive force. The potential field is task independent in this method, and we concern more about isotropy of the potential field, which is different from DMCCN. The expression of the potential field is shown as follows

E_{2} = - α_{2} ω e^{- \frac{{(κ - 1)}^{2}}{β_{2}}} (κ > 1, ω > 0)

where ω is the manipulability of manipulator, $ω = \sqrt{det (J J^{T})} = σ_{1} σ_{2} \cdot \cdot \cdot σ_{r}$ . κ is the condition number; α ₂ and β ₂ are arbitrary positive constants; α ₂ is used to adjust the magnitude of potential field; β ₂ is used to adjust the scope of potential field; as the β ₂ become larger, the scope is larger.

The establishment of potential field with considering the joint limits

The end-effector can reach any target position in its workspace as long as its joints work in limits. The joints’ limits can be represented as follows

q_{i min} \leq q_{i} \leq q_{i max} i = 1, 2, .., n

where $q_{i min}$ and $q_{i max}$ are the lower bound and the upper bound of the ith joint, respectively; n is the DOF. From the above analysis, the joint angles are expected to be far away from their lower bounds and upper bounds. And when the condition is satisfied, the potential field has no effect on the configuration of manipulator. The expression of the potential field built with the joint limits is shown as follows

E_{3} = α_{3} \sum_{i = 1}^{n} (\frac{d_{i min}}{1 + e^{- d_{i min}}} + \frac{d_{i max}}{1 + e^{- d_{i max}}})

where $d_{i min} = \frac{1}{| q_{i} - q_{i min} |}$ , $d_{i max} = \frac{1}{| q_{i} - q_{i max} |}$ , α ₃ is an arbitrary positive constant, and n is the DOF.

From the above expression, $d_{i min}$ will get a large value and $d_{i max}$ is relatively small, if the ith joint is close to its lower limits, which makes the first term dominate the expression; there is a similar situation if the ith joint is close to its upper limits; when joints are far from its lower bounds and upper bounds simultaneously, the potential will approach to 0.

The resultant potential field and its potential field of gradient

Those three potential fields are merged for the exploration of random tree in order to optimize the objective and the proportion of three potential fields can be achieved by adjusting $α_{1}$ , $α_{2}$ , and α ₃. The resultant potential field is defined as follows

E (q) = E_{1} + E_{2} + E_{3}

Then, the potential field of gradient is computed to transform the gradient calculation into query.

\frac{\partial E}{\partial q_{1}} = lim_{Δ q_{1} \to 0} \frac{E (q_{1} + Δ q_{1}, q_{2}, …, q_{n}) - E (q_{1}, q_{2}, …, q_{n})}{Δ q_{1}}

The discrete form of this expression is shown as

\frac{\partial E}{\partial q_{1}} = {\begin{matrix} E (N_{1} + 1, N_{2}, …, N_{n}) - E (N_{1}, N_{2}, …, N_{n}) For all N_{2}, .., N_{n}, f o r N_{1} = 1 \\ \begin{matrix} E (N_{1}, N_{2}, …, N_{n}) - E (N_{1} - 1, N_{2}, …, N_{n}) For all N_{2}, .., N_{n}, f o r N_{1} = N_{1 max} \\ \frac{1}{2} (E (N_{1} + 1, N_{2}, …, N_{n}) - E (N_{1} - 1, N_{2}, …, N_{n})) Otherwise \end{matrix} \end{matrix}

$\frac{\partial E}{\partial q_{2}}$ to $\frac{\partial E}{\partial q_{n}}$ can be obtained using similar expressions.

Obstacle avoidance path planning algorithm based on operational reliability

Symbols and functions used in this algorithm

Symbols

q _x and c _x represent position in configuration space and its corresponding position in Cartesian space. The subscript x is used to show their correspondence.

T represent the random tree, which is a collection of nodes. T contains several properties, which are shown as follows.

$n o d e_{r o o t}$ : The root node of T.

$N O D E$ : The collection of all nodes preserved in random tree, which are sorted by its $r a n k$ .

$n o d e$ : The basic unit of random tree. Each $n o d e$ has following properties.

$n o d e . q$ : The manipulator configuration that the $n o d e$ represents.

$n o d e . r a n k$ : The $r a n k$ of a $n o d e$ . A large value of $r a n k$ means the manipulator has a low potential and is far from obstacles at the configuration $n o d e . q$ . The value of $r a n k$ is defined as follows

n o d e . r a n k = {\begin{matrix} \frac{d_{2}}{d_{1}} d_{2} < d_{safe} \\ \frac{d_{safe}}{d_{1}} d_{2} \geq d_{safe} \end{matrix}

where d ₁ is the distance between the end-effector of manipulator and the goal position at the current configuration; d ₂ is the distance between the manipulator and obstacles; and $d_{safe}$ represents the safe distance between manipulator and obstacles. The $r a n k$ changes only if the distance between manipulator and obstacles is less than safe distance. Otherwise, the $r a n k$ remains the same. The $d_{safe}$ can be adjusted for different tasks.

$n o d e . f_{count}$ : The number of exploration failures of this $n o d e$ .

$n o d e . p a r e n t$ : The parent node of this node. The parent node of root node is $\emptyset$ .

$n o d e . c h i l d$ : The child nodes of this node.

$Q_{set}$ : $Q_{set}$ record the configurations which have gone through the collision detection and their corresponding distance between manipulator and obstacles. It is used to estimate the distance between new samples and obstacles.

Methods

$T . i n i t (n o d e_{init})$ : To initialize the random tree T;

$T . a d d (q_{1}, n o d e_{2})$ : To add a $n o d e$ with configuration $q_{1}$ into random tree T; $n o d e_{2}$ is the parent node of $n o d e$ ;

$T . r a n d o m_p i c k (n)$ : To pick out a $n o d e$ from T according their $r a n k$ ; the higher $r a n k$ that a $n o d e$ has, the easier a node is picked out; the input n is used to adjust the probability that a $n o d e$ with high $r a n k$ can be picked out.

$T . r e m o v e (n o d e)$ : To remove a $n o d e$ and all of its child nodes from random tree T;

$T . c l o s e t (q)$ : To pick out the $n o d e$ which is the closest to configuration q from T;

$T . j u d g e F c o u n t (n o d e)$ : To judge whether the number of exploration failures of $n o d e$ exceed the threshold. If the number exceed the threshold, the $n o d e$ will be removed from T;

$r a n d o m_s a m p l e (n)$ : To randomly pick out n configurations q from the configuration space of the manipulator;

$r a n d o m_n u m ()$ : To generate a random number from $[0, 1]$ ;

$l o w e s t_p o t e n t i a l (A)$ : To pick out the configuration q with the lowest potential from the set A;

$g e t_c o n f i g (q, d)$ : To randomly generate a new configuration by the given configuration q and distance d; d is the distance between obstacles and manipulator at configuration q;

$g e t_a l p h a (d i r, d)$ : To calculate the maximum step in the given direction $d i r$ and given distance d; d is the distance between obstacles and manipulator;

$c o l l i s i o n_d e t e c t i o n (q)$ : To do the collision detection of the manipulator under configuration q; if the collision occurs, 0 will be returned, otherwise, the minimum distance between manipulator and obstacles will be returned;

$g r a d (q)$ : To query and return the potential field gradient of configuration q.

The algorithm procedure

The original RRT algorithm makes the manipulator sampled randomly in configuration space, which means reaching complete probability to find a path. RRT algorithm and its modified version can be divided into deterministic part and stochastic part.

On the one hand, the random tree is gradually approaching to the target position with deterministic exploration. On the other hand, the manipulator can bypass the obstacles to achieve the complete probability with stochastic exploration. The RRT algorithm is improved from two aspects in Berenson et al.¹⁹ Firstly, the target position in Cartesian space, rather than goal configuration, is chosen as the target for exploration. For a redundant manipulator, there are several target configurations that the manipulator can reach, which makes solutions more diversified, so that the time consumption of path planning is shortened. Secondly, this algorithm is based on a heuristic exploration strategy. Not only the distance to the target position, but the distance between manipulator and obstacles is considered when picking out a node to explore, which provide the algorithm capacity to plan a more clearance path. The result of the experiment also demonstrates that this algorithm can provide a relatively high quality path with high efficiency.

Based on the above analysis, the frame used in the study by Bertram et al.¹⁷ is improved by our algorithm. A potential field for optimizing operational reliability and kinematic performance built in “The establishment of potential field for improving operational reliability” section is introduced in this frame. Meanwhile, a collision detection strategy based on KNN algorithm is the reference for accelerating the algorithm further. Similarly, the improvement of the frame can also be analyzed from deterministic part and stochastic part. The flowchart of the algorithm is shown in Figure 2.

Figure 2.

The flowchart of our modified algorithm.

The deterministic exploration is marked as case 1 in our algorithm. Its purpose is to ensure the manipulator explore toward target position. Firstly, a node is randomly picked out from random tree T according to their rank. A higher rank implies that the manipulator has a closer distance to target position and has a relatively long distance to obstacles; secondly, the selected node is explored in a random direction or in the direction of potential field gradient. The sampling interval of the potential field cannot be too small, in order to ensure efficiency of our algorithm. If the gradient descent is used when the manipulator is close to target position, the manipulator may oscillate repeatedly around the target position. Therefore, only when the manipulator is relatively far from goal position, the direction of gradient is explored. Finally, the Cartesian distance between manipulator and goal position is used as a rejection rule to ensure that the manipulator approaches the target position after every expansion process. The d ₃ in the algorithm is the minimum step of exploration. The pseudo-code of case 1 is shown as follows:

With stochastic exploration, the manipulator can achieve the complete probability to bypass the obstacles. The stochastic exploration is marked as case 2. Firstly, random sample is taken n times in configuration space to select the configuration $q_{h}$ with the minimum potential value. The stochastic exploration in original RRT only selects the node which is the nearest to $q_{h}$ . On this basis, we propose the nodes with high $r a n k$ are selected with probabilities to improve the convergence capacity of the algorithm. The selected node is represented as $n o d e_{rand}$ . Then, the random tree expands in the direction from $n o d e_{rand} . q$ to $q_{h}$ . In order to fully preserve the stochastic response of our algorithm, the rejection rule in case 1 is not used in this process.

In addition, a collision detection strategy based on KNN is integrated with our algorithm. In the strategy proposed by Pan and Manocha,²² the hash value and the collision state of every configuration node is recorded. After enough samples are collected, the KNN is used to estimate the collision state of new samples.

As for the characteristic of our path planning algorithm, the collision detection strategy is modified to adapt our method. The minimum distance between manipulator and obstacles is recorded instead of collision state, so that the strategy has the capacity to estimate the distance. The concrete modification is introduced at “The KNN-based collision detection strategy” section.

Then, the whole process of our obstacle avoidance path planning algorithm can be shown as follows:

Some key methods:

$T . i n i t (q_{init})$

The $i n i t (Q_{set})$ is used to initialize the parameters in hash tables.

$T . a d d (q_{1}, q_{2})$

$T . j u d g e F c o u n t (q)$

This method is used to judge whether the $f_{count}$ of $n o d e$ exceeds the threshold. If so, the $n o d e$ will be removed from random tree, and 1 is returned. Otherwise, 0 is returned.

$T . r a n d o m_p i c k (n)$

This method is used to randomly select a node to explore. Firstly, $n - 1$ nodes and the first node in $N O D E$ are selected. Then, one of those nodes is selected. The nodes which have higher $r a n k$ can be selected with a relatively high probability in this way. In practice, the second or the third node in $N O D E$ can also be considered, then select $n - 2$ or $n - 3$ nodes, to make the number of nodes sum to n.

The KNN-based collision detection strategy

Traditional strategy of collision detection indicates it will be executed after every exploration in RRT and PRM algorithm to ensure the new configuration is not collided. A KNN-based collision detection strategy is proposed in 2016 by Pan et al., which is used to estimate the collision state of new samples according to the result of previous query. The number of exact detection executed is decreased through this strategy, which makes the algorithm more efficient. The flowchart of this strategy is shown in Figure 3.

Figure 3.

The flowchart of the KNN-based collision detection strategy. KNN: K-nearest neighbor.

Firstly, the nodes in $Q_{set}$ whose configurations are close to the new sample are selected. Then, the distance rejection rule is used to judge whether those nodes are close enough to the sample. If so, the KNN algorithm is used to estimate the state. Otherwise, the exact detection is executed. The probability of collision obtained by estimation is judged by the ambiguity rejection rule to determine whether the result is credible. If the probability is close to 50%, the configuration is in a critical collision state, the exact detection should be executed. Finally, the result is preserved in $Q_{set}$ .

In our algorithm, the step of exploration is calculated through the distance between manipulator and obstacles, which is obtained by the collision detection. Thus, following changes are made:

Firstly, the minimum distance between manipulator and obstacles instead of the collision state is recorded. It is used to estimate the distance at new sampled configurations.

Secondly, in the recording process, the distance is recorded in $Q_{set}$ only when a distance is calculated by the exact detection, which is to avoid the drift of result.

Thirdly, the ambiguity rejection rule in original algorithm is to ensure the security of manipulator when it is in a critical collision state, which decreases the efficiency of the method. In our algorithm, the estimation process is executed only when the distance between manipulator and obstacles is above its threshold. In this way, the security of manipulator can also be preserved.

Experiments

Kinematic model of the research object

An 8-DOF manipulator is used to verify the effect of our algorithm. The manipulator and its Denavit-Hartenberg (DH) coordinate system are shown in Figure 4.

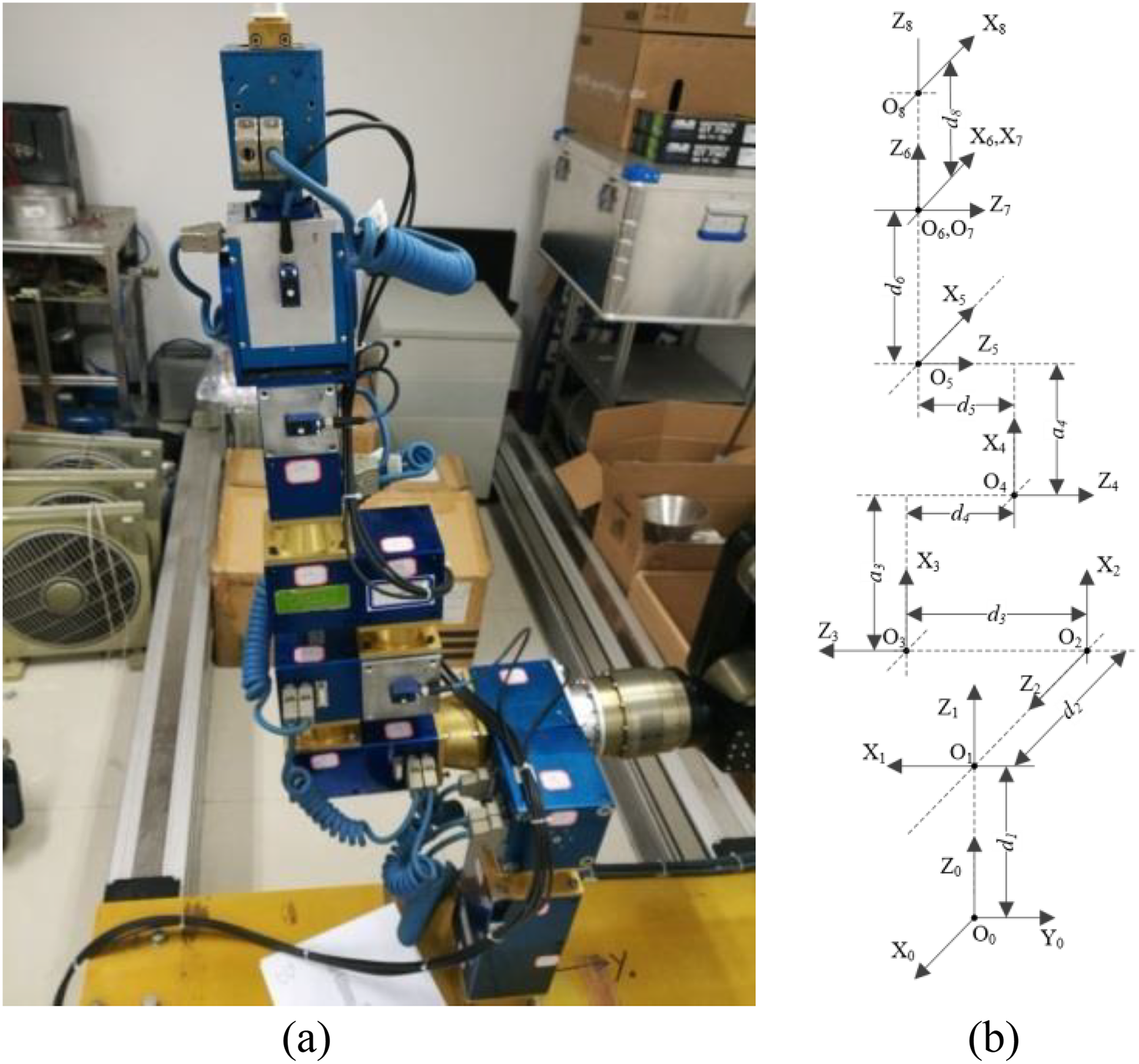

Figure 4.

(a) The research object. (b) The DH coordinate system of the manipulator.

The DH parameter of the manipulator is shown in Table 1.

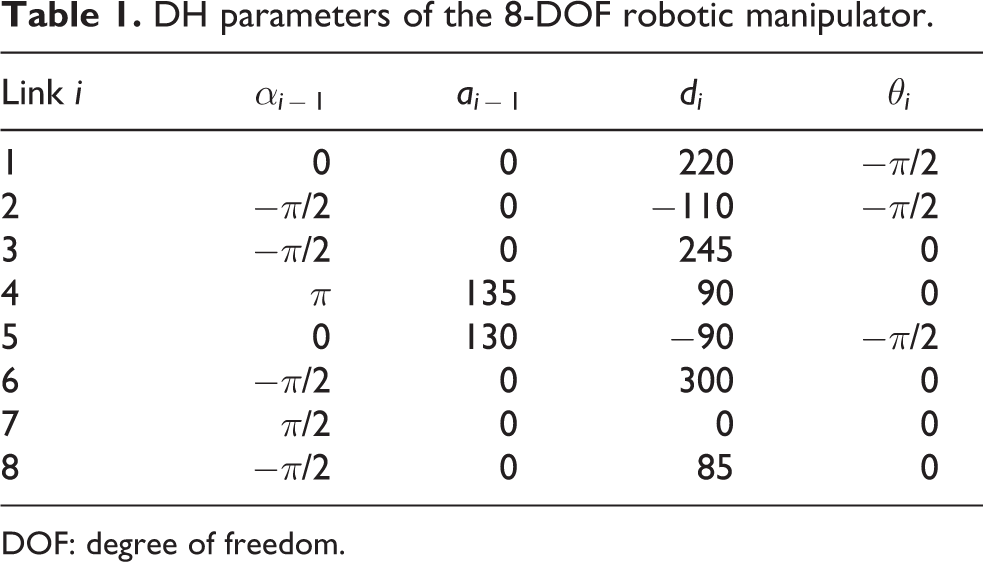

Table 1.

DH parameters of the 8-DOF robotic manipulator.

Link i	$α_{i - 1}$	$a_{i - 1}$	d_i	θ_i
1	0	0	220	−π/2
2	−π/2	0	−110	−π/2
3	−π/2	0	245	0
4	π	135	90	0
5	0	130	−90	−π/2
6	−π/2	0	300	0
7	π/2	0	0	0
8	−π/2	0	85	0

DOF: degree of freedom.

The physical meaning of the four parameters in the table is as follows:

The transformation ${}_{i}^{i - 1}T$ , which transform coordinate system {i−1} into coordinate system{i}, can be considered as the product of the following four subtransformations: $Z_{i - 1}$ rotates about $X_{i - 1}$ by $α_{i - 1}$ ; $Z_{i - 1}$ translates along $X_{i - 1}$ by $a_{i - 1}$ ; $X_{i - 1}$ rotates about Z_i by θ_i ; and $X_{i - 1}$ translates along Z_i by d_i .

The lower limits and upper limits are shown as follows

\begin{array}{l} \begin{matrix} q_{sub} = [- \frac{25 π}{18} & - \frac{25 π}{18} & - \frac{8 π}{9} & - \frac{8 π}{9} & - \frac{25 π}{18} & - \frac{8 π}{9} & - \frac{5 π}{9} & - π] \\ q_{sup} = [\begin{matrix} \frac{7 π}{18} & \frac{7 π}{18} & \frac{8 π}{9} & \frac{8 π}{9} & \frac{7 π}{18} & \frac{8 π}{9} & \frac{5 π}{9} & π \end{matrix} \end{matrix}] \end{array}

In the following experiments 1 and 2, both the proposed algorithm and the original algorithm are written by VS2013, and the visual simulation is exhibited by Matlab R2016b.

The experiment results and analysis

Experiment 1

The first experiment is to verify the obstacle avoidance capacity of the algorithm. The environment condition of experiment 1 is shown in Figure 5. Three initial configurations are tested and results are shown as follows:

Figure 5.

Environment condition in experiment 1.

The initial configuration I of the manipulator is

q_{init} = [\begin{matrix} - \frac{π}{2} & - \frac{π}{2} & 0 & 0 & - \frac{π}{2} & 0 & 0 & 0 \end{matrix}]

The target position is $c_{goal} = [\begin{matrix} 150 & 300 & 600 \end{matrix}]$ .

The trajectory planned by our algorithm is shown in Figure 6.

Figure 6.

The trajectory planned by the modified algorithm in configuration I.

The initial configuration II of the manipulator is

q_{init} = [\begin{matrix} - \frac{π}{6} & - \frac{π}{2} & \frac{π}{6} & - \frac{π}{6} & - \frac{π}{2} & 0 & 0 & 0 \end{matrix}]

The target position is $c_{goal} = [\begin{matrix} 150 & 300 & 600 \end{matrix}]$ .

The trajectory planned by our algorithm is shown in Figure 7.

Figure 7.

The trajectory planned by the modified algorithm in configuration II.

The initial configuration III of the manipulator is

q_{init} = [\begin{matrix} 0 & - \frac{π}{4} & \frac{π}{2} & 0 & 0 & 0 & 0 & 0 \end{matrix}]

The target position is $c_{goal} = [\begin{matrix} 150 & 300 & 600 \end{matrix}]$ .

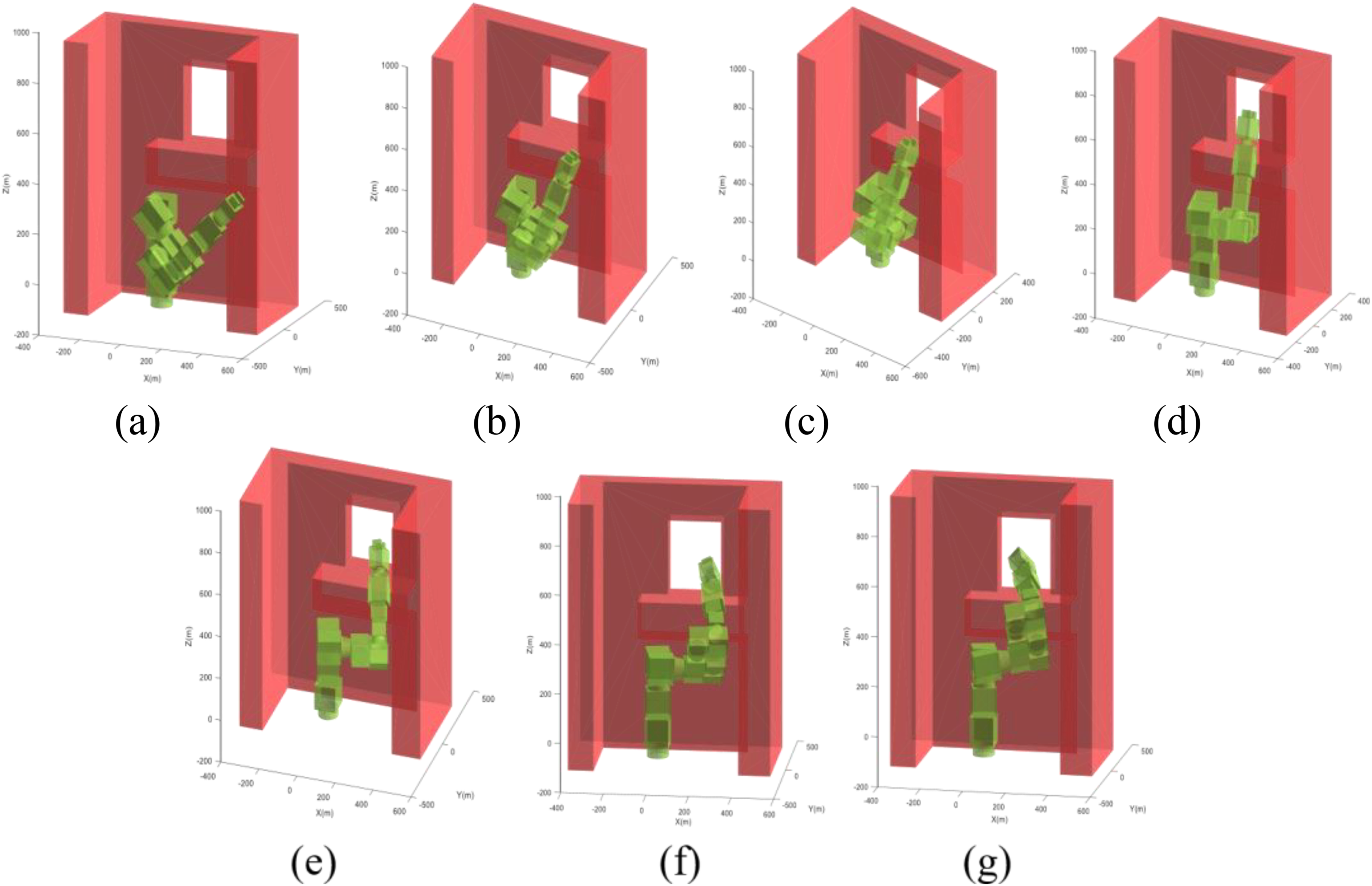

The trajectory planned by our algorithm is shown in Figure 8.

Figure 8.

The trajectory planned by the modified algorithm in configuration III.

Figures 6 to 8 show that the modified algorithm has the capability to plan an obstacle-free path from initial configuration to the target position. Meanwhile, the distance between the manipulator and obstacles always maintain safety, which illustrates the efficiency of the proposed algorithm.

Experiment 2

In the first experiment, the obstacle has a strong constraint on the manipulator, so that the path is relatively simple and the optimization effect is not obvious under the circumstance while the second experiment is simplified on the basis of the former to prove its optimization ability. The condition of the second experiment is shown in Figure 9.

Figure 9.

Experiment condition of the path planning problem in experiment 2.

The second experiment is to compare the kinematic performance, the distance to angular limits, and the time consumption between the proposed algorithm and the original algorithm. Fifteen groups of experiments are carried out to analyze the result. The environment condition is shown in Figure 7, and the initial configuration of the manipulator is set as

q_{init} = [\begin{matrix} - \frac{π}{2} & - \frac{π}{2} & 0 & 0 & - \frac{π}{2} & 0 & 0 & 0 \end{matrix}]

The comparison for kinematic performance is spread from three aspects

O b j 1 = \frac{1}{N u m} \sum_{i = 1}^{N u m} (K - {K^{'}}_{i})

where Obj1 represents the capacity to produce velocity of the end-effector in the direction that has the least capacity to generate velocity. The lower the value, the more capacity the manipulator has. $N u m$ is the number of node of the trajectory and Obj1 is the mean value of $(K - K^{'})$ on every node. K represents the required end-velocity of the task and ${K^{'}}_{i}$ represents the end-velocity generated by the poorest direction of motion performance. Its specific meaning is explained at the end of formula (8).

O b j 2 = \frac{1}{N u m} \sum_{i = 1}^{N u m} ({\sqrt{det (J J^{T})}}_{i})

where Obj2 represents the mean value of manipulability on every node and J represents Jacobian matrix of the manipulator. The greater value indicates that the manipulator has a preferable kinematic performance in every direction, and the angular velocity required to produce the same end-velocity is smaller than before, which decrease the energy consumption of manipulator to certain extent.

O b j 3 = \frac{1}{N u m} {\sum_{i = 1}^{N u m} (\frac{σ_{m}}{σ_{r}})}_{i}

where Obj3 represents the mean value of condition number of manipulator on every node, which can seem as a supplement to Obj2.σ_m and σ_r represents maximum singular value and minimum singular value of the Jacobian matrix, respectively. The result obtained by original algorithm is shown in Table 2.

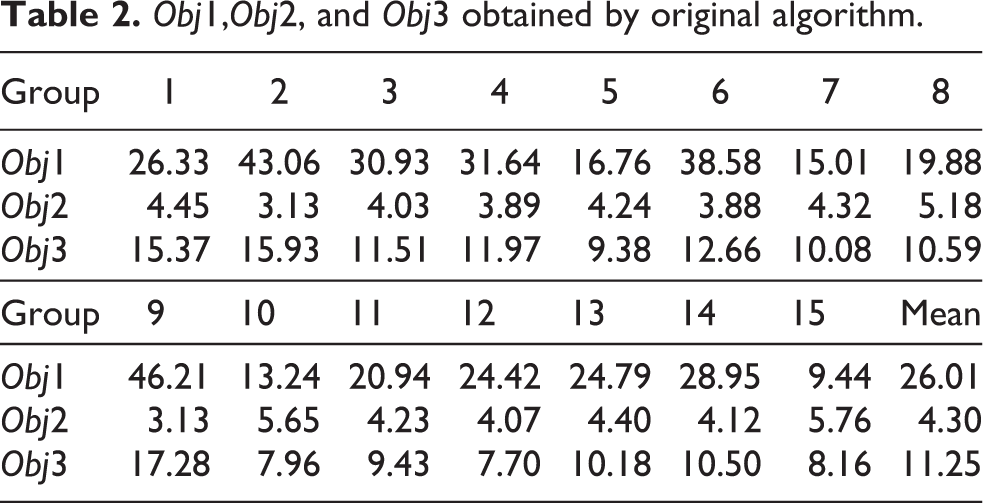

Table 2.

Obj1,Obj2, and Obj3 obtained by original algorithm.

Group	1	2	3	4	5	6	7	8
Obj1	26.33	43.06	30.93	31.64	16.76	38.58	15.01	19.88
Obj2	4.45	3.13	4.03	3.89	4.24	3.88	4.32	5.18
Obj3	15.37	15.93	11.51	11.97	9.38	12.66	10.08	10.59
Group	9	10	11	12	13	14	15	Mean
Obj1	46.21	13.24	20.94	24.42	24.79	28.95	9.44	26.01
Obj2	3.13	5.65	4.23	4.07	4.40	4.12	5.76	4.30
Obj3	17.28	7.96	9.43	7.70	10.18	10.50	8.16	11.25

The result obtained by the modified algorithm is shown in Table 3.

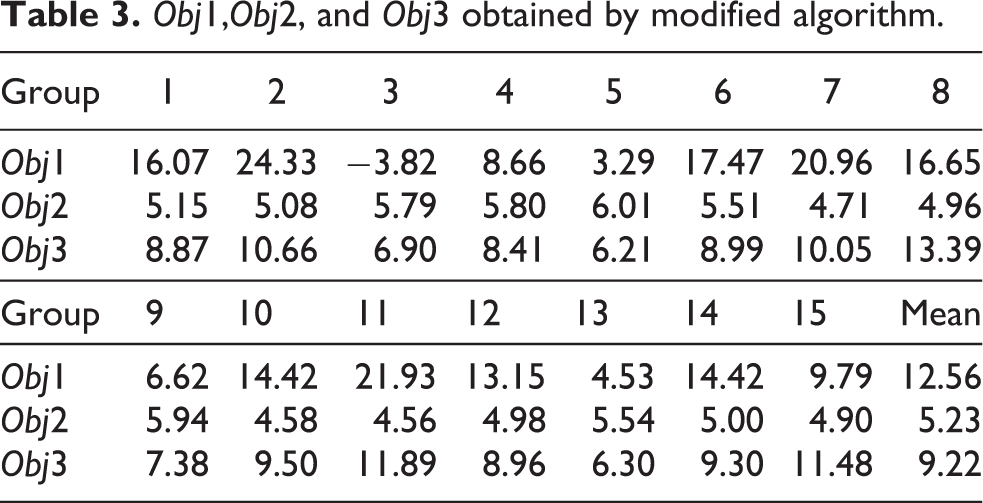

Table 3.

Obj1,Obj2, and Obj3 obtained by modified algorithm.

Group	1	2	3	4	5	6	7	8
Obj1	16.07	24.33	−3.82	8.66	3.29	17.47	20.96	16.65
Obj2	5.15	5.08	5.79	5.80	6.01	5.51	4.71	4.96
Obj3	8.87	10.66	6.90	8.41	6.21	8.99	10.05	13.39
Group	9	10	11	12	13	14	15	Mean
Obj1	6.62	14.42	21.93	13.15	4.53	14.42	9.79	12.56
Obj2	5.94	4.58	4.56	4.98	5.54	5.00	4.90	5.23
Obj3	7.38	9.50	11.89	8.96	6.30	9.30	11.48	9.22

The result of experiment demonstrated that the algorithm proposed in this article has an obvious optimization effects compared with the algorithm by Bertram et al.¹⁷

Figure 10 integrates the data in Tables 2 and 3, and a scatter plot is shown as follows:

Figure 10.

Obj1,Obj2, and Obj3 obtained by original algorithm and modified algorithm.

As is shown in Figure 10, the data obtained by original algorithm gather in the upper right corner, that is, Obj2 is relatively small while Obj1 and Obj3 are relatively large. On the contrary, the data obtained by modified algorithm perform better.

According to the meaning of this value, it’s obvious to find out that those three indexes are optimized by our algorithm simultaneously.

The comparison between Tables 2 and 3 shows the mean values of Obj1, Obj2, and Obj3 obtained by original algorithm are 26.01, 4.30, and 11.27, respectively, while that obtained by our algorithm in the same experiment condition are 12.56, 5.23, and 9.22. Obj1 decreases by 13.45, which means that the manipulator has a preferable capacity to produce a higher velocity. Obj2 increases by 0.93, while Obj3 decreases by 2.05, which means the manipulator has a balanced motion capacity in every direction.

As for the joint limits, its indicator is shown as the following equation

M = min (q_{i}_{dist})

where $q_{i dist} = min (min_d i s t (q_{i}, q_{sub}), min_d i s t (q_{i}, q_{sup}))$ . $q_{sub}$ and $q_{sup}$ are the lower limits and upper limits of joint angles, which are both n-dimensional vectors. $min_d i s t (q, q_{sub})$ is to calculate the distance between q and $q_{sub}$ in every dimension. Then, the minimum of the distance is chosen as the returned value. The number i represents the number of nodes that consist in the path. M is the minimum among all $q_{i dist}$ whose unit is radian. The results obtained by original algorithm and our algorithm are shown in Tables 4 and 5, respectively.

Table 4.

The distance to angular limits by original algorithm.

Group	1	2	3	4	5	6	7	8
M	0.6529	0.0964	0.0043	0.0533	0.8452	0.1746	0.0092	0.3971
Group	9	10	11	12	13	14	15	Mean
M	0.0691	0.7898	0.0129	0.0022	0.2210	0.0188	0.7660	0.2742

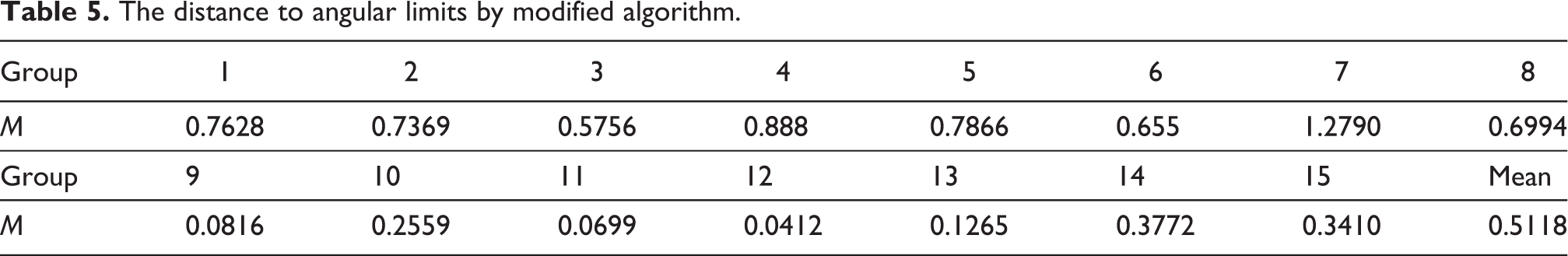

Table 5.

The distance to angular limits by modified algorithm.

Group	1	2	3	4	5	6	7	8
M	0.7628	0.7369	0.5756	0.888	0.7866	0.655	1.2790	0.6994
Group	9	10	11	12	13	14	15	Mean
M	0.0816	0.2559	0.0699	0.0412	0.1265	0.3772	0.3410	0.5118

The above data can be arranged by the following scatter plot (Figure 11).

Figure 11.

The distance to angular limits by original algorithm and modified algorithm.

It is obvious that the index M obtained by the original algorithm is relatively small, especially in group 3, 7, 11, 12, and 14 where its value is close to zero while the index M obtained by our algorithm is relatively small only in group 9, 11, 12, and 13. Meanwhile, it is still abundant for the distance to angular limit. Moreover, the mean value of M obtained by our algorithm is much higher than the former. From the analysis above, our algorithm has an obvious optimization effect compared with the original algorithm.

In addition, the results of time consumption obtained by original algorithm and our algorithm are shown in Tables 6 and 7, respectively. The scatter plot is shown as follows (Figure 12). The abscissa presents the number of exploration and the ordinate presents the number of exploration per second.

Table 6.

The time consumption by original algorithm.

Group	1	2	3	4	5	6	7	8
Total time (s)	393.3	649.2	174.1	412.9	617.9	674.0	204.2	309.2
Number of exploration	1105	1586	387	845	1659	1962	719	1344
Number of exploration per second	2.8100	2.4430	2.2229	2.0465	2.6849	2.9110	3.5211	4.3467
Group	9	10	11	12	13	14	15	Mean
Total time (s)	431.0	377.2	383.6	638.8	60.3	464.7	77.0	391.10
Number of exploration	1122	1033	1427	2460	288	1533	208	1178.53
Number of exploration per second	2.6032	2.7386	3.7200	3.8510	4.7761	3.2989	2.7013	3.1117

Table 7.

The time consumption by modified algorithm.

Group	1	2	3	4	5	6	7	8
Total time (s)	545.5	162.4	262.6	68.5	179.0	85.6	401.6	342.0
Number of exploration	1794	586	876	331	1008	159	948	1427
Number of exploration per second	3.2890	3.6084	3.3359	4.8321	5.6313	1.8575	2.3606	4.1725
Group	9	10	11	12	13	14	15	Mean
Total time (s)	201.0	556.0	373.7	782.3	557.6	396.1	34.0	329.86
Number of exploration	878	1519	1028	3700	2840	2323	61	1298.53
Number of exploration per second	4.3682	2.7320	2.7509	4.7296	5.0933	5.8647	1.7941	3.7613

Figure 12.

The relationship between exploration efficiency and exploration number.

From the above chart and the comprehensive analysis before, compared to the original algorithm, this study optimizes, and meanwhile the exploration efficiency is even better. On the other hand, as the collision detection strategy based on KNN plays an important role in collision detection stage, the path planning efficiency increases with the increase of the number of expansion, which remains a better performance even in a relatively complicated condition.

Conclusion

In order to optimize kinematic performance of space manipulator, an RRT optimization algorithm for space robotic manipulators guided by obstacle avoidance independent potential field is proposed in this article. In the process of path planning, this algorithm aims to reduce the operational cost of the manipulator and improve the flexibility of the end-effector. The artificial potential field is established off-line by three indexes, that is, including the velocity limit of joint minimum singular value of the Jacoby matrix, the manipulability, and the distance to joint angular limits. The result shows that the algorithm can effectively plan an obstacle free path. Moreover, the manipulator can always maintain a safe distance from obstacles. Meanwhile, the path has a stronger ability to produce the end-velocity. The same end-velocity can be generated by smaller joint angle than former algorithm. On the one hand, it reduces the energy consumption and decreases the abrasion of the manipulator in a certain extent, which ensures long-term and normal operation for space agencies. On the other hand, the manipulator has a better motion performance and a higher flexibility of the end-effector, which ensures the ability of the manipulator to respond sudden situations during the movement process. In addition, the collision detection strategy based on KNN guarantee the efficiency of the algorithm.

Future work

There are different types of potential field that optimize the motion performance. This article only chooses the minimum singular value, the manipulability, and the distance to joint angular limits to build up the potential field. Whether there is a better potential function remains to be further researched. Meanwhile, on account of the complexity and diversity of the abrasion, how to consider its influence comprehensively is another direction to study in the future.

What’s more, it is possible for redundant manipulators to complete a given task while one or some joints fall into a complete joint failure. The development of the control strategies for under-actuated manipulators can improve the reliability of fully-actuated manipulators in the event of a drive failure. Therefore, the obstacle avoidance path planning method in under-actuated condition also requires further research.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported in part by Key Project of Chinese National Programs for Fundamental Research and Development (973 program) (no. 2013CB733000), National Natural Science Foundation of China (no. 61573066), and National Natural Science Foundation of China (no. 61403038).

ORCID iD

Xin Gao

References

Garcia

Suárez

Rosell

. Task-dependent synergies for motion planning of an anthropomorphic dual-arm system. IEEE Trans Robot 2017; 33(3): 756–764. DOI: 10.1109/TRO.2017.2676131.

Ademovic

Lacevic

Path planning for robotic manipulators using expanded bubbles of free C-space. In: 2016 IEEE international conference on robotics and automation (ICRA), Stockholm, Sweden, 16–21 May 2016, pp. 77–82. IEEE.

Wang

Jiang

Yan

. A new redundancy resolution for underwater vehicle–manipulator system considering payload. Int J Adv Robot Syst 2017; 14(5): 1–10. DOI: 10.1177/1729881417733934.

Chitnis

Hadfield

Gupta

. Guided search for task and motion plans using learned heuristics. In: 2016 IEEE international conference on robotics and automation (ICRA), Stockholm, Sweden, 16–21 5 2016, pp. 447–454. IEEE.

Hoy

Matveev

Savkin

. Algorithms for collision free navigation of mobile robots in complex cluttered environments: a survey. Robotica 2015; 3(3): 463–497. DOI: 10.1017/S0263574714000289.

Zhang

Gao

Xue

. Real-time vehicle detection and tracking using improved histogram of gradient features and Kalman filters. Int J Adv Robot Syst 2018; 15(1): 1–9. DOI: 10.1177/1729881417749949.

Xiang

Zhong

Wei

. General-weighted least-norm control for redundant manipulators. IEEE Trans Robot 2010; 26(4): 660–669. DOI: 10.1109/TRO.2010.2050655.

Khatib

Real-time obstacle avoidance for manipulators and mobile robots. In: Proceedings of IEEE international conference on robotics and automation (ICRA), St. Louis, USA, 25–28 March 1985, pp. 500–505. IEEE.

Pinto

Mendonça

TRF

Olivi

. Modified approach using variable charges to solve inherent limitations of potential fields method. In: 2014 11th IEEE/IAS international conference on industry applications, Juiz de Fora, Brazil 7–10 Dec 2014, pp. 1–6. IEEE.

10.

Wang

Jiang

Chen

. Trajectory tracking control of underwater vehicle manipulator system using discrete time delay estimation. IEEE Access 2017; 5(1): 7435–7443. DOI: 10.1109/ACCESS.2017.2701350.

11.

Wang

Liu

Deng

. Obstacle-avoidance path planning for soccer robots using particle swarm optimization. In: 2006 IEEE international conference on robotics and biomimetics, Kunming, China. 17–20 December 2006, pp. 1233–1238. IEEE.

12.

Jabbarpour

Zarrabi

Jung

. A Green ant-based method for path planning of unmanned ground vehicles. IEEE Access 2017; 5(1): 1820–1832. DOI: 10.1109/ACCESS.2017.2656999.

13.

Vannoy

Xiao

. Real-Time Adaptive Motion Planning (RAMP) of mobile manipulators in dynamic environments with unforeseen change. IEEE Trans Robot 2008; 24(5): 1199–1212. DOI: 10.1109/TRO.2008.2003277.

14.

Kuffner

LaValle

. RRT-Connect: an efficient approach to single-query path planning. In: Proceedings of IEEE international conference on robotics and automation, San Francisco, USA, 24–28 April 2000, pp. 995–1001. IEEE.

15.

Weghe

Ferguson

Srinivasa

. Randomized path planning for redundant manipulators without inverse kinematics. In: 2007 7th IEEE-RAS international conference on humanoid robots, Pittsburgh, USA, 29 November to 1 December 2007, pp. 477–482. IEEE.

16.

Qureshi

Iqbal

Qamar

. Potential guided directional-RRT* for accelerated motion planning in cluttered environments. In: IEEE International conference on mechatronics and automation, Takamatsu, Japan, 4–7 August 2013, pp. 519–524. IEEE.

17.

Bertram

Kuffner

Dillmann

. An integrated approach to inverse kinematics and path planning for redundant manipulators. In: Proceedings of IEEE international conference on robotics and automation, Orlando, USA, 15–19 May 2006, pp. 1874–1879. IEEE.

18.

Jaillet

Cortés

Siméon

. Sampling-based path planning on configuration space cost maps. IEEE Trans Robot 2010; 26(4): 635–646. DOI: 10.1109/TRO.2010.2049527.

19.

Berenson

Siméon

Srinivasa

. Addressing cost-space chasms in manipulation planning. In: 2011 IEEE international conference on robotics and automation (ICRA), Shanghai, China, 9–13 May 2011, pp. 4561–4568. IEEE.

20.

Gao

. Research on the operational reliability system control methodology and its application for aerospace mechanism. Int J Adv Robot Sys 2016; 13(4): 1–17. DOI: 10.1177/1729881416677482.

21.

Xie

Zhao

. Directional manipulability constrained by the condition number. J Mech Eng 2010; 46(23): 8–15. DOI: 10.3901/JME.2010.23.008.

22.

Pan

Manocha

. Fast probabilistic collision checking for sampling-based motion planning using locality-sensitive hashing. Int J Robot Res 2016; 35(12): 1477–1496. DOI: 10.1177/0278364916640908.
