Abstract

Since dynamic model can be obtained through various approaches with certain different accuracies, the accuracy of model in simulation plant compared to reality is found to be influential but seldom concerned under robotic cooperation. This may result in acceptable simulation but unsatisfactory practical application. Based on different dynamics’ demands or accuracies, an inverse model-based backstepping sliding-mode controller and another model-free controller are derived using feedforward radial basis function neural networks to compensate the uncertain dynamics of the system. Model-based algorithm is found to provide much more satisfactory contribution than that of model free. Thus, a model weight is introduced to adjust contribution of inverse dynamics and neural compensation, and a novel model weighted adaptive neural backstepping sliding-mode controller is proposed to cope with different dynamics’ demands or accuracies. The neural networks require no off-line learning and it is shown that they can deal well with the dynamic uncertainty, joint friction, and external disturbances. With Lyapunov stability approach, these controllers are proved to be robust, both position/force convergence and tracking stability are guaranteed. Simulation and analysis indicate that these controllers provide good tracking performance in position and internal force. Moreover, the model weighted controller achieves better tracking accuracy and stability under various degrees of model errors.

Keywords

Cooperative manipulators radial basis function neural network backstepping sliding-mode control model weight internal force

Introduction

Cooperative manipulators have been witnessing an increasing interest due to their versatility within robotic applications such as assembly of heavy objects, grasping, material handling, transporting, and so on; meanwhile, cooperative manipulation provides potential alternative, high productivity, and perhaps lower cost. However, it is much more coupled and extremely complicated to design a controller of a cooperative manipulation than that of a single one. The main problem is that, when cooperative manipulators hold a common object, as they have to stay in contact with the object while moving, a set of kinematic and dynamic constraints will be formed. As a result, undesired stress may occur. All the cooperated manipulators have to perform synchronously to track a desired trajectory of the object, which makes the control problem become further complex due to internal forces. Meanwhile, those internal forces contribute nothing to the motion of the object, also they should be fully and carefully controlled.

Control of manipulator cooperation has drawn the attention of lots of researchers. Yoshikawa and Nagai¹ proposed a new definition of grasping and manipulating forces for multifingered robot hands. Alford and Belyeu² designed a master–slave control scheme to enable two robot arms to function in a coordinated manner. Hybrid control method^3,4 addresses the motion and force control problem of multiple manipulators manipulating a cooperatively held object, controlling the force, and the position in desired directions.⁵ Kleinfinger and Khalil⁶ developed an algorithm for dynamic modeling of cooperative manipulators containing closed kinematic chains with the object being held. A distributed impedance controller⁷ was proposed based on a realistic model of both robot impedance and object dynamics. The aforementioned schemes with nonadaptive mechanism are usually based on the complete knowledge of the system dynamics; however, besides complicated cooperation in practical, system uncertainties and external disturbances do exist.

As a result, lots of adaptive controllers were suggested. A decentralized continuous sliding proportional–integral–derivative (PID) controller⁸ for tracking tasks with exponential convergence of tracking errors was proposed. A reduced order dynamics of manipulator system was derived, and an adaptive control scheme⁹ that guaranteed the asymptotic convergence of the object’s position and the acting force to their desired values was achieved. Another adaptive and robust control method¹⁰ was derived for handling an object by two-link planar robot manipulators ensuring a parameter adaptation satisfying the stability condition of uncertain systems. Gueaieb et al.¹¹ proposed a robust decentralized control scheme for the payload’s position/orientation as well as the internal forces control induced in cooperative multiple manipulator systems. Many other adaptive schemes can be seen in literature.^12
–14

Most of these kinds of adaptive schemes estimate plant’s physical parameters requiring certain knowledge of system dynamics, extensive system modeling, or preliminary regression computing. However, the knowledge focuses on structured uncertainties regardless of unstructured uncertainties and external disturbances. Recently, artificial intelligent algorithms (neural network (NN), fuzzy, etc.) have shown outstanding feasibility to compensate uncertainties or to develop model-free controllers. NN is known with strong ability to learn, distributed structure and highly nonlinear approximation, enables to approximate part of the robotic manipulator unknown dynamics. Karayiannidis et al.¹⁵ proposed a novel neuro-adaptive controller which exploited the approximation capabilities of the linear in the weights, guaranteeing the uniform ultimate boundedness of force and position error. Cheng et al.¹⁶ proposed an NN-based adaptive controller for the tracking of manipulators with uncertain kinematics, dynamics, and actuator model where did not need the “linearity-in-parameters” assumption for the uncertain terms in the dynamics. And more recently, He et al.¹⁷ developed an adaptive impedance controller for an n-link robotic manipulator with input saturation by employing NNs. Li et al.¹⁸ proposed a novel recurrent NN to resolve the redundancy of manipulators for efficient kinematic control in the presence of noises in a polynomial type. Pan et al. done a lot contributions^19

–23 to NN-based adaptive controllers. An NN-based adaptive controller²⁴ for a new deployable manipulator system which consisted of a deployable link and a slewing joint was presented. However, these NN adaptive controllers are most designed for single manipulator situation.

As for the case of multiple manipulators, NN-based scheme is seldom found in the literature. Some neural controllers are trained off-line²⁵; however, such controllers lack online adaptation capability for changing dynamics or disturbances. Meanwhile, others with online adaptation, Hou et al.²⁶ applied a dual NNs approach to resolve the coordination problem of two redundant robots. Panwar et al.²⁷ developed an adaptive neural controller for cooperative manipulator system manipulating a common rigid object, where no preliminary off-line learning was required. More studies with online neural learning and adaptation can be found elsewhere.^28
–30 Besides, radial basis function (RBF) NN–enhanced estimator and observer were developed^31,32 to estimate system uncertainty and obtain the leader manipulator’s acceleration and control torque online. As for sliding-mode controllers, Wang et al.³³ proposed a decentralized position synchronized force control scheme. Incremona et al.³⁴ proposed a modular and composable approach, including a supervisor and a couple of hybrid position/force control schemes associated with a couple of cooperative robotic manipulators. Some researchers³⁵ focused on the equations, drawbacks, and the modeling of the leader–follower formation scheme for multirobot systems with uncertainties.

Look through the literature, some advances have done much work, but there still exist some improvements to make:

Dynamic uncertainty and unknown disturbances: Most of the cooperative manipulator controllers aforementioned rely on knowledge of local manipulators themselves, as well as other cooperated ones. This knowledge includes but not limited to nonlocal dynamic uncertainties of other manipulators, not to mention nonlocal unknown external disturbances.

Model-based control and estimating compensation to internal force regulation: Model-based (inverse dynamics) algorithm and approximating (of such inverse dynamics) algorithm are usually adopted in controller design, but which single part contributes more effectively to internal force regulation is seldom concerned. Despite the similar architecture in other single robotic applications, the contribution adjustment becomes uncertain and more complicated because of internal force.

Dynamic model error between simulating plant and practical application: The dynamic accuracy from simulating plant to reality differs with different approaches, for example, calculation (Lagrangian method), adequate 3-D modeling, and physical measurement, which is rarely considered and thus discussed as pseudo-model later. While most studies ignore the difference of simulating plant compared to practical application, which is here referred by a model weight, thus more problems may occur in practical application.

In this study, we aim at a decentralized control scheme to achieve internal force regulation, meanwhile with less nonlocal uncertainties than centralized design. A model-based neural backstepping sliding-mode controller together with a model-free neural backstepping sliding-mode controller is developed to cope with issues 1 and 2. Furthermore, integrating the former controllers, a novel model weighted controller is proposed to adjust contribution of inverse dynamics and neural compensation, which can cope with different dynamics’ demands or accuracies. Feedforward RBF NNs are adopted to deal with joint friction, external disturbances, as well as dynamic error between control loop and simulating plant, and so on.

The rest of the article is organized as follows. The “Kinematics and dynamics of cooperative manipulator system” section outlines the dynamic and kinematic modeling features of cooperative manipulators with the object and derives an integrated dynamic model. In the “Feedforward RBF neural network (FFNN)” section, a brief review of feedforward RBF NN is given. Several adaptive neural backstepping sliding-mode controllers are designed, and pseudo-model is discussed and then model weighted controller is introduced in the “Design of model weighted neural backstepping sliding-mode controller” section. The performance with numerical simulation of two 3 degree-of-freedom (DOF) manipulators holding a rigid object is presented comparatively in the “Simulation and discussion” section and finally conclusion is discussed in the last section.

Kinematics and dynamics of cooperative manipulator system

Consider a system of m cooperative manipulators, each end-effector holds a common rigid object at certain point as shown in Figure 1. All cooperative manipulators must be controlled carefully to move the object to

keep its center of mass tracking a predefined trajectory under joint friction and external disturbances;

regulate the internal forces to desired values to prevent damage.

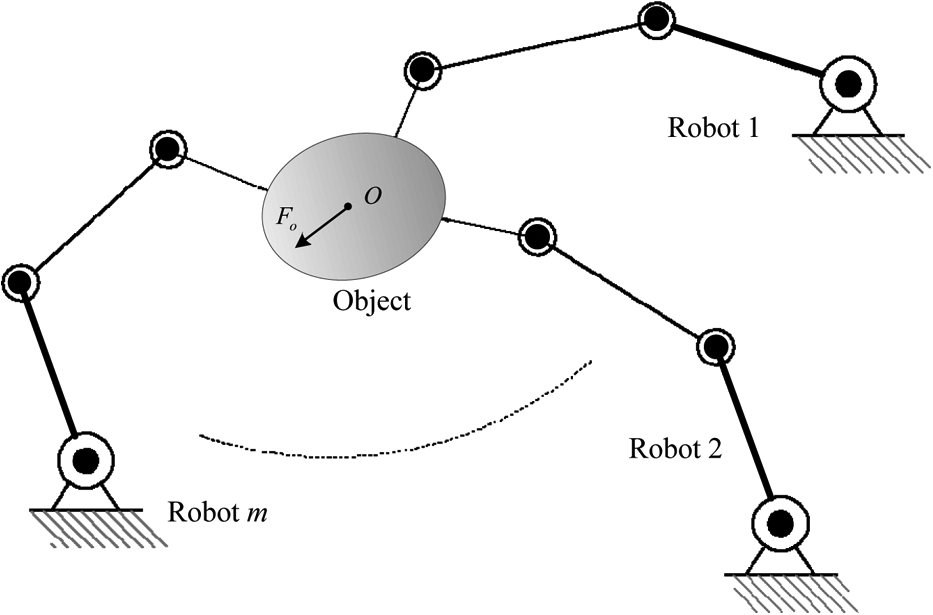

Figure 1.

Cooperative manipulators holding a rigid object.

In order not to increase the system’s DOFs, we will assume that cooperative grasp state is always guaranteed and the object is rigidly grasped by the end-effectors, meaning there is no relative motion between the end-effectors and the object. Also, the manipulators’ forward kinematics are supposed to be known.

Kinematics

The forward kinematics p can be expressed as

p = φ_{i} (q_{i}), i = 1, \dots, m

where $p = [p_{r}^{T}, p_{ϕ}^{T}]$ represents the position and orientation vector of the object and q_i and n_i are joint coordinates and DOFs of manipulator i, respectively. Define $J_{o q} (q_{i})$ as the Jacobian matrix from the object’s center of mass (OCM) to q_i, we can derive that

\dot{p} = {\dot{φ}}_{i} (q_{i}) = J_{o q} (q_{i}) {\dot{q}}_{i}, i = 1, \dots, m

\ddot{p} = {\dot{J}}_{o q} (q_{i}) {\dot{q}}_{i} + J_{o q} (q_{i}) {\ddot{q}}_{i}, i = 1, \dots, m

where superscripts $\dot{*} and \ddot{*}$ represent the first- and second-order differential of ∗, respectively.

Dynamics

The dynamic equation of the i th manipulator in the robotic system in joint space is given³⁶ as

M_{i} ({\dot{q}}_{i}) {\ddot{q}}_{i} + D_{i} (q_{i}, {\dot{q}}_{i}) {\dot{q}}_{i} + G_{i} (q_{i}) - τ_{f_{i}} ({\dot{q}}_{i}) - d_{i} (t) = τ_{i} + J_{e q_{i}} {(q_{i})}^{T} F_{o e_{i}}

where τ_i denotes the joint torque/force applied by the actuators on the i th manipulator, $M_{i} ({\dot{q}}_{i})$ is the symmetric positive definite inertial matrix, $D_{i} (q_{i}, {\dot{q}}_{i})$ is the Coriolis and centrifugal matrix, $G_{i} (q_{i})$ represents the vector of gravitational forces, $J_{e q_{i}} (q_{i})$ is the manipulator Jacobian matrix from end-effector to q_i, $F_{o e_{i}}$ is the force exerted by the object on the end-effector, $τ_{f_{i}} ({\dot{q}}_{i})$ stands for the joint friction, and d_i(t) is the external disturbance. Generally, ${\dot{M}}_{i} ({\dot{q}}_{i}) - 2 D_{i} (q_{i}, {\dot{q}}_{i})$ is the skew-symmetric.

Based on Wang et al.,³³ we take advantage of the cooperative relations in the following and then build the system dynamic equation. The dynamic model of the grasped object is given as

M_{o} (p) \ddot{p} + D_{o} (p, \dot{p}) \dot{p} + G_{o} (p) = F_{o}

where M_o(p), $D_{o} (p, \dot{p})$ , and G_o(p) are similar with that in equation (4). F_o is the resulting force of the m manipulators acting on the OCM, which can be written as

F_{o} = - \sum_{i = 1}^{m} J_{e o_{i}} (p) F_{o e_{i}}

where $J_{e o_{i}} (p)$ is the grasp matrix from the end-effector to OCM and $F_{o e_{i}}$ can be expressed as the sum of an internal force f_i and an external force E_i and we get

J_{e o_{i}} (p) F_{o e_{i}} = f_{i} + E_{i}

Also it is obtained that

M_{o} (p) \ddot{p} + D_{o} (p, \dot{p}) \dot{p} + G_{o} (p) = - \sum_{i = 1}^{m} E_{i}

And E_i can be expressed as

E_{i} = - ϖ_{i} (t) [M_{o} (p) \ddot{p} + D_{o} (p, \dot{p}) \dot{p} + G_{o} (p)]

where positive-definite diagonal matrix ϖ_i(t) can be regarded as time independent, representing the load distribution of the object onto the ith manipulator.³⁷ Substituting equation (9) into equation (7) yields

f_{i} = J_{e o_{i}} (p) F_{o e_{i}} + ϖ_{i} (t) [M_{o} (p) \ddot{p} + D_{o} (p, \dot{p}) \dot{p} + G_{o} (p)]

Using equation (10) alone with equations (2)–(4) and (6), for simplicity let ${\overset{⌢}{D}}_{i} = D_{i} (q_{i}, {\dot{q}}_{i}) + ϖ_{i} (t) [J_{o q_{i}}^{T} M_{o} (p) {\dot{J}}_{o q_{i}} + D_{o} (q_{i}, {\dot{q}}_{i})], {\overset{⌢}{G}}_{i} = G_{i} (q_{i}) + ϖ_{i} (t) G_{o} (q_{i}), {\overset{⌢}{M}}_{i} = M_{i} (q_{i}) + ϖ_{i} (t) M_{o} (q_{i}), τ_{d_{i}} = τ_{f_{i}} ({\dot{q}}_{i}) + d_{i} (t) where M_{o} (q_{i}) = J_{o q_{i}} {(q_{i})}^{T} M_{o} (p) J_{o q_{i}} (q_{i}), D_{o} (q_{i}, {\dot{q}}_{i}) = J_{o q_{i}} {(q_{i})}^{T} D_{o} (p, \dot{p}) J_{o q_{i}} (q_{i}), G_{o} (q_{i}) = J_{o q_{i}} {(q_{i})}^{T} G_{o} (p)$ , then the dynamic equation of the i th manipulator can be derived as

{\overset{⌢}{M}}_{i} {\ddot{q}}_{i} + {\overset{⌢}{D}}_{i} {\dot{q}}_{i} + {\overset{⌢}{G}}_{i} - τ_{d_{i}} = τ_{i} + J_{o q_{i}} {(q_{i})}^{T} f_{i}

${2 {\overset{⌢}{D}}_{i} - {\dot{\overset{⌢}{M}}}_{i} + {\dot{ϖ}}_{i} J_{o q_{i}} {(q_{i})}^{T} M_{o} (p) J_{o q_{i}} (q_{i})}$ is a skew symmetric matrix, hence $x^{T} {2 {\overset{⌢}{D}}_{i} - {\dot{\overset{⌢}{M}}}_{i} + {\dot{ϖ}}_{i} J_{o q_{i}} {(q_{i})}^{T} M_{o} (p) J_{o q_{i}} (q_{i})} x = 0 for x \in ℝ^{n_{i}}$ .

Feedforward RBF neural network (FFNN)

FFNN can adjust local weights and offer mathematical tractability. An FFNN with hn hidden units can be described as

Y = Θ^{T} ψ (X)

where Y is the output determined by the input X. ψ(X) are the RBF as

ψ (X) = [δ_{1}, δ_{2}, \dots, δ_{h n}]

δ_{i} = e^{- \frac{‖ X - c_{i} ‖^{2}}{b_{i}^{2}}}

where c_i represents the center and b_i represents the width.

Assumption 1

There exists an ideal tracking of a continuous output Y for an object Y_ideal, that with a very small compact set range ε₀
$max ‖ Y - Y_{ideal} ‖ \leq ε_{0}$
15

where $\tilde{Y} = Y - \hat{Y}$ is called the NN functional approximation error. Estimation of Y can be given by
$\hat{Y} = {\hat{Θ}}^{T} ψ (X)$
16

where $\hat{Θ}$ are the estimate of the ideal FFNN weights.

Then FFNN can show arbitrary precise tracking capability for continuous function³⁸ under assumption 1.

Design of model weighted neural backstepping sliding-mode controller

Backstepping method decomposes complex nonlinear manipulator system to subsystems without exceeding the system order, separately designs Lyapunov functions and virtual control law for each subsystem, finally reverses back to complete the entire system control design. To cope with joint friction, external disturbances, as well as model error between simulating plant and reality, several adaptive neural backstepping controllers are proposed based on different dynamics’ demands or accuracies. Although similar control scheme may be provided for single robotic application, this combination of backstepping, NN, sliding mode, and model weighting in complex cooperative internal force regulation can be seldom found in literature.

Dynamic model–based adaptive neural backstepping sliding-mode controller (MANNBS) design

The cooperative manipulators system is autonomous nonlinear and its mathematical model can be expressed as follows
${\begin{cases} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = {\overset{⌢}{M}}_{i}^{- 1} [τ_{i} + J_{o q_{i}} {(q_{i})}^{T} f_{i} + τ_{d_{i}} - {\overset{⌢}{D}}_{i} x_{2} - {\overset{⌢}{G}}_{i}] \\ y = x_{1} \end{cases}$
17

where x₁ and x₂ are state vectors and y denotes the systems output. The main steps of MANNBS can be described as follows

Step 1

According to tracking and operating on the object, the position tracking of the object is developed, and z₁ is selected as the trajectory tracking error in joint space as follows
$z_{1} = y - y_{d}$
18

where $y_{d} \in {| y_{d} | \leq Y_{d}}$ is the twice differentiable desired trajectory of the manipulator, and we assume that y_d and its differential are continuous and bounded. Virtual control coefficient can be taken as
$α = - λ z_{1} + {\dot{y}}_{d}$
19

where α is the virtual control coefficient and λ is a positive constant. And the velocity error of the manipulator is defined as
$z_{2} = x_{2} - α$
20

To the first corresponding subsystem, Lyapunov function is selected as follows
$V_{i 1} = \frac{1}{2} z_{1}^{T} z_{1}$
21

and
${\dot{V}}_{i 1} = z_{1}^{T} {\dot{z}}_{1} = z_{1}^{T} z_{2} - z_{1}^{T} λ z_{1}$
22

As λ is a positive constant that it is brief to see if equation (22) satisfies z₂ = 0, then the first subsystem of the manipulator system is stable.

Step 2

Define the sliding variable as
$s = z_{2} + k z_{1}$
23

where k is a positive constant. And we have the robot dynamics written in terms of filtered tracking error as
${\overset{⌢}{M}}_{i} \dot{s} = τ_{i} + J_{o q_{i}} {(q_{i})}^{T} f_{i} + τ_{d_{i}} - [{\overset{⌢}{M}}_{i} (\dot{α} - k {\dot{z}}_{1}) + {\overset{⌢}{D}}_{i} (α - k z_{1}) + {\overset{⌢}{G}}_{i}] - {\overset{⌢}{D}}_{i} s$
24

Define another Lyapunov function as
$V_{i 2} = \frac{1}{2} z_{1}^{T} z_{1} + \frac{1}{2} s^{T} {\overset{⌢}{M}}_{i} ({\dot{q}}_{i}) s$
25

Then
$\begin{matrix} {\dot{V}}_{i 2} = z_{1}^{T} {\dot{z}}_{1} + \frac{1}{2} s^{T} {\dot{\overset{⌢}{M}}}_{i} s + s^{T} {\overset{⌢}{M}}_{i} \dot{s} \\ = z_{1}^{T} z_{2} - z_{1}^{T} λ z_{1} + \frac{1}{2} s^{T} {\dot{\overset{⌢}{M}}}_{i} s + s^{T} {τ_{i} + J_{o q_{i}} {(q_{i})}^{T} f_{i}} \\ + τ_{d_{i}} - [{\overset{⌢}{M}}_{i} (\dot{α} - k {\dot{z}}_{1}) + {\overset{⌢}{D}}_{i} (α - k z_{1}) + {\overset{⌢}{G}}_{i}] - {\overset{⌢}{D}}_{i} s} \end{matrix}$
26

As ${2 {\overset{⌢}{D}}_{i} - {\dot{\overset{⌢}{M}}}_{i} + {\dot{ϖ}}_{i} J_{o q_{i}} {(q_{i})}^{T} M_{o} (p) J_{o q_{i}} (q_{i})}$ is a skew symmetric matrix and from equation (26)
$\begin{matrix} {\dot{V}}_{i 2} = z_{1}^{T} z_{2} - z_{1}^{T} λ z_{1} + \frac{1}{2} s^{T} [{\dot{ϖ}}_{i} J_{o q_{i}} {(q_{i})}^{T} M_{o} (p) J_{o q_{i}} (q_{i})] s \\ + s^{T} {τ_{i} + J_{o q_{i}} {(q_{i})}^{T} f_{i} + τ_{d_{i}} - [{\overset{⌢}{M}}_{i} (\dot{α} - k {\dot{z}}_{1}) \\ + {\overset{⌢}{D}}_{i} (α - k z_{1}) + {\overset{⌢}{G}}_{i}]} \end{matrix}$
27

To satisfy ${\dot{V}}_{i 2} \leq 0$ and stabilize the second subsystem, the controller can be designed as
$τ_{i} = {\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\bar{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\bar{\overset{⌢}{G}}}_{i} (q_{i}) - J_{o q_{i}} {(q_{i})}^{T} f_{i}^{d} + {\hat{Θ}}^{T} ψ (X) - W_{1} sgn (s) - W_{2} s$
28

where ${\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}), {\bar{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}), and {\bar{\overset{⌢}{G}}}_{i} (q_{i})$ represent the nominal model or the known part, and X can be chosen as ${[z_{1}, {\dot{z}}_{1}, y_{d}, {\dot{y}}_{d}, {\ddot{y}}_{d}]}^{T}$ ; this FFNN employed here aims to compensate the uncertain dynamics and the unknown disturbances that
${\tilde{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\tilde{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\tilde{\overset{⌢}{G}}}_{i} (q_{i}) - τ_{d_{i}} = Y + Λ = Θ^{T} ψ (X) + Λ$
29

where the notation $\tilde{} \overset{def}{=} - \hat{}$ represents the error part and Λ is the FFNN functional approximation error. ${\hat{Θ}}^{T} ψ (X)$ can be regarded as the optimal approximation with the optimal FFNN weights approximation $\hat{Θ}$ then we have
${\tilde{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\tilde{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\tilde{\overset{⌢}{G}}}_{i} (q_{i}) - τ_{d_{i}} = {\hat{Θ}}^{T} ψ (X) + {\tilde{Θ}}^{T} ψ (X) + Λ$
30

where ${\tilde{Θ}}^{T} ψ (X)$ represents the functional estimation error. Using equations (24), (28), and (30), the closed-loop error dynamics becomes
${\overset{⌢}{M}}_{i} ({\dot{q}}_{i}) \dot{s} = J_{o q_{i}} {(q_{i})}^{T} {\tilde{f}}_{i} - {\overset{⌢}{D}}_{i} (q_{i}, {\dot{q}}_{i}) s - {\tilde{Θ}}^{T} ψ (X) - Λ - W_{1} sgn (s) - W_{2} s$
31

The ideal FFNN weights are bounded so that ${‖ Θ ‖}_{F} \leq Θ_{max} and {‖ \hat{Θ} ‖}_{F} \leq Θ_{max}$ with known Θ_max. The robust weight W₁ is given by, with a₁, a₂, and a₃ as positive constants
$W_{1} = - a_{1} {‖ \hat{Θ} ‖}_{F} + a_{2} ‖ ε_{0} ‖ + a_{3}$
32

where $a_{3} - a_{1} Θ_{max} > 0$ .

Step 3

The third Lyapunov function is defined as
$V_{i 3} = \frac{1}{2} z_{1}^{T} z_{1} + \frac{1}{2} s^{T} {\overset{⌢}{M}}_{i} ({\dot{q}}_{i}) s + \frac{1}{2 η} {\tilde{Θ}}^{T} \tilde{Θ}$
33

where η is a positive constant. Using (20), (31), and (33) then
$\begin{matrix} {\dot{V}}_{i 3} = {z_{1}^{T} z_{2} - λ z_{1}^{T} z_{1} - W_{2} s^{T} s} + \frac{1}{2} s^{T} ({\dot{ϖ}}_{i} M_{o} (q_{i})) s \\ + s^{T} J_{o q_{i}}^{T} {\tilde{f}}_{i} - W_{1} s^{T} sgn (s) + \frac{1}{η} {\tilde{Θ}}^{T} (\dot{\tilde{Θ}} - η s^{T} ψ (X)) - s^{T} Λ \end{matrix}$
34

The adaptive control rule can be selected as
$\dot{\hat{Θ}} = η s^{T} ψ (X) + η \hat{Θ}$
35

Using (32) and (35) then equation (34) can be rewritten as
$\begin{matrix} {\dot{V}}_{i 3} = {z_{1}^{T} z_{2} - λ z_{1}^{T} z_{1} - W_{2} s^{T} s} + \frac{1}{2} s^{T} ({\dot{ϖ}}_{i} M_{o} (q_{i})) s \\ + s^{T} J_{o q_{i}}^{T} {\tilde{f}}_{i} - s^{T} {Λ + a_{2} ‖ ε_{0} ‖ sgn (s)} \\ + {{\tilde{Θ}}^{T} \hat{Θ} + a_{1} {‖ \hat{Θ} ‖}_{F} s^{T} sgn (s) - a_{3} s^{T} sgn (s)} \\ = {\dot{V}}_{i 3}^{1} + {\dot{V}}_{i 3}^{2} + {\dot{V}}_{i 3}^{3} + {\dot{V}}_{i 3}^{4} + {\dot{V}}_{i 3}^{5} \end{matrix}$

where
${\dot{V}}_{i 3}^{1} = z_{1}^{T} z_{2} - λ z_{1}^{T} z_{1} - W_{2} s^{T} s$

${\dot{V}}_{i 3}^{2} = \frac{1}{2} s^{T} ({\dot{ϖ}}_{i} M_{o} (q_{i})) s$

${\dot{V}}_{i 3}^{3} = s^{T} J_{o q_{i}}^{T} {\tilde{f}}_{i}$

${\dot{V}}_{i 3}^{4} = - s^{T} {Λ + a_{2} ‖ ε_{0} ‖ sgn (s)}$

${\dot{V}}_{i 3}^{5} = {\tilde{Θ}}^{T} \hat{Θ} + a_{1} {‖ \hat{Θ} ‖}_{F} s^{T} sgn (s) - a_{3} s^{T} sgn (s)$

Define
$ξ = [\begin{matrix} λ + W_{2} k^{2} & W_{2} k - \frac{1}{2} \\ W_{2} k - \frac{1}{2} & W_{2} \end{matrix}]$

then
${\dot{V}}_{i 3}^{1} = z_{1}^{T} z_{2} - λ z_{1}^{T} z_{1} - W_{2} s^{T} s = - z^{T} ξ z$

where $z = [z_{1}; z_{2}]$ , and
$‖ ξ ‖ = W_{2} (λ + k) - \frac{1}{4}$

Selecting the proper parameters of W₂, λ, and k to satisfy $‖ ξ ‖ \geq 0, then {\dot{V}}_{i 3}^{1} = - z^{T} ξ z \leq 0$ . As ϖ_i(t) is a time-independent scalar, yielding
${\dot{V}}_{i 3}^{2} = \frac{1}{2} s^{T} ({\dot{ϖ}}_{i} M_{o} (q_{i})) s = 0$

From the property of internal forces we have $\sum_{i = 1}^{m} f_{i}^{d} = 0 and \sum_{i = 1}^{m} f_{i} = 0$ that for all manipulators
$\sum_{i = 1}^{m} {\dot{V}}_{i 3}^{3} = \sum_{i = 1}^{m} {(J_{o q_{i}} (q_{i}) s)}^{T} {\tilde{f}}_{i} = \sum_{i = 1}^{m} {(ϑ_{1} p + ϑ_{1} \dot{p})}^{T} {\tilde{f}}_{i} = {(ϑ_{1} p + ϑ_{2} \dot{p})}^{T} \sum_{i = 1}^{m} {\tilde{f}}_{i} = 0$

where $(ϑ_{1} p + ϑ_{2} \dot{p})$ means a transformable form that ϑ₁ and ϑ₂ are certain constants. Let a₂ ≥ 1 and considering assumption 1 then
$\begin{matrix} {\dot{V}}_{i 3}^{4} = - s^{T} {Λ + a_{2} ‖ ε_{0} ‖ sgn (s)} \\ = - s^{T} {Λ sgn (s^{T}) + a_{2} ‖ ε_{0} ‖} sgn (s) \leq 0 \end{matrix}$

It is easy to know that $tr ({\tilde{Θ}}^{T} \hat{Θ}) = tr ({\tilde{Θ}}^{T} (Θ - \tilde{Θ})) \leq {‖ \tilde{Θ} ‖}_{F} {‖ Θ ‖}_{F} - {‖ \tilde{Θ} ‖}_{F}^{2}$ hence
$\begin{matrix} {\dot{V}}_{i 3}^{5} = {\tilde{Θ}}^{T} \hat{Θ} + a_{1} ‖ \hat{Θ} ‖ s^{T} sgn (s) - a_{3} s^{T} sgn (s) \\ \leq {‖ \tilde{Θ} ‖}_{F} {‖ Θ ‖}_{F} - {‖ \tilde{Θ} ‖}_{F}^{2} + a_{1} {‖ \hat{Θ} ‖}_{F} s^{T} sgn (s) - a_{3} s^{T} sgn (s) \\ \leq - {({‖ \tilde{Θ} ‖}_{F} - \frac{Θ_{max}}{2})}^{2} + \frac{Θ_{max}^{2}}{4} + (a_{1} Θ_{max} - a_{3}) s^{T} sgn (s) \end{matrix}$

Thus, ${\dot{V}}_{i 3}^{5}$ is negative as long as
$‖ s ‖ \geq s^{T} sgn (s) > \frac{Θ_{max}^{2}}{4 (a_{3} - a_{1} Θ_{max})}$
36

or
${‖ \tilde{Θ} ‖}_{F} > \frac{Θ_{max}}{2} + \sqrt{\frac{Θ_{max}^{2}}{4}}$
37

Therefore, ${\dot{V}}_{i 3} = \sum_{j = 1}^{5} {\dot{V}}_{i 3}^{j} \leq 0$ and it is negative outside a compact set, so V_i3 is nonincreasing and according to Lyapunov theorem extension,³⁹ the uniform ultimate boundedness of ‖s‖ and ${‖ \tilde{Θ} ‖}_{F}$ is proved. From equation (36), the backstepping sliding error ‖s‖ can be adjusted slightly arbitrarily by increasing the result of $(a_{3} - a_{1} Θ_{max})$ , which means that let $(a_{3} - a_{1} Θ_{max})$ be large enough so that $\frac{Θ_{max}^{2}}{4 (a_{3} - a_{1} Θ_{max})} < ϖ Y_{d}$ with a constant ϖ, then any trajectory s starting in $U_{s} = {s : ‖ s ‖ \leq ϖ Y_{d}}$ can lie within U_s. Moreover, to choose the constants a₁, a₂, and a₃ in order to determine the adaptive gain, we should keep $a_{2} \geq 1 and a_{3} - a_{1} Θ_{max} > 0$ . As t → ∞, the controller guarantees the asymptotic convergence of s. Since s is a linear combination of backstepping tracking error z₁, z₂, so as s → 0, the backstepping tracking error z₁, z₂, and y can be their desired values.

We achieve internal force regulation with a decentralized control scheme instead of centralized design, meanwhile with less nonlocal uncertainties. It is obvious from control law (28) that no dynamical knowledge for other manipulators is required for that local particular manipulator. This means that each manipulator achieves its own dynamic estimation and calculates forward kinematics with its own attributes. A feedforward NN is adopted requiring no preliminary off-line learning, and moreover, traditional force feedback is replaced by feedforward of the desired internal force $f_{i}^{d}$ which can not only avoid extra external sensors but also information exchange with other manipulators. And it is important to point out that the model-based algorithm in control law (28) can be rewritten in a regression method as
${\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\bar{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\bar{\overset{⌢}{G}}}_{i} (q_{i}) = \bar{Y} (q_{i}, {\dot{q}}_{i}, z_{1}, {\dot{z}}_{1}, {\ddot{y}}_{d}) {\bar{μ}}_{i}$
38

where ${\bar{μ}}_{i}$ is an estimation of the physical parameters of the ith manipulator and the object. The matrix $\bar{Y} (q_{i}, {\dot{q}}_{i}, z_{1}, {\dot{z}}_{1}, {\ddot{y}}_{d})$ is known as the regression and is independent of ${\bar{μ}}_{i}$ . This control architecture is designed based on the knowledge of model but not nominal model itself, with the proposed FFNN to deal with the estimation error, the nominal term here is adopted as an option that the regression may become extremely complex with increasing number of joints in practice.

Adaptive neural backstepping sliding-mode controller (ANNBS) design

MANNBS takes advantage of existing knowledge of system dynamics; however, for practical applications, this dynamic knowledge is sometimes out of reach, thus ANNBS is provided based on MANNBS, for model-free circumstance. Considering equations (16), (38), and neural estimation for robot nonlinear function in the study by Panwar et al.,²⁷ a new RBF NN is introduced as
$Θ_{0}^{T} ψ_{0} (X_{0}) = {\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\bar{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\bar{\overset{⌢}{G}}}_{i} (q_{i}) = \bar{Y} (q_{i}, {\dot{q}}_{i}, z_{1}, {\dot{z}}_{1}, {\ddot{y}}_{d}) {\bar{μ}}_{i}$
39

where X₀ can be chosen as ${[z_{1}, {\dot{z}}_{1}, y_{d}, {\dot{y}}_{d}, {\ddot{y}}_{d}]}^{T}$ , which can be found the same with X in MANNBS. Substituting equation (39) into equation (28) and the MANNBS control law can be rewritten as
$τ_{i} = Θ_{0}^{T} ψ_{0} (X) + {\hat{Θ}}^{T} ψ (X) - J_{o q_{i}} {(q_{i})}^{T} f_{i}^{d} - W_{1} sgn (s) - W_{2} s$
40

with the same input X, the two FFNNs build up the whole nonlinear estimation and estimate certain part of the system nonlinear function respectively and adaptively. Thus, it is capable to use only one FFNN instead of two to simplify equation (40) with adaptive engine, and we can conclude a new ANNBS as
$τ_{i} = {\hat{Θ}}^{T} ψ (X) - J_{o q_{i}} {(q_{i})}^{T} f_{i}^{d} - W_{1} sgn (s) - W_{2} s$
41

with familiar neural adaptive law
$\dot{\hat{Θ}} = η s^{T} ψ (X) + η \hat{Θ}$
42

where this FFNN deals with global cooperative manipulation system dynamic estimation, which is totally different from dynamic uncertainty compensation using MANNBS, although they have similar construction. It is still reasonable with equation (30). So does the Lyapunov stability proof as error part $\tilde{}$ can be just seen as inheriting more from real part ∗, and less with $\bar{}$ , or it can be considered that some control information from $\bar{}$ part is moved into $\tilde{}$ part for easier comprehension, and we will not duplicate the discussion.

With this promotion, no knowledge for dynamics of any manipulators is required with ANNBS. This ANNBS can be regarded as one particular expansion generalized out of MANNBS with all the restrictions and also all the capabilities.

Model weighted adaptive neural network backstepping sliding-mode controller (MWANNBS) design

Application problem between simulation model and reality dynamic is concerned here. Consider all the dynamics a controller usually related through a design, which can be divided into three categories: (a) dynamics of reality $Μ_{R}^{}$ (what it really is), (b) dynamics in simulation plant $Μ_{S}^{}$ (what we think the real is), and (c) dynamics using controller $Μ_{C}^{}$ (what we measure it is). In most studies, $Μ_{S}^{}$ is acquiesced as ideal dynamics which is taken as $Μ_{R}^{}, and Μ_{C}^{}$ is adopted according to $Μ_{S}^{}$ such as $0.8 Μ_{S}^{} or 0.5 Μ_{S}^{}$ , and so on, no matter nominal model or regression methods. These designs or controllers depend on some clear knowledge of the dynamics $Μ_{R}^{}$ , and assumption that $Μ_{S}^{} = Μ_{R}^{}$ , which will always make deeply satisfying simulating results. However, in reality, there exist certain differences between $Μ_{S}^{} and Μ_{R}^{}$ . In most cases, we have some dynamic information such as link mass, inertial, and so on, and dynamic model then can be obtained through different approaches, for example, calculation (Lagrangian method), adequate 3-D modeling, and physical measurement. The dynamic accuracy from simulating plant to reality differs with so many different approaches, not to mention motor and reducer which contribute fairly to real dynamics. This may lead to circumstances such as $Μ_{S}^{} = 0.7 Μ_{R}^{}$ , and what we really use in $Μ_{C}^{}$ is not what we predict that, if we define ${\overset{⌢}{M}}^{d}_{i} ({\dot{q}}_{i})$ as reality dynamics in MANNBS, desired ${\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) = 0.8 {\overset{⌢}{M}}_{i} ({\dot{q}}_{i}) = 0.8 {\overset{⌢}{M}}^{d}_{i} ({\dot{q}}_{i})$ may turn out to be ${\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) = 0.8 {\overset{⌢}{M}}_{i} ({\dot{q}}_{i}) = 0.56 {\overset{⌢}{M}}^{d}_{i} ({\dot{q}}_{i})$ , resulting in undesirable performance in real control while perfectly working out in simulation, that is, pseudo-model.

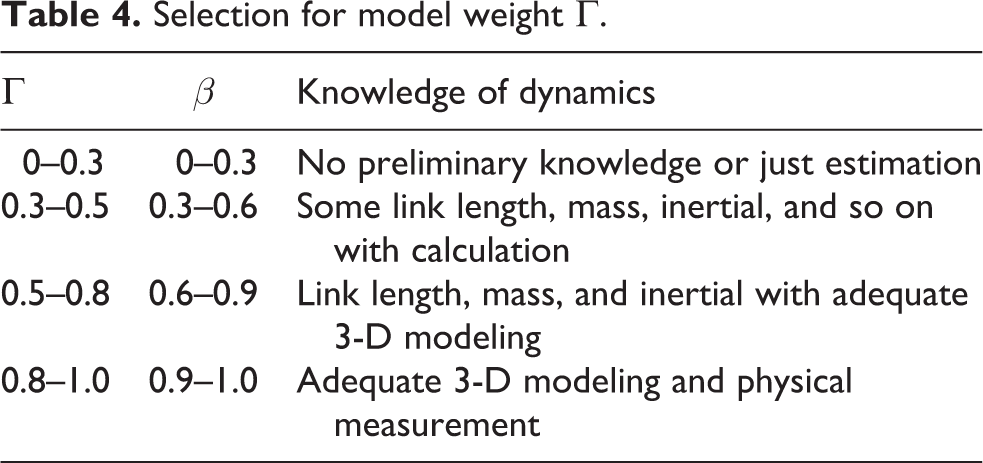

We regard pseudo-model as an extension of traditional nominal model and consider the differences existing between simulating plant and realistic physical plant. Model weight, meaning weighting factor (or accuracy) of dynamic model used for controller design, is introduced here for dynamic accuracy to adjust dynamic part and the neural part in controller to cope with pseudo-model, in a relatively global and convenient way. Take positive constant Γ between 0 and 1 as model weight and we define an impact factor as
$Ξ_{Δ} = {\begin{matrix} 0 & (Γ = 0) \\ \frac{1}{e^{(1 - Γ)}} & (Γ \neq 0) \end{matrix}$
43

Figure 2 depicts the block diagrams of the MWANNBS and when Γ = 0, MWANNBS works the same as ANNBS. Within low dynamic accuracy, impact factor Ξ_Δ is adopted after model-based part to weaken model-based control because lower Γ represents more pseudo-model. It is worth noting that there is no big problem adopting a continuous saturated function instead of the impact factor Ξ_Δ, but to meet the following conditions: (a) remaining in the range of 0–1 and (b) being monotonically increasing function of model weight Γ. Such saturated function can also provide the weighting adjustment, without changing the structure of the controller. While model weight Γ and robust term e^(1−Γ) are selected to reinforce and adjust FFNN part as well as to adjust robust part. Combining former MANNBS and ANNBS, MWANNBS is designed as
$\begin{matrix} τ_{i} = [{\bar{\overset{⌢}{M}}}_{i} ({\dot{q}}_{i}) (\dot{α} - k {\dot{z}}_{1}) + {\bar{\overset{⌢}{D}}}_{i} (q_{i}, {\dot{q}}_{i}) (α - k z_{1}) + {\bar{\overset{⌢}{G}}}_{i} (q_{i})] Ξ_{Δ} \\ + [{\hat{Θ}}^{T} ψ (X)] e^{(1 - Γ)} - J_{o q_{i}} {(q_{i})}^{T} f_{i}^{d} - W_{1} sgn (s) - W_{2} s \end{matrix}$
44

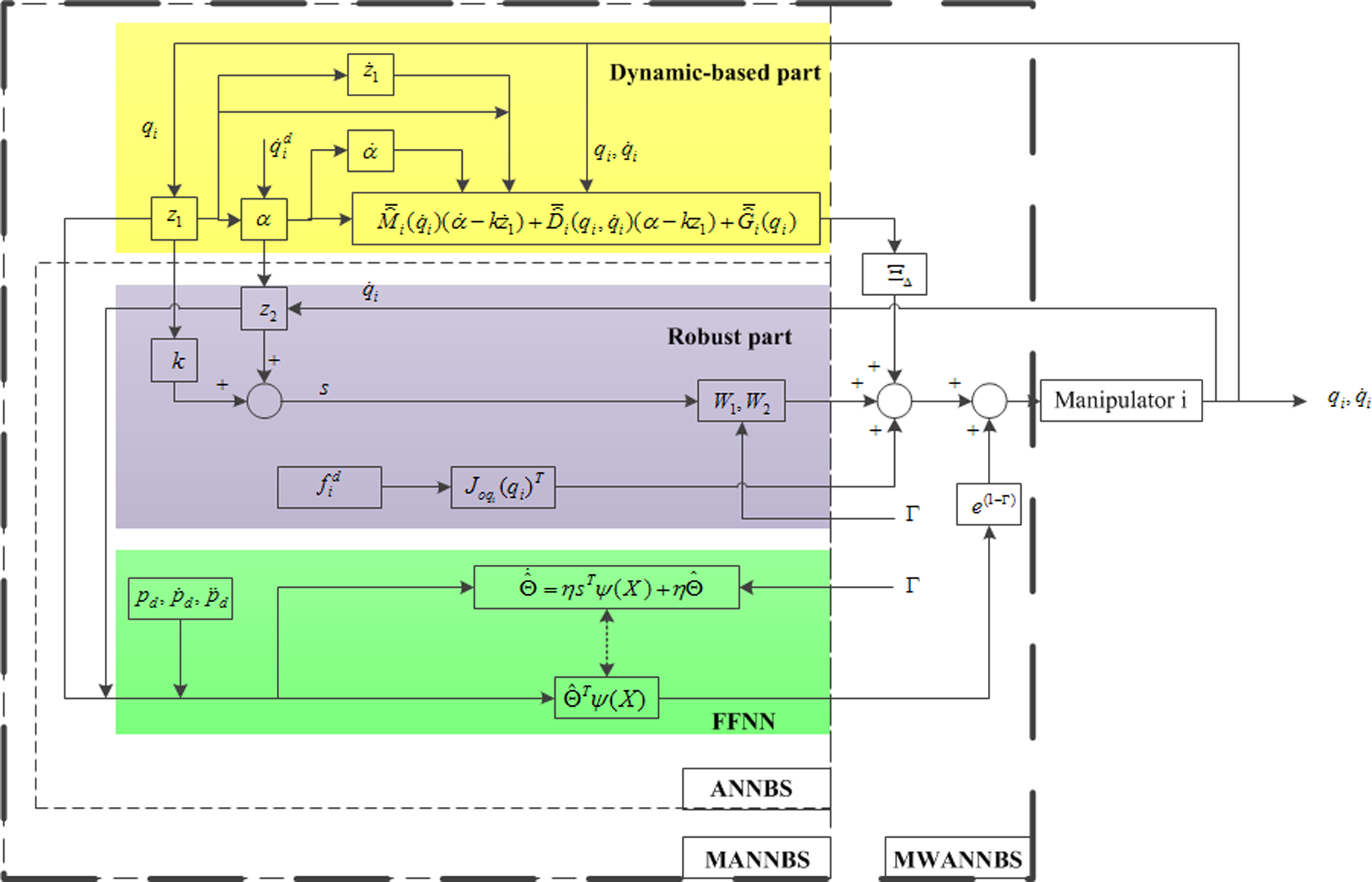

Figure 2.
Block diagram of MWANNBS. MWANNBS: model weighted adaptive neural network backstepping sliding-mode controller.

with the same input X as ${[z_{1}, {\dot{z}}_{1}, y_{d}, {\dot{y}}_{d}, {\ddot{y}}_{d}]}^{T}$ , neural adaptive law in the same construction
$\dot{\hat{Θ}} = η s^{T} ψ (X) + η \hat{Θ}$

where $a_{3} = a_{1} Θ_{max} + e^{(1 - Γ)}$ according to equation (32) and $η = η_{0} / e^{(1 - Γ)}$ according to equation (35) with a positive constant η₀, the other restrictions and settings are the same with MANNBS. Lyapunov stability is kept similar with MANNBS, and MWANNBS integrates both capabilities of MANNBS and ANNBS; moreover, it can be adopted for more kinds and complicated situations which can be adjusted based on different dynamics demands or accuracies for more practicability, whether part known or none.

Simulation and discussion

Simulation plant and settings

A set of simulations has been carried out on two identical 3-DOF planar robot manipulators holding a common circular disc rigidly. The physical parameters of the cooperative manipulators and the object are listed in Table 1. The explicit expressions of mass matrix, Coriolis and centripetal matrix, gravity matrix, and so on, are similar to the work of Zribi et al.⁹ For simulation, the bases of the two manipulators are set to $(x_{B 1}, y_{B 1}) = (- 0.4, 0) and (x_{B 2}, y_{B 2}) = (0.4, 0)$ , respectively. For more intuitive comparison, amplified friction and external disturbance terms introduced here consist of modeling uncertainty associated with the friction at the joints $diag ([3.6 1.2 0.24]) \dot{q} + diag ([0.48 0.24 0.12]) sgn (\dot{q})$ , time-varying external disturbance ${[2.4 2.4 0.96]}^{T} sin (2 π t)$ , and constant external disturbance ${[4.8 4.8 2.4]}^{T}$ . The dynamic model of the object is expressed as

$[\begin{matrix} m_{o} & 0 & 0 \\ 0 & m_{o} & 0 \\ 0 & 0 & I_{o} \end{matrix}] [\begin{matrix} x \\ y \\ z_{φ} \end{matrix}] + [\begin{matrix} 0 \\ m_{o} g \\ 0 \end{matrix}] = [\begin{matrix} F_{o x} \\ F_{o y} \\ F_{o z} \end{matrix}]$

Table 1.
Physical parameters of the system.

System parameters Value

I_j: rotational inertia of link j $I_{1} = I_{2} = 0.5, I_{3} = 0.25$

m_j: mass of link j $m_{1} = m_{2} = m_{3} = 1.5$

l_j: length of link j $l_{1} = l_{2} = 0.6, l_{3} = 0.2$

I_o: rotational inertia of circular disc 0.3

m_o: mass of circular disc 1.5

r_o: radius of circular disc 0.2

g: gravitational acceleration 9.8

where (x, y, z_φ) represents the position and orientation of the diameter joining contact points with the world frame axis, respectively. The kinematic equation is given as
$\begin{matrix} (\begin{matrix} x \\ y \\ z_{φ} \end{matrix}) = (\begin{matrix} l_{1} cos (q_{11}) + l_{2} cos (q_{11} + q_{12}) + (l_{3} + r_{o}) cos (q_{11} + q_{12} + q_{13}) + x_{B 1} \\ l_{1} sin (q_{11}) + l_{2} sin (q_{11} + q_{12}) + (l_{3} + r_{o}) sin (q_{11} + q_{12} + q_{13}) + y_{B 1} \\ q_{11} + q_{12} + q_{13} \end{matrix}) \\ = (\begin{matrix} l_{1} cos (q_{21}) + l_{2} cos (q_{21} + q_{22}) + (l_{3} + r_{o}) cos (q_{21} + q_{22} + q_{23}) + x_{B 2} \\ l_{1} sin (q_{21}) + l_{2} sin (q_{21} + q_{22}) + (l_{3} + r_{o}) sin (q_{21} + q_{22} + q_{23}) + y_{B 2} \\ π + q_{21} + q_{22} + q_{23} \end{matrix}) \end{matrix}$

We carry out some simulations to verify the capability of the proposed controllers. The preset trajectory of the circular object is set up as $x_{d} = 0.2 cos (0.2 π t), y_{d} = 0.2 sin (0.2 π t) + 0.8, and z_{φ}_{d} = 0$ , which denotes that the disc is held to be in horizontal steady without any rotation. The internal forces are desired at f^d = 0. The initial motion values of circular disc are set with $x (0) = 0.2, y (0) = 0.8, z_{φ}_{d} (0) = 0, \dot{x} (0) = 0, \dot{y} (0) = 0.1257, and {\dot{z}}_{φ}_{d} (0) = 0$ .

Simulation using MANNBS and ANNBS under no pseudo-model

The first simulation is in the case of no friction or external disturbance assuming that $Μ_{S}^{} = Μ_{R}^{}$ . Consider practically that now many manufacturers produce manipulators by integration, namely outsourcing servo, reducer, and other key components to conduct their own manipulator. The manipulator itself is completely dependent on the joints’ servo control. PID can be the most classical control methods, many of today’s servo suppliers still apply various modifications or multi-PID control method. Thus, traditional PID as equation (45) and an adaptive neural controller (ANN) refer to the study by Panwar et al.²⁷ with a similar structure as equation (46) are adopted and compared in the simulation
$τ = K_{P} z_{1} + K_{I} \int z_{1} d t + K_{D} {\dot{z}}_{1}$
45
$τ = \hat{h} (y) + K_{S} ξ + D (f^{d} + \int_{0}^{t} \tilde{f} d t) + K_{Z} ({‖ \hat{Z} ‖}_{F} + Z_{M}) ξ$
46

The following parameter values are taken: (a) PID, $K_{P} = 7500, K_{I} = 2000, and K_{D} = 400$ ; (b) ANN, $Λ = 15, K_{S} = 5, and K_{S} = 10$ , with learning rate $F_{W} = G_{V} = 10$ and five hidden sigmoidal units; (c) MANNBS, $λ = 180, k = 30, a_{1} = 0.01, a_{2} = 15, a_{3} = a_{1} Θ_{max} + 10, W_{2} = 1, and Μ_{C}^{} = 0.8 Μ_{S}^{}$ , the FFNN is of 15 inputs, five hidden RBF and three outputs, $b_{i} = 0.6, \begin{array}{l} c_{i} = [- 0.5 - 0.25 0 0.25 0.5; - 0.5 - 0.25 0 0.25 0.5; - 0.5 - 0.25 0 0.25 0.5; - 0.5 - 0.25 0 0.25 0.5; \\ - 0.5 - 0.25 0 0.25 0.5; - 0.5 - 0.25 0 0.25 0.5; - π - 0.5 π 0 0.5 π π; - π - 0.5 π 0 0.5 π π; \\ - π - 0.5 π 0 0.5 π π; - 2 - 1 0 1 2; - 2 - 1 0 1 2; - 2 - 1 0 1 2; - 0.5 π - 0.25 π 0 0.25 π 0.5 π; \\ - 0.5 π - 0.25 π 0 0.25 π 0.5 π; - 0.5 π - 0.25 π 0 0.25 π 0.5 π;] \end{array}, η = 0.8$ for learning weight; and (d) ANNBS, $b_{i} = 0.4, η = 0.4$ , and the other settings are the same with MANNBS.

The global position and internal force tracking errors of the object are shown in Figure 3. It is clear from these results that both controllers proposed here perform superior to the traditional methods with higher accuracy and stability, all tracking errors converge to zero in considerable time. However, less accuracy and slower convergence can be found using PID. Moreover, MANNBS converges faster and little more precise than ANN and ANNBS which arise a small erupt at the beginning. Obvious training process can be found within ANN and ANNBS. And we think that model-based part in MANNBS provides much more precise contribution than model-free ANN and ANNBS.

Figure 3.
Comparison of cooperative tracking errors of several controllers without any uncertainties: (a) $\tilde{X}$ , (b) $\tilde{Y}$ , and (c) f.

In the second simulation, fully amplified (for more significant results) friction and external disturbance are considered. The global position and internal force tracking errors of the object are shown in Figure 4. These results reveal the superiority of the proposed controllers’ tracking ability to that of the ANN and PID under friction and external disturbance. Nevertheless, MANNBS converges faster and is more stable than ANN or ANNBS which arises small erupt sometimes at velocity direction turning.

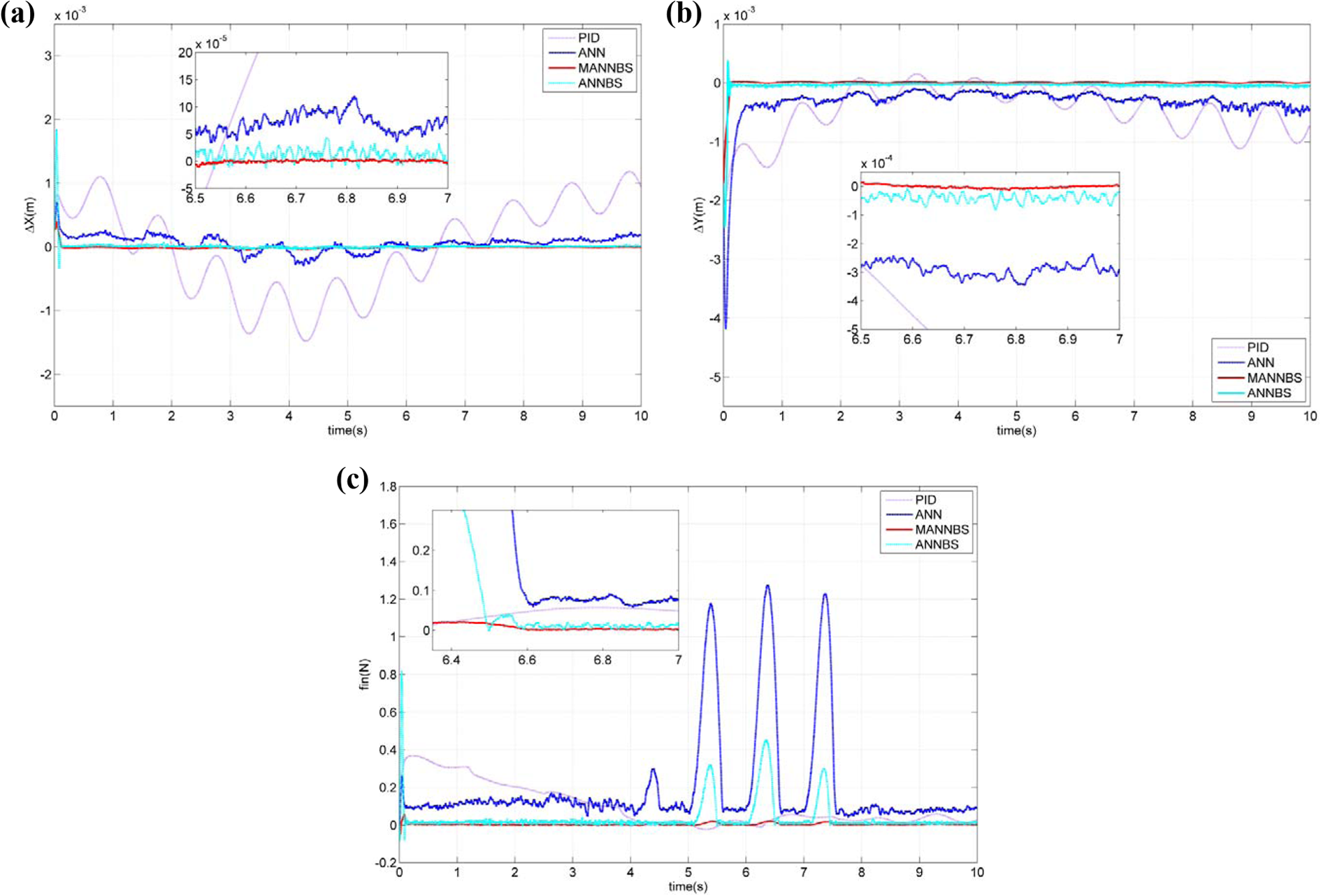

Figure 4.
Comparison of cooperative tracking errors of several controllers in the presence of structured and unstructured uncertainties: (a) $\tilde{X}$ , (b) $\tilde{Y}$ , and (c) f.

To solve the computational burden, we can run our controllers with a hierarchical structure.⁴⁰ Specifically, dynamic-based part is implemented at a high bandwidth, and FFNN part operates at a lower bandwidth. This can be found as a computationally effective compromise, taking into account the benefits of hard controllers’ capabilities as well as those of soft computing techniques in terms of NN learning.

In order to compare the performance of the controllers to better highlight the advantages of the proposed strategy, we also compute some performance indices, for example, root mean square error in Table 2 and standard deviation in Table 3.

Table 2.
RMS error comparison.

RMS error PID ANN MANNBS ANNBS

Without any uncertainties X coordinate ×10⁻⁴ 6.9646 2.8402 0.4235 1.4076

Y coordinate ×10⁻⁴ 8.5037 8.2816 1.2208 2.0618

Internal force 0.1349 0.1083 0.0054 0.1090

In the presence of amplified uncertainties X coordinate ×10⁻⁴ 21 26 1.1696 1.0257

Y coordinate ×10⁻⁴ 30 38 2.4853 2.7028

Internal force 0.8724 0.5069 0.0096 0.0921

RMS: root mean square; PID: proportional–integral–derivative; ANN: adaptive neural controller; MANNBS: model–based adaptive neural backstepping sliding-mode controller; ANNBS: adaptive neural backstepping sliding-mode controller.

Table 3.
SD comparison.

SD PID ANN MANNBS ANNBS

Without any uncertainties X coordinate ×10⁻⁴ 6.4555 2.0066 0.4119 1.0727

Y coordinate ×10⁻⁴ 5.1391 6.7379 1.1880 2.3415

Internal force 0.0934 0.0525 0.0046 0.0886

In the presence of amplified uncertainties X coordinate ×10⁻⁴ 21 13 0.8079 1.1670

Y coordinate ×10⁻⁴ 13 15 1.4849 2.6377

Internal force 0.3845 0.5029 0.0057 0.0841

SD: standard deviation; PID: proportional–integral–derivative; ANN: adaptive neural controller; MANNBS: model–based adaptive neural backstepping sliding-mode controller; ANNBS: adaptive neural backstepping sliding-mode controller.

Simulation with MANNBS and MWANNBS under pseudo-model

It is not a coincidence that MANNBS always shows better performance than pure neural approximating structured methods as ANN or ANNBS. The model-based term in control loop offers immediately impressive contribution while NNs are in sort of training and learning. This notes the necessity of turning contribution of the inverse dynamics and the neural approximation for internal force.

As a result, MWANNBS becomes even meaningful to adjust model-based part and the neural part around pseudo-model circumstances, neither simply take all nor just estimation. A third experiment is carried out between MANNBS and MWANNBS under different degrees of pseudo-model, that is, $Μ_{S}^{} = β Μ_{R}^{}$ , where β spans in the interval [0, 1] and Γ with small values for conservative selection. Model weight is selected only by knowledge of dynamics in the objective reality; here it is generally classified according to degree of pseudo-model. Table 4 shows possible model weight within different dynamics’ demands or accuracies represented by β with general actual dynamic situation.

Table 4.
Selection for model weight Γ.

Γ β Knowledge of dynamics

0–0.3 0–0.3 No preliminary knowledge or just estimation

0.3–0.5 0.3–0.6 Some link length, mass, inertial, and so on with calculation

0.5–0.8 0.6–0.9 Link length, mass, and inertial with adequate 3-D modeling

0.8–1.0 0.9–1.0 Adequate 3-D modeling and physical measurement

Figure 5 shows the results that those pseudo-model errors do affect the tracking performances terribly. For desire situation (β = 1 and $Μ_{S}^{} = Μ_{R}^{}$ that most studies do), both controllers achieve excellent tracking results, but as the increasing of the pseudo-model error, MANNBS becomes restless which most model-based controllers may occur. However, MWANNBS with model weight is far efficacious and less influenced, working more comprehensively out of the former one.

Figure 5.
Comparison of cooperative tracking errors in the presence of pseudo-model error: (a) $\tilde{X}$ using MANNBS, (b) $\tilde{X}$ using MWANNBS, (c) $\tilde{Y}$ using MANNBS, (d) $\tilde{Y}$ using MWANNBS, (e) ${\tilde{Z}}_{φ}_{d}$ using MANNBS, (f) ${\tilde{Z}}_{φ}_{d}$ using MWANNBS, (g) f using MANNBS, and (h) f using MWANNBS. MWANNBS: model weighted adaptive neural network backstepping sliding-mode controller; MANNBS: model–based adaptive neural backstepping sliding-mode controller.

Conclusion

In this article, a novel decentralized MWANNBS is proposed for cooperative manipulators holding a single rigid object, which is based on different dynamics’ demands or accuracies without any force sensors.
A model-based MANNBS is first developed using a feedforward RBF NN to compensate the uncertain dynamics of the manipulators and the object. And without any preliminary knowledge of the dynamics, a model-free NN-based ANNBS comes out of the former one. Both of the NNs require no off-line learning and show efficiently compensating capability under joint friction and external disturbances in simulating results.

Model weight is suggested in face of pseudo-model to keep more direct control. And an optimized MWANNBS is developed for achieving more preferable performance, integrating both MANNBS and ANNBS. Since model-based part exhibits better contribution to higher accurate tracking than that of estimation part, MWANNBS adjusts and distributes control contribution within model-based part, FFNN estimation part, and robust part. This relatively new combination of backstepping, NN, sliding mode, and model weighting in complex cooperative internal force regulation can be seldom found in literature.

No knowledge for other manipulators is required for that local particular manipulator. Thus, nonlocal uncertainties can be avoided, also local dynamic is not essential but selectable. The position and internal forces tracking errors have superior convergence for all three controllers compared with other traditional methods in simulation results. MWANNBS outstands with higher accuracy and stability under various degrees of pseudo-model.

The overall stability is proved through Lyapunov function and numerical simulations. However, since professional equipment like force or displacement sensors costs enormous, yet there are insufficient conditions, experiments will be included as future work. This structure is also feasible with single robotic arms and multifingered manipulators, and maybe some underactuated cooperative manipulators with our backstepping application. Centralized control design may consider complicated relative motion among different individuals, which is helpful for internal force regulation, but more coupled uncertainties should be cared as future scope.

System parameters	Value
I_j: rotational inertia of link j	$I_{1} = I_{2} = 0.5, I_{3} = 0.25$
m_j: mass of link j	$m_{1} = m_{2} = m_{3} = 1.5$
l_j: length of link j	$l_{1} = l_{2} = 0.6, l_{3} = 0.2$
I_o: rotational inertia of circular disc	0.3
m_o: mass of circular disc	1.5
r_o: radius of circular disc	0.2
g: gravitational acceleration	9.8

RMS error		PID	ANN	MANNBS	ANNBS
Without any uncertainties	X coordinate ×10⁻⁴	6.9646	2.8402	0.4235	1.4076
Y coordinate ×10⁻⁴	8.5037	8.2816	1.2208	2.0618
Internal force	0.1349	0.1083	0.0054	0.1090
In the presence of amplified uncertainties	X coordinate ×10⁻⁴	21	26	1.1696	1.0257
Y coordinate ×10⁻⁴	30	38	2.4853	2.7028
Internal force	0.8724	0.5069	0.0096	0.0921

SD		PID	ANN	MANNBS	ANNBS
Without any uncertainties	X coordinate ×10⁻⁴	6.4555	2.0066	0.4119	1.0727
Y coordinate ×10⁻⁴	5.1391	6.7379	1.1880	2.3415
Internal force	0.0934	0.0525	0.0046	0.0886
In the presence of amplified uncertainties	X coordinate ×10⁻⁴	21	13	0.8079	1.1670
Y coordinate ×10⁻⁴	13	15	1.4849	2.6377
Internal force	0.3845	0.5029	0.0057	0.0841

Γ	β	Knowledge of dynamics
0–0.3	0–0.3	No preliminary knowledge or just estimation
0.3–0.5	0.3–0.6	Some link length, mass, inertial, and so on with calculation
0.5–0.8	0.6–0.9	Link length, mass, and inertial with adequate 3-D modeling
0.8–1.0	0.9–1.0	Adequate 3-D modeling and physical measurement

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors have received support from the National Natural Science Foundation of China (51675470), and the Fundamental Research Funds for the Central Universities (2017QNA4001).

References

Yoshikawa

Nagai

. Manipulating and grasping forces in manipulation by multifingered robot hands. IEEE Trans Robot Autom 1991; 7: 67–77.

Alford

Belyeu

. Coordinated control of two robot arms. In: Proceedings 1984 IEEE International Conference on Robotics and Automation, Atlanta, GA, USA, 13–15 March 1984, pp. 468–473. IEEE.

Wen

Kreutz-Delgado

. Motion and force control of multiple robotic manipulators. Automatica 1992; 28: 729–743.

Yoshikawa

. Dynamic hybrid position/force control of robot manipulators—description of hand constraints and calculation of joint driving force. IEEE J Robot Autom 1987; 3: 386–392.

Yoshikawa

. Multifingered robot hands: control for grasping and manipulation. Annu Rev Control 2010; 34: 199–208.

Kleinfinger

Khalil

. Developed an algorithm for dynamic modeling of robot containing closed kinematic chains. In: Proceeding 16th ISIR, Brussels, Belgium, 30 September–2 October 1986, pp. 45–56.

Szewczyk

Plumet

Bidaud

. Planning and controlling cooperating robots through distributed impedance. J Robot Syst 2002; 19: 283–297.

Parra-Vega

Arimoto

Liu

. Dynamic sliding PID control for tracking of robot manipulators: theory and experiments. IEEE Trans Robot Autom 2003; 19: 967–976. DOI: 10.1109/TRA.2003.819600.

Zribi

Karkoub

Huang

. Modelling and control of two robotic manipulators handling a constrained object. Appl Math Model 2000; 24: 881–898. DOI: 10.1016/S0307-904X(00)00022-6.

10.

Uzmay

Burkan

Sarikaya

. Application of robust and adaptive control techniques to cooperative manipulation. Control Eng Pract 2004; 12: 139–148. DOI: 10.1016/s0967-0661(03)00017-0.

11.

Gueaieb

Al-Sharhan

Bolic

. Robust computationally efficient control of cooperative closed-chain manipulators with uncertain dynamics. Automatica 2007; 43: 842–851. DOI: 10.1016/j.automatica.2006.10.025.

12.

Namvar

Aghili

. Adaptive force-motion control of coordinated robots interacting with geometrically unknown environments. IEEE Trans Robot 2005; 21: 678–694. DOI: 10.1109/TRO.2004.842346.

13.

Rodriguez-Angeles

Parra-Vega

. Adaptive control with impedance of cooperative multi-robot system. In: 1998 Proceedings 1998 IEEE international conference on robotics and automation, Leuven, Belgium, Belgium, 20–20 May 1998, pp. 1522–1527. IEEE.

14.

Tavasoli

Eghtesad

Jafarian

. Two-time scale control and observer design for trajectory tracking of two cooperating robot manipulators moving a flexible beam. Robot Auton Syst 2009; 57: 212–221. DOI: 10.1016/j.robot.2008.04.003.

15.

Karayiannidis

Rovithakis

Doulgeri

. Force/position tracking for a robotic manipulator in compliant contact with a surface using neuro-adaptive control. Automatica 2007; 43: 1281–1288.

16.

Cheng

Hou

Tan

. Adaptive neural network tracking control for manipulators with uncertain kinematics, dynamics and actuator model. Automatica 2009; 45: 2312–2318. DOI: 10.1016/j.automatica.2009.06.007.

17.

Dong

Sun

. Adaptive neural impedance control of a robotic manipulator with input saturation. IEEE Trans Syst Man Cybern Syst 2015; 46: 334–344.

18.

Wang

Rafique

. A novel recurrent neural network for manipulator control with improved noise tolerance. IEEE Trans Neural Netw Learn Syst 2017; PP: 1–11.

19.

Pan

Meng

. Adaptive neural PD control with semiglobal asymptotic stabilization guarantee. IEEE Trans Neural Netw Learn Syst 2014; 25: 2264.

20.

Pan

. Biomimetic hybrid feedback feedforward neural-network learning control. IEEE Trans Neural Netw Learn Syst 2016; 28: 1481–1487.

21.

Pan

. Composite learning from adaptive dynamic surface control. IEEE Trans Autom Control 2016; 61: 2603–2609.

22.

Pan

Liu

. Hybrid feedback feedforward: an efficient design of adaptive neural network control. Neural Netw 2016; 76: 122.

23.

Pan

Sun

. Peaking-free output-feedback adaptive neural control under a nonseparation principle. IEEE Trans Neural Netw Learn Syst 2015; 26: 3097–3108.

24.

Cao

Silva

CWD

. Dynamic modeling and neural-network adaptive control of a deployable manipulator system. J Guid Control Dyn 2015; 29: 192–195.

25.

Gueaieb

Karray

Al-Sharhan

. Computational intelligence based approach for the joint trajectory generation of cooperative robotic systems. Syst Anal Model Simul 2002; 42: 1499–1520.

26.

Hou

Cheng

Tan

. Coordination of two redundant robots using a dual neural network. In: International joint conference on neural networks, Vancouver, BC, Canada, IJCNN, 16–21 July 2006, pp. 4187–4192. IEEE.

27.

Panwar

Kumar

Sukavanam

. Adaptive neural controller for cooperative multiple robot manipulator system manipulating a single rigid object. Appl Soft Comput 2012; 12: 216–227. DOI: 10.1016/j.asoc.2011.08.051.

28.

Woon

Chen

. Adaptive neural network control of coordinated manipulators. J Robot Syst 1999; 16: 195–211.

29.

Tao

Luh

JYS

. Application of neural network with real-time training to robust position/force control of multiple robots. In: 1993 Proceedings IEEE international conference on robotics and automation, Atlanta, GA, USA, 2–6 May 1993, vol. 141, pp. 142–148.

30.

Zhao

Cheah

. Neural network control of multifingered robot hands using visual feedback. IEEE Trans Neural Netw 2009; 20: 758–767.

31.

Zhao

Zhu

. A framework of neural networks based consensus control for multiple robotic manipulators. Neurocomputing 2014; 140: 8–18. DOI: 10.1016/j.neucom.2014.03.041.

32.

Zhao

Zhu

. Synchronized control with neuro-agents for leader–follower based multiple robotic manipulators. Neurocomputing 2014; 124: 149–161. DOI: 10.1016/j.neucom.2013.07.016.

33.

Wang

. Neural network-based position synchronised internal force control scheme for cooperative manipulator system. Int J Syst Sci 2017; 48: 2485–2498. DOI: 10.1080/00207721.2017.1323134.

34.

Incremona

Felici

Ferrara

. A supervisory sliding mode control approach for cooperative robotic system of systems. IEEE Syst J 2015; 9: 263–272.

35.

Qian

Tong

Guo

. Comments on “Sliding-mode formation control for cooperative autonomous mobile robots”. IEEE Trans Ind Electron 2015; 62: 1734–1737.

36.

Yao

Gao

Chan

. VSC coordinated control of two manipulator arms in the presence of environmental constraints. IEEE Trans Autom Control 1992; 37: 1806–1812.

37.

Gueaieb

Karray

Al-Sharhan

. A robust hybrid intelligent position/force control scheme for cooperative manipulators. IEEE/ASME Trans Mech 2007; 12: 109–125. DOI: 10.1109/TMECH.2007.892820.

38.

Park

Sandberg

. Universal approximation using radial-basis-function networks. Neural Comput 1991; 3: 246–257. DOI: 10.1162/neco.1991.3.2.246.

39.

Lewis

Jagannathan

Yesildirak

Neural network control of robot manipulators and non-linear systems, Taylor & Francis, Inc. Bristol, USA, 1998; pp. 161–211

40.

Gueaieb

. Soft computing and intelligent systems design: theory, tools and applications. IEEE Trans Neural Netw 2004; 17: 825–825.

A model weighted adaptive neural backstepping sliding-mode controller for cooperative manipulator system

Abstract

Keywords

Introduction

Kinematics and dynamics of cooperative manipulator system

Kinematics

Dynamics

Feedforward RBF neural network (FFNN)

Assumption 1

Design of model weighted neural backstepping sliding-mode controller

Dynamic model–based adaptive neural backstepping sliding-mode controller (MANNBS) design

Step 1

Step 2

Step 3

Adaptive neural backstepping sliding-mode controller (ANNBS) design

Model weighted adaptive neural network backstepping sliding-mode controller (MWANNBS) design

Simulation and discussion

Simulation plant and settings

Simulation using MANNBS and ANNBS under no pseudo-model

Simulation with MANNBS and MWANNBS under pseudo-model

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References
