Consensus-based leader-following formation control for a group of semi-biomimetic robotic fishes

Abstract

In this article, we developed a consensus-based leader-following formation control algorithm for a group of robotic fishes modeled by Euler–Lagrange dynamics. The Euler–Lagrange dynamics has been simplified as a second-order dynamics using the input transformation technique. Two consensus-based formation control strategies are discussed under the scenario: (1) leader with constant velocity and (2) leader with time-varying velocity. Three formation-keeping examples are shown in the simulations to verify the obtained formation control algorithm.

Keywords

Formation control robotic fish leader-following Euler–Lagrange dynamics consensus

Introduction

In recent years, research on formation control of multiagent systems reveals some biological social phenomena, such as flocking of birds, schools of fish, and swarm of bees,^1,2 to name a few. The agents moving in formation can accomplish more complicated tasks through efficient cooperation than a single agent. This also reduce the energy consumption and increase the robustness for the system.³ In view of those advantages, formation control has broad applied in (1) environmental monitoring, sensors are required to keep in a specified formation for maximum area coverage with limited number of sensors; (2) artificial intelligence system, for example, Google’s self-driving car project that vehicles form to a column with a common speed while keeping a specified formation. Such a design effectively increases the throughput of the transportation network⁴; (3) military use, such as coordination for Autonomous Underwater Vehicle (AUV),⁵ Unmanned Aerial Vehicle (UAV) formation flying,⁶ and so on.

Formation control can be categorized as leader-following method,^7
–9 behavioral approach,^10,11 and virtual structures strategy.^12,13 These three types of formation approaches have their own strengths, for example, in the leader-following method, the group behavior can be directed through specifying the single leader’s behavior; in behavioral approach, each agent can share the relative states (like position) of its’ neighbors to keep the formation; and in virtual structures strategy, researcher can use virtual structures’ behavior to prescribe the formation behavior for the group.

In multiagent systems, the formation keeping can be achieved by sharing the configuration states of the individual agent. Consensus algorithms are designed to represent how information flow in a network topology and what update laws to be needed to guarantee information states of all agents converge to a common value. Some classical consensus algorithms and convergence analyses of both first-order and second-order dynamics are discussed in the literature.^14

–17 By appropriately selecting the information states, some consensus algorithms can be used to achieve formation keeping problems. Ren¹⁸ introduced a consensus algorithm to tackle formation control problems of the second-order multiagent systems and proved that leader-following, behavioral and virtual structures formation control strategy can be regarded as special cases of general framework of consensus-based approach.

To the best of our knowledge, most of consensus-based formation control algorithms are applied on mobile robots, AUV,¹⁹ underwater glider,²⁰ and so on. However, consensus-based formation for multiple robotic fish systems is still open. In this article, we make an extension of the leader–follower consensus algorithms in the study by Ren.²¹ The basic idea for consensus-based leader–follower formation is that the group only has one leader which has the knowledge of the global information (like trajectory) and the follower update their information state based on the information states of their leader, thus all of the information states of the follower in the network will converge to the leader’s value. We assume that the information flow topology of the system forms a directed spanning tree so that formation keeping can be guaranteed.

The article is organized as follows. “Preliminaries and problem statement” section introduces some preliminaries on graph theory and basic description of the system. The dynamics of the system are discussed in “Dynamics” section. In “Consensus-based leader–follower formation control algorithm” section, some consensus-based leader-following formation control algorithms are proposed to guarantee the formation keeping. Three simulation examples are conducted to verify the theoretical analysis in “Simulation results” section. Conclusions are finally drawn in the last section.

Preliminaries and problem statement

Graph theory

The communication topology of the robotic fish system is modeled as a directed graph $G (V, E), where V = {1, 2, ..., N}$ is the set of the nodes and $E \subseteq V \times V$ is the set of the edges. A directed graph consists a set of ordered pairs of nodes, which means that $(V_{i}, V_{j}) \in E$ not implies $(V_{j}, V_{i}) \in E . V_{i} and V_{j}$ are defined as, respectively, the parent node and child node if there exists directed edge from node $V_{i}$ to node $V_{j}$ . In a directed graph, a directed path is defined as a sequence of ordered edges in the form of $(V_{i_{1}}, V_{i_{2}})$ , $(V_{i_{2}}, V_{i_{3}})$ , $(V_{i_{3}}, V_{i_{4}})$ , $\dots, where V_{i_{j}} \in N$ . A directed tree is a special directed graph that every node has only exactly one parent expect for one root, which has no parent, but has directed paths to every other node. A directed spanning tree can be defined as a directed tree formed by graph edges which connect all the nodes in the graph. In other words, in a directed spanning tree, there exists at least one node that has a directed path to all the other nodes.

The following lemma states a sufficient condition for reaching consensus-based formation control framework.

Lemma 1

In general consensus-based formation control framework, the formation keeping is guaranteed as long as a subset of the information flow topology forms a directed spanning tree.¹⁸

Basic description of the robotic fish system

Remark 1

In this work, the considered leader–follower robotic fish system contains one leader and four followers. The topology of the system forms a directed spanning tree. The idea behind this choice is that in theoretical analysis, we can arbitrarily select the number of followers. However, consider the future experiment, it is extremely difficult to achieve formation keeping with multiple followers, either due to the limited size of the experimental site or due to the stability of mechanical structure and electronic equipments of the individual robotic fish.

The motion of the robotic fish has been constrained to planar motion as shown in Figure 1. Let $(x_{0}, y_{0}) and (x_{i}, y_{i})$ denote the position of the center of mass of the leader robotic fish and that of ith follower robotic fish, respectively. We use $X_{I} O_{I} Y_{I}$ and XOY to denote, respectively, the inertial coordinate frame and the body-fixed coordinate frame. θ stands for the orientation between inertial coordinate frame and the body-fixed coordinate frame in counterclockwise. α is adopted to represent the deflection angle with respect to the negative x-axis in counterclockwise. u is defined as the thrust which is generated by the propeller. δ denotes the desired separation between the leader and follower.

Figure 1.

Robotic fish in a plane.

Dynamics

We use the Lagrange equation of the second kind (Euler–Lagrange) to describe the dynamic behavior of the system. Let ${x, y, θ, α}$ to be the generalized coordinates. The translational dynamics can be written as

{\begin{array}{l} a_{1} {\ddot{x}}_{1} = - [a_{2} sin θ + a_{3} sin (θ + α)] \ddot{θ} + h_{1} \\ - a_{3} sin (θ + α) \ddot{α} + cos (θ + α) u \\ a_{1} {\ddot{y}}_{1} = - [a_{2} cos θ + a_{3} cos (θ + α)] \ddot{θ} + h_{2} \\ + a_{3} cos (θ + α) \ddot{α} + sin (θ + α) u, \end{array}

with $a_{1}, a_{2}, a_{3}, h_{1}, h_{2}$ being of the form

{\begin{array}{l} a_{1} = m_{1} + m_{2} \\ a_{2} = m_{2} l_{C,1} \\ a_{3} = m_{2} l_{C,2} \\ h_{1} = a_{2} cos (θ) {\dot{θ}}^{2} + a_{3} cos (θ + α) ({\dot{θ}}^{2} + {\dot{α}}^{2} + 2 \dot{θ} \dot{α}) \\ h_{2} = a_{2} sin (θ) {\dot{θ}}^{2} + a_{3} sin (θ + α) ({\dot{θ}}^{2} + {\dot{α}}^{2} + 2 \dot{θ} \dot{α}) \end{array}

The rotational dynamics can be obtained as follows

{\begin{array}{l} (b_{1} + 2 b_{2} cos α) \ddot{θ} + (b_{3} + b_{2} cos α) \ddot{α} + h_{1}^{*} = - \frac{m_{1} l_{C,1} sin α}{m_{1} + m_{2}} u \\ (b_{3} + b_{2} cos α) \ddot{θ} + b_{3} \ddot{α} + h_{2}^{*} = τ_{m} \end{array}

where, as shown in Figure 2, m₁ and m₁ denote, respectively, the mass of body part and the mass of tail part. l_C,1 and l_C,2 represent, respectively, the distance between the front edge and the Center of Mass (CMs) of the robotic fish’s body part and the distance between the front edge and the CMs of the robotic fish’s tail part. And $b_{1}, b_{2}, b_{3}, h_{1}^{*}, h_{2}^{*}$ being of the form

{\begin{array}{l} b_{1} = I_{C,1} + I_{C,2} + \frac{m_{1} m_{2}}{m_{1} + m_{2}} (l_{C,1}^{2} + l_{C,2}^{2}) \\ b_{2} = \frac{m_{1} m_{2}}{m_{1} + m_{2}} l_{C,1} l_{C,2} \\ b_{3} = I_{C,2} + \frac{m_{1} m_{2}}{m_{1} + m_{2}} l_{C,2}^{2} \\ h_{1}^{*} = h_{3} - \frac{h_{1}}{a_{1}} [a_{2} sin θ + a_{3} sin (θ + α)] \\ + \frac{h_{2}}{a_{1}} [a_{2} cos θ + a_{3} cos (θ + α)] \\ h_{2}^{*} = h_{4} - \frac{h_{1}}{a_{1}} [a_{3} sin (θ + α)] + \frac{h_{2}}{a_{1}} [a_{3} cos (θ + α)] \end{array}

Figure 2.

Physical parameters of the robotic fish.

The translational dynamics (1) can be rearranged in matrix form

a_{1} \ddot{q} = ψ + \underset{\underset{B (θ, α)}{︸}}{[\begin{matrix} - a_{3} sin (θ + α) & cos (θ + α) \\ a_{3} cos (θ + α) & sin (θ + α) \end{matrix}]} [\begin{matrix} \ddot{α} \\ u \end{matrix}]

where $q = [x_{1}, y_{1}]^{T}$ and

ψ = - [\begin{matrix} [a_{2} sin θ + a_{3} sin (θ + α)] \ddot{θ} + h_{1} \\ - [a_{2} cos θ + a_{3} cos (θ + α)] \ddot{θ} + h_{2} \end{matrix}]

Consider the input transformation

v = ψ + B (θ, α) {[\ddot{α}, u]}^{T}

and we have that

a_{1} \ddot{q} = v

with q as the output and v as the control input.

Substituting the first equation in (2) into the second one gives the direct relation between τ_m and $\ddot{α}$

\overset{\overset{w (α)}{︷}}{[\begin{matrix} b_{3} - \frac{{(b_{3} + b_{2} cos α)}^{2}}{b_{1} + 2 b_{2} cos α} \end{matrix}]} \ddot{α} + φ = τ_{m}

with

φ = [- \frac{b_{3} + b_{2} cos α}{b_{1} + 2 b_{2} cos α} h_{1}^{*} + h_{2}^{*}] - \frac{m_{1} l_{C,1} sin α (b_{3} + b_{2} cos α)}{(m_{1} + m_{2}) (b_{1} + 2 b_{2} cos α)} u

According to the standard linear system theory, the combined system given by equations (3) and (6) with q as the output and ${[τ_{m}, u]}^{T}$ as the input is controllable over R².

Consensus-based leader–follower formation control algorithm

Consensus for multiagent systems

Ren proposes the following second-order consensus protocol¹⁸

{\dot{ξ}}_{i} = ς_{i}

{\dot{ς}}_{i} = - \sum_{j = 1}^{n} g_{i j} [k_{i j} (ξ_{i} - ξ_{j}) + γ k_{i j} (ς_{i} - ς_{j})]

where $ξ_{i} \in R, ς_{i} \in R$ , $k_{i j} > 0, γ > 0, g_{i i} = 0, and g_{i j} = 1$ if information flows from vehicle j to vehicle i and 0 otherwise, $\forall i \neq j$ . Let $ξ = [ξ_{1}, ξ_{2},..., ξ_{n}]^{T} and ς = [ς_{1}, ς_{2},..., ς_{n}]^{T}$ . Equation (7) can be written in matrix form as

[\begin{matrix} \dot{ξ} \\ \dot{ς} \end{matrix}] = Γ [\begin{matrix} ξ \\ ς \end{matrix}]

where

Γ = [\begin{matrix} 0_{n \times n} & I_{n} \\ - L & - γ L \end{matrix}]

Theorem 1

Consensus protocol (7) achieves consensus asymptotically if and only if matrix Γ has exactly two zero eigenvalues and all the other eigenvalues have negative real parts. Specially, $ξ \to 1 p^{T} ξ (0) + t 1 p^{T} ς (0) and ς \to 1 p^{T} ς (0)$ , where p is a nonnegative left eigenvector of −L associated with eigenvalue 0 and $p^{T} 1 = 1$ .

Proof (Sufficiency)

Noting that Γ has two exactly zero eigenvalues, we can verify that eigenvalue zero has geometric multiplicity equal to one. As a result, we know that Γ can be written in Jordan canonical form as

Γ = P J P^{- 1}

= [w_{1}, w_{2},..., w_{2 n}] [\begin{matrix} 0 & 1 & 0_{1 \times (2 n - 2)} \\ 0 & 0 & 0_{1 \times (2 n - 2)} \\ 0_{(2 n - 2) \times 1} & 0_{(2 n - 2) \times 1} & J' \end{matrix}] [\begin{matrix} v_{1}^{T} \\ ⋮ \\ v_{2 n}^{T} \end{matrix}]

where $w_{j}, j = 1, ..., 2 n,$ can be chosen to be the right eigenvectors or generalized eigenvectors of $Γ, v_{j}^{T}, j = 1, ..., 2 n,$ can be chosen to be the left eigenvectors or generalized eigenvectors of Γ, and J′ is the Jordan upper diagonal block matrix corresponding to nonzero eigenvalues $λ_{i -} and λ_{i}, i = 2, ..., n .$

Without loss of generality, we choose $w_{1} = [1^{T} {,0}^{T}]^{T} and w_{2} {= [0}^{T}, 1^{T}]^{T}$ , where it can be verified that w₁ and w₂ are an eigenvector and generalized eigenvector of Γ associated with eigenvalue 0, respectively.

Noting that Γ has exactly two zero eigenvalues, we know that −Γ has a simple zero eigenvalue, which in turn implies that there exists a nonnegative vector p such that $p^{T} L = 0 and p^{T} 1 = 1$ . It can be verified that $v_{1}^{T} = [p^{T} {,0}^{T}] T and v_{2} {= [0}^{T}, p^{T}]^{T}$ are a generalized left eigenvector and left eigenvector of Γ associated with eigenvalue 0, respectively, where $v_{1}^{T} w_{1} = 1 and v_{2}^{T} w_{2} = 1$ . Noting that eigenvalues $λ_{i -} and λ_{i}, i = 2, ..., n .$ have negative real parts, we see that

lim_{t \to \infty} e^{Γ t} = lim_{t \to \infty} e^{P J P^{- 1}}

= P lim_{t \to \infty} [\begin{matrix} 0 & 1 & 0_{1 \times (2 n - 2)} \\ 0 & 0 & 0_{1 \times (2 n - 2)} \\ 0_{(2 n - 2) \times 1} & 0_{(2 n - 2) \times 1} & e^{J^{^{'}} t} \end{matrix}] P^{- 1}

= [\begin{matrix} 1 p^{T} & t 1 p^{T} \\ 0_{n \times n} & 1 p^{T} \end{matrix}]

where we have used the fact that ${lim}_{t \to \infty} e^{J' t} \to 0_{(2 n - 2) \times (2 n - 2)} .$

Noting that as t → ∞

[\begin{matrix} ξ \\ ς \end{matrix}] \to [\begin{matrix} 1 p^{T} & t 1 p^{T} \\ 0_{n \times n} & 1 p^{T} \end{matrix}] [\begin{matrix} ξ (0) \\ ς (0) \end{matrix}]

We see that $ξ (t) \to 1 p^{T} ξ (0) + t 1 p^{T} ς (0) and ς (0) \to 1 p^{T} ς (0)$ as t → ∞. That is, consensus is achieved for the group of vehicles.

Proof (Necessity)

Suppose that the sufficient condition that Γ has exactly two zero eigenvalues and all the other eigenvalues have negative real parts does not hold. Noting that Γ has at least two zero eigenvalues, the fact that the sufficient condition does not hold implies that Γ has either more than two zero eigenvalues or it has two zero eigenvalues but has at least another eigenvalue having positive real part. In either case, it can be verified that $lim_{t \to \infty} e^{J' t}$ has a rank larger than two, which implies that $lim_{t \to \infty} e^{Γ t}$ has a rank larger than two. Note that consensus is reached asymptotically if and only if

lim_{t \to \infty} e^{Γ t} = [\begin{matrix} 1 p^{T} \\ 1 q^{T} \end{matrix}]

where p and q are n × 1 vectors. As a result, the rank of $lim_{t \to \infty} e^{Γ t}$ cannot exceed two. This results in a contradiction.

Leader–follower formation control algorithm based on consensus

In this section, we aim at designing a consensus-based leader–follower formation control algorithm for systems modeled by Euler–Lagrange dynamics based on theorem 1. As we analyzed in previous section, Euler–Lagrange dynamics can be simplified as a second-order dynamics using the input transformation technique. The simplified dynamics of the leader are

{\begin{array}{l} {\dot{q}}_{0} (t) = ζ_{0} (t) \\ {\dot{ζ}}_{0} (t) = v_{0} (t) \end{array}

where q₀ and ζ₀ denote, respectively, the position and the velocity of the leader. v₀ stands for the control law of the leader.

In this work, the leader has been designed to move along a desired trajectory, more specifically, for some constant speed trajectory ${\dot{q}}_{d} = [{\dot{x}}_{d}, {\dot{y}}_{d}]$ . The control laws can be chosen as following

\begin{array}{l} v_{0} (t) = - K_{P_{0}} [q_{0} - q_{d}] - K_{D_{0}} [{\dot{q}}_{0} - {\dot{q}}_{d}] + B_{(θ, α)} ψ \end{array}

In more general cases, the desired trajectory may have time-varying speed ${\dot{q}}_{d} (t) = [{\dot{x}}_{d} (t), {\dot{y}}_{d} (t)]$ , and in this case, the control law can be designed as

\begin{array}{l} v_{0} (t) = {\ddot{q}}_{d} (t) - K_{P_{0}} [q_{0} - q_{d}] - K_{D_{0}} [{\dot{q}}_{0} - {\dot{q}}_{d}] + B_{(θ, α)} ψ \end{array}

with $K_{P_{0}} and K_{D_{0}}$ being some positive constants to be selected. $v_{0} (t)$ being an “equivalent input” to be specified.

Similarly, the simplified dynamics of the follower can be written as

{\begin{array}{l} {\dot{q}}_{i} (t) = ζ_{i} (t) \\ {\dot{ζ}}_{i} (t) = v_{i} (t) \end{array}

where q_i and ζ_i denote, respectively, the position and the velocity of the ith follower. v_i stands for the control law of the ith follower.

Definition 1

The leader–follower robotic fish system is said to achieve formation keeping if it satisfies

lim_{t \to \infty} (q_{i} (t) - q_{j} (t)) = δ_{i j} i = 0, 1, 2, 3, j = 1, 2, 3, 4

for any initial conditions.

For the follower, the widely used consensus-based formation control algorithm can be designed as follow:

If the leader moves along a desired trajectory with constant speed, the control input is designed as

\begin{array}{l} v_{i} (t) = - K_{P_{1}} \sum_{j = 1}^{N} (q_{i} - q_{j} + δ_{i j}) - K_{D_{1}} \sum_{j = 1}^{N} ({\dot{q}}_{i} - {\dot{q}}_{j}) + B_{(θ, α)} ψ \end{array}

where

i = 0, 1, 2, 3, j = 1, 2, 3, 4

If the leader moves along a desired trajectory with time-varying speed, the control input is designed as

\begin{array}{l} v_{i} (t) = {\ddot{q}}_{i} (t) - K_{P_{1}} \sum_{j = 1}^{N} (q_{i} - q_{j} + δ_{i j}) - K_{D_{1}} \sum_{j = 1}^{N} ({\dot{q}}_{i} - {\dot{q}}_{j}) + B_{(θ, α)} ψ \end{array}

with

K_{P_{1}} and K_{D_{1}}

being some positive constants to be selected.

v_{i} (t)

being an “equivalent input” to be specified,

i = 0, 1, 2, 3, j = 1, 2, 3, 4

Note that in algorithms (16) and (17), the follower only know the information of it’s leader, δ_ij is the desired separation which is used to guarantee the formation keeping. Then we know that ${\dot{q}}_{j} (t) \to {\dot{q}}_{i} (t) and (q_{i} (t) - q_{j} (t)) = δ_{i j}$ as t → ∞.

Simulation results

Consider the formation system consists of one leader and four followers, thus the communication topology is shown in Figure 3. Three formation stabilization simulation examples are conducted to verify the theoretical analysis. (1) Case I: the leader fish moves along a linear trajectory with a constant velocity; (2) case II: the leader fish moves along a polygonal trajectory with a constant velocity in a specific time interval. However, the velocity will be changed at the inflection point; (3) case III: the leader fish moves along a circular trajectory with a time-varying velocity. The information exchange topology is a directed edge from the leader to the follower, which forms a directed spanning tree. The physical parameters of the robotic fish are given in Table 1. The control parameters used in the simulations are listed in Table 2.

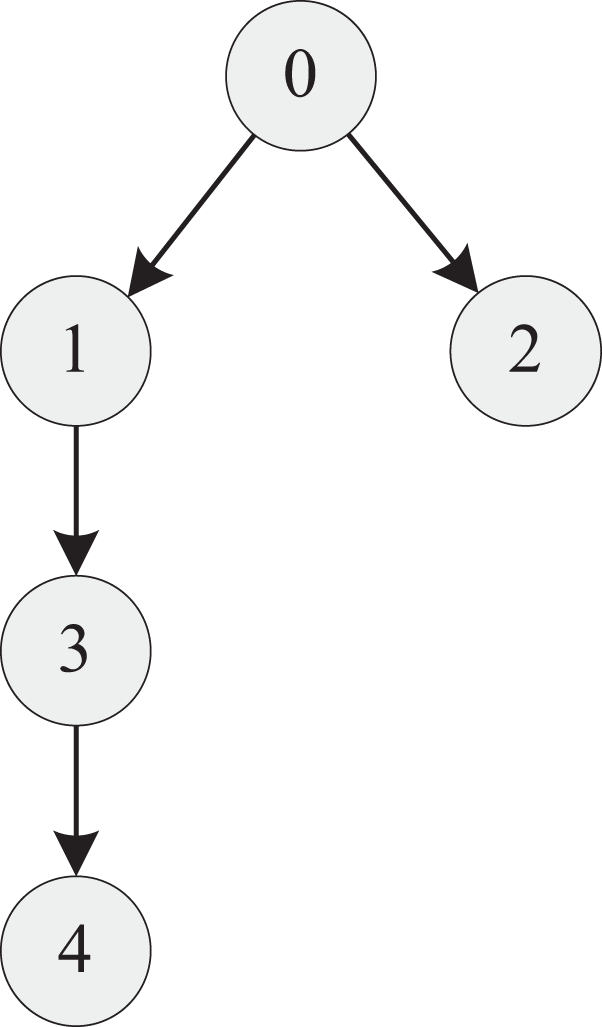

Figure 3.

Communication topology.

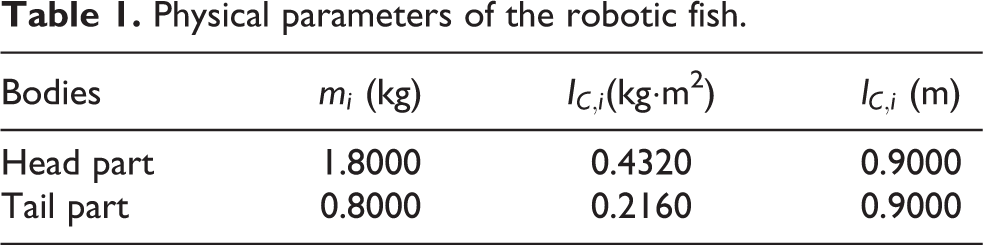

Table 1.

Physical parameters of the robotic fish.

Bodies	m_i (kg)	I_C,i(kg·m²)	I_C,i (m)
Head part	1.8000	0.4320	0.9000
Tail part	0.8000	0.2160	0.9000

Table 2.

Parameters in simulations.

Parameter	Case I	Case II	Case III
T	20	50	100
${\dot{q}}_{d} (t)$	${[2, - 2]}^{T}$	${[0, 2]}^{T}, t \in [0, \frac{T}{2}]$	$[2 sin (2 π \frac{t}{T}),$
${\dot{q}}_{d} (t)$	${[2, - 2]}^{T}$	${[2, 0]}^{T}, t \in [\frac{T}{2}, T]$	${2 cos (2 π \frac{t}{T})]}^{T}$
$q_{0} (0)$	(0, 0)	(0, 0)	(0, 0)
${\dot{q}}_{0} (0)$	${[0, 0]}^{T}$	${[0, 0]}^{T}$	${[0, 0]}^{T}$
$q_{1} (0)$	$(1, 1)$	$(- 5, 5)$	$(- 2, 2)$
$q_{2} (0)$	$(2, 2)$	$(- 10, 10)$	$(- 4, 4)$
$q_{3} (0)$	$(3, 3)$	$(- 15, 15)$	$(- 6, 6)$
$q_{4} (0)$	$(4, 4)$	$(- 20, 20)$	$(- 8, 8)$
$K_{P_{0}}$	0.25	0.1	0.2
$K_{D_{0}}$	15	5	12
$K_{P_{1}}$	5	3	10
$K_{D_{1}}$	18	5	5
δ ₀₁	${\dot{q}}_{0} (t) \times 0.65$	${\dot{q}}_{0} (t) \times 0.65$	${\dot{q}}_{0} (t) \times 0.65$
δ ₀₂	${\dot{q}}_{0} (t) \times 0.65 \times 2$	${\dot{q}}_{0} (t) \times 0.65 \times 2$	${\dot{q}}_{0} (t) \times 0.65 \times 2$
δ ₁₃	${\dot{q}}_{1} (t) \times 0.65 \times 3$	${\dot{q}}_{1} (t) \times 0.65 \times 3$	${\dot{q}}_{1} (t) \times 0.65 \times 3$
δ ₃₄	${\dot{q}}_{3} (t) \times 0.65$	${\dot{q}}_{3} (t) \times 0.65$	${\dot{q}}_{3} (t) \times 0.65$

The trajectory, positions, and velocity states of all the robotic fishes in the three cases are shown in Figures 4 to 6.

Figure 4.

Trajectory, positions, and velocity states of system (case I). (a) Trajectory; (b) positions at t = {0:T/4:T}; (c) velocity states.

Figure 5.

Trajectory, positions, and velocity states of system (case II). (a) Trajectory; (b) positions at t = {0:T/10:T}; (c) velocity states.

Figure 6.

Trajectory, positions, and velocity states of system (case III). (a) Trajectory; (b) positions at t = {0:T/10:T}; (c) velocity states.

Conclusion

In this article, we derive the dynamics of robotic fish system based on the Lagrange equation. A consensus-based leader-following formation algorithm is proposed to achieve the formation keeping of the system. The simulation results are provided to test the tracking performance of the system.

Remark 2

The main contribution of this work is that we obtain the accurate dynamic model of the robotic fish and apply linearization techniques to restrain the inherent nonlinearity of the system. The consensus algorithm used is from an existing paper.²¹

It should be worth pointing out that this work only gives the theoretical analysis of the formation control and the experiments are needed for further investigations.
