Abstract

This article presents a new fractional-order sliding mode control (FOSMC) strategy based on a linear-quadratic regulator (LQR) for a class of uncertain nonlinear systems. First, input/output feedback linearization is used to linearize the nonlinear system and decouple tracking error dynamics. Second, LQR is designed to ensure that the tracking error dynamics converges to the equilibrium point as soon as possible. Based on LQR, a novel fractional-order sliding surface is introduced. Subsequently, the FOSMC is designed to reject system uncertainties and reduce the magnitude of control chattering. Then, the global stability of the closed-loop control system is analytically proved using Lyapunov stability theory. Finally, a typical single-input single-output system and a typical multi-input multi-output system are simulated to illustrate the effectiveness and advantages of the proposed control strategy. The results of the simulation indicate that the proposed control strategy exhibits excellent performance and robustness with system uncertainties. Compared to conventional integer-order sliding mode control, the high-frequency chattering of the control input is drastically depressed.

Keywords

Fractional control sliding mode control linear-quadratic regulator uncertain nonlinear system.

Introduction

The origins of fractional calculus can be traced to a note from Leibuiz to L’Hospital 300 years ago, in which the meaning of the derivative of order one half is discussed.¹ Actually, fractional calculus derives from extending the derivatives and integrals of integer-order to noninteger cases. In the past few decades, many scholars have pointed out that derivatives and integrals of fractional order are highly suitable for the description of various physical objects, such as continuum mechanics, porous media, thermodynamics, electrodynamics, quantum mechanics, among others.² Recently, designing fractional-order controllers has become one of the most exciting topics in control theory. This idea was first proposed by Oustaloup.³ He introduced a robust fractional-order control scheme called Common Robust d’Order Non-Entire.⁴ Podlubny introduced the most well-known fractional-order proportion-integral-derivative controller, which is named PI ^λ D ^μ. ^5,6 Many additional fractional-order controllers have been proposed, including tilt-integral derivative (TID) controllers,⁷ fractional-order lead–lag compensators,^8,9 fractional-order optimal controllers,^10,11 and fractional-order adaptive controllers.^12,13

Sliding mode control (SMC) is a well-known effective control technique that is widely applied for both linear and nonlinear systems.¹⁴ This control is also considered as a feasible control approach for systems with uncertainties. Generally, any linear sliding surface can guarantee the asymptotic stability and desired performance of the closed-loop control systems. However, monotonous switching feedback control gain causes the settling time of the closed-loop control system to increase, meaning that the system state cannot reach the equilibrium point in a finite time. Moreover, SMC offers high-frequency chattering of control input, which leads to undesirable loads on control actuators.

In recent years, with the development of fractional controls, many scholars have employed fractional-order SMC (FOSMC) to overcome these drawbacks. In the study of Dadras and Momeni¹⁵, a novel type of control strategy called fractional-order terminal SMC (FO-TSMC) was introduced for a class of uncertain dynamical systems. Based on the Lyapunov stability theory, a fractional-order switching manifold was proposed to guarantee the sliding condition. The results of a simulation indicated that the proposed strategy ensured finite time stability for the closed-loop system. In the study of Mujumdar et al.,¹⁶ an FOSMC scheme was proposed for control of a single-link flexible manipulator. The switching surface was constructed based on the fractional derivatives in the differential equation. The proposed FOSMC not only achieved better performance with small control chattering, but also was robust in the face of external load disturbance and parameter variations. In the study of Tang et al.,^17,18 the FOSMC was proposed for antilock braking systems (ABS) to regulate the slip to a desired value. These controllers not only deal with the uncertainties in ABS, but also track the desired slip faster than conventional integer-order SMC (IOSMC). Additionally, FOSMC has been employed for speed control of permanent magnet synchronous motors,^19,20 for vibration suppression of uncertain structures,²¹ for control design of uncertain nonlinear systems,^22,23 for control of fractional-order chaotic systems,^24,25 and so on and achieved better control capacities.

To date, most of the research on FOSMC has focused on the fractional-order switching manifold, these FOSMC strategies improve the control capacities of conventional IOSMC by employing fractional-order switching manifold, but they cannot achieve optimal control performance without additional measures. In this article, an optimal FOSMC strategy is proposed for a class of uncertain nonlinear systems. The proposed control strategy is designed based on linear-quadratic optimal theory. Specially, a novel fractional-order sliding surface is introduced based on linear quadratic regulator (LQR). Therefore, the controller designed in this article is composed of two parts as nominal item and fractional item. The nominal item makes the system achieve convergence as quickly as possible and the fractional item rejects the system uncertainties to guarantee the necessary robustness. Finally, the stability of closed-loop system is proved by using Lyapunov stability theory.

The rest of this article is organized as follows. In section 2, some preliminaries and definitions of fractional calculus are introduced. In section 3, the uncertain nonlinear system and the tracking error dynamics are formulated. In section 4, the optimal FOSMC scheme based on LQR is constructed. Two academic examples are simulated in section 5. Finally, conclusions are included in section 6.

Basics definitions and preliminaries of fractional calculus

Definitions of fractional derivatives and integrals

Fractional calculus is a generalization of integration and differentiation to noninteger-order fundamental operator ${}_{a}D_{t}^{γ}$ , where a and t are the bounds of the operation and γ ∈ R is the fractional order.²⁶ The continuous integro-differential operator is defined as

{}_{a}D_{t}^{γ} = {\begin{array}{l} \frac{d^{γ}}{d t^{γ}}, & γ > 0, \\ 1, & γ = 0, \\ {\int_{a}^{t} (d τ)}^{γ}, & γ < 0, \end{array}

There are three commonly used definitions for fractional derivatives involving Grünwald–Letnikov (GL), Riemann–Liouville (RL), and Caputo definitions. The GL definition is

{}_{a}D_{t}^{γ} f (t) = \lim_{h \to 0} h^{- γ} \sum_{j = 0}^{[(t - a) / h]} {(- 1)}^{j} (\begin{matrix} γ \\ j \end{matrix}) f (t - j h)

where h is the time increment, [x] means the nearest integer no more than x, and

(\begin{matrix} γ \\ j \end{matrix}) = \frac{Γ (γ + 1)}{Γ (j + 1) Γ (γ - j + 1)}

with Gamma function Γ(⋅). The RL definition is

{}_{a}D_{t}^{γ} f (t) = \frac{1}{Γ (n - γ)} \frac{d^{n}}{d t^{n}} \int_{a}^{t} \frac{f (τ)}{{(t - τ)}^{γ - n + 1}} d τ for n - 1 < γ < n

The Caputo definition is given by

{}_{a}D_{t}^{γ} f (t) = \frac{1}{Γ (n - γ)} \int_{a}^{t} \frac{f^{(n)} (τ)}{{(t - τ)}^{γ - n + 1}} d τ for n - 1 < γ < n

As mentioned above, under the homogenous initial conditions, the RL and the Caputo derivatives are equivalent.

Approximation of fractional derivative

Recall the approximate GL definition given below, where the step size of h is assumed to be very small

{}_{a}D_{t}^{γ} f (t) \approx h^{- γ} \sum_{j = 0}^{[(t - a) / h]} {(- 1)}^{j} (\begin{matrix} γ \\ j \end{matrix}) f (t - j h) = h^{- γ} \sum_{j = 0}^{[(t - a) / h]} ω_{j} f (t - j h),

where the binomial coefficients can recursively be calculated with the following formula

ω_{0} = 1, ω_{j} = (1 - \frac{γ + 1}{j}) ω_{j - 1}, j = 1, 2, \dots .

This approximation method is very satisfied when $| γ | < 1$ ²⁷ For the case $| γ | > 1$ , it is usual to split fractional operator like

{}_{a}D_{t}^{γ} = {}_{a}D_{t}^{n} ({}_{a}D_{t}^{δ}), γ = n + δ, n \in Z, δ \in [0, 1]

Then, only the term of ${}_{a}D_{t}^{δ}$ need to be approximated.

Problem statement

Consider an uncertain affine nonlinear system of the form

{\begin{array}{l} \dot{x} = f (x) + g (x) u \\ y = H (x) \end{array}

where $x \in R^{n}$ and $u \in R^{m}$ are the state variable and control input, respectively, and $y \in R^{m}$ is the system output. $f (x) = {[\begin{matrix} f_{1} (x) & \dots & f_{n} (x) \end{matrix}]}^{T}$ and $g (x) = [\begin{matrix} g_{1} (x) & \dots & g_{m} (x) \end{matrix}]$ are the smooth uncertain functions including inertial parameter uncertainties and external disturbances. $H (x) = {[\begin{matrix} h_{1} (x) & \dots & h_{m} (x) \end{matrix}]}^{T}$ is the measureable smooth output function. While the relative degree $r_{i} (i = 1, \dots, m)$ of the system with respect to the system outputs is constant and known. The solutions are understood in the Filippov sense,²⁸ and system trajectories are supposed to be infinitely extendible in time for any bounded Lebesgue-measurable input.

The control task is to track the reference command $y_{d} \in R^{m}$ with tracking error $e (x) = {[\begin{matrix} e_{1} (x) & \dots & e_{m} (x) \end{matrix}]}^{T} = y_{d} (x) - y (x)$ *********** converges to e = 0 in finite time. To achieve this control object, by using the technique of input/output feedback linearization, system (9) is linearized to be decoupled tracking error dynamics as follows.

After differentiating $r_{i}$ times of each tracking error element $e_{i}$ , the tracking error dynamics can be presented as

e^{[r]} = [\begin{matrix} e_{1}^{(r_{1})} \\ e_{2}^{(r_{2})} \\ ⋮ \\ e_{m}^{(r_{m})} \end{matrix}] = [\begin{matrix} L_{f}^{r_{1}} e_{1} \\ L_{f}^{r_{2}} e_{2} \\ ⋮ \\ L_{f}^{r_{m}} e_{m} \end{matrix}] + [\begin{matrix} L_{g_{1}} L_{f_{0}}^{r_{1} - 1} e_{1} & L_{g_{2}} L_{f}^{r_{1} - 1} e_{1} & \dots & L_{g_{m}} L_{f}^{r_{1} - 1} e_{1} \\ L_{g_{1}} L_{f_{0}}^{r_{2} - 1} e_{2} & L_{g_{2}} L_{f}^{r_{2} - 1} e_{2} & \dots & L_{g_{m}} L_{f}^{r_{2} - 1} e_{2} \\ \dots & \dots & \dots & \dots \\ L_{g_{1}} L_{f}^{r_{m} - 1} e_{m} & L_{g_{2}} L_{f}^{r_{m} - 1} e_{m} & \dots & L_{g_{m}} L_{f}^{r_{m} - 1} e_{m} \end{matrix}] u

e^{[r]} = F^{*} (x) + G^{*} (x) u

where $r = (r_{1}, r_{2}, \dots, r_{m})$ is the vector of relative degree.

Due to existences of the system uncertainty, equation (11) can be rewritten as the form

e^{[r]} = F_{0}^{*} (x) + G_{0}^{*} (x) u + d (x)

where $F_{0}^{*} (x)$ and $G_{0}^{*} (x)$ are the nominal items derived from the known parts of $f (x)$ and $g (x)$ . While $G_{0}^{*} (x)$ is assumed to be nonsingular when $t > 0$ . $d (x)$ presents the unknown lumped uncertainty and is assumed to be boundable.²⁹

Furthermore, if $\sum_{i = 1}^{m} r_{i} = n$ , the dynamic equations of the tracking error system are decoupled into canonical forms as

{\begin{array}{l} {\dot{ς}}_{1}^{i} = ς_{2}^{i} \\ {\dot{ς}}_{2}^{i} = ς_{3}^{i} \\ ⋮ \\ {\dot{ς}}_{r_{i}}^{i} = L_{f_{0}}^{r_{i}} e_{i} + \sum_{j = 1}^{m} L_{g_{0 j}} (L_{f_{0}}^{r_{i} - 1} e_{i}) u_{j} + d {(x)}_{i} = v_{i} - d_{i} (x) \end{array}

where $ς_{r_{i}}^{i} = e_{i}^{(r_{i} - 1)} = L_{f_{0}}^{r_{i} - 1} e_{i}$ , f₀ and $g_{0 j}$ are the nominal portions of $f (x)$ and $g (x)$ respectively, $v_{i}$ is the ith element of v, $d_{i} (x)$ is the ith element of $d (x)$ , and $i = 1, 2, ..., m$ , $j = 1, 2, ..., m$ .

FOSMC based on LQR

For stabilizing system (13), when there are no uncertainties, LQR is designed to guarantee the finite time convergence of the tracking error dynamics. In classical linear control theories, LQR is an optimal controller derived from solving linear-quadratic optimization problems. It has shown excellent performance in the control synthesis of linear systems. However, if unmodeled dynamics and system uncertainties are taken into account, it will be difficult to guarantee the control objective with LQR alone. Thus, in this section, a novel optimal FOSMC strategy is designed based on LQR to counteract the inertial uncertainties. Compared to conventional IOSMC, the magnitude of control chattering is drastically depressed.

Therefore, to stabilize system (13) in finite time, the auxiliary control input $v_{i}$ is composed of two parts

v_{i} = v_{n} + v_{s}

where the first item $v_{n}$ , named nominal control, is continuous and stabilizes system (13) as soon as possible when there are no uncertainties. And the second item $v_{s}$ , named fractional control, is discontinuous and conquers uncertainty to guarantee system robustness and ensures that control objectives are reached.

Nominal control based on LQR ( $v_{n}$ )

Consider the particular case $d_{i} (x) = 0$ . Then, there is no need to compensate the uncertainties, the control law reads as $v_{i} = v_{n}$ . Therefore, system (13) is rewritten as a linear form of

\dot{z} = A \cdot z + B \cdot v_{n}

where $z = {[\begin{matrix} ς_{1}^{i} & \dots & ς_{r_{i}}^{i} \end{matrix}]}^{T}$ . A and B are defined by

A = {[\begin{matrix} 0 & 1 & 0 & \dots & 0 \\ 0 & 0 & 1 & \dots & 0 \\ ⋮ & ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & 0 & \dots & 1 \\ 0 & 0 & 0 & \dots & 0 \end{matrix}]}_{r_{i} \times r_{i}}, B = {[\begin{matrix} 0 \\ ⋮ \\ 0 \\ 1 \end{matrix}]}_{r_{i} \times 1}

The control objective is to drive the state of system (15) to $z = 0$ as soon as possible. This objective can be achieved through the use of linear optimal control theory. In this article, we design continuous control input $v_{n}$ by linear-quadratic optimal control laws. Considering intermediate objective function

J = \frac{1}{2} \int_{0}^{\infty} (z^{T} Q z + α v_{n}^{2}) d t, (Q \in R^{r_{i} \times r_{i}}, α \in R)

the control input $v_{n}$ is derived by minimizing J subjected to (16)

v_{n} = - α^{- 1} B^{T} P z

where P is the positive-definite solution to the Riccati equation with design parameters Q and a

A^{T} P + P A - α^{- 1} P B^{T} B P + Q = 0, (Q, α > 0)

Obviously, it can be easily verified that if $d_{i} (x) \neq 0$ , system (13) will not converge to the origin in finite time under the control law (17).

Fractional control ( $v_{s}$ )

As mentioned above, finite time convergence cannot be guaranteed when system uncertainties exist in system (13). Therefore, fractional control item is employed as one of the integrated control to achieve robustness. Then, the closed-loop system can reject system uncertainties, and the control input is chattering reduced.

Generally, conventional IOSMC employs the sliding surface that is linear, stable differential operator on the tracking error.²⁹ Thus, the conventional sliding surface gets the form as

σ_{c} = {(\frac{d}{d t} + λ)}^{r_{i} - 1} e_{i}

where λ defines the bandwidth of the tracking error dynamics.

Based on the conventional sliding surface $σ_{c}$ , we define a fractional-order sliding surface as the following form

{\begin{array}{l} σ = {(\frac{d}{d t} + λ_{1})}^{r_{i} - 1} e_{i} - {(\frac{d}{d t} + λ_{2})}^{r_{i} - 2} D^{η} e_{i} + v_{aux} \\ {\dot{v}}_{aux} = - v_{n} \end{array}

Compared to conventional sliding surface $σ_{c}$ , a fractional item ${(\frac{d}{d t} + λ_{2})}^{r_{i} - 2} D^{η} e_{i}$ and an auxiliary item $v_{aux}$ are adopted.

Then differentiating the fractional-order sliding surface in (20), we have

\dot{σ} = e_{i}^{(r_{i})} + \sum_{j = 1}^{r_{i} - 1} b_{j} e_{i}^{(j)} - \sum_{j = 0}^{r_{i} - 2} c_{j} D^{η + j} e_{i} - v_{n}

Combining (12) with (21), we obtain

\begin{array}{l} \dot{σ} = \sum_{j = 1}^{r_{i} - 1} b_{j} e_{i}^{(j)} - \sum_{j = 0}^{r_{i} - 2} c_{j} D^{η + j} e_{i} + v_{i} - d_{i} (x) - v_{n} \\ = \sum_{j = 1}^{r_{i} - 1} b_{j} e_{i}^{(j)} - \sum_{j = 0}^{r_{i} - 2} c_{j} D^{η + j} e_{i} + v_{s} - d_{i} (x) \end{array}

where $b_{j} = [\begin{matrix} r_{i} - 1 \\ j - 1 \end{matrix}] \frac{(r_{i} - 1)! λ_{1}^{r_{i} - j}}{(r_{i} - j)! (j - 1)!}$ and $c_{j} = [\begin{matrix} r_{i} - 2 \\ j - 1 \end{matrix}] \frac{(r_{i} - 2)! λ_{2}^{r_{i} - 1 - j}}{(r_{i} - 1 - j)! (j - 1)!}$ . Let $\dot{σ} = 0$ , the discontinuous controller is obtained as follows

v_{s} = - \sum_{j = 1}^{r - 1} b_{j} e_{i}^{(j)} + \sum_{j = 0}^{r - 2} c_{j} D^{η + j} e_{i} - k_{i} sgn (σ)

where $k_{i}$ is a switching feedback control gain and might be any positive number. In (23), the first-order SMC item $k_{i} sgn (σ)$ (with $k_{i} > | d_{i} (x) |$ ) is considered as the equivalent control part to reject the system uncertainty. When system (13) evolves on the sliding mode $σ = 0$ , the equivalent control part can be gotten the form as $k_{i} sgn (σ) = d_{i} (x)$ . And $sgn (\cdot)$ is sign function as

sgn (σ) = {\begin{array}{l} - 1, & σ < 0 \\ 0, & σ = 0 \\ 1, & σ > 0 \end{array}

Lyapunov stability analysis

Lyapunov stability analysis is a common approach to deal with the stability problem of linear/nonlinear systems. Thus, this part employs Lyapunov stability theory to prove the finite time convergence of the sliding motion and the global stability of the closed-loop control system as follows.

Theorem

Considering the tacking error dynamics of system (13), if it is controlled with the fractional sliding mode controlling law described by $v_{i} = v_{n} + v_{s}$ , where $v_{n}$ and $v_{i}$ are defined by (17) and (23), respectively, then the tracking error trajectory will converge to the proposed sliding surface (20) in finite time.

Proof

Choosing the Lyapunov function as

V = | σ |

Differentiating equation (25), we obtain

\dot{V} = \dot{σ} sgn (σ) = (v_{s} + \sum_{j = 1}^{r - 1} c_{j} e^{(j)} - \sum_{j = 0}^{r - 2} d_{j} D^{η + j} e) sgn (σ)

Substituting (23) into (26), we obtain

\dot{V} = - k_{i} {[sgn (σ)]}^{2} \leq 0

Therefore, on the basis of Lyapunov stability theorem, the state variables of the closed-loop control system will converge to the equilibrium point.

Before the sliding motion is stable, ${[sgn (σ)]}^{2} = 1$ always holds true. Thus, equation (27) is rewritten as the following form

\dot{V} = \frac{d | σ |}{d t} = - k_{i}

Then, we obtain

d t = \frac{d | σ |}{- k_{i}}

The sliding motion happens within finite time, then we taking integral of both sides of (29) from 0 to $t_{r}$

\int_{0}^{t_{r}} d t = - \frac{1}{k_{i}} \int_{| σ (0) |}^{| σ (t_{r}) |} d t

Set $σ (t_{r}) = 0$ , we obtained that

t_{r} = - \frac{| σ |}{k_{i}} |_{| σ (0) |}^{| σ (t_{r}) |} = \frac{| σ (0) |}{k_{i}}

Therefore, the tracking error trajectory of system (13) will converge to the sliding surface $σ = 0$ within the finite time $t_{r} = \frac{| σ (0) |}{k_{i}}$ , and the proof has been completed.

Remark

As mentioned in Utkin,³⁰ non-smooth Lyapunov functions can be applied to check the finite time convergence of a system. Therefore, choosing the non-smooth Lyapunov function $V = | σ |$ is common in the literatures.^17,21,31

Simulation examples

A kinematic model of a car

The control of a kinematic model of a car is illustrated in this part. It has been chosen to test the performances of sliding mode algorithms.^32
–34 The system is described by

{\begin{array}{l} [\begin{array}{l} {\dot{x}}_{1} \\ {\dot{x}}_{2} \\ {\dot{x}}_{3} \\ {\dot{x}}_{4} \end{array}] = [\begin{matrix} w \cos (x_{3}) \\ w sin (x_{3}) \\ w tan (x_{4}) / L \\ 0 \end{matrix}] + [\begin{matrix} 0 \\ 0 \\ 0 \\ 1 \end{matrix}] u \\ y = x_{2} \end{array}

where $(x_{1}, x_{2})$ are the Cartesian coordinates of the rear-axle middle point, x₃ is the orientation angle, x₄ is the steering angle, and u is the control variable (Figure 1). w is the longitudinal velocity ( $w = 10$ m/s), and L is the length between the two axles ( $L = 5$ m). The velocity is assumed to be known with $δ w = 5 %$ of uncertainty ( $w = 10 \times (1 \pm 5 %)$ m/s). The control objective is to steer the car from a given initial position to the reference trajectory $y_{ref} = 10 sin (0.05 x_{1}) + 5$ in finite time. Thus, the tracking error is expressed as

e = x_{2} - 10 sin (0.05 x_{1}) - 5

Figure 1.

Kinematic car model.

The relative degree of system (32) is easy to be calculated as 3

\dot{e} = \frac{w}{2} \cos (\frac{x_{1}}{20}) \cos (x_{3}) - w sin (x_{3}),

\begin{matrix} \ddot{e} = - \frac{w^{2}}{L} \cos (x_{3}) tan (x_{4}) - \frac{w^{2}}{40} sin (\frac{x_{1}}{20}) \cos^{2} (x_{3}) \\ - \frac{w^{2}}{2 L} \cos (\frac{x_{1}}{20}) sin (x_{3}) tan (x_{4}), \end{matrix}

\begin{matrix} \overset{⃛}{e} = - u \cdot \frac{w^{2}}{L} {sec}^{2} (x_{4}) (\cos (x_{3}) + \frac{1}{2} \cos (\frac{x_{1}}{20}) sin (x_{3})) \\ - \frac{w^{3}}{L^{2}} {tan}^{2} (x_{4}) (\frac{1}{2} \cos (\frac{x_{1}}{20}) \cos (x_{3}) - sin (x_{3})) \\ + \frac{3 w^{3}}{40 L} sin (\frac{x_{1}}{20}) \cos (x_{3}) sin (x_{3}) tan (x_{4}) \\ - \frac{w^{3}}{800} \cos (\frac{x_{1}}{20}) \cos^{3} (x_{3}) \end{matrix}

Then, we obtain

\overset{⃛}{e} = f^{*} (x) + g^{*} (x) \cdot u = v

where $x = {[\begin{matrix} x_{1} & x_{2} & x_{3} & x_{4} \end{matrix}]}^{T}$ is the state vector of system (32).

Let $z = {[\begin{matrix} e & \dot{e} & \ddot{e} \end{matrix}]}^{T}$ . Then, the tracking error dynamics of system (32) is described as

\dot{z} = [\begin{matrix} 0 & 1 & 0 \\ 0 & 0 & 1 \\ 0 & 0 & 0 \end{matrix}] z + [\begin{matrix} 0 \\ 0 \\ 1 \end{matrix}] v

where $v = v_{n} + v_{s}$ .

First, the continuous control part $v_{n}$ is derived by solving the Riccati equation (18) for a positive matrix Q and a positive number b. The solution of this equation, P, is a symmetric positive definite matrix. Matrix Q and number b are stated as

Q = [\begin{matrix} 5 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{matrix}], α = 2

Then, P is calculated as

P = [\begin{matrix} 9.1896 & 7.9448 & 3.1623 \\ 7.9448 & 11.4396 & 5.8120 \\ 3.1623 & 5.8120 & 5.0247 \end{matrix}]

Second, the fractional control part $v_{s}$ is obtained by assigning the fractional-order sliding surface as $σ_{1} = {(\frac{d}{d t} + λ_{1})}^{2} e - (\frac{d}{d t} + λ_{2}) D^{η} e + v_{a u x}, {\dot{v}}_{a u x} = - v_{n}$ . Then, the nonlinear controller proposed in this article (denoted as FOSMC-LQR) is constructed as

u = \frac{1}{g^{*} (x)} (- b^{- 1} B^{T} P z - 2 λ_{1} \ddot{e} - λ_{1}^{2} \dot{e} + D^{η + 2} e + λ_{2} D^{η + 1} e - k_{1} sgn (σ_{1}) - f^{*} (x)) .

The block diagram of the fractional-order control system is shown in Figure 2. For comparison, there are another three different controllers to be considered: a conventional IOSMC, a conventional IOSMC based on LQR (denoted as IOSMC-LQR), and a single FOSMC. These three controllers are formulated as following expressions

Figure 2.

Block diagram of the fractional-order control system.

The IOSMC is

u = \frac{1}{g^{*} (x)} (- 2 λ_{1} \ddot{e} - λ_{1}^{2} \dot{e} - k_{2} sgn (σ_{2}) - f^{*} (x))

where integer-order sliding surface $σ_{2} = {(\frac{d}{d t} + λ)}^{2} e$ .

The IOSMC-LQR is

u = \frac{1}{g^{*} (x)} (- b^{- 1} B^{T} P z - 2 λ_{1} \ddot{e} - λ_{1}^{2} \dot{e} - k_{3} sgn (σ_{2}) - f^{*} (x))

And the single FOSMC is

u = \frac{1}{g^{*} (x)} (- 2 λ_{1} \ddot{e} - λ_{1}^{2} \dot{e} + D^{η + 2} e + λ_{2} D^{η + 1} e - k_{4} sgn (σ_{1}) - f^{*} (x))

In simulations, the design parameters of the three aforementioned controllers are given the values as ( $λ_{1} = 0.5$ , $λ_{2} = - 0.8$ , $η = 0.2$ , $k_{1} = 0.8$ , $k_{2} = 5$ , $k_{3} = 5$ , $k_{4} = 5$ ). Then, the simulation results and their analysis are illustrated as follows.

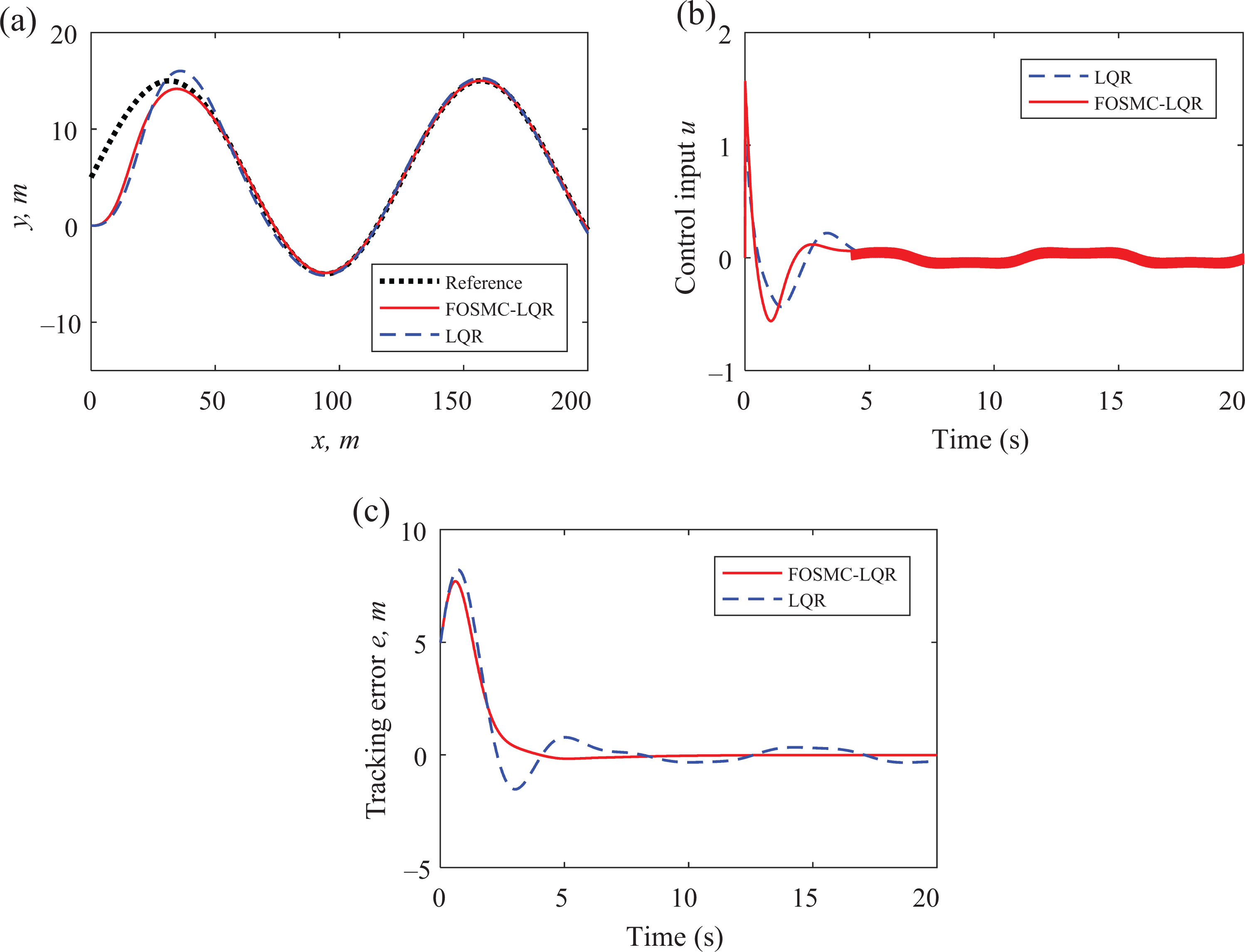

Figure 3 displays a comparison of the system response between the single LQR and the proposed controller in this article (FOSMC-LQR). It can be clearly seen that single LQR results in an unsteady tracking trajectory, and the tracking error oscillates up and down around $e = 0$ . In contrast, the system response with FOSMC-LQR presents a better tracking trajectory, and its tracking error achieves convergence in finite time.

Figure 3.

Comparison of system response between LQR and FOSMC-LQR. LQR: linear-quadratic regulator; FOSMC: fractional-order sliding mode control.

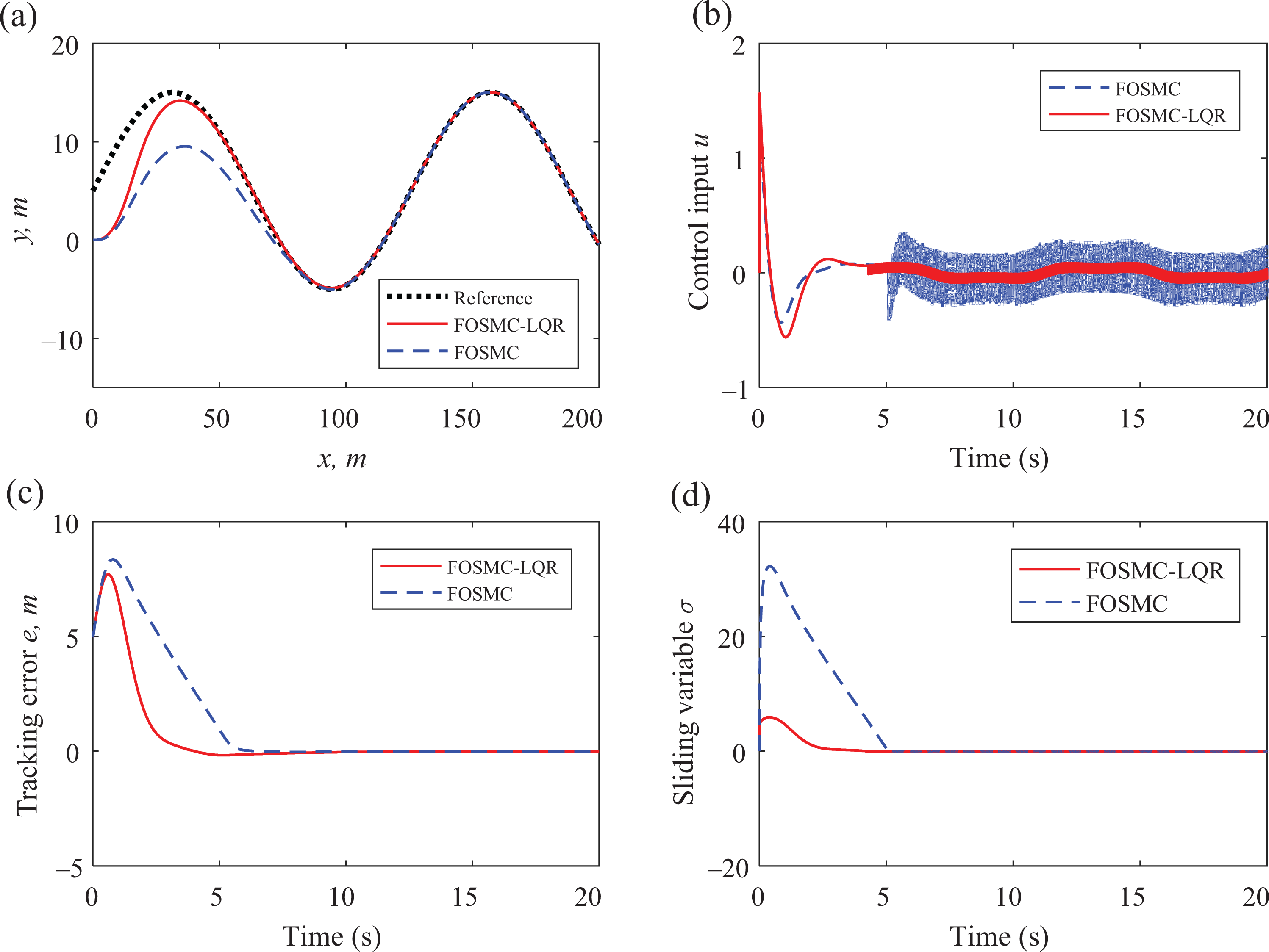

Figure 4 gives a system response comparison of the single FOSMC and the FOSMC-LQR. As shown in the figures, single FOSMC requires larger switching feedback control gain, $k_{4} = 5$ compared to $k_{1} = 0.8$ , to reject the system uncertainty. Because of the larger value of the switching feedback control gain, the control input of the single FOSMC shows a higher chattering magnitude. As shown in Figure 4(c) and (d), the system response with FOSMC-LQR presents faster convergence velocities of the tracking error and the sliding motion.

Figure 4.

Comparison of system response between FOSMC and FOSMC-LQR. LQR: linear-quadratic regulator; FOSMC: fractional-order sliding mode control.

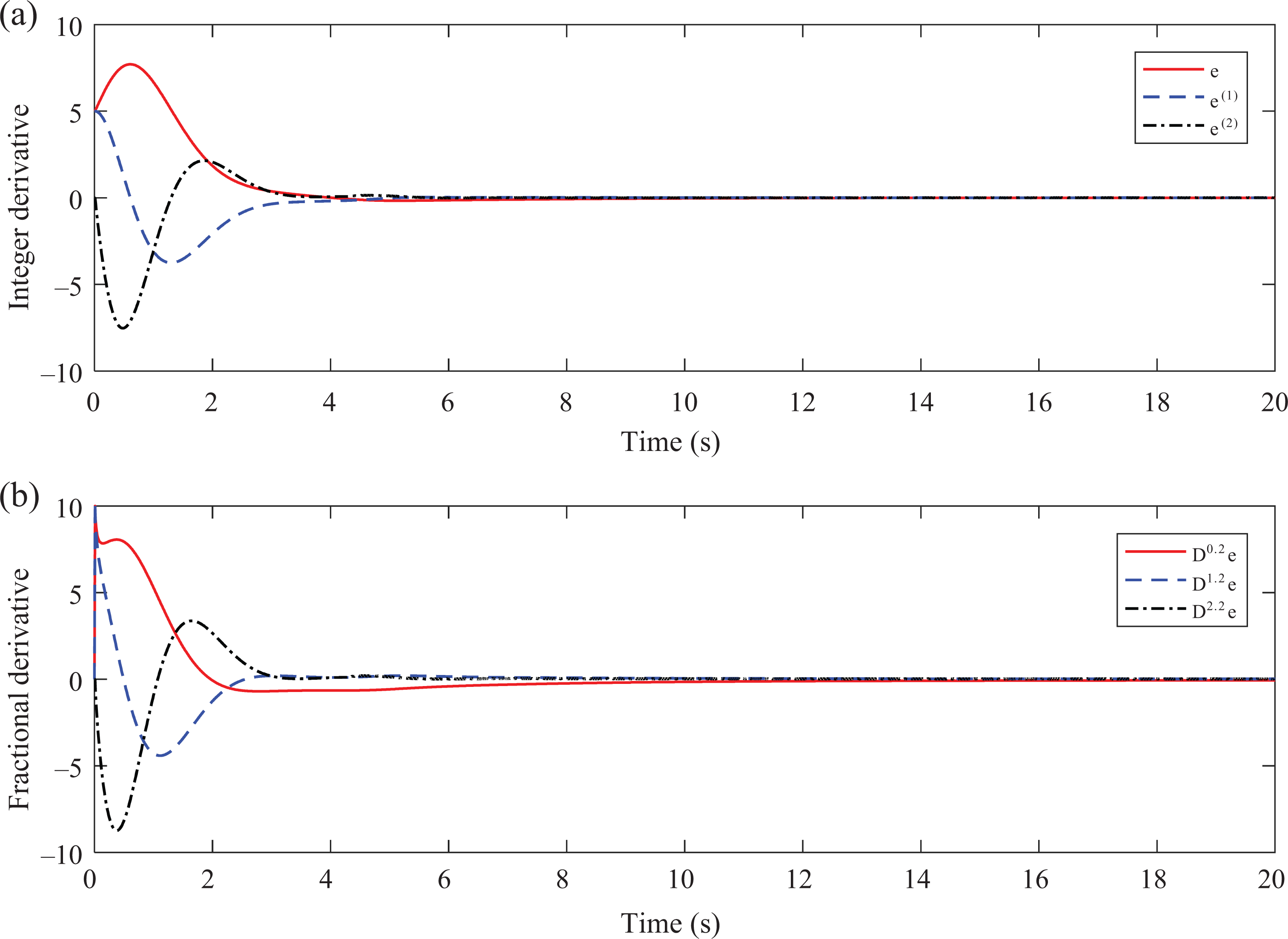

The integer-order and fractional-order derivatives of the tracking error are demonstrated in Figure 5, such as $(e, \dot{e}, \ddot{e})$ in Figure 5(a) and $(D^{0.2} e, D^{1.2} e, D^{2.2} e)$ in Figure 5(b). Compared to conventional IOSMC, FOSMC adopts extra fractional-order derivatives of the tracking error, as ${(\frac{d}{d t} + λ_{2})}^{r - 2} D^{η} e$ in (25). This causes the sliding motion of FOSMT to converge to $σ = 0$ faster. Figure 6 shows the comparison of system response between conventional IOSMC and FOSMC. As shown in the figures, FOSMC presents smaller tracking error and faster convergence velocity in the sliding motion. Therefore, fractional-order derivatives of the tracking error are necessary for the improvement of control performance.

Figure 5.

Integer- and fractional-order derivatives of the tracking error.

Figure 6.

Comparison of system response between IOSMC and FOSMC. IOSMC: integer-order sliding mode control; FOSMC: fractional-order sliding mode control.

Figure 7 shows a system response comparison between IOSMC-LQR and FOSMC-LQR. As the figures show, FOSMC-LQR can achieve steady tracking performance with small switching feedback control gain because it adopts extra fractional-order derivatives of the tracking error. On the other hand, to ensure the similar control performance, IOSMC-LQR requires a larger switching feedback control gain, which leads to a higher magnitude of control chattering and fierce oscillation of the sliding motion.

Figure 7.

Comparison of system response between IOSMC-LQR and FOSMC-LQR. IOSMC: integer-order sliding mode control; LQR: linear-quadratic regulator; FOSMC: fractional-order sliding mode control.

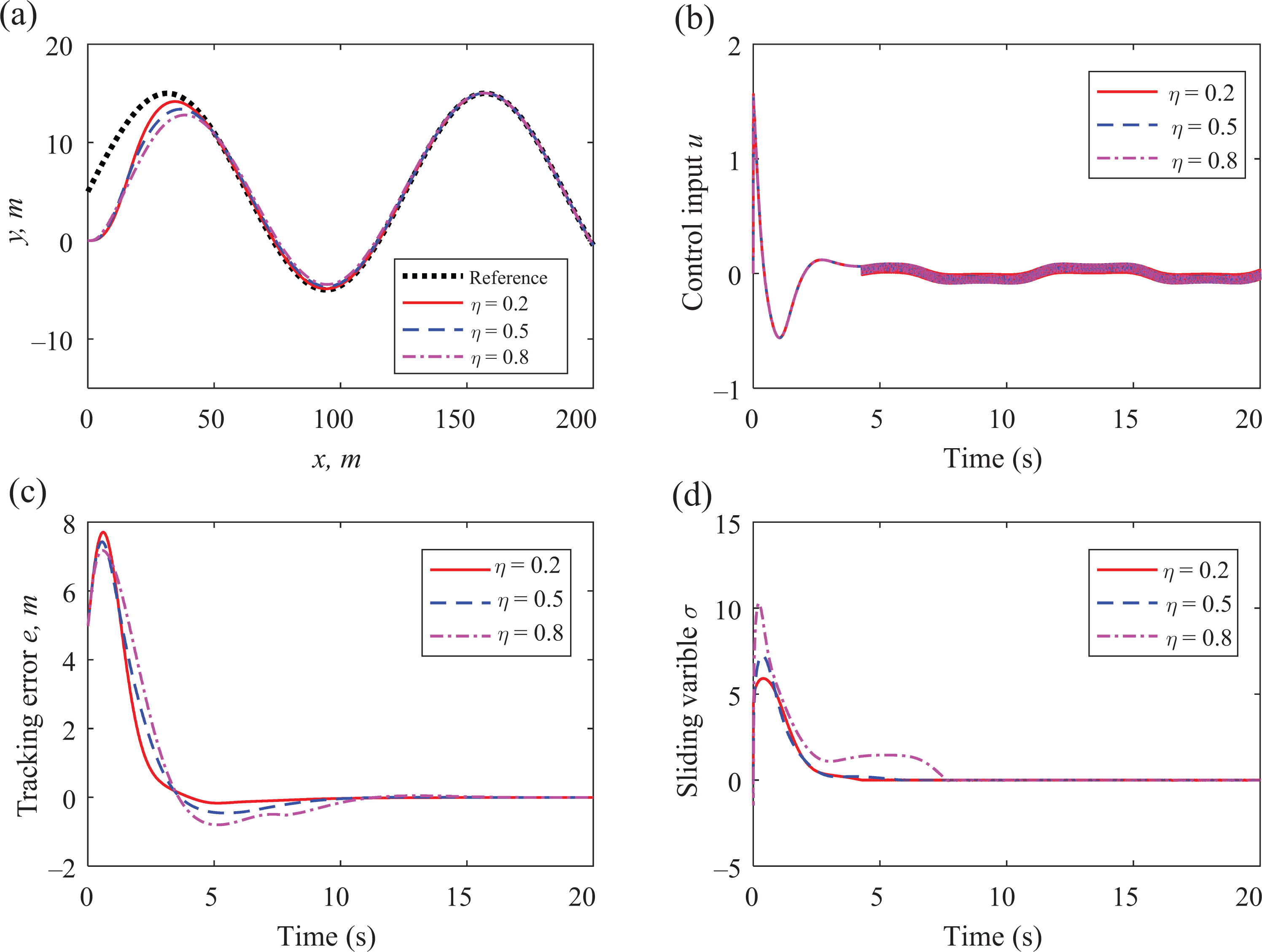

Under the conditions of $λ_{2} = 0.8$ and $λ_{2} = - 0.8$ , the system responses of FOSMC-LQR with different fractional orders (as η approaches the values of 0.2, 0.5, and 0.8) are shown in Figures 8 and 9. As shown in the figures, when $λ_{2} = - 0.8$ and $η = 0.2$ , the FOSMC-LQR presents better performance in tracking trajectory, faster convergence of tracking error, and lower amplitude of sliding motion. However, when $λ_{2} = 0.8$ , the FOSMC-LQR with $η = 0.8$ presents better control performance than that with $η = 0.2$ . It can be seen that the fractional order η and the weight λ₂ of fractional-order derivatives affected the controller capacities synthetically. Therefore, to obtain a desirable control performance, the tradeoff between η and λ₂ should be considered in practical applications.

Figure 8.

When $λ_{2} = - 0.8$ , system responses of FOSMC-LQR with different fractional-order η. LQR: linear-quadratic regulator; FOSMC: fractional-order sliding mode control.

Figure 9.

When $λ_{2} = 0.8$ , system responses of FOSMC-LQR with different fractional-order η. LQR: linear-quadratic regulator; FOSMC: fractional-order sliding mode control.

A dynamic model of a two-link rigid robot manipulator

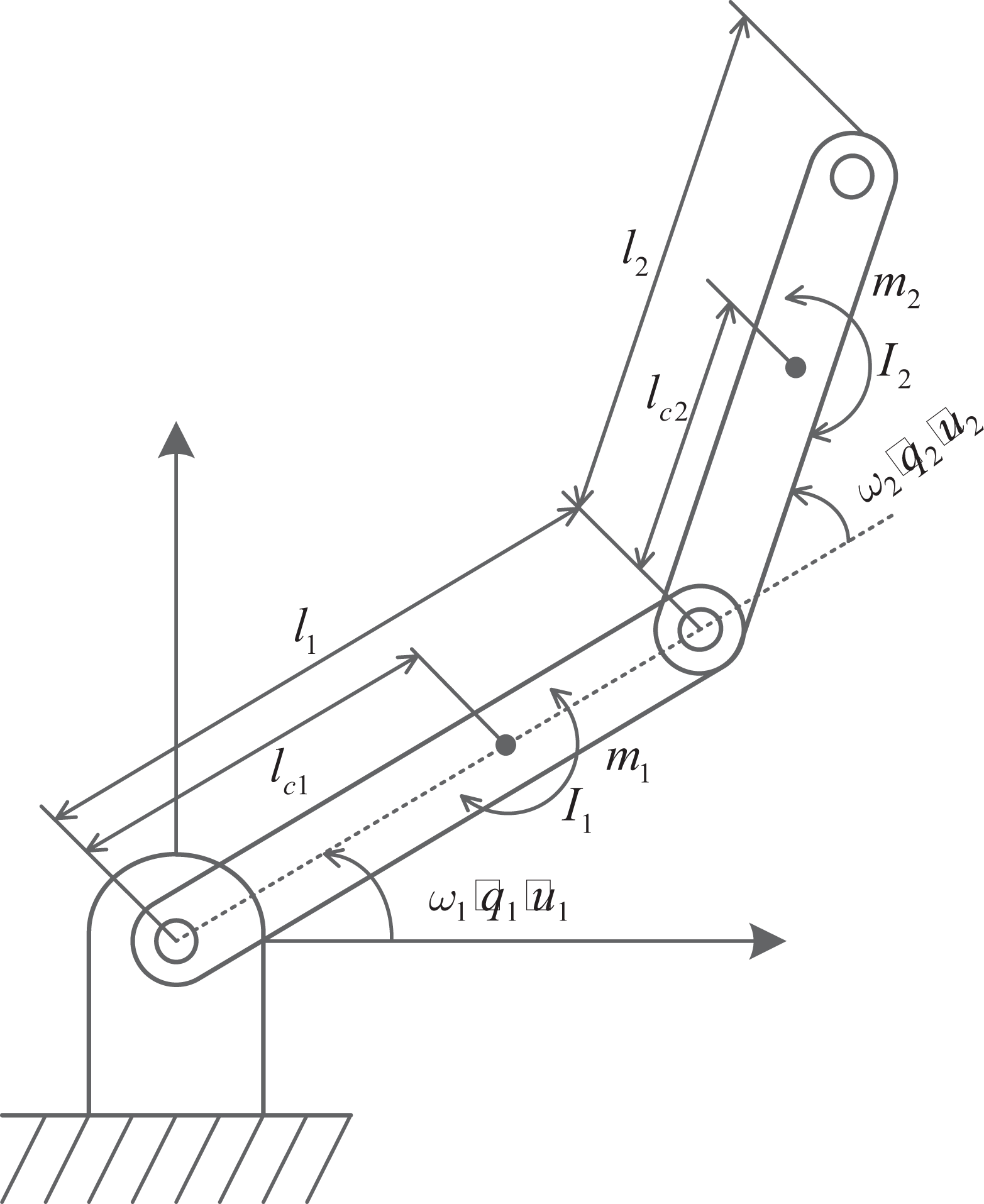

The physical model of a two-link rigid robot that moves a horizontal plane is shown in Figure 10. Each joint is equipped with a motor for providing input torque, an encoder for measuring joint position, and a tachometer for measuring joint velocity. The objective of control design is to make the joint position q₁ and q₂ follow desired position histories $q_{d 1} (t)$ and $q_{d 2} (t)$ , which are specified by the motion planning system of the robot. Such tracking control problems arise when a robot hand is required to move along a specified path, for example, to draw circles.^35,36

Figure 10.

A two-link robot.

By using Lagrangian equations in classical dynamics, the differential equations of the robot are expressed as

\begin{array}{l} \begin{matrix} {\dot{q}}_{1} = ω_{1}, & {\dot{q}}_{2} = ω_{2}, \end{matrix} \\ [\begin{matrix} {\dot{ω}}_{1} \\ {\dot{ω}}_{2} \end{matrix}] = M^{- 1} {[\begin{matrix} u_{1} \\ u_{2} \end{matrix}] - [\begin{matrix} - p ω_{2} & - p (ω_{1} + ω_{2}) \\ p ω_{1} & 0 \end{matrix}] [\begin{matrix} ω_{1} \\ ω_{2} \end{matrix}]} . \end{array}

where

M = [\begin{matrix} M_{11} & M_{12} \\ M_{21} & M_{22} \end{matrix}]

M_{11} = a_{1} + 2 a_{3} \cos (q_{2}) + 2 a_{4} sin (q_{2})

M_{22} = a_{2}

M_{12} = M_{21} = a_{2} + a_{3} \cos (q_{2}) + a_{4} sin (q_{2})

p = a_{3} sin (q_{2}) - a_{4} \cos (q_{2})

a_{1} = I_{1} + m_{1} l_{c 1}^{2} + I_{2} + m_{2} l_{c 2}^{2} + m_{2} l_{1}^{2}

a_{2} = I_{2} + m_{2} l_{c 2}^{2}

a_{3} = m_{2} l_{1} l_{c 2} \cos (δ_{e})

a_{4} = m_{2} l_{1} l_{c 2} sin (δ_{e})

In real physical systems, the aforementioned constant parameters are always measured with inertial uncertainties. In this article, all of the parameter uncertainties are assumed as an additive variance to the nominal values. The nominal parameters are defined as²⁸

\begin{matrix} l_{1}^{0} = 1.0, & l_{c 1}^{0} = 0.5, & m_{1}^{0} = 1.0, & I_{1}^{0} = 0.12, \\ δ_{e}^{0} = 30^{\circ}, & l_{c 2}^{0} = 0.6, & m_{2}^{0} = 2.0, & I_{2}^{0} = 0.25 \end{matrix}

And the uncertain parameters are calculated as

\begin{matrix} l_{1} = l_{1}^{0} + Δ l_{1}, & l_{c 1} = l_{c 1}^{0} + Δ l_{c 1}, & m_{1} = m_{1}^{0} + Δ l_{c 1}, & I_{1} = I_{1}^{0} + Δ I_{1}, \\ δ_{e} = δ_{e}^{0} + Δ δ_{e}, & l_{c 2} = l_{c 2}^{0} + Δ l_{c 2}, & m_{2} = m_{2}^{0} + Δ m_{2}, & I_{2} = I_{2}^{0} + Δ I_{2} \end{matrix}

where the additive variances (Δ) are parameter uncertainties, which are assigned as

\begin{array}{l} Δ l_{1} = 15 % l_{1}^{0} \cdot sin (2 t), & Δ l_{c 1} = 15 % l_{c 1}^{0} \cdot sin (2 t), \\ Δ m_{1} = 15 % m_{1}^{0} \cdot \cos (2 t), & Δ I_{1} = 15 % I_{1}^{0} \cdot sin (3 t), \\ Δ δ_{e} = 15 % δ_{e}^{0} \cdot \cos (3 t), & Δ l_{c 2} = 15 % l_{c 2}^{0} \cdot sin (2 t), \\ Δ m_{2} = 15 % m_{2}^{0} \cdot \cos (2 t), & Δ I_{2} = 15 % I_{2}^{0} \cdot sin (3 t) \end{array}

Let $x = {[\begin{matrix} q_{1} & q_{2} & ω_{1} & ω_{2} \end{matrix}]}^{T}$ , $y = {[\begin{matrix} y_{1} & y_{2} \end{matrix}]}^{T} = {[\begin{matrix} q_{1} & q_{2} \end{matrix}]}^{T}$ , $u = {[\begin{matrix} u_{1} & u_{2} \end{matrix}]}^{T}$ , and

g (x) = {[\begin{matrix} 0_{2 \times 2} \\ M^{- 1} \end{matrix}]}_{4 \times 2}, f (x) = {[\begin{matrix} ω_{1} \\ ω_{2} \\ - M^{- 1} [\begin{matrix} - p ω_{2} & - p (ω_{1} + ω_{2}) \\ p ω_{1} & 0 \end{matrix}] [\begin{matrix} ω_{1} \\ ω_{2} \end{matrix}] \end{matrix}]}_{4 \times 1}

then, the robot system given by (34) is simplified as

{\begin{array}{l} \dot{x} = f (x) + g (x) u \\ y = {[\begin{matrix} y_{1} & y_{2} \end{matrix}]}^{T} \end{array}

which is the canonical form given by (9).

The desired trajectories are defined as $y_{d 1} = sin (t)$ and $y_{d 2} = sin (t)$ , respectively. Then, the tracking errors is expressed as the form of $e = {[\begin{matrix} e_{1} & e_{2} \end{matrix}]}^{T} = {[\begin{matrix} y_{d 1} - y_{1} & y_{d 2} - y_{2} \end{matrix}]}^{T}$ . The relative degree can be easily calculated as $r_{1} = 2$ and $r_{2} = 2$

[\begin{matrix} {\dot{e}}_{1} \\ {\dot{e}}_{2} \end{matrix}] = [\begin{matrix} {\dot{y}}_{d 1} \\ {\dot{y}}_{d 2} \end{matrix}] - [\begin{matrix} ω_{1} \\ ω_{2} \end{matrix}]

e^{[r]} = [\begin{matrix} e_{1}^{(r_{1})} \\ e_{2}^{(r_{2})} \end{matrix}] = [\begin{matrix} {\ddot{y}}_{d 1} \\ {\ddot{y}}_{d 2} \end{matrix}] + M^{- 1} [\begin{matrix} - p ω_{2} & - p (ω_{1} + ω_{2}) \\ p ω_{1} & 0 \end{matrix}] [\begin{matrix} ω_{1} \\ ω_{2} \end{matrix}] - M^{- 1} [\begin{matrix} u_{1} \\ u_{2} \end{matrix}]

Then, we obtain

e^{[r]} = F^{*} (x) + G^{*} (x) u = v + d (x)

where $v = {[\begin{matrix} v_{1} & v_{2} \end{matrix}]}^{T}$ are the auxiliary inputs.

Since the relative degree of system (34) meets the condition of $r = \sum_{i = 1}^{2} r_{i} = n = 4$ , then the tacking error dynamics of (38) can be decoupled into two subsystems with inertial uncertainties as

\dot{ς} = [\begin{matrix} 0 & 1 \\ 0 & 0 \end{matrix}] ς + [\begin{matrix} 0 \\ 1 \end{matrix}] v_{1} + [\begin{matrix} 0 \\ 1 \end{matrix}] d_{1} (x)

\dot{τ} = [\begin{matrix} 0 & 1 \\ 0 & 0 \end{matrix}] τ + [\begin{matrix} 0 \\ 1 \end{matrix}] v_{2} + [\begin{matrix} 0 \\ 1 \end{matrix}] d_{2} (x)

where $ς = {[\begin{matrix} e_{1} & {\dot{e}}_{1} \end{matrix}]}^{T}$ , $τ = {[\begin{matrix} e_{2} & {\dot{e}}_{2} \end{matrix}]}^{T}$ , $v_{1} = v_{n 1} + v_{s 1}$ , and $v_{2} = v_{n 2} + v_{s 2}$ . $v_{n i} (i = 1, 2)$ and $v_{s i} (i = 1, 2)$ are the continuous control parts and the discontinuous control parts, respectively. $d_{1} (x)$ and $d_{2} (x)$ are the system uncertainties.

Then, the auxiliary input v can be designed according to the control design procedures in section 4.

First, let

Q_{1} = Q_{2} = Q = [\begin{matrix} 20 & 0 \\ 0 & 0.1 \end{matrix}], α_{1} = α_{2} = α = 0.001

the continuous control parts $v_{n 1} = - α_{1}^{- 1} B_{1}^{T} P_{1} ς$ and $v_{n 2} = - α_{2}^{- 1} B_{2}^{T} P_{2} τ$ are derived by solving the Riccati equation (18). Then, the positive definite matrices P₁ and P₂ are calculated as

P_{1} = P_{2} = P = [\begin{matrix} 2.7671 & 0.1414 \\ 0.1414 & 0.0196 \end{matrix}]

Second, define the fractional-order sliding surfaces as

$σ_{i} = (\frac{d}{d t} + λ_{i 1}) e_{i} - λ_{i 2} D^{η_{i}} e_{i} + v_{aux}, {\dot{v}}_{aux} = - v_{n i}, i = 1, 2$ , the fractional control parts are obtained as

v_{s i} = - λ_{i 1} {\dot{e}}_{i} + λ_{i 2} D^{η_{i} + 1} e_{i} - k_{i} sgn (σ_{i}), i = 1, 2

By substituting v into (39), the nonlinear control law (FOSMC-LQR) is obtained as

u = {[G^{*} (x)]}^{- 1} [v - F^{*} (x)] = {[G^{*} (x)]}^{- 1} {[\begin{matrix} - α_{1}^{- 1} B_{1}^{T} P_{1} ς - λ_{11} {\dot{e}}_{1} + λ_{12} D^{η_{1} + 1} e_{1} - k_{1} sgn (σ_{1}) \\ - α_{2}^{- 1} B_{2}^{T} P_{2} τ - λ_{21} {\dot{e}}_{2} + λ_{22} D^{η_{2} + 1} e_{2} - k_{2} sgn (σ_{2}) \end{matrix}] - F^{*} (x)}

In simulations, the robot initial condition is $x (0) = {[\begin{matrix} 1.0 & 1.0 & 0 & 0 \end{matrix}]}^{T}$ . The design parameters used in this simulation are chosen as follows: $λ_{11} = 5,$ $λ_{12} = 1,$ $λ_{21} = 5,$ $λ_{22} = 1,$ $k_{1} = 1.5,$ $k_{2} = 1.5,$ $η_{1} = 0.5,$ and $η_{2} = 0.5$ . Under the same conditions of switching feedback control gains k₁ and k₂, conventional IOSMCs are also designed for comparison as shown in Figures 11 to 14.

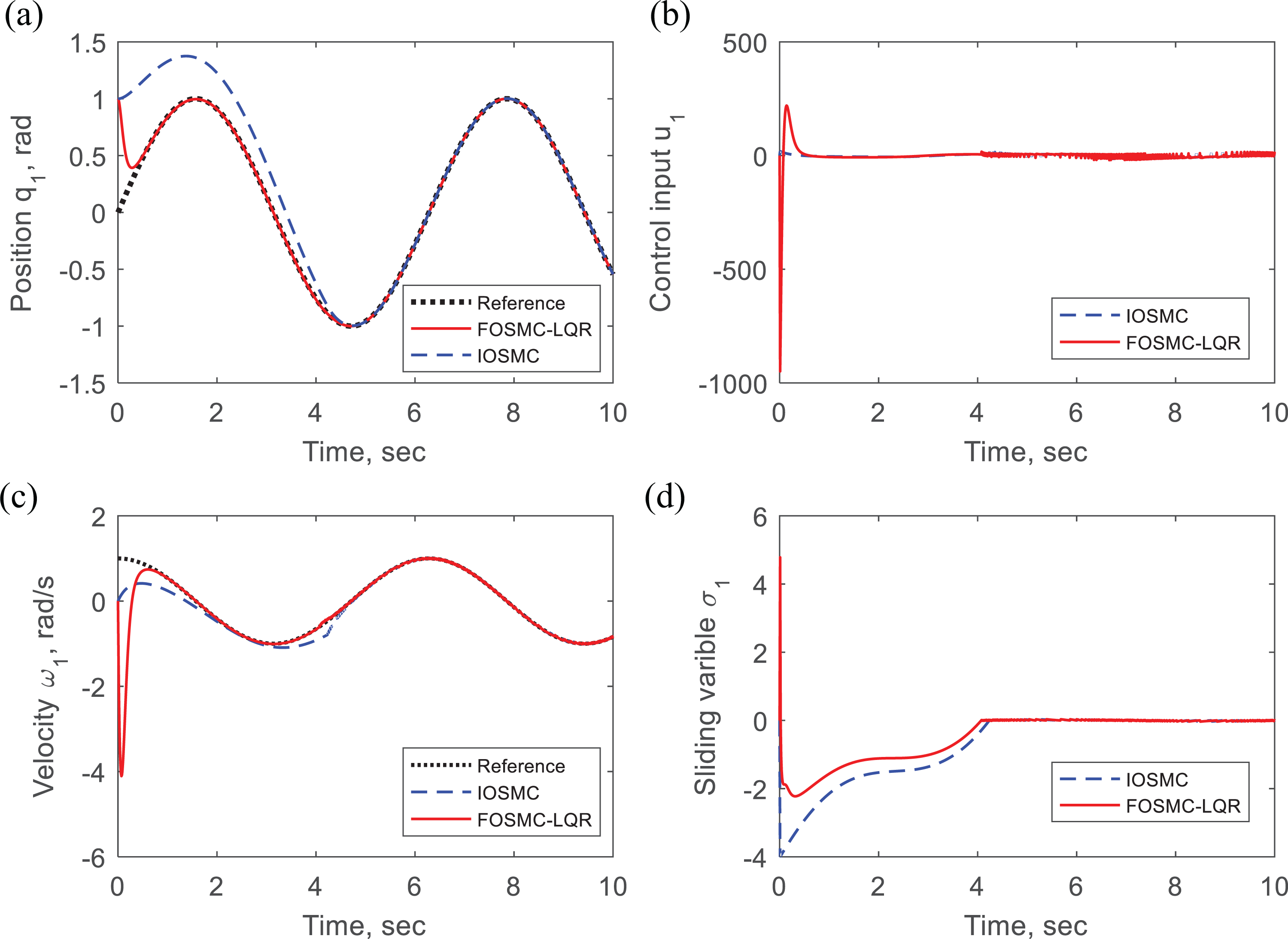

Figure 11.

Tracking curves of link 1 with nominal parameters.

Figure 12.

Tracking curves of link 2 with nominal parameters.

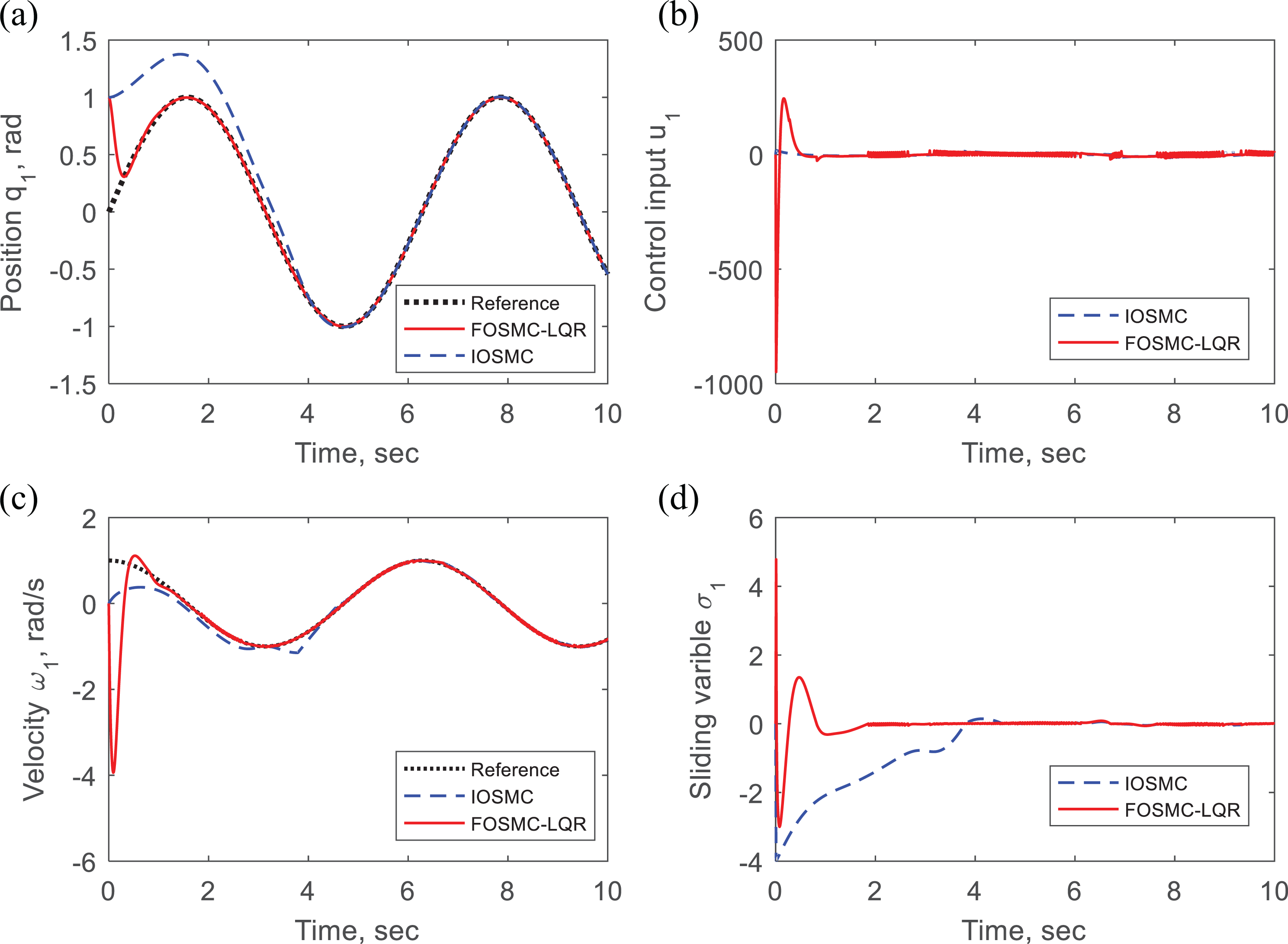

Figure 13.

Tracking curves of link 1 with uncertain parameters.

Figure 14.

Tracking curves of link 2 with uncertain parameters.

Figures 11 and 12 show a comparison of system response between the IOSMC and the controller proposed in this article (FOSMC-LQR) with nominal parameters. It can be easily seen that the closed-loop system response with FOSMC-LQR presents faster convergences of position tracking and velocity tracking. Because of choosing the same values of switching feedback control gain, the control signal presents the similar chattering when the closed-loop system is stable. However, the sliding motion of FOSMC-LQR has the faster convergence velocity in both q₁ and q₂ position channels.

Figures 13 and 14 show a comparison of system response between the IOSMC and the FOSMC-LQR with uncertain parameters. And the parameter uncertainties are described by (36). Due to the existence of parameter uncertainties, the closed-loop system response with IOSMC becomes more unsteady, which presents unsteady tracking performance in position and velocity tracking channels. However, the closed-loop system with FOSMC-LQR successfully rejects the time-varying parameter uncertainties and presents excellent tracking robustness.

Conclusion

In this article, a new FOSMC strategy based on LQR (FOSMC-LQR) for uncertain nonlinear systems has been proposed. Lyapunov stability theory is used to prove that the proposed controller results in the finite time convergence of the sliding motion and the global stability of the closed-loop control system. To demonstrate the effectiveness and advantages of the proposed controller, two academic examples, a kinematic model of a car and a dynamic model of a two-link robot, are simulated. The results of the simulation demonstrate that the proposed controller resulted in a faster convergence velocity, better tracking performance, and excellent system robustness. The proposed controller also performed better than conventional IOSMC, single LQR, and single FOSMC because it was designed based on LQR and employed extra fractional-order derivatives of the tracking error. Moreover, the magnitude of control chattering was reduced drastically.

Footnotes

Acknowledgment

The authors would like to thank the National Natural Science Fund of China(Fund NO. 11672235) for their financial support and also their help with information in this work.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was partly supported by the National Natural Science Fund of China (no. 11672235).

References

Podlubny

. Fractional differential equations. New York: Academic Press, 1999.

Uchaikin

. Fractional derivatives for physicists and engineers volume ii applications. Beijing: Higher Education Press, 2013.

Oustaloup

. From fractality to non integer derivation: A fundamental idea for a new process control strategy. Anaylsis and Optimization of Systems, Paris, 2006; 53–64.

Oustaloup

Sabatier

Lanusse

. From fractal robustness to CRONE control. Fract Calc Appl Anal 1999; 2: 1–30.

Podlubny

Dorcak

Kostial

. On fractional derivatives, fractional-order dynamic systems and PI^λD^μ controllers. Conference on Decision & Control, San Diego, 12 1997, pp. 4985–4990.

Podlubny

. Fractional-order systems and PI^λD^μ controllers. IEEE Trans Autom Control 1999; 44: 2108–2114.

Lurie

. Three –parameter tunable tilt-integral derivative (TID) controller, US Patent US5371 670, 1994.

Monje

Calderon

Vinagre

. The fractional order lead compensator. In: IEEE International Conference on Computational Cybernetics, Vienna, Austria, 8 2004, pp. 347–352.

Tavazoei

Tavakoli-Kakhki

. Compensation by fractional-order phase-lead/lag compensators. IET Control Theory Appl 2014; 8(5): 319–329.

10.

Frederico

Torres

. Fractional conservation laws in optimal control theory. Nonlinear Dynam 2008; 53: 215–222.

11.

Agrawal

Chen

. An approximate method for numerically solving fractional-order optimal control problems of general form. Comput Math Appl 2010; 59: 1644–1655.

12.

Ladcai

Charef

. On fractional adaptive control. Nonlinear Dynam 2006; 43: 365–378.

13.

Camacho

Duarte-Mermoud

. Fractional adaptive control for automatic voltage regulator. ISA Trans 2013; 52: 807–815.

14.

Perruquetti

Barbot

. Sliding mode control in engineering. New York: Marcel Dekker, 2002.

15.

Dadras

Momeni

. Fractional terminal sliding mode control design for a class of dynamical systems with uncertainty. Commun Nonlinear Sci Numer Simul 2012; 17: 367–377.

16.

Mujumdar

Kurode

Tamhane

. Fractional-order sliding mode control for single link flexible manipulator. In: 2013 IEEE International Conference on Control Applications. Hyderabad, India, 28–30 August, 2013.

17.

Tang

Zhang

. Fractional-order sliding mode controller design for antilock braking systems. Neurocomputing 2013; 111: 122–130.

18.

Tang

Wang

Han

. Adaptive fuzzy fractional-order sliding mode controller design for antilock braking systems. J Dynam Sys Meas Control 2016; 138(041008): 1–8.

19.

Huang

Teng

. Fractional-order sliding mode controller for the speed control of a permanent magnet synchronous motor. In: 24th Chinese control and decision conference, Taiyuan, China, May 2012, pp. 1203–1208.

20.

Zhang

Luo

. Fractional-order sliding mode control based on parameter auto-tuning for velocity control of permanent magnet synchronous motor. ISA Trans 2012; 51: 649–656.

21.

Aghababa

. A fractional-order controller for vibration suppression of uncertain structures. ISA Trans 2013; 52: 881–887.

22.

Gao

. Study on the nonsingular problem of fractional-order terminal sliding mode control. Math Probl Eng 2013; 523251: 1–7.

23.

Yin

Chen

Zhong

. Fractional-order sliding mode based extremum seeking control of a class of nonlinear systems. Automatica 2014; 50: 3137–3181.

24.

Shao

Chen

Yan

. Adaptive sliding mode synchronization for a class of fractional-order chaotic systems with disturbance. Nonlinear Dynam 2016; 83(4): 1855–1866.

25.

Shao

Chen

. Adaptive neural control for an uncertain fractional-order rotational mechanical system using disturbance observer. IET Control Theory App 2016; 10(16): 1972–1980.

26.

Petráš

. Fractional-order nonlinear systems: modeling, analysis and simulation. Berlin: Springer, 2011.

27.

Monje

Chen

Vinagre

. Fractional-order systems and controls. Berlin: Springer , 2010.

28.

Filippov

. Differential equations with discontinuous right-hand side, Dordrecht. The Netherland: Kluwer, 1988.

29.

Fernández

Hedrick

. Control of multivariable nonlinear systems by the sliding mode method. Int J Control 1987; 46(3): 1019–1040.

30.

Utkin

. Sliding modes in control optimization. Berlin: Springer-Verlag, 1992.

31.

Shtessel

Edwards

Spurgeon

. Adaptive finite reaching time control and continuous second order sliding modes. In: IEEE Conference on Decision & Control, Georgia, USA, December 2010, pp. 266–271.

32.

Levant

. Higher-order sliding modes, differentiation and output-feedback control. Int J Control 2003; 76(9–10): 924–941.

33.

Laghrouche

Plestan

Glumineau

. Higher order sliding mode control based on integral sliding mode. Automatic 2007; 43: 513–537.

34.

Dinuzzo

Ferrara

. Higher-order sliding mode controllers with optimal reaching. IEEE Trans automat control 2009; 54(9): 2126–2136.

35.

Slotine

. Applied nonlinear control. New Jersey: Prentice Hall, 1991.

36.

Labiod

Boucherit

Guerra

. Adaptive fuzzy control of a class of MIMO nonlinear systems. Fuzzy Sets Sys 2005; 151: 59–77.

Fractional-order sliding mode control for a class of uncertain nonlinear systems based on LQR

Abstract

Keywords

Introduction

Basics definitions and preliminaries of fractional calculus

Definitions of fractional derivatives and integrals

Approximation of fractional derivative

Problem statement

FOSMC based on LQR

Nominal control based on LQR ( v n )

Fractional control ( v s )

Lyapunov stability analysis

Theorem

Proof

Remark

Simulation examples

A kinematic model of a car

A dynamic model of a two-link rigid robot manipulator

Conclusion

Footnotes

Acknowledgment

Declaration of conflicting interests

Funding

References

Nominal control based on LQR ( $v_{n}$ )

Fractional control ( $v_{s}$ )
