Abstract

In this article, a novel data-driven constrained control scheme is proposed for automatic parking systems. The design of the proposed scheme only depends on the steering angle and the orientation angle of the car, and it does not involve any model information of the car. Therefore, the proposed scheme-based automatic parking system is applicable to different kinds of cars. In order to further reduce the desired trajectory coordinate tracking errors, a coordinates compensation algorithm is also proposed. In the design procedure of the controller, a novel dynamic anti-windup compensator is used to deal with the change magnitude and rate saturations of automatic parking control input. It is theoretically proven that all the signals in the closed-loop system are uniformly ultimately bounded based on Lyapunov stability analysis method. Finally, a simulation comparison among the proposed scheme with coordinates compensation and Proportion Integration Differentiation (PID) control algorithm is given. It is shown that the proposed scheme with coordinates compensation has smaller tracking errors and more rapid responses than PID scheme.

Keywords

Data-driven constrained control automatic car parking dynamic anti-windup coordinates compensation

Introduction

Nowadays, with the fast development of science and technology and increase of people’s living standard, the number of cars is increasing very fast. The space of car parking significantly reduced, and traffic accidents are particularly prone to happen when backing the car for these drivers who have less experience. The university of Michigan study shows that manual parking is one of the important reasons why the driver is easy to cause the traffic accident.¹ Thus, the automatic parking problem has become a hot research topic.

Automatic parking system can avoid parking accident. It uses the sensor technology, computer technology, and automatic control technology to accurately perceive the parking environment and planning a optimal parking path and then lead the vehicle to the target by controlling the vehicle automatically complete the path tracking.² Parking types include parallel parking, vertical parking, and oblique parking, as shown in Figure 1. Parallel parking is most common in our daily life, so the parallel automatic parking system has become a hot spot of current research.^3,4 Therefore, the work of this article is to study the parallel parking.

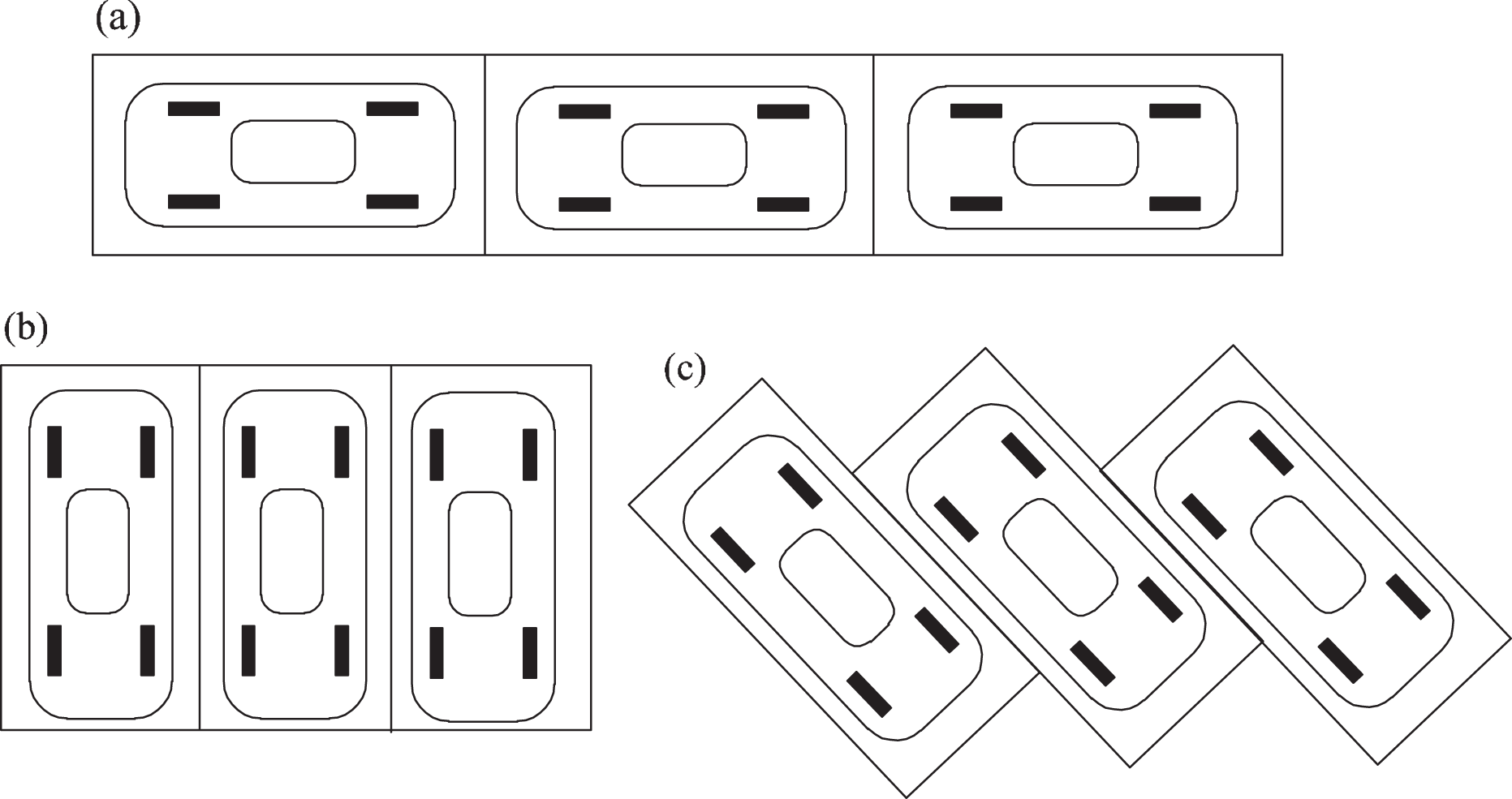

Figure 1.

Classification of parking: (a) parallel parking, (b) vertical parking, and oblique parking.

Parallel parking consists of three procedures⁵: (1) parking space detection, (2) path planning, and (3) path tracking. Once drivers choose the automatic parking mode, the width and length of the parking space are detected by ultrasonic sensors mounted on the side of the car. When the drivers stop a car at the beginning position, environmental geometry and target position are calculated automatically from the sensor information. Then, a target parking trajectory is created by the automatic parking controller and the car is guided into the target parking space by controlling the electronic power steering.⁶

Four-wheeled vehicle is the most commonly used in our daily life. Its dynamics model can be transformated into nonholonomic chained system,⁷ and the corresponding control algorithm can be designed based on the nonholonomic chained system. But the automatic parking process has the characteristics of nonlinearity, time variation, multivariable, and so on. It is difficult to establish an accurate model of the nonholonomic chained system. Even if the model is established, the corresponding control algorithm is very complex and the computation is very large. So it is difficult to popularize this method. In the study by Chen et al.,⁸ the fuzzy-Proportion Integration Differentiation (PID) controller is designed for automatic car parking system, the front wheel angle is the output of the controller, and the speed error is the input of the controller. In the study by Liang et al.,⁹ the automatic parking system is designed based on the fuzzy controller by adopting fuzzy control algorithm. The vehicle coordinate position error and the orientation angle of the car error are the output of the controller, and the front wheel angle is the input of the controller. Different fuzzy logic controllers are designed for different parking situations in the study by Li et al.,¹⁰ and the experimental verification is done on the car robot that on the basis of field programmable gate array. In the study by Baturone et al.,¹¹ the fuzzy controller is designed by adopting the position coordinate of the car, the direction of the vehicle body, vehicle speed, and trajectory curvature as inputs, and the marching direction, vehicle speed, and the target curvature size as outputs. The experiment is done on a car robot. In the study by Heinen et al.,¹² the authors proposed a control method based on neural network by adopting the position coordinate of the car, the orientation angle of the car as the input of artificial neural network, and the vehicle speed and the front wheel angle as the output of artificial neural network. The authors realized the virtual process of automatic parking in the simulation software. But there are many types of cars on the market. For each new type of the car, the parameters of PID controller need to be adjusted, the fuzzy control rules should be reformulated, and the neural network control need to be retrained. Hence, the automatic parking system established by the above algorithm is poor in portability.

The data-driven control methods have been applied in several fields.^13

–16 Model-free adaptive control (MFAC), one of the data-driven control methods, was put forward by Hou. In MFAC, combined with a innovative concept named pseudo partial derivative (PPD), an equivalent dynamic linearization data model is developed. First, it takes the place of the general discrete time nonlinear system at each current operating point. Next, the estimation of PPD is only conducted online through the input/output (I/O) data from the controlled system. Eventually, the controller is designed. At present, the MFAC method has been successfully applied in the fields of smart grid, chemical industry, welding process, wind power generation, urban expressway, artificial heart rate regulation, and so on.^17

–23 Theoretical analysis, simulation, and practical application show that the MFAC method is simple and practical, small computational burden, and strong robustness; it can deal with the control problem of unknown nonlinear time-varying systems.²⁴

In this article, we propose a novel data-driven constrained control scheme with coordinates compensation for automatic parking system. The proposed scheme consists of constrained control algorithm, parameter estimation algorithm, parameter reset algorithm, and coordinates compensation algorithm. The design of the control scheme is only based on the I/O data of the automatic parking system, which does not include the vehicle model information. Therefore, the proposed scheme is applicable to different vehicle types. The proposed scheme gets a better control effect by adopting the coordinates compensation algorithm. Because the control input is subject to change magnitude and rate constraints, a novel dynamic anti-windup compensator is used to deal with the saturation problem. The simulation results have verified the superiority of the proposed constrained control scheme.

Problem formulation for automatic parking process

Parking space detection

The diagram of parking space detection is shown in Figure 2. There are ultrasonic probes on the vehicle. The ultrasonic probes in the front and rear of the vehicle are used to ensure parking safety. The ultrasonic probes mounted on the side of the vehicle are used to detect the parking space. Start the automatic parking system when the vehicle is ready to pull over, and the system detects the distance information by the ultrasonic probes mounted on the side of the vehicle . If there is a vehicle parked at the roadside, the distance detected by the ultrasonic probe mounted on the right side of the vehicle is d₁, otherwise, the detection distance is d₂. If there is a parking space, we can get the dashed-dotted line pulse as shown in Figure 2. According to the vehicle speed and pulse duration, the length of parking spaces L_p can be obtained. If L_p is greater than the minimal available length of parking space L_p min, the parking space is identified as available. Otherwise, the vehicle will continue to move forward to find other available parking spaces. After finding the available parking spaces, the systems enter the stage of path planning.

Figure 2.

Diagram of parking space detection.

Path planning

The path planning of parallel parking consists of the following procedures. The given parameters are the vehicle width W_c, the vehicle length L_c, and the length of parking space L_p (refer to Figure 3). Make a circle O₁ at the center of (0, R₁) and with a radius of R₁. This circle is tangent to the x-axis at the origin O. Make a circle O₂ at the center of the corner O₂ and with a radius of

\begin{array}{l} R_{2} = 0.5 W_{c} + Δ S \end{array}

Figure 3.

Path planning of automatic parking.

where ΔS is the safe distance between the two cars.

Draw the common tangent $P_{0} P_{1}$ of both circles O₁ and O₂; the point of tangency with O₁ is denoted as P₀ and the point of tangency with O₂ is denoted as P₁. Draw a line $P_{3} P_{2}$ which goes through the beginning location and is parallel to the x-axis. Then make a circle O₃ that is tangential to the straight lines $P_{0} P_{1} and P_{3} P_{2}$ . Denote the point of tangency of this circle O₃ and line $P_{3} P_{2}$ as P₂ and the point of tangency of this circle O₃ and line $P_{0} P_{1}$ as P₁. Then the path planning of parallel parking is illustrated as the curve in Figure 3.

From this diagram, the angle α of line $P_{0} P_{1}$ and the coordinates of P₀ and P₂ are got through some geometric calculations as

\begin{array}{l} α = {tan}^{- 1} \frac{0.5 W_{c} + R_{2} \cos α - R_{1} (1 - \cos α)}{L_{p} - R_{1} sin α - R_{2} sin α - Δ S} \end{array}

\begin{array}{l} P_{0} : (R_{1} sin α, R_{1} (1 - \cos α)) \end{array}

\begin{array}{l} P_{2} : (\frac{R_{1} / \cos α - R_{1} + d + 0.5 W_{c}}{tan α}, d + 0.5 W_{c}) \end{array}

where d is the lateral distance between the two vehicles as shown in Figure 3.

Based on Figure 3, the minimal length of parking space $L_{p min}$ is given when $L_{p_{0} p_{1}} = L_{c}$

\begin{array}{l} L_{p min} = (R_{1} + R_{2}) sin α_{0} + L_{c} \cos α_{0} \end{array}

where $L_{p_{0} p_{1}}$ denotes the length of line $P_{0} P_{1}$ , and for the α₀, we consider the following equation with

\begin{array}{l} L_{c} sin α_{0} = (R_{1} + R_{2}) \cos α_{0} + 0.5 W_{c} - R_{1} \end{array}

Path tracking

Let us consider the four-wheeled car shown in Figure 4. Obey the assumption that sideslip does not happen, the state space equation of four-wheeled car^25,26 is obtained as

{\begin{cases} \begin{array}{l} \dot{x} = v \cos θ \\ \dot{y} = v sin θ \\ \dot{θ} = \frac{v tan β}{L} \end{array} \end{cases}

Figure 4.

Vehicle model.

where (x, y) is the coordinate of the center of the rear wheel axle, L denotes the wheel base, θ is the orientation angle of the car, and v and β are the vehicle speed and the steering angle, respectively.

In the practical application, equation (7) is usually transformed into the following discrete model

{\begin{cases} \begin{array}{l} x (k + 1) = x (k) + T v \cos (θ (k)) \\ y (k + 1) = y (k) + T v sin (θ (k)) \\ θ (k + 1) = θ (k) + \frac{T v tan (β (k))}{L} \end{array} \end{cases}

where T denotes sampling time.

In addition, the input β(k) of the vehicle cannot change too fast within a small time interval. So the control input is subject to change magnitude and rate constraints as following

\begin{array}{l} β_{min} \leq β (k) \leq β_{max} {\dot{β}}_{min} \leq \dot{β} (k) \leq {\dot{β}}_{max} \end{array}

Based on the state space equation of four-wheeled car, the coordinate of the car (x,y) is determined by the orientation angle θ of the car with little change in the parking speed. Therefore, ensure the coincidence of the coordinate of the car and target trajectory by controlling the steering angle β to control the orientation angle θ of the car is the control objective of automatic parking system.

Main results

In this section, we will put forward a novel data-driven constrained control scheme with coordinates compensation for automatic car parking system. Major contributions in the following works are (1) an unknown PPD estimation algorithm, (2) proposed a data-driven constrained control algorithm via anti-windup scheme, and (3) the coordinates compensation algorithm of the target orientation angle of the car.

PPD parameter estimation algorithm

First of all, the nonlinear system of automatic parking can be transformed into the following dynamic linearization data model

\begin{array}{l} Δ θ (k + 1) = ϕ_{1} (k) Δ θ (k) + ϕ_{2} (k) Δ β (k) \end{array}

where θ and β are defined as the orientation angle of the car and the steering angle, respectively. Parameters ϕ₁ and ϕ₂ are called PPD. $Δ θ (k + 1) = θ (k + 1) - θ (k) and Δ β (k) = β (k) - β (k - 1)$ . The model (10) can be redescribed as

\begin{array}{l} θ (k + 1) = θ (k) + φ^{T} (k) η (k) \end{array}

where $φ (k) = {[Δ θ (k), Δ β (k)]}^{T} and η (k) = {[ϕ_{1} (k), ϕ_{2} (k)]}^{T}$ . The proposed parameter identification observer has the following structure:

\begin{array}{l} \hat{θ} (k + 1) = \hat{θ} (k) + φ^{T} (k) \hat{η} (k) + K e_{0} (k) \end{array}

where $e_{0} (k) = θ (k) - \hat{θ} (k)$ is the estimation error of output, $\hat{η} (k) = {[{\hat{ϕ}}_{1} (k), {\hat{ϕ}}_{2} (k)]}^{T}$ , and we choose the gain K as making F = 1 − K in the unit circle.

Therefore, by taking into account equations (11) and (12), the estimation dynamic error of output can be given by

\begin{array}{l} e_{0} (k + 1) = φ^{T} (k) \tilde{η} (k) + F e_{0} (k) \end{array}

where $\tilde{η} (k) = η (k) - \hat{η} (k)$ denotes the error of parameter estimation. The adaptive update algorithm for the estimated parameters $\hat{η} (k)$ is chosen as

\begin{array}{l} \hat{η} (k + 1) = \hat{η} (k) + φ (k) Γ (k) (e_{0} (k + 1) - F e_{0} (k)) \end{array}

The gain $Γ (k)$ is chosen as:

\begin{array}{l} Γ (k) = 2 {(| | φ (k) | |^{2} + μ)}^{- 1} \end{array}

where μ is a positive constant; hence, $Γ (k)$ is positive definite for all the k. Noticed that, with the assumption that $| | φ (k) | | \leq γ, Γ (k)$ can be lower bounded as

| | Γ (k) | | \geq \frac{2}{γ^{2} + μ} = τ > 0

In view of equations (13) and (14) and condition $η (k + 1) \approx η (k)$ , which denotes the slow time-varying system, the estimation dynamic error is obtained as

\begin{array}{l} \begin{array}{l} e_{0} (k + 1) = φ^{T} (k) \tilde{η} (k) + F e_{0} (k) \\ \tilde{η} (k + 1) = H \tilde{η} (k) \end{array} \end{array}

where H is given by

H = I_{2} - φ (k) Γ (k) φ^{T} (k)

and I₂ denotes the $(2 \times 2)$ identity matrix.

Theorem 1

The equilibrium ${[e_{0}, {\tilde{η}}^{T}]}^{T} = {[0, 0^{T}_{2 \times 1}]}^{T}$ of the system (16) is globally uniformly stable. Furthermore, the estimation error $e_{o} (k)$ converges asymptotically to 0.

Proof

Consider the Lyapunov function

\begin{array}{l} V_{1} (k) = P e_{0}^{2} (k) + λ {\tilde{η}}^{T} (k) \tilde{η} (k) \end{array}

where λ and P are positive constants and P is calculated by $P - F^{2} P = Q$ with Q is a positive constant. By taking into equation (16), we have

Δ V_{1} (k) = V_{1} (k + 1) - V_{1} (k) = P φ^{T} (k) \tilde{η} (k) {\tilde{η}}^{T} (k) φ (k) - 2 P F φ^{T} (k) \tilde{η} (k) e_{0} (k) + P F^{2} e_{o}^{2} (k) + {\tilde{η}}^{T} (k) (λ H^{T} H - λ) \tilde{η} (k) + P e_{0}^{2} (k) = - Q e_{0}^{2} (k) - Θ^{T} (k) [λ μ Γ^{T} (k) Γ (k) - P] Θ (k) - 2 P F e_{0} (k) Θ (k) \leq - Q | e_{0} (k) |^{2} - [λ μ Γ^{T} (k) Γ (k) - P] | | Θ (k) | |^{2} + 2 P F | | e_{0} (k) | | Θ (k) | | \leq - c_{1} | e_{0} (k) |^{2} - c_{2} | | Θ (k) | |^{2}

where $Θ (k) = φ^{T} (k) \tilde{η} (k), c_{1} = Q - (1 / δ), and c_{2} = μ λ τ^{2} - P - δ P^{2} F^{2}$ . Hence, $Δ V_{1} (k) \leq 0$ provided that δ, Q, and λ satisfy the following inequalities

Q > \frac{1}{δ}, μ λ τ^{2} - P - δ P^{2} F^{2} > 0

Noticed that $Δ V_{1} (k)$ is negative definite in the variables $e_{o} (k) and Θ (k)$ . Since $V_{1} (k)$ in a decreasing and nonnegative function, it converges to a constant value $V_{1}^{\infty} \geq 0$ , as $k \to \infty$ ; hence, $Δ V_{1} (k) \to 0$ . This means that both $e_{o} (k) and \tilde{η} (k)$ remain bounded for all the k, and ${lim}_{k \to \infty} e_{o} (k) = 0$ .

In order to make the parameter estimation, law (14) have a stronger capability in tracking time-varying parameter, a reset algorithm which¹³ should be considered is as follows

\begin{array}{l} \begin{array}{l} {[{\hat{ϕ}}_{1} (k), {\hat{ϕ}}_{2} (k)]}^{T} = {[{\hat{ϕ}}_{1} (1), {\hat{ϕ}}_{2} (1)]}^{T} \\ if [{\hat{ϕ}}_{1} (k), {\hat{ϕ}}_{2} (k)] [\begin{array}{l} {\hat{ϕ}}_{1} (k) \\ {\hat{ϕ}}_{2} (k) \end{array}] \leq ς, or sgn ({\hat{ϕ}}_{2} (k)) \neq sgn ({\hat{ϕ}}_{2} (1)) \end{array} \end{array}

where ς is a small positive constant and ${\hat{ϕ}}_{1} (1) and {\hat{ϕ}}_{2} (1)$ are the initial value of ${\hat{ϕ}}_{1} (k) and {\hat{ϕ}}_{2} (k)$ , respectively.

A data-driven constrained control algorithm and stability analysis

On the basis of the observer (12), the data-driven unconstrained control algorithm is computed as

β_{0} (k) = β (k - 1) + \frac{{\hat{ϕ}}_{2} (k) (θ^{*} (k + 1) - \hat{θ} (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k))}{{\hat{ϕ}}_{2}^{2} (k) + σ}

where $θ^{*} (k)$ is the target orientation angle of the car. σ is a given small finite positive number. By taking into account the input constraints (9), the adaptive constrained controller is described as the following

β (t) = Sat {(β (k - 1) + Sat {(β_{0} (k) - β (k - 1)), T {\dot{β}}_{min}, T {\dot{β}}_{max}}), β_{min}, β_{max}}

where T denotes the sampling time, and $Sat (\cdot)$ function is defined as

Sat (a, b, c) = {\begin{array}{l} b & a \leq b \\ a & b < a < c \\ c & a \geq c \end{array}

Because of the dynamic constraints in the close-loop control system, an anti-windup compensator is designed to adapt to the target orientation angle of the car $θ^{*} (k)$ . The compensation signal $ρ (k)$ is designed as follows

\begin{array}{l} ρ (k + 1) = κ ρ (k) + {\hat{ϕ}}_{2} (k) (β_{0} (k) - β (k)) \end{array}

where κ lies in unit circle. Therefore, the controller (19) can be redescribed as

β_{0} (k) = β (k - 1) + \frac{{\hat{ϕ}}_{2} (k)}{{\hat{ϕ}}_{2}^{2} (k) + σ} \times (θ^{*} (k - 1) - \hat{θ} (k) - κ ρ (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k))

Observer tracking error is defined as $e (k) = θ^{*} (k) - \hat{θ} (k) - ρ (k)$ , under the dynamic constraints (9), and combining with (21), thus

e (k + 1) = θ^{*} (k + 1) - \hat{θ} (k + 1) - ρ (k + 1) = θ^{*} (k + 1) - \hat{θ} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) - {\hat{ϕ}}_{2} (k) Δ β (k) - K e_{0} (k) - κ ρ (k) - {\hat{ϕ}}_{2} (k) (β_{0} (k) - β (k)) = θ^{*} (k + 1) - \hat{θ} (k) - κ ρ (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) - K e_{0} (k) - {\hat{ϕ}}_{2} (k) (β_{0} (k) - β (k + 1))

Substituting equation (22) into equation (23), we obtain

e (k + 1) = \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} \times θ^{*} ((k + 1) - \hat{θ} (k) - κ ρ (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) - K e_{0} (k))

The convergence and tracking performance analysis for data-driven constrained control law (20) and (22) are shown in theorem 2.

Theorem 2

For given $| θ^{*} (k) - θ^{*} (k - 1) | \leq Δ θ^{*}$ , by using the data-driven constrained control law (20) and (22), the solution of close-loop observer error system (24) is uniformly ultimately bounded (UUB)²⁷ for all the k with ultimate bound $\lim_{k \to \infty} | e (k) | \leq a_{2} / (1 - a_{1})$ .

where $Δ θ^{*}$ is a given positive constant

\begin{array}{l} a_{1} = \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} \\ a_{2} = \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} | Δ θ^{*} + (1 - κ) ρ (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) | \end{array}

Proof

Considering the absolute value of equation (24), it turns into

| e (k + 1) | = \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} | θ^{*} (k + 1) - \hat{θ} (k) - κ ρ (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) | = \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} | θ^{*} (k + 1) - θ^{*} (k) + e (k) + (1 - κ) ρ (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) | \leq \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} | e (k) | + \frac{σ}{{\hat{ϕ}}_{2}^{2} (k) + σ} | Δ θ^{*} + (1 - κ) ρ (k) - K e_{0} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k) | = a_{1} | e (k) | + a_{2}

Considering a Lyapunov function as $V_{2} (k) = | e (k) |$ , from equation (25), one has

Δ V_{2} (k + 1) = | e (k + 1) | - | e (k) | = (1 - a_{1}) V_{2} (k) + a_{2}

Since $0 \leq a_{1} < 1$ and a₂ is bounded, based on the lemma in,²⁷ by using the constrained control law (20) and (22), the result of close-loop observer system (24) is UUB for all the k with ultimate bound $\lim_{k \to \infty} | e (k) | \leq a_{2} / (1 - a_{1})$ .

Corollary

Based on the controller (20) and (22), together with the observer (12) and adaptive laws (14), we can ensure that the system tracking error $\bar{e} (k) = θ^{*} (k) - θ (k)$ is UUB with ultimate bound $\lim_{k \to \infty} | \bar{e} (k) | \leq a_{2} / (1 - a_{1})$ .

Proof

Since

\begin{array}{l} \bar{e} (k) = e (k) - e_{0} (k) \end{array}

Considering the absolute value and limiting on both sides of eqaution (26), we obtain

\begin{array}{l} \lim_{k \to \infty} | \bar{e} (k) | \leq \lim_{k \to \infty} | e_{0} (k) | + \lim_{k \to \infty} | e (k) | \leq \frac{a_{2}}{1 - a_{1}} \end{array}

Hence the tracking error $\bar{e} (k)$ is UUB for all the k with ultimate bound $\lim_{k \to \infty} | \bar{e} (k) | \leq a_{2} / (1 - a_{1})$ .

The controller (22) can be divided into two parts: feedback control and feedforward control, which is described as

β_{0} (k) = β_{01} (k) + β_{02} (k)

where

Feedback control:

β_{01} (k) = β (k - 1) + \frac{{\hat{ϕ}}_{2} (k)}{{\hat{ϕ}}_{2}^{2} (k) + σ} \times (θ^{*} (k + 1) - \hat{θ} (k) - κ ρ (k) - K e_{0} (k))

Feedforward control:

β_{02} (k) = - \frac{{\hat{ϕ}}_{2} (k) {\hat{ϕ}}_{1} (k) Δ θ (k)}{{\hat{ϕ}}_{2}^{2} (k) + σ}

Hence, we obtain the novel data-driven constrained control scheme of automatic parking system that consists of eqautions (14), (18), (20), and (22).

The compensation algorithm of the target orientation angle of the car

In the actual control process, there often exists tracking error between the actual orientation angle of the car and the target orientation angle of the car. Hence, there will exist steady-state error between the actual parking trajectory and the target trajectory. In order to eliminate the steady-state error, we will propose a coordinates compensation algorithm for automatic car parking systems. The data-driven constrained controller corrects the steering angle according to the difference between the target orientation angle of the car and the current orientation angle of the car.

The compensation theory of the target orientation angle of the car is shown in Figure 5. Backing a car from point E to point F. The solid curve EF denotes the target trajectory and the dashed-dotted line EP(k) denotes the actual parking trajectory. Point P(k) and point $P^{*} (k + 1)$ are defined as the current location of the car and the target location of next moment, respectively. $θ^{*} (k + 1) and γ (k)$ are defined as the target orientation angle of the car of next moment and the orientation angle from point $P^{*} (k + 1)$ to point $P (k)$ , respectively.

Figure 5.

The compensation theory of the target orientation angle of the car.

From Figure 5, we know that the actual position of car has separated from the target trajectory. Hence, we propose the compensation algorithm of the target orientation angle of the car as the following

\begin{array}{l} \tilde{θ} (k + 1) = θ^{*} (k + 1) + ψ (γ (k) - θ^{*} (k + 1)) \end{array}

where ψ is a positive adjustable parameter, used to adjust the intensity of compensation. $\tilde{θ} (k + 1)$ denotes the compensated target orientation angle of the car. For the $γ (k)$ , we consider the following equation with

\begin{array}{l} γ (k) = \arctan (\frac{y (k) - y^{*} (k + 1)}{x (k) - x^{*} (k + 1)}) \end{array}

where $(x (k), y (k))$ denotes the current coordinate of the car and $(x^{*} (k + 1), y^{*} (k + 1))$ denotes the target coordinate of the car of next moment.

Hence, we obtain the novel data-driven constrained control algorithm with coordinates compensation as the following

\hat{η} (k + 1) = \hat{η} (k) + φ (k) Γ (k) (e_{0} (k + 1) - F e_{0} (k))

\begin{array}{l} {[{\hat{ϕ}}_{1} (k), {\hat{ϕ}}_{2} (k)]}^{T} = {[{\hat{ϕ}}_{1} (1), {\hat{ϕ}}_{2} (1)]}^{T} \\ if [{\hat{ϕ}}_{1} (k), {\hat{ϕ}}_{2} (k)] [\begin{array}{l} {\hat{ϕ}}_{1} (k) \\ {\hat{ϕ}}_{2} (k) \end{array}] \leq ς, or sgn ({\hat{ϕ}}_{2} (k)) \neq sgn ({\hat{ϕ}}_{2} (1)) \end{array}

\begin{array}{l} γ (k) = \arctan (\frac{y (k) - y^{*} (k + 1)}{x (k) - x^{*} (k + 1)}) \end{array}

\tilde{θ} (k + 1) = θ^{*} (k + 1) + ψ (γ (k) - θ^{*} (k + 1))

β_{0} (k) = β (k - 1) + \frac{{\hat{ϕ}}_{2} (k) (\tilde{θ} (k + 1) - \hat{θ} (k) - κ ρ (k) - K e_{o} (k) - {\hat{ϕ}}_{1} (k) Δ θ (k))}{{\hat{ϕ}}_{2}^{2} (k) + σ}

β (t) = Sat {(β (k - 1) + Sat {(β_{0} (k) - β (k - 1)), T {\dot{β}}_{min}, T {\dot{β}}_{max}}), β_{min}, β_{max}}

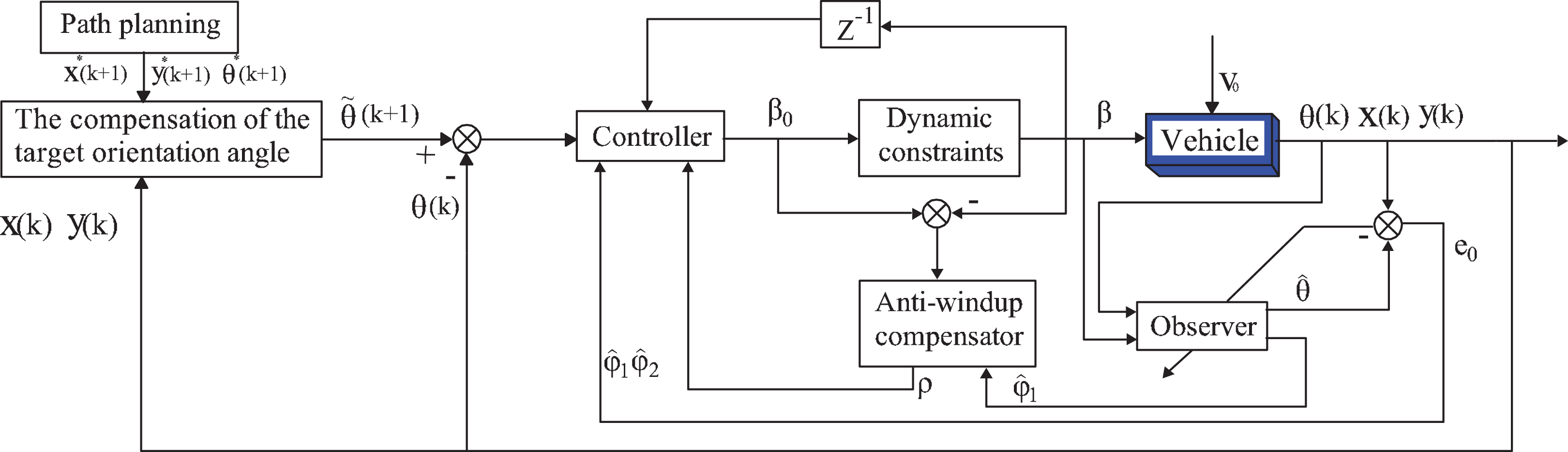

In order to give a clear idea of the comprehensive proposed novel data-driven constrained control system design procedure for automatic parking, we provide a flowchart as shown in Figure 6.

Figure 6.

Flowchart of the novel data-driven constrained control system design procedure for automatic parking.

Simulation results

In order to verify the superiority of the novel data-driven constrained control scheme with coordinates compensation, a simulation comparison among the proposed constrained control scheme with coordinates compensation and PID control scheme is given for different two cars with constant parking speed. PID controller adopts the position control algorithm as the following

\begin{array}{l} β (k) = K_{p} e (k) + K_{i} \sum_{j = 1}^{k} e (j) + K_{d} (e (k) - e (k - 1)) \end{array}

where $e (k) = θ^{*} (k) - θ (k)$ denotes the error of the orientation angle of the car. K_p, K_i, and K_d denote the proportion parameter, integral parameter, and differential parameter, respectively.

Here, we choose the optimal PID parameters by taking into account the two car models, after repeated simulation test, and considering the principle of rapidity and small overshoot. Parameter settings of the two algorithms are $K_{p} = 4.0, K_{i} = 0.018, K_{d} = 0.08, {\hat{ϕ}}_{1} (1) = 1, {\hat{ϕ}}_{2} (1) = 0.05, ς = 10^{- 4}, σ = 0.003, ψ = 0.01$ , μ = 10, K = 0.6, κ = 0.96, $β_{min} = - 42 deg, β_{max} = 42 deg, {\dot{β}}_{min} = - 20 deg / s, and {\dot{β}}_{max} = 20 deg / s$ .

The simulation consists of two parts: (1) automatic parking simulation of FAW Volkswagen CC (FAW-VW CC) and (2) automatic parking simulation of Audi A6L.

Automatic parking simulation results of FAW-VW CC

The basic parameters of FAW-VW CC and parking space are shown in Table 1. We should try to avoid the car steering wheel at the maximum rotation angle to protect the vehicle performance, therefore, the R₁ is chosen as follows

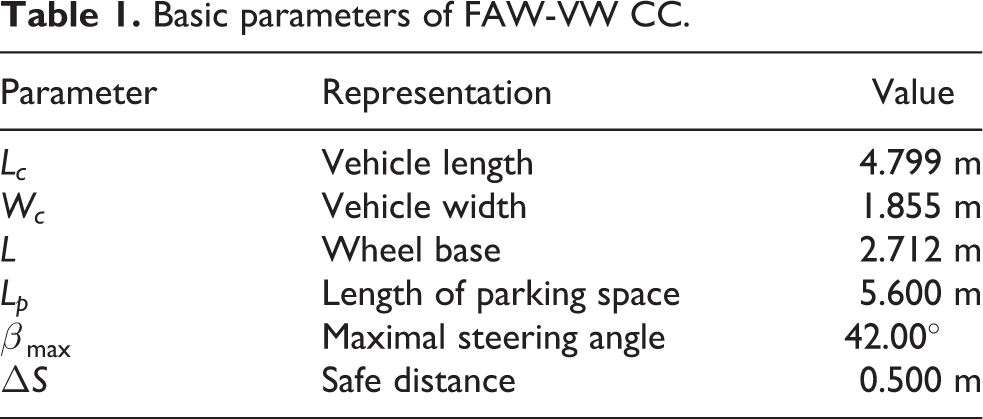

Table 1.

Basic parameters of FAW-VW CC.

Parameter	Representation	Value
L_c	Vehicle length	4.799 m
W_c	Vehicle width	1.855 m
L	Wheel base	2.712 m
L_p	Length of parking space	5.600 m
$β_{max}$	Maximal steering angle	42.00°
$Δ S$	Safe distance	0.500 m

\begin{array}{l} R_{1} = \frac{L}{tan (β_{max} / 1.1)} \end{array}

The automatic parking simulation results of FAW-VW CC with constant parking speed (v = 1.5 km/h) are shown in Figures 7 to 14.

Figure 7.

The orientation angle of the car of FAW-VW CC automatic parking.

Figure 8.

The steering angle of FAW-VW CC automatic parking.

Figure 9.

Tracking error of x-axis.

Figure 10.

Tracking error of y-axis.

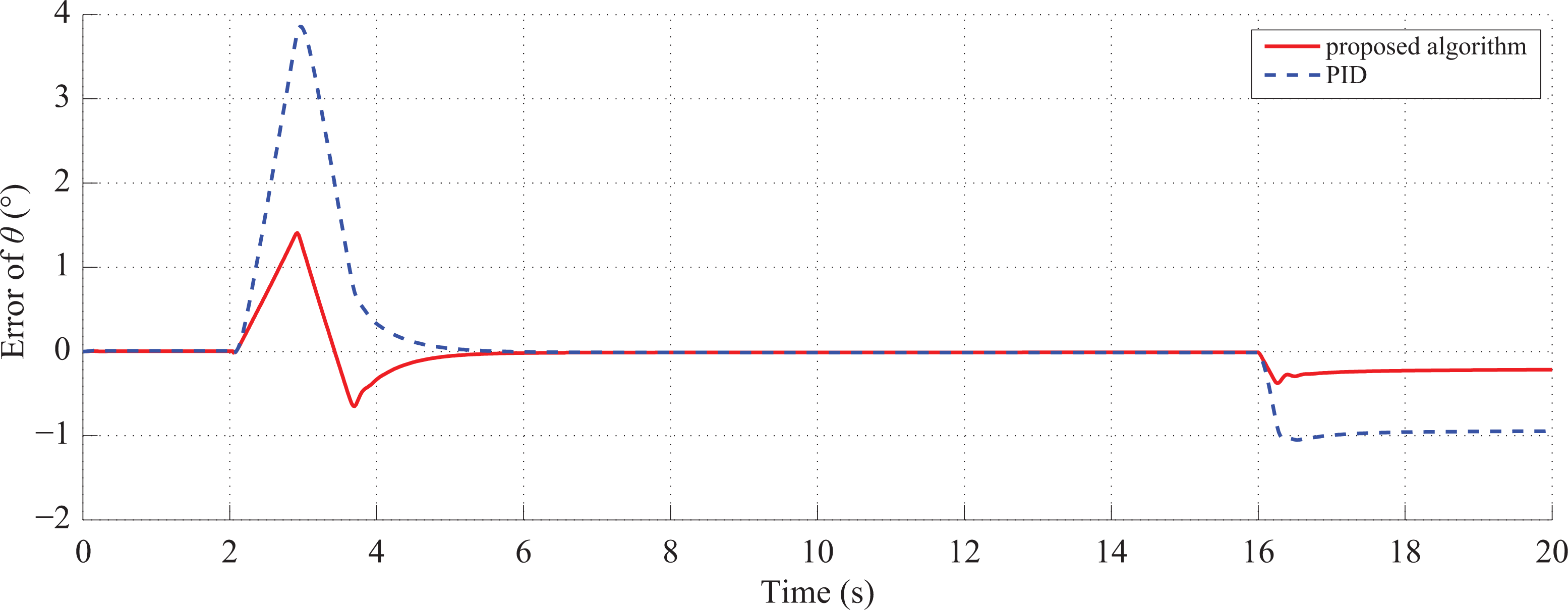

Figure 11.

Tracking error of orientation angle of the car.

Figure 12.

Compensation signal.

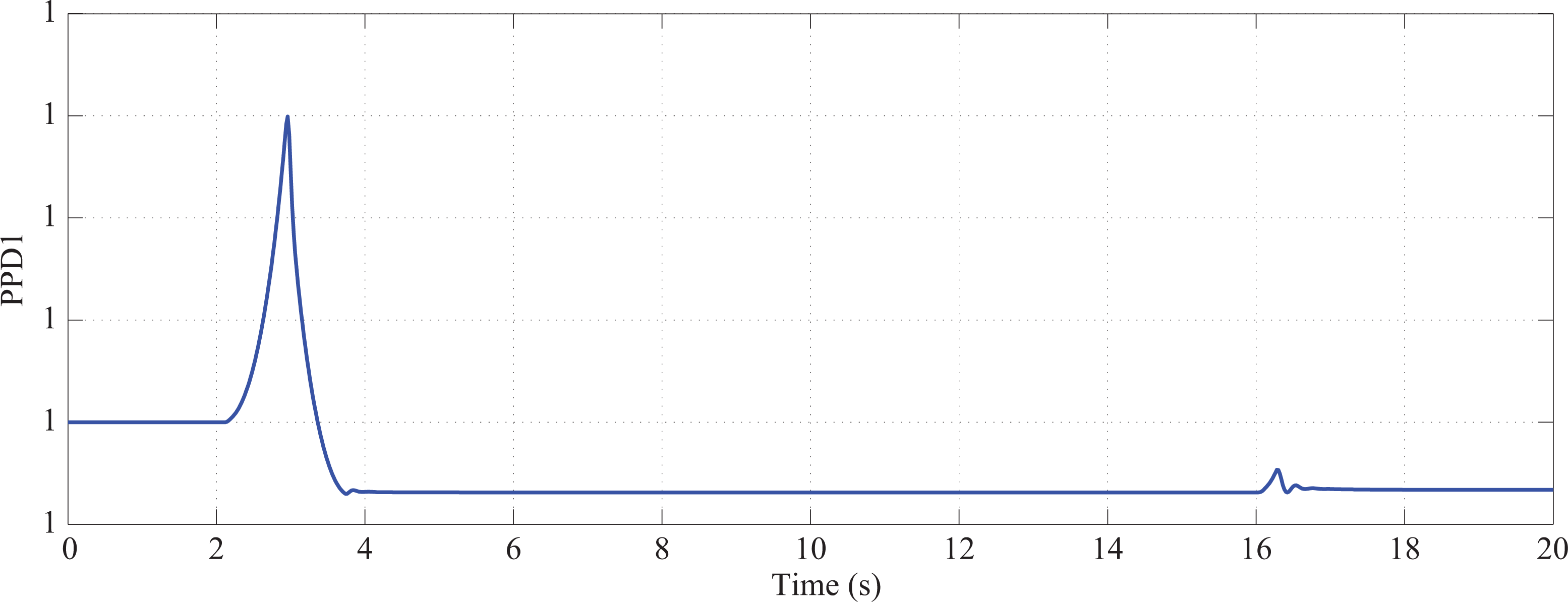

Figure 13.

PPD1 parameter estimation. PPD: pseudo partial derivative.

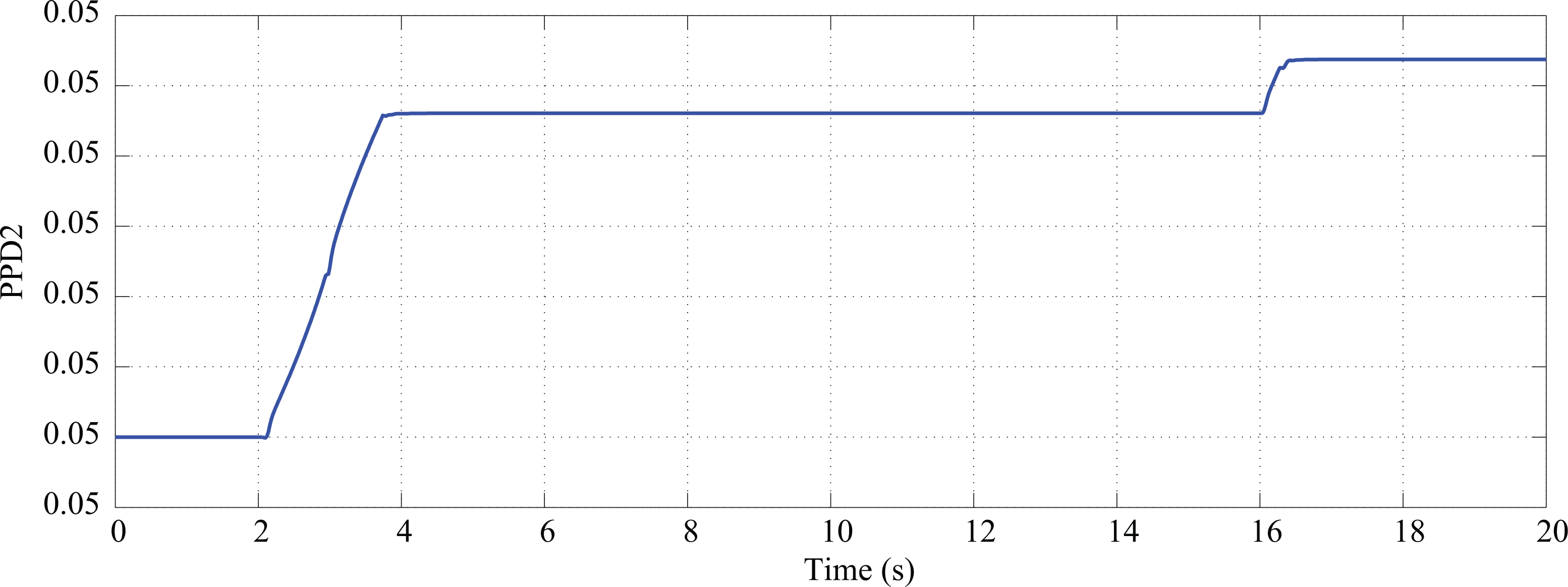

Figure 14.

PPD2 parameter estimation. PPD: pseudo partial derivative.

From Figure 7, we observe that the two schemes can both achieve the tracking of the target orientation angle of the car in the automatic parking process. By the local amplification as shown in Figure 7, it can be seen that the tracking effect of the novel data-driven constrained control scheme with coordinates compensation is obviously better than PID control scheme.

From Figure 8, we observe that the steering angle of the two schemes is consistent with the change of the orientation angle of the car in the automatic parking process. The front wheels of the two schemes are not swinging back and forth, which makes the parking process smooth.

The parking error comparisons of FAW-VW are shown in Figures 9 to 11. From these figures, we can see clearly that the tracking error of the novel data-driven constrained control scheme with coordinates compensation is smaller than PID control scheme. The parking error comparisons verified the validity of the coordinates compensation algorithm. The anti-windup compensation signal $ρ (k)$ is shown in Figure 12. In the whole tracking process, tuning PPD parameters are shown in Figures 13 and 14.

Automatic parking simulation results of Audi A6L

The basic parameters of Audi A6L and parking space are shown in Table 2. R₁ is same as equation (37).

Table 2.

Basic parameters of Audi A6L.

Parameter	Representation	Value
L_c	Vehicle length	5.015 m
W_c	Vehicle width	1.874 m
L	Wheel base	3.012 m
L_p	Length of parking space	5.600 m
$β_{max}$	Maximal steering angle	42.00°
$Δ S$	Safe distance	0.500 m

The automatic parking simulation results of Audi A6L with constant parking speed (v = 1.5 km/h) are shown in Figures 15 to 22. From the simulation comparisons, we observe that the novel data-driven constrained control scheme with coordinates compensation has smaller tracking errors and faster response speed than PID scheme.

Figure 15.

The orientation angle of the car of Audi A6L automatic parking.

Figure 16.

The steering angle of Audi A6L automatic parking.

Figure 17.

Tracking error of x-axis.

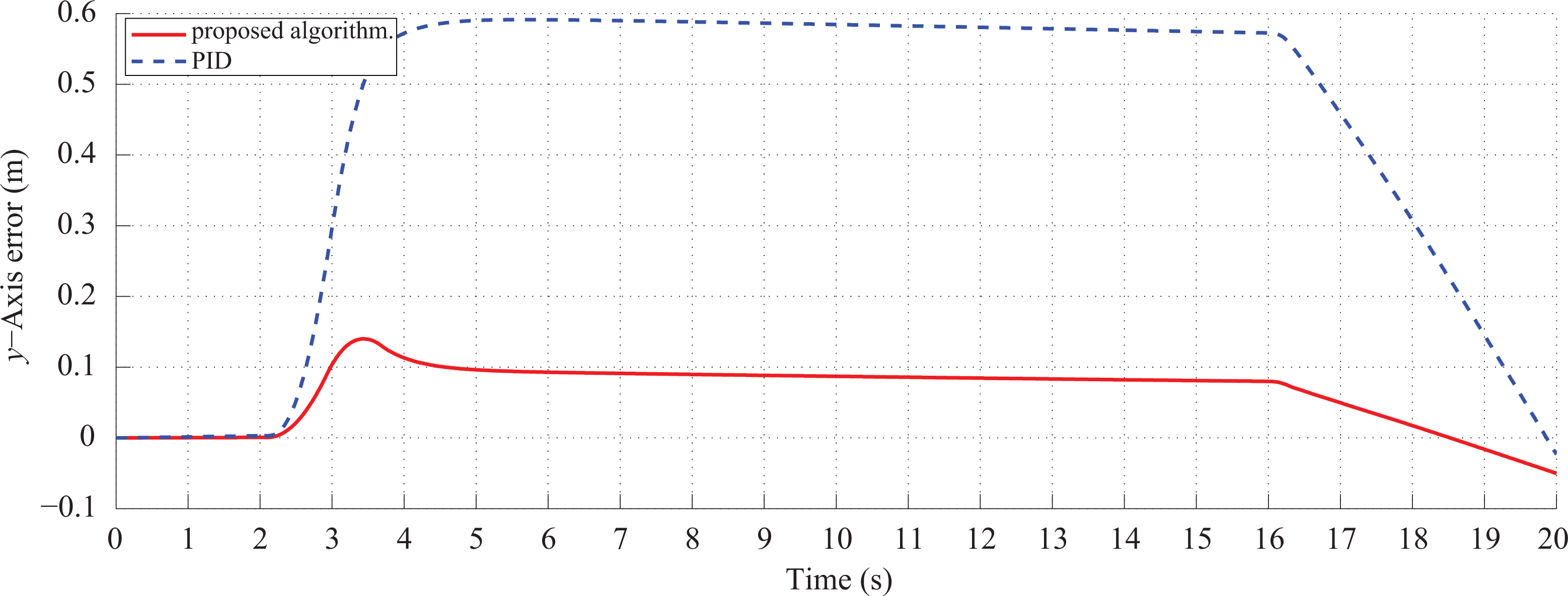

Figure 18.

Tracking error of y-axis.

Figure 19.

Tracking error of orientation angle of the car.

Figure 20.

Compensation signal.

Figure 21.

PPD1 parameter estimation. PPD: pseudo partial derivative.

Figure 22.

PPD2 parameter estimation. PPD: pseudo partial derivative.

Conclusion

A novel data-driven constrained control scheme is proposed for automatic car parking systems. The design of the proposed scheme only depends on the steering angle and the orientation angle of the car, and it does not involve any model information of the car. A coordinates compensation algorithm is also proposed, which reduces the tracking errors of proposed scheme. A dynamic constraints unit with anti-windup compensator is designed to accommodate the reference trajectory $θ^{*} (k)$ . The proposed constrained control algorithm has the real-time implementation advantages of not requiring any iterative calculations. The simulation results have verified the superiority of the proposed scheme.

Footnotes

Acknowledgements

The authors sincerely thank the editor and all the anonymous reviewers for their valuable comments and suggestions.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China (61503156, 61403161, and 51405198) and the Fundamental Research Funds for the Central Universities (JUSRP11562 and NJ20150011).

References

Green

. Parking crashes and parking assistance system design: evidence from crash databases, the literature and insurance agent interviews. In: 2006 SAE world congress, Detroit, MI, 3–6 April 2006.

Sazawa

Ohishi

. Fast continuous path tracking control considering high precision and torque saturation. In: IEEE Conference on Industrial Electronics, Porto, 3–5 November 2009, pp. 3089–3094.

Cheng

Zhang

Chen

. Planning and control for a fully-automatic parallel parking assist system in narrow parking spaces. In: IEEE Conference on Intelligent Vehicles Symposium, Gold Coast, QLD, 23–26 June 2013, pp. 1440–1445.

Run

Yen

Chen

. A study of automatic parallel parking system-from the viewpoints of user and manufacturer. In: IEEE Conference on Circuits, Communications and System, Wuhan, China, 17–18 July 2011, pp. 1–5.

Jung

Lee

Kim

. Uniform user interface for semiautomatic parking slot marking recognition. IEEE Trans Veh Technol 2010; 59(2): 616–626.

Kim

Chung

Park

. Practical motion planning for car-parking control in narrow environment. IET Control Theory Appl 2010; 4(1): 129–139.

Liu

K-Z

Horii

. An experimental comparison of nonholonomic control methods: automatic parking benchmark. In: IEEE Conference on Control Conference, Kos, 2–5 July 2007, pp. 2039–2044.

Chen

Hsu

Yao

. A novel design for full automatic parking system. Taipei, China, 2012.

Liang

Zheng

. Application of fuzzy control strategy in automatic parking path planning. Nanchang, China, 2012.

10.

THS

Chang

S-J

Chen

Y-X

. Implementation of human-like driving skills by autonomous fuzzy behavior control on an FPGA-based car-like mobile robot. IEEE Trans Ind Electron 2003; 50(5): 867–880.

11.

Baturone

Moreno-Velo

Sanchez-Solano

. Automatic design of fuzzy controllers for car-like autonomous robots. IEEE Trans Fuzzy Syst 2004; 12(4): 447–465.

12.

Heinen

Osorio

Heinen

. SEVA3D: using articial neural networks to autonomous vehicle parking control. In: IEEE Conference on Neural Networks, Vancouver, Canada, 16–21 July 2006, pp. 4704–4711.

13.

Hou

Jin

. A novel data-driven control approach for a class of discrete-time nonlinear systems. IEEE Trans Control Systems Technol 2011; 19(6): 1549–1558.

14.

Hou

Jin

. Data driven model-free adaptive control for a class of MIMO nonlinear discrete-time systems. IEEE Trans Neural Netw 2011; 22(12): 2173–2188.

15.

Hou

Wang

. From model-based control to data-driven control: survey, classification and perspective. Inf Sci 2013; 235: 3–35.

16.

Hou

. Notes on data-driven system approaches, Acta Autom Sinica 2009; 35(6): 668–675.

17.

Zhao

Han

. MIMO model free adaptive wide area power system stabilizer design. J Tsinghua Univ 2013; 53(4): 453–458,464.

18.

Jiang

Shi

. A novel model free adaptive control design for multivariable industrial processes. IEEE Trans Ind Electron 2014; 61(11): 6391–6398.

19.

Jiang

Shi

. Adaptive observer based data-driven control for nonlinear discrete-time processes. IEEE Trans Autom Sci Eng 2014; 11(4): 1037–1045.

20.

Chen

Fan

. A novel control algorithm for weld pool control. Ind Robot 2010; 37(1); 89–96.

21.

Lin

. Load control of wind turbine based on model-free adaptive controller. Trans Chin Soc Agric Machinery 2011; 42(2): 109–114,129.

22.

Chi

Hou

. A model-free periodic adaptive control for freeway traffic density via ramp metering. Acta Autom Sinica 2010; 36(7): 1029–1032.

23.

Gao

Zeng

. An anti-suction control for an intra-aorta pump using blood assistant index: a numerical simulation. Artif Organs 2012; 36(3): 275–285.

24.

Hou

. On data-driven control theory: the state of the art and perspective. Acta Autom Sinica 2009; 35(6); 650–667.

25.

Liu

Dao

Inoue

. An exponentially-convergent control algorithm for chained systems and its application to automatic parking systems. IEEE Trans Control Syst Technol 2006; 14(6): 1113–1126.

26.

Muller

Deutscher

Grodde

. Continuous curvature trajectory design and feedforward control for parking a car. IEEE Trans Control Syst Technol 2007; 15(3): 541–553.

27.

Spooner

Maggiore

Ordonez

. Stable adaptive control and estimation for nonlinear systems. New York: Wiley, 2002.

Data-driven automatic parking constrained control for four-wheeled mobile vehicles

Abstract

Keywords

Introduction

Problem formulation for automatic parking process

Parking space detection

Path planning

Path tracking

Main results

PPD parameter estimation algorithm

Theorem 1

Proof

A data-driven constrained control algorithm and stability analysis

Theorem 2

Proof

Corollary

Proof

The compensation algorithm of the target orientation angle of the car

Simulation results

Automatic parking simulation results of FAW-VW CC

Automatic parking simulation results of Audi A6L

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

References
