Abstract

The trajectory tracking performance of an actual robot is usually used as an important standard to evaluate a nonlinear controller algorithm. The aim of this article is to design a new experimental robot system based on the Robot Operating System-MATLAB framework. To validate the performance, a nonlinear tracking controller includes the following features. Firstly, the surface robot model is in Lie algebra $S O (3)$ format, which keeps the potential of cooperation control between space vehicles. Secondly, the nonlinear controller has good robustness under unknown disturbances. Thirdly, the control algorithm focuses on the practical robot, Turtlebot2. The robot system experimental results demonstrate the effectiveness of the proposed controller for trajectory tracking under unknown disturbance. The controller’s potential applications include autonomous robots for indoor examination, extreme condition rescuing, and cooperation between unmanned aerial vehicle and unmanned surface vehicle autodrives.

Keywords

Backstepping control Lyapunov direct method mobile robot ROS-MATLAB trajectory tracking

Introduction

The researchers have worked on mobile robots’ motion control for many years. It is very important to find a suitable experiment system for validating the control algorithm. However, many pieces of equipment cannot afford many institutions requirements because of price, capability, or space–size limitations. It indeed prevents many researchers to take part in the relative research work. Therefore, it is necessary to find a popularization robot experiment system.

Generally, an autonomous robot experiment system includes two main modules, location estimator and motion planning controller. According to performance classification, there are many kinds of location sensors, including QR codes, infrared ray localizer, laser radar, and vision-based camera. In autodrive vehicle projects, the cars’ location and navigation are usually based on laser-radar.^1,2 The sensor is also called multi-threaded Lidar, which are often used on high accuracy requirement projects. On the other hand, unmanned aerial vehicle (UAV) location equipment is a kind of high-speed camera, VICON.^3,4 However, the laser-radar and VICON are not only expensive but also needs typical computer support. They are lack of commercial margin because of high manufacturing cost. Therefore, in industrial application, mobile robots are usually located by encoders, QR codes or infrared ray localizers. For example, in automation warehouse, unmanned transporting robots are located by the QR code labels fixing on the ground.^5,6

Since the microelectronics hardware revolution, the computer image-processing ability has been upgraded by graphics processing unit (GPU) module. Consequently, the mobile robot generates an environment map⁷ and estimates its position in the global frame based on a real-time image database.⁸ The technique is called visual odometry (VO), a kind of robot location technique by real-time image single.^9,10 In addition, mobile robots generate environment maps by VO, and image data are called vision-based simultaneous location and mapping (vSLAM). The robot vSLAM system has been widely used on UAV motion planning projects.^11,12 The embedded GPU computer and vSLAM technique were widely used on mobile robot tracking and mapping missions, for example, an autonomous robot with real-time SLAM,¹³ stereo vSLAM method on outdoor mobile robot,¹⁴ the quadruped robot mapping and locomotion,¹⁵ outdoor mobile platform with multi-lines lidar,¹⁶ and indoor multi-robots navigation.¹⁷ A worldwide top robot laboratory, GRASP at the University of Pennsylvania, uses Kalman filter to optimize quadrotor locating algorithm, named vision inertial odometry.¹⁸ The lab has finished the short-range and long-term planning with obstacle avoidance algorithm design and implementation.¹⁹ Recently, the GRASP lab is focusing on the application of a UAV motion planning system with mathematical graph theory.²⁰

In despite of the robot locating ability, the robot tracking control algorithm is more significant. There are many classical controllers, for example, proportional–integral–derivative (PID), linear quadratic regulator (LQR), and Lyapunov theory-based backsptepping control (BKSP). At present, the researchers prefer multi-robot autopilot algorithm optimization and implementation. For instance, mobile robot,^21,22 UAV motion planning,²³ unmanned surface vehicle controller,²⁴ robot operating system (ROS)-based network optimization for multi-quadrotors control²⁵ and search-based UAV motion planning by linear quadratic theory.²⁶ A new research field is search-based motion planning for UAV flight in $S E (3)$ .^27,28 Lie Group $S E (3)$ is the mathematic foundation of the UAV motion model and controller in space. Therefore, the cooperative navigation and autodriving between UAV and unmanned surface vehicle (USV) motion is still a tough research topic.

This article aims to design an adaptive nonlinear controller and an experimental mobile robot system with the following features. Firstly, the robot dynamic and kinematic model is structured by Lie Algebra $S O (3)$ and Lie Group $S E (3)$ , same as the dynamic model of USV^29,30 or hovercraft.³¹ The mathematics model keeps the potential for cooperative control between UAV space motion and USV surface movement. Secondly, the experiment system includes a practical robot, Turtlebot2, and ROS-MATLAB framework. ROS provides libraries and tools to help software developers create robot applications. It provides hardware abstraction, device drivers, libraries, visualizers, message-passing, package management, and more. Thirdly, to ensure good robustness under complex environments, the mobile robot controller is based on the backstepping method³² and Lyapunov direct theory.³³

The main structure of this article is summarized as follows. The first chapter makes a statement about the whole research. The second section introduces the major symbols in this article, including the saturation function, skew-symmetric matrix, rotation matrix, and unit vectors. The mobile robot model and problem are introduced in the third section. An adaptive tracking controller is expressed in the fourth chapter. To validate the controller, a kind of mobile robot tracking experiment system is designed on a novel ROS-MATLAB framework in the fifth section. In the future, the experiment system could be used on relative academic or industrial application projects. When ROS2-Industry put into operation, the ROS-MATLAB experiment system could be applicated to many practical cases, for instance, formation control between UAV and USV, autonomous robots indoor patrol and examination in a warehouse, rescuing robots in extreme conditions, or auto-drive unmanned surface vehicles under space–earth network.

Notation

Special variables definition

To classify different variables, scalar, vector, and matrix are defined as follows. A scalar is a normal character, for instance, mass m, angular velocity r, and weight mass g. A vector character is written in bold, such as linear velocity v, position p, and force f. A matrix is a capital letter, for example, rotation matrix R, damping matrix D, and skew-symmetric matrix S.

A prime $f^{'} (x)$ represents a partial derivative of a time varying function $f (t)$ , with following features $f^{'} (x) = \frac{\partial f}{\partial x} (x)$ . An upper dot symbol $\dot{f} (x) = f^{'} (x (t)) \dot{x} (t)$ represents a total time derivative.

A unit vector is expressed as symbol e _i. For example, $e_{1}, e_{2}, e_{3}$ represent ${[1, 0, 0]}^{T}$ , ${[0, 1, 0]}^{T}$ , and ${[0, 0, 1]}^{T}$ , respectively.

A saturation function is $σ (x)$ , for example, a position error $σ (e_{p})$ . In addition, if a saturation function $σ (ϕ)$ is differentiable, it satisfies following prerequisite

σ (ϕ) = [σ (ϕ_{1}), σ (ϕ_{2}),..., σ (ϕ_{n} {)]}^{T}

\dot{σ} (ϕ) = σ (ϕ)^{'} \dot{ϕ} = (ϕ^{2} + {1)}^{- 1} \dot{ϕ} .

In general, there are many functions were used as saturators. For example, $arctan$ and $σ_{1} (s) = s / \sqrt{1 + s^{2}}$ .

An unknown variable b, $\hat{b}$ represents the estimator result. Character $\tilde{b}$ means unknown variable reality and hypothesis error. In addition, the relationship between error $\tilde{b}$ , reality constant b and hypothesis $\hat{b}$ is $\tilde{b} = b - \hat{b}$ , and the time derivative is $\dot{\tilde{b}} = - \dot{\hat{b}}$ .

There are typical characters that represent the space vector’s norm and direction. $∥ f ∥$ represents force vector’s norm, which is a scalar f_u . r ₁ is the direction vector about force components in x-axis. r _d is the desired direction vector about desired force components in x-axis. There is a relationship function between force norm and direction, $f = f_{u} r_{1},$ where $f_{u} = ∥ f ∥$ , $r_{1} = f / ∥ f ∥$ .

Rotation matrix

A rotation matrix $R (ψ)$ is important to calculate a robot’s orientation in initial frame ${I}$ from the fix-body frame states $[x, y, z]$ . The matrix $R \in S O (3)$ object represents an SO(3) rotation in 3D in a right-handed Cartesian coordinate system, which is usually a 3×1 vector. In addition, during space vector transformation, the rotation matrix SO(3) can be written as $R_{x} (γ), R_{y} (β), R_{z} (α)$ , which are about the transform in $x, y, z$ axes, respectively

R_{x} (γ) = [\begin{matrix} 1 & 0 & 0 \\ 0 & cos (γ) & - sin (γ) \\ 0 & sin (γ) & cos (γ) \end{matrix}]

R_{y} (β) = [\begin{matrix} cos (β) & 0 & sin (β) \\ 0 & 1 & 0 \\ - sin (β) & 1 & cos (β) \end{matrix}]

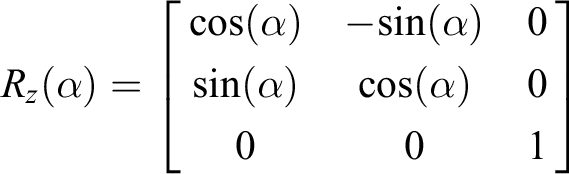

R_{z} (α) = [\begin{matrix} cos (α) & - sin (α) & 0 \\ sin (α) & cos (α) & 0 \\ 0 & 0 & 1 \end{matrix}]

Because of the rotation matrix $R \in S O (3)$ is special orthogonal, it includes following features, $R^{T} = R^{- 1}, R R^{T} = I,$ where I is a unit diagonal matrix.

Different from the pure rotation calculation in SO(3), the SE(3) object represents a 3D homogeneous transformation matrix consisting of a translation and rotation.

A SE(3) function in space is usually a 6×1 vector, which includes translation and rotation vectors.

Time derivative of rotation matrix

Because a mobile robot moves on a surface, the time derivative of its rotation matrix $R (ψ)$ is as follows

\dot{R} = r R S = [\begin{matrix} - sin (ψ) & - cos (ψ) & 0 \\ cos (ψ) & - sin (ψ) & 0 \\ 0 & 0 & 1 \end{matrix}] r

where $r = \dot{ψ}$ is angular velocity, R is the rotation matrix, and S is the skew-symmetric matrix. In addition, the time derivative of a rotation matrix and its transfer has the following features: $\dot{R} (ψ) = R S (\dot{ψ}) = R S (r)$ and ${\dot{R}}^{^T} (ψ) = - S (r) R^{T} (ψ)$ .

Skew-symmetric matrix

During rotation matrix R time derivative calculation, there is a special variable called skew-symmetric matrix, which includes angular velocity vector $ω = [ω_{1}, ω_{2}, ω_{3}]^{T}$

S (ω) = [\begin{matrix} 0 & - ω_{3} & ω_{2} \\ ω_{3} & 0 & - ω_{1} \\ - ω_{2} & ω_{1} & 0 \end{matrix}]

During space vector calculations, the skew-symmetric matrix has several special performances.

Firstly, there is a skew-symmetric matrix that includes a force’s direction r ₁ and desired $r_{1 d}$ vector. It is necessary to solving the controller function needs exchanging the matrix inner with the outer part, by the following equation, $r_{1}^{T} S (r_{1 d}) = - r_{1 d}^{T} S (r_{1})$ .

Secondly, if the direction vector is in the format as $e_{1} {= [1, 0, 0]}^{T}$ , the direction vector r ₁ can be written as $r_{1} = R e_{1}$ , $S (r_{1}) = S (R e_{1}) = R S (e_{1}) R^{T}$ , where R is the rotation matrix.

Thirdly, the cubed skew-symmetric matrix equals to negative of the original function as $S (r_{1 d}) = - S^{3} (r_{1 d})$ .

If the mobile robot is moving in surface, skew-symmetric matrix S could be simplified as $S (x) \in ℝ^{2}$ , $S (r) = [0, - r; r,0], S = [0, - 1; 1, 0] .$

Robot modeling and problem formulation

Turtlebot2 robot

In this project, the trajectory tracking controller, identification name BKSP-V-TB2, is designed based on a practical robot, Turtlebot2 (TB2). The robot had been widely used by many research institutions because its platform, KOBUKI, has five kinds of programmable data ports for different kinds of additional equipment requirements. For example, the robot upgrades its computational vision calculation ability by adding an embedded GPU computer (Nvidia Jetson TX2). To achieve the simultaneously location and mapping function, the robot equips a laser radar (Rplidar-A2), a depth camera (Kinect V1), and a powerful WIFI module for real-time graph signal communication. As Figure 1, the mobile robot’s fix-body frame in space includes three components in x, y, and z axes.

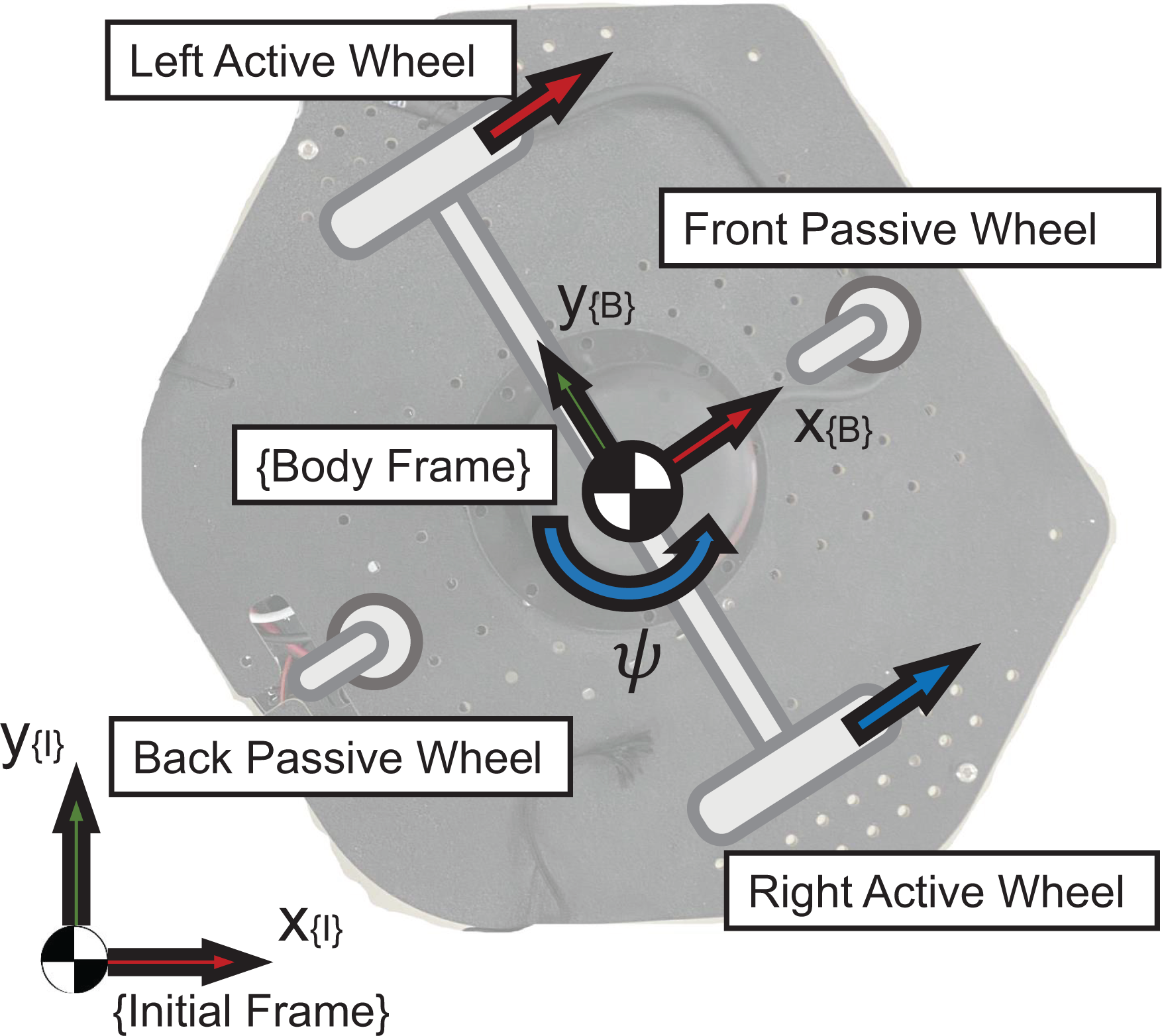

Figure 1.

The TB2 robot fix-body frame. TB2: Turtlebot2.

Mathematics model in space

In general, a mobile robot only revolves around surface motion, as the classic textbook by Craig³⁴ and Fossen.³⁵ However, to prepare for the space–earth cooperation control task, the mobile robot is defined in space vector format. The robot position and orientation are defined in inertial frame ${I}$ . The robot’s linear and angular velocities are expressed in fixed-body frame ${B}$ . As Figure 2, the robot can be simplified as a circle driven by two active wheels, fixed on brushless motors with two acculturated encoders.

Figure 2.

The TB2 robot motion model. TB2: Turtlebot2.

The robot orientation $ψ$ is marked at the circle center. The robot width length is w. The driven force in the surge direction is f_u . As Table 1, the mobile robot’s fix-body frame in space includes three components in x, y, and z axes.

Table 1.

Kinematics and dynamics model symbols.³⁹

Symbol	Introduction	Format
p	Position vector	${[x, y, z]}^{T}$
$ψ$	Rotation angle in z-axis	Scalar variable
$R (ψ)$	Rotation matrix within surface	$S O (3)$
v	Velocity vector	${[u, v, r]}^{T}$
$ω$	Angular velocity	Scalar variable
m	Mobile robot mass	Scalar variable
$S (ω)$	Skew-symmetric matrix	$3 \times 3$ matrix
D	Resistance parameters	$3 \times 3$ matrix
$I_{z z}$	Rotation initial parameter	Scalar variable
f	Added force vector	${[f_{u},0,0]}^{T}$
$τ$	Added torque	Scalar variable
b	Unknown disturbance	${[b_{x}, b_{y}, b_{z}]}^{T}$
N_r	Damping torque coefficient	Scalar variable

According to the general definition, the Turtlebot2 mobile robot’s kinematic and dynamic models are

\dot{p} = R (ψ) v + b, \dot{ψ} = ω

m \dot{v} = f + D v, I_{z z} \dot{ω} = τ + N_{r} ω

where $p = [p_{x}, p_{y} {,0]}^{T}$ is the mobile robot actual position space vector. $ψ$ is the robot orientation. $R (ψ)$ is a rotation matrix with attitude angle $ψ$ in z-axis. v and $ω$ are the mobile robot’s linear and angular velocity in fixed body frame ${B}$ , respectively. m is a scalar that represents the mobile robot mass. $S (ω)$ is the skew-symmetric matrix about angular velocity $ω$ during robot rotation transformation calculation. D is the resistance parameters matrix. $I_{z z}$ is the rotation initial coefficient. f and $τ$ are added force and torque on the robot, respectively. b is an unknown parameter.

Problem formulation

Robot motion model in space

The first challenge of this article is establishing a space model for the practical robot, Turtlebot2. To expand the autonomous system to airplane–vehicle cooperation location and navigation, the robot model was defined in space vectors. The robot dynamic model, equation (2), and kinematic function (1) have been introduced in “Mathematics model in space” section. In the mathematics aspect, three dimensions function will be friendly for rotation matrix R calculation and transformation between space frames. However, the 3D model’s calculation is much more complex than surface models.

Tracking controller

The second problem is designing a practical TB2 robot tracking controller, which is expended in the fourth section. It is also the most important task full of the challenge because the mobile robot is an underactuated model with nonlinear and unknown parameters. It means that the robot model is lack of active controller in the y-axis direction. Based on the mobile robot’s kinematic and dynamic model features, the control algorithm is based on Lyapunov direct method. In addition, according to the mobile robot, TB2, practical features and the motion controllers are linear u_d and angular velocity $ω$ .

Controller stability verification

The third challenge is about the control algorithm’s stability verification. A tracking controller’s fundamental function is decreasing errors between desired and actual trajectory based on the vision of backstepping control theory and the Lyapunov direct method. In other words, it is an optimization problem about error boundedness and convergence. In the physical aspect, the objective is forcing the mobile robot’s actual position p approach to a desired trajectory $p_{d} (t) \in ℝ^{2}$ . It is hard to transform a physical model into a purely mathematical question to certify the control system’s stability.

Experiment system

The fourth problem is designing a suitable experiment system to test the mobile robot control algorithm. The traditional robot motion and location experiment equipment are based on high-speed cameras (indoor) or multi-location sensors (outdoor), such as GPS, multi-lines radar, and vision-based sensors. All the equipment above have common features that are expensive price and hard to protect. In this article, the experiment system is based on a low-cost robot, Turtlebot2, and the ROS-MATLAB framework. The TB2 robot is lightweight, modular, and extensible equipment. The ROS system is good at distributing framework calculation and communication. It is the reason why ROS system becomes one of the most popular programming platforms in many institutions and industrial factories.

Signal transformation

The last problem comes from the ROS-MATLAB framework in the practical experiment. The control algorithm in MATLAB m-files needs to transform into a recognizable signal in practical mobile robots and embedded microcomputers. There are many hidden problems during ROS-MATLAB establishment, such as communication signal transformation, time-delay cancellation, and time-varying variables singularity avoidance.

Controller design and stability analysis

The Lyapunov direct method is a fundamental theory for studying nonlinear systems. Most practical robots are not ideal linear models. In this article, the mobile robot controller theory is based on the author’s previous work, the nonlinear controller about autonomous wheelchair,³⁶ two wheels robots cooperation control,^37,38 USV,^39,40 and tracking controller test system.^41
–43 The practical robot, Turtlebot2, is a nonlinear control system whose algorithm is based on Lyapunov direct method and backstepping control law. The robot movement is driven by left and right wheels with encoders. Therefore, the control variables are relative with linear u_d and angular u_r velocity, as a vector $v^{*} = [f (u_{d}), f (u_{r} {)]}^{T}$ . Generally speaking, the robot backstepping tracking problem is specifically calculating a solution for the control variables, $v^{*}$ . The objective is about minimizing robot state errors, such as position e _p, velocity e _v, and orientation $e_{ψ}$ .

Position error

In general, a trajectory tracking controller’s basic objective is driving the robot following a desired path. It means that the first target is canceling the error, equation (3) between robot’s actual and desired position in initial frame ${I}$ (or Global Frame)

e_{p} = p - p_{d}

where actual position is $p = [p_{x}, p_{y}]^{T}$ , and desired position is $p_{d} = [x_{d}, y_{d}]^{T}$ .

According to mobile robot kinematic equation (1), the time derivative function of the position error is

{\dot{e}}_{p} = R v + b - R^{T} p_{d}

where b is an added unknown disturbance.

First Lyapunov function

Based on the position error e _p and a disturbance estimation error ${\tilde{b}}_{1}$ , the first Lyapunov function is

V_{1} = \frac{1}{2} e_{p}^{T} e_{p} + \frac{1}{2 k_{b 1}} {\tilde{b}}_{1}^{T} {\tilde{b}}_{1}

where estimation error ${\tilde{b}}_{1} = b - {\hat{b}}_{1}$ .

According to position error equation (4), the first Lyapunov time derivative function is

{\dot{V}}_{1} = - k_{1} e_{p}^{T} e_{p} + k_{1} e_{p}^{T} e_{p} + e_{p}^{T} {\dot{e}}_{p} + \frac{1}{2 k_{b 1}} {\tilde{b}}_{1}^{T} {\dot{\tilde{b}}}_{1} = - W_{1} + e_{p}^{T} R (ψ) (v + R^{T} k_{1} e_{p} + R^{T} {\hat{b}}_{1} - R^{T} {\dot{p}}_{d}) + {\tilde{b}}_{1}^{T} (e_{p} - \frac{1}{k_{b 1}} {\dot{\hat{b}}}_{1})

where W ₁ is a positive definite parameter $k_{1} e_{p}^{T} e_{p}$ .

Desired linear velocity

According to the robot features, the control variable is related to velocity v. Therefore, the time derivative of the Lyapunov function can include a velocity error, and the desired speed function is

v^{*} = - R^{T} (k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d})

Because the mobile robot is an underactuated system, which cannot directly controlled by a space vector, the deconstruction is necessary.

Space vector deconstruction

In an underactuated system, the active control vector needs deconstruction before calculating its solution. In general, there are two ways to separate a space vector $v^{*}$ , by components (case 1) and by direction (case 2), as Figure 3.

Figure 3.

Space vector deconstruction.

It is obvious that, in case 1, the projection on robot surge u and sway v direction construct the space vector $v^{*} = [u_{d}, u_{v}]^{T}$ . In case 2, the vector’s components are different, which are based on the vector’s norm $∥ v^{*} ∥$ and direction $r_{d}^{*}$ . In general, the controller space vector $v^{*}$ represents velocity, force, or acceleration. When the space vector $v^{*}$ has a physical propose, the advantage of the second case is significant. Because the norm and direction way is closer to the practical phenomenon. Therefore, the desired velocity space vector $v^{*}$ components by its norm and a direction as following equations

u_{d} = ∥ v^{*} ∥ = ∥ - R^{T} (k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d}) ∥

r_{d} = \frac{v^{*}}{∥ v^{*} ∥}

There is an important conclusion that the robot desired linear velocity $u_{d}^{*}$ expression function is

u_{d}^{*} = ∥ + k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d} ∥

First Lyapunov function time derivative

Based on vector deconstruction equations (6) and (7) definition, the time derivative of the first Lyapunov function becomes

\begin{matrix} {\dot{V}}_{1} = - W_{1} + e_{p}^{T} R (ψ) (r_{1} u_{1} - r_{d} u_{d}) \\ = - W_{1} + u_{d} e_{p}^{T} R (ψ) S {(r_{1})}^{2} r_{d} \end{matrix}

where u ₁ and r ₁ represent actual controller v vector’s norm and direction. u_d and $r_{d}$ represent desired controller $v^{*}$ vector’s norm and direction. W ₁ is a positive definite parameter $k_{1} e_{p}^{T} e_{p}$ . There are relationship functions between u ₁, u_d , r ₁ and r _d .

u_{1} = ∥ v ∥, u_{d} = ∥ v^{*} ∥, r_{1} = \frac{v}{∥ v ∥}, r_{d} = \frac{v^{*}}{∥ v^{*} ∥}

Direction error

Based on the actual and desired velocity vector v and $v^{*}$ , equations (6) and (7), the robot direction error z _d is defined as follows

\begin{matrix} z_{d} = r_{1} - r_{d} \\ cos z_{θ} = 1 - \frac{1}{2} z_{d}^{T} z_{d} = r_{1}^{T} r_{d} \end{matrix}

where the direction error $z_{θ}$ is replaced by a cross-production between actual r ₁ and desired r _d direction vectors.

Second Lyapunov functions

After direction error definition $z_{θ}$ , the second Lyapunov function includes first Lyapunov function V ₁, direction vector z _d , and the second unknown parameter b ₂ as follows

\begin{matrix} V_{2} = V_{1} + \frac{1}{2 k_{2}} z_{d}^{T} z_{d} + \frac{1}{k_{b 2}} {\tilde{b}}_{2}^{T} {\tilde{b}}_{2} \\ = V_{1} + \frac{1}{k_{2}} (1 - cos z_{θ}) + \frac{1}{k_{b 2}} {\tilde{b}}_{2}^{T} {\tilde{b}}_{2} \\ = V_{1} + \frac{1}{k_{2}} (1 - r_{1}^{T} r_{d}) + \frac{1}{k_{b 2}} {\tilde{b}}_{2}^{T} {\tilde{b}}_{2} \end{matrix}

The second Lyapunov time derivative function is

\begin{matrix} {\dot{V}}_{2} = {\dot{V}}_{1} + \frac{d}{d t} (\frac{1}{k_{2}} (1 - r_{1}^{T} r_{d})) - k_{3} {sin}^{2} z_{θ} + k_{3} {sin}^{2} z_{θ} \\ + {\tilde{b}}_{1}^{T} (e_{p} - \frac{1}{k_{b 1}} {\dot{\hat{b}}}_{1}) + {\tilde{b}}_{2}^{T} (\frac{\partial {\dot{V}}_{2}^{T}}{\partial b_{2}} - \frac{1}{k_{b 2}} {\dot{\hat{b}}}_{2}) \\ = - W_{2} + r_{d}^{T} R (ψ) S (e_{1}) (u_{d} S (e_{1}) R^{T} {(e_{p}^{T} R (ψ))}^{T} \\ - k_{3} S (e_{1}) R^{T} r_{d} + \frac{1}{k_{2}} ω - \frac{1}{k_{2}} R^{T} S (r_{d}) {\dot{r}}_{d}) \\ + F {b_{1}} + F {b_{2}} \end{matrix}

where W ₂ is a positive definite function as $k_{1} e_{p}^{T} e_{p} + k_{3} {sin}^{2} z_{θ}$ . $F {b_{1}}$ and $F {b_{2}}$ represent the first and second unknown disturbance estimator functions, respectively.

Desired angular velocity

Based on the second time derivative of Lyapunov function ${\dot{V}}_{2}$ , the equation can be transformed to a new format as ${\dot{V}}_{2} = A ω + B$ , where A and B are $ω$ parameter matrix and a constant vector. To obtain the new expression function, it is necessary to extracting the angular velocity common factor in ${\dot{V}}_{2}$ equation (11). The time derivative of second Lyapunov function transforms as follows

{\dot{V}}_{2} = - W_{2} + r_{d}^{T} R S (e_{1}) {S (e_{1}) R^{T} (u_{d} {(e_{p}^{T} R (ψ))}^{T} - k_{3} r_{d})

+ \frac{1}{k_{2}} (ω - R^{T} S (r_{d}) {\dot{r}}_{d})} + F {b_{1}} + F {b_{2}}

There is a fundamental hypothesis in the Lyapunov direct method that, if the time derivative Lyapunov function is negative definite as time variable $t \to 0$ , the whole states space equilibrium point should be asymptotic stability. It means following desired angular velocity equation is reliable in order to guarantee the controller effectiveness

ω^{*} = - k_{2} Γ_{u d} + R^{T} S (r_{d}) {\dot{r}}_{d}

where there is a function be independent of angular velocity $ω$

Γ_{u d} = S (e_{1}) R^{T} (u_{d} {(e_{p}^{T} R (ψ))}^{T} - k_{3} r_{d}) .

In addition, after replacing unknown disturbance b by second estimation value ${\hat{b}}_{2}$ , the time derivative of direction vector ${\dot{r}}_{d}$ becomes

{\hat{\dot{r}}}_{d} = \frac{- S^{2} (r_{d})}{∥ v^{*} ∥} {\hat{\dot{v}}}^{*}

\begin{matrix} {\hat{\dot{v}}}^{*} = S ω R^{T} (k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d}) \\ - R^{T} (ψ) (k_{1} {\hat{\dot{e}}}_{p} + {\dot{\hat{b}}}_{1} - {\ddot{p}}_{d}) \end{matrix}

There is a new generated unknown disturbance part ${\hat{b}}_{2}$ after time differential calculation

{\hat{\dot{e}}}_{p} = R v + {\hat{b}}_{2} - {\dot{p}}_{d}

Finally, the desired angular velocity $ω^{*}$ expression function could be determined based on the last calculation results, equations (12)–(16).

Unknown parameter estimator

In general, the unknown parameter $\dot{\hat{b}}$ estimator integral function is similar with the following format

F {b} = {\tilde{b}}^{T} (Γ_{b} - \frac{1}{k_{b}} \dot{\hat{b}})

As equation (11), there are two unknown disturbance estimator function, $F {b_{1}}$ and $F {b_{2}}$ . After replacing the unknown part b with estimation value $\hat{b}$ , the first and second estimator functions are

F {b_{1}} = {\tilde{b}}_{1}^{T} (e_{p} - \frac{1}{k_{b 1}} {\dot{\hat{b}}}_{1})

F {b_{2}} = {\tilde{b}}_{2}^{T} (\frac{\partial {\dot{V}}_{2}^{T}}{\partial b_{2}} - \frac{1}{k_{b 2}} {\dot{\hat{b}}}_{2})

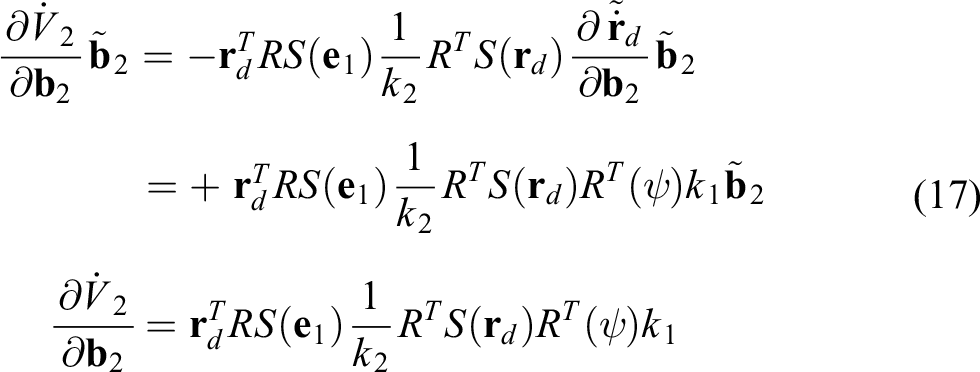

where ${\dot{V}}_{2}$ partial derivative about b ₂ is

\begin{matrix} \frac{\partial {\dot{V}}_{2}}{\partial b_{2}} {\tilde{b}}_{2} = - r_{d}^{T} R S (e_{1}) \frac{1}{k_{2}} R^{T} S (r_{d}) \frac{\partial {\tilde{\dot{r}}}_{d}}{\partial b_{2}} {\tilde{b}}_{2} \\ = + r_{d}^{T} R S (e_{1}) \frac{1}{k_{2}} R^{T} S (r_{d}) R^{T} (ψ) k_{1} {\tilde{b}}_{2} \\ \frac{\partial {\dot{V}}_{2}}{\partial b_{2}} = r_{d}^{T} R S (e_{1}) \frac{1}{k_{2}} R^{T} S (r_{d}) R^{T} (ψ) k_{1} \end{matrix}

According to the Lyapunov direct method requirement, the time derivative of the Lyapunov function must be semi-negative definite. It means all components of the ${\dot{V}}_{2}$ function are negative-definite or zero. Therefore, the first $F {b_{1}}$ and second $F {b_{2}}$ estimator satisfy

{\dot{\hat{b}}}_{1} = k_{b 1} e_{p}

{\dot{\hat{b}}}_{2} = k_{b 2} \frac{\partial {\dot{V}}_{2}^{T}}{\partial b_{2}}

After substituting equation (17) into (19), an integrator format estimator functions ${\hat{b}}_{1}$ and ${\hat{b}}_{2}$ are established.

Controller stability analysis

If the kinematic parameters in equation (1) are certainly known, a perfect control law is

u_{d} = ∥ k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d} ∥ = ∥ v^{*} ∥

r_{d} = \frac{k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d}}{∥ k_{1} e_{p} + {\hat{b}}_{1} - {\dot{p}}_{d} ∥}

where u_d and r _d are controller variables related to the linear and angular velocity. Detailed proof for the stability of the backstepping controller can be found in Krstic et al.³²

Proposition

The control law u_d (20), r _d (21) can achieve global trajectory tracking, by guaranteeing that all robots state errors e_p , $z_{θ}$ converge to zero for any initial condition.

Proof

Based on the control law u_d (20), r _d (21) and the disturbance integral estimation law, equations (18) and (19), the final system’s Lyapunov function V is

V = \frac{1}{2} e_{p}^{T} e_{p} + \frac{1}{2 k_{b 1}} {\tilde{b}}_{1}^{T} {\tilde{b}}_{1} + \frac{1}{k_{2}} (1 - cos z_{θ}) + \frac{1}{k_{b 2}} {\tilde{b}}_{2}^{T} {\tilde{b}}_{2},

and its time derivative $\dot{V}$

\dot{V} = - k_{1} e_{p}^{T} e_{p} - k_{3} {sin}^{2} z_{θ}

is a negative semidefinite function. Based on the condition, the time derivative of V is negative definite, meaning that the origin is uniformly asymptotically stable. $\dot{V} \leq 0$ indicates that the control law achieves trajectory tracking by guaranteeing the errors $(e_{p}, z_{θ})$ converging to uniformly asymptotically stable equilibrium $(0 0)$ or $(0 π)$ as $t \to \infty$ . On the other hand, the controller performance needs to verify on a practical robot. Therefore, a mobile robot tracking experiment system is designed by the ROS-MATLAB framework in the next section.

Experiment system design

In general, a robot tracking control system includes three parts, locating, controlling, and adding function modules. However, most of the robot locating equipment is very expensive, such as multi-lines radar, stereo vision camera, or high-speed industrial visual sensors. To validate the controller performance without expensive equipment, a kind of robot tracking test system was designed based on the ROS-MATLAB framework. The implementation robot, Turtlebot2, components are a KINECT camera, JETSON TX2 embedded GPU, KOBUKI platform, and an Rplidar-A2. The original target is tracking control of the mobile robot TB2, which was widely used in academic research, especially on ROS-based simulation systems. As Figure 4, the TB2 robot components include a KOBUKI mobile robot with two active wheels, two-speed encoders, a Kinect-V1 depth camera, a laser radar RPlidar-A2, and an Nvidia TX2 GPU-embedded computer.

Figure 4.

The TB2 mobile robot components. TB2: Turtlebot2.

The experiment will be introduced based on two aspects, hardware, and networks, in the next section.

Embedded computer

As Nvidia company’s official datasheet was introduced, the Jetson TX2 is a full-featured development platform for visual-based computing. The powerful graph calculation unit, 256-core NVIDIA Pascal GPU, makes it an ideal equipment for applications requiring high-computational performance in a low-power envelope. The module was pre-flashed with a Linux environment, included many common APIs, and was supported by NVIDIA’s official development tools and apps. The computer will be installed with ROS and related TB2 robot packages in this project.

Depth camera

The Kinect V1 camera is a kind of developed vision-based human body sensor. Based on the depth camera, the system could calculate the target model states in 3D space. The camera will be used on the mobile robot self-position and orientation estimation task.

Laser radar

The Rplidar-A2 is a kind of accurate radar, which the longest reflection distance is up to 20 m. In this project, the radar will provide an environment map by scanning surrounding obstacles. Based on the initial-frame map and robot self-odometry data, the system could calculate its position and location in the global frame.

Simulation software

The ROS-MATLAB framework is based on a calculation computer with Matlab software as Figure 5, a Wi-Fi-based Ethernet, and several location sensors, such as vision-based radar, laser, and motors encoders.

Figure 5.

The ROS-MATLAB experiment framework. ROS: Robot Operating System.

When running the trajectory tracking experiment, the mobile robot sends odometry data to the embedded computer, Jetson TX2. In addition, the Rplidar generates a local map by scanning the surrounding environment. The vision data, which was captured by the Kinect camera, were also sent to the TX2 computer. The robot publishes all data in the ROS-MATLAB system and receives the command in Ethernet. The tracking controller is running in MATLAB software on host personal computer (PC) and sending them to practical robot by ROS system, as Figure 6.

Figure 6.

The TB2 robot tracking experiment control screen. TB2: Turtlebot2.

Simulation and experiment results

Parameters setting

The robot tracking controller is validated on the ROS-MATLAB experiment system. In this project, the simulation assumed that the robot running in an ideal environment, which ignores many additional disturbances, such as ground friction, damping force, motor voltage delay, and mobile robot speed limitation. However, after practical pretesting experiments, there is a conclusion that it is impossible to cancel the mistake between practical and ideal robot models. Therefore, to minimize the errors, the initializing process is necessary before practical experiments. One of the most important tasks is setting control algorithm parameters. The experiment requirement, all controller gains, and robot parameters are defined in Table 2.

Table 2.

Mainly parameters definition.

Parameters	Introduction
$k_{1} = 0.8$	Position controller gain
$k_{3} = 0.8$	Robot orientation controller gain
$k_{b 1} = 1$	First disturbance estimator gain
$k_{b 2} = 1$	Second disturbance estimator gain
$m = 5$	Mobile robot mass (kg)
$I_{z z} = 1.25$	Mobile robot moment of inertia
$u_{d} = 0.2$	Robot cruise speed (m/s)
$p_{d 0} {= [0.2, 0.4]}^{T}$	Desired trajectory initial position (m)
$p_{m 0} = [- 0.1, - {0.1]}^{T}$	Simulation robot initial position (m)
$p_{a 0} = [- 0.092915, - 0.33452]$	Practical robot initial position (m)

Before the practical experiment, communication must be established between host PC and the mobile robot, Turtlebot2. Generally, the preparation work includes ROS host PC and master computer network setting, Turtlebot bring-up programming, host PC and robot microcomputer connection testing, mobile robot odometry, and radar scanning data publishing code compiling. The preparation work is finished until the mobile robot could be controlled on Matlab software (PC side) manually.

Trajectory tracking performance

During the practical experiment, the mobile robot desired path is a circle, radius of which is about 1 m, center locates at the initial position $p_{d 0} {= [0.2, 0.4]}^{T}$ . The desired velocity is, $v_{d} = [u_{d} {,0]}^{T}$ , where cruise speed is $u_{d} = 0.2 m/s$ . The simulation robot initial position is $p_{m 0} = [- 0.1, - {0.1]}^{T} m$ . The practical robot position is different within each time experiment. In this article, the actual initial position is $p_{a 0} = [- 0.092915, - 0.33452]$ . As Figure 7, there are desired, simulation, and actual mobile robots’ tracking paths. The experiment is assumed as under disturbance in the initial frame, $b {= [0.002, 0.001]}^{T}$ . The simulated and practical robots both follow the desired path smoothly with initial position errors.

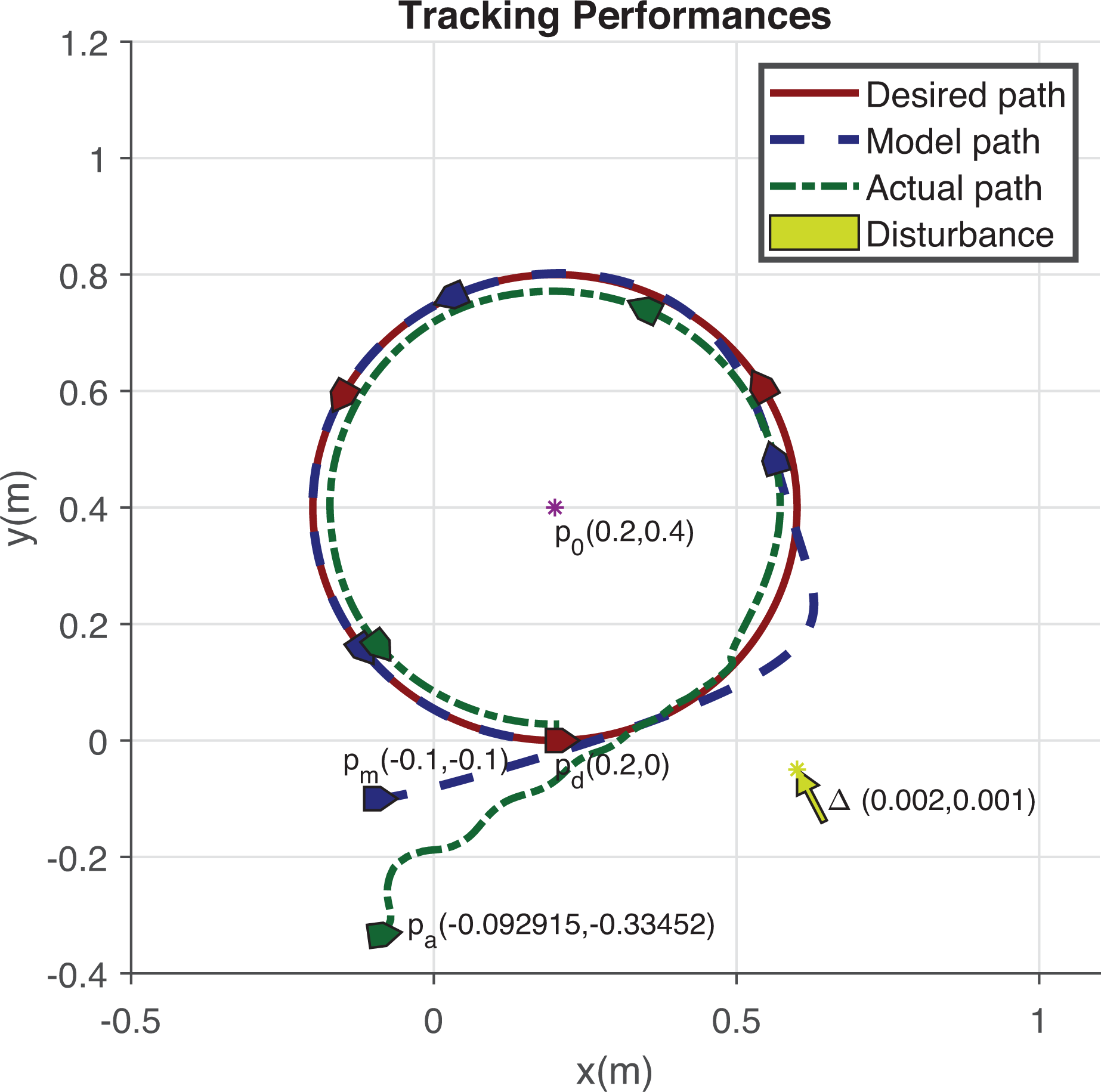

Figure 7.

The TB2 robot trajectory tracking experiment paths. TB2: Turtlebot2.

The practical robot tracking path is much more complex than the simulation model. In the beginning, the mobile robot, TB2, turns left suddenly, which is different from the simulation mobile robot. The reason is the simulating robot model facing to target direction in the beginning. However, the practical robot’s initial orientation cannot be defined, which is one of the ROS-MATLAB limitations. Therefore, the mobile robot TB2 has to turn suddenly in the beginning until the controller calculated the desired target direction and orientation.

Position signals and errors

Position signals

As Figure 8, there are reference p _d , model p _m and actual p _a mobile robots’ position signals. Because the desired path is a circle, the position signals are similar to trigonometric function $sin (t)$ and $cos (t)$ . The signals amplitude $[0, 0.8]$ represents tracking circles’ diameter $0.8 m$ .

Figure 8.

The TB2 robot tracking position. TB2: Turtlebot2.

Position errors

As Figure 9, the position errors between reference and model $e_{m x}, e_{m y}$ , desired path and actual $e_{a x}, e_{a y}$ are presented in two subfigures. The errors are getting stable and converging to zero within 5–8s.

Figure 9.

The TB2 robot tracking position errors. TB2: Turtlebot2.

As time passes by, all of the errors are converging to zero without sudden shock. It means the controller drives the robot’s approach to the destination normally. In addition, the system is working effectively under the unknown disturbance b.

Controller performance

As Figure 10, there is the backstepping control law performance in the first 30 s. The surge velocity controller u_d approaches to stability point in 10 s. The angular velocity controller r _d maintains to stable around 3.5 s.

Figure 10.

The TB2 robot tracking controller performance. TB2: Turtlebot2.

Simulation and experiment comparation

The practical robot working environment is much more complex than the simulation. The track mobile model is under the assumption that the robot works under ideal conditions. It can be found in Figure 7 that the practical robot’s initial position is a complex number. Even though there are many unknown parameters or disturbances, the BKSP-TB2 robot controller is still working normally. In the mathematics aspect, the control algorithm can not only decrease the error between the assumed robot and desired path but also could work on a practical robot. The controller’s robust ability under nonlinear models and unknown disturbance is much better than other linear classic controllers.

Lyapunov function performance

As the most important variables, the Lyapunov function and its time derivative are presented in Figure 11. The Lyapunov function represents all errors “energy,” which is always converging to zero if the system is effective. It means the Lyapunov function should be decreasing (the first and second subfigures) and its time derivative must be negative definite (the third subfigure). When the Lyapunov function is positive and the time derivative is semi-negative definite, the control law achieves trajectory tracking by guaranteeing all of the robot’s states errors $(e_{p}, z_{θ})$ converging to uniformly asymptotically stable.

Figure 11.

The Lyapunov functions and its time derivative.

Controller features comparison

To validate the robustness of the BKSP-TB2 control law, it is necessary to contrast the backstepping controller with a widely used control algorithm, PID. Firstly, to quantity the performance effect between backstepping and PID controller in this case, a simulation system was built in Matlab–Simulink toolbox. Secondly, the mobile robot dynamic model needs linearization before PID controller simulation. Facing double linearized mobile robot models, both controllers work under the same circle-like trajectory. Finally, both controller performances are presented within states errors, as shown in Figure 12.

Figure 12.

The state errors of backstepping and PID controller. PID: proportional–integral–derivative.

Both orientation error signals under both controllers are as follows. denotes, the Backstepping makes the error approach to equilibrium faster with less vibration.

To validate the difference between backstepping and PID, the controller states errors are calculated in ISE (Integral of Square Error), ITSE(Integral of Timed Square Error), and IAE (Integral of Absolute Errors), as Table 3. The simulation signal result is denoted in Figure 13.

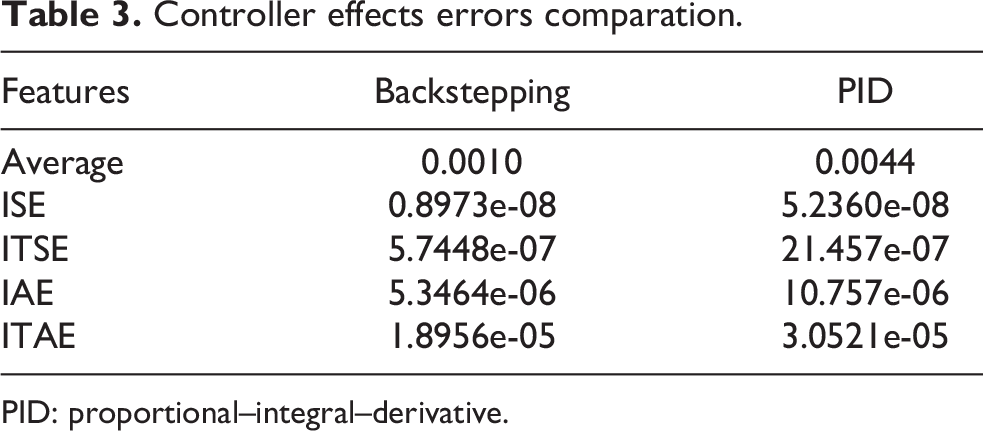

Table 3.

Controller effects errors comparation.

Features	Backstepping	PID
Average	0.0010	0.0044
ISE	0.8973e-08	5.2360e-08
ITSE	5.7448e-07	21.457e-07
IAE	5.3464e-06	10.757e-06
ITAE	1.8956e-05	3.0521e-05

PID: proportional–integral–derivative.

Figure 13.

Controllers effects in ISE, ITSE, and IAE. ISE: integral of square error; ITSE: integral of timed square error; IAE: integral of absolute errors.

As Table 3 demonstrates, the backstepping controller effect errors in ISE, ITSE, and IAE are much less than PID, which represents that the backstepping controller has better performance and robustness.

In conclusion, the backstepping controller is much more suitable for the nonlinear system and has good performance in adaptive features, as Table 4. The PID controller is simple and used widely. However, single PID gives poor performance when the loop gains must be reduced. They also have difficulties in the presence of nonlinearities and have lag in response to large disturbances. The LQR algorithm is just an automated way of finding an appropriate state-feedback controller. It is many times difficult to find the settings of a regulating controller by using a mathematical algorithm which minimizes a cost function with weighting factors.

Table 4.

Controller features comparation.

Features	BKSP	PID	LQR
Nonlinearity	Good	Poor	Poor
Self-adapting	Good	Poor	Normal
Expandability	Good	Poor	Normal
Robustness	Good	Poor	Poor

BKSP: backsptepping; PID: proportional–integral–derivative; LQR: linear quadratic regulator.

Conclusion

In this article, a novel experimental mobile robot system based on the ROS-MATLAB framework has been introduced. The aim of the system is to validate the surface trajectory tracking controller designed using Lie Algebra $SO (3)$ to enable potential cooperation navigation with UAVs. In addition, an integrator estimator has been designed for handling unknown disturbances. The simulation results show that the proposed control system performs well, even under a large initial position error and unknown disturbances. This experimental system and controller have the potential to be utilized by other institutions for similar robot projects, such as autonomous industry vehicles, outdoor automatic logistics, and extreme conditions of human rescue. Furthermore, the proposed technique can be extended to unmanned robots for space–ground cooperation navigation, tracking control, and landing assignments between UAVs and USVs. In conclusion, the work can be applicated in the field of developing more robust and versatile mobile robot systems.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work described in this article was partially supported by FDCT funding support project, Macau, China (File No. 0027/2018/ASC, 0041/2018/AIR, and 003/2019/AIR), Education innovation project, Beijing Normal University, Zhuhai, China (Project Code: 202009), and Beijing Normal University at Zhuhai, Undergraduate Training Program for Innovation and Entrepreneurship (Project Codes: S202319027022 and X202319027159).

ORCID iD

Zhenning Yu

References

Geiger

Lenz

Urtasun

. Are we ready for autonomous driving? The KITTI vision benchmark suite. In: 2012 IEEE conference on computer vision and pattern recognition, Providence, RI, 16–21 June 2012, IEEE.

Geiger

Lenz

Stiller

, et al. Vision meets robotics: the KITTI dataset. Int J Rob Res 2013; 32(11): 1231–1237.

Cabecinhas

Cunha

Silvestre

. Saturated output feedback control of a quadrotor aircraft. In: 2012 American control conference (ACC), Montreal, QC, Canada, 27–29 June 2012, IEEE.

Roldao

Cunha

Cabecinhas

, et al. A novel leader-following strategy applied to formations of quadrotors. In: 2013 European control conference (ECC), Zurich, Switzerland, 17–19 July 2013, IEEE.

Wang

, et al. A robot navigation method based on RFID and QR code in the warehouse. In: 2017 Chinese automation congress (CAC), Jinan, China, 20–22 October 2017, pp. 7837–7840. IEEE.

Shi

Jin

, et al. Complete coverage problem of multiple robots with different velocities. Int J Adv Robot Syst 2022; 19(2): 1–13.

Zhang

Moyes

Chen

. Smart three-dimensional processing of unconstrained cave scans using small unmanned aerial systems and red, green, and blue-depth cameras. Int J Adv Robot Syst 2022; 19(2): 1–15.

Liu

Meng

, et al. Motion removal for reliable RGB-D SLAM in dynamic environments. Rob Auton Syst 2018; 108, 115–128.

Davison

Reid

Molton

, et al. MonoSLAM: real-time single camera SLAM. IEEE Trans Pattern Anal Mach Intell 2007; 29(6): 1052–1067.

10.

Mur-Artal

Montiel

Tardos

. ORB-SLAM: a versatile and accurate monocular SLAM system. IEEE Trans Robot 2015; 31(5): 1147–1163.

11.

Chung

Paranjape

Dames

, et al. A survey on aerial swarm robotics. IEEE Trans Robot 2018; 34(4): 837–855.

12.

Quigley

Mohta

Shreyas

, et al. The open vision computer: an integrated sensing and compute system for mobile robots. In: 2019 International conference on robotics and automation (ICRA), Montreal, QC, Canada, 20–24 May 2019, IEEE.

13.

Kalogeiton

Ioannidis

Ch Sirakoulis

, et al. Real-Time active SLAM and obstacle avoidance for an autonomous robot based on stereo vision. Cybern Syst 2019; 50(3): 1–22.

14.

Giubilato

Chiodini

Pertile

, et al. An evaluation of ROS-compatible stereo visual SLAM methods on a nVidia Jetson TX2. Measurement 2019; 140: 161–170.

15.

Peter

Michael

Diego

, et al. Kinect v2 for mobile robot navigation: evaluation and modeling. In: 2015 International conference on advanced robotics (ICAR), Istanbul, Turkey, 27–31 July 2015, IEEE.

16.

Pierzchała

Giguère

Astrupa

. Mapping forests using an unmanned ground vehicle with 3D LiDAR and graph SLAM. Comput Electron Agric 2018; 145: 217–225.

17.

Abhijeet

Ankit

Yukinori

, et al. Hitchhiking robots: a collaborative approach for efficient multi-robot navigation in indoor environments. Sensors 2017; 17(8): 1878.

18.

Sun

Mohta

Pfrommer

, et al. Robust stereo visual inertial odometry for fast autonomous flight. IEEE Robot Autom Lett 2017; 3(2): 965–972.

19.

Liu

Watterson

Tang

, et al. High speed navigation for quadrotors with limited onboard sensing. In: 2016 IEEE international conference on robotics and automation (ICRA), Stockholm, Sweden, 16–21 May 2016, pp. 1484–1491, IEEE.

20.

Nardari

Cohen

Chen

, et al. Place recognition in forests with Urquhart tessellations. IEEE Robot Autom Lett 2021; 6(2): 279–286.

21.

Cervantes

Hoang

Woo

, et al. Mobile robot 3D trajectory estimation on a multilevel surface with multimodal fusion of 2D camera features and a 3D light detection and ranging point cloud. Int J Adv Robot Syst 2022; 19(2): 1–11.

22.

Lewis

Bhaganagar

. Configurable simulation strategies for testing pollutant plume source localization algorithms using autonomous multisensor mobile robots. Int J Adv Robot Syst 2022; 19(2): 1–13.

23.

Sababha

Al-mousa

Baniyounisse

, et al. Sampling-based unmanned aerial vehicle air traffic integration, path planning, and collision avoidance. Int J Adv Robot Syst 2022; 19(2): 1–10.

24.

Wen

Zhao

Zhang

Ru-Bo

, et al. Online paths planning method for unmanned surface vehicles based on rapidly exploring random tree and a cooperative potential field. Int J Adv Robot Syst 2022; 19(2): 1–22.

25.

Fullana

Mox

Pyattaev

, et al. ROS-NetSim: a framework for the integration of robotic and network simulators. IEEE Robot Autom Lett 2021; 6: 1120–1127.

26.

Liu

Atanasov

Mohta

, et al. Search-based motion planning for quadrotors using linear quadratic minimum time control. In: IEEE/RSJ international conference on intelligent robots and systems (IROS), 2017, pp. 2872–2879.

27.

Liu

Mohta

Atanasov

, et al. Search-based motion planning for aggressive flight in SE(3). IEEE Robot Autom Lett 2018; 3(3): 2439–2446.

28.

Liu

Watterson

Mohta

, et al. Planning dynamically feasible trajectories for quadrotors using safe flight corridors in 3-D complex environments. IEEE Robot Autom Lett 2017; 2(3): 1688–1695.

29.

Almeida

Silvestre

Pascoal

. Cooperative control of multiple surface vessels with discrete-time periodic communications. Int J Robust Nonlinear Control 2012; 22(4): 398–419.

30.

Almeida

Silvestre

Pascoal

. Cooperative control of multiple surface vessels in the presence of ocean currents and parametric model uncertainty. Int J Robust Nonlinear Control 2010; 20(14): 1549–1565.

31.

Xie

Cabecinhas

Cunha

, et al. Robust motion control of an underactuated hovercraft. IEEE Trans Control Syst Technol 2019; 27(5): 2195–2208.

32.

Krstic

Kanellakopoulos

Kokotovic

. Nonlinear and adaptive control design. Wiley 1995; 222: 592.

33.

Slotine

Jacques

. Applied nonlinear control. Englewood Cliffs, NJ: Prantice-Hall, 1991.

34.

Craig

JJ.

Introduction to robotics. Pearson Education International, 2005.

35.

Fossen

. Guidance and control of ocean vehicles. John Wiley & Sons, Ltd, 1994.

36.

Wong

. Adaptive nonlinear control of wheelchair with independent active suspension system. In: 2017 29th Chinese control and decision conference, (CCDC), Chongqing, China, 28–30 May 2017, IEEE.

37.

Wong

. Cooperation control of under-actuated mobile robots with RBF-NN approximator. In: 2018 International automatic control conference, (CACS), Taoyuan, Taiwan, 04–07 November 2018, IEEE.

38.

Tong

Wong

. Experiment and controller design for two-wheeled robot with nonlinear damping and road disturbance. In: 2018 30th Chinese control and decision conference, (CCDC), Shenyang, China, 09–11 June 2018, IEEE.

39.

. Saturated backstepping control for boat with disturbance estimator. In: 2016 Chinese control and decision conference (CCDC), Yinchuan, China, 28–30 May 2016, pp. 2585–2590, IEEE.

40.

Wong

. The application of computational fluid dynamics simulation technique to ocean boat anti-disturbance tracking controller. Int J Adv Robot Syst 2019; 16(3): 1729881419842045.

41.

Wong

. The mobile robot anti-disturbance vSLAM navigation algorithm based on RBF neural network. Procedia Manuf 2019; 38: 400–407.

42.

Wong

. A mobile robot tracking controller design and implementation on ROS-MATLAB based experiment system. In: 2021 33rd Chinese control and decision conference (CCDC), Kunming, China, 22–24 May 2021, IEEE.

43.

Wong

. Autonomous mobile robot nonlinear trajectory tracking controller design and implementation on ROS-MATLAB system. In: 2021 China automation congress (CAC), Beijing, China, 22–24 October 2021, pp. 7370–7375, IEEE.

Design of a new Robot Operating System-MATLAB-based autonomous robot system and trajectory tracking experiment

Abstract

Keywords

Introduction

Notation

Special variables definition

Rotation matrix

Time derivative of rotation matrix

Skew-symmetric matrix

Robot modeling and problem formulation

Turtlebot2 robot

Mathematics model in space

Problem formulation

Robot motion model in space

Tracking controller

Controller stability verification

Experiment system

Signal transformation

Controller design and stability analysis

Position error

First Lyapunov function

Desired linear velocity

Space vector deconstruction

First Lyapunov function time derivative

Direction error

Second Lyapunov functions

Desired angular velocity

Unknown parameter estimator

Controller stability analysis

Proposition

Proof

Experiment system design

Embedded computer

Depth camera

Laser radar

Simulation software

Simulation and experiment results

Parameters setting

Trajectory tracking performance

Position signals and errors

Position signals

Position errors

Controller performance

Simulation and experiment comparation

Lyapunov function performance

Controller features comparison

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
