Sage Journals: Discover world-class research

Abstract

To more accurately predict the fatigue life of components under the action of random loads, it is necessary to explore the influence of the interaction between the load sequence and the load on the life prediction. Based on the Manson-Halford method and Corten-Dolan model, this paper establishes a fatigue cumulative damage model that takes into account both the load order and the interaction between loads, and also takes into account the loads near the fatigue limit. The fatigue life of mechanical parts under random load can be calculated through this model, which provides a theoretical basis for life prediction under random load spectrum. The fatigue life of mechanical parts under random load can be calculated through this model, which provides a theoretical basis for life prediction under random load spectrum. Comparing the calculation results of the proposed model with the results of Palmgren Miner, Manson-Halford method, and Corten-Dolan model, it is found that the fatigue damage model established can reasonably predict the fatigue life of parts. Comparison and verification of examples further prove the accuracy and reliability of the proposed model.

Keywords

Cumulative fatigue damage load sequence interaction between loads fatigue life

Introduction

The fatigue strength is one of the important evaluation indexes in the reliability analysis of parts.^1–3 Components in mechanical systems are mainly subjected to cyclic load. Under cyclic load, fatigue cracks on components will continue to expand, and fatigue failure will occur when the cracks expand to a certain degree.^4,5 When scholars study the failure behavior of components under cyclic load, they generally determine the fatigue damage state of the component by studying the relationship between the number of cyclic loads times and the cumulative damage amount.^6–8

Traditionally, the Palmgren-Miner rule of linear cumulative damage theory has been used to assess the fatigue state of components.^9,10 The Palmgren-Miner rule has the characteristics of simple calculation and easy to use, and has been widely used for fatigue life prediction of parts. However, the Palmgren-Miner rule ignores the load sequence and the interaction between loads, so it cannot guarantee the prediction accuracy of fatigue life, it will not work in some engineering problems.^11,12 To ensure that the predicted fatigue life is accurate, some scholars modified the linear cumulative fatigue damage method according to the Palmgren-Miner rule.^13,14 In practice, crack propagation is related to the number of load cycles times. The relationship between the crack propagation process and the Palmgren-Miner rule was studied by Scholars.¹⁵ Manson¹⁶ divided the fatigue damage development process into crack formation stage and crack propagation stage, and analyzed the fatigue state of parts at different stages by the line cumulative damage method. Although this method considers the influence of load sequence by dividing the fatigue damage process into two stages, it is difficult to determine the position of the boundary point between the two stages, and it is difficult to directly apply it to engineering.

With the development of fatigue cumulative damage theory, nonlinear fatigue cumulative damage theory is also widely used in fatigue life estimation.^17–19 According to the existing research, non-linear damage theory can be divided into three categories: non-linear cumulative damage theory considering the interaction between loads;^20,21 Nonlinear cumulative damage model based on damage curve method (Marco-Starkey model,²² etc.); Non-linear cumulative damage based on energy.²³ Manson-Halford¹³ established the complete Manson-Halford model by using the relationship between the crack length and the load cycle ratio and the parameter calculation method. This model can better describe the effect of load loading order, but the interaction between loads is not considered, and the accuracy of prediction cannot be guaranteed. Maierhofer et al.²⁴ established an overall fatigue crack propagation model including short crack behavior and load sequence effects. Richter and Sander²⁵ investigated the influence of underloads on crack arrest. The experimental tests are performed with the tool steel AISI/SAE 1045. Mansor et al.²⁶ presents a predictive model for fatigue crack growth under loading sequences. The applicability of the crack closure model was studied to predict the fatigue life span resulting from the continuous effect of loading blocks. Calderon and Biezma²⁷ develop a practical and simple correction factor to ensure the sum of linear cumulative damage is conservative. The effects of loading sequence on the calculation of non-Gaussian random vibration fatigue damage are studied by Wang through the virtual experiments.²⁸ Through the calculation results of fatigue damage in the notch sensitive area of test part, it was confirmed that the damage calculated by linear and nonlinear cumulative damage formula was improved with the increase of kurtosis. Benkabouchea et al.²⁹ propose a modified nonlinear cumulative fatigue damage model, extended to multiaxial loading, taking into account the effects of the amplitude and sequence of variable amplitude loading.

The cumulative fatigue damage of a part is related to both the load sequence and the interaction between loads.³⁰ Many scholars believe that the interaction between loads is reflected by the form of stress ratio, such as Freudenthal-Heller model, Corten-Dolan model, and so on. Gao et al.³¹ redefined the parameter d in the Corten-Dolan model by considering the relationship between the cumulative damage and stress. This model can be practically applied to fatigue life estimation through case verification. Zhu^32,33 found that the parameter d in the Corten-Dolan model is related to material properties and load spectrum characteristics, and determined the parameter d by analyzing the fatigue damage evolution, and defined the parameter d as a function related to stress. In order to analyze the fatigue life, it is necessary to study the prediction method of fatigue life. Many researchers only consider the effect of loading sequence on fatigue life. The effect of interaction between loads on fatigue life is not discussed. The interaction between loads is considered in the Corten-Dolan model, but the parameters in the model need to be obtained by a large number of experiments. In this paper, the fatigue cumulative damage method is modified based on Manson-Halford method and Corten-Dolan model. Compared with the constant exponential Corten-Dolan model, the influence of the interaction force between loads and the loading order are considered. The prediction result based on the modified cumulative damage method is closer to the actual life. This model can be extended to the application of fatigue life prediction of other parts.

The fatigue cumulative damage model, in which the load sequence and the interaction between loads are considered at the same time, has been the research direction of scholars for a long time.³⁴ Based on the Manson-Halford cumulative damage theory, combined with the idea that the interaction between loads is defined as an exponential parameter form related to the stress ratio in Corten-Dolan model, a cumulative fatigue damage theoretical model that takes into account both the load sequence and the interaction between loads is constructed. Loads near the fatigue limit are also taken into account.³⁵ This theory can make up for the deficiency of nonlinear cumulative damage theory, improve the accuracy of nonlinear fatigue life estimation, and provide a reasonable method for fatigue life estimation of mechanical parts.

Statement of problem

Palmgren-Miner⁶ rule is the theory of linear cumulative damage. Based on the principle of mutual independence of fatigue damage, the single cycle damage is linearly accumulated as the total damage, and the cumulative damage is used to evaluate the state of the part. It is also assumed that when the damage amount D reaches a critical value of 1, the part will undergo fatigue failure. The linear cumulative damage under multi-stage load could be expressed as

D = \sum_{i = 1}^{n} \frac{n_{i}}{N_{i}} = 1

(1)

$n_{i}$ is the number of cycles times at the i-th stress level, and $N_{i}$ is the number of cycles when critical damage is reached at the i-th stress level.

The Palmgren-Miner rule uses a linear accumulation method in the calculation process. The cumulative damage caused by different load levels is shown in Figure 1. In Figure 1(a), the damage amounts caused by the stress level $S_{1}$ after $n_{1}$ cycles is $D_{1}$ , and the damage caused by the stress level $S_{2}$ after $n_{2}$ cycles is $D_{2}$ . The cumulative damage under this two-stage ( $S_{1} \to S_{2}$ ) load is $D_{1} + D_{2}$ . As shown in Figure 1(b), if the stress level $S_{2}$ is loaded first, the cumulative damage after $n_{2}$ cycles is $D_{2}'$ , and then the stress level $S_{1}$ is loaded, the cumulative damage after $n_{1}$ cycles is $D_{1}'$ . The cumulative damage under this loading order is $D_{2}' + D_{1}'$ . From the comparison of the two figures, it can be seen that the damage amounts under the different loading orders are equal ( $D_{1} + D_{2} = D_{2}' + D_{1}'$ ).

Figure 1.

Linear cumulative damage of Palmgren-Miner under different loading sequences: (a) $S_{1} \to S_{2}$ and (b) $S_{2} \to S_{1}$ .

The Palmgren-Miner rule also ignores the effects of small loads when analyzing component fatigue life.³⁶ However, in practical situations, loads near the fatigue limit of a part can strengthen or cause damage.

Palmgren-Miner rule fails to consider the influence of interaction between each level load and load sequence, and the calculated results are different from the actual damage. In the actual load process, when the load is from low to high, the fatigue strength of the component is enhanced due to the strengthening effect of the low load, which makes the estimated fatigue life more conservative.³⁷ When the load is from high to low, the crack occurrence time is advanced due to the high load, which makes the estimated fatigue life tend to be dangerous. The Manson-Halford model considers the influence of load loading sequence on fatigue life, but ignores the interaction between loads. The Corten-Dolan model considers the interaction between loads, but the parameters in the model need to be obtained through a large number of experiments, and it is difficult to determine. In order to solve these problems, this paper modified the Manson-Halford model based on the Corten-Dolan model, and derived the fatigue life estimation model based on load sequence and interaction between loads. A load greater than 0.75 times the fatigue limit was used as the calculation standard.³⁸

Nonlinear fatigue cumulative damage model

Manson-Halford model

Manson-Halford¹⁴ expressed the damage of a part by the maximum cumulative amount of crack length that can be withstood. According to this theory, the expression of crack propagation was obtained, as shown in equation (2).

a = a_{0} + (a_{f} - a_{0}) {(\frac{n}{N_{f}})}^{a_{f}}

(2)

where, $a_{f}$ is the crack length of a smooth specimen when fracture occurs, $a_{0}$ is the initial crack length, and $a$ is the cumulative amount of crack length under cyclic loading. Under a given stress level $S_{i}$ , the cumulative damage amount can be expressed as

D = \frac{a}{a_{f}}

(3)

where³⁹

a_{f} = \frac{2}{3} {N_{f}}^{0.4}

(4)

The equations (2) and (4) were brought into (3) to obtain cumulative damage is shown in equation (5)

D = \frac{a}{a_{f}} = \frac{1}{a_{f}} [a_{0} + (a_{f} - a_{0}) {(\frac{n}{N_{f}})}^{\frac{2}{3} {(N_{f})}^{0.4}}]

(5)

According to formula (17), the relationship between the cycle ratio $n_{1} / N_{f 1}$ and the equivalent cycle ratio $n_{12} / N_{f 2}$ can be derived

\frac{n_{12}}{N_{f 2}} = {(\frac{n_{1}}{N_{f_{1}}})}^{{(N_{f 1} / N_{f 2})}^{0.4}}

(6)

The cumulative damage $D_{2}$ after two load cycles $n_{1}, n_{2}$ is

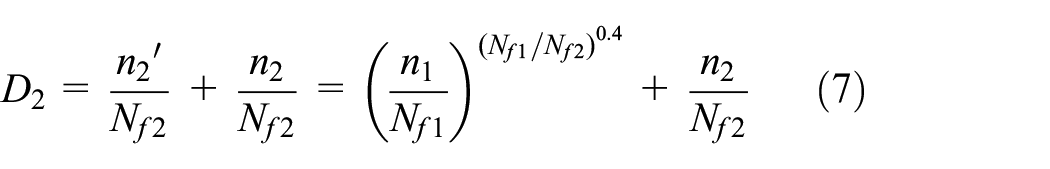

D_{2} = \frac{n_{2}'}{N_{f 2}} + \frac{n_{2}}{N_{f 2}} = {(\frac{n_{1}}{N_{f 1}})}^{{(N_{f 1} / N_{f 2})}^{0.4}} + \frac{n_{2}}{N_{f 2}}

(7)

The cumulative damage under the third stress level is

D_{3} = {({(\frac{n_{1}}{N_{f 1}})}^{{(\frac{N_{f 1}}{N_{f 2}})}^{0.4}} + \frac{n_{2}}{N_{f 2}})}^{{(\frac{N_{f 2}}{N_{f 3}})}^{0.4}} + \frac{n_{3}}{N_{f 3}}

(8)

The cumulative damage under multiple stress levels is

D_{n} = {({({(\frac{n_{1}}{N_{f 1}})}^{{(\frac{N_{f 1}}{N_{f 2}})}^{0.4}} + \frac{n_{2}}{N_{f 2}})}^{{(\frac{N_{f 2}}{N_{f 3}})}^{0.4}} + \dots + \frac{n_{i - 1}}{N_{f (i - 1)}})}^{{(\frac{N_{f (i - 1)}}{N f_{i}})}^{0.4}} + \frac{n_{i}}{N_{fi}}

(9)

Cartrn-Dolan model

There are many ways to consider load interactions, such as Corten-Dolan model, Bue-Quco model, and Freudenthal-Heller model. Among them, Corten-Dolan model apply to engineering practice well. In 1956, Corten-Dolan¹⁷ proposed an exponential damage model. In this model, the crack propagation is divided into three stages: localized work hardening; microcavities or microcracks formed in the localized region; cracks further expanded to fracture. The cumulative fatigue damage amount under a given stress $S$ can be expressed as

D = mr n^{a}

(10)

$a$ is the exponential constant related to the stress level, $m$ is the number of crack cores, $n$ is the number of stress cycles, and $r$ is the damage growth factor related to the stress level.

When stresses $S_{1}$ and $S_{2}$ act on the test piece in an alternating manner, if $S_{1}$ is cycled $α n$ times, then $S_{2}$ is cycled $(1 - α) n$ times, and the fatigue life under the action of stresses $S_{1}$ and $S_{2}$ is

N_{g} = \frac{N_{1}}{α + (1 - α) {(S_{i} / σ_{1})}^{d}}

(11)

The above two-level load can be extended to multi-level load fatigue life estimation, and the multi-level load fatigue life expression is shown in equation (12).

N_{g} = \frac{N_{max}}{\sum_{i = 1}^{r} α_{i} {(S_{i} / S_{max})}^{d}}

(12)

Where, $N_{g}$ is the total fatigue life, $r$ is the stress level, $α_{i}$ is the ratio of the number of cycles under the each stress level to the total number of cycles, $N_{max}$ is the fatigue life under stress $S_{max}$ , and $S_{max}$ is the maximum stress amplitude in the multi-stage alternating load, $d$ is the material constant. $d$ is defined as a function of the number of cycles and stress ratio by Gao et al.,³¹ the expression as follow.

d = \exp [{(\frac{n_{i}}{N_{fi}})}^{\frac{σ_{i}}{σ_{max}}}] + γ

(13)

$γ$ is a constant related to the material properties, $n_{i}$ is the number of cycles corresponding to the actual cycles, and $N_{fi}$ is the number of cycles corresponding to the i-th stress $σ_{i}$ .

Modification of nonlinear fatigue cumulative damage model

From the formula (4), it can be seen that the crack length of the smooth specimen when it breaks is $a_{f}$ . According to Walker’s crack growth model,⁴⁰ it can be known that the crack growth rate is related to the stress ratio. The conversion expression between damage coefficient and stress ratio in Corten-Dolan model is shown in (14).

{(\frac{r_{i}}{r_{max}})}^{\frac{1}{a'}} = {(\frac{σ_{i}}{σ_{max}})}^{d}

(14)

Here, $a'$ and $d$ are constants. It can be known that the damage coefficients are related to the ratio of stress and maximum stress.

In equation (2), $a$ is the length of crack growth when the part reaches failure at a given stress level, and $(n / N_{f})^{\frac{2}{3} {(N_{f})}^{0.4}}$ can be regarded as the proportion of damage caused by cycling at a given stress level to the crack propagation length.^41,42 According to this analysis, based on Walker’s crack propagation model and Corten-Dolan model, assuming a parameter related to the interaction between load, this parameter is called the crack propagation effect parameter $κ$ , then formula (2) can be rewritten as

a = a_{0} + (a_{f} - a_{0}) {(\frac{n}{N_{f}})}^{α}

(15)

where

α = \frac{2}{3} (N_{f})^{0.45 κ}

(16)

According to equation (5), the modified cumulative damage expression is

D = \frac{a}{a_{f}} = \frac{1}{a_{f}} [a_{0} + (a_{f} - a_{0}) {(\frac{n}{N_{f}})}^{α}]

(17)

According to the equivalent transformation method, the cumulative damage under different stress levels could be transformed into the cumulative damage caused by a certain level of stress. As shown in Figure 2, if the cycles under the action of the stress level $S_{1}$ is $n_{1}$ times, the cycles under the action of the stress level $S_{2}$ is $n_{2}$ times. Assuming that the damage caused by cycling $n_{12}$ times under the action of $S_{2}$ is the same as the damage caused by cycling $n_{1}$ times under the action of stress level $S_{1}$ , that is, $D_{1} = D_{2}'$ . The relationship between the cycle ratio $n_{1} / N_{f 1}$ and the equivalent cycle ratio $n_{12} / N_{f 2}$ can be expressed by formula (18).

\frac{n_{2}^{'}}{N_{f 2}} = {(\frac{n_{1}}{N_{f 1}})}^{α_{1} / α_{2}}

(18)

where

\frac{α_{1}}{α_{2}} = \frac{\frac{2}{3} {(N_{f 1})}^{0.45 κ_{1}}}{\frac{2}{3} {(N_{f 2})}^{0.45 κ_{2}}} = \frac{{(N_{f 1})}^{0.45 κ_{1}}}{{(N_{f 2})}^{0.45 κ_{2}}}

(19)

Figure 2.

Multi-level loading damage map.

Let $κ_{1} = κ_{2} = κ_{12}$ , according to the form of stress ratio in equations (13) and (14), the $κ_{12}$ can be expressed as equation (20).

κ_{12} = {(\frac{σ_{2}}{σ_{1}})}^{e^{\frac{σ_{2} - σ_{1}}{| σ_{2} - σ_{1} |} {(n_{2} / N_{f 2})}^{(σ_{max} / σ_{2})}}}

(20)

\frac{α_{1}}{α_{2}} = {(\frac{N_{f 1}}{N_{f 2}})}^{0.45 κ_{12}}

(21)

The damage amount under two-level load can be expressed as

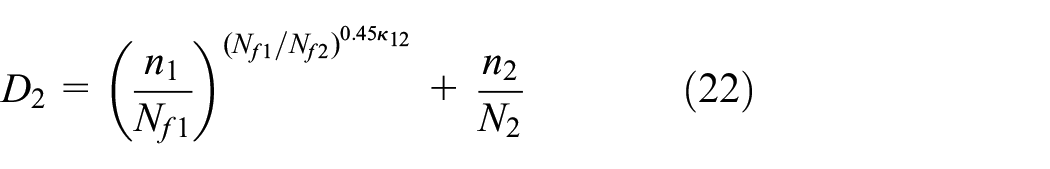

D_{2} = {(\frac{n_{1}}{N_{f 1}})}^{{(N_{f 1} / N_{f 2})}^{0.45 κ_{12}}} + \frac{n_{2}}{N_{2}}

(22)

The expression of cumulative damage under multi-level loads can be derived as

D_{n} = {({({(\frac{n_{1}}{N_{f 1}})}^{{(N_{f 1} / N_{f 2})}^{0.45 κ_{12}}} + \frac{n_{2}}{N_{2}})}^{{(N_{f 2} / N_{f 3})}^{0.45 κ_{23}}} + \dots + \frac{n_{i - 1}}{N_{f (i - 1)}})}^{{(n_{(i - 1)} / N_{fi})}^{0.45 κ_{(i - 1) i}}} + \frac{n_{i}}{N_{fi}}

(23)

Equation (23) is the fatigue cumulative damage model that takes into account the interaction between loads and the load loading sequence, and can be applied to the estimation of fatigue life well.

Case verification

Case 1

The feasibility of the model with the data in the fatigue test CFD2 in Tong et al.⁴³ is verified. The relevant original data in the test are: the material fatigue life is $N_{0} = 2.2 \times 10^{6}$ times, the material fatigue limit is $173.5 MPa$ , and the measured fatigue life is $N_{r} = 2.2 \times 10^{7}$ times. CFD2 loading test data is shown in Table1.

Table 1.

CFD2 test data.

Load level	$σ_{i} / MPa$	Frequency $n_{i}$	$N_{i}$	$n_{i} / N_{i}$
1	305	44	5.60 × 10⁴	0.0008
2	332	352	7.40 × 10⁴	0.0047
3	298	6160	1.30 × 10⁵	0.0475
4	254	59,840	2.80 × 10⁵	0.2140
5	201	440,000	1.25 × 10⁶	0.3520
6	149	2,024,000	∞	0
7	96	6,160,000	∞	0
8	44	13,310,000	∞	0

The traditional Palmgren-Miner rule does not take into account the load sequence and the interaction between loads. The damage amount is only 0.6174, which is biased against the assumption that damage occurs when the damage amount reaches a critical value of 1. The damage amount of the Manson-Halford model and the modified model are relatively similar. According to the research, the large load can accelerate the crack growth, and lead to the failure threshold being reached early. Therefore, the damage amount obtained by the modified cumulative damage calculation model is more reasonable than that calculated by the Manson-Halford model. The revised cumulative damage calculation method could more reasonably calculate the cumulative damage amount of a component under multi-level loads, thereby more accurately estimating the fatigue life of the parts, see Table 2 below:

Table 2.

Damage of multi-level load.

Model	Cumulative damage amount
Miner model	0.6174
Manson-Halford model	0.9116
Modified model	0.8949

Case 2

The bogie is an important association mechanism between the train body and the wheels, and it will be affected by the alternating load during the running of the train. The test data of the Type 209 bogie in Liu⁴⁴ is used to verify the modified fatigue cumulative damage method. The 209 bogies could run about $3.0 \times 10^{5} km$ per year, vibration frequency is 270 times per kilometer. The 209 bogies can be safely operated for at least 20 years. The actual number of cycles of the bogie is about $N_{r} = 1.62 \times 10^{9}$ . Loads and load cycles about bogie are shown in Table 3.

Table 3.

Load spectrum of welded structure frame of 209 bogie.

Stress level	stress ( $MPa$ )	Action times $n_{i}$ (times)	Fatigue life under single-stage stress $N_{fi}$ $(10^{6} times)$	$n_{i} / N_{fi} (10^{- 6})$
1	241.5	1	0.60	1.6667
2	228.8	1	0.72	1.3889
3	214.5	3	0.92	3.2609
4	203.6	2	1.11	1.8018
5	203.3	7	1.11	6.3063
6	181.5	14	1.69	8.2840
7	172.1	40	2.04	19.6078
8	154.4	97	3.04	31.9079
9	136.8	283	4.72	59.9576
10	122.8	800	∞	0
11	101.6	2202	∞	0
12	89.2	6582	∞	0
13	67.6	21901	∞	0
14	63.3	55662	∞	0
15	34.4	912405	∞	0

In Table 4, the fatigue life calculated by the Palmgren-Miner rule is approximately three times than the actual fatigue life. The error between the fatigue life calculated by the Manson-Halford model and the actual fatigue life is $28.40 %$ ; the error between the fatigue life calculated by the modified cumulative fatigue damage method and the actual fatigue life is $6.4 %$ . The error between actual fatigue life and fatigue life calculated by the modified Corten-Dolan model is $- 4.41 %$ . Although the absolute value of the error of the modified Corten-Dolan model is relatively small, there are more parameters in this model that need to be fitted by experiments. It is more difficult to apply in engineering. According to the error value in Table 4, it can be seen that the error value of the modified fatigue cumulative damage method is relatively small, which indicates that the modified model can reasonably and accurately estimate the fatigue life of the bogie. It does not need to fit the parameters in the calculation process, which can be more conveniently used in actual engineering.

Table 4.

Comparison of different life prediction methods.

Model	Cumulative damage amount	Estimated life	Error (%)
Palmgren-Miner rule	4.23 × 10⁻⁵	7.45 × 10⁹	360.04
Manson-Halford model	4.80 × 10⁻⁴	2.08 × 10⁹	28.40
Modified model	6.06 × 10⁻⁴	1.72 × 10⁹	6.4
Corten-Dolan model	6.45 × 10⁻⁴	1.55 × 10⁹	−4.41

Conclusion

Based on the Manson-Halford method and the Corten-Dolan model, the fatigue cumulative damage method is revised, and the influence of the interaction between loads and the load sequence on the cumulative fatigue damage are considered. It is also considered that a small load between 0.7 and 1 times the fatigue limit will strengthen the components. Two cases are used to verify the revised fatigue life cumulative damage method. The proposed cumulative damage method could more reasonably estimate the fatigue life of components.

The Palmgren-Miner rule simplifies the calculation model, and the fatigue life estimation result will deviate greatly from the actual life. In the bilinear damage theory, the boundary between the two stages is difficult to determine. The Manson-Halford model considers the effect of load sequence, but ignores the effect of the interaction between loads; the Corten-Dolan model considers the interaction between loads, but the parameters in this model need a large number of experiments to obtain, and it is difficult to apply in practice.

The cumulative fatigue damage model established in this paper is based on the interaction model between loads in the Manson-Halford model and the Corten-Dolan model, and considers small-amplitude loads. This model takes full account of the various influencing factors in load loading, and does not need to fit parameters through experiments. The results are reasonable and easy to apply, and can provide support for the fatigue life estimation of parts under multi-level loads.

Supplemental Material

sj-pdf-1-ade-10.1177_1687814021995309 – Supplemental material for Improved numerical model for fatigue cumulative damage of mechanical structure considering load sequence and interaction

Supplemental material, sj-pdf-1-ade-10.1177_1687814021995309 for Improved numerical model for fatigue cumulative damage of mechanical structure considering load sequence and interaction by Bixiong Huang, Shuci Wang, Shuanglong Geng and Xintian Liu in Advances in Mechanical Engineering

Footnotes

Handling Editor: James Baldwin

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Xintian Liu

Supplemental material

Supplemental material for this article is available online.

References

Wang

Liu

Wang

, et al. Fatigue test analysis of automotive key parts based on censored data and small sample setting. Qual Reliab Eng Int 2017; 33: 1031–1043.

Wang

Liu

Zhang

, et al. Prediction of material fatigue parameters for low alloy forged steels considering error circle. Int J Fatigue. 2019; 121: 135–145.

Zhang

Liu

Wang

, et al. Parameters distribution characteristics of material fatigue life based on improved bootstrap method. Int J Damage Mech 2019; 28: 772–793.

Rocha

Brühwiler

Nussbaumer

Microstructural influence on the scatter in the fatigue life of steel reinforcement bars. Int J Fatigue 2015; 75: 205–212.

Zhu

Liao

, et al. The effect of notch size on critical distance and fatigue life predictions. Mater Des 2020; 196: 109095.

Qian

Jian

Pan

, et al. In-situ investigation on fatigue behaviors of Ti6Al4V manufactured by selective laser melting. Int J Fatigue 2020; 133: 105424.

Liu

Kan

Xin

, et al. Fatigue life prediction of clutch sleeve based on abrasion mathematical model in service period. Fatigue Fracture Eng Mater Struct 2020; 43: 488–501.

Wang

Liu

Wang

, et al. Probabilistic modeling of unified S-N curves for mechanical parts. Int J Damage Mech 2018; 27: 979–999.

Miner

. Cumulative damage in fatigue. Int J Appl Mech 1945; 12: 159–164.

10.

Liu

Zhang

Wang

, et al. Fatigue life analysis of automotive key parts based on improved peak-over-threshold method. Fatigue Fracture Eng Mater Struct 2020; 43: 1824–1836.

11.

Qian

Lia

Paolinoc

, et al. Very high cycle fatigue behavior of Ti6Al 4V manufactured by selective laser melting: effect of build orientation. Int J Fatigue 2020; 136: 105628.

12.

Wang

Liu

Jiang

, et al. Prediction and evaluation of fatigue life for mechanical components considering anelasticity-based load spectrum. Fatigue Fracture Eng Mater Struct 2021; 44: 129–140.

13.

Liu

. Fatigue analysis and life prediction of dumpers with cumulative fatigue damage approach and finite element model. Key Eng Mater 2007; 353–358: 909–912.

14.

Orringer

. Rapid estimation of spectrum crack-growth life based on the palmgren-miner rule. Comput Struct 1984; 19: 149–153.

15.

Ciavarella

D’Antuono

Papangelo

. On the connection between Palmgren-Miner rule and crack propagation laws. Fatigue Fracture Eng Mater Struct 2018; 41: 1469–1475.

16.

Manson

Halford

. Correction: practical implementation of the double linear damage rule and damage curve approach for treating cumulative fatigue damage. Int J Fracture 1981; 17: R35–R42.

17.

Zhu

Liu

, et al. Strain energy gradient-based LCF life prediction of turbine discs using critical distance concept. Int J Fatigue 2018; 113: 33–42.

18.

Song

, et al. Reliability analysis of mechanical components based on a nonlinear fatigue damage accumulation model. Int J Damage Mech 2019; 28: 1135–1149.

19.

Jiang

Liu

Zhang

, et al. An improved nonlinear cumulative damage model for strength degradation considering loading sequence. Int J Damage Mech. Epub ahead of print 13 October 2020. DOI: 10.1177/1056789520964860.

20.

Corten

Dolan

. Cumulative fatigue damage. In: Proceedings of the international conference on fatigue of metals, New York, November 1956. Great Britain: Great Institution of Mechanical Engineers.

21.

Zhu

Liao

Liu

. Nonlinear fatigue damage accumulation: Isodamage curve-based model and life prediction aspects. Int J Fatigue 2017; 128: 105–185.

22.

Lee

Jen

MHR

. Fatigue response and modeling of variable stress amplitude and frequency in AS-4/PEEK composite laminates. Part 2 Anal Formulation J Compos Mater 2000; 34: 906–929.

23.

Zhu

Huang

Ontiveros

. Probabilistic low cycle fatigue life prediction using an energy-based damage parameter and accounting for model uncertainty. Int J Damage Mech 2011; 20: 876.

24.

Maierhofer

Gänser

Simunek

, et al. Fatigue crack growth model including load sequence effects – model development and calibration for railway axle steels. Int J Fatigue 2019; 132: 105377.

25.

Richter

Sander

. An experimental investigation on the fatigue crack growth behaviour of AISI/SAE 1045 under load sequences containing underloads. Fatigue Fracture Eng Mater Struct 2019; 42: 818–826.

26.

Mansor

NII

Abdullah

Ariffin

. Effect of loading sequences on fatigue crack growth and crack closure in API X65 steel. Mar Struct 2019; 65: 181–196.

27.

Calderon

UAI

Biezma

. A plain linear rule for fatigue analysis under natural loading considering the sequence effect. Int J Fatigue 2017; 103: 386–394.

28.

Wang

Serra

Argoul

. Based on the virtual experiment study of the impact of load sequence on the calculation process of random vibration fatigue damage. Procedia Struct Integrity 2019; 19: 682–687.

29.

Benkabouchea

Guechichia

Amroucheb

, et al. A modified nonlinear fatigue damage accumulation model under multiaxial variable amplitude loading. Int J Mech Sci 2015; 100: 180–194.

30.

Qian

Lei

. A statistical model of fatigue failure incorporating effects of specimen size and load amplitude on fatigue life. Philos Mag 2019; 99: 2089–2125.

31.

Gao

Huang

, et al. An improved Corten-Dolan’s model based on damage and stress state effects. J Mech Sci Technol 2015; 29: 3215–3223.

32.

Zhu

Huang

Liu

, et al., A practical method for determining the Corten-Dolan exponent and its application to fatigue life prediction. Int J Turbo Jet Engines 2012; 29: 79–87.

33.

Zhu

Liao

, et al. Probabilistic fatigue assessment of notched components under size effect using critical distance theory. Eng Fract Mech 2020; 235: 107–150.

34.

Zhu

Hao

De Oliveira Correia

. Nonlinear fatigue damage accumulation and life prediction of metals: a comparative study. Fatigue Fracture Eng Mater Struct 2019; 42: 1271–1282.

35.

Liu

Zheng

Chen

, et al. Durability life prediction of a reducer system based on low-amplitude load strengthening and damage. J Chin Soc Mech Eng 2017; 38: 81–91.

36.

Liu

Mao

Wang

, et al. A modified quality loss model of service life prediction for products via wear regularity. Reliab Eng Syst Saf 2020; 204: 107187.

37.

Qian

Zhou

Hong

. Experimental and theoretical investigation of environmental media on very high cycle fatigue behavior for a structural steel. Acta Mater. 2011; 59: 1321–1327.

38.

Zheng

. Strengthening and damaging under low-amplitude loads below the fatigue limit. Int J Fatigue 2009; 31: 341–345.

39.

Sullivan

Crooker

. Analysis of fatigue-crack growth in a high-strength steel—part I: stress level and stress ratio effects at constant amplitude. J Pressure Vessel Technol 1976; 98: 179.

40.

Walker

. The effect of stress ratio during crack propagation and fatigue for 2024-T3 and 7076-T6 Aluminum. In: Rosenfeld

(ed.) Effects of environment and complex load history on fatigue life, ASTM STP. West Conshohocken, PA: ASTM International, 1970, pp.4621–4614.

41.

Yoshikazu NAKAI Keisuke , et al. Stress-ratio effect on fatigue crack growth threshold in steels. J Soc Mater Sci 1984; 33: 1045–1051.

42.

Liao

Zhu

Keshtegar

. Probabilistic framework for fatigue life assessment of notched components under size effects. Int J Mech Sci 2020; 181: 105685.

43.

Tong

Otto

Hartz

. Fatigue design of structures. Beijing: Machinery Industry Press. 1987, pp.224–228.

44.

Liu

. The probability united method of the vertical and horizontal random load spectrums on the rail vehicle components. J Gansu Ind Univ 1993; 19: 75–78.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.07 MB
