New hybrid between NSGA-III with multi-objective particle swarm optimization to multi-objective robust optimization design for Powertrain mount system of electric vehicles

Abstract

In this study, a new methodology, hybrid NSGA-III with multi-objective particle swarm optimization (HNSGA-III&MOPSO), has been developed to design and achieve cost optimization of Powertrain mount system stiffness parameters. This problem is formalized as a multi-objective optimization problem involving six optimization objectives: mean square acceleration and mean square displacement of the Powertrain mount system. A hybrid HNSGA-III&MOPSO is proposed with the integration of multi-objective particle swarm optimization and a genetic algorithm (NSGA-III). Several benchmark functions are tested, and results reveal that the HNSGA-III&MOPSO is more efficient than the typical multi-objective particle swarm optimization, NSGA-III. Powertrain mount system stiffness parameter optimization with HNSGA-III&MOPSO is simulated, respectively. It proved the potential of the HNSGA-III&MOPSO for Powertrain mount system stiffness parameter optimization problem. The amplitude of the acceleration of the vehicle frame decreased by 22.8%, and the amplitude of the displacement of the vehicle frame reduced by 12.4% compared to the normal design case. The calculation time of the algorithm HNSGA-III&MOPSO is less than the algorithm NSGA-III, that is, 5 and 6 h, respectively, compared to the algorithm multi-objective particle swarm optimization.

Keywords

NSGA-III algorithm multi-objective particle swarm optimization algorithm optimal solution Powertrain mount system stiffness multi-objective evolutionary algorithms mounting system

Introduction

Due to the different configuration and operating principle of electric motor and internal combustion engine (ICE), the speed and speed of electric motors and ICEs vary greatly, so the dynamic characteristics on electric vehicles will be very different from traditional ICE cars. On the other hand, due to increasing environmental requirements, the big trend is shifting to a dynamical system that uses electricity instead of gasoline as currently. Therefore, our research focuses on the vibration of electric motors in vehicles. The electric vehicle’s drive system consists of Powertrain, transmission, and clutch, which is the source of energy for the vehicle and is also one of the major sources of vibration in the car. There have been some authors studying electric vehicle power systems.^1–3 Therefore, to isolate vibrations transmitted from the transmission system to the vehicle body, the Powertrain mount is usually installed between the transmission and the vehicle body.⁴ Powertrain mounting system is a system mounted between the frame and the Powertrain. These mounts play an important role in the entire dynamic system of the vehicle and the principle diagram of the full-car dynamic model with the Powertrain mount system is shown in Figure 1. Powertrain mounting system has a suitable stiffness. On the one hand, it will improve the noise, vibration performance, and harshness of the vehicle; on the other hand, it will extend the life of the Powertrain and related parts.⁵ If calculated according to the characteristics of controllability, Powertrain racks can be classified into passive Powertrain racks (hydraulic and rubber racks are the most popular), Powertrain racks, and sold Powertrain. Typically, a rubber hanger consists of a metal frame in which the rubber is bonded through adhesives or during vulcanization. With the advantage of low cost and simple structure, rubber suspension is the most widely used engine mount. The important step to designing racks is the parameters that match their stiffness. Suitable rigidity can not only reduce the vibration of the Powertrain to the elastic platform (such as frame and body) but can also reduce the unwanted impact of excitation from the road and impact wheel on the body. One of the most important steps to designing Powertrain racks is to calculate the stiffness parameters of the suspension so that it is best suited to the Powertrain and chassis parameters. With the stiffness parameters of the appropriate Powertrain mount, it can not only reduce the vibration of the Powertrain to the chassis but also reduce the undesirable effects of stimuli from the road and movable impact wheels transfer on the body. By that, the problem of calculating the optimal hardness parameters for the Powertrain mounting system is an important task in designing the vehicle’s dynamic system. This is a multi-object concurrency optimization problem.

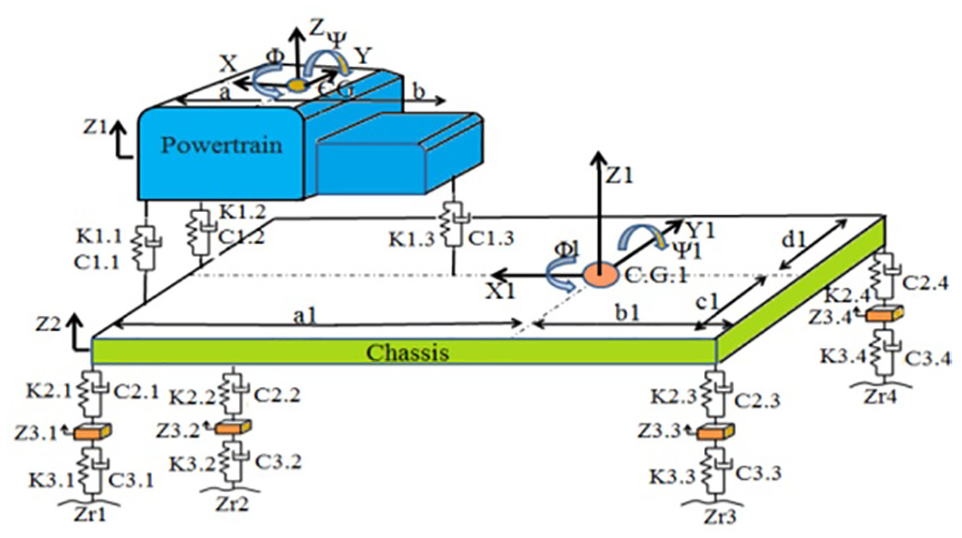

Figure 1.

A full-car dynamic model with a Powertrain mount system.

Recently, a number of researchers have studied in the field of multi-objective optimization. They introduced various methods, among them, presented in Konak et al.⁶ in reviews and guidelines. NSGA-II algorithm is published by Deb et al.⁷ and so far there are a number of variations and applications of NSGA II algorithm developed by Chang and Chang,⁸ Ishibuchi et al.,⁹ and Malekmohammadi et al.¹⁰ Deb and Jain¹¹ have published and applied the MONGA-II method for a number of multi-objective testing problems. NSGA-III algorithms have been studied to face multiple goals at once (more than two). This is the Algorithm published by Deb and Jain¹² in 2014, in which they changed some selection mechanisms. They came up with a multi-objective evolution algorithm based on reference points based on the NSGA-II algorithm. They mainly emphasize that population members are not popular, but close to the combination of a set of reference points provided. The NSGA-III algorithm is proposed to apply to a number of multi-objective testing problems with 3 to 15 goals.

In addition, there are some researchers studying the optimal problem of many objects. They have studied and developed multi-objective particle swarm optimization (MOPSO) algorithm. MOPSO algorithm is one of the most popular multi-objective optimization algorithms conceptually; it is similar to particle swarm optimization (PSO). Coello et al.¹³ and his colleagues applied MOPSO algorithm to handle multiple objectives. In recent studies of MOPSO algorithm,^13–15 they have shown additional conditions such as multiple estimates used to achieve better exploration characteristics. Baltar and Fontane^16,17 improved the MOPSO algorithm to minimize deviation from outflow water quality. They also published an application of an evolutionary optimization algorithm for multi-objective analysis for reservoir operations and planning. Reddy and Kumar^18,19 published and applied the Elitist-Mutated operator with MOPSO (EM-MOPSO) to show the reduction of total squared deviations for irrigation, maximizing the yield of aquatic electricity and the degree of satisfaction of downstream water quality requirements. In addition, they used the Elitist-Mutated MOPSO algorithm (EM-MOPSO) to maximize hydropower production and minimize the total number of squares to release annual irrigation from demand. Wang et al.²⁰ have applied modified MOPSO to minimize the highest water level, release peak flow, water level difference after flood season, and flood control level. In this case, the concept of Pareto dominance for selecting leaders from a non-dominated external archive has been utilized by MOPSO algorithm where the leaders of swarms that guide the particles to the Pareto Frontier are selected from the top portion of the archive at each iteration.

Recently, there are some new optimization algorithms proposed.^21–27 However, each algorithm has advantages and disadvantages, precisely, because no algorithm can solve all optimization problems correctly. Therefore, new hybrid algorithms should be proposed to be able to solve new problems that have not been resolved before and/or have better accuracy than existing techniques.

On the other hand, there are some hybrid methods of optimization algorithms that have been recently developed: Jeong et al.²⁸ published the development and investigation of the GA/PSO-hybrid algorithm effectively for optimizing the design in the real world. Premalatha and Natarajan²⁹ published hybrid PSO and GA for Global Maximization. A multi-objective particle optimization method based on extreme optimization with variable and inertial inertia mutations (HM-TVWF-MOEPSO) has been proposed to solve some of the problems in optimization, multi-purpose particle chemistry, and improved algorithm performance.³⁰ A new hybrid heuristic algorithm is published in the current work for multi-objective optimization issues. The hybrid algorithm has proposed a method to combine the simple algorithm Nelder-Mead with the non-dominant genetic algorithm II (NSGA II) to find the best global point. The performance of this new algorithm has been presented through a number of complex benchmark functions.³¹ A pre-selected pre-creation method has been published to address multivariate technical optimization problems.³² This method can set the number of Pareto solutions and optimize multiple times until satisfactory results are obtained. This is an effective algorithm that consists of independent parallel genetic algorithms by dividing the entire population into multiple populations,³³ in which each population group will be assigned to different weights to search for optimal solutions in different directions. Therefore, most published hybrid algorithms have many advantages. This breeding has overcome the limitations of each optimization algorithm. This proves that this is one of the methods that should be studied in multi-objective optimization.

In this article, a new hybrid optimization algorithm is proposed in this work for multi-objective problems. This is the hybrid between the MOPSO algorithm and a multi-objective genetic algorithm (NSGA-III) to find the best of the Pareto optimal front. HNSGA-III&MOPSO is proposed to outperform MOPSO and NSGA-III because it uses a combination of search operators of both algorithms to create a new population. This makes the search process more diverse, wider search space. New hybrid algorithms show better performance than other algorithms. This is demonstrated through a number of complex benchmarking functions and Powertrain mount system stiffness parameter optimization problem with six-objective optimization in a three-dimensional (3D) model. The amplitude of the acceleration of the vehicle frame decreased by 22.8%, and the amplitude of the displacement of the vehicle frame reduced by 12.4% compared to the normal design case. The calculation time of the algorithm HNSGA-III&MOPSO is less than the algorithm NSGA-III, that is, 5 and 6 h, respectively, compared to the algorithm MOPSO.

The organization of this article is as follows. Section “Structure” describes the proposed hybrid HNSGA-III&MOPSO method and computational experimentation with several benchmark functions. Section “Vibration characteristic of the Powertrain mount system” describes the vibration characteristic of the Powertrain mount system and simulation results of application HNSGA-III&MOPSO method to optimization of the Powertrain mount system stiffness parameter. The final section “Conclusion” concludes the article.

Structure

Genetic algorithm NSGA-III

This algorithm was published by Deb and Jain¹² in 2014 with a number of change mechanisms selected. NSGA-III algorithm is based on the steps described in Figure 2.

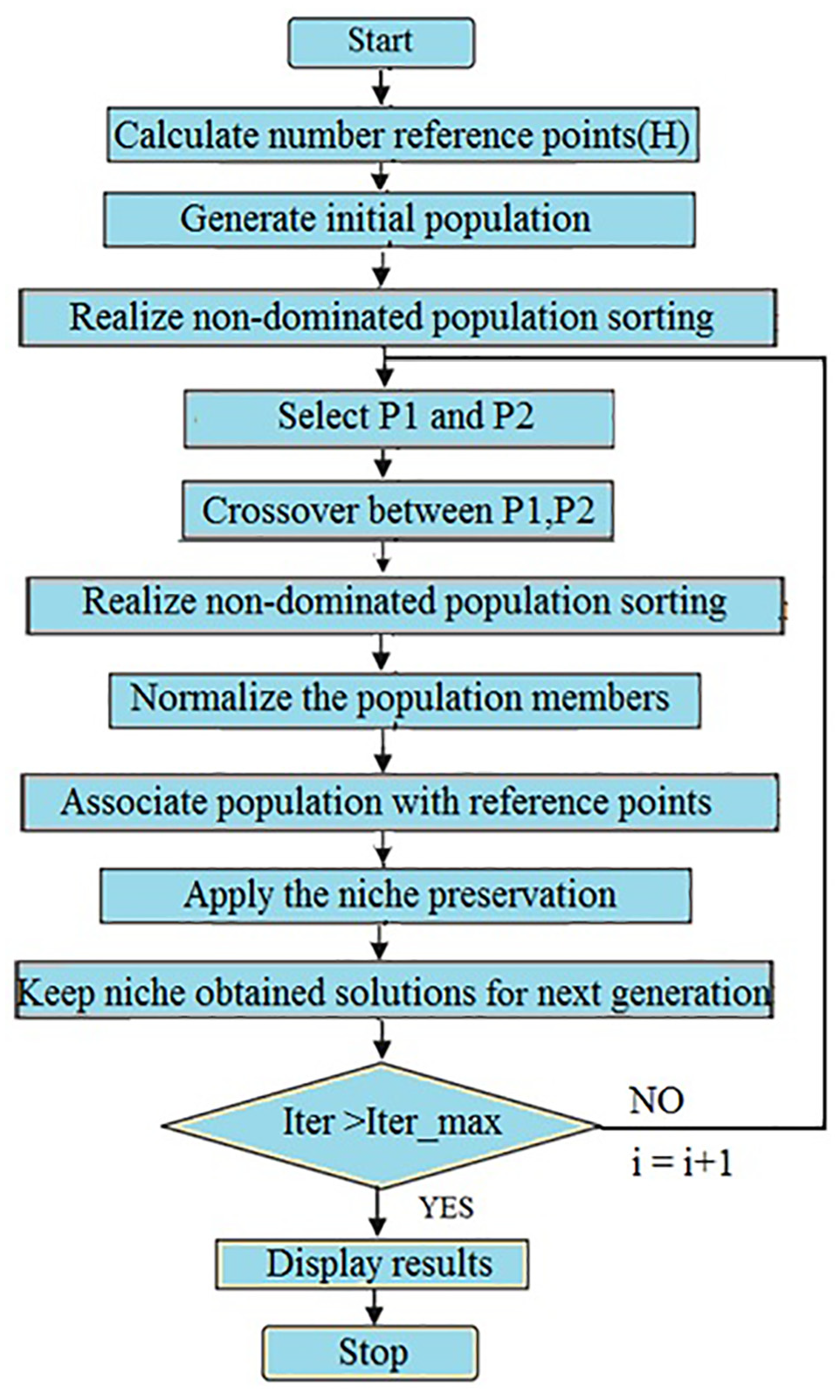

Figure 2.

Flow chart of NSGA-III.

PSO (MOPSO)

Kennedy et al.³⁴ published an algorithm based on the basis of PSO algorithm for optimization. They improved the PSO algorithm to find the Pareto optimal front. Therefore, the improved PSO algorithm is suitable to optimize many goals with high convergence speed, allowing each individual to benefit from the experience. A diagram of MOPSO is shown in Figure 3.

Figure 3.

Flow chart of MOPSO.

Hybrid NSGA-III and MOPSO (HNSGA-III&MOPSO)

Each evolutionary algorithm has different strengths and characteristics. Therefore, it is only natural to think of integrating different algorithms to handle a complex problem. In the field of research, the evolution algorithm integrates two or more optimization algorithms into a single frame. The results show that hybrid algorithms have higher efficiency because they can exchange characteristics to improve the disadvantages and enhance their advantages. Parallel hybridization can improve exploration and exploitation which can yield higher performance and more favorable conditions than any single algorithm. These population-based approaches use different techniques to explore the search space and, when they are combined, will improve the trade-off between exploration and exploitation tasks to converge around. The best solution was possible.

HNSGA-III&MOPSO hybrid approach

HNSGA-III&MOPSO is implemented in parallel breeding; that is, the initial population will be generated in both NSGA-III and MOPSO. After that, two separate populations will be mixed together. The new population after combining will be both algorithms used as their own population to perform fitness function calculations that evaluate the evolution of each algorithm. By the next generation, the new population created by the two algorithms is mixed together to form a common population. The process repeats until the end of evolution condition is completed. The process of parallel operation is to create an extremely diverse and widespread population. This makes the algorithm have a wide search strategy across the regions, besides making the process more convergent. Therefore, the analysis time is reduced and the results are more accurate.

The pseudo code of the proposed algorithm:
Parameter initialization for NSGA-III and MOPSO algorithms.
MOPSO algorithms: Swarm population initialization.
NSGA-III algorithms: GA population initialization.
While travel not completed.
Combination the two populations.
MOPSO algorithm.
While sub-travel not completed.
Determined fitness function.
Set P_best and G_best.
Update particle velocity v_i^k ⁺ ¹ and position x_i^k.
Proceed non-dominated sorting and crowding distance.
End while.
NSGA-III algorithm.
While evolution not completed.
Choose two parents P1 and P2 using the tournament method.
Proceed the crossover between P1 and P2 with a probability Pc.
Recognize the non-dominated population sorting.
Normalize the population members.
Associate the population member with the reference Points.
Apply the niche preservation (counter).
Keep the appropriate solutions obtained for the next generation.
End while.
End while.

A flow chart of HNSGA-III&MOPSO is shown in Figure 4.

Figure 4.

Flow chart of HNSGA-III&MOPSO.

Computational experimentation with several benchmark functions

Numerical results

In this section, the performance of HNSGA-III& MOPSO is evaluated using five benchmarks that are published in CEC 2009,^35–38 listed in Table 1. The results are compared to algorithms of NSGA-III and MOPSO. For the performance metric,²² Inverted Generational Distance (IGD),³⁹ Spacing (SP), and Maximum Spread (MS)⁴⁰ criteria are employed to measure convergence, quantity, and coverage, respectively. The mathematical formulation of IGD is as follows

IGD = \frac{\sqrt{\sum_{i = 1}^{N} d_{i}^{2}}}{N}

(1)

where N is the number of true Pareto optimal solutions and d_i indicates the Euclidean distance between the ith true Pareto optimal solution and the closet obtained Pareto optimal solutions in the reference set. It should be noted that IGD = 0 indicates that all members of the non-dominated solutions are in the true Pareto Front

SP = \sqrt{\frac{1}{N - 1} \sum_{i = 1}^{N - 1} {(\bar{d} - d_{i})}^{2}}

(2)

where $\bar{d}$ is the average of all d_i, N is the number of Pareto optimal solutions obtained, and

\begin{matrix} d_{i} = min (| f_{1}^{i} (x) - f_{1}^{j} (x) | + | f_{1}^{i} (x) - {f_{2}}^{j} (x) |) \\ for all i, j = 1, 2, 3, \dots N \end{matrix}

MS = \sqrt{\sum_{i = 1}^{M} max [d (a_{i}, b_{i})]}

(3)

where d is a function to calculate the Euclidean distance, b_i is the minimum in the ith objective, and M is the number of objectives.

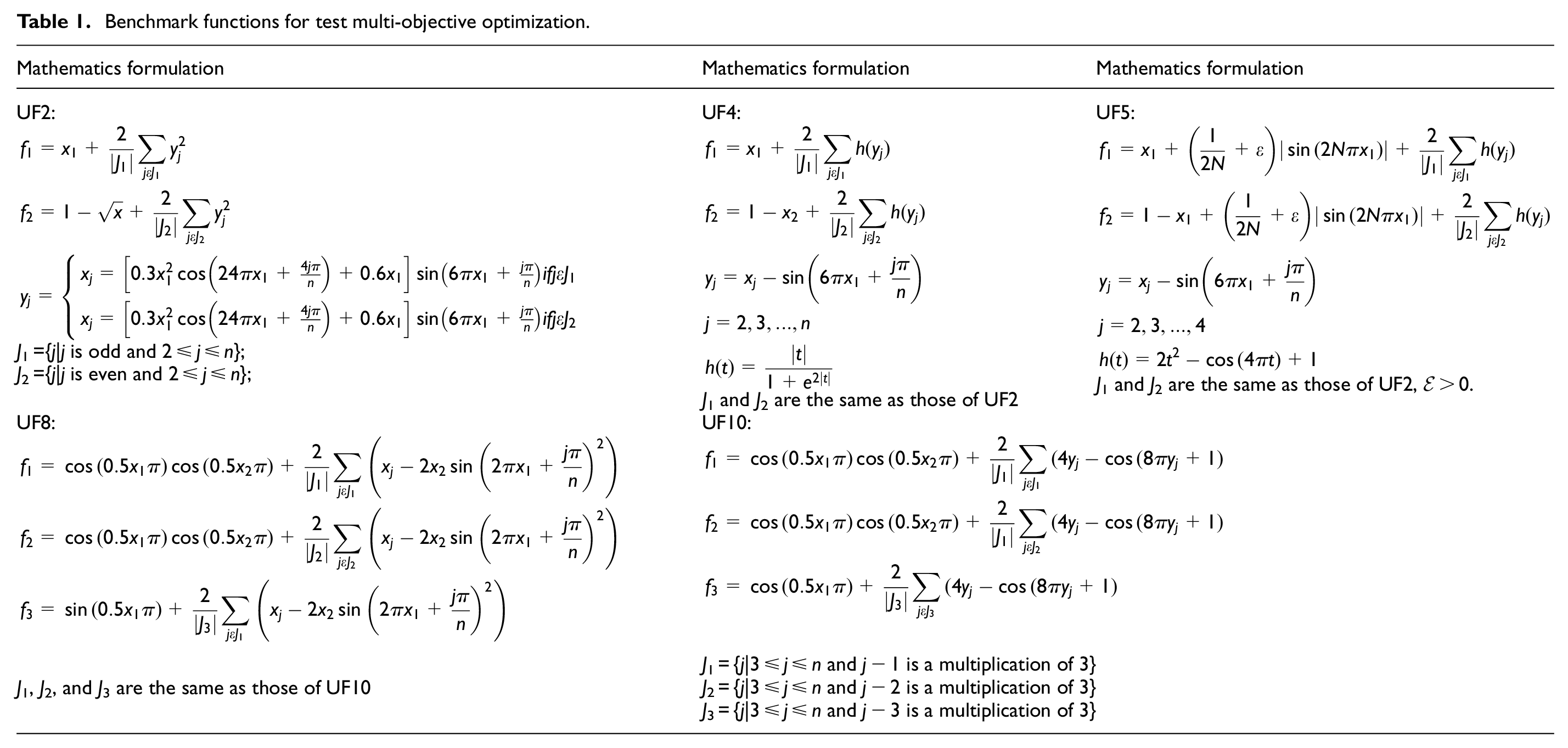

Table 1.

Benchmark functions for test multi-objective optimization.

Mathematics formulation	Mathematics formulation	Mathematics formulation
UF2: $\begin{matrix} f_{1} = x_{1} + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} y_{j}^{2} \\ f_{2} = 1 - \sqrt{x} + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} y_{j}^{2} \\ y_{j} = {\begin{matrix} x_{j} = [0.3 x_{1}^{2} \cos (24 π x_{1} + \frac{4 j π}{n}) + 0.6 x_{1}] \sin (6 π x_{1} + \frac{j π}{n}) ifj ε J_{1} \\ x_{j} = [0.3 x_{1}^{2} \cos (24 π x_{1} + \frac{4 j π}{n}) + 0.6 x_{1}] \sin (6 π x_{1} + \frac{j π}{n}) ifj ε J_{2} \end{matrix} \end{matrix}$ J₁ ={j\|j is odd and 2 ≤ j ≤ n}; J₂ ={j\|j is even and 2 ≤ j ≤ n};	UF4: $\begin{matrix} f_{1} = x_{1} + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} h (y_{j}) \\ f_{2} = 1 - x_{2} + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} h (y_{j}) \\ y_{j} = x_{j} - \sin (6 π x_{1} + \frac{j π}{n}) \\ j = 2, 3, . . ., n \\ h (t) = \frac{\| t \|}{1 + e^{2 \| t \|}} \end{matrix}$ J₁ and J₂ are the same as those of UF2	UF5: $\begin{matrix} f_{1} = x_{1} + (\frac{1}{2 N} + ε) \| \sin (2 N π x_{1}) \| + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} h (y_{j}) \\ f_{2} = 1 - x_{1} + (\frac{1}{2 N} + ε) \| \sin (2 N π x_{1}) \| + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} h (y_{j}) \\ y_{j} = x_{j} - \sin (6 π x_{1} + \frac{j π}{n}) \\ j = 2, 3, . . ., 4 \\ h (t) = 2 t^{2} - \cos (4 π t) + 1 \end{matrix}$ J₁ and J₂ are the same as those of UF2, $E$ > 0.
UF8: $\begin{matrix} f_{1} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \\ f_{2} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \\ f_{3} = \sin (0.5 x_{1} π) + \frac{2}{\| J_{3} \|} \sum_{j ε J_{1}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \end{matrix}$ J₁, J₂, and J₃ are the same as those of UF10	UF10: $\begin{matrix} f_{1} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} (4 y_{j} - \cos (8 π y_{j} + 1) \\ f_{2} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{2}} (4 y_{j} - \cos (8 π y_{j} + 1) \\ f_{3} = \cos (0.5 x_{1} π) + \frac{2}{\| J_{3} \|} \sum_{j ε J_{3}} (4 y_{j} - \cos (8 π y_{j} + 1) \end{matrix}$ J₁ = {j\|3 ≤ j ≤ n and j − 1 is a multiplication of 3} J₂ = {j\|3 ≤ j ≤ n and j − 2 is a multiplication of 3} J₃ = {j\|3 ≤ j ≤ n and j − 3 is a multiplication of 3}

In addition to using performance metrics, the best Pareto optimization set that HNSGA-III&MOPSO obtained on both parameter space and search space is shown in Figures 5 and 6. These figures show the performance of HNSGA-III&MOPSO compared to the real Pareto front. To evaluate comparisons, all algorithms are run 20 times for test problems and the statistical results of 20 runs and algorithm parameters are provided in Tables 2 –4. Statistical results of the algorithm for IGD, SP, and MS are provided, respectively, in Tables 5 –7. IGD shows that the proposed hybrid algorithm (HNSGA-III&MOPSO) can provide the best results on all statistics for issues that test two goals. IGD is a performance indicator that shows the accuracy and convergence of the algorithm. Therefore, it can be said that the proposed HNSGA-III&MOPSO algorithm can provide outstanding convergence on benchmarking two or three optimal goals. Pareto optimal solution results of HNSGA-III&MOPSO on each benchmark are also described in Figures 5 and 6.

Figure 5.

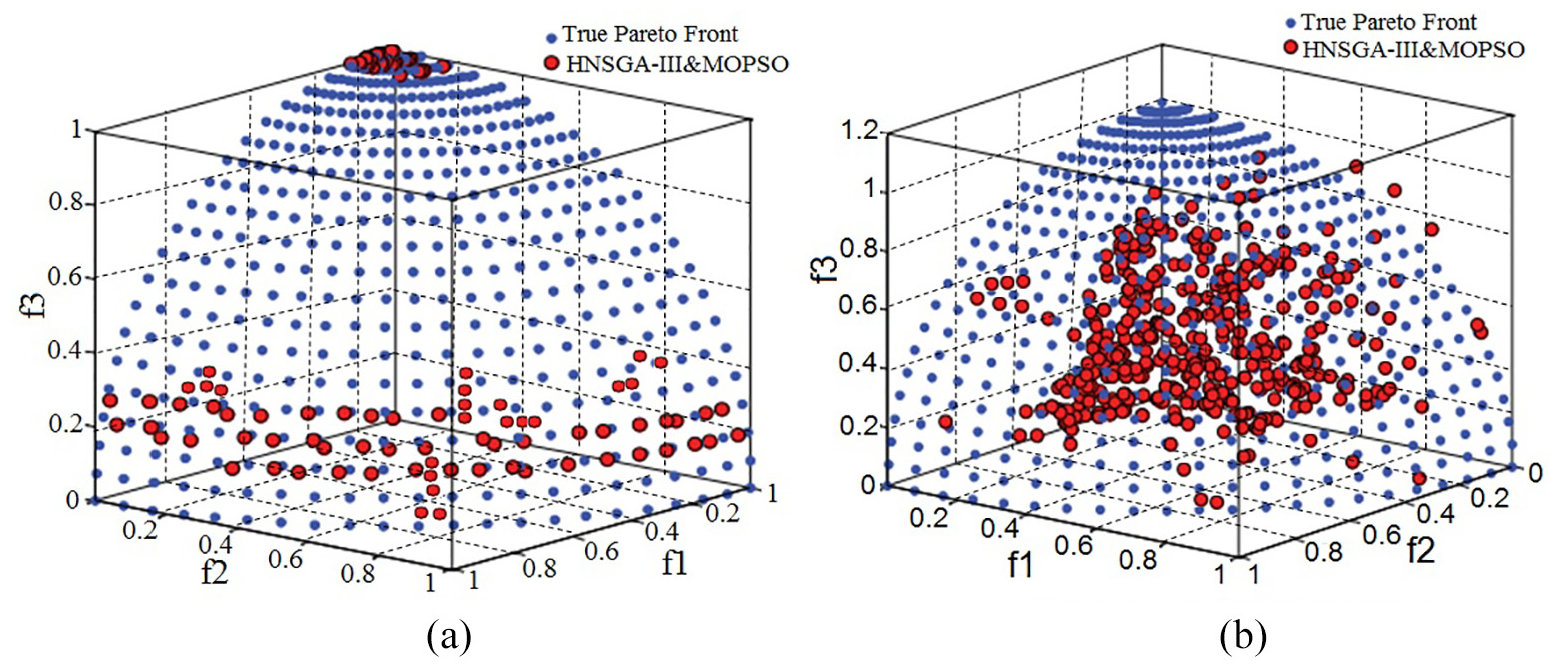

Pareto front of bi-objective benchmark functions: Pareto front of (a) UF2 functions, (b) UF4 functions, and (c) UF5 functions.

Figure 6.

Pareto front of tri-objective benchmark functions: Pareto front of (a) UF8 functions and (b) UF10 functions.

Table 2.

NSGA-III algorithm parameters.

Maximum number of iterations	MaxIt = 10,000
Population size	nPop = 100
Crossover percentage	pCrossover = 0.5
Mutation percentage	pMutation = 0.5
Mutation rate = 0.02	mu = 0.02
Number of parnets (offsprings)	nCrossover = 2round(pCrossovernPop/2)
Number of mutants	nMutation = round(pMutation*nPop)
Mutation step size	sigma = 0.1*(VarMax − VarMin)
Generating reference points	nDivision = 10 Zr = GenerateReferencePoints (nObj, nDivision)

Table 3.

MOPSO algorithm parameters.

Maximum number of iterations	MaxIt = 10,000	Inertia weight damping rate	wdamp = 0.99
Population size	nPop = 100	Personal learning coefficient	c1 = 1
Deletion selection pressure	gamma = 2	Global learning coefficient	c2 = 2
Mutation rate	mu = 0.1	Number of grids per dimension	nGrid = 7
Leader selection pressure	beta = 2	Inflation rate	alpha = 0.1
Repository size	nRep = nPop/2	Inertia weight	w = 0.5

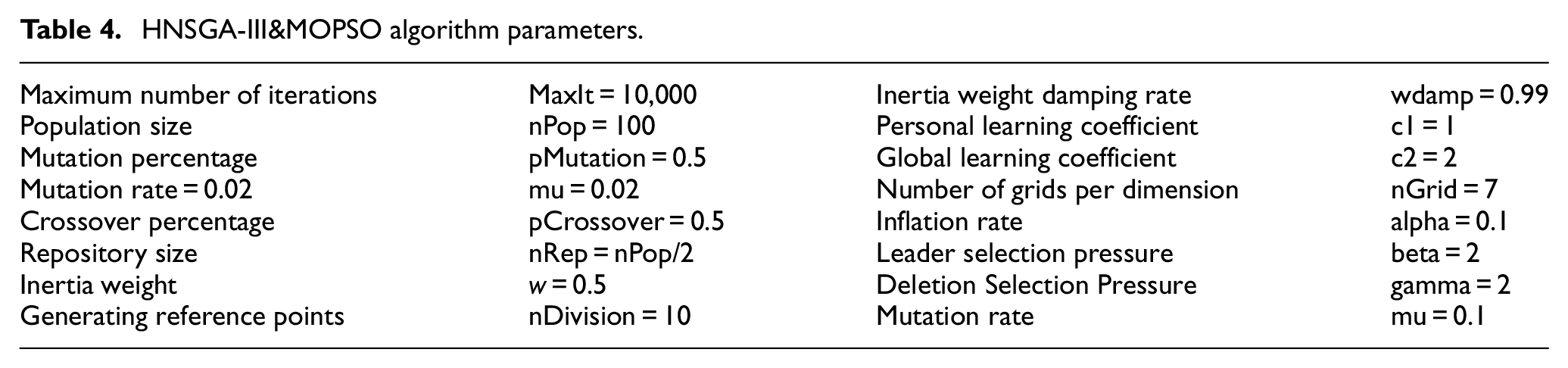

Table 4.

HNSGA-III&MOPSO algorithm parameters.

Maximum number of iterations	MaxIt = 10,000	Inertia weight damping rate	wdamp = 0.99
Population size	nPop = 100	Personal learning coefficient	c1 = 1
Mutation percentage	pMutation = 0.5	Global learning coefficient	c2 = 2
Mutation rate = 0.02	mu = 0.02	Number of grids per dimension	nGrid = 7
Crossover percentage	pCrossover = 0.5	Inflation rate	alpha = 0.1
Repository size	nRep = nPop/2	Leader selection pressure	beta = 2
Inertia weight	w = 0.5	Deletion Selection Pressure	gamma = 2
Generating reference points	nDivision = 10	Mutation rate	mu = 0.1

Table 5.

Results for IGD.

IGD	UF2					UF4
	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPO	0.0714	0.04536	0.03752	0.14551	0.03632	0.13453	0.14432	0.00636	0.15485	0.12335
NSGA-III	0.12244	0.1242	0.01243	0.14485	0.10454	0.06823	0.06835	0.00254	0.07078	0.06424
HNSGA-III&MOPSO	0.01362	0.01555	0.00269	0.01445	0.01260	0.02634	0.02815	0.00168	0.02777	0.02289
IGD	UF5					UF8
IGD	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPSO	2.50638	2.42504	0.57004	3.03533	1.48659
NSGA-III	1.26755	1.33741	0.13839	1.46735	0.12145	0.56681	0.53667	0.28667	0.69647	0.28530
HNSGA-III&MOPSO	0.47889	0.45400	0.08469	0.53541	0.22341	0.19659	0.27840	0.06717	0.33488	0.17553
IGD	UF10
IGD	Average	Median	Std. dev.	Worst	Best
MOPSO
NSGA-III	1.63529	1.59123	0.29349	2.16232	1.22048
HNSGA-III&MOPSO	1.70324	1.54323	0.55133	3.03835	1.13806

IGD: Inverted Generational Distance; MOPSO: multi-objective particle swarm optimization.

Table 6.

Results for SP.

SP	UF2					UF4
	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPSO	0.00849	0.00834	0.00168	0.01245	0.00624	0.00666	0.00672	0.00081	0.00819	0.00557
NSGA-III	0.00866	0.00879	0.00096	0.01042	0.00797	0.00780	0.00758	0.00066	0.00876	0.00617
HNSGA-III&MOPSO	0.02730	0.02624	0.01259	0.06499	0.01740	0.02843	0.02886	0.00465	0.03784	0.02038
SP	UF5					UF8
SP	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPSO	0.00456	0.00487	0.00408	0.01206	0.00006
NSGA-III	0.00278	0.00007	0.00553	0.01665	0.00001	0.02692	0.02737	0.00867	0.04453	0.01731
HNSGA-III&MOPSO	0.12545	0.12738	0.03505	0.16826	0.7467	0.24374	0.23799	0.03889	0.28492	0.16359
SP	UF10
SP	Average	Median	Std. dev.	Worst	Best
MOPSO
NSGA-III	0.01984	0.02064	0.00378	0.02645	0.01538
HNSGA-III&MOPSO	1.06778	0.89534	0.41961	1.81768	0.67319

SP: Spacing; MOPSO: multi-objective particle swarm optimization.

Table 7.

Results for MS.

MS	UF2					UF4
	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPSO	0.91505	0.91836	0.02460	0.86676	0.95651	0.81545	0.81344	0.01557	0.75441	0.83449
NSGA-III	0.87501	0.87337	0.00580	0.85436	0.87884	0.88564	0.88431	0.01866	0.84324	0.91394
HNSGA-III&MOPSO	0.89262	0.88368	0.05465	0.82235	0.93863	0.95766	0.96653	0.01532	0.92242	0.95666
MS	UF5					UF8
MS	Average	Median	Std. dev.	Worst	Best	Average	Median	Std. dev.	Worst	Best
MOPSO	0.23923	0.28663	0.09845	0.15784	0.43677
NSGA-III	0.29341	0.29565	0.3560	0.23544	0.34550	0.55310	0.54401	0.16736	0.26523	0.71676
HNSGA-III&MOPSO	0.82346	0.83676	0.06766	0.64314	0.95436	0.34398	0.36783	0.47428	0.27879	0.77412
MS	UF10
MS	Average	Median	Std. dev.	Worst	Best
MOPSO
NSGA-III	0.13435	0.10433	0.06253	0.06679	0.25414
HNSGA-III&MOPSO	0.24643	0.14474	0.38569	0.03383	0.96133

MS: Maximum Spread; MOPSO: multi-objective particle swarm optimization.

The resulting Pareto front is shown in Figures 6 and 7.

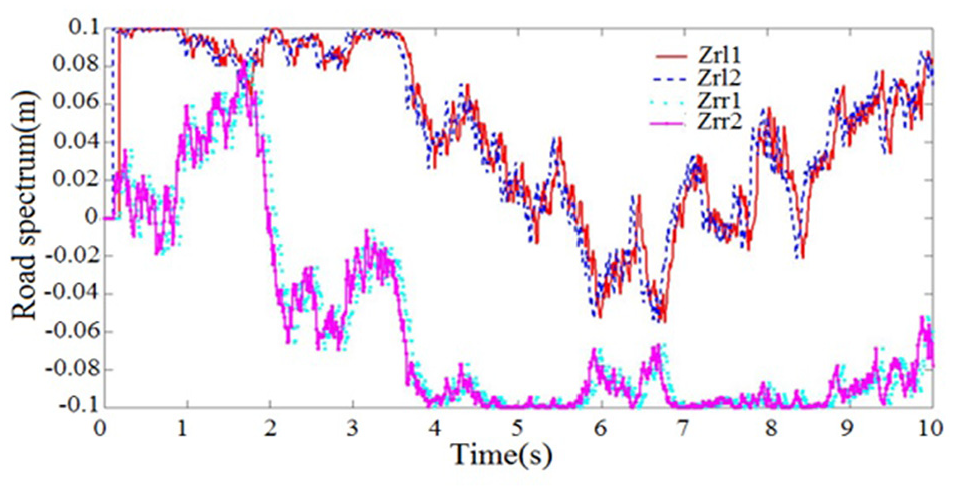

Figure 7.

Road surface profiles.

The numerical results prove that HNSGA-III&MOPSO having good performance for optimal objects is two objects; it relates to the convergence and scope of the search. However, HNSGA-III&MOPSO having good performance for optimal objects is three objects; the proposed algorithm shows high convergence and better coverage of many MOPSO and NSGA-III algorithms. From here, we can say that the main advantages of the algorithm HNSGA-III&MOPSO proposed compared to NSGA-III and MOPSO are the convergence characteristics and the ability to search more broadly. In addition, the results of HNSGA-III&MOPSO are proposed in most cases better than MOPSO and NSGA-III. Therefore, the results show that HNSGA-III&MOPSO is proposed to outperform MOPSO and NSGA-III because it uses a combination of search operators of both algorithms to create a new population. In addition, the MOPSO algorithm updates the gBest in each iteration. Therefore, all particles are attracted by the same or a similar gBest (i) group in each iteration, while individuals of HNSGA-III&MOPSO are updated for each generation, thus supporting assist search agents to explore a wider search space. This proves that the hybrid method has actually been successful. It gives more accurate results and less search time than the other two algorithms.

Vibration characteristic of the Powertrain mount system

Mathematical model: Full car model with 10 degrees of freedom (DOF) is shown in Figure 1. Suspension and tires are considered spring and damping systems. Where the masses m_2.1, m_2.2, m_2.3, and m_2.4 denote the weight of four wheels (the mass does not burst). The masses m_cg1 and m_cab represent the mass (unburnt mass) of the frame and electric motor, respectively. Z3.1, Z3.2, Z3.3, Z3.4 are the vertical displacements of the wheel; Z1, Z2 are, respectively, the vertical displacement of the frame and the transmission system. And, Roll and Altitude are vibrations that rotate around the corresponding X and Y axes. Next, the symbol Φ and Ψ represent the pitch and roll of the frame. The inertia of the transmission system on the y-axis and the x-axis are Iyy and Ixx, respectively; the inertial moment for the chassis on axes X1 and Y1 are Iyy1 and Ixx1, respectively. The stiffness and damping parameters of the wheels are K3.1, K3.2, K3.3, K3.4 and C3.1, C3.2, C3.3, C3.4, respectively. Similarly, the hardness and damping parameters of primary suspension are K2.1, K2.2, K2.3, K2.4 and C2.1, C2.2, C2.3, C2.4, respectively, while the hardness and damping parameters of the drive system are K1.1, K1.2, K1.3 and C1.1, C1.2, C1.3, respectively. The distance of the front and rear support from the center (CG) of the transmission system is a and b, respectively; the right and left mounting distances from the CG of the transmission system are c and d, respectively. a1, b1 and c1, d1 are the distances for the chassis.

Using Newton’s law, the mathematical model of Figure 1 can be written as follows

M {\overset{\cdot\cdot}{x}}_{i} + K {\overset{\cdot}{x}}_{i} + C x_{i} = Q (t)

(4)

where the symbols are shown in Table 8.

Table 8.

Parameters of the mathematical model.

Symbol	Parameters of the mathematical model
X_i	Vector column of displacements and angular oscillations of masses
M	The matrix of inertial coefficients of car parts
C	The matrix of coefficients of stiffnesses and torsional rigidity
K	The matrix of damping coefficients
Q(t)	Column vector of the perturbing forces and moments
q₁, q₂ Universal road surface amplitude at front and rear wheels	$q_{2} (t) = q_{1} (t + τ)$ with $τ$ : time interval, va: vehicle speed

Multi-objective optimization functions

There are many indicators to evaluate the vibration of the Powertrain. In particular, mean square acceleration oscillates at the front and rear of the Powertrain mount, the mean square displacement difference between the Powertrain and vehicle chassis at the front and rear Powertrain mount. These are two important parameters that determine the decisive influence of unit Powertrain vibration on chassis. In order to optimally reduce the vibration of the unit Powertrain, we need to simultaneously optimize the parameters of mean square acceleration and mean square displacement at the front and rear, right and left of the Powertrain mounts.

The average square value of the vibration acceleration of any points can be determined by the following formula

\overset{\cdot\cdot}{z} = \sqrt{\int_{- \infty}^{\infty} S_{\overset{\cdot\cdot}{z}} (ω) d ω} = \sqrt{\int_{- \infty}^{\infty} ω^{4} {| W_{z} (j ω) |}^{2} S_{q} (ω)}

(5)

where ω is the frequency, $| W_{z} (j ω) |^{2}$ is the squared modulus of amplitude and phase characteristics, and $S_{q} (ω)$ is the spectral density of exposure.

The modules of the amplitude and phase characteristics of the vibratory displacement of the Powertrain and the car body in the place of the front mount are

W_{k}^{o_{1}} (j ω) = W_{0} (j ω) + W_{0}^{ϕ} (j ω) \cdot l_{3}

(6)

W_{ca}^{O_{1}} (j ω) = W_{ca}^{ϕ} (j ω) + W_{ca} (j ω) \cdot l_{6}

(7)

where $W_{0} (j ω)$ is the module amplitude–phase characteristics in the center of the car body, $W_{0}^{ϕ} (j ω)$ is the module amplitude–phase characteristics of the longitudinal-angular body of the car, $W_{k}^{O_{1}} (j ω)$ is the module of the amplitude and phase characteristics of the body in place of the front mount of the Powertrain, $W_{ca} (j ω)$ is the module amplitude–phase characteristics in the center of the Powertrain of the car, $W_{ca}^{ϕ} (j ω)$ is the module amplitude–phase characteristics of the longitudinal-angular Powertrain of the car, and $W_{ca}^{O_{1}} (j ω)$ is the modulus of amplitude–phase characteristics in place of the front mount of the Powertrain.

The modules of the amplitude–phase characteristics of the vibration displacement of the Powertrain and the car body in the place of the rear mount are

W_{k}^{O_{2}} (j ω) = W_{0} (j ω) + W_{0}^{ϕ} (j ω) \cdot l_{4}

(8)

W_{ca}^{O_{2}} (j ω) = W_{ca} (j ω) - W_{ca}^{ϕ} (j ω) \cdot l_{7}

(9)

where $W_{k}^{O_{2}} (j ω)$ is the module of the amplitude–phase characteristics of the body in the place of the rear mount of the Powertrain and $W_{ca}^{O_{2}} (j ω)$ is the module of amplitude–phase characteristics in the place of the rear mount of the Powertrain.

The difference of the module frequency response of the vibration of the Powertrain and the car body in place of the front mount of the Powertrain is

W_{ca - k}^{O_{1}} (j ω) = W_{ca}^{O_{1}} (j ω) - W_{k}^{O_{1}} (j ω)

(10)

The difference of the frequency response module of the vibration displacement of the Powertrain and the car body at the rear mount is

W_{ca - k}^{O_{2}} (j ω) = W_{ca}^{O_{2}} (j ω) - W_{k}^{O_{2}} (j ω)

(11)

Simulated input parameters

Road surface profiles

When the vehicle moves, there are many factors that cause the vibration:: the internal force in the car; external forces that appear in the process of using acceleration, braking, and revolving; exterior conditions such as wind and storm; and boring face street. Among the factors on the bumpy side of the road is the oscillation cause of the vehicle. To simulate the most general calculation, we use the road surface profile as a random function as in Figure 7 and simulated parameters as shown in Table 9.

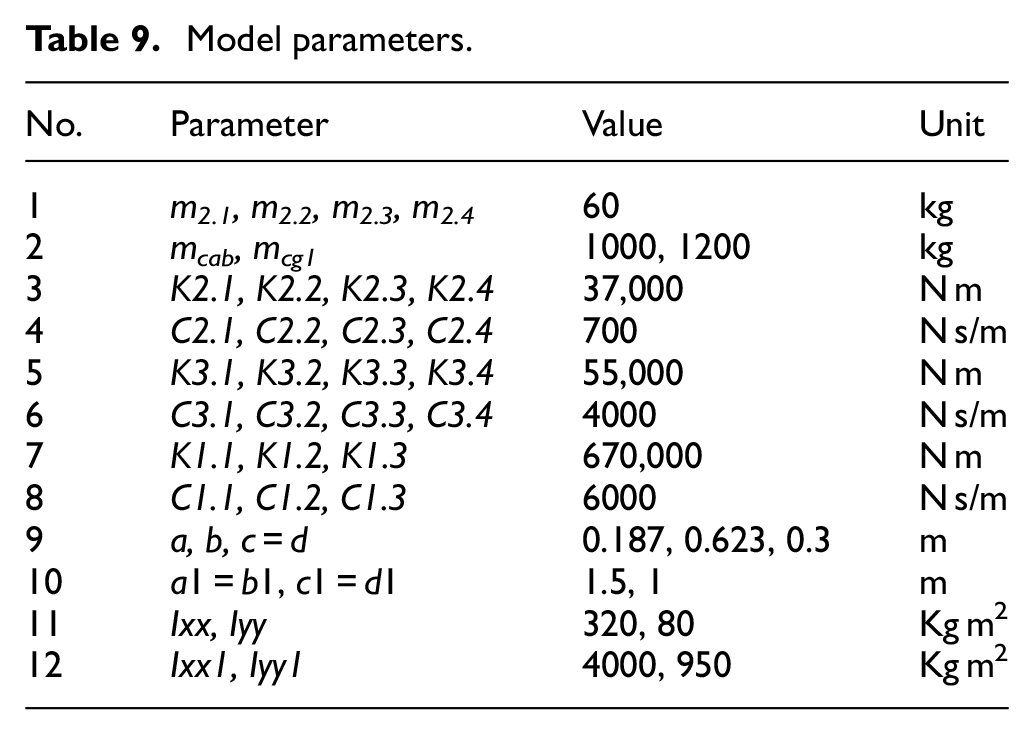

Table 9.

Model parameters.

No.	Parameter	Value	Unit
1	m_2.1, m_2.2, m_2.3, m_2.4	60	kg
2	m_cab, m_cg1	1000, 1200	kg
3	K2.1, K2.2, K2.3, K2.4	37,000	N m
4	C2.1, C2.2, C2.3, C2.4	700	N s/m
5	K3.1, K3.2, K3.3, K3.4	55,000	N m
6	C3.1, C3.2, C3.3, C3.4	4000	N s/m
7	K1.1, K1.2, K1.3	670,000	N m
8	C1.1, C1.2, C1.3	6000	N s/m
9	a, b, c = d	0.187, 0.623, 0.3	m
10	a1 = b1, c1 = d1	1.5, 1	m
11	Ixx, Iyy	320, 80	Kg m²
12	Ixx1, Iyy1	4000, 950	Kg m²

Simulation results of application HNSGA-III&MOPSO method to optimization of the Powertrain mount system stiffness parameter

Through Matlab, we calculated six functions of acceleration and displacement according to the stiffnesses of the front left, front right, and rear Powertrain mount (K1.1, K1.2, K1.3) value as shown in Figure 8 (Figures 8 –10 show the results in the form of 4D—four-dimensional space via the Isosurfaces function in Matlab).

Figure 8.

Values of six-objective optimization functions.

Figure 9.

Pareto front of the solutions after 1000 generations, 200 population.

Figure 10.

Global Pareto front of six-objective optimization functions.

Values of six-objective optimization functions according to the stiffnesses (K1.1, K1.2, K1.3): f1 is MSD at the front left Powertrain mount, f2 is MSA at the front left Powertrain mount, f3 is MSD at the front right Powertrain mount, f4 is MSA at the front right Powertrain mount, f5 is MSD at the rear Powertrain mount, and f6 is MSA at the rear Powertrain mount.

It is well known that the results of multi-objective optimization would be a set of non-dominated optimized points called Pareto set. These points offer a wide range of parameters to the designer to choose the optimum point depending on his designing conditions. There are always conflicting objective functions in vehicle designing where improvement in one function may have an unfavorable influence on other functions. In this article, multi-objective optimization for all six-objective functions is done simultaneously. Application of HNSGA-III&MOPSO optimization algorithm: we obtain results as shown in Figures 9 and 10:

The average square of the Pareto front of MSD at the front left Powertrain mount: f1 = 4.1258e−05 (m).

The average square of the Pareto front of MSA at the front left Powertrain mount: f2 = 1.5962 (m/s²).

The average square of the Pareto front of MSD at the front right Powertrain mount: f3 = 5.5557e−05 (m).

The average square of the Pareto front of MSA at the front right Powertrain mount: f4 = 1.8014 (m/s²).

The average square of the Pareto front of MSD at the front right Powertrain mount: f5 = 2.2680e−05 (m).

The average square of the Pareto front of MSA at the front right Powertrain mount: f6 = 1.3224 (m/s²).

In which f1 is the Pareto front of MSD at the front left Powertrain mount, f2 is the Pareto front of MSA at the front left Powertrain mount, f3 is the Pareto front of MSD at the front right Powertrain mount, f4 is the Pareto front of MSA at the front right Powertrain e mount, f5 is the Pareto front of MSD at the rear Powertrain mount, and f6 is the Pareto front of MSA at the rear Powertrain mount.

Application of HNSGA-III&MOPSO optimization algorithm with 6- objective functions (f1, f2, f3, f4, f5, f6): the red dots on f2, f3, f5, f6 and the blue dots on f1, f4 are the result set of the Pareto front that the HNSGA-III&MOPSO algorithm has found.

HNSGA-III&MOPSO has been applied in the problem of Powertrain mount system stiffness parameters optimization. Simulation results comparing one of the results in the set of the Pareto front from the HNSGA-III&MOPSO algorithm with different stiffness values (K1.1, K1.2, K1.3) are shown in Figures 11 and 12.

Figure 11.

Acceleration of the vehicle frame.

Figure 12.

Displacement of the vehicle frame.

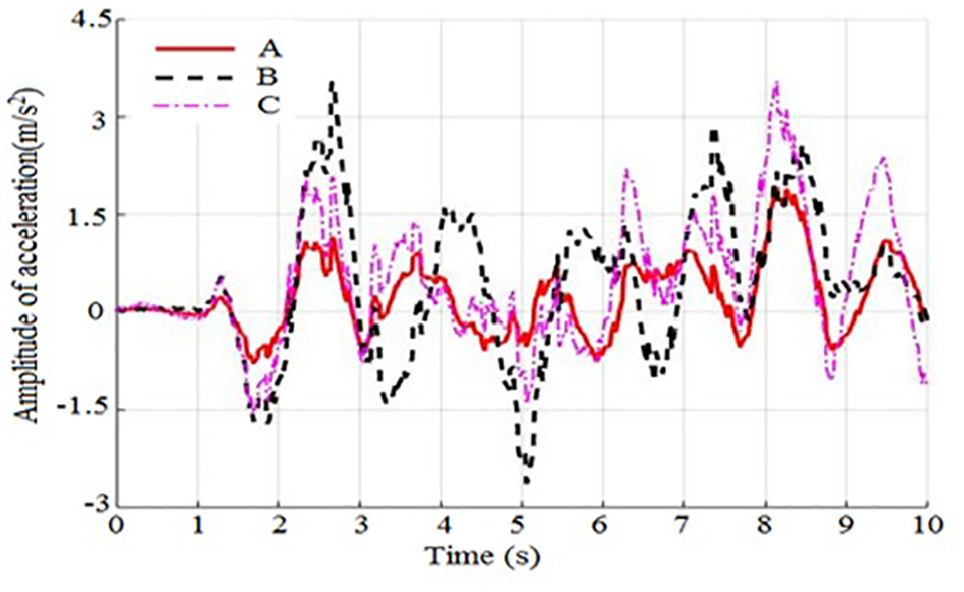

Figure 11 shows the acceleration of the vehicle frame corresponding to the different stiffness values. Symbol A corresponds to the optimal stiffness value in a set of the Pareto front. Symbol B corresponds to K1.1 = 290,000, K1.2 = 350,000, K1.3 = 550,000. Symbol C corresponds to K1.1 = 790,000, K1.2 = 750,000, K1.3 = 350,000. From the graph, we see that the smallest acceleration is at the optimal stiffness value.

Similarly, Figure 12 shows the displacement of the vehicle frame corresponding to the different stiffness values. Symbol A1 corresponds to the optimal stiffness value in a set of the Pareto front. Symbol A2 corresponds to K1.1 = 290,000, K1.2 = 350,000, K1.3 = 750,000. Symbol A3 corresponds to K1.1 = 790,000, K1.2 = 750,000, K1.3 = 650,000. From the graph, we see that the smallest displacement is at the optimal stiffness value in a set of the Pareto front.

Conclusion

The combination of the MOPSO algorithm and the genetic algorithm NSGA-III has been implemented in this article. The results of this technique find the globally optimal set of multi-object problems. The hybrid method HNSGA-III&MOPSO has been rated high performance, which has been assessed through a series of comparative testing methods for benchmarking two goals or three goals. In addition, these results are compared with other multi-purpose optimization methods such as MOPSO and NSGA-III. The numerical results demonstrate that this new hybrid algorithm is more effective in solving multi-objective optimization problems with many possibilities for convergence and search.

The amplitude of the acceleration of the vehicle frame decreased by 22.8%, and the amplitude of the displacement of the vehicle frame reduced by 12.4% compared to the normal design case. The calculation time of the algorithm HNSGA-III&MOPSO is less than the algorithm NSGA-III, that is, 5 and 6 h, respectively, compared to the algorithm MOPSO.

Footnotes

Handling Editor: Yunn-Lin Hwang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by VIETNAM TNK CONSULTANT & SERVICE COMPANY LIMITED (0107487266).

ORCID iD

Dinh-Nam Dao

References

Jeong

Singh

Analytical methods of decoupling the automotive engine torque roll axis. J Sound Vibrat 2000; 234: 85–114.

Park

J-Y

Singh

Effect of non-proportional damping on the torque roll axis decoupling of an engine mounting system. J Sound Vibrat 2008; 313: 841–857.

J-F

Singh

Improved torque roll axis decoupling axiom for a Powertrain mounting system in the presence of a compliant base. J Sound Vibrat 2012; 331: 1498–1518.

Naganathan

Dukkipati

RV.

A literature review of automotive vehicle engine mounting systems. Mech Mach Theory 2001; 36: 123–142.

Adiguna

Tiwari

Singh

, et al. Transient response of a hydraulic engine mount. J Sound Vibrat 2003; 268: 217–248.

Konak

Coit

Smith

Multi-objective optimization using genetic algorithms: a tutorial. Reliabil Eng Syst Safety 2006; 91: 92–107.

Deb

Pratap

Agarwal

, et al. A fast elitist multiobjective genetic algorithm: NSGA-II. IEEE Trans Evol Computat 2002; 6: 182–197.

Chang

L-C

Chang

F-J.

Multi-objective evolutionary algorithm for operating parallel reservoir system. J Hydrol 2009; 377: 12–20.

Ishibuchi

Tsukamoto

Nojima

Evolutionary many-objective optimization: a short review. In: Proceedings of IEEE congress on evolutionary computation, Hong Kong, China, 1–6 June 2008, pp.1–6. New York: IEEE.

10.

Malekmohammadi

Zahraie

Kerachian

A ranking solution of multi-objective reservoir operation optimization models using multi-criteria decision analysis. Expert Syst Appl 2011; 38: 7851–7863.

11.

Deb

Jain

Handling many-objective problems using an improved NSGA-II procedure. In: Proceedings of IEEE congress on evolutionary computation (CEC), Brisbane, QLD, Australia, 10–15 June 2012. New York: IEEE.

12.

Deb

Jain

An evolutionary many objective optimization algorithms using reference-point based non-dominated sorting approach, part I: solving problems with box constraints. IEEE Trans Evol Computat 2014; 18: 577–601.

13.

Coello

CAC

Pulido

Lechuga

MS.

Handling multiple objectives with particle swarm optimization. IEEE Trans Evol Comput 2004; 8: 256–279.

14.

Zhang

MOEA/D: a multi-objective evolutionary algorithm based on decomposition. IEEE Trans Evol Comput 2007; 11: 712–731.

15.

Coello

CAC

Lechuga

. MOPSO: a proposal for multi-objective swarm optimization. Evol Comput 2002; 2: 1051–1056.

16.

Baltar

Fontane

. A multi-objective particle swarm optimization model for reservoir operations and planning. In: Proceedings of joint international conference on computing and decision making in civil and building engineering, Montréal, QC, Canada, 14–16 June 2006, pp.1–16.

17.

Baltar

Fontane

. A generalized multiobjective particle swarm optimization solver for spreadsheet models: application to water quality. In: Proceedings of hydrology days, Fort Collins, CO, 7–8 March 2006, pp.1–12. Fort Collins, CO: Colorado State University.

18.

Reddy

Kumar

DN.

Multi-objective particle swarm optimization for generating optimal trade-offs in reservoir operation. Hydrol Process 2007; 21: 2897–2909.

19.

Reddy

Kumar

DN.

Performance evaluation of elitist-mutated multi-objective particle swarm optimization for integrated water resources management. J Hydroinformat 2009; 11: 79–88.

20.

Wang

Huang

Lei

. Multi-objective optimization of reservoir flood dispatch based on MOPSO algorithm. In: Proceedings of 8th international conference on natural computation, Chongqing, China, 29–31 May 2012, pp.29–31.

21.

Mirjalili

Saremi

Mirjalili

, et al. Multi-objective grey wolf optimizer: a novel algorithm for multi-criterion optimization. Expert Syst Appl 2016; 47: 106–119.

22.

Pradhan

Panda

Solving multi-objective problems using cat swarm optimization. Expert Syst Appl 2012; 39: 2956–2964.

23.

Velazquez

JMO

Coello

CAC

Arias-Montano A. Multi-objective compact differential evolution. In 2014 IEEE symposium on differential evolution, Orlando, FL, 19–12 December 2014, pp.1–8. New York: IEEE.

24.

Hemmatian

Fereidoon

Assareh

Optimization of hybrid laminated composites using the multi-objective gravitational search algorithm (MOGSA). Eng Optim 2014; 46: 1169–1182.

25.

Shi

Kong

A multi-objective ant colony optimization algorithm based on elitist selection strategy. Metallurg Mining Ind 2015; 7: 333–338.

26.

Hancer

Xue

Zhang

, et al. A multi-objective artificial bee colony approach to feature selection using fuzzy mutual information. In: 2015 IEEE congress on evolutionary computation (CEC), Sendai, Japan, 25–28 May 2015, pp.2420–2427. New York: IEEE.

27.

Lin

Zhang

, et al. A multi-objective teaching-learning-based optimization algorithm to scheduling in turning processes for minimizing makespan and carbon footprint. Production 2015; 101: 337–347.

28.

Jeong

Hasegawa

Shimoyama

, et al. Development and investigation of efficient GA/PSO-hybrid algorithm applicable to real-world design optimization. In: IEEE congress on evolutionary computation, Trondheim, 18–21 May 2009. New York: IEEE.

29.

Premalatha

Natarajan

AM.

Hybrid PSO and GA for global maximization. Int J Open Problems Comp 2009; 2: 597–608.

30.

Bai

H-B.

An improved multi-objective particle swarm optimization. Int J Comp Optimizat 2016; 3: 105–120.

31.

Pourtakdoust

Zandavi

SM.

A hybrid simplex non-dominated sorting genetic algorithm for multiobjective optimization. Int J Swarm Intel Evol Comput 2016; 5: 3.

32.

Yang

XLi , et al. An efficient hybrid algorithm for multiobjective optimization problems with upper and lower bounds in engineering. Mathemat Prob Eng 2015; 2015: 932029.

33.

Rashidi

Jahandar

Zandieh

An improved hybrid multi-objective parallel genetic algorithm for hybrid flow shop scheduling with unrelated parallel machines. Int J Adv Manufact Tech 2010; 49: 1129–1139.

34.

Kennedy

Eberhart

, et al. Swarm intelligence (The Morgan Kaufmann series in evolutionary computation). Burlington, MA: Morgan Kaufmann; 2001, pp.81–86.

35.

Cao

YJ.

Multiple objective particle swarm optimization techniques for economic load dispatch. J Zhejiang Univ Sci 2005; 6: 420–427.

36.

Zhu

Geng

ZQ.

Multi-objective particle swarm optimization hybrid algorithm: an application on the industrial cracking furnace. Ind Eng Chem Res 2007; 46: 3602–3609.

37.

Kitamura

Mori

Shindo

, et al. Modified multiobjective particle swarm optimization method and its application to energy management system for factories. IEEJ Trans Electr Informat Syst 2005; 125: 21–28.

38.

Zhang

Zhou

Zhao

Multi-objective optimization test instances for the CEC 2009 special session and competition. Colchester: University of Essex, 2008, pp.1–30.

39.

Schott

JR.

Fault tolerant design using single and multi-criteria genetic algorithm optimization. Cambridge, MA: Department of Aeronautics and Astronautics, Massachusetts Institute of Technology, 1995, pp.199–200.

40.

Zitzler

Thiele

Multi-objective evolutionary algorithms: a comparative case study and the strength Pareto approach. Evol Comput IEEE Trans 1999; 3: 257–271.

Mathematics formulation	Mathematics formulation	Mathematics formulation
UF2: $\begin{matrix} f_{1} = x_{1} + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} y_{j}^{2} \\ f_{2} = 1 - \sqrt{x} + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} y_{j}^{2} \\ y_{j} = {\begin{matrix} x_{j} = [0.3 x_{1}^{2} \cos (24 π x_{1} + \frac{4 j π}{n}) + 0.6 x_{1}] \sin (6 π x_{1} + \frac{j π}{n}) ifj ε J_{1} \\ x_{j} = [0.3 x_{1}^{2} \cos (24 π x_{1} + \frac{4 j π}{n}) + 0.6 x_{1}] \sin (6 π x_{1} + \frac{j π}{n}) ifj ε J_{2} \end{matrix} \end{matrix}$ J₁ ={j\|j is odd and 2 ≤ j ≤ n}; J₂ ={j\|j is even and 2 ≤ j ≤ n};	UF4: $\begin{matrix} f_{1} = x_{1} + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} h (y_{j}) \\ f_{2} = 1 - x_{2} + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} h (y_{j}) \\ y_{j} = x_{j} - \sin (6 π x_{1} + \frac{j π}{n}) \\ j = 2, 3, . . ., n \\ h (t) = \frac{\| t \|}{1 + e^{2 \| t \|}} \end{matrix}$ J₁ and J₂ are the same as those of UF2	UF5: $\begin{matrix} f_{1} = x_{1} + (\frac{1}{2 N} + ε) \| \sin (2 N π x_{1}) \| + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} h (y_{j}) \\ f_{2} = 1 - x_{1} + (\frac{1}{2 N} + ε) \| \sin (2 N π x_{1}) \| + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} h (y_{j}) \\ y_{j} = x_{j} - \sin (6 π x_{1} + \frac{j π}{n}) \\ j = 2, 3, . . ., 4 \\ h (t) = 2 t^{2} - \cos (4 π t) + 1 \end{matrix}$ J₁ and J₂ are the same as those of UF2, $E$ > 0.
UF8: $\begin{matrix} f_{1} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \\ f_{2} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{2} \|} \sum_{j ε J_{2}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \\ f_{3} = \sin (0.5 x_{1} π) + \frac{2}{\| J_{3} \|} \sum_{j ε J_{1}} (x_{j} - 2 x_{2} \sin {(2 π x_{1} + \frac{j π}{n})}^{2}) \end{matrix}$ J₁, J₂, and J₃ are the same as those of UF10	UF10: $\begin{matrix} f_{1} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{1}} (4 y_{j} - \cos (8 π y_{j} + 1) \\ f_{2} = \cos (0.5 x_{1} π) \cos (0.5 x_{2} π) + \frac{2}{\| J_{1} \|} \sum_{j ε J_{2}} (4 y_{j} - \cos (8 π y_{j} + 1) \\ f_{3} = \cos (0.5 x_{1} π) + \frac{2}{\| J_{3} \|} \sum_{j ε J_{3}} (4 y_{j} - \cos (8 π y_{j} + 1) \end{matrix}$ J₁ = {j\|3 ≤ j ≤ n and j − 1 is a multiplication of 3} J₂ = {j\|3 ≤ j ≤ n and j − 2 is a multiplication of 3} J₃ = {j\|3 ≤ j ≤ n and j − 3 is a multiplication of 3}
