Abstract

In this article, we study bistability, multiscroll, and symmetric properties of fractional-order chaotic system with cubic nonlinearity. The system is configured with hyperbolic function consisting of a parameter “g.” By varying the parameter “g,” the dynamical behavior of the system is investigated. Multistability and multiscroll are identified, which makes the system suitable for secure communication applications. When the system is treated as fractional order, for the same parameter values and initial conditions and when the fractional order is varied from 0.96 to 0.99, multiscroll property is obtained. Symmetric property is obtained for the order of 0.99. The fractional system holds only single scroll until 0.965 order and when the order increases to more than 0.99, it is having two-scroll attractor. This property opens a variety of applications for the systems, especially in secure communication. Adaptive synchronization of the system using sliding mode control scheme is presented. For implementing the fractional-order system in field-programmable gate array, Adomian decomposition method is used, and the register-transfer level schematic of the system is presented.

Keywords

Multiscroll fractional order bistability chaotic system

Introduction

Designing chaotic systems with more complex dynamics has been of great interest to the researchers.^1–6 Dynamical systems with multiscroll attractors can present more complex dynamics than general chaotic systems with mono-scroll attractors. Chaotic system with multiscroll attractors found its significance in secure communication because of the system complexity which greatly improves the encryption performance.⁷ Various methods have been proposed to generate multiscroll attractors.^8–15 The introduction of a family of n-scroll chaotic attractors by Suykens and Vandewalle¹⁶ using quasi-linear function method is identified as one of the methods to strengthen the complexity of chaotic system. After the formulation of a generalized n-double scroll Chua’s circuit using three-state controlled cellular neural network, designing multiscroll chaotic system became a hot topic in chaotic research field.^17,18

The generation of multiscroll attractors by controlling the equilibrium point of a system is discussed in Ontañón-García et al.¹⁹ Time-delayed hyperchaotic system having multiscroll attractors with multiple positive Lyapunov exponents (LEs) is proposed in Wang et al.²⁰ A chaotic oscillator capable of generating n-scroll chaos with multiple-cycle nonlinear transconductor is reported in Salama et al.²¹ Microcontroller-based circuit realization of a four-dimensional multiscroll hyperchaotic system is proposed in Sun et al.²² The generation and application of one- and two-dimensional (2D) multiscroll chaotic systems in an encryption technique is given in Radwan and Abd-El-Hafiz.²³ Cellular neural network–based chaotic model for generating multiscroll attractors with hyperbolic tangent function series is proposed in Günay and Altun.²⁴ Introducing hyperbolic function is one successful method to enhance the number of scrolls present in the system.

Fractional order offers a novel modeling approach for systems with extraordinary dynamical properties by introducing the notion of a derivative of non-integer (fractional) order. Fractional calculus is found especially useful in system theory and automatic control, where fractional differential equations are used to obtain more accurate models of dynamic systems.²⁵ It also develops new control strategies and enhances the characteristics of control loops. Fractional-order systems have recently emerged as another platform capable of demonstrating multiscroll chaotic attractors.^26,27 Such systems can give rise to chaos even though the total order is less than 3 (however, greater than 2).²⁸ The chaotic systems with rich dynamic properties can find its application in cryptosystem.^29–31 Complete analysis and engineering applications of a mega stable nonlinear oscillator are given in the literature.³²

In this article, hyperbolic function is introduced in a cubic nonlinear system to achieve multiscroll, symmetricity, and bistability, which increases the complexity of the system, and hence the system can be used in secure communications. In addition, we bring out a new way of finding multiscroll property by varying only the fractional order “q,” which is not mentioned in any recent literatures.

An autonomous chaotic system with cubic nonlinearity³³ is investigated for nonlinear properties. The state-space equation is given in equation (1). The system showed chaotic behavior for particular values of parameters

\begin{matrix} {\overset{\cdot}{x}}_{1} = - a x_{1} + b x_{2} x_{3} \\ {\overset{\cdot}{x}}_{2} = - {cx}_{2}^{3} + d x_{1} x_{3} \\ {\overset{\cdot}{x}}_{3} = e x_{3} - f x_{1} x_{2} \end{matrix}

(1)

Multiscroll property is analyzed in system³³ by varying the parameters a and c. Special properties like multistability and symmetricity are not analyzed in system.³³ Fractional-order form is also not analyzed. If the chaotic system is rich in dynamics, it will be more suitable for secure communications.

In this work, we investigated the influence of hyperbolic function on dynamical behaviors of the system (1) and also analyzed special properties. Furthermore, we formulated fractional-order form of the system using Grunwald–Letnikov (G-L) method for refining the analysis. The article is organized into five sections. The second section provides the details and configuration about the chaotic system with cubic nonlinearity and hyperbolic function. The third section deals with the analysis of the integer system for various dynamical properties. The fourth section provides the generation of fractional-order chaotic system with hyperbolic function and its dynamical behaviors. The fifth section discusses the synchronization scheme, and the last section provides field-programmable gate array (FPGA) implementation.

Three-dimensional chaotic system with cubic nonlinearity and hyperbolic function

In this article, we modified the system (1) by introducing a hyperbolic function $p_{1} \tanh (x_{2} + g)$ . Chaotic attractor is obtained when $a = 2$ , $b = 6$ , $c = 6$ , $d = 3$ , $e = 3$ , $f = 1$ , $p_{1} = 1$ , and $g = 2$ , and the chosen initial conditions are $[x_{1} (0), x_{2} (0), x_{3} (0)] = [0.1, 0.1, 0.6]$ .

When the hyperbolic function is introduced in first state with the parameter $g = - 3$ and for the initial conditions $[0.1, - 0.1, - 0.6]$ , it shows a double-scroll attractor which is shown in Figure 1. When introduced in the second state, with parameters $p_{1} = - 1$ and $g = 3$ and initial conditions $[0.1, - 0.1, - 0.6]$ , it shows four scroll which is shown in Figure 2. While in the third state with parameters $p_{1} = 1$ and $g = 3$ and initial conditions $[0.1, 0.1, 0.6]$ , it shows single scroll which is shown in Figure 3. Thus, we can confirm that the system holds multiscroll property.

Figure 1.

Phase portraits of cubic nonlinear system with $p_{1} \tanh (x_{2} + g)$ function in first state.

Figure 2.

Phase portraits of cubic nonlinear system with $p_{1} \tanh (x_{2} + g)$ function in second state.

Figure 3.

Phase portraits of cubic nonlinear system with $p_{1} \tanh (x_{2} + g)$ function in third state.

We further investigated by varying the parameters “p₁” and “g”, with hyperbolic function in third state. We observed multi scroll property while varying the parameter “g”. This confirms that the parameter “g” plays a major role in the behavior of the system.

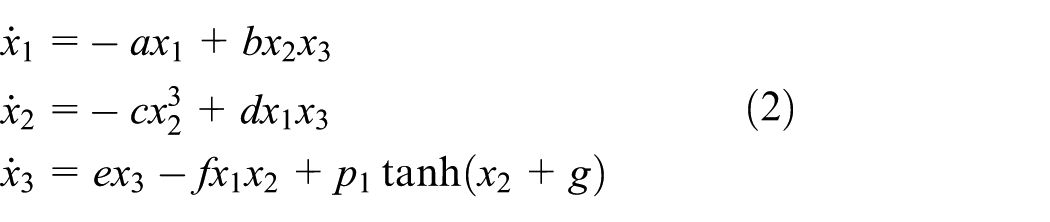

Dynamic analysis of the system

\begin{matrix} {\overset{\cdot}{x}}_{1} = - a x_{1} + b x_{2} x_{3} \\ {\overset{\cdot}{x}}_{2} = - {cx}_{2}^{3} + d x_{1} x_{3} \\ {\overset{\cdot}{x}}_{3} = e x_{3} - f x_{1} x_{2} + p_{1} \tanh (x_{2} + g) \end{matrix}

(2)

Chaotic attractor is obtained when $a = 2$ , $b = 6$ , $c = 6$ , $d = 3$ , $e = 3$ , $f = 1$ , $p_{1} = 1$ , and $g = 2$ , and the chosen initial conditions are $[x_{1} (0), x_{2} (0), x_{3} (0)] = [0.1, 0.1, 0.6]$ .

Equilibrium point and stability

Equilibrium points are obtained by solving ${\overset{\cdot}{x}}_{1} = 0$ , ${\overset{\cdot}{x}}_{2} = 0$ , and ${\overset{\cdot}{x}}_{3} = 0$

\begin{matrix} 0 = - a x_{1} + b x_{2} x_{3} \\ 0 = - {cx}_{2}^{3} + d x_{1} x_{3} \\ 0 = e x_{3} - f x_{1} x_{2} + p_{1} \tanh (x_{2} + g) \end{matrix}

(3)

The equilibrium points are $x_{1} = - 2.0925 e - 42$ , $x_{2} = 1.0325 e - 41$ , and $x_{3} = - 0.3213$ . Jacobian matrix is formulated from the state space equations and is given below

J = [\begin{matrix} - a & b x_{3} & b x_{2} \\ d x_{3} & - 3 {cx}_{2}^{2} & d x_{1} \\ - f x_{2} & - f x_{1} - p_{1} \tan {(g + x_{2})}^{2} - 1 & e \end{matrix}]

The corresponding characteristic equation for the above Jacobian matrix is $λ^{3} - λ^{2} - 7.8582 λ + 5.5746 = 0$ . The Eigenvalues are $λ_{1} = - 2.6906$ , $λ_{2} = 0.6906$ , and $λ_{3} = 3.0000$ . The two positive Eigenvalues prove that the equilibrium point is unstable.

LEs

LEs of a nonlinear system define the convergence and divergence of the states. Although there are different methods, we used the famous method proposed by Wolf et al.³⁴ The LEs of the system are numerically found as $L E_{1} = 0.4002$ , $L E_{2} = - 0.0003$ , and $L E_{3} = - 11.6537$ . The sum of LEs is negative, which shows the system is dissipative. One positive LE confirms the existence of chaos in the system.

As mentioned before, the parameter “g” varies from −5 to +5, and LEs are plotted in Figure 4. The system shows bistability as can be seen from Figure 5. The bifurcation diagram is obtained by plotting local maxima of the coordinate “x₂” in terms of the parameter “g” which is increased (or decreased) in tiny steps. The existence of multistability can be confirmed by comparing the forward (dark blue color) and backward (red color) bifurcation diagrams as shown in Figure 5.

Figure 4.

Lyapunov exponent spectrum for “g” values from −5 to +5.

Figure 5.

Bifurcation of parameter “g” for different initial conditions.

Phase portraits

The phase portraits of system (2) are plotted for the simulation time of 1000. The numerical simulation is carried out for parameter values $a = 2$ , $b = 6$ , $c = 6$ , $d = 3$ , $e = 3$ , $f = 1$ , and $p_{1} = 1$ , for the initial conditions $[0.1, 0.1, 0.6]$ . Figure 6 shows the phase portraits of the system, where four-scroll attractor is observed, for $g$ = 0. The system generates four-scroll attractor without the hyperbolic function. Figure 7 shows the phase portraits of the system for g = 1.2, where two-scroll attractor is noted. When the parameter “g” value is increased to 2, it produces single-scroll attractor as shown in Figure 8. When the initial condition is changed to $[0.1, - 0.1, 0.6]$ , a single-scroll attractor is observed with symmetricity as shown in Figure 9.

Figure 6.

Phase portraits for g = 0 (four-scroll attractor).

Figure 7.

Phase portraits for g = 1.2 (two-scroll attractor).

Figure 8.

Phase portraits for g = 2 (single-scroll attractor) for initial conditions [0.1, 0.1, 0.6].

Figure 9.

Phase portraits for g = 2 for initial conditions [0.1, –0.1, 0.6].

Fractional-order chaotic system with cubic nonlinearity and hyperbolic function

In this section, we derive the fractional-order model of the chaotic system with cubic nonlinearity and hyperbolic function. There are three generally used definitions of the fractional-order differential operator, namely, G-L, Riemann–Liouville (R-L), and Caputo.^35,36

We used the G-L definition, which can be defined as

\begin{matrix} D_{t}^{q} f (t) & = lim_{h \to 0} {\frac{1}{h^{q}} \sum_{j = 0}^{[\frac{t - q}{h}]} {(- 1)}^{j} (\begin{matrix} q \\ j \end{matrix}) f (t - jh)} \\ = lim_{h \to 0} {\frac{1}{h^{q}} Δ_{h}^{q} f (t)} \end{matrix}

(4)

where $a$ and $t$ are limits of the fractional-order equation, $Δ_{h}^{q}$ is generalized difference, $h$ is the step size, and $q$ is the fractional-order of the differential equation.

For numerical calculations, the above equation is modified as

{{}_{t - L}D}_{t}^{q} f (t) = lim_{h \to 0} {\frac{1}{h^{q}} \sum_{j = 0}^{N (t)} b_{j} f (t - jh)}

(5)

Theoretically, fractional-order differential equations use infinite memory. Hence, for numerical calculations or simulations of the fractional-order equations, we have to use finite memory principle

N (t) = min {[\frac{t}{h}], [\frac{L}{h}]}

(6)

where $L$ is the memory length and $h$ is the time sampling.

The binomial coefficients required for the numerical simulation are calculated as

b_{j} = (1 - \frac{a + q}{j}) b_{j - 1}

(7)

Irrespective of the importance of the function f(t) near the lower terminal $t = a$ , Volterra proposed the short memory principle for simplification. Sometimes, short memory principle can be regarded as a structural property of the differential operator.

For the G-L definition, the values of binomial coefficients near the starting point $t = 0$ are small enough to be neglected or omitted for large $t$ values. So, the short memory principle is considered as the behavior of the function $f (t)$ only in the interval $[t - L, t]$ , where $L$ is the length of the memory.³⁷

Short memory principle

If $| f (t) | < M$ , $\nabla t > 0$ , then the error $ε$ is bounded by

| ε | < \frac{M}{L^{q} | Γ (1 - q) |}

(8)

When $q = 0$

| ε | < |_{t_{0}} D_{t}^{q} f (t) - {{}_{t - L}D}_{t}^{q} f (t) | = |_{t_{0}} D_{t - L}^{q} f (t) |

(9)

| ε | < | \int_{t_{0}}^{t - L} \frac{{(t - τ)}^{- q - 1}}{Γ (- q)} f (τ) d τ | \leq | \int_{t_{0}}^{t - L} \frac{{(t - τ)}^{- q - 1}}{Γ (- q)} Md τ |

(10)

= | \frac{M}{Γ (- q)} {[\frac{- 1}{q} {(t - τ)}^{- q}]}_{t_{0}}^{t - L} | = | \frac{M [{(t - t_{0})}^{- q} - L^{- q}]}{Γ (1 - q)} |

(11)

It cannot be a useful bound, as it grows with $t - t_{0}$ and becomes very large. When $q > 0$

| ε | \leq | \frac{d^{[q]}}{d t^{[q]}} {{}_{t_{0}}D}_{t}^{q - [q]} f (t) - \frac{d^{[q]}}{d t^{[q]}} {{}_{t - L}D}_{t}^{q - [q]} f (t) |

(12)

= | \frac{d^{[q]}}{d t^{[q]}} {{}_{t_{0}}D}_{t - L}^{q - [q]} f (t) |

(13)

| ε | \leq | \frac{d^{[q]}}{d t^{[q]}} \frac{M [{(t - t_{0})}^{- q + [q]} - L^{- q + [q]}]}{Γ (1 - q + [q])} |

(14)

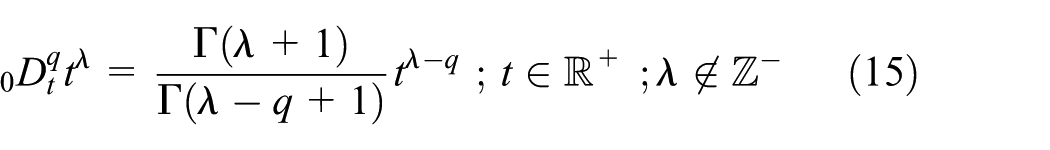

Since

{{}_{0}D}_{t}^{q} t^{λ} = \frac{Γ (λ + 1)}{Γ (λ - q + 1)} t^{λ - q}; t \in R^{+}; λ \notin Z^{-}

(15)

we can write

\begin{matrix} | ε | & \leq | \frac{M [{(t - t_{0})}^{- q} - Γ (1 - q + [q])]}{Γ (1 - q + [q] - [q]) Γ (1 - q + [q])} | \\ = \frac{M}{{(t - t_{0})}^{- q} | Γ (1 - q) |} \end{matrix}

(16)

Since $t - t_{0} > 0$ , which implies

{(t - t_{0})}^{q} > L^{q} \Rightarrow \frac{1}{{(t - t_{0})}^{q}} < \frac{1}{L^{q}}

(17)

| ε | \leq \frac{M}{{(t - t_{0})}^{q} | Γ (1 - q) |} < \frac{M}{L^{q} | Γ (1 - q) |}

(18)

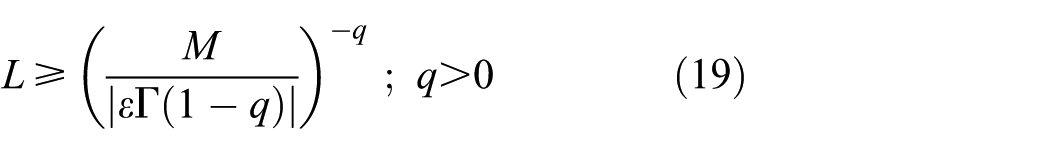

Thus to ensure that the absolute value of error $ε$ should not be larger than a certain value, the memory length must satisfy

L \geq {(\frac{M}{| ε Γ (1 - q) |})}^{- q}; q > 0

(19)

Using equations (4) to (7), we derive the fractional-order chaotic system with cubic nonlinearity and hyperbolic function

\begin{matrix} \frac{d^{q} x_{1}}{d t^{q}} = - a x_{1} + b x_{2} x_{3} \\ \frac{d^{q} x_{2}}{d t^{q}} = - {cx}_{2}^{3} + d x_{1} x_{3} \\ \frac{d^{q} x_{3}}{d t^{q}} = e x_{3} - f x_{1} x_{2} + p_{1} \tanh (x_{2} + g) \end{matrix}

(20)

Fractional-order bifurcation

As can be seen from Figure 10, for the change in the fractional order “q” with parameter values $a = 2$ , $b = 6$ , $c = 6$ , $d = 3$ , $e = 3$ , $f = 1$ , $p_{1} = 1$ , and $g = 1.2$ , bifurcation of the system (20) shows that the system chaotic oscillations starts when q = 0.972. Figure 11 shows the phase portrait of the periodic oscillation when the order q is 0.954. Until q = 0.97, we can see the period doubling range. Figure 12 shows two-period oscillation for the order q = 0.965. Figure 13 shows the clear single-scroll chaotic attractor.

Figure 10.

Fractional order bifurcation.

Figure 11.

Phase portrait for q = 0.954.

Figure 12.

Phase portrait for q = 0.965.

Figure 13.

Phase portrait for q = 0.99.

Symmetric property

The fractional-order system (20) is investigated for symmetric property, for order q = 0.99. For same parameter values and initial conditions $[0.1, 0.1, 0.6]$ , single-scroll attractor is plotted in dark blue color, and for initial conditions $[0.1, - 0.1, 0.6]$ , symmetric single-scroll attractor is plotted in red color. Figure 14 shows that the system exhibits symmetric property for the fractional-order system.

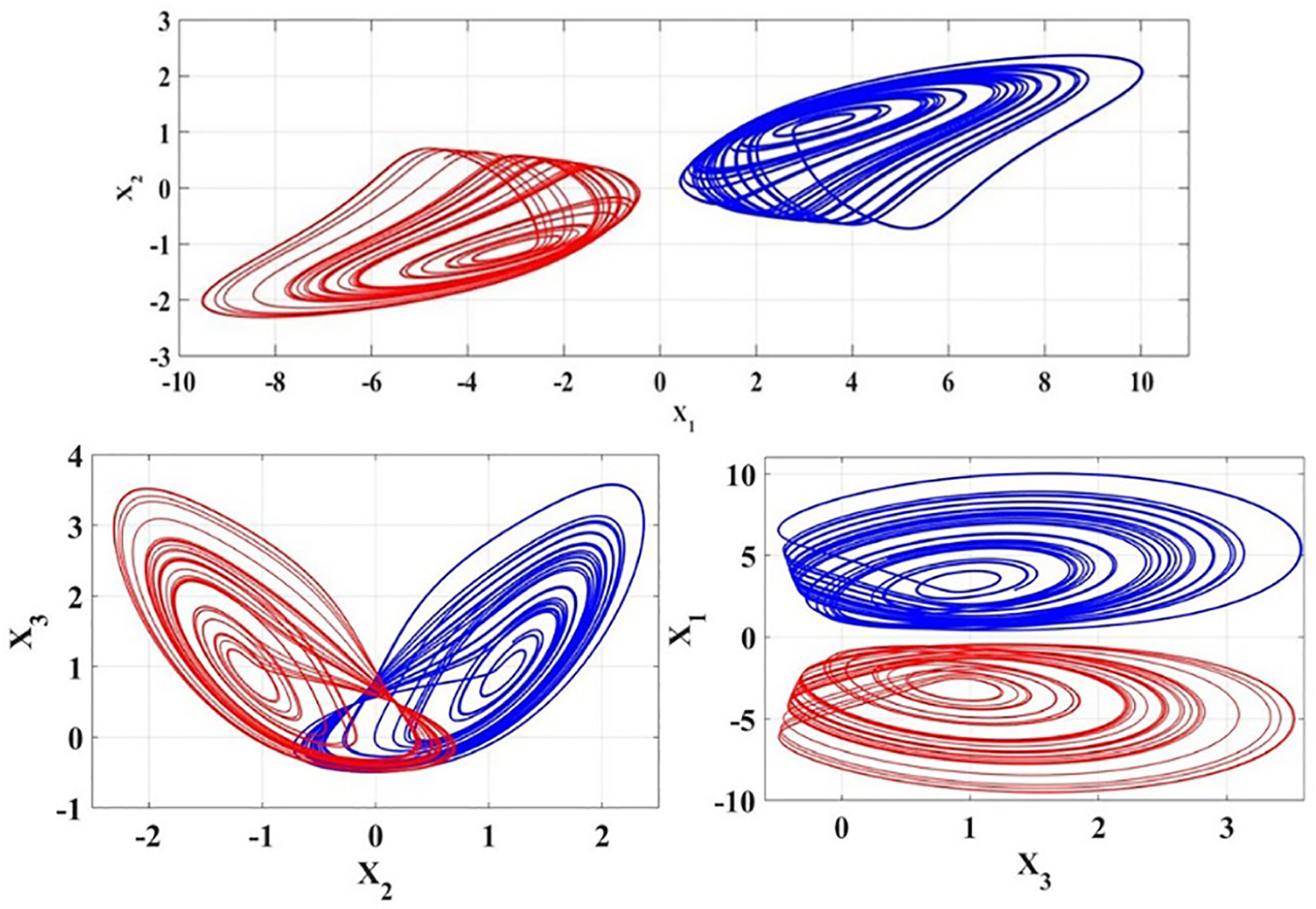

Figure 14.

Phase portrait for q = 0.99 showing symmetric property with initial conditions [0.1, 0.1, 0.6] is given in blue color and with initial conditions [0.1, –0.1, 0.6] is given in red color.

Multiscroll property

Even though the integer order treatment of the system for various “g” values shows multiscroll, interestingly we could observe bistability in varying the order itself. For g = 1.2 and order q = 0.96, the system shows single scroll (Figure 15). But for same “g” value when order reaches to 0.99, we could observe clear two-scroll attractor (Figure 16). Previously, in Figure 7, we showed the integer order system having two-scroll attractor. It can be observed that for the fractional system up to fractional order 0.965, the system holds single scroll, and when the order is increased above 0.99, it is having two-scroll attractor.

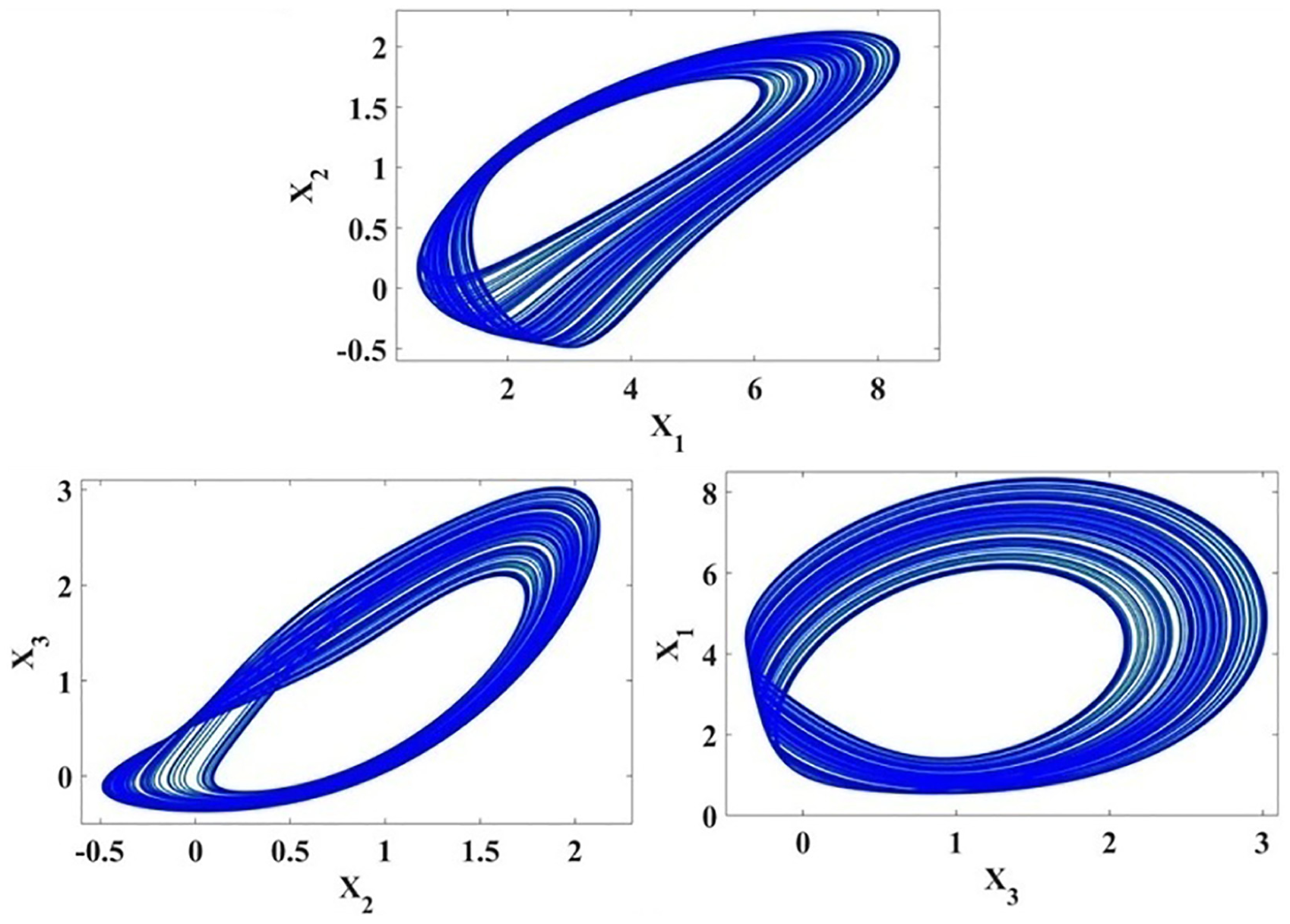

Figure 15.

Single-scroll attractor g = 1.2, q = 0.96.

Figure 16.

Double-scroll attractor g = 1.2, q = 0.99.

Adaptive synchronization of the system using sliding mode control

Various synchronization techniques for multiscroll attractors are discussed in Li and colleagues.^38,39

The sliding control methodology is found to be effective technique for dealing dynamic uncertainty.^40,41 In this section, we are using adaptive sliding mode control method to derive for synchronization of the system (2).

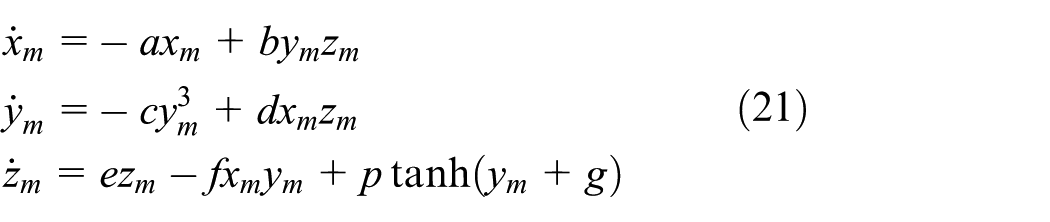

The master system is taken as

\begin{matrix} {\overset{\cdot}{x}}_{m} = - a x_{m} + b y_{m} z_{m} \\ {\overset{\cdot}{y}}_{m} = - {cy}_{m}^{3} + d x_{m} z_{m} \\ {\overset{\cdot}{z}}_{m} = e z_{m} - f x_{m} y_{m} + p \tanh (y_{m} + g) \end{matrix}

(21)

The slave system with controllers is

\begin{matrix} {\overset{\cdot}{x}}_{s} = - a x_{s} + b y_{s} z_{s} + u_{x} \\ {\overset{\cdot}{y}}_{s} = - {cy}_{s}^{3} + d x_{s} z_{s} + u_{y} \\ {\overset{\cdot}{z}}_{s} = e z_{s} - f x_{s} y_{s} + p \tanh (y_{s} + g) + u_{z} \end{matrix}

(22)

Synchronization errors can be

\begin{matrix} e_{i} = i_{s} - i_{m} \\ e_{x} = x_{s} - x_{m} \\ e_{y} = y_{s} - y_{m} \\ e_{z} = z_{s} - z_{m} \end{matrix}

(23)

Error dynamics are derived by differentiating the synchronization errors

\begin{matrix} {\overset{\cdot}{e}}_{x} = - \hat{a} x_{s} + \hat{b} y_{s} z_{s} + a x_{m} - b y_{m} z_{m} + u_{x} \\ {\overset{\cdot}{e}}_{y} = - \hat{c} y_{s}^{3} + \hat{d} x_{s} z_{s} + {cy}_{m}^{3} - d x_{m} z_{m} + u_{y} \\ {\overset{\cdot}{e}}_{z} = \hat{e} z_{s} - \hat{f} x_{s} y_{s} + \hat{p} \tanh (y_{s} + g) \\ - e z_{m} + f x_{m} y_{m} - p \tanh (y_{m} + g) + u_{z} \end{matrix}

(24)

In ${\overset{\cdot}{e}}_{x}$ , add and subtract $- \hat{a} x_{m} and \hat{b} y_{m} z_{m}$

\begin{matrix} {\overset{\cdot}{e}}_{x} & = - \hat{a} x_{s} + \hat{b} y_{s} z_{s} + \hat{a} x_{m} - \hat{a} x_{m} + \hat{b} y_{m} z_{m} \\ - \hat{b} y_{m} z_{m} + a x_{m} - b y_{m} z_{m} + u_{x} \\ = - \hat{a} x_{s} + \hat{a} x_{m} + \hat{b} y_{s} z_{s} - \hat{b} y_{m} z_{m} - \hat{a} x_{m} \\ + a x_{m} + \hat{b} y_{m} z_{m} - b y_{m} z_{m} + u_{x} \\ = - \hat{a} (x_{s} - x_{m}) + \hat{b} (y_{s} z_{s} - y_{m} z_{m}) \\ - x_{m} (\hat{a} - a) + y_{m} z_{m} (\hat{b} - b) + u_{x} \\ = - \hat{a} e_{x} + \hat{b} (y_{s} z_{s} - y_{m} z_{m}) - x_{m} e_{a} + y_{m} z_{m} e_{b} + u_{x} \end{matrix}

(25)

In ${\overset{\cdot}{e}}_{y}$ , add and subtract $- \hat{c} y_{s}^{3} and \hat{d} x_{s} z_{s}$

\begin{matrix} {\overset{\cdot}{e}}_{y} & = - \hat{c} y_{s}^{3} + \hat{d} x_{s} z_{s} - \hat{c} y_{m}^{3} + \hat{c} y_{m}^{3} + \hat{d} x_{m} z_{m} - \hat{d} x_{m} z_{m} \\ + {cy}_{m}^{3} - d x_{m} z_{m} + u_{y} \\ = - \hat{c} y_{s}^{3} + \hat{c} y_{m}^{3} + \hat{d} x_{s} z_{s} - \hat{d} x_{m} z_{m} - \hat{c} y_{m}^{3} + {cy}_{m}^{3} \\ + \hat{d} x_{m} z_{m} - d x_{m} z_{m} + u_{y} \\ = - \hat{c} (y_{s}^{3} - y_{m}^{3}) + \hat{d} (x_{s} z_{s} - x_{m} z_{m}) - y_{m}^{3} (\hat{c} - c) \\ + x_{m} z_{m} (\hat{d} - d) + u_{y} \\ = - \hat{c} (y_{s} - y_{m}) (y_{s}^{2} + y_{s} y_{m} + y_{m}^{2}) + \hat{d} (x_{s} z_{s} - x_{m} z_{m}) \\ - y_{m}^{3} e_{c} + x_{m} z_{m} e_{d} + u_{y} \\ = - \hat{c} e_{y} (y_{s}^{2} + y_{s} y_{m} + y_{m}^{2}) + \hat{d} (x_{s} z_{s} - x_{m} z_{m}) \\ - y_{m}^{3} e_{c} + x_{m} z_{m} e_{d} + u_{y} \end{matrix}

(26)

In ${\overset{\cdot}{e}}_{z}$ , add and subtract $\hat{e} z_{m}, - \hat{f} x_{m} y_{m}, and \hat{p} \tanh (y_{m} + g)$

\begin{matrix} {\overset{\cdot}{e}}_{z} & = \hat{e} z_{s} - \hat{f} x_{s} y_{s} + \hat{e} z_{m} - \hat{e} z_{m} - \hat{f} x_{m} y_{m} \\ + \hat{f} x_{m} y_{m} + \hat{p} \tanh (y_{m} + g) \\ - \hat{p} \tanh (y_{m} + g) + \hat{p} \tanh (y_{s} + g) - e z_{m} \\ + f x_{m} y_{m} - p \tanh (y_{m} + g) + u_{z} \\ = \hat{e} z_{s} - \hat{e} z_{m} - \hat{f} x_{s} y_{s} + \hat{f} x_{m} y_{m} + \hat{e} z_{m} \\ - e z_{m} - \hat{f} x_{m} y_{m} + f x_{m} y_{m} + \hat{p} \tanh (y_{m} + g) \\ - p \tanh (y_{m} + g) - \hat{p} \tanh (y_{m} + g) \\ + \hat{p} \tanh (y_{s} + g) + u_{z} \\ = \hat{e} (z_{s} - z_{m}) - \hat{f} (x_{s} y_{s} - x_{m} y_{m}) + z_{m} (\hat{e} - e) \\ - x_{m} y_{m} (\hat{f} - f) + \tanh (y_{m} + g) (\hat{p} - p) \\ - \hat{p} \tanh (y_{m} + g) + \hat{p} \tanh (y_{s} + g) + u_{z} \\ = \hat{e} e_{z} - \hat{f} (x_{s} y_{s} - x_{m} y_{m}) + z_{m} e_{e} - x_{m} y_{m} e_{f} \\ + \tanh (y_{m} + g) e_{p} - \hat{p} \tanh (y_{m} + g) \\ + \hat{p} \tanh (y_{s} + g) + u_{z} \end{matrix}

(27)

Finally, error dynamics can be written as

\begin{matrix} {\overset{\cdot}{e}}_{x} = - \hat{a} e_{x} + \hat{b} (y_{s} z_{s} - y_{m} z_{m}) - x_{m} e_{a} + y_{m} z_{m} e_{b} + u_{x} \\ {\overset{\cdot}{e}}_{y} = - \hat{c} e_{y} (y_{s}^{2} + y_{s} y_{m} + y_{m}^{2}) + \hat{d} (x_{s} z_{s} - x_{m} z_{m}) \\ - y_{m}^{3} e_{c} + x_{m} z_{m} e_{d} + u_{y} \\ {\overset{\cdot}{e}}_{z} = \hat{e} e_{z} - \hat{f} (x_{s} y_{s} - x_{m} y_{m}) + z_{m} e_{e} - x_{m} y_{m} e_{f} \\ + \tanh (y_{m} + g) e_{p} \\ - \hat{p} \tanh (y_{m} + g) + \hat{p} \tanh (y_{s} + g) + u_{z} \end{matrix}

(28)

Controller design

The controller design is performed in two steps

Constructing a sliding surface which presents the desired dynamics.

Selecting the switching control law to verify sliding condition.⁴²

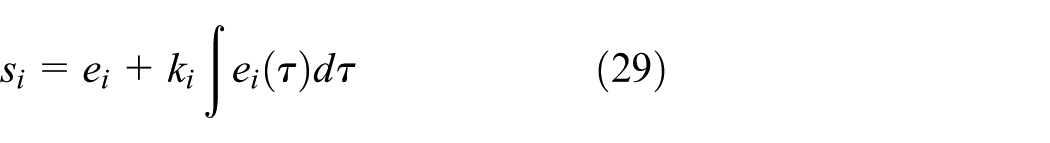

The integral sliding surface⁴¹ can be written as

s_{i} = e_{i} + k_{i} \int e_{i} (τ) d τ

(29)

where $i = x, y, z$ and $k_{i} > 0$

The time derivative of the sliding surface is given by

{\overset{\cdot}{s}}_{x} = {\overset{\cdot}{e}}_{x} + k_{x} e_{x}

(30)

The parameter estimation errors are

\begin{matrix} e_{a} = \hat{a} - a \\ e_{b} = \hat{b} - b \\ e_{c} = \hat{c} - c \\ e_{d} = \hat{d} - d \\ e_{e} = \hat{e} - e \\ e_{f} = \hat{f} - f \\ e_{p} = \hat{p} - p \end{matrix}

(31)

Let the adaptive sliding mode controllers be

\begin{matrix} u_{x} = \hat{a} e_{x} - \hat{b} (y_{s} z_{s} - y_{m} z_{m}) - η_{x} sgn s_{x} - ρ_{x} s_{x} - k_{x} e_{x} \\ u_{y} = \hat{c} e_{y} (y_{s}^{2} + y_{s} y_{m} + y_{m}^{2}) - \hat{d} (x_{s} z_{s} - x_{m} z_{m}) \\ - η_{y} sgn s_{y} - ρ_{y} s_{y} - k_{y} e_{y} \\ u_{z} = - \hat{e} e_{z} + \hat{f} (x_{s} y_{s} - x_{m} y_{m}) + \hat{p} \tanh (y_{m} + g) \\ - \hat{p} \tanh (y_{s} + g) - η_{z} sgn s_{z} - ρ_{z} s_{z} - k_{z} e_{z} \end{matrix}

(32)

Let the adaptive parameter estimations be

\begin{matrix} \overset{\cdot}{\hat{a}} = s_{x} x_{m} - k_{x} e_{a} \\ \overset{\cdot}{\hat{b}} = - s_{x} y_{m} z_{m} - k_{x} e_{b} \\ \overset{\cdot}{\hat{c}} = s_{y} y_{m}^{3} - k_{y} e_{c} \\ \overset{\cdot}{\hat{d}} = - s_{y} x_{m} z_{m} - k_{y} e_{d} \\ \overset{\cdot}{\hat{e}} = - s_{z} z_{m} - k_{z} e_{e} \\ \overset{\cdot}{\hat{f}} = s_{z} x_{m} y_{m} - k_{z} e_{f} \\ \overset{\cdot}{\hat{p}} = - s_{z} [\tanh (y_{m} + g)] - k_{z} e_{p} \end{matrix}

(33)

To check the stability of the controlled system, let us consider the following Lyapunov candidate function

V = \frac{1}{2} [s_{x}^{2} + s_{y}^{2} + s_{z}^{2} + e_{a}^{2} + e_{b}^{2} + e_{c}^{2} + e_{d}^{2} + e_{e}^{2} + e_{f}^{2} + e_{p}^{2}]

(34)

The derivative of the Lyapunov function is given by

\begin{matrix} \overset{\cdot}{V} = & {\overset{\cdot}{s}}_{x} s_{x} + {\overset{\cdot}{s}}_{y} s_{y} + {\overset{\cdot}{s}}_{z} s_{z} + {\overset{\cdot}{e}}_{a} e_{a} + {\overset{\cdot}{e}}_{b} e_{b} + {\overset{\cdot}{e}}_{c} e_{c} \\ + {\overset{\cdot}{e}}_{d} e_{d} + {\overset{\cdot}{e}}_{e} e_{e} + {\overset{\cdot}{e}}_{f} e_{f} + {\overset{\cdot}{e}}_{p} e_{p} \end{matrix}

(35)

Substitute the controller in $\overset{\cdot}{V}$

\begin{matrix} \overset{\cdot}{V} & = s_{x} [- η_{x} sgn s_{x} - ρ_{x} s_{x}] + s_{y} [- η_{y} sgn s_{y} - ρ_{y} s_{y}] \\ + s_{z} [- η_{z} sgn s_{z} - ρ_{z} s_{z}] \\ + e_{a} [\overset{\cdot}{\hat{a}} - s_{x} x_{m}] + e_{b} [\overset{\cdot}{\hat{b}} - s_{x} y_{m} z_{m}] + e_{c} [\overset{\cdot}{\hat{c}} - s_{y} y_{m}^{3}] \\ + e_{d} [\overset{\cdot}{\hat{d}} + s_{y} x_{m} z_{m}] \\ + e_{e} [\overset{\cdot}{\hat{e}} + s_{z} z_{m}] + e_{f} [\overset{\cdot}{\hat{f}} - s_{z} x_{m} y_{m}] \\ + e_{p} [\overset{\cdot}{\hat{p}} + s_{z} (\tanh (y_{m} + g))] \end{matrix}

(36)

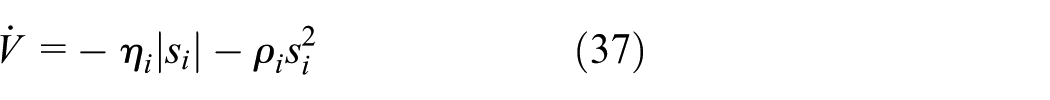

Substitute the adaptive parameter estimation in $\overset{\cdot}{V}$

\overset{\cdot}{V} = - η_{i} | s_{i} | - ρ_{i} s_{i}^{2}

(37)

where $i = x, y, z$

\begin{matrix} \overset{\cdot}{V} = s_{x} [- \hat{a} e_{x} + \hat{b} (y_{s} z_{s} - y_{m} z_{m}) - x_{m} e_{a} + y_{m} z_{m} e_{b} + u_{x} + k_{x} e_{x}] \\ + s_{y} [- \hat{c} e_{y}^{3} + \hat{d} (x_{s} z_{s} - x_{m} z_{m}) - y_{m}^{3} e_{c} + x_{m} z_{m} e_{d} + u_{y} + k_{y} e_{y}] \\ + s_{z} [\begin{matrix} \hat{e} e_{z} - \hat{f} (x_{s} y_{s} - x_{m} y_{m}) + z_{m} e_{e} - x_{m} y_{m} e_{f} + \tanh (y_{m} + g) e_{p} \\ - \hat{p} \tanh (y_{m} + g) + \hat{p} \tanh (y_{s} + g) + u_{z} \end{matrix}] \\ + e_{a} [\overset{\cdot}{\hat{a}}] + e_{b} [\overset{\cdot}{\hat{b}}] + e_{c} [\overset{\cdot}{\hat{c}}] + e_{d} [\overset{\cdot}{\hat{d}}] + e_{e} [\overset{\cdot}{\hat{e}}] + e_{f} [\overset{\cdot}{\hat{f}}] + e_{p} [\overset{\cdot}{\hat{p}}] \end{matrix}

(38)

Introducing the parameter update law and the adaptive sliding mode controllers in equation (38), we get the Lyapunov first derivative as

\overset{\cdot}{V} = - η_{x} | s_{x} | - η_{y} | s_{y} | - η_{z} | s_{z} | - ρ_{x} s_{x}^{2} - ρ_{y} s_{y}^{2} - ρ_{z} s_{z}^{2}

(39)

The Lyapunov first derivative is a negative semi-definite as $ρ_{i} > 0$ and $η_{i} > 0$ , and the synchronization errors $e_{x}, e_{y}, e_{z}$ converge exponentially to zero as $t \to \infty$ .

Numerical simulation is carried out, and the synchronization errors and parameter estimates are presented against time in Figures 17 and 18.

Figure 17.

Time history of synchronization errors.

Figure 18.

Time history of parameter estimates.

FPGA implementation

In this section, we discuss the implementation of the system in FPGA using Xilinx (Vivado) system generator toolbox in Simulink. FPGA implementations of fractional-order chaotic oscillators are discussed in literature.^43,44 Figure 19 shows the 2D phase portraits of the system using Xilinx System Generator, and Figure 20 shows the Xilinx register-transfer level (RTL) schematics of the system using Kintex 7. Comparing Figure 9 with Figure 19, one can clearly see that the FPGA-implemented system exhibits the same phase portraits for the initial conditions [0.1, 0.1, 0.6].

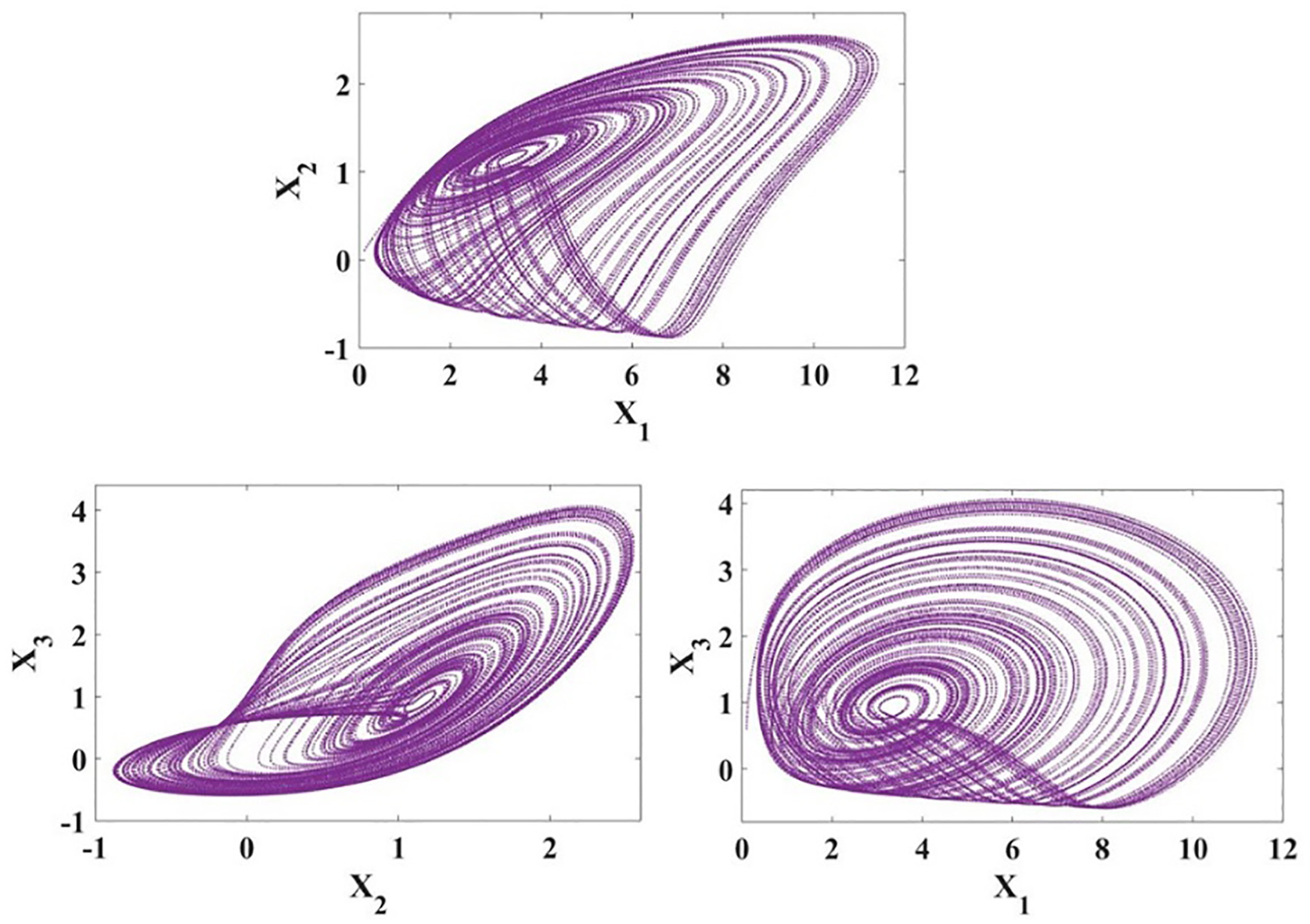

Figure 19.

2D phase portrait of the system implemented in FPGA.

Figure 20.

RTL schematics of the system implemented in FPGA.

Step size is taken as $h = 0.001$ , and the commensurate fractional order for implementing the system in FPGA is taken as $q = 0.99$ . Figure 21 shows the power consumption chart of the FPGA implemented on fractional-order system, and the resources utilized are provided in Table 1.

Figure 21.

Power utilization of the FO system implemented in FPGA.

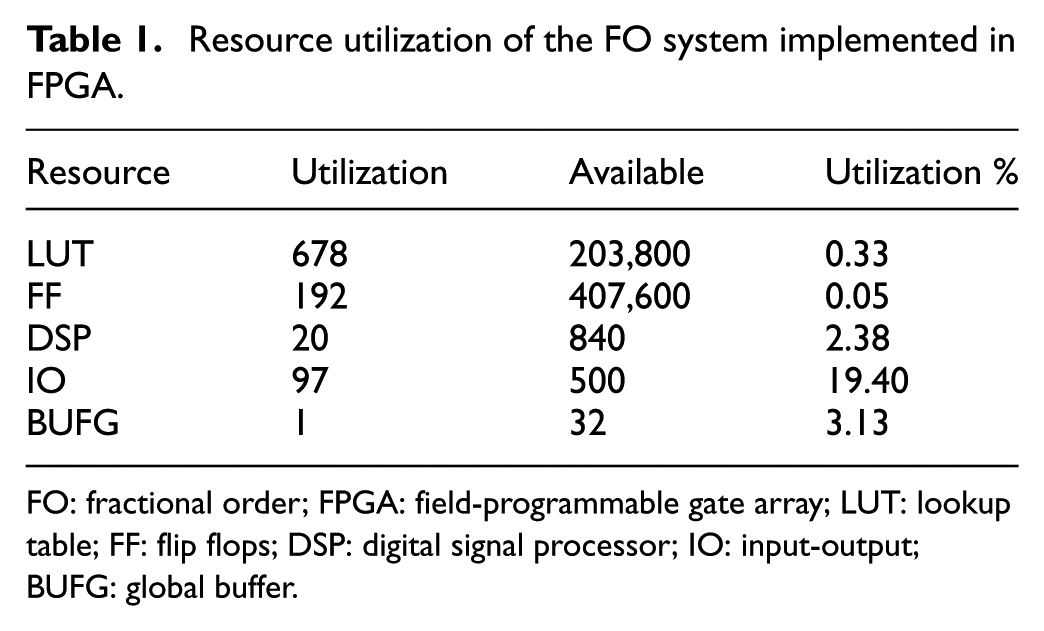

Table 1.

Resource utilization of the FO system implemented in FPGA.

Resource	Utilization	Available	Utilization %
LUT	678	203,800	0.33
FF	192	407,600	0.05
DSP	20	840	2.38
IO	97	500	19.40
BUFG	1	32	3.13

FO: fractional order; FPGA: field-programmable gate array; LUT: lookup table; FF: flip flops; DSP: digital signal processor; IO: input-output; BUFG: global buffer.

Conclusion

The article investigated a chaotic system with cubic nonlinearity and hyperbolic function. The influence of the hyperbolic function is elaborately discussed. The integer order treatment and its dynamical properties are studied and confirm the bistability, multiscroll, and symmetric properties. Using G-L method, the system is converted into fractional-order system. The numerical simulations for various order “q” are studied and confirmed that the above-said properties still remain in the system. Interestingly, by means of varying the order, we could achieve the discussed properties. This shows the intricacy of the system and finds its application in secure communication. Adaptive synchronization of the system using sliding mode control scheme is presented. For implementing the fractional-order system in FPGA, Adomian decomposition method is used and the RTL schematic of the system is presented. Circuit realization would be carried out as a future work.
