Abstract

Bearing fault diagnosis attracts great attention because the bearing condition has direct effects on productivity and safety in industry. To accurately identify the operating condition of bearings, a novel bearing fault diagnosis method based on adaptive local iterative filtering–multiscale permutation entropy and multinomial logistic model with group-lasso is first put forward in this article. In the proposed method, adaptive local iterative filtering was applied to decompose the nonlinear and non-stationary vibration signals into intrinsic mode functions. The multiscale permutation entropy values of the first several intrinsic mode functions were calculated to characterize the complexity of intrinsic mode functions in different scales, and they constructed feature vectors after normalization. Multinomial logistic model with group-lasso could perform multiple classifications with an embedded approach for feature selection, which is distinct from the traditional methods with two steps of dimensionality reduction and classification. Finally, the proposed method was verified with experiment data from Case Western Reserve University considering four conditions: different fault types, different damages, multiple types, and different loads. The results indicate that the proposed method is effective in identifying different categories of rolling bearings.

Keywords

Bearing fault classification adaptive local iterative filtering multiscale permutation entropy multinomial logistic model group-lasso

Introduction

Rolling element bearings are critical components in rotating machines, and their states in operation have direct effects on productivity and workers’ safety in industry, and fault diagnosis in the early stage could guide maintenance as well as avoid huge economic losses. The framework of fault diagnosis for bearing usually consists of five parts: data acquisition, data preprocessing, feature extraction, dimensionality reduction, and fault classification.^1–3 Since vibration signals contain rich information and are easily acquired, the fault type of bearings could be diagnosed with classifiers according to the prominent fault features extracted from the operating status of bearings.

Preprocessing is necessary for vibration signals of bearings due to the nonlinear and non-stationary characteristics, as well as with abundant noise and multiple vibration interferences. The traditional method is discrete wavelet transforms (DWTs);⁴ however, the basis function has to be predefined according to the characteristic of the signal. Adaptive mode decomposition methods could decompose complex signals into intrinsic mode functions without consideration of any basis construction and parameter presupposition.⁵ The representative is empirical mode decomposition (EMD);^6,7 however, it suffers from the problems of mode mixing, end effects, and intermittency. Modifications referring to EMD are proposed, such as ensemble empirical mode decomposition (EEMD),^8,9 local mean decomposition (LMD),^10–12 variational mode decomposition (VMD),^13,14 and empirical wavelet decomposition (EWD).^15,16 Recently, adaptive local iterative filtering (ALIF), as a new signal decomposition method, has been proposed by Cicone et al.¹⁷ The ALIF algorithm achieves the decomposition with iterative filters generated by the Fokker–Planck (FP) equation and an adaptive and data-driven filter length selection. It could inhibit problems existed in EMD to some extent such as mode mixing.^18–20 Therefore, ALIF is employed in this article to decompose vibration signals.

Prominent features will be critical in the fault diagnosis, and multiple domain features are investigated, including root mean square, kurtosis, and skewness in time and frequency domains, respectively, as well as short-time Fourier transform (STFT)²¹ in time–frequency domain.²² However, the vibration signals are often characterized by nonlinearity due to the factors of clearance and nonlinear stiffness of bearings. Therefore, these commonly used time–frequency analysis techniques may exhibit limitations because of their linearity assumption. To deal with the nonlinear dynamic characteristics of bearing fault signals, several entropy-based approaches have been proposed for bearing fault diagnosis, such as approximate entropy (ApEn),^14,23 sample entropy (SaEn),^24,25 and fuzzy entropy.^26,27 However, ApEn heavily relies on data length and lower estimation value. Although SaEn is insensitive to the data length and immunity to the noise in the data, it is based on the Heaviside step function which is discontinuous and mutational at the boundary. Fuzzy entropy is defined using the concept of membership function whose determination is usually difficult and not accurate. Moreover, ApEn and SaEn estimate the complexity at a single scale, which give rise to unacceptable results when applied to analyze the multiple time scale data. To overcome this disadvantage, multiscale entropy (MSE) was proposed by Costa et al.²⁸ to measure the complexity of time series over a range of scales.¹¹ Recently, a new entropy called permutation entropy (PE) was proposed by Bandt and Pompe²⁹ to measure the complexity and assess the status of the mechanical system.³⁰ Since the PE method measures the complexity through comparing the neighboring values, it is simple, immune to noise, and suitable for online monitoring. Based on the PE method, multiscale permutation entropy (MPE) was proposed by Aziz and Arif,³¹ which was used to estimate the complexity of the time series in different scales. In addition, the advantages of MPE have been validated, such as stability and robustness; moreover, MPE has better performance compared with PE in application of bearing fault diagnosis.^32–36

There are two types of classifiers for fault diagnosis based on the vibration data, which, respectively, are statistical models and data-driven models. The statistical models include hidden Markov model (HMM),^32,33 variable predictive model-based class discrimination (VPMCD),³ and so on, while the data-driven models include support vector machine (SVM)^37–39 with optimization,^40–42 multiclass relevance vector machines (M-RVMs),³⁰ artificial neural network (ANN),^7,11 adaptive neuro-fuzzy inference system (ANFIS),²⁷ and so on. The classifiers above have their own advantages in some aspects for bearing fault classification but shortcomings as well,²⁷ and they all need to reduce the dimensionality of features with approaches like local linear embedding (LLE),¹ principal component analysis (PCA),² and non-negative matrix factorization (NMF).²¹ However, the new feature space based on dimensionality reduction has lost intrinsic physical meanings. Feature selection avoids this problem and only chooses prominent features without correlation and redundancy such as Laplacian score (LS).³ There are mainly three types of feature selection methods, including wrappers, filters, and embedded methods, and some feature selection methods could treat the multiclass case directly rather than decomposing it into several two-class problems.⁴³ Hence, in this article, multinomial logistic model with group-lasso (MLMGL)⁴⁴ is introduced for investigation of bearing fault diagnosis. Compared with the above classifiers, the advantage of the proposed method is that it could perform multiclass classification with an embedded approach for feature selection in one step.

The rest of this article is organized as follows: section “Theoretical background” briefly introduces ALIF, MPE, and the MLMGL. The procedure of the proposed method based on them is presented in section “The proposed method.” Verification of the proposed method is performed with experiment data sets in section “Experimental verification,” and the conclusions are drawn in section “Conclusion.”

Theoretical background

ALIF

An intrinsic mode function (IMF)⁶ should satisfy two properties: the number of extrema and the number of zero crossings must either equal or differ at most by one; considering an upper envelope connecting all the local maxima and a lower envelope connecting all the local minima of the function, their mean must be zero at any point. The EMD process of the non-stationary signal comprises an inner loop and an outer loop. The inner loop is used to extract IMF components, while the outer loop is used to determine the number of IMF components and the residual.

Since EMD algorithm computes the upper and the lower envelope functions through cubic spline interpolation, it will be susceptible to singularities such as plenty of peaks caused by high-frequency noise. Iterative filtering could effectively overcome the disturbance of the noise on the decomposed results through constructing filtering functions and performing convolution operation to take place of the envelop function. Iterative filtering adopts the same algorithm framework as the EMD, but to compute the moving average of the signal x(t) by the convolution¹⁷

Γ (x (t)) = x (t) * f (t) = \int_{- l}^{l} x (t + τ) f (τ) d τ

(1)

where * denotes the convolution operator, $f (t)$ is a low-pass filter constrained with $\int_{- l}^{l} f (τ) d τ = 1$ and l is the mask length. Then, the first IMF produced by the sifting process is

c_{1} (t) = lim_{n \to \infty} Γ_{1, n} (x_{n} (t))

(2)

where $x_{n} (t) = Γ_{1, n - 1} (x_{n - 1} (t))$ , n is the number of the iterations, and $x_{1} (t) = x (t)$ . In the following, the second IMF is obtained by repeating the previous iterative process to the residual signal $r (t) = x (t) - c_{1} (t)$ . In the same way, all the subsequent IMFs can be produced by

c_{k} (t) = lim_{n \to \infty} Γ_{k, n} (x_{n} (t))

(3)

Finally, if r(t) satisfies the stop criteria defined above, then set it as the final residual signal and terminate the iterative process. However, the calculation limitation in equation (3) is difficult to achieve because it is impossible to assign n as an infinite number. Instead, equation (4) is adopted as a stop criterion for iterations

\frac{{‖ Γ_{i, n} - Γ_{i, n - 1} ‖}_{2}}{{‖ Γ_{i, n - 1} ‖}_{2}} ⩽ ε

(4)

where $ε$ is a pre-specified parameter. If $ε$ is a large value, then the decomposition results will be rough—in the following, the envelop lines are not accurate as well. However, if $ε$ is too small, the noise will be introduced and the time consumption condition should be considered. After several attempts, 0.001 will be a suitable value for $ε$ in this article.

The ALIF method is derived from the iterative filtering technique, but ALIF could adaptively compute the filter length, and equation (1) can be rewritten as

\begin{matrix} Γ (x (t)) = x (t) * f (t) \\ = \int_{- l (t)}^{l (t)} x (t + τ) f (t, τ) d τ, \int_{- l (t)}^{l (t)} f (t, τ) d τ = 1 \end{matrix}

(5)

where $f (t, τ)$ , $τ \in$ $[- l (t), l (t)]$ is the filter at point t and $l (t)$ is the mask length varying with t.

The other modification is that the ALIF filter can be adaptively adjusted with the FP equation. The low-pass filter function is specified in the inner-loop of the iterative filtering technique, and local distortion of the waveform may be produced for the massive nonlinear and non-stationary signals. Whereas, the FP filters are infinitely differentiable and vanish to zero smoothly at both ends, which could guarantee that artificial oscillations are not introduced. The pseudo-code of ALIF method is presented as follows.

ALIF algorithm IMF = ALIF(x)
$IMF = {}$
while the number of extrema of $x ⩾ 2$ do
$x_{1} = x$
while the stopping criterion is not satisfied do
compute the filter length $l_{n} (t)$ for $x_{n} (t)$
$x_{n + 1} (t) = x_{n} (t) - \int_{- l_{n} (t)}^{l_{n} (t)} x_{n} (t + τ) f_{n} (t, τ) d τ$
$n = n + 1$
end while
$IMF = IMF \cup {x_{n}}$
$x = x - x_{n}$
end while
$IMF = IMF \cup {x}$

MPE

PE was proposed by Bandt and Pompe²⁹ to detect the dynamic change of the time series data and to overcome former entropy method limitations such as the requirement of long data sets and high computational cost. The definition and calculation steps of PE are described as follows.

Given a time series ${x (k), k = 1, 2, \dots, N}$ , then the m-dimensional vector at time i can be constructed as

\begin{matrix} x_{i}^{m} = {x (i), x (i + τ), \dots, x (i + (m - 1) τ)}, \\ i = 1, 2, \dots, N - (m - 1) τ \end{matrix}

(6)

where $x_{i}^{m}$ is a new time series, m represents the embedding dimension, and $τ$ is the time delay. Let $π_{j} = (r_{0}, r_{1}, \dots, r_{m - 1})$ , then $x_{i}^{m}$ has a permutation $π_{j}$ if it satisfies that

x (i + r_{0} τ) ⩽ x (i + r_{1} τ) ⩽ \dots ⩽ x (i + r_{m - 1} τ)

(7)

where $0 ⩽ r_{n} ⩽ m - 1$ , and $r_{n - 1} < r_{n}$ when $x (t + r_{n - 1} τ) = x (t + r_{n} τ)$ . For each permutation $π_{j}, 1 ⩽ j ⩽ m!$ , the relative frequency can be defined as

p (π_{j}) = \frac{# {i | i ⩽ N - (m - 1) τ, x_{i}^{m} has type π_{j}}}{N - (m - 1) τ}

(8)

where $#$ represents the number of $x_{i}^{m}$ belonging to the type $π_{j}$ . Then, the definition of PE with m dimension can be written as

H_{PE} (m) = - \sum_{j}^{m!} p (π_{j}) \ln [p (π_{j})]

(9)

The MPE algorithm based on PE comprises two steps:

Given a time series ${x (k), k = 1, 2, \dots, N}$ , then coarse-grained time series $y_{j}^{s}$ at a scale factor of s can be constructed according to equation (10)

y_{j}^{s} = \frac{1}{s} \sum_{i = (j - 1) s + 1}^{js} x_{i}, 1 ⩽ j ⩽ \frac{N}{s}

(10)

The PE of each coarse-grained time series is calculated based on equations (6)–(9) and then plotted as the function of the scale factor s, which can be expressed as

MPE (x, s, m, τ) = PE (y_{j}^{s}, m, τ)

(11)

Four parameters should be set before using MPE, including the length of the time series N, embedding dimension m, time delay $τ$ , and the scale factor s. Since the number of permutation patterns is $m!$ , the PE values will highly rely on the selection of embedding dimension m. Besides, the length of the time series N should satisfy the condition $N ⩾ 5 m!$ for a reliable statistics. Bandt and Pompe²⁹ proposed the range $3 ⩽ m ⩽ 7$ for the PE. If the value of m is small, there will be too few distinct states and the PE is meaningless. Moreover, when the value of m is large, it will be time-consuming and considerable inconvenience will be caused with the greater m in the following multiscale investigation because of the limitation $N ⩾ 5 m!$ . For measuring the dynamic change, the value of m is set as 4 in this article considering a trade-off between information loss and computational complexity. Since the time delay $τ$ has little influence on the results, here we set $τ = 1$ . The scale factor s is set to 20 empirically. Finally, the parameters in this article are set as: N = 2048, m = 4, $τ = 1$ , s = 20.³⁶

The normalized MPE with the scale factor s is expressed as

NorMPE (x, t, m, τ) = \frac{MPE (x, t, m, τ)}{\sum_{t = 1}^{s} MPE (x, t, m, τ)}

(12)

MLMGL

Let ${(x_{i}, y_{i})}_{i = 1}^{n}$ represents the set of n samples, where $x_{i} \in R^{q}$ is the q-dimensional input vector of features for the ith sample, and $y_{i}$ is the output. In the multiclass classification problem of M classes, the model with corresponding elements is expressed as

\begin{matrix} [\begin{matrix} x_{1, 1}^{(1)} & x_{1, 2}^{(1)} & \dots & x_{1, q}^{(1)} \\ x_{2, 1}^{(1)} & x_{2, 2}^{(1)} & \dots & x_{2, q}^{(1)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ x_{n, 1}^{(1)} & x_{n, 2}^{(1)} & \dots x_{n, q}^{(1)} \\ x_{1, 1}^{(2)} & x_{1, 2}^{(2)} & \dots x_{1, q}^{(2)} \\ x_{2, 1}^{(2)} & x_{2, 2}^{(2)} & ⋮ x_{2, q}^{(2)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ x_{n, 1}^{(2)} & x_{n, 2}^{(2)} & \dots & x_{n, q}^{(2)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ x_{1, 1}^{(M)} & x_{1, 2}^{(M)} & \dots & x_{1, q}^{(M)} \\ x_{2, 1}^{(M)} & x_{2, 2}^{(M)} & \dots & x_{2, q}^{(M)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ x_{n, 1}^{(M)} & x_{n, 2}^{(M)} & \dots & x_{n, q}^{(M)} \end{matrix}] [\begin{matrix} β_{0}^{(1)} & β_{0}^{(2)} & \dots & β_{0}^{(M)} \\ β_{1}^{(1)} & β_{1}^{(2)} & \dots & β_{1}^{(M)} \\ β_{2}^{(1)} & β_{2}^{(2)} & \dots & β_{2}^{(M)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ β_{q}^{(1)} & β_{q}^{(2)} & \dots & β_{q}^{(M)} \end{matrix}] \\ = [\begin{matrix} y_{1}^{(1)} & y_{1}^{(2)} & \dots & y_{1}^{(M)} \\ y_{2}^{(1)} & y_{2}^{(2)} & \dots & y_{2}^{(M)} \\ y_{3}^{(1)} & y_{3}^{(2)} & \dots & y_{3}^{(M)} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ y_{n}^{(1)} & y_{n}^{(2)} & \dots & y_{n}^{(M)} \end{matrix}] \end{matrix}

(13)

The probability of an observation with covariate vector x belonging to a class l is parametrized as

P (y = l | x) = \frac{\exp (x^{T} β_{• l})}{\sum_{m ⩽ M} \exp (x^{T} β_{• m})}, l = 1, 2, \dots, M

(14)

Parameters are estimated by minimizing the following formula

- ℓ (β) + λ \sum_{k = 1}^{p} {‖ β_{k •} ‖}_{2}

(15)

where $ℓ$ is the multinomial log-likelihood

ℓ (β) = \sum_{i = 1}^{n} {\sum_{m = 1}^{M} y_{i, m} x_{i •} β_{• m} - \log [\sum_{l ⩽ M} \exp (x_{i •} β_{• l})]}

(16)

and $\sum_{k = 1}^{p} {‖ β_{k •} ‖}_{2}$ is the group-lasso penalty of coefficients. An approximate Newton scheme is employed, and the multinomial objective equation (15) is optimized by repeatedly approximating with a quadratic and minimizing the corresponding Gaussian problem. The solution is realized with R package glmnet.⁴⁴ The algorithm for feature selection based on MLMGL is as follows:

Input: $X = [x_{1}, x_{2}, \dots, x_{n \times M}]$ , and $Y = [y_{1}, y_{2}, \dots, y_{n \times M}]$ . Output: feature subsets.

$X \leftarrow Norm (X)$ //The data set $X$ is normalized.

$[β_{1}, β_{2}, \dots, β_{M}] \leftarrow MLMGL (X, Y)$ , where $β_{•} = [β_{• 0}, β_{• 1}, \dots, β_{• q}]$ .

$\tilde{β_{•}} \leftarrow Sort (abs (β_{•}))$ //Sort all q features in a descending order of the absolute $[β_{• 0}, β_{• 1}, \dots, β_{• q}]$ .

Select the top ranked features based on $\tilde{β_{•}}$ with a threshold.

The proposed method

The prominent difference between the traditional methods and the proposed method is shown as part A and part B in Figure 1. Since the proposed method could perform multiclass classification with an embedded approach for feature selection in one step, the corresponding procedure based on adaptive local iterative filtering–multiscale permutation entropy (ALIF-MPE) and MLMGL is established for the fault classification of rolling element bearings, and the steps are as follows:

Collect vibration signals of healthy and different types of defective bearings at different external loads.

Apply ALIF to decompose the vibration signals into IMFs. The first m IMFs including the most dominant fault information are chosen to extract features.

Calculate MPE values of the first m IMFs and construct normalized vectors.

Train MLMGL with the normalized feature vectors. After training successfully, MLMGL could be used to test samples to identify the different work conditions and fault patterns.

Figure 1.

Illustration of fault classification.

The flowchart of the proposed method is shown in Figure 2.

Figure 2.

The flowchart of the proposed approach.

Experimental verification

Experimental setup

To validate the capability of the proposed method, experimental data analysis on rolling bearings with different categories is conducted. The bearing data are obtained from Bearing Data Center of Case Western Reserve University (CWRU),⁴⁵ and the bearing experiment system is shown in Figure 3. During the experiments, the drive end bearing 6205-2RS JEM SKF is investigated and defective bearings are seeded with single point faults using electro-discharge machining. Vibration signals are from the accelerometer placed at the 12 o’clock position of the motor drive end with the sampling frequency 12 kHz. In addition, different working conditions are listed in Table 1, including normal, ball fault (BF), inner race fault (IRF), and outer race fault (ORF) (at the 6 o’clock position).

Figure 3.

The rolling bearing experiment system.

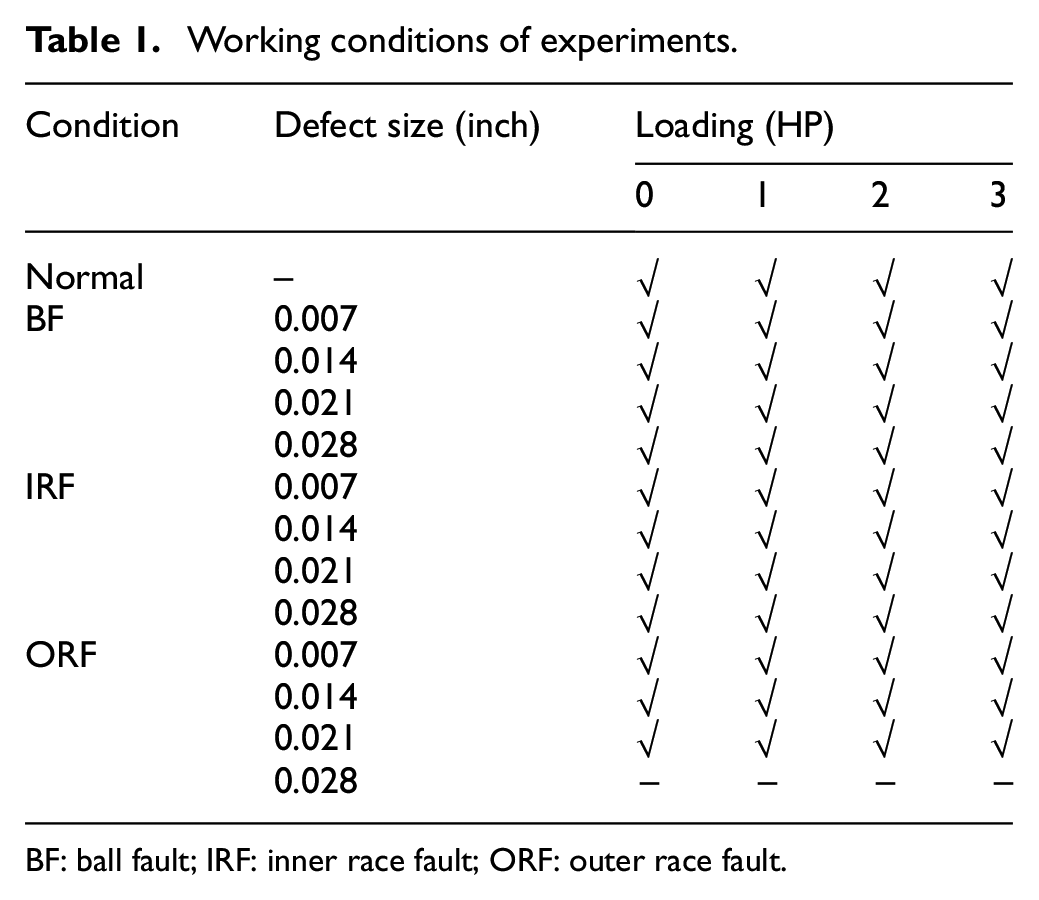

Table 1.

Working conditions of experiments.

Condition	Defect size (inch)	Loading (HP)
Condition	Defect size (inch)	0	1	2	3
Normal	–	√	√	√	√
BF	0.007	√	√	√	√
	0.014	√	√	√	√
	0.021	√	√	√	√
	0.028	√	√	√	√
IRF	0.007	√	√	√	√
	0.014	√	√	√	√
	0.021	√	√	√	√
	0.028	√	√	√	√
ORF	0.007	√	√	√	√
	0.014	√	√	√	√
	0.021	√	√	√	√
	0.028	–	–	–	–

BF: ball fault; IRF: inner race fault; ORF: outer race fault.

Based on the vibration data in Table 1, four groups of tests are designed, including different types of fault (group A), different defective sizes (group B), combination of fault types and defect sizes (group C), and different loads (group D). With the initial purpose for slight fault diagnosis, the defective bearing with defect size 0.007 inch at 0 HP is mostly investigated. The sampling time is 10 s in every conditions, and the total length of the original vibration signals are divided into non-overlapping segments with length N = 2048. Each condition has 50 samples with the specified label of fault type for classification, in which the first 20 samples are selected to train the MLMGL classifier, and the rest 30 samples are for test. The description of bearing fault groups is presented Table 2.

Table 2.

Description of bearing fault groups.

Group	Condition	Defect size (inch)	Loading (HP)	Training samples	Testing samples	Label of classification
A	Normal	–	0	20	30	1
	BF	0.007	0	20	30	2
	IRF	0.007	0	20	30	3
	ORF	0.007	0	20	30	4
B	Normal	–	0	20	30	1
	BF	0.007	0	20	30	2
	BF	0.014	0	20	30	3
	BF	0.021	0	20	30	4
	BF	0.028	0	20	30	5
C	Normal	–	0	20	30	1
	BF	0.007	0	20	30	2
	BF	0.014	0	20	30	3
	IRF	0.007	0	20	30	4
	IRF	0.014	0	20	30	5
	ORF	0.007	0	20	30	6
	ORF	0.014	0	20	30	7
D	BF	0.007	0	20	30	1
	BF	0.007	1	20	30	2
	BF	0.007	2	20	30	3
	BF	0.007	3	20	30	4
	BF	0.014	0	20	30	5
	BF	0.014	1	20	30	6
	BF	0.014	2	20	30	7
	BF	0.014	3	20	30	8

BF: ball fault; IRF: inner race fault; ORF: outer race fault.

Signal decomposition and feature extraction

The time-domain waveforms of rolling bearings with defect size 0.007 inch at 0 HP under four fault categories (Normal, IRF, ORF, and BF) are depicted in Figure 4(a), respectively. Because the dominant fault information always exists in the front IMFs, the first five IMFs with ALIF are utilized and plotted in Figure 4(b). The MPE values are calculated for each IMF, and the results are shown in Figure 5(a)–(e). To verify the necessity of preprocessing with ALIF, MPE values of the original signals are calculated as well in Figure 5(f). It is shown that the four conditions are hard to distinguish effectively by the MPE curves of the original signal; hence, ALIF is needed to enhance the fault characteristics.

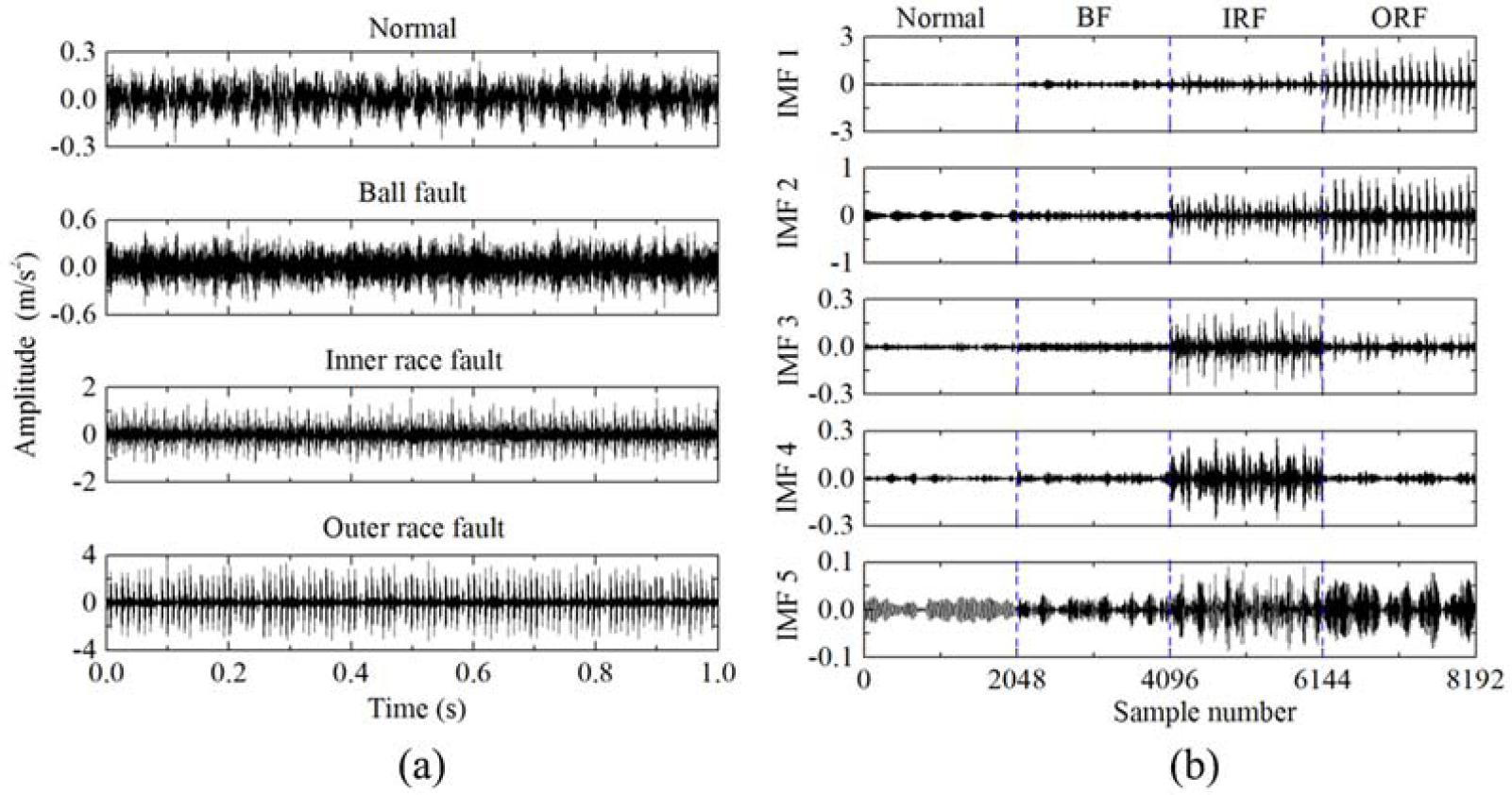

Figure 4.

Rolling bearing vibration signals: (a) original waveforms at four different conditions and (b) the first five IMFs obtained by ALIF.

Figure 5.

MPE over 20 scales: (a) the first IMF, (b) the second IMF, (c) the third IMF, (d) the fourth IMF, (e) the fifth IMF, and (f) the original signals.

Classification and analysis

As mentioned above, every sample with length of 2048 is adaptively decomposed by ALIF, and only the first five IMFs are employed. The MPE values of every IMF are calculated with the scale factor s = 20, namely, there are 100 features in each sample. After training MLMGL, the prominent features are selected according to the corresponding coefficients. The first three maximum parameters of each condition are listed in Table 3, and variables in the bracket represent the selected features which are relatively concentrated and separated from others as shown in Figure 6(a)–(d). In each group, the prominent features in each condition are different due to the group-lasso penalty, which avoid features with the same positions for classification in the traditional methods. For example, considering the condition of BF with 0.007 inch at 0 HP in the four different groups of Table 3 as shown with bold type, different features are selected for classification. In addition, the parameters are random with a small variance due to the random selection of samples in the cross validation of R package glmnet. Moreover, the most selected features are from the first 60, that is to say, the first three IMFs contain the most fault information, which illustrates the availability of ALIF for feature extraction in some aspects.

Table 3.

Parameter estimation with group-lasso for feature selection.

Group	Condition	Defect size (inch)	Loading (HP)	P1	P2	P3
A	Normal	–	0	−536.8 (V1)	12.32 (V5)	−328.4 (V23)
	BF	0.007	0	−762.5 (V2)	458.0 (V7)	−212.2 (V52)
	IRF	0.007	0	718.6 (V1)	−177.3 (V7)	−211.1 (V44)
	ORF	0.007	0	580.8 (V1)	358.9 (V23)	309.1 (V44)
B	Normal	–	0	−484.2 (V1)	437.1 (V11)	297.3 (V13)
	BF	0.007	0	−646 (V1)	−544.8 (V4)	−296.8 (V56)
	BF	0.014	0	−452.7 (V1)	190.7 (V4)	−542.1 (V13)
	BF	0.021	0	1912.5 (V1)	−138 (V16)	−149.8 (V76)
	BF	0.028	0	−329.5 (V1)	−505.3 (V11)	247.4 (V34)
C	Normal	–	0	−332.9 (V1)	361.7 (V4)	383.5 (V11)
	BF	0.007	0	−897.6 (V1)	−854.5 (V4)	416.9 (V11)
	BF	0.014	0	−255.7 (V44)	−365.1 (V54)	269.2 (V60)
	IRF	0.007	0	269.5 (V1)	528.9 (V5)	610.2 (V23)
	IRF	0.014	0	472.7 (V4)	−557.1 (V6)	−866.6 (V13)
	ORF	0.007	0	−500.2 (V5)	−733.9 (V11)	−333.1 (V60)
	ORF	0.014	0	801.6 (V1)	−323 (V5)	−532.4 (24)
D	BF	0.007	0	−592.3 (V3)	628.8 (V23)	−447.7 (V56)
	BF	0.007	1	397.7 (V1)	−476.6 (V39)	−440.7 (V57)
	BF	0.007	2	−651.9 (V1)	611.1 (V11)	−600.4 (V23)
	BF	0.007	3	−360.8 (V1)	342.4 (V11)	382.7 (V56)
	BF	0.014	0	−826.4 (V23)	−540.9 (V40)	−680.8 (V60)
	BF	0.014	1	−388.6 (V11)	−280.7 (V13)	−381.1 (V43)
	BF	0.014	2	−488.5 (V13)	−542.4 (V23)	738.6 (V43)
	BF	0.014	3	1108.9 (V1)	962.7 (V23)	576.7 (V57)

BF: ball fault; IRF: inner race fault; ORF: outer race fault.

Figure 6.

Feature selection with group-lasso from multiple MPE features of bearings: (a) Group A, (b) Group B, (c) Group C, and (d) Group D.

The classification accuracies of the tests by MLMGL are listed in Table 4, with the results shown in Figure 7(a)–(d). A worst-case scenario was observed in group D. The reason may be the particular failure mechanism of the ball fault because faulty rollers do not always contact with the inner race and the outer race. The irregular vibration signals lead to the obscure features. In addition, various kinds of features with the same fault type may cause interferences among them as well. To illustrate the performance of the proposed method for bearing fault type identification, a comparative study between the present work and published works in the literature is presented in Table 5. The works are arranged according to the maximum accuracy, and no work has been published about the application of ALIF in bearing fault diagnosis. Moreover, the entropy-based features, especially MPE, are mostly utilized for fault diagnosis and good results are obtained. Since the binary logistic model is a classifier-like SVM, it is seldom adopted. But, the MLMGL has been proved in this article to be an effective method for identification of multiple faults.

Table 4.

Classification accuracy.

Group	Training	Testing	Total
A	100%	100%	100%
B	100%	98.67%	99.33%
C	100%	100%	100%
D	100%	93.33%	96.67%

Figure 7.

Classification results under different conditions: (a) Group A, (b) Group B, (c) Group C, and (d) Group D.

Table 5.

A comparative study of previous work on bearing fault diagnosis published in the literature.

Fault type	Preprocessing	Feature extraction	Feature selection	Classifier	Maximum accuracy	Reference
ORF, IRF	EMD	Energy entropy	N/A	ANN	93.0%	Yang et al.⁷
ORF, IRF, BF	VMD	ApEn	N/A	PSO-KELM	93.08%	Li et al.¹⁴
ORF, IRF, BF	Improved LMD	MPE	N/A	HMM	95.0%	Gao et al.³²
ORF, IRF, BF	WPD	MPE	N/A	HMM	96.7%	Zhao et al.³³
ORF, IRF, BF	N/A	HOSA	PCA	SVM	96.98%	Saidi et al.³⁷
ORF, IRF, BF	EMD	Multiple domains	N/A	PSO-SVM	97.5%	Liu et al.⁴⁰
ORF, IRF, BF	Wavelet	MPE	N/A	SVM and ANN	97.5%	Vakharia et al.³⁴
ORF, IRF, BF	N/A	Time-domain	N/A	IACO-SVM	97.5%	Li et al.⁴¹
ORF, IRF, BF	Wavelet	Standard deviation	Scatter matrices	Quadratic	98.9%	Gligorijevic et al.⁴⁶
ORF, IRF, BF	VMD	Time-domain	LLE	SVM	98.9%	Yang and Jiang¹
ORF, IRF, BF	EEMD	PE	N/A	M-RVM	99.58%	Liu et al.³⁰
ORF, IRF, BF	N/A	Multiscale analysis	MD	SVM	99.79%	Wu et al.³⁸
ORF, IRF, BF	DWT	Wavelet-domain	SAX	HTMM	99.9%	Milo et al.⁴
ORF, IRF, BF	LMD	MSE	N/A	ANN	100.0%	Liu and Han¹¹
ORF, IRF, BF	LMD	IMFE	LS	SVM-BT	100.0%	Li et al.¹²
ORF, IRF, BF	N/A	MPE	N/A	SVM	100.0%	Wu et al.³⁵
ORF, IRF, BF	LMD	MPE	LS	SVM-BT	100.0%	Li et al.³⁶
ORF, IRF	LCD	Energy entropy	N/A	ACROA-SVM	100.0%	Ao et al.⁴²
ORF, IRF, BF	VMD	Autoregressive	N/A	Random forest	100.0%	Han and Jiang⁴⁷
ORF, IRF, BF	VMD	MPE	PCA	GHMM	100.0%	Liu et al.²
ORF, IRF, BF	Wavelet	Statistics	N/A	SVR	100.0%	Shen et al.⁴⁸
ORF, IRF, BF	LCD	Fuzzy entropy	N/A	ANFIS	100.0%	Zheng et al.²⁷
ORF, IRF, BF	EEMD	PE	N/A	ICD-SVM	100.0%	Zhang et al.⁹
ORF, IRF, BF	EMD	HHT + WMSC	N/A	SVM	100.0%	Yu et al.³⁹
ORF, IRF, BF	EEMD	Multiple domains	LS	VPMCD	100.0%	Zheng³
ORF, IRF, BF	LMD	SaEn, energy ratio	N/A	SVM	100.0%	Han and Pan²⁵
ORF, IRF, BF	EWT	CorC	N/A	ACC	100.0%	Jiang et al.¹⁶
ORF, IRF, BF	STFT	Time–frequency	NMF	Cluster	100.0%	Gao et al.²¹

ORF: outer race fault; IRF: inner race fault; EMD: empirical mode decomposition; ANN: artificial neural network; BF: ball fault; VMD: variational mode decomposition; PSO-KELM: particle swarm optimization-kernel extreme learning machine; LMD: local mean decomposition; MPE: multiscale permutation entropy; HMM: hidden Markov model; WPD: wavelet packet decomposition; HOSA: higher order spectral analysis; PCA: principal component analysis; SVM: support vector machine; IACO-SVM: improved ant colony optimization-support vector machine; LLE: local linear embedding; EEMD: ensemble empirical mode decomposition; PE: permutation entropy; M-RVM: multiclass relevance vector machine; MD: Mahalanobis distance; DWT: discrete wavelet transform; SAX: symbolic aggregate approximation; HTMM: hierarchical transition matrix model; MSE: multiscale entropy; IMFE: improved multiscale fuzzy entropy; LS: Laplacian score; SVM-BT: support vector machine-binary tree; LCD: local characteristic-scale decomposition; ACROA-SVM: artificial chemical reaction optimization algorithm-support vector machine; GHMM: generalized hidden Markov model; SVR: support vector regression; ANFIS: adaptive neuro-fuzzy inference system; ICD-SVM: inter-cluster distance-support vector machine; HHT: Hilbert–Huang transform; WMSC: window marginal spectrum clustering; VPMCD: variable predictive model-based class discrimination; ACC: ambiguity correlation classification; STFT: short-time Fourier transform; CorC: correlation coefficients.

Conclusion

This article presents a novel bearing fault diagnosis method based on ALIF-MPE and MLMGL. ALIF could adaptively decompose the vibration signals with nonlinear and non-stationary characteristics into a sum of IMFs. MPE values of the first five IMFs in different scales are more distinct than that of the original signals. Multinomial logistic model could accurately identify faulty types of rolling bearings due to the advantage of performing multiclass classification with an embedded approach for feature selection in one step. Furthermore, the selected features based on group-lasso penalty are independent, which make the features more distinct for classification. Eventually, the proposed method is evaluated with the practical rolling bearing data from CWRU and comparative studies. The results demonstrate that the proposed method is feasible and effective in bearing fault diagnosis.

Footnotes

Handling Editor: Davood Younesian

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant no. 51505100).

ORCID iDs

Jinbao Zhang

Yongqiang Zhao

References

Yang

Jiang

Casing vibration fault diagnosis based on variational mode decomposition, local linear embedding, and support vector machine. Shock Vib 2017; 2017: 1–14.

Liu

et al . A hybrid generalized hidden Markov model-based condition monitoring approach for rolling bearings. Sensors 2017; 17: 1143.

Zheng

Rolling bearing fault diagnosis based on partially ensemble empirical mode decomposition and variable predictive model-based class discrimination. Arch Civ Mech Eng 2016; 16: 784–794.

Milo

Harris

Bjerke

et al . Anomaly detection in rolling element bearings via hierarchical transition matrices. Mech Syst Sig Process 2014; 48: 120–137.

Feng

Zhang

Zuo

MJ.

Adaptive mode decomposition methods and their applications in signal analysis for machinery fault diagnosis: a review with examples. IEEE Access 2017; 5: 24301–24331.

Huang

Shen

Long

et al . The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc Roy Soc A: Math Phys Eng Sci 1998; 454: 903–995.

Yang

Cheng

A roller bearing fault diagnosis method based on EMD energy entropy and ANN. J Sound Vib 2006; 294: 269–277.

Huang

NE.

Ensemble empirical mode decomposition: a noise-assisted data analysis method. Adv Adapt Data Anal 2009; 1: 1–41.

Zhang

Liang

Zhou

et al . A novel bearing fault diagnosis model integrated permutation entropy, ensemble empirical mode decomposition and optimized SVM. Measurement 2015; 69: 164–179.

10.

Smith

JS.

The local mean decomposition and its application to EEG perception data. J Roy Soc Interf 2005; 2: 443–454.

11.

Liu

Han

A fault diagnosis method based on local mean decomposition and multi-scale entropy for roller bearings. Mech Mach Theory 2014; 75: 67–78.

12.

Wang

et al . A fault diagnosis scheme for rolling bearing based on local mean decomposition and improved multiscale fuzzy entropy. J Sound Vib 2016; 360: 277–299.

13.

Dragomiretskiy

Zosso

Variational mode decomposition. IEEE T Sig Process 2014; 62: 531–544.

14.

et al . A rolling bearing fault diagnosis method based on variational mode decomposition and an improved kernel extreme learning machine. Appl Sci 2017; 7: 1004.

15.

Gilles

Empirical wavelet transform. IEEE T Sig Process 2013; 61: 3999–4010.

16.

Jiang

A novel faults diagnosis method for rolling element bearings based on EWT and ambiguity correlation classifiers. Entropy 2017; 19: 231.

17.

Cicone

Liu

Zhou

Adaptive local iterative filtering for signal decomposition and instantaneous frequency analysis. Appl Comput Harm Anal 2016; 41: 384–411.

18.

Zeng

Demodulation analysis based on adaptive local iterative filtering for bearing fault diagnosis. Measurement 2016; 94: 554–560.

19.

Yang

Wang

Cai

et al . Oscillation mode analysis for power grids using adaptive local iterative filter decomposition. Int J Electr Pow Energ Syst 2017; 92: 25–33.

20.

Mitiche

Morison

Nesbitt

et al . Classification of partial discharge signals by combining adaptive local iterative filtering and entropy features. Sensors 2018; 18: 406.

21.

Gao

Liang

Chen

et al . Feature extraction and recognition for rolling element bearing fault utilizing short-time Fourier transform and non-negative matrix factorization. Chin J Mech Eng 2015; 28: 96–105.

22.

Caesarendra

Tjahjowidodo

A review of feature extraction methods in vibration-based condition monitoring and its application for degradation trend estimation of low-speed slew bearing. Machines 2017; 5: 21.

23.

Pincus

SM.

Approximate entropy as a measure of system complexity. Proc Nat Acad Sci USA 1999; 88: 2297–2301.

24.

Richman

Moorman

. Physiological time-series analysis using approximate entropy and sample entropy. Am J Physiol: Heart Circul Physiol 2000; 278: H2039–H2049.

25.

Han

Pan

A fault diagnosis method combined with LMD, sample entropy and energy ratio for roller bearings. Measurement 2015; 76: 7–19.

26.

Chen

Zhuang

et al . Measuring complexity using FuzzyEn, ApEn, and SampEn. Med Eng Phys 2009; 31: 61–68.

27.

Zheng

Cheng

Yang

A rolling bearing fault diagnosis approach based on LCD and fuzzy entropy. Mech Mach Theory 2013; 70: 441–453.

28.

Costa

Goldberger

Peng

CK.

Multiscale entropy analysis of complex physiologic time series. Phys Rev Lett 2002; 89: 0681021–0681024.

29.

Bandt

Pompe

Permutation entropy: a natural complexity measure for time series. Phys Rev Lett 2002; 88: 1741021–1741024.

30.

Liu

Chen

Yang

. A novel fault diagnosis method for rolling bearing based on EEMD-PE and multiclass relevance vector machine. In: 2017 IEEE international instrumentation and measurement technology conference (I2MTC), Turin, 22–25 May 2017, pp.1–6. New York: IEEE.

31.

Aziz

Arif

. Multiscale permutation entropy of physiological time series. In: 2005 Pakistan section multitopic conference, Karachi, Pakistan, 24–25 December 2005, pp.1–6. New York: IEEE.

32.

Gao

Villecco

et al . Multi-scale permutation entropy based on improved LMD and HMM for rolling bearing diagnosis. Entropy 2017; 19: 176.

33.

Zhao

Wang

Yan

Rolling bearing fault diagnosis based on wavelet packet decomposition and multi-scale permutation entropy. Entropy 2015; 17: 6447–6461.

34.

Vakharia

Gupta

Kankar

PK.

A multiscale permutation entropy based approach to select wavelet for fault diagnosis of ball bearings. J Vib Contr 2015; 21: 3123–3131.

35.

et al . Bearing fault diagnosis based on multiscale permutation entropy and support vector machine. Entropy 2012; 14: 1343–1356.

36.

Wei

et al . A new rolling bearing fault diagnosis method based on multiscale permutation entropy and improved support vector machine based binary tree. Measurement 2016; 77: 80–94.

37.

Saidi

Ali

Fnaiech

Application of higher order spectral features and support vector machines for bearing faults classification. ISA Trans 2015; 54: 193–206.

38.

et al . Multi-scale analysis based ball bearing defect diagnostics using Mahalanobis distance and support vector machine. Entropy 2013; 15: 416–433.

39.

Ding

Chen

et al . A novel characteristic frequency bands extraction method for automatic bearing fault diagnosis based on Hilbert Huang transform. Sensors 2015; 15: 27869–27893.

40.

Liu

Cao

Chen

et al . Multi-fault classification based on wavelet SVM with PSO algorithm to analyze vibration signals from rolling element bearings. Neurocomputing 2013; 99: 399–410.

41.

Zheng

Zhang

et al . Rolling element bearing fault detection using support vector machine with improved ant colony optimization. Measurement 2013; 46: 2726–2734.

42.

Cheng

et al . A roller bearing fault diagnosis method based on LCD energy entropy and ACROA-SVM. Shock Vib 2014; 2014: 1–12.

43.

Guyon

Elisseeff

An introduction to variable and feature selection. J Mach Learn Res 2003; 3: 1157–1182.

44.

Simon

Friedman

Hastie

. A blockwise descent algorithm for group-penalized multiresponse and multinomial regression. J Stat Softw 2013: 1–11.

45.

Case Western Reserve University, Bearing Data Center, http://csegroups.case.edu/bearingdatacenter/pages/apparatus-procedures

46.

Gligorijevic

Gajic

Brkovic

et al . Online condition monitoring of bearings to support total productive maintenance in the packaging materials industry. Sensors 2016; 16: 316.

47.

Han

Jiang

Rolling bearing fault diagnostic method based on VMD-AR model and random forest classifier. Shock Vib 2016; 2016: 5132046.

48.

Shen

Wang

Kong

et al . Fault diagnosis of rotating machinery based on the statistical parameters of wavelet packet paving and a generic support vector regressive classifier. Measurement 2013; 46: 1551–1564.

Bearings fault diagnosis based on adaptive local iterative filtering–multiscale permutation entropy and multinomial logistic model with group-lasso

Abstract

Keywords

Introduction

Theoretical background

ALIF

MPE

MLMGL

The proposed method

Experimental verification

Experimental setup

Signal decomposition and feature extraction

Classification and analysis

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
