Abstract

The core contribution to this work is the development of benchmark fuel economy for a three-wheeler hybrid electric rickshaw and its comparison with heuristics controllers designed with optimal and non-optimal rules. Dynamic programming is used as a feasible technique for powertrain benchmark analysis. A parallel hybrid electric three-wheeler vehicle is modeled in MATLAB/Simulink through forward facing simulator. The dynamic programming technique is employed through the backward facing simulator, ensuring optimal power sharing between two energy sources (engine and motor) while keeping the battery state of charge in the charge-sustaining mode. The extracted rules from dynamic programming forming near-optimal control strategies are playing a vital role in deciding overall fuel consumption. Unlike the dynamic programming control actions, these extracted rules are implementable through the forward facing simulator. From the simulation results, it can be concluded that a substantial improvement of fuel economy is achieved through the application of dynamic programming. Rule-based (near-optimal) strategy using dynamic programming results shows about 9% more fuel consumption as compared with the dynamic programming (benchmark solution), which is then compared with non-optimal rule-based heuristics controller. It is shown that non-optimal rule-based controller has 18% more fuel consumption than dynamic programming results.

Keywords

Dynamic programming optimal control three-wheeler hybrid electric vehicle heuristics control

Introduction

Environmental challenges and reduction of global crude oil reserves gained the attention of researchers and automobile manufacturers for exploration of novel vehicle technologies. Hybrid electric vehicles (HEVs) established a thought for minimizing the fuel consumption and greenhouse gas (GHG) emissions. Transportation sector consumes about 66% of total oil consumption throughout the world and 50% of that is utilized by small passenger cars and trucks.¹ In this unique circumstance, automakers must lessen the oil consumption and GHG emissions by presenting advanced fuel efficient innovations and furthermore by utilizing alternative fuels. The focus of the research is on a parallel hybrid electric rickshaw where the internal combustion engine (ICE) and the electric machine are mechanically coupled.² The control of power flow between the ICE and the electric motor is referred as energy management. The drivetrain topology includes the power flow routes and the transmission ratios between the two power sources (engine and motor) and the wheels of the vehicle. To achieve better fuel consumption along with good acceleration performance, the major requirements of a transmission are sufficient ratio coverage and smooth operation of the vehicle. Fuel economy improvement and reduction in emissions are achieved through engine start–stop operation and brake energy recuperation.³

The energy management strategies for HEVs are categorized keeping in view multiple criteria. On the basis of the amount of information used and the optimization method employed, the following three groups can be found in the literature: global optimization strategies, local optimization strategies, and the heuristic methods. Global optimization methods seek the optimal result, that is, the optimal power split sequence. This optimal power split sequence is guaranteed by executing a global minimization over the complete driving cycle, supposed to be decided a priori. The dynamic programming (DP) technique provides a globally optimal solution and has been discussed in several publications.^2,4–6 This technique is not practicable online, for the reason of a priori information about the driving pattern and high computational demands. The real-time optimization controllers like stochastic DP and model predictive controllers (MPC)^7,8 also exist in literature. Local optimization strategies do not require the information of future driving pattern, rather depend upon onboard data. The solution is provided through a sequence of local (instantaneous) minima, estimated at every instant. Equivalent consumption minimization strategy (ECMS) is one of these methods.^9–11 This strategy relies on the transformation of the battery power into equivalent fuel consumption. Unlike the global optimization methods, these methods are implementable online. Heuristic methods do not accomplish any minimization, rather the control action is discovered at every instant utilizing empirical rules.^12,13 The main useful aspect of heuristic methods lies in the reduction of computational time but with the disadvantage of non-optimal solution.¹⁴

The main challenge for the designing of HEVs is the coordination of onboard energy sources and optimal power flow control for both the electrical and the mechanical paths. This requires the utilization of an appropriate control strategy or energy management strategy.

From the available global optimization methods, DP was chosen as the method for the benchmarking analysis, as it not only provides dramatically reduced computation time as compared to other graph search methods¹⁵ but also offers implicit exclusion of infeasible solution paths. This feature is particularly important, as the implementation of a backward facing model under the assumption of correctly following a driving cycle can produce many infeasible solutions where particular components or operating states cannot meet the imposed load.

Modeling and simulation of three-wheeler vehicle drivetrain has been done in the MATLAB/Simulink environment. A prototype rickshaw has been built with a parallel architecture.

In the past, research work has been done on the HEVs as well as plug-in HEVs of varying sizes. Research has been reported on charging infrastructure, fuel economy, and the establishment of an Indian Driving Cycle for a three-wheeler auto rickshaw.¹⁶ Another work has been presented on the energy autonomous solar/battery rickshaw which employed trickle charging using a solar panel. Optimization of different energy resources and hybridization of van deputed for carrying the charged batteries to the mother station delivery point were also performed.¹⁷ Micro Hybrid System was developed for a three-wheeler motor taxi in which topology optimization, performance analysis, fuel consumption optimization, and emission reduction potential were conducted.¹⁸ A study of auto rickshaw using the fuel cell with urban drive cycles was carried out using PSAT software.¹⁹ Another study was reported on the advantages and disadvantages of two transport systems, battery-powered easy bike and compressed natural gas (CNG)-powered auto rickshaw, and also comparison of the daily income of owners of different types of rickshaws was conducted.²⁰ A comparison of hybrid electric systems with respect to the architecture of drivetrain for Indian cities was carried out.²¹ In our earlier work, fuel economy improvement through the degree of hybridization of the vehicle was presented, and dynamic performance of hybrid electric rickshaw was analyzed.²²

Most of the research was carried out on electric auto rickshaw, in which swapping of batteries was proposed, in a case of fully discharged batteries. Different stations were proposed for the replacement of batteries, but this procedure of replacement of the batteries of a vehicle is not feasible for remote areas. The benchmark fuel economy of the hybrid three-wheeler auto rickshaw in comparison with the other control strategies is not present in the literature so far, to the best of the authors’ knowledge.^16–22 DP provides optimal solution taken as benchmark solution. This solution is used as a platform for comparison with other control strategies. The rule-based (RB) strategy using DP results ensures charge sustainability by introducing a penalty function, which is the constraint for the system. Heuristic-based RB strategy utilizes the Boolean rules and threshold values for the charge sustainability and the implementation of torque distribution between the energy sources.

The significant contribution of this research is twofold. First, the comportment of the DP solution was explored for a hybrid three-wheeler auto rickshaw and deduction of implementable rules. Second, by using these extracted rules, implementation of these rules in RB controller and the comparison was made against DP results. Another heuristic-based strategy (rules not conforming to the DP strategy) based on the equal sharing of torque between the engine and the electric motor (parallel mode) is analyzed. Optimal rules versus non-optimal rules extraction is an useful work done in this research.

This research paper is organized as follows. Conventional auto rickshaw description is provided in the second section. In the third section, hybrid powertrain modeling of rickshaw is represented. Problem formulation is given in the fourth section. Vehicle modeling has been discussed in the fifth section. DP results, supervisory control, and energy management are discussed in the sixth section. Development of improved control strategy, improved RB strategy, the charge-sustaining problem, heuristic-based control strategy, and simulation results are the part of the seventh and the eighth sections. In the end, results, discussion, and conclusion with future work have been narrated in the ninth and the tenth sections.

Conventional auto rickshaw (Vespa rickshaw)

Conventional auto rickshaw shown in Figure 1 is running on Pakistan’s roads. It is a small and light-weighted vehicle, allowing maneuverability on narrow roads. It can carry two passengers with luggage, having a maximum speed of 50 km/h, and is considered to be the major source of pollution in cities of Pakistan. The primary cause of pollution is the inefficiency of the engine with poor maintenance. The new design of rickshaws came with liquid petroleum gas (LPG) or CNG as a fuel. The engine capacities range from 150 to 175 cm³ for air cooled and 200 to 275 cm³ for forced air and water cooled. Peak engine power varies from 6.3 to 8.5 hp, having fuel tank capacity of 8 to 9 L. A 12-volt lead acid battery is employed for ignition and lighting power. Rickshaw’s weight is usually varying from 260 to 450 kg. Tables 1 and 2 represent parameters of prototype auto rickshaw along with physical parameters of the engine.

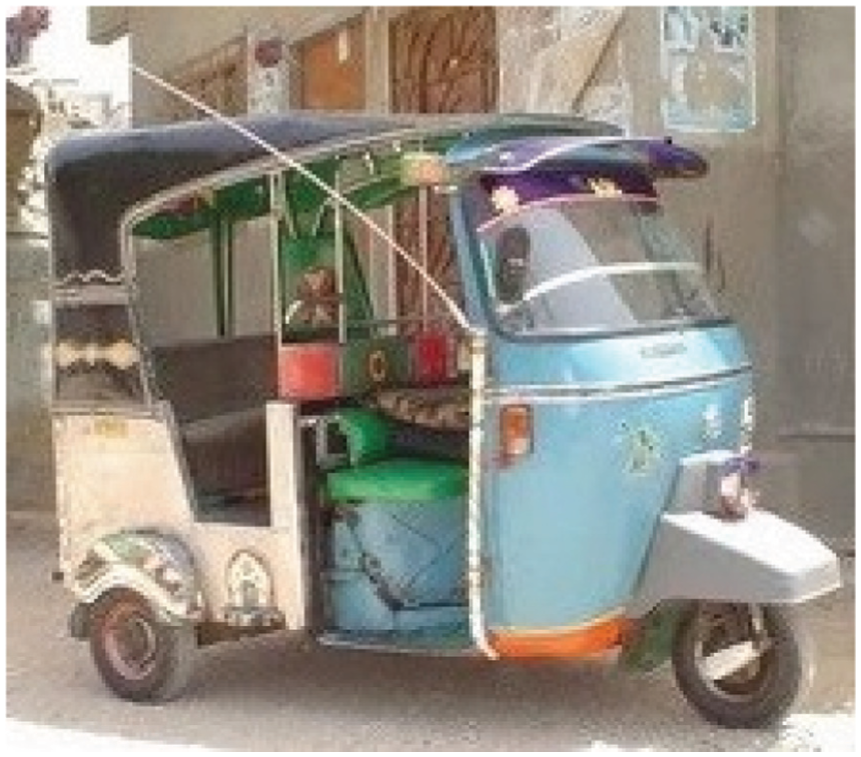

Figure 1.

Three-wheeler rickshaw.

Table 1.

Physical parameters of rickshaw.

Parameter	Value
Length	2210 mm
Width	1210 mm
Height	1902 mm
Clearance	255 mm
Frontal area	2.10 m²
Drag coefficient	0.50
Vehicle mass center	0.4 m
Wheel base	1730 mm
Kerb weight	330 kg
Turning radius	1955 mm

Table 2.

Physical parameters of the engine of rickshaw.

Parameter	Value
Class	Four stroke, SI, air cooled
Weight	30.5 kg
Displacement	275cc
Maximum power	7 kW @ 4400 r/min
Maximum torque	19 N m @ 2800
Payload	320 kg

Hybrid powertrain modeling of rickshaw

Depending on the powertrain architecture (the way of arrangement of various powertrain components), two main categories of the HEV are present: parallel and series configuration. In a series configuration, normally two electric motors exist; one acts as a motor and the other operated as a generator. The driving power of the wheels is received from the motor, which in turn receives the power from the generator connected to the engine or from the battery bank. Thus, there is an electric summation of engine and battery power. In parallel HEV, the mechanical summation exists between the ICE and the motor, and the torques from the two power sources are combined before the manual transmission (MT). The parallel configuration of hybrid electric rickshaw is selected for simulation purposes (shown in Figure 2). Because it is a small vehicle, the series architecture is not implementable due to less space available. The MT is configured with four ratios: 0.18, 0.32, 0.50, and 0.85. The total weight of the vehicle is 600 kg, the tire radius is 0.205 m, and the final drive ratio is 0.22. For a driving cycle, the selection is made of Manhattan drive cycle with the vehicle velocity history $v (t)$ , $t \in [t_{0}, t_{f}]$ . The power request $P_{total}$ is calculated as in equation (1)^4,23 (neglecting the grade force)

F_{total} = \frac{1}{2} ρ_{a} A_{f} C_{d} {V_{veh}}^{2} + Mg C_{r} + Ma

(1)

W_{veh} = \frac{V_{veh}}{R_{w}}

T_{total} = \frac{1}{2} ρ_{a} A_{f} C_{d} {R_{w}}^{3} {W_{veh}}^{2} + Mg C_{r} R_{w} + Ma R_{w}

P_{total} = T_{total} W_{veh}

where $M = M_{veh} + M_{eq}$ , $M_{veh}$ : vehicle’s total mass, and $M_{eq}$ : rotational inertia expressed in terms of linear inertia.

Figure 2.

Parallel architecture of the vehicle.

$M_{eq}$ is approximated as 10% of the vehicle’s total mass. The variables used in equation (1) are described in Table 3. The Manhattan drive cycle velocity profile is shown in Figure 3, and by using this drive cycle in equation (1), the power required for propulsion of the vehicle is calculated. The Manhattan drive cycle power profile is shown in Figure 4.

Table 3.

List of symbols.

Symbol	Description
$ρ_{a}$	Air density
$A_{f}$	Frontal area
$C_{d}$	Drag coefficient
$V_{veh}$	Linear speed of vehicle
M	Total mass of the vehicle
$g$	Gravity
$C_{r}$	Resistive coefficient
a	Acceleration
$R_{w}$	Radius of wheel
$W_{veh}$	Speed of vehicle
$T_{total}$	Total torque
$P_{total}$	Total power
$E_{batt}$	Battery energy
$P_{batt}$	Battery power
$V_{d}$	Desired velocity
$T_{gb}$	Gear box torque
$P_{gb}$	Gear box power
$W_{gb}$	Gear box speed
$W_{idle}$	Idling speed
${T_{rac}}_{F}$	Traction force
$V_{veh}$	Velocity of vehicle
BSFC	Brake-specific fuel consumption
$P_{fuel}$	Power of fuel
$P_{elec}$	Electric power
$η_{m}$	Efficiency of motor
sgn	Signum function

Figure 3.

Velocity profile of Manhattan drive cycle used for the evaluation of the designed control strategies.

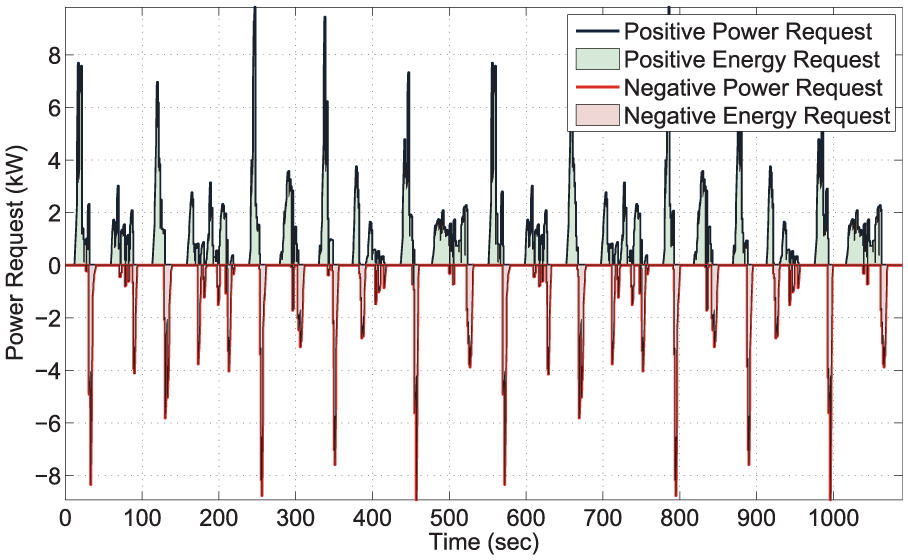

Figure 4.

Power profiles of Manhattan drive cycle.

Problem formulation

A discrete-time dynamic system for the HEV is described as^2,24

x_{k + 1} = f (x_{k}, u_{k})

(2)

where the state $x_{k}$ lies in the space $S_{k}$ , and the control variable $u_{k}$ lies in the space $C_{k}$ . The control variable is bounded to take values in a given non-empty subset $U_{x_{k}} \in C_{k}$ depending on the current state $x_{k}$ . The $u_{k}$ represents the vector of control variables such as desired output power from the battery, desired output from the engine, and the desired output torque from the electric machine, and $x_{k}$ is the state vector of the given system. The sampling time is chosen 1 s for the main-loop control problem. The outcome to the optimization problem is to find the control input $u_{k}$ for the minimization of an objective function, which comprises fuel consumption for a specified driving cycle.

Generally, an objective function is represented as follows

\overset{\min}{u} J (k) Subject to

h (x) = 0

g (x) \leq 0

where $J (k)$ : cost function, $h (x)$ : equality constraints, and $g (x)$ : inequality constraints.

The state of charge (SOC) of the battery is represented by a state variable $x (k)$ , and the power requested from the ICE and electric machine is characterized by a control variable $u (k)$ . Torque split ratio depicted by the $μ$ represents the torque distribution between the engine and the motor, serving as a control variable $u (k)$ of the system. So, by utilizing these variables, the cost function can now be represented as follows¹⁰

J (x) = \int_{t_{0}}^{t_{f}} \overset{\cdot}{m} (x (k), u (k)) dt

(3)

J (x) = \int_{t_{0}}^{t_{f}} \overset{\cdot}{m} (SOC, μ) dt

(4)

where SOC: state of charge, $μ$ : torque split ratio, $t_{0}$ : initial time (driving cycle), $t_{f}$ : final time (driving cycle), and $\overset{\cdot}{m}$ : fuel mass rate.

With the operating range of the system components

\begin{matrix} W_{ice \min} \leq W_{ice}, W_{em} \leq W_{ice \max} \\ 0 \leq T_{ice} \leq T_{ice max} \\ T_{em \min} \leq T_{em} \leq T_{em \max} \\ P_{em \min} \leq P_{em} \leq P_{em \max} \\ 0 \leq P_{ice} \leq P_{ice \max} \\ - 1 \leq μ \leq 1 \\ SO C_{\min} \leq SOC \leq SO C_{\max} \\ W_{ice} = W_{em} \end{matrix}

(5)

where $W_{ice \min}$ : minimum speed of the engine, $W_{ice \max}$ : maximum speed of the engine, $T_{ice}$ : torque of ICE, $T_{em}$ : torque of motor, $P_{ice}$ : power of ICE, $P_{em}$ : power of motor, $W_{em \min}$ : minimum speed of the motor, and $W_{em \max}$ : maximum speed of the motor.

The $SO C_{\min}$ and $SO C_{\max}$ are chosen as 0.4 and 0.8, respectively. The above problem is without any bound on terminal SOC. The algorithm may try to deplete the given battery for the minimum fuel consumption; therefore, for the charge-sustaining mode of the accumulator, the following integral constraint will lead as

E_{batt} (t) |_{t_{0}}^{t_{f}} = \int_{t_{0}}^{t_{f}} P_{batt} (t) dt = 0

(6)

The above equation shows that battery energy $E_{batt} (t)$ from the initial to final time remains zero, indicating the zero utilization of the battery power $P_{batt} (t)$ . The fuel consumption can only be calculated, when the charge-sustaining criteria are fulfilled; otherwise, we have to cater for the battery charge used.

DP

DP gives the solution of an optimal control problem in a numerical form, which are the requirements for the global optimality.²⁴ For the implementation of the DP algorithm, a MATLAB code designed at ETH-Zurich²⁵ was used. This algorithm uses Bellman’s theory of optimality for solving discrete-time optimal control problems.²⁶ The model equation includes many state variables along with the input variables. The equation exhibits time-varying state along with the input constraints. In the control problem, the user provides the number of controls that have to be optimized, while keeping the constraints not to be violated. These optimized controls are applied vis-à-vis to a model of vehicle that produces a grid of feasible SOC values corresponding to these control variables. Thus, with a given driving cycle, the DP furnishes the optimal combination of control inputs.²⁷

Basic algorithm

Let $π = [μ_{0}, μ_{1}, \dots, μ_{N - 1}]$ be a control policy. Now the discretized cost of the generic form of the cost function using the control policy along with the initial state $x (0) = x_{0}$ would be

\begin{matrix} J_{π} (x_{0}) = g_{N} (x_{N}) + ϕ_{N} (x_{N}) + \sum_{k = 0}^{N - 1} h_{k} (x (k), u_{k} (x_{k})) \\ + ϕ_{k} (x_{k}) \end{matrix}

(7)

where $g_{N} (x_{N}) + ϕ_{N} (x_{N})$ represents the final cost. The term $g_{N} (x_{N})$ indicates the final cost in equation (7) and the term $ϕ_{N} (x_{N})$ represents the additional penalty function, forcing a partially bound final state. The function $h_{k} (x (k), u_{k} (x_{k}))$ is the cost of using the control $u_{k} (x_{k})$ at $x (k)$ . The state constraints mentioned in equation (7) are enforced by the penalty function $ϕ_{k} (x_{k})$ for $k = 0, 1, \dots, N - 1$ . The optimal control policy minimizes $J_{π}$ as

J^{o} (x_{0}) =_{π \in Π}^{\min} J_{(π)} (x_{0})

(8)

where $Π$ represents the set of all permissible policies. Keeping in view the optimality criterion, DP strategy calculates the optimal cost-to-go function $J_{(k)} (x^{i})$ at each node in the discretized state-time space by actioning backward in time:

End cost computation step

J_{N} (x^{i}) = g_{N} (x^{i}) + ϕ_{N} (x^{i})

(9)

Intermediate calculation step for $k = N - 1$ to 0

J_{k} (x^{i}) =_{u_{k} \in μ_{k}}^{\min} g_{k} (x^{i}, u_{k}) + J_{k + 1} (f_{k} (x^{i}, u_{k}))

(10)

The optimal torque split factor is given by the argument that minimizes the right-hand side of equation (10) for each $x_{k}$ and k. While implementing the DP strategy, the input control space $C = [- 1 1]$ and state space $S = [0.4 0.8]$ must be limited and discretized. DP is implemented through backward simulation. As shown in Figure 6, the vehicle speed derived from the driving cycle is utilized for calculation of the propulsion force. Using the driveline model, torque demand before the transmission is calculated. In the end, through the powertrain model, the fuel consumption is computed with the charge-sustaining of the battery.

Vehicle model

The performance of DP is highly related to the accuracy and the number of states of the model used for the DP. For the DP procedure, a simple but operating mathematical model (quasi-static model) is preferred over a complex non-linear model. These models are extensively used for the designing purposes and pre-judgment energy management methods of HEV. Obviously, the mutual association between the energy management methods and standard transient maneuvers is not depicted by such types of models, but if the focus is on the improvement of fuel economy, they are quite reasonably serving for the comparison of the global interpretation of different energy management strategies. Also, the forward model simulator is used in the implementation of our vehicle design.

In literature, two types of HEV modeling simulations are investigated: forward and backward facing simulation models. In the forward simulation approach, a proportional integral derivative (PID) controller is employed that compares the desired and the actual velocity, in response to torque demanded by the driver model and torque generated by the powertrain as shown in Figure 5. In the backward approach, a driver model is absent, since it is assumed that the vehicle speed is known and the torque demanded (through a drive cycle) is computed through the model as shown in Figure 6.

Figure 5.

Forward facing simulator to illustrate the power flow among the main components of a parallel HEV.

Figure 6.

Backward simulator for implementation of the DP control strategy.

The inputs needed for backward simulator comprise of speed $V_{veh}$ and the acceleration $a_{veh}$ , extracted from the drive cycle. The model produces the outputs in the form of rotational speed of the wheel $W_{veh}$ , wheel rotational acceleration $Δ W_{c}$ , and the wheel torque $T_{veh}$ . The outputs are found from the inputs through the application of equation (1).

Engine

A quasi-static model is applied for the representation of the engine. The static map obtained from the actual data of the vehicle settles fuel consumption rate. The fuel consumption is a static function of two independent variables: engine torque and engine speed. In the model under study, an assumption was made that the engine is in hot condition; hence, the effect of engine temperature is neglected. The fuel consumption is calculated using the following relations²⁴

\begin{matrix} P_{ice} = T_{ice} W_{ice} \\ \overset{\cdot}{m} = \frac{P_{ice} \cdot BSFC}{3600 \cdot 1000} \\ P_{fuel} = \overset{\cdot}{m} \cdot Δ H \\ η (T_{ice}, W_{ice}) = \frac{P_{ice}}{P_{fuel}} \\ = \frac{3600 \cdot 1000}{BSFC \cdot Δ H} \end{matrix}

(11)

where $Δ H$ exhibits the lower heating value of the fuel used. The fuel consumption map of ICE along its operating points is shown in Figure 7.

Figure 7.

Fuel maps and operating points of the engine for the DP and rules extracted from DP control strategies.

Electric machine

The efficiency of the electric machine is modeled as a quasi-static map of its power and operating speed, with the assumption that the efficiency $η$ is constant for bidirectional operation of the electric machine. Therefore, the power $P_{m} (k)$ flowing in and out of the electric machine in motoring and generating modes is represented in equations (12) and (13). The motor used in hybrid electric auto rickshaw is shown in Figure 8. Permanent magnet motor of 10 kW rating is used as a secondary power source, as indicated in Table 4

P_{m} (k) = η P_{elec} (k) motoring

(12)

P_{m} (k) = \frac{1}{η} P_{elec} (k) generating

(13)

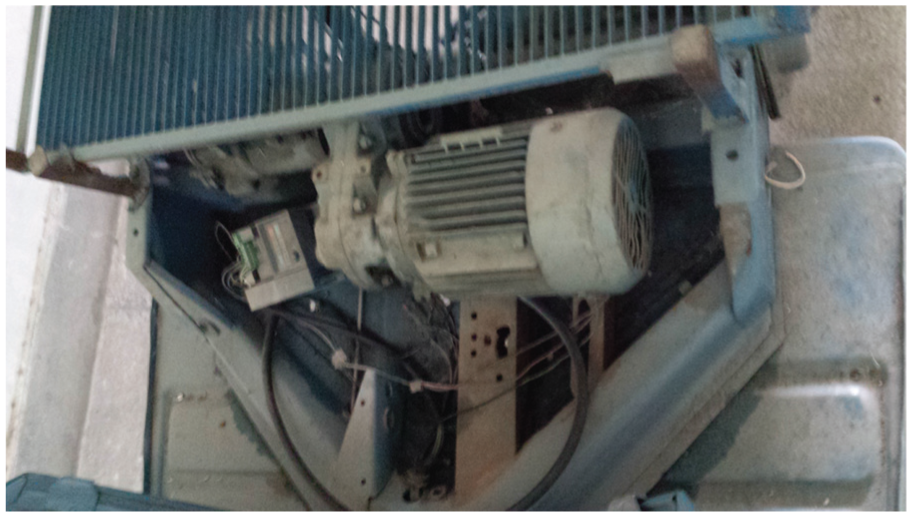

Figure 8.

The motor used in the hybrid electric rickshaw.

Table 4.

Physical specifications of the motor and battery.

Component	Parameter	Type
Motor	10 kW	Permanent magnet motor
Battery	4.8 kWh	Lead–acid

The operating points of electric motor drawn on the efficiency maps are shown in Figure 9.

Figure 9.

Efficiency maps and operating points of the electric motor for the DP and rules extracted from DP control strategies.

Battery

The battery pack comprises of multiple modules with a combination of parallel and series cells which as a whole act as a voltage source and a series resistance. The internal power of the battery $P_{s}$ and the terminal voltage power $P_{ess}$ are given below²⁸

\begin{matrix} P_{s} (t) = V_{oc} (t, SOC) \cdot I (t) \\ P_{ess} = P_{s} (t) - P_{loss} (t) \\ = V_{oc} (t, SOC) \cdot I (t) - I {(t)}^{2} \cdot R_{int} (t, SOC) \end{matrix}

(14)

Due to the dependence of the electric system on a battery, the energy storage capacity of battery should be more than that required to meet the drive cycle. The advantage of excessive energy storage gives the liberty to operate the battery within narrow SOC range (about 5%–10% at most), which in turn enhances the battery cycle and its calendar life. The next state of charge, $SOC (k + 1)$ , is calculated as follows^29,30

\begin{matrix} SOC (k + 1) = SOC (k) \\ - \frac{V_{oc} - \sqrt{V_{oc}^{2} - 4 (R_{int}) \cdot T_{m} \cdot W_{em} \cdot η_{em}^{- sgn (T_{m})}}}{2 * (R_{int}) \cdot Q_{b}} \end{matrix}

(15)

where $R_{int}$ (internal resistance) and $V_{oc}$ (open circuit voltage) are the functions of SOC of the battery, and $Q_{b}$ represents the maximum charge of battery. The overall performance of HEVs depends upon the role of battery because of its non-linear, non-symmetric, and fairly low-efficiency characteristics. The battery model is shown in Figure 10. The battery used is Lead Acid type of 4.8 kWh rating, as indicated in Table 4.

Figure 10.

The battery model for the hybrid electric vehicle.

Torque split factor

In hybrid vehicles, the energy management strategy decides in every step the sharing of torque between the ICE and the electric machine. The engine torque demand $T_{e}$ and the motor torque demand $T_{m}$ are decided using the split torque factor $μ \in [- 1, 1]$ and the $T_{d}$ (torque demanded). The balance of torque at the input of the gearbox is given by the following equation

T_{d} - T_{e 0} - T_{m 0} = T_{c}

(16)

The friction torque of the engine and the electric motor is calculated as follows

\begin{matrix} T_{e 0} = J_{e} \cdot Δ W_{c} \\ T_{m 0} = J_{m} \cdot Δ W_{c} \end{matrix}

where $T_{d} = T_{e} + T_{m}$ is the total torque demanded from the ICE and the electric machine, $T_{e 0}$ is the friction torque of the engine, $T_{m 0}$ is the friction torque of the motor, $J_{m}$ is the inertia of the electric motor, $J_{e}$ represents the engine inertia, $Δ W_{c}$ indicates the rotational acceleration of the crankshaft, and $T_{c}$ indicates the input torque of the gearbox. The total torque demand is given by the following equation

T_{d} = T_{e 0} + T_{m 0} + T_{c}

(17)

It is worth mentioning that the engine frictional torque has to be furnished even for the electric driving mode, for the reason of coupling of engine and motor, and, also, normally an assumption is made that inertia of the gearbox and final drive (differential) is negligible.

Optimization results of fuel economy

While optimizing fuel economy, the initial and final constraints on SOC of the battery are chosen to be 0.55. Simulation outcomes of the vehicle specified under the DP policy and RB strategies are demonstrated in Table 5. The quantity of fuel used in the RB (extracted rules) and DP strategy is shown in Figure 11.

Table 5.

Fuel economy comparison.

Strategy	Fuel consumption	Comparison
DP	33 km/L	–
RB controller(based on DP results)	30.03 km/L	9% more fuel consumption
Heuristic-basedRB controller(equal sharing of torque)	27 km/L	18% more fuelconsumption

DP: dynamic programming; RB: rule based.

Figure 11.

Comparison of fuel used in the RB (rules extracted from the DP) and DP strategies.

RB (extracted rules from the DP) strategy

An RB strategy is easy to implement in a computationally efficient way, but resulting in a solution quite far from the optimal solution. Contrary to this, DP gives the optimal result on each driving cycle; therefore, by analyzing the control actions of DP, useful rules can be extracted and by using these rules, a near-optimal solution can be achieved. For establishing RB strategy from DP, extensive simulations are produced through which an appropriate optimal driving pattern is searched for the specified driving cycle, encompassing both urban and suburban driving patterns. A deep analysis of the results enables us to search for common decisions of the algorithm that is then reproduced by suitable rules.³¹ The input variables like the gearbox power $P_{gb}$ , speed $W_{gb}$ , and the battery SOC are required for the extraction of useful rules. As described in the literature,^31,32 the powertrain controller consists of the supervisory controller (which determines the appropriate operation modes) and the energy management controller (which determines the optimal power split among the energy sources), while satisfying the overall demand.³³ The rules extracted from these two controllers are narrated as follows.

Supervisory control

For understanding the comportment of the supervisory control, the operating mode decided by DP was plotted between the gearbox input power $P_{gb}$ and gearbox speed $W_{gb}$ , as depicted in Figure 12. The plot is split into three main regions as shown in Figure 12:

With low torque and speed (region A), the powertrain operates in electric vehicle (EV) mode, with the clutch in open position and the ICE is off.

The area (region B) is above ICE idle speed and positive gearbox torque. By carefully analyzing this area, the conclusion is made that the parallel configuration exists in this region.

The area (region C) exhibits each point with a negative torque, the supervisory controller switched off the engine for fuel saving, as long as the vehicle is in decelerating mode. From the above discussion about the three regions, the supervisory control rules are executed as shown in Table 6.

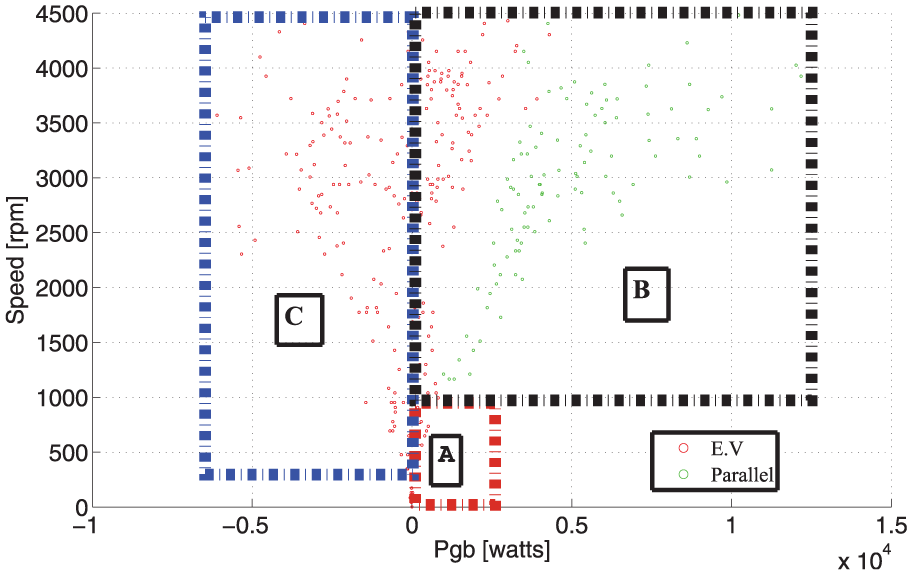

Figure 12.

Speed versus total power required for the propulsion of the vehicle (results obtained from the DP).

Table 6.

Supervisory control strategy parameters.

Mode	Torque	Speed
Electric launch	$T_{gb} \geq 0$	$W_{gb} \leq W_{idle}$
Parallel	$T_{gb} \geq 0$	$W_{gb} \geq W_{idle}$
Regenerative	$T_{gb} < 0$	$0 \leq W_{gb} \leq W_{gb} (\max)$

Energy management

After the decision of mode selection by supervisory controller, power sharing between the ICE and the electric machine is decided in parallel mode.

Parallel mode

All the energy sources are coupled to the gearbox input shaft to cater for the resistive torque offered by the vehicle. The energy management controller has to decide what share of torque is provided by the electric motor and the ICE. The motor torque against total torque is represented in Figure 13 and is given by the linear function as in the following equation

T_{m} = m T_{tot} + k

(18)

Figure 13.

Motor torque versus total torque required (results obtained from the DP).

The engine torque is provided after deducting motor torque from the total torque demand as shown in the following equation

T_{e} = T_{tot} - T_{m}

(19)

By carefully analyzing Figure 13, it does not predict any reliance upon the battery SOC. Also, the mode selection through supervisory controller does not indicate any clear correlation between the mode selection and the battery SOC. To cater this problem, rules are modified and are explained in the following section.

Evolution of modified RB (extracted rules from the DP) control strategy

The DP control technique is not implementable in the real-time driving pattern, in that it needs the prior knowledge of driving cycle and load description. However, by analyzing deeply the DP-dependent results, improvement in the preliminary RB control technique can be attained. In this section, a modified RB control algorithm is proposed relying upon the results of the DP.

SOC control problem

Supervisory control and the energy management technique are strongly dependent on the battery SOC. Nevertheless, the rules extracted from DP do not exhibit the presence of the effect of SOC, discussed in the previous section; therefore, these rules should be modified to attain charge sustainability. The starting point of doing so involves the up shifting or down shifting of the linear laws that calculate the electric loads (parallel mode). To accomplish this goal, a correction factor p(SOC) is introduced in the linear correlations, which multiply the regression line’s intercept as shown in the following equation

T_{m} = m T_{tot} + kp

(20)

It is a challenge to select the appropriate shape of correction function p(SOC). For a small divergence from the $SO C_{ref}$ (reference SOC), the correction should be minor and increases smoothly for a stronger correction. For better results, a cubic polynomial function is chosen. The correction function³¹ is outlined as follows

p (SOC) = - δ \cdot x_{SOC}^{3} + 1

(21)

where the divergence of SOC from the reference SOC value is given by the $x_{SOC}$ ²⁷

x_{SOC} = \frac{SOC - (SO C_{ref})}{\frac{(SO C_{\max}) + (SO C_{\min})}{2}}

where the amount of correction defined in equation (21) by a parameter $δ$ represents the charge-sustaining condition.

Heuristic-based RB control strategy

The RB energy management strategy, not conforming to DP rules, is developed based on engineering intuition and heuristics. The driver pedal signal is treated as a torque demand. Using this torque demand, the task of this controller is split into three control modes and the following control strategy is used:

If the vehicle speed at gearbox $W_{gb}$ is less than idling speed $W_{idle}$ and the SOC of the battery is greater than its minimum limit $(SOC > SO C_{\min})$ , then the vehicle will be driven by the motor in EV mode.

If the vehicle speed at gearbox $W_{gb}$ is above the idling speed $W_{idle}$ and the battery SOC is greater than its minimum limit $(SOC > SO C_{\min})$ , then the total torque will be equally shared by the engine and the motor in parallel mode.

At the point, when the power required by the vehicle goes negative, the whole negative power is used for the charging of the battery by means of regenerative braking.

The battery SOC is controlled through charge-sustaining mode, in which engine charges the battery along with the torque required by the vehicle when torque request is lower than the engine maximum torque and the SOC of the battery is less than its maximum limit $(SOC < SO C_{\max})$ . This whole process is shown in Figure 14. The logic behind this strategy is that the SOC should be kept between the minimum and maximum levels; hence, the battery can only be used to supply power when the SOC is greater than minimum and the battery is charged only when its SOC is less than maximum.

Figure 14.

Flowchart of heuristic-based RB control strategy.

Simulation results and discussion

For the simulation purposes, Manhattan drive cycle is considered due to its frequent stop/start driving pattern, which represents the driving pattern of congested cities of Pakistan. The motor drive is facilitated by kinetic energy recuperation^3,34 related to the frequent stop/start behavior experienced within this drive cycle. The rules mentioned in the “RB (extracted rules from the DP) strategy” section are executed on the simplified quasi-static model mentioned in the “Vehicle model” section. Figure 15 shows the actual and desired velocity profile of Manhattan drive cycle, demonstrating that with the proposed drivetrain components, it is possible to meet the desired speed of the drive cycle. The percentage difference between the desired and actual speed is about 2%, which is admissible. The fuel consumption through DP is about 33 km/L taken as a benchmark fuel consumption, while modified RB strategy based on rules extracted from DP (optimal sharing of the engine and the motor torque) has about 9% more fuel consumption than DP showing the near-optimal solution. Heuristic-based RB controller (not conforming to DP rules) with equal sharing of the engine and the motor torque shows about 18% more fuel consumption than DP.

Figure 15.

Actual and desired velocity profile of Manhattan drive cycle.

The primary distinguishing factor among these strategies is the optimality of rules used. DP gives optimal solution by excluding infeasible solution paths. The extracted rules from the DP demonstrate more fidelity to the optimal solution. Heuristic-based control strategy uses basic Boolean rules and threshold values to control the power distribution between two power sources. In this technique, equal sharing of torque between two energy sources is chosen in parallel mode and is shown in Figure 14.

Almost every commercial HEV employs an RB strategy to set up torque distribution between onboard power sources. The explanation behind this choice is the simplicity of the algorithm and increased computational efficiency of the host embedded controller. This is demonstrated through the simulation results of fuel consumption of two RB strategies, one uses the extracted rules from optimal control strategy (DP) and the other strategy utilizes the rules based on human intuition and heuristics. The drawback of heuristic-based control strategy is the absence of optimal use of torque in parallel mode.

The substantial fuel economy improvement is due to the large amount of kinetic energy,³⁴ which can be recovered and then utilized by the electric motor. Implementation of the DP is done through backward simulation, in which it is assumed that the vehicle follows the velocity pattern exactly. From Figure 16, SOC pattern of the battery demonstrated in DP and RB strategies does not exactly match, but the charge-sustaining is attained. As the SOC is well maintained during the whole cycle, the fuel economy improvements are directly comparable with RB strategy without the fuel correction. The pattern of SOC of two strategies shows the similarity in power sharing between the two energy sources (with a minute difference). This is natural because we are following a threshold value, not every operating point of the motor operation. The mode choice of RB strategy is shown in Figure 17. The supervisory control (which decides the mode selection) is well replicated in Figure 17, showing each mode of operation. Finally, the merits and demerits of these two strategies (DP and RB) are summarized in Table 7.

Figure 16.

Battery SOC variation in DP and RB (extracted rules from the DP) strategies.

Figure 17.

Mode choice of RB strategy.

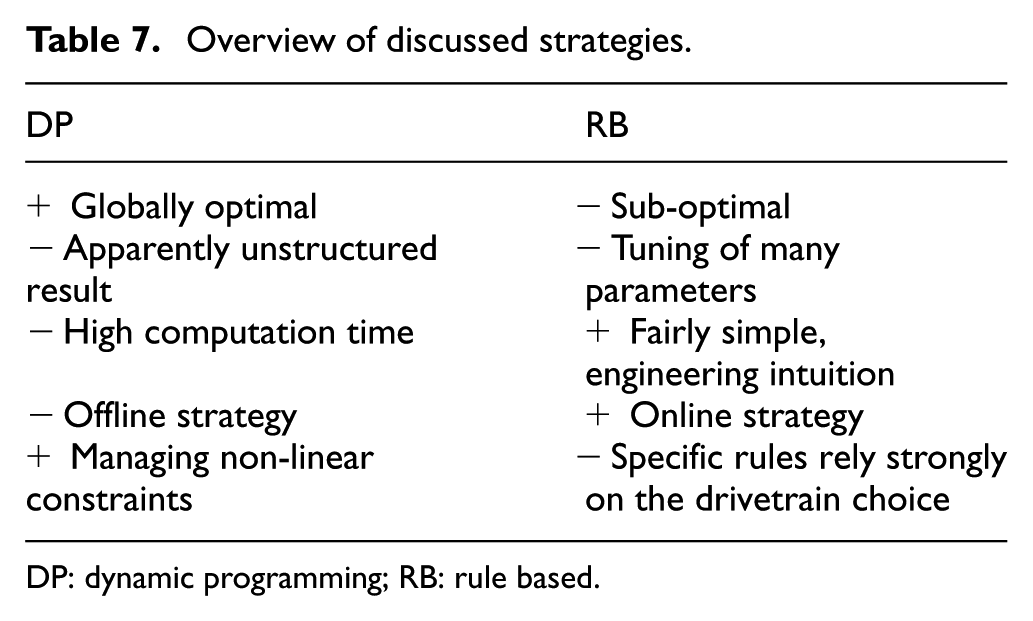

Table 7.

Overview of discussed strategies.

DP	RB
+ Globally optimal	− Sub-optimal
− Apparently unstructuredresult	− Tuning of manyparameters
− High computation time	+ Fairly simple,engineering intuition
− Offline strategy	+ Online strategy
+ Managing non-linearconstraints	− Specific rules rely stronglyon the drivetrain choice

DP: dynamic programming; RB: rule based.

Conclusion

In this article, the benchmark fuel consumption has been estimated through global optimal method (DP) for a parallel hybrid electric rickshaw and assessed, via a backward facing simulation, against Manhattan drive cycle. These benchmark results were used to generate near-optimal rules for the heuristic controller, which gave 9% more fuel consumption. However, the heuristic controller devised using non-optimal rules gave 18% more fuel consumption. The simulation results show that the proposed energy management strategy is able to provide substantial improvements to a parallel HEV in terms of fuel economy. Due to significant fuel saving, it is a viable option to operate a hybrid three-wheeler auto rickshaw in the densely busy roads of Asian cities.

A future direction to this work lies in searching for different topologies of drivetrain with the actual trials of the designed vehicle on the chassis dynamometer. Also, the designing of plug-in hybrid electric rickshaw with the estimation of control parameters through extended-state-observer-based output feedback non-linear robust control with backstepping is in our future plan.

Footnotes

Acknowledgements

The authors would like to acknowledge Center for Energy Research and Development, Lahore (Punjab), for furnishing technical support for this research project, and theoretical support of Control and Signal Processing Research Group (CASPR) of Capital University of Science & Technology, Islamabad 44000, Pakistan.

Handling Editor: Jose Ramon Serrano

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

M Asghar

References

Malikopoulos

AA.

Supervisory power management control algorithms for hybrid electric vehicles: a survey. IEEE T Intell Transp 2014; 15: 1869–1885.

Lin

Peng

Grizzle

et al . Power management strategy for a parallel hybrid electric truck. IEEE T Contr Syst T 2003; 11: 839–849.

Oleksowicz

Burnham

Southgate

et al . Regenerative braking strategies, vehicle safety and stability control systems: critical use-case proposals. Veh Syst Dyn 2013; 51: 684–699.

Sciarretta

Back

Guzzella

Optimal control of parallel hybrid electric vehicles. IEEE T Contr Syst T 2004; 12: 352–363.

Yazdani

Bidarvatan

A comparative analysis for optimal control of power split in a fuel cell hybrid electric vehicle. SAE Paper 2016-01-1189, 2016.

Wang

et al . Hybrid electric vehicle modeling accuracy verification and global optimal control algorithm research. Int J Automot Tech 2015; 16: 513–524.

Bououden

Chadli

Karimi

HR.

An ant colony optimization-based fuzzy predictive control approach for nonlinear processes. Inform Sci 2015; 299: 143–158.

Bououden

Chadli

Allouani

et al . A new approach for fuzzy predictive adaptive controller design using particle swarm optimization algorithm. Int J Innov Comput I 2013; 9: 3741–3758.

Musardo

Rizzoni

Guezennec

et al . A-ECMS: an adaptive algorithm for hybrid electric vehicle energy management. Eur J Control 2005; 11: 509–524.

10.

Onori

Serrao

Rizzoni

Adaptive equivalent consumption minimization strategy for hybrid electric vehicles. In: Proceedings of the ASME dynamic systems and control conference, Cambridge, MA, 12–15 September 2010, pp.499–505. New York: ASME.

11.

Serrao

Onori

Rizzoni

A comparative analysis of energy management strategies for hybrid electric vehicles. J Dyn Syst: T ASME 2011; 133: 12–31.

12.

Baumann

Washington

Glenn

et al . Mechatronic design and control of hybrid electric vehicles. IEEE/ASME T Mech 2000; 5: 58–72.

13.

Maamri

Bououden

Chadli

et al . The Pachycondyla apicalis metaheuristic algorithm for parameters identification of chaotic electrical system. Int J Parallel Emerg 2017; 33: 490–502.

14.

Hofman

Steinbuch

Van Druten

et al . Rule-based energy management strategies for hybrid vehicles. Int J Electr Hybrid Veh 2007; 1: 71–94.

15.

Stursberg

. A graph search algorithm for optimal control of hybrid systems. In: Proceedings of the 43rd IEEE conference on decision and control, Nassau, Bahamas, 14–17 December 2004, pp.1412–1417. New York: IEEE.

16.

Mulhall

Lukic

Wirasingha

et al . Solar-assisted electric auto rickshaw three-wheeler. IEEE T Veh Technol 2010; 59: 2298–2307.

17.

Lukic

Mulhall

Emadi

Energy autonomous solar/battery auto rickshaw. J Asian Electr Veh 2008; 6: 1135–1143.

18.

Hofman

Van Der Tas

Ooms

et al . Development of a micro-hybrid system for a three-wheeled motor taxi. World Electr Veh J 2009; 3: 1–9.

19.

Alam

Chabaan

RC.

Realization of hybrid-electric powertrain system for a three wheeler auto taxi. Bull Electr Eng Inf 2012; 1: 131–138.

20.

Basri

Khatun

Reza

et al . Changing modes of transportation: a case study of Rajshahi city corporation, http://bea-bd.org/site/images/pdf/029.pdf

21.

Ghosal

Atluri

. Architectural study of hybrid electric propulsion system for Indian cities. In: Proceedings of the IFToMM World Congress, Guanajuato, Mexico, 19–23 June 2011.

22.

Asghar

Bhatti

Izhar

. Hybridization and dynamic performance analysis of three-wheeler auto rickshaw world academy of science engineering and technology. In: ICPET 2015: 13th International Conference on Power Engineering and Technology, Istanbul, Turkey, 16–17 February 2015.

23.

Rizzoni

Guzzella

Baumann

BM.

Unified modeling of hybrid electric vehicle drivetrains. IEEE/ASME T Mech 1999; 4: 246–257.

24.

Guzzella

Sciarretta

Vehicle propulsion systems, vol. 1. New York: Springer, 2007.

25.

Sundström

Guzzella

A generic dynamic programming MATLAB function. In: Proceedings of the IEEE control applications, (CCA) & intelligent control, (ISIC), St. Petersburg, 8–10 July 2009, pp.1625–1630. New York: IEEE.

26.

Pesch

Bulirsch

The maximum principle, Bellman’s equation, and Carathéodory’s work. J Optim Theory Appl 1994; 80: 199–225.

27.

Bianchi

Rolando

Serrao

et al . Layered control strategies for hybrid electric vehicles based on optimal control. Int J Electr Hybrid Veh 2011; 3: 042147.

28.

Van Reeven

Huisman

Pesgens

et al . Energy management control concepts with preview for hybrid commercial vehicles. In: Proceedings of the 6th international conference on continuously variable and hybrid transmissions, Maastricht, 17–19 November 2010. New York: IEEE.

29.

Wang

Lukic

SM.

Dynamic programming technique in hybrid electric vehicle optimization. In: Proceedings of the IEEE international conference electric vehicle conference (IEVC), Greenville, SC, 4–8 March 2012, pp.1–8. New York: IEEE.

30.

Zou

Shi-jie

Dong-ge

et al . Optimal energy control strategy design for a hybrid electric vehicle. Discrete Dyn Nat Soc 2013; 2013: 132064.

31.

Bianchi

Rolando

Serrao

et al . A rule-based strategy for a series/parallel hybrid electric vehicle: an approach based on dynamic programming. In: Proceedings of the ASME 2010 dynamic systems and control conference, Cambridge, MA, 12–15 September 2010, pp.507–514. New York: ASME.

32.

Kim

Kum

Feasibility assessment and design optimization of a clutchless multimode parallel hybrid electric powertrain. IEEE/ASME T Mech 2016; 21: 774–786.

33.

Biasini

Onori

Rizzoni

A near-optimal rule-based energy management strategy for medium duty hybrid truck. Int J Powertrains 2013; 2: 232–261.

34.

Crolla

Cao

The impact of hybrid and electric powertrains on vehicle dynamics, control systems and energy regeneration. Veh Syst Dyn 2012; 50: 95–109.

Benchmark fuel economy for a parallel hybrid electric three-wheeler vehicle (rickshaw)

Abstract

Keywords

Introduction

Conventional auto rickshaw (Vespa rickshaw)

Hybrid powertrain modeling of rickshaw

Problem formulation

DP

Basic algorithm

Vehicle model

Engine

Electric machine

Battery

Torque split factor

Optimization results of fuel economy

RB (extracted rules from the DP) strategy

Supervisory control

Energy management

Parallel mode

Evolution of modified RB (extracted rules from the DP) control strategy

SOC control problem

Heuristic-based RB control strategy

Simulation results and discussion

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iD

References
