Abstract

Impact dampers are able to reduce vibration effectively through impacts and thus have wide applications in mechanical control. This work investigated the chattering behavior of a two-degree-of-freedom impact damper. Chattering is a phenomenon of continuous collisions within a short time. A theoretical model was developed to obtain the completing position and time of chattering. The fourth-order Runge–Kutta method was adopted to numerically solve the model. The results of bifurcation diagram and temporal map were obtained with different parameters, confirming the validity of the model. Furthermore, the model showed that viscosity is an important parameter separating the completing chattering from the non-completing chattering. The results demonstrated that the model can help solve chattering of impact damper by developing better understanding of the underlying mechanisms.

Keywords

Impact damper chattering theoretical model numerical simulation vibration attenuation

Introduction

An impact damper is a device which controls the response of the primary system through the impact between free mass (impactor) and primary system during vibration. Due to its advantages such as effective damping effect, simple structure, low cost, easy implementation, no power requirement, and suitable for harsh environment, there have been many studies on the device recently, including single impact dampers,^1–4 BBD impact dampers,⁵ multi-body impact dampers,⁶ particle dampers,^7–12 non-obstructive particle dampers,^13,14 and impact damper with fine particles.^15–20 While various types of impact dampers exist, they have the same underlying damping mechanism: during vibration, momentums are exchanged and mechanical energy is dissipated via collisions.

Among the devices, the single impact dampers are most widely studied, and many theoretical models were developed based on the single impact dampers.^3,6,17 The studies found that the current devices typically have two symmetric impacts per cycle to achieve good damping performance.^1,2 However, the efficient damping effect can only be achieved near the resonance point, and the location far away from the resonance point has poor damping or even amplifies the vibration.⁴ Therefore, when the vibration frequency is in a range other than that near the resonance point, the current models suggest unsatisfactory damping performance of the twice-per-cycle impact. However, we recently discovered through experimental studies that, with low restitution coefficients, the impact damper has good performance over a wide frequency range,¹⁷ which was different from the theoretical predictions. Numerical modeling of the motion of the damper revealed that there existed chattering and viscous phenomena when a good damping effect was achieved. Chattering refers to the fact that large or even infinite number of collisions occur in a short period between the free mass and the primary system. The viscosity refers to synchronous motion of the free mass and the primary system. So, chattering and viscosity may be a new effective route to achieve good damping performance. However, so far, there is no study on the effect of chattering on impact dampers.

Chattering can be directly transformed into viscosity under two circumstances. First, chattering is absent when the restitution coefficient is zero. The collision results directly in the viscosity. The circumstance is at the end of chattering when there is no relative movement between the free mass and the primary system. Such type of chattering is defined as the “completed chattering.” However, there is no viscosity with “non-completed chattering” when the relative movement between the free mass and the primary system is not zero. The study on chattering started from Budd and Dux,²¹ Toulemonde and Gontier,²² and Wagg and Bishop.²³ Their studies mainly focused on phenomena such as grazing bifurcation and induced variation of oscillation period and number of collisions times and the multi-peak phenomenon. Research on other issues of impact chattering has been very limited. Hős and Champneys²⁴ studied the grazing-induced self-excited vibration between the pressure relief valve and the base. Their results showed that low flow speeds and the valve pre-tightening force were two main factors causing chattering. Demeio and Lenci²⁵ developed a numerical approach to calculate the chattering duration in an inverted pendulum impact. Their study showed that the chattering duration was more associated with vibration amplitude than excitation frequency or damping ratio.

Singh et al.²⁶ studied the self-impact of a double pendulum, Davis and Virgin²⁷ studied the impact between a pendulum and a moving obstacle, and Wagg and Bishop²⁸ investigated the impact between a cantilever beam and a rigid obstacle. All these studies have shown the presence of chattering and viscosity. However, these systems are quite different from the impact damper. While these systems have fixed constraints and the amplitudes are limited to a given range, the constraint in impact damper is a free mass with no fixed location. So, the chattering on impact dampers can be markedly different from existing ones. However, current studies on impact dampers mainly focus on the twice-per-period symmetric impact. The chattering and viscosity phenomenon have not been included in the study.

This work aims to develop a theoretical model based on the classic impact damper model to study the chattering behavior. Through theoretical analysis and numerical simulation, the chattering duration time and the chattering-completion point under different vibration conditions will be obtained.

Dynamic model and governing equations

The model is based on the classic impact damper model to study the dynamic behavior of the impact dampers. Figure 1 shows a simplified dynamic model of a multi-body impact damper. The system consists of a primary system of mass M, stiffness K₁, damping C₁, and a free mass m located inside the primary system. If the free mass consists of multiple components, the impact mass is then a function of time m(t). The primary system vibrates under an external excitation force $F_{0} \sin (Ω t)$ , and the free mass moves only in the horizontal direction during the vibration. When the relative displacement between the free mass and the primary system exceeds D, the two collide and exchange momentum upon collision. The mechanical energy is dissipated through repeated collisions, thus reducing vibration of the primary system.

Figure 1.

A simplified theoretical model of an impact damper.

Assume the center position as the original coordinate. When the free mass collides the primary system, both directions and velocity of the free mass change. To simplify the calculation, the following assumptions have been adopted:

There is no friction between the primary system and the free mass.

The free mass is a sphere with a mass m.

Considering collisions occur instantaneously, only the velocities of the system and the free mass change while their positions keep unchanged.

The inelastic collision is represented as the restitution coefficient R.

Only collision in the horizontal direction is considered.

Based on the assumption above, the motions of the system and the free mass can be described as

\frac{d}{dt} [M \frac{d X_{1}}{dt}] + C_{1} \frac{d X_{1}}{dt} + K_{1} X_{1} = F_{0} \sin (Ω t)

(1)

\frac{d}{dt} [m (t)] \frac{d X_{2}}{dt} = 0

(2)

where X₁ is the displacement of primary system and X₂ is the displacement of free mass. When $X_{1} - X_{2} = D$ , a collision occurs between the system and the free mass. Based on the momentum conservation law and the impact restitution coefficient R, the impact can be described as

μ_{a} {\overset{\cdot}{X}}_{1 +} + {\overset{\cdot}{X}}_{2 +} = μ_{a} {\overset{\cdot}{X}}_{1 -} + {\overset{\cdot}{X}}_{2 -}

(3)

{\overset{\cdot}{X}}_{2 +} - {\overset{\cdot}{X}}_{1 +} = R ({\overset{\cdot}{X}}_{1 -} - {\overset{\cdot}{X}}_{2 -})

(4)

where “–” and “+” represent the instantaneous velocities before and after the collision, respectively. $μ_{a} = M / m (t)$ is the mass ratio.

The free mass m(t) is a time-variant parameter. Since the change to the non-linear dynamic behavior caused by the free mass m(t) is slow, the free mass m(t) can be replaced with an average value in a vibration period, given by

\begin{matrix} m (t) = m_{0} + K_{sc} \cos (\frac{1}{n} \sum_{i = 1}^{n} ω_{ri}) t + K_{ss} \sin (\frac{1}{n} \sum_{i = 1}^{n} ω_{ri}) t \\ + \sum_{i = 1}^{\infty} [K_{ic} \cos (i ω t) + K_{is} \sin (i ω t)] (i = 1, 2, 3, \dots) \end{matrix}

(5a)

where $m_{0}$ is a mass constant, $K_{sc}$ and $K_{ss}$ are, respectively, the sine and cosine coefficients of the subharmonic collision; $K_{ic}$ and $K_{is}$ are the sine and cosine harmonic coefficients.

In reality, the frequency of subharmonic collisions is often the integral divisor of the system excitation frequency. So, equation (5a) can be re-written as

\begin{matrix} m (t) = m_{0} + K_{sc} \cos \frac{1}{n} ω t + K_{ss} \sin \frac{1}{n} ω t \\ + \sum_{i = 1}^{\infty} [K_{ic} \cos (i ω t) + K_{is} \sin (i ω t)] \end{matrix}

(5b)

where n is an integer.

To simplify the calculation, only the constant and subharmonic terms are included while the harmonic part is neglected. Equation (5b) is simplified as

m (t) = m_{0} + k_{s} \sin (ω_{a} t + φ)

(6)

where $ω_{a} = ω / n$ . $k_{s} = \sqrt{k_{sc}^{2} + k_{ss}^{2}}$ and $φ = \arctan (k_{sc} / k_{ss})$ .

During the vibration process, the free mass m(t) and the primary system M collide, which generates an impact force. The system motion can be considered as a piecewise linear process, based on which further assumptions can be made:

There is no friction between collisions and only the vibration in the horizontal direction is considered.

When the free mass and the primary system collide, there is a local variable at the collision point. Also, the primary system exerts a stiffness constraint $K_{2}$ on the free mass.

The restitution coefficient is represented by a viscous damping coefficient $C_{2}$ .

Based on the assumptions above, the impact damper model in Figure 1 can be further simplified as a two-degree-of-freedom (DOF) vibration model, as shown in Figure 2.

Figure 2.

Schematic diagram of the impact damping system with two degrees of freedom.

In Figure 2, the primary system M and free mass m(t) are connected with the fixed end through two spring-dashpot systems characterized by stiffness values K₁ and K₂ and the damping values C₁ and C₂, respectively. Under the effect of a time-variant horizontal force $F_{0} \sin (Ω t)$ , the primary system and the free mass start to move and collide when their relative displacement exceeds D. The dynamic equations of the system are given as

\begin{matrix} \frac{d}{dt} [M \frac{d X_{1}}{dt}] + C_{1} \frac{d X_{1}}{dt} + K_{1} X_{1} - K_{2} G (X) - C_{2} H (X, \overset{\cdot}{X}) \\ = F_{0} \sin (Ω t) \end{matrix}

(7)

\frac{d}{dt} [m (t) \frac{d X_{2}}{dt}] + K_{2} G (X) + C_{2} H (X, \overset{\cdot}{X}) = 0

(8)

where $X = X_{1} - X_{2}$ . $G (X)$ and $H (X, \overset{\cdot}{X})$ are non-linear functions given by

\begin{matrix} G (X) = {\begin{matrix} X_{2} - X_{1} & | X_{2} - X_{1} | \geq D \\ 0 & | X_{2} - X_{1} | < D \end{matrix} \\ H (X, \overset{\cdot}{X}) = {\begin{matrix} {\overset{\cdot}{X}}_{2} - {\overset{\cdot}{X}}_{1} & | X_{2} - X_{1} | \geq D \\ 0 & | X_{2} - X_{1} | < D \end{matrix} \end{matrix}

where D is the clearance and “·” represents the derivation against time t. With $m (t) = m and \overset{\cdot}{m} (t) = \overset{\cdot}{m}$ , equations (7) and (8) can be simplified as

M {\overset{\cdot\cdot}{X}}_{1} + C_{1} {\overset{\cdot}{X}}_{1} + K_{1} X_{1} - K_{2} G - C_{2} H = F_{0} \sin (Ω t)

(9)

m {\overset{\cdot\cdot}{X}}_{2} + \overset{\cdot}{m} {\overset{\cdot}{X}}_{2} + K_{2} G + C_{2} H = 0

(10)

By defining dimensionless parameters $x_{i} = K_{1} X_{i} / F_{0}$ (i = 1, 2), $d = K_{1} D / F_{0}$ , $ω_{n} = \sqrt{K_{1} / M}, T = ω_{n} t, ξ_{1} = C_{1} / 2 \sqrt{K_{1} M_{1}}$ , $ω_{t} = \sqrt{K_{2} / m}$ , $ξ_{t} = C_{2} / 2 \sqrt{K_{2} m}$ , $r_{t} = ω_{t} / ω_{n}$ , $ω = Ω / ω_{n}, and r_{a} = ω_{a} / ω_{n}$ , equations (9) and (10) can be re-written as

{\overset{\cdot\cdot}{x}}_{1} + 2 ξ_{1} {\overset{\cdot}{x}}_{1} + x_{1} - μ_{t} r_{t}^{2} g - 2 ξ_{t} μ_{t} r_{t} h = \sin (ω T)

(11)

{\overset{\cdot\cdot}{x}}_{2} + μ_{m} {\overset{\cdot}{x}}_{2} + r_{t}^{2} g + 2 ξ_{t} r_{t} h = 0

(12)

where $μ_{m} = m' / m, m = m_{0} + k_{s} \sin (ω_{a} t + φ)$ , and $μ_{t} = m / M$ . The symbol “ $'$ ” represents the derivation against the dimensionless time T. g and h are non-linear functions given by

\begin{matrix} g = {\begin{matrix} x_{2} - x_{1}, & | x_{2} - x_{1} | \geq d \\ 0, & | x_{2} - x_{1} | < d \end{matrix} \\ h = {\begin{matrix} {x'}_{2} - {x'}_{1}, & | x_{2} - x_{1} | \geq d \\ 0, & | x_{2} - x_{1} | < d \end{matrix} \end{matrix}

Theoretical derivation of chattering phenomenon

In equations (11) and (12), $X = (H (x), v (x), φ)$ can be assumed as a state variable, in which $H (x) = x_{2} - x_{1}$ , $v (x) = {\overset{\cdot}{x}}_{2} - {\overset{\cdot}{x}}_{1} = v_{2} - v_{1}$ , and $φ = ω t$ . When $H (x) = d$ , a collision occurs. The relative acceleration of the free mass m is $a (x) = - μ_{m} y_{2} - r_{t}^{2} g - 2 ξ_{t} r_{t} h - (- x_{1} - 2 ξ_{1} y_{1} + μ_{t} r_{t}^{2} g + 2 ξ_{t} μ_{t} r_{t} h + \sin ω t)$ and the vector field $F (x) = (v (x), a (x), ω)^{T}$ , the collision function $W (x) = (0, - (r + 1), 0)^{T}$ , and the restitution coefficient $r (x) = r (0 < r < 1)$ .

Considering the free mass and the collision point $\sum (x, t) = {x | H (x) = d, v (x) = 0}$ , the relative positions and velocities of the free mass after the first and second collisions are given by

X_{1} (x, v) = x + W (x) v, V_{1} (x, v) = - rv

(13)

X_{2} (x, v) = x - \frac{2 F (x)}{a (x)} v + O (v^{2}), V_{1} (x, v) = - v

(14)

When $a (x) < 0$ and the velocity v is small enough, the state of m in the third collision can be defined as

X_{3} (x, v) = x + K (x) v + O (v^{2}), V_{1} (x, v) = rv

(15)

where $K (x) = (2 F (x) / a (x)) r (x) + W (x)$ .

Based on the study of literature,²⁹ there is a one-dimensional (1D) stable flow equation at the chattering-completion point $x^{*}$ , given by

x = X_{4} (x^{*}, v) = x^{*} + θ (x^{*}) v + O (v^{2})

(16)

where $(x) = - (K (X) / 1 - r (x))$ . Substituting $X_{3} (X_{4} (x, v), v) = X_{4} (x, V_{3} (X_{4} (x, v), v))$ into $v (x)$ gives

X_{5} (x, v) = x - θ (x) v + O (v^{2}) = x + \frac{K (X)}{1 - r (x)} + O (v^{2})

(17)

Therefore, $x^{*} = X_{5} (x, v (x)) = x - θ (x) v (x) + v (x)^{2} O (1)$ , where $O (1)$ is the boundary function of the free mass m. If only considering the first two terms of equation (17), the relative velocity of the free mass m is 0 as the chattering completes; in the end, there is

\begin{array}{l} X_{5} (x, v (x)) = (H (x), 0, φ) + (0, 0, \frac{2 ω r v (x)}{a (x) (1 - r)}) \\ = (H (x), 0, ϕ + \frac{2 ω r v (x)}{a (x) (1 - r)}) \end{array}

From $X_{5} (x, v (x))$ and $F (x)$ , it can be seen that if the original point is $H (x) = d$ , $v (x) = v_{0}$ , the system chattering-completion point $x^{*}$ is when $H (x) = d, v (x) = 0$ , and the chattering duration time is $t = 2 ω r v_{0} / (a (x) (1 - r))$ .

Numerical simulation of chattering phenomenon

In the previous section, we have obtained the chattering-completion point and the chattering-completion time of an impact damper system through theoretical derivation. This section is to conduct a numerical simulation using the fourth-order Runge–Kutta method to verify the theoretical derivation.

By applying the fourth-order Runge–Kutta method to reducing the order of equations (11) and (12), a four-dimensional (4D) equivalent system is achieved as follows

{\begin{matrix} {x'}_{1} = y_{1} \\ {y'}_{1} = - x_{1} - 2 ξ_{1} y_{1} + μ_{t} r_{t}^{2} g + 2 ξ_{t} μ_{t} r_{t} h + \sin ω t \\ {x'}_{2} = y_{2} \\ {y'}_{2} = - μ_{m} y_{2} - r_{t}^{2} g - 2 ξ_{t} r_{t} h \end{matrix}

(18)

where

\begin{array}{l} g = {\begin{matrix} x_{2} - x_{1}, & | x_{2} - x_{1} | \geq d \\ 0, & | x_{2} - x_{1} | < d \end{matrix} and \\ h = {\begin{matrix} {x^{'}}_{2} - {x^{'}}_{1}, & | x_{2} - x_{1} | \geq d \\ 0, & | x_{2} - x_{1} | < d \end{matrix} \end{array}

To simplify the calculation, we can define the following parameters

\begin{array}{l} u_{s} = \frac{k_{s}}{m_{0}}, p = r_{a} T + φ, u_{0} = {(1 + u_{s} \sin p)}^{- 1}, \\ ω_{2} = \sqrt{\frac{K_{2}}{m_{0}}}, r = \frac{ω_{2}}{ω_{n}}, ξ_{2} = \frac{C_{2}}{2 \sqrt{K_{2} m_{0}}}, μ = \frac{m_{0}}{M} \end{array}

So, the parameters in equation (18) can be written as

\begin{matrix} m = m_{0} (1 + u_{s} \sin (p)), μ_{t} = \frac{μ}{u_{0}}, \\ r_{t} = r \sqrt{u_{0}}, ξ_{t} = ξ_{2} \cdot \sqrt{u_{0}}, μ_{m} = r_{a} u_{s} u_{0} \cos (p) \end{matrix}

The main parameters used in the calculation are as follows: $r_{a} = ω / 6$ , $φ = π / 3$ , $u_{s} = 0.1$ , $ξ_{1} = 0.05$ , $ξ_{2} = 0.05$ , $μ = 0.7$ , $r = 0.9$ , and $ω = 0.3$ .

The clearance d is first selected as the control parameter while other parameters keep constant. Figure 3 shows the bifurcation diagram of the displacement of the primary system M with d varying from 0 to 2. As d continuously increases, the system has a chattering behavior at d = 0–1.35. When d > 1.35, the system is in a periodic or quasi-periodic motion state.

Figure 3.

Bifurcation diagram of $x_{1}$ with d.

The system excitation frequency $ω$ is then selected as the control parameter with d = 0.2. Figure 4 shows the bifurcation diagram of the displacement of the primary system M with ω = 0–0.35. It can be observed that the displacement of the primary system M goes through a significant change with the excitation frequency $ω$ and has a chattering behavior when ω = 0–0.35.

Figure 4.

Bifurcation diagram of $x_{1}$ with ω.

To further analyze the chattering of the system, Figures 5 –7 show the time-domain diagrams of the relative displacement and relative velocity of the free mass m at different excitation frequencies ω. At ω = 0.2, Figure 5(a) shows the chattering starts at about t = 332 s and lasts about 11 s as indicated by a horizontal line with $x_{2} - x_{1} = 0.2$ . However, the relative velocity of the free mass tends to be 0 as shown in Figure 5(b), which corresponds to the completed chattering. A similar trend can also be found in Figure 6 when ω = 0.25. The chattering starts at 316 s and lasts about 11 s. When ω = 0.3 (Figure 7(a)), while the system still has chattering behavior, there is no horizontal line at the end of the chattering, indicating the system has not reached the completed chattering. The difference between the completed chattering and the non-completed chattering can also be observed in velocity time-domain diagrams as shown in Figure 7(b).

Figure 5.

Time-domain diagrams of (a) free mass displacement and (b) free mass velocity with ω = 0.20.

Figure 6.

Time-domain diagrams of (a) free mass displacement and (b) free mass velocity with ω = 0.25.

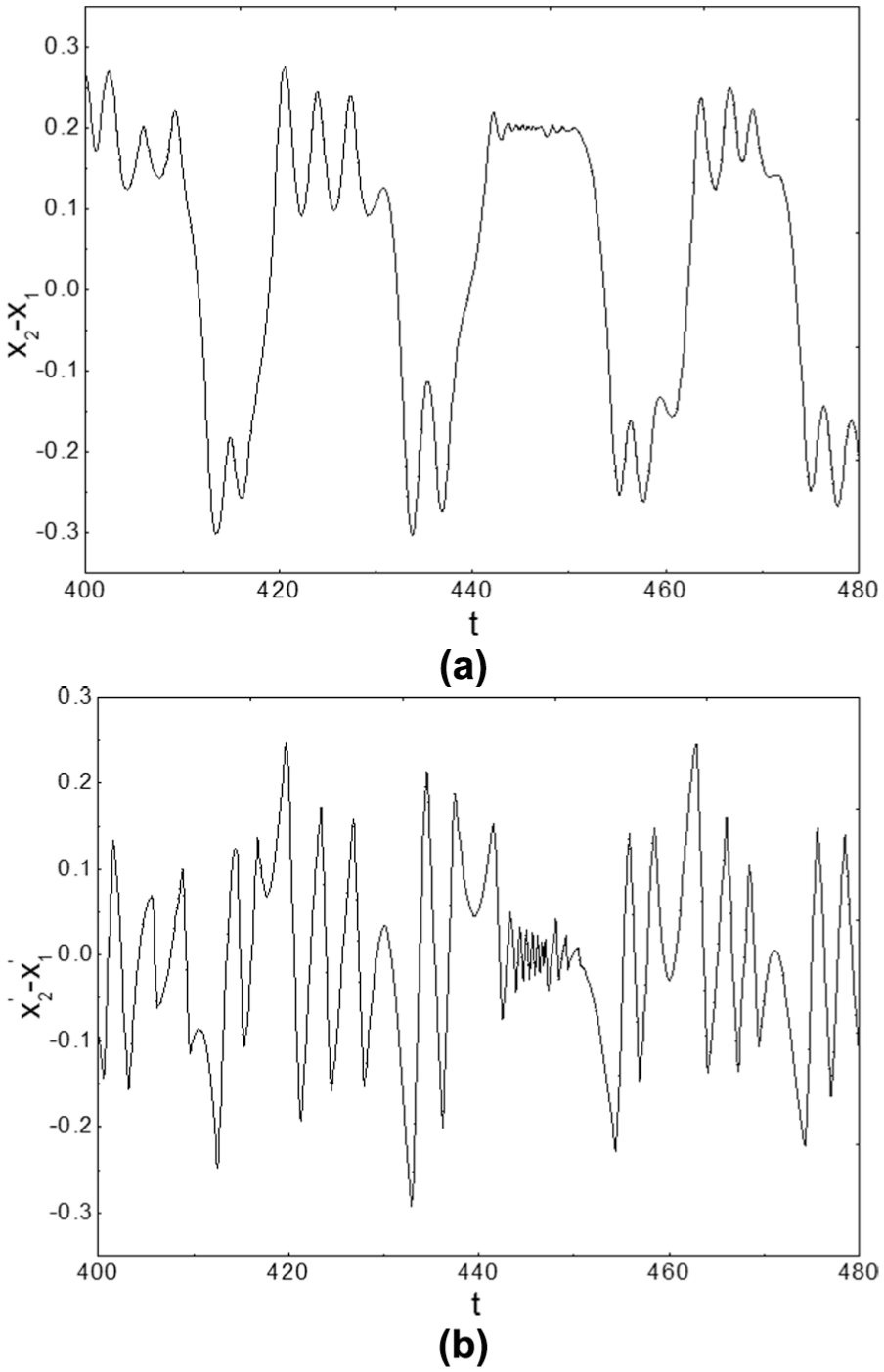

Figure 7.

Time-domain diagrams of (a) free mass displacement and (b) free mass velocity with ω = 0.30.

The simulation results indicate that when ω = 0.20 and 0.25, the system has the completed chattering. At the completion point of the chattering, a state of viscosity exists when the system and the free mass has no relative movement within a short period. Also, the duration of the completed chattering is almost the same for ω = 0.20 and 0.25, which can be calculated by substituting the system parameters into $t = 2 ω r v_{0} / (a (x) (1 - r))$ . Therefore, the validity and effectiveness of the theoretical derivation are verified by the numerical simulations.

Conclusion

This work has studied the chattering-completion point and the chattering-completion time in a classic impact damper through theoretical derivation and numerical simulation. The bifurcation diagram and the time-domain map were obtained under different conditions. The results of the numerical simulation were consistent with the theoretical derivation, confirming the validity of the theoretical derivation. The main findings are summarized as follows:

With the initial point of a two-DOF impact damping vibration system as $H (x) = d$ and $v (x) = v_{0}$ , the system chattering-completion point $x^{*}$ is when $H (x) = d, v (x) = 0$ , and the chattering duration is $t = 2 ω r v_{0} / (a (x) (1 - r))$ .

Based on the time-domain diagrams of the relative displacement and relative velocity of the free mass m under different conditions, the system only has chattering after going through a period of complicated motion response. The chattering duration time and completion state are consistent with the results from the theoretical derivation.

The system has both completed chattering and non-completed chattering. The time-domain diagrams clearly reveal that viscosity is a critical characteristic at the end of completed chattering.

Footnotes

Appendix 1 Acknowledgements

The author also thanks Dr Runyu Yang for his help on paper revision.

Handling Editor: Francesco Massi

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant no. 51475308) and the National Key R&D Plan of China (grant no. 2016YFD0700900).

References

Cheng

Wang

. Free vibration analysis of a resilient impact damper. Int J Mech Sci 2003; 45: 589–604.

Cheng

. Inner mass impact damper for attenuating structure vibration. Int J Solids Struct 2006; 43: 5355–5369.

Duncan

Wassgren

Krousgrill

. The damping performance of a single particle impact damper. J Sound Vib 2005; 286: 123–144.

Park

Wang

Crocker

. Mass loaded resonance of a single unit impact damper caused by impacts and the resulting kinetic energy influx. J Sound Vib 2009; 323: 877–895.

Popplewell

Semercigil

. Performance of the bean bag impact damper for a sinusoidal external force. J Sound Vib 1989; 133: 193–223.

Saeki

. Analytical study of multi-particle damping. J Sound Vib 2005; 281: 1133–1144.

Wong

Daniel

Rongong

. Energy dissipation prediction of particle dampers. J Sound Vib 2009; 319: 91–118.

Shah

Nudell

Kao

et al . Semi-active particle-based damping systems controlled by magnetic fields. J Sound Vib 2011; 330: 182–193.

Yan

. A survey of particle damping technology. J Vib Shock 2013; 32: 1–7.

10.

. Passive damping effect of particle damper on free vibration of a cantilever beam. J Lanzhou Univ Technol 2014; 40: 165–168.

11.

Tang

et al . Study on external features of particle damping loss factor. China Mech Eng 2015; 26: 2005–2009.

12.

Trigui

Foltete

Bouhaddi

. Prediction of the dynamic response of a plate treated by particle impact damper. Mech Eng Sci 2014; 228: 799–814.

13.

Panossian

. Non-obstructive particle damping experience and capabilities. Int Soc Optic Eng 2002; 4753: 936–941.

14.

Gharib

Karkoub

. Shock-based experimental investigation of the linear particle chain impact damper. J Vib Acoustics 2015; 137: 061012.1–061112.10.

15.

Wang

. Energy dissipation in normal elastoplastic impact between two spheres. J Appl Mech 2009; 76: 1089–1094.

16.

Wang

Zhang

. Energy dissipation in collision of two balls covered by fine particles. Int J Impact Eng 2010; 37: 309–316.

17.

Wang

. Modeling the fine particle impact damper. Int J Mech Sci 2010; 52: 1015–1022.

18.

Wang

et al . Durability of particle impact dampers. J Vib Shock 2013; 32: 156–160.

19.

Liu

. Tests for a particle-ball impact damper with elastic support. J Vib Shock 2013; 32: 56–60.

20.

Zhang

. Experimental research on combined particle impact damper. China Mech Eng 2015; 26: 1953–1958.

21.

Budd

Dux

. Chattering and related behaviour in impact oscillators. Phil Trans R Soc Lond A 1994; 347: 365–389.

22.

Toulemonde

Gontier

. Sticking motions of impact oscillators. Eur J Mech A: Solids 1998; 17: 339–366.

23.

Wagg

Bishop

. Chattering sticking and chaotic impacting motion in a two-degree of freedom impact. Int J Bifurcat Chaos 2001; 11: 57–71

24.

Hős

Champneys

. Grazing bifurcations and chattering in a pressure relief valve model. Physica D 2012; 241: 2068–2076.

25.

Demeio

Lenci

. Asymptotic analysis of chattering oscillations for an impacting inverted pendulum. Q J Mech Appl Math 2006; 59: 419–434.

26.

Singh

Mukherjee

Sanghi

. Study of a self-impacting double pendulum. J Sound Vib 2008; 318: 1180–1196.

27.

Davis

Virgin

. Non-linear behavior in a discretely forced oscillator. Int J Nonlin Mech 2007; 42: 744–753.

28.

Wagg

Bishop

. Application of non-smooth modeling techniques to the dynamics of a flexible impacting beam. J Sound Vib 2002; 256: 803–820.

29.

Nordmark

Piiroinen

. Simulation and stability analysis of impacting systems with complete chattering. Nonlinear Dyn 2009; 58: 85–106.
