Abstract

Precise tracking performance and significant energy-saving effect are both important issues for electro-hydraulic servo system. Nevertheless, the electro-hydraulic servo system usually demonstrates inferior efficiency compared with other available actuation methods. To improve the efficiency of the electro-hydraulic servo system during the task of position tracking, a nonlinear energy-saving control strategy is proposed. The presented controller employs a variable supply pressure control to make the pump pressure adapt to the system demand and utilizes a nonlinear cascade controller for precise position tracking. Additionally, a disturbance observer is developed to compensate for the lumped uncertainties including parametric uncertainties and uncertain nonlinearities both in the design of variable supply pressure control and nonlinear cascade controller. Results indicate that the presented multi-input single-output system combined with the nonlinear energy-saving control strategy can save 45% energy in a harmonic trajectory tracking test and 68% energy in a multi-step trajectory tracking test, respectively, compared with its counterparts. Furthermore, the maximum tracking errors of both tests are 1.2 mm.

Keywords

Energy saving position tracking variable supply pressure disturbance observer electro-hydraulic system

Introduction

The electro-hydraulic servo system (EHSS) has been demonstrated to be a promising choice for diverse applications due to its high power density, ease of implementation, good dynamic performance, and durability, despite the rapid development of electric power transmission. Owing to these characteristics, the EHSS has been widely used in aircraft control, machine tools and manufacturing, excavating, and automotive industries.¹

Many papers are devoted to solving the problem of high-performance position tracking control of EHSS, and numerous successful methods for specific purposes were proposed.^2–5 However, the EHSS usually has a lower energy efficiency compared with other actuation methods, which may limit its further utilization in industrial and mechanical equipments.

Therefore, certain efforts have been made in the literature to improve the overall efficiency of the EHSS. The electro-hydrostatic actuation (EHA) does not require the usage of control valve, and this method can increase the system efficiency considerably.⁶ However, the overall achievable bandwidth of the closed-loop system is much lower than the valve-controlled EHSS due to the higher inertias.⁷ An integrated control strategy of clamping force and energy saving using a load-sensing variable pump was proposed in Chiang et al.⁸ Furthermore, the electrical adaptations of this method, electro-hydraulic load sensing (EHLS), which includes a constant displacement pump and an AC motor, was also utilized to improve the energy efficiency of the EHSS in Cho et al.⁹ and Lovrec et al.¹⁰ Nevertheless, the pressure difference across the valve, which is usually set as a constant value in these methods, is not optimized from an energy-saving perspective,¹¹ and the slow response also put an obstacle for its utilization.¹² As an alternative, energy regeneration is also an attractive research field for energy saving of EHSS. Specifically, in Lu et al.,¹³ the independent valve metering control method for a hydraulic manipulator using five cartridge valves and one accumulator was proposed. Although a significant energy-saving capability was obtained, the energy loss in the cartridge valve is still considerable.

In order to reduce the energy consumption across the valve, the variable supply pressure control (VSPC) strategy, which can control the supply pressure according to the system demand, has gained more attention in recent years. A kind of VSPC, which utilized the optimal control method, was presented to improve the energy-saving capabilities of the EHSS in Tivay et al.¹⁴ Another VSPC, which was proposed in Baghestan et al.,¹⁵ can also achieve energy-saving effect on the EHSS. Nevertheless, the discrepancy between the real values and the nominal parameters utilized in the aforementioned studies and the uncertain nonlinearities including unmodeled dynamics and external disturbance have not been fully considered in the design of the VSPC and the tracking controller. More recently, a load prediction–based VSPC controller was developed for the energy-saving purpose of a hydraulic actuated robot.¹⁶ But the VSPC in this study using the kinetics model to predict the external disturbance is not applicable for mobile machinery, since the external disturbances vary abruptly so that the load is difficult to predict.^17,18

As reviewed above, some of the researchers mainly focused on the precise tracking performance without considering the energy efficiency of the system. Some of the researchers developed the controller with VSPC for the purpose of energy saving. Nevertheless, the energy-saving performance and the achievable position tracking performance of these systems may degrade when the system suffers from the lumped uncertainties including parametric uncertainties and uncertain nonlinearities. Both precise tracking and significant energy-saving performance are critical problems of the EHSS. Therefore, a nonlinear controller for the EHSS, which could solve the dual objective problem and take the lumped uncertainties into account explicitly, is necessary.

In this study, a solution for this multi-objective problem is proposed. To improve the system efficiency, a VSPC is developed in this study. Moreover, a nonlinear cascade control strategy is employed to achieve the task of position tracking. Unlike the existing VSPC, a disturbance observer (DOB) is presented to compensate for the lumped uncertainties both in the design of VSPC and nonlinear cascade controller. The effectiveness of the proposed controller is verified by tests.

System modeling and problem formulation

The EHSS configuration utilized in this article is presented in Figure 1. Specifically, a fixed displacement pump is used as a power unit. A proportional relief valve (PRV) is located in parallel with the pump to control the supply pressure, and a proportional directional valve (PDV) is utilized for the purpose of position tracking. The multi-objective problem can be addressed using this setup.

Figure 1.

Schematic diagram of the proposed electro-hydraulic system.

Since the natural frequency of the servo valve used here is much higher than that of a typical EHSS, the valve dynamics is often neglected without a significant reduction in the control performance.¹ Therefore, the flow equations of the hydraulic valve can be written as

{\begin{matrix} Q_{1} = k_{q} k_{x} \underset{g_{1}}{\underset{︸}{[s_{g} (u_{d}) \sqrt{\frac{2}{ρ} (p_{s} - p_{1})} + s_{g} (- u_{d}) \sqrt{\frac{2}{ρ} (p_{1} - p_{t})}]}} u_{d} \\ Q_{2} = k_{q} k_{x} \underset{g_{2}}{\underset{︸}{[s_{g} (u_{d}) \sqrt{\frac{2}{ρ} (p_{2} - p_{t})} + s_{g} (- u_{d}) \sqrt{\frac{2}{ρ} (p_{s} - p_{2})}]}} u_{d} \end{matrix}

(1)

s_{g} (•) = {\begin{matrix} 1, if • \geq 0 \\ 0, if • < 0 \end{matrix}

(2)

where $k_{q}$ is the flow gain coefficient of the servo valve, $k_{x}$ is a positive constant, $p_{1}$ and $p_{2}$ are the chamber pressures of the cylinder, $p_{s}$ is the supply pressure of the pump, $p_{t}$ is the tank pressure, $ρ$ is the oil density, $Q_{1}$ is the supply flow rate to the forward chamber, $Q_{2}$ is the return flow rate from the return chamber, and $u_{d}$ is the input signal of PDV.

The pressure dynamics of the actuator can be written as

{\begin{matrix} {\overset{\cdot}{p}}_{1} = h_{1} [Q_{1} - A_{1} {\overset{\cdot}{x}}_{p} - C_{t} p_{1} + C_{i} p_{2}] + Δ_{1} \\ {\overset{\cdot}{p}}_{2} = h_{2} [- Q_{2} + A_{2} {\overset{\cdot}{x}}_{p} - C_{t} p_{2} + C_{i} p_{1}] + Δ_{2} \end{matrix}

(3)

where $A_{1}$ and $A_{2}$ are the effective areas of the two chambers of the cylinder, $x_{p}$ is the piston position, $C_{t} = C_{i} + C_{e}$ is the total leakage coefficient, $C_{e}$ is the external leakage coefficient, $C_{i}$ is the internal leakage coefficient, $h_{1} = β_{e} / V_{1}$ , $h_{2} = β_{e} / V_{2}$ , $V_{1} and V_{2}$ are the control volumes of the two chambers, $β_{e}$ is the effective bulk modulus of the system, and $Δ_{1}$ and $Δ_{2}$ denote the lumped uncertainties in the pressure dynamics.

The force balance equation of the system is expressed as

m {\overset{\cdot\cdot}{x}}_{p} = p_{1} A_{1} - p_{2} A_{2} - B_{c} {\overset{\cdot}{x}}_{p} - k x_{p} - F_{L} - F_{f} + Δ_{3}

(4)

where $m$ is the mass of the load, $B_{c}$ is the coefficient of viscous damping, $k$ is the environment stiffness, $F_{L}$ is the external load force, $F_{f}$ is the Coulomb friction force, $Δ_{3}$ represents the lumped uncertainties including parametric uncertainties and uncertain nonlinearities.

Define the system state variables as equation (5)

{[x_{1}, x_{2}, x_{3}, x_{4}]}^{T} = {[x_{p}, {\overset{\cdot}{x}}_{p}, p_{1}, p_{2}]}^{T}

(5)

In order to make the system fall into the strict feedback form, the state variables are reconstructed as equation (6), where $a = A_{2} / A_{1}$

{[x_{1}, x_{2}, {\bar{x}}_{3}]}^{T} = {[x_{p}, {\overset{\cdot}{x}}_{p}, p_{1} - a p_{2}]}^{T}

(6)

Therefore, the entire system can be expressed in a state space form as equation (7)

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = \frac{A_{1}}{m} {\bar{x}}_{3} - \frac{B_{c}}{m} x_{2} - \frac{k}{m} x_{1} \underset{d_{1}}{\underset{︸}{- \frac{F_{L}}{m} - \frac{F_{f}}{m} + \frac{Δ_{3}}{m}}} \\ {\overset{\cdot}{\bar{x}}}_{3} = - f_{1} x_{2} - f_{2} x_{3} + f_{3} x_{4} + f_{4} u_{d} + \underset{d_{2}}{\underset{︸}{Δ_{1} - a Δ_{2}}} \\ y = x_{1} \end{matrix}

(7)

{\begin{matrix} f_{1} = h_{1} A_{1} + h_{2} A_{2} a \\ f_{2} = h_{1} C_{t} + h_{2} C_{i} a \\ f_{3} = h_{1} C_{i} + h_{2} C_{t} a \\ f_{4} = h_{1} k_{q} k_{x} g_{1} + h_{2} k_{q} k_{x} g_{2} a \end{matrix}

(8)

where $f_{1} ~ f_{4}$ are shown in equation (8).

The control task is summarized as follows: given the desired motion trajectory $x_{d}$ , the objective is to synthesize a control input of the PDV such that the output $x_{1}$ tracks $x_{d}$ as closely as possible. Meanwhile, the controller generates a control input of PRV in order to reduce the energy consumption during the task of position tracking.

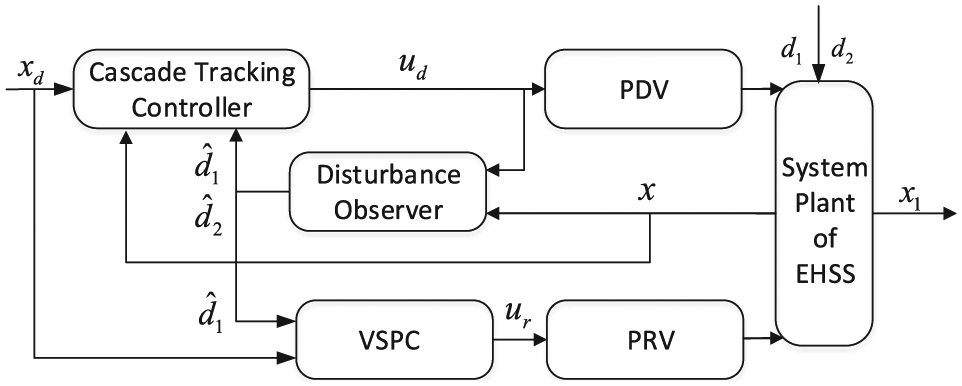

The whole control block diagram in this study is shown in Figure 2. The tracking performance is guaranteed by utilizing the proposed cascade tracking controller combined with DOB to synthesize a command signal $u_{d}$ for PDV. Meanwhile, the VSPC adopts the observer result of $d_{1}$ , desired motion trajectory $x_{d}$ , and other system parameters as the control input to generate a desired command signal $u_{r}$ to the PRV.

Figure 2.

The whole control block diagram.

Controller design

DOB design

The dynamics (equation (7)) can be rewritten as

{\begin{matrix} d_{1} = {\overset{\cdot}{x}}_{2} + \frac{1}{m} (B_{c} x_{2} + k x_{1} - A_{1} {\bar{x}}_{3}) \\ d_{2} = {\overset{\cdot}{\bar{x}}}_{3} + f_{1} x_{2} + f_{2} x_{3} - f_{3} x_{4} - f_{4} u_{d} \end{matrix}

(9)

Define the estimates of the disturbances as ${\hat{d}}_{1}$ and ${\hat{d}}_{2}$ . The estimation errors are expressed as

{\tilde{d}}_{1} = d_{1} - {\hat{d}}_{1} and {\tilde{d}}_{2} = d_{2} - {\hat{d}}_{2}

(10)

The dynamics of ${\hat{d}}_{1}$ and ${\hat{d}}_{2}$ are designed as

{\begin{matrix} {\overset{\cdot}{\hat{d}}}_{1} = \frac{1}{ε_{1}} ({\overset{\cdot}{x}}_{2} + \frac{1}{m} (B_{c} x_{2} + k x_{1} - A_{1} {\bar{x}}_{3}) - {\hat{d}}_{1}) \\ {\overset{\cdot}{\hat{d}}}_{2} = \frac{1}{ε_{2}} ({\overset{\cdot}{\bar{x}}}_{3} + f_{1} x_{2} + f_{2} x_{3} - f_{3} x_{4} - f_{4} u_{d} - {\hat{d}}_{2}) \end{matrix}

(11)

where $1 / ε_{1}$ and $1 / ε_{2}$ are the observer gains.

Assumption

The disturbances and their derivatives are bounded such that $| d_{i} | \leq d_{i max}$ and $| {\overset{\cdot}{d}}_{i} | \leq {\overset{\cdot}{d}}_{i max} i = 1, 2$ , where $d_{i max}$ and ${\overset{\cdot}{d}}_{i max}$ are known constants.

In fact, the disturbance is not differentiable at zero velocity since it includes the Coulomb friction. However, the actual friction has finite jumps, so that the friction model can be chosen as any differentiable function that approximates the actual discontinuous Coulomb friction. Thus, the assumption is physically reasonable.⁴

In case the measurement noises are amplified by the high gains, the auxiliary state variables $ξ_{1}$ and $ξ_{2}$ which are proposed in Won et al.⁴ are utilized in this study.

Define the auxiliary state variables as

ξ_{1} = {\hat{d}}_{1} - \frac{x_{2}}{ε_{1}} and ξ_{2} = {\hat{d}}_{2} - \frac{{\bar{x}}_{3}}{ε_{2}}

(12)

The dynamics of the auxiliary state variables are

{\begin{matrix} {\overset{\cdot}{ξ}}_{1} = \frac{1}{ε_{1}} (\frac{B_{c} x_{2} + k x_{1} - A_{1} {\bar{x}}_{3}}{m}) - \frac{1}{ε_{1}} (ξ_{1} + \frac{x_{2}}{ε_{1}}) \\ {\overset{\cdot}{ξ}}_{2} = \frac{1}{ε_{2}} (f_{1} x_{2} + f_{2} x_{3} - f_{3} x_{4} - f_{4} u_{d}) - \frac{1}{ε_{2}} (ξ_{2} + \frac{{\bar{x}}_{3}}{ε_{2}}) \end{matrix}

(13)

Then, $| {\tilde{d}}_{i} | \leq e^{- (1 / ε_{i}) t} \cdot | {\tilde{d}}_{i} (0) | + ε_{i} ρ_{i} (t)$ for an envelope function $ρ_{i} (t)$ , such that $ρ_{i} (t) \geq | {\overset{\cdot}{d}}_{i} |, \forall t \geq 0, i = 1, 2$ .

In case ${\hat{d}}_{i}$ varies significantly, which may result in a large input voltage, ${\hat{d}}_{i}$ is updated using the following projection-type adaption law with a preset adaption rate limit ${\overset{\cdot}{d}}_{iM}$ based on equation (12)³

{\begin{matrix} {\overset{\cdot}{\hat{d}}}_{1} = sa t_{{\overset{\cdot}{d}}_{1 M}} ({Proj}_{{\hat{d}}_{1}} (ξ_{1} + \frac{x_{2}}{ε_{1}})) \\ {\overset{\cdot}{\hat{d}}}_{2} = sa t_{{\overset{\cdot}{d}}_{2 M}} ({Proj}_{{\hat{d}}_{2}} (ξ_{2} + \frac{{\bar{x}}_{3}}{ε_{2}})) \end{matrix}

(14)

Pro j_{{\hat{d}}_{i}} (•_{i}) {\begin{matrix} 0 & if {\hat{d}}_{i} \geq d_{i max} and •_{i} > 0 \\ 0 & if {\hat{d}}_{i} \leq d_{i max} and •_{i} < 0 \\ •_{i} & otherwise \end{matrix} i = 1, 2

(15)

Proof

From equations (9), (10), (12), and (13), the following disturbance estimation error dynamics is obtained as

{\overset{\cdot}{\tilde{d}}}_{i} = - \frac{1}{ε_{i}} {\tilde{d}}_{i} + {\overset{\cdot}{d}}_{i} for i = 1, 2

(16)

Therefore, $| {\tilde{d}}_{i} | \leq e^{- (1 / ε_{i}) t} \cdot | {\tilde{d}}_{i} (0) | + ε_{i} ρ_{i} (t)$ , and the upper bound of $| {\tilde{d}}_{i} (\infty) |$ becomes smaller as $ε_{i}$ gets smaller.

Remark 1

Since the projection function and adaption rate limit are added in adaptation law, two special working points should be discussed:

Assume that the ${\hat{d}}_{i}$ reaches to the limit, that is, $d_{i max}$ (similar as the case for $d_{i min}$ ), equation (10) can be rewritten as ${\tilde{d}}_{i} = d_{i} - d_{i max}$ . Furthermore, the ${\hat{d}}_{i}$ in equation (11) can be substituted by $d_{i max}$ . Differentiating equation (10) and noting equation (11), we can still draw a conclusion as equation (16).

Assume that the ${\overset{\cdot}{\hat{d}}}_{i}$ reaches to the limit, that is, ${\overset{\cdot}{d}}_{iM}$ , the dynamics of equation (10) can be written as ${\overset{\cdot}{\tilde{d}}}_{i} = {\overset{\cdot}{d}}_{i} - {\overset{\cdot}{d}}_{iM}$ . Thus, both ${\overset{\cdot}{\tilde{d}}}_{i}$ and ${\tilde{d}}_{i}$ are bounded according to the assumption of the article and the projection function. Although equation (16) cannot be satisfied in this case, the stability of the entire controller can still be obtained by suitable values of $k_{1}$ and $k_{2}$ , which will be introduced in the following section.

Nonlinear cascade tracking control

The nonlinear tracking controller is designed as a position tracking outer loop and a load pressure control inner loop. Using a recursive backstepping procedure, the controller can be expressed as follows.

Step 1. Define the tracking error as ${\tilde{x}}_{1} = x_{1} - x_{d}$ . Then a sliding surface $s$ is defined as

s = {\overset{\cdot}{\tilde{x}}}_{1} + λ {\tilde{x}}_{1}

(17)

where $λ$ is a positive constant. Since making ${\tilde{x}}_{1}$ small or converging to zero is equivalent to making $s$ small or converging to zero, the rest work is to make $s$ as small as possible.

The time derivative of $s$ is obtained as

\overset{\cdot}{s} = \frac{A_{1}}{m} {\bar{x}}_{3} - \frac{B_{c}}{m} x_{2} - \frac{k}{m} x_{1} + d_{1} - {\overset{\cdot\cdot}{x}}_{d} + λ (x_{2} - {\overset{\cdot}{x}}_{d})

(18)

A virtual controller ${\bar{α}}_{3}$ for ${\bar{x}}_{3}$ is designed as

{\bar{α}}_{3} = \frac{m}{A_{1}} [\frac{B_{c}}{m} x_{2} + \frac{k}{m} x_{1} - {\hat{d}}_{1} + {\overset{\cdot\cdot}{x}}_{d} - λ (x_{2} - {\overset{\cdot}{x}}_{d}) - k_{1} s]

(19)

where $k_{1}$ is a positive constant.

Let ${\bar{z}}_{3} = {\bar{x}}_{3} - {\bar{α}}_{3}$ denote the tracking error of load pressure, and substituting equation (19) into equation (18) yields

\overset{\cdot}{s} = \frac{A_{1}}{m} {\bar{z}}_{3} - k_{1} s + {\tilde{d}}_{1}

(20)

Define the Lyapunov function as

V_{1} = \frac{1}{2} s^{2} + \frac{1}{2} {\tilde{d}}_{1}^{2}

(21)

Combining equations (16) and (20), the time derivative of $V_{1}$ is given by

\begin{matrix} {\overset{\cdot}{V}}_{1} = \frac{A_{1}}{m} s {\bar{z}}_{3} - k_{1} s^{2} + s {\tilde{d}}_{1} - \frac{1}{ε_{1}} {\tilde{d}}_{1}^{2} + {\tilde{d}}_{1} {\overset{\cdot}{d}}_{1} \\ \leq \frac{A_{1}}{m} s {\bar{z}}_{3} - k_{1} s^{2} - \frac{1}{ε_{1}} {\tilde{d}}_{1}^{2} + s {\tilde{d}}_{1} + | {\tilde{d}}_{1} | | {\overset{\cdot}{d}}_{1} | \\ \leq \frac{A_{1}}{m} s {\bar{z}}_{3} - k_{1} {(s - \frac{1}{2 k_{1}} {\tilde{d}}_{1})}^{2} \\ - γ {(| {\tilde{d}}_{1} | - \frac{1}{2 γ} | {\overset{\cdot}{d}}_{1} |)}^{2} + \frac{1}{4 γ} {\overset{\cdot}{d}}_{1 max}^{2} \end{matrix}

(22)

where $γ$ is $4 k_{1} - ε_{1} / 4 k_{1} ε_{1}$ and could be turned to be positive by selecting the control parameters.

Step 2. In this step, an actual control law for $u_{d}$ is determined. The time derivative of ${\bar{z}}_{3}$ is given by

{\overset{\cdot}{\bar{z}}}_{3} = - f_{1} x_{2} - f_{2} x_{3} + f_{3} x_{4} + f_{4} u_{d} + d_{2} - {\overset{\cdot}{\bar{α}}}_{3}

(23)

The actual control $u_{d}$ is designed as

u_{d} = \frac{1}{f_{4}} (f_{1} x_{2} + f_{2} x_{3} - f_{3} x_{4} - {\hat{d}}_{2} + {\overset{\cdot}{\bar{α}}}_{3} - k_{2} {\bar{z}}_{3} - \frac{A_{1}}{m} s)

(24)

where $k_{2}$ is a positive constant. Substituting equation (24) into equation (23) yields the dynamics of ${\bar{z}}_{3}$ as

{\overset{\cdot}{\bar{z}}}_{3} = {\tilde{d}}_{2} - k_{2} {\bar{z}}_{3} - \frac{A_{1}}{m} s

(25)

Define the Lyapunov function as

V = V_{1} + \frac{1}{2} {\bar{z}}_{3}^{2} + \frac{1}{2} {\tilde{d}}_{2}^{2}

(26)

Combining equations (16), (22), and (25), the time derivative of $V$ is given by

\begin{matrix} \overset{\cdot}{V} = {\overset{\cdot}{V}}_{1} + {\bar{z}}_{3} {\overset{\cdot}{\bar{z}}}_{3} + {\tilde{d}}_{2} {\overset{\cdot}{\tilde{d}}}_{2} \\ \leq - k_{1} {(s - \frac{1}{2 k_{1}} {\tilde{d}}_{1})}^{2} - γ {(| {\tilde{d}}_{1} | - \frac{1}{2 γ} | {\overset{\cdot}{d}}_{1} |)}^{2} + \frac{1}{4 γ} {\overset{\cdot}{d}}_{1 max}^{2} \\ - k_{2} {({\bar{z}}_{3} - \frac{1}{2 k_{2}} {\tilde{d}}_{2})}^{2} - β {(| {\tilde{d}}_{2} | - \frac{1}{2 β} | {\overset{\cdot}{d}}_{2} |)}^{2} + \frac{1}{4 β} {\overset{\cdot}{d}}_{2 max}^{2} \end{matrix}

(27)

where $β$ is $4 k_{2} - ε_{2} / 4 k_{2} ε_{2}$ and could be turned to be positive by selecting the control parameters. Thus, the states of the closed-loop system enter into the bounded ball $Br$ in finite time and stay within $Br$ , where $Br$ could be expressed as

Br : (\begin{matrix} k_{1} {(s - \frac{1}{2 k_{1}} {\tilde{d}}_{1})}^{2} + γ {(| {\tilde{d}}_{1} | - \frac{1}{2 γ} | {\overset{\cdot}{d}}_{1} |)}^{2} \\ + k_{2} {({\bar{z}}_{3} - \frac{1}{2 k_{2}} {\tilde{d}}_{2})}^{2} + β {(| {\tilde{d}}_{2} | - \frac{1}{2 β} | {\overset{\cdot}{d}}_{2} |)}^{2} \\ = \frac{1}{4 β} {\overset{\cdot}{d}}_{2 max}^{2} + \frac{1}{4 γ} {\overset{\cdot}{d}}_{1 max}^{2} \end{matrix})

(28)

It can be observed that the size of the boundedness ball $Br$ mainly depends on $γ$ and $β$ . Thus, the high observer gain—low values of $ε_{1}$ and $ε_{2}$ —can shrink the size of $Br$ .

VSPC

The traditional EHSS exhibits inferior efficiency due to the fact that the amount of energy produced by its power unit is constant, while the power needed in the actuator is actually variable. Therefore, in many cases of EHSS operation, a large amount of energy will be constantly consumed by the supply unit to follow a desired trajectory.

For a certain demand flow, the smallest possible pressure drop will occur if the valve is fully opened. However, in that case, the PDV cannot be adjusted in a wide range to compensate for the tracking error. Thus, in order to save energy, the input signal of the PDV should be kept at a relatively large value.

For the forward motion $({\overset{\cdot}{x}}_{d} \geq 0)$ , the pressure drops across the valve can be expressed as follows

Δ p_{1} = p_{s} - p_{1}

(29)

Δ p_{2} = p_{2} - p_{t}

(30)

Then, the valve orifice equation gives

A_{1} {\overset{\cdot}{x}}_{d} = k_{q} k_{x} α u_{dmax} \sqrt{\frac{2}{ρ} Δ p_{1}}

(31)

A_{2} {\overset{\cdot}{x}}_{d} = k_{q} k_{x} α {u_{d}}_{\max} \sqrt{\frac{2}{ρ} Δ p_{2}}

(32)

where $u_{dmax}$ is the absolute maximum input signal of the PDV, and $α$ is the desired normalized input signal of PDV determined by the users/designers to indicate the importance of energy saving.

$p_{1}$ can be evaluated by the following force equation

p_{1} A_{1} - p_{2} A_{2} = m {\overset{\cdot\cdot}{x}}_{d} + B_{c} {\overset{\cdot}{x}}_{d} + k x_{d} - m {\hat{d}}_{1}

(33)

By taking the pipe pressure loss into consideration, the desired pump pressure can be obtained from equations (29)–(33)

\begin{array}{l} p_{sd 1} = \frac{1}{A_{1}} [\begin{matrix} (\frac{ρ {A_{2}}^{2} {\dot{x}}_{d}^{2}}{2 k_{q}^{2} k_{x}^{2} α^{2} u_{dmax}^{2}} + p_{t}) A_{2} + \\ m {\overset{\cdot\cdot}{x}}_{d} + B_{c} {\dot{x}}_{d} + k x_{d} - m {\hat{d}}_{1} \end{matrix}] \\ + \frac{ρ A_{1}^{2} {\dot{x}}_{d}^{2}}{2 k_{q}^{2} k_{x}^{2} α^{2} u_{dmax}^{2}} + Δ p_{loss} \end{array}

(34)

where $p_{sd 1}$ is the desired pump pressure in the forward motion, and $Δ p_{loss}$ is the pipe pressure loss which is set as a constant value. Similar to the case of forward motion, the desired pump pressure when ${\overset{\cdot}{x}}_{d} < 0$ is expressed as

\begin{array}{l} p_{sd 2} = \frac{1}{A_{2}} [(\frac{ρ A_{1}^{2} {\dot{x}}_{d}^{2}}{2 k_{q}^{2} k_{x}^{2} α^{2} u_{dmax}^{2}} + p_{t}) A_{1} - m {\overset{\cdot\cdot}{x}}_{d} - B_{c} {\dot{x}}_{d} - k x_{d} + m {\hat{d}}_{1}] \\ + \frac{ρ A_{2}^{2} {\dot{x}}_{d}^{2}}{2 k_{q}^{2} k_{x}^{2} α^{2} u_{dmax}^{2}} + Δ p_{loss} \end{array}

(35)

It can be observed that the desired pump pressure ( $p_{sd 1}$ in the forward motion and $p_{sd 2}$ in the backward motion) mainly depends on the system parameters. Furthermore, the lumped uncertainties can be compensated by the DOB.

Since the flow rate of the pump is always higher than the flow rate required in actuator, the supply pressure always exceeds the cracking pressure (i.e. the PRV is always open). Thus, the normalized input signal of the PRV is calculated by the following simplified equation¹⁶

u_{r} = {\begin{matrix} \frac{p_{sd 1}}{k_{rv} u_{rmax}} {\overset{\cdot}{x}}_{d} \geq 0 \\ \frac{p_{sd 2}}{k_{rv} u_{rmax}} {\overset{\cdot}{x}}_{d} < 0 \end{matrix}

(36)

where $k_{rv}$ is the gain of PRV, and $u_{rmax}$ is the absolute maximum input signal of the PRV.

Remark 2

A suitable initial value of ${\hat{d}}_{1}$ can be set in the DOB. Thus, an initial value of $p_{sd}$ which is large enough to meet the control demand can be achieved according to equations (34) and (35). Once the pump pressure meets the control demand, the estimation error ${\tilde{d}}_{1}$ will be stabilized by the nonlinear position tracking controller. Consequently, the pump pressure can always be kept at a relatively low level by the VSPC.

Result and discussion

In order to evaluate the performance of the proposed control algorithms, experiments were conducted on an experimental test rig which is shown in Figure 3. The position of the cylinder was measured by a displacement sensor (LS 628C). The pressures in the two cylinder chambers and supply pressure were measured by pressure sensors (HDP702). A dSpace1104 data acquisition board was used to acquire the feedback signals from sensors and generate control signals to the system. The main parameters of the system and the controller are shown in Table 1.

Figure 3.

Experimental test rig.

Table 1.

Parameters of the system.

Total leakage coefficient	$3 \times 10^{- 11}$	Oil bulk modulus	$1 \times 10^{4} bar$
Equivalent mass of the load	$9.5 kg$	Environment stiffness	$0$
Piston/rod diameter	$40 / 30 mm$	Cylinder stroke	$20 cm$
Oil density	$890 kg / m^{3}$	Viscous damping	$800 N / m$
$Δ p_{loss}$	$1.2 bar$	$k_{rv}$	$21.3 bar / V$
$k_{q} k_{x}$	$8.8 \times 10^{- 7}$	$λ$	$400$
$ε_{1}$	$8.2 \times 10^{- 5}$	$ε_{2}$	$1 \times 10^{- 4}$
$k_{1}$	$500$	$k_{2}$	$800$

Figure 4 depicts the tracking errors of the proposed controller with three different values of $α$ , and the tracking error of a proportional–integral (PI) controller is also demonstrated for verification. The parameters of the PI controller are set to the values that give the best tracking performance in the test

u_{d} = 76 [(x_{d} - x_{1}) + 3 \int_{0}^{t} (x_{d} - x_{1}) dt]

(37)

Figure 4.

Tracking errors of harmonic tracking test using the proposed controller and PI controller.

It can be observed that the tracking errors of the proposed controller when $α$ is selected as 0.75 and 0.8 are almost the same as 1.2 mm. However, a large tracking error occurs when $α$ is selected as 0.85. It is clear that a higher value of $α$ can further improve the system efficiency at the cost of a larger tracking error. Thus, the value of $α$ is tuned as 0.8 by taking both energy saving and tracking performance into consideration. The largest deviations of actuator position always appear in the peaks of the reference signal (Figure 5) due to the fact that the pressure differences across the valve are relatively small in these points and the designed controller always applies high command signals to the PDV (Figure 6). Furthermore, the input signal of PRV (Figure 7) is variable and controlled by the VSPC to achieve an energy-saving performance. Thus, the system is prone to be saturated in these points. Furthermore, the results also demonstrated that the proposed controller exhibits better performance than PI controller in terms of tracking errors.

Figure 5.

Tracking performance of the proposed controller for harmonic tracking test.

Figure 6.

Normalized input signal of PDV.

Figure 7.

Normalized input signal of PRV.

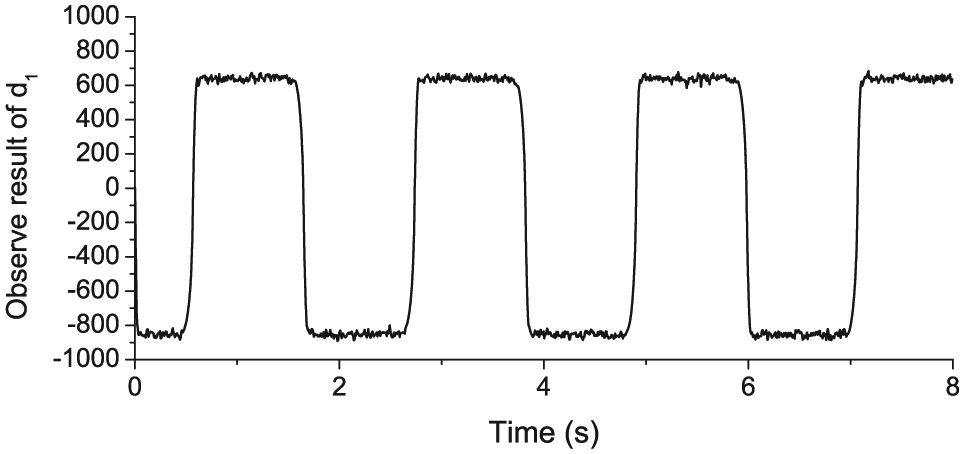

The observe results of $d_{1}$ and $d_{2}$ are shown in Figures 8 and 9, respectively. In order to verify the observer performance of $d_{1}$ , the observer performance is evaluated by means of a comparison between the driving force and estimated load force, which is shown in Figure 10. The driving force means $(p_{1} - a p_{2}) A_{1}$ , and the estimated load force is $m {\overset{\cdot\cdot}{x}}_{d} + B_{c} {\overset{\cdot}{x}}_{d} + k x_{d} - m {\hat{d}}_{1}$ . It can be seen from Figure 10 that the estimated load force is similar to the driving force. Thus, we can conclude that the unknown disturbance is well estimated, and the parametric uncertainties and uncertain nonlinearities of equations (34) and (35) could also be compensated by the DOB. Although the estimation accuracy of $d_{2}$ cannot be verified, we can still draw a conclusion that the disturbance $d_{1}$ is well estimated due to the precise tracking performance.

Figure 8.

Observe result of $d_{1}$ .

Figure 9.

Observe result of $d_{2}$ .

Figure 10.

Load force estimation performance: (a) driving force, (b) estimated load force, and (c) force difference.

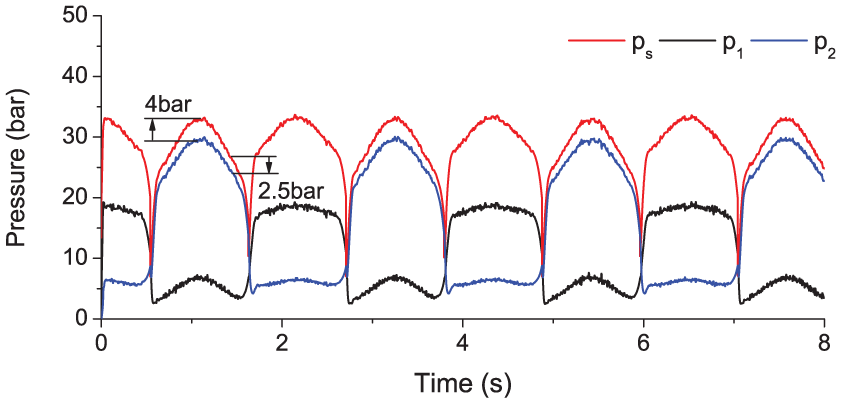

The pump pressure and chamber pressures are shown in Figure 11. It can be observed that the pressure is boosted when the demand flow is increasing and vice versa. A higher pressure margin always appears at the middle stroke of the cylinder in both forward and backward motions, which can verify the effectiveness of the energy-saving method. For the purpose of comparison, the VSPC part is omitted by setting the PRV input to a constant value. In this case, the system is similar as a fixed displacement system, in which the supply pressure is set as 42 bar. Figure 12 demonstrates the pump pressure and chamber pressures of this case. Figure 13 shows the comparison of energy supply between the fixed displacement system and the proposed system. The energy is calculated as follows

W = \int_{0}^{t} \frac{p_{s} Q_{L}}{600} dt

(38)

where $W$ denotes the energy whose unit is kJ, $p_{s}$ is the supply pressure whose unit is bar, and $Q_{L}$ is the flow rate of the pump which is $24 L / \min$ .

Figure 11.

Pump pressure and cylinder chamber pressures in harmonic tracking test with VSPC.

Figure 12.

Pump pressure and cylinder chamber pressures in harmonic tracking test without VSPC.

Figure 13.

Energy provided by the pump with and without VSPC in harmonic tracking test.

It can be seen from Figure 13 that the energy supply of the fixed displacement system is 13.1 kJ, and the energy supply of the proposed system is 7.2 kJ. Therefore, it can be concluded from the aforementioned analysis that the proposed method is capable of saving 45% energy during a typical harmonic trajectory tracking test with the maximum tracking error of 1.2 mm.

To further verify the performance of the proposed method in position tracking and energy-saving aspects, other tests which adopt the multi-step profile as the desired trajectory are conducted by setting the value of $α$ as 0.73. The tracking performance and tracking error are depicted in Figures 14 and 15, respectively. The results demonstrate that the position tracking performance is satisfied with a maximum tracking error of 1.2 mm. Furthermore, it can be seen that the dynamic response of the proposed system has not been changed compared with that of a fixed displacement system by comparing Figures 14 and 16. It is due to the fact that the desired pump pressure mainly depends on the system parameters instead of feedback signals. Meanwhile, it can be seen from Figures 17 and 18 that the energy-saving effect is also achieved. The amount of energy provided by proposed system is only 4.2 kJ and about 68% energy can be saved (Figure 19).

Figure 14.

Tracking performance of the proposed controller for multi-step tracking test.

Figure 15.

Tracking errors of multi-step tracking test using the proposed controller and PI controller.

Figure 16.

Tracking performance of a fixed displacement system.

Figure 17.

Pump pressure and cylinder chamber pressures in multi-step test with VSPC.

Figure 18.

Pump pressure and cylinder chamber pressures in multi-step test without VSPC.

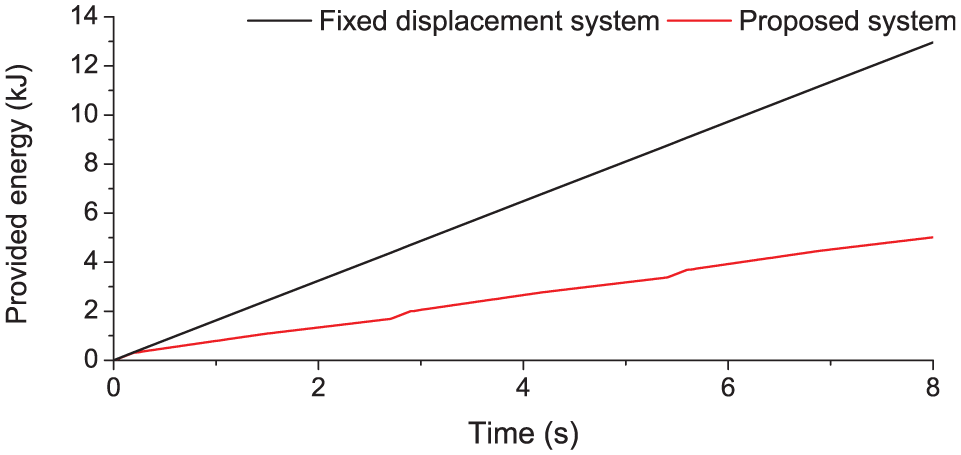

Figure 19.

Energy provided by the pump with and without VSPC in multi-step test.

Conclusion

A DOB-based cascade controller was developed in this study for precise tracking control of EHSS. The proposed method exhibits a good tracking capacity with the maximum tracking error of 1.2 mm in two kinds of tests. Compared with Tivay et al.,¹⁴ the proposed method has a relatively small tracking error.

A DOB-based VSPC was established for energy saving. Results show that the amount of saved energy in this study is 45% in the harmonic trajectory tracking test and 68% in the multi-step trajectory tracking test compared with a fixed displacement system. Compared with Baghestan et al.,¹⁵ the proposed method has a better energy-saving performance in terms of the harmonic trajectory tracking task.

The effectiveness of the proposed nonlinear energy-saving control strategy was validated by both harmonic trajectory test and multi-step trajectory test. The results demonstrate that both precise tracking performance and significant energy-saving effect of EHSS were achieved. Moreover, this method could be combined with the independent metering to achieve even more energy in mobile machinery and other applications.

Footnotes

Acknowledgements

The authors thank Keivan Baghestan, Amirkabir University of Technology, Tehran, Iran, for his valuable suggestions.

Academic Editor: Rahmi Guclu

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The project was funded, in part, by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD) and the 2016 Annual General University Graduate Research and Innovation Program of Jiangsu Province, China (KYLX16_0525).

References

Guo

Wei

Fang

. Position tracking control of electro-hydraulic single-rod actuator based on an extended disturbance observer. Mechatronics 2015; 27: 47–56.

Mohanty

Yao

. Integrated direct/indirect adaptive robust control of hydraulic manipulators with valve deadband. IEEE/ASME T Mech 2011; 16: 707–715.

Mohanty

Yao

. Indirect adaptive robust control of hydraulic manipulators with accurate parameter estimates. IEEE T Contr Syst T 2011; 19: 567–575.

Won

Kim

Shin

. High-gain disturbance observer-based backstepping control with output tracking error constraint for electro-hydraulic systems. IEEE T Contr Syst T 2015; 23: 787–795.

Gao

Shao

Yang

. A compound control strategy combining velocity compensation with ADRC of electro-hydraulic position servo control system. ISA T 2014; 53: 1910–1918.

Wang

Book

Huggins

. Application of singular perturbation theory to hydraulic pump controlled systems. IEEE/ASME T Mech 2012; 17: 251–259.

Quan

Zhang

. Review of energy efficient direct pump controlled cylinder electro-hydraulic technology. Renew Sust Energ Rev 2014; 35: 336–346.

Chiang

Yeh

Yang

. Integrated control of clamping force and energy-saving in hydraulic injection moulding machines using decoupling fuzzy sliding-mode control. Int J Adv Manuf Tech 2005; 27: 53–62.

Cho

Noskievič

. Position tracking control with load-sensing for energy-saving valve-controlled cylinder system. J Mech Sci Technol 2012; 26: 617–625.

10.

Lovrec

Kastrevc

Ulaga

. Electro-hydraulic load sensing with a speed-controlled hydraulic supply system on forming-machines. Int J Adv Manuf Tech 2009; 41: 1066–1075.

11.

Axin

Eriksson

Krus

. Flow versus pressure control of pumps in mobile hydraulic systems. Proc IMechE, Part I: J Systems and Control Engineering 2014; 228: 245–256.

12.

Kemmetmüller

Fuchshumer

Kugi

. Nonlinear pressure control of self-supplied variable displacement axial piston pumps. Control Eng Pract 2010; 18: 84–93.

13.

Yao

Liu

. Energy saving control of a hydraulic manipulator using five cartridge valves and one accumulator. IEEE T Ind Electron 2014; 61: 7046–7054.

14.

Tivay

Zareinejad

Rezaei

. A switched energy saving position controller for variable-pressure electro-hydraulic servo systems. ISA T 2014; 53: 1297–1306.

15.

Baghestan

Rezaei

Talebi

. An energy-saving nonlinear position control strategy for electro-hydraulic servo systems. ISA T 2015; 59: 268–279.

16.

Plummer

Johnston

. Performance analysis of an energy-efficient variable supply pressure electro-hydraulic motion control system. Control Eng Pract 2016; 48: 10–21.

17.

Cheng

Yang

. A hybrid displacement/pressure control scheme for an electrohydraulic flow matching system. IEEE/ASME T Mech 2015; 20: 2771–2782.

18.

Bing

Ding

Zhang

. Experiment research on individual metering systems of mobile machinery based on coordinate control of pump and valves. J Zhejiang Univ 2015; 49: 93–101.

Disturbance observer–based nonlinear energy-saving control strategy for electro-hydraulic servo systems

Abstract

Keywords

Introduction

System modeling and problem formulation

Controller design

DOB design

Assumption

Proof

Remark 1

Nonlinear cascade tracking control

VSPC

Remark 2

Result and discussion

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

References
