Abstract

The iterative learning control for aircraft engine above idle state is studied. An approach combining the proportional integral iterative learning with the traditional proportional integral derivative controller is proposed and then this hybrid iterative learning controller is constructed to control the speed of three typical engine models. In the simulation study, the proposed method is applied to the nonlinear component level engine model, state variable engine model, and linear parameter-varying engine model; the results show that the performance of the proposed hybrid iterative learning controller is much better than the traditional proportional integral derivative controller.

Keywords

Aircraft engine component level model linear parameter-varying model hybrid iterative learning

Introduction

The modern aircraft engine is a complicated thermomechanical system which works in the conditions of high temperature, high stress, and variable load; therefore, it is difficult to control such plant which belongs to strongly nonlinear, complex, multivariable time-varying systems.¹ To solve this problem, the common approach is splitting the flight envelop into different operating points; thus, the approximated linear models at each operating point are employed in aero-engine controller, such as finite impulse response model² or small perturbation state space model.^2–4 Consequently, traditional linear control methods, such as $H_{\infty}$ optimal control,^5–7 linear quadratic regulator (LQR)/loop transfer recovery (LTR),⁸ and proportional integral derivative (PID) control, are then utilized for each linear model. Finally, gain-scheduling method is employed to control aircraft engines over the full flight envelope. In fact, this is almost standard practice in the field of aircraft engine control and has achieved a fairly acceptable performance. Among these traditional control design methodologies, PID control is a common approach which could obtain acceptable performance with fairly conservative parameters. However, this approach could not provide accurate tracking between the actual and desired output, which brings, to a large extent, loss of the performance of the engine. Thus, advanced control design methods are necessary to be investigated in the field of aircraft engine control.

Iterative learning control is a branch of the intelligent control, and the control input is modified by repeated repetition to achieve the goal that desired trajectory is fully tracked by the output signal.⁹ Like the human learning process, the control input of the last control process and the deviation output of the system are recorded by the system, the current control input of the system is generated by the iterative learning algorithm with process repeated continuously, and the desired signal is gradually followed or fully tracked by the output signal in a given time.

In 1974, the iterative learning was first proposed by Edwards. Then, in 1978, the basic idea of iterative learning was formally put forward by Uchiyamat,⁹ but the idea did not attract people’s attention. In 1984, Arimoto et al.¹⁰ researched the iterative learning system in depth and put forward the practical algorithm, and iterative learning thought has been further improved and developed, which has aroused wide concern.

Over the past 30 years, the theory of iterative learning control has made great progress, a series of works on the idea of iterative learning control were published by H Lin and L Wang,¹¹ M Sun and B Huang,¹² and S Yu et al.,¹³ and iterative learning was further explored and illustrated in detail. In the aspects of convergence, stability, robustness, initial value problem, analysis method, and algorithm implementation, the iterative learning had made great achievements. Moreover, the combination of iterative learning and other control methods, such as fuzzy control, neural network control, and adaptive control, also has achieved success.

At present, the PID iterative learning algorithm is mainly focused on the PID-type learning law, which includes the P type, the D type, the proportional integral (PI) type, the proportional derivative (PD) type, and the PID-type learning law. Among them, the PID-type learning law is most popular. PID-type learning law is used as a template; with different control plants, the PID-type iterative learning law has made a lot of practical improvements. In the work by S Yu et al.,¹³ the combination of fuzzy control and PID-type iterative learning control makes the learning gain of original system can be adjusted according to requirements, and it has been applied to the electro hydraulic servo control system. The experiments show that the idea of fuzzy control is applied to the iterative learning control system, and the performance index of the system is improved greatly.^14,15

A study on applying iterative learning control to the aircraft engine control system above idle is carried out; the hybrid iterative learning controller scheme is employed to control the rotating speed of three kinds of engine models. In the simulation study, the proposed method is applied to the nonlinear component level engine model, state variable engine model, and linear parameter-varying (LPV) engine model; the results show that the performance of the proposed hybrid iterative learning controller is much better than the traditional PID controller.

PI-type iterative learning control method

Considering a continuous model of the aircraft engine control system, which is shown as equation (1)

\begin{matrix} \overset{\cdot}{x} (t) = h (t, x (t), u (t)) \\ y (t) = f (t, x (t)) + Nu (t) \end{matrix}

(1)

$x \in R^{n}$ , $u \in R^{m}$ , and $y \in R^{v}$ , where x is the state vector of the system, u is the control vector of the system, y is the output vector of the system, and N is iterative learning gain. The system runs in the time interval [0,T] repeatedly, the function relationship $f, h$ remains unchanged.

The output state of the system after k iterations could be shown as equation (2)

\begin{matrix} {\overset{\cdot}{x}}_{k} (t) = h (t, x_{k} (t), u_{k} (t)) \\ y_{k} (t) = f (t, x_{k} (t)) + N u_{k} (t) \end{matrix}

(2)

Output deviation of the system is presented as equation (3)

e_{k} (t) = y_{d} (t) - y_{k} (t)

(3)

Within the specified time $t \in [0, T]$ , control input quantity $u_{k}$ will be continuously optimized by iterative learning control, when the number of iteration $k \to \infty$ , $e_{k} (t) \to 0$ .

The iterative learning algorithm can be usually classified into two categories: open-loop iterative learning law and closed-loop iterative learning law. In the open-loop iterative learning law, the current control variable of the system is obtained by the output deviation of the system last running. In the closed-loop iterative learning law, the current control variable is obtained by the current output deviation of the system. In the proposed approach, closed-loop iterative learning law is adopted, which can be generally formulated by equation (4)

u_{k + 1} (t) = u_{k} (t) + g (e_{k + 1} (t), t)

(4)

The basic structure of the closed-loop iterative learning law is shown in Figure 1. According to Figure 1, the current control variable $u_{k + 1} (t)$ consists of the last value $u_{k} (t)$ and the output of the closed-loop iterative learning law. The desired trajectory $y_{d} (t)$ represents the expected value of the system output variable $y_{k} (t)$ . The output deviation $e_{k + 1} (t)$ is utilized to correct the control variable $u_{k + 1} (t)$ .

Figure 1.

Structure diagram of closed-loop iterative learning.

Within the time interval $t \in [0, T]$ , algorithm procedure of the system running is as follows:

At $k = 0$ iteration of the system, desired trajectory $y_{d} (t)$ is given, the control variable $u_{0} (t)$ is initialized. System runs, system output variable $y_{k} (t)$ is collected and stored.

At $k = k + 1$ iteration of the system, the current deviation of the system $e_{k + 1} (t)$ is obtained by $e_{k + 1} (t) = y_{d} (t) - y_{k} (t)$ , then the control input variable $u_{k + 1} (t) = u_{k} (t) + g (e_{k + 1} (t), t)$ of system currently running is obtained by putting $e_{k + 1} (t)$ into the closed-loop iterative learning law, and the output signal $y_{k + 1} (t)$ is collected and stored.

Check the stop condition of the iteration. When $e < e_{0}$ , the iteration is terminated; otherwise, jump to second step to continue.

The proposed method includes two parts, the conventional PI control and the closed-loop iterative learning control, so this approach is named hybrid iterative learning control. The schematic diagram of proposed hybrid iterative learning controller is shown in Figure 2.

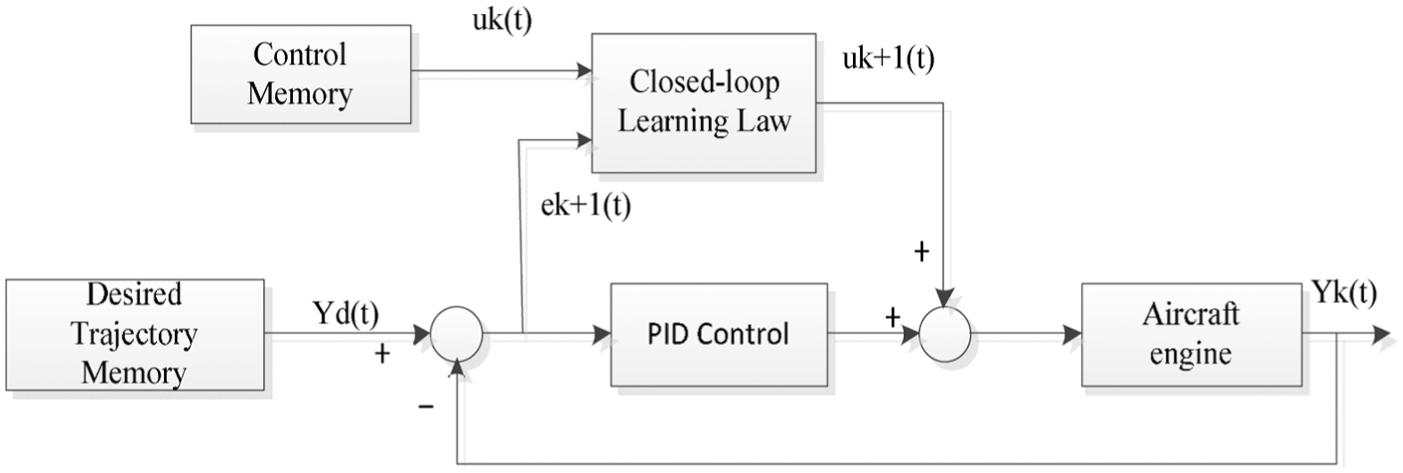

Figure 2.

Structure diagram of hybrid iterative learning controller.

The PI-type learning law is used as the closed-loop-type learning law in this section

u_{k + 1} (t) = u_{k} (t) + Γ_{p} e_{k + 1} (t) + Γ_{i} \int e_{k + 1} (τ) d τ

(5)

$u_{k + 1} (t)$ is the system control variable at the $k + 1$ iteration, $u_{k} (t)$ is the system control variable at the k iteration, $e_{k + 1} (t)$ is the system deviation at the $k + 1$ iteration. $Γ_{p}$ and $Γ_{i}$ are iterative learning gains.

In general, the goal of aircraft engine control is to obtain the corresponding desired thrust for the different flight tasks. However, the engine thrust could not be measured directly; thus, the rotating speed is often used as the controlled variable for the actual thrust and is approximately in direct proportion to third power of its rotating speed. In the following simulation above idle state for hybrid iterative learning control scheme, three types of engine models are utilized as the control plants, and two work points for a nonlinear component level model and two work points for the state variable model, and a fairly wide range of the LPV model is verified by the proposed approach; the results show its better performance than the conventional PI method in the aircraft engine control above idle state.

Hybrid iterative learning control based on nonlinear model

The controlled plant in Figure 3 is the dynamic link library (DLL) model of the aircraft engine DLL; the model is a nonlinear component level model which is built via the object-oriented programming method. Based on the structure of aircraft engine, a class which contains the important parts of the engine is defined. For example, for a turbofan engine, an engine class is predefined which have inlet, turbofan, compressor, combustion chamber, turbine, nozzle, and so on. Meanwhile, some auxiliary functions or routines which are necessary for running the engine model are also built. When importing the component parameters to this class, the nonlinear component level model of this specific engine is ready; this model is also easy to be called from the MATLAB/Simulink environment.¹⁶ The method is easily realized, reproducible, and applicable, a large amount of manpower and material resources can be reduced by using it. $y_{d}$ is the system desired signal, y is the system output signal, e is the system deviation signal, and u is control input of the system. In this simulation, the tracking performance of desired outputs around two working points will be verified.

Figure 3.

Simulation structure diagram of hybrid iterative learning system.

Hybrid iterative learning control based on state variable model

A small perturbation state variable model of a turbofan engine is also employed in the simulation, and the work point of this model at the stable point $(x, u, y)$ is as equation (6)

\begin{matrix} Δ \overset{\cdot}{x} = A Δ x + B Δ u \\ Δ y = C Δ x + D Δ u \end{matrix}

(6)

State quantity $x = [N_{L}, N_{H}]^{T}$ are, respectively, the rotating speed of the fan and the compressor; controlled quantity $u = [W_{f}]$ is the fuel supply to the main chamber; output $y = [N_{L}, N_{H}, T_{22}, P_{3}, T_{5}, P_{6}]^{T}$ are, respectively, the fan speed, the compressor speed, the fan outlet total temperature, the compressor outlet total pressure, the low pressure turbine outlet total temperature, and the connotation export total pressure.

The small perturbation and the fitting method are applied to solve the state variable model at the above stable point and then the control model of the aircraft engine at the stable point is established in MATLAB.

The iterative learning module in the hybrid iterative learning is still a PI iterative learning law. The structure of the control system in MATLAB is presented in Figure 4.

Figure 4.

Hybrid iterative learning control state variable model simulation.

$y_{d}$ is the system desired signal, y is system output signal, e is the system output deviation, and u is system control quantity. Then, a linear engine model of two different work points of the aircraft engine will be simulated.

Hybrid iterative learning control based on LPV model

The LPV system is a time-varying system, and the coefficient matrix of the state space equation is a determined function whose certain time-varying parameters are measurable.¹⁷ The LPV model can describe not only a steady-state point but also the continuous state point of a certain state interval, and the defect that a conventional linear model can only describe a single state point is compensated. The LPV model of the aircraft engine constructed in MATLAB is presented in Figure 5, and u is the input of the control system and y is the output signal of LPV model. The proposed approach could be verified whether it is efficient for control of the aircraft engine in a pretty wide work range through this simulation.

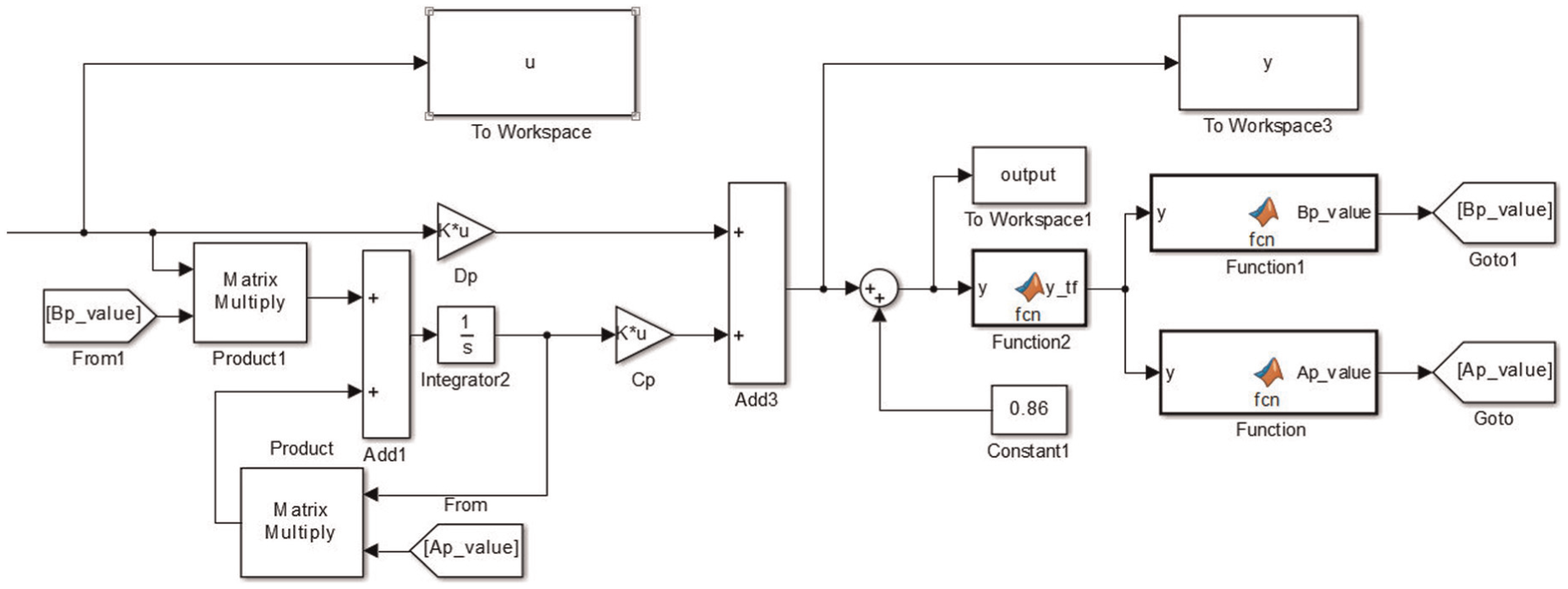

Figure 5.

LPV model of aircraft engine.

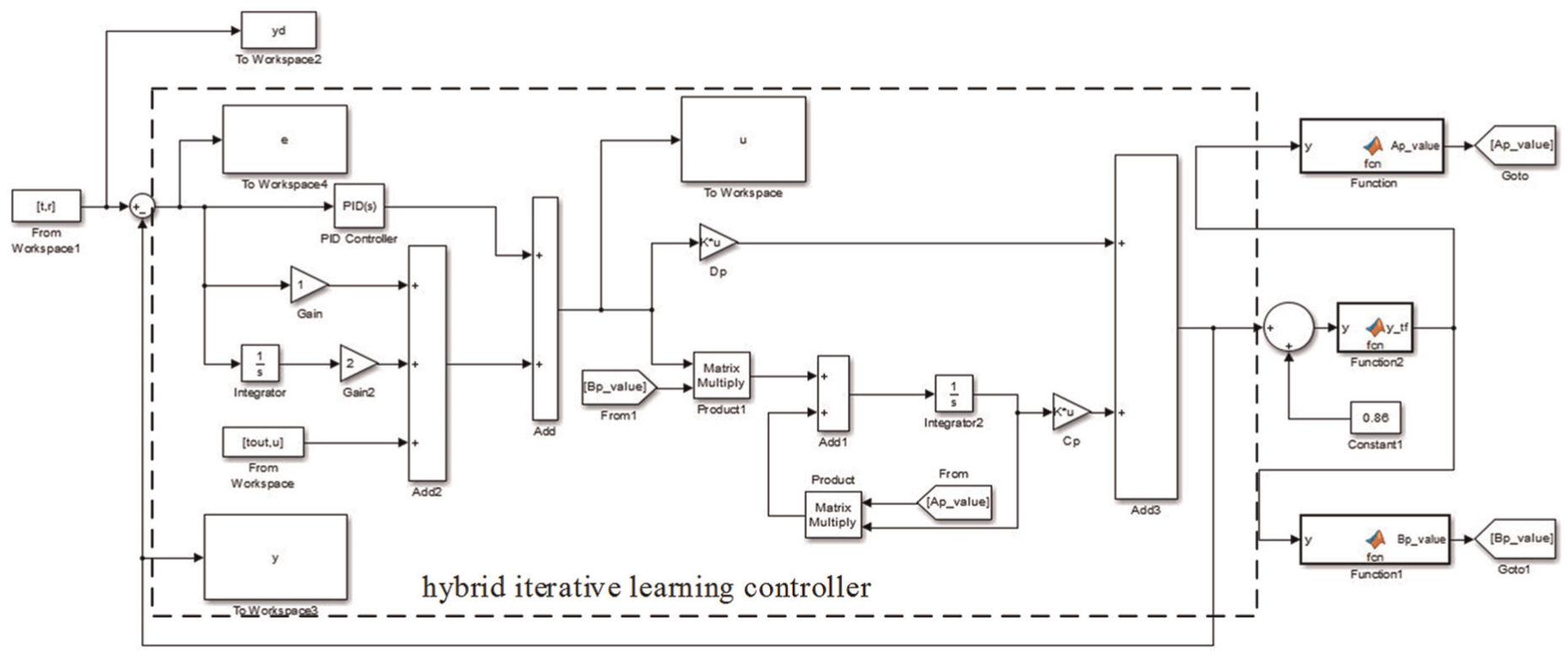

Simulation is shown in Figure 6, $y_{d}$ is the system tracking signal, LPV module is the controlled plant, y is the output signal of controlled plant, e is the system output deviation, and u is the control variable of the controller. The working status of the aircraft engine, which is described by the LPV module of the controlled plant, is between the speed of 86% and 96%.

Figure 6.

Simulation of hybrid iterative learning linear parameter-varying model.

Simulation analysis

Application of hybrid iterative learning control based on nonlinear model

Aircraft engine DLL model is utilized as the control plant, the iterative learning idea is applied to the conventional PI control system to form a hybrid iterative learning control system, engine different state points are tracked and controlled, experiment results show that the hybrid control system with the iterative learning control module can track target signal more rapidly, and the convergence effect is better and the tracking precision is higher than conventional PI controller.

In order to validate control performance of the hybrid iterative learning is better than the conventional PI controller, the hybrid controller consisting of a closed-loop iterative learning control and a conventional PI control will be used to track and control, respectively, two different working point of aircraft engine above idle state.

1. The engine speed is 100%, $n = 13, 340 r / min$ , $k_{p} = 2, k_{i} = 5$ , and the fuel supply of main combustor $W_{f} = 2.48 kg / s$ .

In Figure 7, $y_{d}$ is system desired signal, which is a normalized rotating speed and equals the current rotating speed divided by the nominal maxim rotating speed (the actual rotating speed can exceed this maxim speed in a very small range); $y_{0}$ is system output signal when the number of iteration is zero, in other words, the control link only contains conventional PI controller; $y_{1}$ , $y_{2}$ present the system output signal when the number of iterations is one and two. For the control system whose control link only contains conventional PI controller, there is still a large deviation after the system runs and adjustment time $t_{s} = 4 s$ . For the hybrid control system with PI iterative control module, $t_{s} = 3.78 s$ and overshoot is 2.1% after the first iteration; $t_{s} = 3.05 s$ and overshoot is 2.3% after the second iteration. With the increase in the number of iterations, the adjustment time is getting shorter, the overshoot increases, and the output signal of the system is more and more close to the desired trajectory. After the third iteration, tracking effect is achieved very well.

Figure 7.

System output signal based on nonlinear model.

Iteration stops when $e < e_{0}$ ; according to different experimental requirements, $e_{0}$ has different valuation. In this simulation, $e_{0} = 0.016$ .

In Figure 8, the maximum output deviation of the system decreases gradually with the increase in the number of iterations. After the first iteration, the deviation $e = 0.0201$ ; $e = 0.0177$ after the fifth iteration; $e = 0.0158$ after the tenth iteration.

Figure 8.

Maximum deviation of system based on nonlinear model.

2. The engine speed is 96%, $n = 12, 806 r / min$ , $k_{p} = 2, k_{i} = 5$ , and the fuel supply of main combustor $W_{f} = 1.92 kg / s$ .

In Figure 9, for conventional PI controller, $t_{s} = 3.1 s$ after the system runs, and there is still a big gap between system signal output and the desired trajectory; for the hybrid control system with PI iterative control module, $t_{s} = 3.5 s$ and overshoot is 16.5% after the first iteration; $t_{s} = 3.05 s$ and overshoot is 23.5% after the second iteration; $t_{s} = 2.73 s$ and the overshoot is 30% after the third iteration. With the increase in the number of iterations, the adjustment time is getting shorter, but the overshoot is increasing, and the output signal of the system is more and more close to the desired signal. After the third iteration, tracking effect is achieved very well. Moreover, for different operating points of the engine model, the hybrid control system shows a good control quality.

Figure 9.

System signal output based on nonlinear model.

In Figure 10, the output deviation of the system decreases obviously with the increase in the number of iterations. The deviation of the system $e = 0.0342$ after the system controlled by conventional PI controller runs and the deviation of the system $e = 0.0284$ after the third iteration of the hybrid iterative learning system. So the iterative learning module is added to the conventional PI control system, the decreasing speed of system tracking deviation will be greatly improved, and the convergence is better.

Figure 10.

System deviation output based on nonlinear model.

Application of hybrid iterative learning control based on the state variable model

1. The engine speed is 100%, the controller gains $k_{p} = 7$ , $k_{i} = 11$ , and the coefficient matrix of the engine state variable model is

A = [\begin{matrix} - 2.787506 & 2.744971 \\ - 0.344865 & - 2.27456 \end{matrix}], B = [\begin{matrix} 1.012197 \\ 0.606536 \end{matrix}]

C = [\begin{matrix} 1 & 0 \\ 0 & 1 \end{matrix}], D = [\begin{matrix} 0 \\ 0 \end{matrix}]

Simulation results are shown in Figures 11 and 12.

Figure 11.

System signal output based on the state variable model.

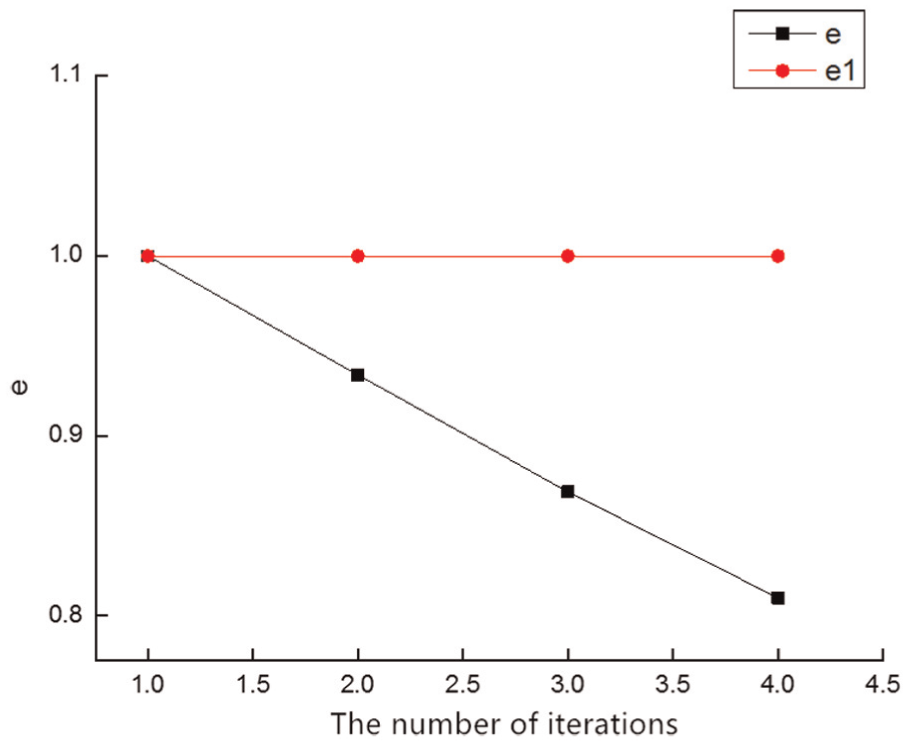

Figure 12.

System deviation output based on the state variable model.

In Figure 11, $y_{d}$ is the system desired trajectory; $y_{n}$ is the output signal of conventional PI control system; $y_{1}$ is the output signal after the first iteration of the system; $y_{2}$ is the output signal after the second iteration; and $y_{3}$ is the output signal after the third iteration. For the conventional PI control system, $t_{s} = 4.2 s$ after the system runs; $t_{s} = 3.2 s$ after the first iteration of the hybrid iterative learning control system, no overshoot; $t_{s} = 2.38 s$ after the second iteration and the overshoot is 6.99%; $t_{s} = 2.32 s$ after the third iteration and the overshoot is 14.9%. With the increase in the number of iterations, the adjustment time of the system is gradually shortened, and the overshoot is increased gradually, and a good convergence effect has been basically reached when the second iterative learning ends.

In Figure 12, e is the maximum absolute output deviation of hybrid iterative control system and e₁ is the maximum absolute output deviation of conventional PI control system. With the increase in the number of iterations, the maximum absolute deviation of hybrid iterative control system has greatly reduced and the maximum absolute deviation of conventional PI control system has not changed.

2. The engine speed is 88%, $n = 11, 739 r / min$ , the controller gains $k_{p} = 5$ , $k_{i} = 8$ , and the coefficient matrix of the engine state variable model is

A = [\begin{matrix} - 4.309009 & 1.474332 \\ - 0.159904 & - 2.392488 \end{matrix}], B = [\begin{matrix} 1.030136 \\ 0.816116 \end{matrix}]

C = [\begin{matrix} 1 & 0 \\ 0 & 1 \end{matrix}], D = [\begin{matrix} 0 \\ 0 \end{matrix}]

Simulation results are shown in Figures 13 and 14. In Figure 13, for the conventional PI control system, $t_{s} = 4.2 s$ after the system runs; $t_{s} = 2.6 s$ and no overshoot after the first iteration of the hybrid iterative learning control system; $t_{s} = 2.43 s$ and the overshoot is 9.7% after the second iteration; $t_{s} = 2.32 s$ and the overshoot is 17.5% after the third iteration. With the increase in the number of iterations, system adjustment time is gradually shortened, and the overshoot is gradually increasing, and a good convergence effect has been basically reached when the second iterative learning ends. The system output signal can track the desired signal very well when the hybrid iterative learning control system makes only two iterations, while the output signal of the conventional PI control system has a great difference with the desired trajectory.

Figure 13.

System signal output based on the state variable model.

Figure 14.

System deviation output based on the state variable model.

In Figure 14, the convergence rate of the hybrid iterative control system is very fast, with the increase in the number of iterations, the output deviation of the system is greatly reduced, while the output deviation of the system cannot be reduced by the traditional PI controller. From the simulation results of the 100% speed point of the engine, in different state points of the engine, the hybrid iterative learning has excellent control effect. Compared with the conventional PI controller, all performance indices of the control system have greatly promoted after iterative learning is added.

The simulation results show that compared with the conventional PI controller, the control effect of hybrid iterative learning on the state variable model of aircraft engine is faster convergence speed, smaller absolute deviation, and better control quality. Moreover, in the face of aircraft engine model at different state points, hybrid iterative learning control has a better control effect.

Application of hybrid iterative learning on LPV model

The working status of the aircraft engine, which is described by the LPV module of the controlled plant, is between the speed of 86% and 96% in the experiment.

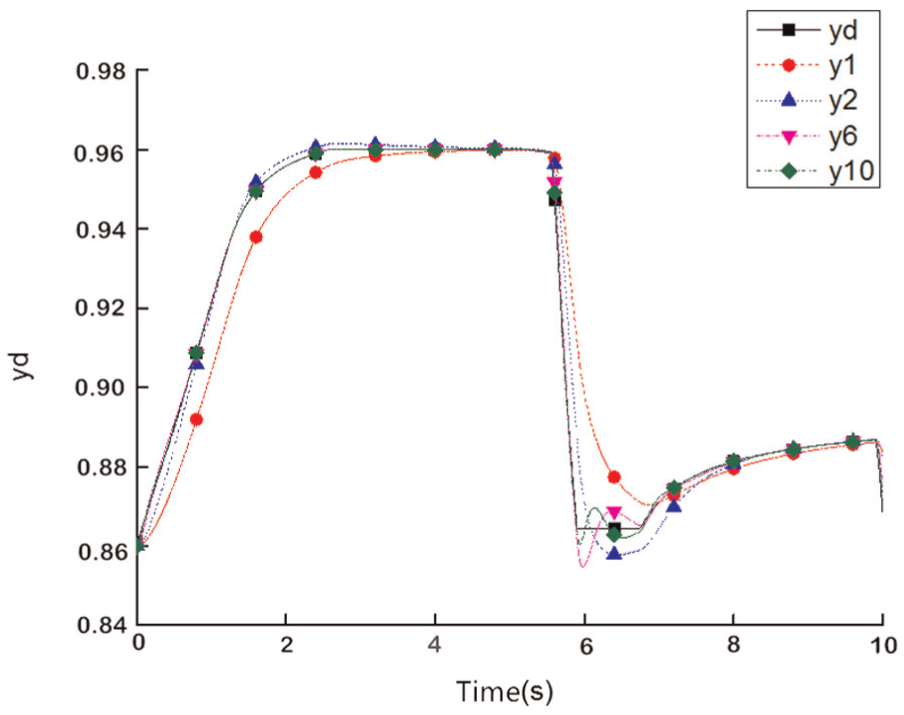

In Figure 15, $y_{d}$ is the system desired signal; $y_{1}$ , $y_{2}$ , $y_{6}$ , and $y_{10}$ , respectively, are the output signals of the first, second, sixth, and tenth iterations. With the increase in the number of iterations, the system becomes more and more close to the target curve. The output signal of the system has achieved good tracking results after the second iteration. In Figure 16, with the increase in the number of iterations, system output deviation is gradually reduced, maximum absolute deviation of system $e = 0.0471$ after the first iteration, $e = 0.0239$ after the second iteration, and $e = 0.0052$ after the tenth iteration.

Figure 15.

System signal output based on LPV model.

Figure 16.

System deviation output based on LPV model.

Simulation experiments show that the hybrid iterative learning controller consisting of the traditional PI controller and PI iterative learning has a good simulation effect on LPV model of aircraft engine. Compared with the conventional PI control system, the output deviation of the system can be reduced by hybrid iterative learning control system in a very short time, and the output signal is more accurate in tracking the desired signal.

Conclusion

The iterative learning control for aircraft engine above idle state is studied. An approach combining the PI iterative learning with the traditional PID controller is proposed and then this hybrid iterative learning controller is constructed to control the speed of three typical engine models. In the simulation study, the proposed method is applied to the nonlinear component level engine model, state variable engine model, and LPV engine model. The results show that the proposed approach has significant improvements than the conventional PID control method, system deviation can be greatly reduced, and the desired trajectory is tracked gradually or completely in a few iterations within a very short time. Compared with the conventional PI controller, the control ability of the conventional PI controller will be significantly improved after adding the iterative learning.

Footnotes

Appendix 1

Academic Editor: Hamid Reza Shaker

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the Natural Science Foundation of Jiangsu Province (No. BK20140820), the Natural Science Foundation of China (No. 51406083), and the Fundamental Research Funds for the Central Universities (No. NJ20160037).

References

Sun

Zhang

Modern aviation power device control. Beijing, China: Aviation Industrial Publishing House, 2001.

Zhao

Fan

Shan

Single-spool turbofan engine model identification. J Propul Technol 2008; 29: 733–736.

Zheng

Wang

Luo

. Modified method of establishing the state space model of aeroengine. J Propul Technol 2005; 26: 46–49.

Zhou

Shan

Geng

. Establishment of state space model of turboshaft engine with self-optimized method. J Aerospace Power 2008; 23: 2314–2320.

Frederick

Garg

Adibhatla

Turbofan engine control design using robust multivariable control technologies. IEEE T Contr Syst T 2000; 8: 961–970.

Harefors

Application of H1 robust control to the RM12 jet engine. Control Eng Pract 1997; 5: 1189–1201.

Wang

Guo

. Aero-engine control design using two degrees-of-freedom H_∞ approach. In: Proceedings of ISSCAA, Shenzhen, China, 10–12 December 2008, pp.1–5.

Yang

Sun

Yao

. Experimental verification of H1/LTR method for aero engine control systems. Acta Aeronaut Astronaut Sin 2006; 27: 773–777.

Uchiyamat

Formation of high-speed motion pattern of mechanical arm by trial. T Soc Instr Contr Eng 1978; 14: 706–712.

10.

Arimoto

Kawamura

Miyazaki

Bettering operation of robotics by learning. Robot Syst 1984; 1: 123–140.

11.

Lin

Wang

Iterative learning control theory. Xi’an, China: Northwestern Polytechnic University Press, 1998.

12.

Sun

Huang

Iterative learning control. Beijing, China: National Defence Industry Press, 1999.

13.

Iterative learning control theory and its application. Beijing, China: China Machine Press, 2005.

14.

Ishihira

Abe

Takeda

A discrete-time design of robust iterative learning control. IEEE T Syst Man Cyb 1992; 22: 74–84.

15.

Bien

Suh

An iterative learning control method with application on robot manipulator. IEEE J Robot Autom 1988; 4: 508–514.

16.

Huang

Study of dynamic link library (DLL) modeling technology for aeroengine. Aeroengine 2012; 38: 18–20.

17.

Wang

Han

. Study of aeroengine linear parameter varying modeling. J Propul Technol 2007; 28: 418–420.
