Closed-loop characteristics of generalized optimal preview-follower incorporating coupled roll dynamics

Abstract

This paper proposed a novel generalized preview-following methodology integrating coupled suspension roll characteristics for vehicles. The road geometry is described via a parametric time-dependent cubic spline, which represents road direction, curvature, and curvature rate. The ideal preview trajectory transfer function is derived, and the future lateral position of the vehicle is defined by a third-order polynomial. By minimizing the deviation between the preview path and the vehicle’s future lateral position within an objective function, the effective road preview input is determined. A distinctive correction function is introduced based on an equivalent handling dynamics model that incorporates coupled suspension roll characteristics. Experimental validation of the closed-loop system is carried out, through comparative data analysis with the ISO 3888-1 double lane change maneuver at 80 km/h. Furthermore, the impact of roll motion on trajectory tracking precision, quantified by dedicated total variance metrics, is systematically assessed across varying vehicle speeds. The minimum total variance values of trajectory tracking are 0.21 and 0.16 at the first and rear suspensions, respectively. The results demonstrate that the proposed method effectively optimizes suspension roll dynamics to enhance the lane-keeping performance in commercial vehicles, especially under conditions where suspension-roll effects are pronounced.

Introduction

In recent years, commercial vehicles active safety has garnered substantial attention. The application of Advanced Driver Assistance Systems (ADAS) is becoming increasingly prevalent in buses and commercial vehicles, with Lane Keeping Assist Systems (LKAS) being a key example. These systems enhance safety by using cameras to detect lane markings and integrating data on steering angle, vehicle speed, and dynamics to perform preview-based trajectory tracking, thereby effectively mitigating unintentional lane departures.^1–3 Commercial vehicles present distinct challenges owing to extended wheelbases, increased mass, and elevated centers of gravity. Consequently, the trajectory tracking performance is highly susceptible to multi-source uncertainties, including steering, uneven road excitation and suspension roll dynamics.^4,5 This necessitates a more comprehensive consideration of the vehicle dynamics in the controller design.^6,7

Trajectory tracking constitutes a crucial component in the development of commercial vehicle, with the optimal preview-follower theory being commonly employed. ⁸ Further improvements have been attained through the application of adaptive learning model predictive control (MPC) for autonomous ground vehicles.^9,10 The suspension variable-geometry^11,12 and cornering characteristics ¹³ have been integrated into the control algorithm to augment vehicle tracking stability and driving safety under complex extreme conditions. Saleh et al. ¹⁴ proposes a novel cybernetic driver model for lane-keeping control, integrating visual road geometry perception, haptic feedback, and neuromuscular dynamics. Through driving simulator experiments conducted across a wide range of speeds, the study establishes quantitative relationships between identified model parameters and human driver behavioral characteristics, thereby validating the model’s biological fidelity for autonomous vehicle applications. Hong et al. ¹⁵ introduces a shared control architecture that enables seamless mode transitions through a smoothly weighted MPC approach, with dynamic weight adaptation across the prediction horizon. Wu et al. ¹⁶ proposes an integrated robust model matching chassis controller to improve vehicle handling performance and lane keep performance. The H∞ controller design is grounded in linear matrix inequalities and integrates active rear wheel steering control, longitudinal force compensation, and active yaw moment control. Moreover, a comprehensive evaluation of the closed-loop driver–vehicle system is carried out. Amditis et al. ¹⁷ proposes a model-based lane-keeping control framework tailored for complex driving scenarios, incorporating multi-modal environmental perception and adaptive decision-making algorithms.

The performance of closed-loop systems can be significantly enhanced by fully exploiting known future information regarding the desired trajectory or disturbance signals. Guo studies the driver-vehicle-road closed-loop system and preview follower driver model, incorporating the varying vehicle speed, ¹⁸ and jerky dynamics. ¹⁹ The suspension roll steer effect generates additional lateral forces, and the three-axle kinematic coupling considerably influences the vehicle’s dynamic response characteristics. An equivalent handling model incorporating suspension roll characteristics has been established, which is applicable to n-axle commercial vehicle. ²⁰ Deng et al. ²¹ enhances the directional stability of articulated heavy vehicles through a multi-point preview-predictor control strategy. The study implements a triple-preview-point driver model and rigorously validates its path-tracking performance under diverse operating conditions. Zhao and Lin ²² develops a multidimensional assessment framework for driver-vehicle closed-loop dynamics, systematically analyzing human-machine interactions with a particular focus on coupling mechanisms during critical maneuvers, including high-speed lane changes and emergency obstacle avoidance scenarios.

According to the proposed method of previewed cubic spline, the steering angle of the control system has been calculated, and a general mathematical expression has been derived. The results of the lateral control strategy were compared with experimental measurements. The effect of the front and rear suspension roll steers on the evaluation index of trajectory tracking total variance was analyzed at different vehicle velocities, providing a basis for optimizing suspension K&C characteristics.

The main contributions of this study are as follows:

A generalized optimal cubic spline preview-follower method, tailored for commercial vehicles with a high center of mass and long wheelbase, has been developed. This strategy utilizes a cubic spline method to represent both the path (in terms of direction, curvature, and curvature rate coefficients) and the vehicle’s predicted future lateral position, which is characterized by lateral velocity, acceleration, and jerk coefficients.

A unique correction function is introduced, which is based on an equivalent handling dynamics model that integrates coupled suspension roll characteristics. A comprehensive equivalent handling dynamics model is proposed, which explicitly incorporates suspension roll-steer effects and the critical coupling dynamics among multiple axles. This model is formulated with the intention of being generically applicable to commercial vehicles.

The closed-loop system undergoes experimental validation through comparative analysis of data. Furthermore, a systematic evaluation is conducted to assess the impact of the suspension roll of the first and rear axles on trajectory tracking precision. This precision is quantified by unique total variance metrics, and the evaluation is carried out under a range of vehicle speeds. This analysis offers direct insights for optimizing suspension Kinematics & Compliance (K&C) characteristics and improving lane-keeping accuracy, particularly under conditions characterized by substantial suspension roll effects.

Generalized optimal cubic spline preview-follower

The local coordinate system $x-y-z$ origin aligned to the installation reference point. The basic offset of preview distance corresponding to the origin is defined as $d_0$ . The preview distance is given by

$$d=d_0+k_n·(\mathrm{\Delta }d)$$

(1)

where $\mathrm{\Delta }d$ is step size, $k_n$ is number of reference points typically between 0 and 19.

The preview time $\tau$ is defined as

$$\tau =\frac{d}{V_x}$$

(2)

where $V_x$ is longitudinal speed.

The parametric representation of the road geometry through

$$\begin{array}{c}\multicolumn{1}{c}{\rho (t+\tau )=\sum _{i=0}^3{C}_i{d}^i}\\ =\sum _{i=0}^3{C}_i{(V_x\tau )}^i\hfill \end{array}$$

(3)

where $\rho (t+\tau )$ is lateral coordinate value of trajectory centerline at preview point, $C_0$ is lateral offset of trajectory centerline at basic point, $C_1$ is direction of trajectory centerline, $C_2$ is curvature of trajectory centerline, $C_3$ is curvature rate of trajectory centerline.

The Laplace transform of equation (3) is

$$L[\rho (t+\tau )]=\sum _{i=0}^3\frac{C_i{V_x}^i}{s^{i+1}}$$

(4)

where $L[\rho (t+\tau )]$ is Laplace transform, $s$ is Laplace operator.

The ideal preview trajectory transfer function $H(s)$ is modeled as

$$H(s)=\frac{L[\rho (t+\tau )]}{L[\rho (t)]}=\frac{e^{\tau s}}{1+T_{\mathrm{vis}}s}$$

(5)

where $T_{\mathrm{vis}}$ is visual latency.

The future lateral position of vehicle is defined using a cubic spline, such that

$$y_{\mathrm{veh}}(t+\tau )=\sum _{i=0}^3{a}_i{\tau }^i$$

(6)

where $a_0$ is initial lateral offset $y_{\mathrm{veh}}(t)$ , $a_1$ is lateral velocity $V_y$ , $a_2$ is lateral acceleration ${\stackrel{·}{V}}_y$ /2, $a_3$ is lateral jerk ${\stackrel{··}{V}}_y$ /6.

As illustrated in Figure 1, the point $A$ represents the mean of the ‘near’ 10 points, while the point $B$ is the mean of the ‘far’ 10 points. From the point $A$ to the point $B$ , the follower control strategy of preview path is a process, information perception-path decision-operation correction. The cubic spline polynomials of preview path and vehicle future lateral position are compared to establish the objective function with initial condition of $\tau =0$ , such that

$$J={\int }_{{\tau }_A}^{{\tau }_B}{[\sum _{i=0}^3{C}_i{(V_x\tau )}^i-\sum _{i=0}^3{a}_i{\tau }^i]}^2\omega (\tau )\mathrm{d}\tau$$

(7)

where J is objective function, $\omega (\tau )$ is a weighting function.

Figure 1.

Cubic spline preview path.

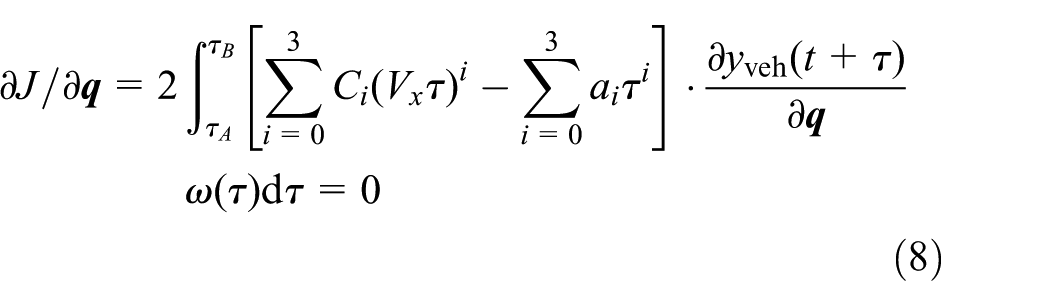

The optimal partial derivative of equation (7) is obtained by

$$\begin{array}{c}\multicolumn{1}{c}{\partial J/\partial \mathit{q}=2{\int }_{{\tau }_A}^{{\tau }_B}[\sum _{i=0}^3{C}_i{(V_x\tau )}^i-\sum _{i=0}^3{a}_i{\tau }^i]·\frac{\partial y_{\mathrm{veh}}(t+\tau )}{\partial \mathit{q}}}\\ \multicolumn{1}{c}{\omega (\tau )\mathrm{d}\tau =0}\end{array}$$

(8)

With $\mathit{q}=[\begin{array}{cc}{\stackrel{·}{V}}_y\hfill & {\stackrel{··}{V}}_y\hfill \end{array}]$ , equation (8) is rewritten as

$$\begin{array}{c}[{\int }_{{\tau }_A}^{{\tau }_B}(C_0-y_{\mathrm{veh}}(t)){\tau }^2\omega (\tau )\mathrm{d}\tau ]\hfill \\ \multicolumn{1}{c}{+[{\int }_{{\tau }_A}^{{\tau }_B}(C_1{V}_x-V_y){\tau }^3\omega (\tau )\mathrm{d}\tau ]}\\ \multicolumn{1}{c}{=[{\int }_{{\tau }_A}^{{\tau }_B}(\frac{{\stackrel{·}{V}}_y}{2}-C_2{V_x}^2){\tau }^4\omega (\tau )\mathrm{d}\tau ]}\\ \multicolumn{1}{c}{+[{\int }_{{\tau }_A}^{{\tau }_B}(\frac{\gamma {\stackrel{··}{V}}_y}{6}-C_3{V_x}^3){\tau }^5\omega (\tau )\mathrm{d}\tau ]}\end{array}$$

(9a)

$$\begin{array}{c}[{\int }_{{\tau }_A}^{{\tau }_B}(C_0-y_{\mathrm{veh}}(t))\frac{{\tau }^3}{3}\omega (\tau )\mathrm{d}\tau ]+[{\int }_{{\tau }_A}^{{\tau }_B}(C_1{V}_x-V_y)\frac{{\tau }^4}{3}\omega (\tau )\mathrm{d}\tau ]\hfill \\ =[{\int }_{{\tau }_A}^{{\tau }_B}(\frac{1}{2}{\stackrel{·}{V}}_y-C_2{V_x}^2)\frac{{\tau }^5}{3}\omega (\tau )\mathrm{d}\tau ]\hfill \\ \multicolumn{1}{c}{+[{\int }_{{\tau }_A}^{{\tau }_B}(\frac{{\stackrel{··}{V}}_y}{6}-C_3{V_x}^3)\frac{{\tau }^6}{3}\omega (\tau )\mathrm{d}\tau ]}\end{array}$$

(9b)

where $\gamma$ is a dimensionless preview coefficient typically between 0 and 1.

Equations (9a) and (9b) can be reformulated as

$$\begin{array}{c}{\eta }_{11}(C_0-y_{\mathrm{veh}}(t))+{\eta }_{12}(C_1{V}_x-V_y)\hfill \\ ={\eta }_{13}(\frac{{\stackrel{·}{V}}_y}{2}-C_2{V_x}^2)+{\eta }_{14}(\frac{\gamma {\stackrel{··}{V}}_y}{6}-C_3{V_x}^3)\hfill \end{array}$$

(10a)

$$\begin{array}{c}{\eta }_{21}(C_0-y_{\mathrm{veh}}(t))+{\eta }_{22}(C_1{V}_x-V_y)\hfill \\ ={\eta }_{23}(\frac{1}{2}{\stackrel{·}{V}}_y-C_2{V_x}^2)+{\eta }_{24}(\frac{{\stackrel{··}{V}}_y}{6}-C_3{V_x}^3)\hfill \end{array}$$

(10b)

where ${\eta }_{11}$ , ${\eta }_{12}$ , ${\eta }_{13}$ , ${\eta }_{14}$ are defined. ${\eta }_{11}=[{\int }_{{\tau }_A}^{{\tau }_B}{\tau }^2\omega (\tau )\mathrm{d}\tau ]$ , ${\eta }_{12}=[{\int }_{{\tau }_A}^{{\tau }_B}{\tau }^3\omega (\tau )\mathrm{d}\tau ]$

$$\begin{array}{c}\multicolumn{1}{c}{{\eta }_{13}=[{\int }_{{\tau }_A}^{{\tau }_B}{\tau }^4\omega (\tau )\mathrm{d}\tau ],{\eta }_{14}=[{\int }_{{\tau }_A}^{{\tau }_B}{\tau }^5\omega (\tau )\mathrm{d}\tau ],}\\ \multicolumn{1}{c}{{\eta }_{21}=[{\int }_{{\tau }_A}^{{\tau }_B}\frac{{\tau }^3}{3}\omega (\tau )\mathrm{d}\tau ],{\eta }_{22}=[{\int }_{{\tau }_A}^{{\tau }_B}\frac{{\tau }^4}{3}\omega (\tau )\mathrm{d}\tau ]}\\ {\eta }_{23}=[{\int }_{{\tau }_A}^{{\tau }_B}\frac{{\tau }^5}{3}\omega (\tau )\mathrm{d}\tau ],{\eta }_{24}=[{\int }_{{\tau }_A}^{{\tau }_B}\frac{{\tau }^6}{3}\omega (\tau )\mathrm{d}\tau ].\hfill \end{array}$$

Multiplying equations (10a) and (10b) by ${\eta }_{24}$ and $\gamma {\eta }_{14}$ respectively, we obtain

$$\begin{array}{c}{\eta }_{11}{\eta }_{24}(C_0-y_{\mathrm{veh}}(t))+{\eta }_{12}{\eta }_{24}(C_1{V}_x-V_y)\hfill \\ ={\eta }_{13}{\eta }_{24}(\frac{{\stackrel{·}{V}}_y}{2}-C_2{V_x}^2)+{\eta }_{14}{\eta }_{24}(\frac{\gamma {\stackrel{··}{V}}_y}{6}-C_3{V_x}^3)\hfill \end{array}$$

(11a)

$$\begin{array}{c}\gamma {\eta }_{14}{\eta }_{21}(C_0-y_{\mathrm{veh}}(t))+\gamma {\eta }_{14}{\eta }_{22}(C_1{V}_x-V_y)\hfill \\ =\gamma {\eta }_{14}{\eta }_{23}(\frac{1}{2}{\stackrel{·}{V}}_y-C_2{V_x}^2)+\gamma {\eta }_{14}{\eta }_{24}(\frac{{\stackrel{··}{V}}_y}{6}-C_3{V_x}^3)\hfill \end{array}$$

(11b)

Furthermore, the following equivalent transformation forms of equations (11a) and (11b) are derived

$$\begin{array}{c}\multicolumn{1}{c}{{\rho }_{e1}-{\eta }_{11}{\eta }_{24}{y}_{\mathrm{veh}}(t)-{\eta }_{12}{\eta }_{24}{V}_y={\eta }_{13}{\eta }_{24}\left(\frac{{\stackrel{·}{V}}_y}{2}\right)}\\ \multicolumn{1}{c}{+{\eta }_{14}{\eta }_{24}\left(\frac{\gamma {\stackrel{··}{V}}_y}{6}\right)}\end{array}$$

(12a)

$$\begin{array}{c}\multicolumn{1}{c}{{\rho }_{e2}-\gamma {\eta }_{14}{\eta }_{21}{y}_{\mathrm{veh}}(t)-\gamma {\eta }_{14}{\eta }_{22}{V}_y=\gamma {\eta }_{14}{\eta }_{23}\left(\frac{1}{2}{\stackrel{·}{V}}_y\right)}\\ \multicolumn{1}{c}{+\gamma {\eta }_{14}{\eta }_{24}\left(\frac{{\stackrel{··}{V}}_y}{6}\right)}& (12\mathrm{b})\hfill \end{array}$$

(12b)

where ${\rho }_{e1}(t)$ and ${\rho }_{e2}(t)$ are defined as

$$\begin{array}{c}\multicolumn{1}{c}{{\rho }_{e1}(t)={\eta }_{11}{\eta }_{24}{C}_0+{\eta }_{12}{\eta }_{24}{C}_1{V}_x+{\eta }_{13}{\eta }_{24}{C}_2{V_x}^2}\\ \multicolumn{1}{c}{+{\eta }_{14}{\eta }_{24}{C}_3{V_x}^3}\\ \multicolumn{1}{c}{={\eta }_{11}{\eta }_{24}\rho (t+\tau )}\end{array}$$

(13a)

$$\begin{array}{c}\multicolumn{1}{c}{{\rho }_{e2}(t)=\gamma {\eta }_{14}{\eta }_{21}{C}_0+\gamma {\eta }_{14}{\eta }_{22}{C}_1{V}_x+\gamma {\eta }_{14}{\eta }_{23}{C}_2{V_x}^2}\\ \multicolumn{1}{c}{+\gamma {\eta }_{14}{\eta }_{24}{C}_3{V_x}^3}\\ \multicolumn{1}{c}{=\gamma {\eta }_{14}{\eta }_{21}\rho (t+\tau )}\end{array}$$

(13b)

By combining (12a) and (12b), we have

$$\begin{array}{c}({\rho }_{e1}-{\rho }_{e2})+(\gamma {\eta }_{14}{\eta }_{21}-{\eta }_{11}{\eta }_{24})y_{\mathrm{veh}}(t)\hfill \\ \multicolumn{1}{c}{+(\gamma {\eta }_{14}{\eta }_{22}-{\eta }_{12}{\eta }_{24})V_y}\\ \multicolumn{1}{c}{=({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})\left(\frac{{\stackrel{·}{V}}_y}{2}\right)}\end{array}$$

(14)

So that

$$\begin{array}{c}\multicolumn{1}{c}{\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{\stackrel{·}{V}}_y^{*}=\frac{({\rho }_{e1}-{\rho }_{e2})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}}\\ \multicolumn{1}{c}{-y_{\mathrm{veh}}(t)-\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{V}_y}\end{array}$$

(15)

where ${\rho }_e$ is effective preview trajectory, defined as

$$\begin{array}{c}\multicolumn{1}{c}{{\rho }_e(t)=\frac{[{\rho }_{e1}(t)-{\rho }_{e2}(t)]}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}}\\ \multicolumn{1}{c}{=\frac{[{\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21}]}{[{\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21}]}(C_0)+\frac{[{\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22}]}{[{\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21}]}(C_1{V}_x)+}\\ \multicolumn{1}{c}{\frac{[{\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23}]}{[{\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21}]}{C}_2{V_x}^2+\frac{[{\eta }_{14}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{24}]}{[{\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21}]}{C}_3{V_x}^3}\end{array}$$

(16)

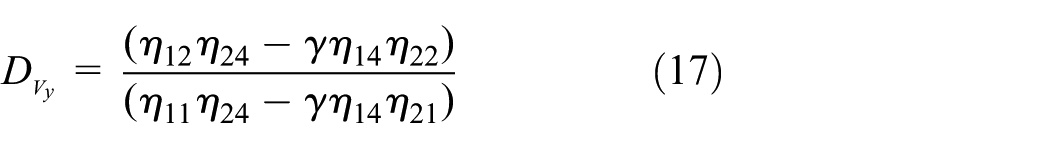

$$D_{V_y}=\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}$$

(17)

$$D_{{\stackrel{·}{V}}_y}=\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}$$

(18)

Correction function of equivalent handling model

The commercial vehicles can be assumed that the lateral acceleration is constant and there is no pitching motion, shown in Figure 2. Figure 2(I) shows the cubic spline preview-follower and Figure 2(II) shows the roll steer kinematic. The cornering stiffness of both tires are same, and tire force is the simplest linear. The 3DOF vehicle model can be constructed with coordinate systems of $X-Y-Z$ and $X^{\prime }-Y^{\prime }-Z^{\prime }$ , which are fixed on vehicle moving rigid body and absolute space, respectively. The front axle is located in front of vehicle CG and $x_1$ is defined positive. The rear axle are in rear of vehicle CG, and $x_2$ is defined negative.

Figure 2.

Correction function and equivalent handling model.

The total external forces acting on the entire vehicle in the lateral direction are

$$\begin{array}{c}\multicolumn{1}{c}{\sum P_Y=\sum _{j=1}^2({P_{\mathrm{yj}}}^{\prime }+{P_{\mathrm{yi}}}^{\prime \prime })}\\ \multicolumn{1}{c}{=2K_1(\delta -\beta -x_{1}r/V_x+\frac{\partial {\alpha }_1}{\partial \varphi }\varphi )}\\ \multicolumn{1}{c}{+2K_2(-\beta -x_{2}r/V_x+\frac{\partial {\alpha }_2}{\partial \varphi }\varphi )}\end{array}$$

(19a)

Analysis of the total yaw moment about the Z-axis reveals that

$$\begin{array}{c}\multicolumn{1}{c}{\sum M_Z=\sum _{j=1}^2{x}_j({P_{\mathrm{yj}}}^{\prime }+{P_{\mathrm{yj}}}^{\prime \prime })}\\ \multicolumn{1}{c}{=2K_1{x}_1(\delta -\beta -x_{1}r/V_x+\frac{\partial {\alpha }_1}{\partial \varphi }\varphi )}\\ \multicolumn{1}{c}{+2K_2{x}_2(-\beta -x_{2}r/V_x+\frac{\partial {\alpha }_2}{\partial \varphi }\varphi )}\end{array}$$

(19b)

where $P_{\mathrm{yj}}^{\prime }$ , $P_{\mathrm{yj}}^{″}$ are generalized right and left tire force, $K_j$ is tire cornering stiffness, $r$ is yaw rate, $\beta$ is side-slip angle, $\varphi$ is roll angle, $\delta$ is steering angle; ${\alpha }_1$ and ${\alpha }_2$ are front and rear suspension toe angle, respectively.

The 3DOF vehicle model can be changed to

$$(M-M_s)({\stackrel{·}{V}}_y+V_{x}r)+M_s[({\stackrel{·}{V}}_y+V_{x}r)-h\stackrel{··}{\varphi }]=\sum P_Y$$

(20a)

$$I_z\stackrel{·}{r}-I_{\mathrm{xz}}\stackrel{··}{\varphi }=\sum M_Z$$

(20b)

where $h$ is roll moment arm of the sprung mass; $I_z$ and $I_{\mathrm{xz}}$ are total vehicle mass yaw moment of inertia and sprung mass product of inertia about the X-Z axes, respectively; $M_s$ and $M$ are vehicle sprung mass and total mass, respectively.

The steady-state roll angle is determined by the total rolling moment about the X-axis, as

$$\begin{array}{c}\multicolumn{1}{c}{\varphi =(M_{s}h{V}_{x}r+M_{s}h{V}_y+I_{\mathrm{xz}}\stackrel{·}{r}-I_{\varphi }\stackrel{··}{\varphi }-C_{\varphi }\stackrel{·}{\varphi })/(P_{\varphi }-M_s\mathrm{gh})}\\ \multicolumn{1}{c}{\approx \frac{M_{s}h{V}_{y}r}{(P_{\varphi }-M_s\mathrm{gh})}}\end{array}$$

(21)

where $I_{\varphi }$ is roll inertia of the sprung mass, $C_{\varphi }$ is roll rate, $P_{\varphi }$ is moment per unit roll angle.

The lateral acceleration is calculated as

$$\begin{array}{c}\multicolumn{1}{c}{\left[\begin{array}{c}{\stackrel{·}{V}}_y\hfill \\ \multicolumn{1}{c}{\stackrel{·}{r}}\end{array}\right]=\left[\begin{array}{c}\begin{array}{cc}\frac{-2\sum _{j=1}^2{K}_j}{M{V}_x}\hfill & -[V_x+\frac{2\sum _{j=1}^2{x_j}^{\prime }{K}_j}{M{V}_x}]\hfill \end{array}\hfill \\ \multicolumn{1}{c}{\begin{array}{cc}\frac{-2\sum _{j=1}^2{x}_j{K}_j}{I_z{V}_x}\hfill & \frac{-2\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j}{I_z{V}_x}\hfill \end{array}}\end{array}\right]\left[\begin{array}{c}{V}_y\hfill \\ \multicolumn{1}{c}{r}\end{array}\right]}\\ \multicolumn{1}{c}{+\left[\begin{array}{c}\frac{2K_1}{M}\hfill \\ \multicolumn{1}{c}{\frac{2x_1{K}_1}{I_z}}\end{array}\right]\delta }\end{array}$$

(22)

The equivalent signed distances from the vehicle’s center of gravity to the first and rear axles are determined by equation (22), such that

$$x_j^{\prime }=x_j-\frac{M_{s}h\frac{\partial {\alpha }_j}{\partial \varphi }{V_x}^2}{(P_{\varphi }-M_s\mathrm{gh})}$$

(23)

The roll steer kinematic of front suspension and rear suspension are tested through suspension rebound travel, shown in Figures 3 and 4.

Figure 3.

Roll steer kinematic of front suspension.

Figure 4.

Roll steer kinematic of rear suspension.

The unified lateral acceleration transfer function is given by

$$\frac{{\stackrel{·}{V}}_y}{\delta }(s)=G_{{\stackrel{·}{V}}_y}\frac{\mathrm{Nu}{m}_2{s}^2+\mathrm{Nu}{m}_{1}s+1}{\mathrm{De}{n}_2{s}^2+\mathrm{De}{n}_{1}s+1}$$

(24)

where $G_{{\stackrel{·}{V}}_y}$ is the vehicle lateral acceleration gain to steering wheel angle, shown as

$$G_{{\stackrel{·}{V}}_y}=\frac{2K_1[x_1\sum _{j=1}^2{K}_j-\sum _{j=1}^2{x}_j{K}_j]V_x^2}{-{\mathrm{MV}}_x^2\sum _{j=1}^2{x}_j{K}_j+2[\sum _{j=1}^2{K}_j\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j-\sum _{j=1}^2{x}_j{K}_j\sum _{j=1}^2{x_j}^{\prime }{K}_j]}$$

(25)

The $\mathrm{Nu}{m}_1$ , $\mathrm{De}{n}_1$ , $\mathrm{Nu}{m}_2$ , and $\mathrm{De}{n}_2$ are parameters of the transfer function, which present the vehicle’s dynamic response property. These coefficients are calculated by equations (26a)–(26d), respectively.

$$\mathrm{Nu}{m}_1=\frac{\sum _{j=1}^2{x}_j{x^{\prime }}_j{K}_j-x_1\sum _{j=1}^2{x^{\prime }}_j{K}_j}{V_x[x_1\sum _{j=1}^2{K}_j-\sum _{j=1}^2{x}_j{K}_j]}$$

(26a)

$$\mathrm{Nu}{m}_2=\frac{K_1{I}_z}{2K_1[x_1\sum _{j=1}^2{K}_j-\sum _{j=1}^2{x}_j{K}_j]}$$

(26b)

$$\mathrm{De}{n}_1=\frac{[I_{\mathrm{z}}\sum _{j=1}^2{K}_j+M\sum _{j=1}^2{x}_j{x^{\prime }}_j{K}_j]V_x}{2[\sum _{j=1}^2{K}_j\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j-\sum _{j=1}^2{x}_j{K}_j\sum _{j=1}^2{x_j}^{\prime }{K}_j]-M\sum _{j=1}^2{x}_j{K}_j{V_x}^2}$$

(26c)

$$\mathrm{De}{n}_2=\frac{M{I}_z{V_x}^2}{4[\sum _{j=1}^2{K}_j\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j-\sum _{j=1}^2{x}_j{K}_j\sum _{j=1}^2{x_j}^{\prime }{K}_j]-2M\sum _{j=1}^2{x}_j{K}_j{V_x}^2}$$

(26d)

According to the preview-following system, the correct function $D(s)$ considering the suspension roll effect is defined as

$$D(s)=(1+T_{\mathrm{vis}}s)·t_d·\left(\frac{\mathrm{De}{n}_2{s}^2+\mathrm{De}{n}_{1}s+1}{G_{{\stackrel{·}{V}}_y}(\mathrm{Nu}{m}_2{s}^2+\mathrm{Nu}{m}_{1}s+1)}\right)/(1+\zeta R_3/R_{2}s)$$

(27)

where $t_d$ is delay time of control system delay, $\zeta$ is a dimensionless correct coefficient typically between 0 and 1.

Then, the equation (27) can be rewritten as

$$D(s)=D_0(1+D_{c}s)$$

(28)

where $D_0$ and $D_c$ are correction parameters calculated as equations (29a) and (29b), respectively.

$$D_0=\frac{-{\mathrm{MV}}_x^2\sum _{j=1}^2{x}_j{K}_j+2[\sum _{j=1}^2{K}_j\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j-\sum _{j=1}^2{x}_j{K}_j\sum _{j=1}^2{x_j}^{\prime }{K}_j]}{2K_1[x_1\sum _{j=1}^2{K}_j-\sum _{j=1}^2{x}_j{K}_j]V_x^2}$$

(29a)

$$\begin{array}{c}\multicolumn{1}{c}{D_c=\frac{[I_{\mathrm{z}}\sum _{j=1}^2{K}_j+M\sum _{j=1}^2{x}_j{x^{\prime }}_j{K}_j]V_x}{2[\sum _{j=1}^2{K}_j\sum _{j=1}^2{x}_j{x_j}^{\prime }{K}_j-\sum _{j=1}^2{x}_j{K}_j\sum _{j=1}^2{x_j}^{\prime }{K}_j]-M\sum _{j=1}^2{x}_j{K}_j{V_x}^2}}\\ \multicolumn{1}{c}{-\frac{\sum _{j=1}^2{x}_j{x}_j^{\prime }{K}_j-x_1\sum _{j=1}^2{x}_j^{\prime }{K}_j}{V_x[x_1\sum _{j=1}^2{k}_j-\sum _{j=1}^2{x}_j{k}_j]}+t_d+T_{\mathrm{vis}}-\zeta R_3/R_2}\end{array}$$

(29b)

Closed-loop characteristics with roll effect

The calculated optimal lateral acceleration derived in equation (15) is implemented in the closed-loop system of Figure 5, which explicitly incorporates suspension roll characteristics within its block diagram.

Figure 5.

Closed-loop system with effect of roll characteristics.

The effective preview function $R(s)$ can be expressed as

$$\begin{array}{c}R(s)={\rho }_e(s)/\rho (s)\hfill \\ =\frac{[{\rho }_{e1}(s)/\rho (s)-{\rho }_{e2}(s)/\rho (s)]}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}\hfill \end{array}$$

(30)

According to equations (13a) and (13b), the Laplace transform of ${\rho }_{e1}(t)$ and ${\rho }_{e2}(t)$ are

$${\rho }_{e1}(s)/\rho (s)={\eta }_{11}{\eta }_{24}H(s)$$

(31a)

$${\rho }_{e2}(s)/\rho (s)=\gamma {\eta }_{14}{\eta }_{21}H(s)$$

(31b)

The effective preview function $R(s)$ in equation (30) can be changed to

$$R(s)=\frac{[{\eta }_{11}{\eta }_{24}H(s)-\gamma {\eta }_{14}{\eta }_{21}H(s)]}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}$$

(32)

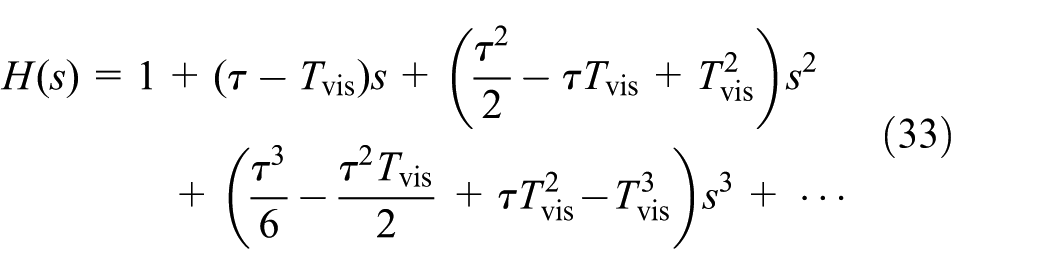

According to equation (5), the Taylor’s series of $H(s)$ is

$$\begin{array}{c}\multicolumn{1}{c}{H(s)=1+(\tau -T_{\mathrm{vis}})s+(\frac{{\tau }^2}{2}-\tau T_{\mathrm{vis}}+T_{\mathrm{vis}}^2)s^2}\\ +(\frac{{\tau }^3}{6}-\frac{{\tau }^2{T}_{\mathrm{vis}}}{2}+\tau T_{\mathrm{vis}}^2-T_{\mathrm{vis}}^3)s^3+\cdots \hfill \end{array}$$

(33)

The preview function $R(s)$ in equation (32) can be expanded into series as

$$\begin{array}{c}R(s)=1+[\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}-T_{\mathrm{vis}}]s\hfill \\ +[\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}-\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}+T_{\mathrm{vis}}^2]s^2\hfill \\ +[\frac{({\eta }_{14}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{24})}{6({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}-\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}\hfill \\ \multicolumn{1}{c}{+\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}^2-T_{\mathrm{vis}}^3]s^3}\end{array}$$

(34)

where

$$\{\begin{array}{c}\multicolumn{1}{c}{R_0=1}\\ \multicolumn{1}{c}{R_1=[\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}-T_{\mathrm{vis}}]}\\ \multicolumn{1}{c}{R_2=[\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}}\\ \multicolumn{1}{c}{-\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}+T_{\mathrm{vis}}^2]}\\ \multicolumn{1}{c}{R_3=[\frac{({\eta }_{14}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{24})}{6({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}-\frac{({\eta }_{13}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{23})}{2({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}}\\ \multicolumn{1}{c}{+\frac{({\eta }_{12}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{22})}{({\eta }_{11}{\eta }_{24}-\gamma {\eta }_{14}{\eta }_{21})}{T}_{\mathrm{vis}}^2-T_{\mathrm{vis}}^3]}\end{array}$$

(35)

The optimal steering input considering the suspension roll effect can be determined by

$$\delta =\frac{({\rho }_e(t)-y_{\mathrm{veh}}-D_{V_y}{V}_y)}{D_{{\stackrel{·}{V}}_y}}D\left(s\right)e^{-t_{d}s}$$

(36)

According to Figure 5, the whole transfer function of closed-loop system incorporating suspension roll characteristics is

$$\frac{y_{\mathrm{veh}}}{\rho }(s)=\frac{R(s)}{1+R_{1}s+R_2{s}^2(1+\zeta \frac{R_3}{R_2}s)}$$

(37)

The frequency-domain analysis of a closed-loop system transfer function involves examining the system’s response to sinusoidal inputs over a range of frequencies using the closed-loop transfer function.

$$\frac{y_{\mathrm{veh}}}{\rho }(j\omega )=\frac{R(j\omega )}{1+j{R}_1\omega -R_2{\omega }^2(1+\zeta \frac{R_3}{R_2}j\omega )}$$

(38)

The trajectory error transfer function is defined as

$$\frac{E}{\rho }(j\omega )=\frac{\rho -y_{\mathrm{veh}}}{\rho }=1-\frac{y_{\mathrm{veh}}}{\rho }(j\omega )$$

(39)

Based on the theory of Plancherel, the trajectory error variance is expressed as

$${\overline{E}}^2(t)=\frac{1}{\pi }{\int }_0^{\infty }{|1-\frac{y_{\mathrm{veh}}}{\rho }(j\omega )|}^2{S}_{\rho }(\omega )\mathrm{d}\omega$$

(40)

where $S_{\rho }(\omega )$ is power spectral density of the trajectory derived from preview data.

According to equations (35)–(40), the evaluation index considering bus coupled roll dynamics is defined as

$$J_E=\frac{1}{{\hat{E}}^2\pi }{\int }_0^{\infty }{|1-\frac{R(j\omega )}{1+j{R}_1\omega -R_2{\omega }^2(1+\zeta \frac{R_3}{R_2}j\omega )}|}^2{S}_{\rho }(\omega )\mathrm{d}\omega$$

(41)

where $\hat{E}$ is normalized threshold of course error.

The closed-loop characteristics of generalized optimal cubic spline preview-following methodology incorporating two-axle suspension roll dynamics were experimentally assessed through the ISO 3888-1 double lane change maneuver at 80 km/h. Figure 6 shows the double lane change test method for bus handling and stability. The value of trajectory parameters are in Table 1.

Figure 6.

Double lane change test method for bus handling stability.

Table 1.

Trajectory parameters (unit: m).

Section	Length	Section	Width
$B_1$	$1.1b+0.25$	$B_6$	25
$B_2$	$1.2b+0.25$	$B_7$	25
$B_3$	$1.3b+0.25$	$B_8$	15
$B_4$	15	$B_9$	15
$B_5$	30	$B_{10}$	3.5

The lateral acceleration were measured by a gyroscope installed in the vehicle, and the lateral distance was integral calculated. The closed-loop system exhibits a delay time of 0.2 s, whereas the visual latency has a delay time of 0.1 s. The vehicle parameters are listed in Appendix A (Table 3) and the closed-loop characteristics was identified. Figure 7 presents a comparison between the path trajectory identification and the corresponding test results. The value of the test result is shown in Table 2.

Figure 7.

Validation of trajectory tracking under double lane change.

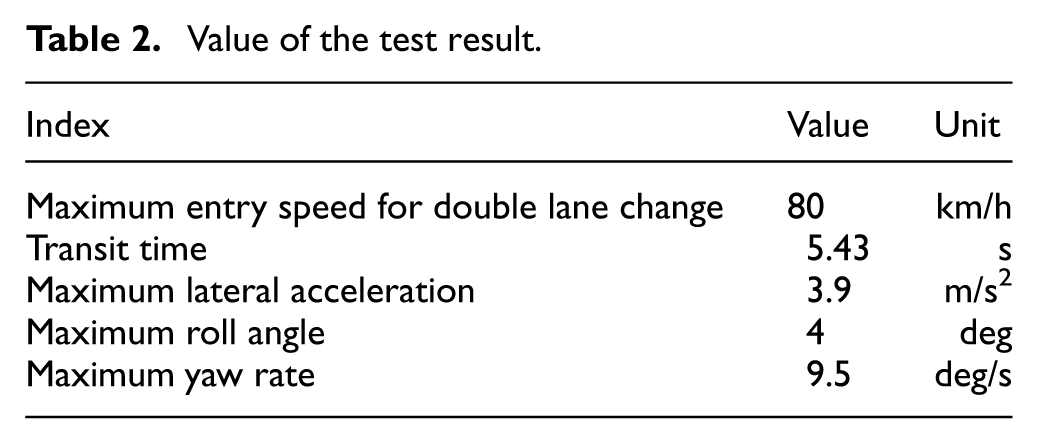

Table 2.

Value of the test result.

Index	Value	Unit
Maximum entry speed for double lane change	80	km/h
Transit time	5.43	s
Maximum lateral acceleration	3.9	m/s2
Maximum roll angle	4	deg
Maximum yaw rate	9.5	deg/s

The suspension roll steer is described by a unified transfer function of the vehicle’s lateral acceleration. The coupled roll dynamics substantially affect closed-loop system performance. The trajectory tracking total variance, adopted as a performance metric, is defined in equation (42). Figure 8 illustrates the total variance values under varying front suspension roll steer settings at vehicle speeds of 60, 70, and 80 km/h. Both excessively high and low roll steer values increase the trajectory tracking total variance. Figure 9 present analogous results for the rear suspension roll steer, respectively, at the same speeds. Either excessively high or low roll steer can elevate the higher trajectory tracking total variance, a relationship that can guide the optimization of suspension K&C characteristics.

Figure 8.

Effect of the front suspension roll steer on trajectory tracking.

Figure 9.

Effect of the rear suspension roll steer on trajectory tracking.

Conclusion

In this study, a generalized optimal preview-follower closed-loop model incorporating suspension roll dynamics was formulated, and an in-depth analysis of the trajectory tracking performance of the closed-loop system was carried out. Both the previewed front trajectory and the vehicle’s predicted lateral position were modeled using third-degree polynomial functions. The lane centerline coordinates were parameterized by three pivotal coefficients: trajectory direction, curvature, and curvature rate. Correspondingly, to accurately track the lane, the vehicle’s lateral position was depicted as a cubic spline polynomial, which was defined by the vehicle’s lateral velocity, acceleration, and jerk, enabling it to adapt to the changing lane geometry.

Critically, the coupling effect of suspension roll steer was identified as a primary factor influencing handling dynamics, generating lateral forces that modify vehicle behavior. To address this, an equivalent handling model and a lateral acceleration transfer function, both explicitly incorporating suspension roll characteristics were formulated. These models and functions facilitate the derivation of a generalized closed-loop steering angle expression. Comparative results demonstrate a high level of agreement between the simulated and experimental data. Moreover, the effect of suspension roll steer on the trajectory tracking evaluation index (total variance) was analyzed across different vehicle velocities, thereby offering a foundation for optimizing suspension Kinematics & Compliance (K&C) characteristics.

For the closed-loop system, the theoretical expression of the trajectory tracking performance evaluation index was derived using frequency-domain analysis. A systematic evaluation was conducted to assess the impact of suspension roll steer characteristics (pertaining to the front and rear axles) on trajectory tracking at vehicle speeds of 60, 70, and 80 km/h. Results indicate that either excessively high or low roll steer values lead to an increase in the total variance in trajectory tracking. This finding can serve as a valuable guide for the optimization of suspension roll steer and K&C characteristics.

Overall, the integration of commercial vehicles roll dynamics with preview-following control establishes a robust framework for LKAS design. Explicit modeling of suspension roll effects significantly improves path-tracking precision during dynamic maneuvers. This advancement significantly enhances active safety for both autonomous and ADAS-eq55 commercial vehicles. Since suspension K&C characteristics also encompass other system parameters, the discussion scope of suspension K&C characteristic parameters can be expanded to obtain more comprehensive results. However, a limitation of this study is its failure to address all factors related to occupant comfort. Consequently, future work will extend the model to incorporate motion sickness and other critical comfort metrics, thereby establishing a more comprehensive closed-loop system.
