Vibration characteristics analysis of rolling bearing rotor system considering radial clearance and outer raceway defect

Abstract

Because of the radial clearance, the radial stiffness of rolling bearing will show obvious time-varying characteristics, which may cause a certain vibration. The small defects on the raceway of the rolling bearing maybe caused by the vibration under the poor lubrication conditions. A dynamic model of rolling bearing rotor system considering the radial clearance and outer raceway defect is established in this paper. The time-varying stiffness of rolling bearing is fitted by 8-order Fourier series and substituted into the dynamic model. The vibration response of rotor system is obtained to analyze the fault characteristic frequency of rolling bearing. The vibration test of rolling bearing rotor system is carried out, and the fault characteristic frequency of the test bearing is identified by analyzing the frequency spectrum of the obtained vibration signal. The test results are in good agreement with the theoretical values, which verifies the correctness of the dynamic model.

Introduction

With the advantages of low frictional resistance and high rotation accuracy, the rolling bearing has been widely used in rotating machinery, such as machine tools, aerospace equipment, electronics, and precision instruments.^1–3 The stiffness of rolling bearing is regarded as a significant factor affecting the dynamic characteristics of bearing rotor system. Due to the existence of the rolling elements, the stiffness of rolling bearing shows obvious time-varying characteristics.^4–6 Stribeck ⁷ deduced the maximum load contact formula of the rolling element by analyzing the working state with the rolling element at the bottom. Perret et al. ⁸ found that the load distribution, contact area, and contact stress were changed with time caused by the rotation of the rolling element in engineering practice. These cases resulted in the changes of stiffness with time,^9–11 and induced nonlinear vibration and instability of rolling bearing rotor system finally.^12–15 Cao et al. ¹⁶ researched the stiffness variation rules of rolling bearing under the static load and unbalanced load excitation, and calculated the vibration response of time domain and the frequency domain characteristics of the rotor under the time-varying bearing stiffness. Liu and Zhang ¹⁷ deduced the time-varying stiffness of rolling bearings under different combined load sets by the implicating function derivation.

The vibration and shock of the bearing rotor system is caused by the time-varying characteristic of rolling bearing stiffness, which aggravates the generation of small defects on the raceway. Cheng et al. ¹⁸ established a quasi-static analysis model of rolling bearing with local defects by introducing the local contour functions such as the depth and circumferential variation of local into the analysis model. Petersen et al. ¹⁹ established a contact stiffness model of bearing related to the defect size based on the internal load distribution of rolling bearings with defects in the outer ring. Cui et al. ²⁰ simulated the vibration response signals of rolling bearings under different fault sizes by introducing the outer ring defect size parameters into the dynamic model. Jiang et al. ²¹ improved the dynamic model with three-dimensional geometric defect regions by extending the geometric parameters of the outer raceway defect regions. Singh et al. ²² solved the bearing FEM model with outer raceway defect by LS-DYNA, and analyzed the simulation results. Zhao et al. ²³ researched the effects of defect size, position, and number on bearing dynamic behaviors are investigated with the aid of phase trajectories, shaft center orbits, FFT spectra, etc. Tang et al. ²⁴ analyzed the load of rolling elements passing through the defect area under different conditions based on Gupta model. Ma et al. ²⁵ added the three different types of bearing defects into the defect model considering the force transfer between the vehicle and the bearing. Lu et al. ²⁶ proposed the defect modeling algorithm of inner raceway, outer raceway and rolling element, and obtained the theoretical rolling track when the rolling element passes through the defect position. These studies only consider the defects of rolling bearings, but don’t consider the time-varying characteristics of bearing stiffness.

The dynamic model of rolling bearing rotor system considering the radial clearance and outer raceway defect is established for the spindle bearings of machine tool in this paper. The time-varying stiffness of bearing is fitted, and the vibration response of rolling bearing rotor system is analyzed. The fault characteristic frequency of rolling bearing identified by the vibration response is compared with the experiment results.

Dynamical modeling of rolling bearing rotor system

Dynamical model of rotor system

For the rolling bearing rotor system, the rotor is supported by two identical rolling bearings at both ends, and the external load is applied at the middle position. The bearing can be simplified as an isotropic spring-damp system assuming that the bearing is supported rigidly. ²⁷ The stiffness and damping coefficients in the horizontal direction are k_xx and c_xx respectively, and in the vertical direction are k_yy and c_yy respectively.

The dynamical model of the bearing rotor system is shown in Figure 1. O₀ is the center of the static balance of the rotor. When the rotor rotates, the unbalanced force causes the axis to deviate from the static balance position. At this time, the center of rotor is O, which is the original point of coordinate system xOy.

Figure 1.

Dynamical model of bearing rotor system.

According to the principle of force balance, the differential equations of motion of rolling bearing rotor system are:

$$\{\begin{array}{c}M·\stackrel{··}{x}+C·\stackrel{·}{x}+K_x·x=F_0·\sin (\omega ·t)\hfill \\ \multicolumn{1}{c}{M·\stackrel{··}{y}+C·\stackrel{·}{y}+K_y·y=F+F_0·\cos (\omega ·t)+M·g}\end{array}$$

(1)

Where M is the mass of bearing-rotor system. C is the supporting damping coefficient of bearing-rotor system, which is the contact damping of rolling bearing. ²⁸ K_x, K_y are the equivalent stiffness of the rolling bearing rotor system in the horizontal and vertical directions, K_x = k·k_xx/(k + k_xx), K_y = k·k_yy/(k + k_yy), k is the rotor bending stiffness, k = 12πER⁴/L³. E is the elastic modulus. R is the journal radius. L is the distance between the center of two bearings. ω is the angular speed of the rotor. F₀ is the centrifugal force caused by the unbalanced mass of the rotor. g is the gravitational acceleration. F is the external exciting force.

Rolling bearing stiffness model with outer raceway defects

Defect model on outer raceway

It is supposed that there is a rectangular notch on the outer raceway ring, ²⁹ the defect depth is H_b, the defect length is L_b, the corresponding wrap angle is θ _b , the diameter of the rolling element is D_w, and the diameter of the outer raceway of the bearing is D_a. Form the rolling element enters the defect to leaves the defect, H_f is the additional displacement of the rolling element, and γ is the angle between the center of rolling element and the starting position of the defect.

For the large outer raceway defect (D_w < L_b), when the rolling element begin to enter the outer raceway defect (γ = 0), the additional displacement is 0 (as shown in Figure 2(a)). When the rolling element passes through the bottom of outer raceway defect (θ _b  − θ _in  ≤ γ ≤ θ_b), the additional displacement is the maximum value at this time, which is equal to the defect depth of the outer raceway (as shown in Figure 2(d)). When the rolling element is entering or leaving the defect (0 < γ < θ _in or θ _b  − θ _in  < γ < θ_b), it only contacts with one side of the defect (as shown in Figure 2(b)). In order to analyze the additional displacement of the rolling element during the rolling element passage through the outer raceway defect, the change of the additional displacement is simplified as the linear change, and the defect is assumed to be a smooth surface.

Figure 2.

Additional displacement of rolling elements passing through defect of outer raceway: (a) γ = 0, (b) 0 < γ < θ _in , (c) γ = θ _in , and (d) θ _in  < γ < θ _b  − θ _in .

The wrap angle between the starting point of the outer ring defect area and the point of the maximum additional displacement θ_in is proposed to calculate the additional displacement H_f, which can be expressed as follows:

$${\theta }_{\mathrm{in}}\approx \arcsin (\sqrt{{\left(\frac{D_w}{2}\right)}^2-{(\frac{D_w}{2}-H_b)}^2}/\frac{D_a}{2})$$

(2)

When the rolling element passes through the outer raceway defect position, the additional displacement of the rolling element H_f can be expressed as:

$$\begin{array}{c}\multicolumn{1}{c}{H_f=\{\begin{array}{c}\frac{H_b\gamma }{{\theta }_{\mathrm{in}}},0<\gamma <{\theta }_{\mathrm{in}}\hfill \\ \multicolumn{1}{c}{H_b,{\theta }_{\mathrm{in}}\le \gamma \le {\theta }_b-{\theta }_{\mathrm{in}}}\\ \multicolumn{1}{c}{\frac{H_b}{{\theta }_{\mathrm{in}}}({\theta }_b-\gamma ),{\theta }_b-{\theta }_{\mathrm{in}}<\gamma <{\theta }_b}\\ \multicolumn{1}{c}{0,\mathrm{another}}\end{array}}\end{array}$$

(3)

The similar method can be used to analyze the small outer raceway defect (D_w > L_b), which is not be described because of the length of this paper.

Stiffness model of rolling bearing

The defects could exist anywhere in the outer raceway, the outer raceway can be divided into loading area and non-loading area according to the load distribution (as shown in Figure 3). When the defect of the outer raceway is in the non-loading area, there is almost no impact on the dynamic characteristics of the bearing because the rolling element does not contact with the track of rolling bearing. Therefore, the defect of the outer raceway in the loading area is analyzed.

Figure 3.

Force analysis of rolling bearing with radial clearance.

The force analysis of rolling bearing with radial clearance is shown in Figure 3. θ is the rotation position angle of the rolling element. ω is the angular velocity of the rolling bearing. ψ _b is the angle between the raceway defect and the vertical direction of bearing. ψ _li is the angle between the left rolling elements and the bearing axis in the vertical direction. ψ _ri is the angle between the right rolling elements and the bearing axis in the vertical direction.

When the rolling element passes through the defect of the rolling bearing without radial clearance, the additional displacement will result in the change of load distribution and local elastic deformation. The elastic deformation of the rolling element along the Hertz contact normal line can be expressed as:

$${\delta }_{{\psi }_b}={\delta }_{max}\cos {\psi }_b-H_f$$

(4)

Where δ_ψb is the elastic deformation of the rolling element at the defect, δ_max is the maximum elastic deformation of the elastomer.

The load of the rolling element at the defect F_ψb is:

$$F_{{\psi }_b}=F_{max}{\left(\frac{{\delta }_{{\psi }_b}}{{\delta }_{max}}\right)}^{1.5}=F_{max}{(\cos {\psi }_b-\frac{H_f}{{\delta }_{max}})}^{1.5}$$

(5)

Where F_max is the maximum load of the rolling element

According to the principle of force balance, the radial load of rolling bearing should be equal to the resultant force of each rolling element in the vertical direction:

$$F_r=F_{max}[\sum _{i=1}^n{\cos }^{2.5}({\psi }_i+\omega t)+{(\cos {\psi }_b-\frac{H_f}{{\delta }_{max}})}^{1.5}\cos {\psi }_b]$$

(6)

Where F_r is the radial external load of the rolling bearing.

The maximum load of the rolling element can be expressed as:

$$F_{max}=\frac{F_r}{[\sum _{i=1}^n{\cos }^{2.5}({\psi }_i+\omega t)+{(\cos {\psi }_b-\frac{H_f}{{\delta }_{max}})}^{1.5}\cos {\psi }_b]}$$

(7)

The load distribution of each rolling element of rolling bearing without radial clearance can be expressed as ³⁰ :

$$F_{{\psi }_i}=\frac{F_r{\cos }^{1.5}{\psi }_i}{[\sum _{i=1}^n{\cos }^{2.5}({\psi }_i+\omega t)+{(\cos {\psi }_b-\frac{H_f}{{\delta }_{max}})}^{1.5}\cos {\psi }_b]}$$

(8)

When the rolling element passes through the defect of bearing with radial clearance, the elastic deformation of the rolling element along the Hertz contact normal line can be expressed as:

$${\delta }_{{\psi }_b}=({\delta }_{max}+\frac{G_r}{2})\cos {\psi }_b-\frac{G_r}{2}-H_f$$

(9)

Where G_r is the radial clearance of bearing.

The load of the rolling element at the defect can be obtained from the derivation of the above formula for the load distribution on each rolling element of the rolling bearing without radial clearance, which can be expressed as:

$$\begin{array}{c}\multicolumn{1}{c}{F_{{\psi }_b}=F_{max}{\left(\frac{{\delta }_{{\psi }_b}}{{\delta }_{max}}\right)}^{1.5}}\\ =F_{max}{\left(\frac{({\delta }_{max}+G_r/2)\cos {\psi }_b-G_r/2-H_f}{{\delta }_{max}}\right)}^{1.5}\hfill \end{array}$$

(10)

The load distribution coefficient T is proposed to simplify the maximum load F_max of rolling element of rolling bearing with radial clearance. Define T = (1 − G_r/(2δ_max + G_r))/2, so the F_ψb can be expressed as:

$$F_{{\psi }_b}=F_{max}{(\frac{\cos {\psi }_b}{2T}-\frac{G_r/2+H_f}{{\delta }_{max}})}^{1.5}$$

(11)

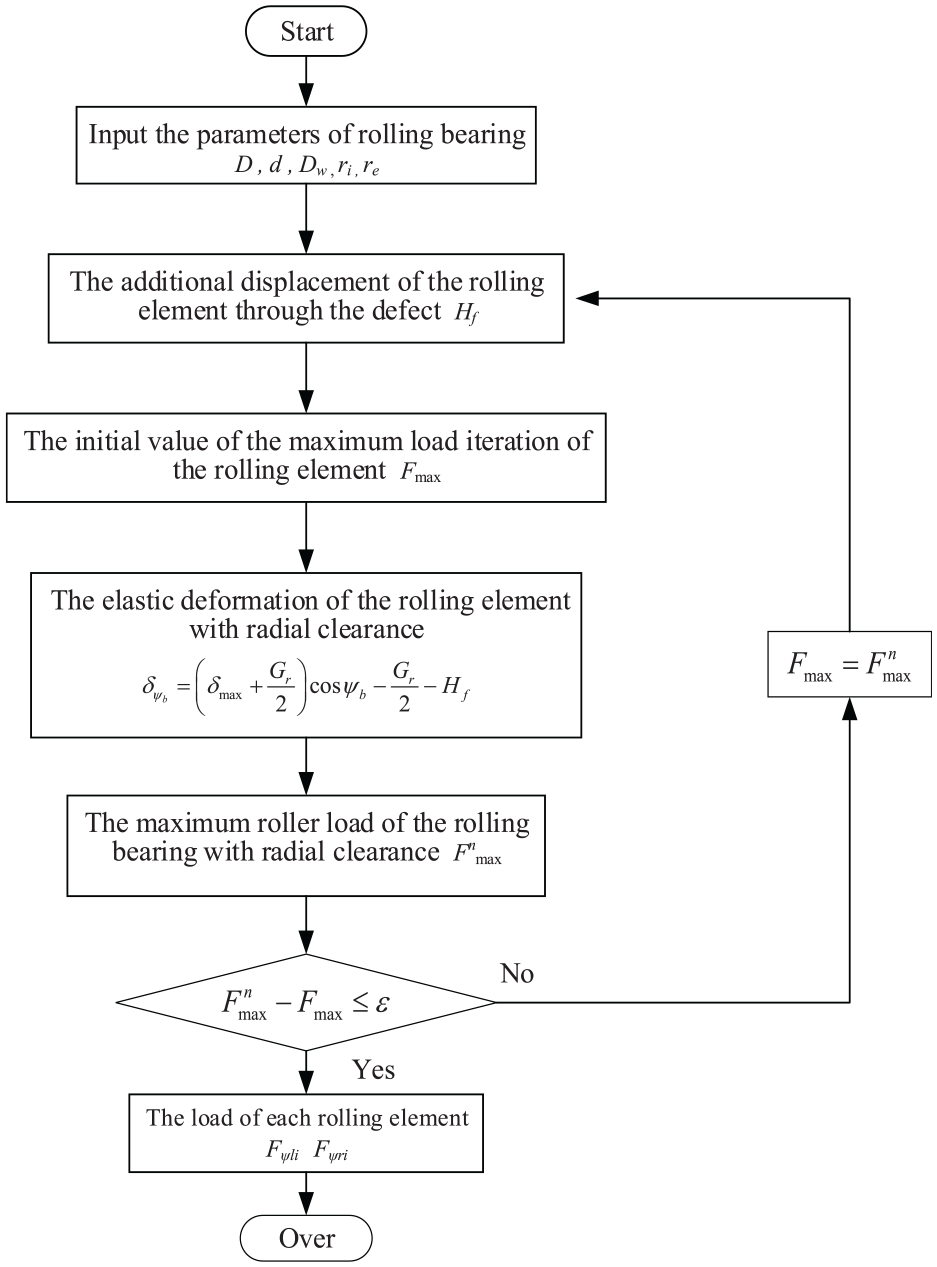

The iteration process of solving F_max is shown in Figure 4. Therefore, the maximum load of the rolling bearing with the radial clearance F_max at the nth iteration can be expressed:

$$\begin{array}{c}{F}_{max}^n=\hfill \\ \frac{F_r}{(\sum _{i=1}^m{\left(\frac{{\delta }_r^n\cos {\psi }_i-G_r/2}{{\delta }_{max}^n}\right)}^{1.5}\cos {\psi }_i+{\left(\frac{{\delta }_r^n\cos {\psi }_b-G_r/2-H_f}{{\delta }_{max}^n}\right)}^{1.5}\cos {\psi }_b)}\hfill \\ =\frac{\sum _{i=1}^m{F}_{{\psi }_i}\cos {\psi }_i+F_{{\psi }_b}\cos {\psi }_b}{(\sum _{i=1}^m{\left(\frac{{\delta }_r^n\cos {\psi }_i-G_r/2}{{\delta }_{max}^n}\right)}^{1.5}\cos {\psi }_i+{\left(\frac{{\delta }_r^n\cos {\psi }_b-G_r/2-H_f}{{\delta }_{max}^n}\right)}^{1.5}\cos {\psi }_b)}\hfill \end{array}$$

(12)

Figure 4.

Iterative calculation process.

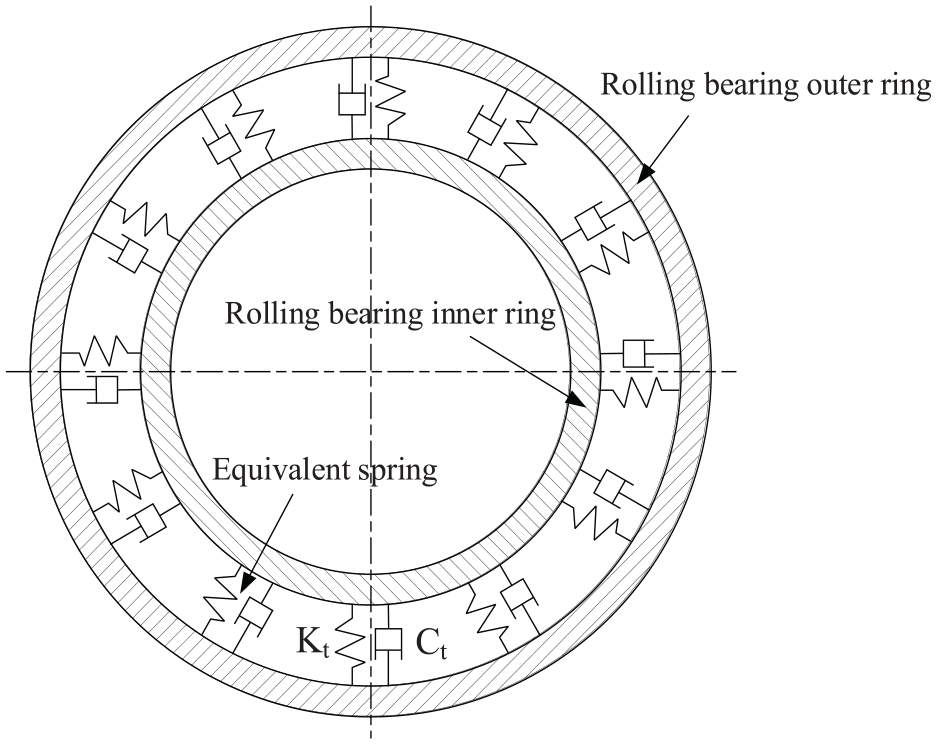

The rolling bearing can be simplified as the mass system with many elastic elements connection, as show in Figure 5. The outer ring of bearing is fixed to the bearing seat and the inner ring is linked to the spindle. The contact deformation between the roller element and the outer ring can be regarded as the spring compression under the radial external force.

Figure 5.

Siffness model of rolling bearing.

Therefore, the stiffness of rolling bearing under the radial external load can be expressed as:

$$K=\frac{F}{\delta }$$

(13)

When $F_{max}^n-F_{max}^{n-1}\le \epsilon$ , the iteration finishes, the stiffness of rolling bearing with the outer raceway defect under the radial external load can be expressed as:

$$K=\sum _{\mathrm{li}=0}^{\mathrm{nl}}(\frac{\partial F_{{\psi }_{\mathrm{li}}}}{\partial {\delta }_{{\psi }_{\mathrm{li}}}}·{\cos }^2{\psi }_{\mathrm{li}})+\sum _{\mathrm{ri}=0}^{\mathrm{nr}}(\frac{\partial F_{{\psi }_{\mathrm{ri}}}}{\partial {\delta }_{{\psi }_{\mathrm{ri}}}}·{\cos }^2{\psi }_{\mathrm{ri}})$$

(14)

Where δ _ψli is the contact normal elastic deformation of the rolling element on the left side, li = 1, 2, …, nl. F_ψli is the contact normal force of the rolling element on the left side, li = 1, 2, …, nl. δ _ψri is the contact normal elastic deformation of the rolling element on the right side, ri = 1, 2, …, nr. F_ψri is the contact normal force of the rolling element on the right side, ri = 1, 2, …, nr.

Time-varying stiffness analysis of rolling bearings

Taking the deep groove ball bearing 6206 as an example, the defect length L_b is 2 mm, the depth H_b is 1.5 μm, and the defect position angle is 0°. The structural parameters and working conditions of the rotor and bearing are shown in Tables 1 and 2

Table 1.

Parameters of deep grove ball bearing 6206.

Parameter	Value	Parameter	Value
Bearing outside diameter D /mm	62	Radius of curvature of inner raceway ri/mm	4.91
Bearing bore diameter d/mm	30	Radius of curvature of outer raceway re/mm	5.00
Bearing width B/mm	16	Inner raceway diameter da/mm	36.97
Roller diameter Dw/mm	9.53	Outer raceway diameter Da/mm	56.03
Pitch diameter Dpw/mm	46.5	Sum of inner raceway curvature Σρi/mm	0.2701
Quality of bearing m/kg	0.20	Sum of outer raceway curvature Σρe/mm	0.1842
Number of rolling elements Z	9	Difference of curvature of inner raceway F(ρi)/mm	0.9547
Radial load Fr/N	600	Difference of curvature of outer raceway F(ρe)/mm	0.8915

Table 2.

Structure parameters of rotor.

Parameter	Value	Parameter	Value
Length Laxi/mm	278	Rotor material	Q235
Quality Maxi/kg	1.967	Poisson ratio ν	0.28
Quality and grade of balance G	1	Density ρ/kg m−3	7800
Rotation speed n/r min−1	1500	Modulus of elasticity E/Pa	2.1 × 1011
Distance between supporting points L/mm	210	/	/

Based on the rolling bearing stiffness model considering the outer raceway defect, the time-varying stiffness of the defective bearing is calculated. The bearing stiffness changing with time shows periodic changes in both horizontal and vertical directions, so it can be fitted as a trigonometric series by Fourier expansion. The stiffness variation curve of the defective bearing in the horizontal and vertical directions is fitted by the MATLAB software. The fitting results of the 8-order Fourier expansions of the bearing stiffness are shown in Figures 6 and 7. The determination coefficients of each order of fitting results (R-squared) are shown in Table 3

Figure 6.

Time-varying stiffness in the horizontal direction.

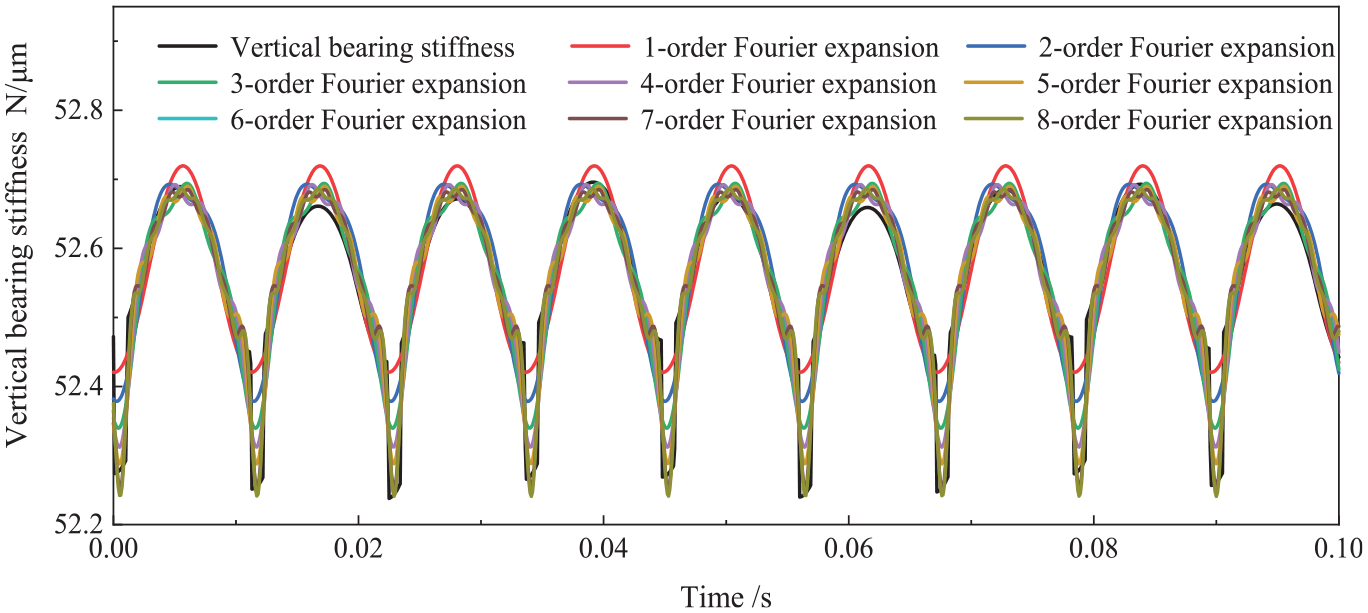

Figure 7.

Time-varying stiffness in the vertical direction.

Table 3.

Value of R-squared.

Order	1-order	2-order	3-order	4-order	5-order	6-order	7-order	8-order
R-square
Horizontal direction	0.6462	0.8902	0.9154	0.9524	0.9587	0.9715	0.9801	0.9907
Vertical direction	0.9674	0.9740	0.9744	0.9849	0.9849	0.9849	0.9926	0.9926

It can be seen from Figure 6 and Table 3 that the horizontal bearing stiffness changing with time is well fitted with the 8-order Fourier series expansion curve. The determination coefficient R-square of the fitting result is 0.9907. From Figure 7 and Table 3, the stiffness in the vertical direction of the bearing changing with time fits well with the 7-order Fourier series expansion curve, and the determination coefficient R-square is 0.9926. The fitting accuracy can both meet the calculation requirements. Therefore, the time-varying stiffness function expressions of the bearing in the horizontal and vertical directions are:

$$K_x(t)=a_{x0}+\sum _{\mathrm{xi}=1}^8(a_{\mathrm{xi}}\cos (\mathrm{xi}·\omega ·t)+b_{\mathrm{xi}}\sin (\mathrm{xi}·\omega ·t))$$

(15)

$$K_y(t)=a_{y0}+\sum _{yi=1}^7(a_{yi}\cos (yi·\omega ·t)+b_{yi}\sin \left(yi·\omega ·t\right))$$

(16)

The coefficients of the Fourier expansion in the horizontal and vertical directions are shown in Table 4 according to equations (15) and (16).

Table 4.

Fourier expansion coefficients.

Coefficients of horizontal Fourier expansion				Coefficient of vertical Fourier expansion
Coefficient	Value	Coefficient	Value	Coefficient	Value	Coefficient	Value
ax 0	6.616 × 106	/	/	ay 0	5.256 × 107	/	/
ax 1	−5.891 × 104	bx 1	−3.11 × 106	ay 1	−1.487 × 105	by 1	−9658
ax 2	−1.916 × 106	bx 2	5.539 × 104	ay 2	−3.757 × 104	by 2	−2.021 × 104
ax 3	−3.184 × 104	bx 3	−6.184 × 105	ay 3	−1.645 × 104	by 3	−2.628 × 104
ax 4	−7.474 × 105	bx 4	4.014 × 104	ay 4	−7665	by 4	−2.772 × 104
ax 5	−2.84 × 104	bx 5	−3.083 × 105	ay 5	176.4	by 5	−2.503 × 104
ax 6	−4.373 × 105	bx 6	3.742 × 104	ay 6	6664	by 6	−1.941 × 104
ax 7	−2.409 × 104	bx 7	−1.938 × 105	ay 7	9799	by 7	−1.256 × 104
ax 8	−3.004 × 105	bx 8	3.416 × 104	/	/	/	/

Vibration response analysis of rolling bearing rotor system

The time-varying stiffness fitting function of the bearing with outer raceway defects is substituted into equation (1), and the differential equation of motion of the rotor system considering the time-varying stiffness of the bearing and the raceway defects is as follow.

$$\begin{array}{l}M\stackrel{··}{x}+C\stackrel{.}{x}+\left(a_{x0}+\sum _{xi=1}^8\left(a_{xi}\cos \left(xi·{\omega }_x·t\right)+b_{xi}\sin \left(xi·{\omega }_x·t\right)\right)\right)x\\ =F_0\sin \left(\omega ·t\right)\\ M\stackrel{··}{y}+C\stackrel{.}{y}+\left(a_{y0}+\sum _{yi=1}^7\left(a_{yi}\cos \left(yi·{\omega }_y·t\right)+b_{xi}\sin \left(yi·{\omega }_y·t\right)\right)\right)y\\ =F+F_0\cos \left(\omega ·t\right)+Mg\end{array}$$

(17)

The differential equation of motion (17) is solved by MATLAB program. When the defect is located at the bottom of the outer raceway of the bearing, its influence on the load distribution, elastic deformation, and contact stress only exists in the vertical direction. ³¹ The time domain of the rolling bearing rotor system with defective outer raceway in the vertical direction are mainly analyzed as shown in Figure 8.

Figure 8.

Vertical amplitude of defective bearing rotor system.

When there is defect in the bearing raceway, the vibration amplitude in the vertical direction of the bearing rotor system increases significantly. However, the vibration amplitude of the rotor system gradually decreases and tends to be periodically stable with the change of time. When the rolling element passes through the defect, the contact stress between the rolling element and the bearing raceway, load distribution will change, so the stiffness change period is equal to the rotation time t between the two rolling elements:

$$t=\frac{120D_{\mathrm{pw}}}{\mathrm{nZ}(D_{\mathrm{pw}}-D_w\cos \alpha )}$$

(18)

Where α is the bearing contact angle, and the deep groove ball bearing contact angle is 0°.

According to formula (18), the stiffness change period of bearing 6206 is 0.0112 s. From Figure 6, the rolling element passes through the bearing raceway defect at 0.1571, 0.1683, 0.1795 s, .etc., and the vibration amplitude of the rolling bearing rotor system increases instantaneously. This time interval is consistent with the theorical result from formula (18).

On this basis, the vertical vibration spectrum of the raceway bearing rotor system with raceway defects is analyzed by the fast Fourier transform method. The results are shown in Figure 9

Figure 9.

Vertical vibration frequency spectrum of the rolling bearing rotor system with defective raceways.

The fault characteristic frequency of rolling bearing outer raceway can be calculated by the following formula ³² :

$$f_o=\frac{Z{f}_r}{2}(1-\frac{D_w}{D_{\mathrm{pw}}}\cos \alpha )$$

(19)

Where f_r is the rotor rotation frequency.

The theoretical calculation value of the outer raceway fault characteristic frequency is 89.44 Hz. In Figure 8, the vibration of the rolling bearing rotor system is large at 25, 89.5, 178.0, and 268.0 Hz, which is respectively equal to the rotation frequency of the rotor, the frequency of the outer raceway defects of the bearing, double and triple frequency of outer raceway defect frequency. The corresponding amplitude at the frequency of the bearing outer raceway defect frequency is the largest and most prominent.

Vibration test and result analysis of rolling bearing rotor system

Test system

The test system is shown in Figure 10, including vibration test bench, vibration signal acquisition system, and data processing system. The bearings at both ends of the vibration test bench are the tested bearings, which are all deep groove ball bearings 6206 with defects in the outer raceway (as shown in Figure 11). The relevant performance parameters are shown in Table 1. The test bench loads the bearing rotor system through the loading bearing. The rotor is drived by the motor through the coupling, and the vibration response is tested by four acceleration sensors symmetrically installed in the 45° direction along the radial direction of the rotor at both ends of the bearing pedestal, as shown in Figure 10. The vibration signal of the system is produced by the acceleration sensor, which is amplified by the signal amplifier and then transmitted to the data acquisition card. The output end is connected to the computer and the vibration signal is analyzed and processed by the data processing system. The sampling frequency of vibration signal is 10 kHz, the acceleration sensors are uniaxial piezoelectric sensors. The sensitivity of the sensor is 500 mV g⁻¹ and range of data acquisition is from 0.2 to 15 kHz.

Figure 10.

Vibration test bench.

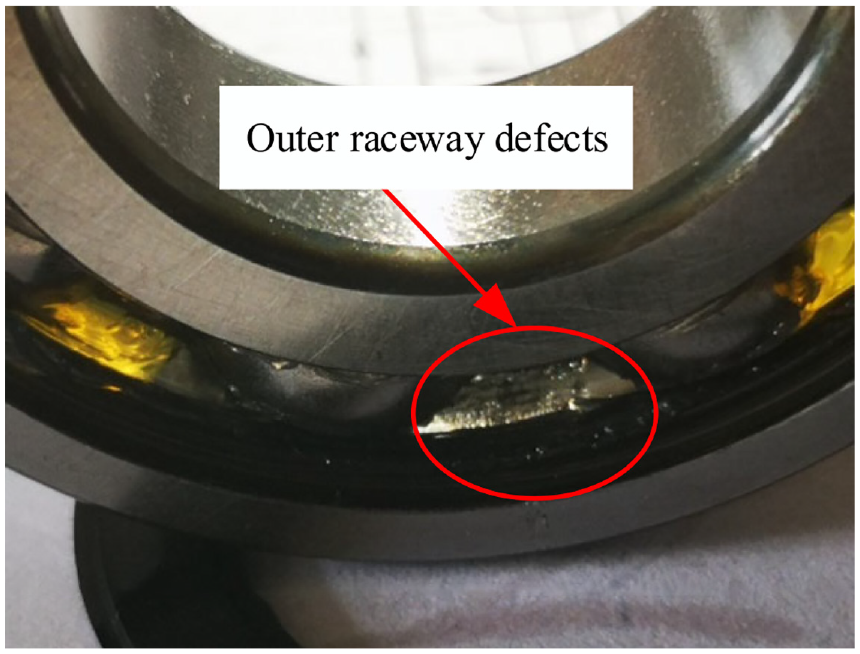

Figure 11.

Defective bearing.

Test result analysis

As there is a defect on the outer raceway of the rolling bearing, the bearing rotor system shows obvious abnormal vibration. At this time, the vibration signals acquired from the acceleration sensors at the four monitoring points of the test bearing at both ends are shown in Figure 12.

Figure 12.

Vibration signal at time domain: (a) monitoring point no. 1, (b) monitoring point no. 2, (c) monitoring point no. 3, and (d) monitoring point no. 4.

The vibration responses at the four points exist obvious vibration shock, especially the monitoring points no. 1 and no. 2 of the front-end test bearing. The envelope spectrums of each vibration signal ³³ are shown in Figure 13

Figure 13.

Envelope spectrum of test data: (a) monitoring point no. 1, (b) monitoring point no. 2, (c) monitoring point no. 3, and (d) monitoring point no. 4.

The envelope spectrum of the vibration signal of monitoring points no. 1 and no. 2 at the front bearing shows that the amplitude of the test bearing is the most obvious at the frequency of 87.89 Hz, which is very close to the fault frequency of 89.44 Hz corresponding to theorical calculation and numerical analysis. But the theoretical value is still different from the experimental value. The main reason is that the rolling element is not pure rolling in the test, and the friction loss maybe appear because of the sliding of the rolling element. The lubrication of rolling bearing is not the ideal state in the test, the poor lubrication condition will cause the friction loss. Besides, the size, length, and depth of the defect will also lead to a certain change in the vibration frequency in the test.

At the monitoring points no. 3 and no. 4, the envelope spectrum of the vibration signal has the maximum amplitude at 87.89 Hz (as shown in Figure 13), and also has obvious amplitude at its double, triple and quadruplex frequency.

Conclusion

• (1) Taking the rolling bearing rotor system test bench as the research object, the dynamical model of the rolling bearing rotor system is established. The rolling bearing with radial clearance and outer raceway defects is analyzed, and the time-varying stiffness model of rolling bearing is established. The time-varying stiffness of the bearing in the horizontal and vertical directions is fitted by Fourier series expansion, and the function expressions of each time-varying stiffness are obtained.

• (2) The dynamical model of rolling bearing rotor system considering radial clearance and outer raceway defects is solved, and the vibration response time-domain curve of the bearing rotor system is obtained. Due to the outer raceway defects, the vibration response shows obvious shock. The fault frequency of the bearing outer raceway defects can also be obtained by analyzing the frequency spectrum results of the response.

• (3) The vibration test of bearing rotor system with outer raceway defects is carried out. The obvious fault frequency is obtained by the envelope spectrum analysis of vibration signal, which is in good agreement with the theoretical value. The test data verifies the correctness of the stiffness model of bearing and the dynamic model of the bearing rotor system.
