Percutaneous Transseptal Extracorporeal Membrane Oxygenation to Rescue a Failing Right Ventricle in an Animal Model

Abstract

Objective:

We tested the feasibility and effectiveness of a percutaneous atrial transseptal extracorporeal membrane oxygenation (ECMO) cannulation strategy in a right ventricular failure (RVF) model.

Methods:

We performed 4 nonsurvival porcine experiments. Percutaneous transseptal access was achieved using a steerable introducer. For guidance, we used fluoroscopy, transesophageal echocardiogram (TEE), and intracardiac echocardiography (ICE). A ProtekDuo rapid deployment cannula (LivaNova, London, UK) was advanced across the septum into the left atrium by 2 to 3 cm. Pulmonary hypertension (PH) was induced by partially clamping the pulmonary artery. ECMO flow was cycled from high (2 to 3 L/min) to low (0.2 to 0.3 L/min) over 2 to 3 hours.

Results:

Transseptal access using TEE and fluoroscopy was successful in 1 animal and unsuccessful in 1 animal. ICE provided optimal visualization for the remaining 2 animals. Mean arterial pressure (MAP) was associated immediately and consistently with high versus low ECMO flow rate (mean difference: 29 ± 3.1 mm Hg, P = 0.004) but was not restored to baseline values. RV pressure values were dynamic. Given time to equilibrate, mean RV pressure was restored to a baseline level.

Conclusions:

Percutaneous right atrium to left atrium transseptal cannulation relieved PH-RVF. MAP was restored to a viable level, and mean RV pressure was restored to a baseline level. Transseptal ECMO shows promise as a cannulation strategy to bridge patients with PH-RVF to lung transplant.

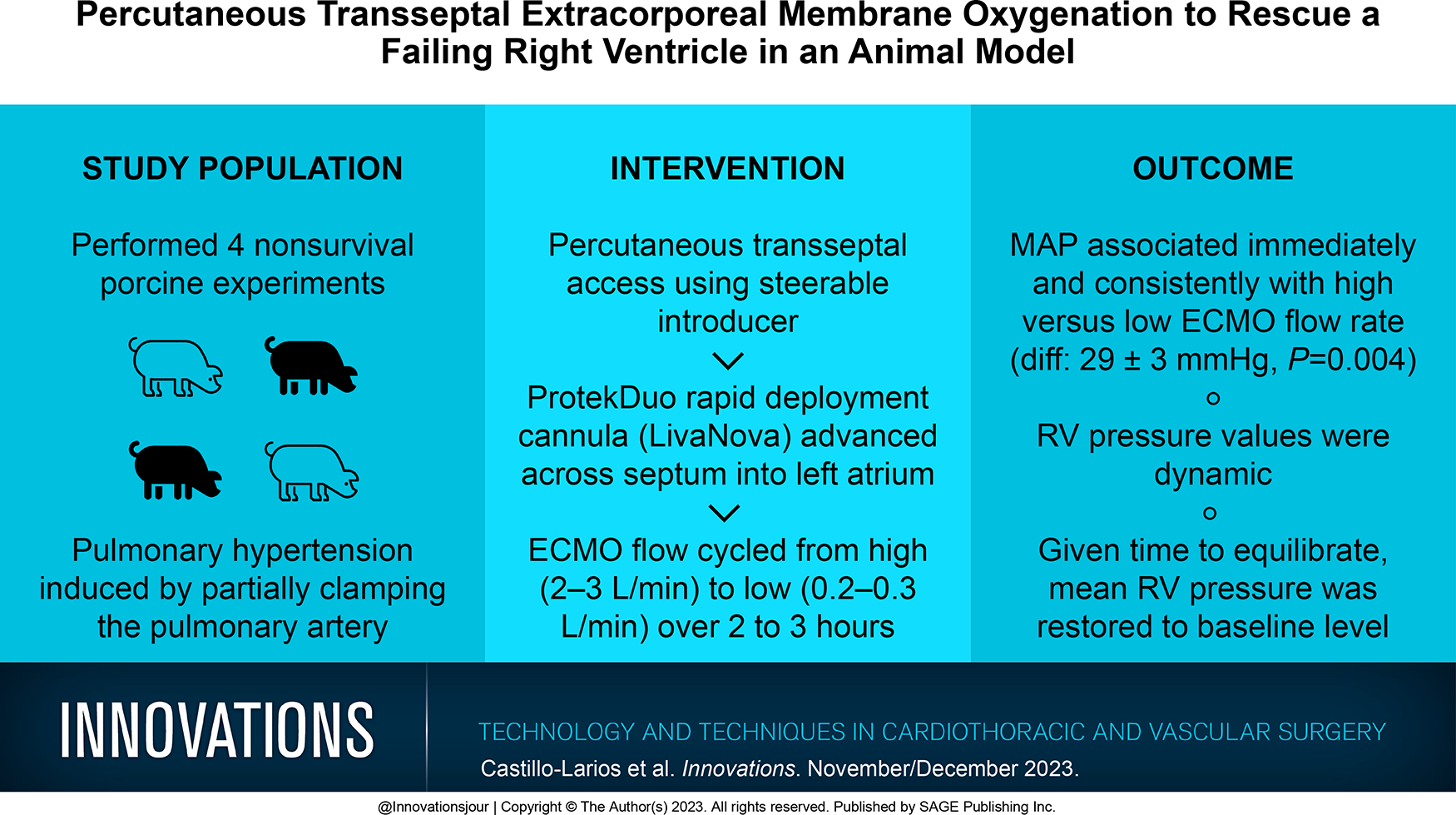

Visual abstract
