Abstract

With an increasing number of applications appearing, smartphones with powerful processors and a variety of sensors are ideal mobile devices at hand. On one hand, various applications which are able to provide personalization functions that provide the service of interest to users rely on gathering and analyzing the sensor data and other sensitive information. On the other hand, attackers can accurately classify activities of mobile users from these data. As a result, the risk of users compromising their privacy has risen exponentially. Mobile users currently cannot control how various applications handle the privacy of their sensor data. To address the issue, we present P3Android whose architecture can support applications' personalization functions in Android according to users' personae and use the concept of profile to prevent sensitive information from unauthorized access. Furthermore, we provide a privacy protection service for legacy apps. which can enforce different protection policies according to the risk level of apps. All of these cooperate to provide both personalization awareness and privacy protection in Android. Experiments show that P3Android is feasible and effective.

1. Introduction

Nowadays, smartphones take place of the traditional PCs in many different ways. In the meanwhile, they also bring unprecedented convenience to users and gradually transform the way how human beings live. For example, there are 1.43 million Android applications (apps. for short) in Google Play which are more than iOS apps in App Store according to the AppFigures [1]. Such large numbers of apps are increasing the competition pressure against developers and companies, which accounts for the importance to supply various personalization functions. However, the current implementation of personalization functions mostly relies on gathering and analyzing users' sensitive information, including system information, user data, device resources, and application data [2], which may threaten and violate users' privacy. Currently there are a lot of malicious sensor applications which detect the user's physical environment through a series of sensors and monitor the user's credit card number through the microphone. Moreover, they detect key vibration according to the acceleration sensor. PlaceRaider [3] constructs rich, three-dimensional models of indoor environments by leveraging mobile phone camera and sensor. Remote burglars can thus “download” the physical space, study the environment carefully, and steal virtual objects from the environment. Accelprint [4] arises from hardware imperfections during the sensor manufacturing process, causing every sensor chip to respond differently to the same motion stimulus. Moreover, utilizing accelerometer fingerprints makes it easy to track a user over space and time. Aviv et al. [5] demonstrated how to use the accelerometer sensor to learn user tap- and gesture-based input as required to unlock smartphones using a PIN/password or Android's graphical password pattern. Hasan et al. [6] proved the feasibility of leveraging transmission channels of the sensor data to implement remote attack. Substantial apps. collect the location information through location-based services. Analysis of these data infers sensitive privacy information about service recipients, such as their home locations, lifestyles, and health conditions and then targeted pushing business services and advertising and so forth [7].

Unfortunately, the privacy protect mechanism of Android itself cannot prevent the leakage of user data well. For example, the “all-or-nothing” feature of permission check model makes users unknown about which behaviors of an app. violate the privacy protection regulation. Though there have been some research works on privacy protect, such as fine-grained permission access control, isolation, policy enforcement, encryption, and security authentication, they almost care little for personalization requirements and, additionally, require users' much technique knowledge about system and privacy. Wei et al. [8] analyzed the Android platform to see how the set of permissions had evolved and found that system permission set tends to grow. And the growth is aimed at offering access to new hardware features rather than providing finer-grained permissions; a particular concern is that Android third party and preinstalled apps. do not follow the principle of least privilege, which prevents the system's permission review mechanism from playing a good role in privacy information protection. The malware DroidDream and its simplified version, DroidDreamLight [9], broke the sandbox mechanism to steal a large amount of data, which affects the safety of tens of thousands of users' privacy. Additionally, malicious applications could bypass the sandbox mechanism constraints due to the untreated permission transferring [10]. A sensor-based voice privacy theft attack named CPVT is presented in [11]. CPVT can be disguised as a normal Android app. and the attack process can be fully controlled by the attacker without the knowledge of the victim.

Research Question. How to balance the privacy protection and personalization support requirements of smart phone users at the same time? To cope with this challenge, we propose a new architecture which supports client-side personalization awareness privacy protection for Android and have implemented a prototype called P3Android. P3Android consists of two system services: personalization support service (PSS) and privacy protection service (PPS). PPS assesses each app.'s risk level through machine learning and enforces different privacy protect policies accordingly, for example, to simulate for sensitive data. PSS is responsible for providing personalization support, such as different skin and content display styles. It abstracts each user's personal profile from prediction results. Then, it provides personalization functions in system layer by modifying Android Java framework. P3Android takes care of privacy-sensitive access permissions, asks for and stores users' decision, and supplies a set of APIs to third-party developers who want to customize their personalized services. P3Android advocates a benign and secure programming environment, which eventually prevents sensitive user data leakage against distrust apps.

Research Contributions. The contributions of this paper are as follows: (i)

Use the personae profile to support OS-wide personalization for Android applications; and learn users' personae profile automatically through support vector machine (SVM) model.

(ii)

Propose a new personalization awareness privacy protection architecture which can enforce different security policies according to apps.’ risk levels and provide several APIs for apps. developers to facilitate the secure use of users' privacy and better service according to the users' personae profile.

(iii)

Implement a prototype system named P3Android which consists of two main services and two apps. based on Android 5.0. Experiments show that P3Android can protect users' privacy and provide personalization awareness support to apps. with nearly negligible performance loss. P3Android is available (https://github.com/dongyangwu/P3Android/) and open sourced with LGPL which can be adopted by any Android platform provider.

The rest of this work is organized as follows. We discuss the related work in Section 2 and present the design of P3Android in Section 3. In Section 4, we describe the implementation of P3Android in detail and then evaluate its effectiveness and performance in Section 5. Section 6 concludes the paper.

2. Related Work

We classify prior related work into two categories: personalization support and privacy protection.

Personalization Support. Client-side personalization was proposed as a means for privacy protection [12, 13], which was mainly used in search services and targeted advertising. PersonisJ [14] implemented client-side personalization in Android, but it represented user models as hierarchical structure of contexts. For example, model users prefer museums from those they have visited which are cumbersome and difficult to get. And its personalization service cannot work with other services, such as location service. Davidson et al. [15] implemented the client-support personalization on Windows Phone OS, which similarly uses the concept of profile. However, Windows Phone only accounted for 2.7% of all smartphone shipments according to the survey provided by IDC in 2014 [16]. RePriv [17] explored personalization in the context of a web browser by building a user interest profile based on the user's browsing history. Khare et al. [18] studied the dynamic evaluation of user profiles for personalization of web services based on service usage log.

Privacy Protection. Alastair et al. proposed MockDroid [19], which allows a user to “mock” an application's access to resources and encourages users to consider the trade-off between the functionality and the disclosure of personal information. However, it cares little about those critical permissions (CPs) related to users' privacy; thus users will not mock them. Roesner et al. [20] proposed a model of user-driven access control, in which each type of user-owned resource will have a user-driven resource monitor. By capturing permission-granting intent embedded in access control component, the monitor can judge whether an access to the resource should be granted. Though it can automatically determine whether to grant the request permissions, many apps. may crash when they cannot get the request resources.

Additionally, there are also many research works about privacy protection which studied from the perspective of isolation [23], policy enforcement [24], encryption [25], and security authentication [26], and so forth. “Override” proposed in [27] can securely intercept raw sensor data requested by applications and either perturb it according to rules set up by the user or replace it with synthetic data before releasing it to the requestor. Reference [28] provides mobile sensor data that can be utilized by requesting applications while protecting the privacy of users. It proposes the privacy framework, IPShield, which allows users to define two lists of possible inferences which are known as the “Blacklist,” inferences that the user would like to prevent, and the “Whitelist,” inferences that the application is requesting. A detailed survey of privacy protection was discussed in [29]. Zhang et al. [30–32] described the need to protect the privacy of data in wireless sensor network and in web of things.

All the research works mentioned above consider either the privacy protection or the personalization support, which is not enough for the whole system privacy protection and users' personalization support.

3. Design of P3Android

P3Android provides two services, privacy protect service (PPS) and personalization support service (PSS), for achieving privacy protection and universal personalization support, which improve the overall privacy protection of Android OS in complementary way. Figure 1 shows the proposed P3Android's architecture.

Figure 1

P3Android's architecture.

P3Android encourages storing user data on mobile device which makes users regain full control of their privacy data and also declines the pressure of third-party cloud providers. To enable easy application personalization, universal personalization service profiles user's interests and preferences as personae, such as athletes or housewives. Personae approximately represent user's various paths of life. And personae can be extended through custom classifiers. In order to get user's interest profile, P3Android leverages the truth that all user data must flow through the operating system, so there are many excellent places to gather the data which can be trained to classify user's personae.

To supply universal support, P3Android modified the Android framework upon which apps. are built. Though there are so many widgets that can be composed to implement multifarious applications, we only focus on those that are frequently used by third-party apps. to display their contents. When users turn on the personalization service, these widgets can reembellish its contents according to the profile created above.

Though using personae helps limit information leaks, those legacy applications need not to follow these constraints. Therefore, P3Android proposed a dynamic permission checking model which can decide to grant apps. different permissions according to apps.’ risk levels. Three levels (high, medium, and low) are used, which are ranked by a Naive Bayes model. This risk rank process is completely automatic and needs no artificial participation.

3.1. Personae Profile

Personae profile is an abstract character of a user; it provides a way to declassify sensitive information of the user. In P3Android, we target eight kinds of personae. Each persona is represented by a support vector machine (SVM) classifier and trained on a manually created list of keywords characteristic to each persona profile. For example, the sports buff will represent strong interest in basketball or other sports matches and so on. Thus, we have collected multiple sports information from sites such as the “sports.sohu.com.” We choose SVM model instead of Naive Bayes model for its advantage of the recall rate and accuracy in general classification tasks [33].

P3Android supports the following personae: sports buff, entertainment enthusiasts, technophile, travel buff, business executive, medical staff, retiree, and homemaker. Certainly, this personae list is not enough and complete, and we encourage other researchers and third-party developers to extend the list through creating their own classifiers.

It is obvious that no user has interests that match an exact persona. So, it is reasonable for P3Android to assign a weight to any personae of a user; each weight indicates the likelihood that persona matches the user. PSS maintains a hash table dynamically for a certain user which is named the users' profile, and its key value is changing discontinuously according to personalization classifiers.

3.2. Personae Classifiers

Personae classifiers (PCs) can infer users' favorites or preference according to personalization signals; they are the key link to implement personalization support service. At first, personae classifiers have two design choices, monolithic and customizable. In the monolithic model, classifiers will be implemented as an operating system service which expands the TCB of Android OS at the same time and brings much difficulty in upgrading the classifiers. In practice, the build-in, default classifiers also cannot meet all demands required by third party. Therefore, we choose customizable approach which allows ensuring the extensibility and feasibility of P3Android.

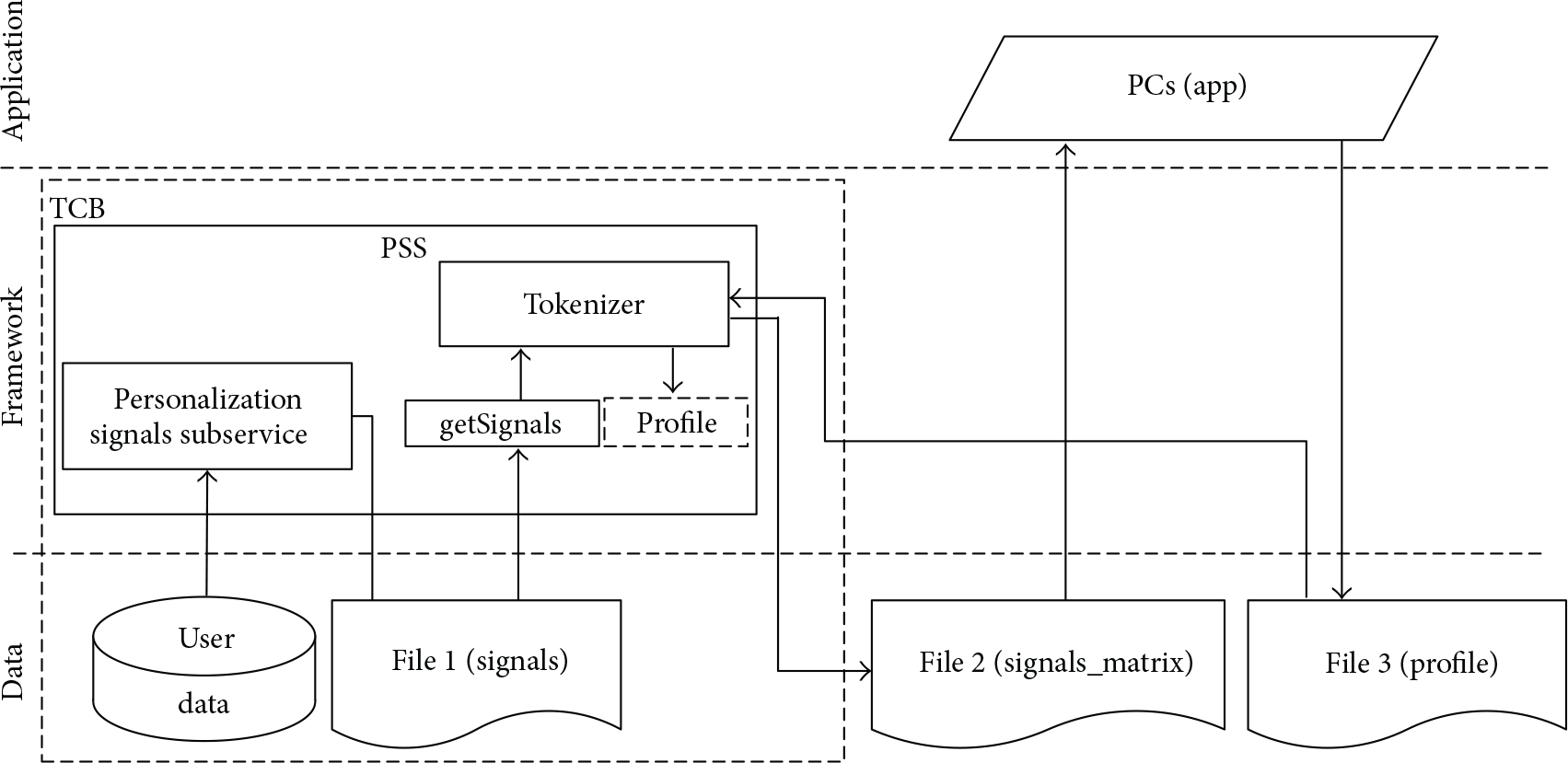

Figure 2 shows the architecture of our customizable model for personalization support service. In this model, personalization signals subservice collects users' various signals and saves them in File 1 whose owner is system. PAPTokenizer, a tokenizer built in PSS, gets the signals and transforms personalization signals into a matrix needed by PCs. The matrix is saved in File 2 which is world readable, so PCs can read in the matrix and predict users' personae. The prediction results are saved in File 3 which is also a world readable file and can be read to reset the value of user profile. Obviously, all user data are operated inside the system in this model; the only exposed information is the signals matrix which is composed by a bunch of numbers, and it represents nothing when it is read by other apps.

Figure 2

Architecture of personalization support service.

3.3. Risk Scoring

Risk level means the potential threat of an app. running on Android OS. One of Android's main defense mechanisms against malicious apps. is a risk communication mechanism which warns the user about permissions an app. requires before being installed. However, the warning information displayed requires too much technical knowledge and needs users to consume much time to distill critical information. P3Android therefore supplies users with automatic risk assessment to improve risk communication for apps.

Nowadays, apps. are becoming over privileged, the majority of which want more permissions than normal functional need. The permission feature of each Apk file can be consequently learned for analyzing their severity of threat. In order to get large amounts of feature, we have collected nearly ten thousand Apk files from XiaoMi App market in March 2015 which can be classified into 17 categories, and each category contains at least three hundred. What is more, our dataset also contains 1245 unique Apk files [34] that are known to be malicious. From a practical perspective, these data may consist of some “redundant” packages for the reason that one developer may release many nearly identical apps. and many apps. are generated by automatic tools. So we decided to keep a single instance of the same developer in each category and did nothing for those automatically generated Apk files. The dataset finally contains 10672 apps.

P3Android computes apps.’ risk level by the modified PNB [35] (Naive Bayes with information Priors) model for its monotonic and unsophisticated advantages; in particular, it can differentiate between critical permissions and less critical ones, which makes malware apps. more difficult to reduce their risks by removing rare permissions. In this model, each app. in the dataset is represented by $x_{i} = [x_{i, 1}, \dots, x_{i, M}]$ , where M is the number of permissions and $x_{i, M}$ is a binary function which is equal to 1 (i.e., $x_{i}$ requests the permission $p_{j}$ ) or 0 (i.e., $x_{i}$ does not request the permission $p_{j}$ ). Moreover, every $x_{i}$ is generated by M independent Bernoulli random variables, as formula (1) shows, where $θ_{m} \equiv p (x_{i, m} = 1)$ is the Bernoulli parameter. Consider

\begin{matrix} p (X_{i}) = \prod_{m = 1}^{M} p (x_{i, m}) = \prod_{m = 1}^{M} θ_{m}^{x_{i, m}} {(1 - θ_{m})}^{(1 - x_{i, m})} . \end{matrix}

(1)

To avoid overfitting, Beta prior $B e t a (θ; α_{0}, β_{0})$ is used over each Bernoulli parameter $θ_{m}$ , so the maximum of posteriori estimation can be calculated by formula (2), where N is the total number of apps. and $α_{0}$ and $β_{0}$ are the prior parameters we can manually set from our experience. Consider

\begin{matrix} P (p_{j} ∣ θ) = \frac{\sum_{i}^{N} x_{i, j} + α_{0}}{M + α_{0} + β_{0}} . \end{matrix}

(2)

PNB aims to learn a Naive Bayes model with parameter θ based on three desiderata. One of them is that the function should be monotonic. But, as mentioned before, today's apps. request more permission; many permission features no longer meet this desideratum. For example, READ_PHONE_STATE is requested nearly by 90% apps. in our dataset. In this case, we ignore those 26 critical permissions mentioned in [35] because of the informative priors we give in advance. For others, we initially set $P (p_{j} ∣ θ)$ equaling to 50%, which indicates that these feature will not affect the application's risk level.

Additionally, in order to highlight the importance and discourage the use of CPs, we set $α_{0}$ = 1 and $β_{0} = 3 N$ for the 9 CPs as shown in Table 1, where N is the number of apps. in the dataset, and set $α_{0}$ = 1 and $β_{0} = 2 N$ for the other 17 CPs, by which the risk score of an app. will change obviously when these CPs are requested or not; for the remaining permissions, we set $α_{0}$ = 1 and $β_{0}$ = 1 for their less abilities related to sensitive information leakage.

Table 1

Nine critical permissions which are important to users' privacy.

Number	Permission name
1	ACCESS_COARSE_LOCATION
2	ACCESS_FINE_LOCATION
3	READ_CONTACTS
4	READ_SMS
5	READ_CALENDAR
6	READ_HISTORY_BOOKMARKS
7	READ_PHONE_STATE
8	READ_LOGS
9	GET_ACCOUNTS

3.4. Privacy Policy Enforcement

P3Android modified the permission check model of Android in order to strengthen the privacy protection. As Figure 3 shows, when an app. requests a sensitive permission, PPS will firstly query its risk level and then enforce dynamic permission policy (DPP) according to corresponding level. P3Android provides protection for the 26 critical permissions (CP set 1) and supports data structure simulation for the 9 most critical permissions (CP set 2), as shown in Table 1, which can read users' sensitive information. The protection policies corresponding different risk levels are as follows: (i)

HIGH_LEVEL: P3Android supplies three access decision options, which are MOCKED, DENIED, and GRANTED, to 9 critical permissions in Table 1 and two access decision options, which are DENIED and GRANTED, to other 17 less critical permissions.

(ii)

MEDIUM_LEVEL: P3Android only supplies three access decision options, which are MOCKED, DENIED, and GRANTED, to 9 critical permissions in Table 1.

(iii)

LOW_LEVEL: P3Android uses Android permission check model (APM) directly.

Figure 3

Additionally, we maintain two hash tables, RISK_STORE and APP_PERM_STATUS, in RAM to improve the efficiency of PPS and warn only once for every critical permission. If an app. requests these permissions next time, PPS will firstly query its status in APP_PERM_STATUS table to avoid warning too much: (i)

RISK_STORE〈APP name, APP risk score〉: store the risk scores of all installed apps.

(ii)

APP_PERM_STATUS〈APP name, APP permission, permission-check-result〉: store the permission decision status (GRANTED or DENIED or MOCKED) for each request permission of each app. which belongs to 26 critical permission sets.

3.5. Mock Privacy Data

The sensitive resources or data are protected by Android's permission mechanism; specifically, an app. must request corresponding permissions if it wants to use certain resource/data. This mechanism runs silently in the background and is incongruous with the user perception; moreover, currently there are only two decision options, “DENIED” and “GRANT,” available for users.

MockDroid [19] has provided mock ways for privacy data; it copied the whole permission check mechanism and added its mock functions, which is complicated and intrusive. Different from MockDroid, P3Android only adds another decision option, PERMISSION_MOCKED, instead of the all mock permissions, such as READ_PHONE_STATE_MOCK, in MockDroid. P3Android will return a mock object of the actual privacy data when each sensitive permission's decision option is PERMISSION_MOCKED for a certain resource. In this way, P3Android can make full use of the existing permission mechanism and significantly reduce changes to Android source codes.

4. Implementation of P3Android

In this section, the implementation of P3Android is described in detail. The prototype is based on Android 5.0 whose source code was made available on 3 November 2014.

4.1. Personalization Signals

In order to get training dataset for PCs, PSS gathers signals from many different places making good use of its privileged position. However, there are two problems to be concerned. First one is what data stream should be collected; a good choice should neglect the performance loss and reduce the noise signals. The second problem is how to collect data; we can collect signals in two ways: one is gathering once data is created and the other is gathering at intervallic time.

In our implementation, we capture four distinct personalization signals concerning the efficiency and accuracy: SMS messages, emails, GPS data, and browsing history and bookmarks. Additionally, because this information is not being created all the time, and its generated time is not fixed, we log the information when signals are created.

SMS. SMSs consist of messages which have been sent or received. We just gather those sent SMSs because the received SMSs commonly represent other people's opinion or preference. Sending message is managed by the SmsManager class and is finally executed by a dispatcher. Considering the different mobile network operators users may select, we log the message text before identifying the network in ImsSMSDispatcher class.

Email. We also ignore those incoming emails. An email body is composed by subject, attach files, and content, and so forth, and among them the most valuable signal is the content text. Therefore, we interpose the sending operation in SmtpSender and Rfc822Output class to log valuable information.

GPS Data. GPS data are the commonly used sensor data in users' activity recognition. For example, the location information of multiple shops or stadiums may reflect a user's favorite activity. Therefore, we interpose the requestLocationUpdates method in LocationManager class to log valuable information. Due to the privacy mode we proposed in Section 4.6, the user may choose to provide “mock” GPS data; P3Android will return a random latitude and longitude regardless of the actual status of the GPS device.

Browsing History and Bookmarks. Browser now is an integral part in the lives of all Internet users. It brings various live information and novelties that meet customers' different tastes. Users always browse those topics and news they usually like and sometimes add them as a bookmark. Thus, these signals can be viewed as users' preference. In Android OS, there is a specific data controller, DataController class, to manage the web information. Due to the privacy mode we proposed in Section 4.6, we should not log signals when users surf the Internet in the privacy mode of browser. Therefore, we finally log signals in the place where history is updated. As for bookmark, the dealing method is the same as browsing history.

All collected signals are saved in the file named “/data/personalization/signals” whose owner is “system.” In other words, only the system user can read/write this file. Therefore, it ensures the security of user's sensitive information. Furthermore, by integrating those multiple data sources, P3Android can guarantee the accuracy of the whole predict process.

4.2. Persona Classifier

Eight sample SVM personalization classifiers (PCs) are implemented in one app., where one of PCs represents one persona and is trained offline due to the constraints of computing resource on mobile device. To get the appropriate training dataset for libsvm which is a main library to implement PCs, we use chi-square kernel algorithm to distill features and TF-IDF (Term Frequency-Inverse Document Frequency) algorithm to count term frequency.

For a certain term t, its chi-square value ( $χ^{2} (t)$ ) can be gotten from the following formula:

\begin{matrix} χ^{2} (t) = \frac{N \times {(A \times D - C \times B)}^{2}}{(A + C) (B + D) (A + B) (C + D)} . \end{matrix}

(3)

Therein, N means the total number of documents in training dataset; A is the number of certain kinds of documents (suppose K) containing t; B is the number of other kinds of documents except K; C means the number of documents which do not contain t; D is the number of documents which do not contain t or belong in K.

For a certain term t, we calculate its weight value ( $W_{t}$ ) by using the following formula:

\begin{matrix} W_{t} = {t f}_{t} \times {i d f}_{t} . \end{matrix}

(4)

Therein, ${t f}_{t}$ is the ratio of t appearance counter and total terms; ${i d f}_{t}$ is the measure of t's importance which is gotten from formula (5); $n_{t}$ means the number of documents containing t. Consider

\begin{matrix} {i d f}_{t} = \log (\frac{N}{n_{t}} + 0.01) . \end{matrix}

(5)

The detailed procedure of creating the signals_matrix file from news documents is shown in Algorithm 1.

Algorithm 1: Create signals_matrix and terms vector file.

Input: 9000 pieces of news documents gained by our crawler program

Output: signals_matrix and terms vector file

(1) For each document d

(2) For each term t

(3) Calcute CHI and TF-IDF using formula (2) and formula (4)

(4) Normalize the TF-IDF of all terms

(5) Sort the terms with CHI value in descending order

(6) get top 3000 terms and label them with unique ID

(7) write 〈term:termID〉 into terms vector file

(8) write 〈termed:TF-IDF〉 into signals_matrix file

We train eight PCs currently by calling libsvm with Linear Kernel and C-SVC model as parameters. After training, eight personae profiles are available. It is worth noting that steps in Algorithm 1 are finished offline and do not need user's interaction.

As shown in Figure 2, after the signals are transformed into matrix, PCs can read in the matrix, compute which persona each matrix belongs to, and finally output the results to a file. PAPTokenizer then read this file and reset user's profile value.

4.3. Universal Personalization Support

Universal personalization that we implemented in P3Android includes apps.’ skin, font color, and font size. For supporting skin and font personalization, we firstly estimate users' approximate age from personae profile; for example, retirees are considered as old and entertainment enthusiasts are considered as young. Old people often need bigger font size and higher contrast between colors than youth, so we modified the personalization functions where each view is rendering.

However, the real power of P3Android comes from exposing personalization APIs to third-party developers, which easily help in deploying content differently. We discuss here four of these API functions: (i)

getPSSeviceStatus() returns the status of personalization support services. We allow users to toggle personalization on and off in Android Settings. Apps. can display their content with different styles according to the PPS status.

(ii)

getTopPersonae() and getTopPersonaeValue() return the most relevant persona and its value if PSS is on. This will present various functions and abilities based on developers' different explanations; even third-party advertising services can push suitable Ads. to different users accordingly.

(iii)

getPersonaeValueScale() returns the proportion of value of each persona, which can help display contents in proportion.

In addition, P3Android provides other APIs such as getPersonaeValueByDescOrder and getUserProbablyAge to third-party developers.

4.4. Risk Scoring

The procedure of risk scoring consists of four steps: collecting training data, training the scoring model, determining the distribution of risk scores, and automatic scoring of the risk of a certain app. in mobile device. The former two steps are described in Section 3.3. We emphasize here the latter two steps. It is important for the privacy protect mechanism to determine the suitable critical value of each risk level. We select other 1000 apps., 500 unknown and 500 malicious, to calculate the risk score using the trained Bayesian classifier; the distribution of their risk scores is as Table 2.

Table 2

Distribution of risk scores.

Apps.	Score
Apps.	0~1.0	1.0~2.0	2.0~3.0	3.0~4.0	4.0~5.0	5.0~6.0	6.0~7.0	7.0~8.0	8.0~9.0	>9
Malicious apps.	19	39	92	177	156	16	1	0	0	0
Unknown apps.	1	14	46	95	97	93	88	58	8	0

There are 70% malicious and 76.2% unknown apps. whose risk scores are greater than 3.0; thus, we formulate them HIGH_LEVEL; similarly, we formulate 26.2% malicious and 12% unknown apps. whose risk scores are between 1.0 and 3.0 MEDIUM_LEVEL. However, these are just the default values; users who care more about their sensitive information can adjust them.

As shown in Figure 1, the risk scoring is implemented as system application (RSApp for short), which automatically rates the risk level against each installed app. and saves the score in XML file under the APP directory. If the PPS is enabled, the scores will be stored into a hash table named RISK_STORE〈APP name, APP risk score〉 in system RAM. Additionally, RSApp creates a BroadcastReceiver to detect if a new app. is installed for automatic risk scoring without users' interaction.

4.5. Privacy Policy Enforcement

P3Android provides dynamic permission policy (DPP described in Section 3.4) by adding two private methods, isPPSCheckNeed(pps, permName, pkgName) and ppsCheckPermission(pps, pkgName, permName), in Android PackageManagerService. The former determines whether to enforce DPP to an APP requesting certain system resource by querying its risk score. The latter enforces different DPP according to the risk scores. For example, for apps. with MEDIUM_LEVEL risk score, P3Android provides one decision of PERMISSION_GRANTED, PERMISSION_DENIED, and PERMISSION_MOCKED (described in Section 4.6) for 9 critical permissions in Table 1. However, for apps. with HIGH_LEVEL risk score, P3Android provides not only similar decision with MEDIUM_LEVEL but also one decision of PERMISSION_GRANTED and PERMISSION_DENIED for other 17 less critical permissions.

Similar to Linux Security Module, the privacy policy enforcement mechanism is integrated into PackageManagerService. Specifically, they are inserted in checkPermission and checkUidPermission methods.

4.6. Mock Privacy Data

Different from MockDroid [19], which imitated the whole permission check model, we only add a new permission status, PERMISSION_MOCKED, to original model and, thus, make less changes to original system.

PPS implements data simulation for nine critical permissions which may read users' sensitive information, as shown in Table 1. Among them, coarse- and fine-grained location information is generated from device sensor and networks; contacts, SMS, calendar, bookmarks are mainly managed by ContentResolver and ContentProvider and so forth; phone state contains some inherent information of each device; AccountManager manages users' various accounts information, while system log information must be gotten from logcat. For the reason of paper space, we mainly describe the mock process of coarse- and fine-grained location, contacts, and phone state in detail.

Coarse- and Fine-Grained Location. If users choose “MOCK” option when system shows the warning box, PPS will return mock location resolution level to LocationManagerService, in which we simulate a virtual provider, and it will generate a location object whose coordinates are random but reasonable.

Contacts. ContentProvider2 class directly executes the read/write task of contacts; it includes two modes, ContactMode and ProfileMode, which, respectively, perform contacts or profiles operation. We added a third mode, called MockContactMode, in which a virtual database helper is built to complete corresponding operations. As for SMS, calendar, and bookmarks, it is all about the same.

Phone State. We can get phone state from exposed interface of telephony service, including device id and SIM serial number. When read request is mocked, telephony manager will return a random fake value.

4.7. Services and Privacy Mode

All the functions except risk rank and personae classifiers are implemented as two services built in system framework: PersonalizationSupportManagerService (PSMS for short) and PrivacyAwarePersonalizeManagerService (PPMS for short). These services are in run mode in default after system booting. We therefore design a status manager module in Android Settings, which can switch on/off the status of privacy protect service, signals collection, and universal personalization, that is, enable/disable those services. In particular, P3Android will not log users' activities when switching off personalization signals subservice, which helps protect users' privacy.

PSMS provides logPersonalizationSignals method for collecting personalization signals and word2Matrix methods for profile classifier to form the profile of the user, which is updated by setPersonaeProfile method. PPMS enforces privacy policies through its queryAppRiskLevel method and PackageManagerService of Android.

4.8. Summary of P3Android's Implementation

P3Android is implemented based on Android 5.0 in a modular way. Table 3 shows the source lines of code (SLOC) that each module contains. It can be seen that the modification to Android framework is noninvasive (2890 SLOC only).

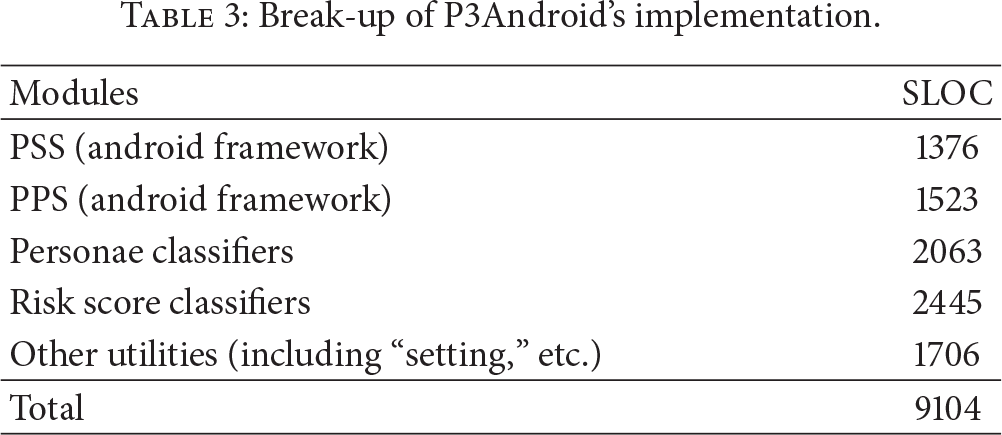

Table 3

Break-up of P3Android's implementation.

Modules	SLOC

PSS (android framework)	1376
PPS (android framework)	1523
Personae classifiers	2063
Risk score classifiers	2445
Other utilities (including “setting,” etc.)	1706

Total	9104

Moreover, four personalization APIs introduced in Section 4.3 are only part of all; for highlighting the effectiveness of the universal personalization support, Table 4 shows the list of all personalization APIs with their features, which can be used by third-party app. developers.

Table 4

All personalization APIs with their features.

Number	APIs	Features

1	Boolean getPSServiceStatus()	Get the status of PSS
2	String getTopPersonae()	Get the top persona
3	int getTopPersonaeValue()	Get the value of top persona
4	int $[]$ getPersonaeValueScale()	Get the weight ratio of all personae
5	List〈String〉 getPersonaeScale()	Get the personae list consistent with getPersonaeValueScale()
6	List〈String〉 getPersonaeByDescOrder()	Get the personae list in descending order sorted by the weights of personae
7	int $[]$ getPersonaeValueByDescOrder();	Get the weight array consistent with getPersonaeByDescOrder()
8	List〈String〉 getPersonaeByAscOrder()	Get the personae list in ascending order sorted by the weights of personae
9	int $[]$ getPersonaeValueByAscOrder();	Get the weight array consistent with getPersonaeByAscOrder()
10	int getUserProbablyAge()	Get user's probable age
11	String getUserProbablyFavColor()	Get user's probably favorite color

5. Evaluation

In this section, we firstly evaluate P3Android in two test suits. One is privacy protection test suites which used to evaluate the abilities of our dynamic permission check model to prevent privacy leakages; the other is personalization support test suites which can confirm the efficiency and practicability of the PSS. Nowadays, there are nearly 270 cumulative malware families available in third-party Android marketplaces according to the report of Symantec's Internet Security Threat [36]. Among them, 21 percent families will steal users' device data and 22 percent families like spying on users. Thus, we choose four representative malware families, jSMSHider, GamblerSMS, SndApps, and ADRD, to compose the privacy protection test suites. Each test will be analyzed in a real-life scenario in which we will discuss the impact of certain malicious behavior on AOSP (Android Open Source Project) and how they are mitigated by P3Android. In personalization support test suites, we will use a customized RSS reader scenario to demonstrate the efficiency of PSS, and a commercial client-side personalized news recommendation scenario will confirm the practicability of using profile to support personalization.

Secondly, we demonstrate the feasibility of customizable model and the effectiveness of default PCs we designed. Finally, we compare the P3Android's performance with original Android system using two different benchmarks.

5.1. Privacy Protection Capability

The main malicious behaviors of four malware families are as follows: jSMSHider is a Trojan horse which collects device ID, SMSs, locations, and so forth and sends them to a remote server. What is worse, it attempts to get the root for installing other apps.; GamblerSMS is a spyware which can monitor every single SMS message received/sent from the phone and record every outgoing phone call; SndApps can lurk in host apps. to stealthily upload users' personal information such as email accounts as well as phone numbers to a remote server without user's awareness; ADRD can encrypt the stolen information and send it to remote locations, and it can also execute the commands received from control server. We select one sample from each family and analyze the following scenarios in detail.

5.1.1. jSMSHider Scenario

In this malware family, the app. we choose disguises as a love test app. to attract users and ask for permissions listed in the first column of Table 5 while installing. However, when jSMSHider is running on AOSP, it will gather a mass of sensitive information, including IMEI, IMSI, phone number, location, SMSs, and contracts, and send them to its command and control server.

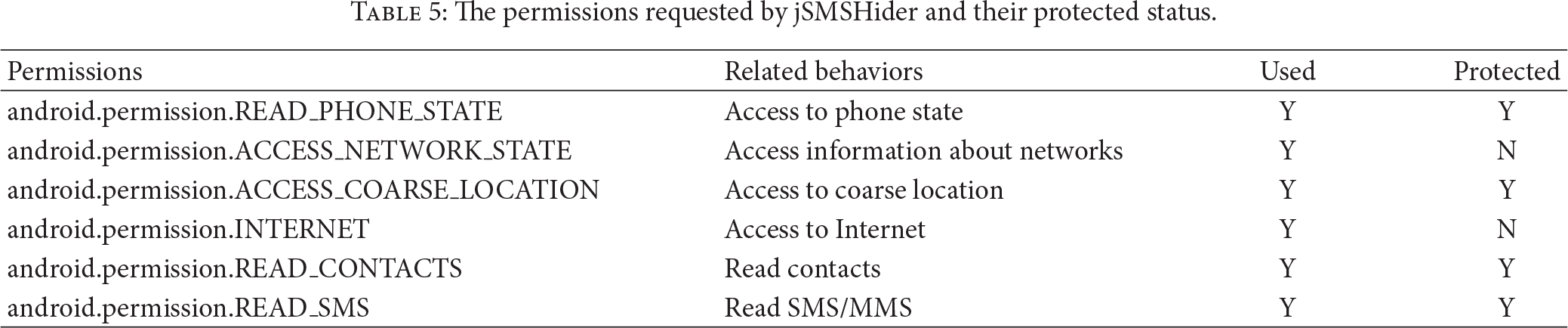

Table 5

The permissions requested by jSMSHider and their protected status.

Permissions	Related behaviors	Used	Protected
android.permission.READ_PHONE_STATE	Access to phone state	Y	Y
android.permission.ACCESS_NETWORK_STATE	Access information about networks	Y	N
android.permission.ACCESS_COARSE_LOCATION	Access to coarse location	Y	Y
android.permission.INTERNET	Access to Internet	Y	N
android.permission.READ_CONTACTS	Read contacts	Y	Y
android.permission.READ_SMS	Read SMS/MMS	Y	Y

On the contrary, when it is installed on P3Android, it must be firstly assessed by risk classifier and its risk score is 2.9 which belongs to MEDIUM_LEVEL. When a user opens this app. and tests his love, PPS will dynamically ask for his decisions when it requests permissions included in Table 1. If he does not understand why this app. requests these permissions, the user can choose the “MOCK” option. So all the sensitive information jSMSHider gathered is fake and generated by random, and therefore the user is free of its threat. The permissions P3Android can protect for jSMSHider are shown in Table 5, where “Used” or “Protected” column means whether the corresponding permission is used in app. or protected by P3Android, as done in Tables 6, 7, and 8.

Table 6

The permissions requested by GamblerSMS and their protected status.

Permissions	Related behaviors	Used	Protected
android.permission.SEND_SMS	Send SMS message	N	N
android.permission.RECEIVE_SMS	Receive SMS	N	N
android.permission.RECEIVE_BOOT_COMPLETED	Automatically start at boot	Y	N
android.permission.READ_CONTACTS	Read contacts	Y	Y
android.permission.READ_PHONE_STATE	Access to phone state	Y	Y
android.permission.RECORD_AUDIO	Record audio	Y	Y
android.permission.WRITE_EXTERNAL_STORAGE	Modify/delete SD card contents	Y	Y
android.permission.PROCESS_OUTGOING_CALLS	Process outgoing calls	Y	Y

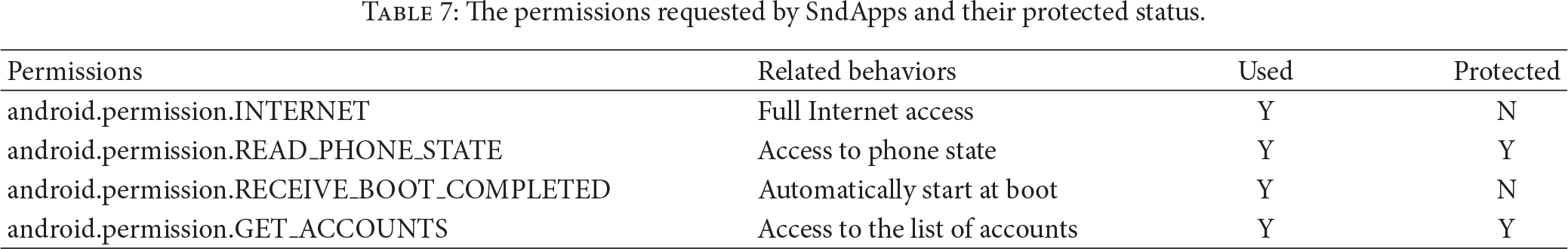

Table 7

The permissions requested by SndApps and their protected status.

Permissions	Related behaviors	Used	Protected
android.permission.INTERNET	Full Internet access	Y	N
android.permission.READ_PHONE_STATE	Access to phone state	Y	Y
android.permission.RECEIVE_BOOT_COMPLETED	Automatically start at boot	Y	N
android.permission.GET_ACCOUNTS	Access to the list of accounts	Y	Y

Table 8

The permissions requested by ADRD and their protected status.

Permissions	Related behaviors	Used	Protected
android.permission.RECORD_AUDIO	Record audio	Y	Y
android.permission.INTERNET	Full Internet access	Y	N
android.permission.WRITE_EXTERNAL_STORAGE	Modify/delete SD card contents	Y	Y
android.permission.ACCESS_NETWORK_STATE	Access information about networks	Y	N
android.permission.READ_PHONE_STATE	Access to phone state	Y	Y

5.1.2. GamblerSMS Scenario

The sample we choose from this family is a spyware, requesting for multiple permissions listed in the first column of Table 6 during the installation process. From the table, we can find that this app. holds all the permissions to monitor user's daily life.

Once it is installed successfully on AOSP, users cannot find the icon on the home screen which may mislead them to believe that the installation failed. After they reboot the device, this app. will start a service in the background automatically, which will upload device ID, contacts, and monitor users dialing/SMS activities.

However, when installing on P3Android its risk score is calculated as 3.1 which belongs to HIGH_LEVEL. When a user attempts to make a phone call, a request-for-record warning will pop up and ask for his decision. He does not know why this app. wants to record his dialing, so he chooses denied option. Moreover, a similar warning is also encountered when he tries to send SMS, but he knows that sending message does not need to read contacts, so he chooses denying option likewise. Due to lack of corresponding permissions, this app. cannot complete the malicious behaviors; therefore, P3Android prevents user from being monitored effectively. The permissions P3Android can protect for GamblerSMS are shown in Table 6.

5.1.3. SndApps Scenario

In this malware family, the selected app. whose package name is “easybutton” is in disguise as a “gadget” to attract users. Some of permissions it requests are listed in the first column of Table 7.

When users launch this app. on AOSP, it will be automatically added into system startup items. What is more, this app. will collect and upload device ID as well as accounts information if users try to press the beautiful button.

But on P3Android, the risk score 1.5 of “easybutton” makes its secretly sensitive behaviors transparent to users. When one user starts up this app., the privacy protection service will firstly warn him that “easybutton” wants to read his phone state. Then he chooses mock option because he does not want to leak his true device information. However, a warning pops up similarly while he tries to press the button; he does not know why this app. intends to get his accounts and to know the results after pressing the button, so he chooses the mock option likewise. Therefore, P3Android help him avoid accounts information leakage. The permissions P3Android can protect for SndApps are shown in Table 7.

5.1.4. ADRD Scenario

The sample we select from ADRA family is a wallpaper game app. called “Steam.” Some of permissions it requests are listed in the first column of Table 8.

“Steam” appears normally when running on AOSP, and users can play the game randomly. However, it is not as good as it seems; “Steam” will stealthily upload infected cell phone's state information and open several system services. These services can record users' phone content and save it to external storage. And later, we can find that this app. will continually access the network state from logcat and upload the saved file to remote server if the device connects to the Internet.

Running on P3Android, its risk score is calculated as 3.5 and regarded as HIGH_LEVEL, thus, the system can supply “steam” with mocking device state and popping up a warning for users when they make a phone call. It is a strange action that a game app. wants to record users' phone content, so denied option is a good choice; therefore, P3Android prevents users from leaking their voice information. The permissions P3Android can protect for ADRD are shown in Table 8.

The above scenarios demonstrate the privacy protection ability of P3Android. We encourage users to mock the request data when running distrustful apps. or those with high risk score, which can protect themselves and experience apps. functions at the same time.

5.2. Personalization Support Capability

5.2.1. RSS Reader Scenario

To test the effectiveness of P3Android APIs, we develop RSS reader application called PAPRSS which pulls news from 8 news feeds and samples from them to fill the ListView to user.

At first, PAPRSS samples averagely from different news feeds. Then, after users enable PSS in Settings, this app. will query P3Android APIs and record their content according to the rate of each user personae value in Table 9, which is obtained from the eight PCs described in Section 4.2. Moreover, when the top persona is retired, PSS will consider the user as an old man and thus reembellish the PAPRSS, including adjusting the text font size to be larger and color contrast to be deeper.

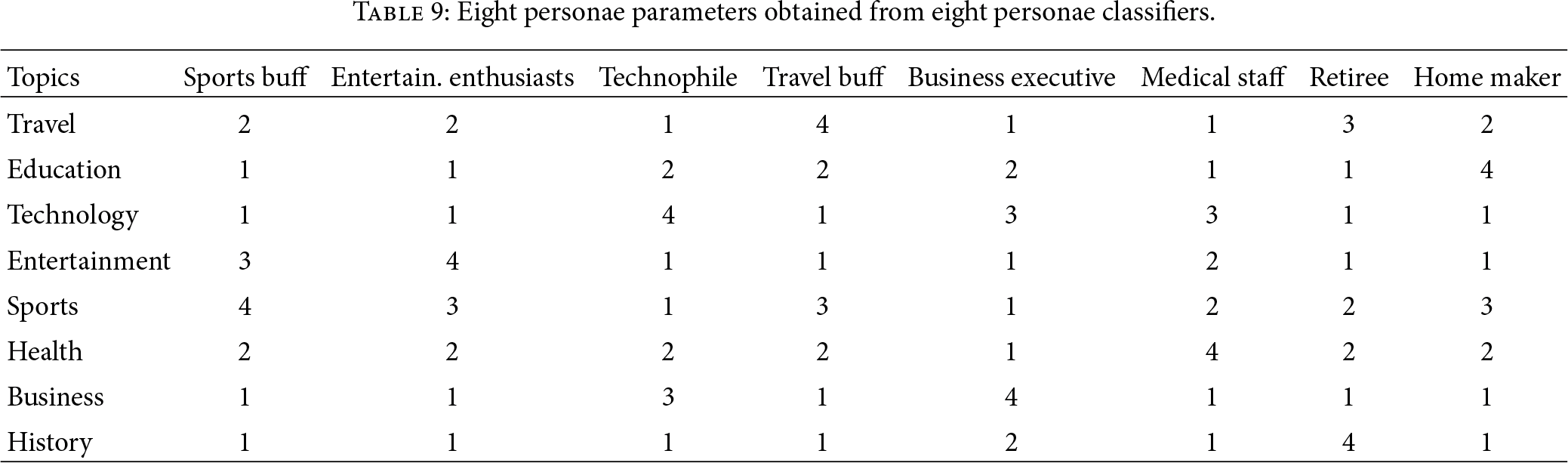

Table 9

Eight personae parameters obtained from eight personae classifiers.

Topics	Sports buff	Entertain. enthusiasts	Technophile	Travel buff	Business executive	Medical staff	Retiree	Home maker
Travel	2	2	1	4	1	1	3	2
Education	1	1	2	2	2	1	1	4
Technology	1	1	4	1	3	3	1	1
Entertainment	3	4	1	1	1	2	1	1
Sports	4	3	1	3	1	2	2	3
Health	2	2	2	2	1	4	2	2
Business	1	1	3	1	4	1	1	1
History	1	1	1	1	2	1	4	1

PAPRSS demonstrates the effectiveness of achieving personalization function based on little information exposed. As mentioned before, users may have several kinds of interests. Thus, developers can take advantage of the profile file flexibly. PAPRSS also shows the privacy protection ability of P3Android because it needs not access the device information such as device ID, contacts, and sensors data. Further, a user can upload his personae profile to certain a cloud platform and use the profile in another Android device. Therefore, his privacy is secure because the personae profile only consists of numbers.

5.2.2. Commercial Client-Side Personalized Scenario

P3Android uses the concept of user profile to achieve the client-side personalization which is similar to the news recommendation function “My News” in “BBC News” (BN) [37], but BN users need firstly to add their interested topics manually before using this feature.

Different from BN, P3Android can predict users' interest topics automatically without manual interventions. For evaluation purpose, BN is reversely engineered to call the getPersonaeValueScale() and getPersonaeScale() functions of P3Android only in order to get profile of the user and provide news of his interest, which demonstrates the practicability of P3Android's personalization support.

5.3. Performance of Personae Classifiers

To demonstrate the feasibility of customizable model and the effectiveness of default PCs we designed, we test the efficiency, accuracy (Figure 4(a)), memory, and CPU usage (Figure 4(b)) of PCs on XiaoMi 4 smartphone. Different sizes (25, 50, 100, and 200, resp.) of test dataset are sampled from one user's SMSs, emails, and browser histories randomly and run 20 times for each. The test results are shown in Figure 4.

Figure 4

(a) Consuming time and accuracy (b) memory and CPU usage of personae classifiers.

We find that it averagely needs little more than four minutes to predict fifty signals and less than five minutes to predict one hundred signals. Additionally, the averagely accuracy is greater than 82 percent. Though the time is consumed over six minutes when the size of dataset is 200, we generally predict once every two hours or even long. In addition, the limited computing resources of smartphone reject the use of excellent word-segmentation algorithm, which accounts for those false predictions.

5.4. Overall Performance

We compare the performance of P3Android with original Android operating system using two benchmarks, CF-BENCH [38] and Geekbench 3 [39]. We test memory read, memory write, file read, and file write using CF-BENCH and stream copy using Geekbench 3, respectively; each test against P3Android and AOSP is run one hundred times and the average value is calculated. The results of the CF-BENCH are divided in two groups: native score and Java score; an overall score is given based on these two scores. Testing results are shown in Figure 5(a). As Figure 5(b) shows, the performance overload incurred by P3Android under CF-BENCH and Geekbench 3 is 2.4% and 2.9%, respectively; it is acceptable and worthy for users to get P3Android's privacy protect and personalization support. The main performance loss P3Android introduced comes from frequent queries of two hash tables in PPS and personalization signals collection in PSS, which involves memory and file read/write.

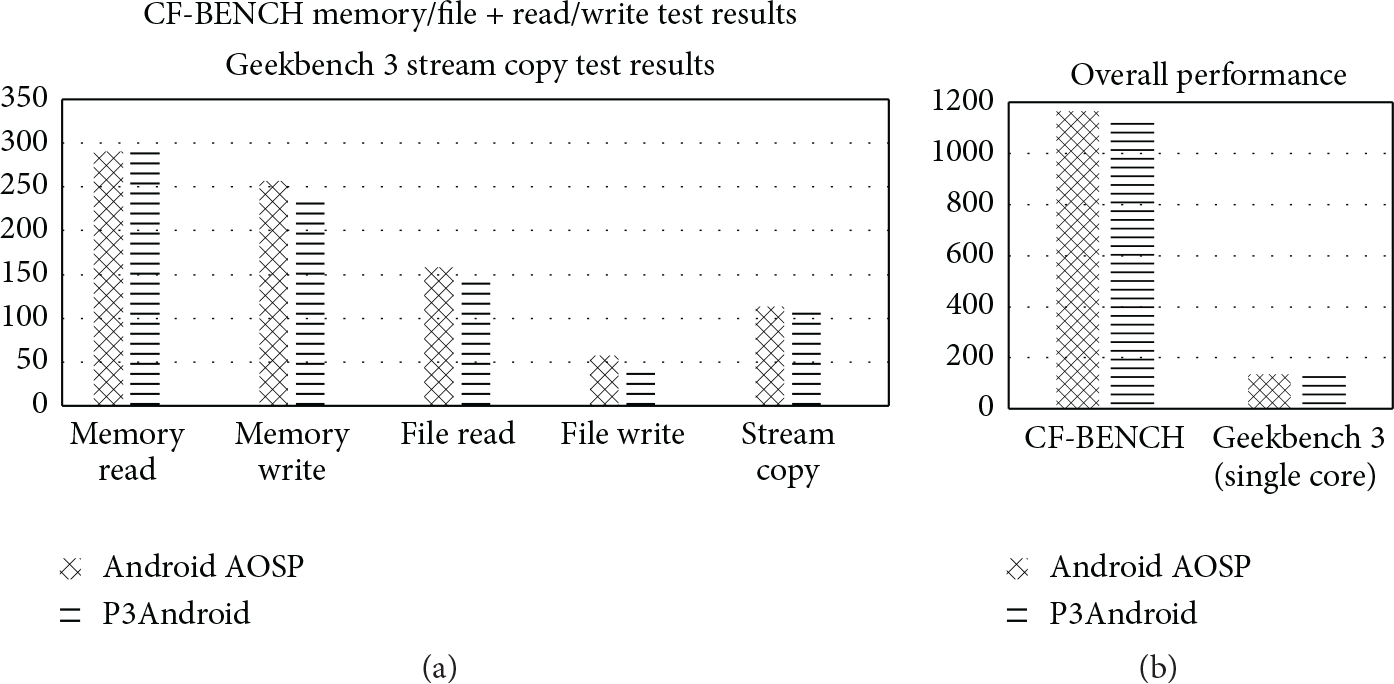

Figure 5

Performance test results of Android AOSP and P3Android.

5.5. Comparison with Other Android-Based Privacy Approaches

We compare P3Android with native Android and other systems which aimed to provide privacy protection for Android. The results are shown in Table 10. Except Apex, MockDroid, PMP, and P3Android can provide the mock mode for users' privacy data and detail feedback to users; however, MockDroid and PMP need manual configuration of users, while P3Android can determine the risk level of an app. automatically. Furthermore, P3Android provides a serial of APIs for supporting the personalization of apps and encourage a secure programming method for the third-party apps. to reduce the access to users' privacy data to the least extent.

Table 10

Android-based privacy approaches in comparison.

	Data privacy	Configuration phrase	Configuration mode	Feedback to users	Personalization awareness	Secure APIs
Android permissions	No	Installation-time	—	No	No	No
Apex [21]	No	Run-time	Manual	No	No	No
MockDroid [19]	Mock	Installation-time	Manual	Yes	No	No
PMP [22]	Mock & blur	Run-time	Manual	Yes	No	No
P3Android	Mock	Run-time	Auto.	Yes	Yes	Yes

6. Conclusions

This paper proposes an approach to support both apps. personalization in operating system level and privacy protection. Besides, the approach implements a prototype system P3Android on Android 5.0. P3Android mainly consists of two system services: PSS supports various personalization functions in system level, while PPS is responsible for the privacy protection to those legacy apps. These two services improve the overall privacy protection of Android OS in complementary way. P3Android provides eleven APIs for third-party developers to use PSS and PPS, and experiments show P3Android can protect the privacy data of users and support the personalization for applications with the nearly negligible performance loss compared with the original Android. Furthermore, P3Android is extensible and open sourced and we hope it will be a community platform for related research. In future work, we will focus on the integrity of personae sets and more efficient algorithms for classification.

Footnotes

Competing Interests

The authors declare that there are no competing interests.

Authors' Contributions

Hongliang Liang and Dongyang Wu proposed the original idea of P3Android and construct the core algorithm. Dongyang Wu and Shirun Liu designed and implemented the PPS and PSS service; Hongliang Liang and Haifeng Liu conceived the experiments; Shirun Liu and Hao Dai performed the experiments and analyzed the data. Hongliang Liang and Dongyang Wu wrote the paper.

Acknowledgments

The authors would like to thank Weidong Fang, Cheng Cheng, and Guangyuan Li for providing valuable feedback on their work. This work was supported in part by the National Natural Science Foundation of China (NSFC) under Grant nos. 91418206 and 61202082.

References

AppFigures.com, appFigures is a reporting platform for mobile developers that automatically downloads and visualizes sales data, App Store reviews, hourly ranks and more, 2015, http://blog.appfigures.com/app-stores-growth-accelerates-in-2014/

Midi

Oluwatimi

Shebaro

Bertino

Demo overview: privacy-enhancing features of identidroid

Proceedings of the ACM SIGSAC Conference on Computer and Communications Security

November 2014

Scottsdale, Ariz, USA

1481 1483

Templeman

Rahman

Crandall

Kapadia

PlaceRaider: virtual theft in physical spaces with smartphones

Proceedings of the Network and Distributed System Security Symposium (NDSS '14)

February 2013

San Diego, Calif, USA

Dey

Roy

Choudhury

R. R.

Nelakuditi

AccelPrint: imperfections of accelerometers make smartphones trackable

Proceedings of the Network and Distributed System Security Symposium (NDSS '14)

February 2014

San Diego, Calif, USA

10.14722/ndss.2014.23059

Aviv

A. J.

Sapp

Blaze

Smith

J. M.

Practicality of accelerometer side channels on smartphones

Proceedings of the 28th Annual Computer Security Applications Conference (ACSAC '12)

December 2012

Orlando, Fla, USA

ACM

41 50

10.1145/2420950.2420957

2-s2.0-84872119987

Hasan

Saxena

Haleviz

Zawoad

Rinehart

Sensing-enabled channels for hard-to-detect command and control of mobile devices

Proceedings of the 8th ACM SIGSAC Symposium on Information, Computer and Communications Security (ASIA CCS '13)

May 2013

Hangzhou, China

ACM

469 480

10.1145/2484313.2484373

2-s2.0-84877985630

Shin

K. G.

Chen

Privacy protection for users of location-based services

IEEE Wireless Communications 2012 19 1 30 39

10.1109/MWC.2012.6155874

2-s2.0-84863294412

Wei

Gomez

Neamtiu

Faloutsos

Permission evolution in the Android ecosystem

Proceedings of the 28th Annual Computer Security Applications Conference (ACSAC '12)

December 2012

Los Angeles, Calif, USA

ACM

31 40

10.1145/2420950.2420956

2-s2.0-84872101378

Balanza

Alintanahin

Abendan

Dizon

Caraig

Droiddreamlight lurks behind legitimate android apps

Proceedings of the 6th International Conference on Malicious and Unwanted Software (MALWARE '11)

October 2011

Fajardo, Puerto Rico

IEEE

73 78

10.1109/malware.2011.6112329

2-s2.0-84855853581

10.

Davi

Dmitrienko

A.-R.

Sadeghi

Winandy

Privilege escalation attacks on android

Information Security: 13th International Conference, ISC 2010, Boca Raton, FL, USA, October 25–28, 2010, Revised Selected Papers 2011 6531

Berlin, Germany

Springer

346 360 Lecture Notes in Computer Science

10.1007/978-3-642-18178-8_30

11.

Lei

Wang

Zhou

Zha

Zhang

A threat to mobile cyber-physical systems: sensor-based privacy theft attacks on android smartphones

Proceedings of the 12th IEEE International Conference on Trust, Security and Privacy in Computing and Communications (TrustCom '13)

July 2013

Melbourne, Australia

IEEE

126 133

10.1109/trustcom.2013.20

2-s2.0-84893489777

12.

Cassel

L. N.

Wolz

Client side personalization

Proceedings of the DELOS Workshop: Personalization and Recommender Systems in Digital Libraries

2001

8 12

13.

Juels

Naccache

Targeted advertising … and privacy too

Topics in Cryptology—CT-RSA 2001 2001

Berlin, Germany

Springer

408 424

10.1007/3-540-45353-9_30

14.

Gerber

Fry

Kay

Kummerfeld

Pink

Wasinger

De Bra

Kobsa

Chin

PersonisJ: mobile, client-side user modelling

User Modeling, Adaptation, and Personalization 2010 6075

Berlin, Germany

Springer

111 122 Lecture Notes in Computer Science

10.1007/978-3-642-13470-8_12

15.

Davidson

Fredrikson

Livshits

MoRePriv: mobile OS support for application personalization and privacy

Proceedings of the 30th Annual Computer Security Applications Conference (ACSAC '14)

December 2014

New Orleans, La, USA

ACM

236 245

10.1145/2664243.2664266

2-s2.0-84954568714

16.

IDC.com, Android and iOS Squeeze the Competition, 2015, http://www.idc.com/getdoc.jsp?containerId=prUS25450615

17.

Fredrikson

Livshits

RePriv: re-imagining content personalization and in-browser privacy

Proceedings of the IEEE Symposium on Security and Privacy (SP '11)

May 2011

Berkeley, Calif, USA

131 146

10.1109/sp.2011.37

2-s2.0-80051966472

18.

Khare

Tewari

Dagdee

User profile mining and personalization of web services

International Journal of Computer Applications 2014 105 12 15

19.

Beresford

A. R.

Rice

Skehin

Sohan

MockDroid: trading privacy for application functionality on smartphones

Proceedings of the 12th International Workshop on Mobile Computing Systems and Applications (HotMobile '11)

March 2011

Phoenix, Ariz, USA

ACM

49 54

10.1145/2184489.2184500

2-s2.0-84860764042

20.

Roesner

Kohno

Moshchuk

Parno

Wang

H. J.

Cowan

User-driven access control: rethinking permission granting in modern operating systems

Proceedings of the 33rd IEEE Symposium on Security and Privacy (SP '12)

May 2012

San Francisco, Calif, USA

224 238

10.1109/sp.2012.24

2-s2.0-84874840847

21.

Nauman

Khan

Zhang

Apex: extending Android permission model and enforcement with user-defined runtime constraints

Proceedings of the 5th ACM Symposium on Information, Computer and Communication Security (ASIACCS '10)

April 2010

Beijing, China

328 332

10.1145/1755688.1755732

2-s2.0-77954487766

22.

Stach

Mitschang

Privacy management for mobile platforms-a review of concepts and approaches

Proceedings of the 14th International Conference on Mobile Data Management (MDM '13)

June 2013

Milan, Italy

IEEE

305 313

10.1109/mdm.2013.45

2-s2.0-84883514029

23.

Conti

Fernandes

Paupore

Simionato

OASIS: operational access sandboxes for information security

Proceedings of the 4th ACM Workshop on Security and Privacy in Smartphones and Mobile Devices (SPSM '14)

November 2014

Scottsdale, Ariz, USA

105 110

10.1145/2666620.2666629

2-s2.0-84937580358

24.

Shabtai

Fledel

Elovici

Securing android-powered mobile devices using SELinux

IEEE Security & Privacy 2010 8 3 36 44

10.1109/msp.2009.144

2-s2.0-77950673302

25.

Tang

Ames

Bhamidipati

Bijlani

Geambasu

Sarda

CleanOS: limiting mobile data exposure with idle eviction

Proceedings of the 10th USENIX Conference on Operating Systems Design and Implementation (OSDI '12)

October 2012

Hollywood, Calif, USA

USENIX

77 91

26.

Chiang

H.-Y.

Chiasson

Improving user authentication on mobile devices: a touchscreen graphical password

Proceedings of the 15th International Conference on Human-Computer Interaction with Mobile Devices and Services (MobileHCI '13)

August 2013

Munich, Germany

ACM

251 260

10.1145/2493190.2493213

2-s2.0-84883732131

27.

Raghavan

K. R.

Chakraborty

Srivastava

Teague

Override: a mobile privacy framework for context-driven perturbation and synthesis of sensor data streams

Proceedings of the 3rd International Workshop on Sensing Applications on Mobile Phones (PhoneSense '12)

November 2012

Toronto, Canada

ACM

10.1145/2389148.2389150

2-s2.0-84870561687

28.

Chakraborty

Raghavan

K. R.

Johnson

M. P.

Srivastava

M. B.

A framework for context-aware privacy of sensor data on mobile systems

Proceedings of the 14th Workshop on Mobile Computing Systems and Applications (HotMobile '13)

February 2013

Jekyll Island, Ga, USA

ACM

10.1145/2444776.2444791

2-s2.0-84875481327

29.

Liang

Survey on privacy protection of android devices

Proceedings of the IEEE 2nd International Conference on Cyber Security and Cloud Computing (CSCloud '15)

November 2015

New York, NY, USA

IEEE

241 246

10.1109/cscloud.2015.21

30.

Zhang

Cai

Wang

Mobility-aware routing in delay tolerant networks

Personal and Ubiquitous Computing 2015 19 7 1111 1123

10.1007/s00779-015-0880-x

2-s2.0-84942370945

31.

Cai

Distributed data collection in large-scale asynchronous wireless sensor networks under the generalized physical interference model

IEEE/ACM Transactions on Networking 2013 21 4 1270 1283

10.1109/TNET.2012.2221165

2-s2.0-84882568097

32.

Sun

Yan

Bie

Zhou

Constructing the web of events from raw data in the Web of Things

Mobile Information Systems 2014 10 1 105 125

10.3233/mis-130173

2-s2.0-84892944449

33.

Hassan

Rafi

Shaikh

M. S.

Comparing SVM and Naïve Bayes classifiers for text categorization with Wikitology as knowledge enrichment

Proceedings of the 14th IEEE International Multitopic Conference (INMIC '11)

December 2011

Karachi, Pakistan

IEEE

31 34

10.1109/inmic.2011.6151495

2-s2.0-84858015373

34.

Android Malware Genome Project http://www.malgenomeproject.org/

35.

Peng

Gates

Sarma

Potharaju

Nita-Rotaru

Molloy

Using probabilistic generative models for ranking risks of Android apps

Proceedings of the 19th ACM Conference on Computer and Communications Security (CCS '12)

October 2012

Raleigh, NC, USA

ACM

241 252

10.1145/2382196.2382224

2-s2.0-84869432690

36.

Symantec Internet Security Threat Report, April 2015, http://www.slideshare.net/symantec/norton-mobile-apps-survey-report

37.

BBC News App, 2016, https://play.google.com/store/apps/details?id=bbc.mobile.news.ww

38.

Chainfire, CF-Bench, 2015, http://bench.chainfire.eu/

39.

Labs

Geekbench 3, http://browser.primatelabs.com/android-benchmarks

Providing Privacy Protection and Personalization Awareness for Android Devices

Abstract

1. Introduction

2. Related Work

3. Design of P3Android

3.1. Personae Profile

3.2. Personae Classifiers

3.3. Risk Scoring

3.4. Privacy Policy Enforcement

3.5. Mock Privacy Data

4. Implementation of P3Android

4.1. Personalization Signals

4.2. Persona Classifier

Algorithm 1: Create signals_matrix and terms vector file.

4.3. Universal Personalization Support

4.4. Risk Scoring

4.5. Privacy Policy Enforcement

4.6. Mock Privacy Data

4.7. Services and Privacy Mode

4.8. Summary of P3Android's Implementation

5. Evaluation

5.1. Privacy Protection Capability

5.1.1. jSMSHider Scenario

5.1.2. GamblerSMS Scenario

5.1.3. SndApps Scenario

5.1.4. ADRD Scenario

5.2. Personalization Support Capability

5.2.1. RSS Reader Scenario

5.2.2. Commercial Client-Side Personalized Scenario

5.3. Performance of Personae Classifiers

5.4. Overall Performance

5.5. Comparison with Other Android-Based Privacy Approaches

6. Conclusions

Footnotes

Competing Interests

Authors' Contributions

Acknowledgments

References
