Abstract

The software architecture of Internet of Things defines the component model and interconnection topology of Internet of Things systems. Refactoring is a systematic practice of improving a software structure without altering its external behaviors. When the Internet of Things software is refactored, it is necessary to detect the correctness of Internet of Things software to ensure its security. To this end, this article proposes a novel refactoring correction detection approach to ensure software security. Control flow analysis and data flow analysis are used to detect code changes before and after refactoring, and synchronization dependency analysis is used to detect changes in synchronization dependency. Three detection algorithms are designed to detect refactoring correctness. Four real-world benchmark applications are used to evaluate our approach. The experimental results show that our proposed approach can ensure correctness of Internet of Things software refactoring.

Keywords

IoT software consistency detection control flow analysis data flow analysis synchronization dependency analysis

Introduction

In recent years, the wide adoption of the Internet of Things (IoT) systems and immature IoT technologies pose multiple challenges to the development of IoT software.^1,2 Despite the multitude of IoT software architectures proposed in previous studies, the optimal IoT software architecture has not been found on a global scale, which means that the IoT technology still needs to be optimized.³ IoT products have provided much convenience to people’s lives. Juniper Research predicts that nearly 38 billion devices will be connected to the Internet by 2020.⁴

With the increase in IoT applications, the type and quantity of IoT terminal devices increase as well. Therefore, the intelligence and correctness of IoT terminals draw wider attention than before.^5,6 However, because the functions and structures of the IoT terminals are different, some terminal devices will not be able to meet the needs of users.^7,8

Some developers refactor the architecture of IoT software to improve reusability and maintainability. However, the existing refactoring methods may incur a variety of concurrency bugs and lead to changes in behaviors. These problems can also cause the security of IoT software to be compromised.^9,10 In order to avoid the problem of post-refactoring behavior inconsistency, it is necessary to study the consistency detection approaches.

We propose a novel detection approach to detect software security. This approach uses the control flow analysis, synchronization dependency analysis, and data flow analysis to detect the security of the refactoring under the WALA software analysis framework, and detection algorithms are designed for three kinds of problems that are common in software development to ensure the security of IoT software. In the experiment, we refactor the benchmark programs using the Eclipse refactoring tool and use the proposed detection approach to assess the refactored program. The experimental results show that the proposed approach can effectively resolve the security problems.

Related work

This section reviews previous studies on IoT software-based methods and refactoring consistency-based methods.

IoT software-based method

IoT security involves several abstraction layers and a number of dimensions.¹¹ Most security attacks happen at the software level because these attacks are currently the most popular and can affect a large number of devices and processes simultaneously. Most attacks are semantic attacks in data processing.¹² Rebuilding the IoT software is very likely to trigger security threats to the IoT. Therefore, IoT security detection is of great importance.¹³

Xu et al.¹⁴ proposed a trajectory privacy-protection scheme based on a trusted anonymous server. Zhang et al.¹⁵ introduced some background knowledge of information security and ongoing challenges to IoT security. Conti et al.¹⁶ introduced existing major security and forensics challenges in the IoT domain and briefly analyzed some papers targeting identified challenges. Xu¹⁷ proposed a method to address the security issues and key technologies in IOT. He elaborated the basic concepts and the principle of the IOT and combined the relevant characteristics of the IOT as well as the international main research results to analyse the security issues and key technologies of the IOT.

IoT has become a popular term around the globe.^18,19 Although IoT systems have brought convenience to users, they also cause huge security risks.^20,21 The risks of IoT software are immeasurable. Problems that occur in IoT software refactoring may lead to changes in user requirements or security vulnerabilities in the software. Therefore, it is important to detect the refactoring of IoT software.^22,23 Security problems related to IoT systems are drawing more and more attention from security experts and government departments.^24,25 Both the business community and relevant governmental departments have put forward necessary security assessment requirements for information systems and IoT systems.

Refactoring consistency-based method

Many previous studies focused on the consistency of software refactoring. Changes in the behavior may cause security problems in the software. Therefore, some researchers proposed refactoring tools and methods. If the time spent using the refactoring tools and fixing the bugs is less than the time doing it manually, the tool is useful.²⁶

Schafer et al.²⁷ illustrated several types of behavior changes that may cause inconsistency by current refactoring engines and proposed techniques to make the concurrent programs behavior-preserving. They introduced synchronization dependencies that modeled the ordering constraints imposed by the Java memory model and proved that their techniques yielded a strong behavior-preservation guarantee.

Maruyama et al.²⁸ presented an approach that tames behavior preservation by introducing the concept of a frame. In order to accommodate individual problems in refactoring, a frame was used to represent the boundary of a stakeholder’s concern about the refactored codes. This frame-based refactoring approach preserved the observable behavior within a particular frame and helped programmers distinguish the behavioral changes.

Zhang et al.²⁹ presented an automated refactoring method among locks at the byte code level. With the promising features of StampedLock, Zhang et al.³⁰ presented an automated refactoring framework to convert a synchronized lock to a StampedLock. Although many methods are proposed to address software refactoring issues,^31,32 there is still no static analysis method to validate the synchronization dependency of synchronized methods and blocks and to detect the consistency of the refactoring behavior. To this end, we use static analysis methods to create an automated detection tool that can detect the security problems of IoT software.

Motivation

Refactoring is an effective way to improve software efficiency. In this section, we use an example to illustrate the problem of software security, as shown in Figure 1. In Figure 1(a), method v1() first acquires the monitor object B.class and then calls A.m(), which in turn acquires the A.class lock. Similarly, method v2() first acquires the monitor object A.class and then calls A.n(), which acquires the monitor object lock A.class.

Figure 1.

An example refactoring of changing program behavior to Move method: (a) code before refactoring and (b) code after refactoring.

In Figure 1(b), we apply the Move method refactoring to move method n() from class A to class B. Moving the synchronized method A.n() to class B leads the method to acquire the monitor object B.class. Method v2() first attempts to acquire A.class and then B.class. Method v1() acquires the monitor object B.class and then A.class. Hence, refactoring may end in a deadlock.

To address concurrency problems in IoT software, we designed three detection algorithms based on static analysis: deadlock detection algorithm, object reusable detection algorithm, and shared static field detection algorithm.

Approach overview

In this section, we introduce our approach to detect code changes before and after refactoring. The framework of our approach is shown in Figure 2:

The input of the refactoring program. We refactor the open-source programs using the Eclipse refactoring tools. The refactored code is obtained by refactoring a particular method, function, or variable.

Static analysis. First, we analyze and compare the control flows before and after refactoring to find the structure that leads to inconsistent behavior. Then, we conduct synchronization dependency analysis to detect synchronized methods or blocks and detect the structures before and after refactoring in which the synchronization dependency changes. Finally, we analyze and compare the data flows before and after refactoring to find the structure that leads to inconsistent behaviors.

Detection algorithm. We design three algorithms to detect inconsistent behaviors and software security, including a deadlock detection algorithm, an object reusable detection algorithm, and a static shared field detection algorithm.

Generating detection results.

Figure 2.

Approach overview.

Static analysis

Control flow analysis

Control flow analysis generates a directed control flow graph. Node D represents the basic code block, and D={ $d_{1}$ , $d_{2}$ , …, $d_{n}$ }, where $d_{1}$ , $d_{2}$ , …, $d_{n}$ represents the node. Each node has a set of successor nodes which can be empty, and ( $d_{k}$ , $d_{y}$ ) represents the directed edge between nodes.

By comparing the changes of nodes before and after refactoring, we find that the software structure changes because of the refactoring. We define that cfref( $d_{n}$ ): < exClass, $d_{n}$ , $d_{n + 1}$ > is the control flow before refactoring; $cfref'$ ( $d'_{n}$ ): < $exClass'$ , $d'_{n}$ , $d'_{n + 1}$ > is the post-refactoring control flow, where exClass is the class name, $d_{n}$ is the nth node, and $d_{n + 1}$ is a successor node of the nth node.

We assume a refactoring node changes when the node meets the following conditions:

exClass= $exClass'$

$d_{n}$ = $d'_{n}$

$d_{n + 1}$ ≠ $d'_{n + 1}$

cfdect( $d_{n}$ )={ $d_{n}$ | cfref( $d_{n}$ ) ∩ $cfref'$ ( $d'_{n}$ )= $ϕ$ }

cfdect( $d_{n}$ ) ≠ $ϕ$

Comparing cfref( $d_{n}$ ) and $cfref'$ ( $d'_{n}$ ) results in an inconsistent structure. When we detect the program in the same class (condition 1), we then execute condition 2. When $d_{n}$ and $d'_{n}$ are the same (condition 2), the node information of $d_{n + 1}$ before and after refactoring is compared. If the node information of $d_{n + 1}$ has changed, that is, $d_{n + 1}$ ≠ $d'_{n + 1}$ (condition 3), it is considered that the node $d_{n + 1}$ in the control flow has changed. cfdect( $d_{n}$ ) is the intersection of cfref( $d_{n}$ ) and $cfref'$ ( $d'_{n}$ ) before and after refactoring. If the intersection is empty, it indicates that the control flow information has changed in $d_{n + 1}$ . We store the node $d_{n + 1}$ in cfdect( $d_{n}$ ) (condition 4). If cfdect( $d_{n}$ ) is not empty (condition 5), it indicates that the nodes have changed before and after refactoring.

For example, we conduct control flow analysis for Figure 1. The code in line 14 before and after refactoring is the same, but in line 15, A.n() ≠ B.n(), that is, the node corresponding to the 15th row is changed.

Synchronization dependency analysis

Synchronization dependency analysis is to analyze the methods that contain synchronized blocks or methods. Synchronization dependencies occur in the following situations:

There is a nested relationship between synchronized blocks;

There is a calling relationship between the synchronized methods;

Synchronized methods contain synchronized blocks;

Synchronized methods are called in the synchronized blocks.

A monitor-enter is an instruction in the synchronized block that acquires a lock, and a monitor-exit is an instruction in the synchronized block that releases a lock. If the lock of the monitor is the current class object, it is a static synchronized method. If the lock of the monitor is an instance object of the current class, it is a synchronized method.

The synchronization dependence edge is defined as follows: Synchronization dependence edge analysis is based on the control flow graph analysis. All nodes include an entry node and an exit node of the monitor on the control flow graph:

A control flow graph node, Node b, has an acquire dependence on Node a if Node a corresponds to an acquire action and there is a path from a to b in the control flow graph. In this case, we consider there is an acquire edge between a and b, denoted as a.

A control flow graph node, Node a, has a release dependence on Node b if Node b corresponds to a release action and there is a path from a to b in the control flow graph. In this case, we consider there is a release edge between a and b, denoted as b.

Synchronization dependency is also defined as follows: A situation is considered to have synchronization dependency if the following four conditions are met between the synchronized methods and synchronized blocks. Method g() represents that this method contains synchronized blocks, and method f() represents that this method contains synchronized methods:

If g(m1) happens before g(m2), g(m2) synchronization depends on g(m1);

If f(m1) happens before f(m2), f(m2) synchronization depends on f(m1);

If g(m2) happens before f(m1), f(m1) synchronization depends on g(m2);

If g(m1) happens before f(m2), f(m2) synchronization depends on g(m1).

Table 1 describes the synchronization dependency relationships of Figure 1. In Figure 1, we first access the synchronized block in the method v1() and then access the synchronized method m() in the static class A. Hence, synchronized method m() has a synchronization dependency relationship with the synchronized block, that is, synchronization of the method m() is dependent on the synchronized block in method v1(). Similarly, synchronization of the synchronized method n() is dependent on the synchronized block in method v2(). However, after refactoring, synchronization of the synchronized method n() is dependent on the synchronized block in method v2(). Since the synchronization dependency relationship has changed, the behavior has changed.

Table 1.

Synchronization dependency of Figure 1.

Detection program	Synchronized methods	Monitor object	Synchronization dependency
Code before refactoring	Method m() in Class A	B.class	Method m() synchronization depends on the method v1()
	Method m() in Class A	A.class	Method m() synchronization depends on the method v2()
Code after refactoring	Method m() in Class A	B.class	Method m() synchronization depends on the method v1()
	Method m() in Class B	A.class	Method m() synchronization depends on the method v2()

Data flow analysis

Data flow analysis is based on control flow analysis. It analyzes the flow direction of data on the execution path of a program. The purpose of data flow analysis is to detect changes in the data flow. The set of nodes D={ $d_{1}$ , …, $d_{k}$ }, where $d_{i}$ represents the ith node. The entry node is the start of a data flow graph and the exit node is the end. The input and output of Node d are recorded as In[d] and Out[d], respectively.

We define dfref( $d_{i}$ ): < In[ $d_{i}$ ], Out[ $d_{i}$ ] > as the data flow before refactoring and dfref( $d_{i}$ ): < $I n^{'}$ [ $d_{i}^{'}$ ], $Ou t^{'}$ [ $d_{i}^{'}$ ] > as the data flow after refactoring. We consider that the refactoring nodes will change when the following conditions are satisfied:

In[ $d_{i}$ ]= $In'$ [ $d_{i}^{'}$ ]

Out[ $d_{i}$ ] ≠ $Out'$ [ $d'_{i}$ ]

dfdect( $d_{i}$ )={ $d_{i}$ | dfref( $d_{i}$ ) ∩ $dfref'$ ( $d'_{i}$ )= $ϕ$ }

dfdect( $d_{i}$ ) ≠ $ϕ$

When a node $d_{i}$ remains the same before and after refactoring (condition 1), the ith node is performed. If the output data flow of $d_{i}$ is different (condition 2), the node $d_{i}$ of data flow is identified as having changed. dfdect( $d_{i}$ ) represents the intersection of changes of each node of the data flow before and after refactoring (condition 3). If the node intersection is empty, this node has changed, and the node information $d_{i}$ is stored to dfdect( $d_{i}$ ). If the final dfdect( $d_{i}$ ) is not empty (condition 4), it means that there are nodes that have changed before and after refactoring.

The algorithm

In this section, using three examples, we design three detection algorithms to accurately detect security problems.

Deadlock detection

We describe the situation of deadlock threads. Thread A requests acquiring lock L2 while holding lock L1, and thread B requests acquiring lock L1 while holding lock L2. The example program is shown in Figure 3.

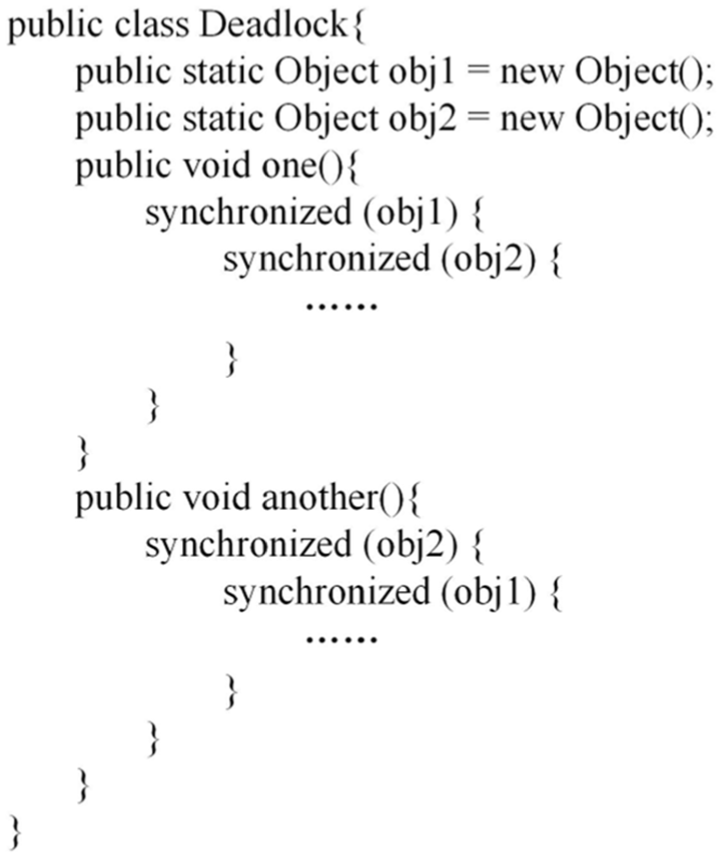

Figure 3.

Deadlock example.

In Algorithm 1, the main idea is, first, to acquire the monitor object of the synchronized block and then acquire the pointed address of the monitor object. Finally, if the pointed address of the monitor object in the two different synchronized blocks is the same, we detect a deadlock.

Algorithm 1. Deadlock detection algorithms
Input: javaProject, basicAnalysisData
Output: bugInstances
BugInstances doPerformAnalysis(IJavaProject javaProject, BasicAnalysis-Data basicAnalysisData)
if instructionInfo belong to isMonitorEnter then
synchronizedClassTypeNames ← getSynchronizedClassTypeNames ((SSAMonitorInstruction) instructionInfo, cgNode)
bugInstances ← synchronizedClassTypeNames
end
return bugInstances
Set < String > getSynchronizedClassTypeNames(SSAMonitorInstruction monitorInstruction, CGNode cgNode)
if instructionInfo ≠ null then
populateSynchronizedBlocksForNode(bugInstances, instructionInfo)
end
return instructionInfo
BugInstances populateSynchronizedBlocksForNode(BugInstances bugInstances, InstructionInfo instructionInfo)
if instructionInfo ≠ null then
ComparedVariable(instructionInfo)
end
return bugInstance
Collection < InstructionInfo > ComparedVariable(InstructionInfo instructionInfo)
if instructionInfo is a monitor instruction then
getAccessedField(instructionInfo)
end
return instructionInfo
Collection < InstructionInfo > getAccessedField(InstructionInfo instructionInfo)
get the instance pointed to by instructionInfo
if the next element pointed to by pointedInstances exists then
i ← System.identityHashCode(pointedInstances)
j ← System.identityHashCode(pointedInstances.hansNext())
if j != MonitorExit then
j ← System.identityHashCode(pointedInstances) i ← System.identityHashCode(pointedInstances.hansNext())
if i == j and j == i then
get the instructionInfo instruction of the instance pointededInstances and store
end
end
end
return instructionInfo

Method doPerformAnalysis is the step to perform the algorithm. javaProject is a Java project that needs to be detected, and basicAnalysisData contains multiple variables for analysis.

Method getSynchronizedClassTypeNames accesses the monitor instruction instructionInfo and acquires instances that meet the conditions. Method populateSynchronizedBlocksForNode calls the method ComparedVariable. If we access the monitor instructions, we will call the method getAccessedField.

Method getAccessedField is the core part of the algorithm. We acquire the instruction pointed to instances pointedInstances. This step of the algorithm assigns the pointed address of the instance to i and assigns the pointed address of the next instance to j which is used as the final object of judgment.

Object reusability detection

The object reuse problem is very likely to occur in synchronized methods or blocks when the lock objects are Boolean, Integer, or String objects. For example, a Boolean object has only two values: true and false. If we use a Boolean object as the monitor object, the object may point to the same address and cause problems. In Figure 4, the lock monitor object is a Boolean object in a synchronized block. Because the two constants, Boolean.FALSE and false, represent the same memory location, they are the same synchronized object, which makes the resources access mutually exclusive.

Figure 4.

Object reusable example.

Algorithm 2 is the object reuse detection algorithm we designed. By detecting the type of a monitor object, we can determine whether the monitor object is a Boolean, an Integer, a String, or other types. If the type is a reusable type, we output the detection result.

Algorithm 2. Object reusability detection algorithms
Input: javaProject, basicAnalysisData
Output: bugInstances
BugInstances doPerformAnalysis(IJavaProject javaProject, BasicAnalysis-Data basicAnalysisData) while acquire all node do
if node ≠ null then
node ← populateBugInstances(cgNode, bugInstances)
end
end
return bugInstance
BugInstances populateBugInstances(CGNode cgNode, BugInstances bug-Instances)
acquire instruction
if instruction belong to isMonitorEnter then
monitorEnterInstruction ← (SSAMonitorInstruction)instruction
reusableLockObjectTypes ← getReusableLockObjectTypes(cgNode, monitorEnterInstruction)
if reusableLockObjectTypes ≠ null then
acquire Instruction and bugInstances
end
end
InstancesTypes getReusableLockObjectTypes(CGNode cgNode, SSAMonitorInstruction monitorInstruction)
acquire lockPointedInstances
for instancesKey in lockPointedInstances do
instanceKeyReusableChecker ← createReusableChecker(instanceKey)
add instances that match the reused object to instancesTypes
end
return instancesTypes
Boolean createReusableChecker(InstanceKey instanceKey)
if acquire instanceKey type is Boolean then
return true
else if acquire instanceKey type is String then
return true
else if acquire instanceKey type is Integer then
return true
else if acquire instanceKey type is Long then
return true;
else return false;

Method doPerformAnalysis is the step to execute the algorithm. If the program method is detected to be not empty, we will call the method populateBugInstances to detect the monitor object and assign it to the instance bugInstances to acquire the final reused object.

Method populateBugInstances determines whether the “acquire” instruction is a type of reused object. The instruction instruction acquired must be a monitor instruction. We assign a value to reusableLockObject Types by calling the method getReusableLockObject Types. If the reusableLockObjectTypes is consistent with the object reuse type, we return bugInstances.

Method getReusableLockObjectTypes analyzes the instruction to acquire the lock object type. We acquire the pointed address of the monitor instruction monitorInstruction and assign it to the instanceKey. We use the method createReusableChecker to determine whether the instanceKey is a reusable object.

Method createReusableChecker is the core part of the algorithm to detect the type of instanceKey. If its type is a reusable type such as Boolean type, Integer type, or String type, it is detected that the program has object reuse problems.

Static shared field detection

For software programs, shared resources are subjected to conflicts due to simultaneous access by multiple threads. As shown in Figure 5, they create two instances of the monitor object when two runnable tasks start. In this situation, it locks two instances, separately.

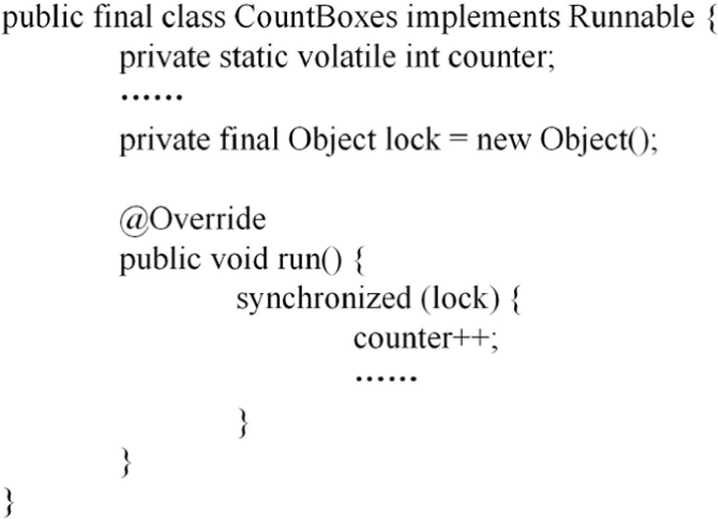

Figure 5.

Shared static field example.

Algorithm 3 is the static shared field detection algorithm. The algorithm acquires all static shared fields and checks whether the field has been modified in the program. If it is modified, it acquires the pointed instance of the field and outputs the detection result.

Algorithm 3. Static shared field detection algorithms
Input: javaProject, basicAnalysisData
Output: bugInstances
BugInstances doPerformAnalysis(IJavaProject javaProject, BasicAnalysis-
Data basicAnalysisData)
getAllStaticFields()
pointedInstances ← populateAllInstancesPointedByStaticFields()
modifyInstruction ← populateModifyingStaticFieldsInstructionsMap()
if modifyInstruction points to an instance belonging to pointedInstances then
acquire the instance pointed to by modifyInstruction and store it in bugInstances
end
return bugInstances
Set < IField > getAllStaticFields()
while all classIterators have the next element do
if the next element ≠null then
acquire all the static fields and store them in staticFields
end
return staticFields
end
Set < IField > populateAllInstancesPointedByStaticFields()
for staticField in getAllStaticFields() do
acquire the instance pointed to by staticField and store it in pointedInstances
end
BugInstances populateModifyingStaticFieldsInstructionsMap()
modifyingStaticFieldsInstructions ← getModifyingStaticFieldsInstructions(cgNode)
for modifyInstruction in modifyingStaticFieldsInstructions do
return modifyInstruction
end
Collection < InstructionInfo > getModifyingStaticFieldsInstructions(CGNode cgNode)
acquire instructionInfo and create an instance of modifyingStaticFieldsInstructions
if instructionInfo ≠ null then
return canModifyStaticField(cgNode, instructionInfo.getInstruction())
end
return modifyingStaticFieldsInstructions
Boolean canModifyStaticField(CGNode cgNode, SSAInstruction ssaInstruction)
acquire instructions to access the field instruction
if access field is static then
return true
end

Method doPerformAnalysis is the step to perform the algorithm. We call the method getAllStaticFields to acquire the static field and store the detected field in staticFields.

Method populateAllInstancesPointedByStaticFields acquires the static field pointed to the instance pointededInstances and stores all the static fields pointed to the instance pointededInstances.

Method populateModifyingStaticInstancesMap acquires the modify static instance. If the modified instruction modificationInstruction instance belongs to pointedInstances, we acquire the instance bugInstances of the instruction modifyInstruction.

Method getModifyingStaticFieldsInstructions is the core part of the algorithm. It determines the static field that needs to be modified by calling the method canModifyStaticField. If the field instruction instruction is static, the detection is successful.

Evaluation

Benchmarks

We select four benchmarks to evaluate our refactoring tool. Quark is an open-source tool for developing applications for networked devices based on IoT sensing data. JGroups is an open-source group communication tool. Apache Mina is a network communication application framework, but it mainly provides a programming model for event-driven and asynchronous operations based on the IoT TCP/IP and UDP/IP protocol stacks. In addition, the Apache Mina-core is a core network application framework and HSQLDB is a small database.

Table 2 shows the benchmarks and their respective attributes. The second column represents the total number of classes in the program; the “Method” column represents the number of methods in the benchmark; “Sync” represents the number of methods that may involve synchronization; and “No sync” represents the number of methods not to involve synchronization.

Table 2.

Benchmarks and their attributes.

Benchmark	Class	Method	Sync	No sync
Quark	$716$	$16, 647$	$317$	$16, 330$
JGroups	$715$	$10, 635$	$494$	$10, 141$
Mina-core	$1461$	$23, 187$	$235$	$22, 952$
HSQLDB	$1257$	$11, 337$	$2517$	$8820$
Total	$4149$	$61, 806$	$3563$	$58, 243$

In summary, the result shows that our analysis can search synchronization methods in real-world programs and analyze their synchronization dependencies. All experiments were conducted on a 16-core 2.60 GHz Intel Xeon E5-2650 workstation with 128GB RAM. The workstation ran on Windows 7 operating system with Eclipse 4.5.1 and JDK 1.8.0 installed.

Experimental results and analysis

Experimental results

The refactoring tool Eclipse was used to convert the benchmarks. We evaluated all the benchmarks, except for Mina which only detected the core package Mina-core.

We refactored the software in each benchmark. By executing three detection algorithms, we detected the existing problem in each of the benchmarks. For example, we found deadlock problem in Quark, Mina-core, and HSQLDB. We detected the object reuse problem and static shared field problem in JGroups.

By using the three algorithms, we detected the three problems (such as deadlock, object reusable, and static shared field). The experimental results are given in Table 3. We assessed the number of inconsistencies and detection time in all benchmarks. Detection of inconsistency indicates that the problems can occur in the refactored program. The detection time shows that our tools are efficient in a short time.

Table 3.

Experimental results.

Benchmark	Inconsistent	Consistent	Time (s)
Quark	2	317	4.63
JGroups	2	492	8.71
Mina-core	4	231	3.08
HSQLDB	2	2515	10.08
Total	10	3555	26.50

Case study

The importance of IoT software is highlighted in the “Introduction” section. IoT software is subjected to security problems. In many cases, refactoring does not preserve program behaviors in the presence of concurrency. The new behavior will cause problems that did not exist before refactoring, such as security problems and deadlock.

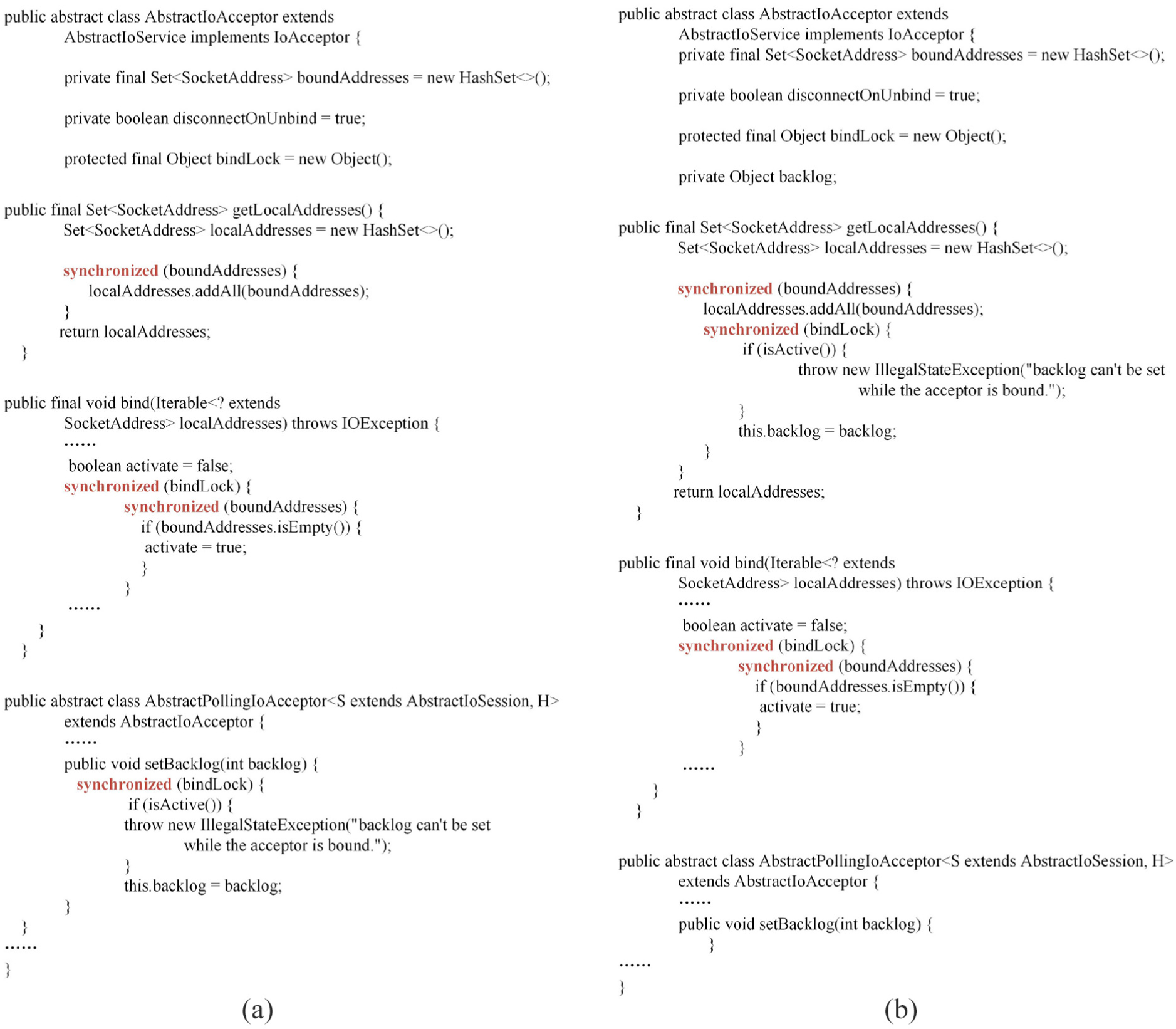

Figure 6 is the benchmark Mina-core, which classifies the synchronized blocks to parent classes AbstractAcceptor. The original program is identified to have no problems. After refactoring, thread A acquires the bindLock lock, which acquires the boundAddresses lock. Thread B acquires the boundAddresses lock, which acquires the bindLock lock.

Figure 6.

Case demonstration: (a) code before refactoring and (b) code after refactoring.

By using Algorithm 1 to acquire the pointed address of a monitor object of a synchronized block, we found that the pointed addresses i (boundAddresses) and j (bindLock) were the same. We determined that a deadlock occurred after the refactoring and caused security problems of IoT software.

Conclusion

This article presents a detection approach which uses control flow analysis, synchronization dependency analysis, data flow analysis, and three detection algorithms to ensure consistency and security of IoT software. Static analysis analyzes the structure of changes, and the three detection algorithms are used to detect software security problems. The three detection algorithms solve three problems: deadlock, object reuse, and static shared field. In the experiment, we evaluated our approach by four benchmarks, that is, Quark, JGroups, Mina-core, and HSQLDB. Experimental results show that our approach are efficient in detecting existing problems.

One possible area of future work would be to explore more complex refactoring detection beyond the field of IoT software. For instance, some advanced refactorings inccur new problems and lead to more challenges in software development. The approach proposed herein is not enough to solve all of the problems, but the concepts and techniques developed in this study are expected to serve as a basis for addressing new challenges.

Footnotes

Acknowledgements

The authors gratefully acknowledge the helpful comments and suggestions of the reviewers.

Handling Editor: Xiaojiang Du

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Key Research and Development Plan (grant no. 2018Y FB0803504), National Natural Science Foundation of China (grant nos 61440012, 61871140, 61872100, and U1636215), Scientific Research Foundation of Hebei Educational Department (grant no. ZD2019093), Fundamental Research Foundation of Hebei Province (grant no. 18960106D), Guangdong Province Key Research and Development Plan (grant no. 2019B010137004), and Guangdong Province Universities and Colleges Pearl River Scholar Funded Scheme (2019).

ORCID iDs

Yang Zhang

Shi-Xin Sun

Jing Qiu

Zhihong Tian

References

Tellez

El- Tawab

Heydari

. IoT security attacks using reverse engineering methods on WSN applications. In: Proceedings of the 2016 IEEE 3rd world forum on internet of things (WF-IoT), Reston, VA, 12–14 December 2016, pp. 182–187. New York: IEEE.

Qui

Zhang

, et al. Nei-TTE: intelligent traffic time estimation based on fine-grained time derivation of road segments for smart city. IEEE T Ind Inform. Epub ahead of print 26 September 2019. DOI: 10.1109/TII.2019.2943906.

Tian

Gao

, et al. Vcash: a novel reputation framework for identifying denial of traffic service in internet of connected vehicles. IEEE Internet Things. Epub ahead of print 5 November 2019. DOI: 10.1109/JIOT.2019.2951620.

Smith

. IoT connected devices to triple to over 38Bn units. Basingstoke: Juniper Research, 2015.

Xiao

Rayi

Sun

, et al. A survey of key management schemes in wireless sensor networks. J Comput Commun 2017; 30(11–12): 2314–2341.

Xiao

Huang

, et al. Cloud-based malware detection game for mobile devices with offloading. IEEE T Mobile Comput 2017; 16(10): 2742–2750.

Akgun

Caglayan

. Providing destructive privacy and scalability in RFID systems using PUFs. Adhoc Netw 2015; 32: 32–42.

Tian

Cui

, et al. A real-time correlation of host-level events in cyber range service for smart campus. IEEE Access 2018; 6: 35355–35364.

Tian

Luo

Qiu

, et al. A distributed deep learning system for web attack detection on edge devices. IEEE T Ind Inform. Epub ahead of print 30 August 2019. DOI: 10.1109/TII.2019.2938778.

10.

Yin

Luo

Zhu

, et al. ConnSpoiler: disrupting C&C communication of IoT-based Botnet through fast detection of anomalous domain queries. IEEE T Ind Inform. Epub ahead of print 11 September 2019. DOI: 10.1109/TII.2019.2940742.

11.

Tian

Gao

, et al. Evaluating reputation management schemes of internet of vehicles based on evolutionary game theory. IEEE T Veh Technol 2019; 68(6): 5971–5980.

12.

Shen

Zhu

, et al. Cloud-based approximate constrained shortest distance queries over encrypted graphs with privacy protection. IEEE T Inform Forensi Secur 2018; 13(4): 940–953.

13.

Tian

Qiu

, et al. Block-DEF: a secure digital evidence framework using blockchain. Inform Sci 2019; 419: 151–165.

14.

Wendt

Potkonjak

. Security of IoT systems: design challenges and opportunities. In: Proceedings of the IEEE/ACM international conference on computer-aided design, San Jose, CA, 2–6 November 2014. New York: IEEE.

15.

Zhang

Cho

MCY

Wang

, et al. IoT security: ongoing challenges and research opportunities. In: Proceedings of the 2014 IEEE 7th international conference on service-oriented computing and applications (SOCA), Matsue, Japan, 17–19 November 2014. New York: IEEE.

16.

Conti

Dehghantanha

Franke

, et al. Internet of things security and forensics: challenges and opportunities. Future Gener Comput Syst 2018; 78: 544–546.

17.

. Study on security problems and key technologies of the internet of things. In: Proceedings of the 2013 international conference on computational and information sciences, Shiyang, China, 21–23 June 2013, pp. 407–410. New York: IEEE.

18.

Fujii

Koike

. IoT remote group experiments in the cyber laboratory: a FPGA-based remote laboratory in the hybrid cloud. In: Proceedings of the 2017 International Conference on Cyberworlds (CW), Chester, 20–22 September 2017, pp. 162–165. New York: IEEE.

19.

Liu

Briones

Zhou

, et al. Study of secure boot with a FPGA-based IoT device. In: Proceedings of the 2017 IEEE 60th international midwest symposium on circuits and systems (MWSCAS), Boston, MA, 6–9 August 2017, pp. 1053–1056. New York: IEEE.

20.

Tan

Gao

Shi

, et al. Toward a comprehensive insight into the eclipse attacks of tor hidden services. IEEE Internet Things 2019; 6(2): 1584–1593.

21.

Dong

Zhang

, et al. A detection method for a novel DDoS attack against SDN controllers by vast new low-traffic flows. In: Proceedings of the IEEE international conference on communications (ICC), Kuala Lumpur, Malaysia, 22–27 May 2016. New York: IEEE.

22.

Xiao

Wan

Dai

, et al. Security in mobile edge caching with reinforcement learning. IEEE Wirel Commun 2018; 25(3): 116–122.

23.

Wang

, et al. An out-of-band authentication scheme for internet of things using blockchain technology. In: Proceedings of the international conference on computing, networking and communications (ICNC), Maui, HI, 5–8 March 2018. New York: IEEE.

24.

Tian

Shi

Wang

, et al. Real time lateral movement detection based on evidence reasoning network for edge computing environment. IEEE T Ind Inform 2019; 15(7): 4285–4294.

25.

Zhu

Tang

Shen

, et al. Privacy-preserving DDoS attack detection using cross-domain traffic in software defined networks. IEEE Internet Things 2018; 6(2): 1584–1593.

26.

Steimann

. Refactoring tools are trustworthy enough and trust must be earned. IEEE Software 2015; 32(6): 80–83.

27.

Schafer

Julian

Manu

, et al. Correct refactoring of concurrent java code. In: Proceedings of European conference on object-oriented programming, Maribor, 21–25 June 2010, pp. 225–249. New York: Springer.

28.

Maruyama

Hayashi

Yoshida

, et al. Frame-based behavior preservation in refactoring. In: Proceedings of IEEE international conference on software analysis, evolution and reengineering, Klagenfurt, 20–24 February 2017, pp. 573–574. New York: IEEE.

29.

Zhang

Shao

Liu

, et al. Refactoring Java programs for customizable locks based on bytecode transformation. IEEE Access 2019; 7(1): 66292–66303.

30.

Zhang

Dong

Zhang

, et al. Automated refactoring for stampedlock. IEEE Access 2019; 7(1): 104900–104911.

31.

Carlos

Michael

. Randoop: feedback-directed random testing for Java. In: Proceedings of the OOPSLA’07: Companion to the 22nd ACM SIGPLAN conference on object-oriented programming systems and applications companion, Montreal, QC, Canada, 21–25 October 2007, pp. 815–816. New York: ACM.

32.

Gordon

Andrea

. Evosuite: automatic test suite generation for object-oriented software. In: Proceedings of the ACM symposium on the foundations of software engineering (FSE), Szeged, 5–9 September 2011, pp. 416–419. New York: ACM.

A consistency-guaranteed approach for Internet of Things software refactoring

Abstract

Keywords

Introduction

Related work

IoT software-based method

Refactoring consistency-based method

Motivation

Approach overview

Static analysis

Control flow analysis

Synchronization dependency analysis

Data flow analysis

The algorithm

Deadlock detection

Object reusability detection

Static shared field detection

Evaluation

Benchmarks

Experimental results and analysis

Experimental results

Case study

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iDs

References
