Abstract
Background. Despite widespread application, little is known about the neurophysiological effects of light sedation with midazolam or propofol, particularly in older subjects. The aim of this study was to assess the effects of light sedation with midazolam or propofol on a variety of EEG measures in older subjects. Methods. In patients (≥60 years without neuropsychiatric disease such as delirium), 2 EEG recordings were performed, before and after administration of either midazolam (n = 22) or propofol (n = 26) to facilitate an endoscopic procedure. Power spectrum, functional connectivity, and network topology based on the minimum spanning tree (MST) were compared within subjects. Results. Midazolam and propofol administration resulted in Richmond Agitation and Sedation Scale levels between 0 and −4 and between −2 and −4, respectively. Both agents altered the power spectra with increased delta (0.5-4 Hz) and decreased alpha (8-13 Hz) power. Only propofol was found to significantly reduce functional connectivity. In the beta frequency band, the MST was more integrated during midazolam sedation. Propofol sedation resulted in a less integrated network in the alpha frequency band. Conclusion. Despite the different levels of light sedation with midazolam and propofol, similar changes in power were found. Functional connectivity and network topology showed differences between midazolam and propofol sedation. Future research should establish if these differences are caused by the different levels of sedation or the mechanism of action of these agents.
Introduction
Every day, midazolam and propofol are administered to numerous individuals for general anesthesia, procedural sedation, or for comfort in the intensive care unit (ICU). Yet, little is known about the neurophysiological effects of both sedatives, particularly in elderly individuals. In a healthy, awake subject, electroencephalography (EEG) shows an alpha rhythm (8-13 Hz) in posterior derivations when the eyes are closed. Moreover, in a resting state, brain areas are functionally connected with a dominant posterior to anterior flow of information.1-5 Sedative agents alter these characteristics, and these alterations coincide with alterations in the level of consciousness. 2
Previous studies using EEG coherence suggested that light sedation with benzodiazepines results in functional uncoupling of frontal brain regions. 6 However, EEG coherence is difficult to interpret as connectivity measure because it can be influenced by the signal power and the effect of volume conduction.7,8 Functional magnetic resonance imaging (fMRI) studies on midazolam-induced light levels of sedation showed disruption of networks related to higher order brain functions with preservation of lower-order networks, 9 and reduced functional connectivity within the default mode network. 10 Propofol-induced loss of consciousness showed similar effects: decreased cortico-cortical and thalamo-cortical connectivity11,12 was found using fMRI, and EEG studies showed reduced functional connectivity, a less efficient brain network, and disruption of the directed feedforward connectivity.1,2,12
Connectivity effects have mostly been studied for propofol,11,13 while literature on other sedatives, such as midazolam and other benzodiazepines, is relatively scarce. Moreover, these studies were performed in healthy younger subjects, whereas in clinical practice, mainly older patients receive sedation, for example for endoscopic procedures.14,15 In general, older subjects show reduced resting state functional connectivity and less efficient brain network topology compared with younger adults. 16 We therefore aimed to replicate the previous findings of sedation on EEG connectivity and network topology in a population of 60 years and older. We hypothesized that light levels of sedation in these older patients result in an altered power spectrum, reduced functional connectivity, and altered network topology. This was assessed in 2 datasets: subjects receiving midazolam and subjects receiving propofol during an endoscopic procedure.
Method
Study Population
This study was performed from December 2014 to December 2016 in patients scheduled for a gastrointestinal endoscopic procedure in the University Medical Center Utrecht (UMCU). The ethical committee of UMCU waived the need for informed consent (number 14-466), although included subjects signed approval for participation, after being informed about the study procedure according to the Helsinki declaration. Inclusion criteria were age >60 years and planned endoscopy with light sedation with either midazolam or propofol. Exclusion criteria were previous stroke, epilepsy, and any psychiatric disease.
Study Procedures and Data Collection
The following patient and procedural characteristics were collected: age, sex, type and duration of endoscopy, type of sedation, and type of analgesia. The type sedative was chosen by the gastroenterologist performing the endoscopy based on physical state (ie, American Society of Anesthesiologists [ASA] classification), invasiveness and risk of the procedure, the need of lying still by the patient, and previous experiences of the patient. In general, in case of higher ASA classification or invasive procedure propofol was chosen. One hour prior to the endoscopic procedure, patients arrived at the endoscopy unit, a room with 10 beds for preparation of the patients for endoscopy and recovery afterward, for the preparation of the setup. An EEG cap with 32 electrodes (Brain products GmbH, Munich, Germany) was placed according to the 10-20 system. The EEG measurement during sedation was performed in a separate room for the endoscopic procedure. A reference electrode was located between Fz and Cz. Electrode impedances were kept below 20 kohm, sample frequency was 5000 Hz, and the hardware high pass filter was 0.1 Hz. During registration a 50 Hz notch-filter was used for visualization, although raw data were obtained for analyses.
For the baseline EEG recording, patients were lying on their back and were instructed to relax and keep their eyes closed for 5 minutes, while the researcher ensured that the patient was not falling asleep. The patient was subsequently transported to the endoscopy room where impedances were checked again, and the EEG cap was adjusted when necessary.
Midazolam was administered intravenously as a bolus of 2 to 5 mg depending on body weight and health status (such as alcohol use) by the physician performing the endoscopic procedure, and additional boluses could be given to make the endoscopic procedure possible, but without standardized assessment of the level of consciousness. The majority of patients receiving midazolam also received 50 µg fentanyl intravenously. Saturation and blood pressure were monitored during the procedure, and none of these patients were ventilated. Propofol was administered by a nurse anesthetist, starting with a bolus of 5 mg/kg and followed by continuous infusion with 4 mg/kg/h. The dose of propofol was adjusted based on response to voice or a physical stimulus to make the endoscopic procedure possible. In addition, 50 to 200 µg alfentanil was administered, depending on the body weight, health status, and procedure. Saturation, blood pressure, and electrocardiogram were monitored. These patients received some additional oxygen dependent on oxygen saturation, but were not ventilated.
The sedation EEG recording was started, and the level of consciousness was assessed using the Richmond Agitation and Sedation Scale (RASS) every 10 minutes by the researcher 17 during the entire endoscopic procedure. A RASS score of 0 indicates an alert and calm state, −1 indicates drowsiness where the patient is able to have eye contact for more than 10 seconds, −2 indicates light sedation with eye contact <10 seconds, −3 indicates moderate sedation with movement or eye opening to voice but without eye contact, −4 indicates deep sedation where the patient only moves or opens the eyes after physical stimulation but not to voice, and −5 indicates an unarousable state without response to voice or physical stimulation. Patients were requested to keep their eyes closed. During the EEG recording, the patients were observed, and any eye opening was documented to facilitate epoch selection afterward.
EEG Analysis
Raw data were down sampled using spline interpolation to 512 Hz with the Brain Vision Analyzer software (version 2.0.4.368 Brain Products GmbH, Munich, Germany) to enable comparison with previous studies. 18 From all baseline recordings, the first 4 artifact-free epochs of 8 seconds were selected, as this was previously shown to be sufficient for stable results.18,19 From each sedation recording (with either midazolam or propofol), 4 epochs of 8 seconds artifact-free EEG with eyes closed were selected within 3 minutes after the first determination of the reduced level of consciousness using the RASS score, in a time frame in which no additional sedatives or analgesics were administered. We assumed stable levels of consciousness within these 3 minutes as the administration of sedatives was unchanged in this time frame. For all analyses, the following 17 channels were included; F7, F3, Fz, F4, F8, T3, C3, Cz, C4, T4, T5, P3, Pz, P4, T6, O1, and O2 to enable comparison with previous literature.8,20 A source reference was used for connectivity and topology analysis, as approximation of the Laplacian 21 eliminating the influence of active reference in the analysis.
Spectral Analysis
First, the data were filtered using a Butterworth high-pass filter of 0.5 Hz and low-pass filter of 50 Hz, both with an order of 2 and in a forward and backward arrangement to exclude phase distortion by filtering. Subsequently, for each epoch the power spectral density was calculated with the Welch method and normalized according to the power between 0.5 and 20 Hz. For visualization, the power spectra were averaged over the 4 epochs for each patient. Relative delta (0.5-4 Hz), theta (4-8 Hz), alpha (8-13 Hz), and beta (13-20 Hz) were calculated for each epoch and averaged over the 4 epochs. Frequencies >20 Hz were excluded, as these represented particularly muscle activity due to the clinical procedures.22,23
Functional Connectivity Analysis
The phase lag index (PLI) was calculated to assess functional connectivity, a measure of synchronization between electrode time series as follows 24 :
For each sample (t) the instantaneous phase was obtained using the Hilbert transformation, and the instantaneous phase difference between 2 times series (
Network Analysis
The topology of the functional network was assessed using the minimum spanning tree (MST). Based on the PLI connectivity matrix, the MST was obtained using Kruskal’s algorithm, including the strongest connections without forming loops. 25 This resulted in a network of 17 nodes (ie, channels) and 16 connections (ie, PLI values).
First, to assess overall differences in topology, an MST reference was calculated for each subject. Using a leave-one-out method (ie, excluding the PLI matrix of this subject), an averaged PLI matrix was calculated based on all other baseline recordings. An MST reference was calculated based on that averaged PLI matrix, as an approximation of the averaged baseline topology. The number of overlapping connections of the MST of each epoch with the MST reference was counted. The ratio of overlap (MST overlap) was calculated by dividing the number of overlapping connections by the total number of connections within the MST (ie, 16 connections). Functional connectivity and MST overlap were calculated for each frequency band for each of the 4 selected epochs and averaged. Subsequently, the MST overlap was averaged over the 4 epochs. MST measures were calculated when a significant difference in MST overlap was found on a group level. Degree, diameter, and leaf fraction were calculated to characterize global integration of information, betweenness centrality, and eccentricity quantified the centrality of nodes, and tree hierarchy was used as a global measure of hierarchical organization of the MST topology (see Table 1).

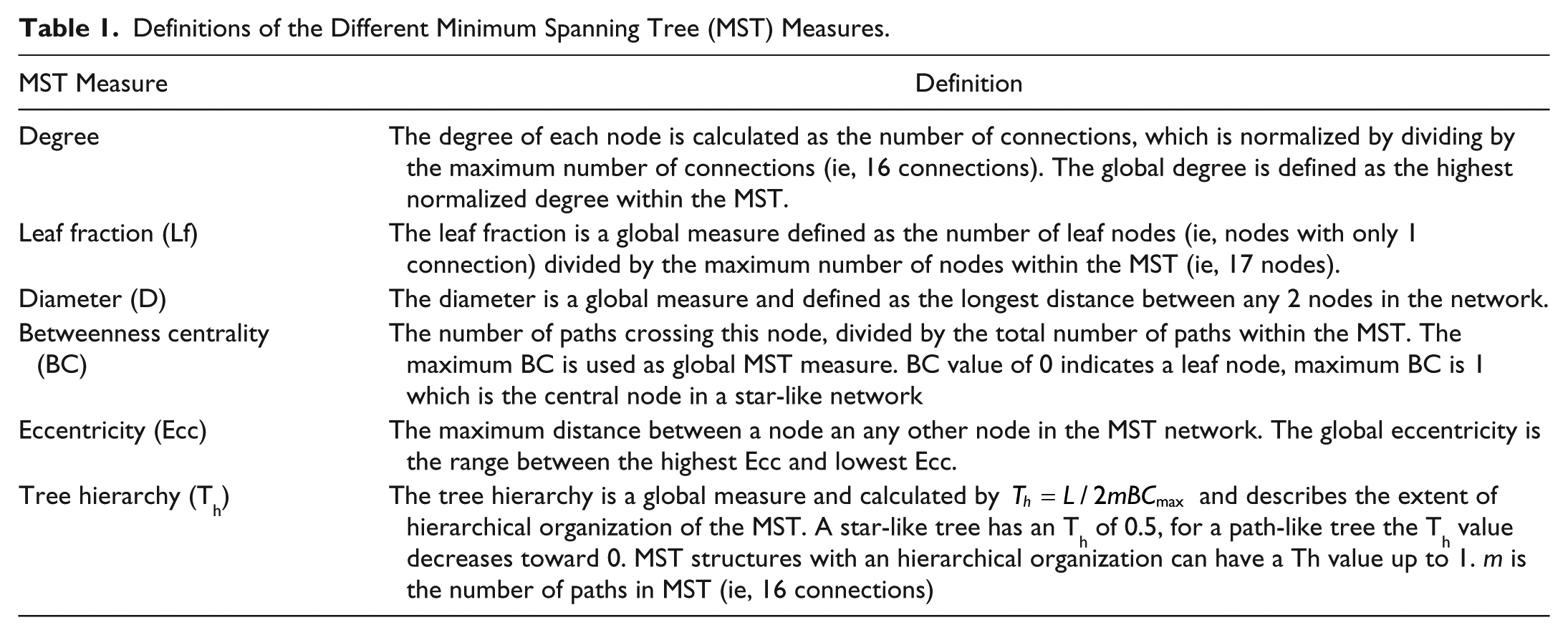

Definitions of the Different Minimum Spanning Tree (MST) Measures.
Connectivity and network analysis were performed in Brainwave (Version 0.9.152.4.1 freely available on http://home.kpn.nl/stam7883/brainwave.html) and Matlab (Version 2015a, The MathWorks, Inc) using the connectivity toolbox. 26
Statistical Analysis
Patient characteristics were tested for normality and presented as mean with standard deviation (SD), median with interquartile range (IQR), or number (%) as appropriate. Patient characteristics were compared between the midazolam and propofol groups, using t test, Mann-Whitney U test, or chi-square test where appropriate.
To study the difference in EEG characteristics between baseline and sedation with either midazolam or propofol, Student’s paired t test was used in case of a normal distribution, and a Wilcoxon signed rank test was used for a skewed distribution. The Bonferroni correction was applied to correct for multiple testing in the 4 frequency bands, therefore statistical significance was defined as P < .0125. MST measures were only calculated for a frequency band when the MST overlap was significantly different. Therefore, these comparisons using the Wilcoxon signed rank test were assumed post hoc analyses and not corrected for multiple testing. P values <.05 were statistically significant for post hoc analyses. Statistical analyses were performed with SPSS, version 21 (IBM, Armonk, NY).
Results
Study Population
In total, 85 patients participated in this study. Thirty-seven patients were excluded because of the following reasons: no sedation during endoscopy (n = 1), meningioma, or stroke in the medical history (n = 2), no EEG recording possible due to logistic reasons (n = 4), no eyes closed segments (n = 1), no EEG signal on one or more of the included channels (n = 6), or no artifact-free epochs due to the noisy environment of the experimental setup (n = 23). In the remaining 48 patients, 22 received midazolam sedation and 26 propofol sedation. The patient characteristics are described in Table 2.

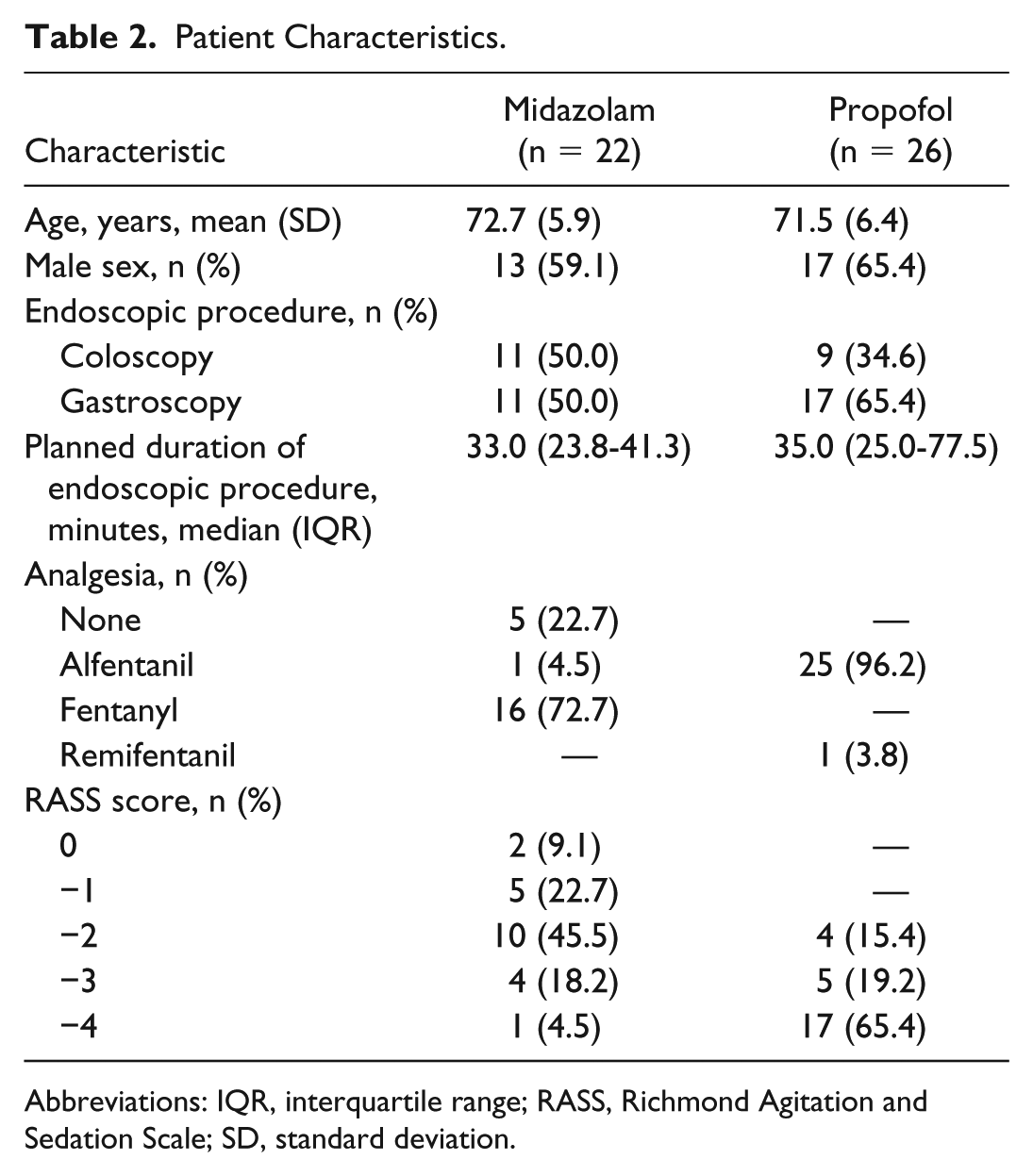

Patient Characteristics.
Abbreviations: IQR, interquartile range; RASS, Richmond Agitation and Sedation Scale; SD, standard deviation.
Spectral Analysis
The relative power in the 4 frequency bands are presented for baseline and sedation conditions in Figure 1 and Table 3. Midazolam resulted in an increase in delta and beta power, whereas alpha power was significantly lower compared with the baseline condition. Sedation with propofol significantly increased the delta power, with a reduction of theta and alpha power.

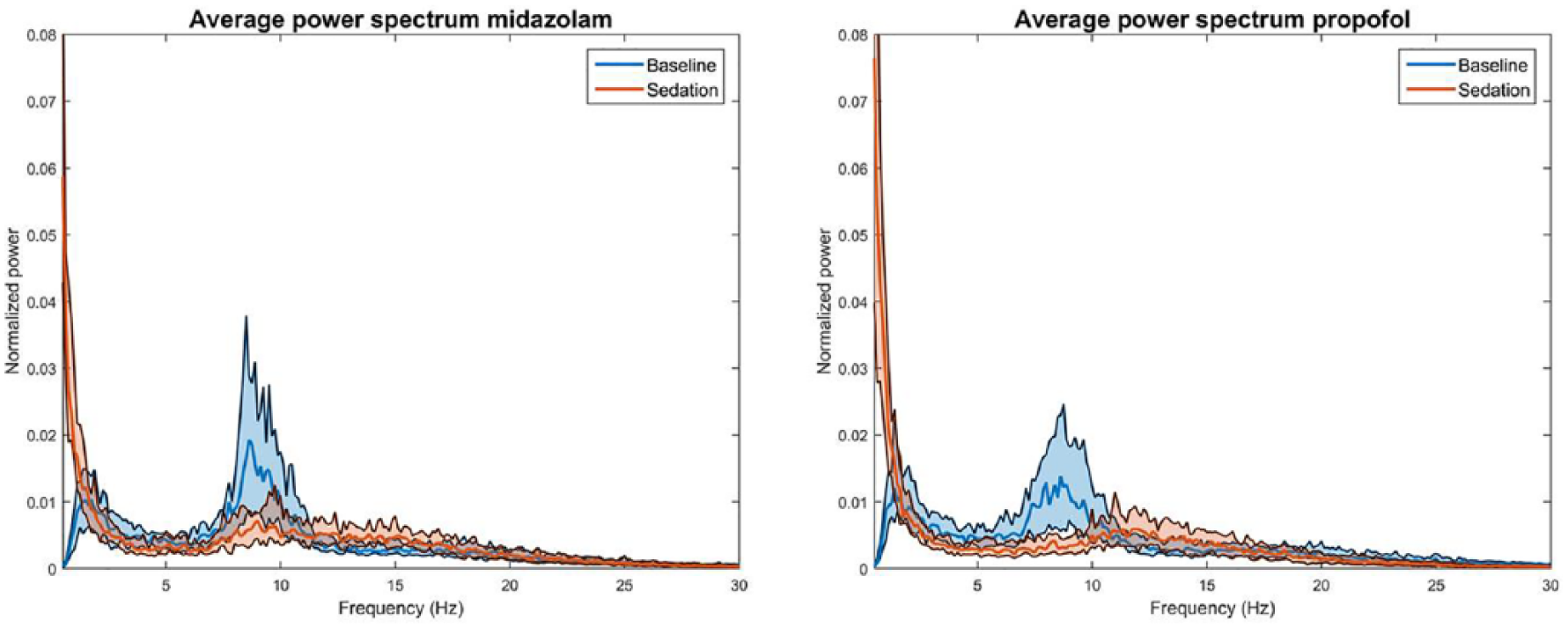

Average power spectrum of the effect of midazolam (left) and propofol (right). Thick line represents the median, shaded color gives the first to third quartile range.

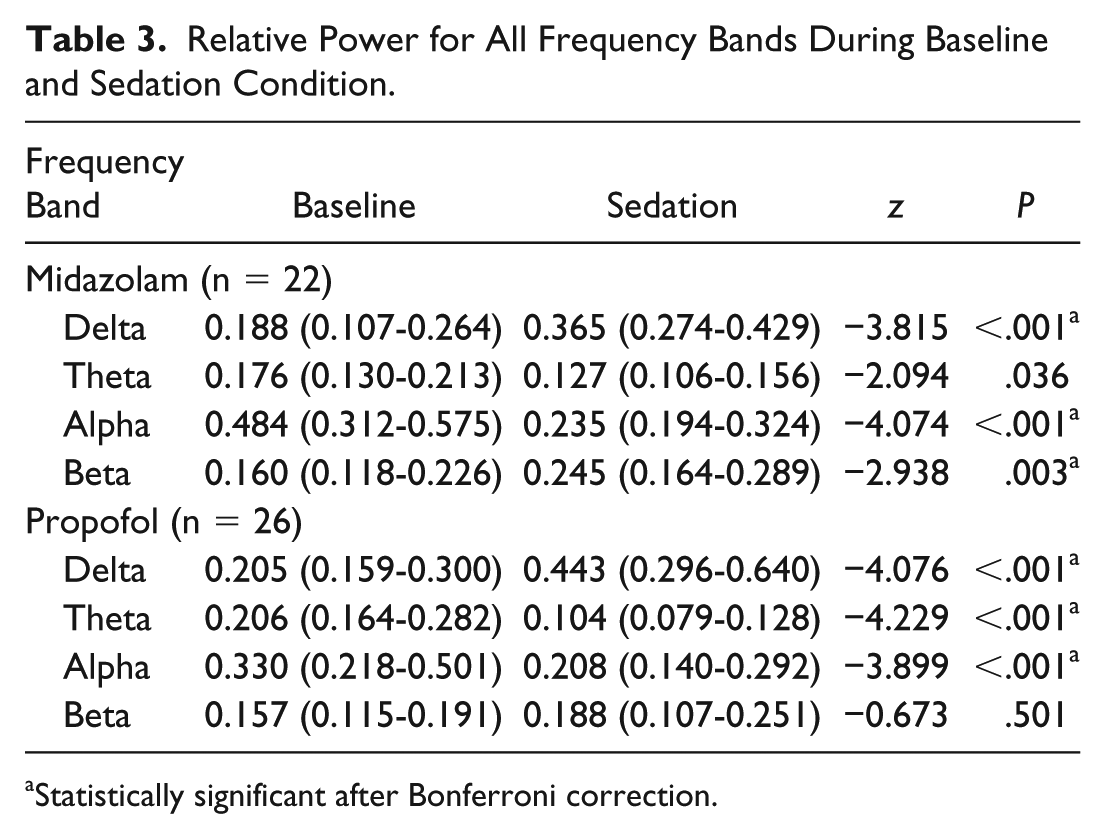

Relative Power for All Frequency Bands During Baseline and Sedation Condition.
Statistically significant after Bonferroni correction.
Functional connectivity
Midazolam sedation did not result in changes in the PLI (Table 4), whereas propofol sedation resulted in a significantly increased PLI in the delta and beta frequency bands, and a significantly decreased PLI in the alpha frequency band.

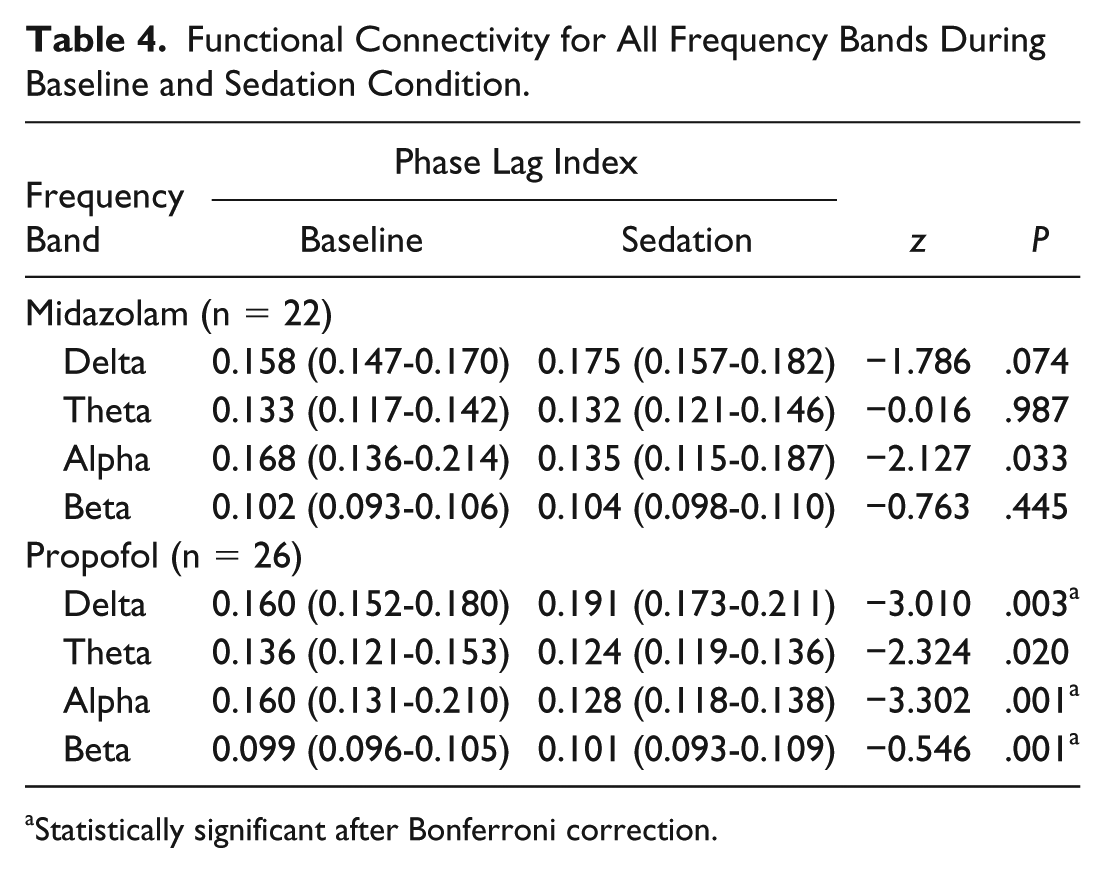

Functional Connectivity for All Frequency Bands During Baseline and Sedation Condition.
Statistically significant after Bonferroni correction.
Topology of the Functional Brain Networks
To study network topology, MST references were created and MST overlap was calculated and compared between the baseline and sedation recordings. Midazolam sedation altered network topology in the beta frequency band as indicated by a significantly reduced MST overlap (baseline, median 0.172 [IQR 0.156-0.320]; sedation, median 0.125 [IQR 0.106-0.156]; P = .001). In contrast, sedation with propofol resulted in topological changes in the alpha frequency band, with a significant reduction of MST overlap (baseline, median 0.156 [IQR 0.125-0.172]; sedation, median 0.125 [IQR 0.110-0.141]; P = .005, see Table 5). No differences were found in the other frequency bands. Therefore, the MST measures in the beta frequency band and alpha frequency band were calculated for the midazolam and propofol group, respectively.

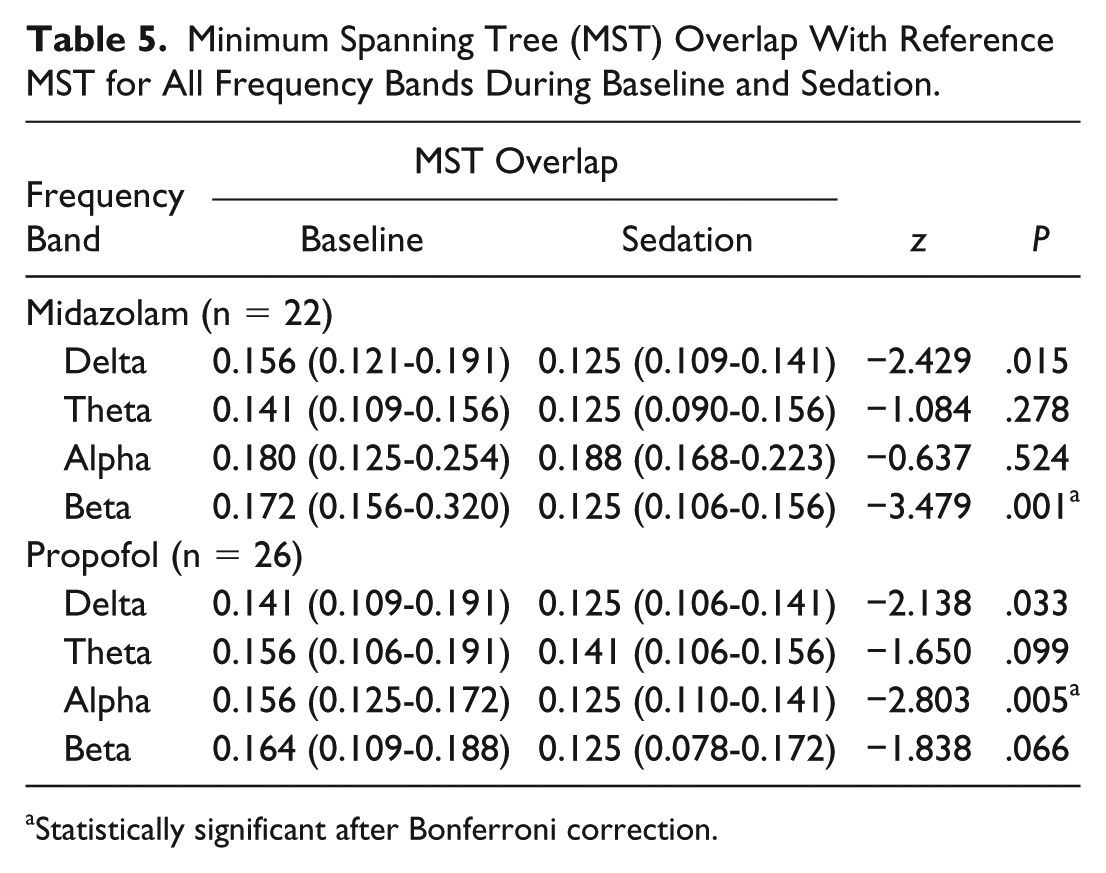

Minimum Spanning Tree (MST) Overlap With Reference MST for All Frequency Bands During Baseline and Sedation.
Statistically significant after Bonferroni correction.
Leaf fraction and tree hierarchy were significantly higher during sedation with midazolam compared to baseline (Table 6), indicating a more integrated topology in the beta band. Propofol sedation resulted in an increased diameter and eccentricity in the alpha band compared with baseline, suggesting a less integrated topology in the alpha frequency band.

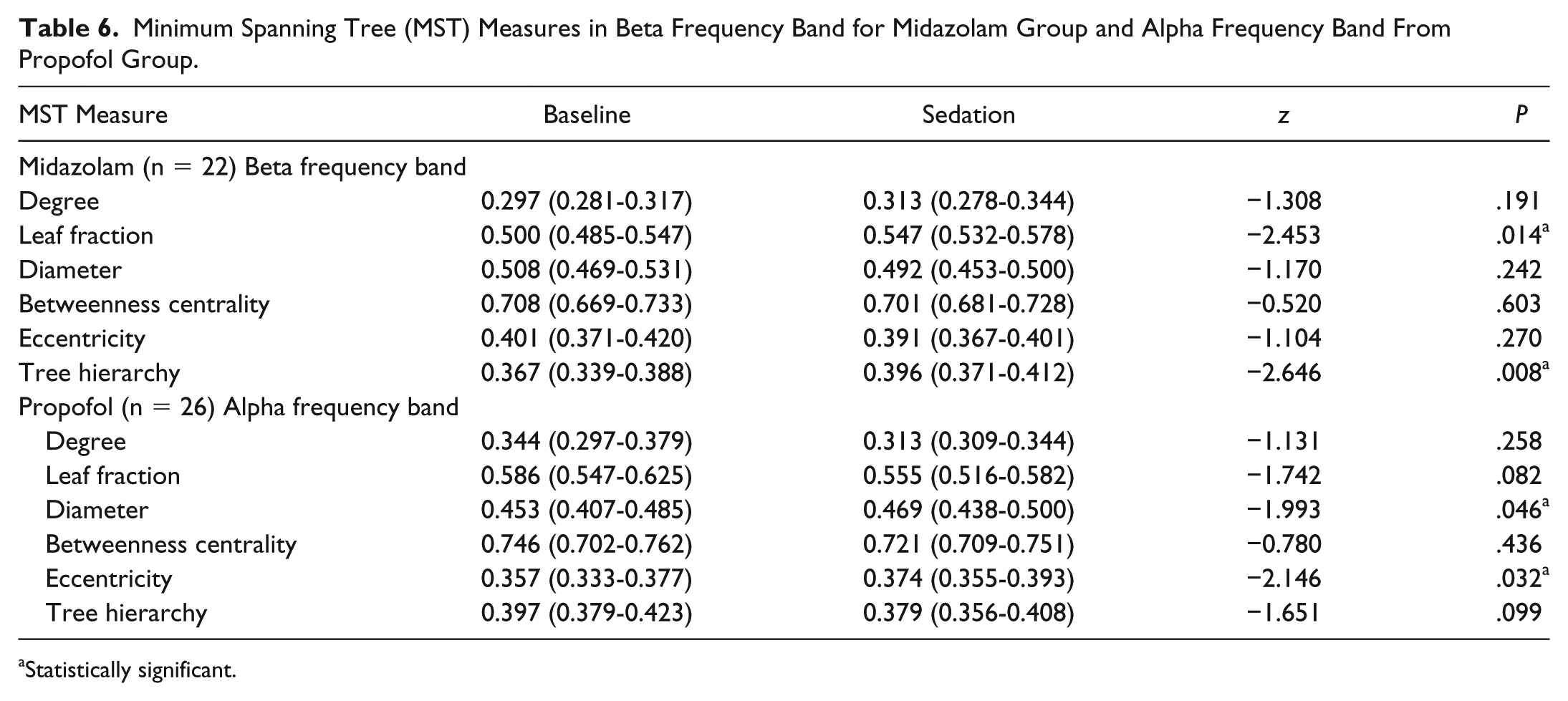

Minimum Spanning Tree (MST) Measures in Beta Frequency Band for Midazolam Group and Alpha Frequency Band From Propofol Group.
Statistically significant.
Discussion
Similar changes in EEG power were found with either midazolam or propofol sedation. During midazolam sedation no changes in functional connectivity were found, but network topology showed higher integration in the beta frequency band. During propofol sedation, the functional connectivity was changed compared to baseline and a less integrated network topology in the alpha frequency band was found, indicating loss of network efficiency.
Our findings on the effects of midazolam and propofol on relative power are consistent with most previous studies in younger subjects,27-29 which described slowing of background activity for midazolam and propofol, and a specific increase in beta power due to midazolam. Lee et al 2 showed an increase in delta frequency band PLI and a decrease in alpha band PLI during regaining of consciousness after propofol sedation in younger individuals. Interestingly, the propofol group of the current study showed a similar decrease in the alpha frequency band PLI; however, the PLI in the delta frequency band was reduced during propofol sedation. This could be explained by the difference in age (ie, younger adults vs older subjects in the current study) or the difference in sedation trajectory (ie, regaining consciousness after loss of consciousness vs light levels of sedation without loss of consciousness). In our previous study on functional connectivity during recovery from anesthesia after surgery, the PLI in the alpha frequency band was decreased compared with control subjects, while delta band PLI was not significantly different. 30 Thus reduction of functional connectivity in the alpha frequency band is characteristic for sedation in both younger and elderly subjects.2,30 It is not clear if this is a specific propofol effect because we found a nonsignificant trend in alpha frequency band PLI during midazolam sedation. However, direct comparisons between effects of midazolam and propofol in our study are hampered by differences in sedation level.
Still, midazolam and propofol had opposite effects on network topology. During midazolam sedation a more integrated network was found in the beta frequency band. A more integrated network has shorter communication paths between all nodes 4 and is therefore more efficient. Interestingly, the network topology was only affected in the beta frequency band, and an increase in power of the beta frequency band was specific for benzodiazepines like midazolam.27-29 Since subjects who received propofol had lower RASS scores compared with those who received midazolam, this more integrated network in the beta frequency band during midazolam sedation may be more specific for the working mechanism of midazolam than the depth of sedation level. However, how this relates to the different working mechanisms between midazolam and propofol on the GABAA receptor is unclear.
Propofol sedation resulted in a different topology in the alpha frequency band, a more integrated network was found. Previously, small-world measures path length and clustering coefficient were found to be increased in young subjects during propofol sedation, without changing the small-world index (the ratio of these measures). 2 The diameter of the MST is highly correlated with the small-world measure path length (ie, higher diameter correlates with longer path length), 4 and the results in the current study in elderly patients are therefore consistent with the previous study in younger subjects. 2
This is the first study on EEG characteristics of light levels of sedation with midazolam or propofol in older subjects. Furthermore, this is the first investigation on this topic using advanced topological analysis with MST. MST provides unbiased estimates of the backbone of the brain network and is not dependent on arbitrary choices regarding thresholding of the network strength. However, some limitations of the current study need to be addressed. Several patients were excluded due to the clinical setting of this study for logistic and technical reasons such as environmental artifacts, which is unlikely to have affected our findings. Second, because we performed observations during otherwise care-as-usual, the level of consciousness was not strictly targeted, and administered analgesics differed per patient. This resulted not only in clinically realistic alterations in EEG characteristics but also in different levels of consciousness between the midazolam group and propofol group, hampering direct comparison. Both fentanyl and alfentanil are known to have a slowing effect of the EEG, with fentanyl having a higher potency and longer life-time compared with alfentanil.31,32 However, the additional effects on top of midazolam or propofol sedation are unclear and could not be assessed based on the current data. Therefore, in our study it is impossible to disentangle the different effects of level of consciousness, type of analgesia, and type of sedation.
In conclusion, despite the different levels of light sedation between midazolam and propofol, overlapping results were found in the power spectra. However, only propofol sedation showed a reduction of functional connectivity in the alpha frequency band, which was previously found in younger subjects who had received propofol. 2 The opposite effects in network topology found during midazolam and propofol sedation may suggest a difference in mechanism of action. However, future research should establish if our results are related to the type of sedation or the level of consciousness and how these relate to age effects.
