Abstract

Background. Studies in neurologically intact subjects suggest that the gradual presentation of small perturbations (errors) during learning results in better transfer of a newly learned walking pattern to overground walking. Whether the same result would be true after stroke is not known. Objective. To determine whether introducing gradual perturbations, during locomotor learning using a split-belt treadmill influences learning the novel walking pattern or transfer to overground walking poststroke. Methods. Twenty-six chronic stroke survivors participated and completed the following walking testing paradigm: baseline overground walking; baseline treadmill walking; split-belt treadmill/adaptation period (belts moving at different speeds); catch trial (belts at same speed); post overground walking. Subjects were randomly assigned to the Gradual group (gradual changes in treadmill belts speed during adaptation) or the Abrupt group (a single, large, abrupt change during adaptation). Step length asymmetry adaptation response on the treadmill and transfer of learning to overground walking was assessed. Results. Step length asymmetry during the catch trial was the same between groups (P = .195) confirming that both groups learned a similar amount. The magnitude of transfer to overground walking was greater in the Gradual than in the Abrupt group (P = .041). Conclusions. The introduction of gradual perturbations (small errors), compared with abrupt (larger errors), during a locomotor adaptation task seems to improve transfer of the newly learned walking pattern to overground walking poststroke. However, given the limited magnitude of transfer, future studies should examine other factors that could impact locomotor learning and transfer poststroke.

Keywords

stroke locomotion rehabilitation motor learning

Introduction

Stroke is the third leading cause of death and the main cause of disability in adults worldwide.¹ Although most subjects regain the ability to walk after stroke,² deficits in the functions of the lower extremities frequently persist, affecting their walking ability and functional mobility.^3,4 In this context, motor (re)learning is fundamental, and is the basis of poststroke rehabilitation.⁵ However, the literature provides limited information about the process of locomotor relearning after stroke.

Recently, a group of studies using the principles of motor adaptation applied to walking have gained interest in the rehabilitation community because of their unique ability to target specific gait deviations.^6-9 In these studies, motor adaptation has a specific definition: It is the process of modifying or adjusting a movement from trial to trial on the basis of error feedback¹⁰ such that a new movement pattern is temporarily learned to respond to new task demands. Once the adaptation is complete, if the new demand is removed (postadaptation period), movements are again erroneous, but this time in the opposite manner, because the adapted pattern remains. These initial, oppositely directed errors are termed aftereffects. With continued practice with the new task demands removed, the movement pattern returns to baseline.⁹

Previous studies have shown that poststroke subjects retain the ability to make locomotor adaptations.^6,11,12 A split-belt treadmill was used, which comprises 2 separate belts that permit the speed of each belt (ie, each leg) to be controlled independently. In general, the stroke survivors performed similarly to healthy controls regarding symmetry responses during the adaptation period (when belts were set to different speeds) and the postadaptation period (when belts returned to the same speeds). These findings demonstrated that stroke survivors are indeed remarkably adept at modifying their walking pattern to accommodate changing task demands.⁶

Critical to advancing locomotor rehabilitation after stroke is determining the factors that influence the generalizability of newly learned walking patterns from one context to the next.⁸ This is crucial for the design of rehabilitation interventions that will result in improved walking beyond the clinical setting. Some locomotor adaptation studies have shown minimal transfer to new environmental contexts or demands.^13,14 Reisman et al⁸ found that both stroke and neurologically intact subjects demonstrated partial transfer of the aftereffects observed on the treadmill to overground walking following split-belt treadmill walking. However, it is noteworthy that transfer was only partial. It is thought that this partial transfer may be due to the type and size of errors that the subjects were learning to correct on the split-belt treadmill.⁸

Exploring this further, a recent study¹⁵ demonstrated that the type of errors experienced during the split-belt treadmill adaptation strongly affects the transfer to overground walking in neurologically intact people. Gradual speed changes, compared to abrupt changes, decreased the adaptation response on the treadmill but increased locomotor learning transfer to overground walking.¹⁵ That means that when errors are small enough to fall within a subject’s normal repertoire (ie, subject’s baseline variability), the adapted walking pattern transfers to natural overground walking. In contrast, large errors that are outside the normal range lead to an adapted pattern that does not transfer, regardless of stronger learning on the treadmill. It seems that we may be able to facilitate transfer simply by changing how we introduce errors,¹⁵ considering the effects that the error size might have during learning. Whether this same result would be true in chronic stroke survivors is still not known. Furthermore, the level of clinical impairment and its relationship to adaptive capacity poststroke has been previously explored⁶ and we aimed to extend these findings by exploring the relationship between clinical impairment and transfer of learning from treadmill to overground walking.

Therefore, the aim of this study was to determine whether introducing new perturbations gradually or abruptly during locomotor learning on a split-belt treadmill influences the adaptation response and improves transfer of learning to overground walking in subjects poststroke. We hypothesized that gradual, compared with abrupt, changes during locomotor adaptation would result in a similar amount of learning but better transfer to overground walking in people poststroke. Furthermore, we hypothesized that the transfer capacity might relate to subject’s initial clinical impairments.

Methods

Subjects

This was a parallel-group randomized study conducted at a single center in the United States. Twenty-six subjects with poststroke hemiparesis participated in this study. Subjects were recruited from a variety of sources, including stroke support groups, physical therapy and physician offices, and advertisements. The inclusion criteria were the following: (1) age 21 to 85 years; (2) single, unilateral, chronic stroke (>6 months after date of stroke), confirmed by magnetic resonance imaging or computed tomography scan; (3) able to walk without assistance from another person (assistive device allowed); (4) resting heart rate between 40 and 100 beats per minute; and (5) resting blood pressure between 90/60 and 170/90 mm Hg. Subjects were excluded if they had (1) evidence of cerebellar stroke on clinical magnetic resonance imaging or computed tomography scan, because of the role of the cerebellum in learning; (2) other neurologic conditions in addition to stroke; (3) inability to walk outside the home prior to the stroke; (4) coronary artery bypass graft or myocardial infarction within past 3 months previous to participation; (5) musculoskeletal pain that limits walking; (6) inability to communicate with investigators; (7) neglect as identified using the star cancellation test; and (8) unexplained dizziness in the previous 6 months.

Clinical Assessment

A clinical assessment was performed prior to the learning and transfer paradigm. The following clinical tests were performed: (1) 10-meter walk test—a measure of short-distance walking speed. Subjects perform 3 trials each at their self-selected and fastest speed¹⁶; (2) lower extremity portion of the Fugl-Meyer Assessment—a test that measures coordination, reflexes, and the ability to move in and out of synergy in the lower extremities¹⁷; and (3) Functional Gait Assessment (FGA), a 10-item assessment of dynamic balance during various walking tasks.¹⁸ The FGA has demonstrated validity, responsiveness, and reliability for assessment of walking function in persons with stroke.¹⁹

Walking Paradigm

The testing paradigm consisted of walking on a split-belt treadmill and over ground. Subjects adapted their walking pattern on a split-belt treadmill, and their response on the treadmill and transfer of this learning to overground walking (ie, off the treadmill) were tested. For the treadmill portion, subjects were asked to walk on a custom-built treadmill (Bertec Corporation, Columbus, OH, USA) consisting of 2 separate belts, each with its own motor that permitted the speed of each belt (ie, each leg) to be controlled independently. The speed of the belts was unique for each subject and the fast treadmill belt speed was determined by increasing the treadmill speed until (1) the participant declined further increase in treadmill speed or (2) the researcher determined that it was unsafe to further increase the speed. The “slow” speed was half of the patient’s fast walking speed. During different testing periods, subjects walked on the treadmill with the 2 belts either moving at the same speed (“tied” configuration) or at different speeds (“split-belt” configuration). During the tied configuration, treadmill belt speeds were set at the subject’s predetermined slow speed. In the split-belt configuration, one treadmill belt was set at the subject’s slow speed whereas the other was set at the fast speed. Subjects with symmetric step length during baseline or with a greater paretic step length (compared with nonparetic side) were included. However, we standardized the split-belt treadmill walking paradigm always assigning the paretic leg to the slow belt.

The gait analysis session consisted of 6 testing periods (Figure 1). In the “Overground Baseline period,” subjects walked overground at their self-selected gait speed for 10 trials. One trial equaled 1 pass down a 5-m walkway. In the “Treadmill Baseline period,” subjects walked on the treadmill with the belts tied at their slow speed for 2 minutes. In the “Adaptation period,” the treadmill belts were split (one belt fast and the other belt slow) for 15 minutes. After 10 minutes of Adaptation, the belts returned briefly (30 seconds) to the tied slow configuration (“Catch Trial”). Following this, the belts were split for another 5 minutes to complete the total 15 minutes of Adaptation. In the “Overground Postadaptation period,” all subjects walked overground for 10 trials. Finally, the subjects walked on the treadmill in the belts-tied configuration for 5 minutes following the final trial of overground walking (“Washout period”). This allowed us to test for washout of the treadmill aftereffect due to overground walking.^8,15 The treadmill belts were stopped between each period. Subjects were transported in a wheelchair between the treadmill and overground walking to ensure that no walking other than that collected by the motion capture system would occur between the treadmill and overground periods. Figure 1 illustrates this experimental paradigm.

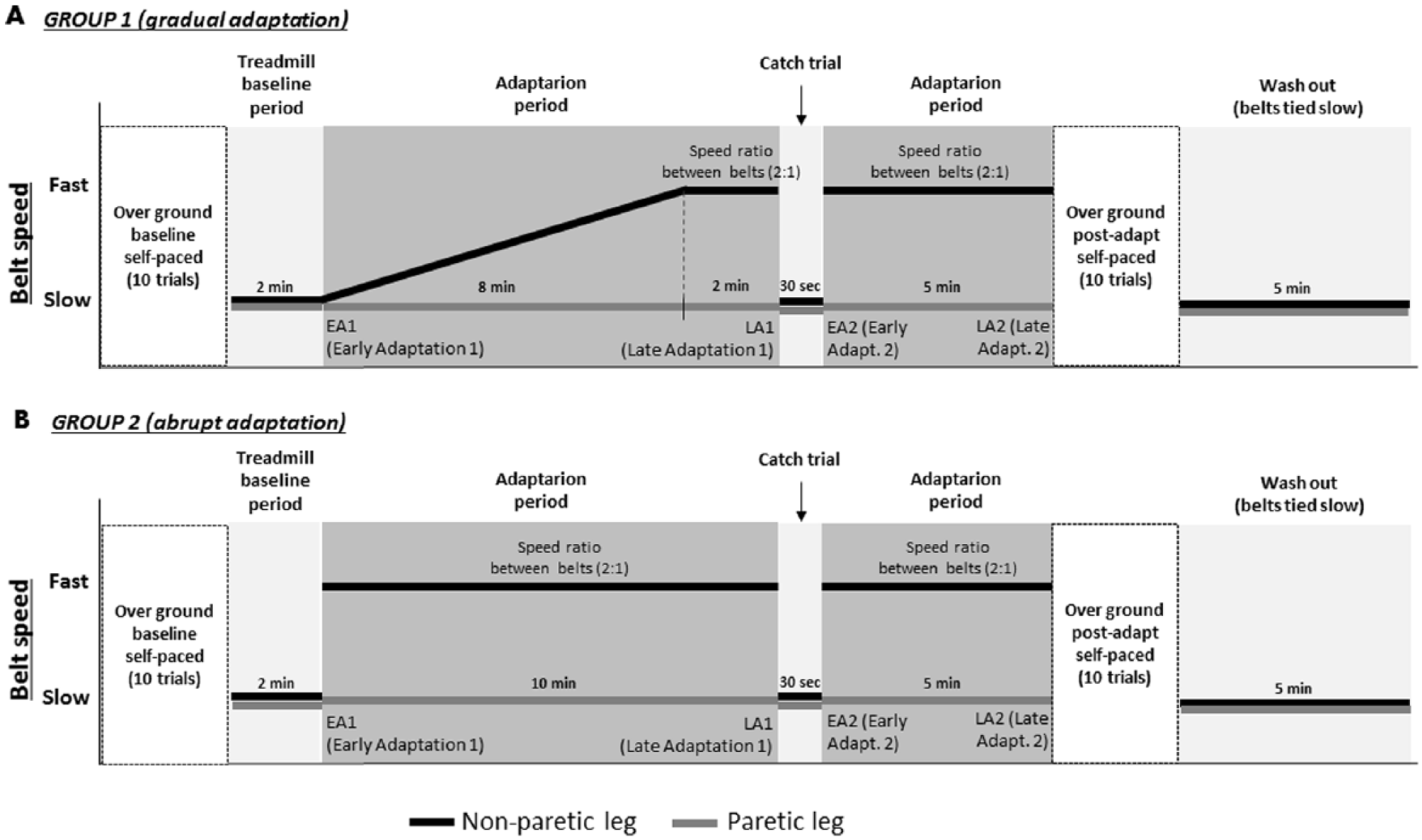

Figure 1.

Time course for the experimental paradigm showing Baseline, Adaptation, Catch, and Washout periods in overground and treadmill walking. (A) Belt speed time course for experimental group 1 (gradual adaptation). (B) Belt speed time course for experimental group 2 (abrupt adaptation).

Experimental Design

To determine whether errors during adaptation can be manipulated to improve the adaptation response and transfer of walking adaptation on a treadmill to natural walking, subjects were randomly assigned, following simple randomization procedures (computerized random numbers), to 1 of 2 experimental groups:

Group 1: Gradual adaptation (n = 13). Subjects poststroke adapted gradually to keep their error size small during adaptation. During the first 8 minutes of adaptation, the belt under the nonparetic leg linearly increased its speed from the slowest speed to the faster speed, until belts reached a 2-to-1 ratio. From the 8th to the 10th minute, the belts were kept at this 2-to-1 ratio. After the 30-second Catch Trial period (when both belts were moving at the same speed), the belts were maintained at a 2-to-1 ratio for an additional 5 minutes to readapt the walking pattern (in case any washout had occurred during the Catch Trial period)¹⁵ before testing the learning transfer to overground walking (Figure 1A).

Group 2: Abrupt adaptation (n = 13). Subjects poststroke adapted with an abrupt perturbation to expose them to a large size error size during adaptation. During the entire 15 minutes of the Adaptation period, the belts were maintained at a 2-to-1 ratio, except during Catch Trial period when the belts were tied at the slow speed, as described for the gradual group (Figure 1B).

Motion Capture Testing

Subjects walked on our custom-built split-belt treadmill instrumented with two 6-component force platforms (Bertec, Columbus, OH) and overground. Retroreflective marker data were recorded with an 8-camera Vicon Motion Analysis System at a sampling frequency of 100 Hz. Markers and clusters were placed according to Tyrell et al.¹¹ Foot contact and lift-off was determined using kinematics.²⁰ For safety purposes, all subjects held onto a front handrail while walking on the treadmill and wore a ceiling-mounted safety harness around the upper chest during overground and treadmill walking. The harness did not support body weight or interfere with subjects’ walking. Subjects were allowed to take rest breaks as requested during treadmill walking or between overground walking trials.

Data Analysis

Learning and transfer magnitudes were measured using step length asymmetry as the main variable. Considering step length as the anterior-posterior distance between the ankle markers at the time when each foot contacted the ground, step length symmetry was examined according to the following²¹:

Step length (a) symmetry = \frac{\begin{array}{l} (paretic step length - \\ nonparetic step length) \end{array}}{\begin{array}{l} (paretic step length + \\ nonparetic step length) \end{array}}

A step length symmetry value of 0 indicates that step lengths are equal, a positive value indicates that the paretic limb is taking longer steps, and a negative value indicates that the nonparetic limb is taking longer steps.

The average of all steps for overground (OG) baseline and treadmill (TM) baseline were considered for analysis. The very first step was removed from all overground conditions to avoid including step initiation. Then, the first 10 strides of split-belt walking periods were considered early adaptation (EA), whereas the last 10 strides of the split-belt treadmill walking periods were considered late adaptation (LA). The first 5 strides of the postadaptation periods (eg, Catch Trial and OG Postadaptation) were considered for analysis.^6,8,22

The magnitude of learning was measured as the after-effect in step length (a)symmetry during treadmill walking (Catch Trial), minus step length (a)symmetry during treadmill baseline walking. This subtraction of baseline (a)symmetry is essential to allow comparison across subjects with varying levels of baseline step (a)symmetry.

To determine the transfer of aftereffects observed on the treadmill to overground walking we calculated a transfer index⁸:

Transfer Index = \frac{{OG}_{post} - {OG}_{base}}{{TM}_{catch} - {TM}_{base}}

where OG_post is the mean of step length symmetry of the first 5 strides in the Overground Postadaptation period, OG_base is the mean of step length symmetry of all strides in the Overground Baseline period, TM_catch is the mean of step length symmetry of the first 5 strides during the Catch Trial, and TM_base is the mean of step length symmetry of all strides in the Treadmill Baseline period.

To determine the extent to which walking overground walking washed out aftereffects on the treadmill, we calculated a washout index:

Washout Index = \frac{{TM}_{wash} - {TM}_{base}}{{TM}_{catch} - {TM}_{base}}

where TM_catch is the mean of the first 5 strides during the Catch Trial, TM_wash is the mean of the first 10 strides in the Washout period, and TM_Base is the mean of all strides in the Treadmill Baseline period.

Custom-written scripts in MATLAB (MathWorks Inc, Natick, MA) were used for all analyses.

Statistical Analysis

Data were tested for normality and homogeneity using Shapiro-Wilk and Levene tests, respectively, and nonparametric statistics were used when data were found to be nonnormally distributed. The independent t test was applied to compare differences between groups regarding learning and transfer. Comparison between groups for Washout Index was performed using a Mann-Whitney test. The effect size (ES) was calculated for the variables that obtained significant difference between groups. ES was calculated using Cohen’s d, and was deemed small if greater than 0.2, medium if greater than 0.5, and high if greater than 0.8. Its precision is shown as 95% confidence interval (95% CI).^23,24 Spearman R correlations were performed to test for relationships between Transfer Index and ordinal clinical measures (eg, lower extremity Fugl-Meyer and FGA). Pearson product moment correlations were performed to test for relationships between Transfer Index and OG comfortable walking speed. The level of statistical significance for all measures were set at P < .05, and all statistical calculations were completed using SPSS version 22.0-J (IBM, Tokyo, Japan) software.

Results

A total group of 62 hemiparetic subjects from the local community in Newark, Delaware, were assessed for eligibility from March 2016 to January 2017. Twenty-eight subjects met the inclusion criteria and agreed to participate in this study. They were randomly allocated to Abrupt Group (n = 14) or Gradual Group (n = 14). All participants completed the experimental procedure. Only 2 subjects were excluded from analysis. One subject lost her balance during Overground Walking (post) but was able to recover walking by herself; however, this affected her step length for several steps and these changes were unrelated to the transfer of aftereffect. Another subject experienced issues with the safety harness, which was getting stuck on the track during some trials. Therefore, a total of 13 subjects were analyzed and included in each group (Figure 2). No adverse effects were observed during data collection. Characteristics of both groups are presented in Table 1. No significant differences were found between groups at baseline.

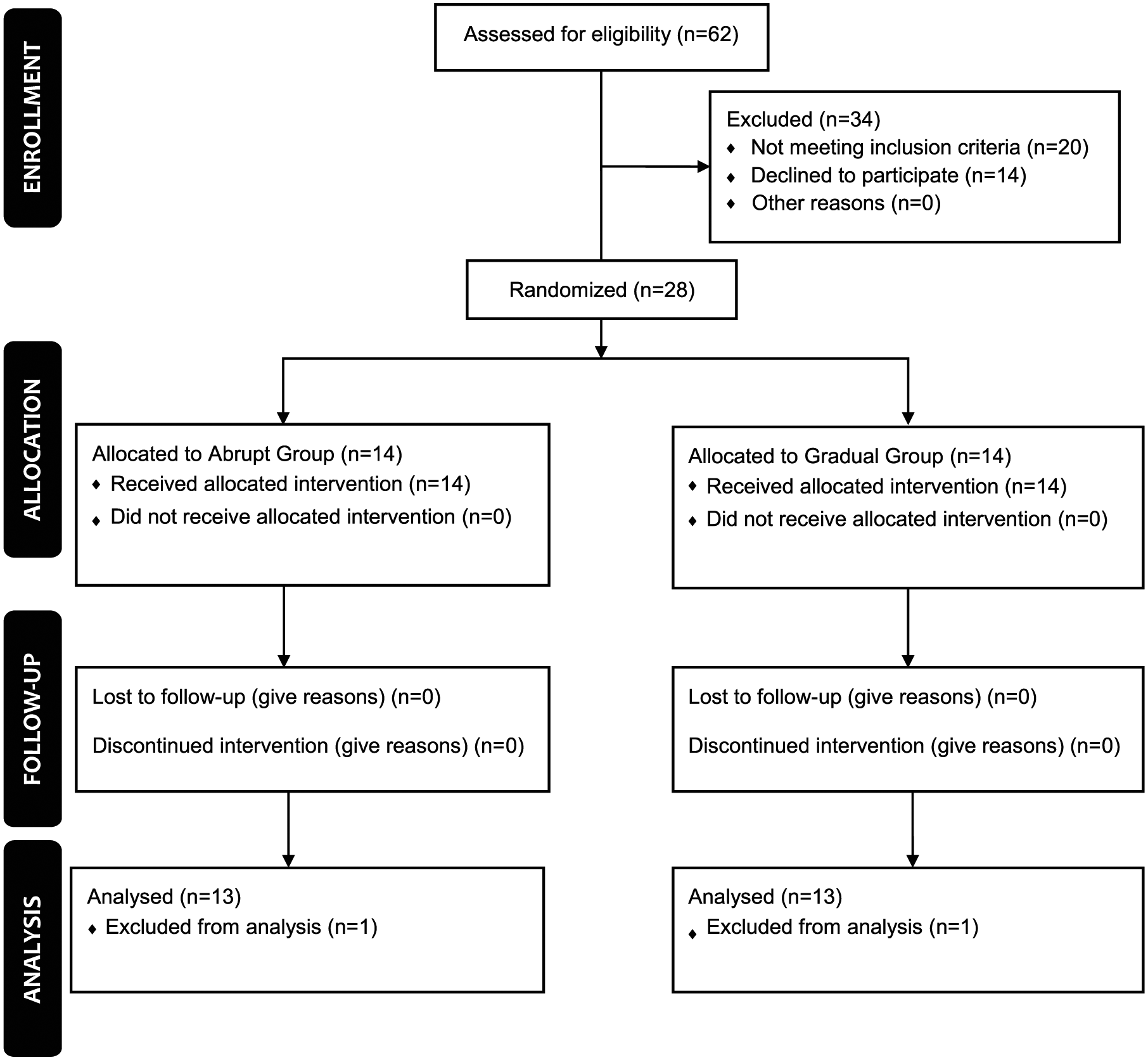

Figure 2.

Flow diagram of study.

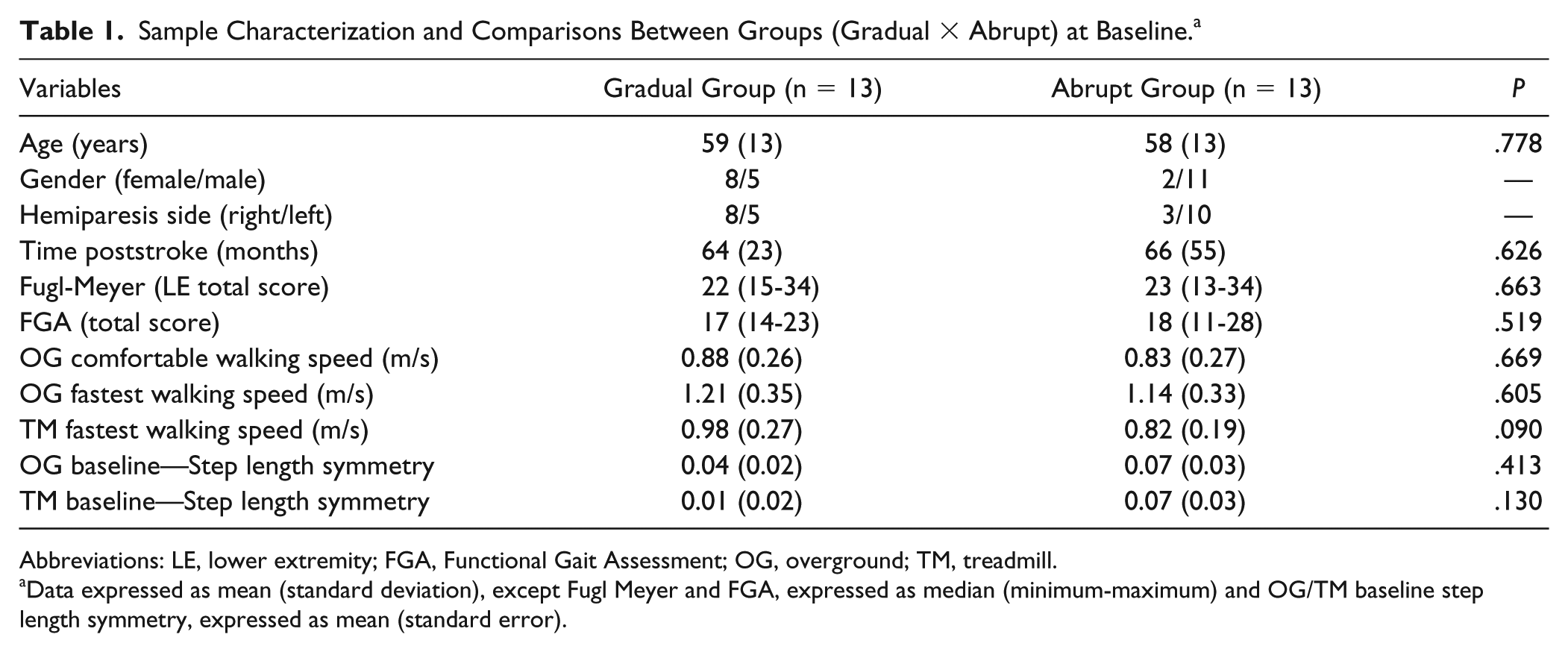

Table 1.

Sample Characterization and Comparisons Between Groups (Gradual × Abrupt) at Baseline.^a

Variables	Gradual Group (n = 13)	Abrupt Group (n = 13)	P
Age (years)	59 (13)	58 (13)	.778
Gender (female/male)	8/5	2/11	—
Hemiparesis side (right/left)	8/5	3/10	—
Time poststroke (months)	64 (23)	66 (55)	.626
Fugl-Meyer (LE total score)	22 (15-34)	23 (13-34)	.663
FGA (total score)	17 (14-23)	18 (11-28)	.519
OG comfortable walking speed (m/s)	0.88 (0.26)	0.83 (0.27)	.669
OG fastest walking speed (m/s)	1.21 (0.35)	1.14 (0.33)	.605
TM fastest walking speed (m/s)	0.98 (0.27)	0.82 (0.19)	.090
OG baseline—Step length symmetry	0.04 (0.02)	0.07 (0.03)	.413
TM baseline—Step length symmetry	0.01 (0.02)	0.07 (0.03)	.130

Abbreviations: LE, lower extremity; FGA, Functional Gait Assessment; OG, overground; TM, treadmill.

Data expressed as mean (standard deviation), except Fugl Meyer and FGA, expressed as median (minimum-maximum) and OG/TM baseline step length symmetry, expressed as mean (standard error).

Learning and transfer response

Figure 3 shows examples of step length (a)symmetry values over the course of treadmill (3A and 3B) and overground walking (3C and 3D) from representative subjects in the Abrupt group (3A and 3C) and Gradual group (3B and 3D). Early in the Adaptation period for the Abrupt group subject, the step length is substantially more asymmetric than at baseline, but then adapts back to baseline over many steps (Figure 3A). On the other hand, at the start of the Adaptation period for the subject in the Gradual group, the step length is similar to that in the Treadmill Baseline period since the belts are still tied at the same speed (Figure 3B). Over the course of the gradual paradigm, the belts are gradually split. If the subject was able to perfectly adjust step length to adapt to the changing belt speeds, step length (a)symmetry would remain unchanged. This subject was not able to perfectly adapt and thus there are small increases in asymmetry between the beginning and end of the 10 minutes of Adaptation (Figure 3B). Both these examples illustrate the reverse asymmetry (ie, aftereffect) in the Catch Trial period, when they returned to tied belts. A limited aftereffect is observed during the Overground Postadaptation period for either subject, however, does appear to be greater for the subject in the Gradual group (Figure 3D) than Abrupt group (Figure 3C), that is, the overground walking after the gradual adaptation during treadmill walking is more asymmetric compared to baseline overground walking for this subject).

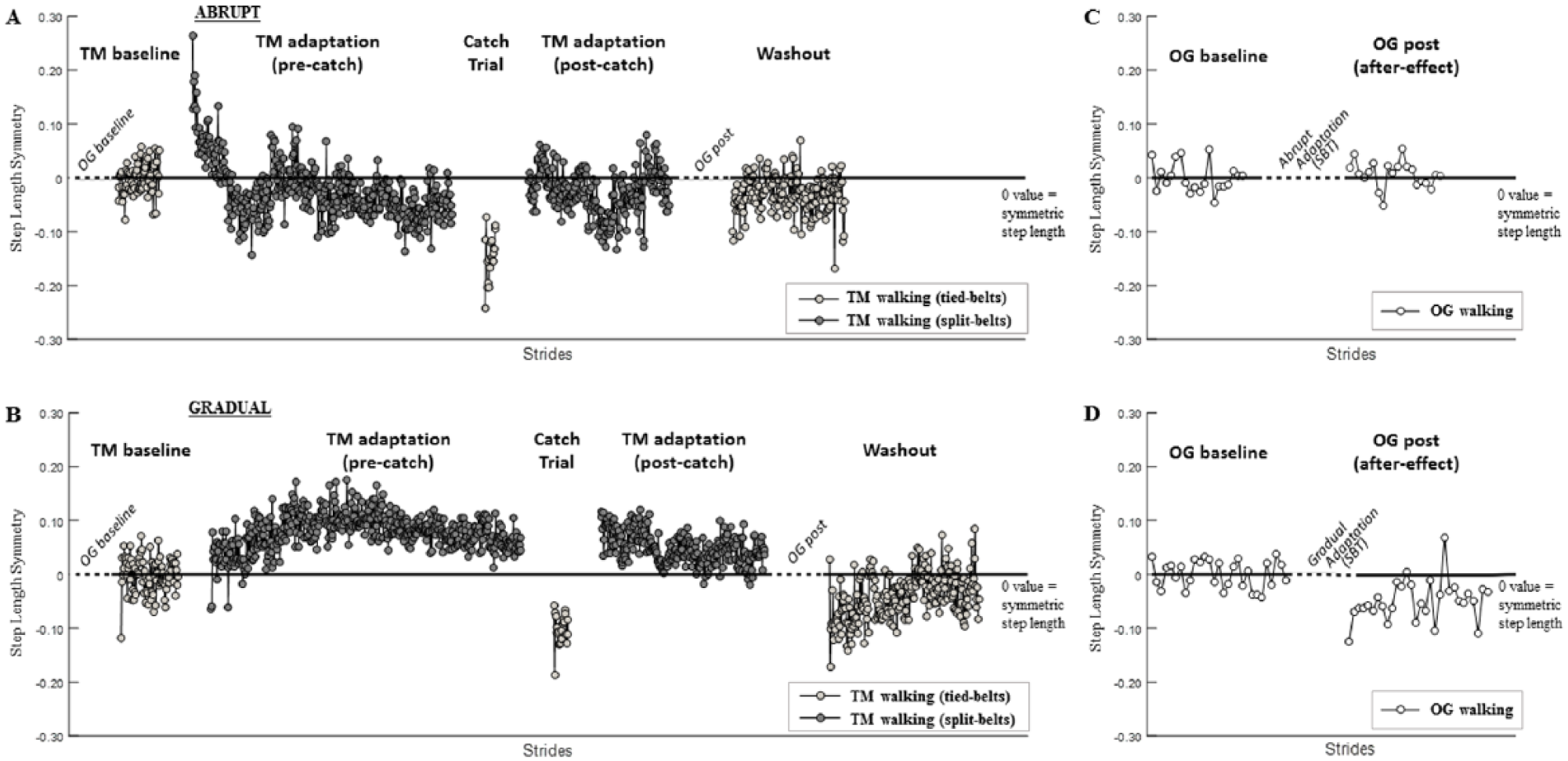

Figure 3.

Individual representative data of step length (a)symmetry for all sequential strides taken during treadmill (A and B) and overground walking (C and D). Representative subjects that underwent an abrupt split-belt paradigm (A and C) and a gradual paradigm (B and D) are shown. A value of zero represents step length symmetry (normalized by baseline). Note that the placement of the overground walking periods is indicated in figures A and B, but these data are shown in figures C and D. Abbreviations: TM, treadmill; OG post, overground postadaptation.

To ensure that the initial perturbation was different between groups, we compared the (a)symmetry value at early adaptation during the Adaptation period between groups (Figure 4A). As expected, the difference is greater in the Abrupt group than in the Gradual group (ES = 1.89, 95% CI −0.21 to −0.08, P < .001), confirming that subjects in the Gradual group experienced smaller errors in step length (a)symmetry than Abrupt group. Second, to confirm if the Catch Trial period differently influenced subjects in the Gradual and Abrupt groups, we compared if the difference between the late adaptation pre-catch and the early adaptation post catch were the same across groups (Figure 4B). No differences were observed (P = .829). In other words, the difference between step length symmetry value immediately after the Catch Trial period and immediately prior to the Catch Trial period was the same in the Gradual and Abrupt groups. Third, to understand if the adaptation response after the Catch Trial period was the same regardless the group, the difference between the early adaptation and late adaptation postcatch was also compared across groups (Figure 4C). No differences were observed (P = .536).

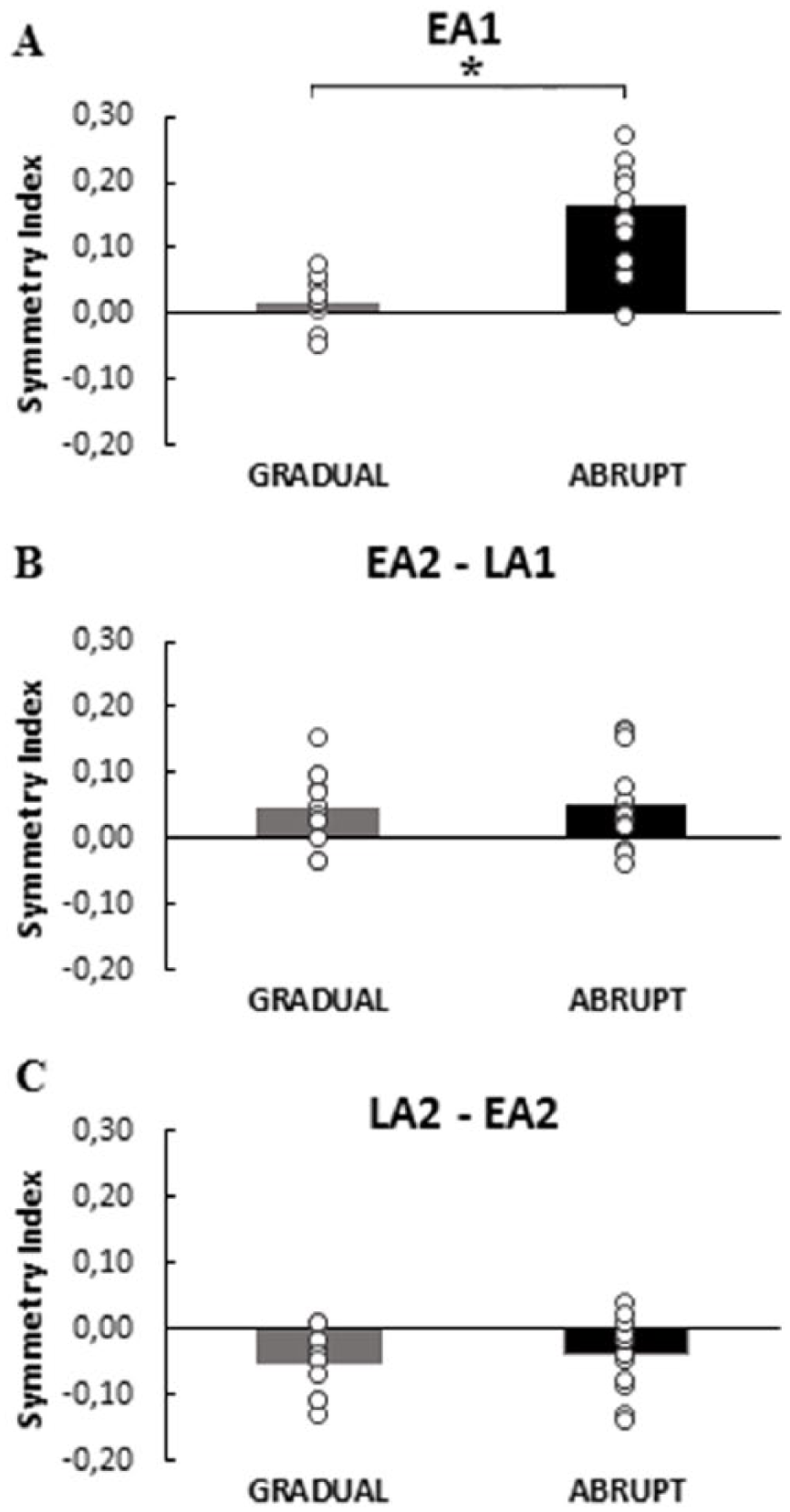

Figure 4.

Comparisons between the Gradual group (gray bars) and the Abrupt group (black bars) for step length symmetry differences between time points. To ensure that the initial perturbation was different between groups, we compared the symmetry value at early adaptation (EA1) between groups (A). To confirm that the catch trial did not differently influence the groups, we compared the difference between the late adaptation precatch (LA1) and the early adaptation postcatch (EA2) between groups (B). The difference between the early adaptation (EA2) and late adaptation (LA2) postcatch were also compared across groups (C). Zero on the y-axis for (A) is relative to baseline (a)symmetry and for (B) and (C) represents no difference across treadmill testing periods within the group. Error bars indicate ± standard deviation. Asterisk indicates a significant difference between groups.

Figure 5 shows the main comparisons between groups, regarding learning magnitude on the treadmill, transfer to overground walking and washout response. Both groups showed the same magnitude of aftereffect on the treadmill, that is, same magnitude of learning on the treadmill regardless of the split belt treadmill paradigm, gradual or abrupt (P = .195; Figure 5A). The magnitude of transfer to overground walking, in relation to learning during treadmill walking (Transfer Index), was greater in the Gradual group than the Abrupt group (ES = 0.86, 95% CI 0.20 to 0.93, P = .041; Figure 5B). No differences between groups were observed in the Washout Index (P = .326; Figure 5C).

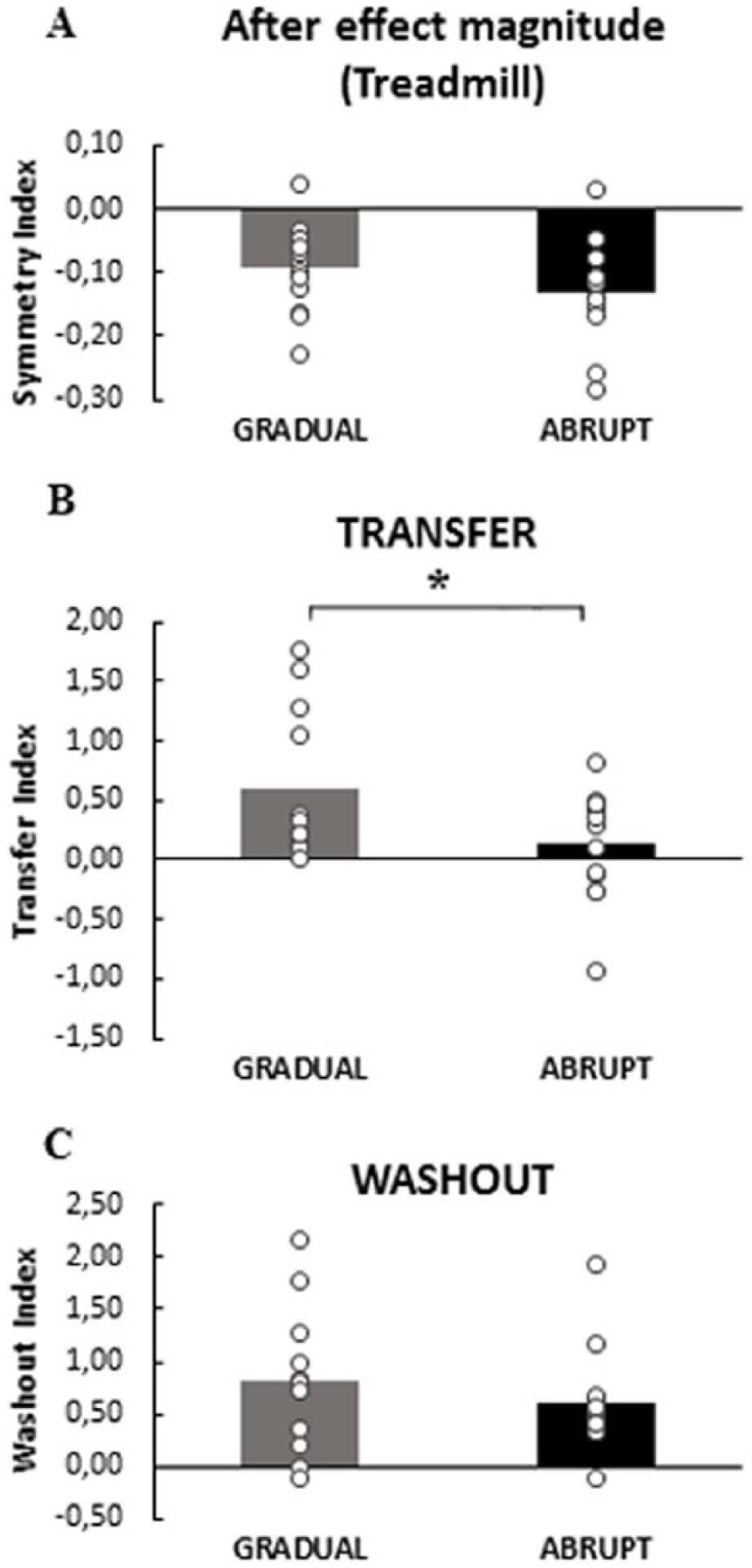

Figure 5.

Comparisons between the Gradual group (gray bars) and the Abrupt group (black bars) for step length symmetry. (A) The same magnitude of aftereffect (catch trial) on the treadmill was observed between groups. Note that the after effect is normalized by step length symmetry during treadmill baseline, therefore a zero value equals no difference compared to baseline. (B) The transfer index indicates the amount of adaptation transfer from the treadmill to overground (OG) walking in each group. (C) Washout represents if the OG walking washed out the treadmill effects on locomotor learning. A greater value equals better transfer/washout. Note that no differences were observed between groups (P > .05). Error bars indicate ± standard deviation. Asterisk indicates a significant difference between groups.

Impairment Level and Transfer Magnitude to Overground Walking

Correlation analyses were performed to test for relationships between stroke survivors’ impairments (clinical measures) and their locomotor learning capacity and its transfer to overground walking. No correlations were observed between Transfer Index and Fugl Meyer LE score (P = .617), FGA score (P = .778), or OG comfortable walking speed (P = .736).

Discussion

In this study, we examined whether perturbations introduced gradually (small errors) or abruptly (large errors) during a locomotor learning task affect the transfer of learning to overground walking in subjects poststroke. Interestingly, we found that increasing the speed of one belt on a split-belt treadmill gradually, compared with abruptly, does enhance transfer to overground walking poststroke. The introduction of different error sizes during treadmill walking, however, did not modulate the washout of treadmill aftereffects following overground walking. These findings provide information regarding how different types of errors experienced during a locomotor adaptation task affect learning and transfer to overground walking after stroke.

A previous study showed that step length symmetry adaptation transfers from treadmill (abrupt perturbation) to overground walking in persons poststroke.⁸ In our study, however, the transfer to overground walking was not as apparent following an abrupt perturbation during split-belt treadmill locomotor learning. This inconsistency might be explained by the greater variability of transfer among subjects observed in the present study compared with the previous study. There were also a number of potentially important methodological differences between the 2 studies, including the calculation of step length asymmetry and the inclusion of the first step of overground walking (step initiation) in the previous study.⁸ In the present study, we adapted the subjects on the treadmill such that the aftereffect would always occur in the same direction, which was not done in the previous study. This is important because in our previous work, we have shown that the split-belt configuration influences adaptation and aftereffect magnitudes in persons with stroke.²⁵ That is, the initial perturbation, magnitude of adaptation and aftereffect is influenced by whether the belt configuration augments the subjects baseline asymmetry or induces greater symmetry when the belts are initially split. Given this finding, we opted in the present study to configure the split-belts such that the initial perturbation and the aftereffects would always occur in the same direction for all subjects. This is an important difference in methodology between the 2 studies. The differing results between the 2 studies also highlight the importance of replicating studies that included a relatively small sample.

Previous studies have shown that transfer of a newly learned walking pattern in response to new demands or environmental contexts is minimal in neurologically intact subjects¹³ or partial in subjects poststroke.⁸ Therefore, recent studies have investigated strategies to maximize locomotor learning and its transfer to other contexts. The size of error experienced during a locomotor task is one of the factors that has been investigated for its effect on transfer.¹⁵ In neurologically intact subjects, Torres-Oviedo and Bastian¹⁵ showed reduced learning but better transfer to overground walking after a gradual introduction of a split-belt walking perturbation, compared to an abrupt perturbation. Interestingly, the present study results also showed greater transfer to overground walking after gradual split-belt perturbation in stroke survivors.

These results may be explained in the context of the idea of credit assignment in motor learning and transfer.²⁶ Credit assignment is the idea that the central nervous system seeks to assign an error to a specific source.²⁶ That is, if an individual assigns an error to a particular context or environment, then the learned response to this error will not transfer to a new context or environment; conversely, if the error is assigned to themselves, individuals transfer the learned response more effectively. Recent studies in neurologically intact subjects suggest that perturbations to movement that result in small errors will likely transfer better to other contexts or environments because the nervous system ascribes the movement errors to the person rather than to another source.^15,27 This has important implications for the present study of chronic stroke survivors whose natural error size (step length asymmetry) and variability is quite large.²⁸

With this in mind, it is important to highlight that, although gradual (compared with abrupt) perturbations during split-belt treadmill walking seem to afford benefits in transfer of learning to overground walking, the magnitude of transfer was small and variable among those poststroke, even in the Gradual group. It is noteworthy that for more than half the subjects (9 in Gradual, 8 in Abrupt) the step length (a)symmetry during postadaptation overground walking was not greater than the overground baseline step length asymmetry variability (SD). That is, for most of the subjects the “signal” (step length asymmetry) during the overground postadaptation period was not outside the “noise” (overground baseline step length variability). In fact, a previous study showed that the asymmetry magnitudes need to exceed baseline overground levels to reach conscious awareness in subjects poststroke.²⁹ Studies in healthy subjects suggest that perception of step length asymmetry on the split-belt treadmill does not occur until the ratio of the slow belt speed to fast belt speed is greater than 0.85.³⁰ Thus, it is suggested that for locomotor pattern correction and learning in those poststroke, the spatiotemporal asymmetry may need to be augmented beyond what these subjects usually present during walking in order to promote awareness of asymmetric gait patterns.²⁹ It is possible, therefore, that more than half the subjects evaluated in the present study (even in the Gradual group) did not perceive their step length asymmetry during postadaptation overground walking as different from their usual baseline over ground, which may have limited the transfer to overground walking.

This result may help explain the finding that, despite differences in transfer, overground walking washed out the treadmill learning similarly across groups (eg, no differences in step length asymmetry during the washout period after overground walking). Generally, it is expected that the washout of aftereffects will follow a pattern related to the amount that was transferred¹⁵ (ie, greater transfer would result in greater washout). This was not what was observed. Rather, despite greater transfer to overground walking in the Gradual group, the step length asymmetry when subjects returned to the treadmill (during washout) was the same between groups. This could be explained by the relationship between the magnitude of step length asymmetry during postadaptation overground walking relative to the baseline variability of step length asymmetry. As described above, despite greater transfer in the Gradual group, the magnitude of asymmetry during the Overground Postadaptation period for most subjects in both groups did not exceed their step length asymmetry variability during the Overground Baseline period. Without a difference in the error driving deadaptation between subjects in the 2 groups, we would expect the washout of the new pattern during overground walking to be the same between groups, which is what was observed. Interestingly, the previous study of gradual versus abrupt split-belt walking in neurologically intact subjects found the same result, greater transfer in the Gradual group, but no difference in Washout Index between groups.¹⁵ In that study, the lack of between group differences in washout was attributed to the strong contextual cues presented by walking on the treadmill. Our results suggest an additional explanation; if the magnitude of transfer is not sufficiently large, it may not produce a meaningful error signal that would result in deadaptation.

Another interesting finding in this study is the absence of significant correlation between the transfer of learning to overground walking and clinical impairments. These results are in accordance with previous studies that also evaluated locomotor learning using a split-belt treadmill.⁶ In this sense, it could be argued that the impairment level poststroke might not influence the locomotor learning on a split-belt treadmill. That means subjects with moderate or mild impairments poststroke would have the same capacity to adapt and transfer the locomotor learning to overground walking, regardless if the perturbations during treadmill walking task were applied gradually or abruptly. However, it is worth mentioning that it also might be the case that the clinical tools used to assess the clinical impairments were not sensitive enough to detect functional differences that would lead to different learning level capacities. Future studies should specifically compare groups with different functional levels to confirm these hypotheses.

Given that motor learning is fundamental to neurologic rehabilitation, it is therefore essential that we develop a greater understanding of how to improve the transfer or generalization of locomotor learning after stroke. This understanding will help clinicians and researchers to develop optimal interventions to improve walking function in patients beyond the clinical setting. The results of this study suggest that if the goal is to generalize what is learned in a clinical setting to a more natural environment, it seems that error size may play a role. However, factors other than error size should also be considered. For example, a previous study examining interlimb transfer following adaptation to abrupt and gradual schedules during a reaching task in healthy subjects, suggested that the overall exposure duration seems to be a key factor impacting transfer capacity, while the magnitude of transfer did not differ between groups.³¹ Studies of transfer of a newly learned movement in neurologically intact subjects suggest that factors such as cognitive information, contextual information, and error timing impact transfer.^32-34 The effect of these factors on transfer in persons poststroke should be investigated.

Limitations

The results of this study must be considered in the context of its limitations. First, future studies should evaluate a greater number of subjects, comparing different levels of impairment, which could help clinicians to better understand factors that would maximize the intervention effects for a specific population. For example, including subjects with very slow walking speeds would expand our knowledge regarding adaptation capacity according to different walking impairment levels. Because of limitations in the data collection setting, the overground walking assessment consisted of several trials instead of a long-distance walk. Future studies testing overground walking should assess gait in a context where more strides in a row are performed. In addition, during treadmill walking all subjects held onto a front handrail, which could have served as a contextual cue, and might have limited the overground transfer and washout effect observed. If so, this effect was consistent across groups; however, it must still be considered in the interpretation of the results. While it would be ideal to eliminate this potential contextual cue, in our experience only very high functioning stroke survivors are able to walk on the split-belt treadmill without handrail use.

Conclusions

Our findings suggest that introduction of gradual perturbations (small errors) compared with abrupt (larger errors) during a locomotor adaptation task improves transfer of the newly learned walking pattern to overground walking poststroke. However, considering that the magnitude of transfer was small and variable among subjects poststroke, future studies should examine other factors that could affect locomotor learning and transfer in this population.

Footnotes

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by the National Institutes of Health (NIH), USA (Grant Nos. NIH R01 HD078330; NIH S10RR028114-01) and Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP), Brazil (Grant No. 2015/19197-4).

ORCID iD

Charalambos C. Charalambous

Thiago L. Russo
