A multiple genomic data fused SF2 prediction model,signature identification,and gene regulatory network inference for personalized radiotherapy

Abstract

Radiotherapy is one of the most important cancer treatments, but its response varies greatly among individual patients. Therefore, the prediction of radiosensitivity, identification of potential signature genes, and inference of their regulatory networks are important for clinical and oncological reasons. Here, we proposed a novel multiple genomic fused partial least squares deep regression method to simultaneously analyze multi-genomic data. Using 60 National Cancer Institute cell lines as examples, we aimed to identify signature genes by optimizing the radiosensitivity prediction model and uncovering regulatory relationships. A total of 113 signature genes were selected from more than 20,000 genes. The root mean square error of the model was only 0.0025, which was much lower than previously published results, suggesting that our method can predict radiosensitivity with the highest accuracy. Additionally, our regulatory network analysis identified 24 highly important ‘hub’ genes. The data analysis workflow we propose provides a unified and computational framework to harness the full potential of large-scale integrated cancer genomic data for integrative signature discovery. Furthermore, the regression model, signature genes, and their regulatory network should provide a reliable quantitative reference for optimizing personalized treatment options, and may aid our understanding of cancer progress mechanisms.

Keywords

Multiple genomic data integrated regression method radiosensitivity signature genes gene regulatory network

Introduction

Radiotherapy is a major cancer treatment, but the radiosensitivity of different tumors or even the same type of tumor in different patients varies widely.¹ Therefore, predicting the radiosensitivity of patients before radiation therapy, identifying underlying molecular signatures, and constructing their regulatory network have high clinical and oncological importance.

Radiosensitivity can be measured as the fraction of cells surviving a single 2 Gy dose of radiation (SF2), with high values indicating radiation resistance. While other methods are available to measure cellular radiation sensitivity in cell lines, SF2 is considered to be the gold standard and is supported by strong clinical evidence.²

Variations in mRNA expression values (GE), copy numbers, and other genomic patterns are thought to be the main underlying factors for different radiation responses. Accumulating large amounts of these data provides an effective but challenging way to predict the radiosensitivity of tumor cells.

Torres-Roca et al predicted the radiosensitivity of 35 human cell lines in a NCI-60 panel using a linear classifier of expression values of tens of genes selected by the significance analysis of microarrays (SAM) method in 2005.³ They developed a radiosensitivity index (RSI) as a biomarker of cellular radiosensitivity in 48 NCI-60 cancer cell lines in 2009. SF2 was the central criterion for both feature selection and final model training for RSI development. Ten of the selected ‘hub’ genes were then used to construct a linear prediction model of SF2.⁴ Additionally, Tewari et al investigated the feasibility of integrating an in vitro chemo-radiosensitivity assay with a gene microarray system,⁵ identifying 54 genes correlated with radiosensitivity using an integrated nearest neighbor model with Pearson correlation coefficient. Moreover, Amundson et al performed large-scale comparisons of gene expression variations in response to different doses (2, 5, and 8 Gy) of γ-ray radiation,⁶ and identified 22 genes that could discriminate the SF2 values of 63 cell lines (including NCI-60 and three other cell lines) between low and high groups.

Besides GE data, copy number variation (CNV) and methylation (ME) data are also related to radiosensitivity. Work by Moelans et al indicated that allelic loss and amplification at the 8p11-12 breakpoint region are associated with poor radiotherapy responses,⁷ while Zhu et al reported a pivotal role for DNA ME in tumor radiosensitivity.⁸

Unfortunately, none of the individual types of genomic data thoroughly capture the complexity of the cancer genome or precisely pinpoint the cancer-driving mechanism.⁹ Additionally, it has become increasingly clear that the integrative analysis of multi-omic data types can aid the search for potential “drivers” by uncovering genomic features dysregulated by multiple mechanisms.¹⁰ More importantly, true oncogenic mechanisms are more visible when combining evidence across patterns of alterations in DNA CNV, ME, GE and mutational profiles.^11,12 A well-known example is the HER2 oncogene that can be activated through DNA amplification and mRNA over-expression.⁹ Therefore, the development of tumor molecular analysis using multiple genomic data may lead to a more comprehensive prediction of molecular signatures.

No widely accepted threshold exists between radiation-sensitive or -resistant phenotypes and SF2 values from 0 to 1. Therefore, instead of roughly dividing cell lines into different groups by subjective cutoffs of SF2 values, it may be more useful to consider a regression issue for continuous variables of SF2. To this end, we propose a novel integrated multiple genomic data regression method for SF2 prediction, focusing on identifying signature genes for functional and genetic network analysis, rather than “hotspot” or “hot-loci” from GE, CNV, and ME data.^13,14

Studying the gene regulatory network (GRN) structure provides important insights into the mechanisms of complex diseases.^15,16 Several studies have shown that gene expression is influenced not only by the expression of other genes but also by CNV or other biological variations.¹⁷ Therefore, it is also necessary to infer GRN using multi-genomic data. Correspondingly, the aims of this study were two-fold: 1) to identify signature genes strongly associated with radiosensitivity from fused multiple genomic data to further corroborate and expand the evidence of radiosensitivity-associated signature genes in the prediction of radioresponses; and 2) to uncover regulatory relationships among identified signatures using fused multiple genomic data, employing least absolute shrinkage and selection operator (LASSO) regression based on coordinate descent algorithms to construct GRN. Figure 1 shows the study outline.

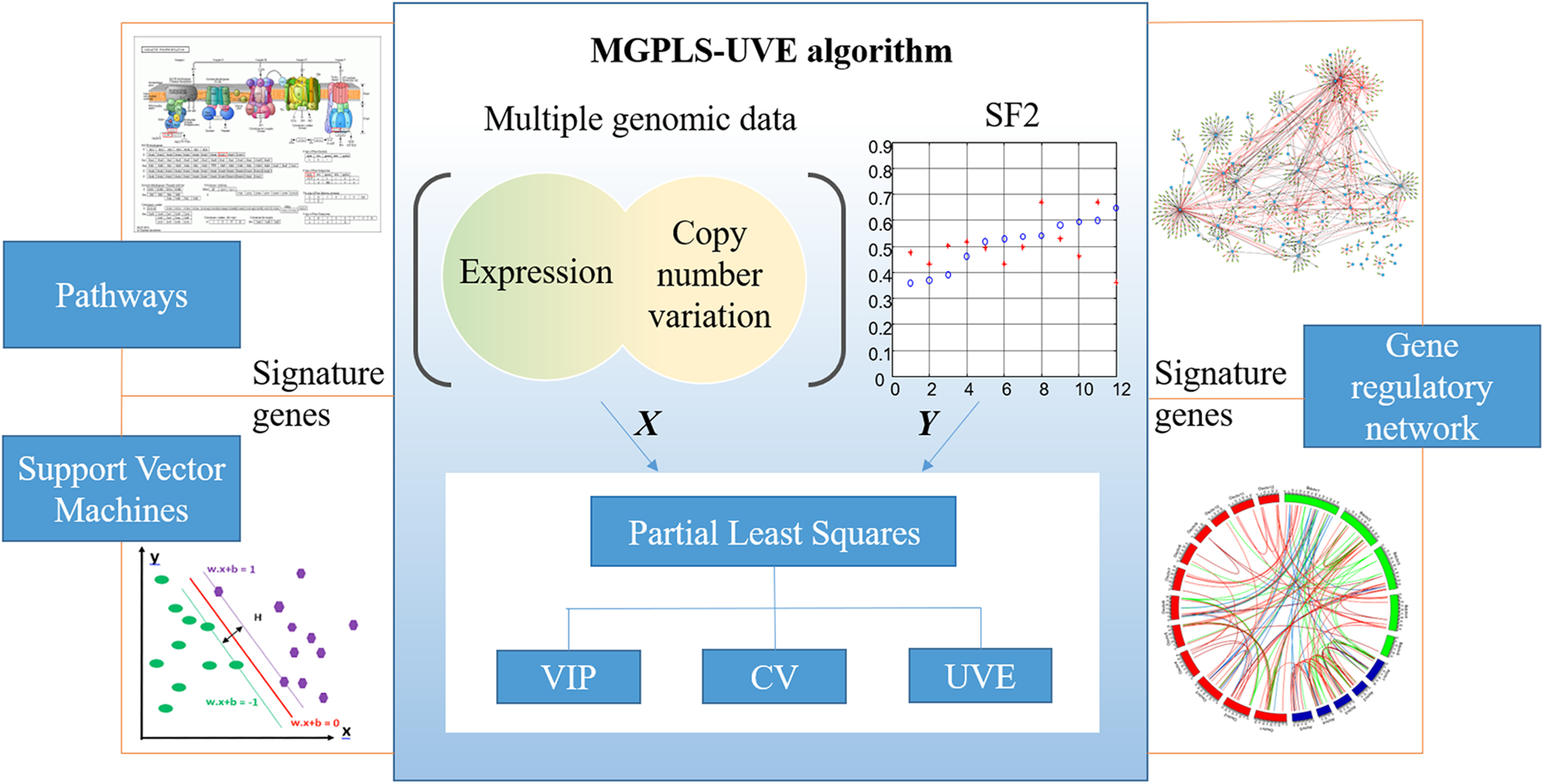

Figure 1.

The overall structure of this paper. Based on the fact that the current standard approaches rely on separate mono-genomics data analyses followed by manual integration, multiple genomic data fused regression approach (MGPLS) is proposed to identifying signature genes. MGPLS method can analysis all data types simultaneously using a single integrated regression model as well as eliminating noise effects. VIP: variable importance on projection; CV: cross-validation; UVE: uninformative variable elimination.

Materials and Methods

Datasets

GE, CNV, and ME data of NCI-60 cell lines were downloaded from (https://discover.nci.nih.gov/cellminer/loadDownload.do). GE data were collected via five platforms (Affymetrix: HG-U95, HG-U133, HG-U133 Plus 2.0, HG Exon 1.0 ST; and Agilent: Whole Human Genome Oligo array).¹⁸ CNV data were collected via four different platforms (Agilent Human Genome CGH Microarray 44A, Nimblegen HG19 CGH 385K WG Tiling v2.0, Affymetrix GeneChip Human Mapping 500k Array Set, and Illumina Human1Mv1_C Beadchip).¹⁹ ME data were collected using the Infinium HumanMethylation450 BeadChip Kit platform. The measured SF2 values of corresponding cell lines were collected from the study of Eschrich et al⁴ and are listed in Table 1.

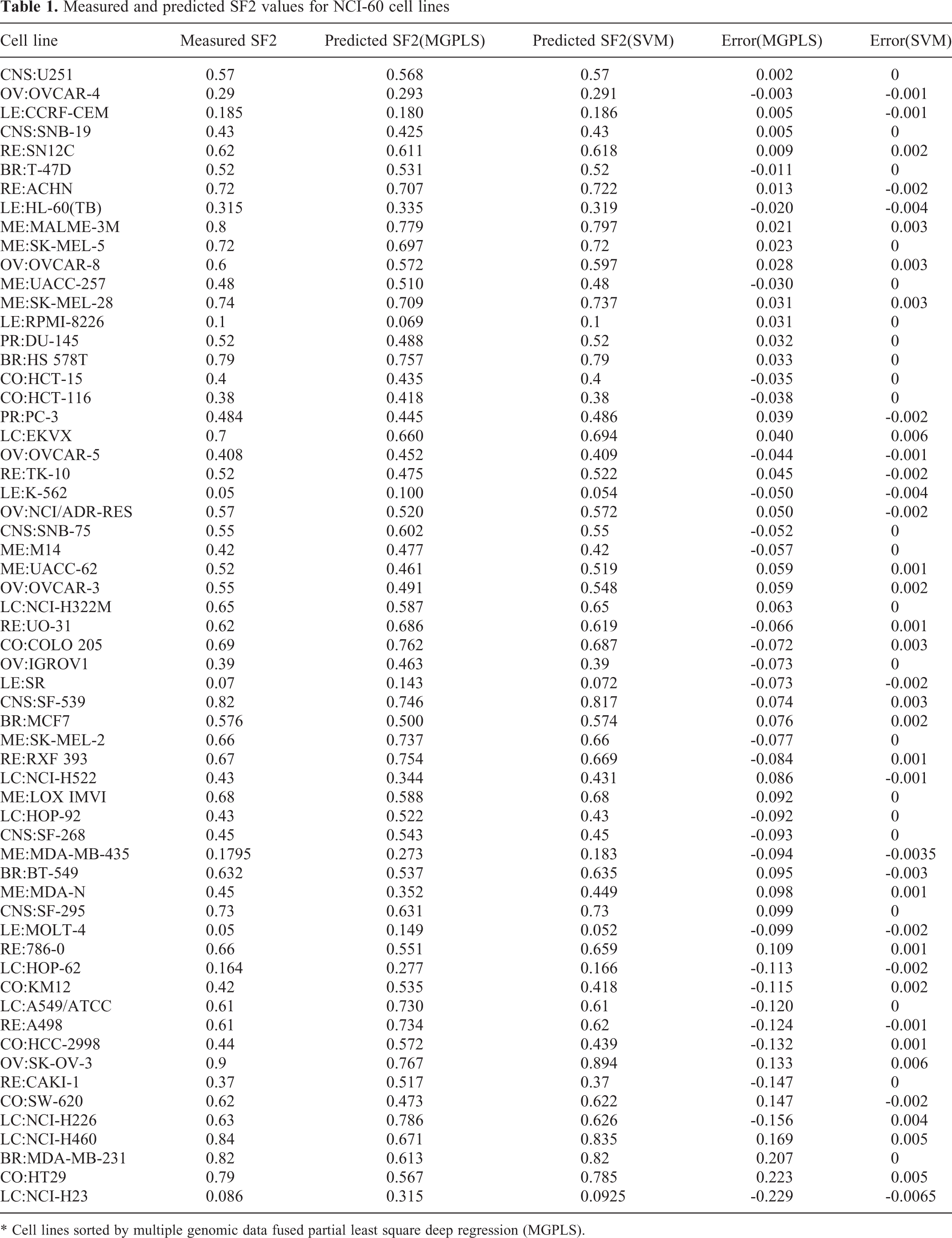

Table 1.

Measured and predicted SF2 values for NCI-60 cell lines

Cell line	Measured SF2	Predicted SF2(MGPLS)	Predicted SF2(SVM)	Error(MGPLS)	Error(SVM)
CNS:U251	0.57	0.568	0.57	0.002	0
OV:OVCAR-4	0.29	0.293	0.291	-0.003	-0.001
LE:CCRF-CEM	0.185	0.180	0.186	0.005	-0.001
CNS:SNB-19	0.43	0.425	0.43	0.005	0
RE:SN12C	0.62	0.611	0.618	0.009	0.002
BR:T-47D	0.52	0.531	0.52	-0.011	0
RE:ACHN	0.72	0.707	0.722	0.013	-0.002
LE:HL-60(TB)	0.315	0.335	0.319	-0.020	-0.004
ME:MALME-3M	0.8	0.779	0.797	0.021	0.003
ME:SK-MEL-5	0.72	0.697	0.72	0.023	0
OV:OVCAR-8	0.6	0.572	0.597	0.028	0.003
ME:UACC-257	0.48	0.510	0.48	-0.030	0
ME:SK-MEL-28	0.74	0.709	0.737	0.031	0.003
LE:RPMI-8226	0.1	0.069	0.1	0.031	0
PR:DU-145	0.52	0.488	0.52	0.032	0
BR:HS 578T	0.79	0.757	0.79	0.033	0
CO:HCT-15	0.4	0.435	0.4	-0.035	0
CO:HCT-116	0.38	0.418	0.38	-0.038	0
PR:PC-3	0.484	0.445	0.486	0.039	-0.002
LC:EKVX	0.7	0.660	0.694	0.040	0.006
OV:OVCAR-5	0.408	0.452	0.409	-0.044	-0.001
RE:TK-10	0.52	0.475	0.522	0.045	-0.002
LE:K-562	0.05	0.100	0.054	-0.050	-0.004
OV:NCI/ADR-RES	0.57	0.520	0.572	0.050	-0.002
CNS:SNB-75	0.55	0.602	0.55	-0.052	0
ME:M14	0.42	0.477	0.42	-0.057	0
ME:UACC-62	0.52	0.461	0.519	0.059	0.001
OV:OVCAR-3	0.55	0.491	0.548	0.059	0.002
LC:NCI-H322M	0.65	0.587	0.65	0.063	0
RE:UO-31	0.62	0.686	0.619	-0.066	0.001
CO:COLO 205	0.69	0.762	0.687	-0.072	0.003
OV:IGROV1	0.39	0.463	0.39	-0.073	0
LE:SR	0.07	0.143	0.072	-0.073	-0.002
CNS:SF-539	0.82	0.746	0.817	0.074	0.003
BR:MCF7	0.576	0.500	0.574	0.076	0.002
ME:SK-MEL-2	0.66	0.737	0.66	-0.077	0
RE:RXF 393	0.67	0.754	0.669	-0.084	0.001
LC:NCI-H522	0.43	0.344	0.431	0.086	-0.001
ME:LOX IMVI	0.68	0.588	0.68	0.092	0
LC:HOP-92	0.43	0.522	0.43	-0.092	0
CNS:SF-268	0.45	0.543	0.45	-0.093	0
ME:MDA-MB-435	0.1795	0.273	0.183	-0.094	-0.0035
BR:BT-549	0.632	0.537	0.635	0.095	-0.003
ME:MDA-N	0.45	0.352	0.449	0.098	0.001
CNS:SF-295	0.73	0.631	0.73	0.099	0
LE:MOLT-4	0.05	0.149	0.052	-0.099	-0.002
RE:786-0	0.66	0.551	0.659	0.109	0.001
LC:HOP-62	0.164	0.277	0.166	-0.113	-0.002
CO:KM12	0.42	0.535	0.418	-0.115	0.002
LC:A549/ATCC	0.61	0.730	0.61	-0.120	0
RE:A498	0.61	0.734	0.62	-0.124	-0.001
CO:HCC-2998	0.44	0.572	0.439	-0.132	0.001
OV:SK-OV-3	0.9	0.767	0.894	0.133	0.006
RE:CAKI-1	0.37	0.517	0.37	-0.147	0
CO:SW-620	0.62	0.473	0.622	0.147	-0.002
LC:NCI-H226	0.63	0.786	0.626	-0.156	0.004
LC:NCI-H460	0.84	0.671	0.835	0.169	0.005
BR:MDA-MB-231	0.82	0.613	0.82	0.207	0
CO:HT29	0.79	0.567	0.785	0.223	0.005
LC:NCI-H23	0.086	0.315	0.0925	-0.229	-0.0065

^* Cell lines sorted by multiple genomic data fused partial least square deep regression (MGPLS).

Data preprocessing

Before training the dataset, we performed the following preprocessing on the downloaded data:

Considering that there are only 3–4 samples per cancer type in the NCI-60 cell line panel, if the value of a gene is missing in one sample then it is absent from >25% of the samples of that cancer type. Therefore, these genes were removed from the analysis.

Common genes in all GE, CNV, and ME datasets were identified.

Because GEs and CNVs of genes that are strongly related to each other are more likely to contain less noise,¹⁹ they were selected using Pearson correlation coefficients (cutoff, 0.5).

GE, CNV, and ME data were respectively standardized with the Z-Score method for further regression analysis.

A multiple genomic data fused partial least square deep regression (MGPLS) method

Partial least squares (PLS) is a widely used algorithm for modeling relationships between sets of observed variables using latent variables. It comprises regression and classification tasks as well as dimension reducing and modeling.²⁰ Instead of identifying hyperplanes of minimum variance between the response and independent variables, it finds a linear regression model by projecting the predicted variables (regression or classification labels) and the observed variables (fused GE, CNV, or ME values of genes in our case) to a new lower space.²¹ This is highly suited to the analysis of high-dimension, low-sample-size data in bioinformatics.

To integrate multiple genome data for improved regression performance, we proposed an MGPLS method:

Given the predictor matrix $X \in R_{n×p}$ and the response matrix $Y \in R_{n×q}$ ,

X=[GE, CNV, ME] = {[ge}_{1}, {ge}_{2} {, …, ge}_{g} {, cnv}_{1} {, cnv}_{2} {, …,cnv}_{c} {, me}_{1} {, me}_{2} {, …,me}_{m}]

where p = g + c + m, g is the number of variables in GE data, c is the number of variables in CNV data, and m is the number of variables in ME data.

MGPLS may be applied to cases where the aim is to describe the linear relationship between X and Y ,

Y = XB + ε

based on the basic latent variable decomposition:

X = T P^{'} + E

Y = T Q^{'} + F

where $B \in R_{p×q}$ is the regression coefficient matrix, $ε \in R_{n×q}$ is the residual matrix, $T \in R_{n×k}$ is the orthogonal latent variable (LV) matrix, $P \in R_{p×k}$ and $Q \in R_{q×k}$ are loading matrices, $E \in R_{n×p}$ and $F \in R_{n×q}$ are residual matrices, and k is the number of LVs. According to the regular PLS, T is a linear transformation of X ,

T=XW

where $W \in R_{p×k}$ is a matrix of weights.

From Eq.(1) and Eq.(5), it is obvious that

t_{i} = w_{i 1} g e_{1} + w_{i 2} g e_{2} + \dots + w_{i g} g e_{g} + w_{i (g + 1)} c n v_{1} + w_{i (g + 2)} c n v_{2} + \dots + w_{i (g + c)} c n v_{c} + w_{i (g + c + 1)} m e_{1} + w_{i (g + c + 2)} m e_{2} + \dots + w_{i p} m e_{m}

where t _i is the ith LV (i.e., ith column of T ), and w_i is ith column of W . Hence, by the projection of the MGPLS algorithm, the p-dimensional X -space, consisting of GE, CNV, and ME, is integrated and compressed into the k-dimensional LV-space (k<<p in common cases) to remove the noise and the multi-collinearity of the raw data. This leads to a biased but lower variance estimate of the regression coefficients compared with the least squares method.²²

The regression coefficient matrix B can be obtained as

{B=W (T^{'} T)}^{- 1} T^{'} Y

where, in our case, SF2 is the response variable. As a result, the regression model of SF2 is a combination of GE, CNV, and ME, which means they are integrated at the raw data level. MGPLS incorporates principal component analysis and LV extraction together so that it can simultaneously analyze multiple genomic data using a single integrated regression model.

The measurement of regression/prediction performance

The root mean square error (RMSE) was used to evaluate the accuracy of the radiosensitivity prediction model:

RMSE = \sqrt{\frac{\sum {{(y}_{i} {- \hat{y}}_{i})}^{2}}{n}}

where y_i is the measured SF2 value of the ith cell line, ${\hat{y}}_{i}$ is the corresponding predicted value, and n is the number of the samples. The smaller the RMSE value is, the closer the predicted values are to the real values. That is, smaller RMSE values represent a more accurate prediction model.

The identification of signature genes by optimizing SF2 regression accuracy

Because of the missing information on ME data (see Discussion), we only used GE and CNV data to complete our analysis. With integrated GE and CNV as the input matrix, real signature genes can be identified using MGPLS by optimizing the SF2 regression model. Considering the large number of variables (n=7622), two types of uninformative variable elimination (UVE) were processed iteratively to balance the calculating time and the prediction accuracy. To improve the modeling accuracy, 10 6-fold cross-validation methods were used for model training as shown in Figure 2. The details of the MGPLS-UVE algorithm and corresponding pipeline are available in the Supplementary material.

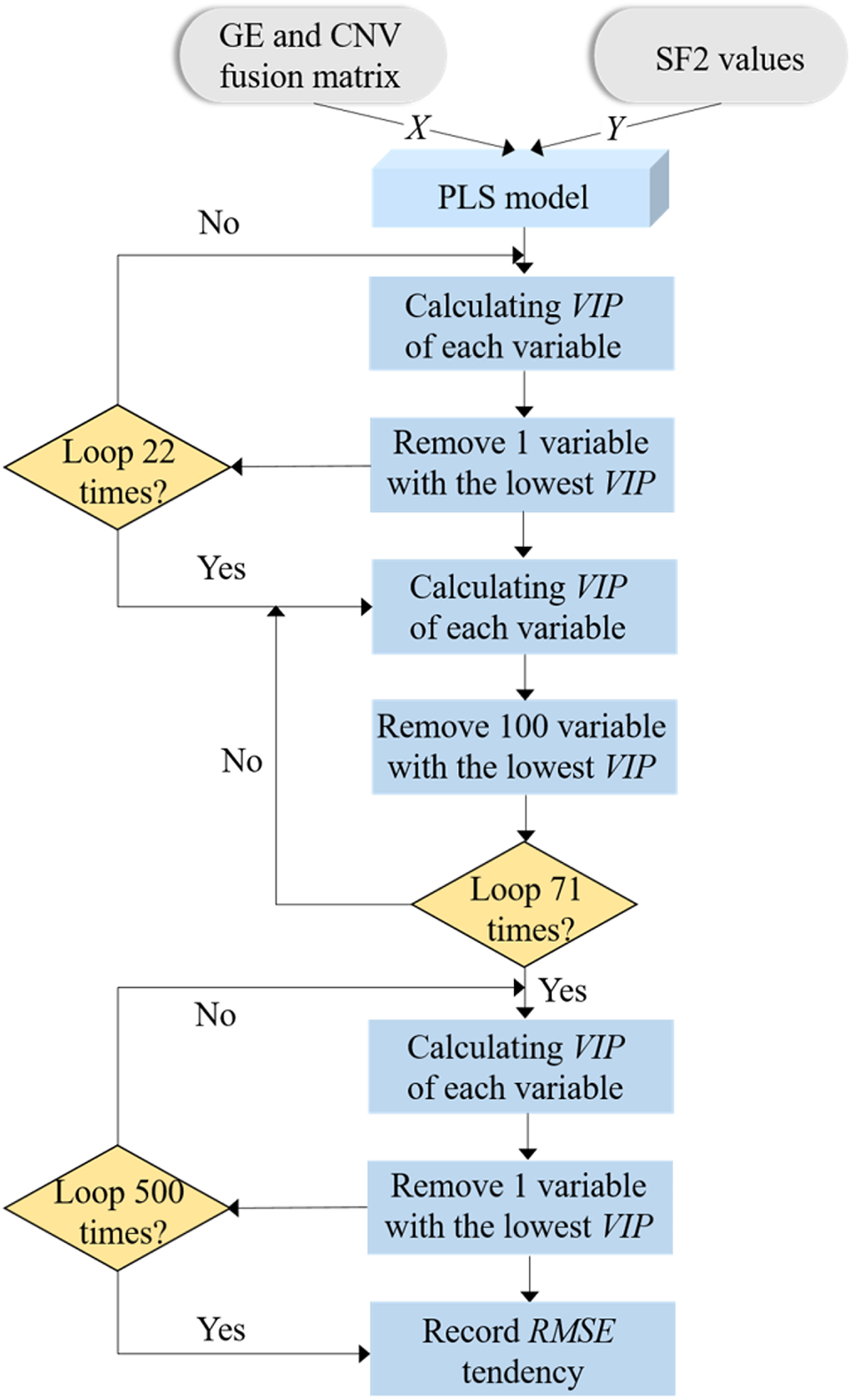

Figure 2.

Flow chart of signature genes selection using GE and CNV data. MGPLS-UVE algorithm with 10 times of 6-fold cross-validation is employed to select the genes with the stably highest contribution to SF2 predicting model. There are 7622 variables at the beginning and 500 variables are left after MGPLS rough selection.

Support vector machine (SVM)

SVM is a supervised machine learning method used for classification and regression analysis. The key concept is to non-linearly map input vectors to a very high-dimension feature space Z , where a linear decision surface is constructed with special properties that ensure the high generalization ability of the model.²³ This is usually conducted by the “kernel function” trick. The final estimated regression line (or hyperplane) can be constructed only by considering a small amount of the training data, i.e., the so-called support vectors. For the same set of data, SVM with nonlinear kernels can achieve a better fitting accuracy than linear methods such as PLS. In this study, SVM regression was implemented using a “LIBSVM” MATLAB package.²⁴

Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes Pathway (KEGG) analysis

The GO knowledgebase is the largest source of information worldwide regarding gene function. It provides a comprehensive, computational model of biological systems, ranging from the molecular to the organic level, across the multiplicity of species in the tree of life.²⁵

KEGG is a knowledgebase for the systematic analysis of gene functions at the molecular level in biological systems, from cells to organisms and ecosystems. It has been generated by genome sequencing and other high-throughput experimental technologies.²⁶ Both GO and KEGG pathway enrichment analyses for all signature genes were performed using OmicShare tools, which is a free online platform for data analysis (www.omicshare.com/tools).

Sparse GRN inference based on the LASSO method

Let $E \in R_{113 \times 60}$ denote the matrix of GE data and $C \in R_{113 \times 60}$ denote the matrix of CNV data. If $E = [e_{1}, e_{2}, \dots e_{113}]$ and $C = [c_{1}, c_{2}, \dots c_{113}]$ where e _i and c _i are the ith row vector of matrices E and C , respectively, then the GRN is defined as follows:

e_{i} = b_{i} E + f_{i} C + μ_{i} + ε_{i}

where $b_{i}, and f_{i}$ denote the ith row vectors of adjacency matrices $B \in R_{113 \times 113}$ and $F \in R_{113 \times 113}$ , respectively. The element $b_{i j}$ represents the activation (positive) or deactivation (negative) weight of edge from jth gene to ith gene; $μ_{i}$ is a model bias that can be removed by mean centered; and $ε_{i}$ is a residual. Our goal is to estimate row vectors $b_{i}, and f_{i}$ that minimize $ε_{i}$ .

Eq.(10) can be rewritten in a least square minimization problem as:

min_{b_{i}, f_{i}} ‖ e_{i} - b_{i} E - f_{i} C ‖_{2}^{2}

where ${| | \cdot | |}_{2}$ denotes 2 norm.

To obtain a sparse model and avoid overfitting, we added the L1 regularization term to Eq.(11) to make it a LASSO regression form as follows:

min_{b_{i}, f_{i}} ‖ e_{i} - b_{i} E - f_{i} C ‖_{2}^{2} + λ_{1} {‖ b_{i} ‖}_{1} + λ_{2} {‖ f_{i} ‖}_{1}

where $λ$ _s are penalty coefficients.

LASSO is a multivariate linear regression method. When there are many features and the number of samples is relatively small, LASSO can effectively avoid overfitting and obtain sparse solutions via an l ₁-norm penalty.

There are two hypotheses in the model:

There is no self-regulation, i.e., the diagonal elements of the B matrix are all zero.

A gene can be directly regulated only by CNV for the gene itself not for other genes, i.e., only diagonal elements of the F matrix can be non-zero.

After obtaining adjacency matrices B and F , the genes with absolute values greater than 0.1 in B and F were selected. For a gene g_i , other genes whose absolute values of regression coefficients were greater than 0.1 were selected as regulatory genes of g_i . Table S1shows the steps of inferencing a spare GRN.

With the exception of KEGG and GO, all analyses were performed using MATLAB codes. The corresponding MATLAB toolkit, MGPLS-UVE, can be freely downloaded from our website https://www.clickgenome.org/papers/MGPLS.html. Further details of LASSO, GRN inference, and other methods and algorithms are included in the Supplementary materials.

Results

Identified signature genes and their SF2 prediction performance

According to the RMSE values obtained by different numbers of genes shown in Figure S1a, 113 genes corresponding to the smallest RMSE were selected as signature genes. The smallest RMSE obtained by these 113 genes means this gene set has the highest prediction performance or closest relationship to SF2. The gene names, Entrez gene IDs, and other detailed information of these 113 genes are listed in Table S2. Five (YY1AP1, INPP5A, DAP3, GON4L and JTB) of the 113 genes were highlighted because their CNV values were selected as signature variables while GE values of other genes were selected as signatures (known as CNV signatures for clarity). The other 108 genes were identified as GE signatures.

Using only the CNV values of the five CNV signatures and the GE values of the 108 GE signatures, the RMSE was optimized to 0.094 with MGPLS, a linear method. The corresponding predicted SF2s are listed in Table 1. The smallest difference between the measured and predicted SF2s of all 60 cell lines was 0.002 (CNS:U251), while the largest was 0.229 (LC:NCI-H23). The average error of the 60 cell lines was 0.075. Five cell lines (CNS:U251, OV:OVCAR-4, LE:CCRF-CEM, CNS:SNB-19, and RE:SN12C) had predicted errors <0.01 and the other 46 cell lines had predicted errors <0.1.

To improve their prediction accuracy, SVM with radial basis kernel function was explored to predict SF2 values with the CNV and GE of the 113 signature genes. The corresponding predicted SF2s are listed in Table 1. The RMSE value of the SVM prediction model was 0.0025. Twenty-two cell lines had differences between measured and predicted SF2s of 0. Only five cell lines had an absolute error >0.005 (LC:EKVX, OV:SK-OV-3, LC:NCI-H460, CO:HT29, and LC:NCI-H23).

GRN

The inference of GRN using these 113 genes was performed using the LASSO method to analyze regulatory relationships, as shown in Figure S2. Twenty-four genes with linkages >10 were selected as “hub” genes. Thus, these 24 “hub” genes can directly regulate the expression of at least 10 other genes. The GRN of the 24 “hub” genes is shown in Figure 3 and further details are listed in Table 2.

Figure 3.

Gene regulatory network among 24 “Hub” genes. The color of a gene (circle or triangle nodes) matches the color of its arrows to identify regulatory relationships between these genes more efficiently. There are two types of arrows: sharp arrows indicate the promotion of expression and blunt arrows mean the inhibition of expression. In addition, there are 12 genes (triangular nodes) whose CNV have a significant promoting effect on their respective expression process. They are SRRM1, PDCD2, RPL9, SNRPD1, ATP5A1, BLM, EWSRI, MIPEP, MCM3, MYB, CLNSIA and RPL34. it is worth noting that genes regulated by these 24 genes but not the “Hub” are not included in Figure 3.

Table 2.

Details of 24 “hub” genes

Serial number	Genename	Entrez gene id	Chromosome	Cytoband	Regressioncoefficient	Datatype
1	ATP5A1	498	18	18q21	0.0114	GE
2	BLM	641	15	15q26.1	-0.0033	GE
3	CENPC	1060	4	4q13.2	-0.0009	GE
4	CLNS1A	1207	11	11q13.5-q14	-0.0009	GE
5	EWSR1	2130	22	22q12.2	0.0069	GE
6	MCM3	4172	6	6p12	0.0007	GE
7	MIPEP	650794	13	13q12.11	0.0121	GE
8	MYB	4602	6	6q22-q23	-0.0026	GE
9	PDCD2	5134	6	6q27	0.0016	GE
10	PRCC	5546	1	1q21.1	-0.0118	GE
11	RPL9	6133	4	4p13	-0.0028	GE
12	RPL34	6164	4	4q25	-0.0053	GE
13	SMARCC1	6599	3	3p21.31	-0.0110	GE
14	SNRPD1	6632	18	18q11.2	0.0011	GE
15	ZBTB39	9880	12	12q13.3	-0.0039	GE
16	DENND4B	9909	1	1q21	-0.0066	GE
17	SRRM1	10250	1	1p36.11	-0.0082	GE
18	PAICS	10606	4	4q12	-0.0023	GE
19	NISCH	11188	3	3p21.1	-0.0151	GE
20	LRCH1	23143	13	13q14.11	0.0068	GE
21	CNOT10	25904	3	3p22.3	-0.0061	GE
22	GAR1	54433	4	4q25	-0.0041	GE
23	MED28	80306	4	4p16	-0.0066	GE
24	SHPRH	257218	6	6q24.3	-0.0021	GE

Half of the 24 “hub” genes uncovered by GRN inference showed strong correlations between their own GE and CNV values (Figure 3). Corresponding Pearson correlation coefficients between GEs and CNVs are listed in Table S3, of which 12 out of 24 genes are >0.5.

Discussion

Variations in GE are thought to be the main underlying factors for different radiation responses, and several studies have attempted to correlate the relationship between radiation response and GE. Because ME and CNV are two of the main factors regulating GE, it is very important to take them into consideration.

The integration of multi-genomics data can compensate for the noise impact of mono-genomics data. This concept has been widely used in clustering and cancer subtype classification. For example, Hoadley et al²⁷ used data on chromosome arm-level aneuploidy, DNA hypermethylation, mRNA and microRNA expression levels, and reverse-phase protein arrays to conduct comprehensive integrative molecular analyses of the Pan-Cancer Atlas to reclassify human tumors and provide future directions for exploring clinical prognosis in cancer treatment.

Additionally, because SF2 values range from 0 to 1 continuously, it is reasonable to predict the SF2 values of samples rather than to roughly classify them into sensitive or resistant groups. In this study, for the first time, we applied the concept of multi-genomic data integration analysis in regression issues using radiosensitivity prediction as an example.

In theory, all types of data can be processed simultaneously using a single integrated regression model. Indeed, ME values of more than 480,000 probes can be collected using the Illumina Infinium Human Methylation 450K BeadChip. However, available ME data for NCI-60 consists of fewer than 20,000 variables, representing the loss of 96% of useful ME information. Because raw ME data of the NCI-60 platform are missing and available preprocessed ME data are inadequate, the prediction performance is much worse with than without ME data (see Figure S1b). This was apparent from our prediction RMSE which was smaller using only GE and CNV data than using all GE, CNV, and ME data (0.094 vs. 0.170 for the linear model, respectively). Therefore, for the final SF2 prediction model, only GE and CNV data were used.

In our previous work (Zhang et al, 2014), we built a nonlinear SF2 prediction model for the NCI-60 panel using only GE data of 19,162 genes.²⁸ The RMSE value was as low as only 0.011. To test whether multi-genomic data model could identify more essential signature genes, we herein used the same nonlinear method, SVM, to train a nonlinear SF2 model. The comparison results are summarized in Table 3. Clearly, regardless of whether a linear or nonlinear model is used, our RMSE values are notably smaller than those of Zhang et al (0.094 vs. 0.16 and 0.0025 vs. 0.011, respectively). These results indicate that our 113 signature genes are more useful at predicting radiosensitivity than the genes identified by our previous study.

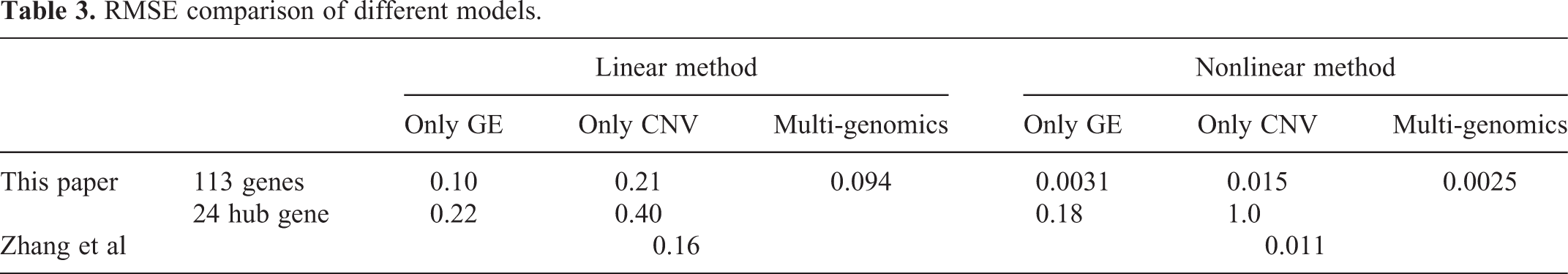

Table 3.

RMSE comparison of different models.

		Linear method			Nonlinear method
		Only GE	Only CNV	Multi-genomics	Only GE	Only CNV	Multi-genomics
This paper	113 genes	0.10	0.21	0.094	0.0031	0.015	0.0025
This paper	24 hub gene	0.22	0.40		0.18	1.0
Zhang et al		0.16			0.011

Previous work by Torres-Roca et al used the expression values of selected genes to predict SF2 values of NCI-60 cell lines (RMSE=0.20), then at a later date simplified this to a 10-hub-gene model to predict 12 independent cell lines (RMSE=0.38).^3,4 Limited by the techniques available at the time, however, only GE data and some of the 60 cell lines were used. Additionally, two different types of cross-validations were employed to train the model. A comparison of these studies and our own would be unfair, so we instead compared the results obtained from fused multiple genomic data with those obtained from mono-genomic data. Correspondingly, RMSEs obtained using only GE or CNV values of 113 signature genes and 24 “hub” genes are shown in Table 3. The RMSE obtained using fused multiple genomic data is the smallest, indicating these data should be used to achieve the highest prediction performance or closest relationship to SF2.

Because our data had only five CNV signatures among 113 genes, the predominance in the number of GE signatures resulted in the RMSE value of the GE-only model being just slightly worse than what was obtained using fused multiple genomic data. For the same reason, the RMSE value of the CNV-only model was much worse. The poor SF2 prediction performance of the “hub” genes is consistent with what we expected because they only number 24, which is one fifth the number of signature genes. Measured SF2 values and predicted values in different models for each cell line are shown in Figure 4.

Figure 4.

The measured and predicted SF2s of the 60 cell lines obtained using current signature genes and other published models. The measured and predicted SF2s of the 60 cell lines obtained using current signature genes and other published models.

Overfitting is almost unavoidable for cases with overwhelming high variable dimensions but small sample sizes, and our case is typical. Therefore, we attempted to overcome this in the present study as follows: 1) rather than the attempting the leave-one-out method used widely in small-sample cases, we employed 10 6-fold cross-validations in the training process; 2) we used the PLS method to reduce the original high variable dimension to a much lower LV dimension; 3) two types of UVE were processed iteratively to remove uninformative genes step by step rather than removing them in one step; and 4) we used LASSO to infer the GRN of identified signature genes because this is good at overcoming the overfitting problem in high-dimension small-sample cases.

Despite these methods, the number of samples remained extremely small compared with the number of variables, so we could not ensure that the overfitting problem was completely overcome. Therefore, molecular function analysis and pathway analysis were performed to verify the essentiality of identified signatures.

From our results, we can identify the absolute values of the regression coefficients of five CNV signatures (YY1AP1, INPP5A, DAP3, GON4L, and JTB) as the largest, suggesting that these CNV signature genes may be more useful than GE signatures in predicting radiosensitivity.

Several studies have found that some cellular functions enriched by 113 genes are closely associated with radiosensitivity^29,30 or cancers such as breast cancer, lung cancer, bladder cancer, and leukemia.^31

-37. For example, SNX7 and PTK2 were also selected by our previous study. Gene set enrichment analysis coupled with genomic CNV assessment previously identified YY1AP1 as an oncogenic driver in hepatocellular carcinoma,³⁸ while the fusion of EWSR1 with MYB promoted leukemia transformation by sustaining MYB expression and deregulating its target BCL2 or by fulfilling its own oncogenic potential.^30,39 Additionally, BLM inactivation caused by CNV was reported to cause Bloom syndrome and increase the risk of cancer,⁴⁰ while MCM3 is a potential biomarker for gastric cancer because of the strong correlation between its copy number and expression.⁴¹

According to our KEGG and GO analysis of all 113 genes shown in Figures S3 and S4, MLB, MCM3, MCM7, CDC47, POLD1, and ANAPC4 are associated with DNA replication and repair, and cell growth and death simultaneously, so they may be involved in cancer progression. Additionally, pathways involving signal transduction, focal adhesion, ErbB signaling, Wnt signaling, and vascular endothelial growth factor signaling also appear in our pathway enrichment results.

Conclusion

On the basis of the advantages of integrating multiple genomic data, we proposed a novel multiple genomic data fused partial least squares deep regression method (MGPLS), which we used to identify 113 signature genes closely related to radiosensitivity. We further inferred the GRN using GE and CNV data belonging to these signature genes. The joint regression method we propose provides a unified framework to analyze large-scale cancer genomic data. These findings provide a reliable quantitative reference for optimizing “personalized” treatment options, and might aid our understanding of cancer mechanisms.

Supplemental Material

Clean_Revised_Supplementary_material_(1) - A multiple genomic data fused SF2 prediction model, signature identification, and gene regulatory network inference for personalized radiotherapy

Clean_Revised_Supplementary_material_(1) for A multiple genomic data fused SF2 prediction model, signature identification, and gene regulatory network inference for personalized radiotherapy by Qi-en He, Yi-fan Tong, Zhou Ye, Li-xia Gao, Yi-zhi Zhang, Ling Wang and Kai Song in Technology in Cancer Research & Treatment

Footnotes

Authors’ Notes

All authors specify that this manuscript has not been published in whole or in part nor is it being considered for publication elsewhere.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by The National Key Research and Development Program of China (2018YFC0808600).

ORCID iD

Kai Song

Supplemental Material

Supplemental material for this article is available online.

Abbreviations

References

Tucker

Thames

. The effect of patient-to-patient variability on the accuracy of predictive assays of tumor response to radiotherapy: a theoretical evaluation. Int J Radiat Oncol. 1989;17(1):145–157.

West

. Invited review: intrinsic radiosensitivity as a predictor of patient response to radiotherapy. Brit J Radiol. 1995;68(812):827–837.

Torres-Roca

Eschrich

Zhao

, et al. Prediction of radiation sensitivity using a gene expression classifier. Cancer Res. 2005;65(16):7169–7176.

Eschrich

Zhang

Zhao

. Systems biology modeling of the radiation sensitivity network: A biomarker discovery platform. Int J Radiat Oncol. 2009;75(2):497–505.

Tewari

Monk

Al-Ghazi

, et al. Gene expression profiling of in vitro radiation resistance in cervical carcinoma: a feasibility study. Gynecol Oncol. 2005;99(1):84–91.

Amundson

Vinikoor

, et al. Integrating global gene expression and radiation survival parameters across the 60 cell lines of the National Cancer Institute anticancer drug screen. Cancer Res. 2008;68(2):415–424.

Moelans

van Maldegem

CMG

van der Wall

van Diest

. Copy number changes at 8p11-12 predict adverse clinical outcome and chemo- and radiotherapy response in breast cancer. Oncotarget. 2018;9(24):17078–17092.

Zhu

Wang

Tan

. The pivotal role of DNA methylation in the radio-sensitivity of tumor radiotherapy. Cancer Med. 2018;7(8):3812–3819.

Shen

Schultz

, et al. Integrative subtype discovery in glioblastoma using iCluster. PLoS One. 2012;7(4):e35236.

10.

Chin

Gray

. Translating insights from the cancer genome into clinical practice. Nature. 2008;452(7187):553–563.

11.

The Cancer Genome Atlas Research Network. Comprehensive genomic characterization defines human glioblastoma genes and core pathways. Nature. 2008;455(7216):1061–1068.

12.

The Cancer Genome Atlas Research Network. Integrated genomic analyses of ovarian carcinoma. Nature. 2011;474(7353):609–615.

13.

Henrichsen

Chaignat

Reymond

. Copy number variants, diseases and gene expression. Hum Mol Genet. 2009;18(R1):R1–8.

14.

Wang

Xie

Xiao

. A novel approach to DNA copy number data segmentation. J Bioinform Comput Biol. 2011;9(1):131–148.

15.

Kim

Kang

Zhang

, et al. Integration of DNA methylation, copy number variation, and gene expression for gene regulatory network inference and application to psychiatric disorders. BIBE. 2014:238–242.

16.

Yuan

Guo

Yuan

, et al. Integration of multi-omics data for gene regulatory network inference and application to breast cancer. IEEE ACM T Comput Bi. 2018;16(3):782–791.

17.

Liu

Huang

. Recent advances in studying of copy number variation and gene expression. Gene Expression to Genetical Genomics. 2014;7:1–5.

18.

Gmeiner

Reinhold

Pommier

. Genome-wide mRNA and microRNA profiling of the NCI 60 cell-line screen and comparison of FdUMP[10] with fluorouracil, floxuridine, and topoisomerase 1 poisons. Mol Cancer Ther. 2010;9(12):3105–3114.

19.

Varma

Pommier

Sunshine

Weinstein

Reinhold

. High resolution copy number variation data in the NCI-60 cancer cell lines from whole genome microarrays accessible through CellMiner. PLoS One. 2014;9(3):e92047.

20.

Tan

Shi

Tong

Hwang

Wang

. Multi-class tumor classification by discriminant partial least squares using microarray gene expression data and assessment of classification models. Comput Biol Chem. 2004;28(3):235–244.

21.

Wold

Sjöström

Eriksson

. PLS-regression: a basic tool of chemometrics. Chemometr Intell Lab. 2001;58(2):109–130.

22.

Rosipal

Trejo

. Kernel partial least squares regression in reproducing kernel Hilbert space. J Mach Learn Res. 2002;2(2):97–123.

23.

Cortes

Vapnik

. Support-vector networks. Mach Learn. 1995;20(3):273–297.

24.

Chang

Lin

. LIBSVM: a library for support vector machines. ACM T Intel Syst Tec. 2007;2(3):1–27.

25.

Ashburner

Ball

Blake

. Gene Ontology: tool for the unification of biology. Nat Genet. 2000;25(1):25–29.

26.

Kanehisa

Goto

. KEGG: kyoto encyclopedia of genes and genomes. Nucleic acids research. 2000;28(1):27–30.

27.

Hoadley

Yau

Hinoue

, et al. Cell-of-origin patterns dominate the molecular classification of 10,000 tumors from 33 types of cancer. Cell. 2018;173(2):291–304.

28.

Zhang

Girard

Das

, et al. Nonlinear quantitative radiation sensitivity prediction model based on NCI-60 cancer cell lines. Sci World J. 2014;2014:1–11.

29.

Ogawa

Murayama

Mori

. Predicting the tumor response to radiotherapy using microarray analysis (review). Oncol Rep. 2007;18(5):1243–1248.

30.

Kim

. Identification of a radiosensitivity signature using integrative metaanalysis of published microarray data for NCI-60 cancer cells. BMC Genomics. 2012;13(1):348–357.

31.

Tian

Gao

, et al. Identification of significant gene signatures and prognostic biomarkers for patients with cervical cancer by integrated bioinformatic methods. Technol Cancer Res Treat. 2018;17:1–12.

32.

Cho

Lim

Park

. MED28 increases the colony-forming ability of breast cancer cells by stabilizing the ZNF224 protein upon DNA damage. Oncol Lett. 2018;15(3):3147–3154.

33.

Chakravarthi

Rodriguez Pena

MDC

Agarwal

, et al. A role for de novo purine metabolic enzyme PAICS in bladder cancer progression. Neoplasia. 2018;20(9):894–904.

34.

Tian

Han

, et al. ABCE1 plays an essential role in lung cancer progression and metastasis. Tumour Biol. 2016;37(6):8375–8382.

35.

Shen

Tan

, et al. Upregulated SMYD3 promotes bladder cancer progression by targeting BCLAF1 and activating autophagy. Tumour Biol. 2016;37(6):7371–7381.

36.

Sassi

Popielarski

Synowiec

Morawiec

Wozniak

. BLM and RAD51 genes polymorphism and susceptibility to breast cancer. Pathol Oncol Res. 2013;19(3):451–459.

37.

Barboza

Minakhina

Medina

, et al. PDCD2 functions in cancer cell proliferation and predicts relapsed leukemia. Cancer Biol Ther. 2013;14(6):546–555.

38.

Zhao

Parpart

Takai

, et al. Integrative genomics identifies YY1AP1 as an oncogenic driver in EpCAM+ AFP+ hepatocellular carcinoma. Oncogene. 2015;34(39):5095–5104.

39.

Pierini

Di Giacomo

Pierini

, et al. MYB deregulation from a EWSR1-MYB fusion at leukemic evolution of a JAK2 (V617F) positive primary myelofibrosis. Mol Cytogenet. 2016;9(1):68–73.

40.

Chen

Yuan

Cai

, et al. Identification of chromosomal copy number variations and novel candidate loci in hereditary nonpolyposis colorectal cancer with mismatch repair proficiency. Genomics. 2013;102(1):27–34.

41.

Cheng

Wang

Yang

. Identification of genes with a correlation between copy number and expression in gastric cancer. BMC Med Genomics. 2012;5(14):1–13.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

1.24 MB
