Abstract
Stereotactic radiosurgery provides effective local control, but high recurrence rate are observed while ipilimumab have shown promising improvements in survival in the treatment of melanoma brain metastases. This meta-analysis was done to review the clinical evidence regarding the combination of stereotactic radiosurgery and ipilimumab in the treatment of brain metastases from melanoma. Comprehensive research of the electronic databases (PubMed and Cochrane Library) was carried out in April 2017. Different combination of MESH headings and words were used. Review Manager was used to analyze the outcome data of interest. According to heterogeneity, fixed effects model or random effects model was adapted. Six retrospective studies comparing stereotactic radiosurgery plus ipilimumab with stereotactic radiosurgery alone were found. Total of 411 participants were included in this meta-analysis. Of that, 128 patients had received stereotactic radiosurgery + ipilimumab, while 283 patients had received stereotactic radiosurgery only. Stereotactic radiosurgery plus ipilimumab significantly improved survival when compared to stereotactic radiosurgery alone (hazard ratio: 0.74 [95% confidence interval: 0.56-0.99,
Introduction
Melanoma is the third leading cause of brain metastases (BM). 1 Prognosis is poor, and median survival for patients developing BM is merely 17 to 22 weeks. 1,2 Neurologic death is the main cause for patients with BM from melanoma; 20% to 54% of patients with melanoma BM die from BM. 3,4
Management of BM includes surgery, whole-brain radiotherapy, and stereotactic radiosurgery (SRS). 2 –7 However the optimal choice of treatment is controversial. Whole-brain radiation therapy (WBRT) provides less tumor control in the treatment of BM from melanoma and is considered to be radioresistant. 1,6 Radiosurgery, on the other hand, has overcome this limitation by providing high doses of radiation, and so a high tumor control has been reported between 73% and 90%. 7 –10
Systemic therapies are getting importance, as more and more drugs are approved for the treatment of metastatic melanoma and has shown improved progression-free survival and overall survival (OS). However, in brain, their activity might be compromised due to blood–brain barrier. 2,3,11 Immunotherapy has reported positive impact on OS in patients with BM from melanoma primarily the immune checkpoint inhibitors: anti-cytotoxic T lymphocytic antigen 4 (CTLA)-4 antibody and recently anti-programmed death 1 (PD-1) antibody. 12,13 Recent studies suggest the combination of local radiotherapy and immunotherapy producing synergistic response in local control as well as abscopal effect (activated T cells attacking cancer cells outside the irradiated area) is of immense importance for the treatment outcome of melanoma BM. 14 –19
A number of studies has already reported better response from this combination in melanoma BM, and hence, this meta-analysis was undertaken in an effort to combine the results of these studies and provide a better conclusive evidence for future. 1,20 –25
Methods
Research Strategy
A comprehensive literature search (PubMed database and Cochrane Library database) was carried out for studies comparing the clinical outcome of SRS alone and in combination with ipilimumab (IPI). Various searching terms were used: ((Stereotactic Radiosurgery OR SRS) AND (immune checkpoint inhibitors OR immunotherapy OR Anti-CTLA-4* OR Ipilimumab)) AND (Metastatic brain melanoma OR Metastatic melanoma*). In addition, in an attempt to broaden the search, the related articles as well as the reference lists were also searched manually for all available articles.
Eligibility Criteria and Outcomes of Interest
An eligibility criterion was set up for studies to be included: (1) studies comparing SRS plus IPI (anti-CTLA4 antibody) versus SRS alone, (2) patients with melanoma having BM, (3) published in English, and (4) no restriction on study designs. Primary outcomes of interest assessment were OS and adverse events, while secondary outcome of interest was brain tumor control. Additionally, the sequence of treatment induction was assessed as well.
Data Extraction and Quality Assessment
Survival graphs as well as other outcome of data were extracted by 2 reviewers. Results were verified by reviewers. If discrepancy was present, the authors had a discussion and drew a final decision. The quality of included studies was estimated according to the Newcastle-Ottawa Scale. 26
Statistical Analysis
This meta-analysis was carried out using the Review Manager (RevMan) software, version 5.2. Pooled hazard ratios (HRs) with 95% confidence intervals (CIs) were calculated for time to event data using fixed-effects model.
27
Continuous variables using weighted mean difference and a 95% CI; dichotomous variables were analyzed using odds ratios and 95% CI. A fixed effect model or a random effects model mode was applied. Heterogeneity was evaluated by chi square (χ2) and I2. Heterogeneity was considered to be present if the I2 statistic was >50%, and a random effect model was adopted. However, if I2 statistic was <50%, a fixed effect model was used. A value of
Results
Characteristics of the Included Studies
A total of 89 reports were identified; following the exclusion process, 6 retrospective studies
1,20
–24
involving 411 patients with melanoma having BM were included in the final analysis (Figure 1). The main characteristics of the included studies are listed in Table 1. Stereotactic radiosurgery doses were approximately same across studies depending on the lesion mass (15 Gy-24 Gy). Fractionation was not reported in most of the studies except for Patel

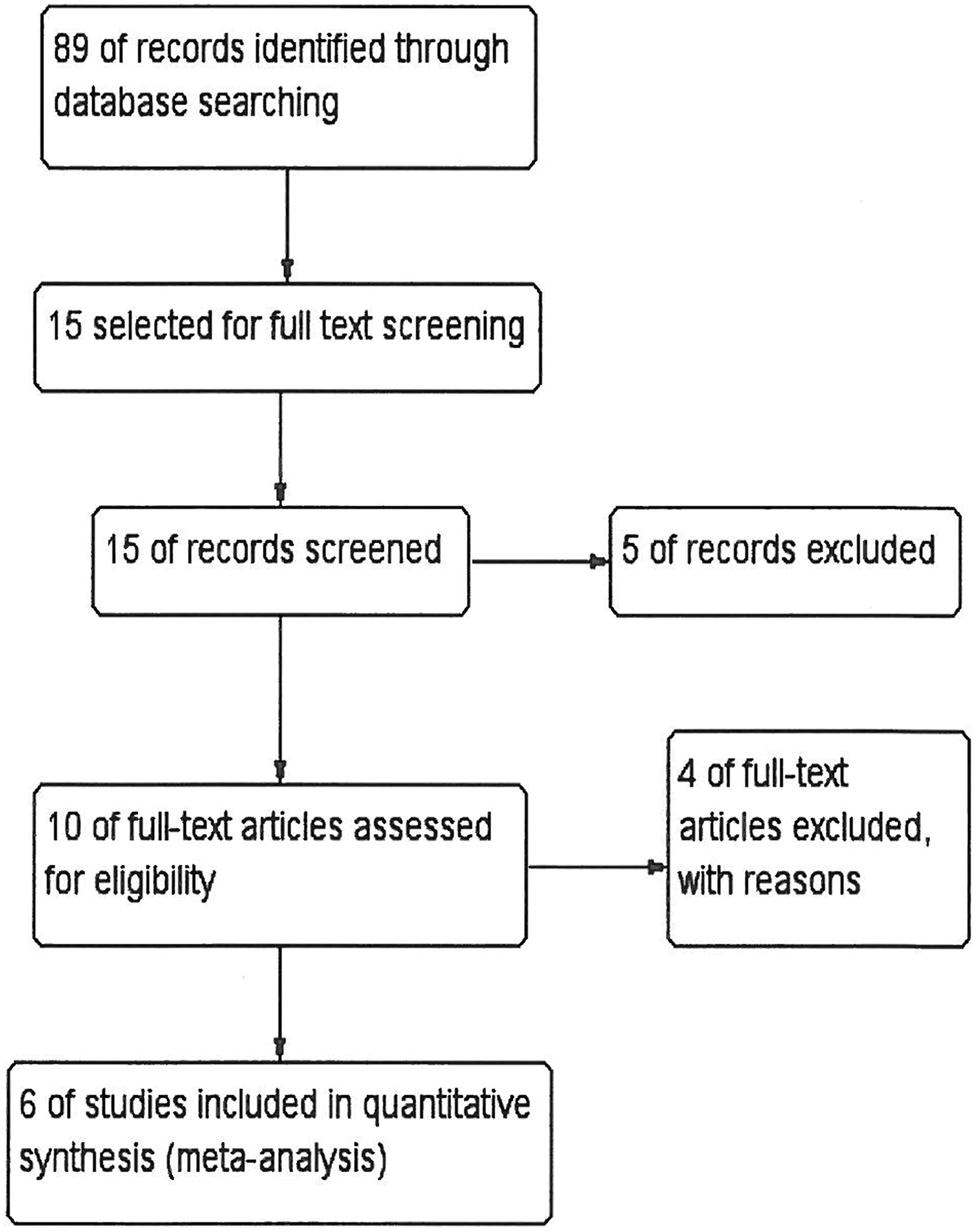

Flow diagram of the literature research and study selection process.
General Characteristics of the Included Studies.a
Abbreviations: IPI, ipilimumab; NA, not applicable; QS, quality score; SRS, Stereotactic radiosurgery.
a Table 1 shows the general characteristics from the studies included in this meta-analysis. Median survival is shown in months. Some ages were reported in median age only (med = median). The quality of included studies was estimated according to the Newcastle-Ottawa Scale.
Meta-Analysis
Baseline characteristics
Five studies reported baseline characteristics for treatment comparison. A meta-analysis was done for common baseline characteristics (specifically baseline characteristics prognostic of survival outcome) to seek any significant differences between the studies. Odds ratio of all characteristics are given in the Table 2. Participants included in the studies were not significantly different from each other.
Comparison of Baseline Characteristics of the Included Studies.
Abbreviations: BM, brain metastases; CI, confidence interval; DS-GPA, Diagnosis Specific Graded Prognostic Assessment; ECOG PS, Eastern Cooperative Oncology Group Performance Status; LDH, lactate dehydrogenase.
Overall survival
Meta-analysis of the survival outcome revealed significant survival for patients receiving SRS with IPI. Hazard ratio was 0.74 (95% CI: 0.56-0.99,

Forest plot of overall survival with stereotactic radiosurgery (SRS) plus ipilimumab versus SRS only. Hazard ratios with 95% confidence interval (CI) are given.
Sequencing of IPI and SRS
Four studies, using various outcomes (survival, brain tumor control, and tumor response), assessed the difference in response of patients receiving IPI before SRS, during SRS, and after SRS. Knisely
Local and distant tumor control
Three studies reported the brain tumor control (local and distant) for the treatment difference. No difference was reported in local tumor control and distant brain recurrence. Mathew
Adverse events
Based on the 3 studies that reported the toxicities, a meta-analysis was carried out to observe the overall effect. No difference in the adverse events (intracranial hemorrhage, radionecrosis) was observed in the treatment groups. The odds ratio was 0.57 (95% CI: 0.28-1.17,

Forest plot of toxicity (intracranial hemorrhage, radionecrosis) with stereotactic radiosurgery (SRS) plus ipilimumab versus SRS only. Odds ratios with 95% confidence interval (CI) are given.
Another study (n = 54)
22
reported trend toward developing higher rates of radiation necrosis at 1 year in the IPI and SRS cohort (30.0% vs 20.92%,
Publication of bias
Funnel plot indicated no apparent publication bias existed in this meta-analysis. All included studies were inside the 95% CI and symmetrical around the vertical as shown in Figure 4.

Funnel plot illustrating the publication bias of the included studies.
Discussion
Clinical management of BM from melanoma is complex and controversial. It includes surgery, SRS and WBRT, or combination of these treatments. 2 –8 Chemotherapy role is limited as its penetration to brain is limited due to blood–brain barrier. B-rapidly accelerated fibrosarcoma (BRAF)-targeted therapy has shown some success, but it is limited due to its specificity against specific mutations. 28 Moreover, high rate of distant brain recurrence and brain was the common site of treatment failure when used for patients without BM. Probably, this failure comes from inability of these drugs to potentially penetrate blood–brain barrier. 2,3
Recent advancements in immunotherapy have opened a new dimension of treatment in coping with BM from melanoma. Unlike cytotoxic chemotherapy and targeted therapies, immunotherapeutic agents does not need to cross blood–brain barrier to be effective.
29
Of these agents, the anti-CTLA-4 antibody have shown greater potency in achieving survival advantage. Cytotoxic T-lymphocytes antigen 4 expressed on T cells causing inhibition of T cell activation by antigen presenting cells (APCs) act as immune checkpoint. Ipilimumab (a humanized monoclonal antibody), an antibody to CTLA-4 antigen thereby allowing continued activation of T cells by APCs. In 2011, it was approved by the Food and Drug Administration for treatment of metastatic melanoma after it showed improved survival in an randomized clinical/controlled trial.
30
Initially IPI use was restricted to patients with melanoma with no active BM. After discovering its activity in few patients, a clinical trial was started to assess its efficacy in the BM. A positive response (objective response of 15% and stable disease at 12 weeks) was reported with IPI in the BM from melanoma.
31
Immunomodulatory effects, observed with RT including upregulation of antigen presentation, cytokine release, and activation of immune response could be augmented by the addition of immune checkpoint inhibitors producing more strong synergistic antitumor response. This synergism had been reported in preclinical research and clinical reports have also confirmed the combination of these modalities for better antitumor immune response.
13
–19
Number of studies has reported this concomitant or sequential combination of these 2 treatment modalities in patients with melanoma. Filippie
Prognostic factors associated with survival for melanoma BM are reported in several studies. Increased number of parenchymal BM, leptomeningeal involvement, and development of BM after receiving systemic therapy for extracranial metastases were identified to be significant prognostic factors for OS in a study done by Davies
This meta-analysis results showed a significantly better survival from the combination of SRS and immune checkpoint inhibitors in the treatment of BM from melanoma when compared to SRS only. Tazi
High brain recurrence is reported in patients with melanoma after SRS or surgery, despite having greater local control.
8
–10
In this meta-analysis, 3 studies
21,22,24
reported local as well as distant brain control, and no difference was observed between the treatment arms. Kiess
The optimal timing of the 2 treatment modalities is an important aspect. Different pros and cons for administering radiotherapy before or after immunotherapy has been discussed. For example, if there is already immunoadjuvant present in the tumor microenvironment, it could maximize the radiation induced effects. On the other hand, radiation cytotoxicity could disrupt as ongoing antitumor immune response. Administration after RT; it has been argued that RT could generate
This met-analysis has some limitations. First, the small sample sizes of the included studies. Second, all the studies were retrospective studies and one
23
with historical controls. Due to retrospective nature of the studies, it is likely to have some degree of selection bias. Participants receiving IPI in addition to SRS were comparatively younger in the study done by Sana Shoukat
A previous study on the same topic has been published before with survival analysis based only on the data collected from 3 studies. 39 We have included more studies in number to endorse the results making it more comprehensive report. We have also included a meta-analysis of baseline characteristics of prognostic importance in order to exclude bias reported with retrospective studies. Also, the inclusion of sequence analysis make this meta-analysis more detailed and comprehensive.
Recent trend of using SRS alone in order to preserve patients’ neurocognitive function could be endorsed with the addition of IPI, as significant survival is achieved with this combination. Another aspect that remains to be addressed is if this combination could also control the intracranial microscopic disease in order to replace WBRT use in this group of patients and when presented with multiple BM. At present, few clinical trials are already underway to evaluate the efficacy of this combination (NCT01950195, NCT01703507, and NCT02097732). 3
Conclusions
Stereotactic radiosurgery in combination with IPI is an effective treatment combination producing survival advantage in patients with melanoma BM with no increase in toxicity. Stereotactic radiosurgery in combination with IPI significantly improved OS when compared to SRS alone. Regional recurrence as well as development of distant new metastases in brain didn’t differ between the treatments. Assessing by various treatment outcomes, IPI induction before, during, or after SRS didn’t affect treatment outcomes. Addition of IPI didn’t increase the incidence of adverse events.
