Abstract

Novel flame-retardant back coating layer for historic textile fabrics was developed. Silica nanoparticles originated from agriculture waste rice husk were prepared through one pot thermal method. The morphological and structure properties of nanoparticles were studied. The silica nanoparticles were further impregnated with organic borate producing flame-retardant composite. The obtained composite incorporated with the binder by mechanical mixing providing flame-retardant coating paste. The coating paste spread on the back surface of textile fabrics. Varied compositions of nanoparticles, binder and organic borate were studied in the back coating layer. The flammability, thermal stability and mechanical properties of the blank and treated samples of linen fabrics as an inner support to the historical textiles were investigated. Flame retardancy of the back-coated linen samples has improved achieved high class of flame-retardant textile fabrics of zero rate of burning compared to 80.3 mm/min for blank. The synergistic effect of flame retardancy between nanoparticles and organic borate was investigated. The tensile strength of the flame retardant fabrics was enhanced by 27% and elongation was improved. The effect of industrial aging on the flame retardancy and mechanical properties of flame-retardant back coating textiles was studied.

Keywords

Back coating fire hazard flame retardant nanoparticles preventive conservation

Introduction

Textile materials constitute the majority of various market products due to their unique properties. However, the high combustibility of the material used in textile fabrics and fibers made them highly flammable and thermally less stable [1,2]. This defect will threaten the human life of textile consumers and reduce the lifetime display of historical textiles. Therefore, flame-retardant materials should be added to textile fabrics to reduce their flammability properties. Treatment of textile fabrics with these materials can be through different ways such as impregnation [3], back coating [4] and layer by layer self-assembly [5].Various materials have been used as flame-retardant to textile fabrics [2,6]. Recently, various nanomaterials have been used as flame retardants for textile materials [7,8]. TiO₂ and ZnO nanoparticles have been used extensively in flame-retardant treatment of textile fabrics [3,9]. On the other hand, the historical importance of archaeological textiles in museums force the scientists to find a solution to various challenges, such as high combustibility, ease of ignition, light, relative humidity and temperature effects [10,11]. The protection of archaeological textiles against fire hazard is required to save the historical value of these rare types of textile fabrics. Interestingly, reducing the fire risk of archaeological textiles presents a preventive conservation way of display and storage of these historical materials. Linen fabrics are one of textiles used extensively in historic conservation, due to their unique properties, which used to support the historic textiles in restoration process. The restoration process is performed by fixing of historic textiles with linen fabric which used as a lining layer to historic textile in museum cabinet. In our previous studies, the flammability properties of different textile fabrics have been studied by the treatment of flame retardant as back coating to textiles [4]. Recently, we have investigated the flame retardancy, electrical conductivity and mechanical properties of cotton blend [12]. This is in addition to the flammability properties of polymer nanocomposites [13]. Our group has also been involved in the study of various nanomaterials [14 –16]. Rice husk is considered as agricultural waste products. The abundance, low price and high yield of silica in rice husk encourage the scientists to produce cost-effective silica particles from rice husk for various applications [17]. Rice husk silica nanoparticles have been used in various applications [18]. This is in conjunction to the use of silica particles as flame-retardant fillers for polymeric materials [19]. On the other hand, borate materials have been used as flame-retardant materials for polymer composites [20]. In this study, we report for the first time the use of silica nanoparticles prepared from waste agriculture products such as rice husk (RH-SNP) along with organic borate in flame-retardant back coating formulations. Then the obtained composite used as back coating flame retardant layer to linen fabrics which used as an inner layer and support to the historical textiles. Considering it as first line of defense against fire hazard and provide strategy for historic textiles conservation. The effect of RH-SNP alone and in conjunction with organic borate on the flammability, thermal stability and mechanical properties of the treated samples was studied.

Experimental section

Materials

Linen fabrics were supplied by Egylan Co., second industrial zone, Alexandria, Egypt. Boric acid and chloroform were purchased from Sigma Aldrich, Germany. Diethylmalonate was supplied from Merck, Germany. Rice husk was bought from the market. The commercial binder used in the preparation of back coating paste was purchased from the market. Deionized (DI) was used water for washing.

Synthesis of diborate malonate

In a round-bottomed flask, add 1 mol of diethyl malonate with 2 mol of boric acid. Then, reflux at 120℃ for 2 h to obtain diborate malonate (DBM).

Synthesis of rice husk Silica nanoparticles (RH-SNP)

RH-SNP preparation was developed based on our previous report [21]. For synthesis, in clean crucible rice husk was heated in oven at 700℃ for 3 h at heating rate 20℃/min. The obtained silica was washed with DI water several times, followed by drying at 150℃. Afterwards, the silica particles were grinded using mortar for 1 h and finally sieved to obtain RH-SNP.

Preparation of back coating formulations

The flame-retardant back coating formulations were prepared by mechanical mixing of binder with RH-SNP and DBM. Here, the RH-SNP was impregnated with DBM first and then the RH-SNP-DBM composite was mixed with the binder using mechanical stirring for 10 min. The different compositions are given in Table 1. The back coating paste was spread on the back surface of linen fabrics and then dried for 10 min at 110℃ for curing.

Table 1.

Flame-retardant back coating formulation compositions.

Sample code	RH-SNP (%)	DBM (%)	Binder (%)
Blank	0	0	0
BC1	15	0	85
BC2	25	0	75
BC3	0	50	50
BC4	5	45	50
BC5	10	40	50
BC6	25	25	50
BC7	50	10	40
BC8	60	10	30

Thermal aging

The treated modern textile samples BC7 and BC8 (Table 1) were applied to industrial aging process. The samples were heated in an oven at 110℃ for 72 h which equal 25 years under normal temperature. [22]. Then, the flammability and mechanical properties were tested again.

Characterization

Fourier transform infrared (FT-IR) spectroscopy analysis was carried out using a Nicolet 380 spectrophotometer (Thermo Scientific). Thermogravimeteric analysis (TGA) was conducted using TGA 50 (TA Shimudzu, Inc.) from room temperature to 750℃ at a heating rate of 10℃ min⁻¹ under nitrogen. Transmission electron microscope (TEM) images were taken using JEOL (JEM-1400 TEM). The mechanical properties were evaluated using tensile testing machine model H1-5KT/S. The flame retardancy measurements of the blank and different treated samples (rate of burning) were conducted using a Fire Testing Technology UL94 flame chamber according to modified ISO 3795 [4,12,23]. The rate of burning B in mm/min was calculated based on the following equation B = s/t × 60 where s is the damage distance (burnt distance) in millimeters and t is the time in seconds consumed for the burned distance.

Results and discussion

Structural characterization of diborate malonate

The DBM used in the synthesis of back coating flame-retardant formulations was synthesized and characterized. The structure of diborate malonate (DBM) was confirmed by FT-IR spectroscopy. Figure 1(a) shows the characteristic absorption band of boric acid, where the absorption peak was at 1406 cm⁻¹ corresponds to asymmetric B–O stretching [24,25]. Furthermore, the peak situated at 1185 cm⁻¹ is assigned to in plane B–O–H bending [24,26,27]. Moreover, the absorption band observed at 541 cm⁻¹ was assigned to the in-plane O–B–O angle deformation mode [24,27]. The absorption band located at 642 cm⁻¹ is related to out-of-plane OH deformation mode [27]. In addition, the bands observed at 822 and 3396 cm⁻¹ correspond to out-of-plane BO₃ angle deformation mode and O–H stretching vibration, respectively [24,25,27]. Figure 1(b) depicts the absorption bands of DBM where the strong peak observed at 1737 cm⁻¹ corresponds to the C=O stretching and band situated at 2984 cm⁻¹ is attributed to C–H stretching. Furthermore, the band detected at 3467 cm⁻¹ corresponds to O–H stretching. This is in addition to the absorption band related to borate.

Figure 1.

FTIR spectra of boric acid (a) and diborate malonate (b).

Structural characterization of rice husk silica nanoparticles (RH-SNP)

On the other hand, the RH-SNP used in the back coating layer was prepared through one-step thermal method. The prepared RH-SNP was further characterized using FT-IR spectroscopy, thermal gravimetric analysis and microscopic techniques. Figure 2(a) exhibit the characteristic absorption peaks of silica nanoparticle originated from rice husk (RH-SNP). The absorption band situated at 801 cm⁻¹ corresponds to the bending vibration mode of the Si–O group and the peak observed at 464 cm⁻¹ related to the rocking mode of the Si–O group. The strong absorption peak located at 1092 cm⁻¹ is attributed to the asymmetrical stretching mode of the Si–O–Si group [28]. Furthermore, the absorption band found at 1635 cm⁻¹ corresponds to the twisting vibration mode of the H–O–H group [28]. This is in addition to the absorption band observed at 3444 cm⁻¹ which corresponds to stretching vibration mode of O–H [28]. The morphology of RH-SNP was also investigated. Figure 2(b) shows the TEM image of RH-SNP which reflects the average nanoparticle size of 150 nm that exists in aggregated form. Interestingly, the nanoparticle size of RH-SNP was confirmed through dispersion of the aggregated one by ultrasonication for 2 min as seen in the TEM image in Figure 2(c). However, The TGA graph of RH-SNP (Figure 2d) represents high thermal stability of RH-SNP with high purity of SNP up to 95%. The first mass loss below 400℃ could be due to the trapped moisture and some of remaining organic species. The second one in the temperature range 400–550℃ was due to the decomposition of carboneaous impurities adsorbed on RH-SNP surface after preparation. This confirmed the high purity of RH-SNP (95%) as shown in Figure 2(d).

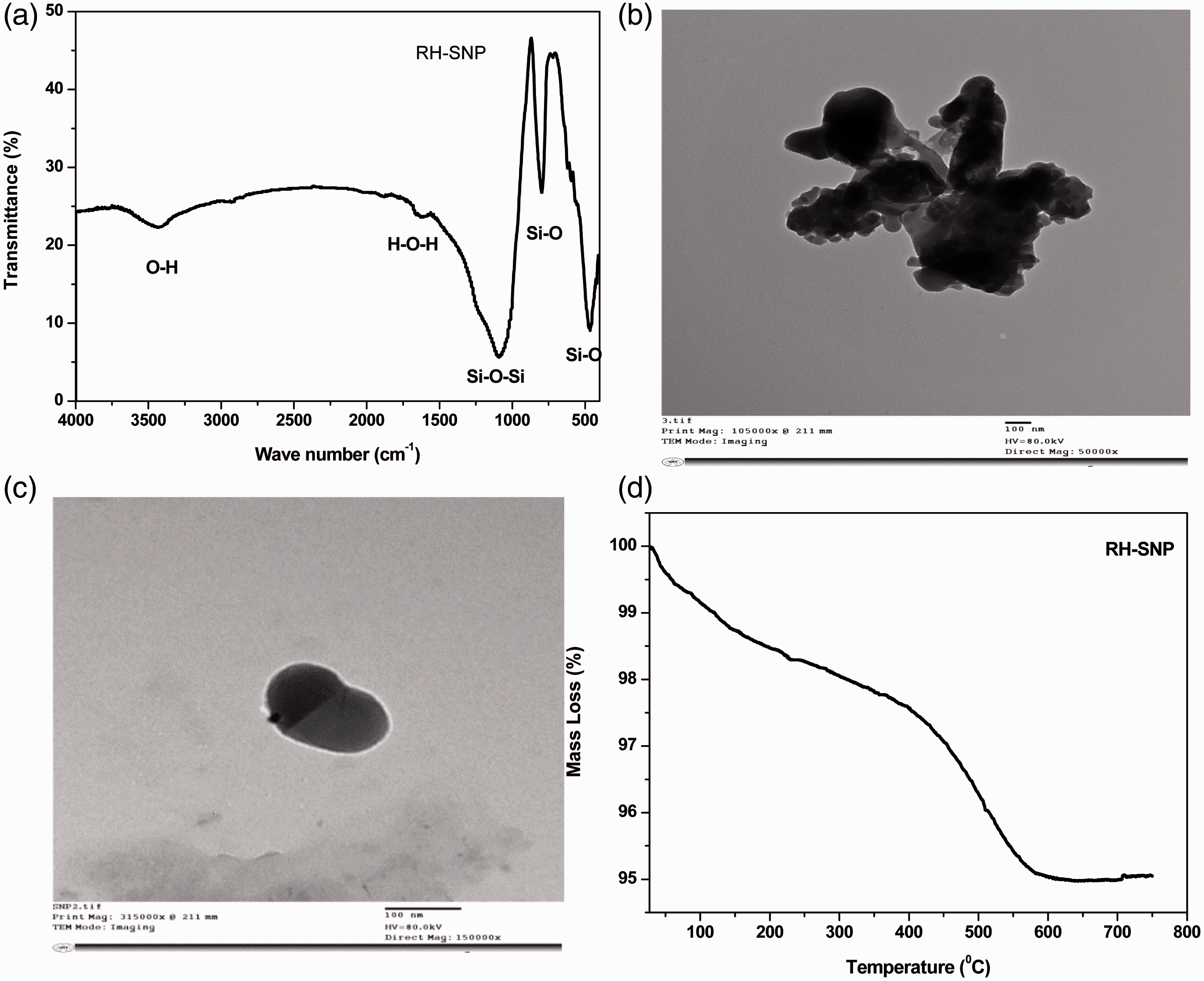

Figure 2.

FTIR spectra of RH-SNP (a), TEM images of RH-SNP (b), dispersed RH-SNP (c) and TGA thermogram of RH-SNP (d).

Preparation and characterization of flame retardant back coating textile fabrics

The back coating formulations based on RH-SNP and DBM were prepared through impregnation the RH-SNP with DBM (RH-SNP-DBM) followed by mixing with binder forming coating paste (RH-SNP-DBM-binder). Then, the paste was coated on the back surface of the linen fabrics as shown in Figure 3. The compositions of the back coating formulations were varied as tabulated in Table 1.

Figure 3.

Schematic diagram representing the preparation of back coating flame retardant and coating on textile fabrics.

Thermal properties

The thermal stability of the blank and treated samples was analyzed using thermogravimeteric analysis. Figure 4(a) exhibits the thermogram of linen fabrics which decomposes in two steps. The first mass loss was below 100℃ which attributed to the trapped moisture. The second mass loss in the temperature range 300–500℃ corresponds to the decomposition of linen leaving char yield to 13.7%. Figure 4(b) shows the thermogram of BC4 which composed from linen treated with back coating layer (Table 1). The thermogram depicts three decomposition steps; the first one due to the trapped moisture which is below 100℃ and second decomposition step at 175℃ which is attributed to the decomposition of DBM. The third decomposition step which starts at 300℃ (onset decomposition temperature of linen) gives rise to char yield of 26%. Interestingly, the earlier mass loss of treated textiles than virgin one might be due to the decomposition of DBM and binder. It is important to note that, all the treated samples have the same thermal behavior (Figure 4) with similar mass loss steps. However, the char residue of the treated fabrics varied based on the mass of RH-SNP in the back coating layer. The char residue of BC7 sample reached up to 42.6% when the mass of RH-SNP was 50% of the back coating layer mass (Table 1 and Figure 4). This char layer retarded the further degradation of linen fabrics compared to blank one. It is important to note that, the samples used for thermal stability analysis were selected to reflect the effect of regular increase of RH-SNP mass in back coating layer on thermal stability behavior (Table 1). The morphology of linen fibers was investigated after back coating treatment. Figure 5(a) represents the microscopic image of cross section of linen yarn showing normal shape of untreated linen yarn. Figure 5(b) shows the image of cross section of treated linen yarn of BC7 which reflect little swelling after treatment. This might be due to the inclusion of the coating material with specially impregnated silica nanoparticles with organic borate (RH-SNP-DBM) inside the linen yarn.

Figure 4.

TGA graphs of blank (a), BC4 (b), BC5 (c), BC6 (d) and BC7 (e).

Figure 5.

Microscopic image of cross section of untreated linen yarn (a) and treated yarn of BC7 (b).

Flammability and mechanical properties

The flammability properties of blank and treated linen fabrics were evaluated using the rate of burning in the samples according to modified ISO standard 3795 [4,12,23]. The rate of burning of the virgin linen fabrics was recorded as 80.3 mm/min. When the RH-SNP was included alone in the coating layer in sample BC1, the rate of burning was reduced to 37.4 mm/min (Table 2). In BC2, when the mass ratio of RH-SNP increased, the rate of burning was further reduced to 30.5 mm/min. This is due to the char layer formed on the surface of fabrics based on the silicon of RH-SNP exist in the coating layer to protect the decomposition zone of linen from inclusion of oxygen and also isolated it from flame. When DBM incorporated alone (50 wt.%) in the back coating layer, the rate of burning was 47.8 mm/min. This is indicated that the char layer formed was not strong enough compared to one produced from using RH-SNP, even though the concentration of DBM in BC3 was higher compared to RH-SNP in BC1 and BC2 (Tables 1 and 2). When the 5 wt.% of RH-SNP was used together with 45 wt.% of DBM in BC4, the rate of burning was found as 46.8 mm/min. However, when the concentration of RH-SNP was increased to 10 wt.% in conjunction to 40 wt.% of DBM, the rate of burning was found to be 43.8 mm/min as shown in Tables 1 and 2 (BC5). In BC6, the equal concentration of RH-SNP and DBM was used in the coating layer achieved reduced rate of burning of 30.2 mm/min. It is important to note that, the flame stops before reaching the end of sample. This shows that the char layer formed on the surface of the fabrics was improved by this composition and the synergistic effect was observed (Tables 1 and 2). Interestingly, when the concentration of RH-SNP was further increased higher than DBM in BC7 and BC8 which were 50 and 60 wt.%, respectively, for RH-SNP and fixed mass 10 wt.% for DBM, the flame retardancy behavior was completely changed and the synergistic effect was improved. The rate of burning of both BC7 and BC8 was further reduced achieved higher class of flame retardancy of linen textile fabrics (Tables 1 and 2). This is due to the char layer formed on the surface of linen due to the combustion of treated fabrics which was strong enough to protect the textile fabrics from further decomposition (Figure 6). This is in conjunction with the isolation of the textile surface edge from the flame zone and inclusion of oxygen. Figure 6 shows the photos of BC7 and BC8 showing the retardation of flame spread by formed char layer, which also shows the treated back surface of linen.

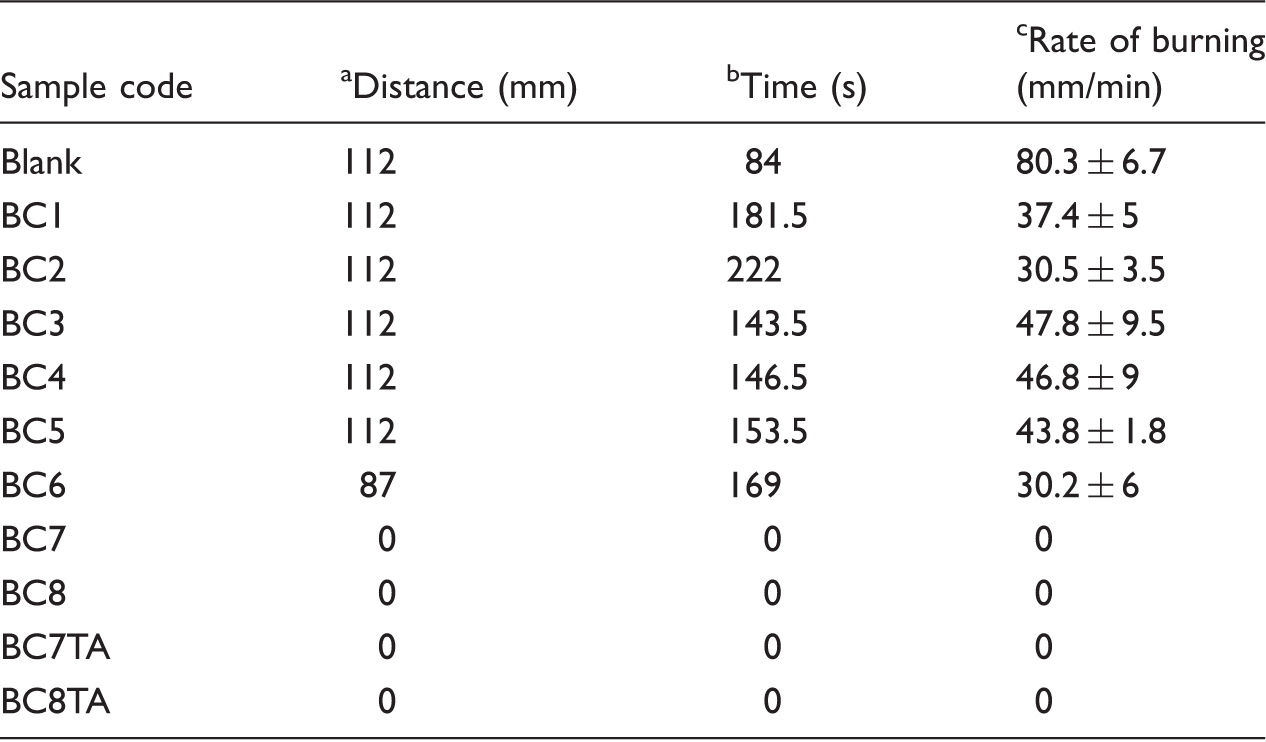

Table 2.

The rate of burning of different textile samples.

Sample code	^aDistance (mm)	^bTime (s)	^cRate of burning (mm/min)
Blank	112	84	80.3 ± 6.7
BC1	112	181.5	37.4 ± 5
BC2	112	222	30.5 ± 3.5
BC3	112	143.5	47.8 ± 9.5
BC4	112	146.5	46.8 ± 9
BC5	112	153.5	43.8 ± 1.8
BC6	87	169	30.2 ± 6
BC7	0	0	0
BC8	0	0	0
BC7TA	0	0	0
BC8TA	0	0	0

Average distance burned.

Average time used for burning.

Average rate of burning.

Figure 6.

Digital photos of upper and back surface of BC7 (a, b) and BC8 (c, d) indicated the char layer formed.

So, the effective treated linen fabrics will significantly reduce the fire risk for historic textiles and prolong the display life time of these textiles in museum.

It is noteworthy to note that the mechanical properties of untreated linen, BC7 and BC8 were evaluated which reflect the high class of flame-retardant linen fabrics. It is observed that the tensile strength of the blank fabrics was 492 N and elongation was found to be 9.13%. However, when flame-retardant back coating was treated on the back surface of linen in BC7, the tensile strength was enhanced (626 N) by 27% compared to untreated sample as tabulated in Table 3. But, elongation was little reduced compared to blank by 10% (Table 3). Both the tensile strength and elongation were improved in BC8 as shown in Table 3. In order to the check effect of time on flame-retardant treatment of modern textile as in historical one, there is an experimental laboratory attempt for making the characteristics of modern samples like that of the old ones coded as industrial aging by thermal process. [22]. The flammability and mechanical properties of BC7 and BC8 were evaluated after the thermal aging process. The flame-retardancy properties of the BC7TA and BC8TA didn't influenced after thermal aging and achieved high class flame retardant textile (Table 2). Interestingly, the tensile strength of BC7TA and BC8TA was little reduced compared to BC7 and BC8 by 23% and 35%, respectively (Table 3). However, elongation was improved to 15.8% and 14% for BC7TA and BC8TA, respectively, and achieved 90% and 50% improvement compared to BC7 and BC8. The mechanical properties of untreated linen, BC7, BC8, BC7TA and BC8TA were further clarified in the stress-strain curves as shown in Figure 7.

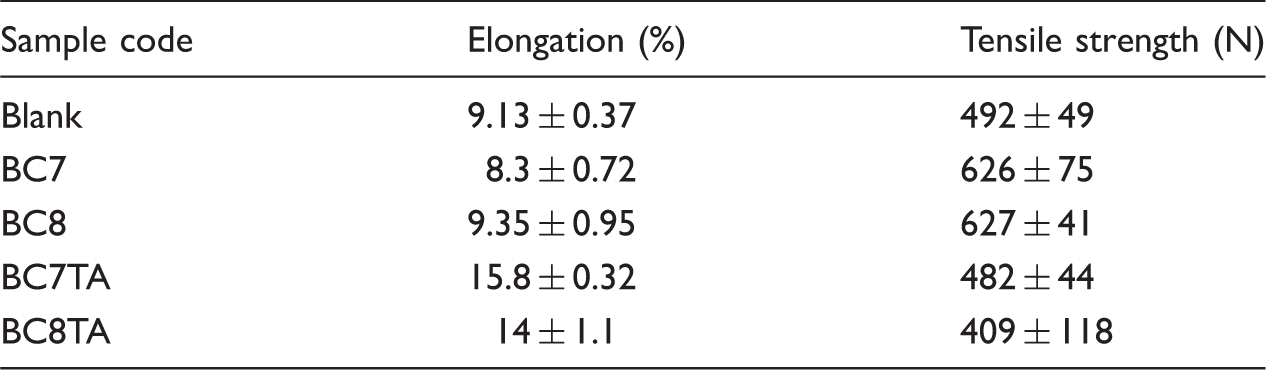

Table 3.

Mechanical Properties of blank, BC7, BC8, BC7TA and BC8TA.

Sample code	Elongation (%)	Tensile strength (N)
Blank	9.13 ± 0.37	492 ± 49
BC7	8.3 ± 0.72	626 ± 75
BC8	9.35 ± 0.95	627 ± 41
BC7TA	15.8 ± 0.32	482 ± 44
BC8TA	14 ± 1.1	409 ± 118

Figure 7.

Stress–strain curves of blank linen (a), BC7 (b), BC8(c), BC7TA (d) and BC8TA (e).

Conclusion

A smart and effective flame-retardant coating layer based on nanoparticles was developed. The coating layer was treated as back layer to the linen fabrics as an inner layer of historical textiles. Rice husk silica nanoparticles were prepared and incorporated in the back coating layer. The silica nanoparticles have been used alone or impregnated with organic borate in conjunction with binder in the back coating layer. Various compositions of flame retardant coating were studied. The rate of burning was significantly reduced and recorded zero for back-coated samples compared to 80.3 mm/min for blank. The flame retardancy and synergistic effect were investigated. Tensile strength and elongation were improved for treated samples compared to the blank one. Industrial thermal aging for the flame-retardant textile samples was studied. The flame retardancy properties were unaffected and elongation significantly improved after thermal aging.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Horrocks

. Flame retardant challenges for textiles and fibres: New chemistry versus innovatory solutions. Polym Degrad Stab 2011; 96: 377–392.

Horrocks

Price

. Fire retardant materials, Cambridge: Woodhead Publishing Limited, 2001.

El-Shafei

El Shemy

Abou-Okeil

. Eco-friendly finishing agent for cotton fabrics to improve flame retardant and antibacterial properties. Carbohydr Polym 2015; 118: 83–90.

Hassan

Hammoda

Salah

. Thermal analysis techniques as a primary sign for fire retardancy of new textile back-coating formulations. J Indust Text 2010; 39: 357–376.

Fang

Zhang

Meng

. Intumescent flame retardant coatings on cotton fabric of chitosan and ammonium polyphosphate via layer-by-layer assembly. Surf Coat Technol 2015; 262: 9–14.

Weil

Levchik

. Flame retardants in commercial use or development for textiles. J Fire Sci 2008; 26: 243–281.

Norouzi

Zare

Kiany

. Nanoparticles as effective flame retardants for natural and synthetic textile polymers: Application, mechanism, and optimization. Polym Rev 2015; 55: 531–560.

Zheng

Miao

Maeda

. Uniform nanoparticle coating of cellulose fibers during wet electrospinning. J Mater Chem A 2014; 2: 15029–15034.

Karim-nejad

Nazari

Davodi-roknabadi

. Efficient flame retardant of mercerized cotton through cross-linking with citric acid and ZnO nanoparticles optimized by RSM models. J Text Instit 2014; 106: 1115–1126.

10.

Ahmed

Ziddan

. A new approach for conservation treatment of a silk textile in Islamic Art Museum, Cairo. J Cultural Heritage 2011; 12: 412–412.

11.

Lemberg F. Textile conservation and research. Bern, 1988, pp. 31–55.

12.

Attia

Abissy

Hassan

. Novel synthesis and characterization of conductive and flame retardant textile fabrics. Polym Adv Technol 2015; 26: 1551–1557. .

13.

Attia

Hassan

Nour

. Flame-retardant materials: Synergistic effect of halloysite nanotubes on the flammability properties of acrylonitrile-butadiene-styrene composites. Polym Int 2014; 63: 1168–1173.

14.

Attia

Rao

Geckeler

. Nanodiamond-polymer nanoparticle composites and their thin films. J Nanopart Res 2014; 16: 2361–2361.

15.

Attia

Menemparabath

Arepalli

. Inorganic nanotube composites based on polyaniline: Potential room-temperature hydrogen storage materials. Int J Hydrogen Energy 2013; 38: 9251–9262.

16.

Attia

Geckeler

. Polyaniline as a material for hydrogen storage Applications. Macromol Rapid Commun 2013; 34: 1043–1055.

17.

Chaudhary

Jollands

. Characterization of rice hull ash. J Appl Polym Sci 2004; 93: 1–8.

18.

Attia

Lee

Kim

. Nanoporous carbon-templated silica nanoparticles: Preparation, effect of different carbon precursors, and their hydrogen storage adsorption. Micro Meso Mater 2013; 173: 139–146.

19.

Liu

Zhou

Liu

. A New flame-retardant epoxy composites based on silica and metal salt of phosphinate. Appl Mech Mater 2013; 357–360: 1461–1464.

20.

Wang

Undrell

Gao

. Synthesis of flame-retardant polypropylene/LDH-borate nanocomposites. Macromolecules 2013; 46: 6145–6150.

21.

Attia

Afifi

Hassan

. Synergistic study of carbon nanotubes, rice husk ash and flame retardant materials on the flammability of polystyrene nanocomposites. Mater Today Proc 2015; 2: 3998–4005.

22.

Feller

. Accelerated aging photochemical and thermal aspects, Los Angeles: The Getty Conservation Institute, 1994, pp. 161–161.

23.

ISO 3795: Determination of burning behaviour of interior materials, 1989.

24.

Parsons

Milberg

. Vibrational spectra of vitreous B2O3.xH2O. J Am Ceram Soc 1960; 43: 326–330.

25.

Jun

Shuping

Shiyang

. FT-IR and Raman spectroscopic study of hydrated borates. Spectrochim Acta Part A 1995; 51: 519–532.

26.

Peak

Luther

Sparks

. ATR-FTIR spectroscopic studies of boric acid adsorption on hydrous ferric oxide. Geochimica et Cosmochimica Acta 2003; 67: 2551–2560.

27.

Bethell

Sheppard

. The infra-red spectrum and structure of boric acid. Trans Faraday Soc 1955; 51: 9–15.

28.

Espìndola-Gonzalez

Martìnez-Hernàndez

Angeles-Chàvez

. novel crystalline SiO2 nanoparticles via annelids bioprocessing of agro-industrial wastes. Nanoscale Res Lett 2010; 5: 1408–1417.
