Abstract
Purpose:
There is no report on the reproducibility of the ultrasound-navigated MANTA deployment (US-MANTA) technique and little is known about predictors for US-MANTA-related vascular complication (VC). This study aimed to assess the incidence and predictors of access-site VC using the US-MANTA technique and report insights of MANTA-related VC from consecutive cases following large-bore arteriotomy.
Materials and Methods:
Consecutive patients who underwent transfemoral transcatheter aortic valve replacement with the US-MANTA technique from November 2018 to February 2020 were evaluated. MANTA-related VC was defined as access-site complications leading to major or minor VCs based on Valve Academic Research Consortium-2 criteria.
Results:
Among 378 patients, 23 cases (6.1%) of MANTA-related VC (major VC: n=7 [1.9%], minor VC: n=16 [4.2%]) were identified. No significant difference was observed in the incidence of MANTA-related VC over the observational period (first quartile: 5.3%, second: 5.4%, third: 7.4%, and fourth: 6.3%, p>.50). In 7 patients with MANTA-related major VC, 4 (57.1%) of complications resulted from incomplete apposition of the toggle due to anterior wall calcification of the common femoral artery (CFA). Anterior calcification of the CFA determined by computed tomography was identified as an independent predictor of MANTA-related VCs.
Conclusions:
The US-MANTA technique sustainably provides a low rate of access-site VCs following large-bore arteriotomy. Incomplete apposition of the toggle due to anterior calcification of the CFA may lead to ongoing vascular and bleeding complications.
Introduction
Transcatheter aortic valve replacement (TAVR) is an established treatment for severe aortic stenosis.1,2 Although the feasibility of TAVR has been proven, inherent complications are related to the procedure. 3 Major vascular complication (VC) is a significant cause of death after TAVR via the transfemoral (TF) approach. In previous reports, major VC has been associated with a 2- to 3-fold increase in 30-day mortality and a 2-fold increase in 36-month mortality.4-6
The current standard for large-bore vascular closure following TF-TAVR is the use of suture-based vascular closure devices (VCDs). Currently, these conventional approaches are being challenged by a new plug-based MANTA VCD (Teleflex, Wayne, PA, USA) consisting of a bioresorbable intra-arterial polymer toggle and an extravascular large collagen plug. Closure of the arteriotomy is achieved using the toggle-collagen sandwich. A detailed description of MANTA VCD has been previously published. 7 Several single-arm prospective trials with MANTA revealed that 0% to 4.2% of major VCs occur in patients with favorable transfemoral access.8-10 However, retrospective studies showed higher incidences of major VCs (up to 11.0%) in unselected patients compared with selected patients.11-13 Previously, we reported the efficacy of the ultrasound-navigated MANTA deployment (US-MANTA) technique; it had a significantly lower incidence of major VC than conventional MANTA deployment without the use of ultrasound navigation (1.5% vs 7.4%, p=0.030), according to the propensity-score matching method. 14 Although a learning curve was not observed with the use of MANTA VCD, 13 it is not reported on the US-MANTA technique. There is no report on the reproducibility of the US-MANTA technique and insights of US-MANTA-related VC in a larger population. Therefore, this study aimed to assess the incidence and predictors of access-site VC in consecutive patients who underwent US-MANTA deployment following TF-TAVR in a real-world setting and report insights of MANTA-related VC following large-bore arteriotomy.
Materials and Methods
Study Design and Population
In total, 387 consecutive patients who underwent TF-TAVR between November 2018 and February 2020 at our institution were retrospectively reviewed (Figure 1). All TF-TAVR procedures were planned after contrast-enhanced multi-detector computed tomography (MDCT) and coronary angiography examinations. All patients were evaluated as eligible for TF-TAVR by a multi-disciplinary heart team.15-17 The study excluded patients with the surgical cut-down approach, intraoperative death, balloon aortic valvuloplasty with a non-large bore sheath, and conventional MANTA deployment without the use of the ultrasound-navigation method. If eligible patients had previous femoral vascular closure within 30 days 18 or any previous surgical cut-down, the other side femoral puncture was employed. Activated clotting time was controlled below 250 seconds, and systolic blood pressure was lowered below 120 mmHg at the end of the procedure. An 18-Fr MANTA VCD was applied in all patients who underwent TF-TAVR regardless of the sheath’s outer diameter. The MANTA device has been described in detail previously. 8 Descriptions of the US-MANTA technique and classification of MANTA deployment failure are summarized in Table 1 and Figure 2, based on our previous report. 14 Typical and bail-out cases of US-MANTA deployment are shown in Supplementary material, Online Video 1.

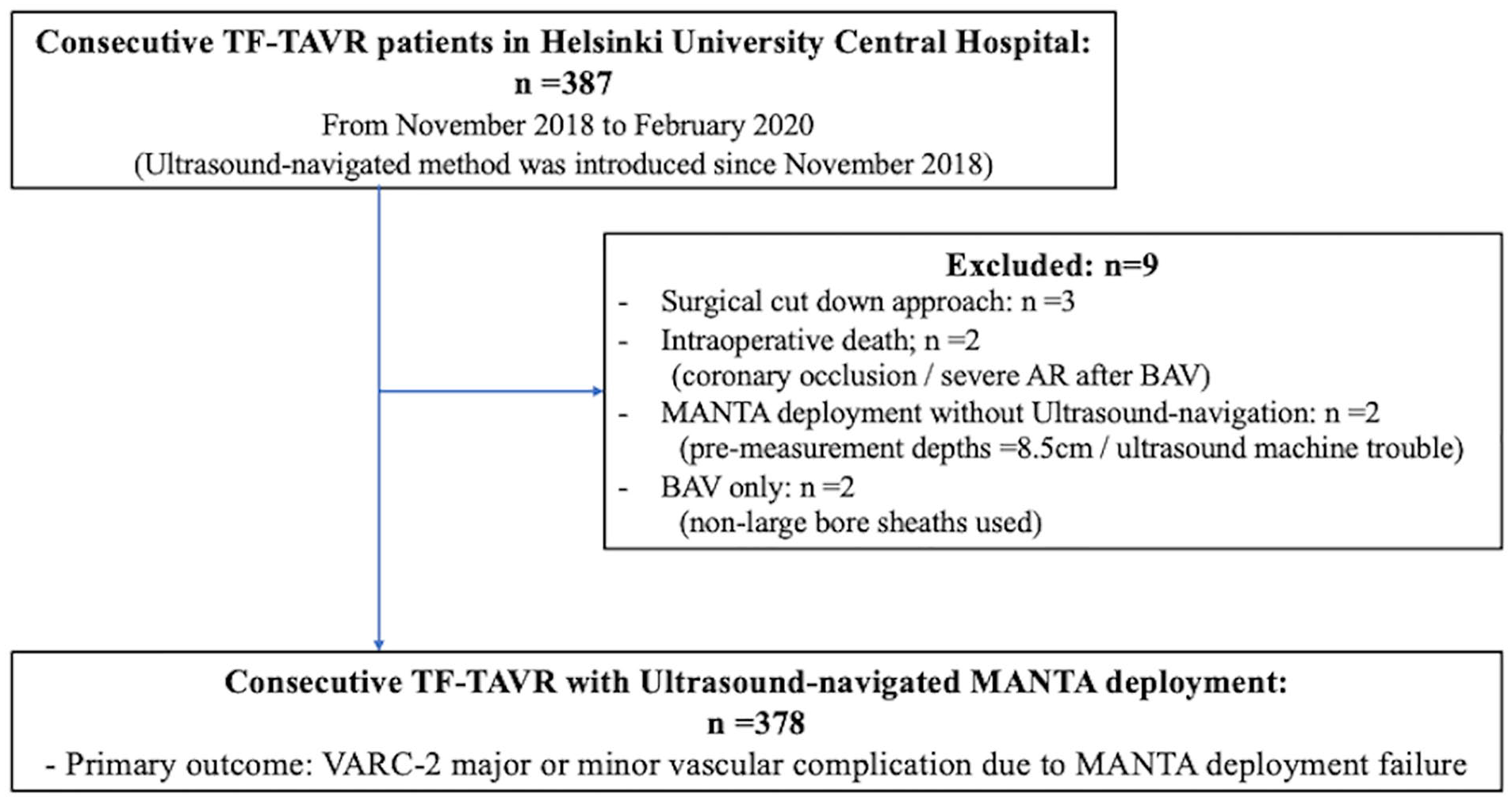

Study flow. The overall population included consecutive 387 TF-TAVR patients. We excluded 9 patients who had surgical cut-down approach (n=3), intraoperative death (n=2) and MANTA deployment without use of ultrasound (n=2) and balloon aortic valvuloplasty (BAV) without use of large-bore sheath (n=2). Three-hundred seventy-eight patients who received ultrasound-navigated MANTA deployment were analyzed. TF-TAVR, transfemoral transcatheter aortic replacement; VARC-2 = Valve Academic Research Consortium-2.
Description of Ultrasound-Navigated MANTA Method and Classification of MANTA Failure.

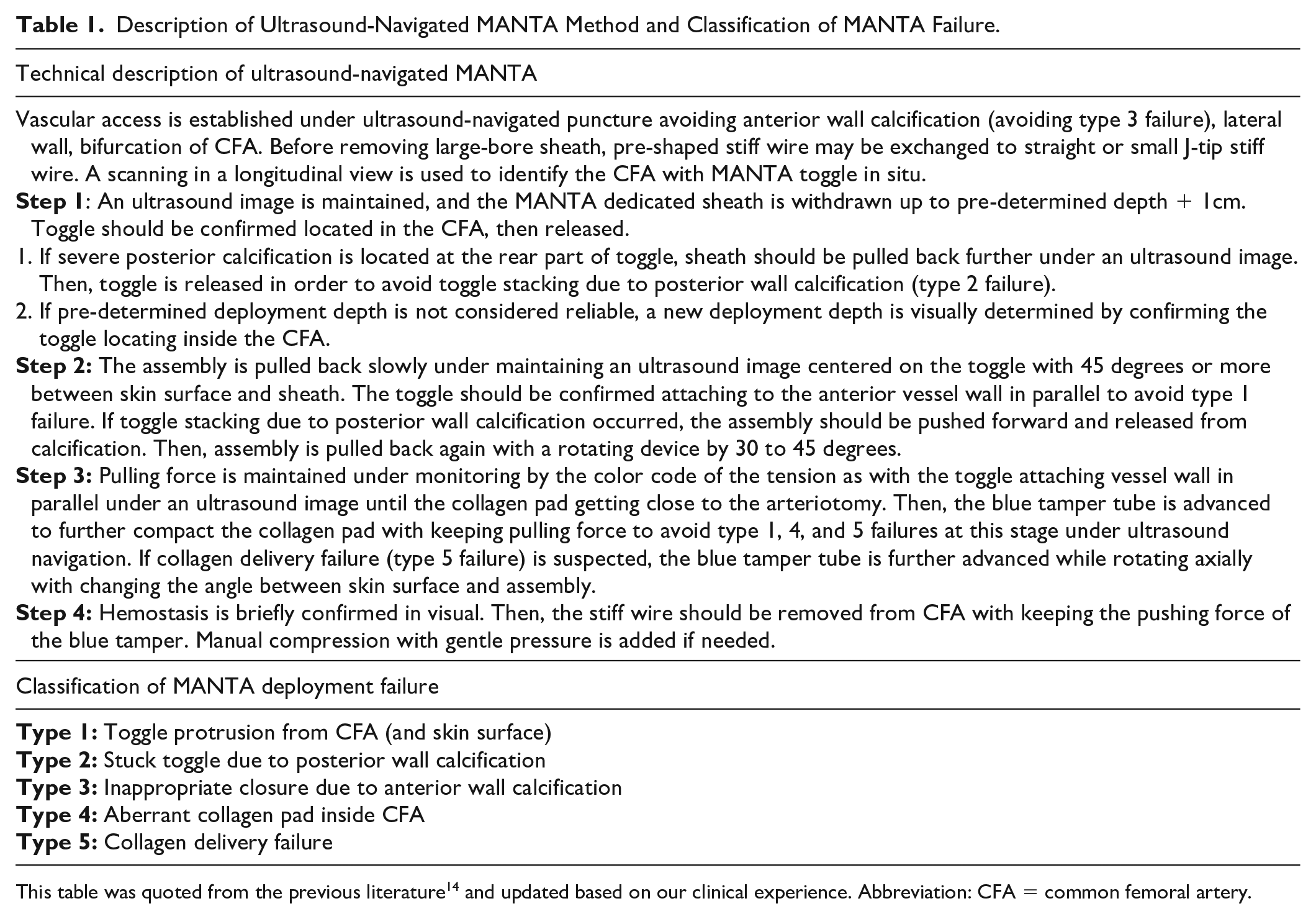

This table was quoted from the previous literature 14 and updated based on our clinical experience. Abbreviation: CFA = common femoral artery.

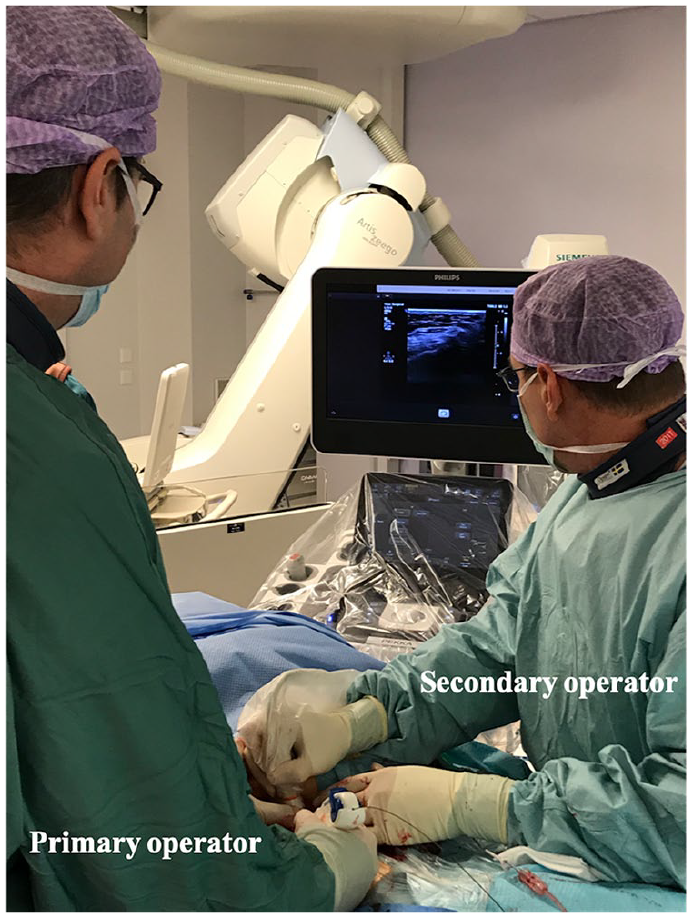

Ultrasound-navigated MANTA method in Helsinki University Hospital. The primary operator stands on the right side of the patient and controls MANTA device under ultrasound image provided by the second operator who stands on left side of that with handling ultrasound probe.
Femoral Vasculature Measurement
For iliofemoral artery assessment, a 3-dimensional MDCT image was retrospectively reconstructed from raw DICOM data using 3mensio Structure Heart software (3mensio Medical Imaging B.V., Bilthoven, The Netherlands). A curved multiplanar reconstruction centerline was generated to assess the cross-sectional image. 19 The following measurements were obtained in all patients on the side of delivery sheath placement at the level of the common femoral artery (CFA): minimum, mean, and maximum lumen diameter of the vessel at the minimum lumen diameter (MLD) level of the targeted CFA and degree of calcification (defined using visual assessment: 0, no calcification; 1, mild; 2, moderate; and 3, severe). 20 In addition, the circumferential extent of calcification was assessed in the cross-sectional view at the MLD level. Those whose anterior CFAs were calcified from the 9-o’clock to 3-o’clock position were classified as having anterior calcifications, and vice versa as having posterior calcifications. A CFA eccentricity was calculated as MLD / maximum lumen diameter.20,21 The sheath-to-femoral artery ratio (SFAR) was defined as the sheath outer diameter divided by the access-site vasculature MLD.20,22 Skin to artery depth was defined as the length between the skin surface to the anterior wall of the vessel at the level of the femoral head in the axial plane of MDCT. The CFA length was defined as the length between the inferior epigastric artery and the ostium of the deep femoral artery.
Definitions and Outcome Measures
Baseline data, procedural characteristics, and outcomes were collected in a dedicated database. Vascular and bleeding complications were categorized based on the Valve Academic Research Consortium (VARC)-2 definition. 22 MANTA-related VC was defined as an access-site complication related to the MANTA VCD leading to VARC-2 major or minor VCs. Any complications were observed during the TAVR hospitalization. Access-site complications were evaluated and adjudicated as being related to the MANTA or not by all investigators of this study and vascular surgeons based on US-image and/or surgical inspection at the time of vascular complication.
The primary outcome of this study was the incidence of MANTA-related VCs under ultrasound navigation. The secondary outcomes were the reproducibility of the US-MANTA technique and the independent predictors of US-MANTA deployment failure. In the reproducibility analysis of the US-MANTA technique, 378 patients were divided into 4 groups (group 1=first 95 patients, group 2=second 95 patients, group 3=third 95 patients, and group 4=fourth 93 patients).
Ethics Statements
Written informed consent was obtained from patients for the regular TF-TAVR procedure. The study protocol conformed to the Declaration of Helsinki and was approved by the institutional review board at our institution.
Statistical Analysis
Categorical variables are presented as a count and/or percentage and were compared using the chi-square test. Continuous variables are presented as the mean ± standard deviation and were compared using the Student t test or Wilcoxon rank sum test based on their distributions. To determine predictors of MANTA-related VC, a logistic regression analysis including baseline, MDCT, and procedural covariates was used to obtain the odds ratio (OR) and 95% confidence interval (CI) for the development of endpoints. Variables with a p value <0.1 in univariate analysis (minimum lumen diameter, eccentricity, SFAR, and anterior calcification) were included in the multivariate model 1. SFAR and anterior calcification were evaluated in the multivariable model 2 which was created to avoid overfitting in model 1. A p value <0.05 was considered statistically significant. All statistical tests were 2-tailed, and statistical analyses were performed using JMP version 10.0 (SAS Institute Inc, Cary, NC, USA).
Results
Patient Characteristics and MANTA-Related Vascular Complications
Our analysis included 378 patients who underwent US-MANTA deployment following TF-TAVR (Figure 1). Among those, 23 cases (6.1%) of MANTA-related VC (major VC: n=7 [1.9%], minor VC: n=16 [4.2%]) were identified (Figure 3A). Baseline characteristics and MDCT variables with and without MANTA-related VC are displayed in Table 2. Although there was no significant difference in baseline characteristics between the 2 groups, patients with MANTA-related VC had more frequent anterior calcification (52.2% vs 8.5%, p<0.001) than those without MANTA-related VC. No significant differences were observed in procedural characteristics between the 2 groups (Table 3). Figure 3B shows no significant differences in the incidence of MANTA-related VCs across quartiles.

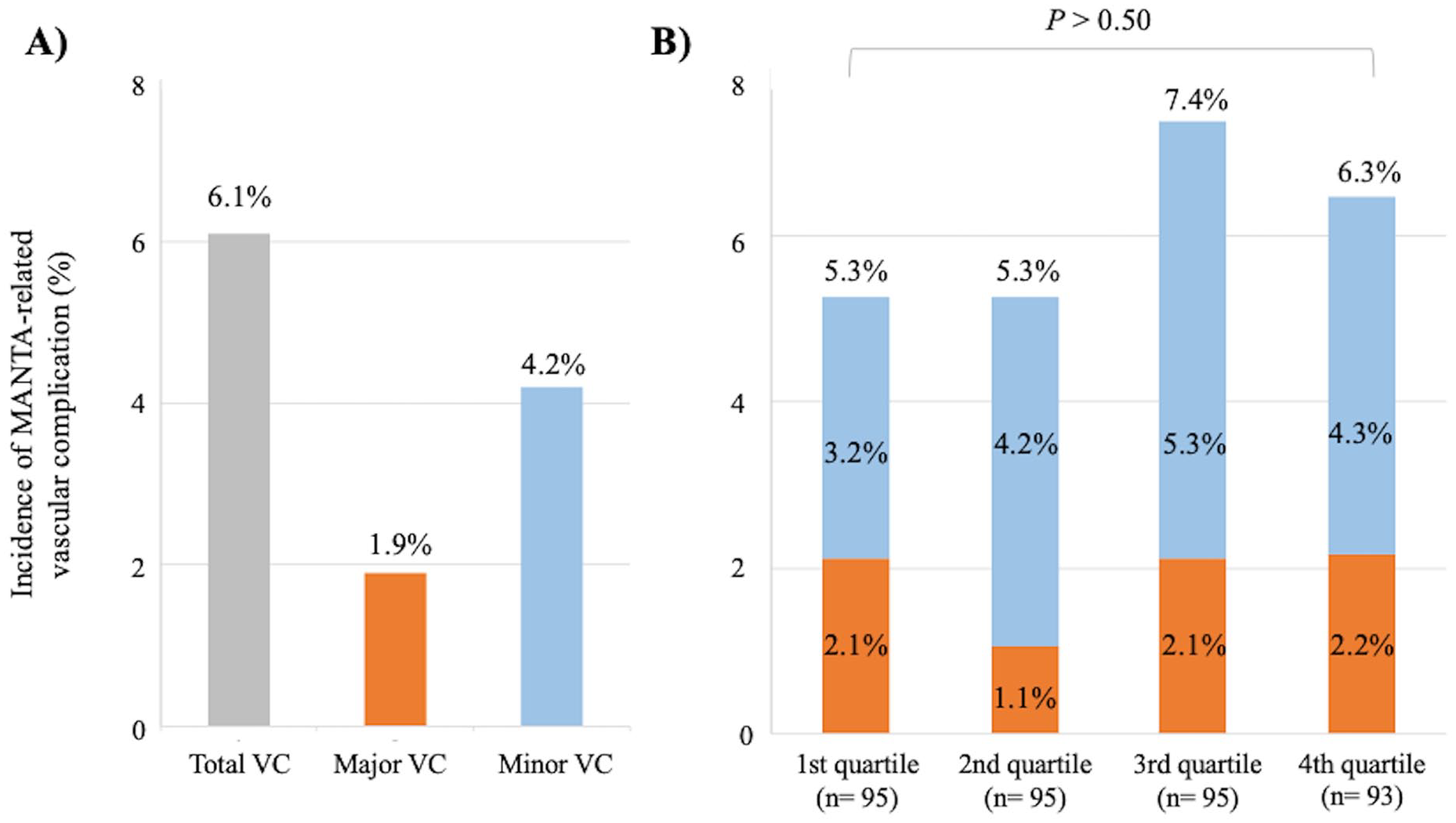

The incidence of MANTA-related vascular complication. In total, 6.1% of MANTA-related vascular complications were identified (major vascular: 1.9%, minor vascular: 4.2%) (A). No significant difference was observed in the incidence of MANTA-related vascular complications across the quartiles (B). VC, vascular complication.

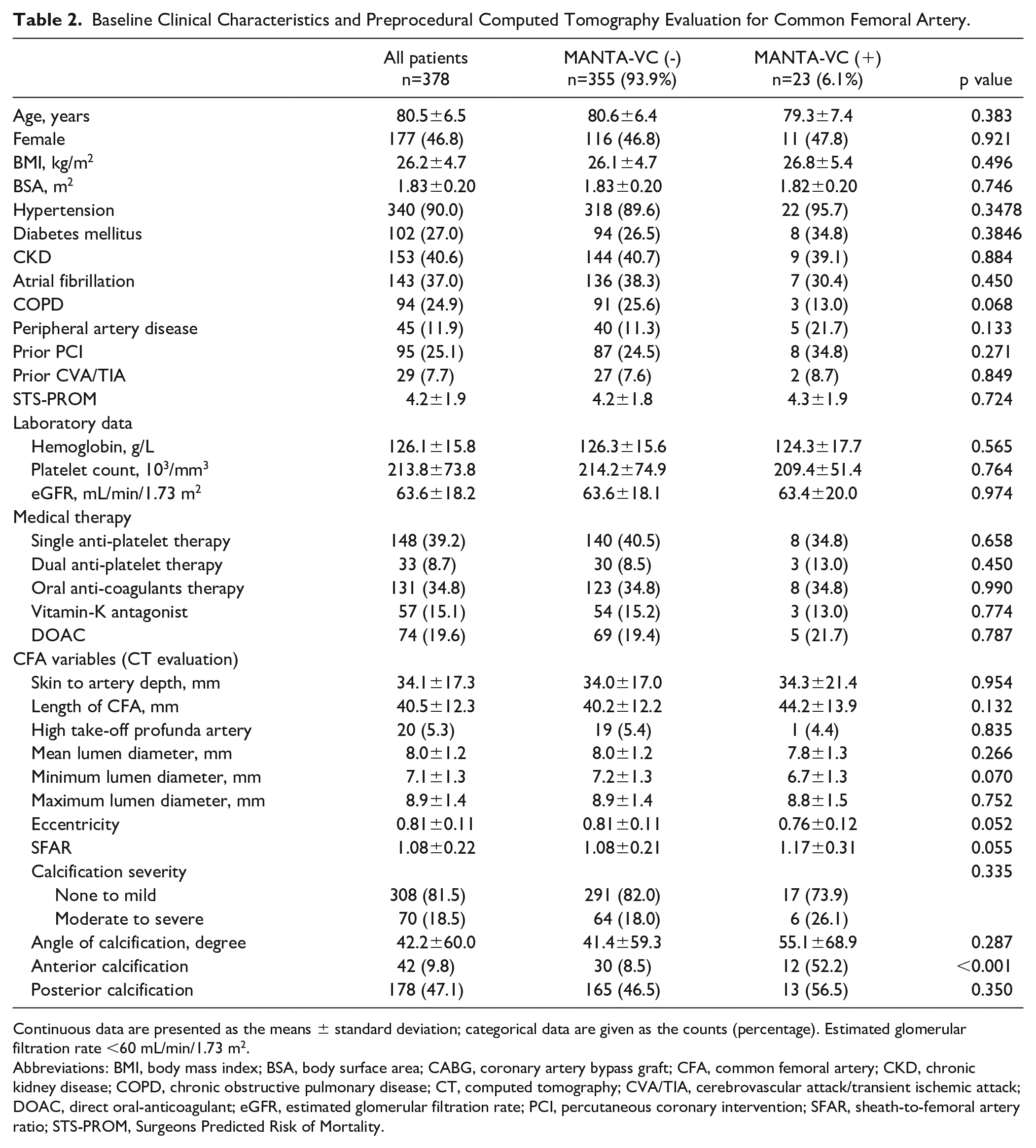

Baseline Clinical Characteristics and Preprocedural Computed Tomography Evaluation for Common Femoral Artery.
Continuous data are presented as the means ± standard deviation; categorical data are given as the counts (percentage). Estimated glomerular filtration rate <60 mL/min/1.73 m2.
Abbreviations: BMI, body mass index; BSA, body surface area; CABG, coronary artery bypass graft; CFA, common femoral artery; CKD, chronic kidney disease; COPD, chronic obstructive pulmonary disease; CT, computed tomography; CVA/TIA, cerebrovascular attack/transient ischemic attack; DOAC, direct oral-anticoagulant; eGFR, estimated glomerular filtration rate; PCI, percutaneous coronary intervention; SFAR, sheath-to-femoral artery ratio; STS-PROM, Surgeons Predicted Risk of Mortality.

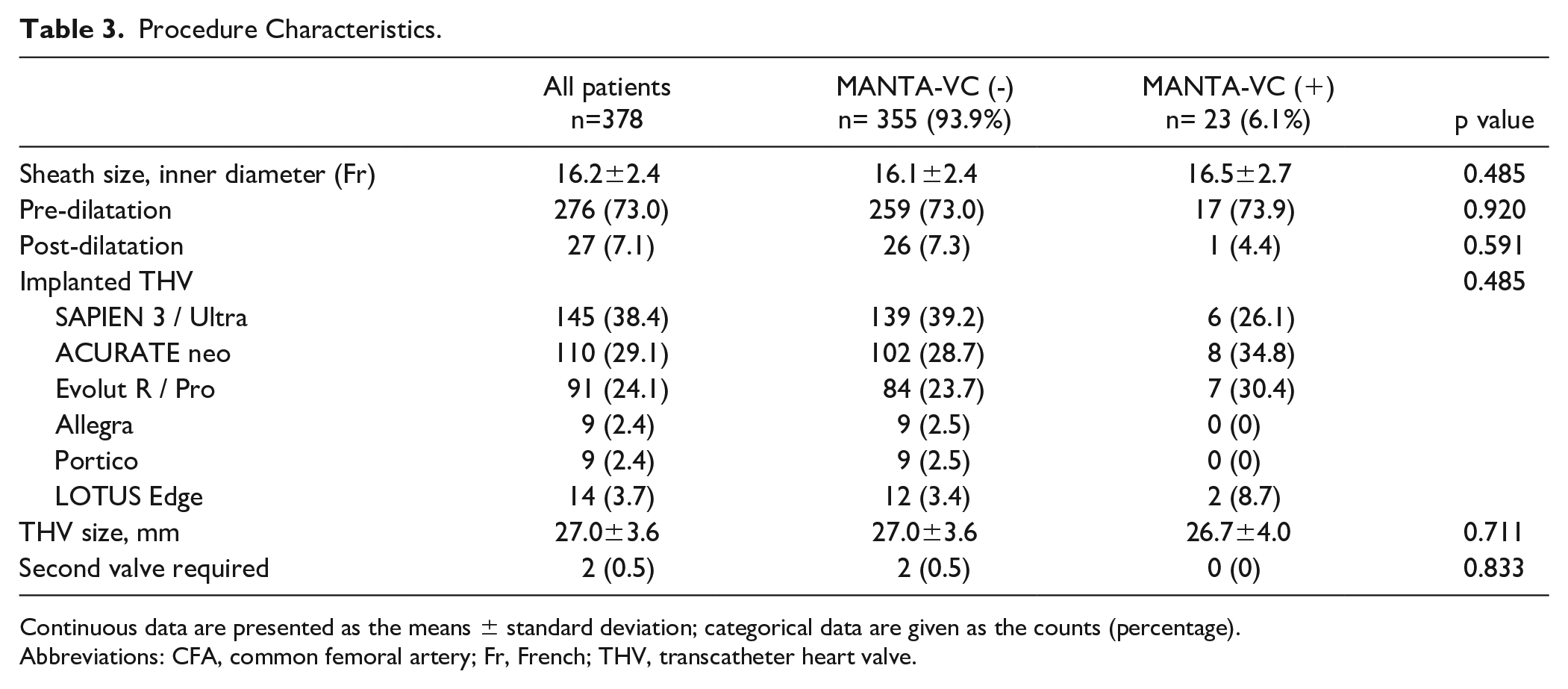

Procedure Characteristics.
Continuous data are presented as the means ± standard deviation; categorical data are given as the counts (percentage).
Abbreviations: CFA, common femoral artery; Fr, French; THV, transcatheter heart valve.
Clinical Outcomes and Predictors of MANTA Deployment Failure
Clinical outcomes following TF-TAVR are summarized in Table 4. Patients without MANTA-related VC had a significantly lower incidence of total vascular and bleeding complications than those with MANTA-related VC. There were 5 major VCs in patients without MANTA-related VC. Three patients developed left ventricular perforation due to the stiff wire. The other 2 patients had iliac artery rupture and late retroperitoneal hematoma, respectively. In addition, patients without MANTA-related VC had a significantly lower hemoglobin decline (17.0±15.5 vs 26.6±12.8 g/L, p=0.005) and shorter hospital stay (1.3±2.8 vs 3.4±1.8 days, p=0.012) than those with MANTA-related VC did. MANTA-related major VCs are described in detail in Table 5. Of 7 cases of major VCs, 4 complications (57.1%) resulted from anterior wall calcification of the targeted CFAs by ultrasound inspection (type 3 failure). Types 1, 2, 4, and 5 failures were observed in 1 patient each, respectively. Two cases had complex types of failure (types 2+4 and types 3+5). One patient developed a MANTA-related major VC, which was not classified because a stiff wire was stuck inside the MANTA assembly, and the wire could not be removed. Then, we had to remove MANTA and the wire out of the vessel, leading to surgical repairment. There were 16 patients with MANTA-related minor VCs; 9 were hematoma, and 7 were MANTA VCD failure which did not meet major VC criteria. Out of 7 MANTA VCD failures, 2 patients had type1 failure, the other 2 had type 5 failure, the other 1 had type 2 failure, and the other 1 had complex types of 2+4 failure.

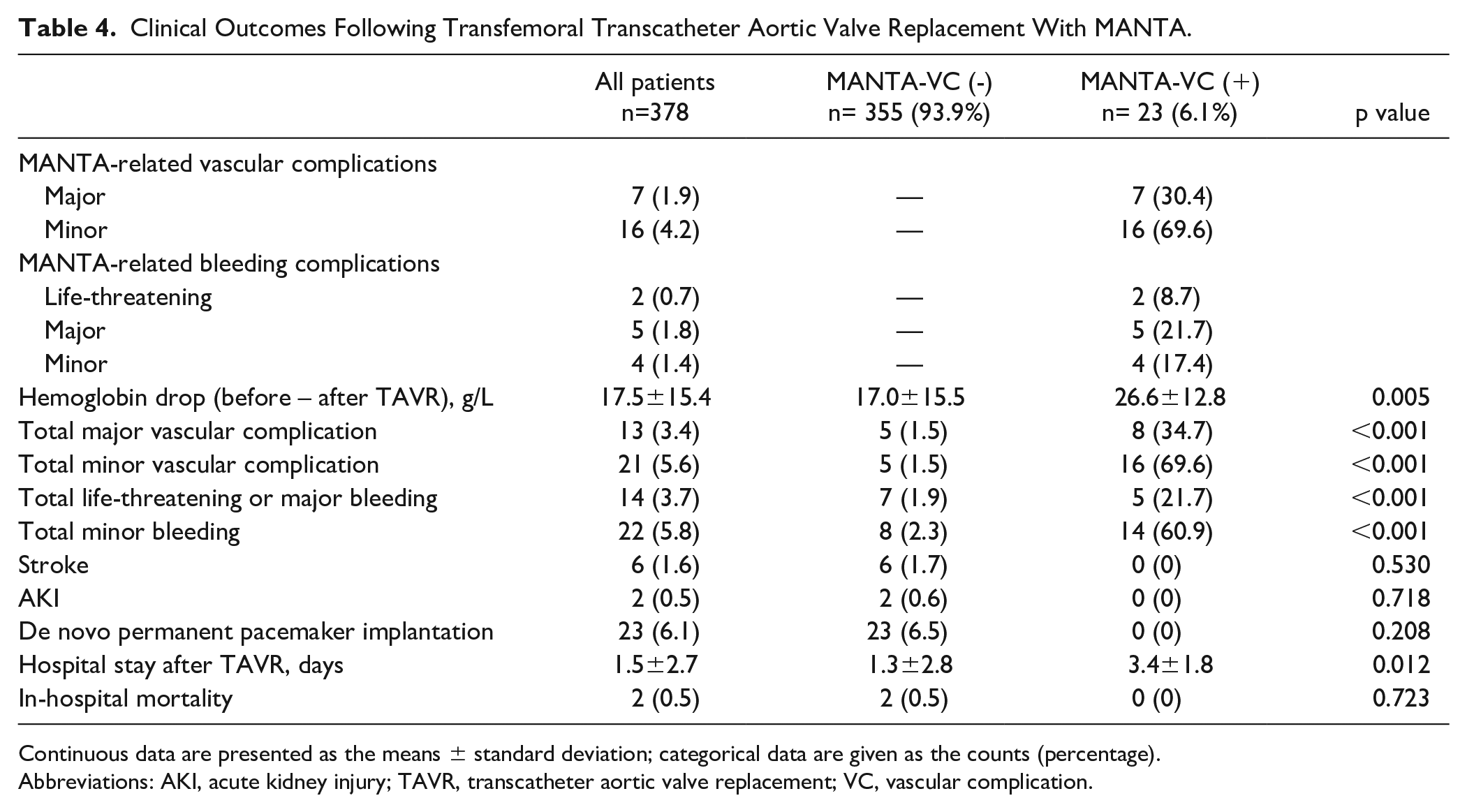

Clinical Outcomes Following Transfemoral Transcatheter Aortic Valve Replacement With MANTA.
Continuous data are presented as the means ± standard deviation; categorical data are given as the counts (percentage).
Abbreviations: AKI, acute kidney injury; TAVR, transcatheter aortic valve replacement; VC, vascular complication.

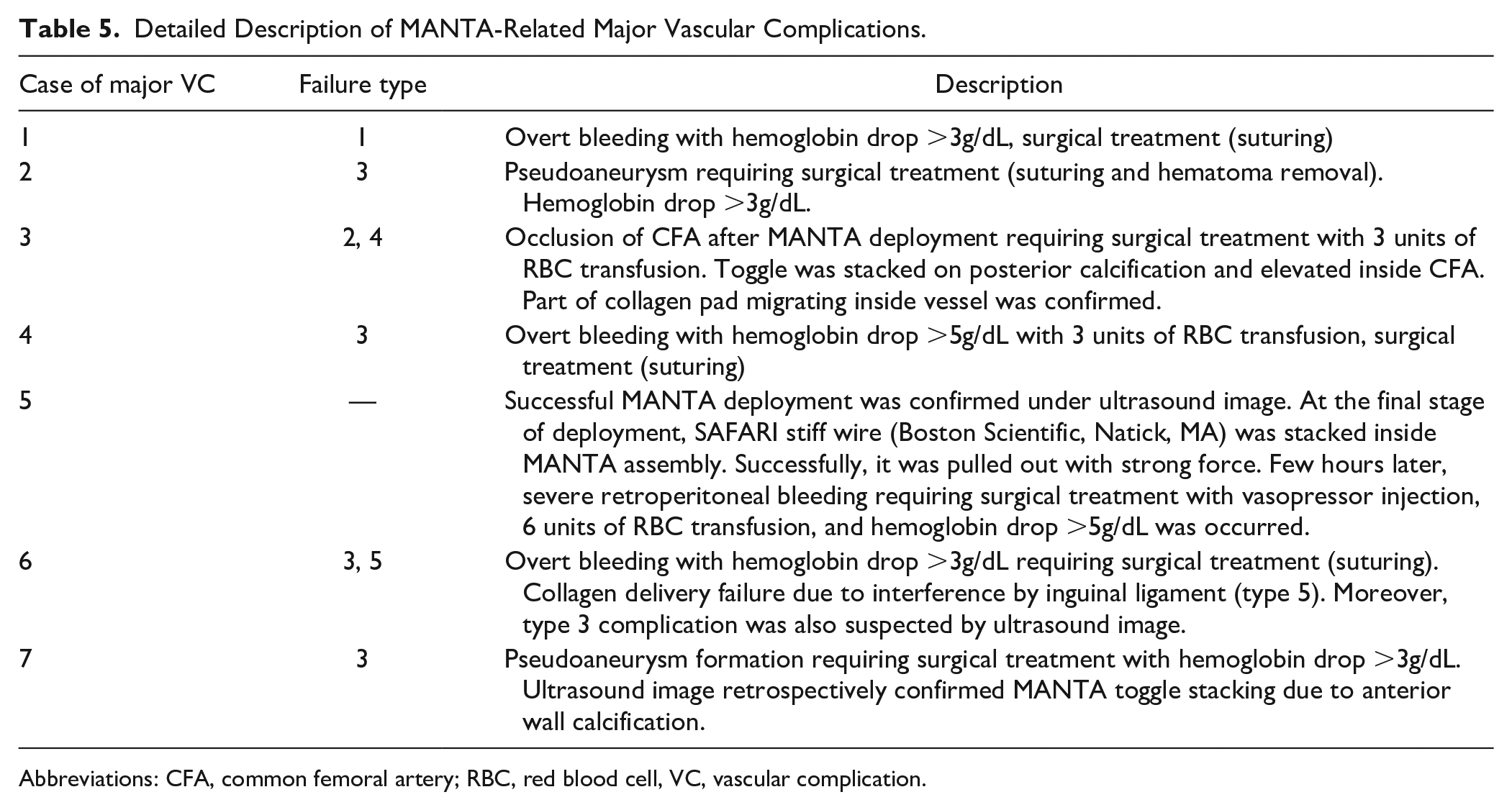

Detailed Description of MANTA-Related Major Vascular Complications.
Abbreviations: CFA, common femoral artery; RBC, red blood cell, VC, vascular complication.
Predictors of MANTA-related VC are displayed in Table 6. Anterior wall calcification of the CFA (model 1, OR: 3.78, 95% CI: 1.23 to 10.6; model 2, OR:3.96, 95% CI: 1.32 to 10.9) was identified as an independent predictor of MANTA-related VC by multivariate analysis.

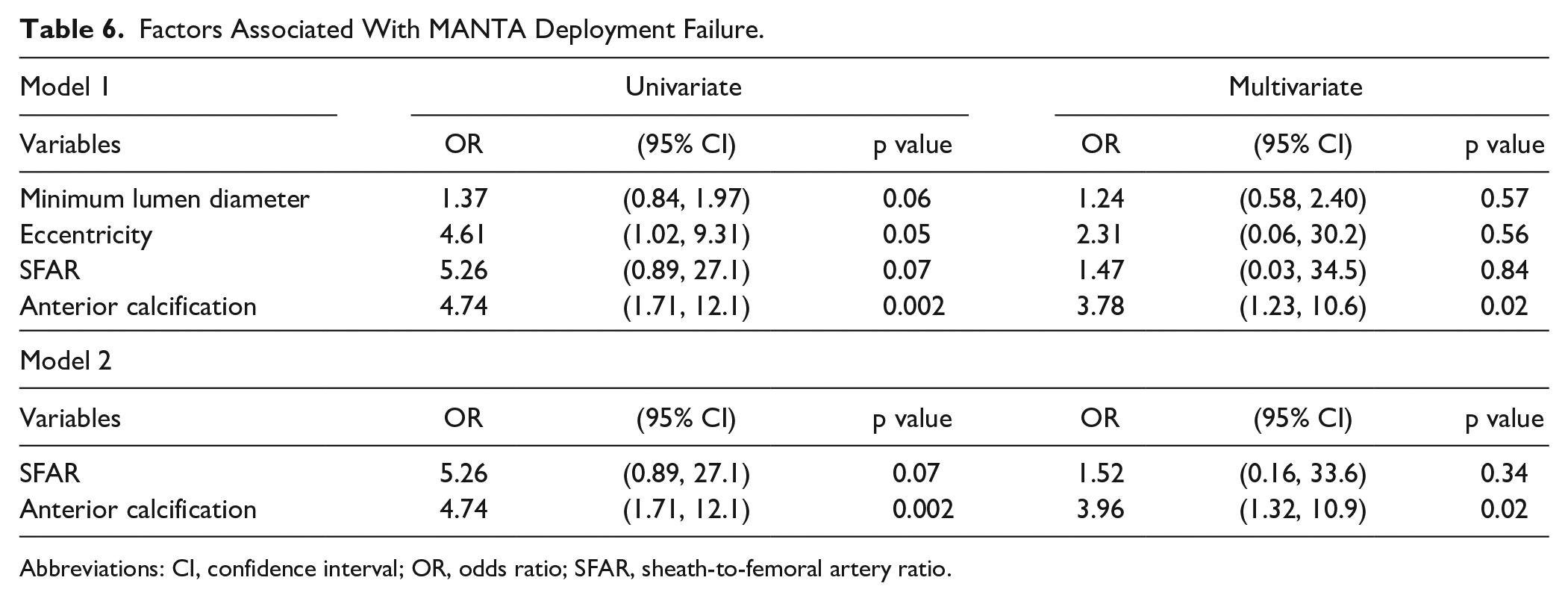

Factors Associated With MANTA Deployment Failure.
Abbreviations: CI, confidence interval; OR, odds ratio; SFAR, sheath-to-femoral artery ratio.
Discussion
This is the first study to systematically analyze MANTA-related VCs with the novel US-MANTA deployment technique. The main findings of this study are as follows: (1) MANTA-related VCs occurred in 6.1% of cases (major VCs, 1.9%; minor VCs, 4.2%); (2) the incidence of VCs was sustainably low during the study period (>1 year), and (3) anterior wall calcification of the CFA derived by pre-procedural MDCT measurements was significantly associated with MANTA-related VCs. In addition, this study reported failure mechanisms of US-MANTA deployment that led to VARC-2 major VCs in detail.
Efficacy of Ultrasound-Navigated MANTA Deployment
Our study described the technique of US-MANTA deployment in detail 14 and its outcome in consecutive patients who underwent TF-TAVR requiring large-bore arteriotomy. Some reports previously showed the feasibility and safety of the conventional MANTA deployment without US navigation compared with suture-based VCDs in terms of vascular and bleeding complications following TF-TAVR.11,12,23 A recent clinical study showed that MANTA VCD provided a low major complication rate (1.9%) in percutaneous endovascular aneurysm repair or thoracic endovascular aortic repair patients. 24 However, the incidence of major VCs with MANTA still varied from 0% to 11%, which could be depending on the population and procedural variance included in the studies.8-13,24 When comparing a suture-based VCD with and without ultrasound following TAVR, the ultrasound-guided technique significantly reduced VC. 25 In our current and previous studies of the US-MANTA technique, 14 the rates of major VCs (1.9 and 1.5%, respectively) were in the lower range of those reported in previous studies.8-14,24 Also, our previous study demonstrated a propensity score-matched comparison between US-MANTA versus conventional MANTA, which concluded that the US-guided technique was an independent predictor of less frequent access-site major vascular complications. 14 These results suggest that the ultrasound-guided technique might be beneficial. Furthermore, the US-MANTA technique could be one of the solutions to optimize the use of MANTA and minimize the incidence of VCD-related complications following procedures requiring a large-bore sheath with steady and sufficiently high success rates. However, the present study did not include the data on the number of potential failures that were managed with the US-guided technique. Further studies assessing the efficacy of avoiding the potential failure under US guidance are warranted.
MANTA-Related Vascular Complication
Although US-MANTA deployment achieved a low incidence of access-related complications, several major VCs were still observed in this study. Although all of the CFAs were punctured under ultrasound imaging using the short-axis view to avoid calcification, anterior wall calcification was found to be an independent predictor of access-related VC in this study. Previous studies of suture-based VCD revealed anterior calcification as the predictor of vascular complication.26,27 These findings are reasonable as suture-based VCD works by suturing the arteriotomy, mostly anterior vessel wall. As to MANTA VCD, anterior calcification might cause incomplete sealing and prevent the toggle from sealing the arteriotomy. In our study, although 3 of 4 patients with major VC due to anterior calcification were relatively healthy and had a wide enough targeted puncture site on calcified CFAs according to pre-procedural MDCT, type 3 MANTA deployment failure happened unexpectedly. These findings could imply that performing arterial puncture with short-axis ultrasound imaging is insufficient to avoid anterior calcification. As reported previously, the long-axis approach to vascular access under ultrasound navigation is associated with improved visibility of the needle tip compared with the short-axis approach; 28 thus, the long-axis approach may have the potential to further reduce VCs related to anterior calcification. With a long-axis scan of the CFA, identifying the distribution of calcification and confirming the needle tip may be essential to establishing large-bore arteriotomy even in the era of plug-based vascular closure. If anterior calcification close to the arteriotomy is identified during US-MANTA deployment even though careful puncture has been done, operators should recognize the risk of percutaneous closure failure requiring additional surgical repair. Until successful vascular closure with MANTA can be performed, contralateral femoral access should be kept for bail-out endovascular therapy, such as balloon occlusion and stent-graft implantation, and surgical repair. Recent studies with conventional MANTA deployment have demonstrated that femoral artery diameter and severe CFA calcification were independent predictors.29,30 Univariate analysis in our study revealed the minimum lumen diameter as borderline significance for MANTA-related VCs, while multivariate analysis did not show significance. The small diameter of CFA may have an impact on VCD failure because the small vessel size had limited space to open the toggle appropriately; however, our study did not reveal it as the predictor. One possible explanation might be that the US-guided technique could visualize the right position to open the toggle even in small vessels. Regarding CFA calcification, the question then arises as to the variables and definition of CFA calcification. They were different across the studies,25-27,29,30 thus the predictors might be different among them. One of the studies with suture-based VCD defined vessel wall calcification classification as anterior, posterior, lateral, and medial calcification, and found out that only anterior calcification predicted additional VCD deployment. 26 Lateral and medial wall calcification might be difficult to visualize with a long-axis ultrasound view. Moreover, the operator might puncture lateral or medial wall due to mostly poor ultrasound images, hence lateral or medial calcification might have a negative effect in certain settings with MANTA VCD. Further studies to elucidate optimal puncture, closure techniques, patient selection, and measuring method of CFA calcification are warranted.
Future Directions
Montero-Cabezas et al 31 reported the successful use of MANTA for fully percutaneous decannulation of femoral extracorporeal membrane oxygenation (ECMO) cannulation. After ECMO cannulation, the pre-measurement of the depth from the skin to the vessel is considered impossible with the puncture locating dilator of MANTA. However, the ultrasound method enables operators to confirm the toggle position appropriately even without pre-measurement. Therefore, the use of the ultrasound method may be effective for this situation, as reported previously by Dahlbacka et al. 32 For the same reason, the US-MANTA technique could also be useful as a bail-out method for torrential bleeding post-failure of pre-closure with suture-based VCDs as long as the procedure wire is left within the complicated vessel. Moreover, it is important to investigate when to perform an endovascular therapy instead of surgical repairment, as bail-out in the case of MANTA deployment failure. Further studies and clinical experiences with MANTA and the use of ultrasound navigation are warranted.
Limitations
First, this was a retrospective single-center study with typical limitations. Also, the comparison between the US-MANTA and conventional MANTA technique has been absent except for a small single-center study. 14 A larger study is warranted to establish the superiority of the US-MANTA technique. Second, we did not account for the effect of unknown confounding factors other than those included in the multivariate model for the incidence of MANTA-related VCs. Third, we used an 18-Fr MANTA VCD for all of the patients regardless of the sheath outer diameter. Therefore, these data may not support the efficacy of the 14-Fr MANTA VCD. Fourth, in the reproducibility analysis, consistency of patient characteristics over the study period was not available. Fifth, there is a possibility that minor complications not worthy of clinical mention may be underreported because of the lack of systematic post-TAVR assessment with angiography and vascular ultrasonography. Moreover, pre- and post-procedural ultrasonography examinations were not performed regularly. Therefore, the incidence of minor VC might be underestimated in the current study with a retrospective study nature. Finally, the current study only assessed the incidence of in-hospital complications, and length of hospital stay was 1.5±2.7 days. Therefore, we could have missed late vascular complication after discharge.
Conclusion
The US-MANTA technique sustainably provides a low incidence of VCs following large-bore arteriotomy. Incomplete apposition of the toggle due to anterior calcification may lead to ongoing vascular and bleeding complications. Anterior wall calcification of the CFA needs to be considered to avoid MANTA-related VCs. Accordingly, vascular access should be established with ultrasound in a gingerly manner to avoid anterior wall calcification puncture.
