Abstract

To synthesize evidence for prefrontal cortex (PFC), quadriceps, and respiratory muscle oxygenation using near-infrared spectroscopy (NIRS) during cycling in individuals with chronic obstructive pulmonary disease (COPD). A scoping review was performed searching databases (inception-August 2020): Ovid MEDLINE, EMBASE, Cochrane Systematic Reviews, Cochrane Central Register of Controlled Clinical Trials, CINAHL, SPORTDiscus and Pedro. The search focused on COPD, cycling, and NIRS outcomes. 29 studies (541 COPD participants) were included. Compared to healthy individuals (8 studies), COPD patients at lower cycling workloads had more rapid increases in vastus lateralis (VL) deoxygenated hemoglobin (HHb); lower increases in VL total hemoglobin (tHb) and blood flow; and lower muscle tissue saturation (StO₂). Heliox and bronchodilators were associated with smaller and slower increases in VL HHb. Heliox increased VL and intercostal blood flow compared to room air and supplemental oxygen in COPD patients (1 study). PFC oxygenated hemoglobin (O₂Hb) increased in COPD individuals during cycling in 5 of 8 studies. Individuals with COPD and heart failure demonstrated worse VL and PFC NIRS outcomes compared to patients with only COPD—higher or more rapid increase in VL HHb and no change or decrease in PFC O₂Hb. Individuals with COPD present with a mismatch between muscle oxygen delivery and utilization, characterized by more rapid increase in VL HHb, lower muscle O₂Hb and lower muscle StO₂. PFC O₂Hb increases or tends to increase in individuals with COPD during exercise, but this relationship warrants further investigation. NIRS can be used to identify key deoxygenation thresholds during exercise to inform PFC and muscle oxygenation.

Keywords

Skeletal muscle near-infrared spectroscopy oxygenation respiratory muscles prefrontal cortex

Introduction

Chronic Obstructive Pulmonary Disease (COPD) is associated with significant morbidity and represents the third leading cause of mortality worldwide.¹ COPD patients experience decreased exercise tolerance as a function of their disease.^2,3 Such exercise intolerance is multifactorial and comprised of disease driven limitations involving the respiratory, cardiovascular, and musculoskeletal systems.^4,5 More recently, the contributions of pre-frontal cortical activity have been investigated to understand the effects of hypoxemia on neural tissue.⁶

Skeletal muscle dysfunction is common in COPD patients.^7,8 Fiber atrophy, a shift in fiber type distribution, and mitochondrial abnormalities can contribute to skeletal muscle dysfunction. As such, individuals with COPD often experience decreased muscle strength, endurance and oxidative capacity; and increased muscle fatigability.^3
–5 Muscle oxidative capacity is of particular importance during periods of increased exertion, such as with exercise or performance of activities of daily living. These bioenergetic muscle abnormalities can have negative effects on both respiratory and locomotor muscles.

Other contributing factors associated with exercise intolerance are potentially mediated centrally.^9

–12 Specifically, the prefrontal cortex (PFC) activity has been associated with dyspnea and exercise intolerance in COPD patients.¹³ It has been reported that PFC oxygenation and blood flow increase in response to submaximal exercise in healthy adults and patients with COPD.^14,15 This increase is needed to match the heightened level of neuronal metabolism during times of increased exertion¹⁵ and with executive function (i.e. planning and strategizing), which are required during motor performance.^15,16

Near infrared spectroscopy (NIRS) is a non-invasive tool used to measure the changes in oxygenation of the chromophore hemoglobin.¹⁷ The principles and calculations of NIRS-derived parameters have been previously described.¹⁸ Briefly, NIRS emits two different wavelengths of infrared light through the target tissue.¹⁹ Some infrared light is absorbed by oxygenated hemoglobin (O₂Hb) and some by deoxygenated hemoglobin (HHb).¹⁹ The absorbance, adjusted by the modified Beer-Lambert law, is used to calculate the concentration of the chromophores (i.e. O₂Hb and HHb). The sum of these values is the total hemoglobin (tHb) that can provide an estimate of blood volume beneath the NIRS optode.²⁰ In skeletal muscle, ▵HHb is used as an index of oxygen extraction in the muscle, whereas the oxygen saturation of the tissue (StO₂) calculated as the ratio of O₂Hb to tHb in percentage, reflects the balance between oxygen delivery and utilization.²¹ In the brain, StO₂ is used as surrogate of tissue oxygenation, while an increase in ▵O₂Hb is indicative of increased neural activation.²²

To our knowledge, there are no reviews that summarize the effect of cycling on the aforementioned NIRS parameters in individuals with COPD. Given the variety of NIRS outcomes in response to exercise, a scoping review was performed to characterize and describe its application to people with COPD. Specifically, the objective of this review was to evaluate changes in NIRS outcomes of respiratory and limb muscles and cerebral oxygenation in response to cycling in COPD patients. Through an explorative scoping review methodology, this review aims to synthesize evidence on the relationship among NIRS outcomes and intolerance during cycling in these patients with COPD. Further characterization of this relationship may help to inform practice geared toward management and rehabilitation practices in chronic lung disease patients.

Methods

This review utilizes the established guidelines for scoping studies, including identifying the research question, searching and selecting relevant studies, charting the data, and summarizing and reporting the results.²³

Protocol and registration

This protocol was drafted using reported items for scoping reviews and was revised by members of the research team. The protocol was registered prospectively with Open Science Framework on May 22nd, 2020 (https://osf.io/w4b59/).

Identifying the research question

How do quadriceps, inspiratory muscles, and cerebral oxygenation levels respond to cycling in COPD patients?

Eligibility criteria

Papers that were eligible for this review were those that included COPD participants who performed a cycling intervention, and underwent evaluation using NIRS on quadriceps, inspiratory muscles, or the cerebral cortex. Included NIRS measures were: ▵HHb, ▵O₂Hb, ▵tHb, StO₂ (also termed tissue saturation index [TSI]), or blood flow (BF) measured by indocyanine green. To capture the possibility of much older yet fundamental NIRS literature, there were no date limitations assigned for this review. Only full text articles in English were included. Randomized control trials, systematic reviews and meta-analyses, controlled studies, cohort studies, case control studies, and case series and reports were eligible for this review to capture the range of study designs used to address this topic. Research in progress, conference proceedings and abstracts, dissertations and theses, and book chapters were excluded.

Information sources

A research librarian (AOC) from the University Health Network (UHN) was consulted to perform a comprehensive search strategy to identify English-language studies on near-infrared spectroscopy and cycling. The initial search strategy was developed for Ovid MEDLINE using a combination of database-specific subject headings and text words. The search strategy was then customized for each database. Searches were executed in the following databases on April 28, 2020 and updated August 14, 2020: Ovid MEDLINE, Ovid Embase, Cochrane Database of Systematic Reviews, Cochrane Central Register of Controlled Clinical Trials, CINAHL with Full Text, SPORTDiscus and Pedro. No date limits were imposed. Searches were limited to humans and adults. See Supplementary Appendix (Table A1) for a detailed search strategy.

Selection of sources of evidence

Two reviewers, MM and ST, independently screened the titles and abstracts to determine the eligibility of the studies. If this information could not be attained from reading the title and abstract, full text screening was performed. Disagreements were resolved by discussion with senior authors, WDR and DR, as needed.

Data charting process

An abstraction form developed by the research team was utilized. Data abstraction was performed independently by three reviewers (MM, ST, and LX) on included full text articles. MM performed data abstraction for all included articles with the other two reviewers serving as secondary abstractors. Any disagreements were resolved by discussion with WDR and DR. The data charting form was continuously revised through an iterative process until a consensus was reached.

Data items

The reviewers abstracted data on study design of the individual articles, inclusion and exclusion criteria, participant demographics, disease severity for COPD, cardiopulmonary parameters (heart rate, oxygen uptake), cycling protocol used, exercise progression, performance during cycling test, NIRS optode placement, and NIRS outcomes (O₂Hb, HHb, StO₂, tHb, BFI) as described above.

Critical appraisal of individual sources of evidence

A quality appraisal was performed using the modified Downs and Black assessment tool by three independent reviewers until a consensus was reached.²⁴ The modified Down’s and Black checklist consists of 15 items that assess reporting and internal and external validity that has been previously applied in several reviews.^25
–27 Quality assessments were expressed as the total of positive scores and were also expressed as a percentage of positive scores for each item and each included article. For the purposes of this scoping review, studies meeting 60–74% of the criteria was considered as moderate, ≥75% as high, and <60% as low.²⁸

Data synthesis

Studies were grouped by the target tissue, (skeletal muscle versus prefrontal cortex) and by type of cycling protocol (symptom-limited versus constant workload to exhaustion). These findings were used to generate three tables. The tables describe baseline patient demographics and characteristics of the cycling protocol, NIRS outcomes related to muscle, and NIRS outcomes related to cerebral oxygenation.

Results

The search generated 2552 titles and abstracts (Figure 1).²⁹ Removal of duplicates using Covidence online software resulted in 1325 records.³⁰ 1284 studies were excluded for the following reasons: non-COPD sampling, non-cycling exercise intervention, and research presented as abstract or conference proceedings. One study evaluated both COPD and interstitial lung disease (ILD) patients,³ but given only five ILD patients were described in this study, no further inclusion or data analysis was performed. One additional article was brought to the attention of the research team that was not captured in the search. Full-text screening was performed on 41 articles and 12 were excluded because the NIRS parameters were not measured during a cycling protocol. Twenty-nine articles were included in this scoping review.^{2

–5,9,13,17,20,21,31

–50}

Figure 1.

Preferred reporting items for systematic reviews and meta-analyses (PRISMA) flow diagram of the literature search.²⁹ Abbreviations: CDSR = Cochrane Database of Systematic Reviews; Central = Cochrane Central Register of Controlled Clinical Trials; CINAHL = Cumulative Index for Nursing and Allied Health Literature; CDSR = Cochrane Database of Systematic Reviews; Central = Cochrane Central Register of Controlled Clinical Trials; EMBASE = Excerpta Medica Database, NIRS = Near Infrared Spectroscopy; PEDRO = Physiotherapy Evidence Database.

Quality assessment score of articles ranged between 63% and 88% (10–13 maximum points) with a mean of 72%. 17 studies scored between 60% and 74%, (Table A2). The remaining studies scored 75% or greater. No studies scored less than 60%. All studies received points for: clearly stating the hypothesis and methods; describing the main outcomes in the introduction and methods section; describing the characteristics of included patients; describing the main findings; addressing if results were based on data dredging; appropriate statistical testing; and valid and reliable measurement of results. For the one question scored out of two points that addressed the distribution of principle cofounders, 86% of studies scored 1 point. Fewer than half of the articles described: the inclusion of participants that were representative of the populations they were drawn from; blinding of assessors measuring the main outcomes; recruiting participants over the same time period; and adjustment for confounding variables. The items involving reporting of actual probability values, and the inclusion of subjects that were prepared to participate were reported 52% and 90% of the time, respectively.

Detailed information regarding participant demographics are shown in Table 1. The forced expiratory volume (FEV₁) for COPD patients ranged from 19–66% predicted. The mean age range of patient participants for the included studies was 60 to 73 years old. Overall, there were 541 COPD patients (83.4% male; 14.4% female; and 2.2% not reported in one study³⁹) and 120 healthy adults (88.3% male) evaluated in the 29 papers. Fifteen studies included only male populations and 11 studies reported a higher male to female ratio. Two studies reported a higher female to male ratio^5,45; no studies reported solely a female population.

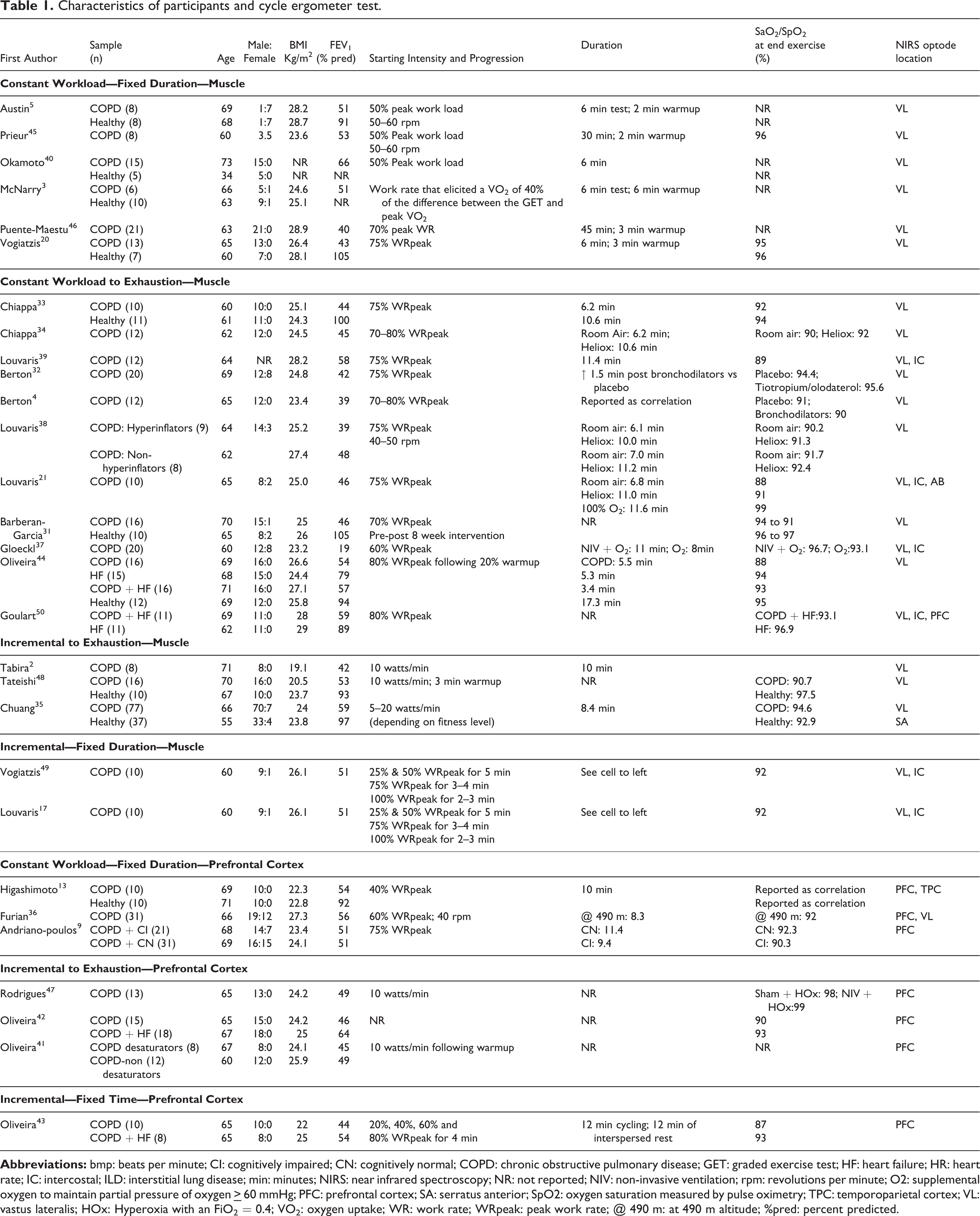

Table 1.

Characteristics of participants and cycle ergometer test.

First Author	Sample(n)	Age	Male:Female	BMIKg/m²	FEV₁ (% pred)	Starting Intensity and Progression	Duration	SaO₂/SpO₂ at end exercise(%)	NIRS optode location
Constant Workload—Fixed Duration—Muscle
Austin⁵	COPD (8)	69	1:7	28.2	51	50% peak work load 50–60 rpm	6 min test; 2 min warmup	NR	VL
Austin⁵	Healthy (8)	68	1:7	28.7	91	50% peak work load 50–60 rpm	6 min test; 2 min warmup	NR	VL
Prieur⁴⁵	COPD (8)	60	3.5	23.6	53	50% Peak work load 50–60 rpm	30 min; 2 min warmup	96	VL
Okamoto⁴⁰	COPD (15)	73	15:0	NR	66	50% Peak work load	6 min	NR	VL
Okamoto⁴⁰	Healthy (5)	34	5:0	NR	NR	50% Peak work load	6 min	NR	VL
McNarry³	COPD (6)	66	5:1	24.6	51	Work rate that elicited a VO₂ of 40% of the difference between the GET and peak VO₂	6 min test; 6 min warmup	NR	VL
McNarry³	Healthy (10)	63	9:1	25.1	NR		6 min test; 6 min warmup	NR	VL
Puente-Maestu⁴⁶	COPD (21)	63	21:0	28.9	40	70% peak WR	45 min; 3 min warmup	NR	VL
Vogiatzis²⁰	COPD (13)	65	13:0	26.4	43	75% WRpeak	6 min; 3 min warmup	95	VL
Vogiatzis²⁰	Healthy (7)	60	7:0	28.1	105	75% WRpeak	6 min; 3 min warmup	96	VL
Constant Workload to Exhaustion—Muscle
Chiappa³³	COPD (10)	60	10:0	25.1	44	75% WRpeak	6.2 min	92	VL
Chiappa³³	Healthy (11)	61	11:0	24.3	100	75% WRpeak	10.6 min	94	VL
Chiappa³⁴	COPD (12)	62	12:0	24.5	45	70–80% WRpeak	Room Air: 6.2 min; Heliox: 10.6 min	Room air: 90; Heliox: 92	VL
Louvaris³⁹	COPD (12)	64	NR	28.2	58	75% WRpeak	11.4 min	89	VL, IC
Berton³²	COPD (20)	69	12:8	24.8	42	75% WRpeak	↑ 1.5 min post bronchodilators vs placebo	Placebo: 94.4; Tiotropium/olodaterol: 95.6	VL
Berton⁴	COPD (12)	65	12:0	23.4	39	70–80% WRpeak	Reported as correlation	Placebo: 91; Bronchodilators: 90	VL
Louvaris³⁸	COPD: Hyperinflators (9)	64	14:3	25.2	39	75% WRpeak 40–50 rpm	Room air: 6.1 min Heliox: 10.0 min	Room air: 90.2 Heliox: 91.3	VL
Louvaris³⁸	COPD: Non-hyperinflators (8)	62	14:3	27.4	48	75% WRpeak 40–50 rpm	Room air: 7.0 min Heliox: 11.2 min	Room air: 91.7 Heliox: 92.4	VL
Louvaris²¹	COPD (10)	65	8:2	25.0	46	75% WRpeak	Room air: 6.8 min Heliox: 11.0 min 100% O₂: 11.6 min	88 91 99	VL, IC, AB
Barberan-Garcia³¹	COPD (16)	70	15:1	25	46	70% WRpeak Pre-post 8 week intervention	NR	94 to 91	VL
Barberan-Garcia³¹	Healthy (10)	65	8:2	26	105	70% WRpeak Pre-post 8 week intervention	NR	96 to 97	VL
Gloeckl³⁷	COPD (20)	60	12:8	23.2	19	60% WRpeak	NIV + O₂: 11 min; O₂: 8min	NIV + O₂: 96.7; O₂:93.1	VL, IC
Oliveira⁴⁴	COPD (16)	69	16:0	26.6	54	80% WRpeak following 20% warmup	COPD: 5.5 min	88	VL
	HF (15)	68	15:0	24.4	79		5.3 min	94
	COPD + HF (16)	71	16:0	27.1	57		3.4 min	93
	Healthy (12)	69	12:0	25.8	94		17.3 min	95
Goulart⁵⁰	COPD + HF (11)	69	11:0	28	59	80% WRpeak	NR	COPD + HF:93.1	VL, IC, PFC
Goulart⁵⁰	HF (11)	62	11:0	29	89	80% WRpeak	NR	HF: 96.9	VL, IC, PFC
Incremental to Exhaustion—Muscle
Tabira²	COPD (8)	71	8:0	19.1	42	10 watts/min	10 min		VL
Tateishi⁴⁸	COPD (16)	70	16:0	20.5	53	10 watts/min; 3 min warmup	NR	COPD: 90.7	VL
Tateishi⁴⁸	Healthy (10)	67	10:0	23.7	93	10 watts/min; 3 min warmup	NR	Healthy: 97.5	VL
Chuang³⁵	COPD (77)	66	70:7	24	59	5–20 watts/min(depending on fitness level)	8.4 min	COPD: 94.6	VL
Chuang³⁵	Healthy (37)	55	33:4	23.8	97	5–20 watts/min(depending on fitness level)	8.4 min	Healthy: 92.9	SA
Incremental—Fixed Duration—Muscle
Vogiatzis⁴⁹	COPD (10)	60	9:1	26.1	51	25% & 50% WRpeak for 5 min75% WRpeak for 3–4 min100% WRpeak for 2–3 min	See cell to left	92	VL, IC
Louvaris¹⁷	COPD (10)	60	9:1	26.1	51	25% & 50% WRpeak for 5 min75% WRpeak for 3–4 min100% WRpeak for 2–3 min	See cell to left	92	VL, IC
Constant Workload—Fixed Duration—Prefrontal Cortex
Higashimoto¹³	COPD (10)	69	10:0	22.3	54	40% WRpeak	10 min	Reported as correlation	PFC, TPC
Higashimoto¹³	Healthy (10)	71	10:0	22.8	92	40% WRpeak	10 min	Reported as correlation	PFC, TPC
Furian³⁶	COPD (31)	66	19:12	27.3	56	60% WRpeak; 40 rpm	@ 490 m: 8.3	@ 490 m: 92	PFC, VL
Andriano-poulos⁹	COPD + CI (21)	68	14:7	23.4	51	75% WRpeak	CN: 11.4	CN: 92.3	PFC
Andriano-poulos⁹	COPD + CN (31)	69	16:15	24.1	51	75% WRpeak	CI: 9.4	CI: 90.3	PFC
Incremental to Exhaustion—Prefrontal Cortex
Rodrigues⁴⁷	COPD (13)	65	13:0	24.2	49	10 watts/min	NR	Sham + HOx: 98; NIV + HOx:99	PFC
Oliveira⁴²	COPD (15)	65	15:0	24.2	46	NR	NR	90	PFC
Oliveira⁴²	COPD + HF (18)	67	18:0	25	64	NR	NR	93	PFC
Oliveira⁴¹	COPD desaturators (8)	67	8:0	24.1	45	10 watts/min following warmup	NR	NR	PFC
Oliveira⁴¹	COPD-non (12) desaturators	60	12:0	25.9	49	10 watts/min following warmup	NR	NR	PFC
Incremental—Fixed Time—Prefrontal Cortex
Oliveira⁴³	COPD (10)	65	10:0	22	44	20%, 40%, 60% and80% WRpeak for 4 min	12 min cycling; 12 min of interspersed rest	87	PFC
Oliveira⁴³	COPD + HF (8)	65	8:0	25	54	20%, 40%, 60% and80% WRpeak for 4 min	12 min cycling; 12 min of interspersed rest	93	PFC

Abbreviations: bmp: beats per minute; CI: cognitively impaired; CN: cognitively normal; COPD: chronic obstructive pulmonary disease; GET: graded exercise test; HF: heart failure; HR: heart rate; IC: intercostal; ILD: interstitial lung disease; min: minutes; NIRS: near infrared spectroscopy; NR: not reported; NIV: non-invasive ventilation; rpm: revolutions per minute; O2: supplemental oxygen to maintain partial pressure of oxygen > 60 mmHg; PFC: prefrontal cortex; SA: serratus anterior; SpO2: oxygen saturation measured by pulse oximetry; TPC: temporoparietal cortex; VL: vastus lateralis; HOx: Hyperoxia with an FiO₂ = 0.4; VO₂: oxygen uptake; WR: work rate; WRpeak: peak work rate; @ 490 m: at 490 m altitude; %pred: percent predicted.

With respect to the exercise intervention, the majority of studies (n = 20) utilized constant work rate cycling. The remaining studies (n = 9) reported use of a symptom-limited incremental cycling protocol. Of the 12 studies that utilized constant work rate cycling, nine studies reported a pre-determined exercise time, ranging from 6 to 45 minutes. All remaining studies utilizing constant work rate and incremental protocols required participants to cycle to exhaustion, ranging from 6 to 17 minutes. Cycling workloads for COPD patients were consistently lower than those performed by healthy participants (see further details below).

In terms of placement of the NIRS optodes, 23 studies monitored NIRS parameters of the vastus lateralis (VL) and one study monitored the vastus medialis (VM).³¹ Six studies evaluated the 7th intercostal muscle (IC),^{17,21,37,39,49,50} one study monitored the serratus anterior (SA),³⁵ and one study examined the abdominal muscles, over the upper rectus abdominis.²¹ Eight studies evaluated oxygenation of the cerebral cortex ^{9,13,36,41
–43,47,50} and two studies examined the VL in conjunction with the cerebral cortex.^36,50

Vastus lateralis oxygenation and deoxygenation responses to exercise

Of the studies that reported changes in oxygen extraction (HHb) of VL (n = 8), all reported a statistically significant increase in this value in response to cycling in COPD (Table 2). Of the studies that monitored VL or VM StO2 (n = 11), most studies^{2,20,31,35,36,38,39,45,48} reported a decrease in this value, whereas two studies reported unchanging levels of VL StO₂ (Table 2).^5,37

Table 2.

Muscle oxygenation/deoxygenation and blood volume/flow outcomes—changes from baseline to peak exercise, between treatments or between groups.

Author		Sample	Muscle	Oxygenation/Deoxygenation**		Blood volume (tHb)/Blood flow
Constant Workload—Fixed Duration
Austin5	Inspectra	COPD	VL	VL StO₂: ↔	Rest: 35.1 ± 17.2; Min 6 (last): 32.8 ± 27.3	NR
Austin5	Inspectra	Healthy	VL	VL StO2: ↔	Rest: 33. ± 15.4; Min 6 (last): 28.1 ± 12.8	NR
Vogiatzis20	Inspectra	COPD	VL	VL StO₂: ↓	Rest: 61 ± 5; End exercise 45 ± 4; P < 0.05	NR
Vogiatzis20	Inspectra	Healthy	VL	VL StO₂: ↓	Rest: 74 ± 2; End exercise: 38 ± 6; P < 0.05 between groups	NR
Prieur45	Portamon.	COPD/FES Placebo/cycling	VL	VL O₂Hb: ↑VL HHb: ↑VL StO₂: ↓	%Δ 164 ± 32;%Δ 212 ± 65;%Δ −15.5 ± 6.3;	tHb:↑	%Δ 65.9 ± 30;
Prieur45	Portamon.	COPD/FES/cycling	VL	VL O₂Hb: ↑VL HHb: ↑VL StO₂: ↓	%Δ 133 ± 10;%Δ 84 ± 29; P < 0.0001 between groups%Δ −7.7 ± 8; P < 0.0001 between groups	tHb:↑	%Δ 39.4 ± 15.4;
Okamoto40	HEO-200, OMRON	COPD	VL		O₂Hb recovery τ: 25.6 ± 12.9 s	NR
Okamoto40	HEO-200, OMRON	Healthy	VL		O₂Hb recovery τ: 11.1 ± 3.3 s; P = 0.025 between groups	NR
McNarry3	Portamon	COPD	VL	HHb time delay:HHb τ	18 ± 9 s51 ± 23 s	NR
Puente-Maestu46	CWS 2000	COPD—Pre-post training	VL	O₂Hb τ:↓	Pre-post training ▵: −20 ± 23s; P < 0.01	NR
Furian36	NIRO-200NX	COPD	VL	VL StO₂: ↓	Baseline: 68(64;71)%;Post exercise: 59(53;64)%; P < 0.05 from baseline. Medians and quartiles shown.	NR
Constant Workload to Exhaustion
Chiappa33	NIRO 200	COPD	VL	VL HHb: ↑	HHb amplitude: 60.1 ± 30.5HHb time delay: 10.3 ± 3.9 sHHb τ: 6.7 ± 31.2 s;	NR
Chiappa33	NIRO 200	Healthy	VL	VL HHb: ↑expressed as %	HHb amplitude: 73.3 ± 46.7HHb time delay: 9.2 ± 3.2 sHHb τ: 9.8 ± 1.4 s; P < 0.01 between groups	NR
Chiappa34	NIRO 200	COPD/Room air	VL	VL HHb: ↑expressed as %	HHb amplitude: 209 ± 154HHb: time delay: 12.4 ± 2.2 sHHb τ: 6.1 ± 1.5 s	NR
Chiappa34	NIRO 200	COPD/Heliox	VL	VL HHb: ↑expressed as %	HHb amplitude: 215 ± 120HHb: time delay: 12.1 ± 2.1 sHHb τ: 8.8 ± 3.8 s; P < 0.05 between treatments	NR
Berton4	NIRO 200	COPD/ placebo	VL	VL HHb: ↑	HHb Time delay:10.2 ± 2.3sHHb τ: 4.9 ± 1.8s	NR
Berton4	NIRO 200	COPD/ BD	VL	VL HHb: ↑	Time delay: 10.1 ± 1.7sHHb τ: 9.1 ± 3.2s; P < 0.001 between treatments	NR
Berton32	OxyMon	COPD/ placebo	VL	VL HHb: ↑		BFI ↑	0.82 ± 0.62
Berton32	OxyMon	COPD + tiotropium/olodaterol	VL	VL HHb: ↑		BFI ↑	0.73 ± 0.50; NS between treatments
Louvaris39	NIRO 200	COPD Constant WR protocol	VL7th IC	VL StO2: ↓ ↓IC: StO2: ↓ ↓	ΔVL StO2: −15.55 ± 9.5 μmol/lΔIC: StO2: −5.33 ± 2.2 μmol/l	VL tHbIC tHb
Louvaris39	NIRO 200	COPD interval exercise protocol	VL7th IC	VL StO2: ↓IC: StO2: ↓	ΔVL StO2: −9.10 ± 3.8; P < 0.014 from constant WRΔIC: StO2: −1.71 ± 2.3; P < 0.0002 from constant WR	VL tHb IC tHb	P = 0.019; interval greater than constant WRP = 0.26; interval greater than constant WR
Louvaris38	NIRO 200	COPD Hyperinflators	VL	VL StO₂: ↓	3.4 ± 0.8% less at isotime on heliox than room air	BF:↑	Δ BF: 6.1 ± 1.3 ml·min⁻¹·100 g⁻¹ greater at isotime on heliox than on room air
Louvaris38		COPD non-hyperinflators		VL StO₂: ↓	3.6 ± 0.9% less at isotime on heliox than room air	BF:↑	Δ BF: 7.2 ± 1.6 ml·min⁻¹·100 g⁻¹ greater at isotime on heliox than on room air
Goulart50	Oxymon	COPD + HF	VLIC	VL HHb: ↑IC HHb: ↑		NR
Goulart50	Oxymon	HF		VL HHb: ↑IC HHb: ↑	changes in VL HHb and IC HHb occurred a longer t_lim in HF compared to COPD + HF group (P < 0.05)	NR
Louvaris21	NIRO 200	COPD/Room Air	VLAB7th IC	NR		VL BF: ↑AB BF: ↑IC BF: ↑	25.4 ± 2.9 ml·min⁻¹·100 g⁻¹ 6.0 ± 0.5 ml·min⁻¹·100 g⁻¹ 6.8 ± 0.5 ml·min⁻¹·100 g⁻¹
		COPD/heliox				VL BF: ↑AB BF: ↑IC BF: ↑	30.2 ± 4.1 ml·min⁻¹·100 g⁻¹; P < 0.01 from RA8.0 ± 0.7 ml·min⁻¹·100 g⁻¹; P < 0.05 from RA9.5 ± 0.6 ml·min⁻¹·100 g⁻¹; P < 0.05 from RA
		COPD/100% oxygen				VL BF: ↑AB BF: ↑IC BF: ↑	Less than heliox (p < 0.01)Less than heliox (p < 0.05)Less than heliox (p < 0.05)
Barberan-Garcia31	Inspectra	COPD	VM	VM StO₂: ↓	Pre-post training ΔStO₂ = −8 ± 10%; P < 0.05 from pre training	NR
Barberan-Garcia31	Inspectra	Healthy	VM	VM StO₂: ↓	Pre-post training ΔStO₂ = −10 ± 12%; P < 0.05 from pre training
Gloeckl37	PortaLite Artinis	COPD/O₂	VL7th IC	VL StO₂: ↔7th IC StO₂: ↔.	1.00 ± 2.27% difference from baseline1.75 ± 3.31% difference from baseline	NR
Gloeckl37	PortaLite Artinis	COPD/O₂/NIV		VL StO₂: ↔7th IC StO₂: ↔	1.51 ± 2.12% difference from baseline. NS between treatments−.29 ± 4.26% difference from baseline. NS between treatments
Oliveira44	NIRO 200	COPD	VL	VL HHb: ↑	Highest ΔVL HHb in COPD + HF group at 80% WR compared to other groups; Δ VL HHb in HF greater than COPD and Healthy groups (P < 0.05).	BFI: ↑	Lowest VL BFI in COPD + HF at WRpeak versus healthy and COPD; and highest VL BFI in healthy adults at WRpeak compared to all three groups (P < 0.05).
		HF		VL HHb: ↑		BFI: ↑
		COPD + HF		VL HHb: ↑		BFI: ↑
		Healthy		VL HHb: ↑		BFI: ↑
Incremental to Exhaustion
Tabira2	BOM-L1TRW	COPD	VL	VL O₂Hb: ↓VL HHb: ↑VL StO₂: ↓	Data expressed as correlation coefficients; correlation between oxygen consumption, muscle oxygenation, heart rate, and oxygen saturation measured by pulse oximetry	VL tHb: ↑	Data expressed as correlation coefficients; correlation between oxygen consumption, muscle oxygenation, heart rate, and oxygen saturation measured by pulse oximetry
Tateishi48	Hamamatsu	COPD	VL	VL StO₂: ↓	Rest: 54.9 ± 6.2; Peak: 47.3 ± 6.8; P < 0.05 from rest	NR	NR
Tateishi48	Hamamatsu	Healthy	VL	VL StO₂: ↓	Rest: 58.4 ± 8.0; Peak: 49.9 ± 7.7; P < 0.05 from rest; StO₂/WR slope greater in healthy than COPD group (P < 0.001)	NR	NR
Chuang35	OxiplexTS	COPD	VLSA	VL HHb: ↑VL StO₂: ↓SA HHb: ↑SA StO₂: ↓	Loaded cycling significantly increased in VL HHb and SA HHb and significantly decreased in VL StO₂ and SA StO₂ in both groups (P < 0.05). NS between group differences.	NR	NR
Chuang35	OxiplexTS	Healthy	VLSA	VL HHb: ↑VL StO₂: ↓SA HHb: ↑SA StO₂: ↓		NR	NR
Incremental—Fixed Duration
Vogiatzis49	NR	COPD	VLIC	NR		VL BFI ↑IC BFI ↓	WRpeak: 39.8 ± 7.1 ml/min per 100 g⁻¹ WRpeak: 4.5 ± 0.8 ml/min per 100 g⁻¹ (P = 0.003)
Louvaris¹⁷	NIRO-200	COPD	VL7th IC	NR		VL BFI ↑IC BFI: ↓	Rest to WRpeak: 2.8 ± 0.4 to 39.7 ± 7.0 ml·min⁻¹·100 g⁻¹ Rest to WRpeak: 2.56 ± 0.23 to 1.69 ± 0.14 ml·min⁻¹·100 g⁻¹

Abbreviations: AB: abdominal muscle; BF: blood flow; CI: cognitively impaired; CN: cognitively normal; COPD: chronic obstructive pulmonary disease; GET: graded exercise test; HF: heart failure; HHb: deoxyhemoglobin; HOx: Hyperoxia with an FiO₂ = 0.4; IC: intercostal; ILD: interstitial lung disease; min: minutes; NIRS: near infrared spectroscopy; NIV: non-invasive ventilation; rpm: revolutions per minute; NR: not reported; NS: not significant; O₂Hb: oxyhemoglobin; O₂: supplemental oxygen to maintain partial pressure of oxygen > 60 mmHg; RA: room air; SA: serratus anterior; StO₂, oxygen saturation of tissue; tHb: total hemoglobin; t_lim: endurance time; VL: vastus lateralis; WR: work rate; WRpeak: peak work rate; ↑: increased; ↓: decreased; ↔: no change; Δ: change; τ: time constant; %Δ: percent change from baseline

*BOM-L1TRW, Omegawave, Tokyo, Japan; CWS 2000 Runman, Philadelphia, USA; Inspectra Tissue Spectrometer Model 325 System, Hutchinson Technology Inc., Hutchinson, MN; OxiplexTS^TM system Frequency Domain ISS, Champaign, IL, USA; NIRO-200NX, Hamamatsu, Photonics Japan; Oxymon, Artinis Medical Systems, Elst, The Netherlands; PortaLite, Artinis Medical Systems, Elst, The Netherlands; Portamon, Artinis Medical Systems, Elst, The Netherlands

** units for O₂Hb, HHb and tHb can be expressed as arbitrary units (AU) or in micromolar (μM), which in essence have a similar meaning because the volume through which NIRS transmits light is not determined by many devices.

Vastus lateralis tHb and blood flow responses to exercise

Of the studies that examined VL tHb or BFI measured by indocyanine green (ICG), all reported an increase in this value throughout cycling (Table 2).^{2,17,21,32,38,39,43,45,49}

Muscle oxygenation and blood flow in COPD compared to healthy controls

Of the 23 studies examining muscle oxygenation, eight articles compared COPD to healthy participants (Table 1). Patients with COPD demonstrated a shorter VL HHb time constant in one report³³ and the response magnitude of VL HHb relative to workload did not differ from healthy controls in one study.³⁵ Moreover, of the studies that measured StO₂ (n = 5), one study reported that VL StO₂ levels were lower in healthy controls compared to COPD patients,²⁰ and two studies observed a larger or more rapid decrease in response to exercise in healthy adults.^20,48 BFI was lower in limb muscles of COPD patients compared to healthy individuals.⁴⁴ With respect to the cycling protocol, two studies utilized incremental cycling, with peak workloads that were lower in COPD patients compared to healthy controls (COPD range: 73 to 87 watts versus Controls: 113 to 144 watts; relative work rate difference of 35 to 40% lower in COPD).^35,48 For constant workload cycling, COPD patients and healthy controls cycled at a similar percentage of maximum effort generally ranging from 50 to 75% as shown in Table 1, but this occurred at a lower absolute workload (watts) for COPD patients (peak work rate difference of 30 to 76% lower).^{3,5,20,31,33,40}

Muscle deoxygenation and blood flow in COPD compared to congestive heart failure

COPD patients with congestive heart failure (HF) experienced a more marked increase in VL and IC HHb compared to those with COPD (Table 2).^44,50 BFI was lower in individuals with COPD and HF overlap compared to those with only COPD.⁴⁴

The effect of respiratory aids on muscle oxygenation

Two studies examined the effects of heliox on exercise performance. One study demonstrated that the use of heliox was effective in slowing the onset of the VL HHb response³⁴ and the other showed greater VL, IC and rectus abdominis blood flow compared to room air.²¹ Other interventions utilized were bronchodilators^4,32 and non-invasive ventilation (NIV).³⁷ Only one of these three studies reported that the use of respiratory aids, namely bronchodilators,⁴ elicited a VL HHb response that was slower than the placebo treatment.

Pre-frontal cortical oxygenation and deoxygenation response to exercise

Of the studies that examined cerebral oxygenation (n = 8), five studies^{13,41
–43,47} indicated that oxygen delivery (O₂Hb) levels increased during exercise and one study⁹ reported no significant changes to O₂Hb in COPD patients (Table 3). Two studies reported a decline in cerebral O₂Hb in response to cycling in the patient group.^42,50 Oliveira et al reported that COPD patients with HF demonstrated a decline in PFC O₂Hb, which is consistent with the findings of Goulart et al who reported a decrease in the PFC O₂Hb in the HF group.^42,50

Table 3.

Prefrontal cortex oxygenation/deoxygenation and blood volume/flow outcomes—changes from baseline to the endpoint of exercise.

Author	NIRS Device*	Sample	Oxygenation/Deoxygenation Outcomes*		Blood volume (tHb)/Blood flow outcomes
Constant Workload—fixed duration
Higashimoto13	ETG-7100	COPD	ΔPFC O₂Hb: ↑	NS between groups	ΔPFC tHb	Tended to increase but NS
Higashimoto13	ETG-7100	Healthy	ΔPFC O₂Hb: ↑	NS between groups	ΔPFC tHb	Tended to increase but NS
Andriano-poulos 9	PortaLite	COPD + CN	ΔPFC HHb: ↔ΔPFC O₂Hb: ↔ΔPFC StO₂: ↔	0.7 ± 1.5 μM sec⁻¹ 2.3 ± 3.3 μM sec⁻¹ −0.24 ± 2.7%	ΔPFC tHb: ↑	3.0 ± 3.2 μM sec⁻¹; P = 0.001 from baseline
Andriano-poulos 9	PortaLite	COPD + CI	ΔPFC HHb: ↔ΔPFC O₂Hb: ↔ΔPFC StO₂: ↔	0.5 ± 1 μM sec⁻¹ 1.5 ± 3.2 μM sec⁻¹ −0.27 ± 3.2%	ΔPFC tHb: ↑	2.0 ± 3.2 μM sec⁻¹; P = 0.028 from baseline.NS between groups
Furian 36	NIRO-200NX	COPD	ΔPFC StO₂: ↔	Baseline: 62(59;67)%; Post exercise: 62(56;66)%; Median (quartiles)	NR
Constant workload to exhaustion
Goulart 50	Oxymon,	COPD + HF	ΔPFC O₂Hb: ↓↓	P < 0.05 between groups	NR
Goulart 50	Oxymon,	HF	ΔPFC O₂Hb: ↓	P < 0.05 between groups	NR
Incremental to exhaustion
Rodrigues47	NIRO 200	COPD/HOx	ΔPFC O₂Hb: ↑	1.5 ± 0.4 fold; P < 0.05 from baseline	NR
Rodrigues47	NIRO 200	COPD/NIV/HOx	ΔPFC O₂Hb: ↑↑	1.9 ± 0.6 fold; P < 0.05 from baselineP < 0.05 between treatments at WRpeak	NR
Oliveira42	NIRO 200	COPD	ΔPFC O₂Hb: ↑	P < 0.05 between treatments at WRpeak	NR
Oliveira42	NIRO 200	COPD + HF	ΔPFC O₂Hb: ↓	P < 0.05 between treatments at WRpeak	NR
Oliveira 41	NIRO 200	COPD desaturators	ΔPFC O₂Hb: ↑	Normoxia: 0.57 ± 0.20 fold; Hyperoxia: 2.09 ± 0.42 fold; P < 0.05 between treatments	NR
Oliveira 41	NIRO 200	COPD non-desaturators	ΔPFC O₂Hb: ↑	Normoxia: 0.78 ± 0.37 fold;Hyperoxia: 0.71 ± 0.52 fold; P < 0.05 between groups for both treatments	NR
Incremental—Fixed time
Oliveira 43	NIRO 200	COPD	ΔPFC O₂Hb: ↑	P < 0.05 from baseline	PFC BF: ↑	41.1 ± 8.9% increase from rest to 80% WRpeak
Oliveira 43	NIRO 200	COPD + HF	ΔPFC O₂Hb: ↓	P < 0.05 between groups at 80% WRpeak	PFC BF: ↓	10.2 ± 8.2% decrease at WRpeak

Abbreviations: BF: blood flow; CI: cognitively impaired; CN: cognitively normal; COPD: chronic obstructive pulmonary disease; HF: heart failure; HHb: deoxyhemoglobin; HOx: Hyperoxia with an FiO₂ = 0.4; NIV: non-invasive ventilation; NR: not reported; NS: not significant; O₂Hb: oxyhemoglobin; PFC: Prefrontal cortex; StO₂, oxygen saturation of tissue; tHb: total hemoglobin; WRpeak; Peak work rate; ↑: increased; ↓: decreased; ↔: no change; Δ: change;

*ETG-7100, Hitachi Medical Corporation, Tokyo, Japan; NIRO 200, Hamamatsu Photonics KK, Hamamatsu, Japan; Oxymon, Artinis Medical Systems, Elst, The Netherlands; PortaLite, Artinis Medical Systems, Elst, The Netherlands.

Three studies examined the tHb response to cycling.^9,13,43 Two studies^9,43 reported an increase in PFC tHb compared to baseline in COPD patients, while one study reported that COPD patients with HF demonstrated a decrease in PFC blood flow in response to exercise compared to COPD controls.⁴³ Rodrigues et al. demonstrated that the change in PFC oxygenation in COPD patients was greater in those performing cycling using a combination of non-invasive ventilatory support and heliox compared to heliox alone, suggesting a possible central hemodynamic benefit with non-invasive ventilatory support.⁴⁷

Pre-frontal cortical oxygenation changes in COPD patients compared to control

Only one study compared PFC O₂Hb levels in COPD patients to that of healthy controls.¹³ Although both groups demonstrated increases in this variable, between group differences were not significant.

Discussion

Summary of results

The main findings of this scoping review of 541 COPD patients (83% males) provides evidence that oxygen extraction (HHb) increases more quickly in the vastus lateralis at lower absolute workloads (range of 30 to 76% lower) during cycling compared to healthy persons. Although this response is faster in COPD patients compared to healthy adults, the increase in oxygen extraction experienced by patients can be mitigated by the use of respiratory aids such as heliox and bronchodilators. Of the studies that reported VL StO₂, most demonstrated a decrease during both constant workload and incremental cycling. As expected during exercise, VL blood flow increased during cycling as indicated by an increase in VL tHb or ICG blood flow measures, but these increases were lower in COPD compared to healthy individuals. Even though there were fewer reports evaluating PFC compared to peripheral muscle oxygenation, cortical oxygen levels were observed to increase during cycling in COPD patients, but a diminished response to exercise was shown in COPD patients with HF.

Mechanisms of oxygen extraction

Our scoping review revealed that VL HHb increased more quickly during cycling in patients with COPD compared to healthy people with submaximal exercise, typically using a constant workload protocol ranging from 50 to 75% peak work rate. Even though relative work intensity was commonly used to compare between COPD and controls, several studies accounted for the lower workload in COPD participants by evaluating the rate of change in HHb. The quicker rate of oxygen extraction (HHb) may be attributed to increased local acidosis,⁵¹ which reduces hemoglobin’s affinity for oxygen by virtue of the “Bohr effect.”⁵² In addition, it has been proposed that the heightened levels of peripheral muscle deoxygenation at lower absolute workloads observed in COPD patients may be a result of impaired oxygen delivery due to low gas exchange and impaired cardiovascular function.⁴⁴ The altered mechanics of breathing in these patients may cause disturbances in cardiac output leading to an imbalance between oxygen delivery and extraction, reflected as lower StO₂ levels.⁵³ Furthermore, the increased rate of oxygen extraction can’t be attributed to metabolic oxidative capacity, given the decreased oxidative enzymatic activity reported in skeletal muscle of COPD patients.^51,54

The effect of respiratory aids on muscle oxygenation

Several studies indicate that blood flow to the quadriceps increases during cycling in patients with COPD . Notably, this muscle perfusion can be enhanced by treatments such as NIV and Heliox.^4,34,38 These interventions improve oxygen delivery by countering the characteristic exercise onset of dynamic hyperinflation in COPD, and reducing the work of breathing.³⁸ Furthermore, lung hyperinflation may increase ventricular afterload and decrease pre-load, resulting in a decrease in stroke volume and cardiac output.³² This effect on cardiac output may have downstream effects on peripheral muscle oxygen saturation, especially during periods of heightened cardiac and ventilatory requirements with exercise. Additional benefits of heliox include a reduction of diaphragmatic activity, and increase in exercise tolerance, and less leg discomfort.^21,34,38 In addition, treatment with inhaled bronchodilators can reduce airflow obstruction leading to slower oxygen extraction kinetics following treatment.⁴ Thus, as demonstrated in several studies, treatment aimed at reducing lung hyperinflation and airway obstruction may improve limb muscle oxygen saturation and slow the kinetics of oxygen extraction by alleviating the mechanical burden of breathing in patients with COPD.^4,32,34

Blood flow distribution

The rationale for the aforementioned benefits of respiratory aids coincide with findings of blood flow distribution relative to respiratory muscle loading.⁵ It has been postulated that blood flow is redistributed from limb to respiratory muscles when the respiratory load is increased in COPD and healthy controls, or from the respiratory to the limb muscle when the respiratory load is decreased.⁵⁵ This postulate is supported by a study of healthy adults exposed to expiratory flow limitation (EFL) during exercise; they demonstrated an increased intercostal muscle blood flow index (BFI), but a decrease in quadriceps BFI suggesting a redistribution of blood flow from the locomotor to the respiratory muscles.⁵⁶ This occurred at an exercise level that demanded submaximal cardiac output when leg muscle blood flow could have been sustained, if cardiac output was the rate limiting factor. Alternatively, other factors such as hypoxemia and hypercapnia associated with EFL may have resulted in increased sympathetic discharge and consequent vasoconstriction, leading to locomotor blood flow reduction, as opposed to redistribution.⁵⁵

More recent studies have investigated blood flow distribution during cycling in COPD patients. When individuals with COPD were given 100% oxygen or heliox (helium 79% and oxygen 21%), in an attempt to reduce the work of breathing during constant load cycling at 75% of peak capacity, no redistribution of blood flow from the intercostals relative to the vastus lateralis was observed.²¹ Moreover, 100% oxygen and heliox compared to room air, resulted in longer cycling endurance times compared to the room air condition. At the end of cycling, intercostal and quadriceps muscle blood flow were both greater with heliox compared with room air or 100% oxygen.²¹ Although the work of breathing and dyspnea was reduced with the use of heliox, redistribution of blood flow from intercostal muscles to the locomotor muscles was not observed. Further work investigating other mechanisms of how heliox decreases dyspnea and improves exercise endurance is needed. The changes in blood flow redistribution of other inspiratory muscles (i.e. diaphragm, sternocleidomastoid) could be one potential mechanism.

Blood flow distribution among respiratory and locomotor muscles may vary during different types of exercise stimuli. A recent study conducted on 18 COPD patients by Louvaris et al.⁵⁷ demonstrated that during high intensity constant-load cycling (80% peak work rate), intercostals, scalene, and abdominal muscle blood flow did not change from rest with cycling despite ongoing cardiac output reserve, and the muscle oxygenation saturation in these muscles was lower compared to the hyperpneic state. This contrasts with the isocapnic hypernea protocol performed without locomotor muscle movement, where increases in muscle perfusion of the aforementioned muscles was observed for a given minute ventilation.⁵⁷ Thus, these results highlight that high-intensity exercise impairs the blood flow to the extra-diaphragmatic respiratory muscles in COPD patients and may in part account for the dyspnea experienced by COPD patients with exercise.^55,57 However, an important limitation of the blood flow distribution theory is that blood flow to the diaphragm and accessory muscles of inspiration have not been measured simultaneously. Furthermore, to our knowledge there have been no reports describing potential differences in blood flow redistribution in COPD compared to healthy controls utilizing a similar ventilatory and exercise protocol. This is an area in need of future investigation to further understand the blood flow distribution theory between respiratory and locomotor muscles.⁵⁵

Cerebral oxygenation

Compared to the breadth of studies examining peripheral muscle oxygenation and blood flow in respiratory patients, investigations of prefrontal cortical oxygenation response to exercise is less conclusive. However, several reports demonstrate that cortical oxygen levels (O₂Hb) of COPD patients increased in response to exercise,^{13,41,43,44,47} albeit to a lesser extent or decreased in COPD patients with HF.^44,50 When neural activity and associated metabolism increases, cerebral vessels dilate to enhance regional oxygen availability.⁹ This results in higher tHb values in addition to increased O₂Hb.¹³ In contrast, prefrontal cortical oxygenation increases during incremental cycling in healthy persons but decreases preceding task failure due to exhaustion.⁵⁸ Although this has been considered a mechanism of “central fatigue,” it may be attributed to hyperventilation induced hypocapnia and consequent cerebral vasoconstriction.⁵⁸ In contrast, hyper- rather than hypocapnia may occur at task failure in COPD patients in those with marked ventilatory limitations, postulated to be related to gas exchange abnormalities and significant hyperinflation.^59,60 The specific mechanisms contributing to cerebral oxygenation during cycling in COPD patients with and without HF require further delineation.

The influence of heart failure on cerebral oxygenation

COPD patients with HF demonstrated either a decrease in cerebral oxygenation or had no change in oxygenation compared to COPD controls,^43,44,50 which differed from responses of COPD patients without this comorbidity. Furthermore Oliveira et al. reported that in addition to the diminished cerebral oxygenation increase in COPD patients with HF, prefrontal cortical blood flow decreased, while the COPD-only group increased blood flow to this region.⁴³ Impairments in cerebral blood flow and oxygenation in COPD patients with HF may be attributed to the decrease in cardiac output and lower amounts of cerebral vasodilation associated with the HF state.⁴³ In addition, it has been suggested that cerebral hypoperfusion can result in the abnormalities in cerebral metabolism that are commonly observed in patients with advanced lung disease.^61,62

Limitations

This scoping review has some limitations. For one, NIRS parameters were expressed in a variety of ways across the included studies. Thus, a meta-analysis was not possible due to the diverse NIRS measurement techniques, lack of reporting of absolute changes, and several studies not reporting participant adipose tissue thickness beneath NIRS optode sites. Adipose tissue thickness (>10 mm) is an important exclusion criteria because thicker adipose can confound NIRS measurements by increasing resting oxygenation values, reducing optical density, and decreasing sensitivity to detect oxygenation changes in the tissue of interest, in this case muscle or prefrontal cortex.⁶³ Moreover, this review is limited to the effects of cycle ergometry on NIRS outcomes, and did not investigate other methods of exercise. In addition, male COPD patients were overwhelmingly represented in the aforementioned studies (83% men), possibly masking the muscle and PFC oxygenation response to cycling in women, and concealing potential sex differences, if any. Lastly, there were limited reports of cerebral oxygenation response to cycling in COPD patients, and thus prefrontal cortical oxygenation studies may underrepresent a full spectrum of outcomes in the current review.

Clinical relevance

There are several benefits associated with NIRS technology when applied to exercise. For one, the utility of NIRS for examining prefrontal cortical changes becomes apparent when compared to traditional imaging techniques such as functional magnetic resonance imaging (fMRI). Unlike fMRI, NIRS can measure oxygenation changes during whole body movement, making it more suitable for exercise.⁶⁴ Since exercise is often a component of many programs aimed at rehabilitation, the ability to detect physiological changes during activity highlights the advantages of using NIRS in a clinical setting. NIRS may help identify oxygen extraction thresholds with various therapeutic strategies (i.e. exercise training, oxygen supplementation), but important to account in the analysis the lower absolute workloads observed in COPD patients compared to controls. Furthermore, NIRS oxygenation outcomes are relevant beyond the scope of exercise. For example, impaired matching between oxygen delivery and consumption and resultant fatigue could be evaluated to determine its influence on COPD patient’s ability to perform activities of daily living such as dressing or bathing.⁶⁵ Moreover, the ability of NIRS to detect changes in cerebral oxygenation in COPD patients becomes relevant when assessing cognitive health. As lower cerebral O₂Hb may be associated with reduction in cognitive performance, there is a need to evaluate ways that may enhance or at least maintain cerebral oxygenation.⁶⁶

Conclusion

COPD patients experience faster quadriceps oxygen desaturation at lower workloads during cycling exercise compared to healthy controls. Faster dynamics of oxygen extraction together with diminished oxygen delivery may play a role in exercise intolerance. Although studies show that cerebral oxygenation increases during exercise in patients with COPD, the coexistence of heart failure may diminish this response. NIRS appears to be a promising modality for assessment of prefrontal cortical neural activity and peripheral oxygen extraction during cycling and potentially for other physical activities in COPD patients.

Supplemental material

Supplemental Material, sj-docx-1-crd-10.1177_1479973121993494 - Muscle and cerebral oxygenation during cycling in chronic obstructive pulmonary disease: A scoping review

Supplemental Material, sj-docx-1-crd-10.1177_1479973121993494 for Muscle and cerebral oxygenation during cycling in chronic obstructive pulmonary disease: A scoping review by Melissa Miles, Antenor Rodrigues, Shirin Tajali, Yijun Xiong, Ani Orchanian-Cheff, W Darlene Reid and Dmitry Rozenberg in Chronic Respiratory Disease

Footnotes

Authors’ note

WD Reid and D Rozenberg contributed equally as co-senior authors. Work performed at: Physical Therapy, University of Toronto, Toronto, Canada; Toronto General Hospital Research Institute, Toronto, Canada.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: MM and DR were funded in part by Sandra Faire and Ivan Fecan Professorship in Rehabilitation Medicine. ST was funded in part by a grant from the Canadian Pulmonary Fibrosis Foundation and the Ontario Respiratory Care Society. AR was funded from a Fellowship from the Faculty of Medicine, University of Toronto.

ORCID iD

Ani Orchanian-Cheff

Dmitry Rozenberg

Supplemental material

Supplemental material for this article is available online.

References

Quaderi

Hurst

. The unmet global burden of COPD. Glob Health Epidemiol Genom 2018; 3: e4.

Tabira

Horie

Fujii

, et al. The relationship between skeletal muscle oxygenation and systemic oxygen uptake during exercise in subjects with COPD: a preliminary study. Respir Care 2012; 57: 1602–1610.

McNarry

Harrison

Withers

, et al. Pulmonary oxygen uptake and muscle deoxygenation kinetics during heavy intensity cycling exercise in patients with emphysema and idiopathic pulmonary fibrosis. BMC Pulm Med 2017; 17: 26.

Berton

Barbosa

Takara

, et al. Bronchodilators accelerate the dynamics of muscle O₂ delivery and utilisation during exercise in COPD. Thorax. 2010; 65: 588–593.

Austin

Mengelkoch

Hansen

, et al. Comparison of oxygenation in peripheral muscle during submaximal aerobic exercise, in persons with COPD and healthy, matched-control persons. Int J Chron Obstruct Pulmon Dis 2006; 1: 467–475.

Nosrati

Vesely

Schweizer

, et al. Event-related changes of the prefrontal cortex oxygen delivery and metabolism during driving measured by hyperspectral fNIRS. Biomed Opt Express 2016; 7: 1323–1335.

Mendes

Wickerson

Helm

, et al. Skeletal muscle atrophy in advanced interstitial lung disease. Respirology 2015; 20: 953–959.

Casaburi

. Skeletal muscle dysfunction in chronic obstructive pulmonary disease. Med Sci Sports Exerc 2001; 33: S662–S670.

Andrianopoulos

Vogiatzis

Gloeckl

, et al. Cerebral oxygen availability during exercise in COPD patients with cognitive impairment. Respir Physiol Neurobiol 2018; 254: 64–72.

10.

Nybo

Rasmussen

. Inadequate cerebral oxygen delivery and central fatigue during strenuous exercise. Exerc Sport Sci Rev 2007; 35: 110–118.

11.

Marillier

Gruet

Baillieul

, et al. Impaired cerebral oxygenation and exercise tolerance in patients with severe obstructive sleep apnea syndrome. Sleep Med 2018; 51: 37–46.

12.

Subudhi

Miramon

Granger

, et al. Frontal and motor cortex oxygenation during maximal exercise in normoxia and hypoxia. J Appl Physiol (1985) 2009; 106: 1153–1158.

13.

Higashimoto

Honda

Yamagata

, et al. Activation of the prefrontal cortex is associated with exertional dyspnea in chronic obstructive pulmonary disease. Respiration. 2011; 82: 492–500.

14.

Rooks

Thom

McCully

, et al. Effects of incremental exercise on cerebral oxygenation measured by near-infrared spectroscopy: a systematic review. Prog Neurobiol 2010; 92: 134–150.

15.

Ando

Kokubu

Yamada

, et al.

Does cerebral oxygenation affect cognitive function during exercise?

Eur J Appl Physiol 2011; 111: 1973–1982.

16.

Svoboda

. Neural mechanisms of movement planning: motor cortex and beyond. Curr Opin Neurobiol 2018; 49: 33–41.

17.

Louvaris

Habazettl

Wagner

, et al. Near-infrared spectroscopy using indocyanine green dye for minimally invasive measurement of respiratory and leg muscle blood flow in patients with COPD. J Appl Physiol (1985) 2018; 125: 947–959.

18.

Ayaz

Onaral

Izzetoglu

, et al. Continuous monitoring of brain dynamics with functional near infrared spectroscopy as a tool for neuroergonomic research: empirical examples and a technological development. Front Hum Neurosci 2013; 7: 871.

19.

Ferrari

Mottola

Quaresima

. Principles, techniques, and limitations of near infrared spectroscopy. Can J Appl Physiol 2004; 29: 463–487.

20.

Vogiatzis

Athanasopoulos

Stratakos

, et al. Exercise-induced skeletal muscle deoxygenation in O-supplemented COPD patients. Scand J Med Sci Sports 2009; 19: 364–372.

21.

Louvaris

Vogiatzis

Aliverti

, et al. Blood flow does not redistribute from respiratory to leg muscles during exercise breathing heliox or oxygen in COPD. J Appl Physiol (1985) 2014; 117: 267–276.

22.

Ogawa

Kotani

Jimbo

. Relationship between working memory performance and neural activation measured using near-infrared spectroscopy. Brain Behav 2014; 4: 544–551.

23.

Tricco

Lillie

Zarin

, et al. A scoping review on the conduct and reporting of scoping reviews. BMC Med Res Methodol 2016; 16: 15.

24.

Tanaka

Basoudan

Melo

, et al. Deoxygenation of inspiratory muscles during cycling, hyperpnoea and loaded breathing in health and disease: a systematic review. Clin Physiol Funct Imaging 2018; 38: 554–565.

25.

Cindy Ng

Mackney

Jenkins

, et al. Does exercise training change physical activity in people with COPD? A systematic review and meta-analysis. Chr Respir Dis 2012; 9: 17–26.

26.

Houston

Hoch

. Patient-reported outcome measures in individuals with chronic ankle instability: a systematic review. J Athl Train 2015; 50: 1019–1033.

27.

Bell

Post

Biese

, et al. Sport specialization and risk of overuse injuries: a systematic review with meta-analysis. Pediatrics. 2018; 142: e20180657.

28.

Munn

Sullivan

Schneiders

. Evidence of sensorimotor deficits in functional ankle instability: a systematic review with meta-analysis. J Sci Med Sport 2010; 13: 2–12.

29.

Moher

Liberati

Tetzlaff

, et al. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med 2009; 6: e1000097.

30.

Babineau

. Product review: covidence (systematic review software). Journal of the Canadian Health Libraries Association/Journal de l’Association des bibliothèques de la santé du Canada 2014; 35: 68–71.

31.

Barberan-Garcia

Munoz

Gimeno-Santos

, et al. Training-induced changes on quadriceps muscle oxygenation measured by near-infrared spectroscopy in healthy subjects and in chronic obstructive pulmonary disease patients. Clin Physiol Funct Imaging 2019; 39: 284–290.

32.

Berton

Marques

Palmer

, et al. Effects of lung deflation induced by tiotropium/olodaterol on the cardiocirculatory responses to exertion in COPD. Respir Med 2019; 157: 59–68.

33.

Chiappa

Borghi-Silva

Ferreira

, et al. Kinetics of muscle deoxygenation are accelerated at the onset of heavy-intensity exercise in patients with COPD: relationship to central cardiovascular dynamics. J Appl Physiol (1985) 2008; 104: 1341–1350.

34.

Chiappa

Queiroga

Jr Meda

, et al. Heliox improves oxygen delivery and utilization during dynamic exercise in patients with chronic obstructive pulmonary disease. Am J Respir Crit Care Med 2009; 179: 1004–1010.

35.

Chuang

Lin

Hsieh

. More impaired dynamic ventilatory muscle oxygenation in congestive heart failure than in chronic obstructive pulmonary disease. J Clin Med 2019; 8: 1641.

36.

Furian

Hartmann

Latshang

, et al. Exercise performance of lowlanders with COPD at 2,590 m: data from a randomized trial. Respiration 2018; 95: 422–432.

37.

Gloeckl

Andrianopoulos

Stegemann

, et al. High-pressure non-invasive ventilation during exercise in COPD patients with chronic hypercapnic respiratory failure: a randomized, controlled, cross-over trial. Respirology. 2019; 24: 254–261.

38.

Louvaris

Zakynthinos

Aliverti

, et al. Heliox increases quadriceps muscle oxygen delivery during exercise in COPD patients with and without dynamic hyperinflation. J Appl Physiol (1985). 2012; 113: 1012–1023.

39.

Louvaris

Chynkiamis

Spetsioti

, et al. Greater exercise tolerance in COPD during acute interval, compared to equivalent constant-load, cycle exercise: physiological mechanisms. J Physiol 2020; 598: 3613–3629.

40.

Okamoto

Kanazawa

Hirata

, et al. Evaluation of oxygen uptake kinetics and oxygen kinetics of peripheral skeletal muscle during recovery from exercise in patients with chronic obstructive pulmonary disease. Clin Physiol Funct Imaging 2003; 23: 257–262.

41.

Oliveira

Rodrigues

Treptow

, et al. Effects of oxygen supplementation on cerebral oxygenation during exercise in chronic obstructive pulmonary disease patients not entitled to long-term oxygen therapy. Clin Physiol Funct Imaging 2012; 32: 52–58.

42.

Oliveira

Arbex

Alencar

, et al. Heart failure impairs cerebral oxygenation during exercise in patients with COPD. Eur Respir J 2013; 42: 1423–1426.

43.

Oliveira

Alencar

Arbex

, et al. Effects of heart failure on cerebral blood flow in COPD: rest and exercise. Respir Physiol Neurobiol 2016; 221: 41–48.

44.

Oliveira

Arbex

Alencar

, et al. Heart failure impairs muscle blood flow and endurance exercise tolerance in COPD. COPD 2016; 13: 407–415.

45.

Prieur

Combret

Bonnevie

, et al. Functional electrical stimulation changes muscle oxygenation in patients with chronic obstructive pulmonary disease during moderate-intensity exercise: a secondary analysis. COPD 2019; 16: 30–36.

46.

Puente-Maestu

Tena

Trascasa

, et al. Training improves muscle oxidative capacity and oxygenation recovery kinetics in patients with chronic obstructive pulmonary disease. Eur J Appl Physiol 2003; 88: 580–587.

47.

Rodrigues

Oliveira

Soares

, et al. Additive effects of non-invasive ventilation to hyperoxia on cerebral oxygenation in COPD patients with exercise-related O₂ desaturation. Clin Physiol Funct Imaging 2013; 33: 274–281.

48.

Tateishi

Yoshikawa

Kanazawa

, et al. Evaluation of peripheral muscle oxygenation during exercise by spatially resolved spectroscopy in patients with chronic obstructive pulmonary disease. Osaka City Med J 2005; 51: 65–72.

49.

Vogiatzis

Athanasopoulos

Habazettl

, et al. Intercostal muscle blood flow limitation during exercise in chronic obstructive pulmonary disease. Am J Respir Crit Care Med 2010; 182: 1105–1113.

50.

Goulart

CDL

Areas

GPT

Caruso

, et al. Effect of high-intensity exercise on cerebral, respiratory and peripheral muscle oxygenation of HF and COPD-HF patients. Heart Lung 2020; 50: 113–120.

51.

Maltais

Simard

, et al. Oxidative capacity of the skeletal muscle and lactic acid kinetics during exercise in normal subjects and in patients with COPD. Am J Respir Crit Care Med 1996; 153: 288–293.

52.

Willis

Alvarez

Millet

, et al. Changes in muscle and cerebral deoxygenation and perfusion during repeated sprints in hypoxia to exhaustion. Front Physiol 2017; 8: 846.

53.

Yoshiko

Katayama

Ishida

, et al. Muscle deoxygenation and neuromuscular activation in synergistic muscles during intermittent exercise under hypoxic conditions. Sci Rep 2020; 10: 295.

54.

Maltais

LeBlanc

Whittom

, et al. Oxidative enzyme activities of the vastus lateralis muscle and the functional status in patients with COPD. Thorax 2000; 55: 848–853.

55.

Vogiatzis

Louvaris

Wagner

. Respiratory and locomotor muscle blood flow during exercise in health and chronic obstructive pulmonary disease. Exp Physiol 2020; 105: 1990–1996.

56.

Athanasopoulos

Louvaris

Cherouveim

, et al. Expiratory muscle loading increases intercostal muscle blood flow during leg exercise in healthy humans. J Appl Physiol (1985) 2010; 109: 388–395.

57.

Louvaris

Rodrigues

Dacha

, et al. High-intensity exercise impairs extradiaphragmatic respiratory muscle perfusion in patients with COPD. J Appl Physiol (1985) 2020.

58.

Rupp

Perrey

. Prefrontal cortex oxygenation and neuromuscular responses to exhaustive exercise. Eur J Appl Physiol 2008; 102: 153–163.

59.

O’Donnell

D’Arsigny

Fitzpatrick

, et al. Exercise hypercapnia in advanced chronic obstructive pulmonary disease: the role of lung hyperinflation. Am J Respir Crit Care Med 2002; 166: 663–668.

60.

Poon

Tin

Song

. Submissive hypercapnia: why COPD patients are more prone to CO₂ retention than heart failure patients. Respir Physiol Neurobiol 2015; 216: 86–93.

61.

Koike

Itoh

Oohara

, et al. Cerebral oxygenation during exercise in cardiac patients. Chest 2004; 125: 182–190.

62.

Lee

Kim

, et al. Cerebral metabolic abnormalities in congestive heart failure detected by proton magnetic resonance spectroscopy. J Am Coll Cardiol 1999; 33: 1196–1202.

63.

Niemeijer

Jansen

van Dijk

, et al. The influence of adipose tissue on spatially resolved near-infrared spectroscopy derived skeletal muscle oxygenation: the extent of the problem. Physiol Meas 2017; 38: 539–554.

64.

Cui

Bray

Bryant

, et al. A quantitative comparison of NIRS and fMRI across multiple cognitive tasks. Neuroimage 2011; 54: 2808–2821.

65.

Velloso

Stella

Cendon

, et al. Metabolic and ventilatory parameters of four activities of daily living accomplished with arms in COPD patients. Chest 2003; 123: 1047–1053.

66.

Kovarova

Valerianova

Kmentova

, et al. Low cerebral oxygenation is associated with cognitive impairment in chronic hemodialysis patients. Nephron 2018; 139: 113–119.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.08 MB
