Abstract

Most existing data-driven-based methods for structural damage identification are based on black-box models without interpretability and explainability. In this study, a new parallel neural ordinary differential equation-based method is proposed for structural damage identification. The proposed method integrates the state-space equation-based physical model with a network block, which includes a group of parallel neural networks (NNs). The complex structural system is decomposed into physically interpretable subsystems, and each subsystem is represented by an independent NN. The group of parallel NNs is specifically designed to learn residual discrepancies between observed dynamic responses and predictions from the healthy structural system. The proposed approach explores the closed-form expression for a group of parallel NNs to identify the structural parameters, which increases the interpretability and enhances the reliability of the network model. A three-story building structure and a three-dimensional IASC-American Society of Civil Engineer benchmark frame are used to verify the performance of the proposed method. The results show that the proposed method is reliable and accurate to localise and quantify structural damage.

Keywords

Structural damage identification numerical and experimental study PNODEs building structures parallel neural networks

Highlights

A parallel neural ordinary differentiation equation-based approach for structural damage identification is proposed.

The neural operator extracts the feature information for structural damage qualification.

Input and output of the neural network are visualised, enhancing its explainability.

Numerical and experimental studies are conducted to verify the approach.

Introduction

Civil infrastructure is deteriorated due to ageing, environmental attacks, operational loading and extreme events. Structural damage identification allows for identifying structural damage location and severity at the early stage, and then the cost-effective maintenance could be conducted timely for structural safety. Vibration-based methods have been used for structural damage detection.¹ These methods could mainly be categorised as model-based and data-driven approaches.² Model-based approach relies on a detailed finite element model that accurately reflects the actual structure. A dynamic response sensitivity-based method has been presented for structural damage identification in time domain.^3,4 Hou et al.⁵ have presented a sparse regularisation technique for structural damage detection. Bayesian model updating has been used for structural damage identification.^6,7 Despite great progress made in structural damage localisation and quantification, significant challenges still remain, such as the discrepancy between the numerical model and real structure, operational environmental varieties and the considerable computational efforts required for simulations, especially for the application of complex large-scale structures.

The data-driven approach for structural damage detection, especially machine learning (ML) based methods, has recently attracted the interest of researchers and engineers.⁸ Pathirage et al.⁹ proposed an autoencoder-based approach to map the relationship between vibration features and structure damage for structural damage qualification. Yu et al.¹⁰ proposed a deep convolutional neural network (NN) to extract high-level features from raw response data for structural damage identification of smart building structures. As the residual NN could avoid the gradient vanishing problem by utlilising skip connections, the deep residual network (ResNet) framework has been used for structural health monitoring.¹¹ Although ML-based methods have been used to capture the damage-sensitive features from monitoring data, the operational and environmental varieties have a significant impact on the performance of structural damage detection in practice. Entezami¹² presented a state-of-art method for feature extraction in time and time-frequency domains and provided statistical decision-making for damage diagnosis under environmental and operational varieties. A probabilistic damage localisation method was presented using the symmetric information measure.¹³ Sarmadi et al.¹⁴ proposed an unsupervised data normalisation to eliminate environmental and operational effects for long-term bridge monitoring. Recently, Wan et al.¹⁵ presented an unsupervised deep learning approach for structural anomaly detection using probabilistic features captured by variational autoencoder. Zhu et al.¹⁶ proposed an attention-guided conditional latent diffusion probabilistic model to capture data patterns under varying environmental conditions for anomaly detection. These data-driven methods based on ML could automatically extract the damage-sensitive feature from the monitoring data based on classification or regression tasks to identify structural damage. Since these methods purely depend on reliable data and NNs to build a ‘black box’ and rapidly learn the complicated relationship between the input and the output of various tasks based on their ability to approximate the arbitrary structure functionality. However, these methods usually lack a physical explanation of their intrinsic mechanisms.¹⁷ Furthermore, in practical application, these methods face challenges due to lack of complete high-quality training data, especially the scarcity of structural damage data and measurement noise.

Physical informed NN integrates the physical knowledge with the ML process to solve the forward and inverse scientific problems.¹⁸ Bao et al.¹⁹ presented a mechanics-informed NN method for structural modal identification using explicit mathematical equations to determine the modes. Lei et al.²⁰ integrated a physical loss function related to modal sensitivity into a deep-learning network for structural damage identification. As the above, the hybrid model not only takes advantage of the fact that NNs can quickly and accurately fit relationships between input and output data to achieve the task for system identification but also allows the overall the training process to follow informed physical rules to enhance credibility.²¹ The integration of physical knowledge into NN architectures enhances the interpretability and physical consistency of the ML-based data-driven approach. Lai et al.²² proposed the neural ordinary differential equations (NODEs) based method to identify parameters of dynamic systems. Instead of obtaining large amounts of health and damage data for pre-training the NN, the measurement time history data are directly compared with the health condition data generated by the ordinary differential equations (ODEs), which can represent structures in the form of state space equations and have been widely used in simulation for both linear and non-linear modelling tasks.^23,24 Most recently, Meng et al.²⁵ and Shukla et al.²⁶ embedded the physical knowledge into a group of parallel NNs for increasing computational efficiency and dealing with complex tasks. Within one physical constraint, each NN in this group can be given separate inputs and then trained simultaneously.

In this study, a novel structural damage identification method based on parallel neural ODEs (PNODEs) has been proposed for complex frame structures. The proposed PNODEs framework mainly includes two parts: a physical information term represented the prior knowledge, and a discrepancy term processed by a group of parallel NNs. Each NN was specifically designed to consider responses from a subsection of the structure. Each NN was parallel-solved and spliced together at the same time for solving ODEs. The process is that the NN is used to solve ODEs, learning the discrepancy between prior physical knowledge and the actual structural system. The health state of the structure can be informed as the prior knowledge, and a group of parallel NNs learn the discrepancy through each NN corresponding to each subsection of the structure. Therefore, the priori knowledge and discrepancy terms are then summed to form the whole model, where the discrepancy term can be considered as the damaged part of the structure.

The paper is organised as follows: the theoretical background of NODEs is introduced first, and then the structural damage identification based on PNODEs is explained in the second section. Numerical and experimental studies of a building structure with linear or nonlinear damage were conducted to verify the proposed method in the third and fourth sections. An application for a three-dimensional (3D) IASC-American Society of Civil Engineer (ASCE) benchmark frame is used to further verify the performance of the proposed method in the fifth section. The conclusions are drawn in the sixth section.

Methodology

In this section, the NODEs theory is introduced briefly. Then the key phases and mechanisms of the proposed PNODEs framework are presented, including the data incorporation, prior physical knowledge, the parallel NN block and the damage index.

NODEs theory

Structural dynamic system

As a priori physical knowledge in this study, the ODE of multiple degrees of freedom (DOFs) systems is expressed as,

M \overset{\cdot\cdot}{x} (t) + C \dot{x} (t) + K x (t) + g (x (t), \dot{x} (t)) = u (t)

(1)

where $M$ , $C$ and $K$ are the system mass, damping and stiffness matrices, respectively. $\overset{\cdot\cdot}{x} (t)$ , $\overset{\cdot}{x} (t)$ and $x (t)$ are the acceleration, velocity and displacement responses, respectively. $u (t)$ is the excitation force, and $g (x (t), \overset{\cdot}{x} (t))$ is the term associated with state variables to represent two situations: (a) the difference between the numerical model and real structure due to modelling errors and operational environmental varieties; (b) the structural damage.

Equation (1) can be written as state space form as

\frac{d h (t)}{d t} = Ah (t) + Bu (t) + G (h (t))

(2)

where $h (t) = [\begin{matrix} x (t) \\ \overset{\cdot}{x} (t) \end{matrix}] \in R^{n}, Ah (t) = [\begin{matrix} 0 & I \\ - M^{- 1} K & - M^{- 1} C \end{matrix}] h (t)$ , $G (h (t)) = [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] g (h (t))$ , $Bu (t) = [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t)$ .

Neural ordinary differential equations

NODEs have garnered significant attention in recent years for a close connection between NNs and ODEs. NODEs could be a continuous equivalent expression of ResNets. The transformation of the hidden state from layer t to (t+1) in ResNets is carried out by a differentiable function $f_{t} (\cdot)$ as below,²⁷

h_{t + 1} = h_{t} + f_{t} (h_{t})

(3)

where $h_{t} \in R_{d}$ is the hidden state of the layer. The difference $h_{t + 1} - h_{t}$ is the discretisation of the derivation of $h'_{t}$ when $Δ t = 1$ .

Equation (3) can be rewritten as

\frac{h_{t + 1} - h_{t}}{Δ t} = f (h_{t})

(4)

When $Δ t \to 0$ , Equation (4) becomes to

lim_{Δ t \to 0} \frac{h_{t + 1} - h_{t}}{Δ t} = \frac{d h (t)}{d t} = \lim_{Δ t \to 0} \frac{f_{t} (h_{t})}{Δ t} = \tilde{f} (h (t), t, θ)

(5)

The hidden units of the NNs are parameterised as the ODE form. The data point h₀ can be mapped into the set of features to time step t by solving the initial value problems (IVPs) as,

{\begin{matrix} \frac{d h (t)}{d t} = f (h (t)) = \tilde{f} (h (t), t, θ), \\ h (t_{0}) = h_{0} \end{matrix}

(6)

In the actual operation of the structural dynamic problems, there is normally forced excitation instead of the pure IVPs, which informs the priory physical knowledge into NODEs. By adding the excitation force u(t), Equation (6) can be written as,

{\begin{matrix} \frac{d h (t)}{d t} = f (h (t)) = \tilde{f} (h (t), t, u (t) θ), \\ h (t_{0}) = h_{0} \end{matrix}

(7)

Solving the continuous dynamic system using a NN $\tilde{f} (\cdot)$ is an important step in establishing NODE.^28,29 A NN $\tilde{f} (\cdot)$ is the solution of the function $f (\cdot)$ which represents dynamics of the system state. When solving the ODE from the initial condition $h (t_{0}) = h_{0},$ which initiative the states of the ODE at a given time t depend on the initial conditions $h_{0}$ . Thus, given the u(t) as the input to the $\tilde{f} (\cdot)$ , the output layer $h_{T}$ is the solution of Equation (7) at the final time T.

In NODEs, an initial state $h (t_{0})$ can be mapped to the final state $h (t_{T})$ from data to feature by mathematically solving an ODE as $L (ODESolve (h (t_{0}), \tilde{f}, t_{0}, t_{T}, u (t), θ))$ . This defines a loss function $L (\cdot)$ in a forward process, to evaluate the difference between the predicted state $h (t_{T})$ and the true state $h_{true} (t_{T})$ as,

\begin{matrix} L (h (t_{T})) = L (h (t_{0}) + \int_{t_{0}}^{t_{T}} \tilde{f} (h (t), t, θ) d t) \\ = L (ODESolve (h (t_{0}), \tilde{f}, t_{0}, t_{T}, u (t), θ)) \end{matrix}

(8)

where $θ$ is the trainable weight of the NN $\tilde{f} (\cdot)$ , which can be optimised by minimise the loss function $L (\cdot)$ . According to Rung–Kutta methods, the solutions of $ODESolve$ are approximated by establishing NODE solvers.^28,29

h (t_{T}) = ODESolve (h (t_{0}), \tilde{f}, t_{0}, t_{T}, u (t), θ)

(9)

where $h (t_{T})$ are generated results of NODEs based on Equation (7).

In solving NODEs, the measured data are only required to be given to the network, and the derivative function $\frac{d h (t)}{d t}$ of the measurement is unnecessary. This training process can be treated as solving ODEs in Equation (7). As a result, the solutions of ODEs stored in $\tilde{f} (\cdot)$ are finally obtained by training the NN.

Loss function

During the training process of NODEs, the parameters of the NN $θ$ are updated by minimising the Mean Squared Error (MSE) loss functions:

MSE = \frac{1}{m} \sum_{i = 1}^{m} | h_{true} (t_{i}) - h (t_{i}) |

(10)

where $h_{true} (t_{i})$ is the true solution, $h (t_{i})$ is the generated results at time $t_{i}$ and m is the number of the samples for $h (t_{i})$ .

PNODEs for structural damage identification

The proposed PNODEs framework is introduced in this section, as shown in Figure 1. The proposed method decomposes a large-scale complex structure into physically interpretable subsystems. Each subsystem is represented by an independent NN specifically designed to learn residual discrepancies between observed structural responses and predictions from an undamaged baseline physical model. The framework mainly includes three phases, for example, data measurement, solving PNODEs and inference of trained NN. In phase I, the limited measured displacement and velocity responses form the state vectors for input of phase II. The prior physical knowledge is integrated into the parallel NNs with supervision of limited measurement data. Each NN is corresponding to a floor of the building structure as a subsystem. Phase III is to apply the trained PNODEs for response prediction and structural damage identification.

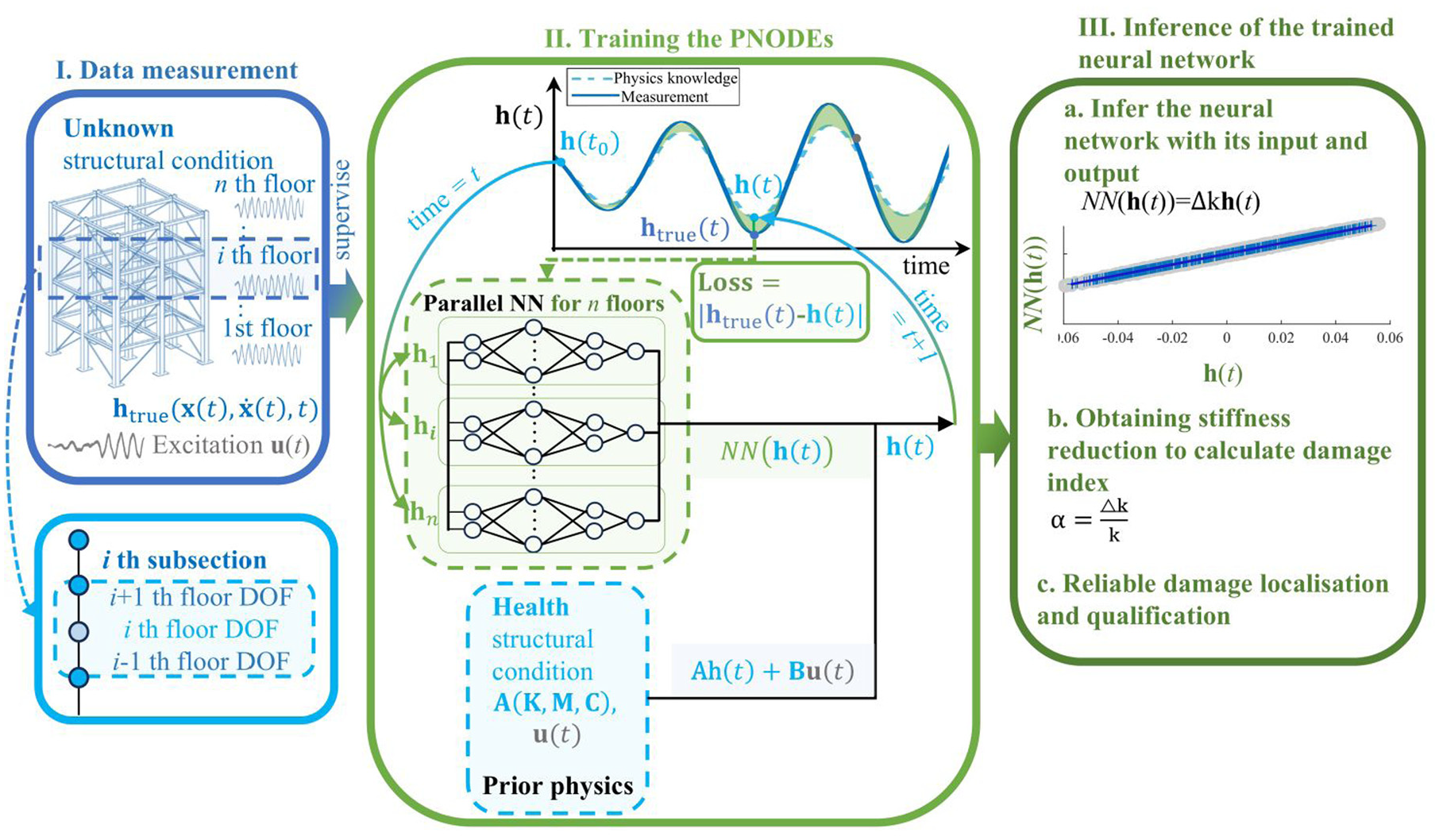

Figure 1.

PNODEs framework. PNODE: parallel neural ordinary differential equation.

The proposed PNODE framework can be summarised as follows: (i) By implicitly placing a prior structured dynamical system in a state space form, the general high-performance representation of NNs is used to represent the structural damage by discovering discrepancies between the measured data and a priori system. (ii) Building a set of parallel NNs. Based on the characteristics of the structural dynamics governing equations, each NN is provided with only the measured responses associated with the part of the structure it represents, which allows the discrepancy information to be stored separately in each network corresponding to each part of the structure. The great favour of this parallel NN is that it avoids the whole discrepancy information being stacked in one whole NN, further clearly identifying the source of the discrepancy. (iii) Inference with each of the trained NN as discrepancy, plotting and fitting the inputs and outputs of a NN to discover the latent restore force. Finally, the fitted parameter of the restore force indicating the stiffness change of the relevant section is utilised to localise and quantify damage.

The main contribution of this work can be summarised as (i) Based on PNODES, discrepancy information between the prior physics and real structure is stored in a set of parallel NNs with prior knowledge of the structural dynamics model under health condition (based on ODEs) and the training of network does not require large amounts of measurement data. (ii) Damage localisation is achieved by discovering and separating the discrepancies for each part of the structure, which is corresponding to each NN in the parallel network block. (iii) Damage quantification is performed by observing structural restoring force from the output of each NN and the outputs of NNs further enhance visualisation of results.

Informed priory physical knowledge

In phase II, a simplified numerical model is embedded into the parallel NN as the prior physical knowledge. As shown in Figure 1, this phase consists of a prior physics block (blue block) and a parallel NN block (green block). In the prior physics block, the prior structural physics knowledge can be simplified as multiple DOFs in Equation (1), and it can be expressed in the form of state-space equations.

\frac{d h_{phy} (t)}{d t} = A h_{phy} (t) + Bu (t)

(12)

where A and B matrices in this physical model consist of the K , M and C matrices of their corresponding physical parameters as Equation (2). In this study, the prior physic knowledge represents the structure in a healthy state generating $\frac{d h_{phy} (t)}{d t}$ . Once the structure is damaged, the structural damage information compared with the health state is the discrepancy output of the parallel NN block. Then, the parallel NN block was utilised to learn the discrepancy (green shadows) between measurement (blue line) and prior structural physics knowledge (blue dash line) in the latent space through time-series data. According to ‘Neural ordinary differential equations’ section, Equation (2) can be rewritten as the NODE form,

\frac{d h (t)}{d t} = Ah (t) + Bu (t) + f_{NN} (h (t), t, θ)

(13)

where $f_{NN} (\cdot)$ is the approximated functions learned by a group of parallel NNs.

Design of the parallel NNs

After the displacement and velocity response are measured from the real structure, these responses are formed as a state vector $h_{true} (t)$ for supervising PNODEs as shown in phase II. Each NN is corresponding to a subsystem of the whole structure, and the inputs and outputs of the NNs were specifically designed based on responses from subsystems of the structure. For a building structure with n floors as shown in Figure 1, each floor could be a subsystem and that is represented by one NN. The equation of motion for the ith floor corresponding to the ith NN can be expressed as below,^30,31

\begin{matrix} u_{i} (t) = - m_{i} {\overset{\cdot\cdot}{x}}_{i} (t) + k_{i} x_{i - 1} (t) - (k_{i} + k_{i + 1}) x_{i} (t) + k_{i + 1} x_{i + 1} (t) \\ + c_{i} {\overset{\cdot}{x}}_{i - 1} (t) - (c_{i} + c_{i + 1}) {\overset{\cdot}{x}}_{i} (t) + c_{i + 1} {\overset{\cdot}{x}}_{i + 1} (t) \end{matrix}

(14)

where $k_{i}, m_{i}, c_{i}$ are the stiffness, mass and damping coefficients of the nth floor, respectively. $x_{i}$ , ${\overset{\cdot}{x}}_{i}$ and ${\overset{\cdot\cdot}{x}}_{i}$ are the displacement, velocity and acceleration of the ith floor, respectively. $u_{i}$ is the external force applied in the ith DOF. From Equation (14), it can be found that the ith floor of the physical parameters changes is relevant to the state of the (i−1)th, ith and (i+1)th floor. Therefore, the input of each NN $h_{i} (t) = [x_{i - 1} (t); x_{i} (t); x_{i + 1} (t); {\overset{\cdot}{x}}_{i - 1} (t); {\overset{\cdot}{x}}_{i} (t); {\overset{\cdot}{x}}_{i + 1} (t)]$ . When i = 1, the input items of the NN $x_{i - 1} (t)$ and ${\overset{\cdot}{x}}_{i - 1} (t)$ are set as 0. When i = n, the input items of the NN $x_{i + 1} (t)$ and ${\overset{\cdot}{x}}_{i + 1} (t)$ are set as 0.

A parallel NN is designed for PNODEs. There are n NNs in the framework and each network represents a subsystem, for example, a floor of the structure. For each time step t, the PNODEs generated a state vector $h (t) = [x_{1} (t); x_{2} (t); \dots; x_{n} (t); {\overset{\cdot}{x}}_{1} (t); {\overset{\cdot}{x}}_{2} (t); \dots; {\overset{\cdot}{x}}_{n} (t)]$ . $h (t)$ is regrouped as $h_{i} (t)$ (i = 1, 2, …, n). $h_{i} (t)$ is corresponding to the ith NN, for example, the ith floor of the structure. For each NN, two layers were initially selected to balance model complexity and computational efficiency. Given the complexity of capturing structural dynamics, two layers effectively learn essential nonlinear relationships without introducing unnecessary computational overhead. For more complex structures or higher-dimensional discrepancies, the additional layers could be added to ensure adequate learning capacity. The model performance with different numbers of hidden layers and neurons is discussed in ‘PNODEs architectures’ section.

Solving the ODEs based on the parallel NNs

Details of phase II, architecture of PNODEs is shown in Figure 2. The parallel NN block cooperating with the prior physics knowledge block is to generate $h (t)$ . With the prior physics block, the parallel NN block is constrained by structural dynamic laws. For the time step t, the parallel NNs block, $f_{NN} (h (t), t, θ)$ in Equation (13) has been designed as a group of parallel NNs. Equation (13) can be rewritten as,

\frac{d h (t)}{d t} = Ah (t) + Bu (t) + [\begin{matrix} \begin{matrix} 0_{n \times 1} \\ f_{NN 1} (h_{1} (t), t, θ) \end{matrix} \\ f_{NN 2} (h_{2} (t), t, θ) \\ \begin{matrix} \dots \\ f_{NNn} (h_{n} (t), t, θ) \end{matrix} \end{matrix}]

(15)

where $f_{NNi} (h_{i} (t), t, θ) (i = 1, 2, \dots, n)$ is the ith NN, and the input of the NN is $h_{i} (t)$ . $G (h (t))$ is obtained by combining ${f_{NNi} (h_{i} (t), t, θ), i = 1, 2, \dots n}$ together, which is a derivative of the discrepancy item relative to each subsystem.

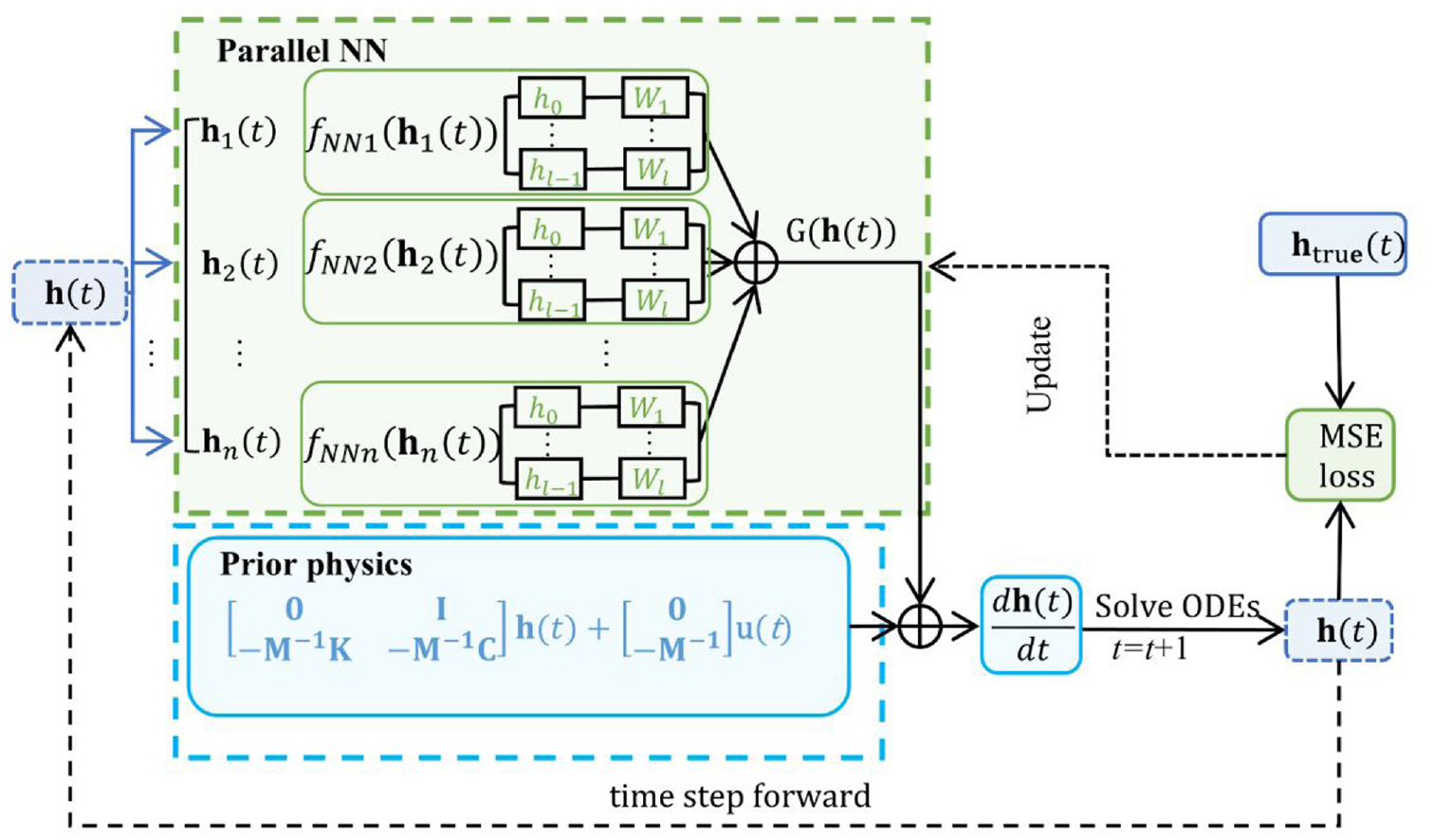

Figure 2.

Phase II. Architecture of PNODEs. PNODE: parallel neural ordinary differential equation.

In the parallel NN block, the initial condition $h (t_{0})$ when $t = t_{0}$ from the real structure of is obtained and regrouped as $h_{i} (t_{0})$ given to the parallel NN block to generate discrepancy item $G (h (t))$ . In the prior physics block, at the same time step, the derivative of the physical structure’s state $\frac{d h_{phy} (t)}{d t}$ in Equation (12) is calculated using the excitation force u(t). Then, the output of the PNODEs block $\frac{d h (t)}{d t}$ is determined by the sum of $G (h (t))$ and $\frac{d h_{phy} (t)}{d t}$ , and the acceleration vector of the structure [ ${\overset{\cdot\cdot}{x}}_{1} (t); {\overset{\cdot\cdot}{x}}_{2} (t); \dots; {\overset{\cdot\cdot}{x}}_{n} (t)$ ] is corresponding to last n values of the output. Finally, by solving the ODE, the state of the system $h (t)$ in the next time can be obtained. At the same time step, the MSE loss in Equation (10) is computed by the difference between the measured response $h_{true} (t)$ and the generated response $h (t)$ from PNODEs to update parameters of the parallel NN block. After the above process, the PNODEs complete the solution at one time step, and $h (t)$ is regrouped again and input to the PNODEs block to generate solution along time series.

Inference of the parallel NN block

After the parallel NN block is trained, the parallel NN explicitly captures the residual discrepancy between the observed structural responses and the predictions from the known undamaged physical model, enhancing the physical interpretability of the neural outputs. The structural physical parameters are fitted and determined from each NN for structural damage identification. The ith NN $f_{NNi} (h_{i} (t), t, θ)$ is parameterised by weight $θ,$ which can be represented by the chain structure with $L + 1$ layers.

f_{NNi} (h_{i}) : {\begin{matrix} \begin{matrix} {h_{i}}^{1} = σ^{1} (W^{1} {h_{i}}^{0} + b^{1}) \\ ⋮ \end{matrix} \\ \begin{matrix} {h_{i}}^{l} = σ^{l} (W^{l} {h_{i}}^{l - 1} + b^{l}) \\ ⋮ \end{matrix} \\ {h_{i}}^{L} = σ^{L} (W^{L} {h_{i}}^{L - 1} + b^{L}) \end{matrix}

(16)

where $h_{i}^{l}$ is the intermediate output hidden in the $l + 1$ layer of the ith network. $h_{i}^{0}$ and $h_{i}^{L}$ are assigned as input and output vectors of the ith network, respectively. $W^{l}$ is the weight vector associated with linear transfer from the $(l - 1)$ layer to the $l$ layer. $b^{l}$ is the bias in the $l$ layer. $σ^{l}$ is the activation function at the $l$ layer. To capture the discrepancy term, a hyperbolic tangent function $\tan h (\cdot)$ is applied as an activation function $σ (\cdot)$ . The tanh activation function is selected to output symmetric values around zero between the range of [−1, 1], which facilitates capturing both positive and negative discrepancies in structural responses. Additionally, it enhances gradient stability, ensuring efficient and stable training of the NODEs.

To reconstruct the structural parameters from the parallel NN block linking to the prior physics block, the identification of variation in local stiffness value can be achieved by conducting the process below: (a) The discrepancy between the real dynamic and prior structural knowledge of the parallel NN block $[\begin{matrix} f_{NN 1} (h_{1} (t)) \\ f_{NN 2} (h_{2} (t)) \\ \begin{matrix} \dots \\ f_{NNn} (h_{n} (t)) \end{matrix} \end{matrix}]$ is computed from each network $σ (W h_{i} + b)$ from Equation (16), then the parallel NN block can be expressed as $W (h) = [\begin{matrix} σ (W_{1} h_{1} + b) \\ σ (W_{2} h_{2} + b) \\ \begin{matrix} \dots \\ σ (W_{n} h_{n} + b) \end{matrix} \end{matrix}]$ ; (b) the discrepancy term expression is fitted by establishing a regression problem, the NN is then expressed by a matrix of the coefficients as,

W (h) = [\begin{matrix} h_{1} Θ_{1} \\ h_{2} (t) Θ_{2} \\ \begin{matrix} \dots \\ h_{n} (t) Θ_{n} \end{matrix} \end{matrix}]

(17)

where $h_{i} (t) Θ_{i}$ is a polynomial function corresponding to the ith floor of the structure, followed by the prior physical for the structure. Then the closure approximation expression is consistently related to the known dynamical system as follows,

\frac{d h (t)}{d t} = Ah (t)) + Bu (t) + h (t) Θ

(18)

Damage index

After the structural parameters are determined, the damage index is introduced for structural damage localisation and qualification. Considering the structure under the health condition, the prior physics in Equation (12) is expressed as,

\begin{matrix} f_{health} (\cdot) = \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} K_{health} & - M^{- 1} C \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) \end{matrix}

(19)

where $K_{health}$ is a stiffness matrix for the structure of the health condition. Structural damage is represented as changes of physical properties (i.e., stiffness), which are treated as indicators of the structural damage location and severity.⁸ Therefore, the damaged structure from Equation (19) is expressed as,

\begin{matrix} f_{damage} (\cdot) = \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} (K_{health} - Δ K) & - M^{- 1} C \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) = [\begin{matrix} 0 & I \\ - M^{- 1} (K_{health}) & - M^{- 1} C \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) + [\begin{matrix} 0 & 0 \\ - M^{- 1} (- Δ K) & 0 \end{matrix}] h (t) \end{matrix}

(20)

where $Δ K$ is a matrix representing of change in stiffness of the damaged structure. Equation (16) represents the health structure system that has been put into the prior physics block as the referenced physical knowledge. Therefore, the expression of the model discrepancy between health condition and damage condition $f_{health} (\cdot) - f_{damage} (\cdot)$ is expressed as

f_{Δ K} (\cdot) = \frac{d h_{Δ K}}{d t} = [\begin{matrix} 0 & 0 \\ - M^{- 1} (Δ K) & 0 \end{matrix}] h (t)

(21)

Compared with Equation (18), Equation (20) can be rewritten as,

\begin{matrix} \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} (K_{health}) & - M^{- 1} C \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) + h (t) Θ \end{matrix}

(22)

The discrepancy term $f_{Δ K} (\cdot)$ of the structural system is stored in the Parallel NN block $h (t) Θ$ . Therefore, $h (t) Θ$ represents the model discrepancy from Equation (18), and it could be expressed as,

\begin{matrix} [\begin{matrix} \begin{matrix} 0_{n \times 1} \\ h_{1} (t) Θ_{1} \end{matrix} \\ h_{2} (t) Θ_{2} \\ \begin{matrix} \dots \\ \begin{matrix} h_{n - 1} (t) Θ_{n - 1} \\ h_{n} (t) Θ_{n} \end{matrix} \end{matrix} \end{matrix}] = \\ \frac{d h_{Δ K}}{d t} = [\begin{matrix} 0_{n \times 1} \\ - (\frac{Δ k_{1}}{m_{1}} + \frac{Δ k_{2}}{m_{1}}) x_{1} (t) + \frac{Δ k_{2}}{m_{1}} x_{2} (t) \\ \begin{matrix} \frac{Δ k_{2}}{m_{2}} x_{1} (t) - (\frac{Δ k_{2}}{m_{2}} + \frac{Δ k_{3}}{m_{2}}) x_{2} (t) + \frac{Δ k_{3}}{m_{2}} x_{3} (t) \\ \dots \\ \begin{matrix} \frac{Δ k_{n - 2}}{m_{n - 1}} x_{n - 2} (t) - (\frac{Δ k_{n - 1}}{m_{n - 1}} + \frac{Δ k_{n}}{m_{n - 1}}) x_{n - 1} (t) + \frac{Δ k_{n}}{m_{n - 1}} x_{n} (t) \\ \frac{Δ k_{n}}{m_{n}} x_{n - 1} (t) - \frac{Δ k_{n}}{m_{n}} x_{n} (t) \end{matrix} \end{matrix} \end{matrix}] \end{matrix}

(23)

To reconstruct the stiffness change of the damaged structural system to explore the damage location and severity, each network $h_{i} (t) Θ_{i}$ should be interpreted. Thus, considering the ith intermediate non-zero equation, multiplying $m_{i}$ , the structural restoring force can be obtained as $m_{i} \frac{d {h_{i}}_{Δ k}}{dt} = - Δ k_{i} (x_{i} (t) - x_{i - 1} (t)) + Δ k_{i + 1} (x_{i + 1} (t) - x_{i} (t))$ . Therefore, each can be estimated by solving the corresponding equation group with respect to $x_{i} (t) - x_{i - 1} (t)$ on right-hand side of Equation (23). Then, $Δ k_{i}$ can be obtained by the element of $Θ_{i}$ times $m_{i}$ . Finally, the damages index is defined as

α_{i} = \frac{Δ k_{i}}{k_{i}}

(24)

where $k_{i}$ is the stiffness value of the ith floor in the health condition and $Δ k_{i}$ is the equivalent stiffness reduction of the ith floor. The damage index is later used to indicate the damage.

Numerical study

In this section, a three-story building structure is used to verify the performance of the proposed method for structural damage identification. The physical properties of the building structure are introduced first. Then, the data preparation process is introduced, followed by the PNODEs architecture, including the prior physical knowledge and the NN parameters. Subsequently, the proposed method is used for structural damage identification.

Numerical model

A three-storey building structure is used as an example in this section. The stiffness and mass of each floor are $k_{i} = 9.755 \times 10^{3} N / m$ and $m_{i} = 4 . 85 kg$ , respectively. The Rayleigh damping is introduced as $c = α m + β k$ , in which $α = 0.016$ and $β = 2.136 e - 4$ . The model has two identical columns with a 50 × 3 mm cross-section, a 900 mm length, and three steel floors measuring 394 × 50 × 30 mm. The story height is 300 mm. The material for all columns and floors is high-strength steel with a yield stress of 435 MPa and an elasticity modulus of 200 GPa. The three-storey building structure is modelled as a lumped mass model with three DOFs, as shown in Figure 3(a). The three natural frequencies of the model are 3.195, 8.951, and 12.935 Hz, respectively. The equations of the motion for the model are obtained as,³¹

{\begin{matrix} u_{g} (t) - m_{1} {\overset{\cdot\cdot}{x}}_{1} (t) = (k_{1} + k_{2}) x_{1} (t) - k_{2} x_{2} (t) + (c_{1} + c_{2}) {\overset{\cdot}{x}}_{1} (t) - c_{2} {\overset{\cdot}{x}}_{2} (t) \\ - m_{2} {\overset{\cdot\cdot}{x}}_{2} (t) = - k_{2} x_{1} (t) + (k_{2} + k_{3}) x_{2} (t) - k_{3} x_{3} (t) - c_{2} {\overset{\cdot}{x}}_{1} (t) + (c_{2} + c_{3}) {\overset{\cdot}{x}}_{2} (t) - c_{3} {\overset{\cdot}{x}}_{3} (t) \\ - m_{3} {\overset{\cdot\cdot}{x}}_{3} (t) = - k_{3} x_{2} (t) + k_{3} x_{3} (t) - c_{3} {\overset{\cdot}{x}}_{2} (t) + c_{3} {\overset{\cdot}{x}}_{3} (t) \end{matrix}

(25)

where $x_{i}$ , ${\overset{\cdot}{x}}_{i}$ and ${\overset{\cdot\cdot}{x}}_{i}$ represent the displacement, velocity and acceleration responses of the $i th$ floor. $u_{g}$ is the ground excitation. The state vector $h (t) \in R^{6 \times 1}$ is expressed as $h (t) = [x_{1} (t); x_{2} (t); x_{3} (t); {\overset{\cdot}{x}}_{1} (t); {\overset{\cdot}{x}}_{2} (t); {\overset{\cdot}{x}}_{3} (t)]$ .

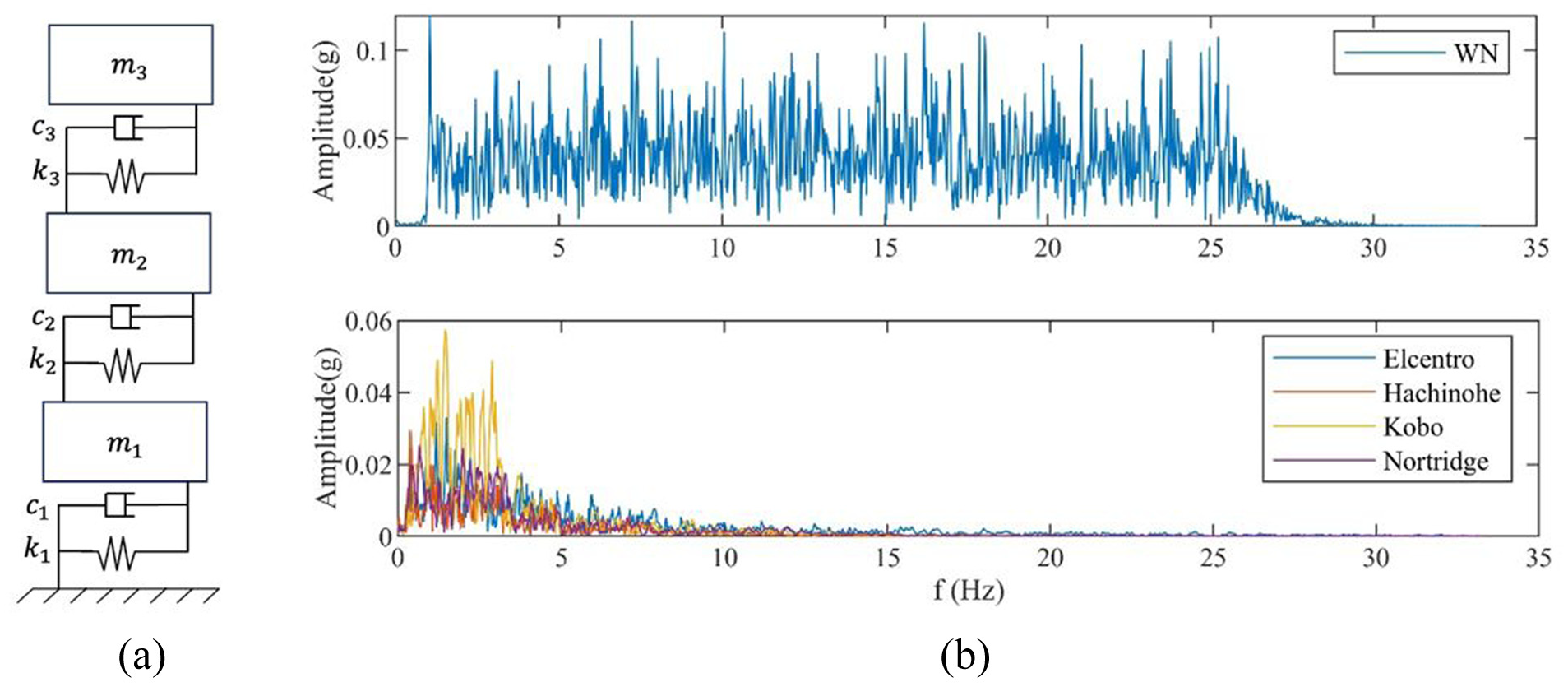

Figure 3.

Building structure and its excitations. (a) Lumped mass model. (b) Spectra of WN and earthquake excitations.

Data preparation

Structural damage detection is typically under normal service conditions, where the structure remains within its linear or weakly nonlinear response regime. To verify the robustness of the proposed method to operational conditions, different ground excitations are simulated using earthquake records in this study, for example, El Centro (E1), Hachinohe (E2), Kobe (E3) and Northridge (E4), and white noise (WN) as shown in Figure 3(b). The sampling frequency is 100 Hz. As mentioned above, the highest frequency of the three-story model is 12.935 Hz and a sampling frequency of 100 Hz is sufficient to cover all modes of the model. In terms of frequency band for each excitation, that of earthquake recordings is between $0 - and 5 Hz$ due to their natural characteristic, and that of WN is set between $1 - and 25 Hz$ as shown in Figure 3(b). The state vector $h (t)$ of the structural system is formed by displacement and velocity responses. $h (t)$ is regrouped as $h_{1} (t) = [0; x_{1} (t); x_{2} (t); 0; {\overset{\cdot}{x}}_{1} (t); {\overset{\cdot}{x}}_{2} (t)]$ , $h_{2} (t) = [x_{1} (t); x_{2} (t); x_{3} (t); {\overset{\cdot}{x}}_{1} (t); {\overset{\cdot}{x}}_{2} (t); {\overset{\cdot}{x}}_{3} (t)]$ and $h_{3} (t) = [x_{2} (t); x_{3} (t); 0; {\overset{\cdot}{x}}_{2} (t); {\overset{\cdot}{x}}_{3} (t); 0]$ to supervise the PNODEs in phase II. For the length of training data, a state vector $h_{i} (t)$ containing 3200 data points with a 32 s sampling length is used.

PNODEs architectures

In the Prior physics block, the structure under health condition is given with the known ground excitation $u (t)$ . It can be expressed as

\begin{matrix} \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} K & - M^{- 1} C \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) = f_{health} (\cdot) + Bu (t) \end{matrix}

(26)

where $0_{3 \times 1}$ is a zero-matrix vector $R^{3}$ . The mass, damping and stiffness matrices are given, $M = [\begin{matrix} 4.8 & 0 & 0 \\ 0 & 4.8 & 0 \\ 0 & 0 & 4.8 \end{matrix}] (kg)$ , $C = [\begin{matrix} 4.244 & 4.244 & 0 \\ - 2.084 & 4.244 & - 2.084 \\ 0 & - 2.084 & 2.161 \end{matrix}] (Ns / mm)$ and $K = [\begin{matrix} 19.509 & 9.755 & 0 \\ - 9.755 & 19.509 & - 9.755 \\ 0 & - 9.755 & 9.755 \end{matrix}] (kN / m)$ .

In the Parallel NN block, the discrepancy $NN (h (t))$ from Equation (15) is learned by three parallel NNs $[\begin{matrix} 0_{3 \times 1} \\ \begin{matrix} N N_{1} (h_{1} (t)) \\ \begin{matrix} N N_{2} (h_{2} (t)) \\ N N_{3} (h_{3} (t)) \end{matrix} \end{matrix} \end{matrix}] (N N_{i} : R^{6} \to R^{1}, i = 1, 2 and 3)$ . The input for each network is the state vector $h_{i} (t) = [x_{i - 1} (t); x_{i} (t); x_{i + 1} (t); {\overset{\cdot}{x}}_{i - 1} (t); {\overset{\cdot}{x}}_{i} (t); {\overset{\cdot}{x}}_{i + 1} (t)],$ and the output of PNODEs is the acceleration vector $[{\overset{\cdot\cdot}{x}}_{1} (t); {\overset{\cdot\cdot}{x}}_{2} (t); {\overset{\cdot\cdot}{x}}_{3} (t)]$ . Based on the Equation (10), the $N N_{i} (h (t))$ can be represented as,

\begin{matrix} N N_{i} (h_{i} (t)) = W^{N_{l}} [\dots σ^{2} (W^{2} [σ^{1} (W^{1} h^{0} + b^{1})] + b^{2}) \dots + b^{N_{l}} \\ = w^{[N_{l}] T} \dots σ^{2} (W^{2} [σ^{1} (w^{[1] T} h^{0} + b^{[1]})] + b^{2}) \dots + b^{[N_{l}]} \end{matrix}

(27)

where $w$ and $b$ are the matrix representation for weight vector and bias, respectively. $w^{[1]} \in R^{6 \times N_{n}}$ , $b^{[1]} \in R^{N_{n}}$ , $w^{[2]} \in R^{N_{n} \times N_{n}}$ , $b^{[2]} \in R^{N_{n}}$ , $w^{[N_{l}]} \in R^{N_{n} \times 1}$ , $b^{[N_{l}]} \in R^{1}$ , where $N_{l}$ is the number of layers in each network and $N_{n}$ is the number of neurons in each layer. The architecture of the ith network $N N_{i}$ and the corresponding training hyper-parameters are listed in Table 1.

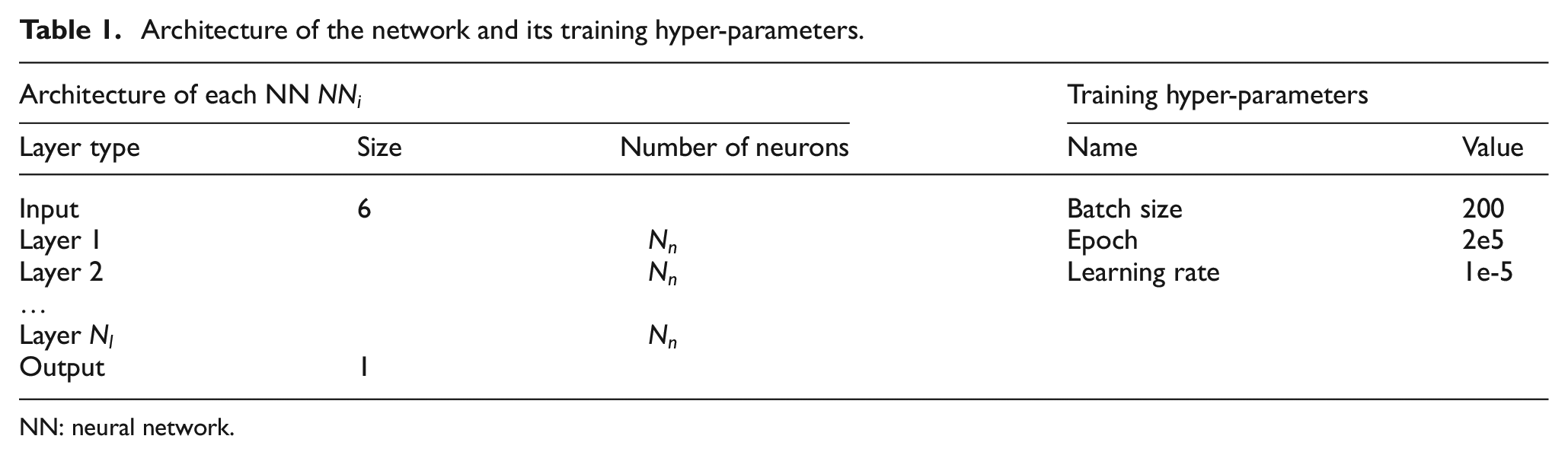

Table 1.

Architecture of the network and its training hyper-parameters.

Architecture of each NN $N N_{i}$			Training hyper-parameters
Layer type	Size	Number of neurons	Name	Value
Input	6		Batch size	200
Layer 1		$N_{n}$	Epoch	2e5
Layer 2		$N_{n}$	Learning rate	1e-5
…
Layer $N_{l}$		$N_{n}$
Output	1

NN: neural network.

All models were implemented using the PyTorch framework and trained on a NVIDIA RTX 6000 with 64 GB of memory. The training of a NN model takes approximately 65 min with about 9 GB Graphics Processing Unit (GPU) memory. The stochastic gradient descent optimiser is adopted with hyper-parameters listed in Table 1. It is noted that the scheme is implemented using Python, with PyTorch utilised for model learning. Thus, model training is accelerated by GPU.

Results

Effect of measurement noise on structural damage identification

In practice, the data contain the measurement noise. The effect of measurement noise on structural damage identification using the proposed method is discussed in this section. Different measurement noise levels, for example, 0, 5 and 10%, are studied in this section. The Gaussian white noise is added to calculated responses to simulate measurements $X_{noise}$ for the training data as $X_{noise} = X + N (μ, σ)$ , where $X$ is the noise-free data. $N (μ, σ)$ is the standard normal distribution of Gaussian noise. $μ, σ$ are the mean value and standard deviation of the noise. In this case, $μ$ is equal to 0. $σ$ is equal to 0.05 and 0.1 for 5 and 10% noise, respectively. The damage is simulated on the first floor by a stiffness reduction of 10%. The state space equation of the 3-DOF structure system is,

\begin{matrix} \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} K & - M^{- 1} C \end{matrix}] h (t) + [\begin{matrix} 0 \\ 0 \\ \begin{matrix} 0 \\ - \frac{0.1 k_{1}}{m_{1}} x_{1} (t) \\ \begin{matrix} 0 \\ 0 \end{matrix} \end{matrix} \end{matrix}] \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) = f_{damage} (\cdot) + Bu (t) \end{matrix}

(28)

To compare the effect of the network architecture, five cases have been studied with different number of hidden layers and neurons in each layer. Table 2 shows the running time and MSE value for each case. As listed in the table, for a NN with two hidden layers, the running time increases with the number of neurons and the corresponding MSE value is reduced with the number of neurons. When the number of neurons reaches to 20, the computational time and the MSE value are 5.22 s and $6.44 \times 10^{- 2},$ respectively. When the number of neurons per layer is 10, the running time increases with the number of hidden layers, and the MSE value was not improved with the number of layers. The NN with two hidden layers of 10 neurons each is the most efficient in this study as it produces a low MSE value in the relative short time. The network will be used in the following sections.

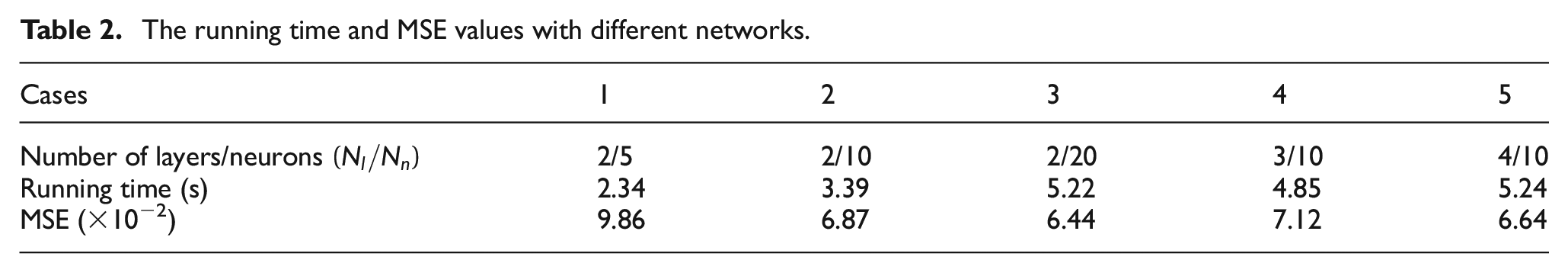

Table 2.

The running time and MSE values with different networks.

Cases	1	2	3	4	5
Number of layers/neurons $(N_{l} / N_{n})$	2/5	2/10	2/20	3/10	4/10
Running time (s)	2.34	3.39	5.22	4.85	5.24
MSE (×10⁻²)	9.86	6.87	6.44	7.12	6.64

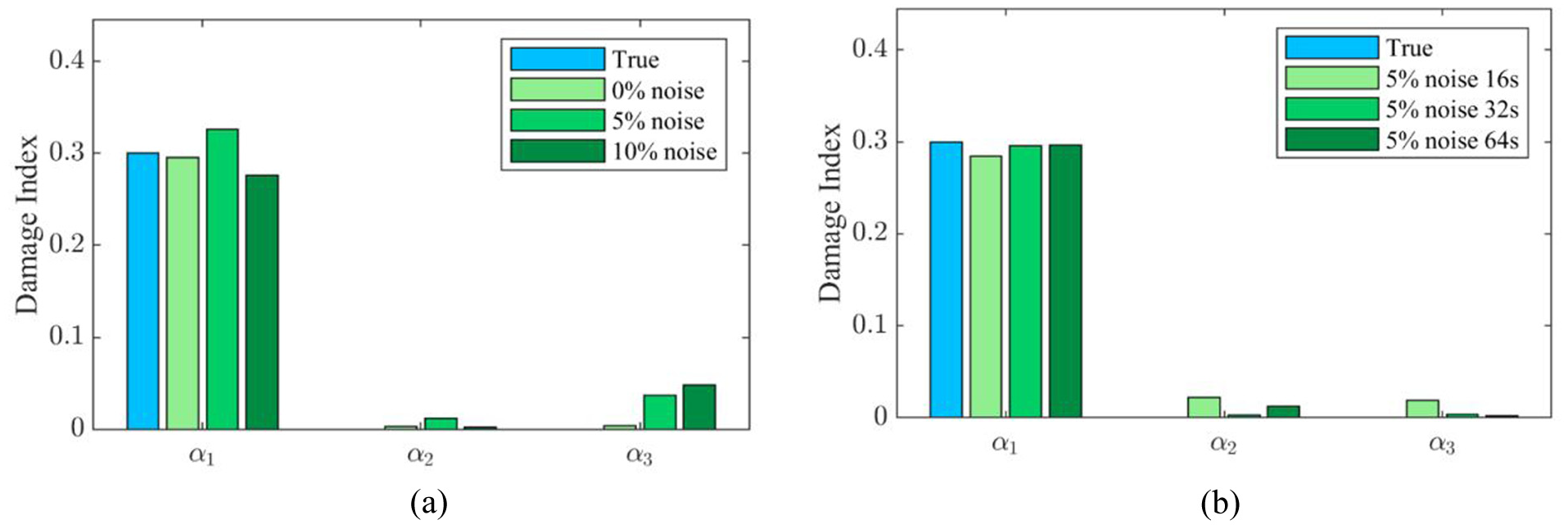

Figure 4 shows identified damage indices from each $N N_{i} (h_{i} (t))$ with different measurement noise and sampling record lengths. From Figure 4(a), the damage is localised accurately even with 10% measurement noise. The errors of identified results for the damage index of the first floor from measurements with 5 and 10% noise are 9.0 and 7.9%, respectively. There are small errors in identified results of the second and third floors. The results show that the proposed method is robustness to the measurement noise.

Figure 4.

Identified results for case 1M with different measurement noise and record lengths. (a) With different measurement noise. (b) With different record lengths.

A key advantage of the proposed PNODEs framework lies in its residual learning formulation, which incorporates prior physical knowledge of the undamaged system via a state-space model. The labelled data from damage scenarios are not required. Rather than learning the full structural dynamics from data, the NNs are tasked only with modelling the residual discrepancies between measured responses and predictions from the known prior physical model. This significantly reduces the data requirement and allows the framework to operate effectively even when measurement data is sparse or limited. To verify the robustness of the proposed method to the sampling length, three different sampling record lengths, for example, 16, 32 and 64 s, are studied. Figure 4(b) shows identified results using different sampling record lengths. As shown in the figure, the damage indices of the first floor for each sampling record are 0.284, 0.296 and 0.296, respectively. The results show that the record length does not have a large effect on the accuracy of the proposed method.

The output of $N N_{i} (h_{i} (t))$ is the acceleration of the ith floor, and the restoring force can be obtained by multiplying by its mass. The force versus the relative displacement $(x_{n} (t) - x_{n - 1} (t))$ for each floor is shown in Figure 5, and it agrees well with the true force from Equation (27). Using the linear fitting, the stiffness change is determined as $Δ k_{1} = 973.7 N / m$ . It is close to the true value of the stiffness change as $0.1 k_{1} = 975.46 N / m$ . The results show that the proposed method can efficiently and accurately quantify the structural damage given the a priori knowledge of the system under the health structure, and the PNODES can be sufficiently accurately represent model discrepancies caused by the damage.

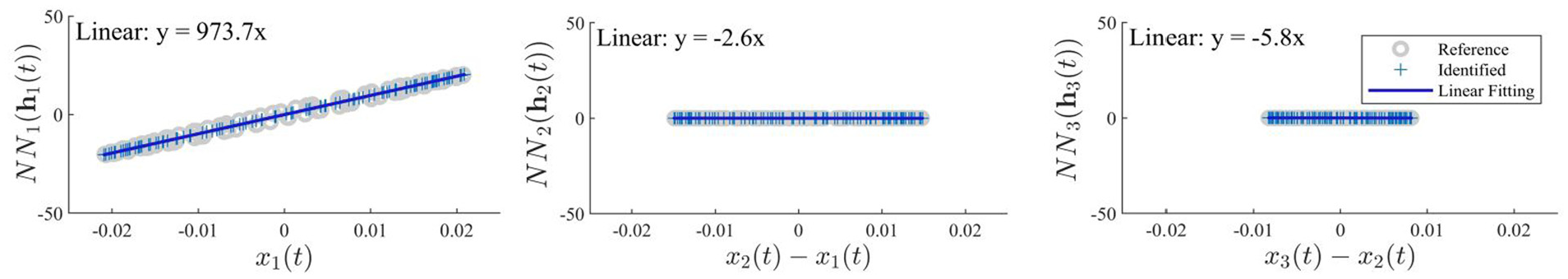

Figure 5.

The relationship between $N N_{i} (h_{i} (t))$ and relative displacement for each floor.

Nonlinear structural system identification

Nonlinearities usually exist in civil structures, and it is usually caused by material, geometrical or boundary conditions (i.e., sliding surface, vibratory impact caused by semi-rigid connection, or elastic bodies).³² In this study, the proposed method is used to identify the nonlinear structural system subjected to ground excitations. An additional nonlinear stiffness term $\frac{k_{nonlinear}}{m_{1}} {x_{1}}^{3}$ is introduced, and the state space equation of the nonlinear system is obtained as,

\begin{matrix} \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} K & - M^{- 1} C \end{matrix}] h (t) + [\begin{matrix} 0 \\ 0 \\ \begin{matrix} 0 \\ \frac{k_{nonlinear}}{m_{1}} {x_{1}}^{3} (t) \\ \begin{matrix} 0 \\ 0 \end{matrix} \end{matrix} \end{matrix}] \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) \end{matrix}

(29)

where $k_{nonlinear} = 2800 \times 10^{3} N / m$ .

The relationship between the restoring force versus the relative displacement of each floor is shown in Figure 6. From the figure, the restoring forces for the second and third floors are close to zero, and their stiffness changes are equal to zero. The restoring force for the first floor is nonlinear, and the nonlinear stiffness can be determined by the polynomial fitting as $2908.2 \times 10^{3} N / m,$ and the relative error between the identified and true stiffness is 3.864%. The result shows that the proposed method is effective and accurate to identify the nonlinear structural system.

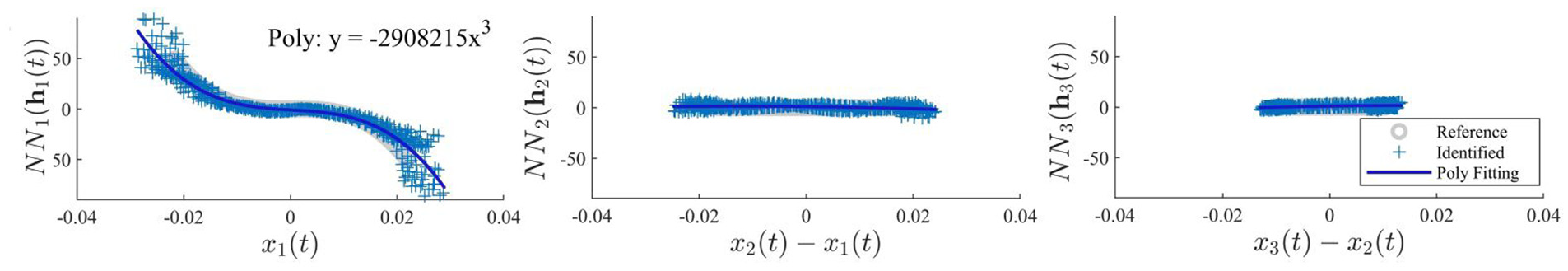

Figure 6.

$N N_{i} (h_{i} (t))$ versus each relative displacement for the nonlinear system.

An experimental study of three-storey building structures

In this section, a three-storey steel building model is established in the laboratory to further verify the proposed method. First, the experiment setup is introduced. Next, the experimental study of the building structure with different damage scenarios subjected different ground excitations are conducted on a shaking table. Finally, the performance of the proposed method is demonstrated.

Experimental setup

A three-storey steel building frame was built and installed on the shake table at Tech Lab, University of Technology Sydney. The experimental setup is shown in Figure 7. The building structure is made of two spring steel strips and four mass blocks, the bottom mass block was fixed on a multi-axis shake table by two high-strength bolts. The accelerometers are installed on each floor to collect acceleration responses and the lasers are installed beside the shake table to measure the structural displacement responses. The shake table provides one-axis seismic ground motions. The first three natural frequencies of the undamaged experimental structure are 3.063, 8.620 and 12.520 Hz, respectively.

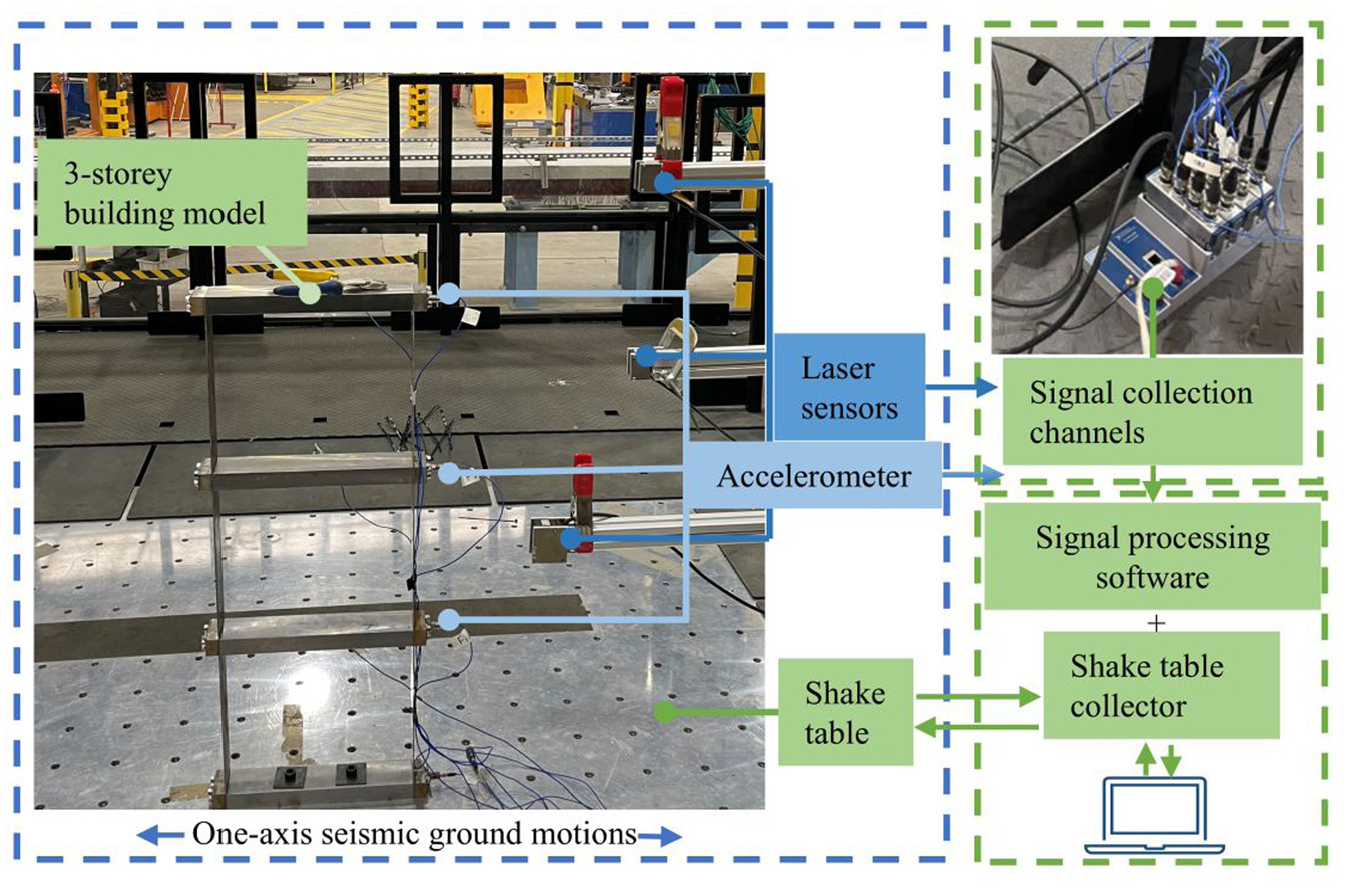

Figure 7.

Experimental setup.

Different damage scenarios are then simulated through the saw cut on two columns as listed in Table 3. The steel columns on both sides of the model were cut symmetrically, and the location of the damage is shown in red colour in Figure 8. For each damage scenario, the displacement responses of the structure under different excitations are monitored by laser sensors.

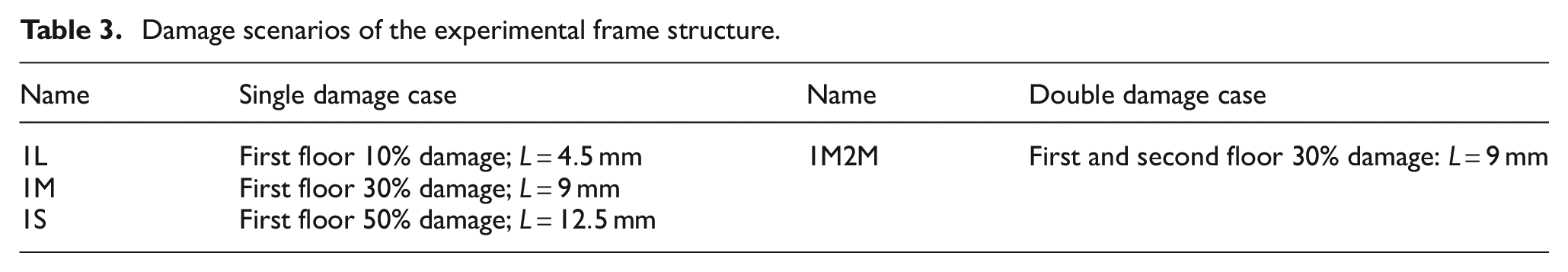

Table 3.

Damage scenarios of the experimental frame structure.

Name	Single damage case	Name	Double damage case
1L	First floor 10% damage; $L = 4.5 mm$	1M2M	First and second floor 30% damage: $L = 9 mm$
1M	First floor 30% damage; $L = 9 mm$
1S	First floor 50% damage; $L = 12.5 mm$

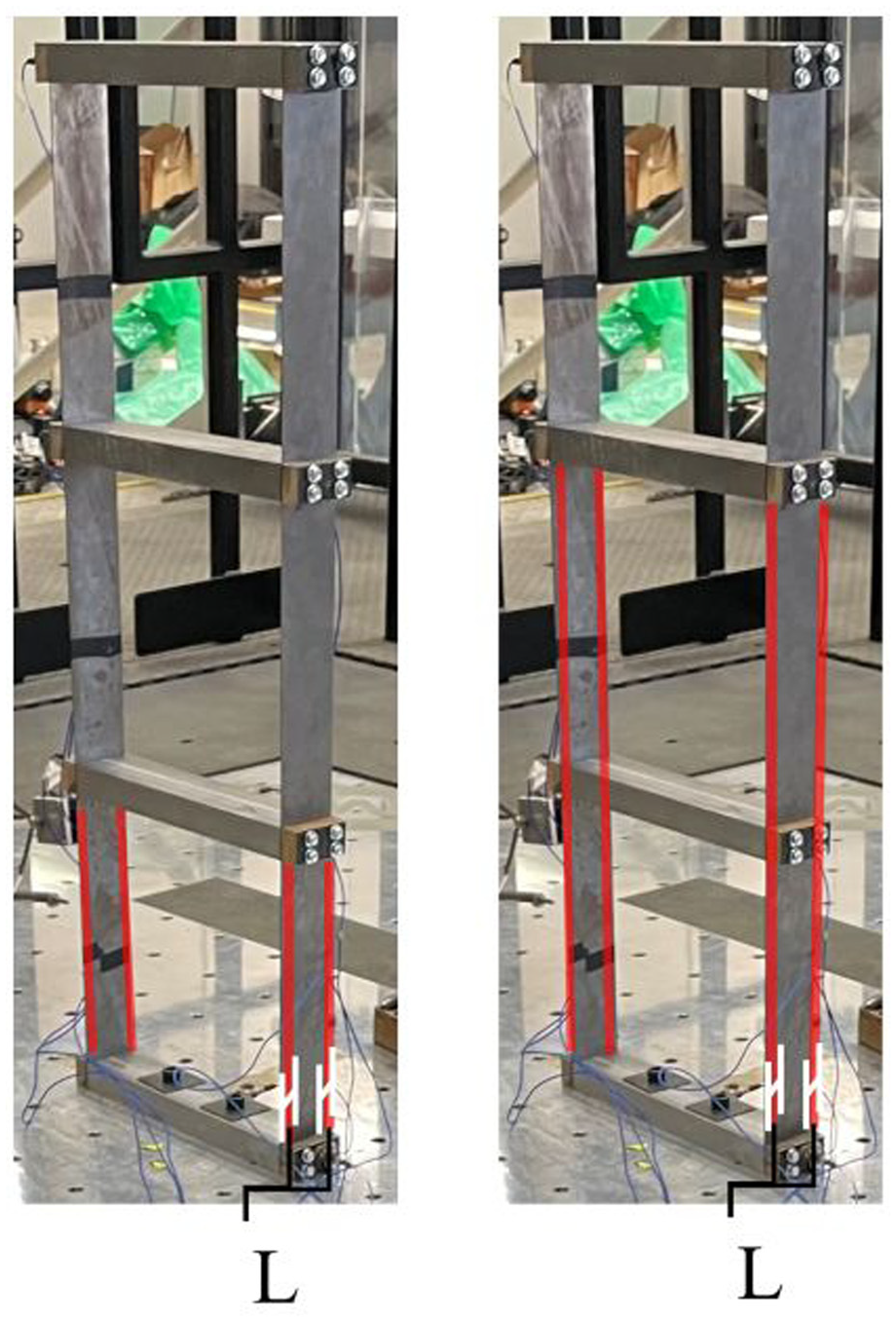

Figure 8.

Damage models.

Data preparation

The ground excitations are the same as that in ‘Data preparation’ section, including four earthquake recordings (El, E2, E3 and E4) and WN. The recordings were used to excite the experimental structure on the shake table. The frequency band of the four earthquakes are between $0 and - 5 Hz$ , and that of WN are set between $1 - and 25 Hz$ , as shown in Figure 3(b). The magnitude of all ground motions is scaled to $0.1 g$ keep the structure remained in a linear behaviour. Lastly, the time series response h(t) is recombined into $h_{i}$ (i = 1, 2 and 3) for the input of the PNODE model.

Architecture of PNODEs

In the Prior physics block, the prior physics knowledge under the health condition corresponding to the undamaged experimental structure is simplified as a 3-DOFs numerical model. However, there are some differences due to the modelling error between the experimental structure and numerical model even both under health condition. These differences may be incorrectly identified as structural damage and captured by the parallel NN, leading to inaccurate damage identification results. Thus, the numerical model is updated using the responses of the experimental structure under the health condition. After the updating process, the stiffness and damping matrix of the experimental structure of health condition $K_{Exp}$ and $C_{Exp}$ are obtained as prior physical knowledge summarised in Table 4 below.

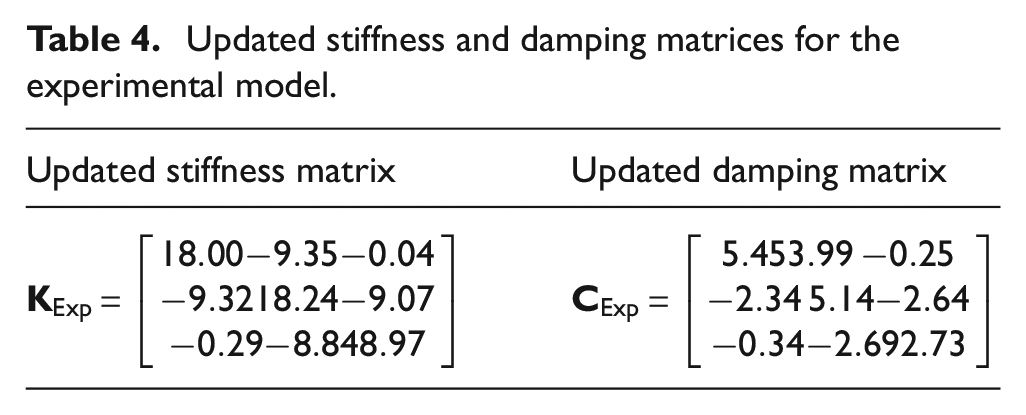

Table 4.

Updated stiffness and damping matrices for the experimental model.

Updated stiffness matrix	Updated damping matrix
$K_{Exp} = [\begin{matrix} 18.00 & - 9.35 & - 0.04 \\ - 9.32 & 18.24 & - 9.07 \\ - 0.29 & - 8.84 & 8.97 \end{matrix}]$	$C_{Exp} = [\begin{matrix} 5.45 & 3.99 & - 0.25 \\ - 2.34 & 5.14 & - 2.64 \\ - 0.34 & - 2.69 & 2.73 \end{matrix}]$

In the parallel NN block, the state space equations are established by structural state vectors $h (t) \in R^{6 \times 1}$ as below,

\begin{matrix} \frac{d h (t)}{d t} = [\begin{matrix} 0 & I \\ - M^{- 1} (K_{Exp}) & - M^{- 1} C_{Exp} \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) + [\begin{matrix} 0_{3 \times 1} \\ NN (h (t)) \end{matrix}] \\ = [\begin{matrix} 0 & I \\ - M^{- 1} (K_{Exp}) & - M^{- 1} C_{Exp} \end{matrix}] h (t) \\ + [\begin{matrix} 0 \\ - M^{- 1} \end{matrix}] u (t) + [\begin{matrix} 0_{3 \times 1} \\ \begin{matrix} N N_{1} (h_{1} (t)) \\ \begin{matrix} N N_{2} (h_{2} (t)) \\ N N_{3} (h_{3} (t)) \end{matrix} \end{matrix} \end{matrix}] \end{matrix}

(30)

where $N N_{i} (h_{i} (t))$ (i = 1, 2, 3) represents the discrepancy between the undamaged and damaged structures. The architecture of each network is designed as same as ‘Results’ section with six inputs and one output.

Results

Effect of different environmental excitations

In practice, the operational conditions may be varied. The performance of the proposed approach for structural damage identification under various environmental excitations is investigated in this section. The single damage (1M) is simulated as 30% stiffness reduction of the first floor, for example, $α = {0.300, 0.000, 0.000}$ . The responses $h (t)$ of the experimental structure subjected to different ground excitations E2, E3 and WN are recorded, respectively. Figure 9 shows the identified damage indices compared with the true value. The results show that the proposed PNODEs can accurately identify the damage severity of the first floor under different excitations. The identified results underground excitations E2 and E3 are 0.325 and 0.327 with the relative errors of 9.000 and 8.333%, respectively. When the experimental model is under WN excitation, it can also correctly localise the damaged location and identify the damage severity with a result of 0.343 and relative error of 14.333%. Besides, there is a small error in the identified results for the second and third floors.

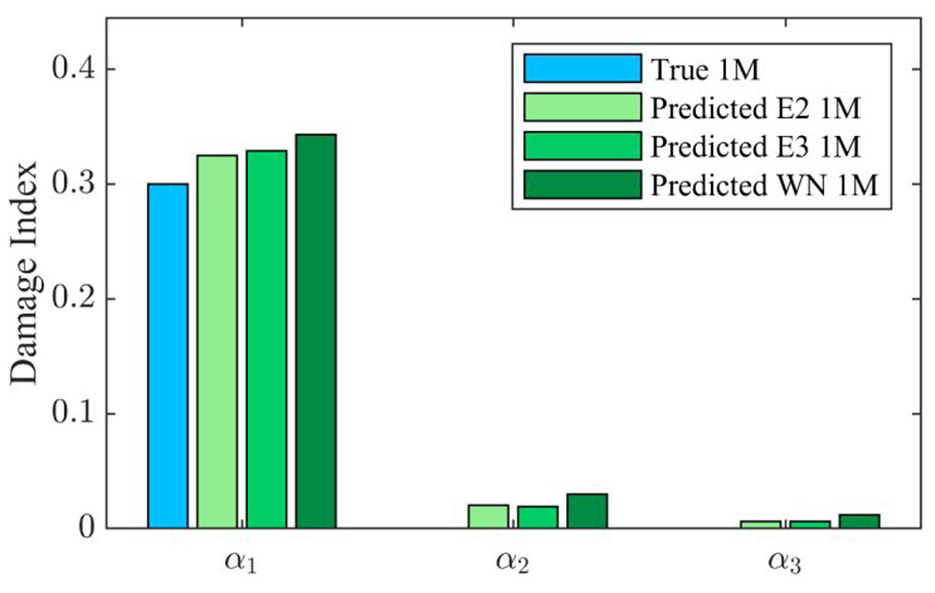

Figure 9.

Identified results for damage case 1M under excitations of E2, E3 and WN.

The restoring force is extracted from $N N_{n} (h_{n} (t))$ and plotted in Figure 10. The linear fitting is used to determine the stiffness reduction from the restoring force. From Figure 10, the identified stiffness reductions under E2, E3 and WN excitations are $Δ k_{1} = 3280.9$ , $3200.8$ and $3361.4 N / m$ , respectively. The identified results are close to the true stiffness changes $0.3 k_{1} = 2793.8 N / m$ . The results show that the proposed method is robust to the environmental excitation.

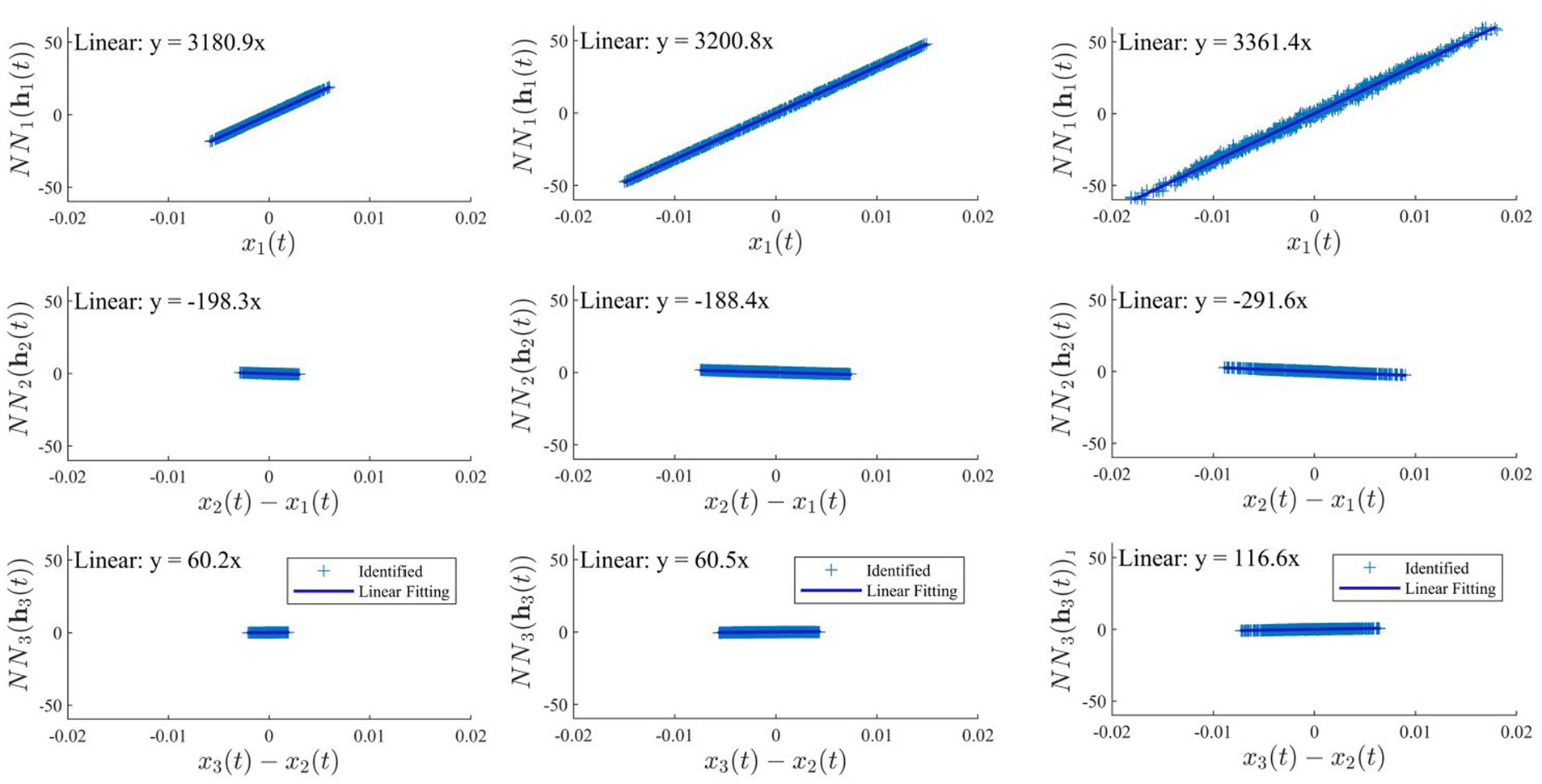

Figure 10.

Output of trained $N N_{i} (h_{i} (t))$ versus each relative displacement for damage case 1M under E2, E3 and WN.

Identification of single damage with different severities

To explore the performance of the proposed method for structural damage identification, single damage scenarios with different severities are studied in this section. With the earthquake excitation (E1) is applied, dynamic responses of the structure with different damage scenarios, for example, 10% (1L), 30% (1M) and 50% (1S) stiffness reduction of the first floor were studied. Figure 11 shows the identified results compared with the true value. Upon damage scenario of 1L, the damage index of the identified result 0.126 is slightly higher than the true value 0.100. Besides, the identified damage index of 1M and 1S are 0.325 and 0.548, and they are close to the true values 0.300 and 0.500, respectively. There are small errors in identified results on the second and third floors.

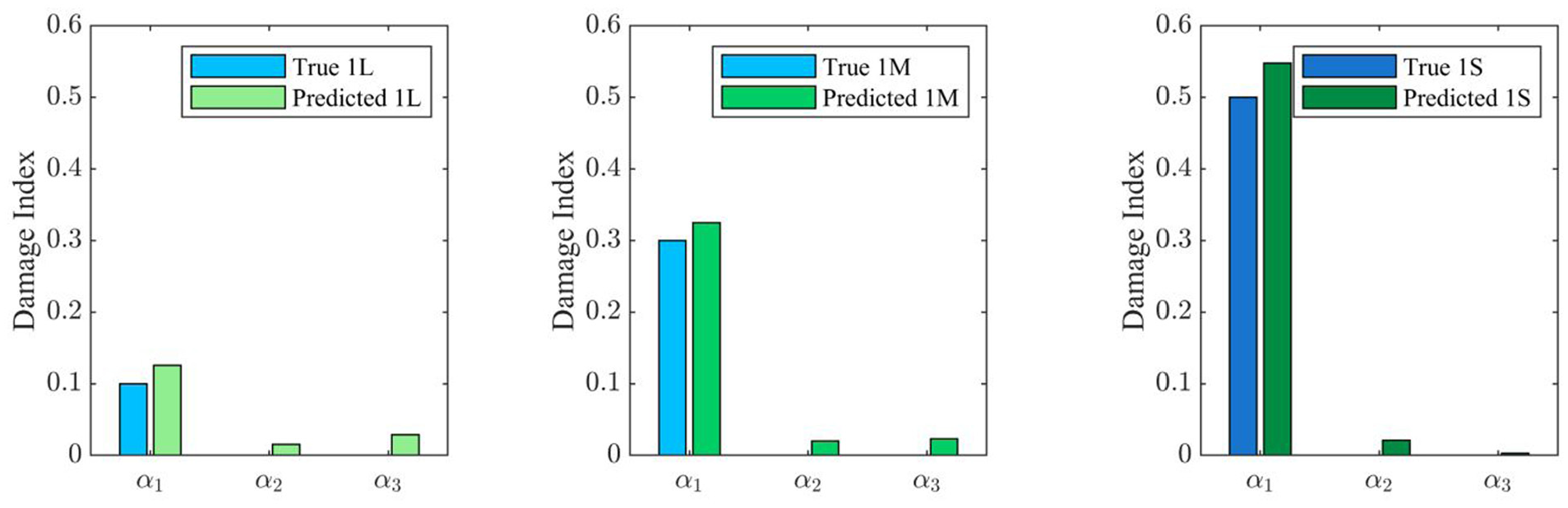

Figure 11.

Identified results for damage cases 1L, 1M and 1S.

The restoring force is extracted from $N N_{n} (h_{n} (t))$ and plotted in Figure 12. The change of stiffness is obtained through the linear curve fitting. The identified stiffness changes are $Δ k_{1} = 1549.9$ , $3180.9$ and $5359.1 N / m$ , respectively. There is a slight difference with the real stiffness changes $0.1 k_{1} = 931.3 N / m N / m$ , $0.3 k_{1} = 2793.8 N / mN / m$ and $0.5 k_{1} = 4656.3 N / m$ , and this may be due to the modelling errors between the numerical model and real structure. The results show that the stiffness change can be well separated and accurately extracted for structural damage identification by the proposed method.

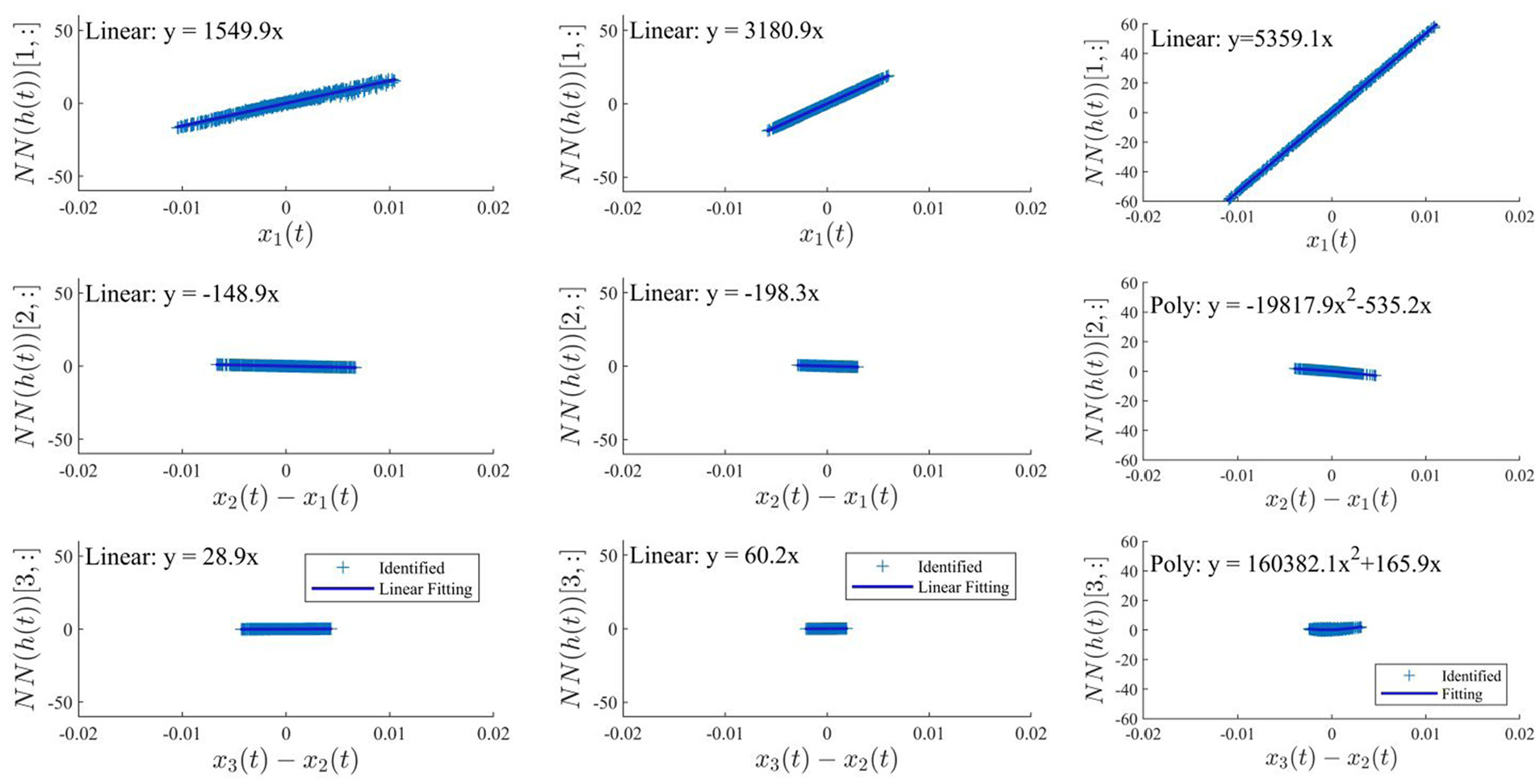

Figure 12.

Relationship between $N N_{i} (h_{i} (t))$ and relative displacement for damage scenarios 1L, 1M and 1S under the excitation E3.

Multiple damage identification

The section investigates the multiple damage identification using the proposed approach. The results are compared with that by FE model updating,⁷ Transfer learning³³ and Conventional NODEs.²² The earthquake record E1 is used as the ground excitation on the shaking table. The double damage case 1M2M is considered with the damage severity 0.300 on both the first and second floors, for example, $α = {0.300, 0.300, 0.000}$ .

Table 5 shows the running time and MSE values using the FE updating method, transfer learning, NODEs and PNODEs. The corresponding identified results for Case 1M2M using different methods are illustrated in Figure 13. From Figure 13, all method could identify the damage successfully, and the proposed PNODEs obtain the most accurate identified results as 0.325 and 0.311 for the first and second floors, respectively. There is false identified damage index for the third floor using the FE updating, transfer learning and NODEs. The results demonstrate that the proposed PNODEs approach outperforms other methods in accurately identifying both the damage locations and severities.

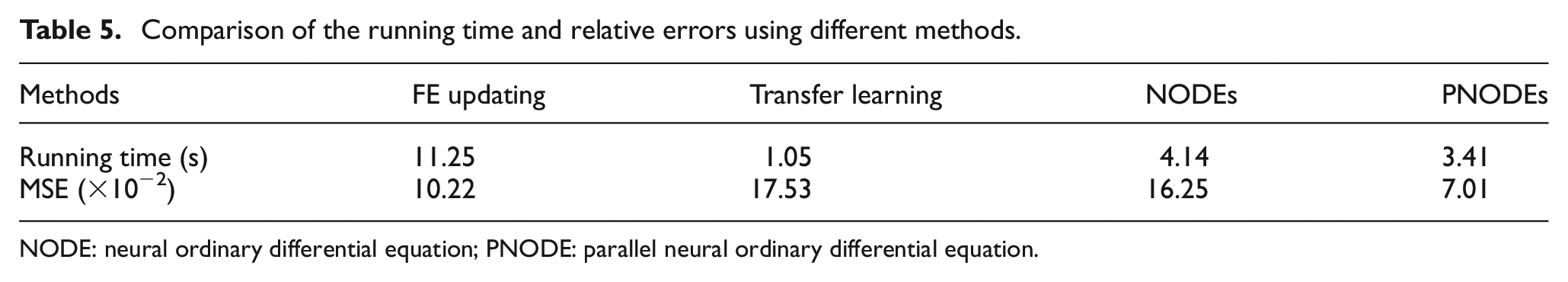

Table 5.

Comparison of the running time and relative errors using different methods.

Methods	FE updating	Transfer learning	NODEs	PNODEs
Running time (s)	11.25	1.05	4.14	3.41
MSE (×10⁻²)	10.22	17.53	16.25	7.01

NODE: neural ordinary differential equation; PNODE: parallel neural ordinary differential equation.

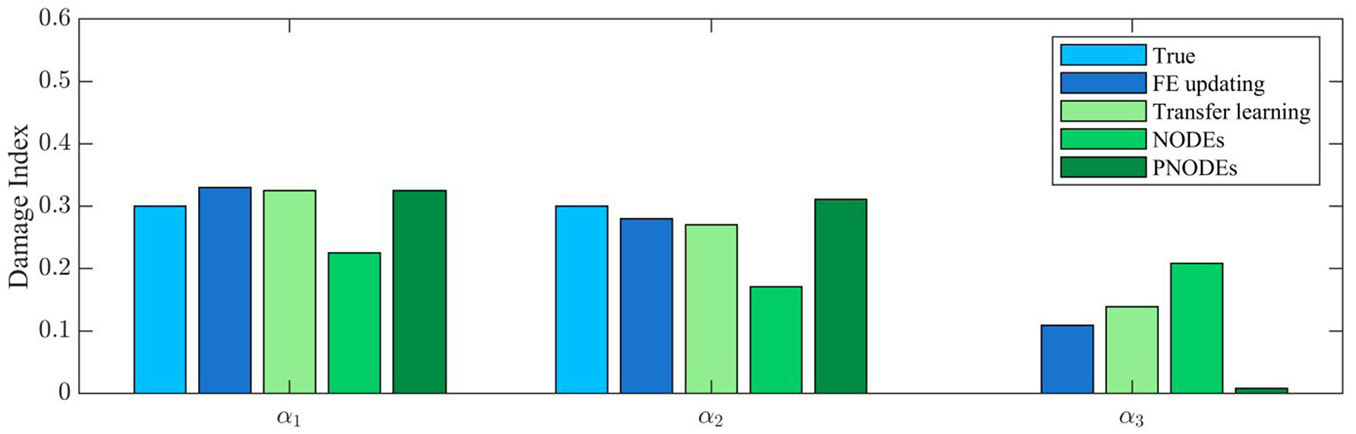

Figure 13.

Identified results for case 1M2M.

Considering both computational efficiency and accuracy in Table 5 and Figure 13, the FE updating method accurately identifies the double damage scenario but encounters significantly high computational costs. Transfer learning shows excellent computational efficiency, accurately localising and quantifying damages. However, it lacks interpretability due to its ‘black-box’ nature and it has a high MSE value. Conversely, the NODEs method struggles with accurately localising damage due to its single-block NN structure. Therefore, the proposed PNODEs approach provides an optimal balance between computational cost and accuracy, effectively localising and quantifying damage with enhanced interpretability and explainability.

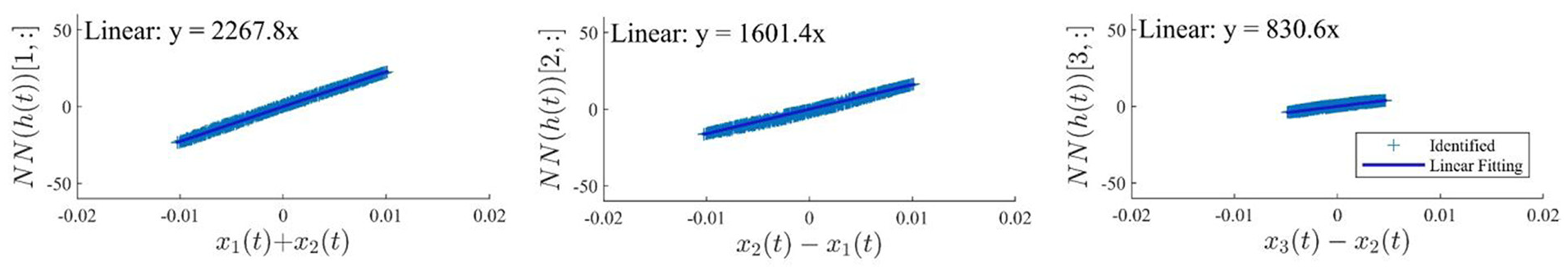

The restoring force is extracted from $N N_{i} (h_{i} (t))$ and plotted in Figure 14 and the stiffness changes are determined by the linear curve fitting. The predicted stiffness reductions for the double damage case are $Δ k_{1} = 2267.8 N / m$ , $Δ k_{2} = 1601.4 N / m$ . The true stiffness changes are $Δ k_{1} = Δ k_{2} = 2793.8 N / m$ . The results show that the proposed method could predict the stiffness changes for double damage cases. For the multi damage case, the proposed method could accurately identify the damage location, and further improvement is needed for the damage severity.

Figure 14.

$N N_{i} (h_{i} (t))$ versus relative displacement for damage case 1M2M.

Application for 3D frame structures

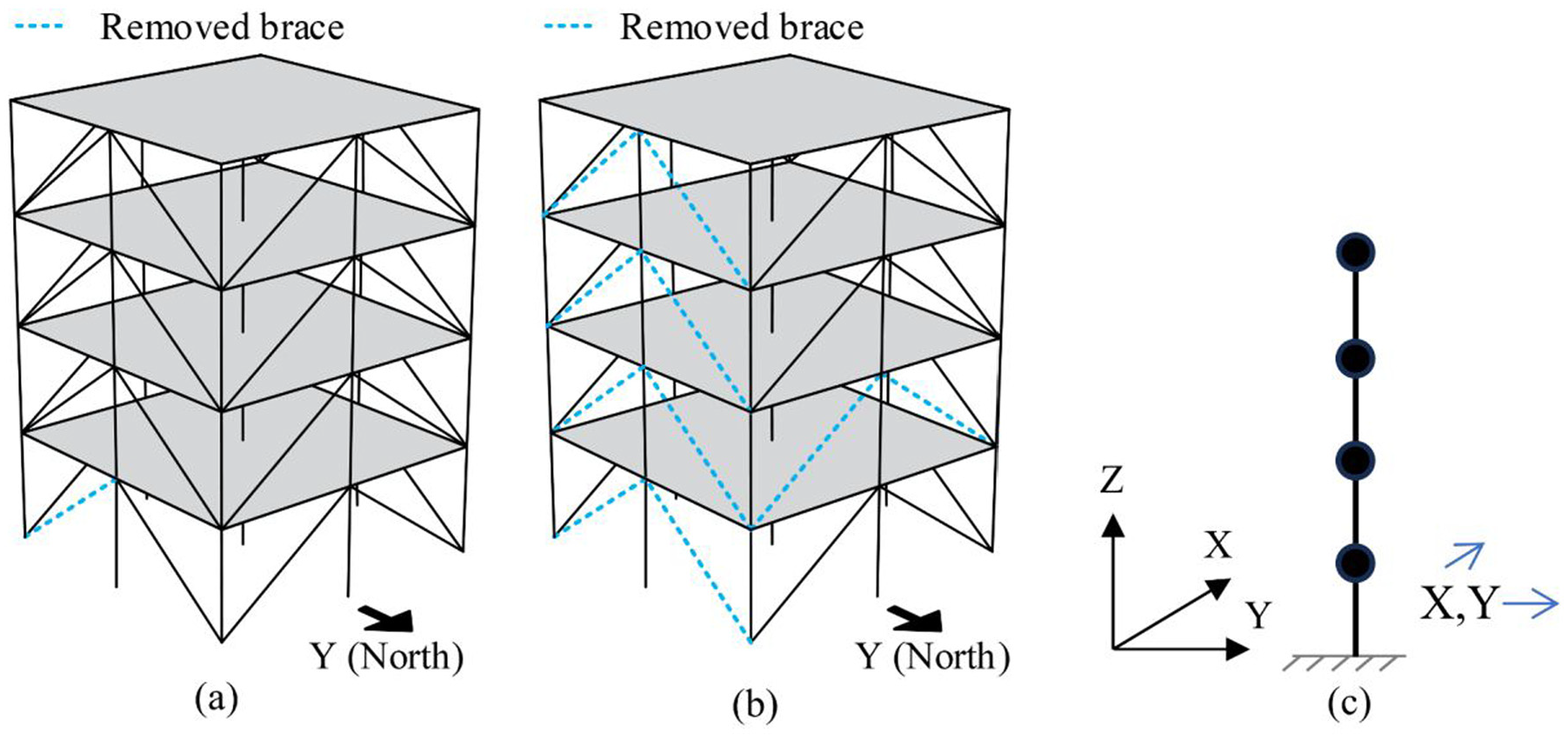

In this section, the IASC-ASCE benchmark frame is used to further verify the performance of the proposed method and the results are compared that by the NODEs method directly. The physical properties of the benchmark frame are introduced first including sensor locations and damage scenarios. Then, the data preparation process is presented, following by the NODEs and PNODEs architecture and the prior physical knowledge and the NN parameters. Lastly, the results of damage localisation and qualification by the proposed method and NODES are compared. Finally, the practicality of using parallel NN in PNODE for damage quantification is summarised.

Experimental structure information

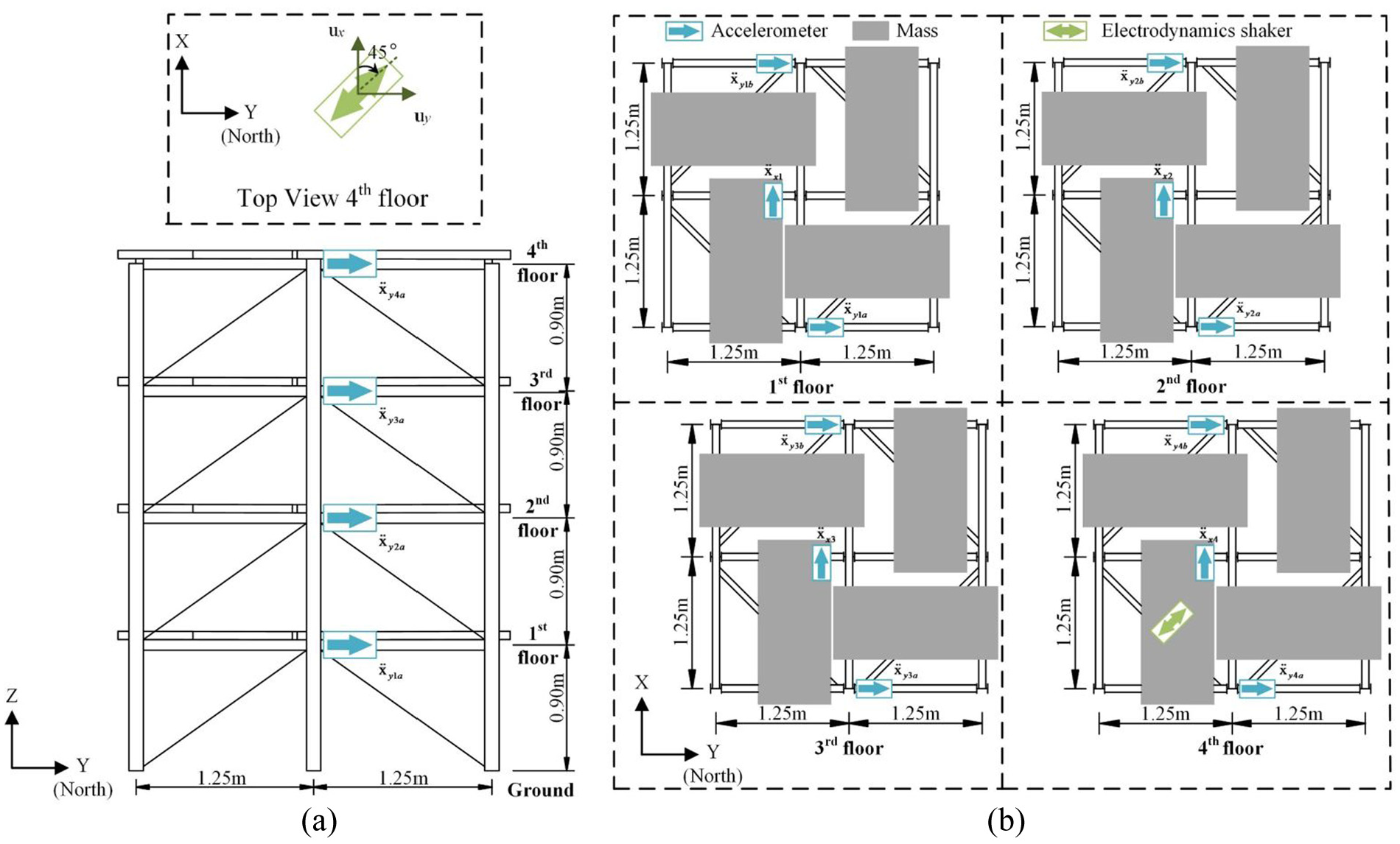

The IASC-ASCE benchmark frame, the ASCEs’ benchmark structure (experimental phase II),³⁴ is shown in Figure 15. The plane size of the structure is 2.5 m², and the height of each floor is 0.9 m. The sections of beams and columns are S75 × 11 and B100 × 9, respectively. Within each bay, the bracing system consists of two parallel, diagonally arranged threaded steel rods, each with a diameter of 12.7 mm. The braces are constructed from 300W grade hot-rolled steel. To achieve a realistically distributed mass, a single floor slab is installed within each bay at each floor. In detail, there are four slabs, each weighing 1000 kg. The slabs located at the first, second, and third floors are 1000 kg. The slab on the fourth floor is 750 kg. The details are illustrated in Figure 15(b). The locations of accelerometers are depicted in Figure 15(a). For each floor, three accelerometers are installed, for example, two accelerometers on the y-axis ( ${\overset{\cdot\cdot}{x}}_{yna}$ and ${\overset{\cdot\cdot}{x}}_{ynb}$ ) and one on the x-axis. Two sets of accelerometers ${\overset{\cdot\cdot}{x}}_{yna}$ and ${\overset{\cdot\cdot}{x}}_{ynb}$ in y-direction are divided into groups A and B, respectively.

Figure 15.

Sensor arrangements: (a) front view and (b) top view.

As shown in Figures 16(a) and (b), two damage scenarios have been simulated: the first damage scenario involves removing braces on the first floor in one bay at the southeast corner, and the second damage scenario involves removing braces on all floors on the eastern side and on the second-floor braces on the northern side.

Figure 16

Damage scenarios: (a) removing braces on the first floor in one bay at the southeast corner, (b) removing braces on all floors on the eastern side and on the second-floor braces on the northern side, and (c) the lumped mass model.

The experimental data from this benchmark dataset comprises acceleration measurements gathered from the structure under various conditions: ambient conditions, excitation induced by a shaker, and excitation resulting from a force hammer. In addition, the natural frequency of the benchmark frame under the health condition is 3.5, 11.0, 17.5, 24.0, 29.5, 34.0, 37.0 and 39.5 Hz from the measurement data. The detailed descriptions and experimental data for this experiment are available at https://datacenterhub.org/resources/257.

Data preparation

In this work, the displacement and velocity data are necessary for input to the NN, which is deviated from the measured acceleration data of the structure under the environment excitation. Two sets of displacement and velocity responses are obtained from ${\overset{\cdot\cdot}{x}}_{yna}$ and ${\overset{\cdot\cdot}{x}}_{ynb}$ along y direction, named as groups A and B. The data from groups A and B were fed into the NN separately for damage identification, and an average of damage indexes from both data was used for damage qualification. The data were sampled at a frequency of 200 Hz, and a low pass filter with a cutoff frequency of 100 Hz was employed to ensure to contain all the mode information of the experimental structure as mentioned above. Both the undamaged scenario and damage scenario 1 comprise 300 s of data each, whereas damage scenario 2 contains only 220 s of data.

The numerical model is updated using the measurement data from the undamaged structure. Then, the first 50 s of the state response $h (t)$ from the two damage scenarios were used to supervise the PNODEs, and the same length of environment excitation $u (t)$ is given to the ODEs for generating the response under the health condition. To identify the damage in this complex frame, the NN is designed as four individual NNs, representing four floors of the frames. In each time step, $h (t)$ is regrouped as $h_{i}$ input to each NN; where $h_{i}$ = $[x_{x (i - 1)}; x_{y (i - 1)}; x_{xi}; x_{yi}; x_{x (i + 1)}; x_{y (i + 1)}; {\overset{\cdot}{x}}_{x (i - 1)}; {\overset{\cdot}{x}}_{y (i - 1)}; {\overset{\cdot}{x}}_{xi}; {\overset{\cdot}{x}}_{yi}; {\overset{\cdot}{x}}_{x (i + 1)}; {\overset{\cdot}{x}}_{y (i + 1)}]$ (i = 1, 2, 3 and 4) contains the displacement and velocity responses relevant to that part of the structure it represents. Besides, the NODEs contained only one NN is also used for damage identification using the input $h (t)$ . Table 6 shows the input data for each NN in NODE and PNODEs. The results from the proposed method and NODEs are compared.

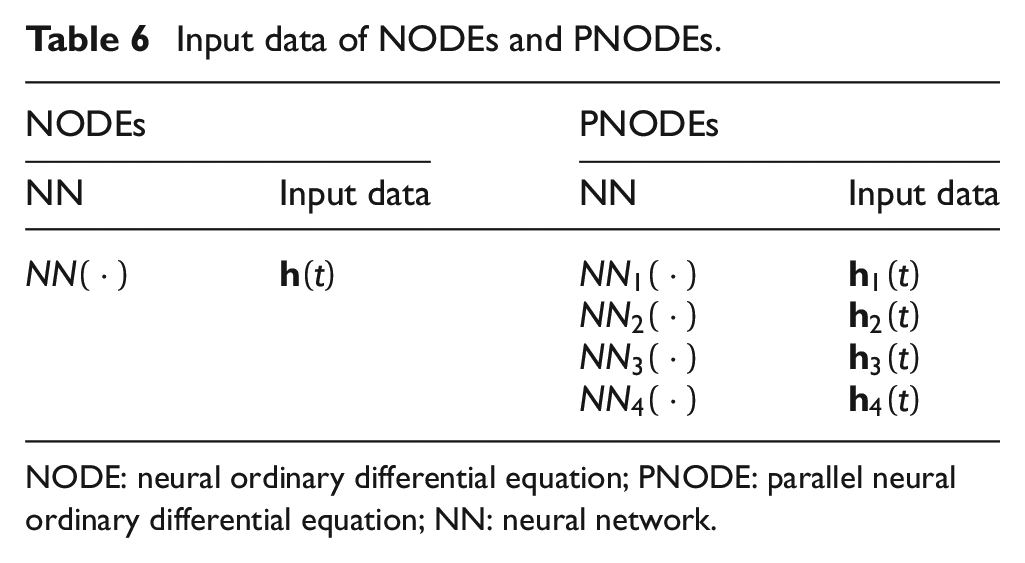

Table 6

Input data of NODEs and PNODEs.

NODEs		PNODEs
NN	Input data	NN	Input data
$NN (\cdot)$	$h (t)$	$N N_{1} (\cdot)$	$h_{1} (t)$
		$N N_{2} (\cdot)$	$h_{2} (t)$
		$N N_{3} (\cdot)$	$h_{3} (t)$
		$N N_{4} (\cdot)$	$h_{4} (t)$

NODE: neural ordinary differential equation; PNODE: parallel neural ordinary differential equation; NN: neural network.

PNODEs and NODEs architecture

In the prior physics block, the prior physics knowledge under the health condition corresponding to the undamaged frame structure is simplified as a lumped mass model using four segments and five nodes with locations of accelerometers. Each node contains two DOFs, which indicate horizontal and translational DOFs along x and y directions shown in Figure 16(c). As a result, each segment has four DOFs and eight DOFs in total for the entire structure.

In the Parallel NN block, similar to ‘Results’ section, the discrepancy term $f_{Δ K} (\cdot)$ of the structural system is learned by the n NN ( $N N_{i} : R^{12} \to R^{2}$ ). The input for each network is the state vector $h_{i} (t),$ and the output of PNODE is $[{\overset{\cdot\cdot}{x}}_{x 1} (t); {\overset{\cdot\cdot}{x}}_{y 1} (t); {\overset{\cdot\cdot}{x}}_{x 2} (t); {\overset{\cdot\cdot}{x}}_{y 2} (t); {\overset{\cdot\cdot}{x}}_{x 3} (t); {\overset{\cdot\cdot}{x}}_{y 3} (t); {\overset{\cdot\cdot}{x}}_{x 4} (t); {\overset{\cdot\cdot}{x}}_{y 4} (t)]$ . Thus, each $N N_{n}$ represents the discrepancy of each floor for the frame including x and y directions. To further reconstruct the structural parameters for structural damage identification, the $N N_{n} (\cdot)$ is designed with additional one layer being three layers for learning the discrepancy term related to experimental structure. The learning epoch is increased to 3e5 due to the complexity of the 3D frame. The results from the proposed method are compared with that by NODEs.

For the NODEs contained one whole NN, the $NN (\cdot)$ ( $R^{16} \to R^{8}$ ) is designed with 16 displacement and velocity responses $h (t)$ of the entire structure as input and 8 acceleration vectors as outputs with three layers, in which the number of neurons each layer are doubled comparing with the fourth section due to the increase of input and output sizes. Both the NODEs and PNODEs are solved using the same hyper-parameters for comparison. The details for each NN architecture for NODEs and PNODEs and training hyper-parameters are shown in Table 7.

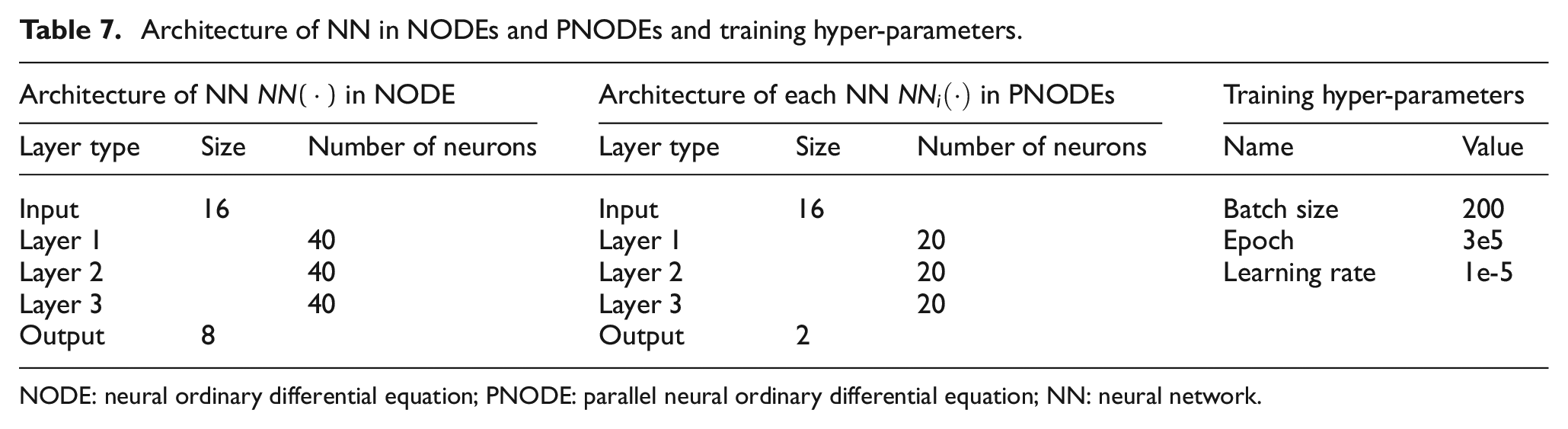

Table 7.

Architecture of NN in NODEs and PNODEs and training hyper-parameters.

Architecture of NN $NN (\cdot)$ in NODE			Architecture of each NN $N N_{i} (\cdot)$ in PNODEs			Training hyper-parameters
Layer type	Size	Number of neurons	Layer type	Size	Number of neurons	Name	Value
Input	16		Input	16		Batch size	200
Layer 1		40	Layer 1		20	Epoch	3e5
Layer 2		40	Layer 2		20	Learning rate	1e-5
Layer 3		40	Layer 3		20
Output	8		Output	2

NODE: neural ordinary differential equation; PNODE: parallel neural ordinary differential equation; NN: neural network.

Results

Single damage identification

The true values of the changes in the stiffness of the frame structure were obtained from the results of the previous experiments.³⁵ The training time and MSE values with different number of layers and neurons are shown in Table 8. The training hyperparameters were consistent with the values in Table 7. It can be observed from Table 8 that the configuration with three hidden layers, each containing 20 neurons, achieves optimal efficiency. This configuration provides a relatively low MSE value of 9.87, indicating strong predictive performance, while maintaining an acceptable computational cost, with a running time of 5.91 s. Maintaining 20 neurons in each hidden layer while increasing the number of hidden layers to 4 or 5 does not lead to a significant reduction in the MSE value. However, it substantially increases the computational cost, resulting in a disproportionately longer running time. Considering the training time and MSE value, the optimal network architecture in this case is to employ the three layers with 20 neurons in each layer.

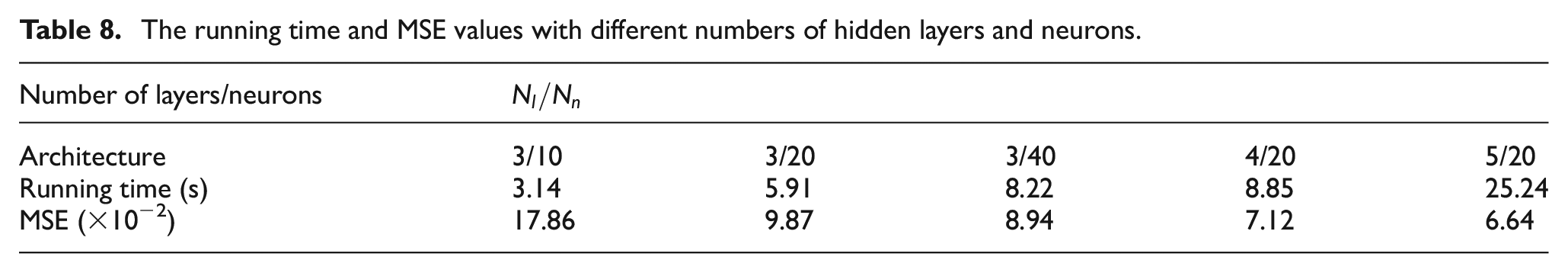

Table 8.

The running time and MSE values with different numbers of hidden layers and neurons.

Number of layers/neurons	$N_{l} / N_{n}$
Architecture	3/10	3/20	3/40	4/20	5/20
Running time (s)	3.14	5.91	8.22	8.85	25.24
MSE (×10⁻²)	17.86	9.87	8.94	7.12	6.64

The NODE and PNODE-based methods were used, and their results were compared with the true stiffness loss, as shown in Figure 17. From Figure 17, the identified result by the proposed PNODEs is much closer to the true value than that by NODEs. The results show that the damage location can be better separated from the discrepancy information using a parallel NN. There are some errors in the identified results on the first floor and second floor along the y direction and fourth floor along the x direction by NODEs. For the damage severity, the loss of stiffness for the first floor along the x direction is 0.051 by NODEs with 54.956% error, while the true value is 0.113. By the proposed PNODEs, there are identified damage index of 0.025 and 0.013 in the x-direction on the first and fourth floors, respectively. The identified result in the x-direction on the first floor by the proposed method is 0.109 with 3.363% errors, which is much closer to the true value compared with that by NODEs.

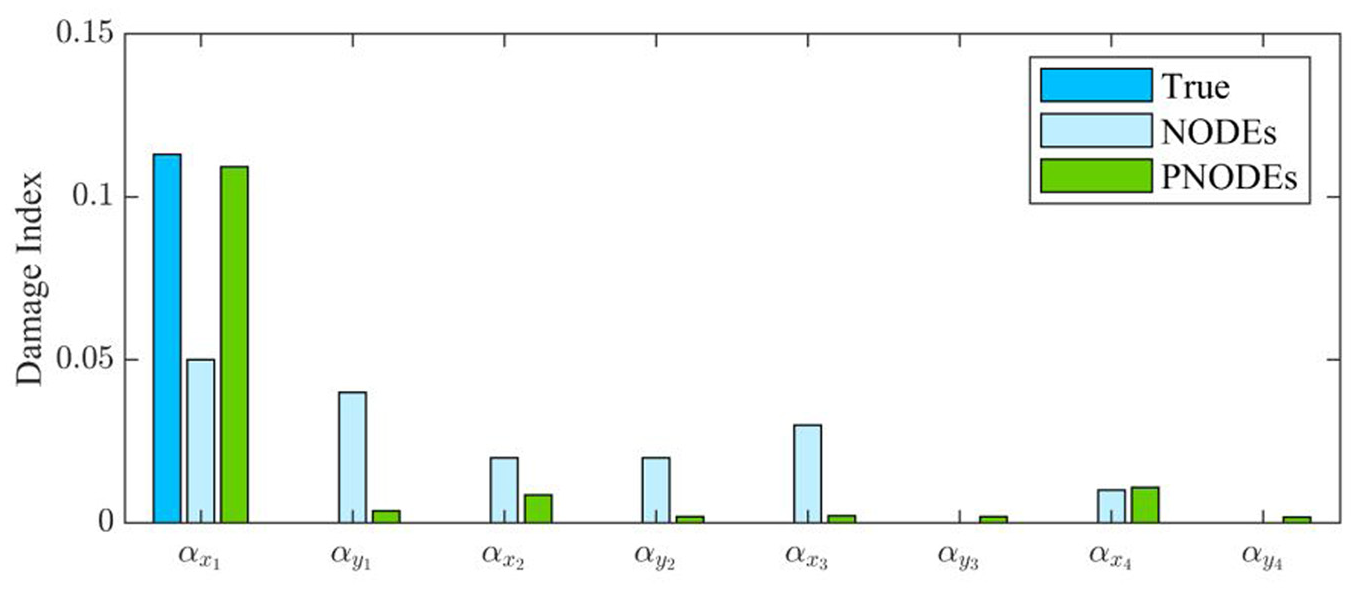

Figure 17.

Identified results for damage scenario 1 of the experimental structure.

To gain insight into the $N N_{n} (\cdot)$ in PNODEs, the restoring forces in both directions for each floor are shown in Figure 18. Since each $N N_{n} (\cdot)$ represents the discrepancy term between the damage and health states for each floor of the structure, a linear fitting between the displacement and restoring force relationship is used to determine the stiffness change $Δ k_{n}$ of each floor using Equation (22) for structural damage identification. From the first plot in Figure 18, there is approximate linear relationship between the relative displacement and restoring force and the slope is used to determine the stiffness change in the x-direction of the first layer, resulting in $Δ k_{1 x} = 12.913 kN / m$ . Overall, the proposed PNODEs improved the damage identification results compared with the NODEs for a signal damage in a 3D frame structure.

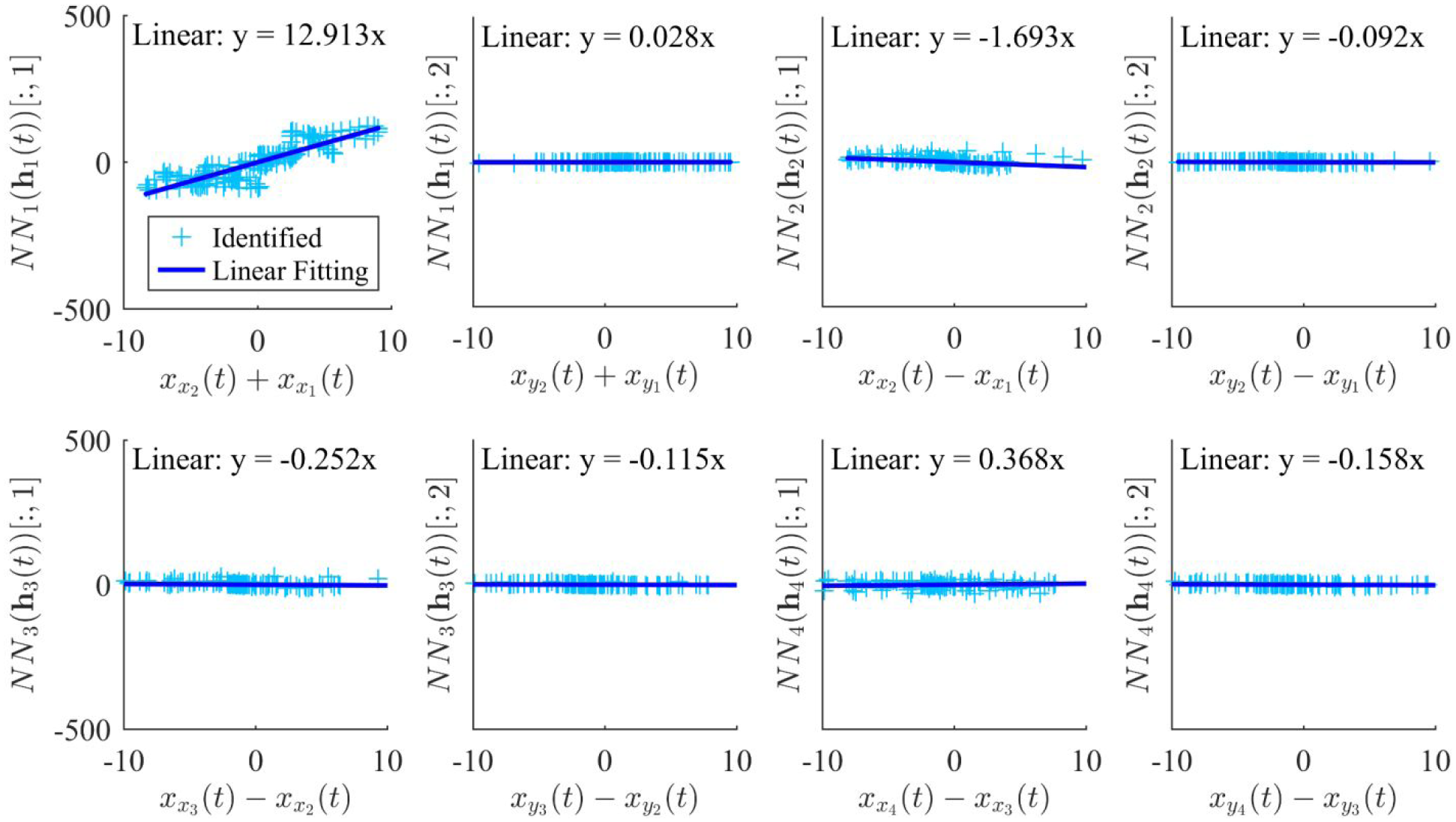

Figure 18.

The relationship between $N N_{n} (h (t))$ and relative displacement for damage scenario 1.

Multiple damage identification

In practice, it may be much complex with multiple damage appearing in different locations. Introducing multiple damage in different locations of the frame structure makes it even more challenging. In this section, the same amount of damage data from damage case 2 is used for structural damage identification by the proposed PNODEs and NODEs. Figure 19 shows the identified results by these two methods. From Figure 19, the identified results with a maximum error of 8.840% by the proposed PNODEs method with a maximum error of 30.946% are much closer to the true values than those by NODEs. For both the damage localisation and quantification, the proposed PNODEs method outperforms the NODEs method. The NODEs method incorrectly determines the presence of damage in the y-direction in the first and third floors of the structure, as the damage indexes representing the stiffness change are significant at these two locations. In other damage locations that can be correctly identified by NODEs, the severity of the damage cannot be accurately quantified, particularly in the y-direction of the second floor, which has a very high damage severity. On the other hand, the PNODEs method localises the damage location correctly, except for the y-direction of the first floor. The identified damage severities by the PNODEs method are close to the true values. The results show that the PNODEs method can accurately quantify the damage severities of multiple damage. Overall, the proposed PNODEs method significantly increases the damage identification accuracy for the multiple damage case compared with the NODEs method.

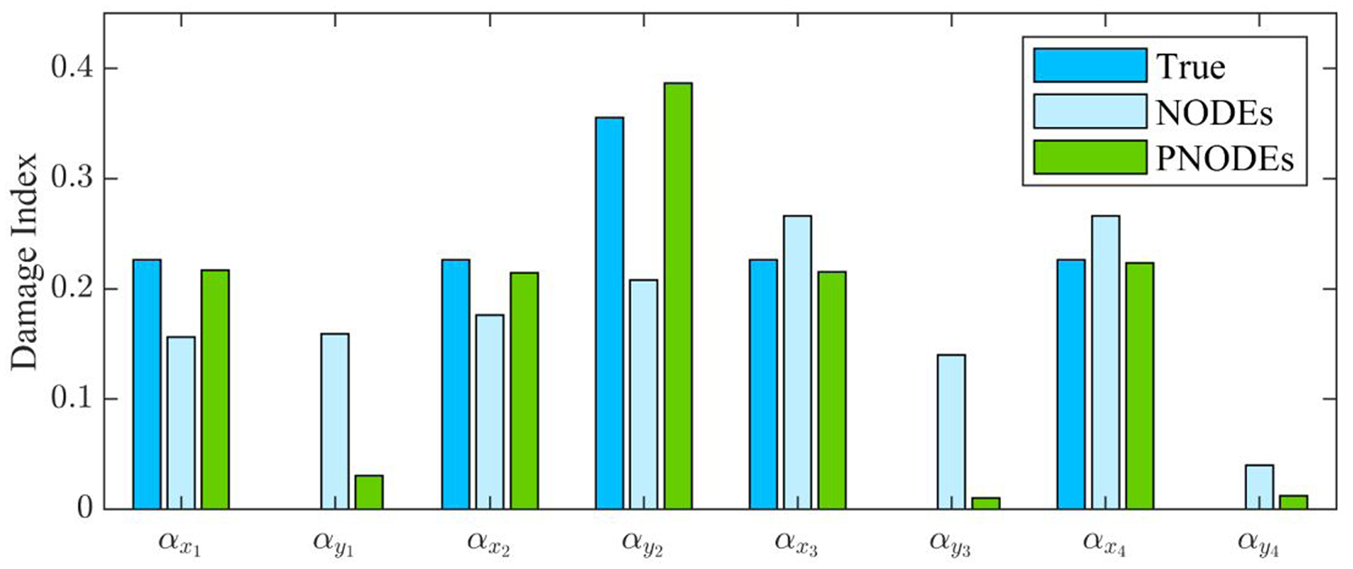

Figure 19.

Identified results for damage scenario 2 of the experimental structure.

To further explain each network, the input and output of each $N N_{n} (\cdot)$ in PNODEs have also been plotted in Figure 20. There are four sets of plots representing each of the four NNs relative to each floor of the frame structure, and each set of plots contains two figures, representing the x and y directions of each layer, respectively. Each figure represents the discrepancy term, where the y-axis is the restoring force of the $N N_{n} (\cdot)$ output and the x-axis is the measured relative displacement. Similar to the single damage identification, the stiffness change $Δ k_{n}$ in the x and y directions with respect to each floor can be determined by linear curve fitting. From the figure, the discrepancy between the health and damage states in each part of the frame structure is captured separately by its relative NN.

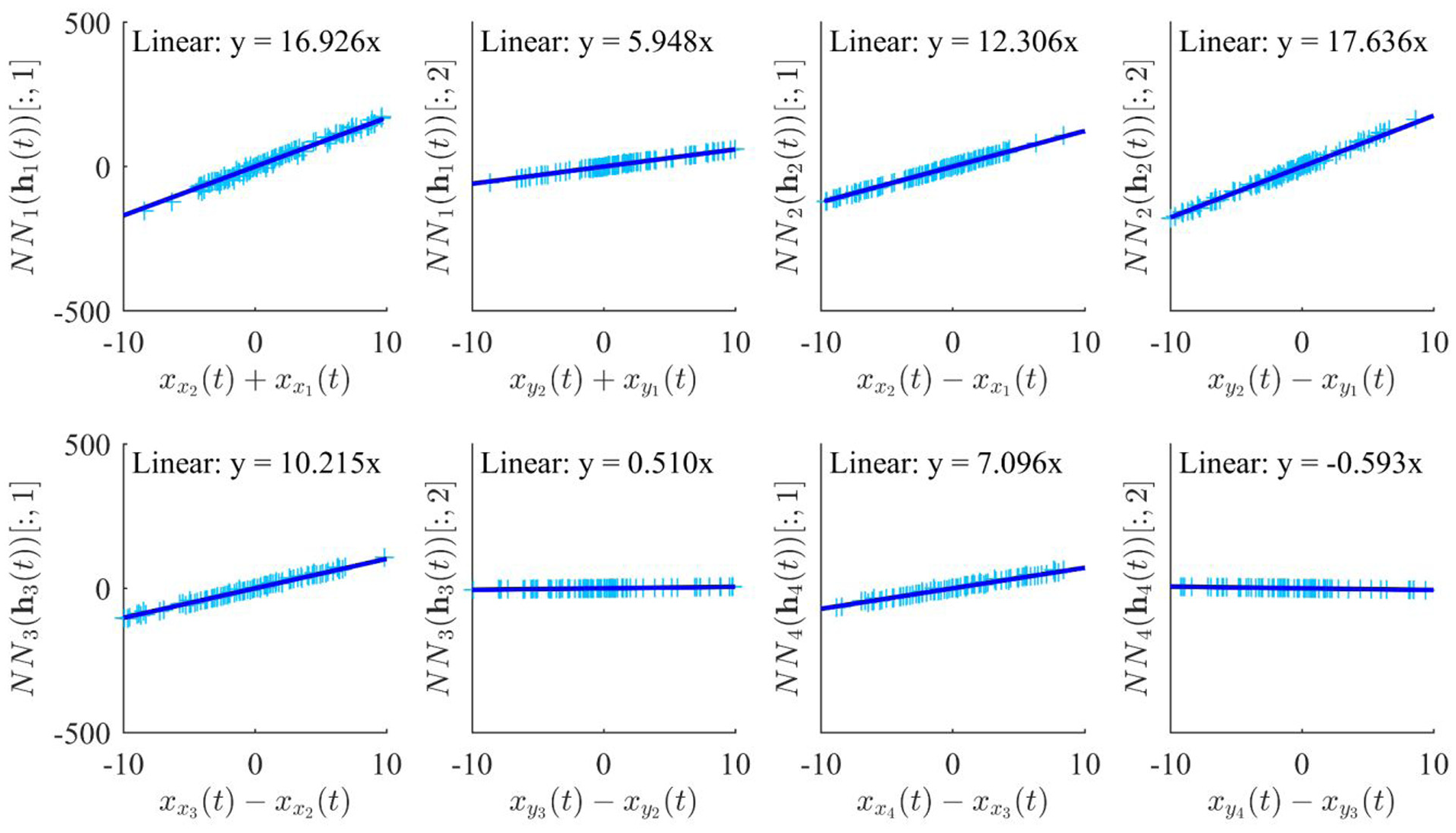

Figure 20.

Output of $N N_{i} (h_{i} (t))$ versus each relative displacement for damage scenario 2.

Conclusions

A new PNODEs method based on parallel NNs has been developed for structural damage localisation and quantification. The proposed method is made by a priori physical model of structural dynamical system embedded with a group of parallel NNs. This set of parallel NNs efficiently separates the discrepancy terms that represent damage information for the entire structure. The damage is then accurately quantified based on the information in each network. In addition, the interpretability of the proposed method can be achieved by coupling the implementation of an identification scheme for model parameters that can extract expressions from derived each NN terms that are consistent with each part of a structural model, thereby improving the interpretability of how the model works, overcome the issue of unexplained approximations provided by traditional black-box models. This enhances the accuracy and reliability of this damage identification method. The three-storey building structure and the 3D IASC-ASCE benchmark frame have been used to verify the effectiveness of the proposed method for damage localisation and quantification. Several findings can be concluded:

The PNODEs method requires only a small amount of current measurement data to solve parallel NNs without the need for health baseline measurement data. The discrepancy term between the health and damaged structure is represented by these NNs and is used to perform damage identification to obtain accurate identification results.

Existing studies on NODEs for structural damage identification can only store the entire discrepancy information into a single NN but cannot find the source of the discrepancy caused to achieve precise localisation and quantification. The proposed method is based on the structural dynamic representation, where each NN is fed by its associated dynamic response and separates the entire discrepancy term based on each part of the structure to overcome the problem of the confusion caused by the entire discrepancy being stacked together. Each NN in parallel networks is utilised in PNODEs to represent a part of the structure and can find the discrepancy in each part of the structure for damage localisation.

In the purposed PNODEs, damage quantification is converted into a problem of reconstructing structural parameters using a NN. Each NN in PNODEs is solved to derive the restoring force for each section of the structure separately to reconstruct its stiffness change. This further makes the NN transparent to improve interpretability.

The proposed PNODEs method requires the response information of all relevant DOFs. Due to the limitation of sensors in practice, only part of the DOFs data can be measured. Future work will investigate to utilise the limited number of measurements for structural damage identification.

The numerical and experimental results show that the proposed PNODEs framework is robustness to the measurement noise and operational excitation. The proposed method can be extended to the nonlinear structural system identification. Further study will be conducted on nonlinear structural system identification, especially under extreme seismic conditions.

Footnotes

CRediT authorship contribution statement

Xutong Zhang: conceptualisation, methodology, software, validation, formal analysis, writing – original draft, writing – review and editing. Yingqi Wang: software. Xinqun Zhu: methodology, writing – review and editing and supervision. Jianchun Li: supervision.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was funded in part by the Australia Research Council through Discovery Project Number 23010806.

ORCID iDs

Xutong Zhang

Xinqun Zhu

Data availability

The datasets generated during and/or analysed during the current study are available from the corresponding author upon reasonable request.

References

Fan

Qiao

PZ.

Vibration-based damage identification methods: a review and comparative study. Struct Health Monit 2011; 10(1): 83–111.

Hou

Xia

Review on the new development of vibration-based damage identification for civil engineering structures: 2010–2019. J Sound Vib 2021; 491: 115741.

Law

. Features of dynamic response sensitivity and its application in damage detection. J Sound Vib 2007; 303: 305–329.

Baybordi

Esfandiari

A novel sensitivity-based finite element model updating and damage detection using time domain response. J Sound Vib 2022; 537: 117187.

Hou

Xia

Bao

, et al. Selection of regularization parameter for l₁-regularized damage detection. J Sound Vib 2018; 423: 141–160.

Huang

Beck

Hierarchical sparse Bayesian learning for structural damage detection: theory, computation and application. Struct Saf 2017; 64: 37–53.

Liu

Chang

Efficient Bayesian model updating for dynamic systems. Reliab Eng Syst Saf 2023; 236: 109294.

Avci

Abdeljaber

Kiranyaz

, et al. A review of vibration-based damage detection in civil structures: from traditional methods to machine learning and deep learning applications. Mech Syst Signal Process 2021; 147: 107077.

Pathirage

CSN

, et al. Structural damage identification based on autoencoder neural networks and deep learning. Eng Struct 2018; 172: 13–28.

10.

Wang

, et al. A novel deep learning-based method for damage identification of smart building structures. Struct Health Monit 2019; 18(1): 143–163.

11.

Wang

Chencho An

, et al. Deep residual network framework for structural health monitoring. Struct Health Monit 2020; 20(4): 1443–1461.

12.

Entezami

Structural health monitoring by time series analysis and statistical distance measures. Switzerland AG: Springer Nature, 2021.

13.

Entezami

Sarmadi

De Michele

Probabilistic damage localization by empirical data analysis and symmetric information measure. Measurement 2022; 198: 111359.

14.

Sarmadi

Entezami

Magalhães

Unsupervised data normalization for continuous dynamic monitoring by an innovative hybrid feature weighting-selection algorithm and natural nearest neighbor searching. Struct Health Monit 2023; 22(6): 4005–4026.

15.

Wan

Zhu

Luo

, et al. Unsupervised deep learning approach for structural anomaly detection using probabilistic features. Struct Health Monit 2025; 24(1): 3–33.

16.

Zhu

Wan

, et al. A conditional probabilistic deep learning approach for anomaly detection in structures under varying environmental conditions. Mech Syst Signal Process 2025; 236: 113005.

17.

Zhang

Liu

Sun

Physics-guided convolutional neural network (PhyCNN) for data-driven seismic response modeling. Eng Struct 2020; 215: 110704.

18.

Karniadakis

Kevrekidis

, et al. Physics-informed machine learning. Nat Rev Phys 2021; 3: 422–440.

19.

Bao

Liu

A mechanics-informed neural network method for structural modal identification. Mech Syst Signal Process 2024; 216: 111458.

20.

Lei

Hao

Physics-guided deep learning based on modal sensitivity for structural damage identification with unseen damage patterns. Eng Struct 2024; 316: 118510.

21.

Sicard

Gadsden

SA.

Physics-informed machine learning: a comprehensive review on applications in anomaly detection and condition monitoring. Expert Syst Appl 2024; 255(Part C): 124678.

22.

Lai

Mylonas

Nagarajaiah

, et al. Structural identification with physics-informed neural ordinary differential equations. J Sound Vib 2021; 508: 116196.

23.

Karpatne

Atluri

Faghmous

, et al. Theory-guided data science: a new paradigm for scientific discovery from data. IEEE Trans Knowl Data Eng 2017; 29(10): 2318–2331.

24.

Raissi

Karniadakis

GE.

Hidden physics models: machine learning of nonlinear partial differential equations. J Comput Phys 2018; 357: 125–141.

25.

Meng

Zhang

, et al. PPINN: parareal physics-informed neural network for time-dependent PDEs. Comput Meth Appl Mech Eng 2020; 370: 113250.

26.

Shukla

Jagtap

Karniadakis

GE.

Parallel physics-informed neural networks via domain decomposition. J Comput Phys 2021; 447: 110683.

27.

Zhang

Ren

, et al. Deep residual learning for image recognition. In: Proceedings of the IEEE conference on computer vision and pattern recognition, Las Vegas, NV, USA, 26 June 2016, pp. 770–778. Los Alamitos, CA: IEEE Computer Society, Conference Publishing Services.

28.

Chen

RTQ

Rubanova

Bettencourt

, et al. Neural ordinary differential equations. In: Proceedings of the 32nd international conference on neural information processing systems, 03 December, 2018, pp. 6572–6583. Red Hook, NY: Curran Associates inc.

29.

Dupont

Doucet

Teh

YW.

Augmented neural odes. In: Proceedings of the 33rd international conference on neural information processing systems, Vancouver BC, Canada, 08 December 2019, pp. 3140–3150. Red Hook, NY: Curran Associates inc.

30.

Nayeri

Masri

Ghanem

, et al. A novel approach for the structural identification and monitoring of a full-scale 17-story building based on ambient vibration measurements. Smart Mater Struct 2008; 17(2): 025006.

31.

Zhan

A local damage detection approach based on restoring force method. J Sound Vib 2014; 333(20): 4942–4959.

32.

Worden

Farrar

Haywood

, et al. A review of nonlinear dynamics applications to structural health monitoring. Struct Control Health Monit 2008; 15(4): 540–567.

33.

Zhang

Zhu

, et al. Transfer learning-based structural damage identification for building structures with limited measured data. Int J Struct Stab Dyn 2025; 25(9): 2550093.

34.

Dyke

Bernal

Beck

, et al. Experimental phase II of the structural health monitoring benchmark problem. In: Proceedings of the 16th ASCE engineering conference, Seattle, USA, 16 July 2003, pp. 1–7. Seattle: University of Washington.

35.

Johnson

EA.

Phase I IASC-ASCE structural health monitoring benchmark problem using simulated data. J Eng Mech ASCE 2003; 130(1): 3–15.

Parallel neural ordinary differential equation-based damage identification for building structures

Abstract

Keywords

Highlights

Introduction

Methodology

NODEs theory

Structural dynamic system

Neural ordinary differential equations

Loss function

PNODEs for structural damage identification

Informed priory physical knowledge

Design of the parallel NNs

Solving the ODEs based on the parallel NNs

Inference of the parallel NN block

Damage index

Numerical study

Numerical model

Data preparation

PNODEs architectures

Results

Effect of measurement noise on structural damage identification

Nonlinear structural system identification

An experimental study of three-storey building structures

Experimental setup

Data preparation

Architecture of PNODEs

Results

Effect of different environmental excitations

Identification of single damage with different severities

Multiple damage identification

Application for 3D frame structures

Experimental structure information

Data preparation

PNODEs and NODEs architecture

Results

Single damage identification

Multiple damage identification

Conclusions

Footnotes

CRediT authorship contribution statement

Declaration of conflicting interests

Funding

ORCID iDs

Data availability

References
