Abstract

This study aims to develop a system approach for modeling and simulation of marine scrubbers, which are devices that reduce sulfur oxides (SOx) emissions from ships powered by heavy fuel oil (HFO). Marine scrubbers are a viable option to comply with the new regulations issued by the International Maritime Organization (IMO) for SOx control. This system model of a marine scrubber was developed using the bond graph method, which simulates the interactions between exhaust gas and seawater within a marine scrubber, incorporating the physical and chemical processes involved, and supports modular modeling concepts. The model was validated by comparing the simulation results with the data collected from a scrubber installed on a real ship under operational conditions. The comparisons show that the model is robust and accurate, and can be used to simulate cases under real operational conditions, and hence can be used for optimization and integration studies.

Keywords

marine scrubber de-SOx technology bond graph system modeling

Introduction

Background

With its extraordinary carrying capacity and exceptionally low unit cost, maritime shipping outperforms other transportation methods in international trade, particularly for long-distance commodity shipment in terms of both cost and emissions. It has played an important role in the history of human economic and cultural exchange and is projected to grow steadily in future global trade.¹ Currently, maritime shipping remains the dominant way of global goods transport, accounting for approximately 80% of internationally traded goods by volume. However, this prominence makes it a significant contributor to global exhaust gas emissions.²

The exhaust gases from ships contain greenhouse gases (GHG), nitrogen oxides (NOx), particulate matter (PM), and sulfur oxides (SOx), which contribute to global warming, acid rain, and adverse human health effects. To address these environmental impacts, the International Maritime Organization (IMO) established the International Convention on the Prevention of Pollution from Ships (MARPOL 73/78), with subsequent amendments introducing increasingly stringent regulations. MARPOL Annex VI³ specifically targets air pollutants, including SOx, through progressively stricter emission limits (See Table 1).

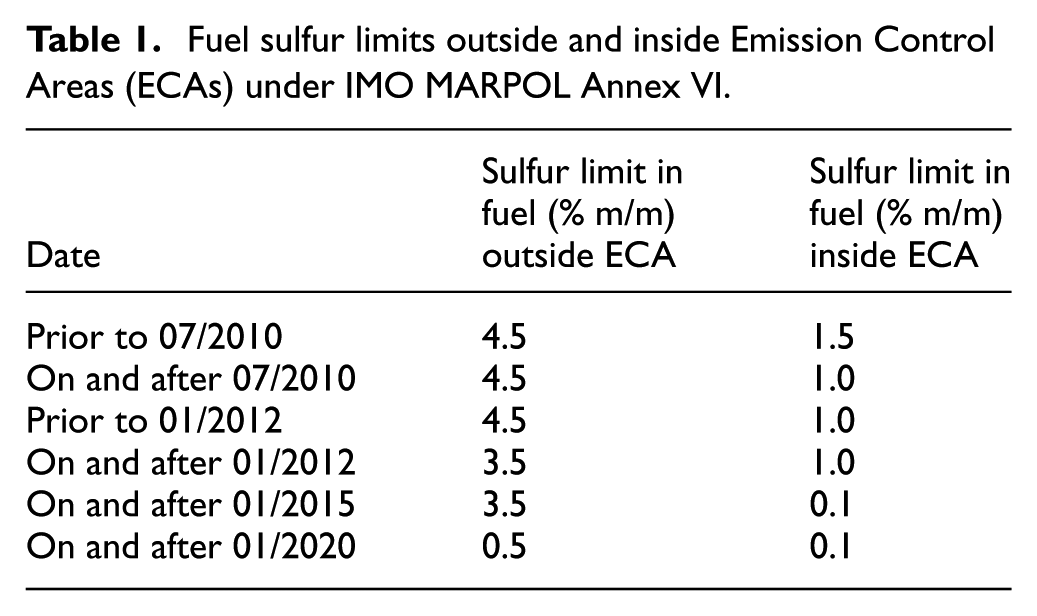

Table 1.

Fuel sulfur limits outside and inside Emission Control Areas (ECAs) under IMO MARPOL Annex VI.

Date	Sulfur limit in fuel (% m/m) outside ECA	Sulfur limit in fuel (% m/m) inside ECA
Prior to 07/2010	4.5	1.5
On and after 07/2010	4.5	1.0
Prior to 01/2012	4.5	1.0
On and after 01/2012	3.5	1.0
On and after 01/2015	3.5	0.1
On and after 01/2020	0.5	0.1

Exhaust gas cleaning systems (EGCS) have emerged as a practical retrofit technology for existing vessels to comply with IMO regulations. EGCS includes subsystems designed to remove NOx, SOx, PM, and potentially GHG emissions. The SOx-removal subsystem, commonly termed a “scrubber,” is the focus of this study.

Marine scrubber

A marine scrubber removes SOx from the exhaust gas by spraying an alkaline scrubbing liquid (e.g. seawater or freshwater with additives) into the gas stream, allowing ships to continue using heavy fuel oil (HFO), despite its high sulfur content. While the maritime industry is gradually transitioning to greener alternatives—such as liquefied natural gas (LNG), hydrogen, or ammonia, these technologies face challenges in scalability, infrastructure readiness, or economic viability. Therefore, marine scrubbers are a vital transitional solution for HFO-powered vessels under current regulations, providing scalable efficiency to meet future potential regulatory tightening.

Marine scrubbers have demonstrated SO_x removal efficiencies exceeding 95% under optimal design and operational conditions. Additionally, they exhibit a secondary benefit of reducing PM emissions by over 60%, further enhancing their environmental value.⁴

Scrubbers are classified based on design principles and operational parameters:

Structural Configuration: Common types include I-type, L-type, and U-shaped scrubbers. While configuration influences hydrodynamic performance (e.g. gas-liquid contact efficiency), the primary selection criterion is often space optimization within the vessel’s engine room.

Scrubbing Medium:

– Wet scrubbers are the most common. They use a liquid reagent, such as seawater or freshwater with additives (e.g. caustic soda), to neutralize SO_x.

– Dry scrubbers are less common. They use solid sorbents (e.g. lime) to capture SO_x.

Wet scrubbers are further categorized by:

Liquid Delivery Mechanism: Spray, packed-bed, or venturi designs, which govern gas-liquid interaction intensity.

Wastewater Management:

– Open-loop systems discharge spent scrubbing liquid directly into the sea after basic filtration.

– Closed-loop systems recirculate treated liquid, minimizing ecological impact but requiring onboard chemical storage and wastewater tanks.

– Hybrid systems combine both approaches, enabling flexibility in compliance with regional discharge regulations.

Despite these variations, all marine scrubbers share a core advantage: they allow vessels to continue using cost-effective heavy fuel oil (HFO) while complying with IMO 2020 standards. This positions scrubbers as a critical retrofit solution for existing vessels transitioning toward long-term decarbonization goals.

Marine seawater scrubber performance hinges on the physical and chemical interactions governing sulfur dioxide (SO₂) absorption in seawater. Early studies established foundational insights into solubility and reaction kinetics: Douabul and Riley⁵ studied the solubility of SO₂ in distilled water and decarbonated seawater. The experiments were set with a pressure of 1 atm of SO₂ at pH 0.8, with a temperature range of 5.8°C–30°C, and salinity of 0‰–40‰. They found that the solubility of SO₂ in seawater decreases slightly with increasing salinity, and decreases greatly while the seawater temperature increases. In pure water and seawater, the solubility ranges from about 3.065 mol/L at 5°C to 1.198 mol/L at 30°C, depending on the salinity (range from 0.0 to 40.0 g/kg). Al-Enezi et al.⁶ and Rodríguez-Sevilla et al.⁷ quantified SO₂ solubility in seawater. Caiazzo et al.⁸ conducted experiments to study the efficiency of seawater spray scrubber removing SO₂. The experiments tested real seawater from the Naples coast and studied SO₂ absorption efficiency by varying exhaust gas flow rates, seawater flow rates, and SO₂ concentrations. The study concluded that seawater spray scrubbers can achieve SO₂ removal efficiencies of up to 93%. These studies offer foundational insights for SO₂ absorption mechanisms in marine scrubbers.

Building on the studies of SO₂ absorption in seawater, many studies have explored different options and fidelity for modeling.

Darake et al.⁹ studied SO₂ absorption in seawater spray scrubbers, identifying several critical parameters for scrubber efficiency. Mestemaker et al.¹⁰ developed advanced dynamic models for closed-loop wet scrubbers using freshwater with caustic soda as scrubbing liquid. The model has demonstrated its adaptability to simulate the SO₂ removal efficiency under transient loads in ships.

The studies mentioned above all focus on the mathematical modeling of marine scrubbers. However, these models are generally difficult to integrate into other system-level models. With increasing demands for digitalization, holistic system models of the entire EGCS, or even the full ship propulsion system, have become necessary. This creates a need for more flexible modeling approaches capable of representing such comprehensive systems. Bond graph modeling^11,12 is a first-principles-based methodology that supports modular model construction and clear interface definitions between subsystem components, enabling the development of integrated, holistic ship system models.

Bond graphs provide a unified graphical framework for representing chemical kinetics, fluid dynamics, and energy transfer.¹³ Their versatility in maritime engineering has been demonstrated in several studies. Yum et al.¹⁴ used bond graphs to model a two-stroke diesel engine and capture its transient response in waves. Nielsen and Pedersen¹⁵ applied bond graphs to selective catalytic reduction (SCR) reactors, developing SCR models with three levels of fidelity and comparing their performance under dynamic conditions. A bond graph model for simulating fuel cells in marine power plants was developed by Bruun.¹⁶ Together, these studies highlight the method’s ability to model complex maritime systems involving coupled physical and chemical processes.

Although the use of bond graphs in the maritime field is still limited, the approach shows strong potential for system integration in holistic simulations. Developing a scrubber model using the bond graph method therefore addresses an important gap in system-level modeling of de-SO_x systems.

Objectives

The main objectives of this study are: (1) To develop and validate a system-level model of a marine scrubber using the bond graph method, which can simulate the physical and chemical processes in the SOx removal process. (2) To conduct a careful convergence test for the system model to ensure reliable simulation results. (3) To compare the simulation results with the data collected from a scrubber installed on a real ship under operational conditions.

Scrubber modeling

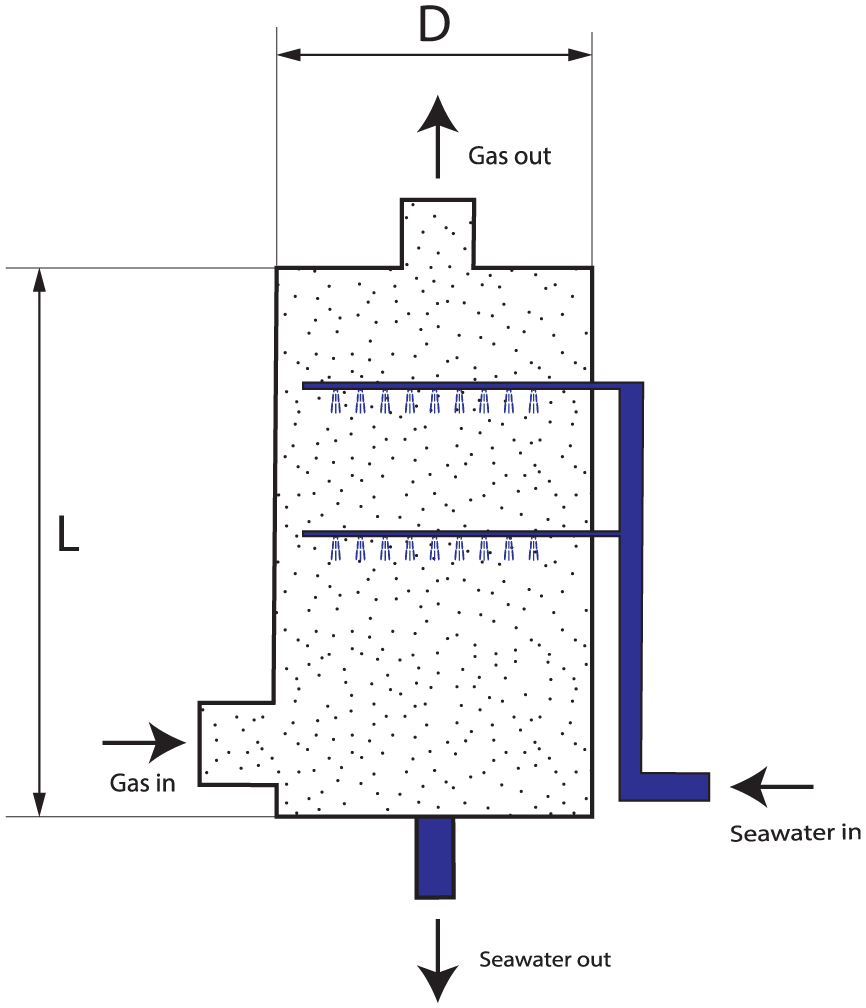

Figure 1 shows a schematic diagram of the modeling object we have chosen for this study, a marine spray scrubber. In this model, scrubbing liquid (e.g. seawater) is pumped through pipelines and dispersed within the scrubber via multiple layers of nozzles in the upper part of the scrubber to optimize contact with exhaust gas. The exhaust gas enters from the lower part of the scrubber, mixing with the seawater spray as it rises. The seawater spray creates numerous droplets that facilitate physical interactions (mass and heat transfer) between the exhaust gas and droplets. SOx is transferred from the exhaust gas in gas phase to the droplets in liquid phase. Concurrently, a portion of the liquid SOx undergoes a chemical reaction with the alkaline components of seawater inside the droplet, enhancing the efficiency of SOx elimination during the process. Afterward, seawater droplets fall to the bottom, and is drained out from the scrubber.

Figure 1.

Schematic design of a marine scrubber. L is the length of the scrubber column, D is the diameter of the scrubber column.

Referring to Figure 1, the axially symmetric cylindrical scrubber column allows a one-dimensional (1D) simplification along its height, neglecting lateral variations. Despite this simplification, the model remains multi-domain, involving fluid dynamics, heat transfer, and chemical reactions. A 1D distribution of the process variables along the scrubber height is still necessary to obtain accurate simulations.

Bond graph structure

Due to the presence of the thermal, chemical and flow domains in a marine scrubber, a pseudo-bond graph formulation¹⁷ is adopted to properly describe all energy and mass transfers in the whole system. As Figure 2 demonstrates, three pairs of effort and flow variables representing mass, mass fraction and thermal energy exchange between two systems A and B¹⁸ are chosen for this bond graph model:

Effort variables:

– P: Pressure

– $[c_{i}]$ : Mass fraction of each gas composition, $i = 2, \dots, N$

– T: Gas temperature

Flow variables:

– $\overset{\cdot}{m}$ : Total gas mass flow rate

– $[{\overset{\cdot}{m}}_{i}]$ : Mass flow rate of each gas composition

– $\overset{\cdot}{E}$ : Heat flow rate

Figure 2.

Effort and flow variables were chosen for modeling marine scrubber in this study.

The basic bond graph elements used in this study are described below based on their physical functions¹⁷:

C-element (Storage): These elements represent accumulation of energy, typically potential energy in mechanical, electric or hydraulic systems, but also thermal energy or mass, particularly in pseudo-bond graph version which is used in this study.

R-element (Resistance): These elements represent components or physical phenomena that dissipate energy, such as friction in mechanical or fluid flow systems. They also represent a general resistance relative to energy, heat and mass flow.

0-junction (Common Effort): These elements represent energy conservation between multiple processes or components represented by individual bonds connected to the 0-junction, and all bonds share the same effort variable; the algebraic sum of the flows is equal to zero. This is often known as a parallel connection. Typically, a 0-junction also represents mass and energy conservation.

1-junction (Common Flow): These elements represent energy conservation between multiple processes or components represented by individual bonds connected to the 1-junction, and all bonds share the same flow variable; the algebraic sum of the efforts is equal to zero. This is often identified as a series connection. This element also represents momentum conservation.

For the system model in this study, the boundary conditions are the exhaust gas composition, pressure and temperature at the scrubber inlet, and the pressure at the scrubber outlet. These values can normally be easily calculated or measured for each scrubber. Since the exhaust gas does not travel at a very high speed inside the scrubber, it can be assumed as incompressible, that is, with constant density throughout the scrubber. This density can be calculated from the average pressure at the scrubber inlet (P_in) and outlet (P_out), and the inlet temperature (T_in), as given in equation (1).

ρ = \frac{P_{in} + P_{out}}{2 \cdot T_{in} \cdot R_{mix}}

(1)

where R_mix is the specific gas constant of the exhaust gas mixture.

The exhaust gas velocity, u_g is determined by the pressure drop across the scrubber $Δ P (Δ P = P_{in} - P_{out})$ . The exhaust gas mass flow rate, ${\overset{\cdot}{m}}_{exhaust}$ , can then be calculated as the product of gas velocity, density, and the cross-sectional area of the scrubber, see equation (2), where A denotes the cross-sectional area of the scrubber. The pressure drop must remain low to avoid adverse effects on the turbocharger efficiency. A coefficient c is introduced to account for the geometric and flow characteristics of the specific scrubber. The value of c can be determined when the exhaust gas mass flow rate and pressure drop are known for a given scrubber.

{\overset{\cdot}{m}}_{exhaust} = c \cdot \sqrt{Δ P} \cdot ρ \cdot A

(2)

Previous work by Nielsen and Pedersen¹⁵ examined the impact of assuming constant gas density and velocity, and concluded that this simplified approach yields predictions reasonably close to those of more advanced variable-density models, while substantially reducing computational cost. Although assuming a constant mass flow rate may appear to conflict with conservation laws, the very low concentration of SO₂ in marine exhaust gases means that this simplification has minimal influence on the simulation accuracy. For example, for heavy fuel oil containing 3 mass % sulfur, the resulting SO₂ concentration in the exhaust is only about 600 ppm (about 0.3 mass %).¹⁹ Even complete removal of SO₂ would therefore change the total exhaust mass flow only marginally.

Figure 3 outlines how the scrubber model is discretized into multiple control volumes in this study. Figure 4 shows the bond graph model of the i-th control volume together with the models of its neighbors (the i−1-th and $i + 1$ -th control volumes). Each control volume is modeled as a multi-port C-element, whose constitutive law can be described in equations (3)–(5).

T = \frac{E}{m \cdot c_{v}}

(3)

[c_{i}] = \frac{[m_{i}]}{m}

(4)

P = \frac{R_{mix} \cdot m \cdot T}{V}

(5)

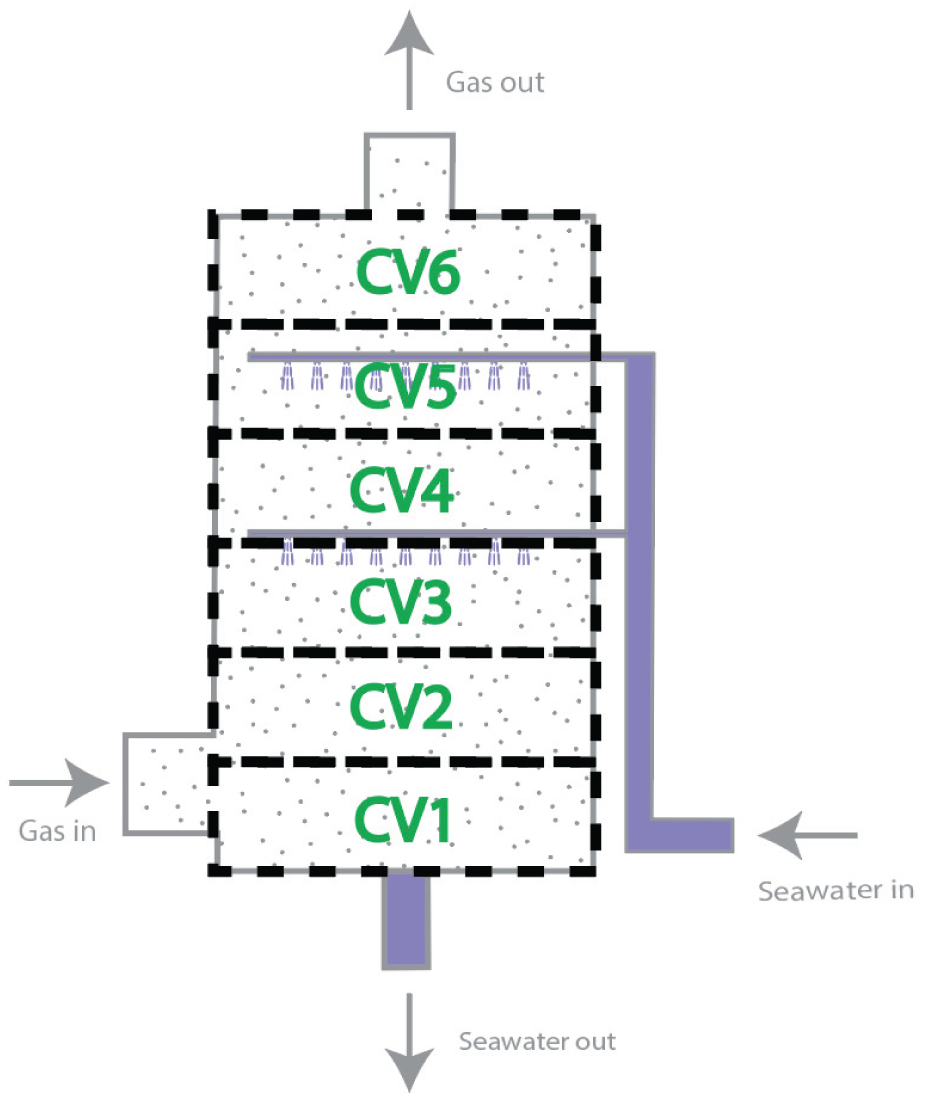

Figure 3.

Discretization of scrubber into multiple control volumes.

Figure 4.

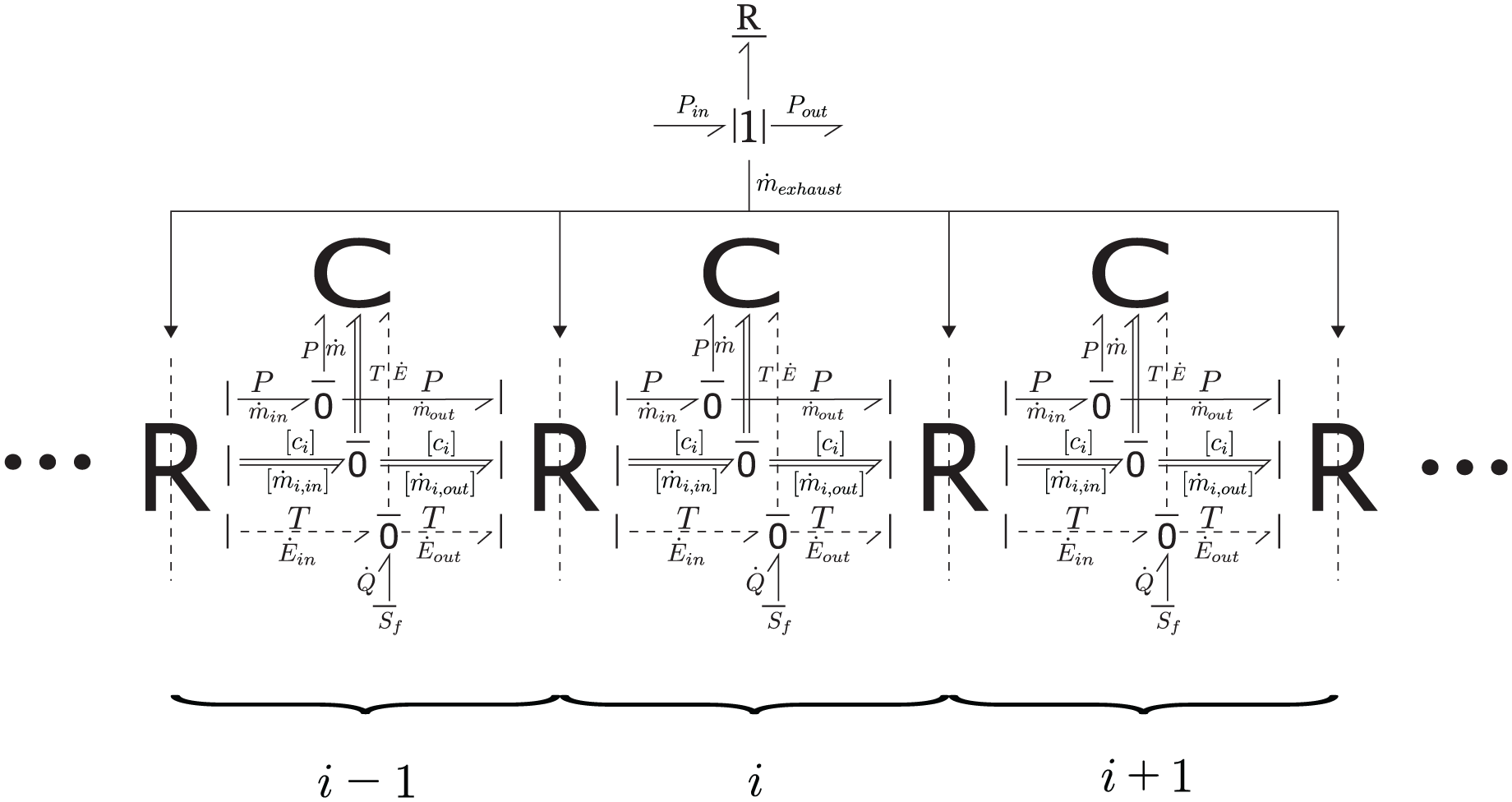

Bond graph presentation of control volumes.

In equations (3)–(5), m and c_v are respectively the mass and specific heat capacity of the exhaust gas in a control volume. V is the volume of the control volume.

As also shown in Figure 4, the interfaces between adjacent control volumes are represented by multi-port R-elements, through which mass and energy are exchanged. Each interface boundary is predominantly influenced by upstream flow, given the known exhaust gas velocity. The exhaust gas mass flow rate ( ${\overset{\cdot}{m}}_{exhaust}$ ) is calculated via an R-element shown at the top of the bond graph model, and transmitted as a signal to each interface boundary, namely to each multi-port R-element. The energy exchange between each control volume and its surrounding environment is represented by the flow source S_f, connected to the bottom 0-junctions.

Physical and chemical reactions in the scrubber model

When the exhaust gas meets the seawater droplets in the scrubber, a physical dissolution process happens, and a certain amount of SOx will dissolve through the gas-liquid interface to become an aqueous form. The efficiency of this dissolution process is not uniform throughout the scrubber, because as a droplet gradually falls to the bottom, the absorption rate becomes lower due to saturation. After the gaseous SOx is dissolved, its aqueous form will start a chemical reaction with the alkaline part in the seawater droplets, thus to enhance a de-SOx process.

By further implementing the gas dissolution process and chemical reactions into the bond graph structure, this study will be able to comprehensively account for the physical and chemical processes taking place within a marine scrubber. We note that SOx usually stands as a composition of SO₂ and SO₃, but the predominant species present in ship emissions is SO₂, so the chemical reactions described in this section focus only on SO₂.

Dissolution of SO₂ happens while the exhaust gas passes through the scrubber and being in contact with the seawater droplets. The solubility of SO₂ is augmented in seawater relative to pure water.⁶ Mass and heat transfer between the gas and seawater take place during this process. After dissolution, SO₂ will be present in both molecular and dissociated forms within the solvent. This process of SO₂ dissolving in seawater droplets is explicated by the chemical model provided below.^6,7,9

{SO}_{2} (g) ⇌ {SO}_{2} (aq)

(R.1)

{SO}_{2} (aq) + H_{2} O ⇌ {HSO}_{3}^{-} + H^{+}

(R.2)

{HSO}_{3}^{-} ⇌ {SO}_{3}^{2 -} + H^{+}

(R.3)

H_{2} O ⇌ H^{+} + {OH}^{-}

(R.4)

The equilibrium solubility of SO₂ in seawater, as an important factor in the absorption process of SO₂ by seawater in a marine scrubber, can be predicted using this chemical reaction model.

Based on Reactions (R.1)–(R.4), the main molecular species in the solvent are: ${SO}_{2} (aq), {HSO}_{3}^{-}, {SO}_{3}^{2 -}, H^{+}, {OH}^{-}$ .

For Reaction (R.1), the amount of non-reacted ${SO}_{2} (g)$ that dissolves in water can be calculated using Henry’s law. This law states, conceptually, that the vapor partial pressure of a gas above the solvent (denoted as P_gas herein) is proportional to its concentration in the solvent, with the ratio between them referred to as Henry’s law constant k_H²⁰:

k_{H} = \frac{C_{gas}}{P_{gas}}

(6)

where C_gas is the molar concentration (mole fraction) of a gas species in the aqueous phase. There is also a more practical expression for k_H, as given in equation (7).

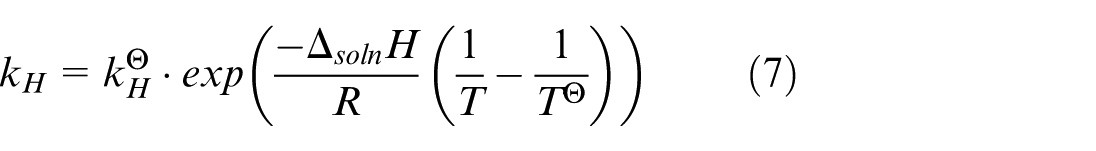

k_{H} = k_{H}^{Θ} \cdot \exp (\frac{- Δ_{soln} H}{R} (\frac{1}{T} - \frac{1}{T^{Θ}}))

(7)

where $k_{H}^{Θ}$ is Henry’s law constant for the solubility of species in water at 298.15 K. $Δ_{soln} H$ is the enthalpy of dissolution. R is the ideal gas constant, T is the solvent temperature and $T^{Θ}$ is the reference temperature 298.15 K.

From equation (7), we see that the value of k_H changes with the temperature of the solvent, types of the solvent, as well as types of the gas species. Note that $Δ_{soln} H$ is also temperature dependent:

\frac{Δ_{soln} H}{R} = \frac{- dln k_{H}}{d (1 / T)}

(8)

In this study, $k_{H}^{Θ} = 1.2$ [mol/(kg⋅bar)] and $\frac{- d \ln k_{H}}{d (1 / T)} = 3000$ K for SO₂ dissolving in pure water are used,^21,22 as these databases are comprehensive and widely used. In fact, both temperature and salinity affect the solubility of SO₂ in water. Several studies^5–7 show that salinity has slight effect compared to temperature, the effect of salinity is therefore neglected and noted as a minor source of uncertainty.

The equilibrium constants of reaction (R.2–R.4) can be expressed as the corresponding concentration of chemical products divided by reactants, as presented in equations (9)–(11).

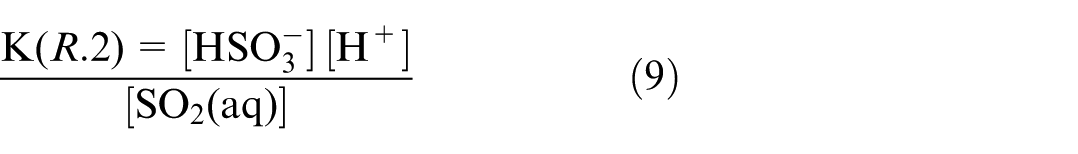

\frac{K (R . 2) = [{HSO}_{3}^{-}] [H^{+}]}{[{SO}_{2} (aq)]}

(9)

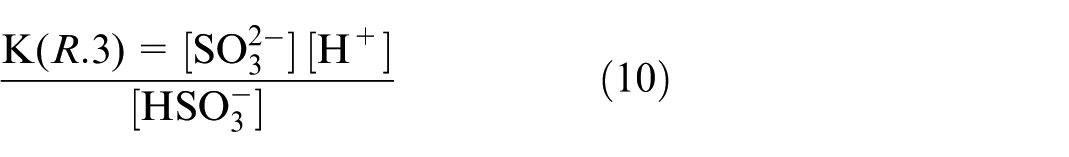

\frac{K (R . 3) = [{SO}_{3}^{2 -}] [H^{+}]}{[{HSO}_{3}^{-}]}

(10)

K (R . 4) = [{OH}^{-}] [H^{+}]

(11)

The equilibrium constant K is dependent on the water temperature and can be calculated by:

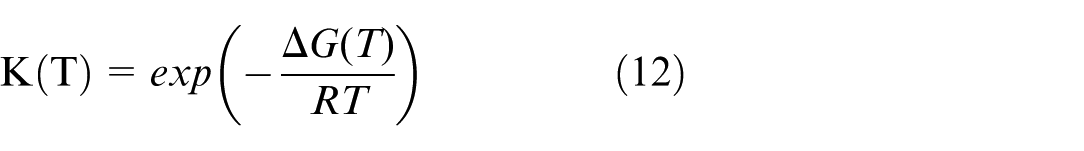

K (T) = \exp (- \frac{Δ G (T)}{RT})

(12)

Δ G (T) = Δ H^{0} - Δ S^{0} \cdot T

(13)

where $Δ G (T)$ is the Gibbs energy change of a chemical reaction, and R is the ideal gas constant. $Δ H^{0}$ is the standard enthalpy change. $Δ S^{0}$ is the standard entropy change. $Δ H^{0}$ and $Δ S^{0}$ can be considered constant over narrow temperature ranges.²³

By combining the equations above, the concentration of $[{SO}_{2 (aq)}]$ , $[{HSO}_{3}^{-}]$ , $[{SO}_{3}^{2 -}]$ in seawater can be calculated. The solubility of sulfur dioxide in seawater C_SO2 is then simply the summation of these ions:

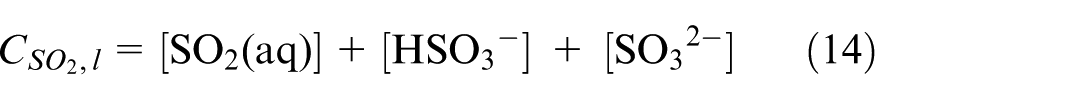

C_{S O_{2}, l} = [{SO}_{2} (aq)] + [{HSO}_{3}^{-}] + [{SO}_{3}^{2 -}]

(14)

This could be further expressed as:

C_{S O_{2}, l} = E_{S O_{2}} \cdot [{SO}_{2} (aq)]

(15)

where $E_{S O_{2}}$ is defined as the enhancement factor, which indicates the increase in the mass transfer rate due to chemical reactions during the SO₂ absorption process. The value of the enhancement factor $E_{S O_{2}}$ depends on the alkalinity of the scrubbing liquid, pH value of the scrubbing liquid, gas-liquid exposure time, among other factors.²⁴

Absorption of SO₂ by seawater droplets, which are generated by nozzle sprays, is the main physical process inside a marine scrubber. There are several ways to model the mass transfer process of SO₂ from gas mixture to the droplets. One commonly used absorption model is based on two-film theory, one film on the gas side and the other on the liquid side. Figure 5 shows the concept of this theory.

Figure 5.

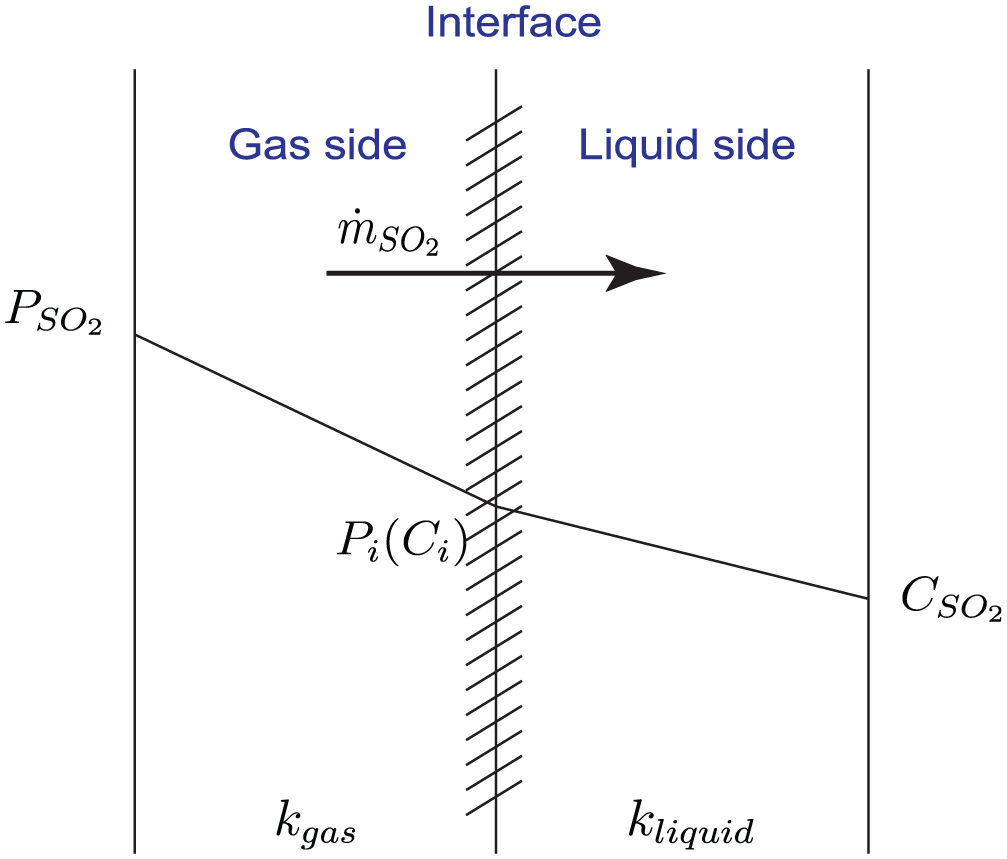

Diagram of SO₂ mass transfer from gas to liquid based on two-film theory.

On the gas side, the driving force of SO₂ mass transfer is the difference between the partial pressure of SO₂ on the gas side (denoted as $P_{S O_{2}}$ ) and that at the gas-liquid interface (denoted as $P_{S O_{2}, i}$ ). The molar flux of SO₂ ( $N_{S O_{2}}$ ), that is, moles of SO₂ transferred per unit time per unit area, can thus be calculated based on $P_{S O_{2}}$ and $P_{S O_{2}, i}$ :

N_{S O_{2}} = k_{S O_{2}, g} (P_{S O_{2}} - P_{S O_{2}, i})

(16)

where $k_{S O_{2}, g}$ is the mass transfer coefficient on the gas side.

On the liquid side, the driving force of SO₂ mass transfer is the difference between SO₂ concentration at the gas-liquid interface ( $C_{S O_{2}, i}$ ) and that inside the liquid ( $C_{S O_{2}, l}$ ). Here, the distribution of SO₂ concentration inside each droplet is neglected. So, $N_{S O_{2}}$ can also be calculated on the liquid side as:

N_{S O_{2}} = k_{S O_{2}, l} (C_{S O_{2}, i} - C_{S O_{2}, l})

(17)

where $k_{S O_{2}, l}$ is the mass transfer coefficient on the liquid side.

The relationship between $P_{S O_{2}, i}$ and $C_{S O_{2}, i}$ follows Henry’s law at the gas-liquid interface, assuming that the scrubbing liquid is saturated with SO₂ there, that is:

\frac{C_{S O_{2}, i}}{P_{S O_{2}, i}} = k_{H}

(18)

Combining equations (15)–(18), an expression of $N_{S O_{2}}$ can be derived:

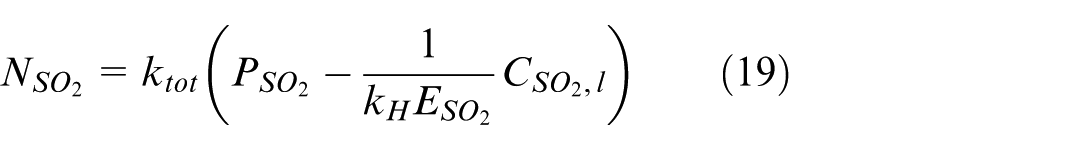

N_{S O_{2}} = k_{tot} (P_{S O_{2}} - \frac{1}{k_{H} E_{S O_{2}}} C_{S O_{2}, l})

(19)

where k_tot is introduced to represent the total mass transfer coefficient and expressed as:

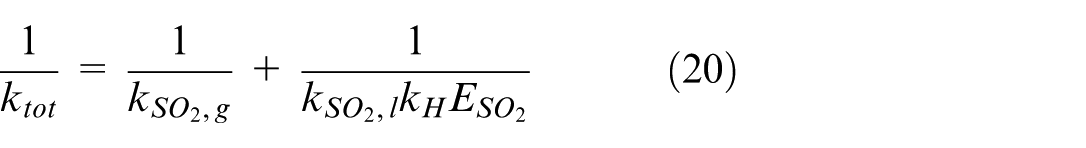

\frac{1}{k_{tot}} = \frac{1}{k_{S O_{2}, g}} + \frac{1}{k_{S O_{2}, l} k_{H} E_{S O_{2}}}

(20)

This SO₂ mass transfer process is modeled using a bond graph in this study as shown in Figure 6.

Figure 6.

Bond graph presentation of SO₂ mass transfer from gas to liquid.

Equations (19) and (20) show that several parameters influence the absorption of SO₂ in seawater when the partial pressure of SO₂ is known. These include the total solubility of SO₂ in seawater, (represented by $k_{H} E_{S O_{2}}$ ), as well as the mass transfer coefficients at the gas and liquid sides, (represented by $k_{S O_{2}, g}$ , $k_{S O_{2}, l}$ ), respectively.

The mass transfer coefficient on the gas side, that is $k_{S O_{2}, g}$ , can be obtained by Ranz-Marshall equation²⁵:

Sh = 2 + 0.6 \cdot R e^{\frac{1}{2}} \cdot S c^{\frac{1}{3}}

(21)

Sh = \frac{k_{S O_{2}, g} RT d_{d}}{D_{S O_{2, g}}}

(22)

Where Sh is the Sherwood number, Re is the Reynolds number, and Sc is the Schmidt number. All these are non-dimensional numbers. R is the universal gas constant, T is the gas temperature, d_d is droplet diameter, and $D_{S O_{2}}, g$ is the binary diffusivity of SO₂ in air with dimension of $m^{2} / s$ .

Reynolds number represents the ratio between inertial and viscous forces, and can be calculated based on the droplet reference length and the relative velocity between a droplet and the surrounding gas. While Schmidt number is the ratio of gas viscosity to molecular diffusion. They can be written as:

Re = \frac{(u_{d} - u_{g}) d_{d} ρ_{g}}{μ_{g}}

(23)

Sc = \frac{μ_{g}}{D_{S O_{2}, g} ρ_{g}}

(24)

where:

μ_g is gas viscosity in $kg / m . s$

d_d is droplet diameter in m

u_d and u_g are the droplet’s and gas’s velocity, respectively, both in m/s.

Combining equations (21)–(24), $k_{S O_{2}, g}$ can be obtained.

For spherical droplets, its transient velocity u_d can be dynamically calculated based on forces acting on it, that is, drag force F_d, buoyancy force F_b and gravitational force F_g, as expressed by equation (25).

\frac{d u_{d}}{dt} = \frac{F_{g} - F_{d} - F_{b}}{ρ_{l} V_{d}}

(25)

where F_g, F_d, F_b can be calculated as follows:

F_{g} = ρ_{l} g \cdot \frac{4}{3} π {(\frac{d_{d}}{2})}^{3}

(26)

F_{d} = \frac{1}{2} C_{D} ρ_{g} {(u_{d} - u_{g})}^{2} \cdot π {(\frac{d_{d}}{2})}^{2}

(27)

F_{b} = ρ_{g} g \cdot \frac{4}{3} π {(\frac{d_{d}}{2})}^{3}

(28)

The velocity of the droplet u_d exiting the nozzle is high, but rapidly decreases until it reaches a constant value known as terminal velocity and denoted as U herein. By letting $\frac{d u_{d}}{dt}$ = 0 in equation (25), the droplet terminal velocity U can be derived:

U = \sqrt{\frac{\frac{4}{3} (ρ_{l} - ρ_{g}) g d_{d}}{ρ_{g} C_{D}}} - | u_{g} |

(29)

When calculating the R_e, the terminal velocity U is used in place of u_d. This simplified form allows efficient estimation of droplet motion without solving the full transient equation.

For calculating mass transfer coefficient on the liquid side, that is $k_{S O_{2}, l}$ , Hsu and Shih²⁶ gives semi-empirical equations (30) and (31). This equation fits best for droplet diameters between 0.006 and 0.06 m.

k_{S O_{2}, l} = 0.88 \sqrt{f_{d} D_{S O_{2}, l}}

(30)

f_{d} = \frac{4}{π} \sqrt{\frac{σ}{ρ_{L} d_{d}^{3}}}

(31)

where σ is surface tension of liquid in N/m,

ρ_L is density of liquid in $kg / m^{3}$ ,

f_d is the frequency of drop oscillation in Hz,

Another widely used approach for determining the value of $k_{S O_{2}, l}$ is based on penetration theory. This method utilizes the concept of penetration time to calculate the liquid-side mass transfer coefficient $k_{S O_{2}, l}$ .²⁴

k_{S O_{2}, l} = 2 \sqrt{\frac{D_{S O_{2}, l}}{π t}}

(32)

Where t denotes the penetration time. In the study by Brogren and Karlsson²⁴ the penetration time is assumed to be between 0.01 and 0.1 s.

Several other semiempirical expressions can be used to calculate $k_{S O_{2}, l}$ .^25,27

Once the gas and liquid mass transfer coefficients of ${SO}_{2} k_{S O_{2}, g}$ , $k_{S O_{2}, l}$ have been calculated, the total mass transfer coefficient k_tot can be determined using equation (20). This allows for the calculation of the SO₂ mass transfer flux mass transfer flux $N_{S O_{2}}$ using equation (19).

Besides mass transfer between exhaust gas and seawater, there is also heat transfer between them due to temperature differences. The energy transfer rate can be calculated using equation (33).

\overset{\cdot}{E} = h_{c} \cdot A \cdot (T_{exhaust} - T_{seawater})

(33)

where A represents the total contact area between the exhaust gas and seawater droplets in a control volume, and h_c is the convective heat transfer coefficient between these two substances.

The bond graph structure representing the heat transfer process between the exhaust gas and seawater is shown in Figure 7. When combined with the mass transfer bond graph shown in Figure 6, the bond graph model of a marine scrubber can be extended to the model in Figure 8. This extended model uses two multi-port C-elements (C_i,exhaust, C_i,seawater) to represent the exhaust gas (in gas phase) and the seawater droplets (in liquid phase) in control volume i, respectively. The “Mass & Heat Transfer” block in this model contains the details regarding mass and heat transfer between these two phases. This extended model enables the accurate modeling of these processes within a single control volume.

Figure 7.

Bond graph illustrating heat transfer exchange between exhaust gas and seawater.

Figure 8.

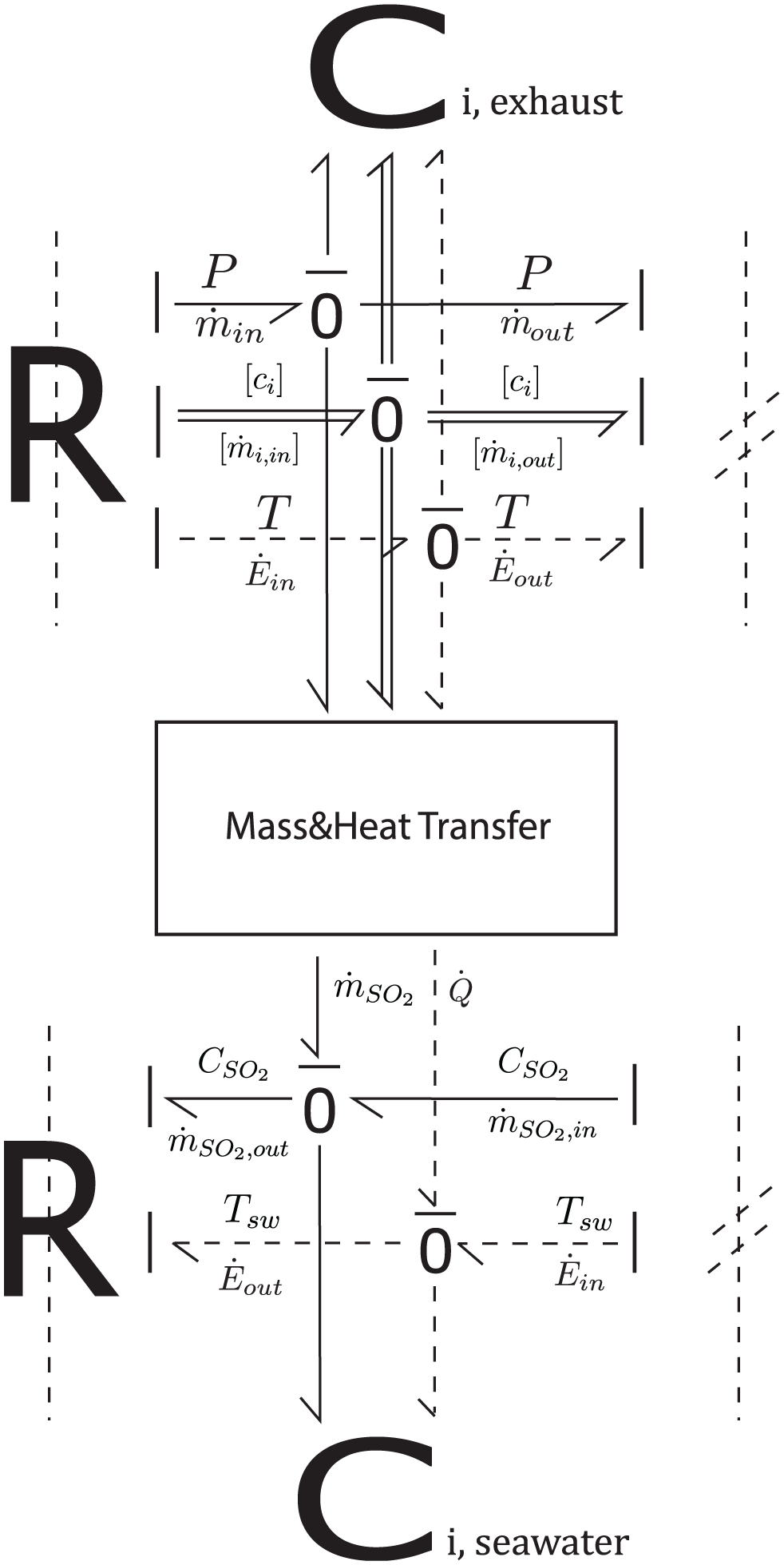

Bond graph model illustrating heat and mass transfer between exhaust gas and seawater in control volume i.

The built scrubber model is a framework that can be set up by modifying model parameters to represent different scrubber designs and configurations. For instance, the geometry of the scrubber, seawater properties, droplet size, etc. all parameters that vary with scrubber design and operation area.

Lastly, we remark several simplifications made during the implementation of the scrubber model described above:

The exhaust gas is treated as an ideal gas, and with constant mass flow through the scrubber.

Heat loss to the environment is neglected.

The seawater droplets are homogeneously distributed and in a complete mixture with the exhaust gas in each control volume.

The diameter of seawater droplets is considered uniform in the scrubber and does not change during the falling process.

Uncertainty and fidelity

The proposed scrubber model in this paper includes some sources of uncertainty, mainly related to the equations and parameters used. For example, there are several empirical correlations available in the literature to calculate SO₂ mass transfer on the gas and liquid sides. In this study, one well-established set of equations is chosen, while the alternative correlations could also be applied and may lead to small differences in results. In addition, some parameter values are taken from published data or general engineering assumptions, which may introduce minor variations. As for limitations, the model is developed and validated for a spray-type scrubber, and its performance for other scrubber types has not yet been evaluated. In terms of fidelity, the model can be integrated with other ship subsystems, which makes it suitable for system-level simulations. Overall, these uncertainties do not affect this model’s ability to represent the key physical and chemical processes inside the scrubber. The fidelity of the model fits the intended purpose of a system-level modeling and simulation.

Simulation and results

The physical and chemical processes within marine scrubbers are encapsulated within a complete marine scrubber model in the above section. This section presents the verification and validation of this model. A convergence study is first conducted to examine the validity of the numerical discretization, followed by model tuning and calibration. Then use two groups of experimental data measured from different sea area to validate the model. Simulation results are directly compared with the experimental data.

Discretization convergence study

The discretization of the entire scrubber volume, allows dynamic representation of the system’s behavior. However, it also necessitates a careful examination of the model’s sensitivity to the level of discretization to minimize uncertainties from the numerical implementation. In other words, it is crucial to ensure that the simulation outcomes are not significantly influenced by the number of control volumes utilized in the discretization process. This is achieved through a convergence test. This test is conducted under representative inflow/boundary conditions, which are chosen to reflect typical operating scenarios for the system.

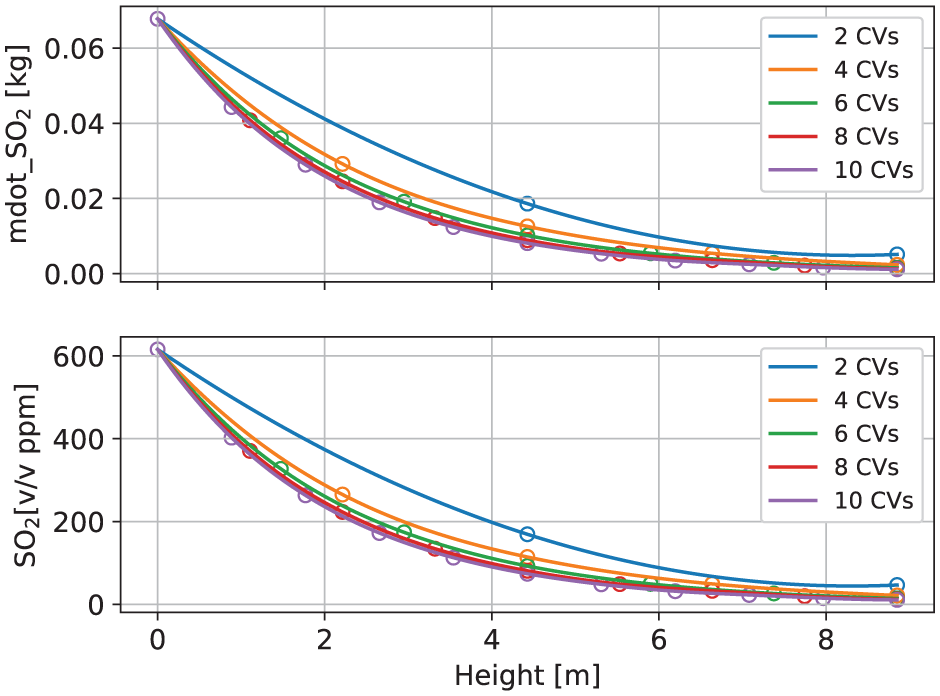

As depicted in Figure 9, a series of simulations were conducted, wherein the scrubber model was divided into 2–10 control volumes, respectively. The results, specifically the SO₂ mass flow rate and SO₂ concentration (in ppm), along the scrubber height were plotted for comparison. It is noteworthy that the system behavior is qualitatively well represented, irrespective of the number of control volumes used. This is evident from the fact that all curves in the figure show a smooth decrease in the SO₂ mass flow rate along the scrubber’s height. This decrease is attributed to the absorption of SO₂ as the exhaust gas interacts with seawater droplets within the scrubber.

Figure 9.

Sensitivity analyses regarding the number of control volumes (CVs). The first subfigure is SO₂ mass flow rate ( ${\overset{\cdot}{m}}_{SO 2}$ ) variation along scrubber height, and the second subfigure is SO₂ concentration in [v/v ppm] along scrubber height.

Further examination of Figure 9 reveals that altering the number of control volumes from 2 to 10 noticeably impacts the distribution of SO₂ mass flow rate along the scrubber’s height, particularly when the number of control volumes ranges from 2 to 6. However, when the number of control volumes exceeds six, additional control volumes have almost negligible effects on the results, indicating a convergence at six control volumes. These observations support that a model with six control volumes is sufficient for accurate representation.

Model tuning

As mentioned in the previous section, the model was built with several simplifications, either because some processes or parameters have less pronounced influence to the performance of the system, or because some processes include complex nonlinearity that introduces too much difficulties in properly modeling them. Anyways, due to the existence of simplifications and assumptions, we cannot expect the model to perfectly reflect all details of the real-life processes in a marine scrubber, model tuning therefore becomes necessary.

For instance, in reality, the speed of a droplet changes with time. The droplet obtains an initial velocity after being sprayed from the nozzle, and this initial velocity is affected by various factors, such as droplet size, injection condition, nozzle size, spray angle, etc. So, it is difficult to get this initial velocity. Also, depending on its location, droplet speed distribution is not uniform along the radial direction of the nozzle.²⁸ Nevertheless, the droplets experience a deceleration process after being sprayed out from the nozzle, under the joint effect of drag and buoyancy forces, until their speeds decrease to the terminal velocity, as expressed in equation (29). For the preliminary simulation set, the terminal velocity of droplets is defined as their average velocity in the model. This assumption is recognized as a source of uncertainty and can be improved.

A calibration of this parameter was therefore performed by introducing a slightly modified droplet average speed. This has been a process through trial-and-error, but the target was clear, that is, the average speed should be higher than the terminal speed while smaller than the initial speed. The resultant droplet average speed after calibration, which meets the above target, is shown in equation (34).

u_avg = \sqrt{\frac{\frac{4}{3} (ρ_{l} - ρ_{g}) g d_{d}}{ρ_{g} C_{D}}} - \sqrt{| u_{g} |}

(34)

Equation (34) represents a corrected form of the droplet terminal velocity, introduced to approximate an average droplet speed between the initial spray velocity and the final terminal velocity. In this study, a single representative average velocity was adopted within the bond graph framework. Although Payri et al.²⁸ observed that the spatial velocity distribution of spray droplets follows a Gaussian profile, such detailed radial variation is beyond the resolution of the present system-level model, where the terminal velocity is used as an average representative value. This simplification is noted as a source of uncertainty and possible improvement for future work.

Measurement campaign

Voyages

A marine scrubber, designed by Wärtsilä Moss and installed on a Wilh. Wilhelmsen ship, is chosen as the modeling target. With a diameter of 4.50 m and a height of 8.85 m, this scrubber was intended to handle a maximum SO₂ mass flow rate of 265 kg/h.

Measurement campaigns were carried out by Marintek (now SINTEF Ocean AS) with the target scrubber. The measurements were made while the target ship was sailing in different areas, respectively in Europe, across the Pacific from Manzanillo, Panama, to Brisbane, Australia, and across the Atlantic from Baltimore to Zeebrugge, reflecting the real-world performance of the chosen scrubber. The data from the measurement campaign across the Atlantic will be the main focus due to its relatively high data quality. Worth noting that measurements taken during actual operation present practical challenges, primarily because the test conditions cannot be as controlled as those in laboratory tests.

Measurement setup

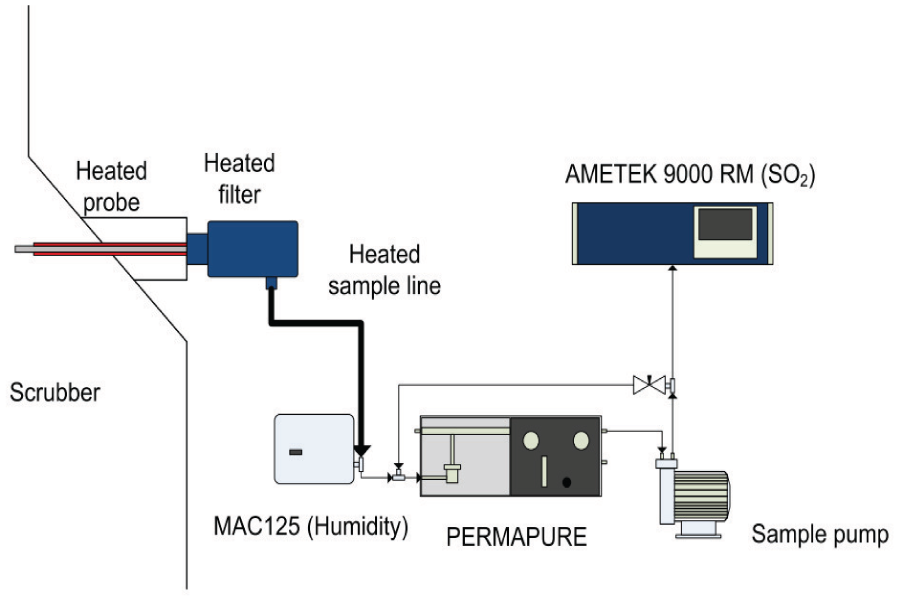

Figure 10 illustrates the setup of the measurement equipment used in the campaigns. The measurement campaign produces a collection of data recorded under various engine load levels with varying seawater temperatures and properties, including the mass flow rate and concentration of various gas species (SO₂, CO₂, $O_{2}$ , etc.) in the exhaust gas before and after passing through the scrubber.

Figure 10.

SO₂ and exhaust humidity measurement setup in measurement campaigns.

Relevant parameters

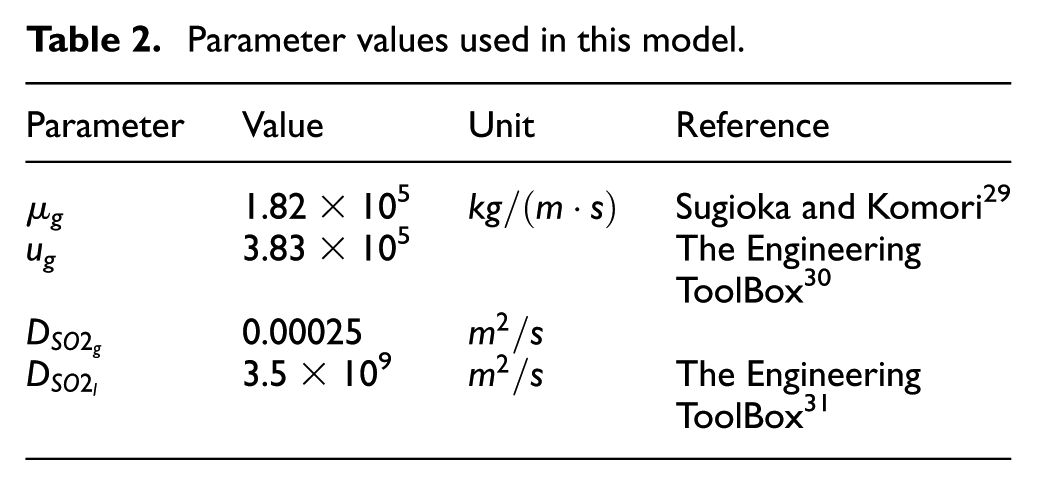

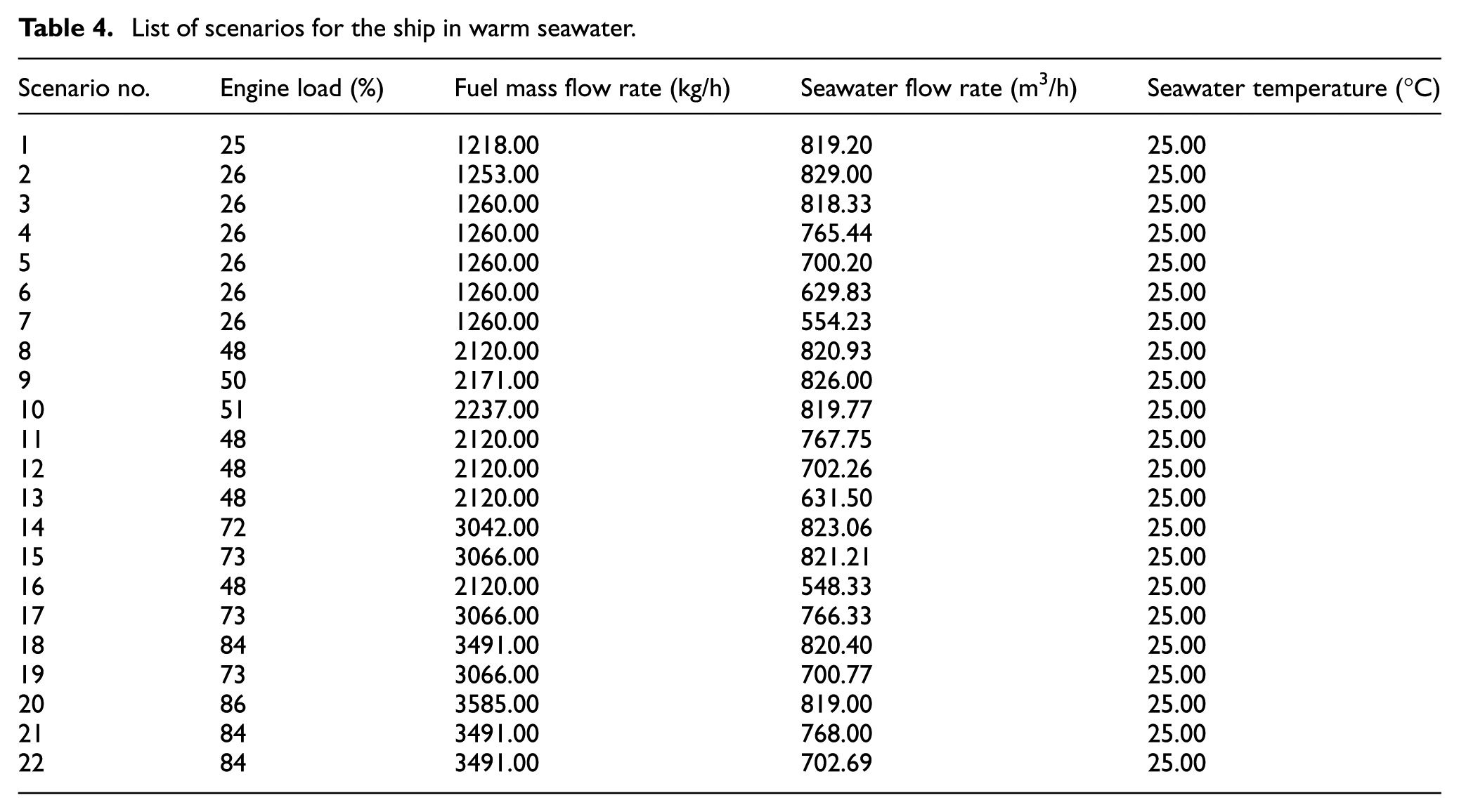

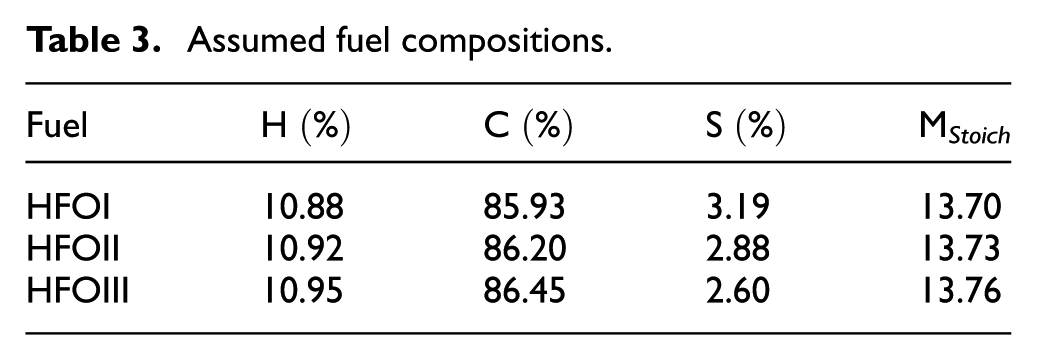

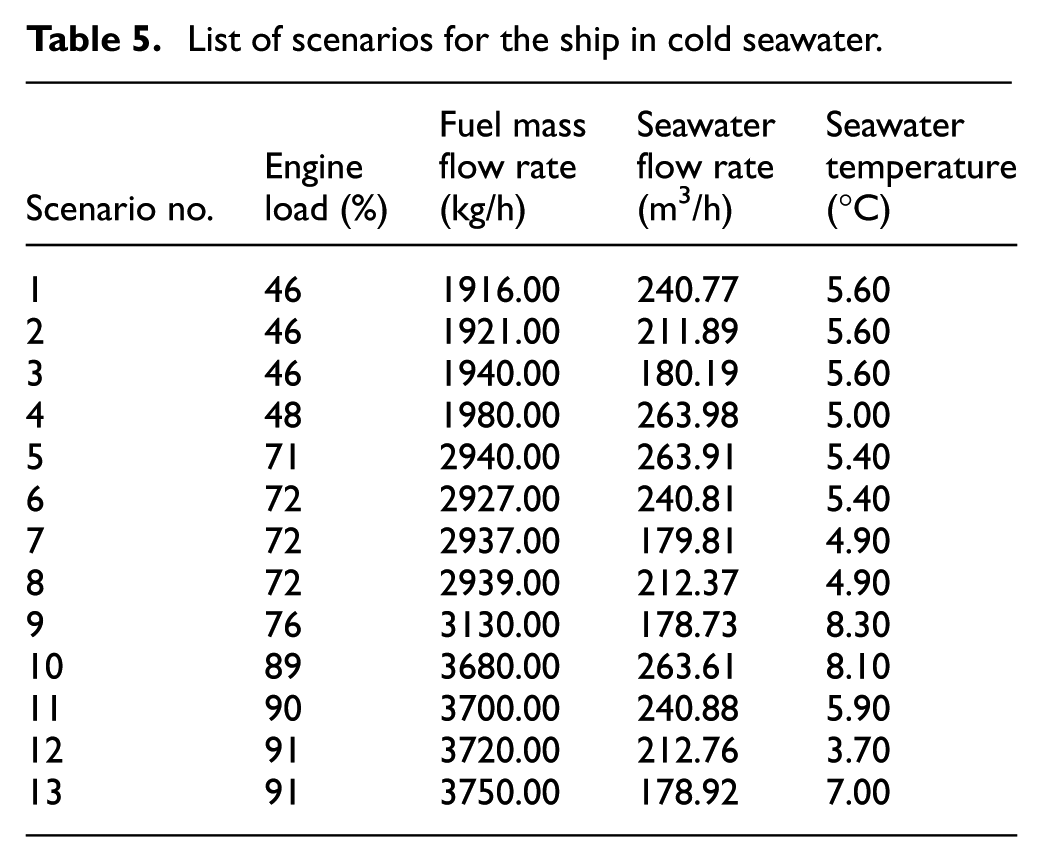

The values of several parameters used in the model verification are listed in Table 2. These parameters are estimated based on a reasonable range for each parameter. Notice that the values of these parameters may change by various of scrubber and shipping locations.

Table 2.

Parameter values used in this model.

Parameter	Value	Unit	Reference
μ _g	1.82 × 10⁵	$kg / (m \cdot s)$	Sugioka and Komori²⁹
u _g	3.83 × 10⁵		The Engineering ToolBox³⁰
$D_{SO 2_{g}}$	0.00025	$m^{2} / s$
$D_{SO 2_{l}}$	3.5 × 10⁹	$m^{2} / s$	The Engineering ToolBox³¹

Table 3 shows the fuel composition used in the Wilh. Wilhelmsen ship. The sulfur mass percent is known, but the hydrogen and carbon mass percent are assumed based on a fixed hydrogen-to-carbon ratio.

Table 3.

Assumed fuel compositions.

Fuel	H (%)	C (%)	S (%)	M_Stoich
HFOI	10.88	85.93	3.19	13.70
HFOII	10.92	86.20	2.88	13.73
HFOIII	10.95	86.45	2.60	13.76

The measurement data for the onboard scrubber were presented in two different scenarios: warm seawater (with temperatures exceeding 297.15 K) and cold seawater (with temperatures below 283.15 K). These measurements were taken in different areas where the engine load, fuel mass flow rate, and seawater flow rate varied accordingly (detailed in Tables 4 and 5).

Table 4.

List of scenarios for the ship in warm seawater.

Scenario no.	Engine load (%)	Fuel mass flow rate (kg/h)	Seawater flow rate (m³/h)	Seawater temperature (°C)
1	25	1218.00	819.20	25.00
2	26	1253.00	829.00	25.00
3	26	1260.00	818.33	25.00
4	26	1260.00	765.44	25.00
5	26	1260.00	700.20	25.00
6	26	1260.00	629.83	25.00
7	26	1260.00	554.23	25.00
8	48	2120.00	820.93	25.00
9	50	2171.00	826.00	25.00
10	51	2237.00	819.77	25.00
11	48	2120.00	767.75	25.00
12	48	2120.00	702.26	25.00
13	48	2120.00	631.50	25.00
14	72	3042.00	823.06	25.00
15	73	3066.00	821.21	25.00
16	48	2120.00	548.33	25.00
17	73	3066.00	766.33	25.00
18	84	3491.00	820.40	25.00
19	73	3066.00	700.77	25.00
20	86	3585.00	819.00	25.00
21	84	3491.00	768.00	25.00
22	84	3491.00	702.69	25.00

Table 5.

List of scenarios for the ship in cold seawater.

Scenario no.	Engine load (%)	Fuel mass flow rate (kg/h)	Seawater flow rate (m³/h)	Seawater temperature (°C)
1	46	1916.00	240.77	5.60
2	46	1921.00	211.89	5.60
3	46	1940.00	180.19	5.60
4	48	1980.00	263.98	5.00
5	71	2940.00	263.91	5.40
6	72	2927.00	240.81	5.40
7	72	2937.00	179.81	4.90
8	72	2939.00	212.37	4.90
9	76	3130.00	178.73	8.30
10	89	3680.00	263.61	8.10
11	90	3700.00	240.88	5.90
12	91	3720.00	212.76	3.70
13	91	3750.00	178.92	7.00

Compare simulation with measurement data

The mass flow of exhaust gas varies with changes in engine load, which in turn affects the mass flow of SO₂ exiting the scrubber. To assess the validity of the scrubber model, simulation results for the mass flow rate of SO₂ under different engine loads are examined. In the scenarios presented in Table 4, the engine load ranges from 25% to nearly 85% within the same shipping area. The corresponding exhaust gas mass flow rates are calculated and used as inputs to the scrubber model. Subsequently, the concentration of SO₂ in ppm exiting the scrubber is compared with experimental data, as illustrated in Figure 11. From this figure, one notices that the simulation results follow a clear and smooth trend, while the experimental data are quite scattered, mostly due to influences of uncontrollable operational conditions in the real sea environment, and to slight variation in seawater flow rate, where in the simulation, it assumes a constant seawater flow rate. Nevertheless, a best fit curve is made for the scattered experimental data, which is in the same trend as the simulation outlines, only with a slight offset.

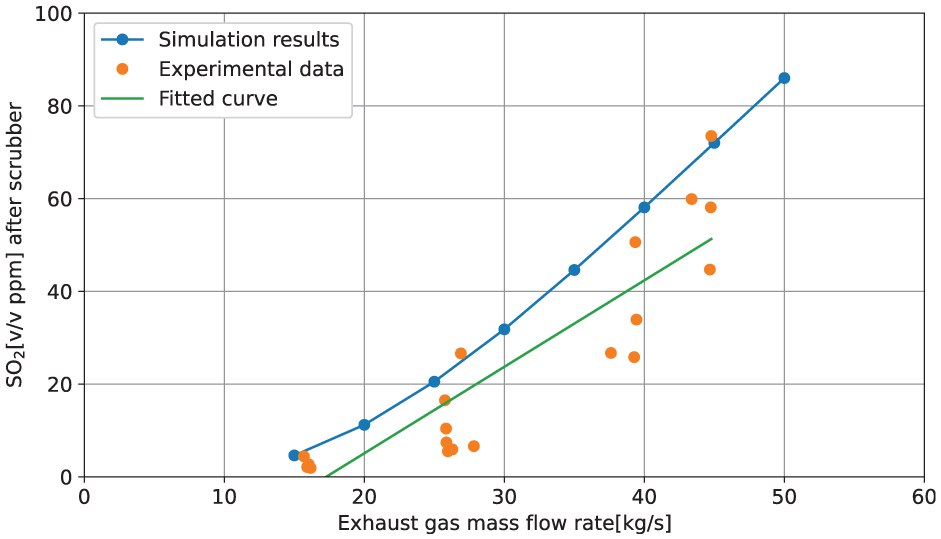

Figure 11.

Simulation results of SO₂ [v/v ppm] after scrubber versus exhaust gas mass flow rate, plotted together with data from measurement campaign.

The scrubber’s performance in the measurement campaign was evaluated using a specific metric: the concentration of SO₂ (in v/v ppm) after passing through the scrubber, relative to the ratio of the mass flow of SO₂ in the exhaust gas before the scrubber to the mass flow rate of seawater in the scrubber.

This special metric offers a comprehensive understanding of the scrubber’s effectiveness under different operational scenarios. Figure 12 shows the scrubber performance using the metric. The x-axis presents the ratio of mass flow of SO₂ before entering the scrubber to the mass flow rate of seawater entering the scrubber, while the y-axis represents the concentration of SO₂ after passing through the scrubber. These measurements correspond to the scenarios presented in Tables 4 and 5.

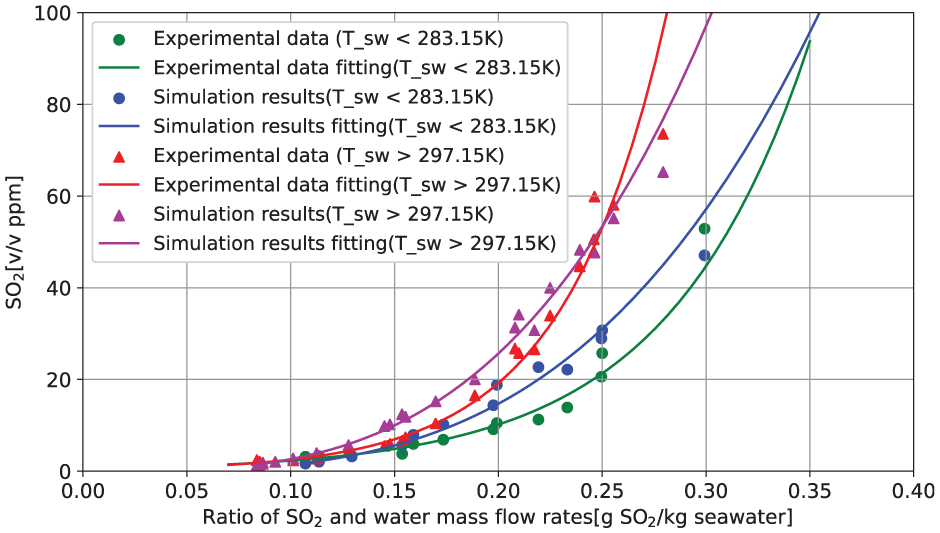

Figure 12.

Comparison of simulated and measured SO₂ concentrations at scrubber outlet as a function of the ratio of SO₂ at scrubber inlet to seawater mass flow rate.

From Figure 12, we see that the scrubber’s performance varies under different seawater temperatures. There is a noticeable trend: as the ratio of the mass flow rate of SO₂ to seawater increases, the concentration of SO₂ at the scrubber’s outlet also increases, and the results indicate an exponential tendency.

A series of simulations reflecting the full list of scenarios included in Tables 4 and 5 are conducted, where 22 simulations were in the warm seawater category and 13 in cold seawater category. The comparison of the simulation results and the experiment data are shown in Figure 12. We see that the trends of the experimental data are nicely captured by the simulation results. These observations suggest that the scrubber model represents the complex physical and chemical processes in a marine scrubber with high accuracy.

The comparisons between the simulation results and measurement data in Figure 12 are overall promising. Yet, some deviations are still observed. These deviations can be attributed to several factors. Firstly is still simplifications in the mathematical model, which resulted in some relations being linearized, even though certain calibration work has been carried out. As such, it is expected that this model may not handle situations where strong non-linearities are present, which are quite likely to occur among some scenarios considered in this study. Secondly, maintaining a controlled measurement environment similar to that in a laboratory is challenging when measuring data under actual operational conditions on a sailing ship, therefore certain uncertainties are also expected from the measurement side.

Taking these uncertainties into account, we consider the simulation results to be in reasonable agreement with the measurements. We are confident that this validation demonstrates that the marine scrubber model performs well.

Concluding remarks

In conclusion, this study presents an approach to the system modeling of marine scrubbers. Firstly, we have constructed a system model of a representative marine scrubber using the bond graph method. This model carefully incorporates the physics and chemical reactions occurring within the scrubber.

Secondly, we conducted a convergence test on the discretization of the scrubber volume, ensuring the numerical robustness of our model, and carried out model calibration accordingly.

Lastly, we performed a series of simulations for a scrubber installed on a Wilh Wilhelmsen ship. The simulation results were then compared with measurements taken under operational conditions while the ship was sailing in the ocean. The validation showed promising comparisons, indicating that our scrubber model is both robust and reliable.

In light of these results, we believe that our scrubber model serves as a valuable tool for understanding and predicting the performance of marine scrubbers in realistic operations. Despite some deviations from measured data due to inherent complexities and uncertainties in real-world conditions, our model shows good agreement with measurements and captures key trends accurately.

Future work could focus on refining the model by incorporating more complex relations or exploring other influential parameters, as well as on making efforts to integrate the scrubber model with other components in ECGS and eventually achieve a comprehensive ECGS model. The modular framework of marine scrubbers allows seamless integration with existing engine¹⁴ and SCR models,¹⁵ enabling holistic simulations of ship exhaust systems. Furthermore, the model’s adaptability extends beyond SO_x removal: particulate matter (PM) reduction, a known scrubber byproduct,⁴ can be incorporated by adding particulate transport dynamics. Similarly, carbon capture systems, such as Wärtsilä’s pilot onboard SOLVANG ships,³² which shares structural parallels with scrubbers, could be modeled by adjusting chemical reactions. Thus, this scrubber model can also help develop future systems that can control multiple pollutants, supporting maritime decarbonization.

Footnotes

ORCID iD

Yuan Tian

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was carried out at SFI Smart Maritime, which is mainly supported by the Research Council of Norway through the Centres for Research-based Innovation (SFI) Funding scheme, project number 237917.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

UNCTAD. Review of Maritime Transport 2017. United Nations, 2017.

IMO. Imo’s work to cut ghg emissions from ships. 2023. https://www.imo.org/en/MediaCentre/HotTopics/Pages/Cutting-GHG-emissions.aspx (accessed November 2025).

IMO. International convention for the prevention of pollution from ships (MARPOL) – annex VI: prevention of air pollution from ships. Technical report, International Maritime Organization. 2005. https://www.imo.org/en/about/conventions/pages/international-convention-for-the-prevention-of-pollution-from-ships-(marpol).aspx (accessed November 2025).

Tran

. Research of the scrubber systems to clean marine diesel engine exhaust gases on ships. J Mar Sci Res Dev 2017; 07(06): 243.

Douabul

Riley

. Solubility of sulfur dioxide in distilled water and decarbonated sea water. J Chem Eng Data 1979; 24(4): 274–276.

Al-Enezi

El-Dessouky

Fawzi

. Solubility of sulfur dioxide in seawater. Ind Eng Chem Res 2001; 40(5): 1434–1441.

Rodríguez-Sevilla

Álvarez

Díaz

, et al. Absorption equilibria of dilute SO₂ in seawater. J Chem Eng Data 2004; 49(6): 1710–1716.

Caiazzo

Langella

Miccio

, et al. An experimental investigation on seawater SO₂ scrubbing for marine application. Environ Prog Sustain Energy 2013; 32(4): 1179–1186.

Darake

Rahimi

Hatamipour

, et al. SO₂ removal by seawater in a packed–bed tower: experimental study and mathematical modeling. Sep Sci Technol 2014; 49(7): 988–998.

10.

Mestemaker

BTW

Elmazi

Van Biert

, et al. Modelling and simulation of a wet scrubber system. In: Proceedings of MOSES2023 conference, October 2023.

11.

Paynter

. Analysis and design of Engineering Systems. MIT Press, 1961.

12.

Karnopp

. State variables and pseudo bond graphs for compressible thermo-fluid systems. J Dyn Syst Meas Control 1979; 101(3): 201–204.

13.

Borutzky

. Bond graph methodology. 2010.

14.

Yum

Taskar

Pedersen

, et al. Simulation of a two-stroke diesel engine for propulsion in waves. Int J Nav Archit Ocean Eng 2017; 9(4): 351–372.

15.

Nielsen

Pedersen

. A system approach to selective catalyst reduction denox monolithic reactor modelling using bond graphs. Proc Inst Mech Eng Part M: J Eng Marit Environ 2019; 233(2): 632–642.

16.

Bruun

. Bond graph modelling of fuel cells for marine power plants. PhD Thesis, Norwegian University of Science and Technology (NTNU), 2009.

17.

Karnopp

Margolis

Rosenberg

. System dynamics: modeling, simulation, and control of mechatronic systems, 5th ed. John Wiley & Sons, 2012.

18.

Pedersen

. Modelling thermodynamic systems with changing gas mixtures. Simul Ser 1999; 31: 189–195.

19.

Zhang

Zhao

, et al. Simulation investigation on marine exhaust gas SO₂ absorption by seawater scrubbing. J Air Waste Manag Assoc 2022; 72(5): 383–402.

20.

Henry

III . Experiments on the quantity of gases absorbed by water, at different temperatures, and under different pressures. Philos Trans R Soc Lond 1803; 93: 29–274.

21.

NIST. NIST chemistry webbook. National Institute of Standards and Technology. 2024. https://webbook.nist.gov/chemistry/ (accessed November 2025).

22.

Sander

. Compilation of henry’s law constants for inorganic and organic species of potential importance in environmental chemistry. Database 1999; 1(1): 1–107.

23.

Goldberg

Parker

. Thermodynamics of solution of SO (g) in water and of aqueous sulfur dioxide solutions. J Res Natl Bur Stand 1985; 90(5): 341–358.

24.

Brogren

Karlsson

. Modeling the absorption of SO2 in a spray scrubber using the penetration theory. Chem Eng Sci 1997; 52(18): 3085–3099.

25.

Bešenić

Vujanović

Baleta

, et al. Numerical analysis of sulfur dioxide absorption in water droplets. Open Phys 2020; 18(1): 104–111.

26.

Hsu

Shih

. Semiempirical equation for liquid-phase mass-transfer coefficient for drops. AIChE J 1993; 39(6): 1090–1092.

27.

Yeh

Rochelle

. Liquid-phase mass transfer in spray contactors. AIChE J 2003; 49(9): 2363–2373.

28.

Payri

Tormos

Salvador

, et al. Spray droplet velocity characterization for convergent nozzles with three different diameters. Fuel 2008; 87(15–16): 3176–3182.

29.

Sugioka

Komori

. Drag and lift forces acting on a spherical water droplet in homogeneous linear shear air flow. J Fluid Mech 2007; 570: 155–175.

30.

The Engineering ToolBox. Air viscosity: dynamic and kinematic viscosity at various temperatures and pressures, 2003. https://www.engineeringtoolbox.com/air-absolute-kinematic-viscosity-d_601.html (2003, accessed 20 October 2023).

31.

The Engineering ToolBox. Gases solved in water - diffusion coefficients, 2008. https://www.engineeringtoolbox.com/diffusion-coefficients-d_1404.html (2008, accessed 20 October 2023).

32.

Solvang. The world’s first onboard carbon capture on voyage 2024. 2024. https://solvangship.no/feature_article/occs/ (accessed November 2025).

A system approach for modeling and simulation of marine scrubbers

Abstract

Keywords

Introduction

Background

Marine scrubber

Objectives

Scrubber modeling

Bond graph structure

Physical and chemical reactions in the scrubber model

Uncertainty and fidelity

Simulation and results

Discretization convergence study

Model tuning

Measurement campaign

Voyages

Measurement setup

Relevant parameters

Compare simulation with measurement data

Concluding remarks

Footnotes

ORCID iD

Funding

Declaration of conflicting interests

References
