Abstract

This study aims to enhance active vibration control in a cantilever beam using macro fiber composite (MFC) actuators. To address the challenge of accurately modeling the complex hysteresis behavior of MFC actuators, an advanced hysteresis modeling technique is employed, integrating a non-symmetric Bouc–Wen model with an Auto-Regressive model with eXogenous inputs (ARX). The parameter estimation of this model is optimized using an adaptive mutation factor, and multiple mutation strategy differential evolution (AmFMMDE) algorithm. Additionally, a Variable Step Size Filtered-x Least Mean Square (VSS-FxLMS) algorithm with step size adaptation based on normalized error change is utilized for effective vibration control. This approach shows promising potential for practical engineering applications requiring precise and efficient active vibration control.

Keywords

Active vibration control cantilever beam MFC actuators hysteresis modeling Bouc–wen model hammerstein model AmFMMDE algorithm VSS-FxLMS algorithm

Introduction

Vibration control plays a crucial role in various engineering applications, including aerospace, civil structures, and mechanical systems, as excessive vibrations can lead to structural damage, reduced performance, and increased energy consumption. Numerous methods exist for mitigating vibrations, including passive, active, and semi-active approaches.^1–3 Passive vibration control techniques primarily aim to reduce vibrations through methods such as absorption or separation. However, these methods often yield suboptimal results.^4–6 On the other hand, semi-active vibration control methods face certain limitations and necessitate sophisticated control algorithms.^7–12 Active vibration control has become a prominent research area in recent years due to the rapid development of smart materials, sensing technology, and actuating technology.¹³ It involves generating a counteracting force that opposes the direction of vibration in the main structure. This force is an integral component of the vibration suppression system, which operates using various algorithms.^14–16 The algorithms enable precise manipulation and control of the structure’s vibrations. This method has gained significant attention due to their ability to actively mitigate vibrations in real-time.^17,18 Active vibration control involves the use of actuators that exert forces to counteract the undesired vibrations, thereby improving the overall system performance.¹⁹

One type of actuator commonly used in active vibration control is the macro fiber composite (MFC) actuator,^20–22 which can effectively manipulate the structural dynamics of a cantilever beam and attenuate vibrations. MFC is a piezoelectric material consisting of oriented piezoelectric ceramic fibers uniformly dispersed in the polymer matrix which contain epoxy resin.²³ The upper and lower layers of the MFC are protected polyimide film with adhesive electrodes layer, as shown in Figure 1. However, the hysteresis behavior exhibited by MFC actuators poses a significant challenge in accurately modeling their dynamic response.²⁴ Hysteresis is a nonlinear phenomenon commonly observed in piezoelectric materials, where the relationship between the input excitation and the resulting output response depends not only on the current input but also on its history. Thus, to achieve precise control of vibration using MFC actuators, it is essential to develop an accurate hysteresis model that can capture the nonlinearity and rate-dependent behavior.

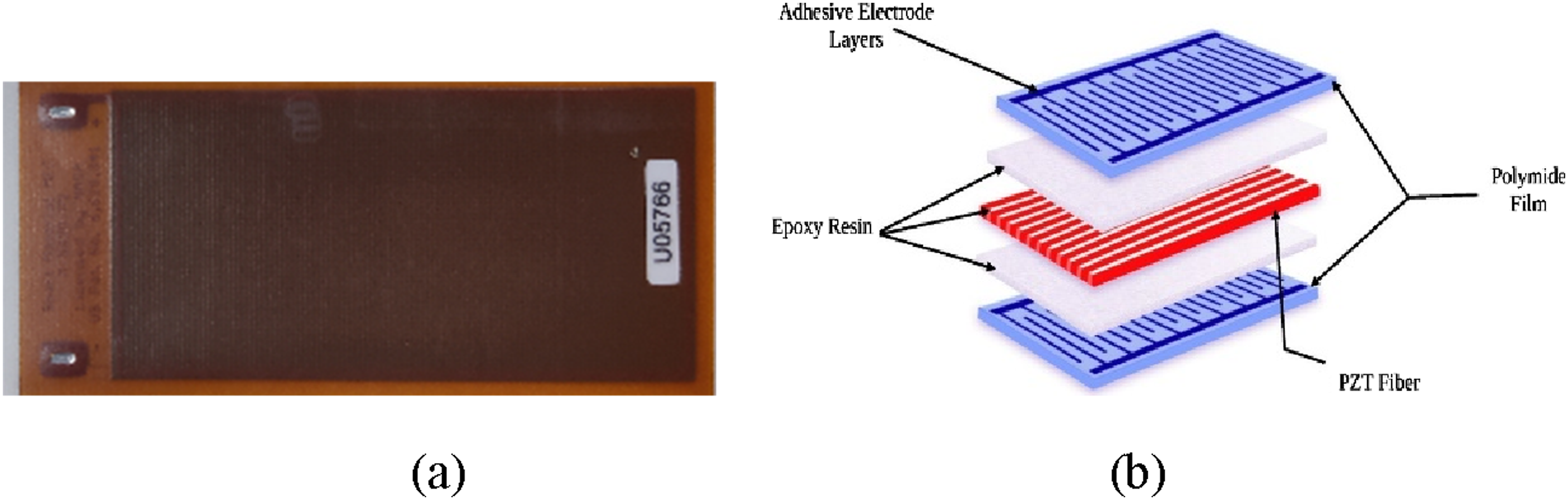

Figure 1.

MFC’s view. (a) Sample. (b) Schematic.

Various hysteresis models have been presented in recent years,²⁵ including the Bouc–Wen model,^26,27 the Prandtl–Ishlinskii model,^28–30 the Preisach model,^31,32 and the Jiles–Atherton model.^33,34 The Bouc–Wen model is a popular hysteresis model for describing the nonlinear behavior of many systems, including MFC actuators.³⁵ The Bouc–Wen model is a smooth hysteresis model that is able to describe the hysteretic behavior of the MFC’s using a set of differential equations. The model is a black-box model, meaning that it takes a set of experimental input-output data and adjusts its parameters so that the output of the model matches the experimental data.^36,37 However, the Bouc–Wen model has some limitations, such as its inability to accurately describe the non-symmetric behavior of MFC actuators. To overcome the limitations of the Bouc–Wen model, the non-symmetric Bouc–Wen model was proposed. Zhiqiang Fu³⁸ proposed the asymmetric hysteresis characteristics of MFC actuator based on the sigmoid function. Jinqiang Gan³⁹ presented the non-symmetric Bouc–Wen model as the generalized Bouc–Wen Model by introducing relaxation functions in the classical Bouc–Wen model. By including an input bias and an asymmetric component into the classical Bouc–Wen model, Haichen Qin⁴⁰ suggested an asymmetric Bouc–Wen model.

In addition, since the hysteresis behavior in MFC actuator is not only nonlinear but also rate-dependent. To model this complex behavior accurately, a Hammerstein hysteresis model is proposed. It is a type of nonlinear system that consists of a static nonlinearity and a linear dynamical system connected in series. It is commonly used in system identification and has been applied to a wide variety of engineering problems.⁴¹ Junhong Li⁴² proposed a novel approach for modeling hysteresis nonlinearity using a combination of Hammerstein and Wiener models, referred to as the HWTD model. Kaiming Hu⁴³ proposed the rate dependent hysteresis behavior using Hammerstein model. A. Mohand Ousaid⁴⁴ expressed the Hammerstein model based hysteresis modeling of piezoelectric actuators and adaptive control based on the Extended Kalman Filter (EKF).

This study proposed a Hammerstein model combines a non-symmetric Bouc–Wen model, which captures the nonlinearity of the hysteresis, and an Auto-Regressive model with eXogenous inputs (ARX) model, which accounts for the rate-dependent behavior. This combination enables a more accurate representation of the hysteresis dynamics of the MFC actuators.

To make the model accurately describe the real hysteretic nonlinearity, it is necessary to identify the model parameters. To identify parameters of Bouc–Wen hysteresis models, many researchers improve the optimization algorithm to improve the algorithm performance. For instance, a modified firefly algorithm (MFA) proposed by M.A. Zaman, U. Sikder,⁴⁵ a novel genetic algorithm (nGA) presented by Birhan Abebaw Negash,⁴⁶ a new modified cuckoo search algorithm with dynamic discovery probability and step-size factor is proposed by Rosmazi Rosli,⁴⁷ the homotopy method in combination with gradient-based optimization algorithm expressed by R. Manikantan.⁴⁸ Gao Zhiyuan⁴⁹ proposed an ameliorated particle swarm optimization (APSO) algorithm. With the improvement of model, the number of parameters in the model increases, so the parameter identification becomes complicated. To estimate the model parameters effectively, an adaptive mutation factor and a multiple mutation strategy based differential evolution algorithm (AmFMMDE) are employed. The AmFMMDE algorithm optimizes the model parameters by iteratively adjusting the mutation factor and employing multiple mutation strategies to enhance the search capabilities.

An adaptive filter is a digital filter that can dynamically adjust its filter coefficients based on the input and output signals it receives. This adaptive nature allows the filter to continuously adapt and optimize its performance in real-time, making it well-suited for applications where the input signals or system characteristics may vary over time. The Filtered-x Least Mean Square (FxLMS) algorithm has gained popularity in adaptive filtering for vibration control due to several desirable features.⁵⁰ FxLMS algorithm is known for its adaptability, and robust, allowing it to track changes in the system dynamics and adjust the filter coefficients accordingly and ensures that the control system can effectively attenuate vibrations even in the presence of disturbances or uncertainties.^16,51,52

The fixed step size used in FxLMS algorithm can lead to convergence issues, such as slow convergence or overshooting, especially in scenarios where the system dynamics change rapidly or exhibit non-stationary behavior.⁵³ To overcome this limitation, variable step size FxLMS (VSS-FxLMS) algorithm employs a variable step size technique.⁵⁴ By adapting the step size dynamically based on the observed error change, VSS-FxLMS achieves a balance between convergence speed and steady-state error. This adaptability in step size ensures a faster convergence rate while maintaining stability and accuracy during the adaptation process.

In this study, we introduce the VSS-FxLMS method with normalized error change step-size adaptation, which includes error signal history. The use of error history (the change in the error signal) rather than absolute error signal in step size adaptation enables resistance to fluctuating error magnitudes, adaptability to error dynamics, and reduced sensitivity to noise.

The main contribution of this paper is to propose a novel approach for active vibration control of a cantilever beam using MFC actuators, with Hammerstein model-based hysteresis modeling, parameter identification using AmFMMDE algorithm and VSS-FxLMS algorithm for control strategy design. Figure 2 shows the framework of our study which includes MFC’s hysteresis modeling, and active vibration control.

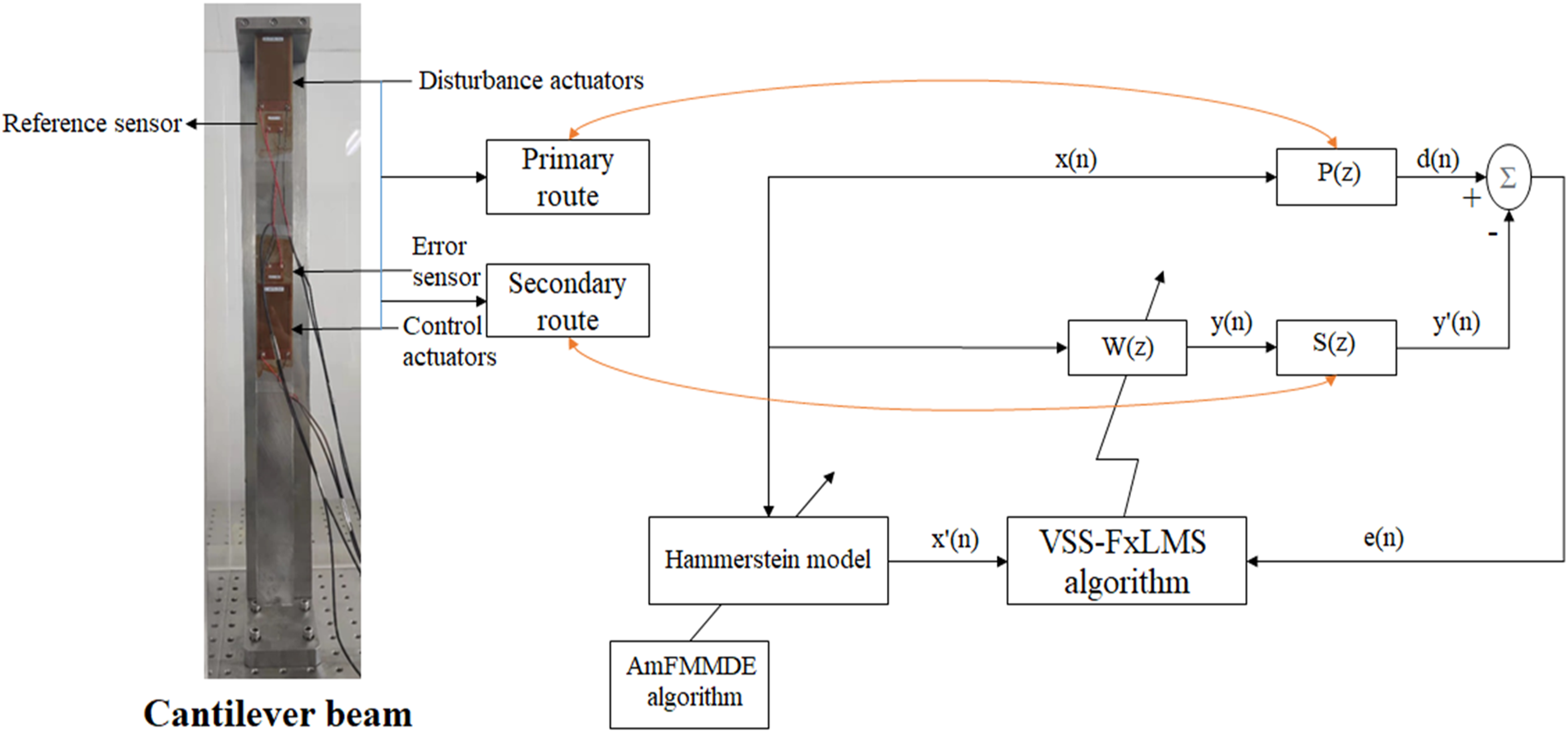

Figure 2.

Framework of modeling the MFC’s and vibration control.

The proposed approach can effectively attenuate the vibrations of the cantilever beam, and outperforms conventional control strategies in terms of convergence rate and tracking accuracy. The proposed approach has the potential for practical applications in various engineering fields where active vibration control is needed.

Hysteresis modeling of MFC actuators

Bouc–Wen model in discrete form

The MFC actuators exhibit a hysteresis loop that can be modeled by the Bouc–Wen hysteresis model, which characterizes the relationship between the input voltage and the resulting displacement output. The standard Bouc–Wen model is as follows⁵⁵

{\begin{cases} A k s (t) + (1 - A) k h (t) = F \\ \dot{h} (t) = α \dot{x} (t) - β | \dot{x} (t) | | h {(t) |}^{i - 1} h (t) - γ \dot{x} (t) | h {(t) |}^{i} \end{cases}

(1)

In formula (1),

F

represents the system’s restoring force in the event of nonlinearity. It consists of the linear component

(A k s)

and a nonlinear component

(1 - A) k h

where,

A

represents the system’s linearity to nonlinearity ratio.

h (t)

is the system’s hysteretic displacement.

x (t)

is the system input.

k

is the stiffness of the coefficient

(k > 0)

α, β

, and

γ

are model parameters that determine the form of hysteresis curves;

i

is the smoothness of curve. It should be noted that

i = 1

,⁵⁶ due to the elasticity of multiple piezoelectric actuators.

The dynamic behavior of MFC actuators may be represented by a classical Bouc–Wen model, given by the following formulas⁵⁷

E (t) = M \ddot{x} (t) + B \dot{x} (t) + K x (t) = K [d u (t) - h (t)]

(2)

\dot{h} (t) = α d \dot{u} (t) - β | \dot{u} (t) | h (t) - γ \dot{u} (t) | h (t) |

(3)

where

u

and

\dot{u}

, are the piezoelectric actuator’s input voltage and its time derivative, respectively;

h (t)

denotes the hysteretic displacement;

x

is the output displacement;

\dot{x}

and

\ddot{x}

is the first and second derivative of

x

, respectively. The parameter

α

is important in regulating the amplitude of loop, while the parameters

β

and

γ

shape the loop’s properties.

M, B, K

and

d

are the mass, damping coefficient, stiffness and piezoelectric coefficient, respectively. Because the model assumes that the nonlinearity is symmetric about the origin, it describes symmetric hysteresis. Figure 3 shows the symmetry of Bouc–Wen model. Furthermore,

E (t)

consists of a hysteretic component

K h (t)

, and a non-hysteretic component

p (t) = K L u (t)

X (t) = p (u (t)) - K h (t)

as a consequence.

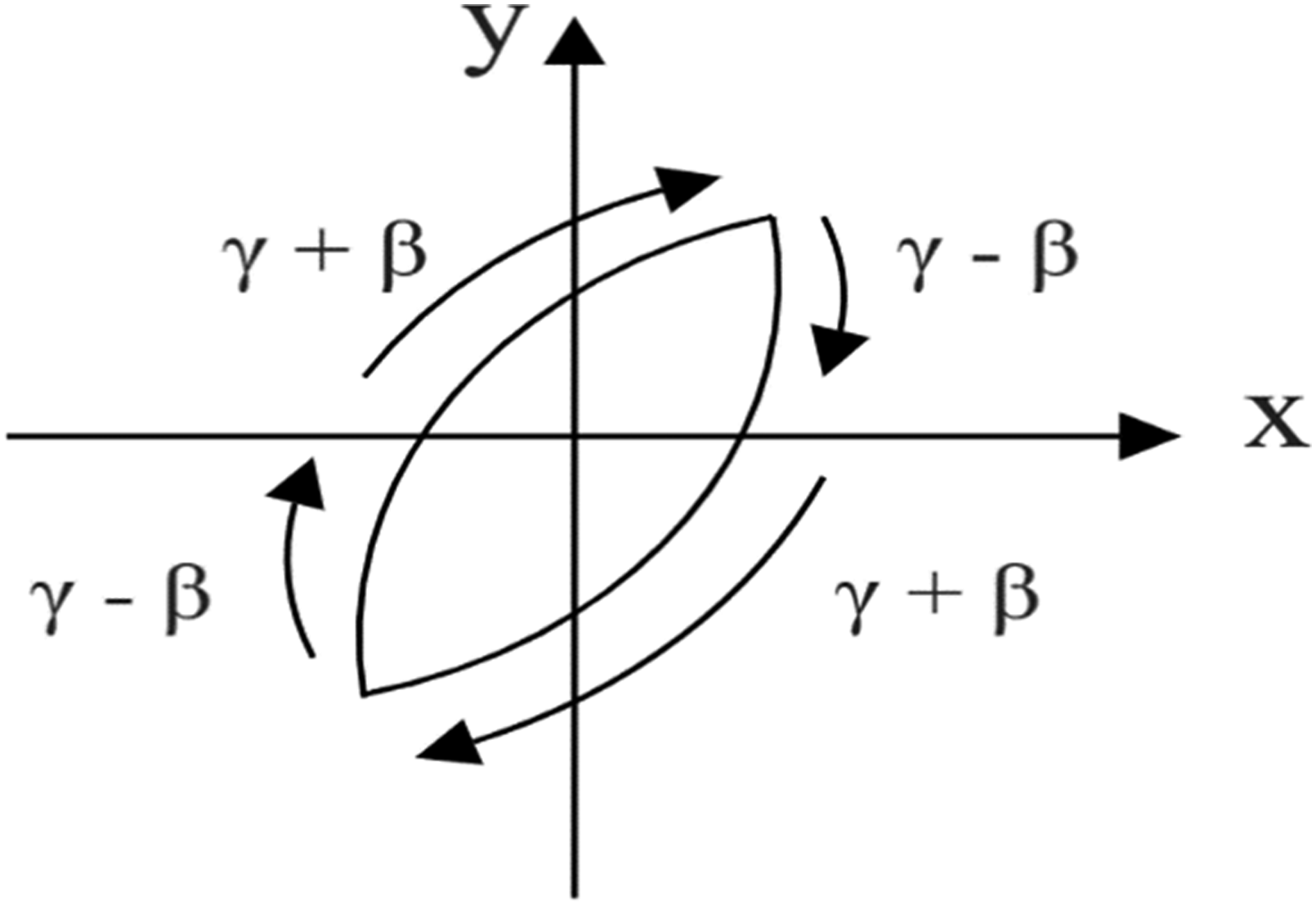

Figure 3.

Bouc–Wen model symmetry.

However, the hysteresis behavior of the MFC actuator, on the other hand is non-symmetric and rate-dependent. So, in order to enhance the model, many scholars in the literature focus on the modification of formula (3)’s with a more sophisticated mathematical form and a large number of factors. In this paper, we change formula (3) by substituting the non-hysteretic component $p (t)$ , with a polynomial expression $p (u (t))$ , as a result

p (u (t)) = d_{1} u (t) + d_{2} u^{2} (t)

(4)

where

d_{1}

and

d_{2}

are the parameters which we need to identify. Hence, the non-symmetric Bouc–Wen model can be described as

E (t) = M \ddot{x} (t) + B \dot{x} (t) + K x (t) = d_{1} u (t) + d_{2} u^{2} (t) - K h (t)

(5)

\dot{h} (t) = α d \dot{u} (t) - β | \dot{u} (t) | h (t) - γ \dot{u} (t) | h (t) |

(6)

The modification offers several benefits. Firstly, the modification only affects the first section of the model, resulting in a relatively simple mathematical form. This simplification facilitates the implementation and analysis of the model. Secondly, by retaining the second section of the classical Bouc–Wen model, the modified model preserves its inherent advantages. The second section captures the complex dynamic behavior of the actuator, allowing for accurate representation of its response characteristics. Furthermore, the developed non-symmetric Bouc–Wen model is capable of characterizing non-symmetric hysteresis. This is particularly important for MFC actuators, as they often exhibit non-symmetric behavior due to various factors such as manufacturing imperfections or material anisotropy. The ability to accurately represent this non-symmetric behavior enhances the fidelity of the model and improves its applicability in practical control systems.

In order to utilize the non-symmetric Bouc–Wen model in digital control systems, it needs to be discretized. One common method for discretization is to employ the Laplace transform and bilinear transform. These mathematical techniques allow for the conversion of the continuous-time model to a discrete-time representation, which can be directly implemented in digital control systems. It is as follows

w (a) = - \frac{1}{e_{1}} [f_{1} w (a - 1) + g_{1} w (a - 2) - e h_{1} (a) - f h_{1} (a - 1) - g h_{1} (a - 2)]

(7)

h_{1} (a) = d_{1} u (a) + d_{2} u^{2} (a) - h (a)

(8)

h (a) = α d u (a) - β | u (a) | h (a - 1) - γ u (a) | h (a - 1) | + h (a - 1)

(9)

where

e = T_{s}^{2}, f = 2 T_{s}^{2}, g = T_{s}^{2}, e_{1} = 4 M + 2 B T_{s} + K T_{s}^{2}, f_{1} = 2 K T_{s}^{2} - 8 M, g_{1} = 4 M - 2 B T_{s} + K T_{s}^{2}

T_{s}

is the sample time.

The given model depicts the non-symmetric behavior of MFC’s. Now, for rate-dependent behavior, we proposed the Hammerstein model, which combines a discrete-time non-symmetric Bouc–Wen model with a dynamic linear component represented by an ARX model. Figure 4 depicts the structure of the Hammerstein model. The input signal is first directed through a static nonlinearity block, which effectively captures MFC’s non-symmetric characteristics. Subsequently, the output from this block is fed into a linear dynamic system block to capture the rate-dependent behavior. In this study, we employ a second-order ARX model to represent the linear dynamics of the system. The mathematical expression for the second-order ARX model is as follows

Q (z) = \frac{w_{1} (z)}{w (z)} = \frac{m z^{- 1} + n z^{- 2}}{o z^{- 1} + p z^{- 2} + 1}

(10)

w_{1} (a) = m w (a - 1) + n w (a - 2) - o w_{1} (a - 1) - p w_{1} (a - 2)

(11)

where

m, n, o,

and

p

are ARX model parameters. Thus, the parameters utilized to identify in the Hammerstein model are 13,

{α, β, γ, M, B, K, d, d_{1}, d_{2}, m, n, o, p}

. By combining the non-symmetric Bouc–Wen model and the ARX model within the Hammerstein structure, we can accurately represent the hysteresis behavior and rate-dependent characteristics of the MFC actuators. This modeling approach enables us to better understand and predict the actuator’s response, facilitating the development of effective control strategies for vibration suppression.

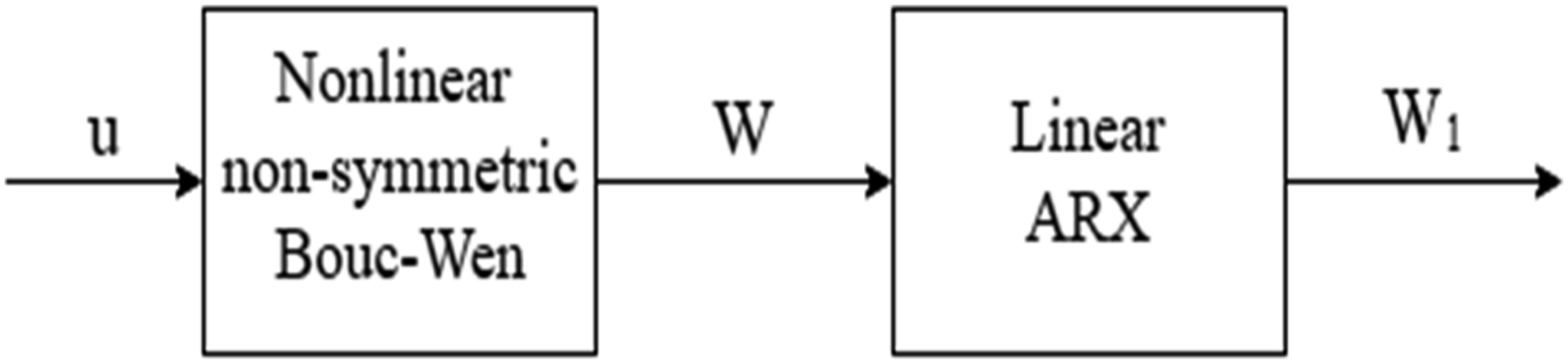

Figure 4.

Proposed Hammerstein hysteresis model structure.

Figure 4 accurately describes the non-symmetric hysteresis and rate dependent behavior of MFC’s. Now we need to identify its parameters. For this purpose, we use differential evaluation algorithm based AmFMMDE algorithm as discussed below.

Parameter identification based on AmFMMDE algorithm

AmFMMDE algorithm

The fundamental Differential Evolution (DE) algorithm⁵⁸ consists of several key operators: initialization, mutation, crossover, and selection. These operators collectively aim to discover the global optimum. In the basic DE algorithm, the control parameters, namely mutation factor ( $m F$ ) and crossover rate ( $C R$ ), play a crucial role in achieving the global optimum.⁵⁹ Typically, these parameters are assigned fixed positive values, which can impact the convergence speed of the algorithm.⁶⁰ Hence, there is a need for improvement in this regard.

Regarding the initialization operator, generates an initial population of candidate solutions or target vectors. The population size, denoted a $N P$ , is a parameter set by the user that determines the number of target vectors in the population. Each target vector, represented as $X_{i, G}$ , is a row vector of dimension $D$ , where $i$ ranges from 1 to $N P$ , and $G$ represent the generating index.

To generate the initial population, one common approach is to use a uniform distribution. This involves randomly generating values within the solution space for each dimension of the target vectors. The solution space is defined by lower and upper bounds, denoted as $X_{\min}$ and $X_{\max}$ , respectively. These bounds specify the minimum and maximum values that a variable can take. The process of generating the initial population can be expressed as follows

For each target vector $X_{i, G}$ and each $j$ (ranges from 1 to $D$ ), the value $X_{i, j}$ calculated using the formula $X_{i, j} = X_{\min} + r a n d (0, 1) * (X_{\max} - X_{\min})$ . Here, $r a n d (0, 1)$ represents a random number between 0 and 1 generated by a random number generator.

By utilizing this initialization process, a diverse population of candidate solutions is created, covering the solution space for each dimension. This provides a starting point for proposed AmFMMDE algorithm to explore and search for optimal solutions in the subsequent generations. Once initialized, the next steps in the AmFMMDE algorithm are mutation, crossover, and selection. These steps are performed iteratively to generate new candidate solutions for each generation.

Now in case of mutation operator, perturbs the elements of a target vector $X_{i, G}$ with the elements of other target vectors in the population to create a corresponding mutant vector $V_{i, G}$ . Perturbation is controlled by $m F$ . In order to enhance the mutation operator, we introduce the multiple mutation strategy in our approach. This operator includes various mutation strategies such as DE/best/1, DE/rand/1, DE/pbest/1, and DE/neighbor/1. Additionally, an adaptive mutation factor is employed for effective parameter identification of Hammerstein model. The benefits of our proposed AmFMMDE algorithm are as follows: The use of multiple mutation strategies allows the algorithm to balance exploration and exploitation. Each mutation strategy has its own way of perturbing the candidate solutions, and by employing multiple strategies, the AmFMMDE algorithm can explore different regions of the solution space, increasing the chances of finding optimal or near-optimal solutions. It helps to avoid getting trapped in local optima and promotes a more comprehensive search. And for adaptive mutation factor, it enables the algorithm to dynamically adjust the magnitude of the mutation based on the current state of the search. By adapting the mutation factor during the evolutionary process, the algorithm can fine-tune the exploration and exploitation trade-off.

The proposed AmFMMDE algorithm is outlined as follows

m F = {m F}_{\max} - {m F}_{\min} * \frac{G_{\max} - G}{G_{\max}}

(12)

DE/best/1

V_{i, G} = X_{b e s t, G} + m F * (X_{a_{1}, G} - X_{a_{2}, G})

(13)

DE/rand/1

V_{i, G} = X_{a_{1}, G} + m F * (X_{a_{2}, G} - X_{a_{3}, G})

(14)

DE/pbest/1

V_{i, G} = X_{p b e s t, G} + m F * (X_{a_{1}, G} - X_{a_{2}, G})

(15)

DE/neighbor/1

V_{i, G} = α * X_{n e i g h b o r, G} + m F * (X_{a_{1}, G} - X_{a_{2}, G})

(16)

where

m F

is a mutation factor. It is a positive value between 0 and 2 that dynamically adapts during the optimization process. The upper and lower bounds of the mutation factor are denoted as

{m F}_{\max}

and

{m F}_{\min}

, respectively. The mutation factor is adaptively adjusted based on the maximum iterations

G_{\max}

and the current iteration

G

. For the mutation operator, we employ multiple mutation strategies to explore different regions of the search space simultaneously. Each individual in the population undergoes mutation using one of the mutation strategies. The selection of the strategy is randomly determined, and the vectors involved in the mutation process are chosen accordingly. Here,

a_{1}, a_{2}

and

a_{3}

are indices of different vectors in the population, and

a_{1} \neq a_{2} \neq a_{3} \neq i

X_{a_{1}}, X_{a_{2}}

and

X_{a_{3}}

denotes randomly chosen base vectors.

X_{b e s t}

uses best vector identify so far as the base vector.

X_{p b e s t}

is randomly chosen from the top 100p% of the present population with

p \in (0, 1)

. Additionally,

X_{n e i g h b o r}

utilizes a randomly calculated neighbor vector from the population. The parameter

α

in the “DE/neighbor/1” strategy represents the neighbor factor, which falls within the range

0 < α < 1

After the mutation step, the crossover operation is applied to combine the mutant vector with the current target vector to create a trial vector. The trial vector, $H_{i, G}$ is created using the following formula (17)

H_{i, G}^{j} = {\begin{cases} V_{i, G}^{j} i f {r a n d}_{j} \leq C R o r j = j_{r a n d} \\ X_{i, G}^{j} o t h e r w i s e \end{cases}

(17)

where crossover rate (

C R

) is a positive value between 0 and 1 that determines the probability of the crossover occurring. For each element in the candidate solution vector, a uniform random number denoted as

{r a n d}_{j}

is generated between 0 and 1. A random index

j_{r a n d}

is selected from the range of dimensions of the vectors. If

{r a n d}_{j}

is less than or equal to

C R

the corresponding element from the mutant vector is chosen for the trial vector at index

j_{r a n d}

. Otherwise, the element from the target vector is selected.

After the crossover operation, the selection operator is applied to determine which vectors will be retained in the population for the next generation. The selection process aims to preserve individuals with better fitness values, promoting the propagation of favorable traits and driving the search towards improved solutions. In the selection operator, each trial vector is compared with its corresponding target vector. If the trial vector exhibits better fitness, it replaces the target vector in the population. This selection criterion ensures that individuals with superior performance are favored and have a higher chance of being included in the next generation. We employ a greedy selection strategy to complete our AmFMMDE algorithm. This strategy involves comparing the fitness values of the target and trial vectors, expressed as

X_{i, G + 1} = {\begin{cases} H_{i, G} i f f (H_{i, G}) \leq f (X_{i, G}) \\ X_{i, G} o t h e r w i s e \end{cases}

(18)

where

f (H_{i, G})

and

f (X_{i, G})

are the objectives to be minimized. This selection process ensures that the best individuals are preserved in each generation and facilitates convergence towards the global optimum.

Parameters identification

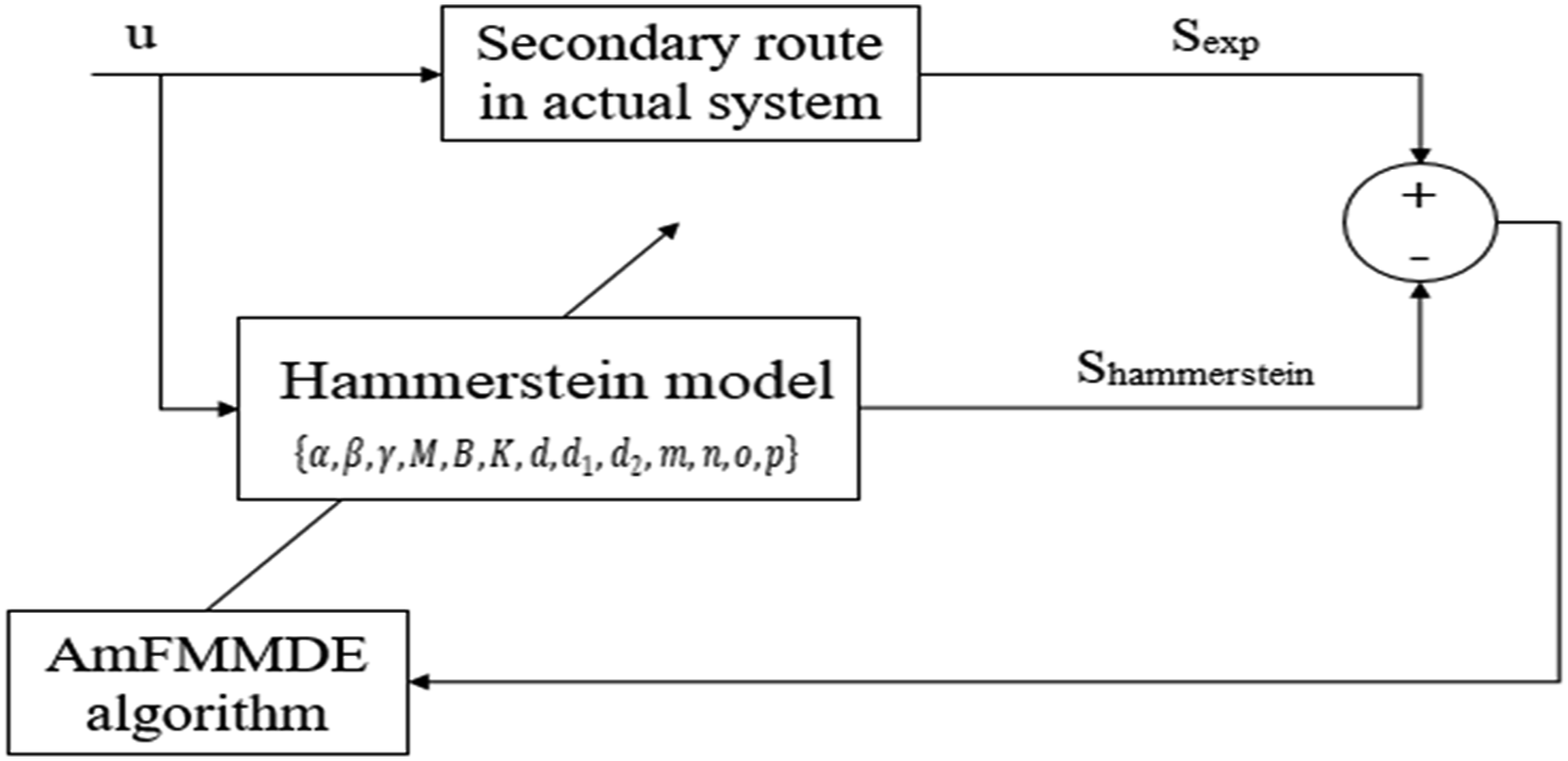

As illustrated in Figure 5, the AmFMMDE technique may be used to estimate the 13 parameters in the Hammerstein model. For this purpose, the fitness function for the Hammerstein model to identify the parameters is as follows

f = \sum_{N = 1}^{l} {(s_{\exp}^{N} - s_{h a m m e r s t e i n}^{N})}^{2}

(19)

where

f

is the fitness function,

s_{\exp}

is the actual experimental output,

s_{h a m m e r s t e i n}

is the predicted Hammerstein model output with the same input as the experiment and l is the duration of data collected. The smaller the fitness function value, the more similar the output of the recognized model is to that of the experiment. To find the best answer to the above model identification issue, the AmFMMDE method must minimize the fitness function.

Figure 5.

Identification of Hammerstein model parameters framework.

The proposed AmFMMDE algorithm accurately identify the parameters of the Hammerstein model which indicate the efficient hysteretic modeling. Figure 6 shows the flowchart of our proposed algorithm.

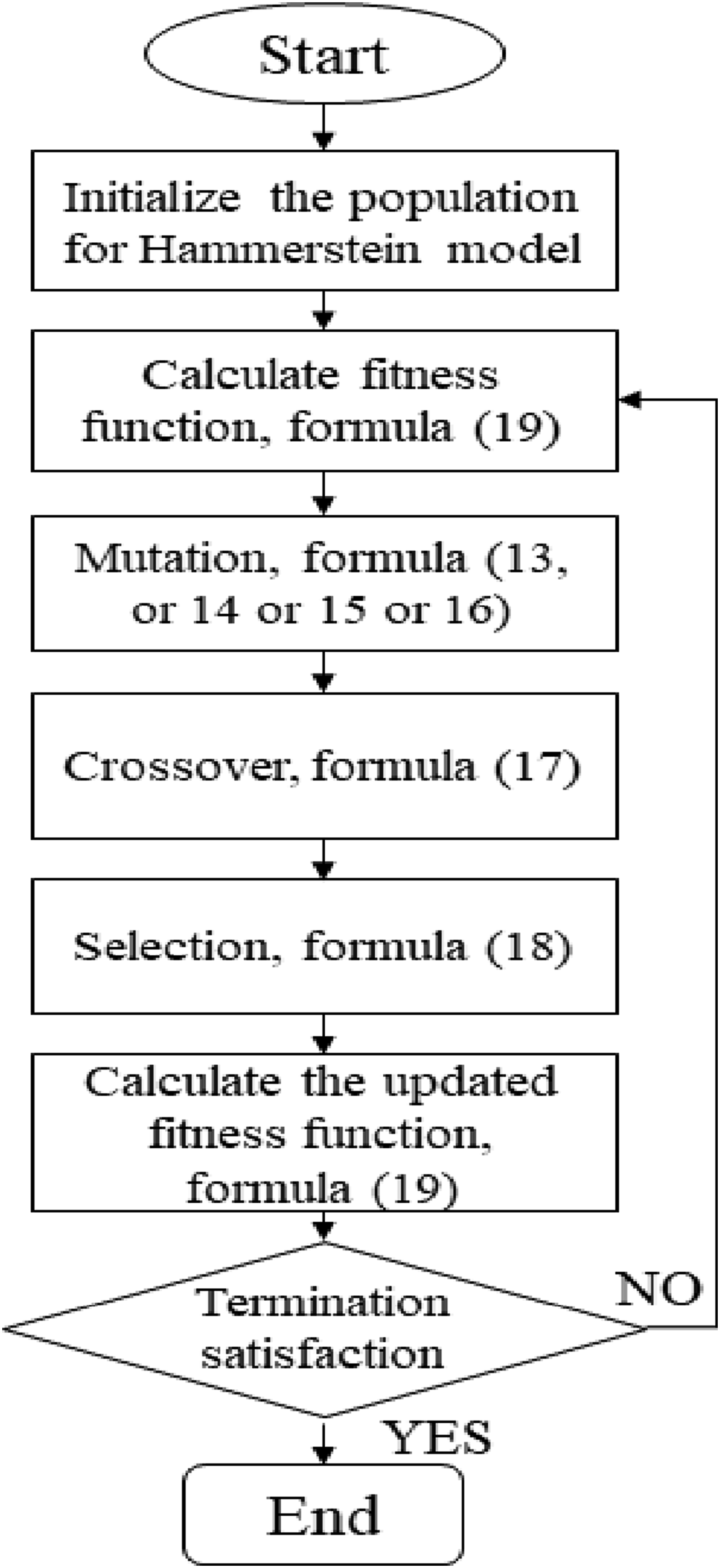

Figure 6.

Flowchart of AmFMMDE algorithm.

Vibration control experiment

FxLMS algorithm

The FxLMS algorithm is an effective and commonly used for vibration control mechanism. It operates based on a block diagram structure, as illustrated in Figure 7. The algorithm takes into account various components and signals to achieve effective control. In this diagram, $x (n)$ denotes the reference signal at time $n$ . The primary path is represented by $P (z)$ , while $S (z)$ denotes the secondary path. The secondary path is estimated by $S^{'} (z)$ . $y (n)$ denotes the controller’s control output and $y^{'} (n)$ represents the response of the actuator. The actual response of the primary path is represented by $d (n)$ . The core of the algorithm lies in the error signal $e (n)$ , which measures the discrepancy between the desired response and the actual response. The adaptive filter $W$ with a length denoted as $L$ plays a crucial role in updating and adjusting the control signal to minimize this error. Generally, the FxLMS algorithm aims to continuously adapt and optimize the control signal using the error feedback to effectively mitigate vibration in the system

w (n) = {[w_{1} (n), w_{2} (n), \dots, w_{L} (n)]}^{T}

(20)

x (n) = {[x (n), x (n - 1), \dots, x (n - L + 1)]}^{T}

(21)

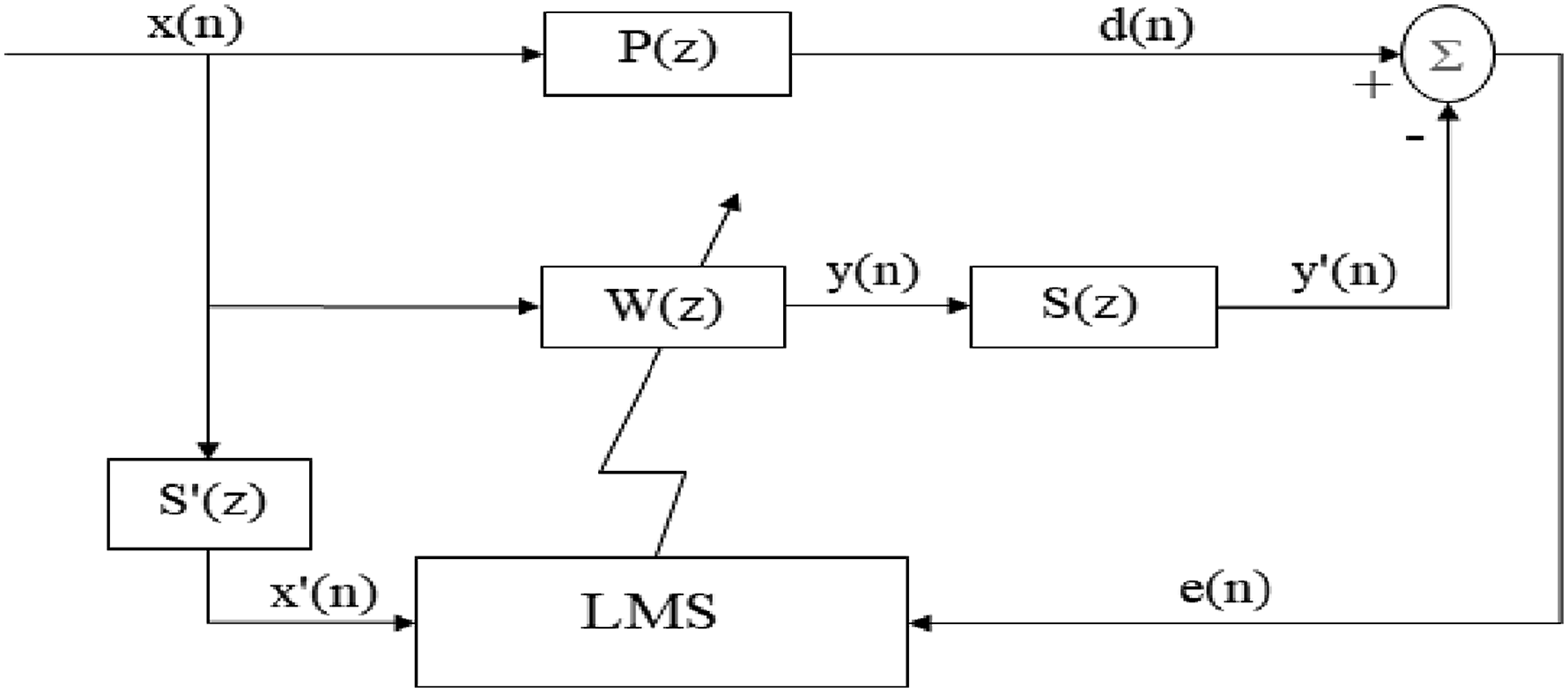

Figure 7.

FxLMS algorithm schematic.

The adaptive procedure of FxLMS algorithm describes as follows

Filtered reference signal $x^{'} (n)$ , reduce interference and noise in the reference signal, resulting in a filtered reference signal, mathematically expressed as

x^{'} (n) = x (n) * S^{'} (n)

(22)

The estimated output of the system expressed as

y (n) = w^{T} (n) * x (n)

(23)

This estimated output represents the system’s response based on the current weight configuration. In the next, processed output signal $y^{'} (n)$ , refines the estimated output signal. It is expressed as

y^{'} (n) = y (n) * S (n)

(24)

The error signal quantifies the discrepancy between the desired response and the estimated response of the system. Mathematically can be expressed as

e (n) = d (n) - y^{'} (n)

(25)

And in the last the weight update formula expressed as

w (n + 1) = w (n) + 2 μ e (n) x^{'} (n)

(26)

where

μ

is fixed step size. The weight update equation adjusts the weights to minimize the error and improve the performance of the adaptive filter over time.

The step size, a crucial parameter in the FxLMS algorithm, influences the rate of convergence and the magnitude of the steady-state error. A larger step size can lead to faster convergence but may result in overshooting and instability. On the other hand, a smaller step size can enhance stability but may lead to slow convergence and difficulty in tracking dynamic changes in the system.⁶¹ To address this issue, an enhanced approach called the Variable Step Size Filtered-x Least Mean Square (VSS-FxLMS) algorithm has been introduced.

VSS-FxLMS algorithm

The VSS-FxLMS algorithm is a mechanism for dynamically adjusting the step size throughout the algorithm’s convergence phase. This paper suggested a VSS-FxLMS algorithm with a step size adaptation mechanism that modifies the step size dynamically based on the normalized error change, as follows

e^{'} (n) = | e (n) - e (n - 1) |

(27)

μ^{'} (n) = \frac{U}{e^{'} + ε}

(28)

where

e^{'} (n)

denotes the error signal history which consists of the difference between the current and previous error signal. The normalized error change takes into account the relative change in the error signal compared to its previous value, which provides a better indication of the current system dynamics. The parameter

μ^{'} (n)

serves as the step size which is computed as the ratio of a user-defined constant

U (0 < U)

to the normalized error change

(e^{'} + ε)

. Here,

ε

is a small positive value introduced to prevent division by zero. This variable step size allows the algorithm to strike a better balance between convergence speed and steady-state error. Thus, the formula (26) updated as

w (n + 1) = w (n) + 2 μ^{'} e (n) x^{'} (n)

(29)

where

μ^{'}

denotes the variable step size which is based on formula (28).

The objective function of the active control system, mathematically present as

Q (n) = E [e^{2} (n)]

(30)

where

e

represents the error signal at time instant

n

. The objective of the active control system is to minimize the mean square value of the error signal, denoted by

Q

. This objective function quantifies the discrepancy between the desired response and the actual response of the system. By minimizing the mean square error, the active control system aims to achieve a more accurate and effective control of the vibration. The objective function serves as a measure of the performance of the control algorithm, indicating how well the system is able to reduce the vibration and achieve the desired response.

Experimental verification and results

Experimental setup

The experimental setup for the cantilever beam consisted of several components, namely the cantilever beam equipped with MFC actuators, charge amplifier, power amplifier, Host PC, and Target PC. This configuration is depicted in Figure 8.

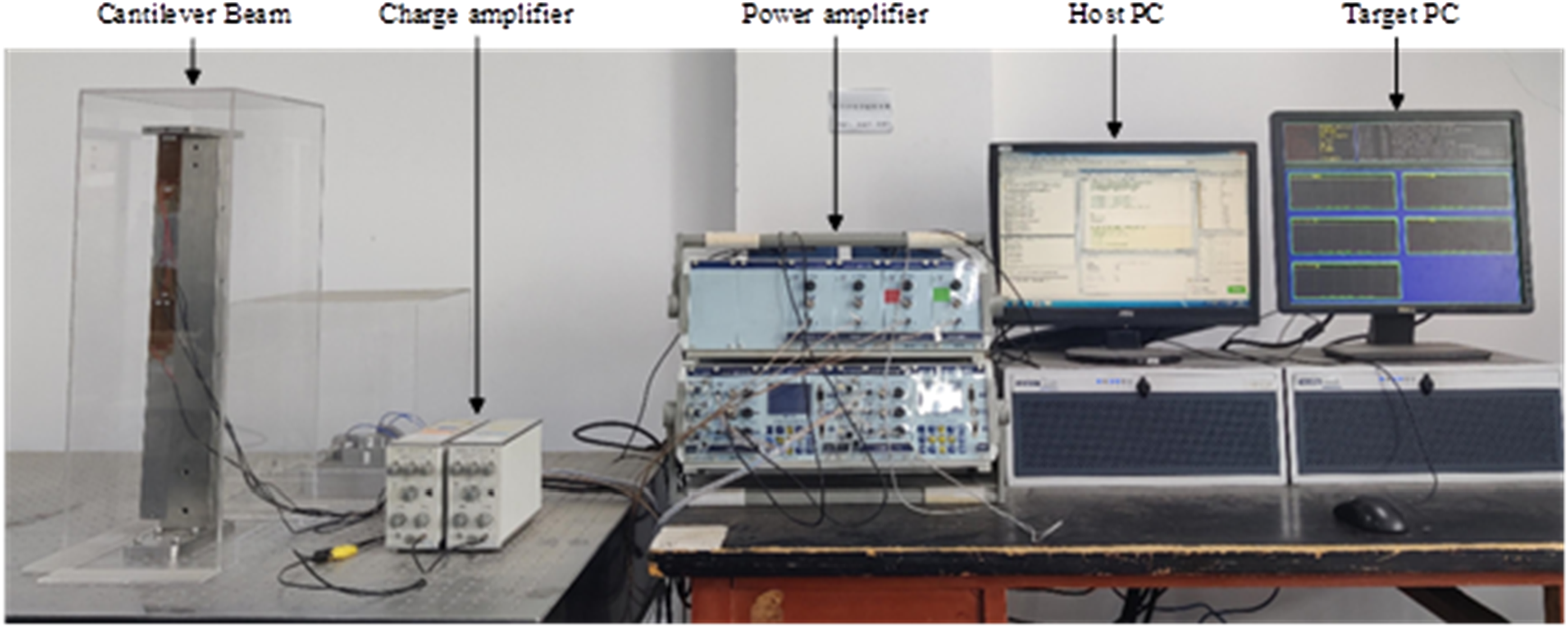

Figure 8.

Experimental platform of active vibration control.

Table 1 provides a comprehensive overview of the key parameters associated with the macro fiber composites (MFC’s).

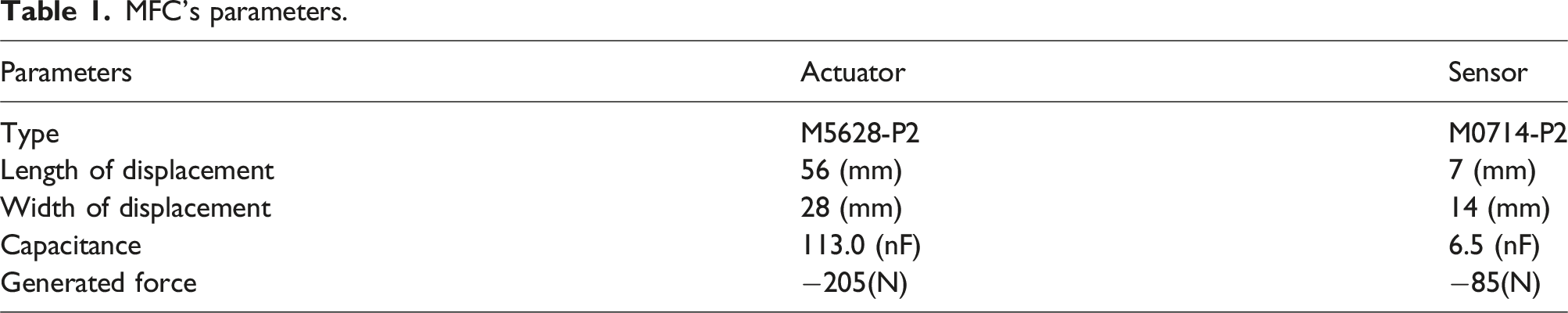

Table 1.

MFC’s parameters.

Parameters	Actuator	Sensor
Type	M5628-P2	M0714-P2
Length of displacement	56 (mm)	7 (mm)
Width of displacement	28 (mm)	14 (mm)
Capacitance	113.0 (nF)	6.5 (nF)
Generated force	−205(N)	−85(N)

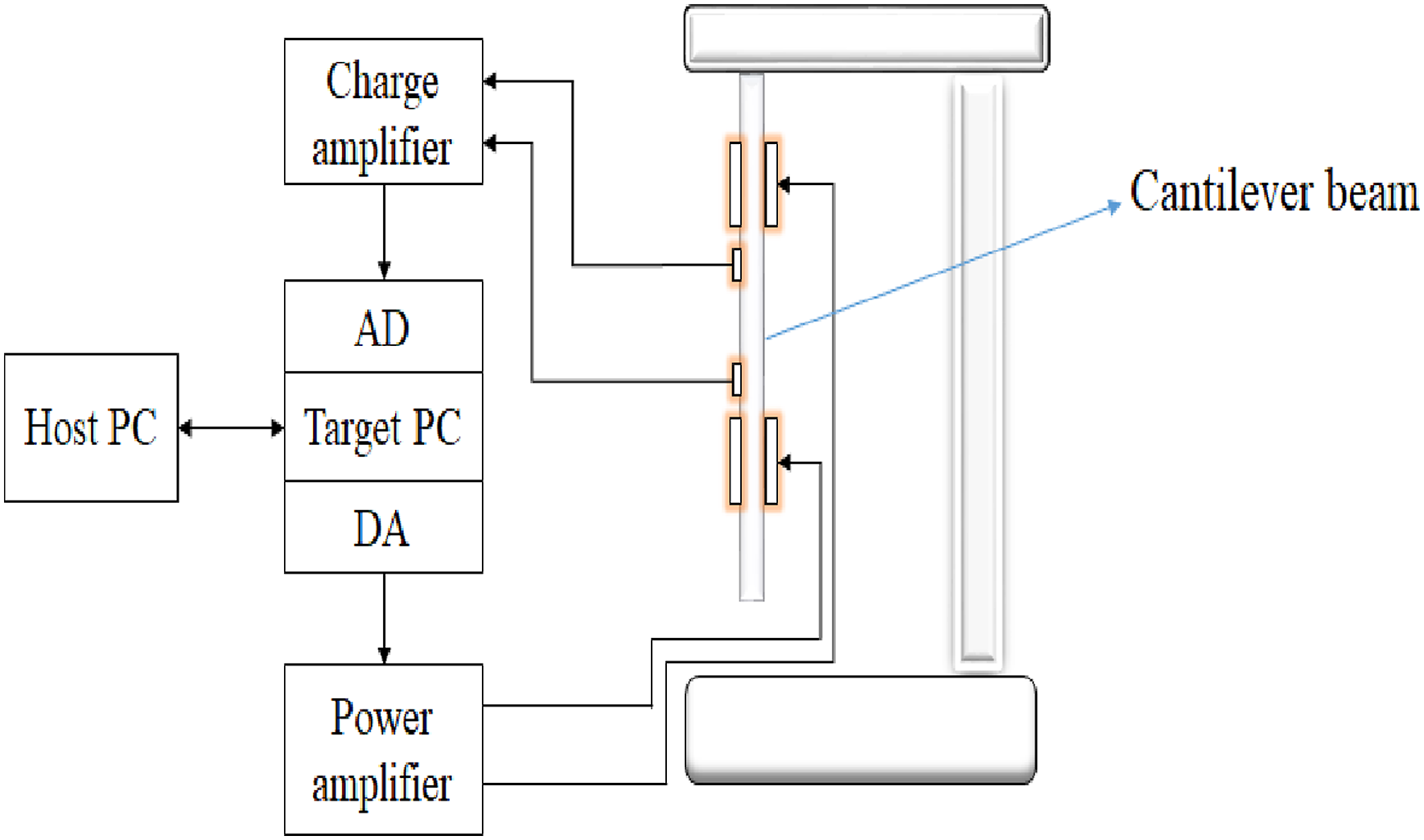

Furthermore, Figure 9 illustrates a comprehensive schematic diagram of the experimental setup, presenting the framework of the platform in detail. The diagram provides a visual representation of the components and their interconnections, allowing for a clear understanding of the experimental configuration. It showcases the arrangement of various elements and their respective connections. In addition, from the Figure 2, the primary path is the transfer function between the MFC disturbance actuator and the error sensor, and the secondary path is the transfer function between the MFC control actuator and the error sensor.

Figure 9.

Experimental platform schematic.

Results

Hammerstein model identification

Model identification is based on the collected input/output data from the secondary path of the experimental platform. To obtain this data, a sinusoidal signal $(u (t) = \sin 2 π f t)$ with an amplitude of 3V and a frequency of 20.61 Hz (the second-order natural frequency of the composite beam) is applied to the control actuator, and the resulting output signal is recorded by the error sensor. The sampling frequency is set at 1000 Hz.

The Hammerstein model is identified using DE and AmFMMDE algorithms. The parameters for these algorithms are detailed in Table 2.

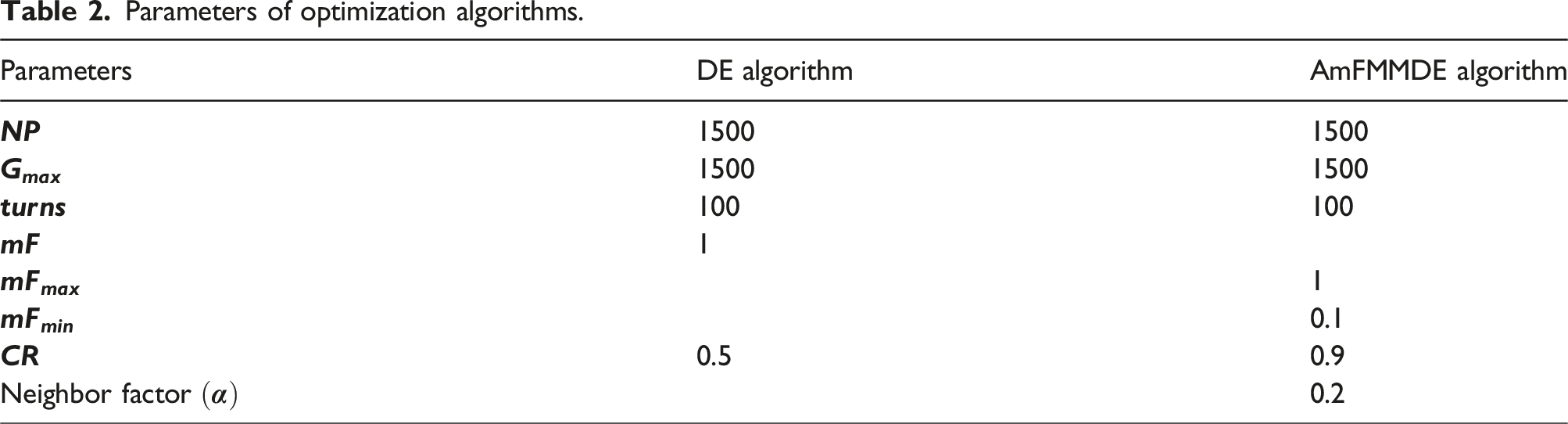

Table 2.

Parameters of optimization algorithms.

Parameters	DE algorithm	AmFMMDE algorithm
$N P$	1500	1500
$G_{\max}$	1500	1500
$t u r n s$	100	100
$m F$	1
${m F}_{\max}$		1
${m F}_{\min}$		0.1
$C R$	0.5	0.9
Neighbor factor $(α)$		0.2

To verify the effectiveness and performance of the proposed AmFMMDE algorithm, a comparative analysis of model identification results is presented in Table 3. The performance of the algorithms is evaluated based on the minimum fitness function values, which indicate the accuracy of the model in fitting the experimental data.

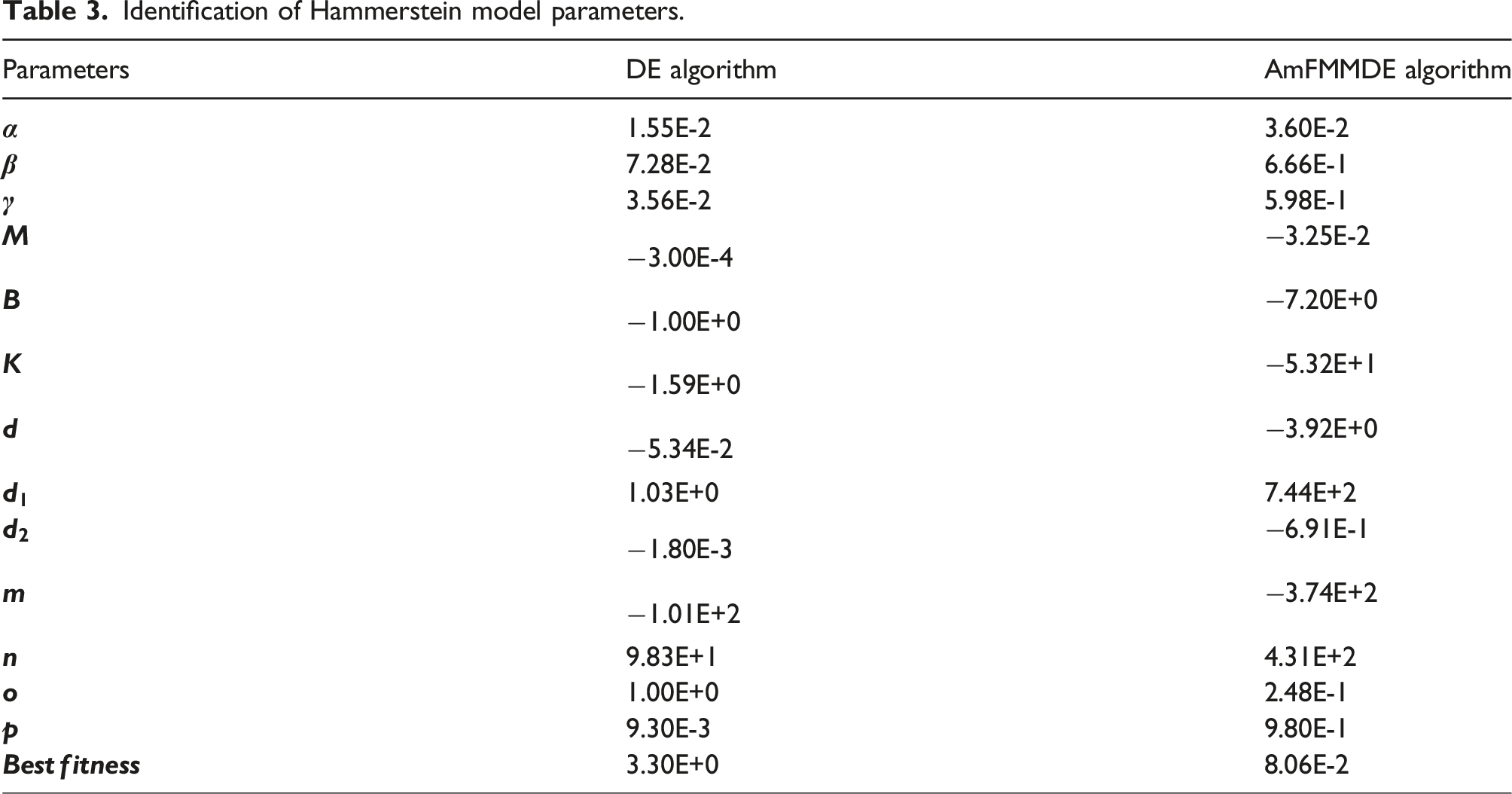

Table 3.

Identification of Hammerstein model parameters.

Parameters	DE algorithm	AmFMMDE algorithm
$α$	1.55E-2	3.60E-2
$β$	7.28E-2	6.66E-1
$γ$	3.56E-2	5.98E-1
$M$	−3.00E-4	−3.25E-2
$B$	−1.00E+0	−7.20E+0
$K$	−1.59E+0	−5.32E+1
$d$	−5.34E-2	−3.92E+0
$d_{1}$	1.03E+0	7.44E+2
$d_{2}$	−1.80E-3	−6.91E-1
$m$	−1.01E+2	−3.74E+2
$n$	9.83E+1	4.31E+2
$o$	1.00E+0	2.48E-1
$p$	9.30E-3	9.80E-1
$B e s t f i t n e s s$	3.30E+0	8.06E-2

Additionally, a comprehensive analysis of the convergence rates of the fitness function for the DE and AmFMMDE algorithms is presented in Figure 10. This analysis offers valuable insights into the performance of these algorithms in terms of their ability to achieve significantly lower fitness function values with varying convergence speed.

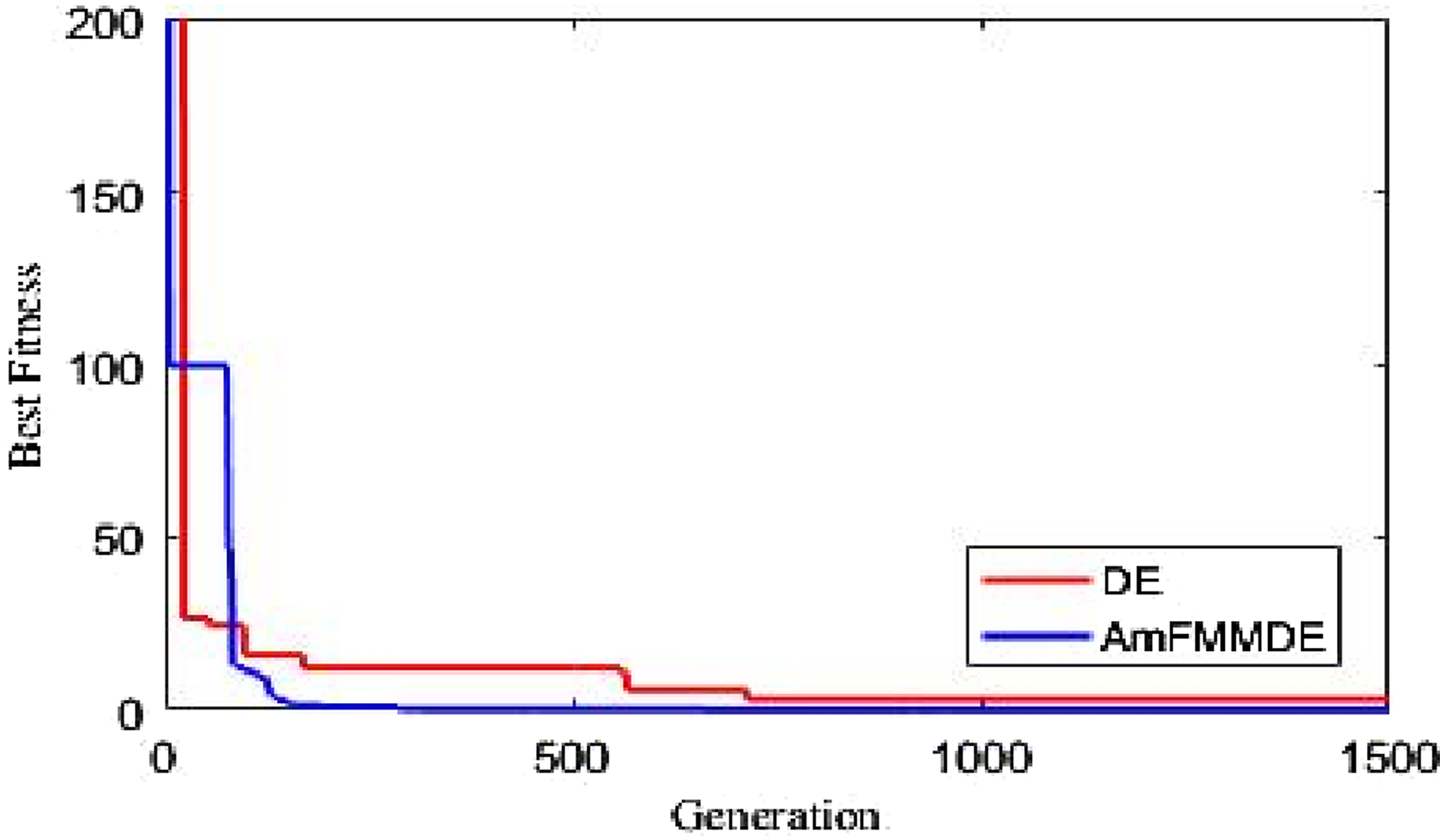

Figure 10.

Comparison of fitness value.

The results clearly demonstrate the iterative progression of the fitness function values, highlighting the efficiency and effectiveness of each algorithm in reaching optimal solutions. The AmFMMDE algorithm, in particular, demonstrates a more rapid convergence to lower fitness function values compared to the DE algorithm and hybrid jaya algorithm,⁶² indicating its superior capability in model identification task.

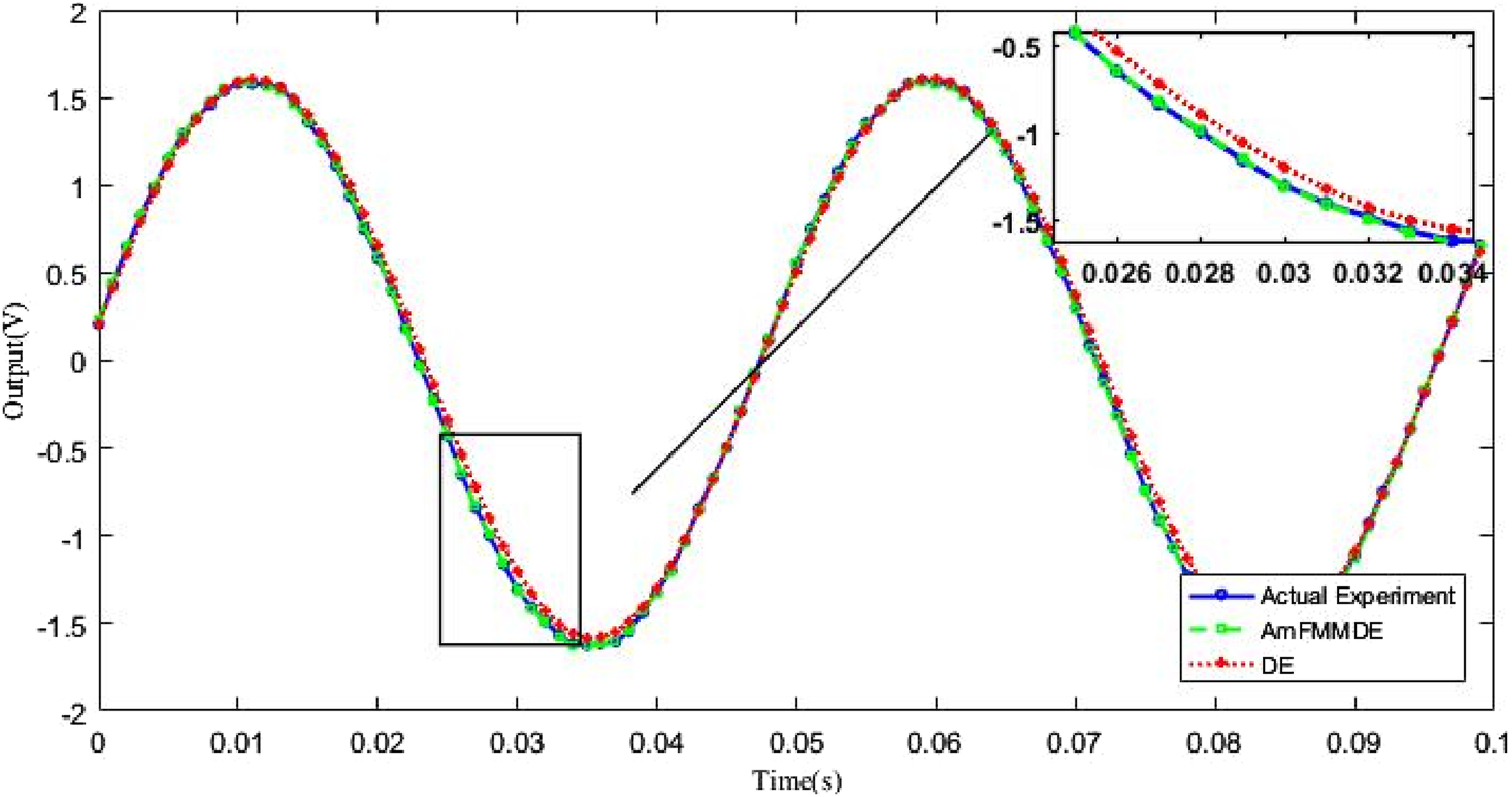

Figure 11 presents a visual comparison between the actual experimental data and the predicted output data for the Hammerstein model, utilizing both the proposed AmFMMDE algorithm and the traditional DE algorithm. The accuracy of the model is assessed by how closely the predicted data matches the actual experimental data. The comparison shows that the output predicted by the AmFMMDE algorithm closely matches the experimental results, demonstrating a high degree of accuracy in parameter identification for the secondary path.

Figure 11.

Comparison of output displacement curve.

Vibration control experimentation

For the control experimentation, this study employs the FxLMS algorithm alongside the proposed VSS-FxLMS algorithm. These algorithms are tested on an experimental platform designed for active vibration control of a smart cantilever beam. The control system is configured with a sampling frequency of 1000 Hz, and each experiment is conducted over a 60-s period.

The comparison of these algorithms focuses on their effectiveness in mitigating vibration. The disturbance signal applied is a sinusoidal waveform with an amplitude of 3V and a frequency of 20.61 Hz, which corresponds to the second-order natural frequency of the cantilever beam. The step size $μ$ of FxLMS algorithm is set at 1E-6, a randomly chosen value to initialize the algorithm’s performance. In case of VSS-FxLMS algorithm, the constant $U$ and epsilon $ε$ are set at 1E-5 and 1E-6, respectively.

To assess the performance of the FxLMS and VSS-FxLMS algorithms, we used two key error metrics: Root Mean Squared Error (RMSE) and Mean Absolute Error (MAE). These metrics are crucial for evaluating the tracking accuracy of control algorithms in vibration control applications.

RMSE is defined as the square root of the average of the squared differences between the reference signal and the controlled output. And MAE represents the average magnitude of the errors.⁶³ Both metrics are calculated using MATLAB for the controlled output obtained from the FxLMS and VSS-FxLMS algorithms. The evaluation involved computing these metrics for each algorithm and comparing them to determine which algorithm exhibited better tracking performance. The results, summarized in Table 4, indicate that the VSS-FxLMS algorithm achieves significantly lower RMSE and MAE values compared to the FxLMS algorithm. This demonstrates the superior capability of the VSS-FxLMS algorithm in minimizing tracking errors and enhancing the accuracy of vibration control.

Table 4.

Comparison of error metrics of control algorithms.

Algorithm	RMSE	MAE
FxLMS	1.1860	0.9945
VSS-FxLMS	0.5760	0.2387

In addition, the performance of the VSS-FxLMS algorithm is evaluated by examining the effect of different constant $U$ values. The RMSE and MAE are calculated for various $U$ values to evaluate the algorithm’s tracking accuracy. Figure 12 presents the impact of different $U$ values on the performance of the algorithm. As $U$ changes, both RMSE and MAE demonstrate significant variations, reflecting the algorithm’s sensitivity to this parameter. The results show that when the $U$ value is optimized, the algorithm’s tracking accuracy is considerably improved. In particular, for the optimal configuration, with $μ$ remains fixed at 1E−6 and $U$ set at 1E−5, the VSS-FxLMS algorithm achieves the lowest error metrics, as shown in Table 4.

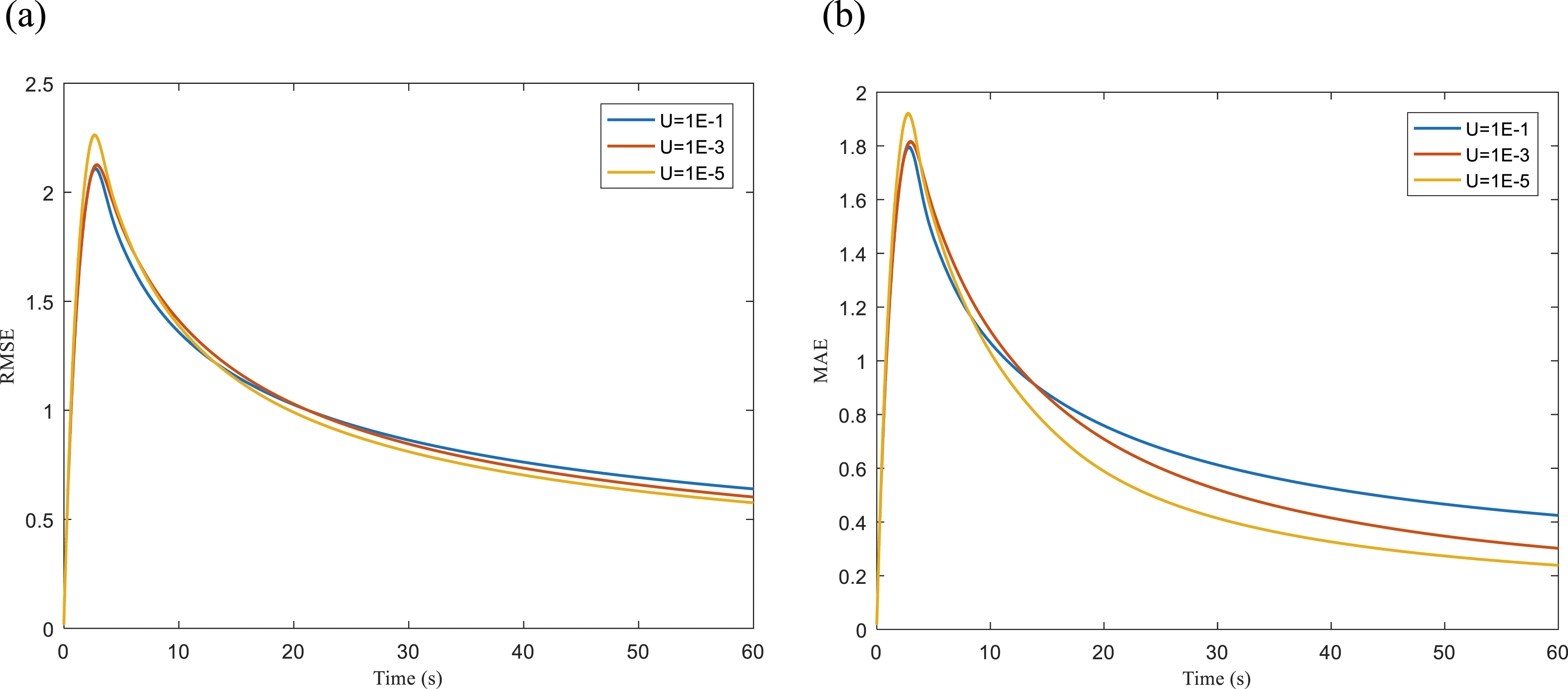

Figure 12.

Comparison of error metrics for different $U$ values. (a) RMSE evaluation; (b) MAE evaluation.

To assess the vibration suppression performance in a more scientific and effective manner, a quantitative evaluation index is introduced by the following formula (31)

S_{A} = 10 \log_{10} \frac{\sum_{i = 1}^{N} | e (n) |^{2}}{\sum_{i = 1}^{N} | d (n) |^{2}}

(31)

where

S_{A}

is calculated as the logarithm of the ratio between the sum of squared errors after active vibration control

e (n)

and the sum of squared errors before active vibration control

d (n)

. It represents the attenuation of the signal in decibels (dB). A smaller

S_{A}

value indicates a more effective vibration suppression, indicating a better performance.

According to the results presented in Table 5, it can be observed that the proposed VSS-FxLMS algorithm exhibits the lowest value for

S_{A}

. This indicates that the algorithm achieves a higher level of vibration suppression efficiency compared to the other algorithm. Therefore, it can be concluded that the VSS-FxLMS algorithm effectively reduces vibrations and demonstrates superior performance in terms of vibration suppression.

Table 5.

Vibration suppression efficiency comparison.

Vibration suppression (dB)	FxLMS	VSS-FxLMS
$S_{A}$	−5.7929	−12.0657

By incorporating the variable step size mechanism, the VSS-FxLMS algorithm offers improved adaptability and robustness compared to traditional fixed step size, FxLMS algorithm. It enables the algorithm to dynamically adapt to changing conditions, leading to enhanced convergence performance and better overall system control. Figure 13 shows the step size variation over time of our proposed VSS-FxLMS algorithm. Figure 14 presents a comparative analysis of the residual errors obtained from the proposed VSS-FxLMS algorithm and the FxLMS algorithm.

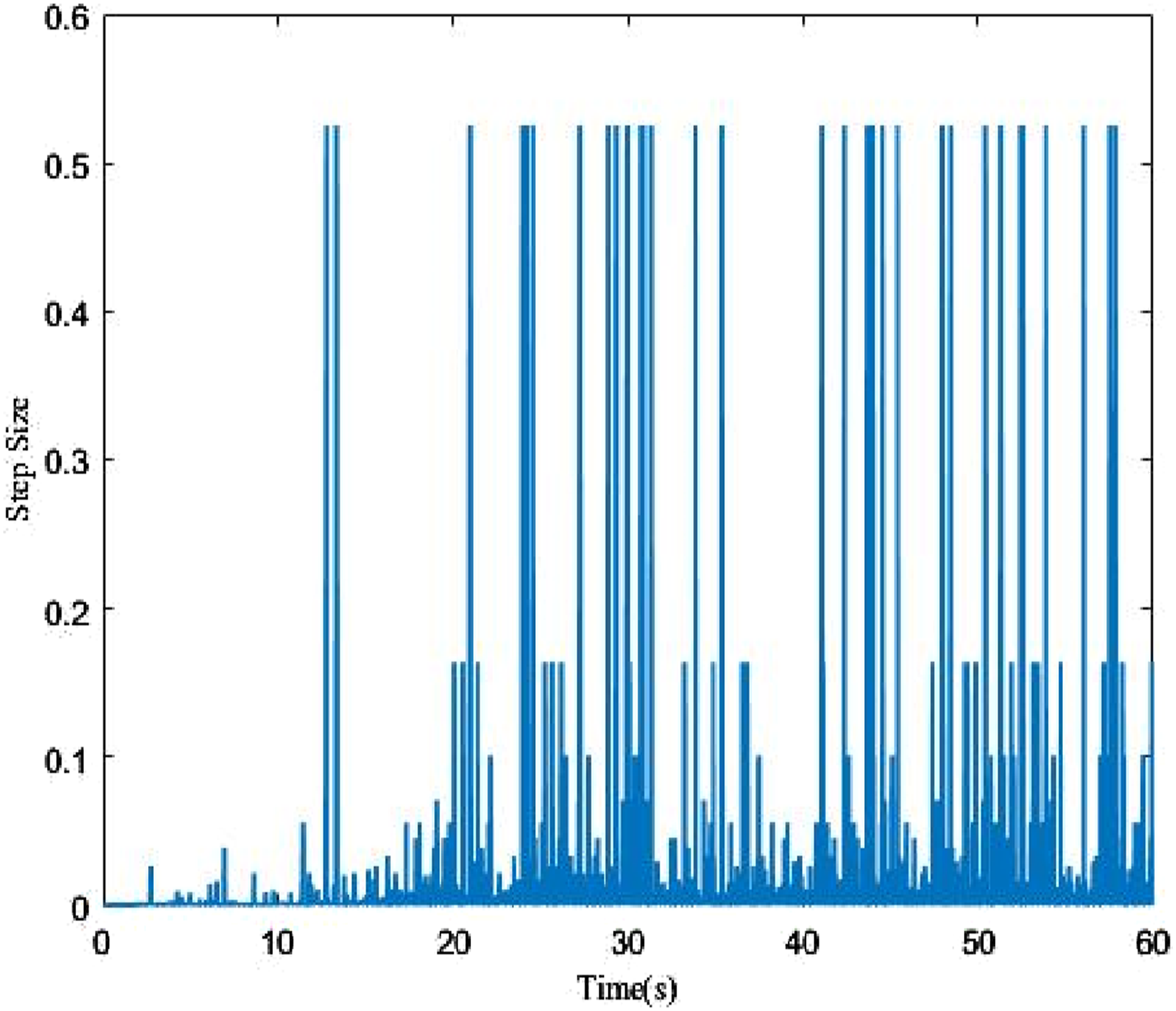

Figure 13.

Variable step size variation.

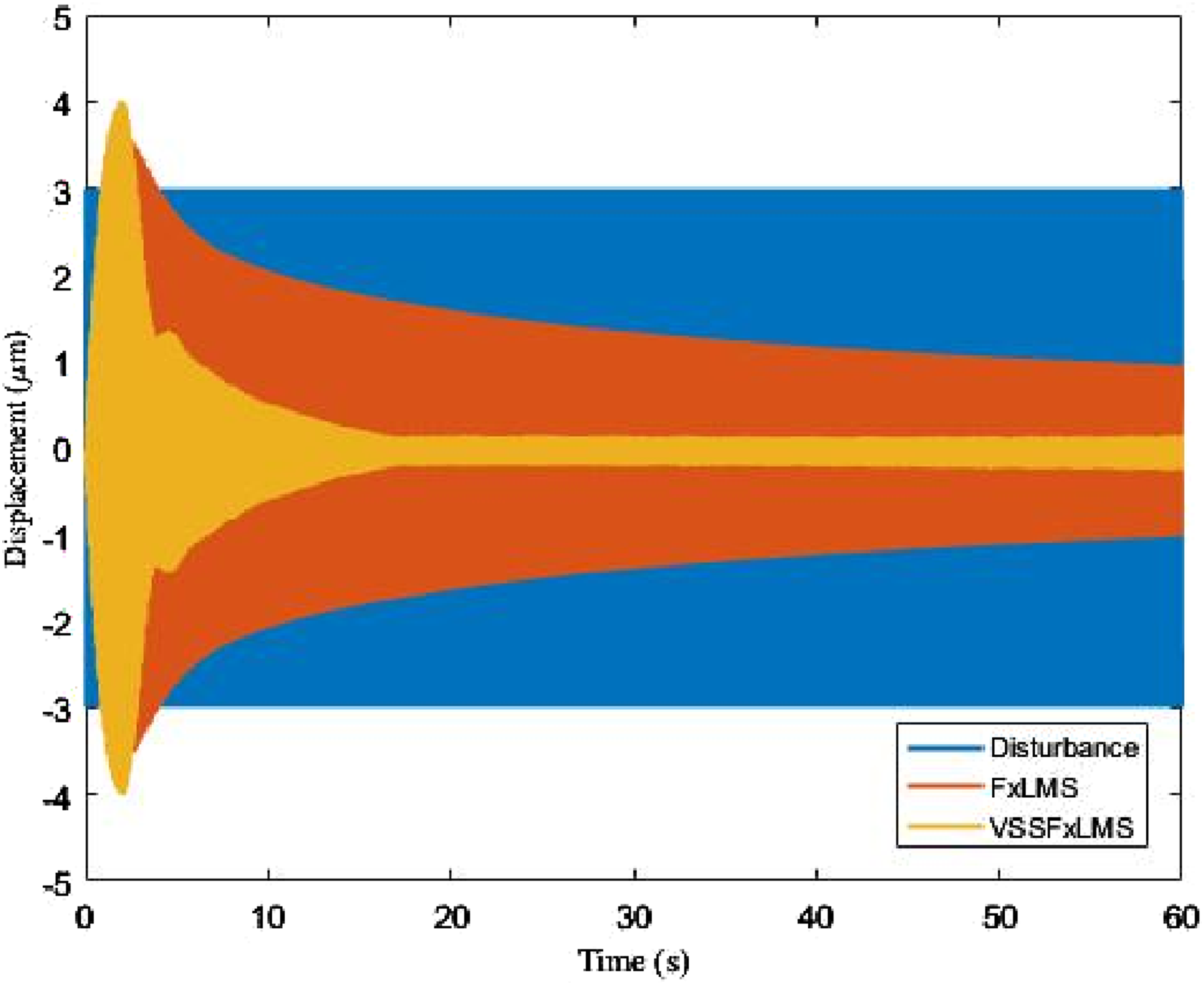

Figure 14.

Convergence curves of control algorithms.

Figurer 14 clearly shows the performance of the control algorithms. It can be seen that the VSS-FxLMS algorithm exhibits significantly faster convergence, quickly reaching a state of equilibrium with minimal residual error. On the other hand, the FxLMS algorithm demonstrates a comparatively slower convergence rate and a relatively higher steady-state error. This visual representation highlights the superior performance of the VSS-FxLMS algorithm in terms of both convergence speed and steady-state error reduction.

Conclusion

This study makes a significant contribution to the field of active vibration control of cantilever beam using MFC actuators. A Hammerstein model, incorporating a non-symmetric Bouc–Wen model, is employed to accurately capture the hysteresis nonlinearity and rate-dependent behavior of these actuators. To ensure precise and reliable system modeling, an enhanced differential evolution algorithm (AmFMMDE) with an adaptive mutation factor and multiple mutation strategies is proposed for the efficient identification of the Hammerstein model parameters. Additionally, the VSS-FxLMS algorithm is implemented to effectively suppress vibrations. By dynamically adjusting the step size based on normalized error changes, this algorithm achieves improved convergence speed and control performance. This adaptive approach ensures optimal control adjustments, maintaining system stability and minimizing steady-state error.

Future directions

Future research will focus on optimizing the parameter identification process and exploring advanced control algorithms to enhance the robustness of the vibration control system. Additionally, experimental validation with various signal types, including broadband signals, will be conducted. Furthermore, the structural dynamic properties of the cantilever beam under different excitation signals will be studied. By continuously advancing active vibration control techniques, we can unlock new possibilities for achieving superior system performance, ensuring safer and more reliable operations in various domains.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by National Natural Science Foundation of China (Grant Nos. 52175101, 61503232).

ORCID iDs

Ruichen Yu

Zhiyuan Gao

References

Shan

Song

Liu

, et al. Novel energy harvesting: a macro fiber composite piezoelectric energy harvester in the water vortex. Ceram Int 2015; 41: S763–S767. DOI: 10.1016/j.ceramint.2015.03.219.

Zhang

Huang

. Low-frequency broadband absorption of underwater composite anechoic coating with periodic subwavelength arrays of shunted piezoelectric patches. Compos Struct 2019; 216: 449–463. DOI: 10.1016/j.compstruct.2019.02.038.

Zhou

Yang

. Aeroelastic stability analysis of curved composite panels with embedded Macro Fiber Composite actuators. Compos Struct 2019; 208: 725–734. DOI: 10.1016/j.compstruct.2018.10.035.

Lin

Chen

, et al. Investigation of temperature sensitivity of actuation performance for piezoelectric fiber composites. Ceram Int 2017; 43: 10590–10594. DOI: 10.1016/j.ceramint.2017.04.172.

Shi

Hallett

Zhu

. Energy harvesting behaviour for aircraft composites structures using macro-fibre composite: Part I - integration and experiment. Compos Struct 2017; 160: 1279–1286. DOI: 10.1016/j.compstruct.2016.11.037.

Zhou

Yang

. Nonlinear flutter response of heated curved composite panels with embedded macrofiber composite actuators. Adv Mater Sci Eng 2018; 2018: 1–12. DOI: 10.1155/2018/3103250.

Ferrari

Amabili

. Active vibration control of a sandwich plate by non-collocated positive position feedback. J Sound Vib 2015; 342: 44–56. DOI: 10.1016/j.jsv.2014.12.019.

Lin

Huang

Zhou

, et al. The influence of structural parameters on the actuation performance of piezoelectric fiber composites. Mater Des 2016; 107: 123–129. DOI: 10.1016/j.matdes.2016.06.043.

Gao

, et al. The low frequency vibration control of the hoop truss structure with extended arm. J Low Freq Noise V A 2017; 36: 294–305. DOI: 10.1177/0263092317712378.

10.

Mierzejewski

Leniowska

. Active vibration control of trapezoidal plate using MFC collocated sensor/actuator. 2018 joint conference - acoustics. Piscataway: IEEE, 2018, pp. 188–191. DOI: 10.1109/ACOUSTICS.2018.8502381.

11.

Padoin

Santos

Perondi

, et al. Topology optimization of piezoelectric macro-fiber composite patches on laminated plates for vibration suppression. Struct Multidiscip O 2019; 59: 941–957. DOI: 10.1007/s00158-018-2111-3.

12.

Zhang

, et al. Research on actuation performance of macro fiber composites based on third order shear deformation theory. Smart Mater Struct 2020; 29: 015038. DOI: 10.1088/1361-665X/ab47d5.

13.

Gao

Zhu

Fang

, et al. Active monitoring and vibration control of smart structure aircraft based on FBG sensors and PZT actuators. Aero Sci Technol 2017; 63: 101–109. DOI: 10.1016/j.ast.2016.12.027.

14.

Tian

Guo

Shi

. Laminated piezoelectric beam element for dynamic analysis of piezolaminated smart beams and GA-based LQR active vibration control. Compos Struct 2020; 252: 112480. DOI: 10.1016/j.compstruct.2020.112480.

15.

Xie

Liu

. Modeling and active vibration control of lattice grid beam with piezoelectric fiber composite using fractional order PD^μ algorithm. Compos Struct 2018; 198: 126–134. DOI: 10.1016/j.compstruct.2018.05.060.

16.

Zhou

Jing

. An electromagnetic torsion active vibration absorber based on the FxLMS algorithm. J Sound Vib 2022; 524: 116734. DOI: 10.1016/j.jsv.2021.116734.

17.

Landau

Airimitoaie

T-B

Castellanos-Silva

, et al. Introduction to adaptive and robust active vibration control. Adaptive and Robust Active Vibration Control: Methodology and Tests. Cham: Springer International Publishing, 2017, pp. 3–17. DOI: 10.1007/978-3-319-41450-8_1.

18.

Mayer

Herold

. Passive, adaptive, active vibration control, and integrated approaches. In: Vibration analysis and control in mechanical structures and wind energy conversion systems. Concord: BoD – Books on Demand, 2018, pp. 1–21. DOI: 10.5772/intechopen.68733.

19.

Gao

Fei

, et al. Active vibration control based on piezoelectric smart composite. Smart Mater Struct 2013; 22: 125032. DOI: 10.1088/0964-1726/22/12/125032.

20.

, et al. Active vibration control of an axially moving cantilever structure using MFC. Int J Appl Electrom 2016; 52: 967–974. DOI: 10.3233/Jae-162113.

21.

Pandey

Arockiarajan

. Actuation performance of macro-fiber composite (MFC): modeling and experimental studies. Sensor Actuat A-Phys 2016; 248: 114–129. DOI: 10.1016/j.sna.2016.07.022.

22.

Xue

Sun

. Active vibration control of cantilever beam with macro-fibre composite actuator using time-delayed genetic algorithm controller. Int J Acoust Vib 2017; 22: 307–319. DOI: 10.20855/ijav.2017.22.3476.

23.

Shen

Shao

, et al. Simulation and experiment of active vibration control based on flexible piezoelectric MFC composed of PZT and PI layer. Polymers 2023; 15: 1819. DOI: 10.3390/polym15081819.

24.

Prasath

Arockiarajan

. Analytical, numerical and experimental predictions of the effective electromechanical properties of macro-fiber composite (MFC). Sensor Actuat A-Phys 2014; 214: 31–44. DOI: 10.1016/j.sna.2014.04.008.

25.

Chandra

Daniels

Curti

, et al. Discovery of sparse hysteresis models for piezoelectric materials. Appl Phys Lett 2023; 122: 0146134. DOI: 10.1063/5.0146134.

26.

Bouc

. Forced vibrations of mechanical systems with hysteresis. Proc of the fourth conference on nonlinear oscillations. Prague: Flach, 1967.

27.

Wen

Y-K

. Method for random vibration of hysteretic systems. J Eng Mech Div 1976; 102: 249–263.

28.

Yang

Zhu

. Real-time inverse hysteresis compensation of piezoelectric actuators with a modified Prandtl-Ishlinskii model. Rev Sci Instrum 2012; 83: 065106. DOI: 10.1063/1.4728575.

29.

Zhu

. Motion control of piezoceramic actuators with creep, hysteresis and vibration compensation. Sensor Actuat A-Phys 2013; 197: 76–87. DOI: 10.1016/j.sna.2013.03.005.

30.

Yang

Zhu

. Parameter identification of the generalized Prandtl-Ishlinskii model for piezoelectric actuators using modified particle swarm optimization. Sensor Actuat A-Phys 2013; 189: 254–265. DOI: 10.1016/j.sna.2012.10.029.

31.

Banks

Kurdila

Webb

. Identification of hysteretic control influence operators representing smart actuators part I: formulation. Math Probl Eng 1997; 3: 287–328. DOI: 10.1155/S1024123x97000586.

32.

Naganathan

Dukkipati

. Preisach modeling of hysteresis for piezoceramic actuator system. Mech Mach Theor 2002; 37: 49–59. DOI: 10.1016/S0094-114x(01)00065-9.

33.

Raghunathan

Melikhov

Snyder

, et al. Modeling of two-phase magnetic materials based on Jiles-Atherton theory of hysteresis. J Magn Magn Mater 2012; 324: 20–22. DOI: 10.1016/j.jmmm.2011.07.017.

34.

Wilson

Ross

Brown

. Optimizing the Jiles-Atherton model of hysteresis by a genetic algorithm. IEEE Trans Magn 2001; 37: 989–993. DOI: 10.1109/20.917182.

35.

Xue

Chen

, et al. Study on electric-mechanical hysteretic model of Macro-Fiber Composite actuator. J Intell Mater Syst Struct 2014; 25: 1469–1483. DOI: 10.1177/1045389x13507347.

36.

Cai

Dong

Nagamune

. A survey of Bouc-Wen hysteretic models applied to piezo-actuated mechanical systems: modeling, identification, and control. J Intell Mater Syst Struct 2023; 34: 1843–1863. DOI: 10.1177/1045389x231157361.

37.

Ismail

Ikhouane

Rodellar

. The hysteresis bouc-wen model, a survey. Arch Comput Method E 2009; 16: 161–188. DOI: 10.1007/s11831-009-9031-8.

38.

Shen

Wang

, et al. Asymmetric Bouc-Wen hysteresis modeling for MFC actuator via hybrid APSO-TRR identification algorithm. Sensor Actuat A-Phys 2022; 346: 113830. DOI: 10.1016/j.sna.2022.113830.

39.

Gan

Zhang

. Nonlinear hysteresis modeling of piezoelectric actuators using a generalized bouc-wen model. Micromachines 2019; 10: 183. DOI: 10.3390/mi10030183.

40.

Qin

Chen

, et al. An asymmetric hysteresis model and parameter identification method for piezoelectric actuator. Math Probl Eng 2014; 2014: 1–14. DOI: 10.1155/2014/932974.

41.

Gao

Ren

Zhu

, et al. Identification and control for Hammerstein systems with hysteresis non-linearity. IET Control Theory & Appl 2015; 9: 1935–1947. DOI: 10.1049/iet-cta.2015.0116.

42.

Zong

. Parameter identification of Hammerstein-Wiener nonlinear systems with unknown time delay based on the linear variable weight particle swarm optimization. ISA Trans 2022; 120: 89–98. DOI: 10.1016/j.isatra.2021.03.021.

43.

, et al. Rate-dependent hysteresis modeling and displacement tracking control based on least-squares SVM for axially pre-compressed macro-fiber composite bimorph. Materials 2022; 15: 6480. DOI: 10.3390/ma15186480.

44.

Ousaid

Grossard

Boukallel

. Adaptive control based on an extended kalman filter for Hammerstein system-application to piezoelectric actuators. IFAC Proc Vol 2010; 43: 311–316. DOI: 10.3182/20100913-3-US-2015.00040.

45.

Zaman

Sikder

. Bouc-Wen hysteresis model identification using Modified Firefly Algorithm. J Magn Magn Mater 2015; 395: 229–233. DOI: 10.1016/j.jmmm.2015.07.080.

46.

Negash

You

Lee

, et al. Parameter identification of bouc-wen model for magnetorheological (MR) fluid damper by a novel genetic algorithm. Adv Mech Eng 2020; 12: 168781402095054. DOI: 10.1177/1687814020950546.

47.

Rosli

Mohamed

. Optimization of modified Bouc-Wen model for magnetorheological damper using modified cuckoo search algorithm. J Vib Control 2021; 27: 1956–1967. DOI: 10.1177/1077546320951383.

48.

Manikantan

Mondal

Prakash

, et al. Parameter identification of Bouc-Wen type hysteresis models using homotopy optimization. Mech Based Des Struc 2022; 50: 26–47. DOI: 10.1080/15397734.2020.1793776.

49.

Shao

Huang

Wei

, et al. An improved PSO algorithm for parameter identification of bouc-wen model for piezoelectric actuator. Chin Contr Conf 2020; 14: 1070–1074. DOI: 10.23919/CCC50068.2020.9189006.

50.

Gaur

Gupta

. A review on filtered-x LMS algorithm. Int J Signal Process Syst 2016; 4: 172–176.

51.

Cao

Liu

. Optimized decentralized filtered-x least mean square algorithm for over-determined systems with periodic disturbances. J Sound Vib 2021; 491: 115763. DOI: 10.1016/j.jsv.2020.115763.

52.

Tang

Lee

. Time-frequency-domain filtered-x LMS algorithm for active noise control. J Sound Vib 2012; 331: 5002–5011. DOI: 10.1016/j.jsv.2012.07.009.

53.

Long

Lim

. A new robust delayless subband adaptive filtering algorithm with variable step sizes for active control of broadband noise. Appl Acoust 2021; 176: 107858. DOI: 10.1016/j.apacoust.2020.107858.

54.

Jiang

Liu

Peng

, et al. Laboratory test of a vehicle active noise-control system based on an adaptive step size algorithm. Appl Sci 2023; 13: 225. DOI: 10.3390/app13010225.

55.

Yang

. Piezoelectric actuators application and hysteresis modelling: a brief survey. OAlib 2023; 10: 1–36. DOI: 10.4236/oalib.1110482.

56.

Jouaneh

Tian

. Accuracy enhancement of a piezoelectric actuator with hysteresis. IFAC Proceedings Volumes, 1992; 44: 631–637.

57.

Mohamed

Abdullahi

Ahmad

, et al. Dynamic hysteresis based modeling of piezoelectric actuators. Jurnal Teknologi 2014; 67: 9–13. DOI: 10.11113/jt.v67.2834.

58.

Bilal

Zaheer

Hernandez

, et al. Differential Evolution: a review of more than two decades of research. Eng Appl Artif Intell 2020; 90: 103479. DOI: 10.1016/j.engappai.2020.103479.

59.

Ahmad

Isa

NAM

Lim

, et al. Differential evolution: a recent review based on state-of-the-art works. Alex Eng J 2022; 61: 3831–3872. DOI: 10.1016/j.aej.2021.09.0131110-0168.

60.

Huang

Chen

. An improved differential evolution algorithm based on adaptive parameter. J Control Sci Eng 2013; 2013: 1–5. DOI: 10.1155/2013/462706.

61.

Gomathi

Saravanan

Santhiyakumari

. Variable step size for improving convergence of FxLMS algorithm. Proc Tech 2016; 25: 420–426. DOI: 10.1016/j.protcy.2016.08.127.

62.

Zhiyuan

Yiru

Muyao

, et al. Theoretical and experimental investigation study of discrete time rate-dependent hysteresis modeling and adaptive vibration control for smart flexible beam with MFC actuators. Sensor Actuator Phys 2022; 344: 113738. DOI: 10.1016/j.sna.2022.113738.

63.

Shcherbakov

Brebels

Shcherbakova

, et al. A survey of forecast error measures. World Appl Sci J 2013; 24: 171–176. DOI: 10.5829/idosi.wasj.2013.24.itmies.80032.

Improved active vibration control of a cantilever beam using MFC actuators with Hammerstein model-based hysteresis modeling and VSS-FxLMS control algorithm

Abstract

Keywords

Introduction

Hysteresis modeling of MFC actuators

Bouc–Wen model in discrete form

Parameter identification based on AmFMMDE algorithm

AmFMMDE algorithm

Parameters identification

Vibration control experiment

FxLMS algorithm

VSS-FxLMS algorithm

Experimental verification and results

Experimental setup

Results

Hammerstein model identification

Vibration control experimentation

Conclusion

Future directions

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
