Abstract

This paper presents the development of an intelligent controller for vibration suppression of a horizontal flexible plate structure using hybrid Fuzzy–proportional–integral–derivative controller tuned by Ziegler–Nichols tuning rules and intelligent proportional–integral–derivative controller tuned by artificial bee colony algorithm. Active vibration control technique was implemented during the development of the controllers. The vibration data obtained through experimental rig was used to model the system using system identification technique based on auto-regressive with exogenous input model. Next, the developed model was used in the development of an active vibration control for vibration suppression of the horizontal flexible plate system using proportional–integral–derivative controller. Two types of controllers were proposed in this paper which are the hybrid Fuzzy–proportional–integral–derivative controller and intelligent proportional–integral–derivative controller tuned by artificial bee colony algorithm. The performances of the developed controllers were assessed and validated. Proportional–integral–derivative–artificial bee colony controller achieved the highest attenuation for first mode of vibration with 47.54 dB attenuation as compared to Fuzzy–proportional–integral–derivative controller with 32.04 dB attenuation. The experimental work was then conducted for the best controller to confirm the result achieved in the simulation work.

Keywords

Active vibration control flexible plate Fuzzy–PID PID–ABC particle swarm optimization system identification

Introduction

In the past decades, rigid structure has been used in many engineering applications to avoid unwanted vibration. However, the heavy and strong metal characteristics possessed by rigid structures limit their operation speeds and further needed more energy and power to operate.¹ Flexible structure offers many advantages over rigid structure that include lighter weight, low energy consumption, faster system response, and safer operation due to reduce inertia.^2–4 Plates with different shapes and boundary are frequently found in several engineering applications, for example, in solar panel, naval structures, bridge decks, and electronic circuit board design.⁵ Therefore, the usage of flexible structure has received substantial attention recently.

Although the advantages are highly desirable, the system vibration arising from the structural flexibility needs major consideration. The flexible plate is easily affected by external force which will lead to the vibration on the system. A large number of discrete frequencies that exist in the system will generate high amplitude of vibrations leading to noise, fatigue, wear, failure, and decrease the performance of the flexible plate system. Thus, controlling the unwanted vibration on the plate structure is compulsory to maintain the effectiveness of the system.⁵ Many methods have been proposed to reduce the undesired vibration; however, controlling a flexible plate structure is more complicated due to the highly non-linear dynamic of the system.⁶

Previous researchers introduced passive vibration control techniques to remove the undesired vibration; however, due to its limitation such as increasing the weight of overall structure and lack of versatility, it therefore cannot withstand low frequency vibration of the flexible plate system. Hence, active vibration control (AVC) is anticipated in this research study to overcome the problem related to the low frequency vibration of the flexible plate system.⁷ Lueg⁸ was the pioneer who introduced the fundamental of AVC technique for noise cancellation in the early 1930s. His work was based on the superposition theory where sound signal might be cancelled out by introducing a secondary sound signal with 180° out of the phase.^9–13

Proportional–integral–derivative (PID) controller has been widely used in order to control a dynamic system in many applications. In fact, more than 90% of industrial controllers used PID controllers due to its simplicity and robustness.^14–16 However, finding an optimal gains for the PID controller is very crucial and challenging for achieving the best performance in control system. Thus, this paper serves to present an alternative way to cope with the vibration control problem of such complex system. The controllers proposed in this research are hybrid Fuzzy–PID and intelligent PID controllers optimized by artificial bee colony algorithm (PID–ABC).

Several works on the development of the proposed controllers have been done by other researchers in various engineering applications previously. Mesyam¹⁷ proposed an effective hybrid harmony search and cuckoo optimization algorithm-based fuzzy PID controller for load frequency control. Akash et al.¹⁸ designed a fuzzy PID controller under varying load condition for speed response of brushless DC motor. Rajesh et al.¹⁹ proposed a novel hybrid firefly and pattern search algorithms to tune the parameter and structure of fuzzy PID controller for automatic generation control of power systems. Savran and Kahraman²⁰ developed a fuzzy model-based adaptive PID controller in order to control nonlinear processes.

Recently, evolutionary algorithms become a trend to be used by researchers to tune the parameter gains of PID controller in various applications. Various attempts have been made to find the optimal gains for PID controller by using ABC algorithm. Naidu et al.²¹ investigated the performance of PID controller tuning using multi objective ABC algorithm for load frequency control. Elkhateed and Badr²² presented an improved ABC algorithm to tune the PID controller. Dongshan et al.²³ have developed a PID controller tuned by ABC algorithm for DC motor.

Inspired by the success of research conducted previously, hybrid Fuzzy–PID controller and intelligent PID controller optimized by ABC algorithm are proposed in this paper. The performance of both controllers is compared in terms of attenuation level of the first mode of vibration which is the dominant mode in the system. The input–output vibration data was collected experimentally. The development of the proposed controller and its performances for vibration suppression are explained in detail in the next section.

Active vibration control

In this section, the development of intelligent control schemes of the horizontal flexible plate structure is introduced. AVC technique was developed and applied with the objective of suppressing the vibration of the plate system. The concept of AVC is to reduce the amplitude of the vibration by using superposition of waves where a secondary signal of vibration is generated to destructively interfere with the unwanted vibration at the desired location.⁶ In this research, the AVC is implemented where sensors were utilized to detect the unwanted disturbances. This signal is used later to produce secondary vibration signal that will act as controller to suppress the disturbance. An actuator was utilized to supply this secondary signal to superimpose the disturbance and interference exhibited by the primary signal and thus led to vibration cancellation.²⁴

The dynamic model of the system was developed using system identification technique utilizing particle swarm optimization (PSO) algorithm based on input–output vibration data obtained experimentally. The model obtained using PSO algorithm in previous research is used in this work to develop the controller. Details regarding PSO algorithm and modeling results can be found in this paper.²⁵ The transfer function obtained using PSO is described in equation (1)

\frac{0.3483 z^{- 1} - 0.002182 z^{- 2}}{1 - 1.414 z^{- 1} + 0.9931 z^{- 2}}

(1)

Due to its robustness and reliability, PID controller is employed in this research paper. These types of controller are widely used in industries because they are cheap, easy to understand, maintain, and implement in controlling various engineering applications. However, it is hard to find the optimal gains to be applied for optimum performance. Many strategies have been proposed by researchers to obtain the best tuning method because improper tuning method may lead to poor robustness, cyclic, and slow recovery of the system.²⁶ Therefore, this paper presents the development of PID controller tuned by an intelligent algorithm via ABC for vibration suppression of the horizontal flexible plate system. The performance of proposed controller will be compared to the hybrid controller known as Fuzzy–PID controller.

The purpose of this study is to achieve the best tuning methods and better control strategy for further improvement of the control performance. Then, the proposed controller will be validated by employing the different disturbances in the system. A MATLAB/Simulink was utilized to assess and verify the proposed controller schemes in this paper. The corresponding controller parameters are fed to the closed-loop PID controller in MATLAB/Simulink. The error for each sample was calculated, and the mean squared error (MSE) was evaluated. MSE was set as the fitness value in this algorithm. This function is used to adjust the PID parameters in order to achieve the lower fitness value.

Fuzzy–PID-based controller

This section presents the detailed structure of Fuzzy–PID-based controller. This hybrid controller is used in order to achieve the best attenuation in the system. Conventionally, the parameters of PID controller are obtained by trial and error method. The process is time consuming and the PID parameters need to be retuned every time there are changes in the system’s parameters. Thus, in this paper, the PID parameters were optimized by incorporating fuzzy selection to the system. Based on the initial PID parameter values obtained through Ziegler–Nichols tuning rules, the fuzzy structure will further be tuned by the PID controller for the best value of K_p, K_i and K_d within a specified certain range. Two types of disturbance were introduced in the controller system known as multiple sinusoidal and multiple real disturbances to test the robustness of the developed controller. Figure 1 shows the block diagram of Fuzzy–PID-based controller. Fuzzy-based controller action basically depends on the error, e, and the derivative error, de/dt of the system. The error and derivative of error are fed to the fuzzy structure to optimize the PID controller to achieve the best attenuation in the system.

Figure 1.

The block diagram of Fuzzy–PID-based controller.

In this study, two input membership functions known as error, e, and derivative error, de/dt, and three output membership functions known as proportional, K_p integral, K_i and derivative, K_d are defined. Trapezoidal shapes were chosen for both input (e and de/dt) membership functions while Gaussian shapes were chosen to be employed in the three output membership functions (K_p, K_i and K_d). Trial and error method was used in this study to select the best shapes for both input and output membership functions. Five regions for input and output variables used in this study are defined as Negative Large (NL), Negative Small (NS), Zero (ZE), Positive Small (PS), and Positive Large (PL) are used as linguistic variables.

The input interval for error and derivative error is [–2 2] and [–1 1], respectively. Meanwhile, the output interval for K_p, K_i and K_d are [3.5 4], [0.01 0.03], and [0.005 0.006], respectively_. The input interval was determined based on trial and error method while the interval for PID parameter in fuzzy scheme was determined based on Ziegler–Nichols tuning rules. The input membership functions for error and derivative error as shown in Figure 2. The output membership functions for proportional, K_p integral, K_i and derivative, K_d as shown in Figure 3. The rule base of Fuzzy–PID-based controller was used in this study as shown in Table 1.

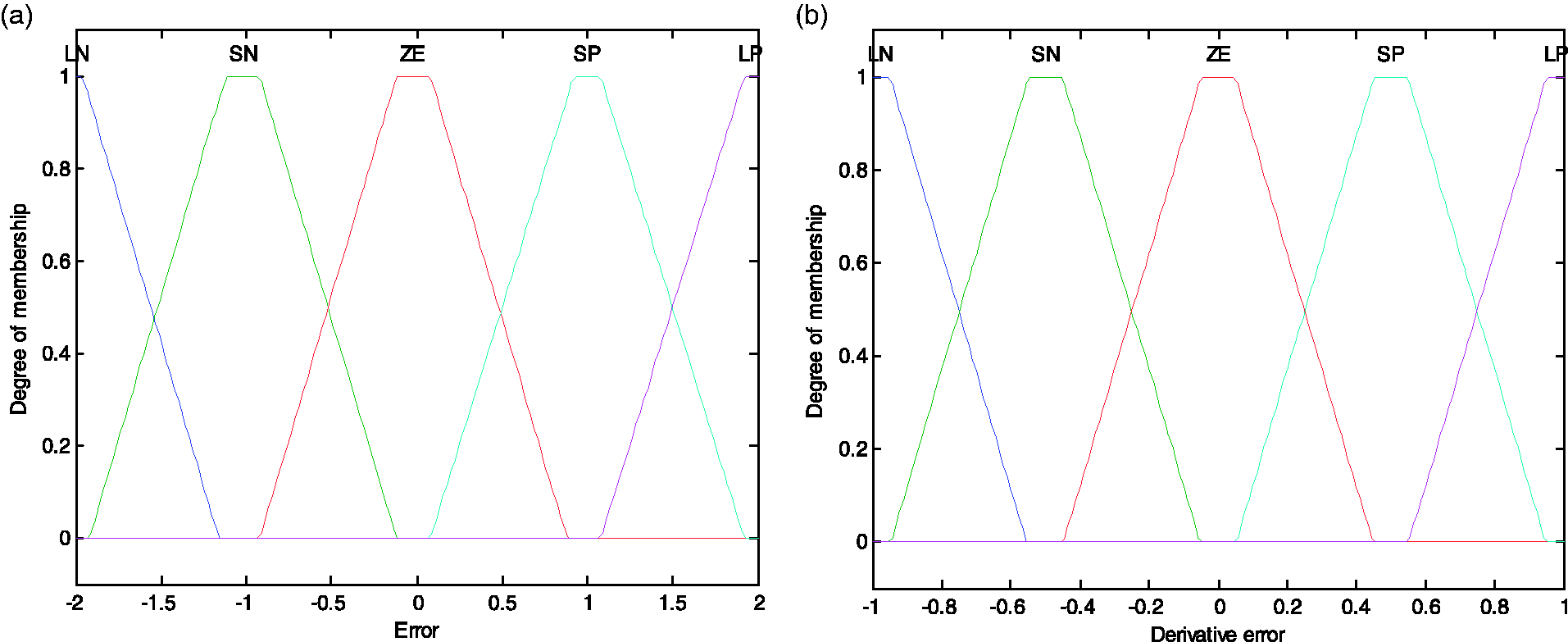

Figure 2.

Input membership function: (a) error and (b) derivative error.

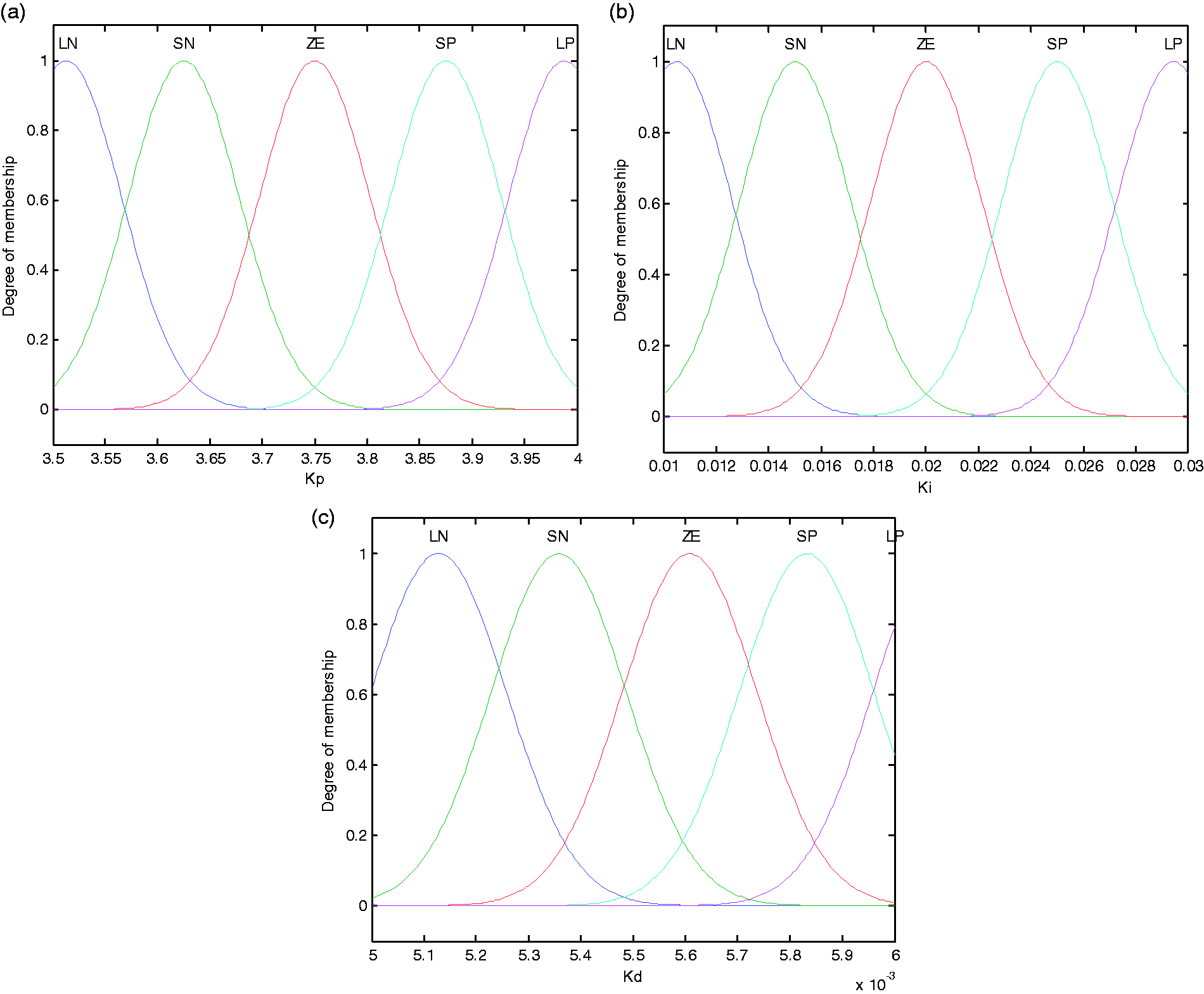

Figure 3.

Output membership function: (a) K _p , (b) K _i and (c) K.

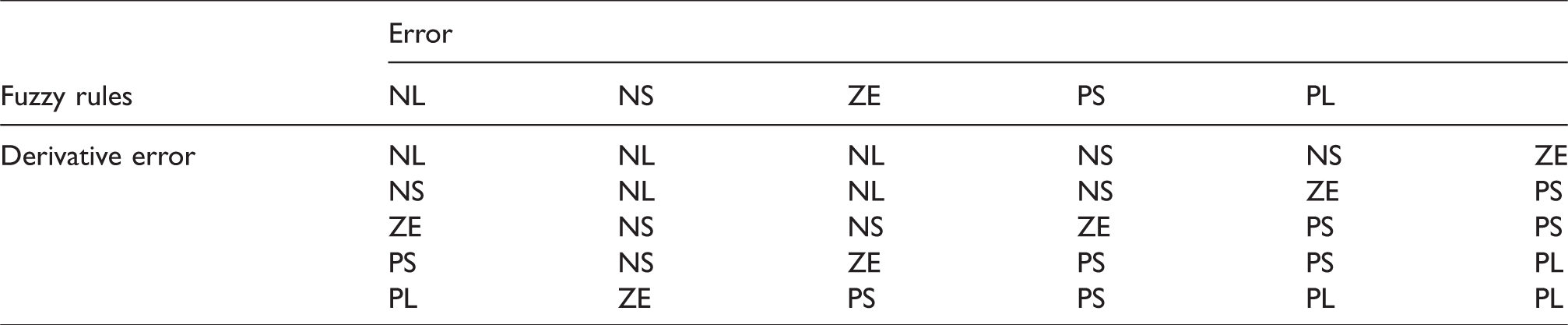

Table 1.

Rule base of Fuzzy-PID-based controller tuned by Ziegler–Nichols.

Fuzzy rules	Error
Fuzzy rules	NL	NS	ZE	PS	PL
Derivative error	NL	NL	NL	NS	NS	ZE
	NS	NL	NL	NS	ZE	PS
	ZE	NS	NS	ZE	PS	PS
	PS	NS	ZE	PS	PS	PL
	PL	ZE	PS	PS	PL	PL

PID controller optimized by ABC

ABC algorithm was introduced by Karaboga²⁷ to solve the numerical optimization problem based on foraging behavior of bee colony. Basically, a colony of bee is divided into three groups which are employed bees, onlookers, and scouts. Employed bees search food source within a neighborhood of food source and keep the information in the memory. Then, they will share the information with onlookers within the nest. Onlookers will select one of the best food sources. Every employed bee will represent one food source. The employed bee will continue to look out in exploiting the food source, and they will become a scout if the food source is abandoned. A scout will start to explore for a new food source randomly to be exploited by the employed bees.^28,29

The preference of a food sources chosen by the onlookers depends on the amount of nectar $N (θ)$ of that food sources. The probability of preferred source by onlookers increases proportionally with nectar amount of food source. Hence, the probability of food source located at $θ_{i}$ which will be selected by onlookers can be written as equation (2)^28,29

P_{i} = \frac{N (θ_{i})}{\sum_{k = 1}^{s} N (θ_{k})}

(2)

where P_i is the probability of food source located,

N (θ)

is the amount of nectar in the food sources,

θ_{i}

is the position of ith food sources, and S is the number of food source in around the nest. An onlooker bee will go to the food source located at

θ_{i}

after they get the dance information from the employed bees using this probability and determine the nectar amount of food sources. The position of food sources selected by onlookers will follow equation (3)^28,29

θ_{i} (c + 1) = θ_{i} (c) \pm ϕ_{i} (c)

(3)

where

ϕ_{i} (c)

is randomly step in finding the more nectar location around the food source. Onlookers will share the information with others in the hive if the nectar amount

F (θ_{i} (c + 1))

at location

θ_{i} (c + 1)

is higher than the food source at location

ϕ_{i} (c)

. Then, the location for food source will be changed to be

θ_{i} (c + 1)

. Otherwise, the previous location of food source at

θ_{i}

is kept as it is. Figure 4 shows the block diagram of PID controller tuned by ABC algorithm.

Figure 4.

The block diagram of PID-based controller tuned by ABC algorithm.

Simulation results and analysis

In this section, the simulation results obtained by hybrid Fuzzy–PID and intelligent PID–ABC controllers are presented. The performances of both controllers are compared and assessed in terms of highest attenuation level achieved in the first mode of vibration. Two different types of disturbances were introduced into the system for the assessment of the developed controller. The disturbances used in this study are multiple sinusoidal and multiple real disturbance.

For hybrid Fuzzy–PID controller, the parameters used to tune the controller are as discussed in “Fuzzy–PID-based controller” section. The values of K_p, K_i and K_d were obtained through the calculation based on Ziegler–Nichols formulation. For the intelligent PID–ABC controller, the tuning method was initialized by setting the number of iterations (NI) to 100 and number of bee colony size (NP) to 500, then varying the limit range of search boundary (LB) from 1 to 11. Then, the highest attenuation was observed with L = 10 obtained the best highest attenuation in the system. The procedure was repeated by fixing value of L = 10 and NI = 100 but the values of NP were varied from 50 until 500. The highest attenuation was observed with NP = 100. Last, the values of NP and L were fixed with 100 and 10, respectively, but the NI was varied from 50 until 500. The best attenuation was observed with NI = 100. So, the best parameters of PID–ABC controller were achieved by using NP = 100, L = 10, and NI = 100. Table 2 shows the PID parameters obtained using PID–ABC controller with multiple sinusoidal disturbance. By referring to Table 2, PID–ABC controller achieved lower MSE of 0.0220 as compared to Fuzzy–PID controller with MSE of 0.0961 for vibration suppression in the horizontal flexible plate system.

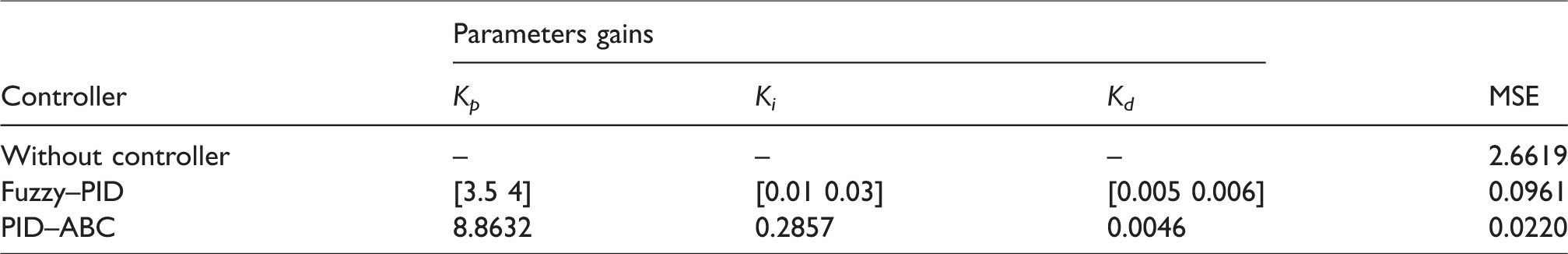

Table 2.

PID–ABC controller parameters with multiple sinusoidal disturbance.

Controller	Parameters gains			MSE
Controller	K_p	K_i	K_d	MSE
Without controller	–	–	–	2.6619
Fuzzy–PID	[3.5 4]	[0.01 0.03]	[0.005 0.006]	0.0961
PID–ABC	8.8632	0.2857	0.0046	0.0220

The attenuation level and percentage reduction in vibration suppression were achieved for both controllers as described in Table 3. From Table 3, it shows that the PID controller tuned by ABC algorithm achieved the higher attenuation level at the first mode of vibration which is the dominant mode in the horizontal plate system. This can be further illustrated in Figures 5 and 6 for vibration suppression through the proposed controllers using multiple sinusoidal disturbance in time and frequency domains, respectively. The PID–ABC controller provided better vibration suppression in the horizontal plate system by achieving 47.54 dB attenuation at the first mode of vibration in the system with 40.53% percentage of reduction, while the Fuzzy–PID controller achieved 32.04 dB attenuation with 27.31% of reduction. From the results, it is shown that the PID controller optimised by evolutionary algorithm using ABC as proposed in this paper has successfully suppressed higher unwanted vibration in the horizontal flexible plate system by achieving higher percentage reduction of vibration as compared to Fuzzy–PID controller.

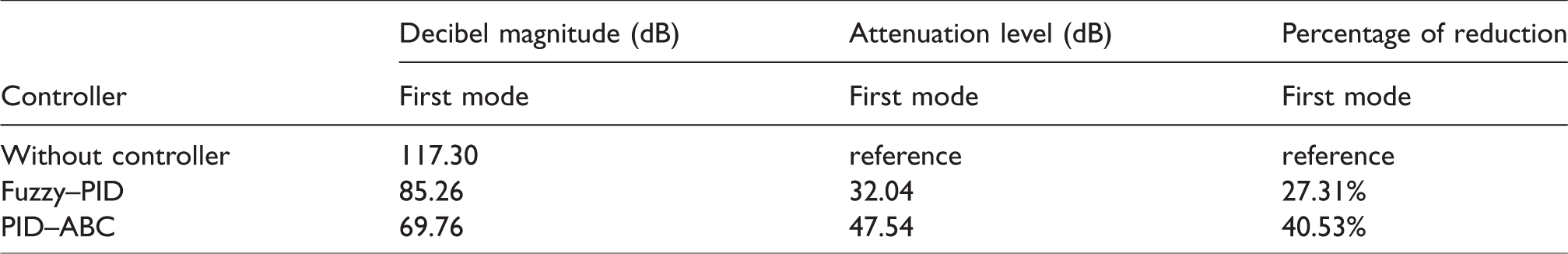

Table 3.

The attenuation level achieved for both controllers with multiple sinusoidal disturbance.

Controller	Decibel magnitude (dB)	Attenuation level (dB)	Percentage of reduction
Controller	First mode	First mode	First mode
Without controller	117.30	reference	reference
Fuzzy–PID	85.26	32.04	27.31%
PID–ABC	69.76	47.54	40.53%

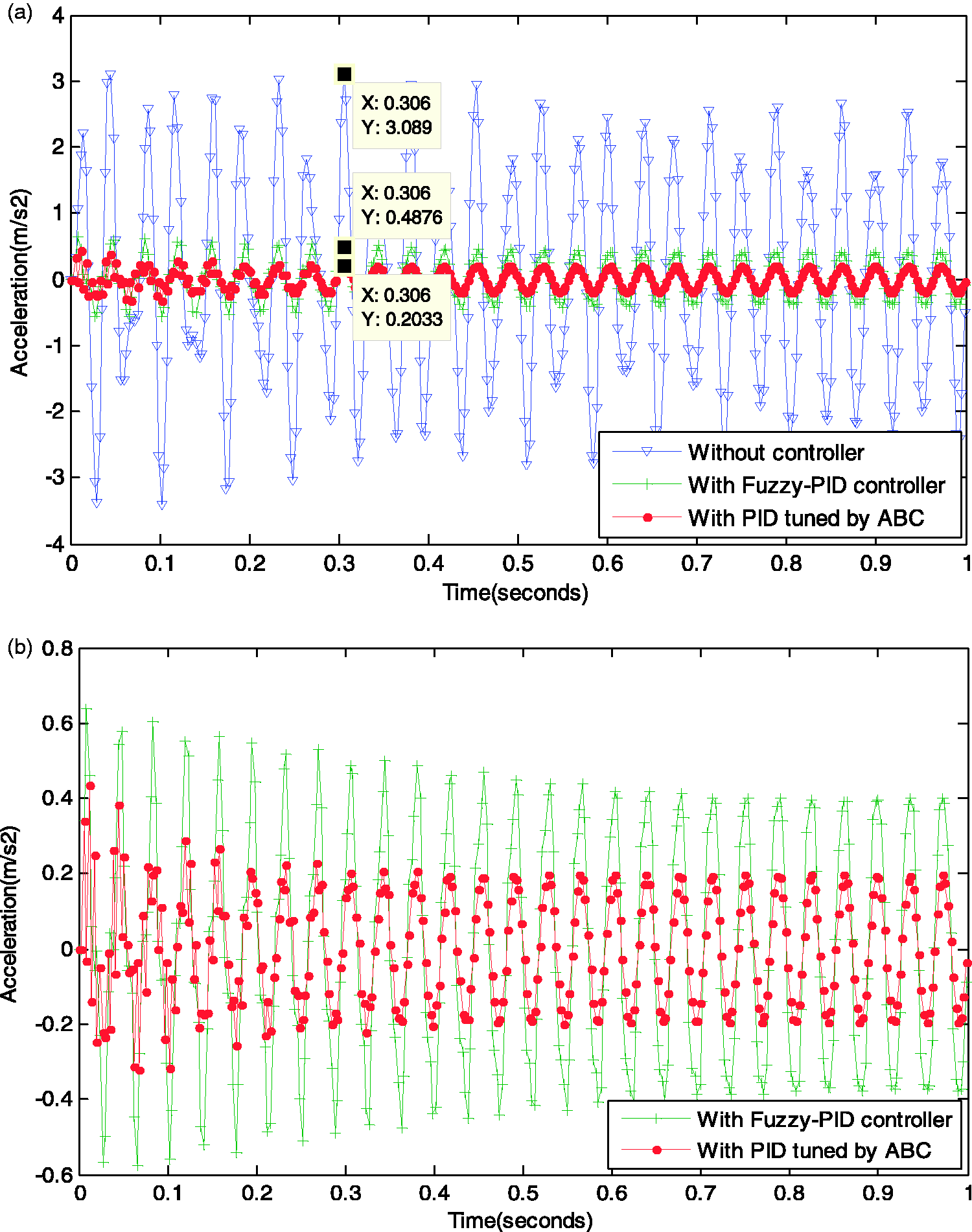

Figure 5.

Fuzzy-PID and PID tuned by ABC controllers for vibration suppression in time domain using multiple sinusoidal disturbance: (a) Comparison of the controller's performance before and after vibration control (b) enlarge view for the controller performances in time domain.

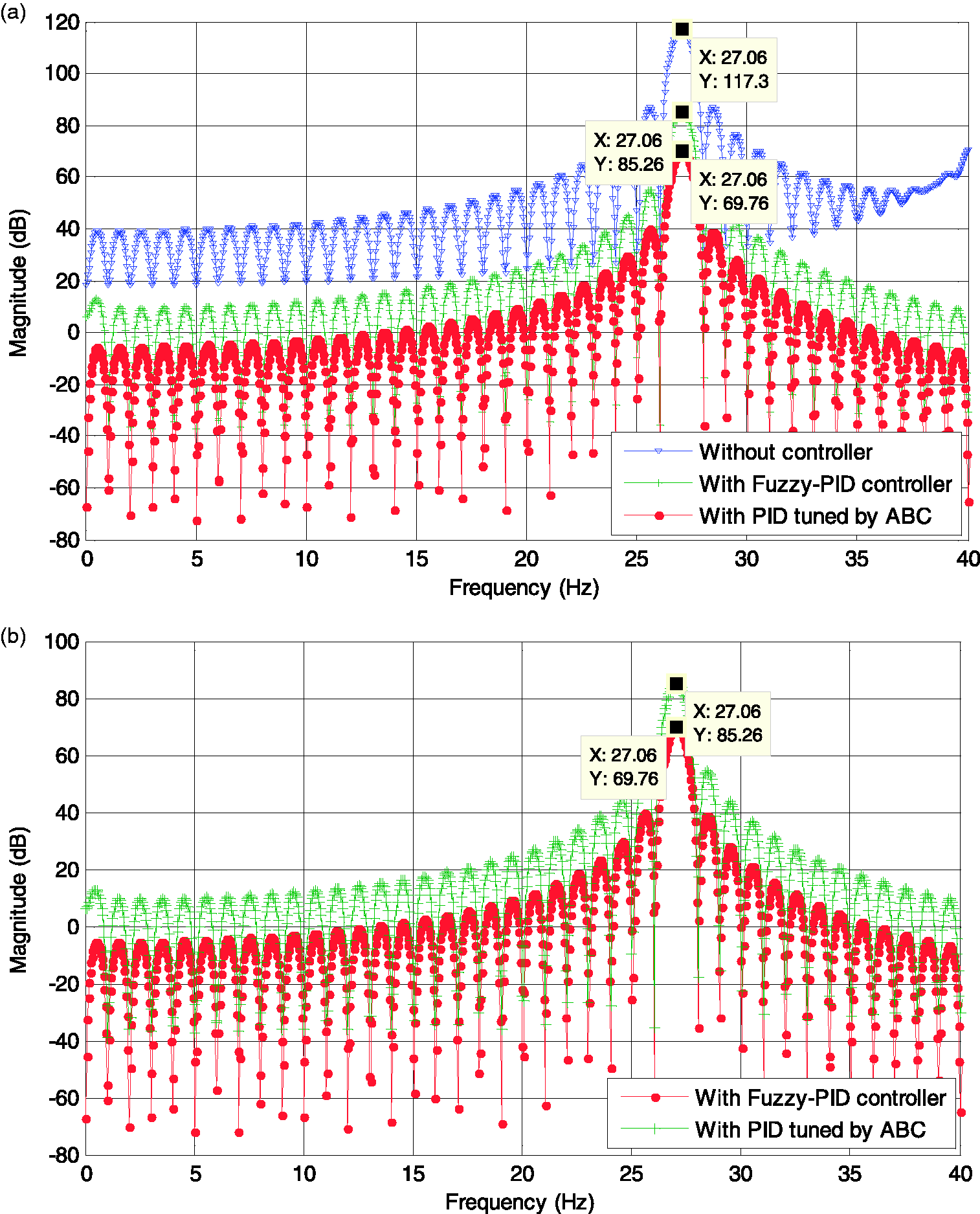

Figure 6.

Fuzzy-PID and PID tuned by ABC controllers for vibration suppression in frequency domain using multiple sinusoidal disturbance: (a)Comparison of the controller's performance before and after vibration control (b) enlarge view for the controller performances in frequency domain.

The robustness of the developed controller was later tested by employing difference disturbance in the system known as multiple real disturbance. Table 4 shows the MSE achieved for both the controllers using multiple real disturbance. Here, it can be seen that PID–ABC controller obtained lower MSE in the system with 0.0018 as compared with Fuzzy–PID controller which MSE value of 0.0047. The attenuation level and percentage reduction in vibration suppression are observed for both controllers as shown in Table 5. From Table 5, it is found that the PID controller tuned by ABC algorithm achieves higher attenuation level at the first mode of vibration which is the dominant mode in the horizontal plate system. This can be further illustrated in Figures 7 and 8 for vibration suppression through the proposed controllers using multiple real disturbance in time and frequency domains, respectively.

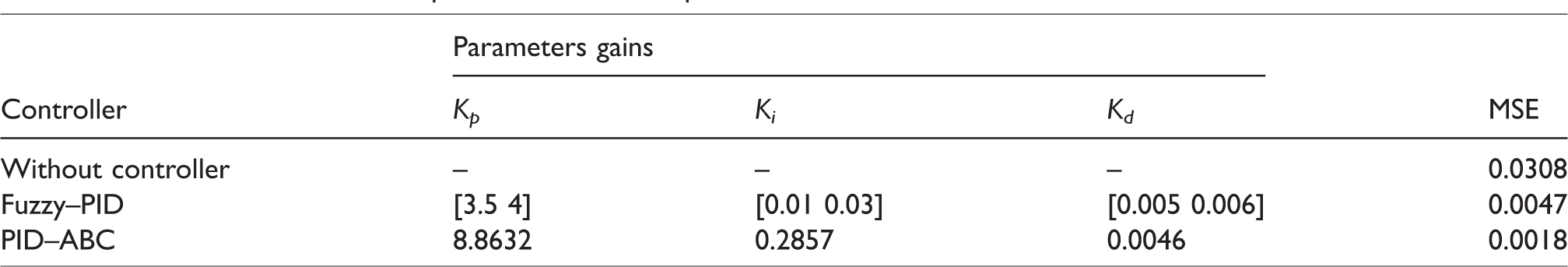

Table 4.

The PID–ABC controller parameter with multiple real disturbance.

Controller	Parameters gains			MSE
Controller	K_p	K_i	K_d	MSE
Without controller	–	–	–	0.0308
Fuzzy–PID	[3.5 4]	[0.01 0.03]	[0.005 0.006]	0.0047
PID–ABC	8.8632	0.2857	0.0046	0.0018

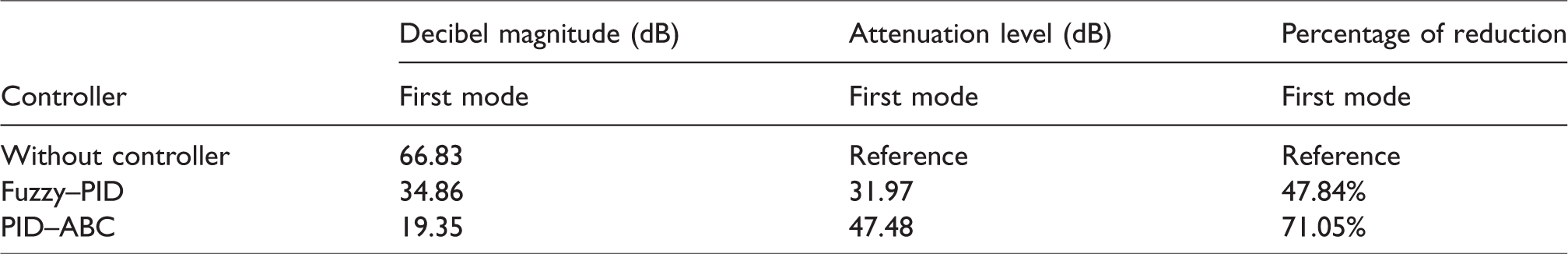

Table 5.

The attenuation level achieved for both controllers with multiple real disturbance.

Controller	Decibel magnitude (dB)	Attenuation level (dB)	Percentage of reduction
Controller	First mode	First mode	First mode
Without controller	66.83	Reference	Reference
Fuzzy–PID	34.86	31.97	47.84%
PID–ABC	19.35	47.48	71.05%

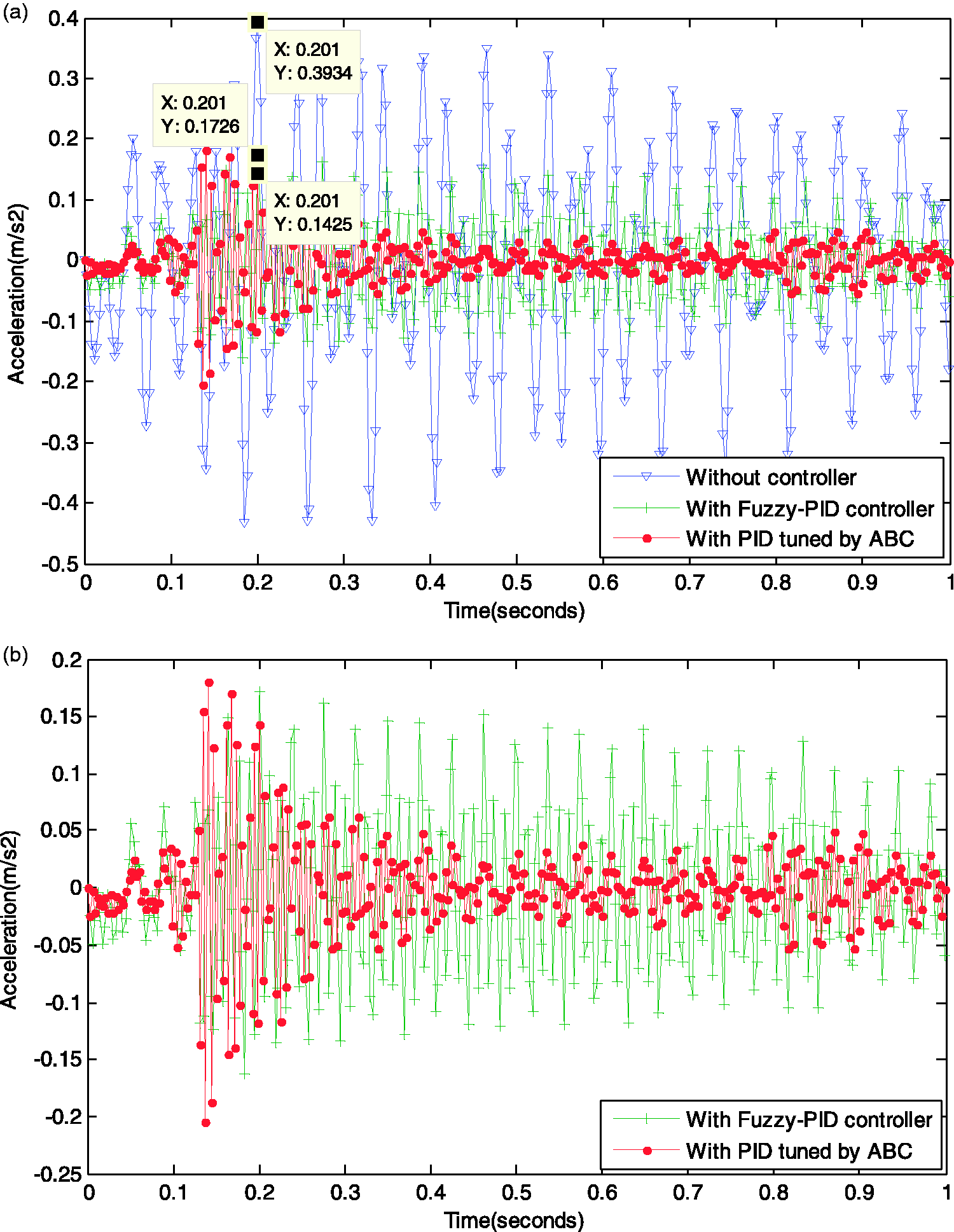

Figure 7.

Fuzzy-PID and PID tuned by ABC controllers for vibration suppression in time domain using multiple real disturbance: (a) Comparison of the controller's performance before and after vibration control (b) enlarge view for the controller performances in time domain.

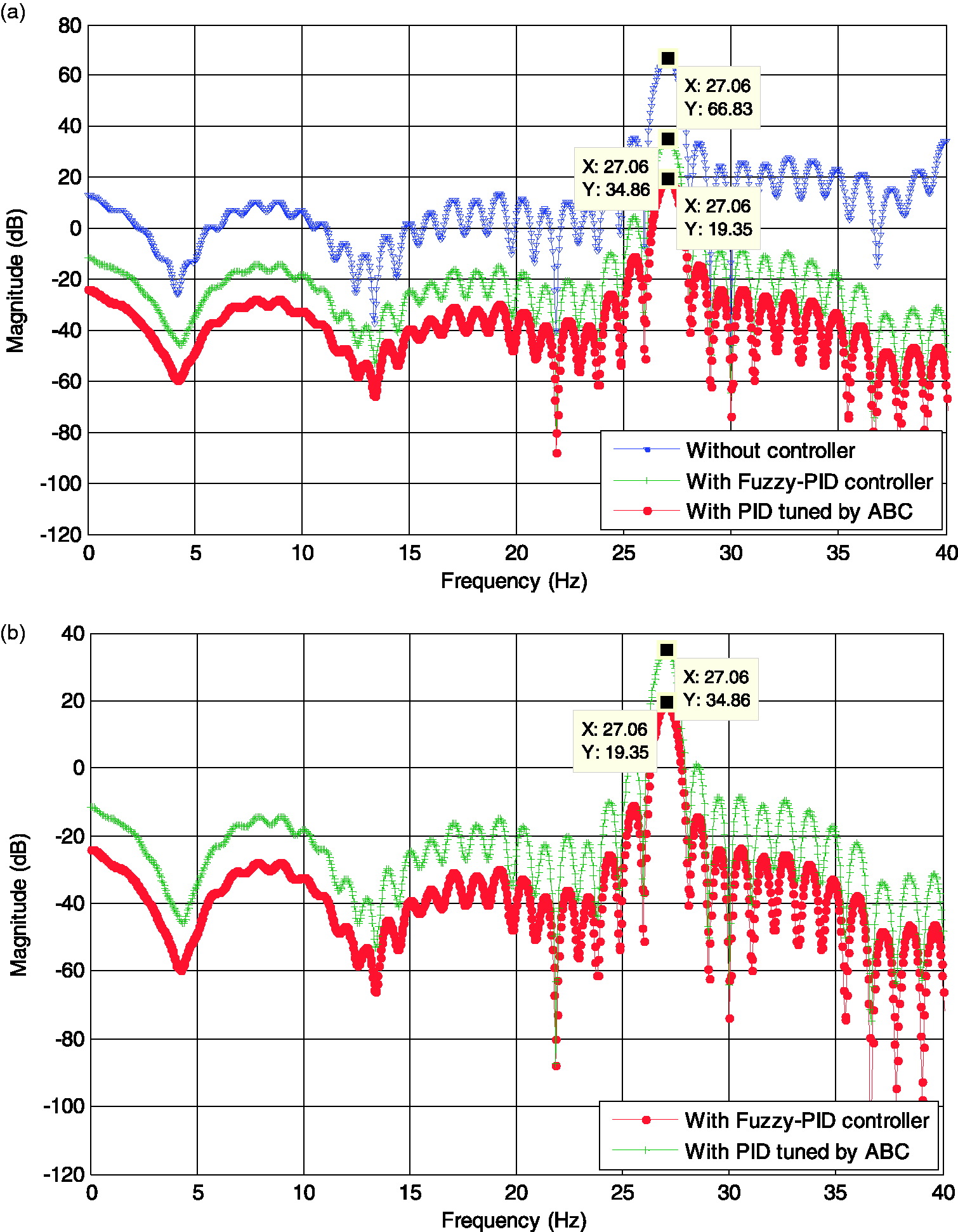

Figure 8.

Fuzzy-PID and PID tuned by ABC controllers for vibration suppression in frequency domain using multiple real disturbance: (a) Comparison of the controller's performance before and after vibration control (b) enlarge view for the controller performances in frequency domain.

The PID–ABC controller provides to better vibration suppression in the horizontal plate system by achieving 47.48 dB attenuation at the first mode of vibration in the system with 71.05% of reduction, while the Fuzzy–PID controller achieved 31.97 dB attenuation with 47.84% of reduction. Based on result presented, it is clearly observed that the proposed controllers achieving high robustness performances when it is successfully reduced the unwanted vibration while the system was exerted by different types of disturbances. In addition, it is found that the gain values obtained in this study are possible to be implemented in a real system, since the gain values are not too large. This statement is supported by Spearrit and Asokanthon,³⁰ where the large values of gain obtained by the controller cannot be implemented into the real system because it can shorten the lifetime of the actuator itself. Furthermore, it will ruin the actuator linearity at a certain point of the operating condition and indirectly bring instability to the system.³¹

It is shown that the proposed controller is robust and can work properly for vibration suppression in a horizontal plate system. Both of the proposed methods are shown to successfully reduce the unwanted vibration; however, PID–ABC has shown to be more effective in suppressing the unwanted vibration.

In addition, the best controller achieved in the simulation work known as PID–ABC controller was tested on the experimental rig, whereby the experimental environment is applied as a platform of validation due to verify the robustness of developed controllers. The horizontal flexible plate experimental rig was developed with attached sensors and actuators on the rig for such a purpose of controller validation. Consequently, the main contribution of this research is to serve the intelligent controller and employed with the self-developed actuator namely magnetic shaker for vibration suppression of the horizontal flexible plate through experimental work. Figures 9 and 10 present the experimental performance of PID–ABC controller in time and frequency responses, respectively. The experimental performance of PID–ABC controller is summarized in Table 6.

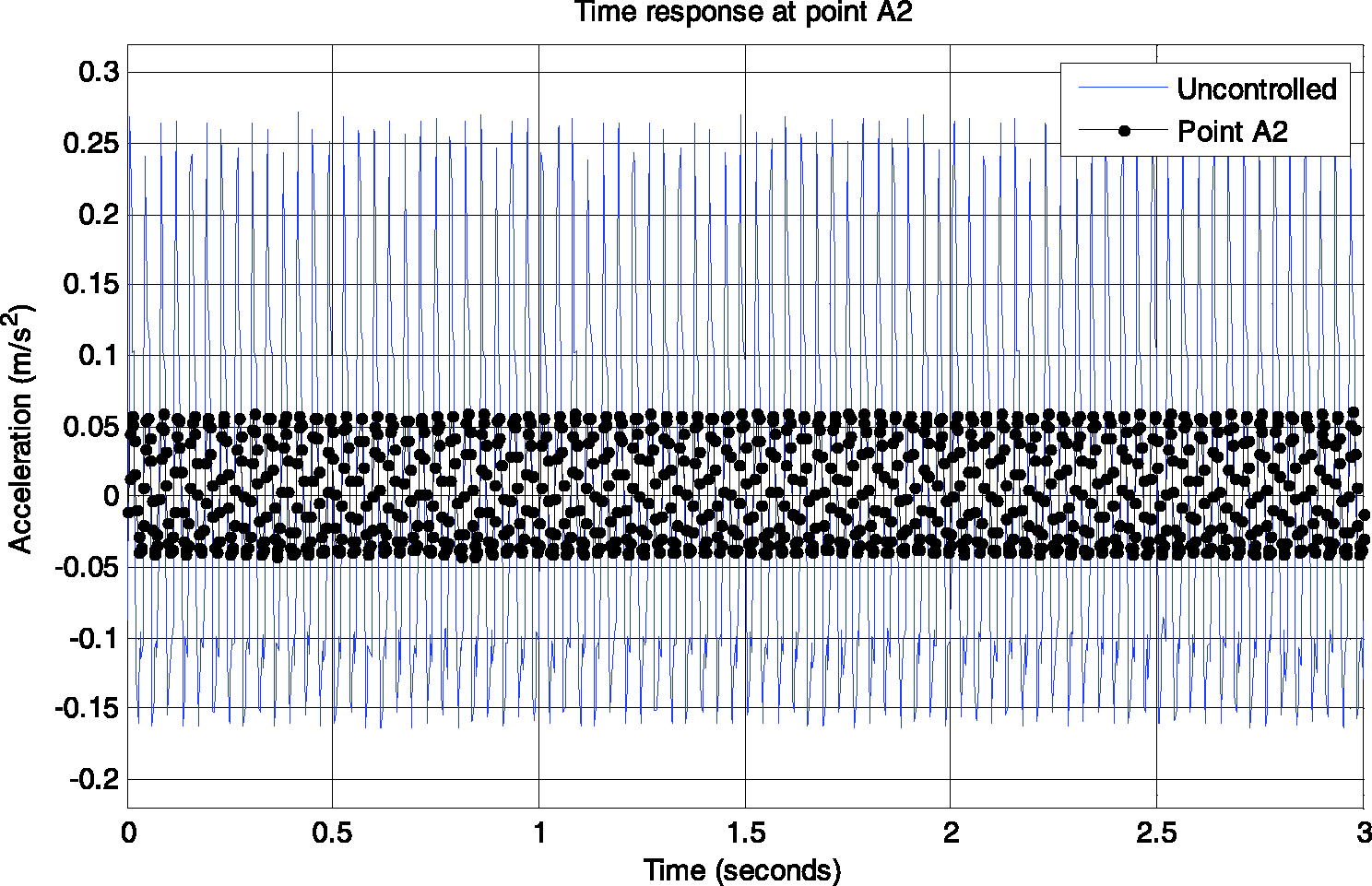

Figure 9.

Experimental performances of PID-based controller tuned by ABC algorithm in time response.

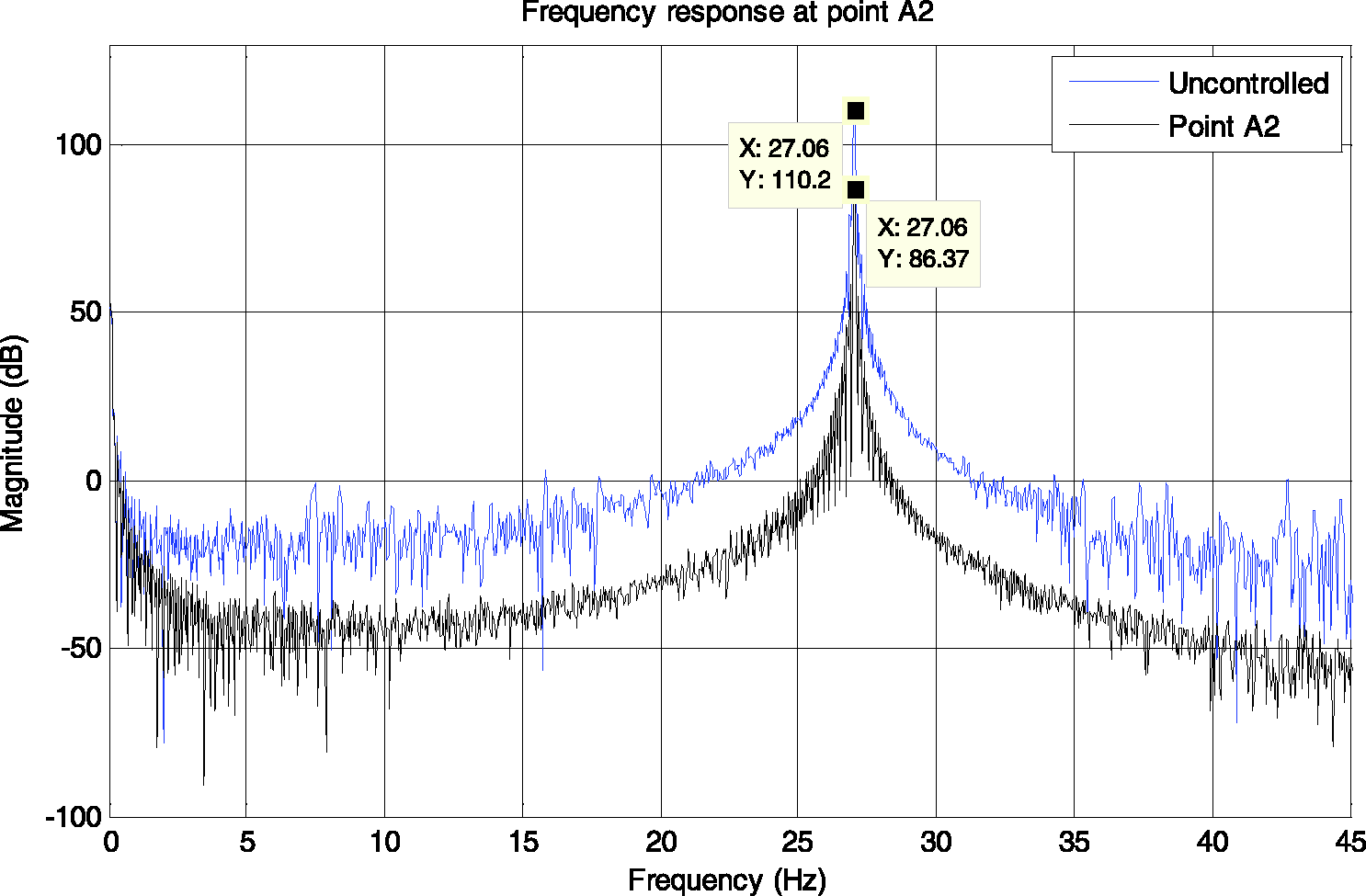

Figure 10.

Experimental performances of PID-based controller tuned by ABC algorithm in frequency response.

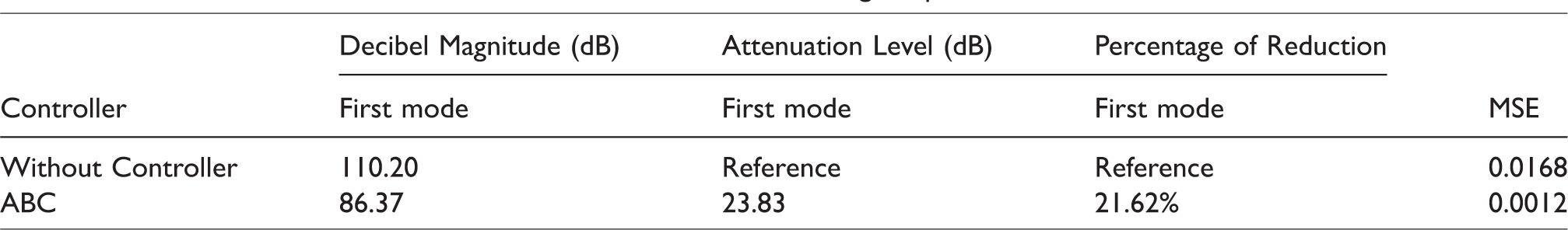

Table 6.

The attenuation level achieved for PID–ABC controller through experimental work.

Controller	Decibel Magnitude (dB)	Attenuation Level (dB)	Percentage of Reduction	MSE
Controller	First mode	First mode	First mode	MSE
Without Controller	110.20	Reference	Reference	0.0168
ABC	86.37	23.83	21.62%	0.0012

From Table 6, it can be seen that PID–ABC has shown attenuation level at the first mode of vibration with 23.83 dB. The attenuation value has been reduced from 110.2 to 86.37 dB, equivalent to 21.62% attenuation, after the introduction of vibration control. The MSE achieved by PID–ABC is 0.0012, compared to 0.0168 before the activation of controller. From those results, conclusion can be made that PID–ABC controller succeeded in making remarkable vibration suppression for horizontal flexible plate system. Hence, this result confirmed the simulation part that shows that PID–ABC is the superior controller in suppressing the unwanted vibration as compared to other controllers.

Conclusion

The development of parametric modeling using PSO algorithm and AVC of horizontal flexible plate system using Fuzzy–PID controller and PID controller optimized by ABC algorithm has been presented. The model was developed using parametric identification technique based on auto-regressive with exogenous input structure. The vibration modes of the flexible plate structure have been successfully detected which leads to a good controller design. The performance of the developed controllers has been considered for the horizontal flexible plate system. Based on the simulation results using multiple sinusoidal disturbance, the PID–ABC controller showed 40.53% improvement of performance compared to Fuzzy–PID controller for the vibration suppression. Based on these results, it can be concluded that the PID–ABC controller has performed better than Fuzzy–PID controller for horizontal flexible plate system used in this research.
